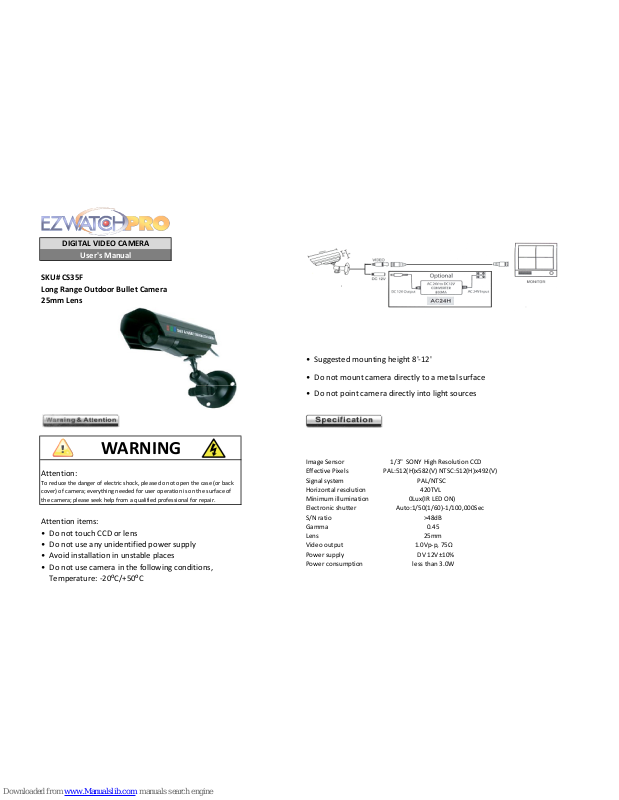

DIGITAL VIDEO CAMERA
User's Manual
SKU# CS35F
Long Range Outdoor Bullet Camera
25mm Lens
• Suggested mounting height 8'-12'
• Do not mount camera directly to a metal surface
• Do not point camera directly into light sources
Attention items:
• Do not touch CCD or lens
• Do not use any unidentified power supply
• Avoid installation in unstable places
Temperature: -20⁰C/+50⁰C
WARNING
Attention:
To reduce the danger of electric shock, please do not open the case (or back
cover) of camera; everything needed for user operation is on the surface of
the camera; please seek help from a qualified professional for repair.
Image Sensor 1/3" SONY High Resolution CCD
Effective Pixels PAL:512(H)x582(V) NTSC:512(H)x492(V)
Signal system PAL/NTSC
Horizontal resolution 420TVL
Minimum illumination 0Lux(IR LED ON)
Electronic shutter Auto:1/50(1/60)-1/100,000Sec
S/N ratio >48dB
Gamma 0.45
Lens 25mm
Video output 1.0Vp-p, 75
Ω
Power supply DV 12V±10%
Power consumption less than 3.0W
• Do not use camera in the following conditions,
Making a BNC Connection
Connecting a Pre-made Cable
Step 1: Strip away all of the cable and shielding so
you have 1/2" of the center conductor exposed as
shown in the picture.
Connect this end to
the camera.
Step 2: Then strip away the black outer jacket so
you have 1/4" of the shielding exposed. Do not
allow any of the copper shielding to touch the
center conductor.
Step 3: Insert the cable into the fitting and gently
find the hole for the center conductor before you
press the fitting onto the wire. Now just twist the
fitting onto the wire while firmly pressing down
until the fitting is firmly on the cable.
The cables are labeled with a yellow wrap detailing the camera end
and the DVR end. It is very important that you identify these ends
before installing the cable so that you have the correct ends at the
correct location.
Installing a power wire pigtail
Contact
Step 1: At the camera location, take the power
cable and strip away the outer sheathing to expose
the inner two wires (black & red). Then strip away
about 1/4" of the wires jacket to expose the
copper wire. Do the same to the power wire pigtail
which connects to the camera power connection
as shown. Note: Do not strip or cut the power lead
coming directly from the camera. You should strip
the "pigtail" power cable which came with your
kit. You should have one "pigtail" for each camera.
Step 2: Now take the red power cable lead and
twist it together with the black & white lead from
the power pigtail. Now take the black lead from
the power cable and twist it together with the all
black lead from the pigtail. Use the gray wire nuts
provided with your system and twist them onto
the wires until they are firmly secured.
