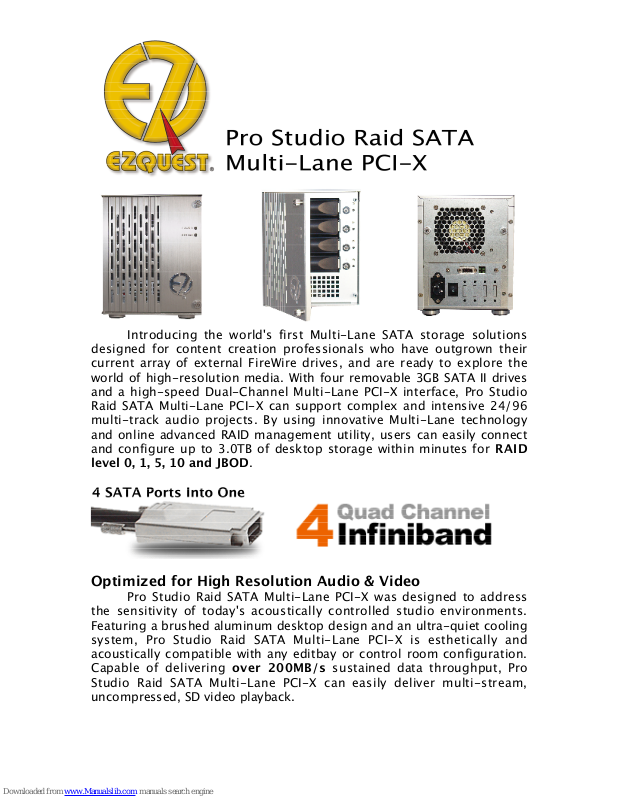

Page 1
Introducing the world's first Multi-Lane SATA storage solutions
designed for content creation professionals who have outgrown their
current array of external FireWire drives, and are ready to explore the
world of high-resolution media. With four removable 3GB SATA II drives
and a high-speed Dual-Channel Multi-Lane PCI-X interface, Pro Studio
Raid SATA Multi-Lane PCI-X can support complex and intensive 24/96
multi-track audio projects. By using innovative Multi-Lane technology
and online advanced RAID management utility, users can easily connect
and configure up to 3.0TB of desktop storage within minutes for RAID
level 0, 1, 5, 10 and JBOD.
Optimized for High Resolution Audio & Video
Pro Studio Raid SATA Multi-Lane PCI-X was designed to address
the sensitivity of today's acoustically controlled studio environments.
Featuring a brushed aluminum desktop design and an ultra-quiet cooling
system, Pro Studio Raid SATA Multi-Lane PCI-X is esthetically and
acoustically compatible with any editbay or control room configuration.
Capable of delivering over 200MB/s sustained data throughput, Pro
Studio Raid SATA Multi-Lane PCI-X can easily deliver multi-stream,
uncompressed, SD video playback.
Page 2
Next Generation 3GB SATA II
Pro Studio Raid SATA Multi-Lane PCI-X features a quad-channel
Multi-lane interface that delivers true 4X performance and the
convenience of a single cable. With support for 3GB SATA II drives, Pro
Studio Raid SATA Multi-Lane PCI-X offers incredible freedom when it
comes to future disk upgrades or system re-purposing. Pro Studio Raid
SATA Multi-Lane PCI-X includes a 3-year limited warranty.
Highlights & Features
• Designed for RAID levels 0, 1, 5, 10, and JBOD performance
configurations
• Capable of delivering over 200MB/s sustained data throughput
• Up to 3.0TB Multi-Lane storage array for SATA II Systems
• Unprecedented performance and quality
• Supports Mac OSX, WindowsXP/2003
• 24-bit, 96kHz audio, DV25/DV50 and 720P HD support
• Single connector quad channel Infiniband interface
• Removable & hot swappable disk drives & fan module
• 3-year limited warranty
Small Numbers of Supported Applications For Pro Audio
• Digidesign Pro Tools LE
• Digidesign Pro Tools HD Home, Pro Tools HD
• Apple Logic Audio
• Cakewalk Sonar
• Magix Samplitude
• Ableton Live
• MOTU Digital Performer
• Tascam Gigastudio
• Mackie Traction
• Magix Sequoia
• Adobe Audition
Small Numbers of Supported Applications For Pro Video
• Matrox RT/RTX Series
• Canopus Edius NX for HDV/SD
• Avid Xpress Pro
• Avid Xpress Liquid
• Apple Final Cut Pro for HDV/SD
• Adobe Premiere for HDV/SD
• Sony Vegas for HDV/SD
Page 3
Multi-Lane PCI-X Raid Controller Card
Supporting RAID levels 0, 1, 5, 10, and
JBOD, plus disk hot plug, hot swap, the Multi-Lane
PCI-X Raid Controller Card is an ideal solution for
applications where high levels of sustained read
and write performance are required, including audio
and video streaming, web content, reference data
and fixed content storage. Pro Studio Raid can be
configured and monitored remotely from a single
workstation providing convenience and flexibility,
ensuring 24x7 data accessibility.
Specification:
Host Side Interface:
64bit, 66/100/133MHz PCI-X,
compatible to PCI
Disk Interface:
SATA I or SATA II
Number of Channels:
4 Infiniband
Allowed Disk Connection:
4 per Infiniband channel up to 16
(SATA I or II Hard Drives)
Supported RAID Levels:
RAID 0, 1, 5, 10 and JBOD
Operating Systems Support
Mac, Windows, Win x64 Editions,
Linux (opensource) and FreeBSD
(opensource)
RAID Management Tool
BIOS, Web based RAID, and
Management Software and CLI
Some Highlighted Features:
Hot swap/hot spare, 64bit LBA for
over 3.0TB partition support, Up to
16 SATA I or SATA II hard drives,
Drive Activity/Failed LED support,
SMTP support for email notification,
and Compatible with RocketGuard
100
Accessories:
• Infiniband to Infiniband Cable
• Multi-Lane PCI-X Raid Controller Card
• Raid Controller Utility CD
• EZQuest Utility CD
Pro Studio Raid SATA Multi-Lane PCI-X Part Numbers
B12162: Pro Studio Raid SATA Multi-Lane 1.2TB PCI-X
B20160: Pro Studio Raid SATA Multi-Lane 2.0TB PCI-X
B30160: Pro Studio Raid SATA Multi-Lane 3.0TB PCI-X
© 2006 EZQuest Inc. All rights reserved. EZQuest is a registered trademark and Pro Studio Raid is
a trademark of EZQuest. All other names are trademarks of their respective companies.
EZQuest keeps the right to change this Data Sheet without any notice.
