Ports: 2 x 9-Pin FireWire 800/1394B Ports
1 x 6-Pin FireWire 400/1394A Port
Interface: 33MHz / 32bit
Digital Video:
Full Support
Controller:
OHCI Compliant IEEE 1394B Controller
AC Adapter:
(Optional Part # E59001)
Input: AC 100~240V
Output: DC 12V/2A
Supports:
IEEE P1394B revision 1.33
IEEE 1394A-2000
IEEE 1394-1995 Standard for
High Performance
Included Hardware:
PCMCIA Card
Included Software:
1394B Drivers for PC
WinDVD Editing SW for PC
Transfer Rates: 400 Mbit/s (FireWire 400 port )400 Mbit/s (FireWire 400 port )
800 Mbit/s (FireWire 800 ports) 800 Mbit/s (FireWire 800 ports)
Dimensions: Dimensions: 4 5/8"(L) X 3 1/8"(W) X 3/4"(H)4 5/8"(L) X 3 1/8"(W) X 3/4"(H)
Warranty: Warranty: 1 Year1 Year

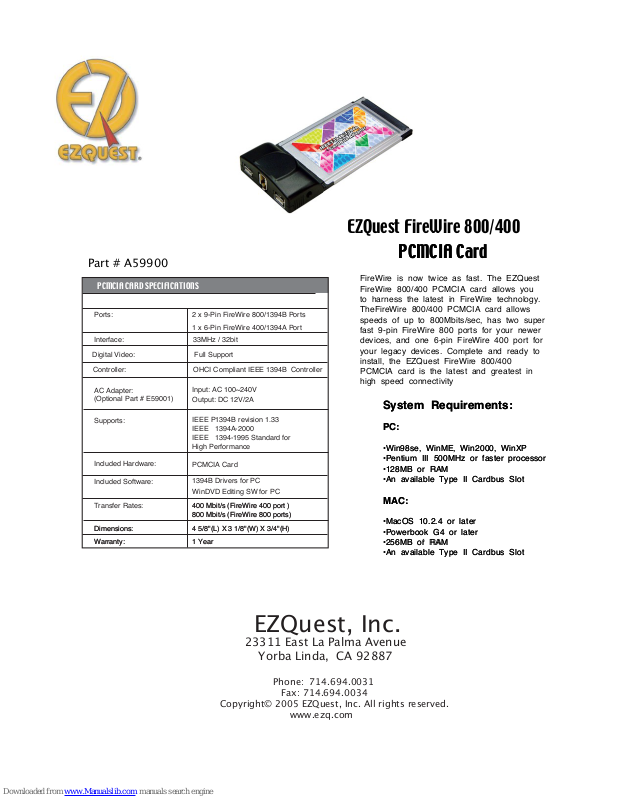

PCMCIA CARD SPECIFICATIONS
EZQuest, Inc.
23311 East La Palma Avenue
Yorba Linda, CA 92887
Phone: 714.694.0031
Fax: 714.694.0034
Copyright© 2005 EZQuest, Inc. All rights reserved.
www.ezq.com
PCMCIA CardPCMCIA Card
EZQuest FireWire 800/400
FireWire is now twice as fast. The EZQuest
FireWire 800/400 PCMCIA card allows you
to harness the latest in FireWire technology.
TheFireWire 800/400 PCMCIA card allows
speeds of up to 800Mbits/sec, has two super
fast 9-pin FireWire 800 ports for your newer
devices, and one 6-pin FireWire 400 port for
your legacy devices. Complete and ready to
install, the EZQuest FireWire 800/400
PCMCIA card is the latest and greatest in
high speed connectivity
System Requirements:
PC:
•Win98se, WinME, Win2000, WinXP
•Pentium III 500MHz or faster processor
•128MB or RAM
•An available Type II Cardbus Slot
MAC:
•MacOS 10.2.4 or later
•Powerbook G4 or later
•256MB or RAM
•An available Type II Cardbus Slot
System Requirements:
PC:
•Win98se, WinME, Win2000, WinXP
•Pentium III 500MHz or faster processor
•128MB or RAM
•An available Type II Cardbus Slot
MAC:
•MacOS 10.2.4 or later
•Powerbook G4 or later
•256MB of RAM
•An available Type II Cardbus Slot
Part # A59900
