Optical Media Converter

User Manual

V1.1

Please read before using the device

www.ez-net.co.kr

Industrial POE Media Converter / Industrial POE Switch

Page 2 of 2

www.ez-net.co.kr

1. 제품소개

.산업용 광미디어 컨버터 5 종의 제품과 산업용 스위치 6 종의 제품으로 구성된 공용사용자 설명서입니다.

NEXT-300FSCM-POE / NEXT-300FSCS-POE /NEXT-300FSCSWA-POE/ NEXT-300FSCSWB-POE / NEXT-3000SFP-POE 산업용광미디어 컨버터

시리즈모델과 NEXT-POE514FDT-SCM / NEXT-POE515FDT-SCS / NEXT-POE516FDT-A / NEXT-POE516FDT-B / NEXT-POE524FDT /

NEXT-POE1524GDT 산업용 POE 스위치는 열악한 환경에서도 안정적으로 작동할 수 있는 견고한 Industrial Level Four EMC 기준으로 설계되었습니다. .Auto-Negotiation 및 LED 램프를 지원하여 네트워크를 제공하는 이상적인 솔루션입니다. .이 장치는 네트워크 안정성을 보장하기 위하여 전원이중화 시스템 (12~56VDC)를 지원합니다. DIN 레일 장착 및 벽면장착의 두 가지 설치방식 에 대응하여 편리한 현장설치가 가능합니다. .POE IP 카메라 및 POE 무선 AP 와 같은 모든 종류의 IEEE802.3at PD(Powered Device)를 지원하며 포트당 최대 30W 의 전력을 지원합니다. (48V DC 이상의 전원공급 시 POE 기능이 동작합니다.)

2. Packing list

Industrial media converter/Switch 1piece Warranty card 1piece User manual 1copy DIN-rail or wall mounting kit 1piece

Note : "The product components are subject to change without notice.

3. The panels and LED indicators

Industrial POE Media Converter / Industrial POE Switch

Page 3 of 3

www.ez-net.co.kr

Model No.

Description

NEXT-300FSCM-POE

10/100M MMF,1310nm,SC,2km, with POE

NEXT-300FSCS-POE

10/100M SMF,1310nm,SC,20km, with POE

NEXT-300FSCSWA-POE

10/100M Bi-di TX1310/RX1550nm,SC,20km, with POE

NEXT-300FSCSWB-POE

10/100M Bi-di TX1550/RX1310nm,SC,20km, with POE

NEXT-3000SFP-POE

10/100/1000M SFP with 1TP POE

Industrial POE Media Converter / Industrial POE Switch

Page 4 of 4

www.ez-net.co.kr

Mark

Name

Function

Terminal block

Power supply and Grounding port

PWR1

“On”: Power 1 is on and normal

PWR2

“On”: Power 2 is on and normal

POE

“On”: Power over POE port is on and normal

FL/A

“On”: Fiber link is in correct connection. “Blink”: Signal packet goes through Fx end

100M

“On”: 100Mbps

TL/A

“On”: Electric link is in correct connection. “Blink”: Signal packet goes through Tx end

Optical port

Fiber optic connecting port. Connector type: SC, GBIC, Bi-di

DIP Switch

To control the LFP function

RJ45 port

Copper cable connector

100M

“On”: 100Mbps

FL/A2

“On”: SFP2 Fiber link is in correct connection. “Blink”: Signal packet goes through SFP2 Fx end

FL/A1

“On”: SFP1 Fiber link is in correct connection. “Blink”: Signal packet goes through SFP1 Fx end

SFP1

SFP mould port 1

SFP2

SFP mould port 2

1×4 RJ45

Copper cable connector

DIN kit

DIN-rail mounting kit

Ear kit

Wall mounting kit

Model No.

Description

NEXT-POE514FDT-SCM

Industrial 10/100M Dual SC + 4TP POE Fiber Switch(1310nm/2Km Multi-mode)

NEXT-POE515FDT-SCS

Industrial 10/100M Dual SC + 4TP POE Fiber Switch(1310nm/20Km Single-mode)

NEXT-POE516FDT-A

Industrial 10/100M SC + 4TP POE Fiber Switch( Bi-di TX:1310nm RX:1550nm/20km

NEXT-POE516FDT-B

Industrial 10/100M SC + 4TP POE Fiber Switch( Bi-di TX:1550nm RX:1310nm/20km

NEXT-POE524FDT

Industrial 10/100M 2SFP + 4TP POE Fiber Switch

NEXT-POE1524GDT

Industrial 10/100/1000M 2SFP + 4TP POE Fiber Switch

Industrial POE Media Converter / Industrial POE Switch

Page 5 of 5

www.ez-net.co.kr

4. Installation

4.1 DIN-rail installation

The DIN installation is based on the Pic 1 and Pic 2. Unload is based on

the Pic 3, then Pic2 and Pic 1.

Industrial POE Media Converter / Industrial POE Switch

Page 6 of 6

www.ez-net.co.kr

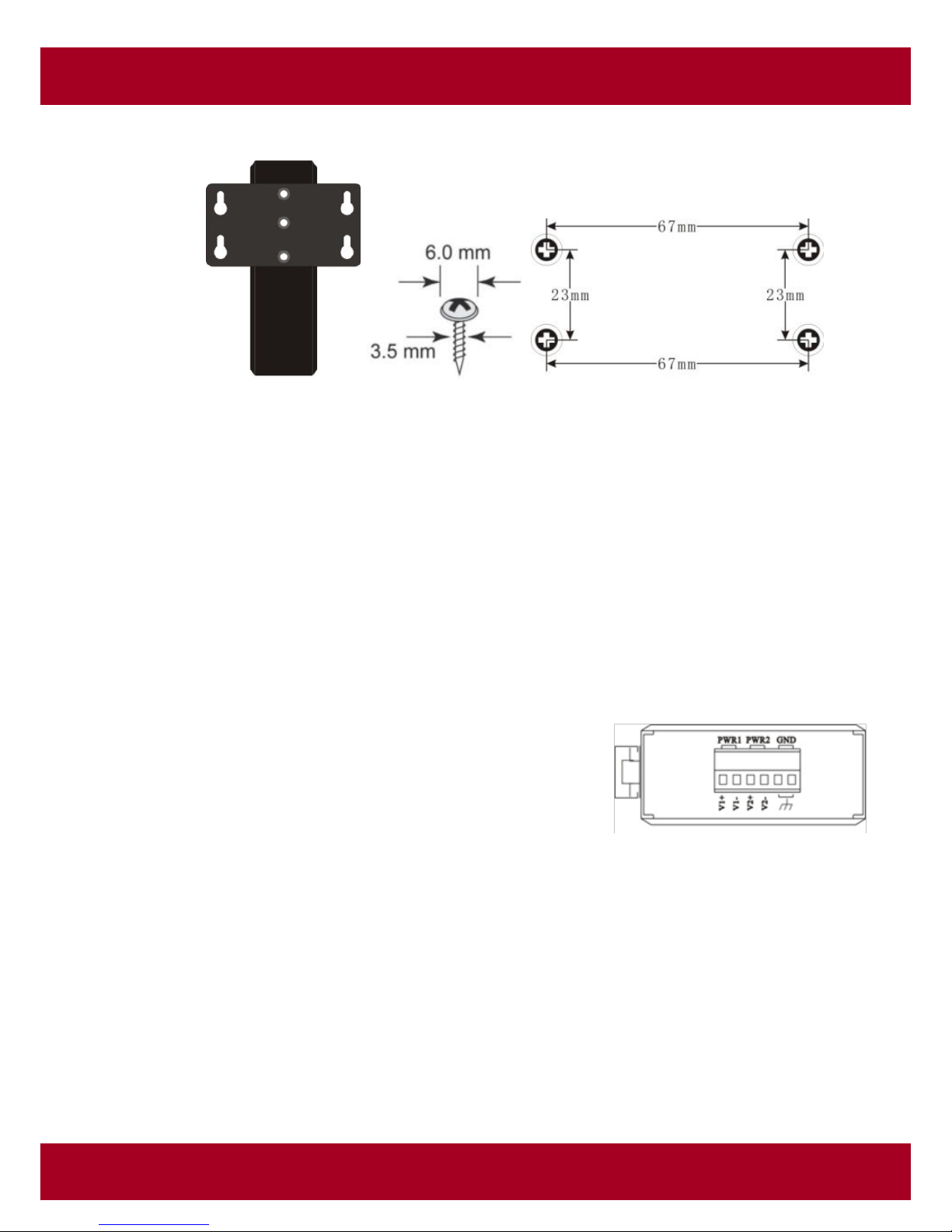

4.2 Wall-mounted installation

Pic 4 Pic 5 Pic 6

Fix hanging ears in the switch, as shown in figure 4; Select 4 suitable screws (diameter of screw head should be less than 6

mm , diameter of screw should be less than3.5 mm diameter, as shown in Pic

5) and fix the device on the wall as Pic 6, don’t completely tighten the screws, keep some space about 2mm.

Install hanging ear of switch alignment inside the four screws, then press the switch down, ensure the hanging ear has been fix properly, and turn the screw.

4.3 Wall-mounted installation

Input terminal of the switch for 6PIN plug type terminals, V1+ and V1- is for power supply 1 (PWR1), V2 + and V2- is for power supply 2 (PWR2) and GND for earthing terminal, as shown in Pic 7.

Power 1 and power 2 input voltage range is 12VDC ~ 56VDC，V1+,and V2+ are positive, V1- and V2- are

negative, and the equipment supports anti reverse function;

Two sets of power can be simultaneously accessed. So if One of the power failure, the switch is still able to work;

Pic 7

Industrial POE Media Converter / Industrial POE Switch

Page 7 of 7

www.ez-net.co.kr

4.4 Copper cable connection

MDI

MDI-X

4.5 Fiber cable connection

Industrial POE Media Converter / Industrial POE Switch

Page 8 of 8

www.ez-net.co.kr

4.6 DIP switch

Switch

Status

Function

Pass through mode

Off

Switch mode

Modified cut through mode

Off

Store-and-forward mode

No available

Off

4 On

Enable LFP function(default)

Off

Disable LFP function

5. Technical parameters

1. Power supply Input voltage: 12V～56V (redundant dual power) PSE Power: 0～30W POE Pin: 1/2+，3/6-

2. Copper Port Connector: RJ-45 connector Data Rate: 10/100Mbps Auto Twisted Pair cable: Cat5 UTP cable Transmission distance: 100 meter

3. Fiber Port Connector: SC, SFP Data Rate: 155Mbps，1.25Gbps Fiber Type: SM 9/125μm，MM 50/125μm、62.5/125μm Transmission distance: 2km ~ 20km

4. Environment Storage temperature: -40~95℃ Operating temperature: -40~85℃ Relative humidity: 5%-90%

5. Mechanism

Enclosure: IP 40, Black, Metal shell Mounting: DIN-rail, Wall

Industrial POE Media Converter / Industrial POE Switch

Page 9 of 9

www.ez-net.co.kr

6. Standards

UL508 EMI FCC Part 15，CISPR（EN55022） EMS en61000-4-2（ESD）Level 3 EN61000-4-3（RS）Level 3 EN61000-4-4（EFT）Level 3 EN61000-4-5（Surge）Level 3 EN61000-4-6（CS）Level 3 EN61000-4-8 EN61000-4-11 IEC60068-2-27 IEC60068-2-32 IEC60068-2-6

7. Warning

1. This product is suitable for indoor application.

2. Place the dust cover on the fiber interface when not in use.

3. It is dangerous to stare at the fiber transmitter with the naked eye.

4. Optical fiber transceivers must be used in pair.

5. Single optical fiber transceiver must be used in pair(A,B) A: TX1310/RX1550nm B: TX1550/RX1310nm.

8. Trouble shooting

1. Device is not connecting. Please check that the corresponding network

device is using the same transfer rate as the media converter (10Mbps, 100Mbps or 1000Mbps).

2. If power loss is excessive in the fiber, please check and clean the fiber patch

cord connectors.

9. Responsibility Note

(1) The user should cover the damage during transport to equipment resend

for maintained at the user’s own expense

(2) Please contact your authorized reseller immediately, if there is any damage

to the equipment during transport

(3) If you want to prepare power supply by yourself, please make sure the

power supply you select meet the requirement given by this manual. We will not cover the damage caused by your using unqualified power supply.

(4) Do please follow this manual when using the power supply.

Industrial POE Media Converter / Industrial POE Switch

Page 10 of 10

www.ez-net.co.kr

transmitted in any form or by any means, without authorization form us.

(6) We will not cover the damage to the equipment or any person caused by

your changing the equipment or this manual in any form without authorization from us.

(7) We will change the equipment for new ones if it can not work normally

because of the quality itself within the warranty time. We will keep the old ones.

(8) The packages of the equipment meet the requests of environmental

protection, should be recycled. Attention: If there are any printing mistakes in this manual, the right to explain is reserved. And the pictures of equipment appearance in this manual are just for user’s information, the final equipment appearance depends on reality products, if there are any improvements on technology, we will be sorry for won’t inform you again.

10. Dimension

(Industrial POE Switch) (Industrial POE Media Converter)

Industrial POE Media Converter / Industrial POE Switch

Page 11 of 11

www.ez-net.co.kr

11. Specification(Industrial POE Media Converter)

Standards

IEEE802.3 10BaseT; IEEE802.3u 100BaseT(X) IEEE802.3x Flow control; IEEE802.1d Spanning Tree,

IEEE802.1Q VLANs; IEEE 802.3af/at POE

Performance

Processing Type : Store and Forward, Cut-through MAC Table Size: 1Kbit Buffer Space: 288Kbit Time Delay: ＜150μs

Copper Port

Data Rate: 10/100M Connector: RJ45 Distance: 100m

Fiber Port

Data Rate: 155M Connector: SC as default Distance: MMF=2km,SMF =20km,

Dip-switch

Dip1 ON + Dip2 ON = Modified Cut-through Mode Dip1 ON + Dip2 Off = Converter Mode Dip1 Off + Dip2 ON = Cut-through Dip1 Off + Dip2 off = Store and forward mode Dip4 ON = LFP Enable; Dip4 Off = LFP Disable

LED indicators

PWR1: ON=Power Connected PWR2: ON= Power Connected FL/A: ON=Fiber Connected; Active=Data Transmitting TL/A: ON=Copper Connected; Active= Data Transmitting 100M: ON=100M Data Rate Transmitting POE: ON=Power Working; Off=No Power

Power

Input Voltage: 12~56 VDC, redundant power inputs Power Consumption: <5W (POE excluded ) Protection: Overload Current; Reverse Polarity Connector: Terminal Block

Environment

Operating Temperature:-40 ˚C ~ +85 ˚C Storage Temperature: -40 ˚C ~ +95 ˚C Relative humidity: 5-95% ( no condensation)

Physical Characteristics

Housing: IP40 Protection; Aluminum Alloy Installation: DIN-Rail , Wall-Mounted Dimension: 125*93*35mm(Total Size ; Terminal Block, Connector) Weight: 0.30kg

Industrial POE Media Converter / Industrial POE Switch

Page 12 of 12

www.ez-net.co.kr

12. Specification(Industrial POE Switch)

Standards

IEEE802.3 10BaseT, IEEE802.3u 100BaseT(X) IEEE802.3x Flow control and back pressure, IEEE802.1d Spanning Tree,

IEEE802.1Q VLANs IEEE802.3af/at POE

Performance

Processing Type : Store and Forward MAC Table Size: 1024bit Buffer Space: 512Kbit Back bandwidth: 200M Time Delay: ＜150μs

Copper Port

Data Rate: 10/100M Connector: RJ45 x 4 Distance: 100m

Fiber Port

Data Rate: 155M Connector: SC as default, FC/ST/SFP optional Distance: MMF=2km; SMF=20km Bi-Di=20km

LED indicators

PWR1: ON=Power Connected PWR2: ON= Power Connected FL/A: ON=Fiber Connected; Active=Data Transmitting TL/A: ON=Copper Connected; Active= Data Transmitting POE: ON=Power Working; Off=No Power

Power

Input Voltage: 12~56 VDC, redundant power inputs Power Consumption: <5W ( POE excluded ) Protection: Overload Current; Reverse Polarity Connector: Terminal Block

Environment

Operating Temperature: -40 ˚C ~ +85 ˚C Storage Temperature: -40 ˚C ~ +95 ˚C Relative humidity: 5-95% ( no condensation)

Physical Characteristics

Housing: IP40 Protection, Aluminum Alloy Installation: DIN-Rail , Wall-Mounted Dimension: 138*107*45mm(Total Size ; Terminal Block, Connector) Weight: 0.50kg
