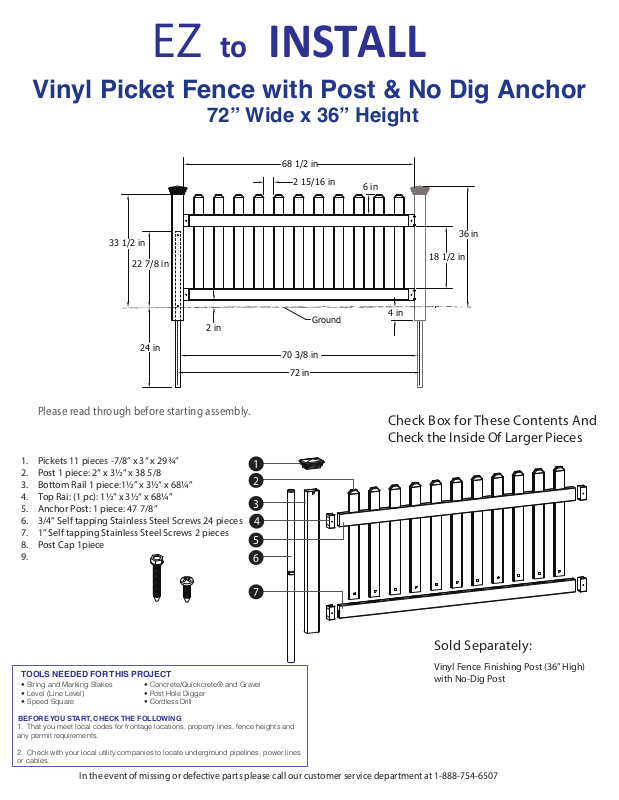

EZ
to
INSTALL
Vinyl Picket Fence with Post & No Dig Anchor
72” Wide x 36” Height
68 1/2 in
2 15/16 in
33 1/2 in
22 7/8 in
Ground
2 in
6 in
36 in
18 1/2 in
4 in
24 in
Please read through before starting assembly.
1.
Pickets 11 pieces -7/8” x 3“ x 29¾”
2.
Post 1 piece: 2“ x 3½” x 38 5/8
3.
Bottom Rail 1 piece:1½” x 3½“ x 68¼”
4.
Top Rai: (1 pc): 1½” x 3½“ x 68¼”
5.
Anchor Post: 1 piece: 47 7/8”
6.
3/4” Self tapping Stainless Steel Screws 24 pieces
7.
1” Self tapping Stainless Steel Screws 2 pieces
8.
Post Cap 1piece
9.
9
8
70 3/8 in
72 in
Check Box for These Contents And
Check the Inside Of Larger Pieces
1
2
3
4
5
6
7
TOOLS NEEDED FOR THIS PROJECT
• String and Marking Stakes • Concrete/Quickcrete® and Gravel
• Level (Line Level) • Post Hole Digger
• Speed Square • Cordless Drill
BEFORE YOU START, CHECK THE FOLLOWING
1. That you meet local codes for frontage locations, property lines, fence heights and
any permit requirements.
2. Check with your local utility companies to locate underground pipelines, power lines
or cables.
In the event of missing or defective parts please call our customer service department at 1-888-754-6507
Sold Separately:
Vinyl Fence Finishing Post (36” High)
with No-Dig Post
