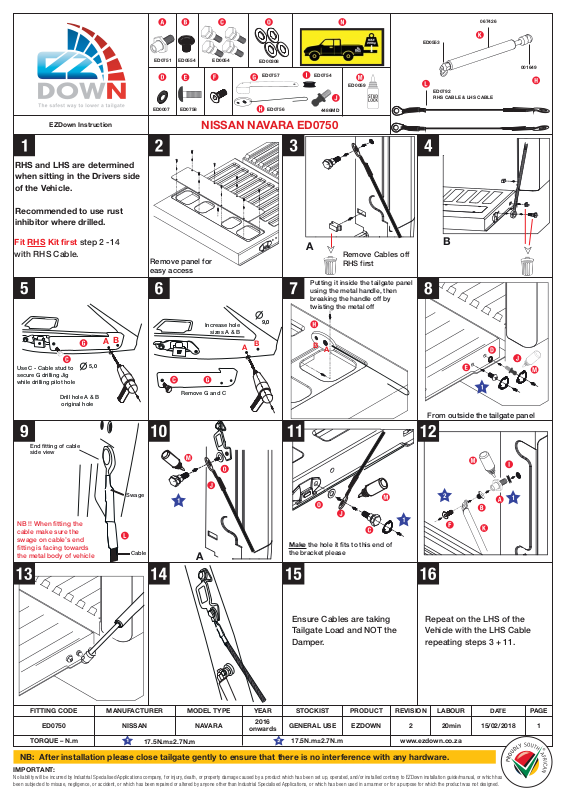

EZDown Instruction
RHS and LHS are determined
when sitting in the Drivers side
of the Vehicle.
Recommended to use rust
inhibitor where drilled.
Fit RHS Kit first step 2 -14
with RHS Cable.
B
A
Use C - Cable stud to
secure G drilling Jig
while drilling pilot hole
5,0
Drill hole A & B
original hole
ED0751
ED0554 ED0054
ED0007 ED0758
NISSAN NAVARA ED0750
Remove panel for
easy access
Increase hole
Remove G and C
sizes A & B
ED0553
ED00308
ED0757
ED0756
ED0754
ED0059
4486MD
A
Remove Cables off
ED0792
RHS CABLE & LHS CABLE
B
I
001649
RHS first
Putting it inside the tailgate panel
using the metal handle, then
breaking the handle off by
twisting the metal off
9,0
B
A
B
A
From outside the tailgate panel
End fitting of cable
side view
Swage
NB !! When fitting the
cable make sure the
swage on cable’s end
fitting is facing towards
the metal body of vehicle
Cable
A
Make the hole it fits to this end of
the bracket please
Ensure Cables are taking
Tailgate Load and NOT the
Damper.
Repeat on the LHS of the
Vehicle with the LHS Cable
repeating steps 3 + 11.
FITTING CODE MANUFACTURER
ED0750
TORQUE – N.m
NISSAN
17.5N.m±2.7N.m
MODEL TYPE YEAR STOCKIST
NAVARA
2016
onwards
GENERAL USE EZDOWN 2
17.5N.m±2.7N.m
PRODUCT
REVISION
www.ezdown.co.za
LABOUR
20min 15/02/2018 1
NB: After installation please close tailgate gently to ensure that there is no interference with any hardware.
