ED0505 ED0507
ED05
ED05
51
ED0504
ED0006
ED0554

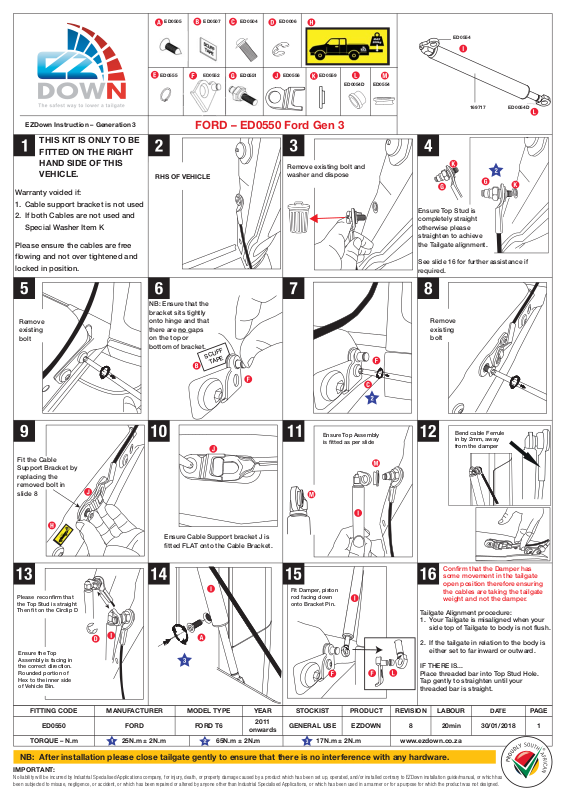

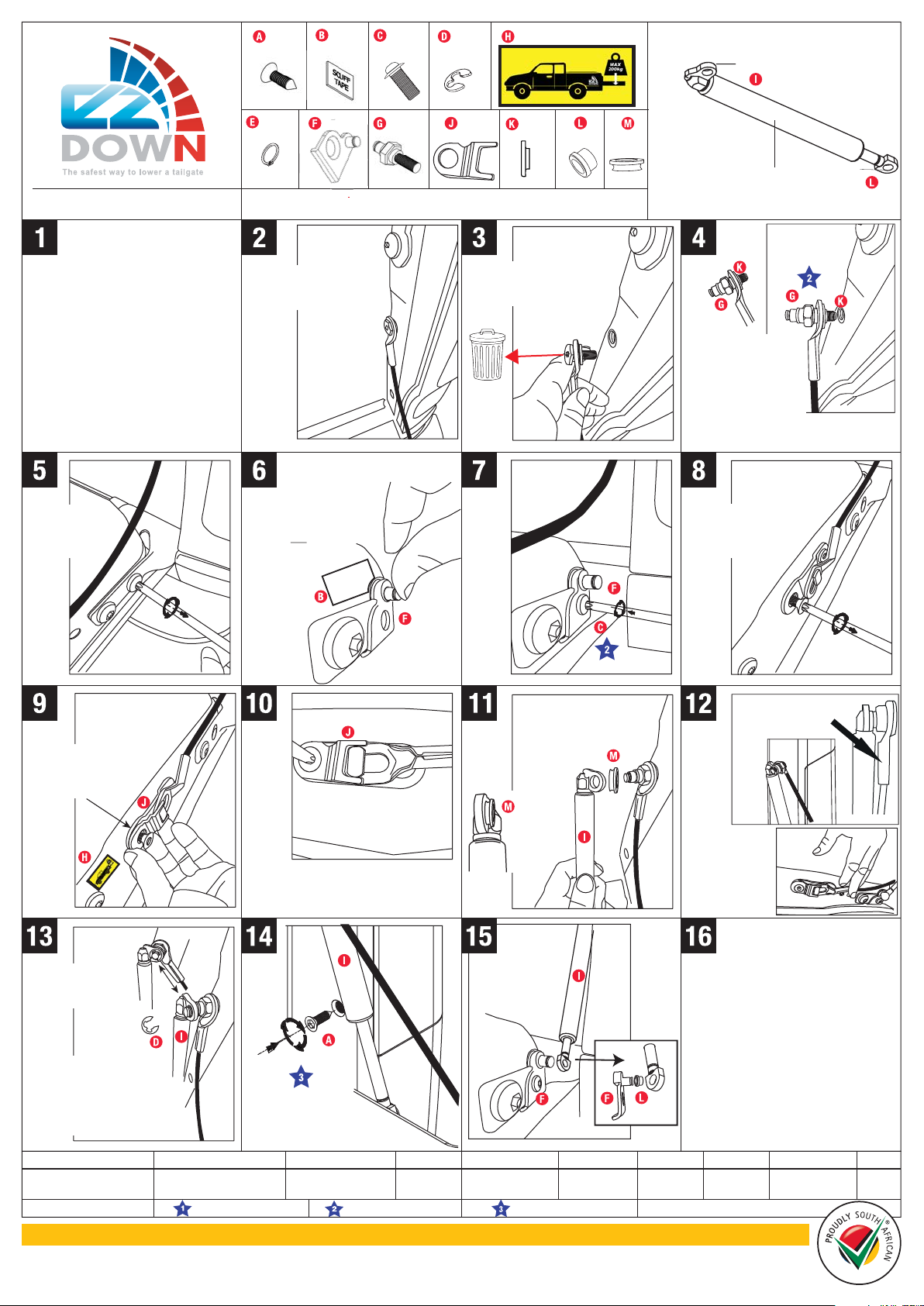

EZDown Instruction – Generation 3
THIS KIT IS ONLY TO BE
F FITTED ON THE RIGHT
HAND SIDE OF THIS
VEHICLE.
Warranty voided if:
1. Cable support bracket is not used
2. If both Cables are not used and
Special Washer Item K
Please ensure the cables are free
flowing and not over tightened and
locked in position.
Remove
existing
bolt
ED0555
ED0552
FORD – ED0550 Ford Gen 3
RHS OF VEHICLE
NB: Ensure that the
bracket sits tightly
onto hinge and that
there are no gaps
on the top or
bottom of bracket.
SCUFF
TAPE
ED0551
ED0556 ED0559
ED0054D
Remove existing bolt and
washer and dispose
ED0554
169717
ED0054D
Ensure Top Stud is
completely straight
otherwise please
straighten to achieve
the Tailgate alignment.
See slide 16 for further assistance if
required.
Remove
existing
bolt
Fit the Cable
Support Bracket by
replacing the
removed bolt in
slide 8
Please reconfirm that
the Top Stud is straight
Then fit on the Circlip D
Ensure the Top
Assembly is facing in
the correct direction.
Rounded portion of
Hex to the inner side
of Vehicle Bin.
Ensure Cable Support bracket J is
fitted FLAT onto the Cable Bracket.
Ensure Top Assembly
is fitted as per slide
Fit Damper, piston
rod facing down
onto Bracket Pin.
Bend cable Ferrule
in by 2mm, away
from the damper
Confirm that the Damper has
some movement in the tailgate
open position therefore ensuring
the cables are taking the tailgate
weight and not the damper.
Tailgate Alignment procedure:
1. Your Tailgate is misaligned when your
side top of Tailgate to body is not flush.
2. If the tailgate in relation to the body is
either set to far inward or outward.
IF THERE IS...
Place threaded bar into Top Stud Hole.
Tap gently to straighten until your
threaded bar is straight.
FITTING CODE MANUFACTURER
ED0550
TORQUE – N.m
FORD
25N.m ± 2N.m
MODEL TYPE YEAR STOCKIST
FORD T6
65N.m ± 2N.m
2011
onwards
GENERAL USE EZDOWN 8
17N.m ± 2N.m
PRODUCT
REVISION
www.ezdown.co.za
LABOUR
20min 30/01/2018 1
NB: After installation please close tailgate gently to ensure that there is no interference with any hardware.
IMPORTANT:
No liability will be incurred by Industrial Specialised Applications company, for injury, death, or property damage caused by a product which has been set up, operated, and/or installed contrary to EZDown installation guide/manual, or which has
been subjected to misuse, negligence, or accident, or which has been repaired or altered by anyone other than Industrial Specialised Applications, or which has been used in a manner or for a purpose for which the product was not designed.
