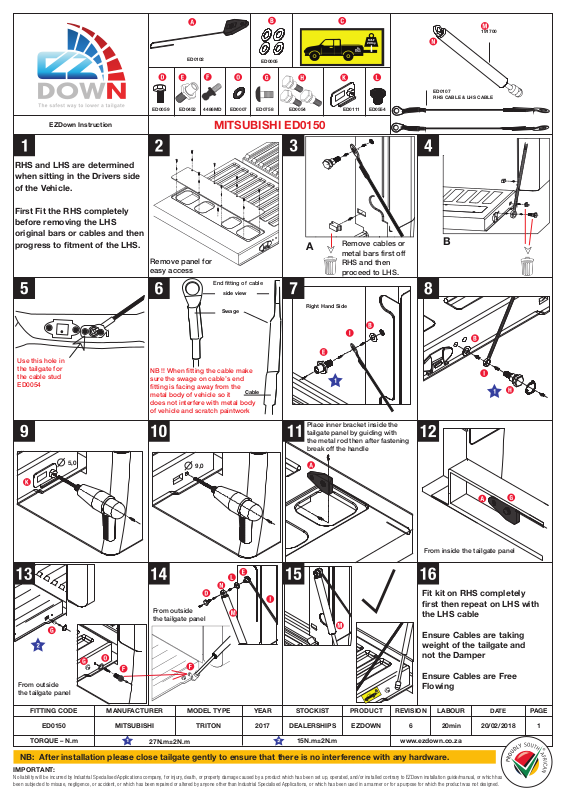

EZDown Instruction
RHS and LHS are determined
when sitting in the Drivers side
of the Vehicle.
First Fit the RHS completely
before removing the LHS
original bars or cables and then
progress to fitment of the LHS.
ED0102
ED0059 ED0452
4486MD
Remove panel for
easy access
ED0005
ED0007
ED0758
ED0054
MITSUBISHI ED0150
A
End fitting of cable
side view
Swage
Right Hand Side
ED0554
ED0111
Remove cables or
metal bars first off
RHS and then
proceed to LHS.
ED0107
RHS CABLE & LHS CABLE
B
I
Use this hole in
the tailgate for
the cable stud
ED0054
5,0
NB !! When fitting the cable make
sure the swage on cable’s end
fitting is facing away from the
metal body of vehicle so it
does not interfere with metal body
of vehicle and scratch paintwork
Cable
9,0
From outside
the tailgate panel
Place inner bracket inside the
tailgate panel by guiding with
the metal rod then after fastening
break off the handle
From inside the tailgate panel
Fit kit on RHS completely
first then repeat on LHS with
the LHS cable
Ensure Cables are taking
weight of the tailgate and
not the Damper
From outside
the tailgate panel
FITTING CODE MANUFACTURER
ED0150
TORQUE – N.m
MITSUBISHI
27N.m±2N.m
MODEL TYPE YEAR STOCKIST
TRITON
2017
DEALERSHIPS EZDOWN 6
15N.m±2N.m
PRODUCT
Flowing
REVISION
www.ezdown.co.za
LABOUR
20min 20/02/2018 1
DATE
NB: After installation please close tailgate gently to ensure that there is no interference with any hardware.
IMPORTANT:
No liability will be incurred by Industrial Specialised Applications company, for injury, death, or property damage caused by a product which has been set up, operated, and/or installed contrary to EZDown installation guide/manual, or which has
been subjected to misuse, negligence, or accident, or which has been repaired or altered by anyone other than Industrial Specialised Applications, or which has been used in a manner or for a purpose for which the product was not designed.
Ensure Cables are Free
