ED0052 ED0056 ED0054
013393

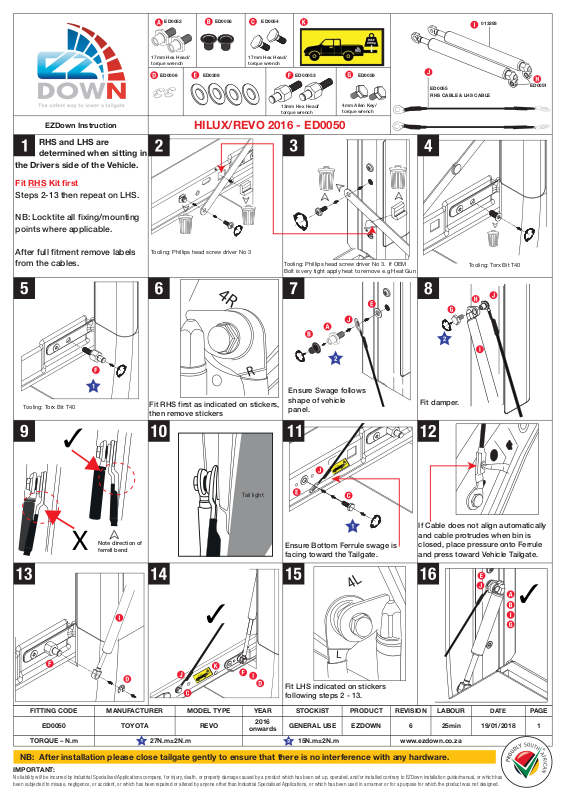

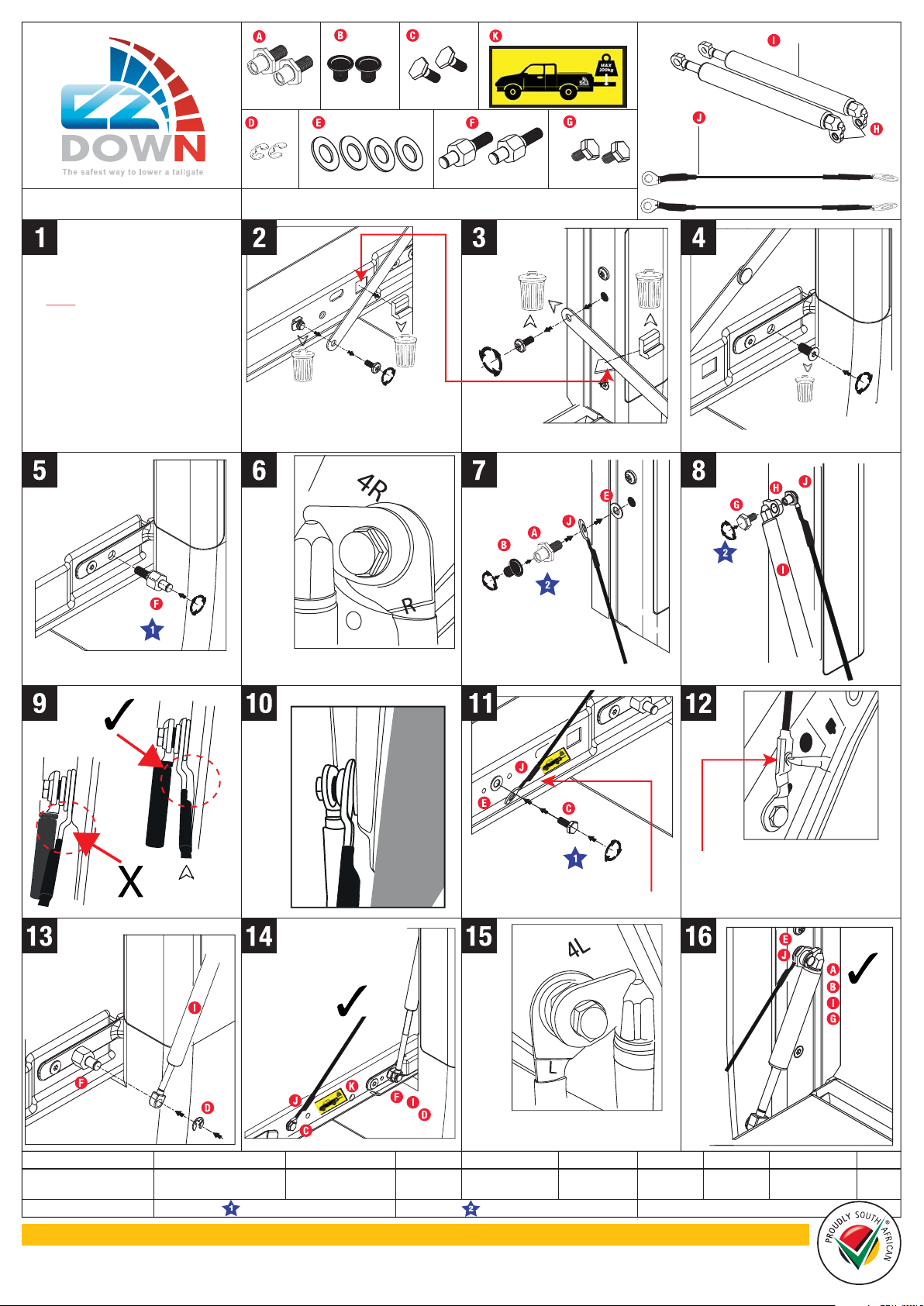

EZDown Instruction
RHS and LHS are
determined when sitting in
the Drivers side of the Vehicle.
Fit RHS Kit first
Steps 2-13 then repeat on LHS.
NB: Locktite all fixing/mounting
points where applicable.
After full fitment remove labels
from the cables.
17mm Hex Head/
torque wrench
ED0006
ED0308
HILUX/REVO 2016 - ED0050
*
Tooling: Phillips head screw driver No 3
17mm Hex Head/
torque wrench
ED00053
13mm Hex Head/
torque wrench
ED0059
4mm Allen Key/
torque wrench
*
Tooling: Phillips head screw driver No 3. If OEM
Bolt is very tight apply heat to remove e.g Heat Gun
ED0055
RHS CABLE & LHS CABLE
Tooling: Torx Bit T40
ED0051
Tooling: Torx Bit T40
Note direction of
ferrell bend
Fit RHS first as indicated on stickers,
then remove stickers
Tail light
Ensure Swage follows
shape of vehicle
panel.
Ensure Bottom Ferrule swage is
facing toward the Tailgate.
Fit damper.
If Cable does not align automatically
and cable protrudes when bin is
closed, place pressure onto Ferrule
and press toward Vehicle Tailgate.
Fit LHS indicated on stickers
following steps 2 - 13.
FITTING CODE MANUFACTURER
ED0050
TORQUE – N.m
TOYOTA
27N.m±2N.m 15N.m±2N.m
MODEL TYPE YEAR STOCKIST
REVO
2016
onwards
GENERAL USE EZDOWN 6
PRODUCT
REVISION
LABOUR
25min 19/01/2018 1
www.ezdown.co.za
DATE
NB: After installation please close tailgate gently to ensure that there is no interference with any hardware.
IMPORTANT:
No liability will be incurred by Industrial Specialised Applications company, for injury, death, or property damage caused by a product which has been set up, operated, and/or installed contrary to EZDown installation guide/manual, or which has
been subjected to misuse, negligence, or accident, or which has been repaired or altered by anyone other than Industrial Specialised Applications, or which has been used in a manner or for a purpose for which the product was not designed.
