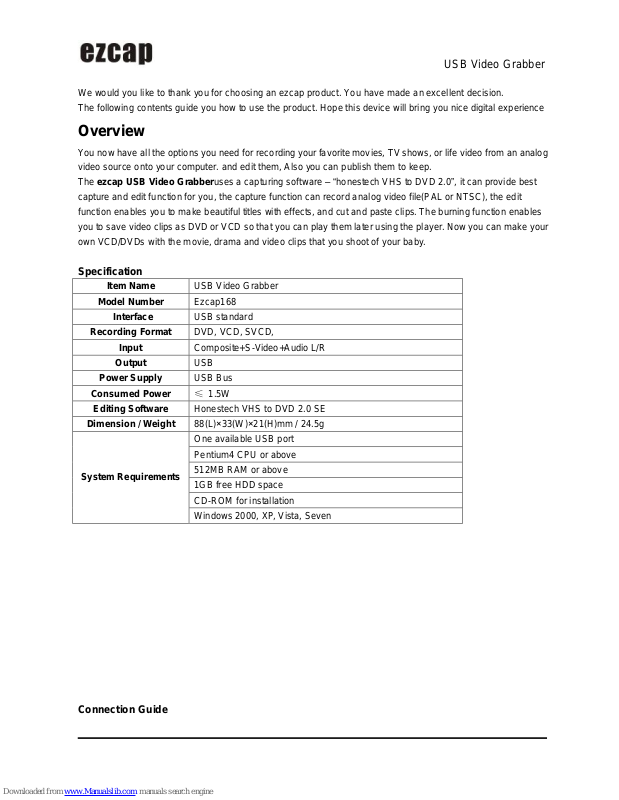

EzCAP DC60 User Manual

USB Video Grabber

We would you like to thank you for choosing an ezcap product. You have made an excellent decision.
The following contents guide you how to use the product. Hope this device will bring you nice digital experience

Overview

You now have all the options you need for recording your favorite movies, TV shows, or life video from an analog
video source onto your computer. and edit them, Also you can publish them to keep.
The ezcap USB Video Grabberuses a capturing software – “honestech VHS to DVD 2.0”, it can provide best
capture and edit function for you, the capture function can record analog video file(PAL or NTSC), the edit
function enables you to make beautiful titles with effects, and cut and paste clips. The burning function enables
you to save video clips as DVD or VCD so that you can play them later using the player. Now you can make your
own VCD/DVDs with the movie, drama and video clips that you shoot of your baby.

Specification

Item Name USB Video Grabber

Model Number Ezcap168

Interface USB standard

Recording Format DVD, VCD, SVCD,

Input Composite+S-Video+Audio L/R

Output USB

Power Supply USB Bus

Consumed Power ≤ 1.5W

Editing Software Honestech VHS to DVD 2.0 SE

Dimension / Weight 88(L)×33(W)×21(H)mm / 24.5g

One available USB port
Pentium4 CPU or above
512MB RAM or above
1GB free HDD space
CD-ROM for installation

System Requirements

Windows 2000, XP, Vista, Seven

Connection Guide

USB Video Grabber

Notice:

1. You maybe have to buy some 3.5” video and audio cables (Male) if the video and audio cables of device are
not long enough. And you maybe have to buy an S-Video (miniDIN 4PIN) cable.

2. The below devices can be used as analog video sources:

PS2, PS3, WⅡ, X360, XBOX, and all the device has chromatism output.

Quick Installation Chart

Please read the all installation guide clearly.
Please install the device hardware and software following below chart if you’re very busy and want to use the
device soon.

Video capture:

Step 1: Insert the CD-ROM to install the drivers and application software.
Step 2: Connect USB Video Grabber with analog video source.
Step 3: Connect USB Video Grabber with computer.
Step 4: Capture video programs into your computer with VHS to DVD 2.0 SE, and edit them.

Hardware Installation

Note: If you have any antivirus software enabled, please disable it during the installation of the software.

USB Video Grabber

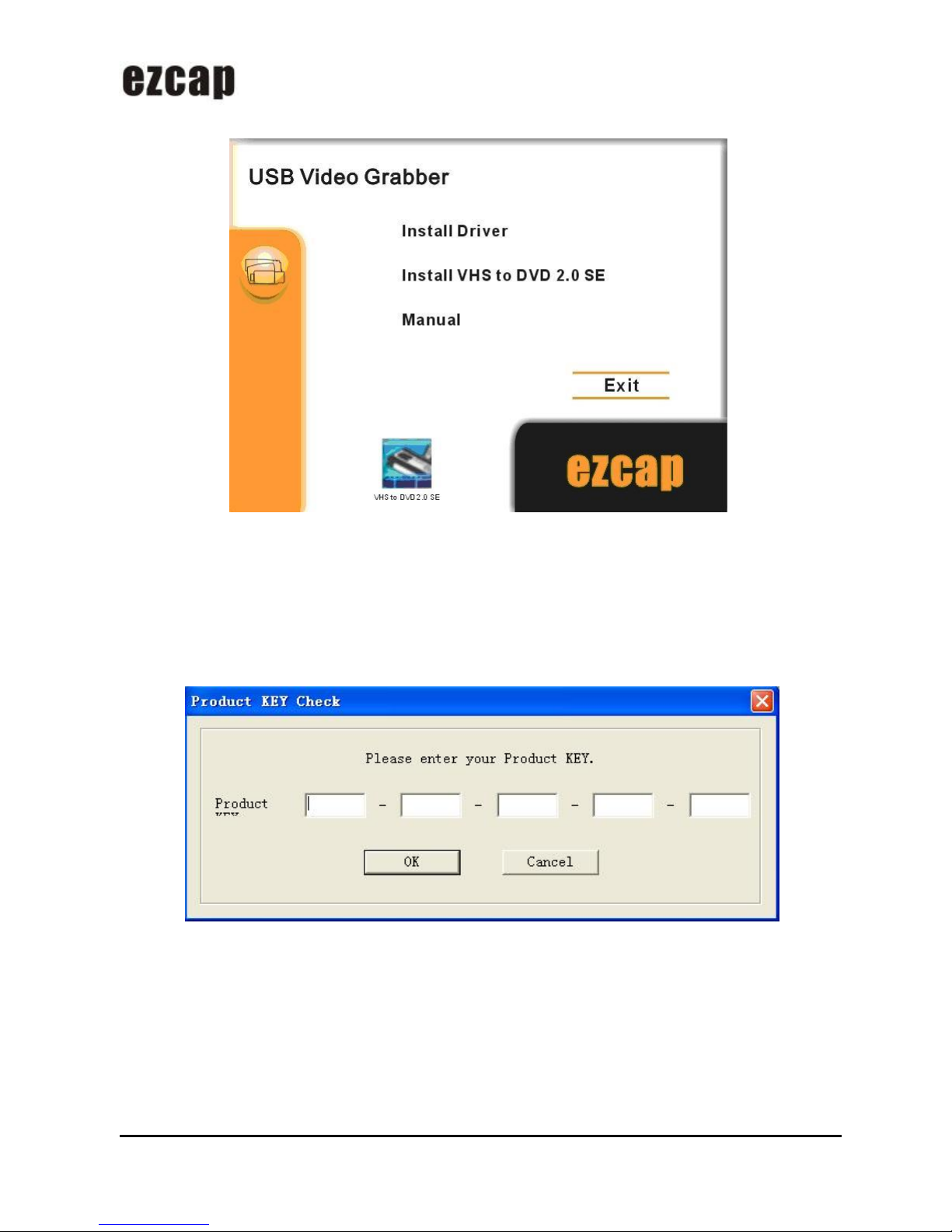

Please insert the” installations CD-ROM” into your CD drive, you will get a window, select “Install Driver”. In the
next windows, you can choose set up language for the installation, when you see the “Software Installation”
window, please click “Continue Anyway” icon. Then click “Finish” icon to complete the installation.

The operating system will install the drivers for ezcap USB Video Grabber automatically.
Please connect the ezcap USB Video Grabber to your computer, you should see a window, select “Yes, this
time only”, and then select “Install the software automatically (Recommended)”, select “Continue Anyway”. Wait
for a moment until the system appears you “Your new hardware is installed and ready to use”. It means the driver
has been installed.

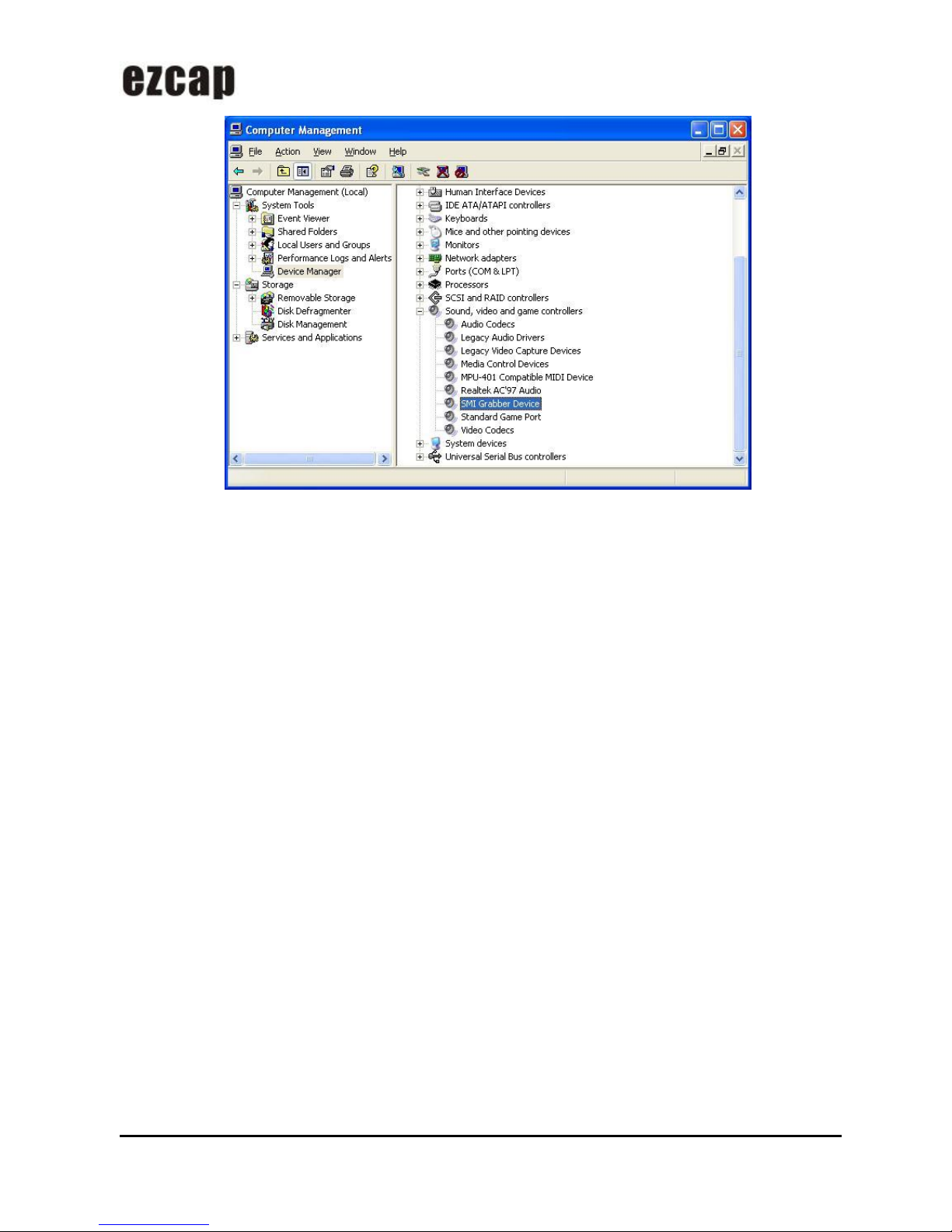

You will now need to check that the drivers are installed correctly. Connect the ezcap USB Video Grabber to
your computer, Right Click on My Computer and Left Click on properties. Click on Hardware tab and then Device
Manager. In the Device Manager click on the “Sound, video and game controllers” correctly you should see the
“SMI Grabber Device”. If it has a Yellow mark next to it then this means that the driver is not installed correctly.
You will need to remove the driver and disconnect ezcap USB Video Grabber from the computer and reconnect
is to install the driver again.
