EZ-ACCESS WF-7510 User Manual

© Homecare Products, Inc. All rights reserved. All text and images contained in this document are

PN 13139 REV 10-15-14

Instructions

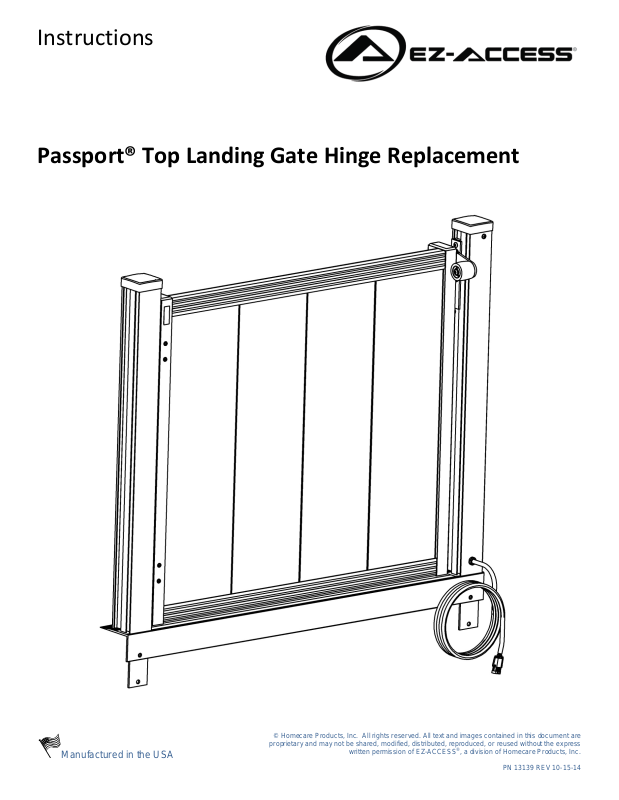

Passport® Top Landing Gate Hinge Replacement

Manufactured in the USA

proprietary and may not be shared, modified, distributed, reproduced, or reused without the express

written permission of EZ-ACCESS

®

, a division of Homecare Products, Inc.

INSTRUCTIONS

Passport® Top Landing Gate Hinge Replacement

ATTENTION INSTALLER:

• For residential use only!

• Read all instructions, labels, and product warnings prior to use.

• Please leave this ASSEMBLY MANUAL

ATTENTION END USER:

• Read all instructions, labels, and product warnings prior to use.

TOOLS TYPICALLY REQUIRED:

• 5/32″ Allen Wrench

• 3/16″ Allen Wrench

• #2 Phillips Head Screw Driver Or Phillips Drill Head

• Level

• Rubber Mallet

VIEW PACKING LIST:

• Each system is shipped with a packing list. Be sure to check that all items are present before starting
assembly/installation.

with the end user.

Page | 2

1.

SYMBOLS, SAFETY, AND WARNINGS

1.1. SYMBOL MEANING
WARNING SYMBOL: This symbol may appear in various colors and in conjunction with

other symbols. The WARNING symbol indicates that a failure to obey the warning could
result in property damage, damage to equipment, serious personal injury, or death, as well
as the serious personal injury or death of others.

for the protection of people and property. Failure by any operator to obey all warnings will result in a
waiver of all liabilities, loss of your warra nt y and could res ult in equipment damage and or failure,
injury to property, risk of serious bodily injury, and or death.

NOTE SYMBOL: This symbol may appear in various colors and in conjunction with other

symbols. This indicates that a failure to obey all notes could result in improper operation,
less than optimum performance, and at the sole discretion of the manufacturer, may void
your warranty.

2.

INSPECT (BEFORE USE)

• Read and follow all labels and assembly instructions prior to use. To obtain a copy of complete

instructions, warnings and labels, please call 1-800-258-8503 or visit us on the internet at
www.ezaccess.com.

• Check that all parts are in good condition.

• Use caution at all times. Proper maintenance and upkeep to the system and all Passport®

system components is vital.

• Regularly check that all parts are in good condition and check the system for damage. Ensure

all fasteners and locking mechanisms are in place and tightened. If any part of the system is
damaged, loose, or missing, DO NOT USE until repairs can be made by a certified installer or
other qualified person.

3.

PROPER SET UP AND USE

For residential use only.
Metal conducts electricity. Do not use near exposed wiring.
DO NOT USE if any part of the system is damaged or unstable.
Confirm that the system is correctly leveled and positioned securely. Periodically check for

ground shifts.
Only use components supplied or approved by manufacturer with system.
Never use the Top Landing Gate for uses other than its intended function.
Do not modify the Top Landing Gate and latching mechanism.
Do not operate the Top Landing Gate latch manually while the VPL is in operation.
Never block the Top Landing Gate open or closed.
Keep the area around the Top Landing Gate free of debris.
Do not play on or around the Top Landing Gate or attach foreign objects to the Top Landing

Gate.
Keep hands and other body parts clear of pinch points at all times.
Use only recommended fasteners and attachment points for anchoring the Top Landing

Gate.
Call your dealer for service if the Top Landing Gate does not fully close unassisted and DO

NOT USE Top Landing Gate until repairs have been completed by a qualified technician.
Properly support and restrain system in transit or storage.

4.

MAINTENANCE

Regularly check that all parts are in good condition and check the system for damage.

Ensure all fasteners and locking mechanisms are in place and tightened. If any part of the

system is damaged, loose, or missing, do not use until repairs can be made by a certified

installer or other qualified person.
For additional care, usage, or general safety information, please call 1-800-258-8503 or visit

www.ezaccess.com.

The safety warnings throughout this manual are

Page | 3
