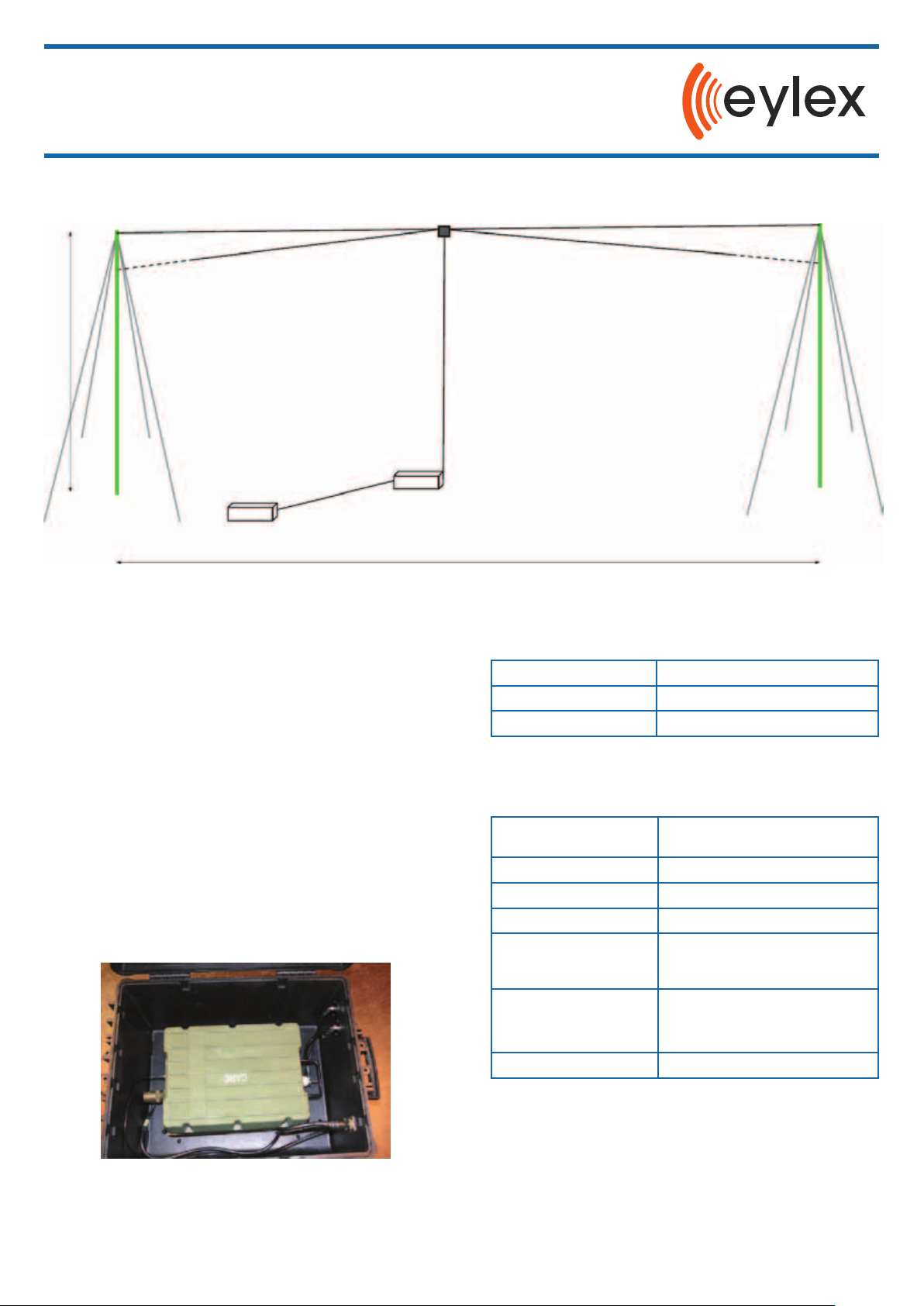

HF230D-BF
HF broadband wire dipole antenna, balanced feed, 26 m, 2-30 MHz
Tactical Antennas: Tactical and Base Station
9 m
Coupler
Radio
Standard Version 21 m (Enhanced Version 27 m)
Features
● 2 - 30 MHz - 400W
● Dipole elements with 300 Ω balanced feed.
● Permits fast frequency shifts as it does not require
adjustments.
● Easy to erect and disassemble.
● Two version of the kit are available:-
● Standard Kit - antenna supplied in a carrying bag with
standard length dipole wires.
● Enhanced Kit - antenna supplied with sturdy carrying
case and additional longer dipoles wires for improved
low frequency performance.
● Both versions of the kit are supplied with two 9 metre sectional
support mast kits.
300 Ω
Electrical Specifications
Frequency Range 2 - 30 MHz
Power Rating 400 W CW
Input Impedance 300 Ω balanced
Mechanical Specifications
Design Wire dipole feed with a 300 Ω
Element Span 26 m
Wind Rating 55 m/s = 201 km/h
Temperature Range - 55°C to + 71°C
Installation Between two support masts
Antenna Kit Weights
● Standard Version
● Enhanced Version
Mast Kit Weight (each) 15.2 kg
balanced feed
(supplied) raised 7 - 9 m above
the ground
3.7 kg
17 kg
Enhanced Kit - Carrying case used to
(coupler not supplied as part of kit)
house HF coupler
Kit List - Standard Version
The standard kit is supplied in a compact carrying case with dipole wires lengths of 10 and 7 metres.
Description Quantity Item
Carrying Bag 1 1
Hoisting Line on Winder 4 2
Feed Cable 1 3
Dipole Element on Winder 10 & 7 metre 2 4
Peg 2 5
9 metre Mast Kit (type AMX91) 2 6
User Manual 1 not
shown
6
3
2
4
5
1
sales@eylex.com.au www.eylex.com.au
Kit List - Enhanced Version
The enhanced kit is supplied in a robust carrying case that is also used to house the HF coupler during
operation. The enhanced kit includes the standard dipole wires lengths of 10 and 7 metres and also
longer 13 and 10 metre dipole wires for improved low frequency performance.
Description Quantity Item
Transport Case (Antenna) 1 1
Hoisting Line on Winder 4 2
Feed Cable 1 3
Dipole Element on Winder 10 & 7 metre 2 4
Dipole Element on Winder 13 & 10 metre 2 5
Accessory Bag 2 6
Peg 2 7
9 metre Mast Kit (type AMX91) 2 8
User Manual 1 not
3
shown
8
6
1
2
5
4
7
sales@eylex.com.au www.eylex.com.au
All specifications are subject to change without notice
The information contained herein is for reference only and does not constitute a warranty of performance
September 2018
