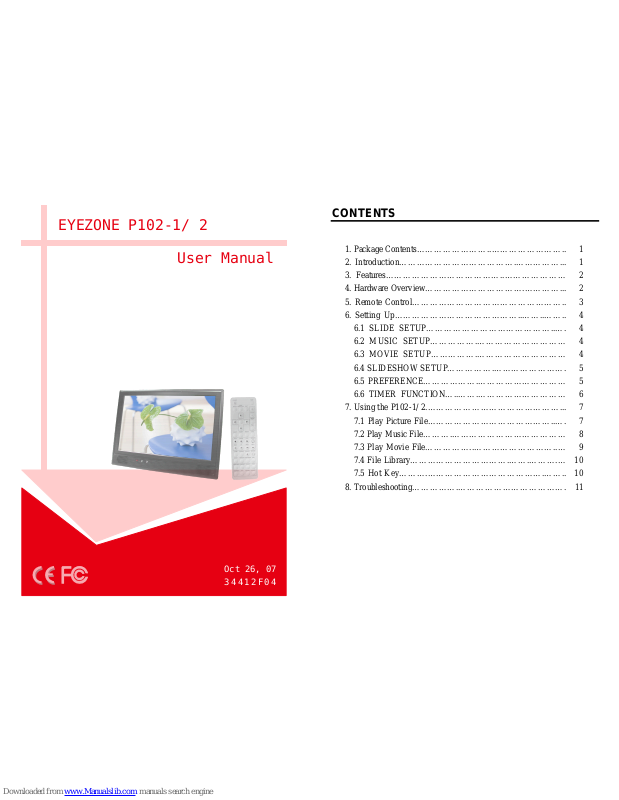

Page 1
EYEZONE P102-1/ 2
User Manual
Oct 26, 07
34412F04
1. Package Contents……………………..…………………….. 1
2. Introduction………………………………….……………... 1
3. Features…………………………………..………………… 2
4. Hardware Overview…………………………….…………... 2
5. Remote Control…………………………………………….. 3
6. Setting Up……………………………………..……..…….. 4
6.1 SLIDE SETUP……………………………………..…. 4
6.2 MUSIC SETUP…………….………………………… 4
6.3 MOVIE SETUP…………….………………………… 4
6.4 SLIDESHOW SETUP…………….……………………. 5
6.5 PREFERENCE……………….………………………… 5
6.6 TIMER FUNCTION…..…….………………………… 6
7. Using the P102-1/ 2.………………………………………... 7
7.1 Play Picture File……………………………………..…. 7
7.2 Play Music File……….………………………………… 8
7.3 Play Movie File……………..………………………..… 9
7.4 File Library…………………………….…….……….… 10
7.5 Hot Key……….………………………………….…….. 10
8. Troubleshooting…………….………………………………. 11
CONTENTS
Page 2
1
1. P102-1/ 2 5. Audio Cable
2. User Manual 6. Power Adapter (12V, 1.5A)
3. Remote Control 7. Protect Cover
4. S-Video Cable
The Eyezone P102-1/ 2 is a digital signage that plays picture, music and video without a
computer. It uses media files from CF, SD, MMC and MS (Pro) memory card and displays them on
a 10.2” TFT-LCD with audio-out from the built-in speakers. It also has S-Video and Audio input as
for the display.
The Eyezone P102-2 supports timer function, it will power on/ off automatically at the
designated time. The Eyezone P102-1/ 2 is an ideal Digital Signage Display solution for
advertising, presentations, training, and other media applications.
2. INTRODUCTION
1. PACKAGE CONTENT
2
Supports multiple file formats: Picture, Music and Video.
Supports CF, SD, MMC and MS (Pro) memory card.
Built-in 10.2” TFT-LCD display and stereo speakers.
Supports S-Video and Audio input to connect to DVD player or video game player.
Includes a full-function infrared remote control.
Supports Timer Function: The P102-2 will power on/ off automatically at the designated time.
Multi-Language OSD：English, French, German, Italian, Portuguese, Spanish, Netherlands,
Japanese and Chinese.
Supports SLIDE SHOW Function: With 14 kinds of transition effects.
Supports SLIDE TIME (INTERVAL) Mode：Interval time with 1, 3, 5, 10, 30, 60 seconds.
Supports MUSIC SLIDE Show：Music and pictures play at the same time.
Supports ZOOM IN (ON) 4x & PAN, ROTATE, MIRROR, PREVIEW and REPEAT.
4. HARDWARE OVERVIEW
3. FEATURES
Page 3
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Power on/ off
Mute sound
Open the setup menu
Memory card selection
Show the information of the file selected
Timer Setup (only for P102-2)
Volume up/ down
Move the cursor
Confirm the selection/ entry
Go to the previous/ next page or image
Display all photo files
Display all music files
Display all movie files
Go to file library (all files)
Pause/ resume playback
Stop playback
Play the selected file
Select the repeat mode
Rewind/ forward movies
View the previous/ next file
Play the previous/ next file if in playback
Set the slideshow interval to 1, 3, 5, 10, 30,
60 seconds
Set the transition effect
Rotate photo 90 degrees clockwise on the
screen
Play music and pictures at the same time
Zoom in the image up to 4x magnification
Mirror the image horizontally
Set the screen type to 16:9 or 4:3
Select the output mode
Set the Brightness/ Contrast/ Color/ Hue/
Sharpness of the panel
To save and quit the setting screen of panel
Adjust the Brightness/ Contrast/ Color/ Hue/
Sharpness of the panel
5. REMOTE CONTROL
4
Press the “SETUP” button on the remote control to open the
“SETUP MENU – MAIN PAGE” shown in the following
figure. There are five groups of sub-menu in the setup menu.
Use the “▲、▼、
▲、▼
” buttons to select an item or to
adjust values, and use the “ENTER” button to go into the
function or to confirm the command.
6.1 SLIDE SETUP
THUMBNAIL DIGEST：：：：Thumbnails load faster and
allow you to browse photos easily.
DIGEST STYLE：：：：Choose the slide preview mode. (2x2 /
3x3)
6.2 MUSIC SETUP
REPEAT MODE
• ONE：：：：Repeat the selected song.
• ALL：：：：Repeat all the songs on the memory card.
• OFF：：：：Turn off the repeat function.
6.3 MOVIE SETUP
REPEAT MODE
• ONE：：：：Repeat the selected movie.
• OFF：：：：Turn off the repeat function.
• ALL：：：：Play all the movies on the memory card.
DIGEST STYLE：：：：Choose the movie preview mode. (2x2 / 3x3)
6. SETTING UP
Page 4
5

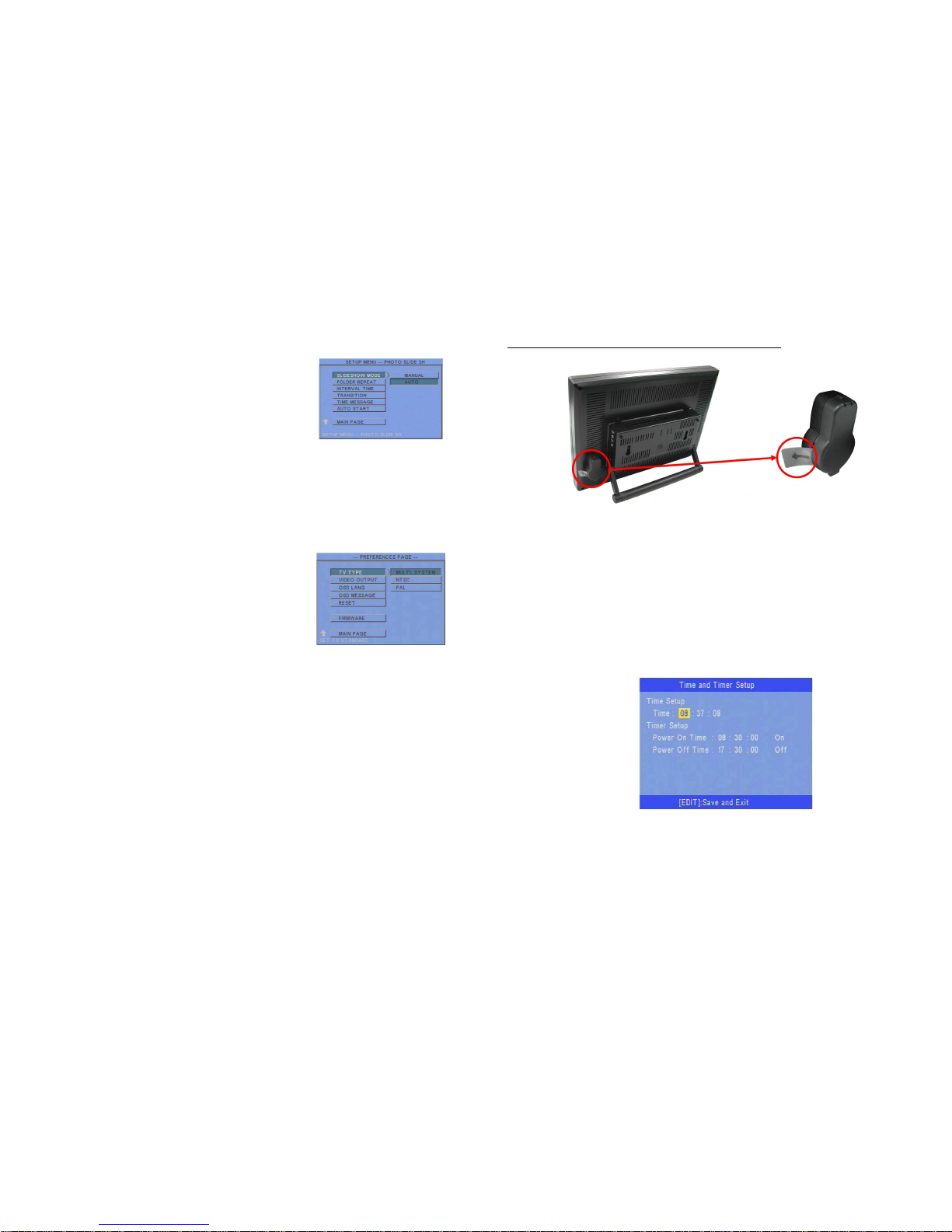

6.4 SLIDESHOW SETUP
SLIDESHOW MODE：：：：Set the slideshow to start automatically.
FOLDER REPEAT：：：：Set all files (picture, music or movie) in
the folder to show only once or continuously (loop).
INTERVAL TIME：：：：Set the time each photo is shown to 1, 3,
5, 10, 30 or 60 seconds.
TRANSITION (EFFECT)：：：：Set the transition effect and auto
slide with sequential or random playback.
TIME MESSAGE (only for P102-2)：：：：Set the time message is shown on the screen constantly
or not.
AUTO START：：：：Enable/ disable auto playing media files on the memory card when the device
is turned on.
6.5 PREFERENCE
TV TYPE: Choose the TV TYPE.
• MULTI . SYSTEM：：：：Set the TV type automatically.
• NTSC: Set the TV type to NTSC.
• PAL: Set the TV type to PAL.
VIDEO OUTPUT：：：：Select the video output mode.
OSD LANG: Select the OSD language (ENGLISH, FRENCH, GERMAN, ITALIAN,
JAPANESE, PORTUGUESE, SPANISH and NEDERLANDS).
OSD MESSAGE: Turn the OSD message function on/ off.
RESET: Reset all settings to the original (factory) settings.
FIRMWARE : New F/W can upgraded from the memory card.
• EDITION : Show the F/W versions.
• UPDATE : Used to update the F/W.
6
6.6 TIMER FUNCTION (only for P102-2)
NOTE：：：：Make sure the insulating slice has already been taken out.
Press the “EDIT” button on remote control to open the timer setup window.
Use the Left and Right buttons on the remote control to select each item.
Use the Up and Down buttons on the remote control to change the value.
Press EDIT button on remote control to save and quit the timer setup screen.
Timer Setup Window
Time : The current time(format: hour : minute : second)
- Power On Time: Set the time of auto power on.
- Power Off Time: Set the time of auto power off.
Insulating slice Battery for timer
Page 5
7
Copy files (music, picture and movie) to the memory card first.

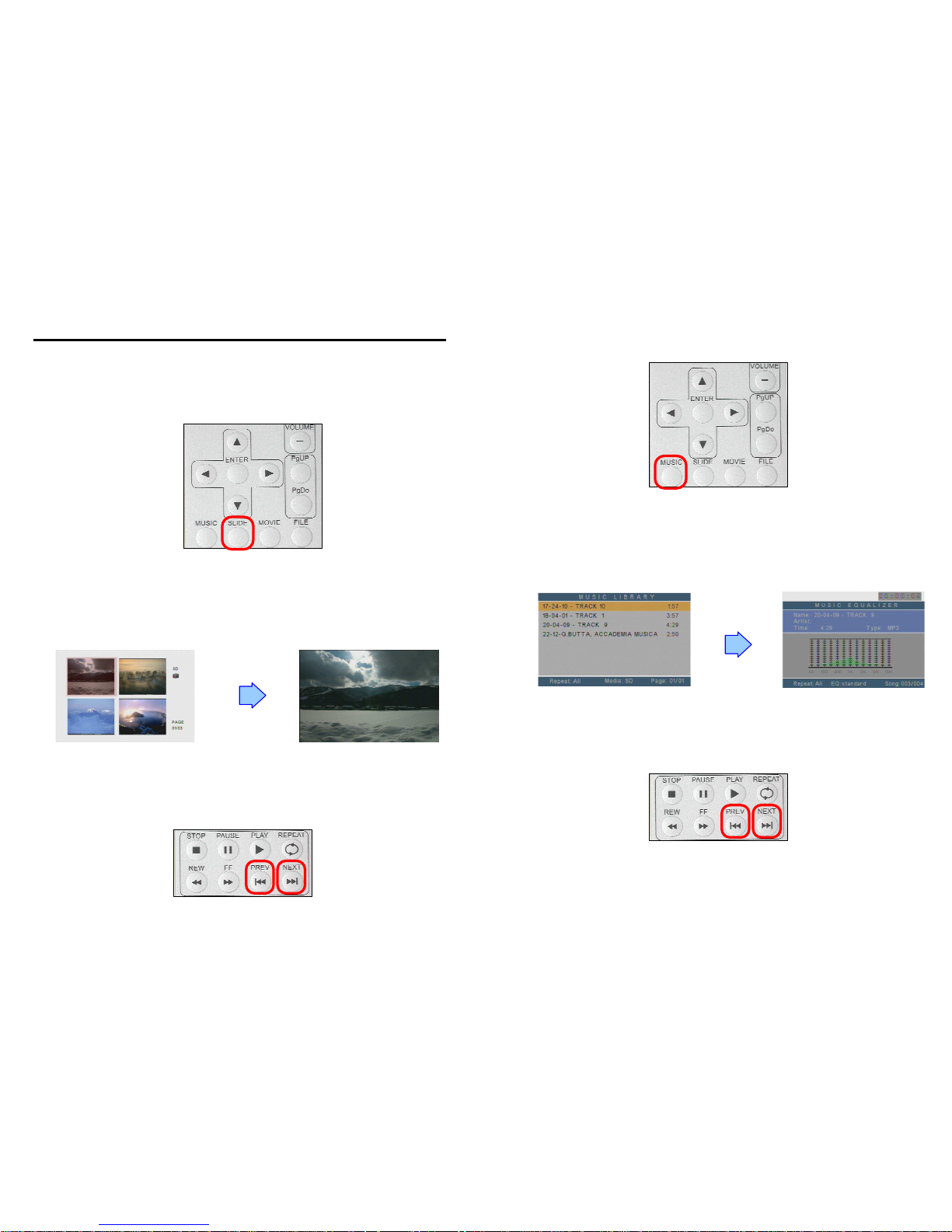

7.1 PLAY PICTURE FILE
Step 1: Press the “SLIDE” button on the remote control from any menu.
Step 2: The preview mode will show all the picture files on the memory card.
Use the “▲、▼、▲、▼” buttons to select the picture file, and press the “ENTER”
button to play the picture file.
Step 3: If the “SLIDESHOW MODE” is disabled, press the “NEXT” button to play the next
picture file, the “PREV” button to play the previous file.
7. USING THE P
102-1/ 2
8
7.2 PLAY MUSIC FILE
Step 1: Press the “MUSIC” button on the remote control from any menu.
Step 2: The “MUSIC LIBRARY” will show all the music files on the memory card.
Use the “▲、▼” buttons to select the music file, and press the “ENTER” button to play
the music file.
Step 3: Press the “NEXT” button to play the next music file, the “PREV” button to play the
previous file.
Page 6
9

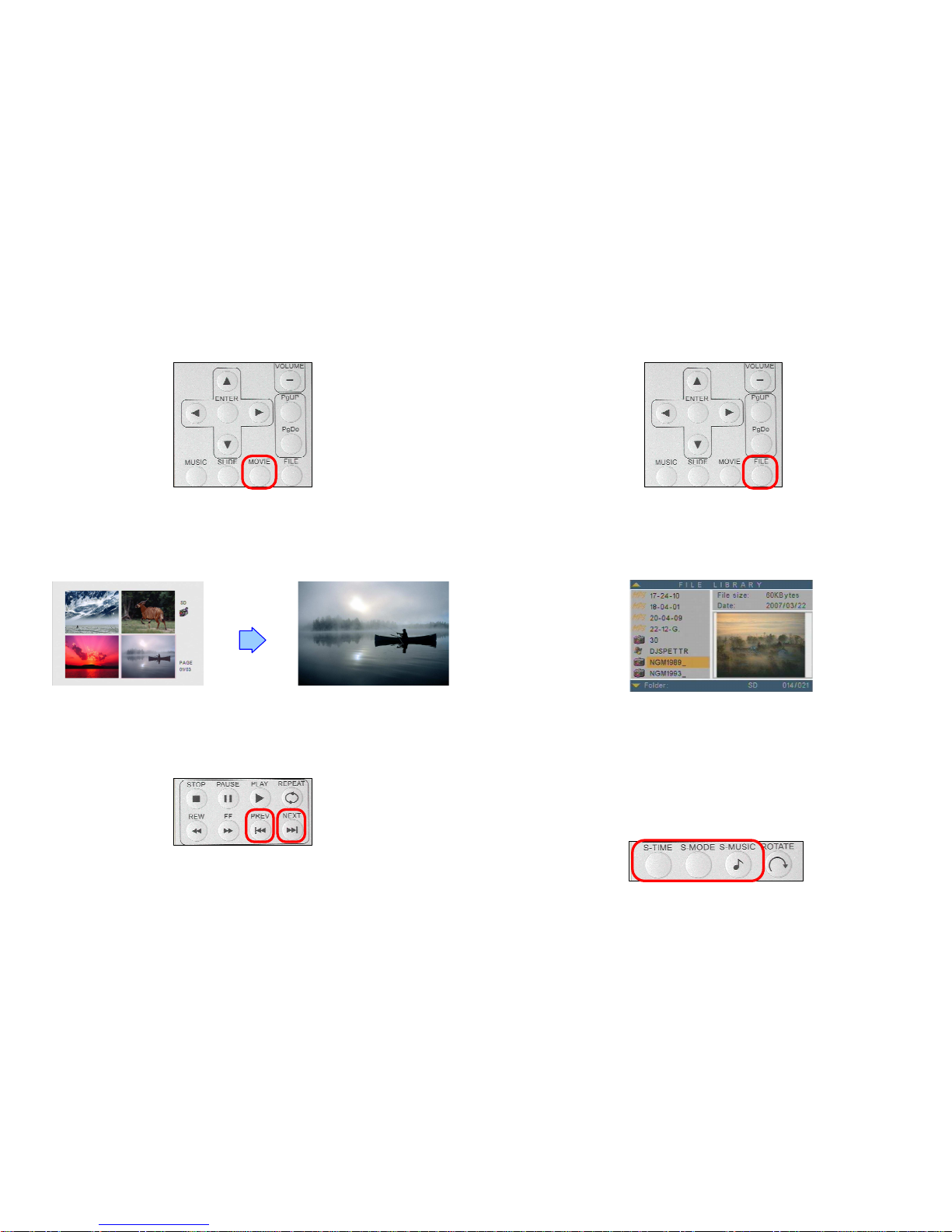

7.3 PLAY MOVIE FILE
Step 1: Press the “MOVIE” button on the remote control from any menu.
Step 2: The preview mode will show all the video files on the memory card.
Use the “▲、▼、▲、▼” buttons to select the movie file, and press the “ENTER”
button to play the movie file.
Step 3：：：：Press the “NEXT” button to play the next movie file, the “PREV” button to play the
previous file.
10
7.4 FILE LIBRARY
Step 1：：：：Press the “FILE” button on the remote control from any menu.
Step 2：：：：You can see all the files (including picture, music and movie) on the left panel of the “FILE
LIBRARY”. Press the “▲、▼” buttons to select a file, and the information of the file will
be shown on the right panel.
7.5 HOT KEY
You can use the “S-TIME”, “S-MODE” or “S-MUSIC” hot key on the remote control without
selecting from the “Setup Menu”. (These functions are only used for playing picture files.)
S-TIME：：：：Interval time with 1,3, 5,10, 30, 60 seconds.
S-MODE：：：：With sequential, random auto slide shows etc 14 kind of selections
S-MUSIC：：：：Play the picture and music files at the same time.
Page 7
11
Situation Check Point
No Picture
1. Check if the power supply is connected.
2. Make sure the P102-1/ 2 is turned on.
No response from
the remote control
1. Make sure there is a clear view between the remote
control and the device.
2. Change the remote control’s batteries.
Memory card
1. Push cards gently and securely.
2. If the card does not insert easily, check the direction.
3. Confirm format of the card.
P102-1/ 2 supports CF, SD, MMC and MS (Pro) memory card.
No sound
1. Check if the mute function is on.
2. Check if the volume is turned up.
Timer inaccuracy
(only for P102-2)
1. Press “ EDIT ” key to
open the timer setup window
, confirm
whether time is correct.
2.
If using the “ Timer Function ”, it is suggested to
check
whether the time is correct every three months.
8
. TROUBLESHOOTING
