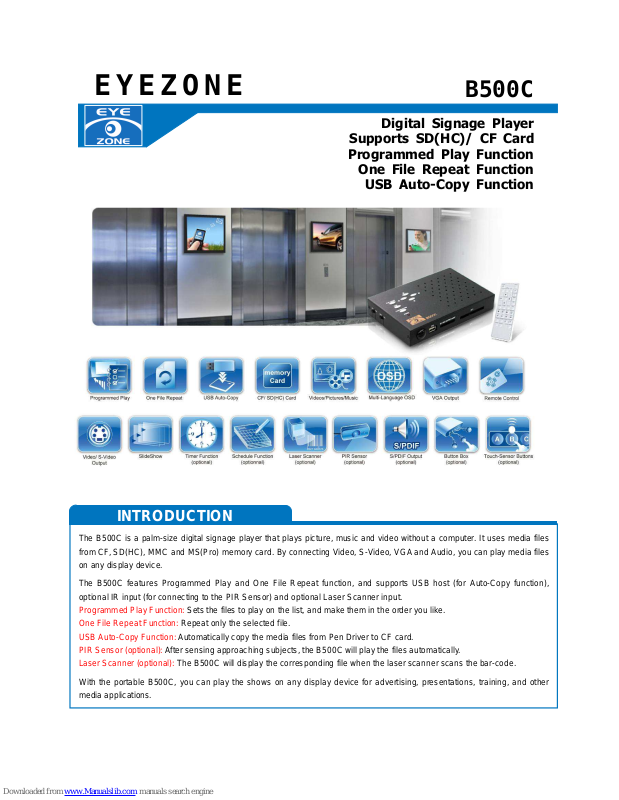

EYEZONE B500C User Instructions
INTRODUCTION
The B500C is a palm-size digital signage player that plays picture, music and video without a computer. It uses media files
from CF, SD(HC), MMC and MS(Pro) memory card. By connecting Video, S-Video, VGA and Audio, you can play media files
on any display device.
The B500C features Programmed Play and One File Repeat function, and supports USB host (for Auto-Copy function),
optional IR input (for connecting to the PIR Sensor) and optional Laser Scanner input.
Programmed Play Function: Sets the files to play on the list, and make them in the order you like.
One File Repeat Function: Repeat only the selected file.
USB Auto-Copy Function: Automatically copy the media files from Pen Driver to CF card.

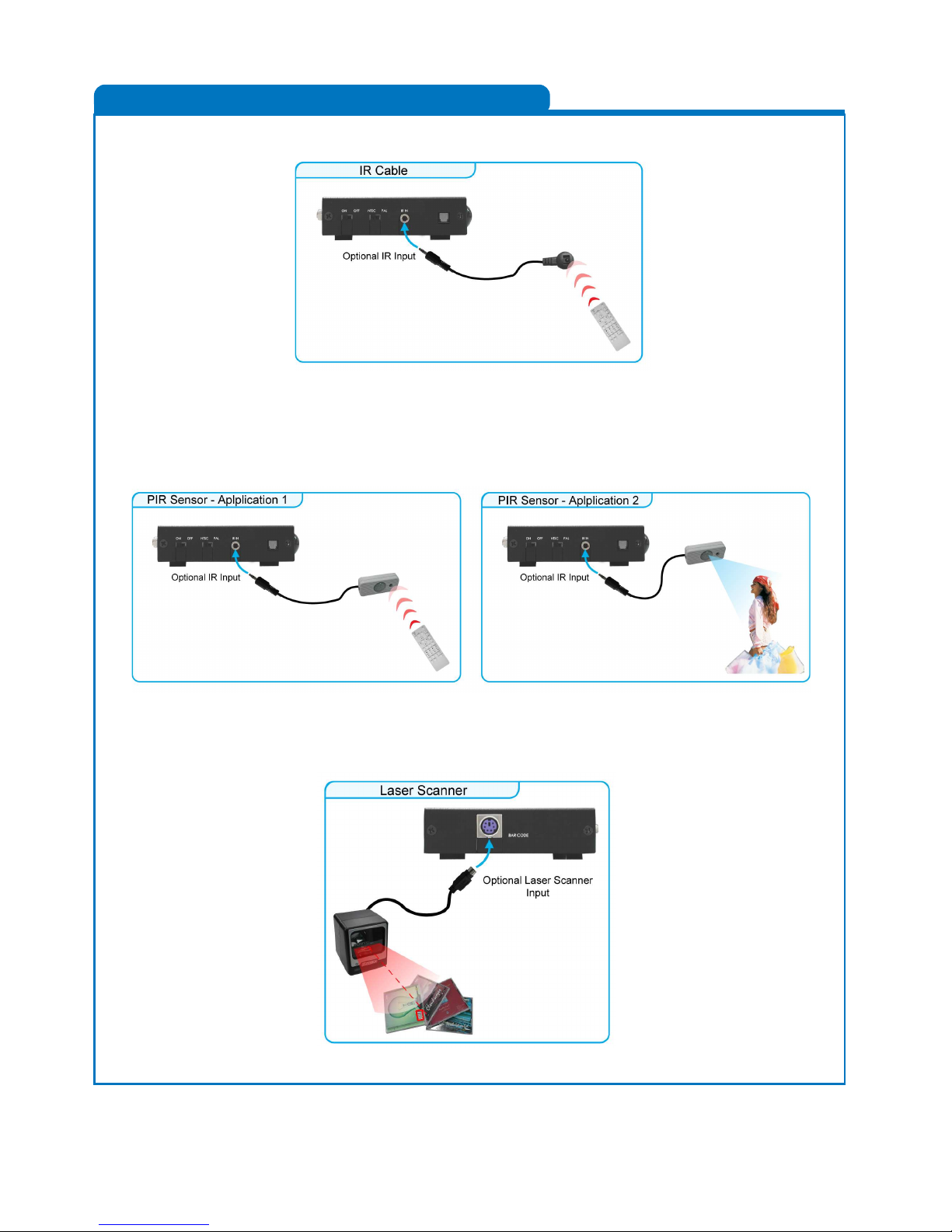

PIR Sensor (optional): After sensing approaching subjects, the B500C will play the files automatically.
Laser Scanner (optional): The B500C will display the corresponding file when the laser scanner scans the bar-code.
With the portable B500C, you can play the shows on any display device for advertising, presentations, training, and other
media applications.
Digital
Signage
Player
Supports SD(HC)/ CF Card
Programmed Play Function
One File Repeat Function
USB Auto-Copy Function
B
500C
EYEZO N E
FEATURES
PACKAGE CONTENTS
Supports multiple file formats: Picture, Music and Video.
Supports CF, SD(HC), MMC and MS(Pro) memory card.
Supports Video, S-Video, VGA (resolution up to 640x480) and Audio output.
Supports NTSC and PAL format.

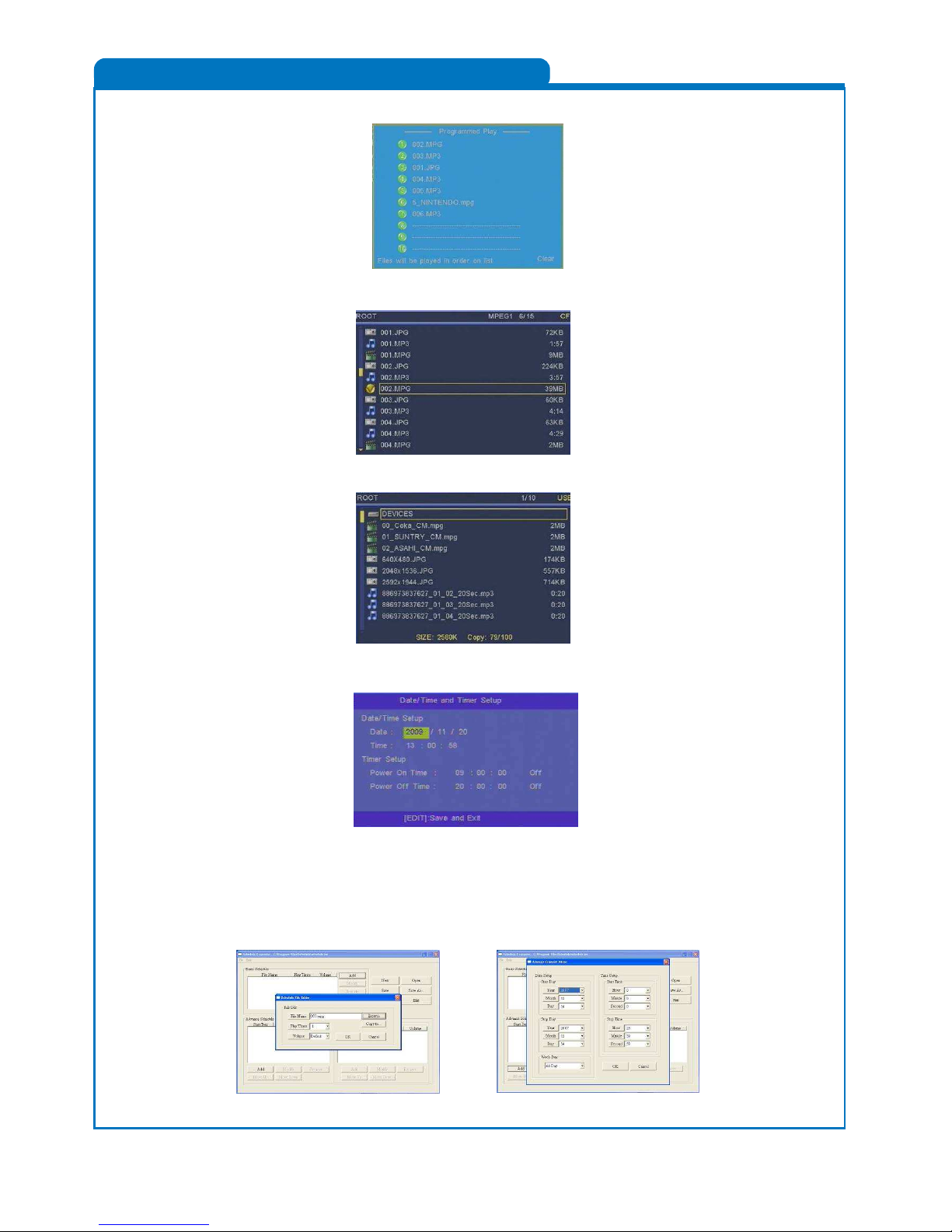

Programmed Play Function: Set the files to play on the list, and make them in the order you like
One File Repeat Function: Repeat only the selected file.
USB Auto-Copy Function: Supports USB host for copying the media files from Pen Driver to CF card.
Includes a full-function infrared remote control.
Multi-Language OSD: English, French, German, Italian, Portuguese, Spanish, Netherlands, Japanese and Chinese.
Supports SLIDE SHOW Function: With 14 kinds of transition effects.
Supports SLIDE TIME (INTERVAL) Mode: Interval time with 1, 3, 5, 10, 30, 60 seconds.
Supports MUSIC SLIDE Show: Music and pictures play at the same time.

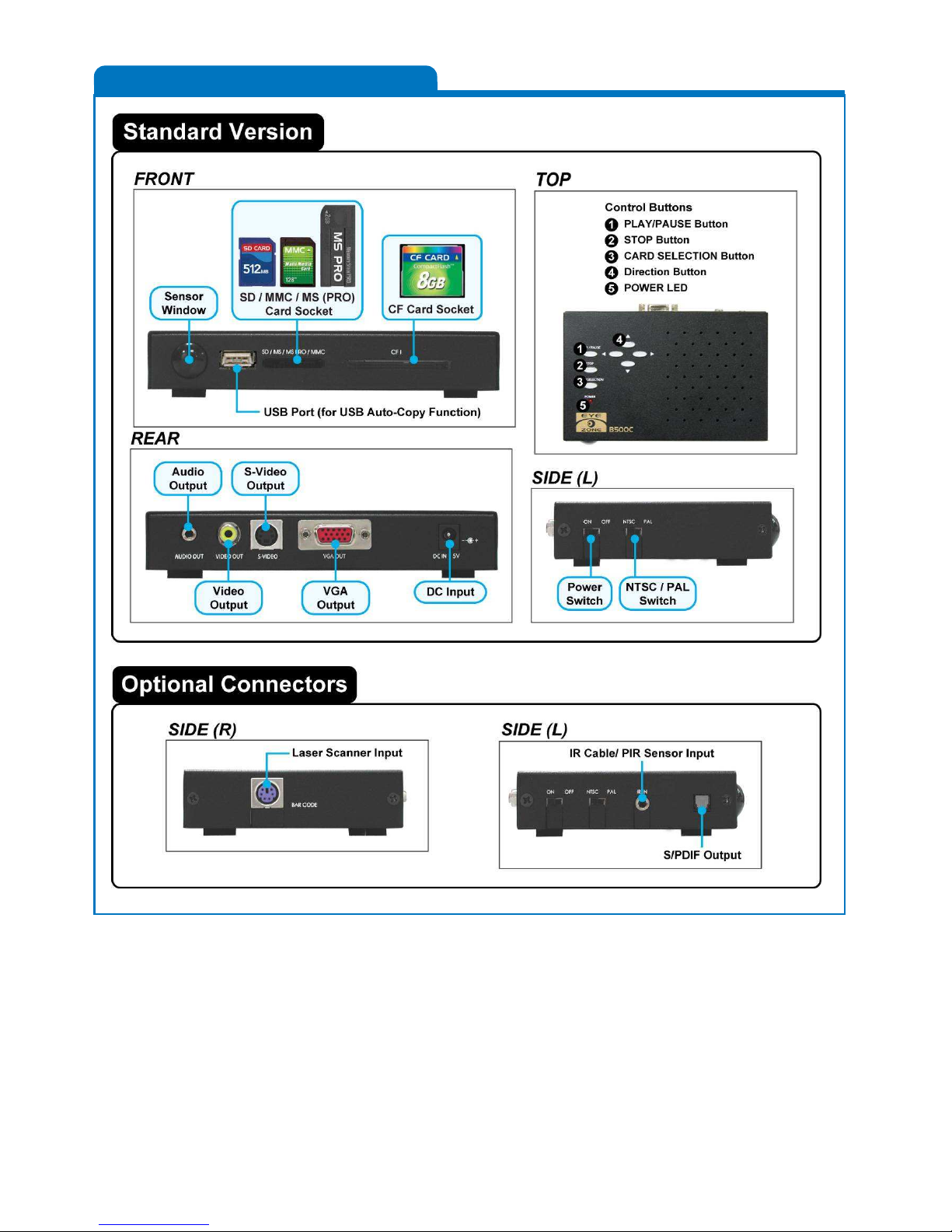

Optional Functions and Connectors:
- Timer Function: The B500C will power on/ off at the specified time.
- Schedule Function: The B500C will play the specified files at the specified time.
- Laser Scanner: The B500C will display the corresponding file when the laser scanner scans the bar-code.
- PIR Sensor: After sensing approaching subjects, the B500C will play the files automatically.
- S/PDIF Output: Connects to speakers that supports S/PDIF interface.

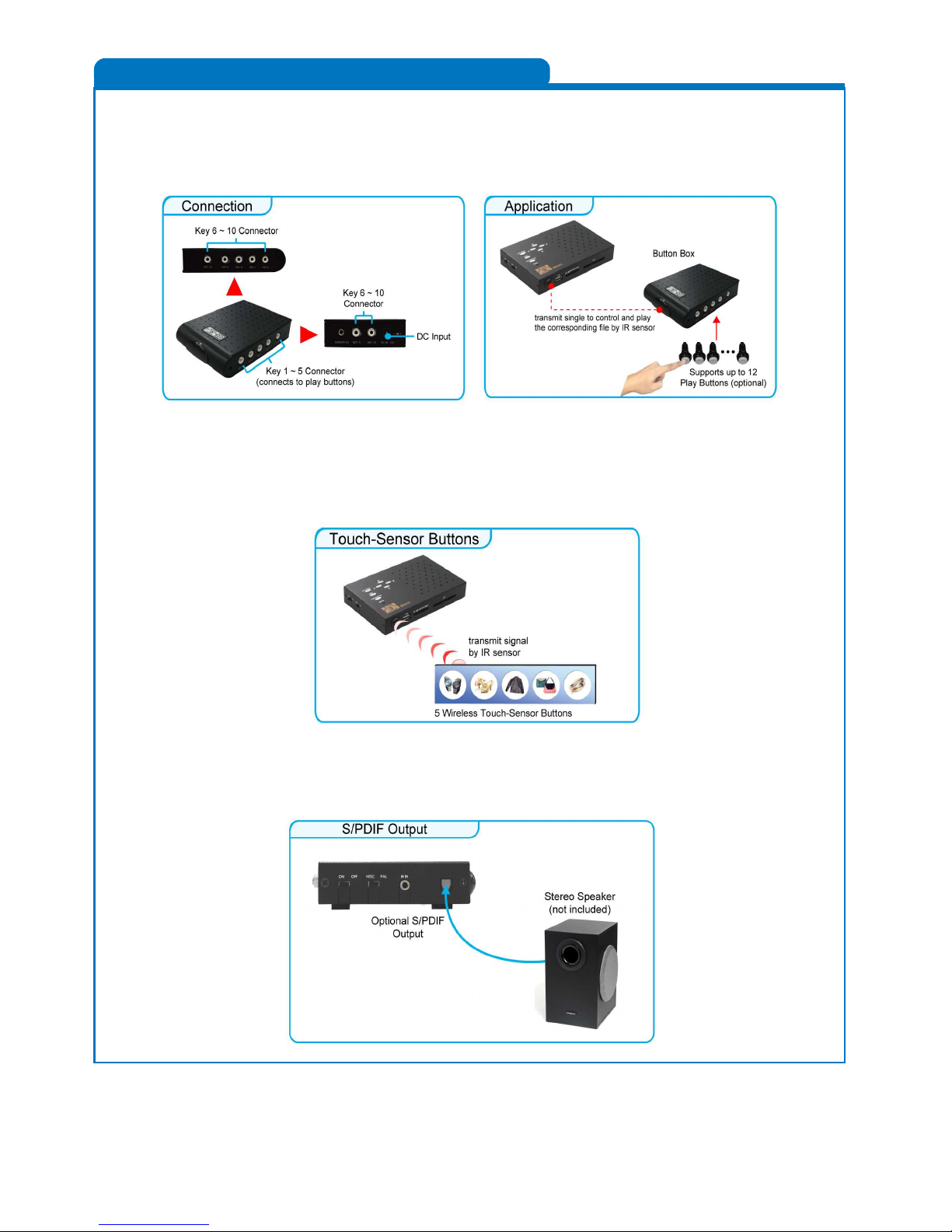

Optional Touch-Sensor Buttons:
- Press one of the touch-sensor buttons, the B500C will play the corresponding file automatically.
- The number of touch-sensor buttons can be customized to 12, 24 or 36 for OEM project.
- Used with various operating environment (glass, plastics and acrylic material, except metal material), the thickness
supports 3mm -5mm, and it can be customized to 5cm for OEM project.
Optional Button Box:
- Press one of the play buttons, the B500C will play the corresponding file automatically.
- The Play Button Box supports up to 12 play-button inputs.
B500C
User Manual
Remote Control
Audio Cable
S-Video Cable
Power Adapter (DC5V, 2A)
