lcome

Thank

you for purchasing our DVR!

This manual is designed to be a reference tool for the installation and operation of your system.

Here you can find information about this series DVR features and functions, as well as a detailed

menu tree.

Before installation and operation please read the following safeguards and warnings carefully!

Important Safeguards and Warnings

Do no

t place heavy objects on the DVR.

Do not let any solid or liquid fall into or infiltrate the DVR.

Please brush printed circuit boards, connectors, fans, machine box and so on regularly. Before

the dust cleaning please switch off the power supply and unplug it.

Do not disassemble or repair the DVR by yourself. Do not replace the components by yourself.

Envir

onment

ease place and use the DVR between 0 and 40 .Avoid direct sunlight. Stay away from heat ℃ ℃

source.

Do not install the DVR in damp environment.

Do not use the DVR in smoky or dusty environment.

Avoid collision or strong fall.

Please insure the DVR level installation in a stable workplace.

Please install in ventilated place. Keep the vent clean.

Use within the rating input and output scope.

Pag

e 3

Dire

ctory

1 Production Introduction............................................................................................................................ 4

1.1 Product overview........................................................................................................................... 4

1.2 Main functions ............................................................................................................................... 4

2 Open-package check and cable connections.......................................................................................... 6

2.1 Open-package check..................................................................................................................... 6

2.2 Hard disk installation .................................................................................................................................6

2.3 Front panel..................................................................................................................................... 7

2.4 Rear panel..................................................................................................................................... 8

2.5 Audio and video input and output connections ............................................................................. 8

2.5.1 Video input connections...................................................................................................... 8

2.5.2 Video output connections and options................................................................................ 9

2.5.3 Audio signal input................................................................................................................ 9

2.5.4 Audio signal output.............................................................................................................. 9

2.6 Alarm input and output connections ............................................................................................ 10

2.6.1 Alarm input port specification............................................................................................ 12

2.6.2 Alarm output port specification.......................................................................................... 12

2.6.3 Alarm output port relay parameters................................................................................... 13

2.7 Speed dome connections............................................................................................................ 13

3 Basic operation...................................................................................................................................... 14

3.1 Turn on......................................................................................................................................... 14

3.2 Turn off......................................................................................................................................... 14

3.3 System Login............................................................................................................................... 15

3.4 Preview........................................................................................................................................ 15

3.5 Desktop shortcut menu ............................................................................................................... 16

3.5.1 Main menu......................................................................................................................... 16

3.5.2 Playback............................................................................................................................ 17

3.5.3 Record Mode..................................................................................................................... 19

3.5.4 Alarm output ...................................................................................................................... 19

3.5.5 PTZ control........................................................................................................................ 20

3.5.6 Color setting...................................................................................................................... 25

3.5.7 Output adjust..................................................................................................................... 25

3.5.8 Logout................................................................................................................................ 26

3.5.9 Window switch................................................................................................................... 26

4 Main menu ............................................................................................................................................. 27

4.1 Main menu navigation ................................................................................................................. 27

4.2 Record ......................................................................................................................................... 29

4.2.1 Record Config ................................................................................................................... 29

4.2.2 Snapshot Storage.............................................................................................................30

4.2.3 Playback............................................................................................................................ 31

4.2.4 Backup............................................................................................................................... 31

4.3 Alarm............................................................................................................................................ 33

4.3.1 Motion Detect .................................................................................................................... 33

4.3.2 Video Blind ........................................................................................................................ 37

4.3.3 Video Loss......................................................................................................................... 38

Pag

e 4

4.3.4 Alarm input ........................................................................................................................ 39

4.3.5 Alarm output ...................................................................................................................... 40

4.3.6 Abnormal .............................................................................................. 错误！未定义书签。

4.4 System......................................................................................................................................... 37

4.4.1 General.............................................................................................................................. 38

4.4.2 Encode .............................................................................................................................. 39

4.4.3 Network ............................................................................................................................. 40

4.4.4 NetSevice.......................................................................................................................... 41

4.4.5 GUI Display ....................................................................................................................... 49

4.4.6 PTZ/RS485........................................................................................................................ 50

4.4.7 RS232................................................................................................................................ 51

4.4.8 Tour.................................................................................................................................... 51

4.4.9 Digital Management……………………………………………………………………………….51

4.5 Advanced..................................................................................................................................... 52

4.5.1 HDD Manage..................................................................................................................... 52

4.5.2 Account.............................................................................................................................. 53

4.5.3 Online user ........................................................................................................................ 56

4.5.4 Output adjust..................................................................................................................... 56

4.5.5 Auto maintain..................................................................................................................... 57

4.5.6 Restore.............................................................................................................................. 65

4.5.7 Upgrade............................................................................................................................. 58

4.5.8 Device Info........................................................................................................................58

4.6 Info............................................................................................................................................... 66

4.6.1 HDD info............................................................................................................................ 66

4.6.2 BPS ................................................................................................................................... 67

4.6.3 Log..................................................................................................................................... 68

4.6.4 Version............................................................................................................................... 68

4.7 Shut down system ....................................................................................................................... 69

5 FAQ and maintenance........................................................................................................................... 70

5.1 FAQ.............................................................................................................................................. 70

5.2 Maintenance................................................................................................................................ 76

Appendix 1.Remote controller operation .................................................................................................. 78

Appendix 2.Mouse operation.................................................................................................................... 79

Appendix 3.Hard disk capability calculation ............................................................................................. 80

Appendix 4.Technique parameters...............................................................................................................

Pag

e 5

1 Prod

uction Introduction

1.1 Product overview

he series DVR is designed specially for security and defence field which is an outstanding digital

surveillance product. It introduces embedded LINUX operating system which is more stable. It introduces

standard H.264mp video compressed format and G.711A audio compressed format which insures the

high quality image, low error coding ratio and single frame playing. It introduces TCP/IP network

technology which achieves the strong network communication ability and telecommunication ability.

The series DVR can be used individually or online applied as a part of a safety surveillance network.

With the professional network video surveillance software it achieves the strong network communication

ability and telecommunication ability.

The series DVR can be applied in the bank, telecom, electric power system, judicial system,

transportation, intelligent housing, factory, storehouse, water conservancy and so on.

1.2 Main functions

Rea

l-time surveillance

analog interface and VGA interface (VGA interface is equipped selectively)

surveillance function through monitor or display

Storage

non-working hard disk dormancy processing which is convenient to radiate heat, reduce power and

extend the life-span

special storage format which insures the data safety

Compression

real-time compression by individual hard disk which insures the audio and video signal stable

synchronization

Backup

through SATA interface and USB interface such as USB equipment, removable hard disk and so on

through net download the files in the hard disk

Playback

Pag

e 6

ind

ividual real-time video recording as well as searching, playback, network surveillance, recording

check, downloading and so on

multi-playback mode

zoom at arbitrary region

Net operating

through net tele-surveillance in the real time

tele-PTZ control

tele-recording check and real-time playback

Alarm linkage

multi-route relay alarm output which is convenient for the alarm linkage and light control at the spot

protecting circuits at the alarm input and output interface which protects the main machine from damage

Communication interface

RS485 interface which fulfills the alarm input and PTZ control

standard ethernet network interface which fulfills the telecommuting function

Intelligent operating

mouse action function

fast copy and paste operating for the same setting

Pag

e 7

2 O

pen-package check and cable connections

2.1 Open-package check

hen you receive the DVR, please check first .

First, please check whether there is any visible damage to the package appearance. The protective

materials used for the package of the DVR can protect most accidental clashes during transportation.

Then, please open the box and get rid off the plastic protective materials. Check whether there is

any visible damage to the DVR appearance.

At last, please open the machine crust and check the data wire in the front panel, power wire, the

connection between the fan power and the main board.

Front panel and rear panel

 The key function specification in the front panel and the interface specification in the real panel

are in the specification.

 Please check the product type in the front panel whether is accordant with the product type you

order.

The label in the real panel is very important for the after service. Please protect it carefully. When

you contact us for after service, please provide the product type and serial number in the label.

2.2 Hard disk installation

For the first use，please install the hard disk.

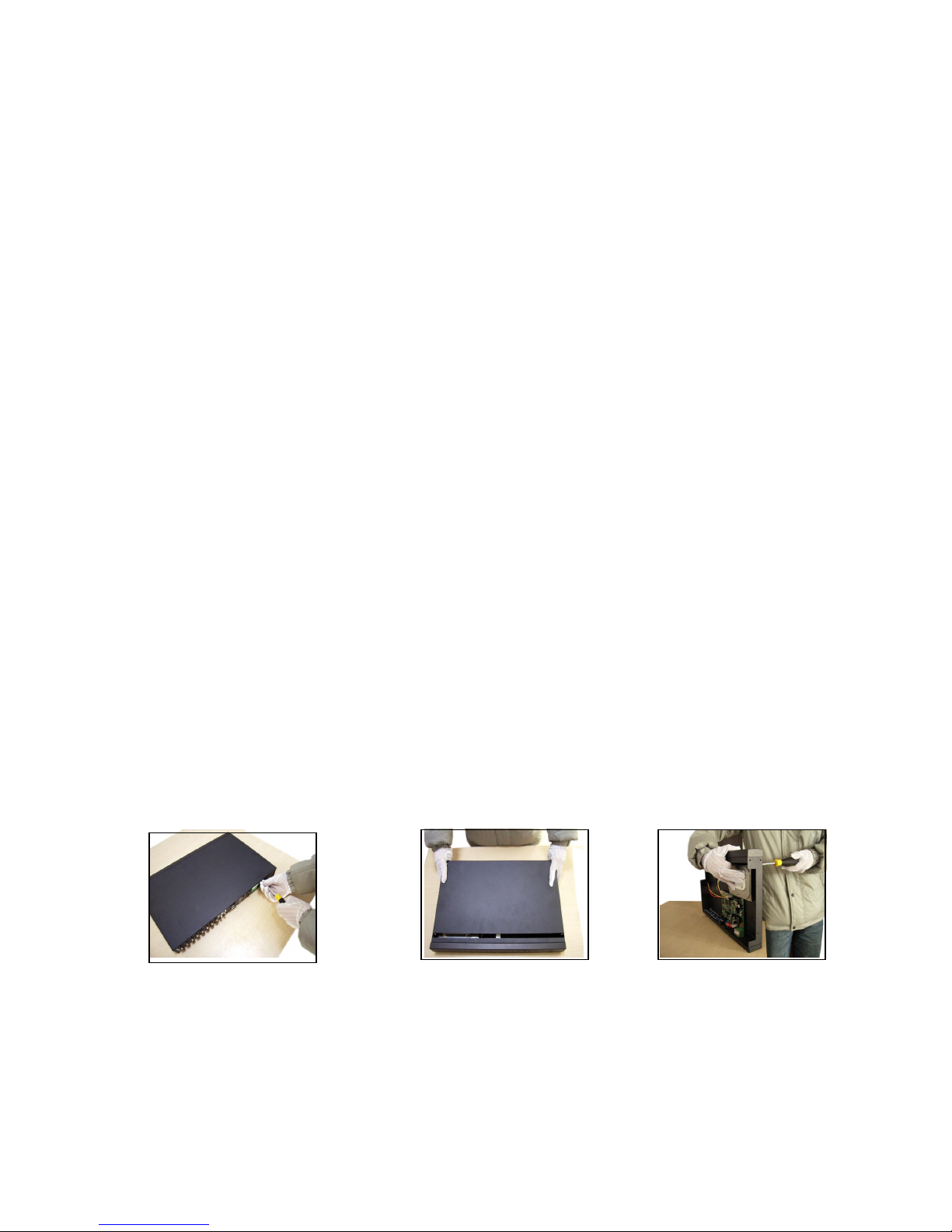

① disassemble the screw disassemble the ② cover fix the screw of hard disk ③

Pag

e 8

ix the screw of hard disk connect the data wire connect the power wire④ ⑤ ⑥

cov

er the machine fix the co⑦ ⑧ ver

2.3 Front panel

(1) IR remoter receiver (2) Power indicator light (3) Alarm indicator light (4)HDD indicator light

(5) Record indicator light (6) Network indicator light (7) Status indicator light

(8) Running Indicator (9) Back to main menu (10) PTZ Control (11) Playback

(12) Previous file (13) Next file (14) Record (15) Slow play

(16) Backwards & Pause (17)Fast Play (18) Stop (19) Directions & Enter

(20) USB port (21)Play & Pause (22) Exit (23) Switch

Pag

e 9

2.4 Rear panel

(1) Video i

nput (2) port for outer device （3）SD card port （4）USB （5）Network （6）VGA （7）port for outer device （8）DC power port （9）Switch （10）HDMI port （11）BNC video output （12）Audio input （13）Audio output

2.5 Audio and video input and output connections

5.1 Video input connections

The video input port is BNC connector plug. The demand of input signal is PAL/NTSC

BNC(1.0V

P-P

5Ω).

The video signal must be accorded with the state standard which has the high signal to noise ratio,

low aberration and low interference. The image must be clear and has natural color in the appropriate

brightness.

Insure the vidicon signal stable and credible

The vidicon should be installed in the appropriate location where is away from backlighting and low

illumination or adopts the better backlighting and low illumination compensation.

The ground and power supply of the vidicon and the DVR should be shared and stable.

Insure the transmission line stable and credible

The video transmission line should adopt high quality coaxial pair which is chosen by the

transmission distance. If the transmission distance is too far, it should adopt shielded twisted pair, video

compensation equipment and transmit by fiber to insure the signal quality.

The video signal line should be away from the electro magnetic Interference and other equipments

signal lines. The high voltage current should be avoided especially.

Insure the connection stable and credible

The signal and shield lines should be firm and connected credible which avoid false and joint

Pag

e 10

elding and oxidation.

2.5.2 Video output connections and options

The video output is divided into PAL/NTSC BNC(1.0V

P-P

,75Ω) and VGA output(selective

configuration).

When replace the monitor by the computer display, there are some issues to notice.

1、Do not stay in the turn-on state for a long time.

2、Keep the computer display normal working by demagnetizing regularly.

3、Stay away from the electro magnetic Interference.

TV is not a credible replacement as a video output. It demands reducing the use time and control the

power supply and the interference introduced by the nearby equipments strictly. The creepage of low

quality TV can lead to the damage of other equipments.

2.5.3 Audio signal input

Audio port is BNC connection.

The input impedance is high so the tone arm must be active.

The audio signal line should be firm and away from the electro magnetic Interference and connected

credible which avoid false and joint welding and oxidation. The high voltage current should be avoided

especially.

2.5.4 Audio signal output

Commonly the output parameter of DVR audio signal is greater than 200mv 1KΩ(BNC) which can

connect the low impedance earphone and active sound box or other audio output equipments through

power amplifier. If the sound box and the tone arm can not be isolated, howling phenomena is often

existed. There are some methods to deal with the above phenomena.

1、 Adopt better directional tone arm.

2、 Adjust the sound box volume to be under the threshold that produces the howling phenomena.

3、 Use fitment materials that absorb the sound to reduce reflection of the sound.

4、 Adjust the layout of the sound box and the tone arm.

Pag

e 11

2.6 Alarm input and output connections

１、A

larm input

A. Alarm input is grounding alarm input.

B. Alarm input demand is the grounding voltage signal.

C. When the alarm is connected with two DVRs or connected with DVR and other equipments, it

should be isolated by relay.

２、Alarm output

Alarm output can not be connected with high-power load(no more than 1A).When forming the output

loop it must prevent the big current from relay damage. Use the contact isolator when there is a

high-power load

３、PTZ decoder connections

A. The grounding of the PTZ decoder and DVR must be shared otherwise the common-mode

voltage will lead to the PTZ control failure. The shielded twisted pair is recommended.

B. Avoid the entrance of high voltage. Make the layout reasonably. Take precaution from the

thunder.

C. In the outlying end connect 120Ω resistance paralleled to reduce the inflection and insure the

signal quality.

D. The 485 AB lines of DVR can not connected with other 485 output equipments paralleled.

E. The voltage between the AB lines of the decoder must be less than 5V.

4、Front equipment grounding note

Bad grounding can lead to the burnout of the chip.

5、Alarm input type unlimited

The DVR alarm output port is constant opening type.

Pag

e 12

(1) alarm input 1,2,3,4 (2) grounding (3) RS232 (4) RS485 (5) alarm input 5,6,7,8

(6) grounding (7) alarm output

parameter meaning

(2) &

(6) grounding

(7)

Alarm output interface(constant open type)

(3)

RS232 port

(4)

485communication interface which is connected with the

recording control equipments such as the decoder

6.1 Alarm input port specification

8 channels alarm input. Alarm input type unlimited.

The grounding and the com port of the alarm sensor are parallel (The alarm sensor is external power

supply) .

The grounding of the alarm and the DVR should be shared.

The NC port of the alarm sensor must be connected with the DVR alarm input port.

The grounding of the power supply and the alarm sensor must be shared when used in external power

supply.

2.6.2 Alarm output port specification

2 channels alarm output. There is external power supply when using the external alarm equipment.

Please refer to the relay relevant parameters to avoid the overload that damages main machine.

Pag

e 13

6.3 Alarm output port relay parameters

Type：JRC-27F

terface material silver

Ratin

g switch capacity

VDC 2A, 125VAC

maximal switch power

125VA 160W

aximal switch voltage 250VAC, 220VDC

ratin

(resistance load)

maximal switch current

mo-polarity 1000VAC 1minute

Inhomo-polarity 1000VAC 1 minute

isolat

ion

Interface and winding 1000VAC 1 minute

rge voltage Homo-polarity 1500VAC (10×160us)

Turn-on time 3ms max

urn-off time 3ms max

mechanical

50×106 MIN（3Hz)

longevity

electric 200×103 MIN (0.5Hz)

Environment -40~+70℃

2.7 Speed dome connections

1、Connect the 485 lines of the speed dome with the DVR 485 interface.

2、Connect the video line with the DVR video input.

3、Electrify the speed dome.

Pag

e 14

3 Ba

sic operation

Note

: The button in gray display indicates nonsupport.

3.1 Turn on

Plu

g the power supply and turn on the power supply switch. Power supply indicator light shining

indicates turning on the video recorder. After the startup you will hear a beep. The default setting of video

output is multiple-window output mode. If the startup time is within the video setting time, the timing video

recording function will start up automatically. Then the video indicator light of corresponding channel is

shining and the DVR is working normally.

Note:1. Make sure that the input voltage corresponds with the switch of the DVR power supply.

2. Power supply demands: 220V±10% /50Hz.

Suggest using the UPS to protect the power supply under allowable conditions.

3.2 Turn off

here are two methods to turn off the DVR. Entering [main menu] and choosing [turn off] in the [turn

off the system] option is called soft switch. Pressing the power supply switch is called hard switch.

Illumination:

1、Auto resume after power failure

If the DVR is shut down abnormally, it can automatically backup video and resume previous

working status after power failure.

2、Replace the hard disk

Before replacing the hard disk, the power supply switch in the real panel must be turned off.

3、Replace the battery

Before replacing the battery, the setting information must be saved and the power supply switch

in the real panel must be turned off. The DVR uses button battery. The system time must be checked

regularly. If the time is not correct you must replace the battery, we recommend replacing the battery

every year and using the same battery type.

Note: The setting information must be saved before replacing the battery otherwise information

Pag

e 15

ill lose.

3.3 System Login

When the DVR boots up, the user must login and the system provides the corresponding functions

with the user purview. There are three user settings. The names are admin, guest and default and

these names have no password. Admin is the super user purview; guest and default’s permissions are

preview and video playback. User admin and guest’s password can be revised, while their permissions

can’t be revised; user default is the default login user whose permission can be revised but not its

password.

Pictu

re 3.1 System Login

Password protection: If the password is continuous wrong three times, the alarm will start. If

the password is continuous wrong five times, the account will be locked. (Through reboot or after

half an hour, the account will be unlocked automatically).

For your system security, please modify your password after first login.

3.4 Preview

ou can right click mouse to choose the switch between the windows.

The system date, time and channel name are shown in each viewing window. The surveillance video

and the alarm status are shown in each window.

Reco

rding status 3

ideo loss

Motio

n detect 4

mera lock

able 3.1 Preview icon

Pag

e 16

3.5 Desktop shortcut menu

preview mode you can right click mouse to get a desktop shortcut menu. The menu includes:

main menu, record mode, playback, PTZ control, High Speed PTZ, Alarm Output, color Setting,

Output adjust, Logout, view mode shift .

Shortcut under Hybrid mode Shortcut menu under full digital mode

Picture 3.2 Shortcut Menu

3.5.1 Main menu

When you login, the system main menu is shown as below.

Pictu

re3.3 Main Menu

Pag

e 17

5.2 Playback

There are two methods for you to play the video files in the hard disk.

1、 In the desktop shortcut menu.

2、 Main menu>Record->Playback

Note: The hard disk that saves the video files must be set as read-write or read-only state.(4.5.1)

Pictu

re 3.4 video playback

1. Playback control 2. Operation hint 3. file searching

4. listed files 5. file information

【Listed files】Look up the listed files that accord with the searching criteria.

【File information】Look up the found file information.

【Playback control】See detail in below chart

Key Function Key Function

Play/Pause

Backward play

Slow forward

Fast forward

Previous frame

Next frame

Previous file

Next file

Pag

e 18

Round play

Full screen

Stop

Picture 3.5 Playback control key

Note: play

under frame by frame, the playback status should be paused firstly.

【Operation tips】show function of the key that cursor placed.

Special functions：

Accurate playback：Input time (h/m/s) in the time column and then click play

button. The

system can operate accurate playback according to the searching time.

Local zoom：When the system is in single-window full-screen playback mode, you can drag your

mouse in the screen to select a section and then left click mouse to realize local zoom. You can right click

mouse to exit.

Note: When current resolution of the channel is over Max resolution, to playback this channel,

will show a Red “X”.

3.5.3 Record Control

Please check current channel status: “○” means it is not in recording status, “●” means it is in

recording status.

You can use desktop shortcut menu or click [main menu]> [recording function]> [recording set]

to enter the recording control interface.

Pictu

re 3.8 Record Mode

【Schedule】Record according to the configuration.

【Manual】Click the all button and the according channel is recording no matter the channel in any

state.

Pag

e 19

【S

top】Click the stop button and the according channel stops recording no matter the channel in

any state.

3.5.4 Alarm output

Please check current channel status: “○” means it is not in alarming status, “●” means it is in

alarming status.

You can use desktop shortcut menu or click [main menu]> [alarm function]> [alarm output] to

enter the alarm output interface.

Pictu

re 3.9 alarm output

【Configuration】Alarm is on according to the configuration.

【Manual】Click the all button and the according channel is alarming no matter the channel in any

state.

【Stop】Click the stop button and the according channel stops alarming no matter the channel in any

state.

3.5.5 PTZ control

*PTZ control is a little different between hybrid mode & full digital mode:

Digital channel – the digital channel need link PTZ, the remote device should connect with PTZ and with

protocol correctly set also.

Analog channel – Only when the device is connect with PTZ and configure protocol correctly is ok.

Operation interface is as followed. The functions include: PTZ direction control, step, zoom, focus,

iris, setup operation, patrol between spots, trail patrol, boundary scan, assistant switch, light switch,

level rotation and so on.

Note1. Decoder A(B)line connects with DVR A(B)line. The connection is right.

2. Click [main menu] >[system configuration] >[PTZ setup] to set the PTZ parameters.

3. The PTZ functions are decided by the PTZ protocols.

Pag

e 20

Picture 3.10 PTZ setup

【Speed】Set the PTZ rotation range. Default range: 1 ~ 8.

【Zoom】Click

/ button to adjust the zoom multiple of the camera.

【Focus】Click / button to adjust the focus of the camera .

【Iris】Click

/ button to adjust the iris of the camera.

【Direction control】Control the PTZ rotation. 8 directions control is supportive.(4 directions in Front

panel is supportive )

【High speed PTZ】Full-screen show channel image. Left press mouse and control PTZ to rotate

orientation. Left press mouse and then rotate the mouse to adjust the zoom multiple of the camera.

【Set】Enter the function operation menu.

【Page switch】Switch between different pages.

Special functions：

1、Preset

Set a location for the preset, calls the preset points, PTZ automatically turns to the setting

position

1）Preset option

Set a location for the preset, procedure is as follows:

Step1: in Picture 3.10, click the Direction button will turn into preset position , click the Settings

button to enter Picture 3.11.

Step 2: click the Preset button , then write the preset points in the input blank,

Step 3: click Settings button, return the Picture 3.10 Complete setup, that is the preset points and

Pag

e 21

reset position corresponds.

Clear Preset：Input preset points, click Remove button, remove the preset。

Pictu

re 3.11 Preset Settings

2）Preset Point Calls

In Picture 3.10, click Page Shift button, enter PTZ control interface as shown in Picture 3.12. In

the input blank, write the preset points, then click Preset button, PTZ turn to the corresponding

preset point.

Pictu

re 3.12 PTZ Control

2、Cruise between Points

Multiple preset points connected cruise lines, call cruise between points, the PTZ run around on

the line

1）Cruise Between Points Settings

Cruise lines is connected by multiple preset points, setting procedure is as follows:

Step1: In Picture 3.10, the Direction key will turn PTZ to designated location , click Settings

button to enter Picture 3.13,

Preset

button

Preset

point input blank

alue input blank

Pag

e 22

tep 2: click Cruise buttons, the write proper value into the Cruise Line and Preset Points blank，

then click Add Preset Points button, complete setting (also can add and delete cruise line which has

been set up)

Step 3: repeat step1 and step2 , until set out all the preset designated cruise lines。

Remove Preset：Please input preset value in the blank, click Remove Preset button, then

remove the preset points.

Remove Cruise Line：Input the number of cruise line, click Remove Cruise Lines button, then

remove the cruise lines set。

Pictu

re 3.13 Cruise Between Points Settings

2）The Calls of Cruise between Points

In Picture 3.10, click Page Shift button, enter PTZ control menu as shown in Picture 3.12. Please

input the number of cruise in the value blank, then click Cruise between Points button, PTZ begins to

work on the cruise line. Click Stop button to stop cruise.

3、Scan

PTZ also can work on the preset scan line repeatedly.

1）Scan setup S

tep1：In Picture 3.10, click Setup button ，enter Picture 3.14；

tep2：Click Scan button，the input proper value in the scan value blank;

Step3：Click Start button, enter Picture3.10，here you can set the following items: Zoom、

Focus、Aperture、Direction and so on. Click Setup button to go back Picture 3.14；

Step4：Click End button to complete setup。Click the right button of the mouse to exit.

Crui

se Button

Crui

se Line Blank

Preset

Points Blank

Pag

e 23

Pictu

re 3.14 Scan Setup

2）Scan Calls

In Picture 3.10, click Page Shift button, then enter PTZ control menu as shown in Picture 3.12.

Please input the number of scan in the value blank , then click Scan button，PTZ begins to work on

the scan line . Click Stop button to stop.

4、Boundary Scan

1）Boundary Scan setup

Step1：In Picture 3.10, click Direction button to turn the PTZ to preset direction, then click Setup

button enter Picture 3.15, select the left boundary, return to Picture 3.10;

Step2：Please click direction arrows to adjust PTZ direction, click Setup button enter Picture3.15,

then select the right boundary ,return to Picture 3.10;

Step3: Complete setup, that is the position of left and right boundary

Picture 3.15 Boundary Scan Setup

Scan value blank

an Button

ine scan button

border

Pag

e 24

2）Boundary Scan Calls

In Picture 3.10, click Page Shift button, then enter PTZ control menu as shown in Picture 3.12.

Please input the number of scan in the value blank , then click Scan button，PTZ begins to work on

the scan line . Click Stop button to stop.

5、Horizontal Rotating

Click Horizontally Rotating button, PTZ begins to rotate horizontally (relative to the original position

of the camera). Click the Stop button to stop.

6、Rotate

Click on horizontal Rotating button, PTZ turn around.

7、Reset

PTZ restart, all the data clears to 0.。

8、Page Shift

In Picture 3.12, click Page Shift button into Picture3.16, setting auxiliary function. Auxiliary

number

cor

responding to

auxiliary switch on the decoder.

Pictu

re 3.16 Auxiliary Function Control

【Intuitive Auxiliary Operation】 choose auxiliary equipment, select Open or Close button,

switch control；

【 Auxiliary Number】 The operation of corresponding auxiliary switch according to PTZ

agreement；

【Page Shift】In Picture 3.16，click Page Shift button enter the Picture 3.17 PTZ Main Menu , the

menu itself can be control by the menu control buttons

Pag

e 25

5.6 Color setting

Set the selective image parameters (current channel for single window display and cursor place for

multi-window display). You can use the desktop shortcut menu and enter the interface. The image

parameters include: tonality, brightness, contrast, saturation. You can set different parameters at different

time sections.

Picture 3.18 Color Setting

3.5.7 Output Adjust

Hybrid mode is with black margin vertical & horizontal, while full digital mode without.

Adjust TV output area parameters. You can use the desktop shortcut menu or enter [main menu]>

[management tools]> [Output adjust].

Hybrid Mode Full digital Mode

Picture 3.19 Output Adjust

Note: The black margin vertical & horizontal at output adjust of hybrid mode is only effect

to analog channel.

Pag

e 26

5.8 Logout

gout, shut down the system or reboot up. You can use the desktop shortcut menu or enter [main

menu].

Pictu

re 3.20 Logout/Shutdown/Reboot the system

【logout】Quit the menu. Offer password next entrance.

【shut down】Quit the system. Turn off the power supply.

When press the shut down button, there is schedule hint. After three seconds, the

system is shut down. Cancel midway is of no effect.

【reboot】Quit the system. Reboot up the system..

5.9 Window switch Preview in single window/four windows/eight windows/nine windows/sixteen windows according to your choice.

Pag

e 27

4 Main

4.1 Main menu navigation

Main menu

Sub menu Function

Con

fig Set the recording configuration, recording type, recording time section

playback Set recording search, recording play, video file storage

torage

t screen capture period, type ,etc.

Not

e: Only hybrid mode have this function

Reco

backup Detect backup device, format device, back the selective files

Motion

detection

Set motion detect alarm channel, sensitivity, area, linkage parameters:

defending time section, alarm output, screen hint, recording, screen shot

(Note: only for hybrid mode), PTZ, patrol, buzz, email and FTP upload

Video

blind

Set camera mask alarm channel, sensitivity, linkage parameters:

defending time section, alarm output, screen hint, recording, screen shot

(Note: only for hybrid mode), PTZ, patrol, buzz, email and FTP upload

ideo

loss

Set video loss alarm channel, linkage parameters: defending time

section, alarm output, screen hint, recording, screen shot (Note: only

for hybrid mode), PTZ, patrol, buzz, email and FTP upload

Ala

input

Set alarm input channel, equipment type, linkage parameters: defending

time section, alarm output, screen hint, recording, screen shot (Note:

only for hybrid mode), PTZ, patrol, buzz, email and FTP upload

Ala

rm output Set alarm mode: configuration, manual, shut down

Ala

Exception

handling

No HDD, HDD error, HDD capacity not enough, network cut, IP Conflict,

linkage parameters, screen hint or buzz.

stem

configuratio

General

configuration

Set system time, data format, language, hard disk full time operation,

machine number, video format, output mode, summertime, stay time

Pag

e 28

code

configuration

Set main (assistant) coding parameter: code mode, resolving ability,

frame rate, code stream control, image quality type, code stream value,

frame between value, video/audio enable,

Note: only hybrid mode with encode settings.

Netw

ork

configuration

Set basic network parameters, DHCP and DNS parameters, network

high speed download

NetS

ervice

PPPOE、NTP、Email、IP purview、DDNS parameter

GUI d

isplay

Set channel title, preview hint icon state, transparency, cover area, time

title, channel title fold.

(Note: only hybrid mode can set channel title, cover area, time title,

channel title fold )

configuration

Set channel, PTZ protocol, address, baud rate, date bit, stop bit, check

(Note: Hybrid mode shows: PTZ configuration)

RS4

85 Device

Set protocol, address, baud rate, date bit, stop bit, check

(Note: Full digital mode shows : RS485 Device)

rial port

Configuration

S232)

Set serial port function, baud rate, date bit, stop bit, check

our Set patrol mode and interval time

Digital manage

t channel mode, check channel status and configure the digital

channel, etc.

Hard

disk

management

Set appointed hard disk as read-write disc, read-only disc or redundant

disc, clear data, resume date and so on

User

anagement

Modify user, team or password. Add user or team. Delete user or team.

Man

ageme

tools

Online user

Break the connection with the already login user. Lock the account after

break until booting up again.

Pag

e 29

tput adjust

Adjust upside, downside, nearside, starboard distance, black margin

vertical & horizontal

(Note: Only hybrid mode with black margin vertical & horizontal)

tomatic

maintenance

Set automatic reboot system and automatic deleting files.

Resto

Resume setup state: common setup, code setup, recording setup, alarm

setup, network setup, network service, preview playback, serial port

setup, user management

Dev

ice

information

To configure the hardware information of device.

Hard disk

information

Display hard disk capability and recording time

Cod

e stream

statistics

Display code stream information

Log

information

Clear all log information according to the log video and time

stem

information

ition

information

Display edition information

ut down

Logout, shut down or reboot

4.2 Record

Operations related to record, including: Record, Playback, Backup, Screen shot (Only for Hybrid mode)

4.2.1 Record Config

Set the recording parameters in the surveillance channel. The system is set 24 hours consecutive

recording in the first startup. You can enter [main menu]> [recording function]> [recording setup] to set.

Note：There is at least one read-write hard disk.（refer to chapter 4.5.1）

Pag

e 30

Pictu

re 4.1 Record Config

【Channel】Choose the corresponding channel number to set the channel. Choose the all option to

set the entire channels.

【Redundancy】Choose the redundancy function option to implement the file double backup function.

Double backup is writing the video files in two hard disks. When you do the double backup, make

sure that there are two hard disks installed. One is read-write disk and the other is redundant disk.

(refer to 4.5.1)

【SD card record】Device input with SD card, enable SD card for record to start recording.

【Length】Set the time length of each video file. 60minutes is default value.

【Pre-Record】Record 1-30 seconds before the action. (time length is decided by the code stream)

【Record mode】Set video state: schedule, manual or stop.

Schedule:Record according to the set video type (common, detection and alarm)and time

section.

Manual:Click the button and the according channel is recording no matter the channel in

any state.

Stop:Click the stop button and the according channel stops recording no matter the

channel in any state.

【Period】Set the time section of common recording, The recording will start only in the set range.

【Record type】Set recording type: regular, detection or alarm.

Regular:Perform the regular recording in the set time section. The video file type is “R”.

Detect:Trigger the “motion detect”, “camera mask” or “video loss” signal. When above

alarm is set as opening recording, the “detection recording” state is on. The video

Pag

e 31

ile type is “M”.

Alarm:Trigger the external alarm signal in the set time section. When above alarm is set as

opening recording, the “detection recording” state is on. The video file type is “A”.

Note：Refer to chapter 4.3 to set corresponding alarm function.

4.2.2 Snapshot Storage

When device set as Hybrid mode, there will be snapshot storage function in record, while only analog channel have this snapshot storage function.

Setup snapshot parameters for different channels.At first time it's set for 24hours snapshot continuously,

pls go to Main Menu->Record->Snapshot Storage for appropriate settings.

Note:If normal snapshot storage,pls setup Snap at Main Menu->Advanced->Snapshot(pls refer

to chapter 4.5.1 HDD Manage)

Picture 4.2

【Channel】Select the related channel to set,click "all" to set all channels.

【Presnap】Setup presnap picture quantity before recording,default is 5 pieces.

【Record】Set record status,"Schedule","Manual" and "Stop"

Schedule:Realise snapshot according to record type(regular,detect and alarm) and period.

Manual:No matter what the present channel is in a state,once choose "manual" button,it

will have snapshot at related channels.

Stop:No matter what the present channel is in a state,once choose "stop" button,it will stop

snapshot at related channels.

Pag

e 32

【Pe

riod】Set normal record period,it only startup Snapshot Storage at set period.

【Type】Three types:regular,detect and alarm

【Record type】Three types:regular,detect and alarm

Regular: snapshot at set period

Detect:snapshot at set period when motion detect,video blind and video loss which are

preset for snapshot enable.

Alarm:snapshot at set period when alarm in which is preset for snapshot enable.

Note:for related alarm function,pls refer to chapter 4.3.

4.2.3 Playback

Refer to chapter 3.5.2.

4.2.4 Backup

You can backup the video files to external storage through setup.

Note：The storage must be installed before the file backup. If the backup is terminated, the

already backup can playback individually.

Pictu

re 4.3 Backup

【Detect】Detect the storage connected with the DVR such as hard disk or universal disk.

【Backup】Click backup button and the dialog box is popped up. You can choose the backup file

according to the type, channel and time.

Pag

e 33

Pictu

re 4.4 File Backup

Remove：Clear the file information.

Add：Show the file information satisfying the set file attributes.

Start/pause：Click the play button to start the backup and click the pause button to stop the

backup.

Note：During backup you can exit the page layout to carry out other functions.

[Imprinting] click imprinting, will copy the record of related channel

【Erase】Choose the file to delete and click erasure to delete the file.

【Stop】Stop the backup.

4.3 Alarm Function

Alarm functions include: motion detect,video blind, video loss, alarm input and alarm output.

4.3.1 Motion Detect

When system detects the motion signal that reaches the set sensitivity, the motion detect alarm is on

and the linkage function is turned on.

*Motion detect function is different between Hybrid mode & Full digital mode:

Digital channel: not only to enable motion detect function at local side, but also to enable the remote device

that was connected. when remote device detect motion movement, local side will start alarm recording,

otherwise this function is not enable.

Hybrid mode: only need to enable motion detect function at local side.

Pag

e 34

Pictu

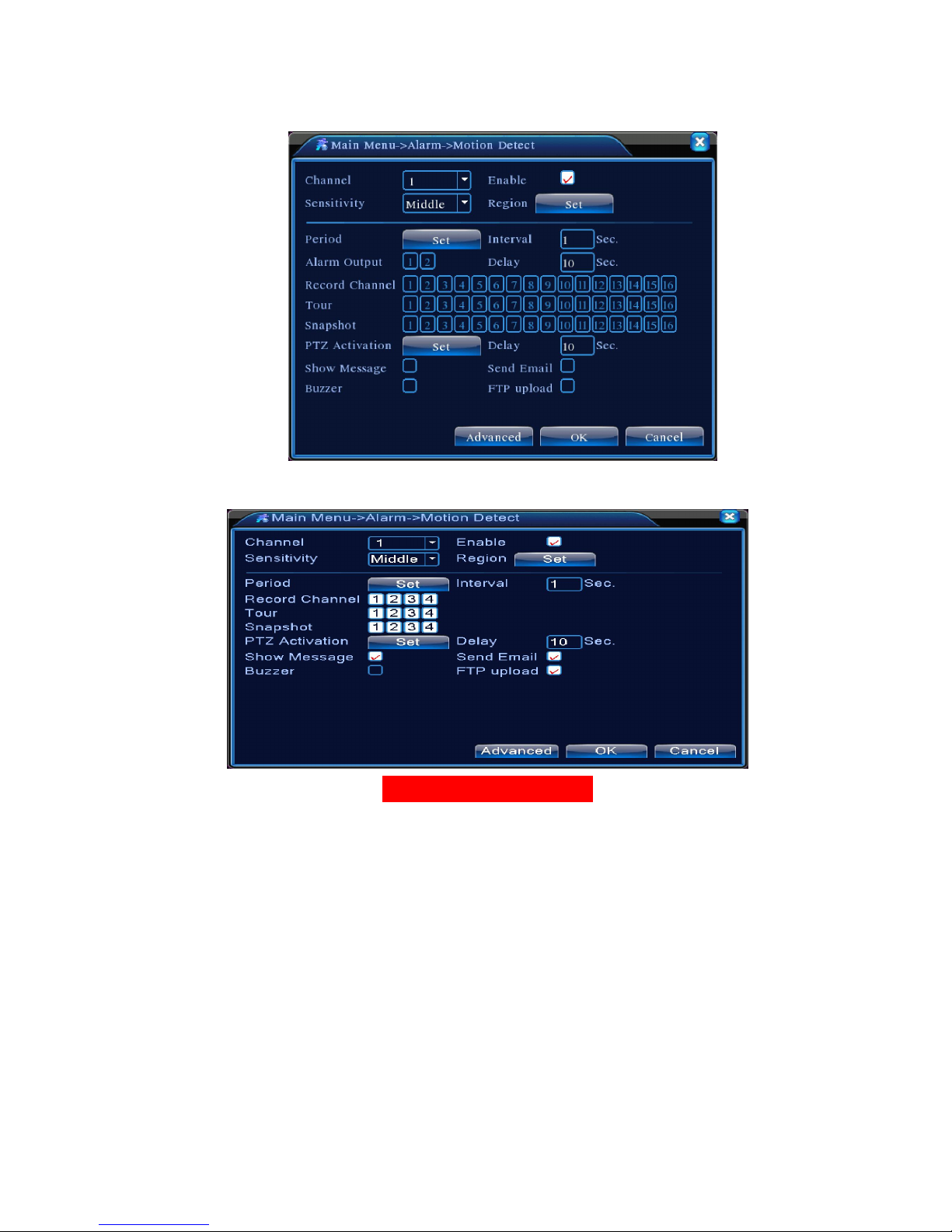

re 4.4 Hybrid mode(4+2) Motion Detect

Full d

igital mode Motion Detect

【Channel】Choose the set motion detect channel.

【Enable】■ means that the motion detect function is on.

【Sensitivity】Choose in the six options according to the sensitivity.

【Region】Click [set] to enter the set area. The area is divided into PAL22X18. Red block means the

motion detect defensive area. White block means the unfenced area. You can set the area as

followed, Drag the mouse and draw the area. Default: all selected blocks are detection area.

Note: Only the motion detect under hybrid mode have this function of setting region, and

also only the analog channel can set region.

Pag

e 35

Pictu

re 4.5 Region

【Period】Trigger the motion detect signal in the set time section. You can set according to week or

set uniformly. Each day is divided into four time sections.■ means the set valid.

Pictu

re 4.6 set the time section

【Interval】Only one alarm signal is turned on even there are several motion detect signals in the set

interval.

【Alarm output】Start the external equipment of corresponding linkage alarm when the motion detect

alarm is turned on.

【Delay】Delay a few moments and stop when the alarm state is turned off. The range is 10~300

seconds.

【Record channel】Choose the recording channel (multiple option supportive). Trigger the video

signal when the alarm is turned on.

Note:Set in the [recording setup] and perform the linkage recording. Start detecting video files

in the corresponding time section.

Pag

e 36

【T

our】■ means that the selective channel is single window alternate patrol preview. The interval is

set in the [Main Menu]>[System] > [Tour].

【Snapshot】Choose record channels, when alarm happens, system triggers related channels for

snapshot signal.

Note: For Snapshot activation, please go to set period, detect and alarm enable at Main Menu->

Record->Record configure,

*Snapshot is only at motion detect under hybrid mode, snapshot shows only analog channel.

【PTZ Activation】Set the PTZ activation when the alarm is turned on.

Note:PTZ activation is set in the [shortcut menu] >[ PTZ control]. Set the patrol between spots,

trail patrol and so on.

*Hybrid mode, PTZ link to the related PTZ information of analog channel, While digital

channel model, the PTZ is link to the related PTZ information on the remote device connected.

Note：to link PTZ, need go [Shortcut menu]->[PTZ control] to set preset point, cruise between

points & interval time, etc.

Picture 4.8 PTZ Activation under hybrid mode

【Delay】When alarm is over,recording will last some seconds(10~300sec),then stop.

【Show message】Pop the alarm information dialog box in the local host computer screen.

【Send EMAIL】■ means sending an email to user when the alarm is turned on.

Note:Set in the [NetService] and send email.

【FTP upload】to tick it, the video & picture of related record channel & snapshot channel will be

uploaded to assigned position.

Note：FTP upload need be set at [Netservice]

【Buzz】When alarm happens, device will come out with buzz.

Page 37

4.3.2 Video Blind

When the video image is influenced by the environment such as bad brightness or reaching the set

sensitivy parameter, the camera mask function is turned on and the linkage function is turned on.

*Same as motion detect function, video blind is different between Hybrid mode & Full digital mode:

Digital channel: not only to enable video blind function at local side, but also to enable the remote device

that was connected. when remote device with video blind, local side will start alarm recording, otherwise

this function is not enable.

Hybrid mode: only need to enable video blind function at local side.

Video Blind under Hybrid mode(4+2)

Video blind under full digital mode

Set method: refer to chapter 4.3.1. Motion detect

Note: "Advanced" button is the same as right click.

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 38

4.3.3 Video Loss

When the equipment can not obtain the channel video signal, the video loss alarm is turned on and

the linkage function is turned on.

*Same as motion detect function, video loss is different between Hybrid mode & Full digital mode:

Digital channel: not only to enable video loss function at local side, but also to enable the remote device that

was connected. when remote device with video loss, local side will start alarm recording, otherwise this

function is not enable.

Hybrid mode: only need to enable video loss function at local side.

Video loss under Hybrid Mode (4+2)

Video loss under full digital mode

Picture 4.10 Video loss

Set method: refer to chapter 4.3.1. Motion detect

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 39

Note: "Advanced" button is the same as right click.

4.3.4 Alarm input

When the equipment obtains the external alarm signal, the alarm function is turned on.

*Alarm input is the same between hybrid mode & full digital mode, function enable, when it

was set normal, only need to connect alarm sensor at alarm input port on local side, the alarm

information is occurring, and will link to related setting functions at the same time

Alarm input under hybrid mode(4+2)

Alarm input under full digital mode

Picture 4.11 Alarm input

Set method: refer to chapter 4.3.1. Motion detect

Note: "Advanced" button is the same as right click.

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 40

4.3.5 Alarm output

Refer to chapter 3.5.4.

4.3.6 Abnormal

Analysing and inspecting current software and hardware of the device: When some abnormal events

happen,the device will make a relative answer such as show message and buzzer.

Picture 4.12 Abnormal

【Event Type】 selecting abnormity you want to inspect

【Enable】 Select it to make sure abnormal function workable

【Show message】 Automatically alarm cue dialog box come out of the main screen

【Buzzer】 Device will have two long nosie “di di” while alarm is happening

4.4 System setup

Set the system parameters such as General, Encode, Network, Net service, GUI display, PTZ

configure/RS485 device, RS232 and Tour setup, Digital Manage.

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 41

4.4.1 General

Picture 4.13 General setup

【System time】Set the system data and time.

【Date format】Choose the data format: YMD, MDY, DMY.

【Date Separator】Choose list separator of the data format.

【Time Format】Choose time format: 24-hour or 12-hour.

【Language】

Arabic,Czech,English,Finnish,Greek,Indonesian,Italian,,Japanese,Portuguese,Russian,Thai,T-Chinese,S-Ch

inese,Turkish,Brazilian,Bulgarian,Farsi,French,German,Hebrew,Hungarian,Polish,Romanian,Spanish,Swedi

sh,Vietnamese

【HDD full】Choose stop record: Stop recording when the hard disk is full.

Choose overwrite: Cover the earliest recording files and continue recording when the

hard disk is full.

【DVR No.】Only when the address button in the remote controller and the corresponding DVR

number is matched, the remote operation is valid.

【Video Standard】PAL or NTSC.

【Auto Logout】Set the latency time in 0-60. 0 means no latency time.

【DST】Choose the summer time option and pop the dialog box as followed.

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 42

Picture 4.14 DST (week)

Picture 4.15 DST (date)

4.4.2 Encode setup

There is Encode settings at hybrid mode only, encode settings is for analog channel only.

Set the video/audio code parameter: video file, remote monitoring and so on. Set every main stream

parameter in the left part, and set the extra stream parameter in the right part.

Note: extra stream introduces video compression technique which was applying for multi-channel

playback simultaneously, Dial-up multi-channel real-time monitor under poor bandwidth, or mobile

monitor and so on.

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 43

Picture 4.16 Encode setup

【Channel】Choose the channel number.

【Compression】Standard H.264 main profile.

【Resolution】Resolution type:D1/ HD1/CIF / QCIF.

【Frame Rate】P:1 frame/s~25 frame/s; N: 1 frame/s~30 frame/s

【Bit Rate Type】You can choose limited code stream or variable code stream. When you choose

the variable code stream there are six image quality options.

【Bit Rate】Set the code stream value to modify the image quality. The larger code stream value the

better image quality.

D1（1000~1500kbps）,CIF（384~1500kbps）, QCIF(64~512kbps)

【Video/Audio】When the icons are all in reverse displayed, the video file is video and audio

multiplex stream.

Extra stream Settings

【Extra stream】is used for client side monitoring & mobile monitoring.

【Channel title】select channel title and then to choose whether need enable video & audio. The

resolution, frame rate, bit rate type settings is the same as main stream.

4.4.3 Network setup

Picture4.17 Network

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 44

【Net Card】You can choose cable network card or wireless network card.

【DHCP Enable】Obtain IP address automatically(not suggested)

Note：DHCP server is preinstalled.

【IP address】Set the IP address. Default: 192.168.1.10.

【Subnet mask】Set the subnet mask code. Default: 255.255.255.0.

【Gateway】Set the default gateway. Default: 192.168.1.1.

【DNS setup】Domain Name Server. It translates the domain name into IP address. The IP address

is offered by network provider. The address must be set and reboot then it works.

【TCP port】Default: 34567.

【HTTP port】Default: 80.

【HS Download】

【Transfer Policy】There are three strategies: self-adaption, image quality precedence and fluency

precedence. The code stream will adjust according to the setup. Self-adaption is the tradeoff between

the image quality precedence and fluency precedence. Fluency precedence and self-adaption are

valid only when the assistant code stream is turned on. Otherwise image quality precedence is valid.

4.4.4 NetService

Choose the network service option and click the set button to configure the advanced network

functions or double click the service button to configure the parameters.

Picture 4.18 NetService

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 45

【PPPoE setup】

Picture4.19 PPPOE

Input the user name and password that ISP（Internet service provider）provides. After saving it

reboot up your system. Then the DVR will build a network connection based on PPPoE. The IP address

will change into dynamic IP address after above operation is well done.

Operation：After PPPoE dialing successfully look up the IP address in the [IP address] and obtain the

current IP address. Then use this IP address to visit the DVR through user port.

【NTP setup】

Picture 4.20 NTP

The NTP server must be installed in the PC.

Host computer IP:Input the IP address installed NTP server.

Port:Default: 123. You can set the port according to NTP server.

Time zone:London GMT+0 Berlin GMT +1 Cairo GMT +2 Moscow GMT +3 New Delhi GMT

+5 Bangkok GMT +7 Hongkong Beijing GMT +8 Tokyo GMT +9 Sydney GMT +10 Hawaii

GMT-10 Alaska GMT-9 Pacific time GMT-8 American mountain time GMT-7 American mid time

GMT-6 American eastern time GMT-5 Atlantic time GMT-4 Brazil GMT-3 Atlantic mid time GMT-2.

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 46

Update Period:The same with the NTP server check interval. Default: 10minutes.

【EMAIL setup】

If the alarm is turned on or the alarm linkage photos are taken, send an email about the alarm

information and the photos to appointed address.

Picture 4.21 EMAIL

SMTP server:Email server address. It could be an IP address or domain name. Domain name can

be translated only it is the correct DNS configuration.

Port:Email server port number.

SSL:Decide whether using Secure Socket Layer protocol to login.

User Name:Apply the email server user name.

Password:Input the password corresponding to the user.

Sender:Set the email sender address.

Receiver:Send the email to appointed receivers when the alarm is turned on. You can set three

receivers at most.

Title:You can set as you wish.

【IP Filter setup】

When choosing the white list, only the listed IP address can connect the DVR. The 64 IP addressed

are supportive in the list.

When choosing the black list, the listed IP address can not connect the DVR. The 64 IP addressed

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 47

are supportive in the list.

You can delete the set IP address by √ in the options.

Note：When the same IP address is in the white and black list at the same time, the black list precedence

is higher.

Picture 4.22 IP IP FILTER

【DDNS】

It is the abbreviation of dynamic domain name server.

Local domain name：Provide the domain name registered by DDNS.

User name：Provide the account registered by DDNS.

Password：Provide the password registered by DDNS.

When the DDNS is successfully configured and start, you can connect the domain name in the IE

address column to visit.

Note：The DNS setup must be configured correctly in the network setup.

Picture 4.23 DDNS setup

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 48

【FTP setup】FTP is available only when alarm happens,or alarm activates record and snapshot,it will

upload related record and snapshot pictures to FTP server.

Picture 4.24 FTP setup

【Enable】Click Enable,then all settings will be available

【Server IP】

IP address for FTP server

【Port】

Domain Port of FTP,default 21

【User Name】User name of FTP

【Password】Password of user

【Max File Length】Max length for upload files at every packed,default 128M

【DirName】Directory of uploading files

Note: The user should be with authority to upload files.

【ARSP】

Startup DDNS server to add devices and manage it in the DDNS server

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 49

[Type] choose "DNS"

[Enable]: ■ means it is chosen

[Sever IP]: IP address of DDNS server

[Port]: Port No. of device, related DDNS server listen port

[User name] the user name that device can log in DDNS server

[Password] the password related to the user name.

[Refresh cycle]：Time interval between device and DDNS when chynchronously.

Note: Please set up server before using DDNS.

【Alarm center】

When alarm occurring, report alarm information to alarm server.

图 4.23 报警中心设置

【Protocol type】GENERAL；

【Enable】To tick it means enable.

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 50

【Server IP】IP address of Alarm Server；

【Port】Device Port No.设备的端口号；

【Alarm Report】Tick it means to report alarm information to server.

【Log Report】Tick it, means to report log to server.

【Wireless Config】

ADSL through 3G net card,use CMS to visit and config the device

Picture 4.25 Wireless Config

【Enable】Choose Enable to make all settings available

【Type】Dial type,default AUTO

【Wireless AP】3G access point

【Dial Number】3G Dial Number

【User Name】User name of 3G

【Password】Password of dial user

【IP Address】IP address,got from dial

【Mobile Monitor Setup】

To visit the device by mobile,pls make a router mapping of this port and use CMS to monitor and

operate it by protocol.

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 51

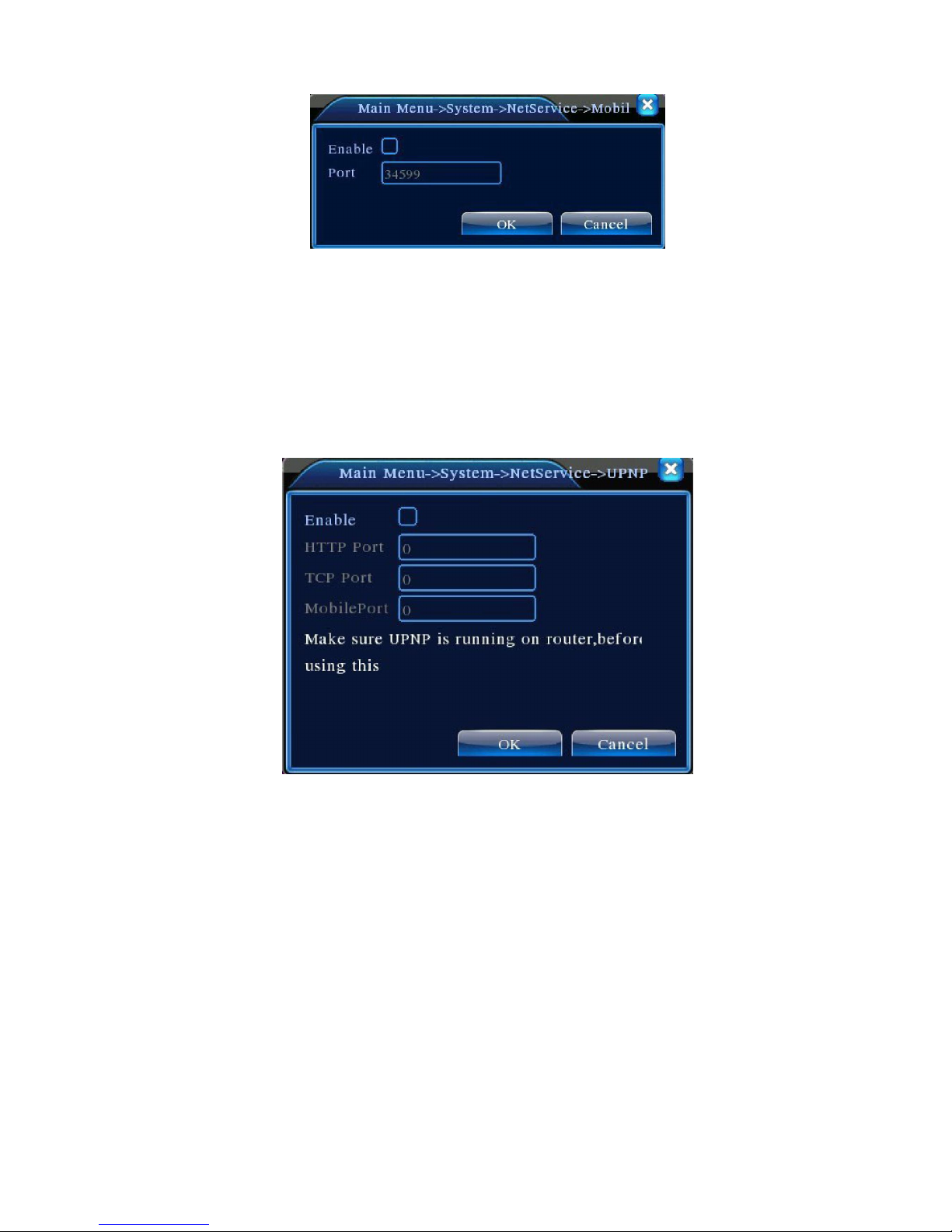

Picture 4.26 Mobile Monitor Setup

【Enable】 Select it to make sure abnormal function workable

【Port】 It’s a port of mobile monitoring which you need to make a router mapping of if want to visit

it by mobile

【UPNP】UPNP protocol can auto port forwarding on router,make sure UPNP is running on router

before use it.

Picture 4.27

【Enable】Choose Enable to make sure all UPNP settings available

【HTTP】Route will automatically distribute HTTP port for the device,when IE viewing,it need this

port(eg. 60.12.9.26:66)

【TCP】Router will automatically distribute TCP port for the device,when monitoring via CMS,it need

this port.

【MobilePort】Router will automatically distribute Mobile Port for the device,when mobile monitor,it

need this port.

【WIFI】

Through wireless network to connect with the DVR.

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 52

【Search】 search SSID of wireless LAN

【Enable】 Select it to enable the function

【SSID】 SSID name

【Password】 password of WIFI

【IP Address】 IP address of WIFI

【Subnet Mask】 Subnet mask of WIFI

【Gateway】 Gateway of WIFI

4.4.5 GUI Display

Configure the video output parameters including the front output mode and code output mode.

Front output：In the local preview mode include: channel title, time display, channel title, record

status, alarm status, bit rate info, transparency and region cover.

Code output：In the network surveillance and video file mode include: channel title, time display,

channel title, record status, alarm status, bit rate info, transparency and region cover.

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 53

GUI display of Hybrid Mode

GUI display of Full digital mode

Picture 4.28 GUI Display

【Channel Title】Click the channel name modify button and enter the channel name menu. Modify

the channel name. The 16 Chinese characters and 25 letters are supportive.

【Time Display】means the selective state. Display the system data and time in the surveillance

window.

【Channel Title】means the selective state. Display the system channel number in the surveillance

window.

【Record Status】means the selective state. Display the system recording status in the surveillance

window.

【Alarm Status】means the selective state. Display the system alarm status in the surveillance

window.

【Bit rate info】means the selective state. The ninth window displays the code stream information in

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 54

the nine-window preview status.

【Transparency】Choose the background image transparency. The range is 128~255.

【Resolution】set display resolution.

【Channel】Choose the set code output channel number.

【Region Cover】means the selective state. Click the cover area button and enter the corresponding

channel window. You can cover the arbitrary using mouse. (Black region is for output)

【Time display】and 【Channel display】

*There is channel title, region cover, time display and channel display settings at GUI display under

hybrid mode only

4.4.6 PTZ settings / RS485 device

When system set as hybrid mode, it will shows with PTZ settings, including PTZ device & RS485 device.

Picture 4.29 PTZ config

【Channel】Choose the dome camera input channel.

【Protocol】Choose the corresponding dome protocol. (PELCOD as an example)

【Address】Set as the corresponding dome address. Default: 1.（Note：The address must be

consistent with the dome address.）

【Baudrate】Choose the corresponding dome baud rate length. You can control the PTZ and vidicion.

Default: 115200.

【Data bits】Include 5-8 options. Default: 8.

【Stop bits】Include 2 options. Default: 1.

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 55

【Parity】Include odd check, even check, sign check, blank check. Default: void.

*When system set as full digital channel, it will show RS485 device only

【Protocol】Choose protocol of related brand model(Example：DaHua)；

【Address】Set related address, default is 1；

【Baudrate】choose bardrate of related device, default is: 115200；

【Data bits】Include 5-8 options. Default: 8.

【Stop bits】Include 2 options. Default: 1.

【Parity】Include odd check, even check, sign check, blank check. Default: void.

Noted: when hybrid mode, PTZ config shows PTZ device and RS485 device, if full digital

mode, there will be RS485 device only.

4.4.7 RS232 setup

Picture 4.30 RS232 setup

Generated by Foxit PDF Creator © Foxit Software

http://www.foxitsoftware.com For evaluation only.

Page 56

【Serial Port Function】Common serial port is used to debug and update program or set up specific

serial port.

【Baud rate】Choose the corresponding baud rate length.

【Data bits】Include 5-8 options.

【Stop bits】Include 2 options.

【Parity】Include odd, even, mark, space. Default is void.

4.4.8 Tour setup

Set the patrol display.  means that the tour mode is turned on. You can choose the single view,

four views or six views with single mode or hybrid mode tour.

Picture 4.31 tour setup

【interval】Set the patrol switch interval. The set range is 5-120 seconds.

【Return after alarm】Tick it, when alarm ends system will shift back to 6 view interface.

Note: at preview mode, click

/ to turn on/off tour.（ mean turn on， mean turn off）。

4.4.9 Digital Manager

Digital l manage including : Digital channel, Channel status, Channel mode：

http://www.foxitsoftware.com For evaluation only.

Page 57

Digital Channels：

【Channel】select channel title；

【Enable】Open digital channel, tick enable, then can do related settings；

【Time Synchronization】Tick it means the time of this channel and device is the same.

【Connection Mode】can be singe connect or multi-ink, multi-link modes can connect to several

devices, device will be tour displayed one by one, tour interval can be set, no less then 10s;

【Delete】If the user want to change device, select the existing device, click delete will be ok.

http://www.foxitsoftware.com For evaluation only.

Page 58

【Add】click add will come out below page to add new device：

【Configur Name】device is with default config title, user can revise it as you like；

【Device Type】3 types: IPC、DVR、HVR，user can choose as what you like, default is IPC；

【Protocol】Default is TCP

【Remote channel】User can input remote channel title from the device that you want to connect

remotely；

【Stream】Default is main stream, do not support extra-stream at present；

【Device address】IP address of device.

【Port】Default is 34567；

【User name】Default is admin

Remark: click 【search】will show all the devices that searched out, user can choose any of the device

that you like.

Channel Status：

Channel status is to show the status of all the digital channel, including Max Resolution, This

Resolution, Connection Status.

For example: The channel status for 4+2 mode is as below:

http://www.foxitsoftware.com For evaluation only.

Page 59

When a channel is added with device and it is online, you will see as below:

Channel status interface under full digital mode (One of the channel without device)

Remark: when This Resolution is over Max Resolution, when preview it, will show a red X, as

http://www.foxitsoftware.com For evaluation only.

Page 60

beow:

Under all digital channel mode, Max resolution of channel 3 is D1, if it was connected to a device

with resolution over D1 ( such as 960H), you will see below pic:

Channel Mode：

Remark: The system support mode of 0+6, 4+2, 2+4, 0+4, 0+2 as present, user can shift the mode

as they like.

4.5 Advanced

4.5.1 HDD Manage

Configure and manage the hard disk. The menu displays current hard disk information: hard disk

number, input port, type, status and overall capability. The operation include: setup the write-read disk,

read-only disk, redundant disk, hard disk format, resume default. Choose the hard disk and click the right

function button to execute.

Note：Read/Write Disk:The equipment can write or read data.

Read-only Disk:The equipment can read data but can not write data.

Redundant Disk:Double backup the video files in the write-read disk.

http://www.foxitsoftware.com For evaluation only.

Page 61

Picture4.32 HDD Manage

4.5.2 Account

Manage the user purview.

Note：1. The character length is 8 bytes at most for the following user and user team name. The blank

ahead or behind the character string is invalid.The middle blank in the character string is valid.

Legal characters include: letter, number, underline, subtraction sign, dot.

2. There is no limit in the user and user group. You can add or delete the user group according to

user definition. The factory setup include: user\admin. You can set the team as you wish. The user

can appoint the purview in the group.

3. The user management include: group/ user. The group and user name can not be the same. Each

user only belongs to one group.

Picture 4.33 Account

http://www.foxitsoftware.com For evaluation only.

Page 62

【Modify User】Modify the existed user attribute.

【Modify Group】Modify the existed team attribute.

【Modify Password】Modify the user password. You can set 1-6 bit password. The blank ahead or

behind the char string is invalid. The middle blank in the char string is valid.

Note：The user who possess the user control purview can modify his/her own or other users

password

Picture 4.34 Modify Password

【Add user】Add a user in the team and set the user purview. Enter the menu interface and input the

user name and password. Choose the team and choose whether cover using the user. Cover using

means that the account can be used by multiple users at the same time.

Once choose the team the user purview is the subclass of the team.

We recommend that the common user’s purview is lower than the advanced user.

http://www.foxitsoftware.com For evaluation only.

Page 63

Picture 4.35 add user

【Add Group】Add a user team and set the purview. There are 36 different purviews: shut down the

equipment, real time surveillance, playback, recording setup, video file backup and so on.

Picture 4.36 Add Group

【Delete User】Delete the current user. Choose the user and click delete user button.

【Delete Group】Delete the current group. Choose the group and click delete group button.

http://www.foxitsoftware.com For evaluation only.

Page 64

Picture 4.37 Delete Group

4.5.3 Online User

Look up the network user information in the local DVR. You can choose the network user and cut the

connection. Then the user is locked until next boot-strap.

Picture 4.38 Online User

4.5.4 TV adjust

Refer to chapter 3.5.7 .

http://www.foxitsoftware.com For evaluation only.

Page 65

4.5.5 Auto Maintain

The user can set the auto reboot time and auto file deleting time limit.

Picture 4.39 Auto maintain

4.5.6 Restore

The system restore to the default setup. You can choose the items according to the menu.

Picture 4.40 Restore

http://www.foxitsoftware.com For evaluation only.

Page 66

4.5.7 Upgrade

Picture 4.41

Upgrade

【

Upgrade】choose USB interface.

【Upgrade file】choose the file which needs upgraded.

4.5.8 Device Info

Provide device interface info like audio in, alarm in/out to be conveniently used for user.

Picture 4.42 Device Info.

4.6 System Info

Shows with device information, including: HDD information, BPS Statistics, Log information, Version

information.

4.6.1 HDD info

Display the hard disk state: hard disk type, overall capability, residual capability, the recording time

and so on.

http://www.foxitsoftware.com For evaluation only.

Page 67

Picture 4.43 HDD Info

Clue:○ means that the hard disk is normal. X means that the hard disk is broken-down.- means that

there is no hard disk. If the user need to change the damaged hard disk, you must shut down the DVR

and take up all the damaged hard disks,then install a new one.

* behind serial number means the current working disk such as 1*. If the corresponding disk is

damaged, the information will show “？”.

4.6.2 BPS

Display the code stream（Kb/S）and hard disk capability （MB/H）in real time. It displays as the wave

sketch map.

Picture 4.44 BPS

http://www.foxitsoftware.com For evaluation only.

Page 68

4.6.3 LOG

Look up system log according to the set mode.

Log information include: system operation, configuration operation, data management, alarm affair,

recording operation, user management, file management and so on. Set the time section to look up and

click the look up button. The log information will display as a list. (one page is 128 items) Press Page up

or Page down button to look up and press delete button to clear all the log information.

Picture4.45 LOG

4.6.4 Version

Display the basic information such as hardware information, software edition, issue data and so on.

http://www.foxitsoftware.com For evaluation only.

Page 69

Picture 4.46 Version

4.7 Shut down system

Refer to chapter 3.5.8.

http://www.foxitsoftware.com For evaluation only.

Page 70

5 FAQ and maintenance

5.1 FAQ

If the problems are not listed, please contact the local service or call the HQ service. We are willing

to offer the service.

1、 The DVR can not boot up normally.

Possible reasons are as followed:

1 The power supply is not correct.

2 Switch power supply line is not in good connection.

3 Switch power supply is damaged.

4 The program updating is wrong.

5 The hard disk is damaged or the hard disk lines are broken.

6 The front panel is damaged.

7 The main board of the DVR is damaged.

2、 The DVR reboots automatically or stops working after boot up a few minutes.

Possible reasons are as followed:

1 The input voltage is not stable or too low.

2 The hard disk is damaged or the hard disk lines are broken.

3 The power of the switch power supply is low.

4 Frontal video signal is not stable.

5 Bad heat radiator or too much dust or bad running circumstance for the DVR.

6 The hardware of the DVR is damaged.

3、 System can not detect hard disk.

Possible reasons are as followed:

1 The hard disk power supply line is not connected.

2 The cables of the hard disk are damaged.

3 The hard disk is damaged.

4 The SATA port of main board is damaged.

4、 There are no video outputs in single channel, multiple channels and all channels.

http://www.foxitsoftware.com For evaluation only.

Page 71

Possible reasons are as followed:

1 The program is not matched. Please update the program.

2 The image brightness is all 0. Please restore the default setup.

3 There is no video input signal or the signal is too weak.

4 The channel protection or the screen protection is set.

5 The hardware of the DVR is damaged.

5、 Real-time image problems such as the image color or the brightness distortion.

Possible reasons are as followed:

1 When using the BNC output, the option between the N mode or PAL mode is wrong and the

image becomes black and white.

2 The DVR is not matched the monitor impedance.

3 The video transmission distance is too far or the loss of the video transmission line is too

large.

4 The color and brightness setting of the DVR is wrong.

6、 I can not find the video files in local playback mode.

Possible reasons are as followed:

1 The data line of the hard disk is damaged.

2 The hard disk is damaged.

3 Update the different program with the origin program files.

4 The video files to look up are covered.

5 The recording is not on.

7、 The local video is not clear.

Possible reasons are as followed:

1 The image quality is too bad.

2 The reading program is wrong. Reboot up the DVR.

3 The data line of the hard disk is damaged.

4 The hard disk is damaged.

5 The hardware of the DVR is damaged.

8、 There is no audio signal in the surveillance window.

Possible reasons are as followed:

http://www.foxitsoftware.com For evaluation only.

Page 72

1 It is not an active tone arm.

2 It is not an active sound box.

3 The audio lines are damaged.

4 The hardware of the DVR is damaged.

9、 There is audio signal in the surveillance window but mo audio signal in the playback

state.

Possible reasons are as followed:

1 Setting issues: the audio option is not chosen.

The according channel is not connected with the video.

10、 The time is wrong.

Possible reasons are as followed:

1 Setting is wrong..

2 The battery is in bad connection or the voltage is too low.

3 The oscillation is damaged.

11、 The DVR can not control the PTZ.

Possible reasons are as followed:

1 There is something wrong with the frontal PTZ.

2 The setting, connection or the installation of the PTZ decoder is not correct.

3 The connections are not correct.

4 The PTZ setting of the DVR is not correct.

5 The protocols of the PTZ decoder and the DVR are not matched.

6 The address of the PTZ decoder and the DVR are not matched.

7 When multiple decoders are connected, the far port of the PTZ decoder line A(B) must

connect a 120



resistance to reduce the reflection otherwise the PTZ control is not

stable.

8 The distance is too far.

12、 The motion detect is not working,

Possible reasons are as followed:

1 The time range set is not correct.

2 The motion detect area set is not correct.

http://www.foxitsoftware.com For evaluation only.

Page 73

3 The sensitivity is too low.

4 Limited by some hardware edition.

13、 I can not login via web or CMS.

Possible reasons are as followed:

1 The system is windows 98 or win me. We recommend updating to windows 2000sp4 or

higher Version or installing the software for low edition.

2 ActiveX is hold back.

3 The version is not exceeded dx8.1. Update the display card driver.

4 Network connection failure.

5 Network setting issues.

6 Invalid password or user name.

7 The CMS is not matched the DVR program version.

14、 The image is not clear or there is no image in network preview state or video file playback

state.

Possible reasons are as followed:

1 Network is not stable.

2 The user machine is resource limited.

3 Choose the play-in-team mode in the network setup of DVR.

4 The region shelter or channel protection is set.

5 The user has no surveillance purview.

6 The real-time image of the hard disk recording machine itself is not clear.

15、 Network connection is not stable.

Possible reasons are as followed:

1 Network is not stable.

2 IP address is conflicted.

3 MAC address is conflicted.

4 The net card of the DVR is bad.

16、 There is something wrong with the USB backup or writing a CD.

Possible reasons are as followed:

1 The rewritable machine and the hard disk are shared the same data lines.

http://www.foxitsoftware.com For evaluation only.

Page 74

2 The data is too much. Please stop recording and backup.

3 The data exceeds the backup storage.

4 The backup equipment is not compatible.

5 The backup equipment is damaged.

17、 The keyboard can not control the DVR.

Possible reasons are as followed:

1 The serial port of the DVR is not set correctly.

2 The address is not correct.

3 When multiple transformers are connected, the power supply is not large enough. Please

give each transformer individual power supply.

4 The distance is too far.

18、 Alarm can not be recessional.

Possible reasons are as followed:

1 The setting of the alarm is not correct.

2 The alarm output is turned on manually.

3 The input machine is damaged or the connections are not correct.

4 There are some problems for specific program edition, Please update the program.

19、 Alarm is not working.

Possible reasons are as followed:

1 The setting of the alarm is not correct.

2 The connection of the alarm is not correct.

3 The alarm input signal is not correct.

4 A alarm is connected with two loops synchronously.

20、 The remote controller is not working,

Possible reasons are as followed:

1 The remote control address is not correct.

2 The remote control distance is too far or the angle is too large.

3 The battery is used up.

4 The remote controller or the front panel of the recording machine is damaged.

21、 The storage time is not enough.

http://www.foxitsoftware.com For evaluation only.

Page 75

Possible reasons are as followed:

1 Front vidicon quality is bad. The lens is too dirty. The vidicon is in backlighting installation.

2 The hard disk capability is not enough.

3 The hard disk is damaged.

22、 The downloading files can not play.

Possible reasons are as followed:

1 There is no media player.

2 There is no DX8.1 software or higher edition.

3 There is no DivX503Bundle.exe file to play AVI video files.

4 The DivX503Bundle.exe and ffdshow-2004 1012 .exe files must be installed in the windows

xp system.

23、 I can not remember the advanced password or network code in the local menu operation.

Please contact the local service or call the HQ service. We will offer the service according the

machine type and the program edition.

24、 Can not see the preview picture the digital channel

Possible reasons are as followed:

1 Did not add device

2 The device of related channel was not enable

3 The device of related channel was not selected.

4 The selected device did not connect to video sources

5 The channel title of selected remote device is not exist.

6 Stream for remote channel was set by extra stream.

7 User name & password not matched

8 directly input with IP address or port No. incorrectly when adding device.

9. The resolution of added device is too large to display by the monitor.

25、 Click “search” why not search out any of the device.

Possible reasons are as followed:

1 There is no other device exist in the Local area network

2 The subnet mask setting incorrectly on Network settings.

26、 The snapshot at alarm function was enable, why not catch picture

http://www.foxitsoftware.com For evaluation only.

Page 76

Possible reasons are as followed:

1 HDD manage without partition for snapshot.

2 Partition for snapshot is 0

3 The snapshot function is not enable on record-> storage of related channel.

27、 The time shows on digital channel is not the same as local side:

Enable the time synchronous function of digital channel.

28、 Can not see preview picture of analog channel

Possible reasons are as followed:

1 The camera did not connect to video interface

2 The device did not connect to video source

3 Video source is broken.

29、Picture will be frozen when multi-connection and shift devices.

Picture come out from digital channel need few seconds, shift device means to show new picture, so

it needs several seconds to buffer.

30、IE activeX can not download or install under Win 7 system

Possible reasons are as followed:

1 Install IE activeX, don’t install as administrator, incase not perfect install or invalid install,

should click with right button choose install as administrator.

2 It was blocked when auto-download activeX, can do below operation on PC:

“Start”->“Run”-> input ‘msconfig’, then choose “Tool”-> revise UAC settings ->

set with “Never inform”.

3 ActiveX was blocked by anti-virus software, please shutdown anti-virus software when

installing, after successfully installed, set activeX as reliable software.

31、 CMS install failed under Win7 system, or can not open after installation.

Possible reasons are as followed:

1 Don’t install as administrator, incase not perfect install or invalid install.

5.2 Maintenance

1 Please brush printed circuit boards, connectors, fans, machine box and so on regularly.

2 Please keep the grounding well done to prevent the video or audio signal interfered and the

http://www.foxitsoftware.com For evaluation only.

Page 77

DVR from static or inductive electricity.

3 Do not pull out the video signal line or RS-232 port or RS-485 port with the power on.

4 Do not use the TV in the local video output port(VOUT) of DVR. It will damage the video

output circuit easily.

5 Do not turn off the switch directly. Please use the turn-off function in the menu or press the

turn-off button in the panel (3 seconds or longer) to protect the hard disk.

6 Please keep the DVR away from heat resource.

7 Please keep the DVR ventilated for better heat radiator.

Please check the system and maintain regularly.

http://www.foxitsoftware.com For evaluation only.

Page 78

Appendix 1.Remote controller operation

Serial

number

Name Function

1 Multi-window

button

Same function as Multi-window button in the front

panel

2 Numeric button Code input/number input/channel switch

【Esc】 Same function as【Esc】button in the front panel

4 Direction button Same function as direction button in the front panel

5 Record control Control the record

6 Record mode Same function as “Record mode”

7 ADD Input the number of DVR to control it

8 FN Assistant function

http://www.foxitsoftware.com For evaluation only.

Page 79

Appendix 2.Mouse operation

*Take right hand as an example

The mouse in USB connection is supported.

Operation Function

Double click one item in the file list to playback the

video

Double click the playback video to zoom in or out the

screen

Double left click

Double click the channel to make it full screen display

double click again to resume the multi-window display

Left click Choose the according function in the menu

Pop desktop shortcut menu in preview state

Right click

Current shortcut menu in the menu

Add or subtract number in the number setting

Switch the items in the combo box

Press middle

button

Page up or down in the list

Move mouse Choose the widget or move the item in the widget

Set the motion detect area

Drag mouse

Set the cover area

http://www.foxitsoftware.com For evaluation only.

Page 80

Appendix 3.Hard disk capability calculation

Make sure the hard disk installed to the DVR for the first time. Pay attention to the IDE hard disk

lines connection.

1、 Hard disk capability

There is no limit for recording machine. We recommend 120G~250G size to keep better

stability.

2、 Overall capability option

The hard disk capability formula is:

Overall capability（M）=channel number*time（hour）*capability in an hour（M/hour）

The recording time formula is:

Recording time（hour）=

overall capability（M）

Capability in an hour（M/hour）*channel number

The DVR introduces the H.264 compression technology. Its dynamic range is very large so the

hard disk capability calculation is based on the estimation values of each channel creating files in

an hour.

Example:

For one piece 500G HDD,real time CIF for recording,it will keep recording for about 25 days.HDD

spaces per channel is 200M/H,if 4channels real time CIF at 24hours recording uninterrupted,it can

last:500G/(200M/H*24H*4ch)=26 days

Feature

Model HVR5006D-E

Main Processor

High performance embedded microprocessor

Operating

System

Embedded LINUX

System

Resources

Pentaplex function:live,recording,playback,backup & remote access

User GUI

GUI,on-screen menu tips

Interface

Display Screen

1/4/6 screens

Video Standard

PAL625 line,50 f/s; NTSC525 line,60 f/s

Video

Compression

H.264(Main Profile),JPEG snapshot

http://www.foxitsoftware.com For evaluation only.

Page 81

Video Preview Monitor:D1, VGA:High Definition, HDMI(optional)

Playback 1080P/720P/960H/D1/HD1/CIF/QCIF

Hybrid Input

Analog + digital: 4*D1+2*D1 2*D1+4*D1 Only Digital: 6*D1 1*720P+ 3*D1 2*720P 4*960H 1*1080P

Motion Detect

Zones:64(8*8)detection zones,Sensitivity:1-6(6 is highest)

Trigger recording,PTZ movement,tour,alarm,e-mail,snapshot & FTP

Audio

Compression

G711A

Audio

Bidrectional Talk

Support Recording Mode

Manual>Alarm>Video Detection>Continuous

Local Playback

6ch

Record & Playback

Search Mode

Time/Date,Alarm,Motion Detection & exact search(accourate to second)

Space

Occupation

Video CIF:4 - 5G/day/channel, D1:16 -

20G/day/channel

960H: 9 - 42G/day/channel, 720P: 10G~42G/day/channel

Audio: 691.2M/day/channel

Record Storage

Local HDD/SD card/Network

Storage &

Playback

Back Mode N

etwork download/Flash stick/USB movable HDD/DVR-RW/SD card

Video Input 4ch BNC

Video Output 2ch BNC, 1ch VGA,1ch HDMI(optional)

Audio Input 4ch RCA

Audio Output 1ch RCA

Alarm Input 8ch

Alarm Output 1ch

Network RJ45 10M/100M

Control Port 1 x RS485, 1 x RS232; support 18kinds of PTZ protocols

USB 2 x USB2.0 HDD 2 x SATA HDD,Max 2 x 2T

Interface

Wireless 3G & WIFI

Power Supply 12V/4A

Others

Dimension 310(L)* 285(W)* 45(H)mm

http://www.foxitsoftware.com For evaluation only.

EyeView SD-0400A, SD-0802A, SD-1602A User's Installation And Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
