EyeQue Insight VA101 Product Manual

Product Manual

Model: VA101

Product Specifi cation

Soft contour padding for a

comfortable  t

The EyeQue logo indicates
that this is the “top” of the
goggles

Protective cover to prevent
dust; remove for tests

Silicone elastic band to secure
your smartphone during tests

Hooks to attach the elastic
band

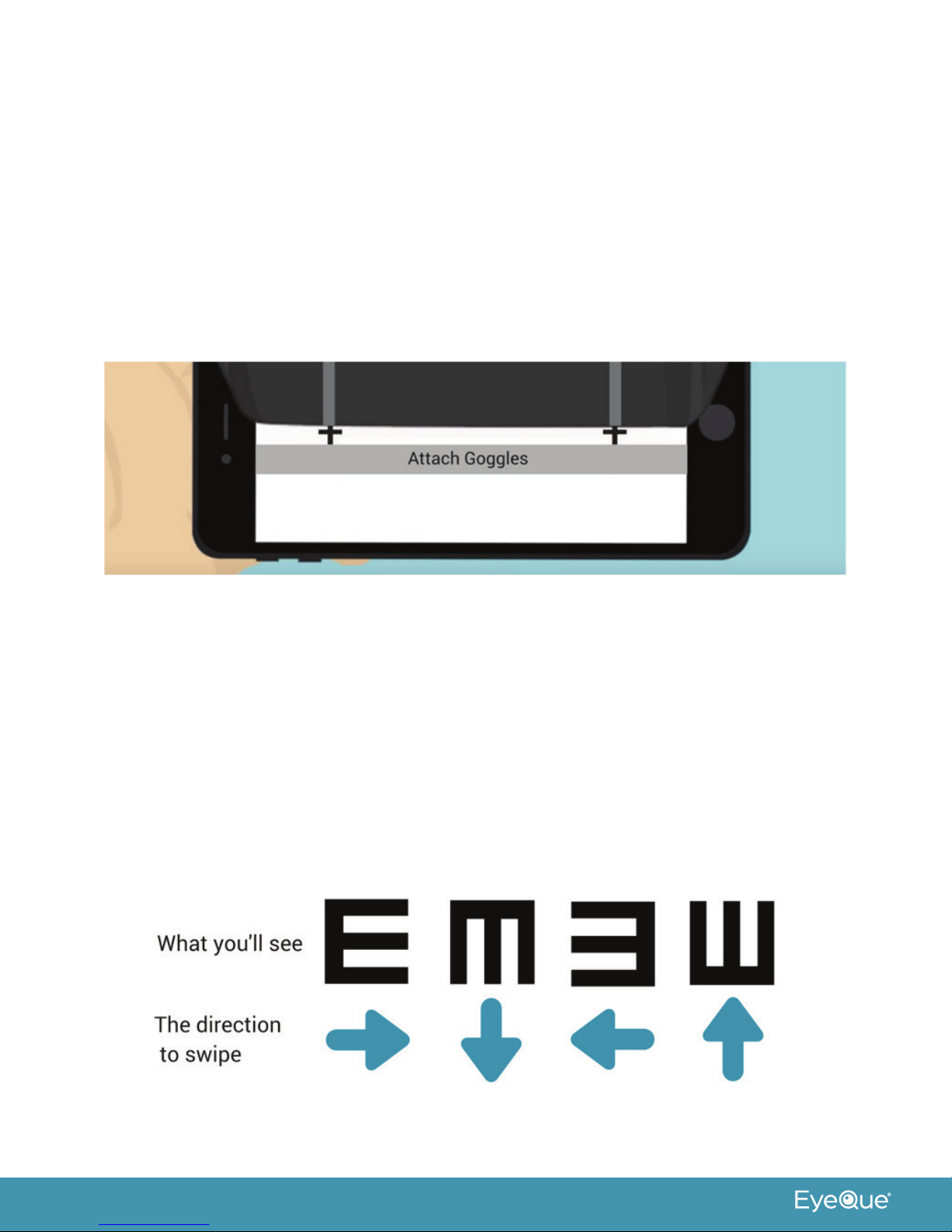

Attach your smartphone when
prompted in app

The PD screen indicates this is
the “bottom” of the goggles

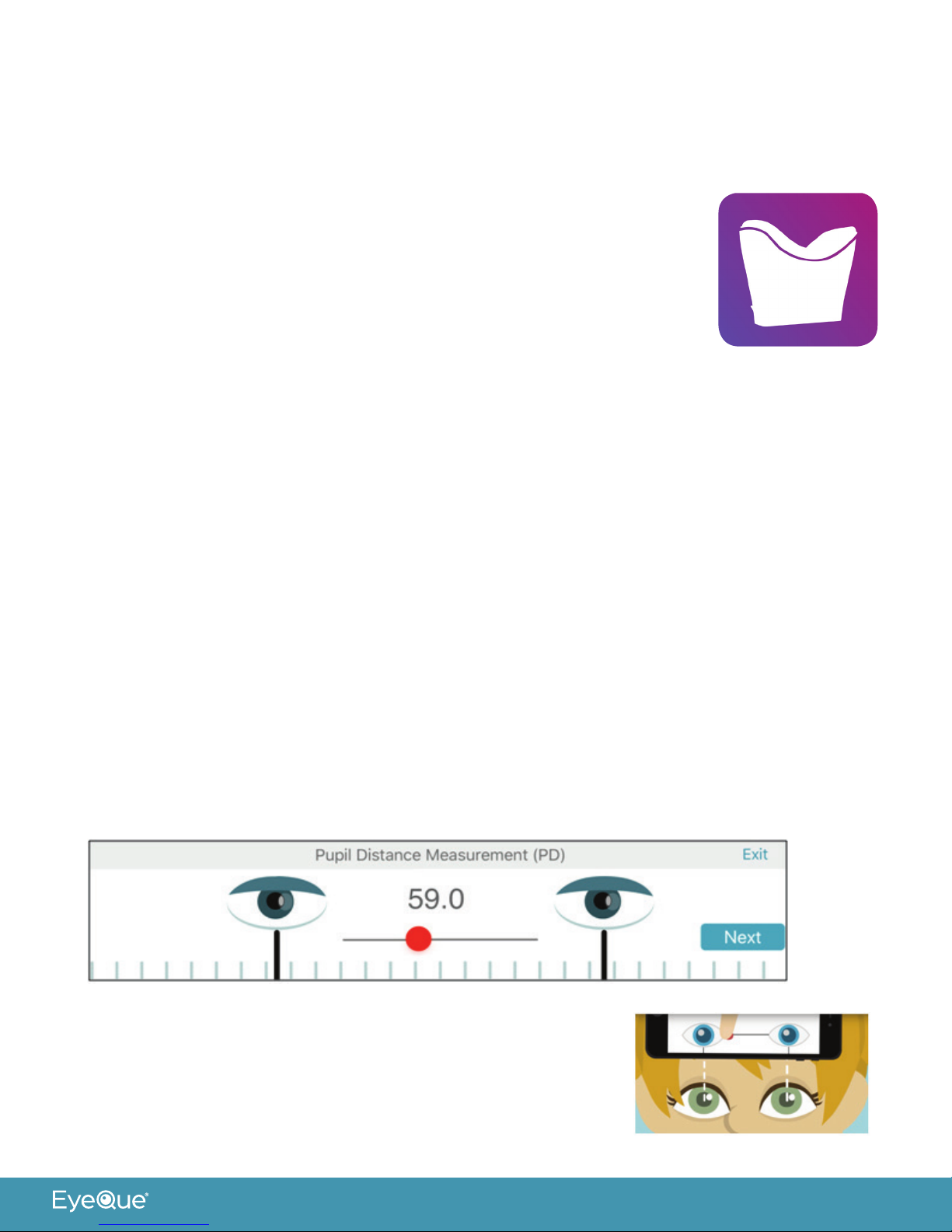

Adjustable PD wheel

1

Attachment markers

Viewing windows

Remove any clear plastic
protective covers before
testing

Micro-suction tape
secures the goggles on the
smartphone screen without
causing damage or leaving
residue

Technical Specifi cation

Dimension:

Weight:

Power supply:

Finish:

Operating temperature:

Storage temperature:

Relative humidity:

Operating altitude:

Phone requirement:

Visual acuity range:

7.0 X 5.7 X 3.0 inches/ 177 X 144 X 77 mm

7.5 oz/ 213 g

None

Glossy White, Matte Black

32° to 95° F (0° to 35° C)

-4° to 113° F ( 20° to 45° C)

5% to 95% non-condensing

up to 10,000 feet (3000 m)

iOS 9.3 and up, Android 6.0 and up, screen resolution

PPI: >300, and active EyeQue free basic membership

20/20 to 20/400
