Eyenetra NETROPTER User Manual

NETROPTER

User Manual

v1.01

INDICATIONS AND INTENDED USE STATEMENT

The Netropter is intended for use by an eyecare professional

to provide a means of positioning spherical and cylindrical

lenses in front of a subject’s eyes for purpose of determining

refractive error and binocular functions such as visual acuity

(both near and far).The Netropter is intended to replace

traditional phoropters and trial lens kits as currently used in

EyeNetra’s service oering.

Carefully remove the contents from the package.

If anything is missing or damaged, please visit our

customer support website at store.eyenetra.com

or call Monday thru Friday 9:00 AM - 5:00 PM

(EST) [phone]

If you purchased from an authorized re-seller,

please contact them directly.

Please review the contents of this manual carefully

before setting up or operating the device.

For more information, visit our website:

www.eyenetra.com

THE NETROPTER DEVICE IS NOT MADE

WITH NATURAL RUBBER LATEX

The following items are included in this kit:

NETROPTER

MICROFIBER

CLOTH

TABLE OF CONTENTS

Your NETROPTER 5

Setup and Use 9

Technical Specications 17

FAQ 19

Warranty and Support 21

Terms of Sale 25

Refund Policy 29

NETROPTER

Your NETROPTER

FRONT VIEW

A

E F G H

Your NETROPTER | NETROPTER USER MANUAL

6

CB

D

A

PD Lock

B

PD Knob

C

Axis Knob

D

Cylinder Knob

Major

G

Sphere Knob

(patient’s left eye)

OS

J

E

Aperture

F

Minor
Sphere Knob

H

Occluder Switch

I J

I

(patient’s right eye)

OD

Your NETROPTER | NETROPTER USER MANUAL

7

BACK VIEW

K

Thumb Rest

L

Aperture

L

K

Your NETROPTER | NETROPTER USER MANUAL

8

NETROPTER

Setup and Use

SETUP

Set the pupillary

1

distance using
the PD knob.

INCREASE DECREASE

Pull the PD Lock into

2

the UP position to
lock in the PD.

1

2

Setup and Use | NETROPTER USER MANUAL

10

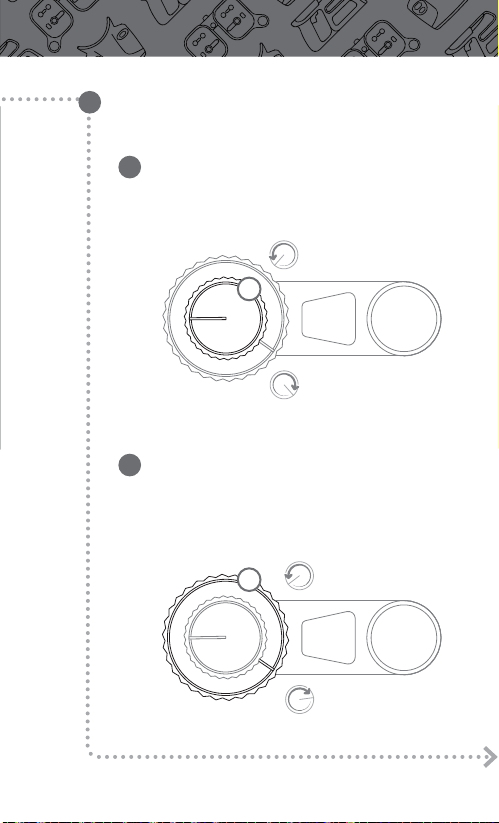

Set the OD correction by adjusting the spherical and

3

cylindrical error.

The Sphere Major Knob is the smaller knob,

I

and it can be used to make adjustments in
increments of 1.00D from -10D to +5D

+2
+1

I

0 .00

-1

-2

The Sphere Minor Knob is the larger knob,

II

and it can be used to make adjustments in
increments of 0.25D from 0D to -0.75D

II

-.00

0 -.25

-.50

-.75

Setup and Use | NETROPTER USER MANUAL

11

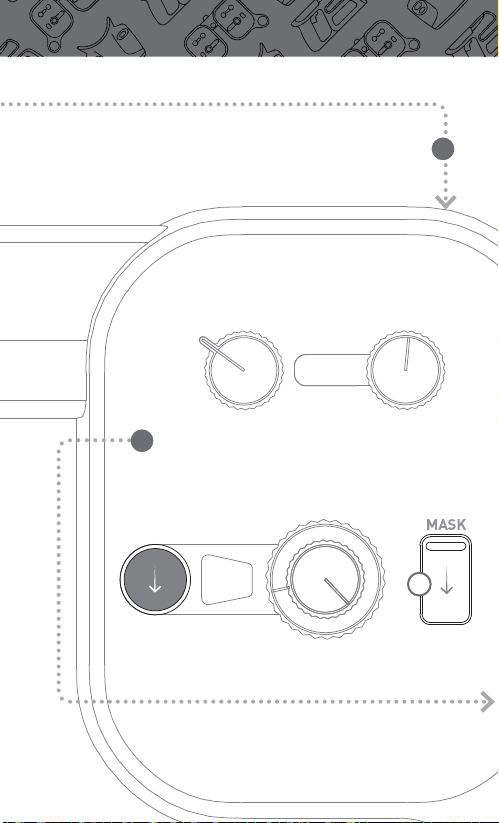

III

IV

Set the
cylindrical
error using the
Cylinder Knob.

III

0.00

-3.25

-6.00

Set the axis
using the
Axis Knob.

IV

Setup and Use | NETROPTER USER MANUAL

12

Repeat for OS

correction

The Occluder switch can be used to open

5

or close the aperture. To OPEN THE
APERTURE, push the SWITCH DOWN.

THE OCCLUDER CAN BE USED FOR MONOCULAR TESTING

4

5

OPEN THE

APERTURE

SWITCH

Setup and Use | NETROPTER USER MANUAL

DOWN

13

USE

When operating the NETROPTER, hold the

1

device with knobs facing out.

USE INDOORS RATHER THAN IN DIRECT SUNLIGHT

Setup and Use | NETROPTER USER MANUAL

14

Use both hands to grip the handles, with the

2

thumbs resting in the recessed area.

USE INDOORS RATHER THAN IN DIRECT SUNLIGHT

Setup and Use | NETROPTER USER MANUAL

15

Rest the device against your forehead and

look through the aperture(s).

NETROPTER CAN BE USED FOR BOTH "DISTANCE" AND

"READING" VISUAL ACUITY TESTING

3

Setup and Use | NETROPTER USER MANUAL

16

NETROPTER

Technical Specifications

TECHNOLOGY

SPHERE RANGE

CYLINDRICAL RANGE

AXIAL RANGE

PUPILLARY DISTANCE RANGE

VISUAL FIELD

ACUITY MEASUREMENTS

VISION TEST TYPE

DEVICE DIMENSIONS

EXTERNAL PROCESSING UNIT

SETUP TIME

CALIBRATION REQUIREMENTS

POWER REQUIREMENTS

SPECIALIZED FURNITURE
REQUIREMENTS

FDA STATUS

OPERATION

STORAGE/TRANSPORT

TRIAL LENS STACK

(25 LENSES PER EYE)

-10.75 to +5.0D, 0.25D increment

0 to -6D, 0.25D increment

o

to 180o, 1 degree increment

0

52 to 72mm, 1mm increment

o

Degrees (14mm aperture)

~20

Binocular and Monocular

Distance and Readers

5.0cm x 7cm x 10cm (less than 500g)

None

30 seconds

None

None (Manual Setup of Lenses)

None (Handheld)

Class I, exempt from 510(k) pre-market
submission requirements

• Temperature: -15°C to 93°C

• Relative humidity: 95% non-condensing

• Temperature: -15°C to 93°C

• Relative humidity: 95% non-condensing

Technical Specications | NETROPTER USER MANUAL

18

NETROPTER

FAQ

DOES NETROPTER REQUIRE TRAINING?

NETROPTER’s intuitive interface and great ease-of-use requires minimal
training. The use is very similar to a conventional phoropter or lens kit. The

more you use it, the more condent you will be with the process.

WHAT DIFFERENTIATES NETROPTER FROM OTHER EXISTING
VISUAL ACUITY MEASUREMENT SYSTEMS?

NETROPTER is the world’s rst portable phoropter. It provides the ease of use,

precision, and compact form factor of a phoropter with all of the portability of
a trial lens kit. Unlike a trial lens kit, you can’t lose individual lenses, mistakenly
grab the wrong lens, or drop the kit and have to reorder 200 individual lenses.

DOES THE NETROPTER HAVE AUXILIARY LENSES (EG. PRISM
LENSES, POLARIZED FILTERS OR RED-GREEN FILTERS, ETC.)?

Currently, NETROPTER only contains sphere and cylinder lenses.

IS THERE A VERSION OF THE NETROPTER FOR POSITIVE CYLINDER?

Currently, there is only one version of NETROPTER, which has negative
cylinder lenses and labels.

IS IT NECESSARY TO LOCK THE PD IN ORDER TO RUN A VISUAL
ACUITY TEST?

We recommend that the PD lock is engaged during testing to ensure that the
patient doesn’t accidentally change the PD while handling the NETROPTER.

CAN YOU REST YOUR ELBOWS ON A TABLE WHILE USING
NETROPTER?

Yes, for users who are elderly, disabled, or for any reason unable to hold the
Netropter in a stable manner, it is recommend to have the user rest their
elbows on a stable surface while holding the Netropter for added comfort
and stability.

CAN A SUBJECTIVE REFRACTION BE PERFORMED USING THE
NETROPTER?

Yes! Any qualied person can perform a standard subjective refraction using

the Netropter by adjusting the knobs while the user is looking through the
Netropter.

DOES NETROPTER DO A FULL EYE HEALTH EXAM?

Caution 1 - No, NETROPTER is not an intended substitute for a full eye
health exam. EyeNetra encourages you to consult with your optometrist or
ophthalmologist.

Caution 2 - NETROPTER does not measure any higher-order aberrations or
quantify retinal conditions.

FAQ | NETROPTER USER MANUAL

20

NETROPTER

Warranty and Support

All Eyenetra devices are guaranteed for 1-year from date of purchase. If you
purchased directly from Eyenetra, please contact customer service by calling
Monday thru Friday 9:00 AM - 5:00 PM (EST) [phone] or by visiting
our customer support website at store.eyenetra.com with any issues. If you
purchased from an authorized re-seller, please contact them directly.

LIMITED WARRANTY - HARDWARE

This warranty applies only to mechanical devices: NETRA, NETROMETER, and
NETROPTER, referred to as (the PRODUCT). For software warranty please see
the Limited Warranty - Software

A. LIMITED WARRANTY

Eyenetra, Inc. (Eyenetra) warrants to the original purchaser that the PRODUCT
will be free from defects in material and workmanship for a period of one year
from the date of delivery. Eyenetra does not warrant that operation of the
PRODUCT will be error-free or uninterrupted. If the PRODUCT is found to be
defective during the warranty period, the part(s) and labor required to repair
the PRODUCT will be provided by Eyenetra free of charge. To receive warranty
repair the PRODUCT must be returned to Eyenetra. This warranty is subject to
the following exceptions and limitations:



The customer shall be responsible for proper maintenance and handling
of the PRODUCT.



No warranty is extended to any PRODUCT that has been altered or

modied in any way.



No warranty is extended to any PRODUCT that has been misused, or
damaged.

B. TERM OF WARRANTY

This limited warranty covers the PRODUCT for one year from the date of
delivery. If you receive supplements, updates, or replacement PRODUCT
during that year, they will be covered for the remainder of the warranty or 30
days, whichever is longer.

C. EXCLUSIONS FROM WARRANTY

This warranty does not cover problems caused by your acts (or failures to act),
the acts of others, or events beyond Eyenetra’s reasonable control.

D. NO OTHER WARRANTIES

This limited warranty is the only warranty from Eyenetra. Eyenetra gives no
other express warranties, guarantees or conditions. Where allowed by your

Warranty and Support | NETROPTER USER MANUAL

22

local laws, Eyenetra excludes implied warranties of merchantability, tness for

a particular purpose and non-infringement.

E. REMEDY FOR BREACH OF WARRANTY

If Eyenetra cannot repair a defective PRODUCT, Eyenetra will replace the
PRODUCT or refund the amount shown on the invoice for the PRODUCT. To
receive a refund you must return the PRODUCT and other associated materials
to Eyenetra. This is your only remedy for breach of this limited warranty.

F. CONSUMER RIGHTS NOT AFFECTED

You may have additional consumer rights under your local laws that this
agreement cannot change.

G. NO LIABILITY

In no event shall Eyenetra be liable for any damages (including, without

limitation, lost prots, business interruption, or lost information) arising out

of your use of or inability to use the PRODUCT, even if Eyenetra has been
advised of the possibility of such damages. No distributor, dealer or other
party is authorized to make any warranty on behalf of Eyenetra, or to assume

for Eyenetra any other liability with respect to its PRODUCTs.  

LIMITED WARRANTY - SOFTWARE

This warranty applies only to software applications and rmware (the

SOFTWARE). For hardware warranty please see the Limited Warranty ­Hardware

A. LIMITED WARRANTY

Eyenetra, Inc. (Eyenetra) warrants that if you follow the instructions, the
SOFTWARE will perform substantially as described in the Eyenetra materials
that you receive in or with the SOFTWARE. Eyenetra does not warrant that
the operation of the SOFTWARE will be error-free or uninterrupted. If the
SOFTWARE is defective Eyenetra will repair or replace the SOFTWARE free of
charge. This warranty is subject to the following exceptions and limitations:



No warranty is extended to any SOFTWARE that is being used on
unsupported operating systems and/or computer hardware.



No warranty is extended to any SOFTWARE that has been altered or

modied in any way.



No warranty is extended to any SOFTWARE that is being used on a system
that has been corrupted by computer viruses, spy ware, or any third party
software or device.

Warranty and Support | NETROPTER USER MANUAL

23

B. TERM OF WARRANTY

This limited warranty covers the SOFTWARE for one year from the date of
delivery. If you receive supplements, updates, or replacement SOFTWARE
during that year, they will be covered for the remainder of the warranty or 30
days, whichever is longer.

C. EXCLUSIONS FROM WARRANTY

This warranty does not cover problems caused by your acts (or failures to act),
the acts of others, or events beyond Eyenetra’ reasonable control.

D. NO OTHER WARRANTIES

This limited warranty is the only warranty from Eyenetra. Eyenetra gives no
other express warranties, guarantees or conditions. Where allowed by your

local laws, Eyenetra excludes implied warranties of merchantability, tness for

a particular purpose and non-infringement.

E. REMEDY FOR BREACH OF WARRANTY

If Eyenetra cannot repair the defective SOFTWARE Eyenetra will replace the
SOFTWARE through a reinstallation process. This is your only remedy for
breach of this limited warranty.

F. CONSUMER RIGHTS NOT AFFECTED

You may have additional consumer rights under your local laws that this
agreement cannot change.

G. NO LIABILITY

In no event shall Eyenetra be liable for any damages (including, without

limitation, lost prots, business interruption, or lost information) arising out

of your use of or inability to use the SOFTWARE, even if Eyenetra has been
advised of the possibility of such damages. No distributor, dealer or other
party is authorized to make any warranty on behalf of Eyenetra, or to assume
for Eyenetra any other liability with respect to its SOFTWARE.

CHANGING THESE TERMS

Eyenetra, Inc. may change these terms by posting notice on its website.
Warranty and Support Statement Last Updated: August 7, 2015.

Warranty and Support | NETROPTER USER MANUAL

24

NETROPTER

Terms of Sale

TERMS OF SALE ---- PLEASE READ CAREFULLY: THE FOLLOWING TERMS WILL
GOVERN PURCHASES MADE VIA THE EYENETRA STORE (STORE.EYENETRA.
COM). BY USING, PURCHASING AN EYENETRA PRODUCT OR SERVICEE, OR
BY CHOOSING THE “I ACCEPT” OPTION LOCATED ON OR ADJACENT TO THE
SCREEN WHERE THESE TERMS MAY BE DISPLAYED, YOU AGREE TO THE TERMS
BELOW. IF YOU ARE ACCEPTING THESE TERMS ON BEHALF OF ANOTHER
PERSON OR A COMPANY OR OTHER LEGAL ENTITY, YOU REPRESENT AND
WARRANT THAT YOU HAVE FULL AUTHORITY TO BIND THAT PERSON,
COMPANY, OR LEGAL ENTITY TO THESE TERMS. IF YOU DO NOT AGREE TO
THESE TERMS, DO NOT PURCHASE EYENETRA PRODUCTS OR SERVICES.

1. Parties. These terms represent the agreement (“Agreement”) that governs
the purchase of products and services from Eyenetra, Inc. (“Eyenetra”) by
the individual or entity purchasing products or services from Eyenetra
(“Customer”).

2. Application. These terms apply to products, including without limitation,
the NETROMETER, NETRA, and NETROPTER (“Eyenetra Products”),
software included in Eyenetra Products (“Eyenetra Software”), and
services (“Eyenetra Services”) made available for sale from Eyenetra via
the Eyenetra Store.

3. Orders. “Order” means an order placed by a Customer that has been
accepted by Eyenetra, including any supporting material which the parties
identify as incorporated either by attachment or reference (“Supporting
Material”). Supporting Material may include (as examples) product lists,

hardware or software specications, standard or negotiated service

descriptions, data sheets and their supplements, and statements of work
(SOWs), published warranties and service level agreements, and may be
available to Customer in hard copy or by accessing the Eyenetra Store.

4. Prices and Taxes. Prices will be as quoted as set out on the Eyenetra Store
website at the time an Order is submitted to Eyenetra and accepted.
Prices are exclusive of taxes, duties, and fees (including installation,
shipping, and handling) unless otherwise quoted .

5. Payment. Payment is due as specied in the Eyenetra web-site in U.S.
Dollars. Eyenetra may suspend or cancel performance of open Orders or
Eyenetra Services if Customer fails to make payments when due.

6. Title. Except as provided herein, title and risk of loss to Eyenetra Products
will pass on shipment to Customer. Eyenetra Software: (1) is owned or
licensed by Eyenetra; (2) is proprietary to Eyenetra and its licensors; and
(3) constitutes trade secrets of Eyenetra and its licensors.

7. Delivery. Eyenetra will use commercially reasonable eort to deliver

products in a timely manner. Eyenetra anticipates rst delivery of

Eyenetra products will take place in February of 2016.

Terms of Sale | NETROPTER USER MANUAL

26

8. Services. Eyenetra Services, including without limitation, support services
will be described in the applicable Supporting Materials and Statements

of Work, which will cover the description of Eyenetra’s oering, eligibility

requirements, service limitations and Customer responsibilities, as well as
the Eyenetra Products supported.

9. Eligibility. Eyenetra’s service, support and warranty commitments do not
cover claims resulting from: (a) improper use, environmental conditions

or non-compliance with applicable Supporting Material; (b) modications

or improper system maintenance or calibration not performed by
Eyenetra or authorized by Eyenetra; (c) malware (e.g. virus, worm, etc.) not

introduced by Eyenetra; or (d) abuse, negligence, accident, re or water

damage, electrical disturbances, transportation by Customer, or other
causes beyond Eyenetra’s control.

10. Client Cooperation. Eyenetra’s ability to deliver Eyenetra Products and
services will depend on Customer’s reasonable and timely cooperation
and the accuracy and completeness of any information from Customer.

11. Product Performance. All Eyenetra Products are covered by Eyenetra’s
limited warranty statements that are provided with the products or
otherwise made available on the Eyenetra Store web-site. All Eyenetra
warranties begin on the date of delivery.

12. Services Performance. Services are performed using generally recognized
commercial practices and standards. Customer agrees to provide prompt
notice of any such service concerns and Eyenetra will re-perform any
service that fails to meet this standard.

13. Intellectual Property Rights. Except as provided herein, no transfer of
intellectual property will take place upon the sale of any Eyenetra Products.

14. License Grant. Eyenetra grants Customer a non-exclusive license to use
the version or release of the Eyenetra Software included in Eyenetra
Products included in an Order. Permitted use is for internal purposes
only (and not for further commercialization). Customer agrees that
it will also not copy, modify, reverse engineer, disassemble decrypt,
decompile or make derivative works of any Eyenetra Software licensed
to Customer under this Agreement unless permitted by statute, in which
case Customer will provide Eyenetra with reasonably detailed information

about those activities. Unless otherwise specied, any license granted is

perpetual, provided however that if Customer fails to comply with the
terms of this Agreement, EyeNeta may terminate the license upon written
notice. Immediately upon termination, Customer will either destroy all
copies of the software or return them to Eyenetra.

15. Intellectual Property Rights Infringement. Eyenetra will defend and/
or settle any claims against Customer that allege that an Eyenetra
Product or service as supplied under this Agreement infringes the

Terms of Sale | NETROPTER USER MANUAL

27

intellectual property rights of a third party. Eyenetra’s obligations under

this paragraph are conditioned upon Customer’s prompt notication of

the claim and cooperation with our defense. Eyenetra may modify the
product or service so as to be non-infringing and materially equivalent,
or may procure a license. If these options are not available, Eyenetra

will refund to Customer the amount paid for the aected product in the
rst year or the depreciated value thereafter or, for support services, the

balance of any pre-paid amount. Eyenetra is not responsible for claims
resulting from any unauthorized use of Eyenetra Products or services.
This paragraph constitutes Customer’s sole remedy for a claim of
intellectual property rights infringement.

16. Updates. Eyenetra may make new software versions, releases or
maintenance updates (“Updates”). Additional licenses or fees may apply

for these Updates. Updates are subject to the license terms in eect at

the time that Eyenetra makes them available to Customer.

17. Compliance. The Customer is responsible for complying with all local laws and
regulations with respect to the purchase and use of EyeNetra’s products.

18. Force Majeure. Neither party will be liable for performance delays nor for
non-performance due to causes beyond its reasonable control, except
for payment obligations.

19. Termination. Either party may terminate this Agreement on written notice
if the other fails to meet any material obligation and fails to remedy the

breach within a reasonable period after being notied in writing of the

details. If either party becomes insolvent, unable to pay debts when due,

les for or is subject to bankruptcy or receivership or asset assignment,
the other party may terminate this Agreement and cancel any unfullled

obligations. Any terms in the Agreement which by their nature extend

beyond termination or expiration of the Agreement will remain in eect
until fullled and will apply to both parties’ respective successors and

permitted assigns.

20. General. This Agreement, along with Eyenetra’s Terms of Sale and other
documents referenced herein, represent our entire understanding
with respect to its subject matter and supersedes any previous

communication or agreements that may exist. Modications to the

Agreement will be made only through a written amendment signed by
both parties. The Agreement will be governed by the laws Commonwealth

of Massachusetts, without regard to conicts of laws provisions, and the

courts of that locale will have jurisdiction. Customer and Eyenetra agree
that the United Nations Convention on Contracts for the International
Sale of Goods will not apply. This Agreement shall be binding on each
party’s successors and assigns.

Terms of Sale | NETROPTER USER MANUAL

28

NETROPTER

Refund Policy

We stand behind our products and services and want you to be satised with

them. We’ll always do our best to take care of customers—our philosophy is to
deal with you fairly and reasonably; we hope you will be fair and reasonable with
us as well.

We oer a two-phased refund polic y for all of our customers. It’s the best way

to get to know our technology and explore its implementation at your own

convenience. If there’s a t and we meet your needs, great! If not, we understand.

PHASE A: 10-DAY TRIAL

Your experience starts with a 10-day risk-free trial. You have ten consecutive days,
from the date of receipt of the product, to receive our on-line training session,

evaluate the products and decide if you want to move forward or return the
products.

The ten days are for trial and evaluation purposes only. EyeNetra does not

refund products that were used in for-prot and not-for-prot environments. The
product must return in the same condition that you received it, in the original box

with all its components included.

PHASE B: EXTENDED-USE UP TO 5 MONTHS.

In this phase, you are allowed to use the products in day-to-day commercial or
not-for-prot activities to evaluate how they perform in practice in the desired
patient population. If you are not satised with their performance and decide to
return the products, a simple monthly rental fee is applied.

We charge 20% of the value of the products per month from the date of receipt

of the product. Any partial-month usage is charged for a full month. Please note
that no refunds are accepted aer 5 months have passed since you received the

products.

NON-RETURNABLE ITEMS INCLUDE:



Gi cards



Soware products, including our Insight Portal



Items on sale, including tradeshow specials and discounts.



Damaged, dirty or products that have missing parts



All shipping costs, VATs, duties, and other fees

HOW DO I FILE A RETURN?

The return process starts by lling out the Return Authorization form: http://

returns.eyenetra.com

Refund Policy | NETROPTER USER MANUAL

30

If authorized, you will be responsible for paying for your own shipping to return
the product. If you received a return label, the shipping costs will be deducted

from your refund.

Please package your products in the same boxes that you received them. Make
sure to clean and include all the smaller items (chargers, cables, manuals, etc)
and ship to:



EyeNetra Inc (Returns Department)



35 Medford St, Ste #302.



Somerville, Massachusetts, USA. 02143.

You should consider using a trackable shipping service or purchasing shipping
insurance. We don’t guarantee that we will receive your returned item.

Once your return is received, we will proceed with a thorough inspection of the

components and notify you of the approval or rejection of your refund. We can

process returns within 1-2 days.

If approved, your refund will be processed in 7 days. The credit will be

automatically applied to your credit card or original method of payment.

If rejected, we will be in contact to send the merchandise back to you.

LATE OR MISSING REFUNDS (IF APPLICABLE)

If you haven’t received a refund yet, rst check your bank account again. Then
contact your credit card company, it may take some time before your refund is
oicially posted. Next, contact your bank. There is oen some processing time
before a refund is posted. If you’ve done all of this and you still have not received
your refund yet, please contact us at [e-mail].

AUTHORIZED RE-SELLERS

If you bought our products from our distributors worldwide, you should contact

them directly to return the merchandise. This policy is only applicable to items

sold directly from our on-line store.

EXCHANGES (IF APPLICABLE)

We only replace items if they are defective or damaged. If you need to exchange it
for the same item, send us an email at [e-mail].

NETROPTER USER MANUAL

DIGITAL VERSION

http://www.eyenetra.com/manual/netropter.pdf

31

CLEANING AND CARE TIPS

When cleaning the aperture windows, use only a clean microber

cloth so as to prevent accidental scratching of the window.

Do not slide the Netropter along a surface such as a table or

counter, as this can scratch the aperture windows.

Makeup, facial oils, and sweat can come o of a patient’s face and

onto the device, please be sure to clean the facial contact areas

thoroughly between each use.

11/08/2017| User Manual Version 1.02.2

Printed in the USA
