Eyeheight MW-3EM User Manual

MW-3EM

A/B Video and embedded audio mixer.

user manual

eyeheight

- 2 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

User Manual Versions

Versions

Changes

Date

SW Vers

1.00

Original Version

16/3/2008

8.00

1.10

Automatically extracted automation parameters added. Various
corrections. Additional information on Memories.

17/5/2009

8.10

- 3 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

Table of Contents

1 System Overview ............................................................................................... 6

1.1 The MW-3EM Product ............................................................................ 6

Associated Equipment for the MW-3EM ........................................................... 7

2 Installation .......................................................................................................... 9

2.1 Connections on the MW-3EM product .................................................... 9

2.2 Video Processing, MW-3EM, MW-3M. .................................................. 10

2.3 Video Preview output. ........................................................................... 10

2.4 Audio Processing, MW-3EM, MW-3M. .................................................. 10

2.5 Audio Preview output. ........................................................................... 10

3 Menu Control of the MW-3EM .......................................................................... 11

3.1 Flexipanel controls. ............................................................................... 11

3.1.1 Device Buttons. .................................................................................. 11

3.1.2 Menu Navigation. ............................................................................... 11

3.1.3 Parameter adjustment of a green menu. ............................................ 12

3.1.4 Parameter adjustment of a red menu ................................................. 12

3.1.5 Information display ............................................................................. 12

3.2 Memories .............................................................................................. 12

3.2.1 User Memories................................................................................... 12

3.2.2 User Memories change for each line standard .................................. 12

3.2.3 Remembering setups on power up. ................................................... 12

3.2.4 Naming User Memories ..................................................................... 13

3.3 Tamper Locking the MW-3EM. ............................................................. 13

3.4 GPI/Tally Set-up. ................................................................................... 13

3.4.1 On-Board GPI’s.................................................................................. 13

3.4.2 On-Board Tally ................................................................................... 14

3.5 Configuring tallies on the etherbox. ....................................................... 14

3.6 The MW-3EM Menu Set........................................................................ 14

4 Technical Appendix .......................................................................................... 27

4.1 GPI/Tally/RS232/ technical information. ............................................... 27

4.1.1 GPI Inputs. ......................................................................................... 27

4.1.2 Tally Output. ...................................................................................... 28

- 4 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

4.1.3 RS232 Interface. ................................................................................ 28

4.2 On-Board automation protocol. ............................................................. 29

4.2.1 Implimentation on RS232 ................................................................... 29

4.3 geNETics Automation Protocol Parameter table. .................................. 30

4.3.1 -625 automatically extracted menu parameters. V8.10 ...................... 31

4.3.2 -525 automatically extracted menu parameters. V8.10 ...................... 32

4.3.3 -720pautomatically extracted menu parameters. V8.10 ..................... 34

4.3.4 -1080i automatically extracted menu parameters. V8.10 ................... 36

4.4 Technical Specification ......................................................................... 38

- 5 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

Table of Figures

Figure 1 MW-3EM Processing card....................................................................... 7

Figure 2 - Front view of etherbox (FB-9E) fitted with FF-9 blank panel ................. 7

Figure 3 Rear view of etherbox with a single MW-3EM installed. .......................... 7

Figure 4 FP-9 Flexipanel can be fitted on the FB-9E or remotely using and RR-9

kit. .................................................................................................................. 8

Figure 5 MW-3EM connections ............................................................................. 9

Figure 6 - Typical connections for an MW-3EM Module ........................................ 9

Figure 7 Flexipanel (FP-9) controls. .................................................................... 11

Figure 8 Types of menus showing their characteristic colours ............................ 11

Figure 9 Typical GPI Input ................................................................................... 27

Figure 10 Tally Output ......................................................................................... 28

Figure 11 Tally interface to relay. ........................................................................ 28

- 6 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

1 System Overview

1.1 The MW-3EM Product

This manual describes the function of the MW-3EM, mixer/wipe unit. This unit is
similar to the older eyeheight MW-3E but will also function in HD-SDI modes. The
MW-3EM product also has a full 16 channels of audio as standard. The system is
also available as an MW-3M which has no audio processing capability.

The MW-3EM is an A/B (2-Input) SDI Mixer unit which will perform a variety of
transitions commonly used in transmission and post production. The main
features are as follows:

 A/B Mix/Cut transitions
 A/B Wipe transitions with 8 wipe patterns with coloured/soft borders
 16 channel embedded Audio Mixing follows video transitions. (configurable

as mix or cut transitions, cut transitions suitable for dolby E splice) **

 Embedded audio manipulation (LR swap, Mono….) **
 Programmable (Auto) or manual transitions
 Preview Output with safe area generator built in.
 Internal Matte and Black Generator.
 Up to +/- ½ Line user definable synchronisation window for A/B Inputs
 External Digital Reference Input ensures output stability
 6 user memories
 Compatible with etherbox GPI/Tallies.
 FULLY software and firmware updatable using Flash technology.
 Compatible with eyeheight geNETics automation protocol.

** MW-3ME only, not available on the MW-3M.

- 7 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

Figure 1 MW-3EM Processing card.

Associated Equipment for the MW-3EM

The MW-3EM processing card requires the following in order to set up and
operate the unit.

1. An etherbox chassis (FB-9E). Up to three MW-3EM units and be
installed in one chassis.

2. A Flexipanel control surface such as an FP-9 or an FP-10.

Figure 2 - Front view of etherbox (FB-9E) fitted with FF-9 blank panel

Slot 2

Slot 5

Slot 3

Slot 4 Slot 6

PANEL

I-BUS 232/422

ETHNET

GPI/0-2 GPI-1GPI-1

PSU 1

PSU 2

REF PGM1 PGM 2 PVW A IN RS232

B IN |----------N O T U S E D----------|

Figure 3 Rear view of etherbox with a single MW-3EM installed.

- 8 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

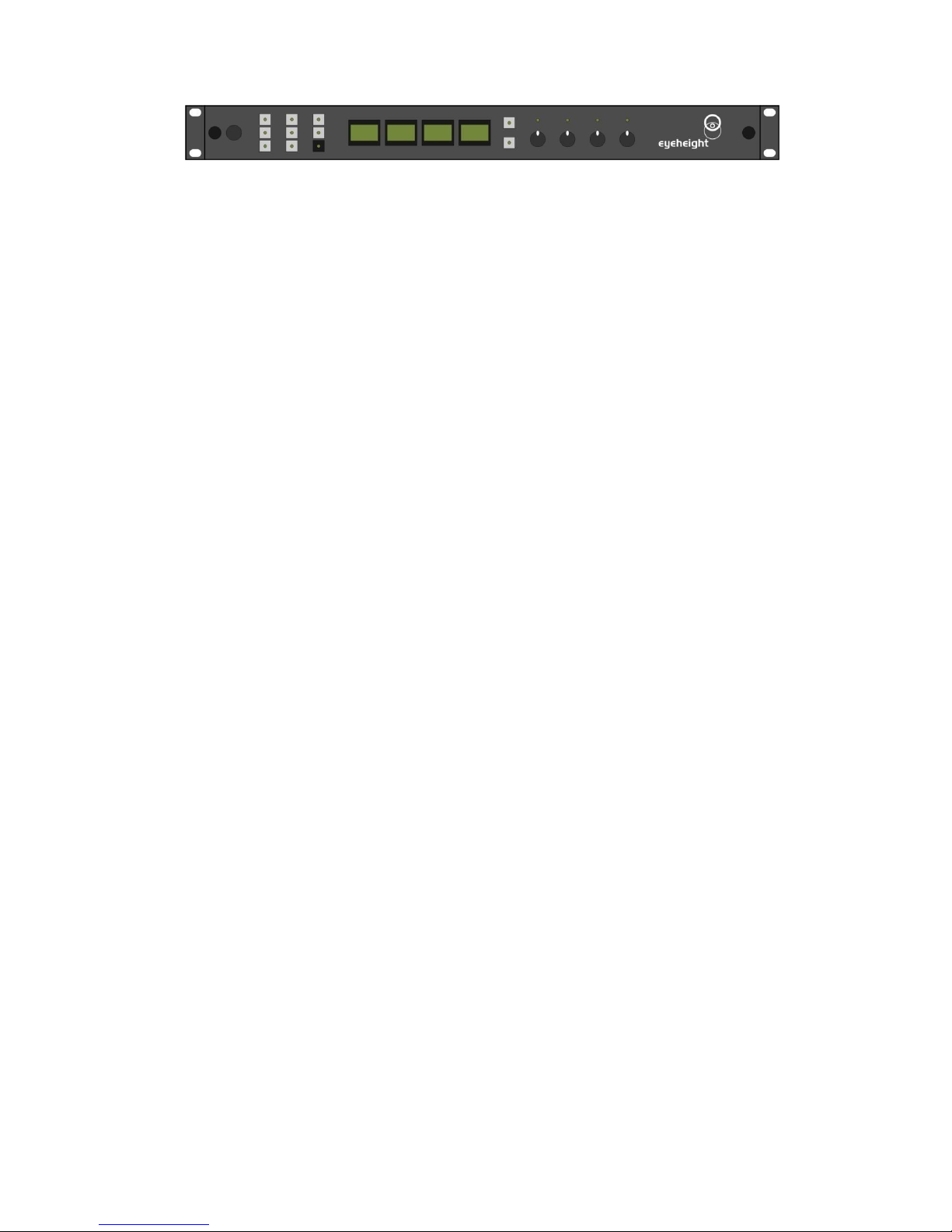

Figure 4 FP-9 Flexipanel can be fitted on the FB-9E or remotely using and RR-9 kit.

- 9 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

2 Installation

This unit requires SDI digital video connections to the BNC connectors. The user
should refer to the etherbox user manual for installation of the MW-3EM into a
chassis and connection of flexipanels. This will also describe the process of
acquiring a processing card (in this case the MW-3EM) by the Flexipanel which is
necessary to access the menu structure within the MW-3EM.

2.1 Connections on the MW-3EM product

Slot 2

REF PGM1 PGM 2 PVW A IN RS232

B IN |----------N O T U S E D----------|

Figure 5 MW-3EM connections

A Typical Connection diagram for the MW-3EM is shown below. All signals,
including the reference, are SDI.

A Input PGM Output

MW-3EM Module

Ref

B Input PST Output

REF

VTR 1 op

Mon V+A 

REF

VTR 2 op

Mon V+A 

SPG

Figure 6 - Typical connections for an MW-3EM Module

- 10 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

2.2 Video Processing, MW-3EM, MW-3M.

The MW-3EM and the MW-3M have exactly the same video processing abilities.
The system will operate over a wide range of Video standards. Please see
section 4.4 for a full list. In each case it must be understood that a suitable digital
reference must be available in the operating line standard. For example if the
system is being switched from 525 line standard to 1080i/50, then the reference
must also be switched from a synchronous 525 digital standard to a 1080i/50 line
standard.

2.3 Video Preview output.

The Preview output will always show the “other” input that is not on air. It is

configured not to show Matte or Black outputs as these are often used internally
as intermediate sources. For example when a U or V fade is performed.

2.4 Audio Processing, MW-3EM, MW-3M.

The MW-3EM has full 16 channel audio processing. Normally this means that if
the Video mixes then the audio will also mix from one source to another. In the
case of transitions through Matte or Black these sources are treated as mute.
This results in a smooth audio transition on all 16 audio channels. Each audio
input can also be configured for Stereo, stereo swap, mono and other styles. As
well as this any audio pair from any group can be configured to cut (splice) rather
than mix. This is guaranteed to splice correctly with Dolby-E sources assuming
that they are correctly synchronous.

The MW-3M has no audio processing ability. This will simply pass all the vertical
and horizontal data (including the audio) unprocessed. The data in blanking is
passed at the end of each transition.

2.5 Audio Preview output.

The audio on the preview channel will always be the “other” input that is not on

air. The preview audio is unprocessed and is spliced with the video from source
to source.

- 11 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

3 Menu Control of the MW-3EM

All GeNETics products are controlled using a generic menu system. This generic
menu system is operated from a generic panel (Flexipanel FP-9 or FP-10). An
FP-9 is shown below (An FP-10 has the same controls in a different layout style).
For information about acquiring processor cards for control on a Flexipanel see
the etherbox manual section 4.

3.1 Flexipanel controls.

Figure 7 Flexipanel (FP-9) controls.

3.1.1 Device Buttons.

There are 8 grey device buttons. These switch between the currently selected
processing cards installed in the etherbox. It is also possible to select cards in
another chassis if the I-Bus is connected to the other chassis.

3.1.2 Menu Navigation.

There are two ways to navigate from menu to menu.

1. Using the NEXT ane PREV buttons. These are for “Flat” menu structures.

The NEXT and PREV LEDS will flash while further menus are available.

2. Using a GOTO ANOTHER MENU LCD button (as below coloured orange).

This is more common and will take you straight to a relevant set of menus.

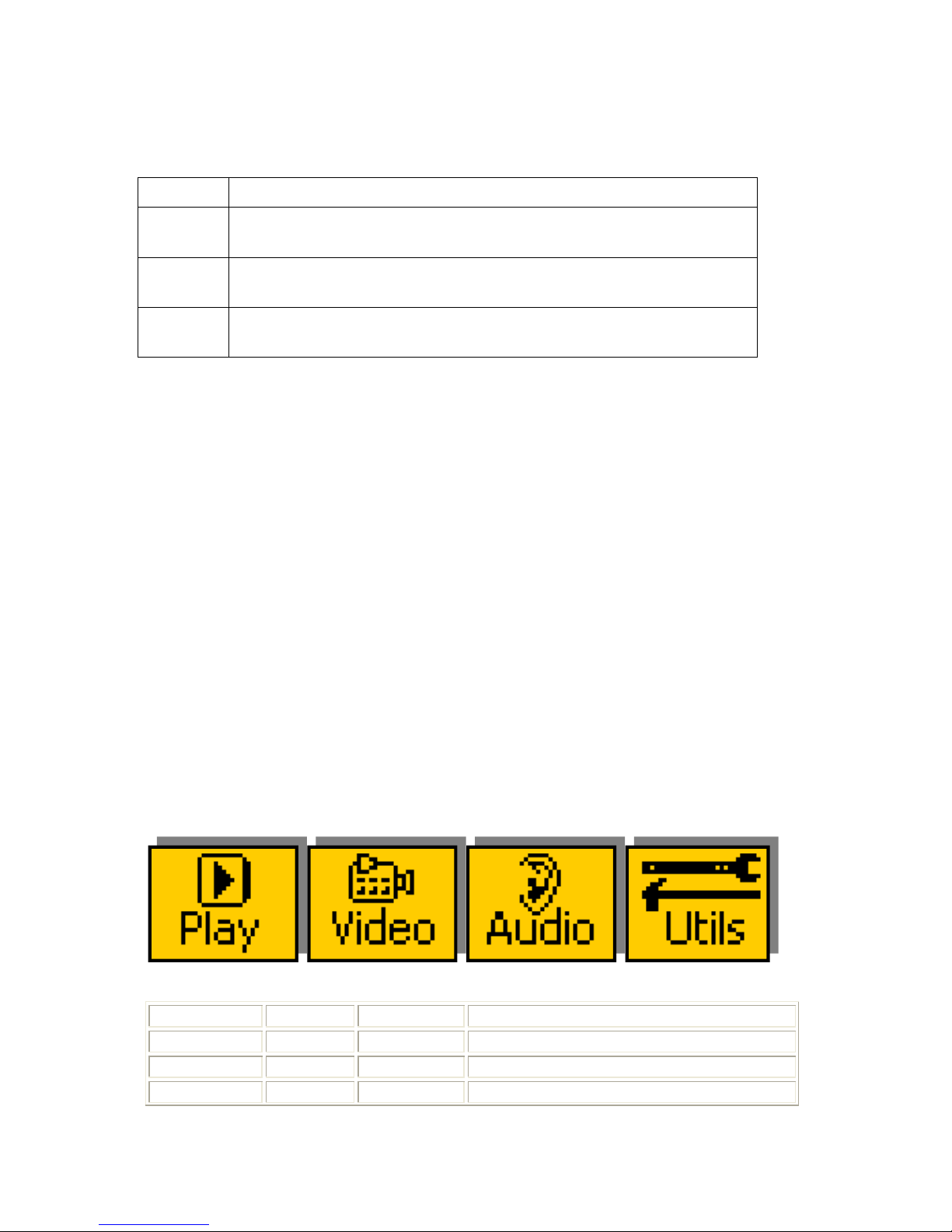

Examples are the Play and UTILS menu’s shown on Figure 8.

GOTO

ANOTHER

MENU

SINGLE

PARAMETER

ADJUSTMENT

DOUBLE OR

TRIPLE

PARAMETER

ADJUSTMENT

INFORMATION

DISPLAY

Figure 8 Types of menus showing their characteristic colours

- 12 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

3.1.3 Parameter adjustment of a green menu.

A green menu is one in which there is only one adjustable parameter. There are
two ways to adjust the parameter in a green menu.

1. Press the green LCD button. This will increment the value in that window.

This is most frequently done when the menu parameter is Textural for
example switching a parameter between ON and OFF. In this case a
button press is most natural.

2. Use the Rotary digipot (A,B,C or D) to adjust the parameter in the

respective LCD window (A,B,C or D). The direction and speed of rotation
enable numeric values to be set easily.

3.1.4 Parameter adjustment of a red menu

A red menu is one in which there is two or three adjustable parameters. In this
case it is necessary to first select the menu by pressing the red button. When the
red button is pressed it will turn green and either two or three of the rotary digipot
LEDS will flash indicating that the respective rotary digipot will operate the
respective parameter.

3.1.5 Information display

A Yellow menu (Which on most panels does look a light orange!) is one in which
only information is displayed. An example of this is the software version display.

3.2 Memories

3.2.1 User Memories

The user memories are a generic feature of all eyeheight geNETics products. Six
of these are included in the MW-3EM. Parameters as shown in the RED menu
numbers are saved.

3.2.2 User Memories change for each line standard

It is important to realise that although there are 6 user memories, each of these
user memories is dependent of the line standard being used. There are 4 generic
line standards recognised. These are 625i, 525i, 720p and 1080i. Each of these
line standards has there OWN set of 6 memories. This can cause confusion but it
is usually a very helpful feature as parameters have different ranges in different
line standards.

3.2.3 Remembering setups on power up.

The eyeheight memory system also has a “Power on” Memory. If the user

requires a particular setup upon power up then this setup MUST be stored in the
power-on Memory. Like the User Memories, the power-on memories are
dependent on line standard. There are 4 generic line standards recognised.
These are 625i, 525i, 720p and 1080i. Each of these line standards has it’s OWN

- 13 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

power-on memory. To store a setting in a power on memory ensure that the
appropriate line standard is being applied to the BG input to the device, then
adjust the settings as required for power-on, then Navigate to the “Save As
Power-On Memory” menu. (UTILSSETUPMORERESETSSET AS POW­ON MEM.)

3.2.4 Naming User Memories

The user memories can be named with up to 6 characters. To do this plug in a
PS-2 Keyboard into a Flexipanel and select the appropriate processor card with a
device button. (See Figure 8 for connector location). To name memory 1,
“TXroom”

1. Hit F9 function key. The LCD displays will change to text entry mode

2. Type “M01:TXroom” and then press enter.

3. You may get a “not acknowledged” message, this does not matter.

Other memories can be named in the same way but changing the 01 to another
memory number.

3.3 Tamper Locking the MW-3EM.

The user can lock specific menus or all the menus on the MW-3EM so that it
cannot be adjusted with a manual control panel. This does not effect automation.

To do this plug in a PS-2 Keyboard into a Flexipanel and select the appropriate
processor card with a device button. (See Figure 8 for connector location). To
lock only menu 8 (Transition type)

1. Hit F9 function key. The LCD displays will change to text entry mode

2. Type “L08:” and then press enter.

A padlock symbol will appear on the menu and it cannot be adjusted. To unlock

menu 8, type “A08:” as step 2 above. Other menus are done in the same way

To lock the whole product type “L:” as step 2 above and to unlock the whole

product type “A:” as step 2 above.

3.4 GPI/Tally Set-up.

3.4.1 On-Board GPI’s

The MW-3EM is a geNETics product. The geNETics system uses generic
Input/Output cards which have 3 GPI’s and one Tally output. These have been

used in this system as opportunistic GPI’s which may be of use to the user. They

do not provide a comprehensive GPI control but may be used as part of a GPI
solution in conjunction with the GPI’s on the etherbox.

The operation of these is explained in the table below.

- 14 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

Table 1 - On-Board GPI settings

GPI

Effect

1

Momentary activation to Ground >50mS will cause a TAKE to the
“A” side of the mixer.

2

Momentary activation to Ground >50mS will cause a TAKE to the
“B” side of the mixer.

3

Momentary activation to Ground >50mS will cause a TAKE to the
“Other” side of the mixer. (If PGM on “A” it will go to “B”)

0=Short to ground or logic 0V, 1=Pulled up internally or logic +3+12V

3.4.2 On-Board Tally

The single tally output simply indicates “Low” (Transistor activated) when the “B”

side is on-air. Otherwise it indicates “HIGH”.

3.5 Configuring tallies on the etherbox.

The MW-3EM can make use of the three configurable tallies on the etherbox
chassis. The etherbox chassis has three usable tallies. These are numbered
tallies 11,12 and 13. Set up these menus for the box number and tally number for
A channel and B channel inputs of the mixer on menu number 45. If you do not
wish to use a tally set the box number to 0. Refer to the etherbox manual for
interface information.

3.6 The MW-3EM Menu Set.

Menus 00-03 Top Level Menus

Menu Num.

Heading

Automation

Function

00

PLAY

none

Go To the main Play menus (4-7)

01

VIDEO

none

Go To the main Video menus (8-23)

02

AUDIO

none

Go To the main Audio menus (108-127)

- 15 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

03

UTIL

none

Go To the main Utility menus (36)

Menus 04-07 PLAY Menus

PROGM

A

PRSET

B

BACK

TAKE

Menu Num.

Heading

Automation

Function

04

TAKE

1=take B
2=take A

This Causes the Auto Transition to
occur.

05

PROGM

0=In A
1=In B
2=Matte
3=Black

This Shows the currently selected
“On-air” Source. A,B matte or black
(matte and black are internal sources)

06

PRSET

0=In A
1=In B
2=Matte
3=Black

This Shows the Next selected “On-air”
Source. A,B matte or black
(matte and black are internal sources)
07

BACK

none

Go To the Top Level Menus

Menus 08-11 VIDEO Transition Set-up Menus (NEXT for more)

TIMES

Tr=25F

Hd=25F

BACK

TRANS:

WIPE

Menu Num.

Heading

Automation

Function

08

TRANS

0=Mix
1=Wipe
2=Cut
3=Cut-Cut
4=Cut-Fade
5=Fade-Cut

6=Fade-Fade

This sets the transition type between

Mix, Wipe and Cut and “U” and “V”
fade types. “U” and “V” fades
Transition to either “Black” or “Matte”
and then “Hold” for a period before

then transitioning to the Preset
Source.

- 16 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

09

TIME

Menu Level “A”
1-200
Menu Level “B”
1-200

Press this button and the two digipots
indicated by the lit LED’s will change
the transition time (in fields - Tr) and
the Hold time (in fields – Hd). The

Hold time is the time that the “U” and

“V” fades stay on Black (Or Matte).

10

WIPE
(Pattern)

0=Vertical
1=Horiz
2=Vert Curtain
3=Horiz Curtain
4=Diagonal
5=Diamond
6=Arrow Left

7=Arrow Up

This shows a representation of the
shape of the currently selected Wipe
Transition.

11

BACK

none

Go To the Top Level Menus

Menus 12-15 VIDEO Transition Set-up Menus (NEXT/PREV to navigate)

BORDER

SIZE

=10

COLOUR

DEPTH

=50%

BACK

BORDER

=SOFT

Menu Num.

Heading

Automation

Function

12

BORDER

0=Off
1=Soft
2=Colour
3=Soft&Col

This selects the Type of Border on the
Wipe edge between; No Border, Soft,
Coloured and Soft and coloured.

13

BORDER
SIZE

1-49

This sets up the Wipe Border Size
between “1” (min) and “49”, (max)

14

COLOUR
DEPTH

0-511

This represents the amount of colour

in the border when the “Soft and
coloured” border option is selected.

(0-100%)

15

BACK

none

Go To the Top Level Menus

Menus 16-19 VIDEO Transition Set-up Menus (NEXT/PREV to navigate)

L=50%

H=112d

S=50%

MANUAL

TRAN

=0%

BACK

BORDER
COLOUR

--->

Menu Num.

Heading

Automation

Function

- 17 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

16

BORDER
COLOUR

NONE

Points to adjacent menu for
information only.

17

L=
H=
S=

Menu Level “A”
0-255 (L)
Menu Level “B”
0-255 (H)
Menu Level “C”
0-255 (S)

Press this button and the three

digipots indicated by the lit LED’s will

change the Luma, Hue and Saturation
of the border colour.

18

MANUAL
TRAN

0-799

This will manually move the Transition
point between PGM and PST.
(0-100%)

19

BACK

none

Go To the Top Level Menus

Menus 20-23 VIDEO Transition Set-up Menus (PREV for less)

L=50%

H=112d

S=50%

HOLD

TO

Black

BACK

MATTE

COLOUR

--->

Menu Num.

Heading

Automation

Function

20

MATTE
COLOUR

none

Points to adjacent menu for
information only.

21

L=
H=
S=

Menu Level “A”
0-255 (L)
Menu Level “B”
0-255 (H)
Menu Level “C”
0-255 (S)

Press this button and the three

digipots indicated by the lit LED’s will

change the Luma, Hue and Saturation
of the Matte colour.

22

Hold To

0=Black
1=Matte

This is the “Intermediate” source for

the “U” and “V” Fades

23

BACK

none

Go To the Top Level Menus

Menus 24-35 Hidden AUDIO Set-up Menus for automation only.

- 18 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

Menus 36-39 Utility Menus Nested Menus

Menu Num.

Heading

Automation

Function

36

Preview

none

Go To preview output menus (40-43)

37

Set-up

none

Go To system set-up menus (44-47)

38

Memories

none

Go To memory menus (48-51)

39

Back

none

Go To the main Utility menus (0-3)

Menus 40-43 Utility Menus: Safe Area Gen

<-SACT

<-16:9
<-Thin

16s

BACK

SAFE

ACTION

ON

Menu Num.

Heading

Automation

Function

40

SAFE
ACTION

None

This Switches on and off the currently
selected area. Pressing the "Red"
switch next to this one and adjusting
the rotary digipots with the lighted
green LED's chooses the Selected
area.

41

None

Menu
Level “A”
0=S.Action
1=S.Capt.
2=DigEdge
3=An Edge

Menu
Level “B”
0=4:3

When this button is pressed to
"Green". The Three-line display in the
window indicates the three options,
which can be changed by adjusting
the three rotary digipots A, B and C.

Digipot A
Determines the basic Function
Selects "Safe Action" option
Selects "Safe Caption" option
Selects "Digital Edge" option
Selects the "An. Edge" option

Digipot B
Determines the Screen Format
Standard 4:3 Screen

- 19 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

1=16:9
2=16p4:3
3=16p149
4=43p16:9

Menu Level “C”

0=Thin
1=Thick
2=Shade
3=Black

Standard 16:9 Screen
16:9 Shoot to protect 4:3
16:9 Shoot to protect 14:9 (*)
4:3 Shoot to protect 16:9 (*)

(*) -- Not available in 525

Digipot C
Determines the Style of Indicate
Thin White lines are used
Thick White lines are used
Shade is used for "danger area"
Black is used for "danger area"

42

<Number>

This is a Timecode seconds count for
timecode triggered automation. This

records the “seconds” on the VITC on

the reference input. This is only
relevant in a Playout Compact
system.

43

BACK

none

Go To the Top Level Menus

Menus 44-47 Utility Menus: Timing, EDH and S/W version

Chan A
Box=1
Tal=11

More

BACK

Timing
=864Px

=0 Ln

Menu Num.

Heading

Automation

Function

44

Timing

Menu Level “A”
0-1439

Menu Level “B”
0-624

Press this button and the
two digipots indicated by
the respective LED’s will
cause modification to the
Pixel Timing (37nS per
step) and Line Timing
(64uS per step)

45
These are
always
remembered
on power
up.

External
Tally
Set-Up

Not Usable

This unit can activate an
external Tally on the FB-9E
etherbox. The meaning of
this set-up is explained in
the section 3.5
“Configuring tallies on the
etherbox.”

46

More

none

Takes you to the Resets
and Software upgrade
menus. Go to menu 136

- 20 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

47

BACK

none

Go To the Top Level
Menus

Menus 48-51 Utility Menus: Memories (NEXT for more)

MEM2

------

------

MEM3

------

------

BACK

MEM1

------

------

Menu Num.

Heading

Automation

Function

48

MEM1

1=Recall

Pressing this will recall Memory
number 1.User Names can be
programmed in to the memories using

a keyboard. See “geNETics User

guide”, section “Giving product
Memories names”

49

MEM2

1=Recall

Pressing this will recall Memory
number 2.

50

MEM3

1=Recall

Pressing this will recall Memory
number 3.

51

BACK

none

Go To the Top Level Menus

Menus 52-55 Utility Menus: Memories (NEXT/PREV to navigate)

MEM5

------

------

MEM6

------

------

BACK

MEM4

------

------

Menu Num.

Heading

Automation

Function

52

MEM4

1=Recall

Pressing this will recall Memory
number 4.

53

MEM5

1=Recall

Pressing this will recall Memory
number 5.

54

MEM6

1=Recall

Pressing this will recall Memory
number 6.

55

BACK

none

Go To the Top Level Menus

- 21 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

Menus 56-59 Utility Menus: Memories (NEXT/PREV to navigate)

SAVE
MEM2

------

SAVE
MEM3

------

BACK

SAVE
MEM1

------

Menu Num.

Heading

Automation

Function

56

SAVE
MEM1

1=Save

Pressing this will Save Memory
number 1.

57

SAVE
MEM2

1= Save

Pressing this will Save Memory
number 2.

58

SAVE
MEM3

1= Save

Pressing this will Save Memory
number 3.

59

BACK

none

Go To the Top Level Menus

Menus 60-63 Utility Menus: Memories (NEXT/PREV to navigate)

SAVE
MEM5

------

SAVE
MEM6

------

BACK

SAVE
MEM4

------

Menu Num.

Heading

Automation

Function

60

SAVE
MEM4

1= Save

Pressing this will Save Memory
number 4.

61

SAVE
MEM5

1= Save

Pressing this will Save Memory
number 5.

62

SAVE
MEM6

1= Save

Pressing this will Save Memory
number 6.

63

BACK

none

Go To the Top Level Menus

Menus 64-107 Hidden Menu’s.

Menus 108-127 AUDIO Set-up Menus (PREV for less)

- 22 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

CHANEL
Set-Up

IP

Mode

BACK

CHANEL

GAIN
=0dB

ABCh34
A-Ster
B-Ster

ABCh56
A-Ster
B-Ster

BACK

ABCh12
A-Ster
B-Ster

Menu Num.

Heading

Automation

Function

108

CHANNEL
GAIN

0=-12dB
1=-6dB
2=0dB
3=+6dB
4=+12dB
5=+18dB

This sets the overall gain on the
Embedded Audio.This applies only
for the MW-3EM Module, which
incorporates embedded audio
mixing.

109

Channel
Set-Up

Go to menu 124 to set up Audio
Transition mode, mix, cut.

110

Input
Mode

Go to menu 112 to set up Audio
input config, stereo, mono etc

111

BACK

none

Go To the Top Level Menus

Menu Num.

Heading

Automation

Function

112

ABch12

0=Stereo
1=L<>R
2=LLR
3=RLR
4=Mono

Press this button and the two
digipots indicated by the respective

LED’s will cause modification to the

A and B embedded audio Ch 1 and 2
as follows:
Stereo (No change)
Left and Right Swapped
Left to both Left and Right
Right to both Left and Right
Mono

113

ABch34

As above

As above but for Chan 3/4

114

ABch56

As above

As above but for Chan 5/6

115

BACK

none

Go To menu 108

- 23 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

Ch9-10

A-Ster
B-Ster

C11-12
A-Ster
B-Ster

BACK

ABCh78
A-Ster
B-Ster

C15-16

A-Ster
B-Ster

BACK

C13-14
A-Ster
B-Ster

Menu Num.

Heading

Automation

Function

116

ABch78

0=Stereo
1=L<>R
2=LLR
3=RLR
4=Mono

Press this button and the two
digipots indicated by the respective

LED’s will cause modification to the

A and B embedded audio Ch 7 and 8
as follows:
Stereo (No change)
Left and Right Swapped
Left to both Left and Right
Right to both Left and Right
Mono

117

Ch9-10

As above

As above but for Chan 9/10

118

C11-12

As above

As above but for Chan 11/12

119

BACK

none

Go To menu 108

Menu Num.

Heading

Automation

Function

120

C13-14

0=Stereo
1=L<>R
2=LLR
3=RLR
4=Mono

Press this button and the two
digipots indicated by the respective

LED’s will cause modification to the

A and B embedded audio Ch 13 and
14 as follows:
Stereo (No change)
Left and Right Swapped
Left to both Left and Right
Right to both Left and Right
Mono

121

Ch15-16

As above

As above but for Chan 15/16

122

- 24 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

Ch3--4

=Mix
=Mix

Ch5--6

=Mix
=Mix

Ch7--8

=Mix
=Mix

Ch1--2

=Mix
=Mix

Menus 128-147 Resets and Software Upgrade.

Menu Num.

Heading

Function

128

Set as
Power
on
Memory

Pressing this will set the current settings
as the default settings when the unit is
powered up.

129

Reboot
this unit

This applies a warm restart to the unit. It
is the software equivalent of recycling
the power.

130

Factory
Reset

Pressing this will take you to the Factory
Reset Last Chance menu. (Go To Menu

44).

131

BACK

Go To the Top menu

123

BACK

none

Go To menu 108

Menu Num.

Heading

Automation

Function

124

Ch1--2

0=Mix
1=Cut

Press this button and the two
digipots indicated by the respective

LED’s will cause modification to the

Chan1 and 2 Transitions:
Mix Normal Audio with Video Mix
Cut Audio cuts in the middle of the
video transition. This is useful for
splicing DolbyE streams.

125

Ch3--4

As above

As above but for Chan 3/4

126

Ch5--6

As above

As above but for Chan 5/6

127

Ch7--8

As above

As above but for Chan 7/8

Set AS
Pow On
Memory

ReBoot
This
Unit

FACTRY
RESET!
!!!!!!

- 25 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

Menu Num.

Heading

Function

132

----

----

133

----

----

134

YES, I
want to
do a
factory
reset!

This will Start a factory Reset of the unit.
This will Wipe ALL Logos and Settings
that may have been previously set-up.
Only do this if you are setting up from
scratch, or there is a problem with your
unit.

135

BACK

Go To the Top Menus

Menu Num.

Heading

Function

136

Upgrade
Software

Pressing this will take you to the
Software Upgrade last chance menu.
(Go To Menu 140).

137

Software
Version

This window displays the software
version.

138

Resets

Pressing this will take you to the Reset
Options. (Go To Menu 128).

139

BACK

Go To the Utilities Menus

UPGRDE
SOFTWR
NOW!

MW-2
Ver1.0

RESETS

START?

ARE->
YOU->
SURE->

YES

- 26 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

Menu Num.

Heading

Function

140

----

----

141

----

----

142

YES, I
want to
start a
software
upgrade

This will Start a software upgrade of the
unit. You will need to follow the
instructions in the etherbox (FB-9E)
manual to correctly perform this
procedure. This will Wipe ALL Logos
and Settings that may have been
previously set-up. The unit MUST be
installed in an FB-9E to perform an
upgrade.

143

BACK

Go To the Top Menus

Menu Num.

Heading

Function

144

----

This is a system message. If you

accidentally press “Software Upgrade”

then this message appears. If you have
done this accidentally, simply WAIT 3
minutes and the system will return back
to normal.

145

----

----

146

----

----

147

----

----

MW-2
FILE
TIMES

IS UPG
IS REC
OUT IN

RADING
IEVED
3 MINS

IF NO
IT

START?

ARE->
YOU->
SURE->

YES

- 27 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

4 Technical Appendix

4.1 GPI/Tally/RS232/ technical information.

The Processor card has an RJ-45 connector with GPI, Tally and RS232
connections as shown below:

1

GPI-1

White/Orange

2

GPI-2

Orange

3

GPI-3

White/Green

4

GND

Blue

5

RS232 TX

White/Blue

6

RS232 RX

Green

7

Not Used

White/Brown

8

Tally (open
collector)

Brown

Table 2 GPI/Tally and RS232 pin-out on RJ-45.

4.1.1 GPI Inputs.

Figure 9 Typical GPI Input

GPI’s are normally activated by a short to ground. The GPI has its own internal

pull-up resistor. If the user is interfacing with logic then

 Vhigh = +12V>Vin>+3V
 Vlow = +0.3V>Vin>0V

- 28 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

4.1.2 Tally Output.

1

3

2

TR

BC817-16

R

330R

TALLY PROCESSOR

USER OUTPUUT

R

10R

Figure 10 Tally Output

The user Tally Output is an open collector transistor. The drain should be
<200mA. An electro-mechanical relay can be operated by this as shown in the
example below.

Figure 11 Tally interface to relay.

4.1.3 RS232 Interface.

This loosely follows the pin convention of EIA-561 which is a standard for RS232
on an RJ45 cable. Only TX, RX and Signal ground (pin 4) are implemented. For
the LI-1D the following RS232 parameters apply:

 115Kbaud
 8 Bits, no parity
 1 Stop bit.

- 29 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

4.2 On-Board automation protocol.

4.2.1 Implimentation on RS232

A simple text based protocol has been implemented on the RS232 interface. All
text strings are shown in inverted commas; do not include them in the actual
command sent. Each byte within a text string must be sent within 10mS of each
other or the command will time out. This on-board protocol is not the same as the
geNETics protocol. Refer to the geNETics protocol in section 6 (Product
Automation) of the etherbox manual. GeNETics protocol is used to control a
number of processor cards using one connection.

The command set is as follows:

Command

Meaning

Example hex string

“PRn”

Set Program Bus to n,
where n=:

“A” = A side
“B” = B side
“M” = Matte
“L” = Black

50,52,41
Set Program bus to side “A”

“PSn”

Set Preset Bus to n,
where n=:

“A” = A side
“B” = B side
“M” = Matte
“L” = Black

50,53,41

Set Preset bus to side “A”

“Tn”

Set transition type n,
where n=:

0 = Mix
1 = Wipe
2 = Cut
3 = Cut-Cut
4 = Cut-Fade
5 = Fade-Cut
6 = Fade-Fade.

54,34
Set transition type to be Cut-Fade.

“Wn”

Set Wipe pattern to n,
where n=:

0=Vertical
1=Horiz
2=Vert Curtain

57,32

Set wipe pattern to Vertical Curtain.

- 30 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

3=Horiz Curtain
4=Diagonal
5=Diamond
6=Arrow Left
7=Arrow Up

“TTnnn”

Set Transition time to
nnn. Where nnn=:

000250

54,54,30,30,38

Set transition time to 8 frames.

“HTnnn”

Set Hold time to nnn.
Where nnn=:

000250

48,30,30,38

Set hold time to 8 frames.

“TK”

Start Auto transition.
(TAKE)

54,4B

A response will occur within 100mS of the command. The responses are as
follows:

Response

Meaning

Hex string

“OK”

Command was understood and will implement.

4F,4B

“E0”

Command timed out.

45,30

“E1”

Error 1. Unknown command.

45,31

“E2”

Error 2. Next Logo number is not in range.

45,32

“TF”

This indicates that a transition has ended. The

user should look for this after a “TK” command

and not issue any more commands until this is
received.

4.3 geNETics Automation Protocol Parameter table.

This is the Automaticlly extracted parameters for the MW-3EM. This is used for
the generic geNETics automation protocol. See etherbox manual for a full
description of its usage.

- 31 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

4.3.1 -625 automatically extracted menu parameters. V8.10

Menu, Access, Text, Low, Up, Lev, Txt1, Txt2, Txt3, Txt4, Tx t5, Txt6, Txt7, Txt8, Txt9, Txt10
0, N/A, [Gr], N/A, N/A, A
1, N/A, [Gr], N/A, N/A, A
2, N/A, [Gr], N/A, N/A, A
3, N/A, [Gr], N/A, N/A, A
4, R/W, {# }, 0, 2, A, TAKE , TAKE , TAKE
4, RD, {# }, 0, 4, B, VidAud, V.Only, A.Only, Asplit, <T RAN>
5, R/W, {# }, 0, 3, A, PROGM:, PROGM:, PROGM:, PROGM:
6, R/W, {# }, 0, 3, A, PRSET:, PRSET:, PRSET:, PRSET:
7, N/A, [Gr], N/A, N/A, A
8, R/W, {# }, 0, 6, A, [Gr], [Gr], [Gr], [Gr], [Gr], [Gr ], [Gr]
9, R/W, {TIMES:}{Tr=# }, 3, 253, A
9, R/W, {Hd=# }, 0, 993, B
10, R/W, {# }, 0, 7, A, [Gr], [Gr], [Gr], [Gr], [Gr], [Gr], [Gr], [Gr]
11, N/A, [Gr], N/A, N/A, A
12, R/W, {BORDER}{# }, 0, 3, A, =OFF , =SOFT , =COLOR, =SFCOL
13, R/W, { Bord }{ Size }{ =# }, 1, 49, A
14, R/W, {Colour}{Depth:}{=# % }, 0, 511, A
15, N/A, [Gr], N/A, N/A, A
16, N/A, {Border}{Color]}{-----]}, N/A, N/A, A
17, R/W, {L=# %}, 0, 255, A
17, R/W, {H=# d}, 0, 255, B
17, R/W, {S=# %}, 0, 255, C
18, R/W, {Manual}{ Tran }{=# %}, 0, 1026, A
19, N/A, [Gr], N/A, N/A, A
20, N/A, {Matte]}{Color]}{-----]}, N/A, N/A, A
21, R/W, {L=# %}, 0, 248, A
21, R/W, {H=# d}, 0, 255, B
21, R/W, {S=# %}, 0, 255, C
22, R/W, {Hold }{To: }{# }, 0, 1, A, Black , Matte
23, N/A, [Gr], N/A, N/A, A
24, RD, {Aud In}{# }, 0, 2, A, Lead , Lag , LL Off
24, R/W, {# Fds}, 64537, 999, B
25, RD, {AudOut}{# }, 0, 2, A, Lead , Lag , LL Off
25, R/W, {# Fds}, 64537, 999, B
26, R/W, {F.Rate}{In=# F}, 0, 250, A
26, R/W, {Ou=# F}, 0, 250, B
27, N/A, [Gr], N/A, N/A, A
28, R/W, {Audio:}{# }, 0, 1, A, Follow, Sep
29, R/W, {Chanel}{Gain= }{# }, 0, 5, A, -12dB , -6dB , 0dB , +6dB , +12dB , +18dB
30, R/W, {ABmode}{# }, 0, 4, A, STEREO, LRswap, L ] LR, R ] LR, MONO
30, R/W, {# }, 0, 4, B, STEREO, LRswap, L ] LR, R ] LR, MONO
31, N/A, [Gr], N/A, N/A, A
32, R/W, {ATAKE:}{# }, 0, 1, A, A-AUD , <TRAN>
32, R/W, {# }, 0, 1, B, B-AUD , <TRAN>
33, R/W, {Levels}{A=# %}, 0, 1023, A
33, R/W, {B=# %}, 0, 1023, B
34, R/W, {T-Time}{A=# F}, 1, 200, A
34, R/W, {B=# F}, 1, 200, B
35, N/A, [Gr], N/A, N/A, A
36, N/A, [Gr], N/A, N/A, A
37, N/A, [Gr], N/A, N/A, A
38, N/A, [Gr], N/A, N/A, A
39, N/A, [Gr], N/A, N/A, A
40, RD, {# }, 0, 3, A, SAFE , SAFE , DIGTAL, ANALOG
40, RD, {# }, 0, 3, B, ACTION, CAPT'N, EDGE , EDGE
40, R/W, {# }, 0, 1, C, OFF , ON
41, R/W, {# }, 0, 3, A, [S.Act, [S.Cap, [D.Edg, [A.Edg
41, R/W, {# }, 0, 4, B, [4:3 , [16:9 , 16p4:3, 16p149, 43p149
41, R/W, {# }, 0, 3, C, [Thin , [Thick, [Shade, [Black
42, RD, {# s }, 1, 59, A
43, N/A, [Gr], N/A, N/A, A
44, R/W, {Timing}{# Px}, 0, 1728, A
44, R/W, {# Ln}, 0, 627, B
45, R/W, {# }, 0, 1, A, Chan A, Chan B
45, R/W, {Box=# }, 0, 16, B
45, R/W, {Tal=# }, 0, 255, C
46, N/A, [Gr], N/A, N/A, A
47, N/A, [Gr], N/A, N/A, A
48, R/W, {% > }{Mem 1 }{# }, 0, 1, A, Recall, DONE
49, R/W, {% > }{Mem 2 }{# }, 0, 1, A, Recall, DONE
50, R/W, {% > }{Mem 3 }{# }, 0, 1, A, Recall, DONE
51, N/A, [Gr], N/A, N/A, A
52, R/W, {% > }{Mem 4 }{# }, 0, 1, A, Recall, DONE
53, R/W, {% > }{Mem 5 }{# }, 0, 1, A, Recall, DONE
54, R/W, {% > }{Mem 6 }{# }, 0, 1, A, Recall, DONE
55, N/A, [Gr], N/A, N/A, A
56, R/W, {% > }{Mem 1 }{# }, 0, 1, A, Save , DONE
57, R/W, {% > }{Mem 2 }{# }, 0, 1, A, Save , DONE
58, R/W, {% > }{Mem 3 }{# }, 0, 1, A, Save , DONE
59, N/A, [Gr], N/A, N/A, A
60, R/W, {% > }{Mem 4 }{# }, 0, 1, A, Save , DONE
61, R/W, {% > }{Mem 5 }{# }, 0, 1, A, Save , DONE
62, R/W, {% > }{Mem 6 }{# }, 0, 1, A, Save , DONE
63, N/A, [Gr], N/A, N/A, A
64, N/A, [Gr], N/A, N/A, A
65, N/A, [Gr], N/A, N/A, A
66, N/A, [Gr], N/A, N/A, A
67, N/A, [Gr], N/A, N/A, A
68, R/W, {# }, 0, 6, A, [Gr], [Gr], [Gr], [Gr], [Gr], [G r], [Gr]
69, R/W, {# }, 0, 3, A, [Gr], [Gr], [Gr], [Gr]
70, N/A, [Gr], N/A, N/A, A
71, N/A, [Gr], N/A, N/A, A
72, R/W, {HoldTo}{# }, 0, 1, A, Black , Matte
72, R/W, {For# F}, 0, 993, B
73, R/W, {L=# %}, 0, 255, A
73, R/W, {H=# d}, 0, 255, B
73, R/W, {S=# %}, 0, 255, C
74, R/W, { User }{TrTime}{=# fr}, 3, 253, A
75, N/A, [Gr], N/A, N/A, A
76, R/W, {# }, 0, 7, A, [Gr], [Gr], [Gr], [Gr], [Gr], [G r], [Gr], [Gr]
77, R/W, {# }, 0, 3, A, NoBord, Bordr1, Bordr2, Bordr3
77, R/W, {Sz=# }, 1, 49, B
77, R/W, {Dp=# %}, 0, 511, C
78, R/W, {L=# %}, 0, 255, A
78, R/W, {H=# d}, 0, 255, B
78, R/W, {S=# %}, 0, 255, C
79, N/A, [Gr], N/A, N/A, A
80, R/W, {# }, 0, 1, A, AUTO , MANUAL
81, R/W, {# }, 0, 1, A, AUTO , MANUAL
82, N/A, {Manual}{[Audio}{[Oride}, N/A, N/A, A
83, N/A, { BACK }{Aud LL}{ }, N/A, N/A, A
84, R/W, {Chanel}{Gain= }{# }, 0, 5, A, -12dB , -6dB , 0dB , +6dB , +12dB , +18dB

- 32 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

85, R/W, {# }, 0, 4, A, STEREO, LRswap, L ] LR, R ] LR, MONO
86, R/W, {# }, 0, 4, A, STEREO, LRswap, L ] LR, R ] LR, MONO
87, N/A, [Gr], N/A, N/A, A
88, N/A, [Gr], N/A, N/A, A
89, N/A, [Gr], N/A, N/A, A
90, N/A, [Gr], N/A, N/A, A
91, N/A, [Gr], N/A, N/A, A
92, R/W, {# }, 0, 6, A, [Gr], [Gr], [Gr], [Gr], [Gr], [G r], [Gr]
93, R/W, {# }, 0, 3, A, [Gr], [Gr], [Gr], [Gr]
94, R/W, { User }{TrTime}{=# fr}, 3, 253, A
95, N/A, [Gr], N/A, N/A, A
96, R/W, {HoldTo}{# }, 0, 1, A, Black , Matte
96, R/W, {For# F}, 0, 993, B
97, N/A, {Matte]}{Color]}{-----]}, N/A, N/A, A
98, R/W, {L=# %}, 0, 255, A
98, R/W, {H=# d}, 0, 255, B
98, R/W, {S=# %}, 0, 255, C
99, N/A, [Gr], N/A, N/A, A
100, R/W, {# }, 0, 7, A, [Gr], [Gr], [Gr], [Gr], [Gr], [ Gr], [Gr], [Gr]
101, R/W, {# }, 0, 3, A, NoBord, Bordr1, Bordr2, Bordr3
101, R/W, {Sz=# }, 1, 49, B
101, R/W, {Dp=# %}, 0, 511, C
102, R/W, {L=# %}, 0, 255, A
102, R/W, {H=# d}, 0, 255, B
102, R/W, {S=# %}, 0, 255, C
103, N/A, [Gr], N/A, N/A, A
104, N/A, {MIX }{ }{ }, N/A, N/A, A
105, N/A, {ER }{ }{ }, N/A, N/A, A
106, N/A, {TRA }{ }{ }, N/A, N/A, A
107, N/A, {NS }{ }{ }, N/A, N/A, A
108, R/W, {Chanel}{Gain= }{# }, 0, 5, A, -12dB , -6dB , 0dB , +6dB , +12dB , +18dB
109, N/A, [Gr], N/A, N/A, A
110, N/A, [Gr], N/A, N/A, A
111, N/A, [Gr], N/A, N/A, A
112, R/W, {ABCh12}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
112, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
113, R/W, {ABCh34}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
113, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
114, R/W, {ABCh56}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
114, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
115, N/A, [Gr], N/A, N/A, A
116, R/W, {ABCh78}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
116, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
117, R/W, {Ch9-10}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
117, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
118, R/W, {C11-12}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
118, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
119, N/A, [Gr], N/A, N/A, A
120, R/W, {C13-14}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
120, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
121, R/W, {C15-16}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
121, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
122, N/A, { }{ }{ }, N/A, N/A, A
123, N/A, [Gr], N/A, N/A, A
124, R/W, {Group1}{# }, 0, 1, A, 1=Mix , 1=Cut
124, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
125, R/W, {Group2}{# }, 0, 1, A, 1=Mix , 1=Cut
125, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
126, R/W, {Group3}{# }, 0, 1, A, 1=Mix , 1=Cut
126, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
127, R/W, {Group4}{# }, 0, 1, A, 1=Mix , 1=Cut
127, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
128, R/W, {# }, 0, 1, A, Set As, !WAIT!
129, R/W, {# }, 0, 1, A, ReBoot, !WAIT!
130, N/A, {FACTRY}{RESET!}{!!!!!!}, N/A, N/A, A
131, N/A, [Gr], N/A, N/A, A
132, N/A, {START?}{ }{ }, N/A, N/A, A
133, N/A, { ARE ]}{ YOU ]}{SURE?]}, N/A, N/A, A
134, R/W, {# }, 0, 1, A, YES , OK!
135, N/A, [Gr], N/A, N/A, A
136, N/A, {UPGRDE}{SOFTWR}{ NOW! }, N/A, N/A, A
137, R/W, {GPI }{ENABLE}{# }, 0, 1, A, =NO , =YES
138, N/A, {RESETS}{ }{ }, N/A, N/A, A
139, N/A, [Gr], N/A, N/A, A
140, N/A, {START?}{ }{ }, N/A, N/A, A
141, N/A, { ARE ]}{ YOU ]}{SURE?]}, N/A, N/A, A
142, R/W, {# }, 0, 1, A, YES ,
143, N/A, [Gr], N/A, N/A, A
144, N/A, {MW-3M }{FILE }{TIMES }, N/A, N/A, A
145, N/A, {IS UPG}{IS REC}{OUT IN}, N/A, N/A, A
146, N/A, {RADING}{IEVED }{3 MINS}, N/A, N/A, A
147, N/A, {IF NO }{IT }{ }, N/A, N/A, A

4.3.2 -525 automatically extracted menu parameters. V8.10

Menu, Access, Text, Low, Up, Lev, Txt1, Txt2, Txt3, Txt4, Txt5, Txt6, Txt7, Txt8, Txt9, Txt10
0, N/A, [Gr], N/A, N/A, A
1, N/A, [Gr], N/A, N/A, A
2, N/A, [Gr], N/A, N/A, A
3, N/A, [Gr], N/A, N/A, A
4, R/W, {# }, 0, 2, A, TAKE , TAKE , TAKE
4, RD, {# }, 0, 4, B, VidAud, V.Only, A.Only, Asplit, <TRAN>
5, R/W, {# }, 0, 3, A, PROGM:, PROGM:, PROGM:, PROGM:
6, R/W, {# }, 0, 3, A, PRSET:, PRSET:, PRSET:, PRSET:
7, N/A, [Gr], N/A, N/A, A
8, R/W, {# }, 0, 6, A, [Gr], [Gr], [Gr], [Gr], [Gr], [Gr ], [Gr]
9, R/W, {TIMES:}{Tr=# }, 3, 253, A
9, R/W, {Hd=# }, 0, 993, B
10, R/W, {# }, 0, 7, A, [Gr], [Gr], [Gr], [Gr], [Gr], [G r], [Gr], [Gr]
11, N/A, [Gr], N/A, N/A, A
12, R/W, {BORDER}{# }, 0, 3, A, =OFF , =SOFT , =COLOR, =SFCOL
13, R/W, { Bord }{ Size }{ =# }, 1, 49, A
14, R/W, {Colour}{Depth:}{=# % }, 0, 511, A
15, N/A, [Gr], N/A, N/A, A
16, N/A, {Border}{Color]}{-----]}, N/A, N/A, A
17, R/W, {L=# %}, 0, 255, A
17, R/W, {H=# d}, 0, 255, B
17, R/W, {S=# %}, 0, 255, C
18, R/W, {Manual}{ Tran }{=# %}, 0, 1026, A
19, N/A, [Gr], N/A, N/A, A
20, N/A, {Matte]}{Color]}{-----]}, N/A, N/A, A
21, R/W, {L=# %}, 0, 248, A
21, R/W, {H=# d}, 0, 255, B
21, R/W, {S=# %}, 0, 255, C

- 33 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

22, R/W, {Hold }{To: }{# }, 0, 1, A, Black , Matte
23, N/A, [Gr], N/A, N/A, A
24, RD, {Aud In}{# }, 0, 2, A, Lead , Lag , LL Off
24, R/W, {# Fds}, 64537, 999, B
25, RD, {AudOut}{# }, 0, 2, A, Lead , Lag , LL Off
25, R/W, {# Fds}, 64537, 999, B
26, R/W, {F.Rate}{In=# F}, 0, 250, A
26, R/W, {Ou=# F}, 0, 250, B
27, N/A, [Gr], N/A, N/A, A
28, R/W, {Audio:}{# }, 0, 1, A, Follow, Sep
29, R/W, {Chanel}{Gain= }{# }, 0, 5, A, -12dB , -6dB , 0dB , +6dB , +12dB , +18dB
30, R/W, {ABmode}{# }, 0, 4, A, STEREO, LRswap, L ] LR, R ] LR, MONO
30, R/W, {# }, 0, 4, B, STEREO, LRswap, L ] LR, R ] LR, MONO
31, N/A, [Gr], N/A, N/A, A
32, R/W, {ATAKE:}{# }, 0, 1, A, A-AUD , <TRAN>
32, R/W, {# }, 0, 1, B, B-AUD , <TRAN>
33, R/W, {Levels}{A=# %}, 0, 1023, A
33, R/W, {B=# %}, 0, 1023, B
34, R/W, {T-Time}{A=# F}, 1, 200, A
34, R/W, {B=# F}, 1, 200, B
35, N/A, [Gr], N/A, N/A, A
36, N/A, [Gr], N/A, N/A, A
37, N/A, [Gr], N/A, N/A, A
38, N/A, [Gr], N/A, N/A, A
39, N/A, [Gr], N/A, N/A, A
40, RD, {# }, 0, 3, A, SAFE , SAFE , DIGTAL, ANALOG
40, RD, {# }, 0, 3, B, ACTION, CAPT'N, EDGE , EDGE
40, R/W, {# }, 0, 1, C, OFF , ON
41, R/W, {# }, 0, 3, A, [S.Act, [S.Cap, [D.Edg, [A.Edg
41, R/W, {# }, 0, 4, B, [4:3 , [16:9 , 16p4:3, 16p149, 43p149
41, R/W, {# }, 0, 3, C, [Thin , [Thick, [Shade, [Blac k
42, RD, {# s }, 1, 59, A
43, N/A, [Gr], N/A, N/A, A
44, R/W, {Timing}{# Px}, 0, 1728, A
44, R/W, {# Ln}, 0, 627, B
45, R/W, {# }, 0, 1, A, Chan A, Chan B
45, R/W, {Box=# }, 0, 16, B
45, R/W, {Tal=# }, 0, 255, C
46, N/A, [Gr], N/A, N/A, A
47, N/A, [Gr], N/A, N/A, A
48, R/W, {% > }{Mem 1 }{# }, 0, 1, A, Recall, DONE
49, R/W, {% > }{Mem 2 }{# }, 0, 1, A, Recall, DONE
50, R/W, {% > }{Mem 3 }{# }, 0, 1, A, Recall, DONE
51, N/A, [Gr], N/A, N/A, A
52, R/W, {% > }{Mem 4 }{# }, 0, 1, A, Recall, DONE
53, R/W, {% > }{Mem 5 }{# }, 0, 1, A, Recall, DONE
54, R/W, {% > }{Mem 6 }{# }, 0, 1, A, Recall, DONE
55, N/A, [Gr], N/A, N/A, A
56, R/W, {% > }{Mem 1 }{# }, 0, 1, A, Save , DONE
57, R/W, {% > }{Mem 2 }{# }, 0, 1, A, Save , DONE
58, R/W, {% > }{Mem 3 }{# }, 0, 1, A, Save , DONE
59, N/A, [Gr], N/A, N/A, A
60, R/W, {% > }{Mem 4 }{# }, 0, 1, A, Save , DONE
61, R/W, {% > }{Mem 5 }{# }, 0, 1, A, Save , DONE
62, R/W, {% > }{Mem 6 }{# }, 0, 1, A, Save , DONE
63, N/A, [Gr], N/A, N/A, A
64, N/A, [Gr], N/A, N/A, A
65, N/A, [Gr], N/A, N/A, A
66, N/A, [Gr], N/A, N/A, A
67, N/A, [Gr], N/A, N/A, A
68, R/W, {# }, 0, 6, A, [Gr], [Gr], [Gr], [Gr], [Gr], [G r], [Gr]
69, R/W, {# }, 0, 3, A, [Gr], [Gr], [Gr], [Gr]
70, N/A, [Gr], N/A, N/A, A
71, N/A, [Gr], N/A, N/A, A
72, R/W, {HoldTo}{# }, 0, 1, A, Black , Matte
72, R/W, {For# F}, 0, 993, B
73, R/W, {L=# %}, 0, 255, A
73, R/W, {H=# d}, 0, 255, B
73, R/W, {S=# %}, 0, 255, C
74, R/W, { User }{TrTime}{=# fr}, 3, 253, A
75, N/A, [Gr], N/A, N/A, A
76, R/W, {# }, 0, 7, A, [Gr], [Gr], [Gr], [Gr], [Gr], [G r], [Gr], [Gr]
77, R/W, {# }, 0, 3, A, NoBord, Bordr1, Bordr2, Bordr3
77, R/W, {Sz=# }, 1, 49, B
77, R/W, {Dp=# %}, 0, 511, C
78, R/W, {L=# %}, 0, 255, A
78, R/W, {H=# d}, 0, 255, B
78, R/W, {S=# %}, 0, 255, C
79, N/A, [Gr], N/A, N/A, A
80, R/W, {# }, 0, 1, A, AUTO , MANUAL
81, R/W, {# }, 0, 1, A, AUTO , MANUAL
82, N/A, {Manual}{[Audio}{[Oride}, N/A, N/A, A
83, N/A, { BACK }{Aud LL}{ }, N/A, N/A, A
84, R/W, {Chanel}{Gain= }{# }, 0, 5, A, -12dB , -6dB , 0dB , +6dB , +12dB , +18dB
85, R/W, {# }, 0, 4, A, STEREO, LRswap, L ] LR, R ] LR, MONO
86, R/W, {# }, 0, 4, A, STEREO, LRswap, L ] LR, R ] LR, MONO
87, N/A, [Gr], N/A, N/A, A
88, N/A, [Gr], N/A, N/A, A
89, N/A, [Gr], N/A, N/A, A
90, N/A, [Gr], N/A, N/A, A
91, N/A, [Gr], N/A, N/A, A
92, R/W, {# }, 0, 6, A, [Gr], [Gr], [Gr], [Gr], [Gr], [G r], [Gr]
93, R/W, {# }, 0, 3, A, [Gr], [Gr], [Gr], [Gr]
94, R/W, { User }{TrTime}{=# fr}, 3, 253, A
95, N/A, [Gr], N/A, N/A, A
96, R/W, {HoldTo}{# }, 0, 1, A, Black , Matte
96, R/W, {For# F}, 0, 993, B
97, N/A, {Matte]}{Color]}{-----]}, N/A, N/A, A
98, R/W, {L=# %}, 0, 255, A
98, R/W, {H=# d}, 0, 255, B
98, R/W, {S=# %}, 0, 255, C
99, N/A, [Gr], N/A, N/A, A
100, R/W, {# }, 0, 7, A, [Gr], [Gr], [Gr], [Gr], [Gr], [ Gr], [Gr], [Gr]
101, R/W, {# }, 0, 3, A, NoBord, Bordr1, Bordr2, Bordr3
101, R/W, {Sz=# }, 1, 49, B
101, R/W, {Dp=# %}, 0, 511, C
102, R/W, {L=# %}, 0, 255, A
102, R/W, {H=# d}, 0, 255, B
102, R/W, {S=# %}, 0, 255, C
103, N/A, [Gr], N/A, N/A, A
104, N/A, {MIX }{ }{ }, N/A, N/A, A
105, N/A, {ER }{ }{ }, N/A, N/A, A
106, N/A, {TRA }{ }{ }, N/A, N/A, A
107, N/A, {NS }{ }{ }, N/A, N/A, A
108, R/W, {Chanel}{Gain= }{# }, 0, 5, A, -12dB , -6dB , 0dB , +6dB , +12dB , +18dB
109, N/A, [Gr], N/A, N/A, A

- 34 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

110, N/A, [Gr], N/A, N/A, A
111, N/A, [Gr], N/A, N/A, A
112, R/W, {ABCh12}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
112, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
113, R/W, {ABCh34}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
113, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
114, R/W, {ABCh56}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
114, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
115, N/A, [Gr], N/A, N/A, A
116, R/W, {ABCh78}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
116, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
117, R/W, {Ch9-10}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
117, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
118, R/W, {C11-12}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
118, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
119, N/A, [Gr], N/A, N/A, A
120, R/W, {C13-14}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
120, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
121, R/W, {C15-16}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
121, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
122, N/A, { }{ }{ }, N/A, N/A, A
123, N/A, [Gr], N/A, N/A, A
124, R/W, {Group1}{# }, 0, 1, A, 1=Mix , 1=Cut
124, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
125, R/W, {Group2}{# }, 0, 1, A, 1=Mix , 1=Cut
125, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
126, R/W, {Group3}{# }, 0, 1, A, 1=Mix , 1=Cut
126, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
127, R/W, {Group4}{# }, 0, 1, A, 1=Mix , 1=Cut
127, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
128, R/W, {# }, 0, 1, A, Set As, !WAIT!
129, R/W, {# }, 0, 1, A, ReBoot, !WAIT!
130, N/A, {FACTRY}{RESET!}{!!!!!!}, N/A, N/A, A
131, N/A, [Gr], N/A, N/A, A
132, N/A, {START?}{ }{ }, N/A, N/A, A
133, N/A, { ARE ]}{ YOU ]}{SURE?]}, N/A, N/A, A
134, R/W, {# }, 0, 1, A, YES , OK!
135, N/A, [Gr], N/A, N/A, A
136, N/A, {UPGRDE}{SOFTWR}{ NOW! }, N/A, N/A, A
137, R/W, {GPI }{ENABLE}{# }, 0, 1, A, =NO , =YES
138, N/A, {RESETS}{ }{ }, N/A, N/A, A
139, N/A, [Gr], N/A, N/A, A
140, N/A, {START?}{ }{ }, N/A, N/A, A
141, N/A, { ARE ]}{ YOU ]}{SURE?]}, N/A, N/A, A
142, R/W, {# }, 0, 1, A, YES ,
143, N/A, [Gr], N/A, N/A, A
144, N/A, {MW-3M }{FILE }{TIMES }, N/A, N/A, A
145, N/A, {IS UPG}{IS REC}{OUT IN}, N/A, N/A, A
146, N/A, {RADING}{IEVED }{3 MINS}, N/A, N/A, A
147, N/A, {IF NO }{IT }{ }, N/A, N/A, A

4.3.3 -720pautomatically extracted menu parameters. V8.10

Menu, Access, Text, Low, Up, Lev, Txt1, Txt2, Txt3, Txt4, Tx t5, Txt6, Txt7, Txt8, Txt9, Txt10
0, N/A, [Gr], N/A, N/A, A
1, N/A, [Gr], N/A, N/A, A
2, N/A, [Gr], N/A, N/A, A
3, N/A, [Gr], N/A, N/A, A
4, R/W, {# }, 0, 2, A, TAKE , TAKE , TAKE
4, RD, {# }, 0, 4, B, VidAud, V.Only, A.Only, Asplit, <T RAN>
5, R/W, {# }, 0, 3, A, PROGM:, PROGM:, PROGM:, PROGM:
6, R/W, {# }, 0, 3, A, PRSET:, PRSET:, PRSET:, PRSET:
7, N/A, [Gr], N/A, N/A, A
8, R/W, {# }, 0, 6, A, [Gr], [Gr], [Gr], [Gr], [Gr], [Gr], [Gr]
9, R/W, {TIMES:}{Tr=# }, 3, 253, A
9, R/W, {Hd=# }, 0, 993, B
10, R/W, {# }, 0, 7, A, [Gr], [Gr], [Gr], [Gr], [Gr], [G r], [Gr], [Gr]
11, N/A, [Gr], N/A, N/A, A
12, R/W, {BORDER}{# }, 0, 3, A, =OFF , =SOFT , = COLOR, =SFCOL
13, R/W, { Bord }{ Size }{ =# }, 1, 49, A
14, R/W, {Colour}{Depth:}{=# % }, 0, 511, A
15, N/A, [Gr], N/A, N/A, A
16, N/A, {Border}{Color]}{-----]}, N/A, N/A, A
17, R/W, {L=# %}, 0, 255, A
17, R/W, {H=# d}, 0, 255, B
17, R/W, {S=# %}, 0, 255, C
18, R/W, {Manual}{ Tran }{=# %}, 0, 16386, A
19, N/A, [Gr], N/A, N/A, A
20, N/A, {Matte]}{Color]}{-----]}, N/A, N/A, A
21, R/W, {L=# %}, 0, 255, A
21, R/W, {H=# d}, 0, 255, B
21, R/W, {S=# %}, 0, 255, C
22, R/W, {Hold }{To: }{# }, 0, 1, A, Black , Matte
23, N/A, [Gr], N/A, N/A, A
24, RD, {Aud In}{# }, 0, 2, A, Lead , Lag , LL Off
24, R/W, {# Fds}, 64537, 999, B
25, RD, {AudOut}{# }, 0, 2, A, Lead , Lag , LL Off
25, R/W, {# Fds}, 64537, 999, B
26, R/W, {F.Rate}{In=# F}, 0, 250, A
26, R/W, {Ou=# F}, 0, 250, B
27, N/A, [Gr], N/A, N/A, A
28, R/W, {Audio:}{# }, 0, 1, A, Follow, Sep
29, R/W, {Chanel}{Gain= }{# }, 0, 5, A, -12dB , -6dB , 0dB , +6dB , +12dB , +18dB
30, R/W, {ABmode}{# }, 0, 4, A, STEREO, LRswap, L ] LR, R ] LR, MONO
30, R/W, {# }, 0, 4, B, STEREO, LRswap, L ] LR, R ] LR, MONO
31, N/A, [Gr], N/A, N/A, A
32, R/W, {ATAKE:}{# }, 0, 1, A, A-AUD , <TRAN>
32, R/W, {# }, 0, 1, B, B-AUD , <TRAN>
33, R/W, {Levels}{A=# %}, 0, 1023, A
33, R/W, {B=# %}, 0, 1023, B
34, R/W, {T-Time}{A=# F}, 1, 200, A
34, R/W, {B=# F}, 1, 200, B
35, N/A, [Gr], N/A, N/A, A
36, N/A, [Gr], N/A, N/A, A
37, N/A, [Gr], N/A, N/A, A
38, N/A, [Gr], N/A, N/A, A
39, N/A, [Gr], N/A, N/A, A
40, RD, {# }, 0, 3, A, SAFE , SAFE , DIGTAL, ANALOG
40, RD, {# }, 0, 3, B, ACTION, CAPT'N, EDGE , EDGE
40, R/W, {# }, 0, 1, C, OFF , ON
41, R/W, {# }, 0, 3, A, [S.Act, [S.Cap, [D.Edg, [A.Edg
41, R/W, {# }, 0, 4, B, [4:3 , [16:9 , 16p4:3, 16p149, 43p149
41, R/W, {# }, 0, 3, C, [Thin , [Thick, [Shade, [Black

- 35 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

42, RD, {# s }, 1, 59, A
43, N/A, [Gr], N/A, N/A, A
44, R/W, {Timing}{# Px}, 0, 1728, A
44, R/W, {# Ln}, 0, 627, B
45, R/W, {# }, 0, 1, A, Chan A, Chan B
45, R/W, {Box=# }, 0, 16, B
45, R/W, {Tal=# }, 0, 255, C
46, N/A, [Gr], N/A, N/A, A
47, N/A, [Gr], N/A, N/A, A
48, R/W, {% > }{Mem 1 }{# }, 0, 1, A, Recall, DONE
49, R/W, {% > }{Mem 2 }{# }, 0, 1, A, Recall, DONE
50, R/W, {% > }{Mem 3 }{# }, 0, 1, A, Recall, DONE
51, N/A, [Gr], N/A, N/A, A
52, R/W, {% > }{Mem 4 }{# }, 0, 1, A, Recall, DONE
53, R/W, {% > }{Mem 5 }{# }, 0, 1, A, Recall, DONE
54, R/W, {% > }{Mem 6 }{# }, 0, 1, A, Recall, DONE
55, N/A, [Gr], N/A, N/A, A
56, R/W, {% > }{Mem 1 }{# }, 0, 1, A, Save , DONE
57, R/W, {% > }{Mem 2 }{# }, 0, 1, A, Save , DONE
58, R/W, {% > }{Mem 3 }{# }, 0, 1, A, Save , DONE
59, N/A, [Gr], N/A, N/A, A
60, R/W, {% > }{Mem 4 }{# }, 0, 1, A, Save , DONE
61, R/W, {% > }{Mem 5 }{# }, 0, 1, A, Save , DONE
62, R/W, {% > }{Mem 6 }{# }, 0, 1, A, Save , DONE
63, N/A, [Gr], N/A, N/A, A
64, N/A, [Gr], N/A, N/A, A
65, N/A, [Gr], N/A, N/A, A
66, N/A, [Gr], N/A, N/A, A
67, N/A, [Gr], N/A, N/A, A
68, R/W, {# }, 0, 6, A, [Gr], [Gr], [Gr], [Gr], [Gr], [Gr], [Gr]
69, R/W, {# }, 0, 3, A, [Gr], [Gr], [Gr], [Gr]
70, N/A, [Gr], N/A, N/A, A
71, N/A, [Gr], N/A, N/A, A
72, R/W, {HoldTo}{# }, 0, 1, A, Black , Matte
72, R/W, {For# F}, 0, 993, B
73, R/W, {L=# %}, 0, 255, A
73, R/W, {H=# d}, 0, 255, B
73, R/W, {S=# %}, 0, 255, C
74, R/W, { User }{TrTime}{=# fr}, 3, 253, A
75, N/A, [Gr], N/A, N/A, A
76, R/W, {# }, 0, 7, A, [Gr], [Gr], [Gr], [Gr], [Gr], [G r], [Gr], [Gr]
77, R/W, {# }, 0, 3, A, NoBord, Bordr1, Bordr2, Bordr3
77, R/W, {Sz=# }, 1, 49, B
77, R/W, {Dp=# %}, 0, 511, C
78, R/W, {L=# %}, 0, 255, A
78, R/W, {H=# d}, 0, 255, B
78, R/W, {S=# %}, 0, 255, C
79, N/A, [Gr], N/A, N/A, A
80, R/W, {# }, 0, 1, A, AUTO , MANUAL
81, R/W, {# }, 0, 1, A, AUTO , MANUAL
82, N/A, {Manual}{[Audio}{[Oride}, N/A, N/A, A
83, N/A, { BACK }{Aud LL}{ }, N/A, N/A, A
84, R/W, {Chanel}{Gain= }{# }, 0, 5, A, -12dB , -6dB , 0dB , +6dB , +12dB , +18dB
85, R/W, {# }, 0, 4, A, STEREO, LRswap, L ] LR, R ] L R, MONO
86, R/W, {# }, 0, 4, A, STEREO, LRswap, L ] LR, R ] LR, MONO
87, N/A, [Gr], N/A, N/A, A
88, N/A, [Gr], N/A, N/A, A
89, N/A, [Gr], N/A, N/A, A
90, N/A, [Gr], N/A, N/A, A
91, N/A, [Gr], N/A, N/A, A
92, R/W, {# }, 0, 6, A, [Gr], [Gr], [Gr], [Gr], [Gr], [Gr], [Gr]
93, R/W, {# }, 0, 3, A, [Gr], [Gr], [Gr], [Gr]
94, R/W, { User }{TrTime}{=# fr}, 3, 253, A
95, N/A, [Gr], N/A, N/A, A
96, R/W, {HoldTo}{# }, 0, 1, A, Black , Matte
96, R/W, {For# F}, 0, 993, B
97, N/A, {Matte]}{Color]}{-----]}, N/A, N/A, A
98, R/W, {L=# %}, 0, 255, A
98, R/W, {H=# d}, 0, 255, B
98, R/W, {S=# %}, 0, 255, C
99, N/A, [Gr], N/A, N/A, A
100, R/W, {# }, 0, 7, A, [Gr], [Gr], [Gr], [Gr], [Gr], [ Gr], [Gr], [Gr]
101, R/W, {# }, 0, 3, A, NoBord, Bordr1, Bordr2, Bordr3
101, R/W, {Sz=# }, 1, 49, B
101, R/W, {Dp=# %}, 0, 511, C
102, R/W, {L=# %}, 0, 255, A
102, R/W, {H=# d}, 0, 255, B
102, R/W, {S=# %}, 0, 255, C
103, N/A, [Gr], N/A, N/A, A
104, N/A, {MIX }{ }{ }, N/A, N/A, A
105, N/A, {ER }{ }{ }, N/A, N/A, A
106, N/A, {TRA }{ }{ }, N/A, N/A, A
107, N/A, {NS }{ }{ }, N/A, N/A, A
108, R/W, {Chanel}{Gain= }{# }, 0, 5, A, -12dB , -6dB , 0dB , +6dB , +12dB , +18dB
109, N/A, [Gr], N/A, N/A, A
110, N/A, [Gr], N/A, N/A, A
111, N/A, [Gr], N/A, N/A, A
112, R/W, {ABCh12}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
112, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
113, R/W, {ABCh34}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
113, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
114, R/W, {ABCh56}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
114, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
115, N/A, [Gr], N/A, N/A, A
116, R/W, {ABCh78}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
116, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
117, R/W, {Ch9-10}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
117, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
118, R/W, {C11-12}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
118, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
119, N/A, [Gr], N/A, N/A, A
120, R/W, {C13-14}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
120, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
121, R/W, {C15-16}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
121, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
122, N/A, { }{ }{ }, N/A, N/A, A
123, N/A, [Gr], N/A, N/A, A
124, R/W, {Group1}{# }, 0, 1, A, 1=Mix , 1=Cut
124, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
125, R/W, {Group2}{# }, 0, 1, A, 1=Mix , 1=Cut
125, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
126, R/W, {Group3}{# }, 0, 1, A, 1=Mix , 1=Cut
126, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
127, R/W, {Group4}{# }, 0, 1, A, 1=Mix , 1=Cut
127, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
128, R/W, {# }, 0, 1, A, Set As, !WAIT!

- 36 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

129, R/W, {# }, 0, 1, A, ReBoot, !WAIT!
130, N/A, {FACTRY}{RESET!}{!!!!!!}, N/A, N/A, A
131, N/A, [Gr], N/A, N/A, A
132, N/A, {START?}{ }{ }, N/A, N/A, A
133, N/A, { ARE ]}{ YOU ]}{SURE?]}, N/A, N/A, A
134, R/W, {# }, 0, 1, A, YES , OK!
135, N/A, [Gr], N/A, N/A, A
136, N/A, {UPGRDE}{SOFTWR}{ NOW! }, N/A, N/A, A
137, R/W, {GPI }{ENABLE}{# }, 0, 1, A, =NO , =YES
138, N/A, {RESETS}{ }{ }, N/A, N/A, A
139, N/A, [Gr], N/A, N/A, A
140, N/A, {START?}{ }{ }, N/A, N/A, A
141, N/A, { ARE ]}{ YOU ]}{SURE?]}, N/A, N/A, A
142, R/W, {# }, 0, 1, A, YES ,
143, N/A, [Gr], N/A, N/A, A
144, N/A, {MW-3M }{FILE }{TIMES }, N/A, N/A, A
145, N/A, {IS UPG}{IS REC}{OUT IN}, N/A, N/A, A
146, N/A, {RADING}{IEVED }{3 MINS}, N/A, N/A, A
147, N/A, {IF NO }{IT }{ }, N/A, N/A, A
148, N/A, { THIS }{LICEN-}{ CALL }, N/A, N/A, A
149, N/A, { MW3M }{CED }{EYEHE-}, N/A, N/A, A
150, N/A, {MIXER }{FOR HD}{IGHT }, N/A, N/A, A
151, N/A, {IS NOT}{PLEASE}{ LTD. }, N/A, N/A, A

4.3.4 -1080i automatically extracted menu parameters. V8.10

Menu, Access, Text, Low, Up, Lev, Txt1, Txt2, Txt3, Txt4, T xt5, Txt6, Txt7, Txt8, Txt9, Txt10
0, N/A, [Gr], N/A, N/A, A
1, N/A, [Gr], N/A, N/A, A
2, N/A, [Gr], N/A, N/A, A
3, N/A, [Gr], N/A, N/A, A
4, R/W, {# }, 0, 2, A, TAKE , TAKE , TAKE
4, RD, {# }, 0, 4, B, VidAud, V.Only, A.Only, Asplit, <T RAN>
5, R/W, {# }, 0, 3, A, PROGM:, PROGM:, PROGM:, PROGM:
6, R/W, {# }, 0, 3, A, PRSET:, PRSET:, PRSET:, PRSET:
7, N/A, [Gr], N/A, N/A, A
8, R/W, {# }, 0, 6, A, [Gr], [Gr], [Gr], [Gr], [Gr], [Gr ], [Gr]
9, R/W, {TIMES:}{Tr=# }, 3, 253, A
9, R/W, {Hd=# }, 0, 993, B
10, R/W, {# }, 0, 7, A, [Gr], [Gr], [Gr], [Gr], [Gr], [G r], [Gr], [Gr]
11, N/A, [Gr], N/A, N/A, A
12, R/W, {BORDER}{# }, 0, 3, A, =OFF , =SOFT , =COL OR, =SFCOL
13, R/W, { Bord }{ Size }{ =# }, 1, 49, A
14, R/W, {Colour}{Depth:}{=# % }, 0, 511, A
15, N/A, [Gr], N/A, N/A, A
16, N/A, {Border}{Color]}{-----]}, N/A, N/A, A
17, R/W, {L=# %}, 0, 255, A
17, R/W, {H=# d}, 0, 255, B
17, R/W, {S=# %}, 0, 255, C
18, R/W, {Manual}{ Tran }{=# %}, 0, 16386, A
19, N/A, [Gr], N/A, N/A, A
20, N/A, {Matte]}{Color]}{-----]}, N/A, N/A, A
21, R/W, {L=# %}, 0, 255, A
21, R/W, {H=# d}, 0, 255, B
21, R/W, {S=# %}, 0, 255, C
22, R/W, {Hold }{To: }{# }, 0, 1, A, Black , Matte
23, N/A, [Gr], N/A, N/A, A
24, RD, {Aud In}{# }, 0, 2, A, Lead , Lag , LL Off
24, R/W, {# Fds}, 64537, 999, B
25, RD, {AudOut}{# }, 0, 2, A, Lead , Lag , LL Off
25, R/W, {# Fds}, 64537, 999, B
26, R/W, {F.Rate}{In=# F}, 0, 250, A
26, R/W, {Ou=# F}, 0, 250, B
27, N/A, [Gr], N/A, N/A, A
28, R/W, {Audio:}{# }, 0, 1, A, Follow, Sep
29, R/W, {Chanel}{Gain= }{# }, 0, 5, A, -12dB , -6dB , 0dB , +6dB , +12dB , +18dB
30, R/W, {ABmode}{# }, 0, 4, A, STEREO, LRswap, L ] LR, R ] LR, MONO
30, R/W, {# }, 0, 4, B, STEREO, LRswap, L ] LR, R ] LR, MONO
31, N/A, [Gr], N/A, N/A, A
32, R/W, {ATAKE:}{# }, 0, 1, A, A-AUD , <TRAN>
32, R/W, {# }, 0, 1, B, B-AUD , <TRAN>
33, R/W, {Levels}{A=# %}, 0, 1023, A
33, R/W, {B=# %}, 0, 1023, B
34, R/W, {T-Time}{A=# F}, 1, 200, A
34, R/W, {B=# F}, 1, 200, B
35, N/A, [Gr], N/A, N/A, A
36, N/A, [Gr], N/A, N/A, A
37, N/A, [Gr], N/A, N/A, A
38, N/A, [Gr], N/A, N/A, A
39, N/A, [Gr], N/A, N/A, A
40, RD, {# }, 0, 3, A, SAFE , SAFE , DIGTAL, ANALOG
40, RD, {# }, 0, 3, B, ACTION, CAPT'N, EDGE , EDGE
40, R/W, {# }, 0, 1, C, OFF , ON
41, R/W, {# }, 0, 3, A, [S.Act, [S.Cap, [D.Edg, [A.Edg
41, R/W, {# }, 0, 4, B, [4:3 , [16:9 , 16p4:3, 16p149, 43p149
41, R/W, {# }, 0, 3, C, [Thin , [Thick, [Shade, [Black
42, RD, {# s }, 1, 59, A
43, N/A, [Gr], N/A, N/A, A
44, R/W, {Timing}{# Px}, 0, 1728, A
44, R/W, {# Ln}, 0, 627, B
45, R/W, {# }, 0, 1, A, Chan A, Chan B
45, R/W, {Box=# }, 0, 16, B
45, R/W, {Tal=# }, 0, 255, C
46, N/A, [Gr], N/A, N/A, A
47, N/A, [Gr], N/A, N/A, A
48, R/W, {% > }{Mem 1 }{# }, 0, 1, A, Recall, DONE
49, R/W, {% > }{Mem 2 }{# }, 0, 1, A, Recall, DONE
50, R/W, {% > }{Mem 3 }{# }, 0, 1, A, Recall, DONE
51, N/A, [Gr], N/A, N/A, A
52, R/W, {% > }{Mem 4 }{# }, 0, 1, A, Recall, DONE
53, R/W, {% > }{Mem 5 }{# }, 0, 1, A, Recall, DONE
54, R/W, {% > }{Mem 6 }{# }, 0, 1, A, Recall, DONE
55, N/A, [Gr], N/A, N/A, A
56, R/W, {% > }{Mem 1 }{# }, 0, 1, A, Save , DONE
57, R/W, {% > }{Mem 2 }{# }, 0, 1, A, Save , DONE
58, R/W, {% > }{Mem 3 }{# }, 0, 1, A, Save , DONE
59, N/A, [Gr], N/A, N/A, A
60, R/W, {% > }{Mem 4 }{# }, 0, 1, A, Save , DONE
61, R/W, {% > }{Mem 5 }{# }, 0, 1, A, Save , DONE
62, R/W, {% > }{Mem 6 }{# }, 0, 1, A, Save , DONE
63, N/A, [Gr], N/A, N/A, A
64, N/A, [Gr], N/A, N/A, A
65, N/A, [Gr], N/A, N/A, A

- 37 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

66, N/A, [Gr], N/A, N/A, A
67, N/A, [Gr], N/A, N/A, A
68, R/W, {# }, 0, 6, A, [Gr], [Gr], [Gr], [Gr], [Gr], [Gr], [Gr]
69, R/W, {# }, 0, 3, A, [Gr], [Gr], [Gr], [Gr]
70, N/A, [Gr], N/A, N/A, A
71, N/A, [Gr], N/A, N/A, A
72, R/W, {HoldTo}{# }, 0, 1, A, Black , Matte
72, R/W, {For# F}, 0, 993, B
73, R/W, {L=# %}, 0, 255, A
73, R/W, {H=# d}, 0, 255, B
73, R/W, {S=# %}, 0, 255, C
74, R/W, { User }{TrTime}{=# fr}, 3, 253, A
75, N/A, [Gr], N/A, N/A, A
76, R/W, {# }, 0, 7, A, [Gr], [Gr], [Gr], [Gr], [Gr], [G r], [Gr], [Gr]
77, R/W, {# }, 0, 3, A, NoBord, Bordr1, Bordr2, Bordr3
77, R/W, {Sz=# }, 1, 49, B
77, R/W, {Dp=# %}, 0, 511, C
78, R/W, {L=# %}, 0, 255, A
78, R/W, {H=# d}, 0, 255, B
78, R/W, {S=# %}, 0, 255, C
79, N/A, [Gr], N/A, N/A, A
80, R/W, {# }, 0, 1, A, AUTO , MANUAL
81, R/W, {# }, 0, 1, A, AUTO , MANUAL
82, N/A, {Manual}{[Audio}{[Oride}, N/A, N/A, A
83, N/A, { BACK }{Aud LL}{ }, N/A, N/A, A
84, R/W, {Chanel}{Gain= }{# }, 0, 5, A, -12dB , -6dB , 0dB , +6dB , +12dB , +18dB
85, R/W, {# }, 0, 4, A, STEREO, LRswap, L ] LR, R ] LR, MONO
86, R/W, {# }, 0, 4, A, STEREO, LRswap, L ] LR, R ] LR, MONO
87, N/A, [Gr], N/A, N/A, A
88, N/A, [Gr], N/A, N/A, A
89, N/A, [Gr], N/A, N/A, A
90, N/A, [Gr], N/A, N/A, A
91, N/A, [Gr], N/A, N/A, A
92, R/W, {# }, 0, 6, A, [Gr], [Gr], [Gr], [Gr], [Gr], [Gr], [Gr]
93, R/W, {# }, 0, 3, A, [Gr], [Gr], [Gr], [Gr]
94, R/W, { User }{TrTime}{=# fr}, 3, 253, A
95, N/A, [Gr], N/A, N/A, A
96, R/W, {HoldTo}{# }, 0, 1, A, Black , Matte
96, R/W, {For# F}, 0, 993, B
97, N/A, {Matte]}{Color]}{-----]}, N/A, N/A, A
98, R/W, {L=# %}, 0, 255, A
98, R/W, {H=# d}, 0, 255, B
98, R/W, {S=# %}, 0, 255, C
99, N/A, [Gr], N/A, N/A, A
100, R/W, {# }, 0, 7, A, [Gr], [Gr], [Gr], [Gr], [Gr], [ Gr], [Gr], [Gr]
101, R/W, {# }, 0, 3, A, NoBord, Bordr1, Bordr2, Bordr3
101, R/W, {Sz=# }, 1, 49, B
101, R/W, {Dp=# %}, 0, 511, C
102, R/W, {L=# %}, 0, 255, A
102, R/W, {H=# d}, 0, 255, B
102, R/W, {S=# %}, 0, 255, C
103, N/A, [Gr], N/A, N/A, A
104, N/A, {MIX }{ }{ }, N/A, N/A, A
105, N/A, {ER }{ }{ }, N/A, N/A, A
106, N/A, {TRA }{ }{ }, N/A, N/A, A
107, N/A, {NS }{ }{ }, N/A, N/A, A
108, R/W, {Chanel}{Gain= }{# }, 0, 5, A, -12dB , -6dB , 0dB , +6dB , +12dB , +18dB
109, N/A, [Gr], N/A, N/A, A
110, N/A, [Gr], N/A, N/A, A
111, N/A, [Gr], N/A, N/A, A
112, R/W, {ABCh12}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
112, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
113, R/W, {ABCh34}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
113, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
114, R/W, {ABCh56}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
114, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
115, N/A, [Gr], N/A, N/A, A
116, R/W, {ABCh78}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
116, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
117, R/W, {Ch9-10}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
117, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
118, R/W, {C11-12}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
118, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
119, N/A, [Gr], N/A, N/A, A
120, R/W, {C13-14}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
120, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
121, R/W, {C15-16}{# }, 0, 4, A, A-Ster, A-L[]R, A-L]LR, A-R]LR, A-MONO
121, R/W, {# }, 0, 4, B, B-Ster, B-L[]R, B-L]LR, B-R]LR, B-MONO
122, N/A, { }{ }{ }, N/A, N/A, A
123, N/A, [Gr], N/A, N/A, A
124, R/W, {Group1}{# }, 0, 1, A, 1=Mix , 1=Cut
124, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
125, R/W, {Group2}{# }, 0, 1, A, 1=Mix , 1=Cut
125, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
126, R/W, {Group3}{# }, 0, 1, A, 1=Mix , 1=Cut
126, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
127, R/W, {Group4}{# }, 0, 1, A, 1=Mix , 1=Cut
127, R/W, {# }, 0, 1, B, 2=Mix , 2=Cut
128, R/W, {# }, 0, 1, A, Set As, !WAIT!
129, R/W, {# }, 0, 1, A, ReBoot, !WAIT!
130, N/A, {FACTRY}{RESET!}{!!!!!!}, N/A, N/A, A
131, N/A, [Gr], N/A, N/A, A
132, N/A, {START?}{ }{ }, N/A, N/A, A
133, N/A, { ARE ]}{ YOU ]}{SURE?]}, N/A, N/A, A
134, R/W, {# }, 0, 1, A, YES , OK!
135, N/A, [Gr], N/A, N/A, A
136, N/A, {UPGRDE}{SOFTWR}{ NOW! }, N/A, N/A, A
137, R/W, {GPI }{ENABLE}{# }, 0, 1, A, =NO , =YES
138, N/A, {RESETS}{ }{ }, N/A, N/A, A
139, N/A, [Gr], N/A, N/A, A
140, N/A, {START?}{ }{ }, N/A, N/A, A
141, N/A, { ARE ]}{ YOU ]}{SURE?]}, N/A, N/A, A
142, R/W, {# }, 0, 1, A, YES ,
143, N/A, [Gr], N/A, N/A, A
144, N/A, {MW-3M }{FILE }{TIMES }, N/A, N/A, A
145, N/A, {IS UPG}{IS REC}{OUT IN}, N/A, N/A, A
146, N/A, {RADING}{IEVED }{3 MINS}, N/A, N/A, A
147, N/A, {IF NO }{IT }{ }, N/A, N/A, A
148, N/A, { THIS }{LICEN-}{ CALL }, N/A, N/A, A
149, N/A, { MW3M }{CED }{EYEHE-}, N/A, N/A, A
150, N/A, {MIXER }{FOR HD}{IGHT }, N/A, N/A, A
151, N/A, {IS NOT}{PLEASE}{ LTD. }, N/A, N/A, A

- 38 -

eyeheight

Unit 34 Park House Watford Business Park Greenhill Crescent Watford Herts GB WD18 8PH

Reg. No. 2855535 Telephone: [phone] Fax: [phone] email: [e-mail]

4.4 Technical Specification
