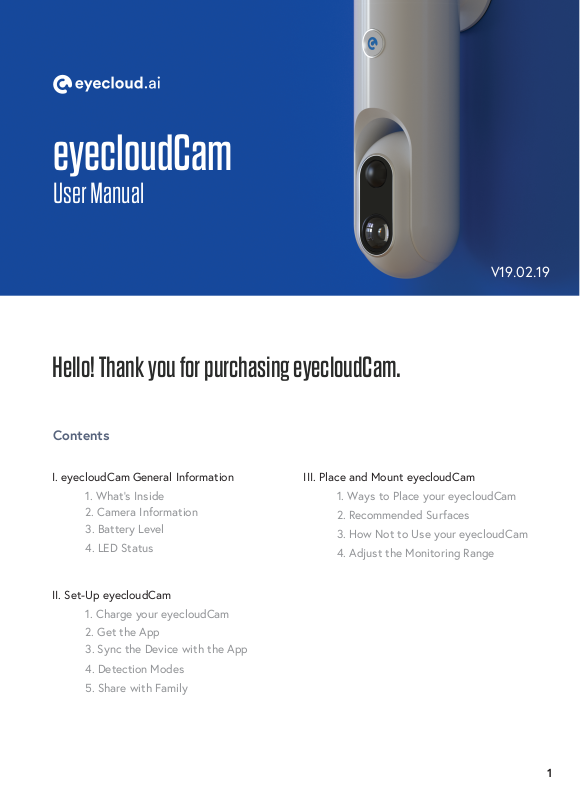

eyecloudCam
User Manual
Hello! Thank you for purchasing eyecloudCam.
Contents
V19.02.19
I. eyecloudCam General Information
1. What’s Inside
2. Camera Information
3. Battery Level
4. LED Status
II. Set-Up eyecloudCam
1. Charge your eyecloudCam
2. Get the App
3. Sync the Device with the App
4. Detection Modes
5. Share with Family
III. Place and Mount eyecloudCam
1. Ways to Place your eyecloudCam
2. Recommended Surfaces
3. How Not to Use your eyecloudCam
4. Adjust the Monitoring Range
1
I. eyecloudCam General Information
1. What's Inside
A. 1 x eyecloudCam
B. 1 x magnetic mount
C. 2 x stickers
D. 1 x type-C USB cable
E. 3 x mounting screws
A B C
D E
2. Camera Information
Lens
Microphone
Speaker
Charging Port
Function button/Indicator blue light
Rectangle magnetic area
2
3. Battery Level
3.1 eyecloudCam App
Check the battery level via: App -> Camera -> Settings -> Camera Info -> Battery Level
100%-81%
all functions supported
<
15%
Not allowed:
- live streaming;
- ota update;
- playback.
80%-61%
all functions supported
60%-31%
all functions supported
3.2 Device
Check the Camera Battery Level by pressing the function button ( ) once.
30%-16%
ota update not allowed
PAIRED
30%-16%
Low Battery (30%-16%)
LED is off when you press the
button.
The following functions are
blocked:
Pairing
OTA
Wifi Reconfiguration
Unbind
NOT PAIRED
30%-16%
Low Battery (30%-16%)
LED blinks for 3 seconds when
you press the button.
The following functions are
blocked:
Pairing
OTA
Wifi Reconfiguration
Unbind
3
PAIRED NOT PAIRED
<
15%
Low battery ( 15%)
LED is off when you press the
button.
The following functions are
blocked:
Saving a Notification
Live streaming
Capture Region
Pairing
OTA
Wifi Reconfiguration
Unbind
Normal
<
<
15%
Low battery ( 15%)
LED blinks for 3 seconds when
you press the button.
The following functions are
blocked:
Saving a Notification
Live streaming
Capture Region
Pairing
OTA
Wifi Reconfiguration
Unbind
Normal
<
LED is off
LED is off
4
4. LED Status
When being
charged
Off
When triggered
by an event
One blink
When in Stand-by
Mode or Hibernate
Mode
Off
When upgrading
Continuous
blinking
When pairing the
camera to the App
Hold the button for
5-8 seconds. When the
blue light blinks once,
the camera is ready to
pair.
When low on battery
and NOT PAIRED
Press the button, the
blue light blinks for
3 seconds.
When low on battery
and PAIRED
LED is off even when
you press the button.
3s
5
II. Set-Up eyecloudCam
1. Charge your eyecloudCam
Voltage:
< <
V 5.25V
4.75
Current:
>
2A
V
21
1. Get the camera out of the box.
2. Get the USB Cable from the package
3. Open the rubber cover of the Data Interface on the Camera Body.
4. Use the USB cable to charge the battery.
Charging Time
Around 6 hours Fully charged
3
4
2. Get the App
1. Download the app via App Store or
Google Play
Or direct download
on your smartphone
2. Register with your email address
3. Log in
1
Hi
Welcome to your
smart home
E-mail Address
E-mail Code
Type Password
Register
2
eyecloudCam
INSTALL
1 2 3
Hi
Welcome to your
smart home
E-mail Address
Password
E-mail Code
Sign In
3
6
3. Sync the Device with
the App
1.
A. When adding your first device:
Click “Start”.
B. When adding new devices:
Click the ‘’+Add new camera” field.
2. Enter your wi-fi network name and
password.
3. Click “Next”.
A B
Devices
Hi John,
Let’s get started!
Wi-
Password
Next
Type in Wi-fi and Password
Start
1
Devices
+ Add new camera
Camera Configuration
2
Wi-
Password
Next
3
Please scan the QR
Code on your App using
your eyecloudCam.
4. Hold the function button on the front of
the camera ( ) for 5-8 seconds and then
release it to wake on the device from
stand-by mode.
5. After hearing “Please scan the QR code on
your App using your eyecloudCam”, press
“Next” on the App.
6. Here's your QR code
7. Scan QR code in a recommended 1-1.3 feet
distance.
*5-8 seconds
4
Connect
Connect
Next
5
Connect
Next
Next
* Suggested distance
between camera and QR code:
1 ~ 1.3 feet
6
7
7
8. After hearing “QR code successfully
scanned”, press ‘Next’ on the App to config-
ure your device
9. Wait for a few seconds to connect.
QR Code successfully
scanned.
Camera Configuration
Next
x
Camera Configuration
4. Detection Modes
1. On your app, click the “Settings” button
underneath the camera placeholder.
2. Click the “Alerts Settings” button. Here
you’ll find:
“Motion Detection” detects and records
any type of motion.
“Person Detection” detects and records
people only.
“Stranger Detection” is an expansion of
Person Detection. Once you’ve uploaded a
close up face image of a family
member/friend on the app and enabled this
feature, the camera will notify you each time
a stranger or a familiar person walks by.
8
Devices
Alerts Settings
Motion Detection
9
Camera Settings
2
Watch Together Capture Region
1
Info
Unbind Camera
Alerts Settings
Motion Detection
Device Reset
Photo-AudioAlerts Settings
Sys Upgrade
3. Click the two slider buttons to enable or
disable “Person Detection” and “Stranger
Detection”.
4. Now “Person Detection” and “Stranger
Detection” are active.
Person Detection
Stranger Detection
Motion Sensitivity Indoor
Person Detection
Stranger Detection
Motion Sensitivity Indoor
4
8
5. Share with Family
1. On your app, click the “Settings” button
underneath the camera placeholder.
2. Click the “Watch Together” button.
Devices
Camera Settings
Device Reset
Photo-AudioAlerts Settings
2
Watch Together Capture Region
1
Info
Sys Upgrade
3. Click the QR Code icon in the “Scan Guest
Sharing QR Code” field.
4. Scan the Family Member’s QR Code.
* Family Member can access his or her QR
Code by pressing the QR button on the upper
right of the Home Screen.
5. Family Member was added in your Share
Camera screen.
Share Camera
Scan Guest Sharing QR Code
0 guest(s) successfully added.
Unbind Camera
Scan Sharing QR Code
My QR Code
3
4
4*
Devices
Hi John,
Let’s get started!
Wi-
Password
Next
Type in Wi-fi and Password
Start
Share Camera
Scan Guest Sharing QR Code
1 guest(s) successfully added.
Family Member
5
Unbind
9
III. Place and Mount eyecloudCam
1. Ways to Place your eyecloudCam
1.1 Horizontal surfaces
Place the camera on any horizontal surface.
That's about that.
1.2 Vertical Walls
A. Use Sticker B. Use Screws
C. Use Magnet Mount
10

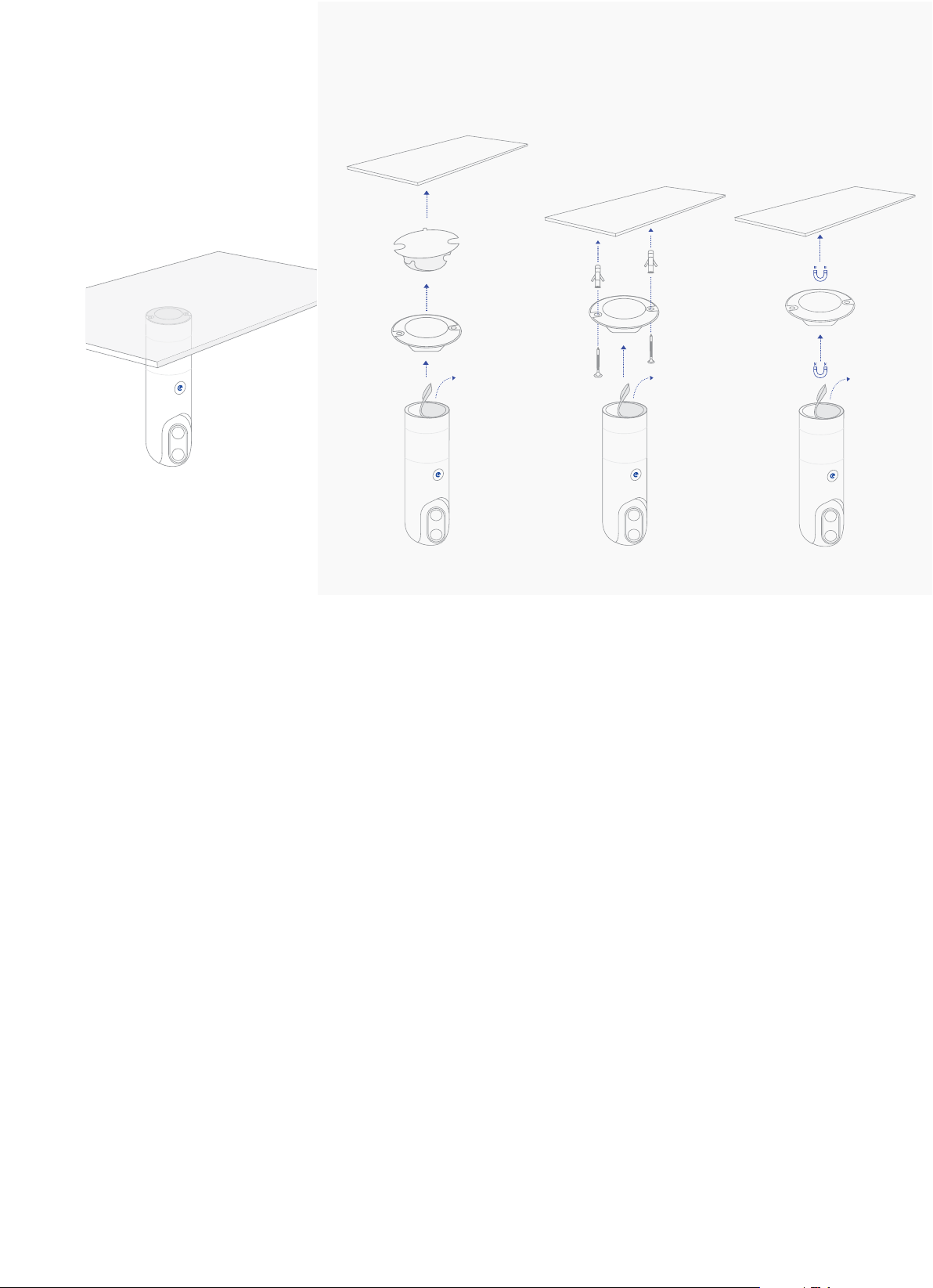

1.3 Roofs and Ceilings
A. Use Sticker
B. Use Screws
C. Use Magnet
Mount
2. Recommended Surfaces
A. Sticker
Usually those surfaces
that you don’t want to
drill through.
Furniture
Tile
Glass
Interior walls
Exterior walls etc.
B. Screws
Drillable Surfaces
Wood
Interior walls
Exterior walls (cement, bricks)
etc.
C. Magnet Mount
Magnetic Surfaces
11
3. How Not to Use your eyecloudCam
3.1 In front of windows
The camera cannot properly detect events
through glass.
4. Adjust the Monitoring Range
35
4.1 Rotate the camera
body to adjust the
horizontal range.
3.2 Too far from a router
Place your eyecloudCam in the proximity of a
wireless router.
4.2 Rotate the
camera head to adjust
60
the vertical
monitoring range.
12
