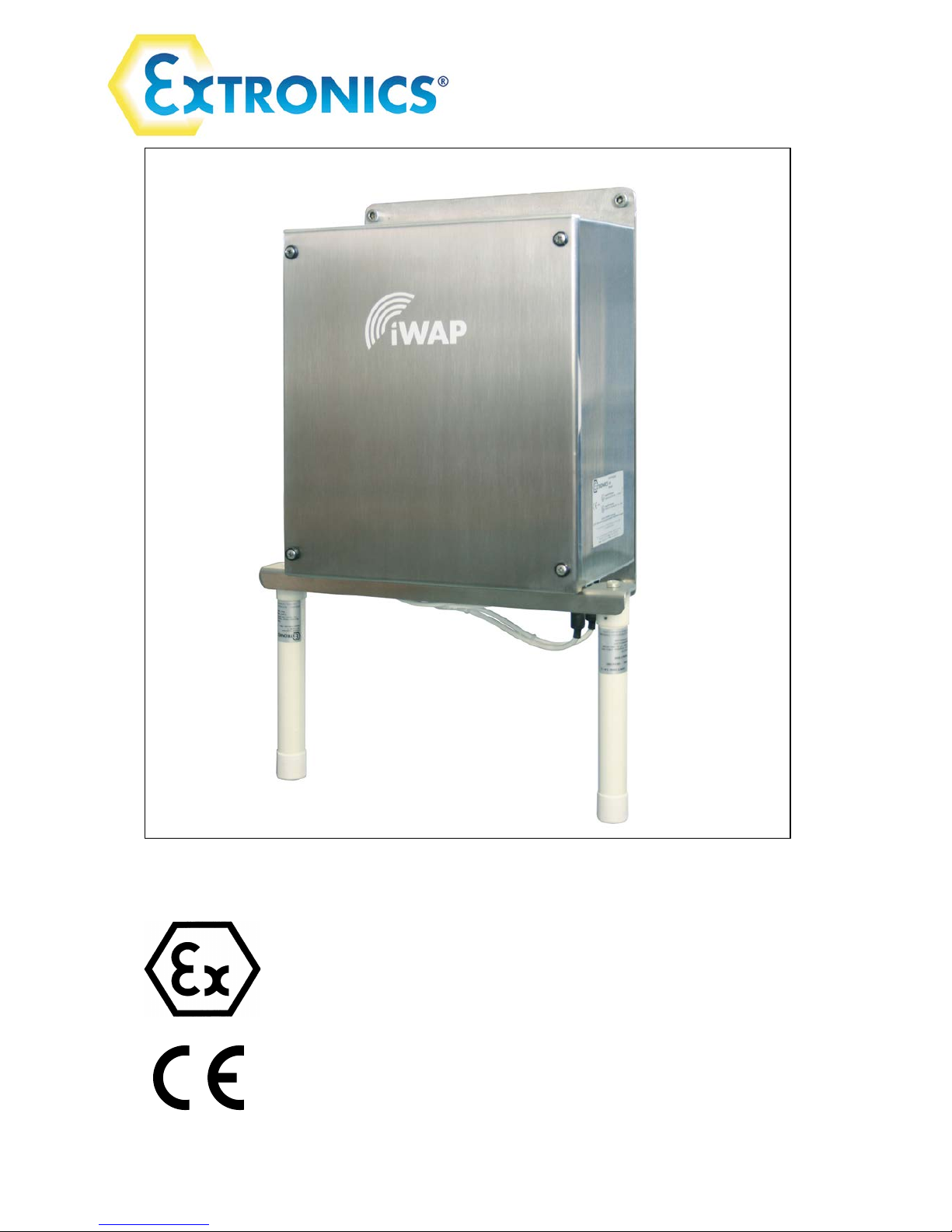

Installation & Operating Manual
iWAP202
Page 2
Operating Manual
2
This page is intentionally left blank.
Document Number 409345 (based on 407655) (See Last Page for Revision Details)
For warranty information, refer to Terms and Conditions at
http://www.extronics.com
© 2014 Extronics Limited. This document is Copyright Extronics limited.
Extronics reserve the right to change this manual and its contents without
notice, the latest version applies.
Page 3
Operating Manual
3
Contents
1 Introduction .......................................................................................................... 4
2 Safety Information and Notes .............................................................................. 5
2.1 Storage of this Manual ................................................................................... 5
2.2 Special Conditions of Safe Use ..................................................................... 5
2.2.1 ATEX ...................................................................................................... 5
2.3 List of Notes .................................................................................................. 5
3 Installation and Setting-to-Work .......................................................................... 7
3.1 Installation ..................................................................................................... 7
3.1.1 Removing the cover ................................................................................ 7
3.1.2 Power Supply .......................................................................................... 8
3.1.3 Fitting the Cables .................................................................................... 8
3.1.4 Ethernet Cable Installation ...................................................................... 8
3.1.5 RJ45 Ethernet Cable Option ................................................................... 8
3.1.6 RJ45 Screw Terminal Option .................................................................. 9
3.1.7 Earthing .................................................................................................. 9
3.2 Intrinsically Safe RF Outputs ....................................................................... 10
3.3 Antenna Requirements ................................................................................ 10
3.4 Antenna Installation ..................................................................................... 11
3.4.1 Setting to work ...................................................................................... 11
4 Intended Purpose Usage ................................................................................... 11
4.1 Transportation and Sto r ag e ......................................................................... 11
4.2 Authorized Persons ..................................................................................... 12
4.3 Cleaning and Maintenance .......................................................................... 12
4.4 Cleaning and Maintenance Intervals ........................................................... 12
4.5 Aggressive substances and environments .................................................. 12
4.6 Exposure to external stresses ..................................................................... 12

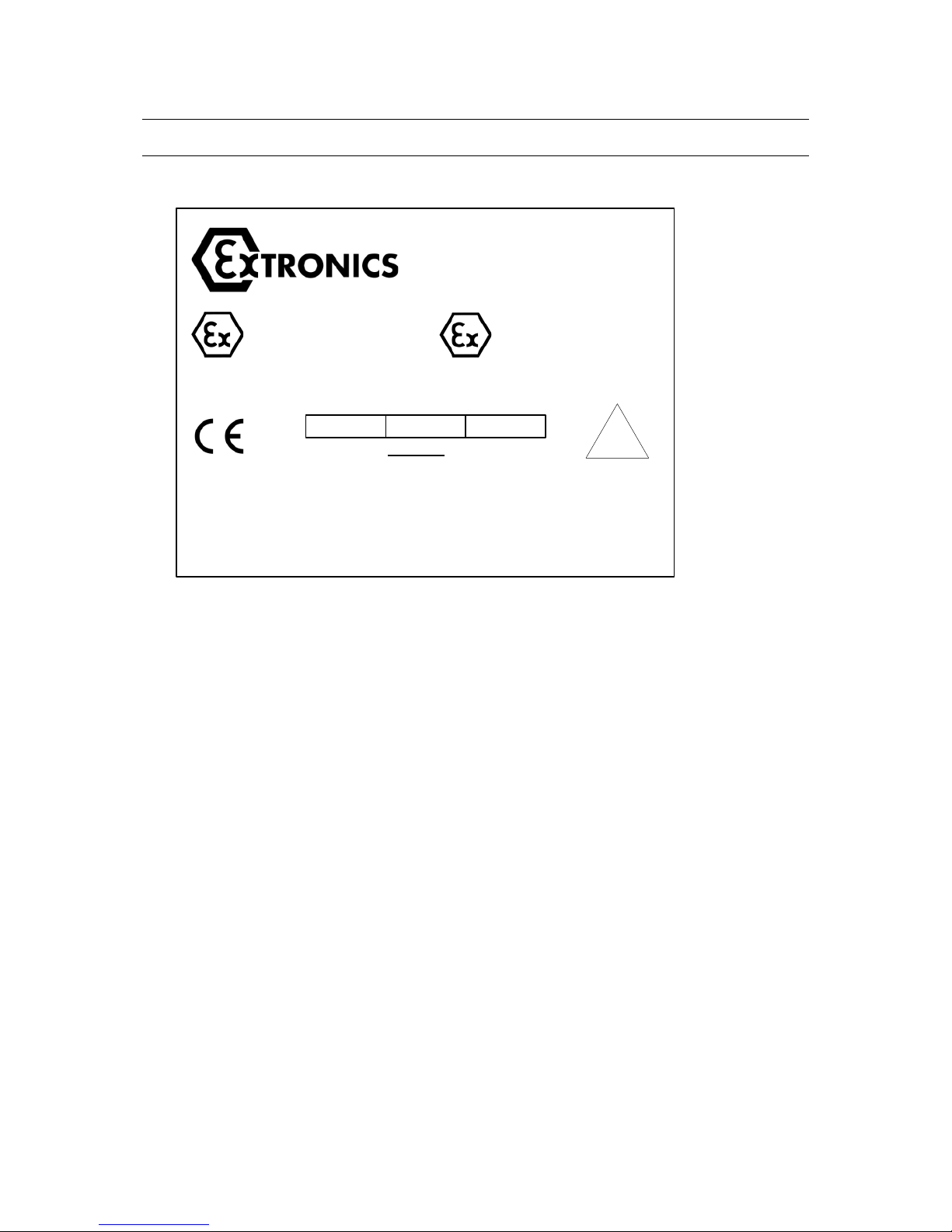

5 Label Drawing ................................................................................................... 13

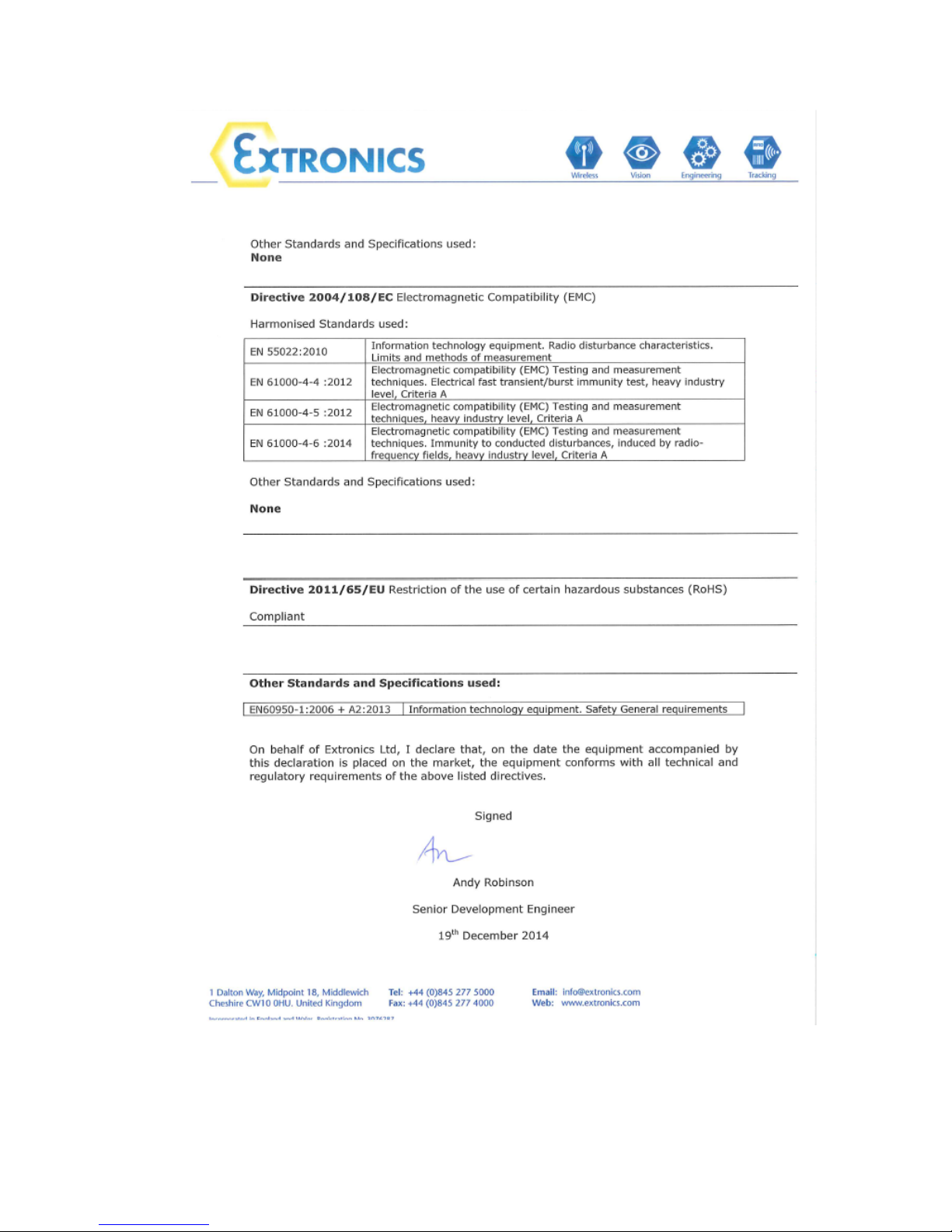

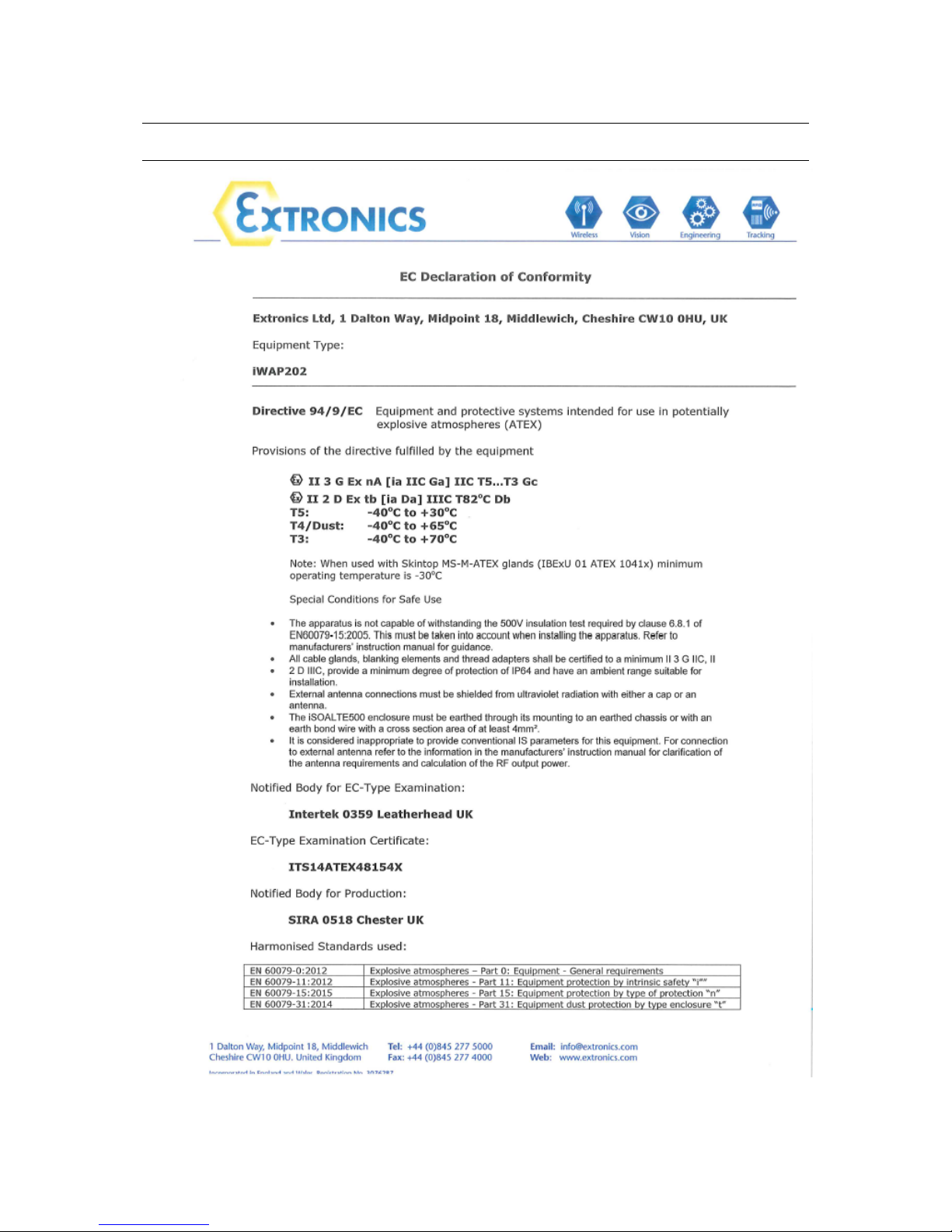

6 EC Declaration of Conformity ............................................................................ 14
7 Manual Revision ................................................................................................ 16
Page 4
Operating Manual
4
1 Introduction
The iWAP202 Zone 2 Access Point Enclosure i s designed to dep loy wireless
networks in hazardous areas. The conc ept allows insta llation of equipmen t from
leading WLAN vendors such as Cisco, Aruba and Firetide.
Each type of Access Point or RF t ransmitting device is rigorously checked and
tested by Extronics and our Notified B ody to ensure conformity to the ATE X
standards and approvals. This means that Ext ronics can provide a n OEM a
solution to enable your WLAN netwo rk devices to be in stalled in haza rdous
areas.
The Extronics iWAP202 is de signed for use with one to six standard antennas or
Extronics iANT200 series of antennas for optimum coverage on Chemical P lants,
Oil Refineries or Oil & Gas Platforms.
Optional features include surge arrestors for lightening suppress ion in outdoo r
installations plus the option of plug and socket cable entry instead of cable
glands.
Page 5
Operating Manual
5
2 Safety Information and Notes
2.1 Storage of thi s Manual
Keep this user manual safe and in the vicinity of the device. All persons who have to work on
or with the device should be advised on where the manual is stored.
2.2 Special Condi t ions of Safe Use
2.2.1 ATEX
• The apparatus is not capable of withstanding the 500V insulation test required by clause 6.8.1 of
EN60079-15:2005. This must be taken into account when installing the apparatus. Refer to
manufacturers’ instruction manual f or guida nc e.
• All cable glands, blanking elements and thread adapters shall be certified to a minimum II 3 G IIC, II
• 2 D IIIC, provide a minimum degree of protection of IP64 and have an ambient range suitable for
installation.
• External antenna connections must be shielded from ultraviolet radiation with either a cap or an antenna.
• The iSOLATE500 or iSOLATE501 enclosure must be earth e d throu gh its mount i ng to an earthed ch as sis
or with an earth bond wire with a cross section area of at least 4mm².
• It is considered inappropriate to provide conventional IS parameters for this equipment. For connection
to external antenna refer to the information in the manufacturers’ instruction manual for clarification of
the antenna requirements and calculation of the RF output power.
2.3 List of Note s
The notes supplied in this chapter provide information on the following.
• Danger / Warning.
o Possible hazard to life or health.
• Caution
o Possible damage to property.
• Important
o Possible damage to enclosure, device or associated equipment.
• Information
o Notes on the optimum use of the device
Warning! Installation of the iWAP202 must be performed in accordance with
EN 60079-0, EN 60079-14 and EN 60079-25. Maint enance and inspection
must be performed in accordance with EN 60079-17.
Warning! Installation of the iWAP202 is only to be performed by skilled
electricians and instructed personnel in accordance with national
legislation.
Warning! The iWAP202 contains INTRINSICALLY SAFE circuits.
Warning! DO NOT OPEN MAINTAIN OR SERVICE IN AN AREA WHERE AN
EXPLOSUVE ATMOSPHERE MAY BE PRESENT
Page 6
Operating Manual
6
Warning! Changes in the design and modifications to the equipment are not
permitted. Changing of the pre-installed wireless devices is NOT
permitted.
Warning! The iWAP202 Intrinsically Safe RF output ports are located in the
positions shown in [IS output position diagram]. Only antennas in
accordance with [antenna requirements section] may be connected to
these ports. Refer to section [antenna installation] for antenna
installation requirements.
Warning! The iWAP202 MUST be earthed. Refer to Section [earthing] for details.
Warning! The IWAP202 shall be operated as intended and only in an undamaged
condition.
Warning! The IWAP202 must not be stored or operated outside of its rated
temperature range as stated on the ATEX certificates.
Warning! If cable glands different to those supplied by Extronics are used, these
must be M20-sized cable glands meeting the requirements of
EN 60079-0 for ATEX Category 2G and ATEX Category 2D equipment,
and must not compromise the IP66 rating of the iWAP202 enclosure.
Warning! The nylon washers on the underside of the enclosure lid must be used
with the gasket to maintain the IP rating of the enclosure.
Warning! Although antennas connected to the Intrinsically Safe RF outputs of the
iWAP202 may be installed in Zone 0, Zone 1 or Zone 20 hazardous areas,
the iWAP202 enclosure must NOT be installed in these environments.
Warning! Do not exceed the RF Threshold Power for the equipment group in
which the iWAP202 and its antennas are to be installed; it must be
controlled in accordance with IEC 60079-0, and must not exceed the
following levels:
IIC – 2W (+33dBm)
IIB – 3.5W (+35.4dBm)
IIA – 6W (+37.7dBm)
III – 6W (+37.7dBm)
Warning! The iWAP202 frame earth is connected directly to circuits within the
enclosure. It is not capable of withstanding the 500V insulation test
required by clause 23.2.1 of EN 60079-15:2010. This must be taken into
account when installing the equipment
Information Once all cables are connected correctly, refit the enclosure lid using the
four screws previously removed. Use a torque screwdriver set to 2.5 Nm.
Do not over-tighten screws.
Page 7
Operating Manual
7
3 Installation and Setting-to-Work
3.1 Installation
The IWAP202 is simple to install and can be secured directly to suitable surface
using the mounting holes on the Enclosure.

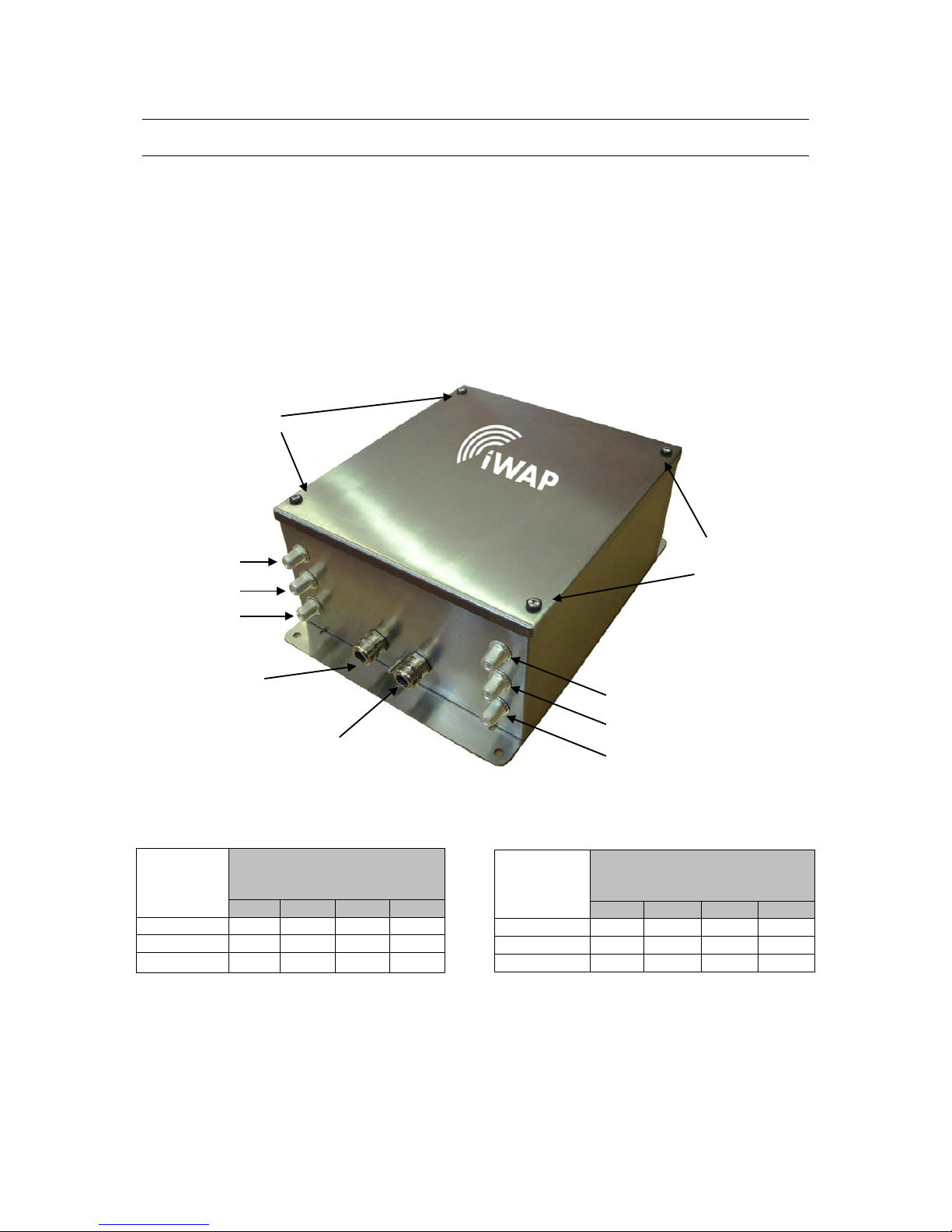

3.1.1 Removing the cover
Unscrew the four screws and remove the enclosure lid.
See table below for antenna connections:
Antenna
Connection
Number of N-type connectors
ordered for Radio 1
(2.4GHz Default)
0 1 2 3 R1-A
x
R1-B
x
x
R1-C
x x x
Note: For Radio 1 (R1) and Radio 2 (R2) on any manufacturers Wireless Access
point, A will be antenna port 1, B will be antenna port 2, and C will be antenna port 3.
For example:
If you have ordered 1 N-type connector for Radio 1, and 2 N-type connector s f or
Radio 2. Then R1-A will be connected t o ant e nna por t 1 of Radio 1, R2-A will be
connected to antenna port 1 of Radio 2, and R2-B will be connected to antenna port
2 of Radio 2 for any manufacturers wireless access point.
Antenna
Connection
Number of N-type connectors
ordered for Radio 2
(5GHz Default)
0 1 2 3 R2-A
x
R2-B
x
x
R2-C
x x x
Lid
screws
Lid
screws
Ethernet /Fibre
Cable Entry
AC/DC Power
Cable Entry
R1-C
R1-B
R1-A
R2-C
R2-B
R2-A
Page 8
Operating Manual
8
3.1.2 Power Supply
The iWAP202 may only be powered from an IEEE 802.3af POE or IEEE 802.3at
POE+ power source. The equipment rating plate identifies which power supply type
is required for a specific variant.
3.1.3 Fitting the Cables
Warning! All cables should be connected to the IWAP202 via the correct cable
gland, fitted by a competent person.
Warning! If cable glands different to those supplied by Extronics are used, these
must be M20-sized cable glands meeting the requirements of
EN 60079-0:2012 for ATEX Category 2 GD equipment, and not
compromise the IP66 rating of the IWAP202 enclosure.
Warning! The installer MUST ensure that that all cables have adequate mechanical
protection to avoid damage.
3.1.4 Ethernet Cable Installation
Pass the Ethernet cable through the gland, and terminate in an RJ45 connector. Plug
into the Ethernet input socket as shown (15). Ensure the gland is correctly sized for
the cable used, and fully tight.

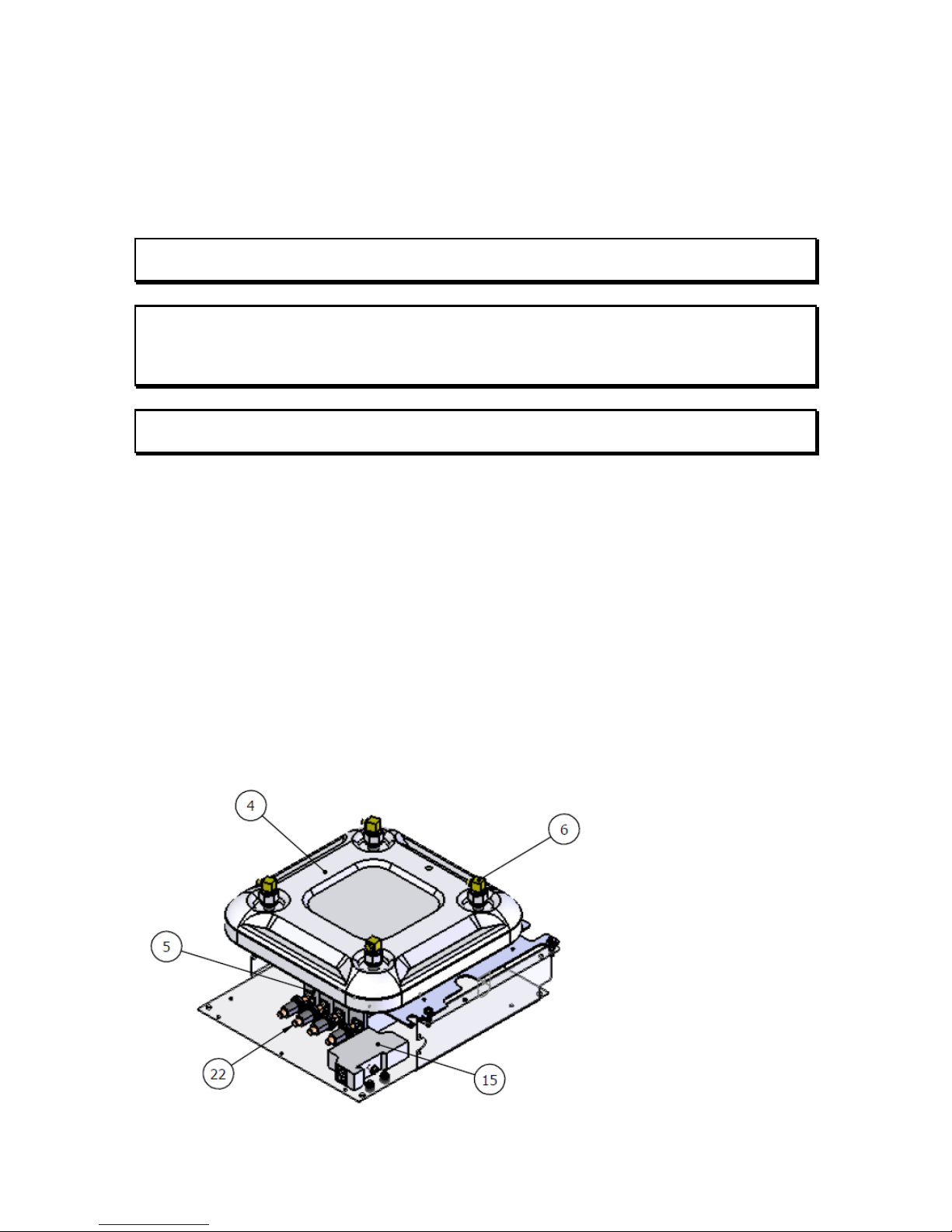

3.1.5 RJ45 Ethernet Cable Option
4 =Access point,
5 = Extronics iSOLATE500 or iSOLATE501 providing Ex ia RF outputs
6 = RF connectors,
15 = Ethernet surge arrestor with RJ45 connector.
22 = Option lightning surge arrestor
Page 9
Operating Manual
9

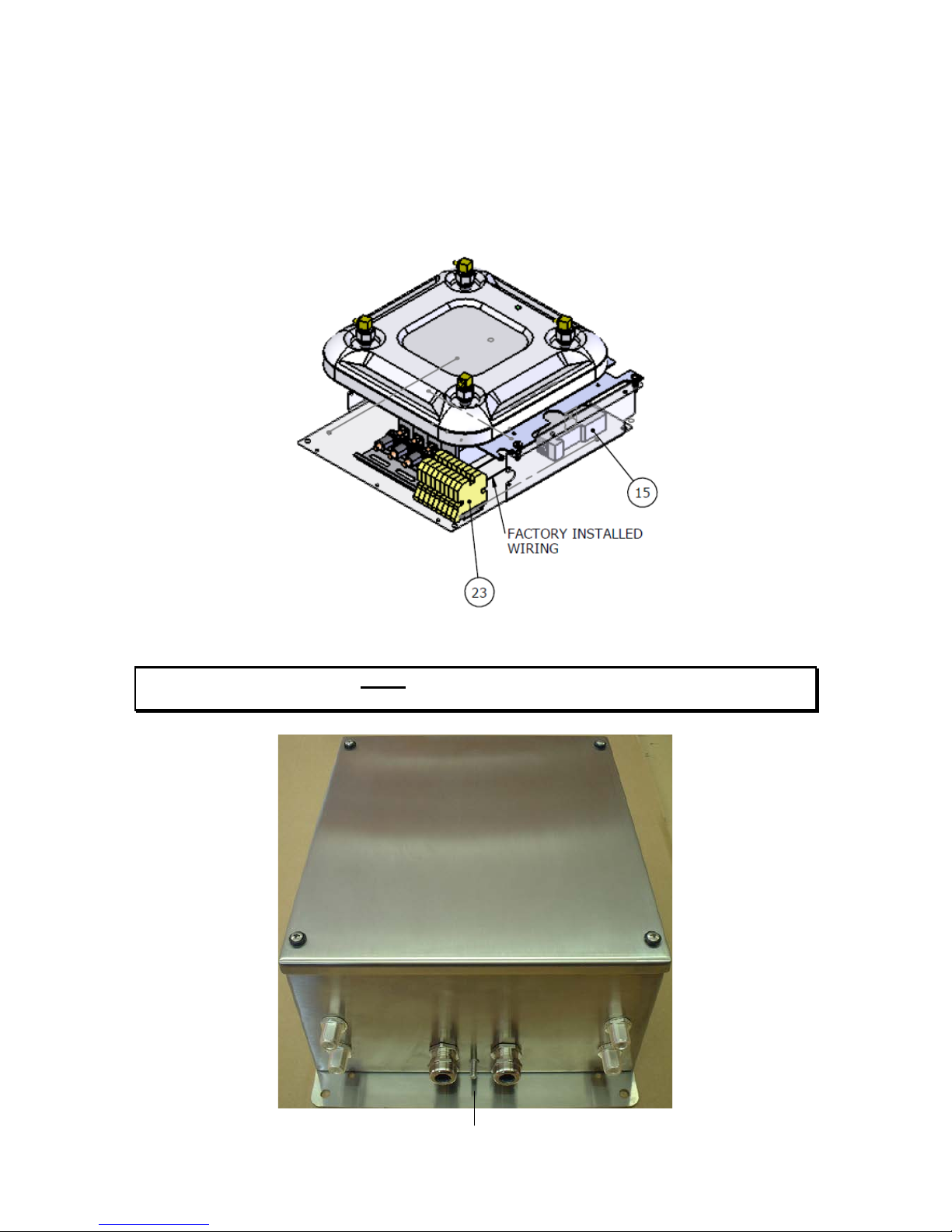

3.1.6 RJ45 Screw Terminal Option
Wire into item 23 Ex e Screw terminals
Minimum cross section of cable = 0.14mm
2
Maximum cross section of cable = 1.5mm
2
3.1.7 Earthing
Warning! The iWAP202 MUST be securely earthed with a minimum 4mm2 cable
using the External M6 Earth Stud.
External M6 SS Earth Stud
Page 10
Operating Manual
10
Warning! The iWAP202 frame earth is connected directly to circuits within the
enclosure. It is not capable of withstanding the 500V insulation test
required by clause 23.2.1 of EN 60079-15:2010. This must be taken into
account when installing the equipment
3.2 Int rinsically Safe RF Outputs
Warning! The iWAP202 Intrinsically Safe RF output ports are located in the
positions shown in [IS output position diagram]. Only antennas in
accordance with [antenna requirements section] may be connected to
these ports. Refer to section [antenna installation] for antenna
installation requirements.
Warning! Although antennas connected to the Intrinsically Safe RF outputs of the
iWAP202 may be installed in a hazardous areas requiring Category 1
equipment, the iWAP202 flameproof enclosure must NOT be installed in
these environments.
Warning! Do not exceed the RF Threshold Power for the equipment group in
which the iWAP202 and its antennas are to be installed; it must be
controlled in accordance with IEC 60079-0, and must not exceed the
following levels:
IIC – 2W (+33dBm)
IIB – 3.5W (+35.4dBm)
IIA – 6W (+37.7dBm)
III – 6W (+37.7dBm)
The RF outputs of the iWAP202 using iSOLATE500 are appr oved as:
Ex ia IIC Ga
Ex ia IIIC Da
Um = 253V
r.m.s
The RF outputs of the iWAP202 using iSOLATE501 are approved as:
Ex ia IIC Ga
Ex ia IIIC Da
Um = 250V
r.m.s
3.3 Antenna Re quirements
Antennas connected to the iWAP202 Intrinsically Safe RF outputs must be assessed
as ‘simple apparatus’ in accordance with IEC 60079-11. Antennas supplied by
Extronics for use with the iWAP202 already meet these requirements. It is possible to
assess other antennas for this purpose, contact Extronics for details.
Page 11
Operating Manual
11
3.4 Antenna Installation
Antennas approved by Extronics for use with the iWAP202 may either be fitted
directly to the RF connectors of the iWAP202, or via a length of coaxial cable.
If antennas are sited remotely from the iWAP202 flameproof enclosure, any metallic
parts of the antennas must be isolated from earth by > 500V
r.m.s
, to prevent
hazardous earth curre nts fro m flow i ng in the coax i al cable.
3.4.1 Setting to work
Warning! Ensure the lid is secure, correct cable glands are fitted and the
unit device correctly wired and earthed for the particular
application before applying power
Warning! Ensure that the lid gasket is clean and undamaged before fitting
the lid.
Once all cables are connected correctly, refit the enclosure lid using the four screws
previously removed. Use a torque screwdriver set to 2.5 Nm. Do not over-tighten
screws.
4 Intended Purpose Usage
Warning! Installation of the iWAP202 must be performed in accordance with
EN 60079-0, EN 60079-14 and EN 60079-25. Maint enance and inspection
must be performed in accordance with EN 60079-17.
Important Before setting the units to work read the technical documentation
carefully.
Important The latest version of the technical documentation or the corresponding
technical supplements is valid in each case.
The IWAP202 is built using modern components and is extremely reliable in
operation; however it must only be used for its intended purpose. Please note that
the intended purpose also includes compliance with the instructions issued by the
manufacturer for installation, setting up and service.
Any other use is regarded as conflicting with the intended purpose. The manufacturer
is not liable for any subsequent damage resulting from such inadmissible use. The
user bears the sole risk in such cases.
4.1 Transportation and Storage
All IWAP202 devices must be so transported and stored that they are not subjected
to any excessive mechanical stresses.
Page 12
Operating Manual
12
4.2 Authorized Persons
Only persons trained for the purpose are authorized to handle the IWAP202; they
must be familiar with the unit and must be aware of the regulation and provisions
required for correct installation as well as the relevant accident prevention
regulations.
4.3 Cleaning and Maintenance
The IWAP202 and all its components require no maintenance and are selfmonitoring. All work on the IWAP202 by personnel who are not expressly qualified for
such activities will cause the guarantee to become void.
4.4 Cleaning and Maintenance Intervals
The cleaning intervals depend on the environment where the system is installed.
4.5 Aggressive substances and environments
The IWAP202 is not designed to come into contact with aggressive substances or
environments, please be aware that additional protection may be required.
4.6 Exposure to external stresses
The IWAP202 is not designed to be subjected to excessive stresses e.g. vibration,
heat, impact. Additional protection is required to protect against these external
stresses.
The IWAP202 will require additional protection if it is installed in a location where it
may be subjected to damage.
Page 13
Operating Manual
13
5 Label Drawing
ITS14ATEX48154X
II 3 (1) G
Ex nA [ia IIC Ga] IIC T5...T3 Gc
T3: -40
o
C T
amb
≤ +70°C
T4: -40
o
C T
amb
≤ +65°C
T5: -40
o
C T
amb
≤ +30°C
U
m
= 253V
r.m.s
WARNING
DO NOT OPEN, MAINTAIN OR SERVICE IN AN AREA WHERE AN EXPLOSIVE
ATMOSPHERE MAY BE PRESENT
CONTAINS INTRINSICALLY SAFE CIRCUITS
ENSURE GASKET IS FITTED BETWEEN BODY AND COVER TO MAINTAIN IP RATING
REFER TO INSTALLATION INSTRUCTIONS
Extronics Ltd, 1 Dalton Way, Midpoint 18, Middlewich, Cheshire CW10 0HU, UK
Tel:+44 (0)845 2775000 Fax: +44 (0)8452774000
E-mail: [email protected] Web: www.extronics.com
AAA BBB CCC
0518
!
Part # iWAP202-DDD
Date
Serial #
MAC1 xxxxxxxxxx
MAC2 xxxxxxxxxx
II 2 (1) D
Ex tb [ia Da] IIIC T82
o
C Db
IP66
-40°C ≤ T
amb
≤ 70°C
U
m
= 253V
r.m.s
• AAA: Supply voltage e.g. POE/POE+;
• BBB: Supply current, e.g.POE/POE+;
• CCC: Supply frequency e.g. POE/POE+; length
• DDD: Production option codes, configuration-dependent, unlimited length
• EEEE: Notified body number for production
• MAC1/MAC2 are optional Ethernet MAC addresses for the internal hardware, and
may not be present
Page 14
Operating Manual
14
6 EC Declaration of Conformity
Page 15
Operating Manual
15
Page 16
Operating Manual
16
7 Manual Revision
Revision
Description
Date
By
1.0
Initial Release
18/12/2014
AR
1.1
iSOLATE501 additions
02/12/2015
PR
Loading...
