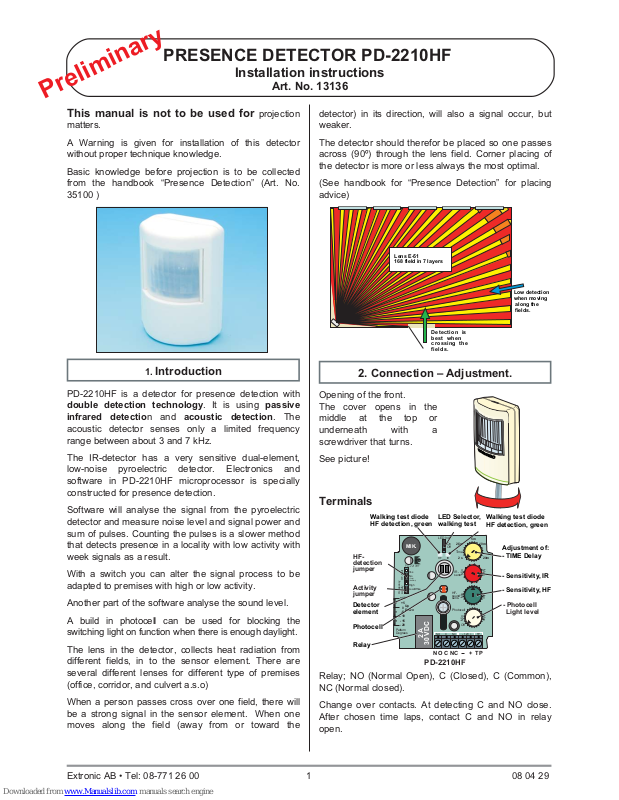

Page 1
This manual is not to be used for projection
matters.
A Warning is given for installation of this detector
without proper technique knowledge.
Basic knowledge before projection is to be collected
from the handbook “Presence Detection” (Art. No.
35100 )
1. Introduction
PD-2210HF is a detector for presence detection with
double detection technology. It is using passive
infrared detection and acoustic detection. The
acoustic detector senses only a limited frequency
range between about 3 and 7 kHz.
The IR-detector has a very sensitive dual-element,
low-noise pyroelectric detector. Electronics and
software in PD-2210HF microprocessor is specially
constructed for presence detection.
Software will analyse the signal from the pyroelectric
detector and measure noise level and signal power and
sum of pulses. Counting the pulses is a slower method
that detects presence in a locality with low activity with
week signals as a result.
With a switch you can alter the signal process to be
adapted to premises with high or low activity.
Another part of the software analyse the sound level.
A build in photocell can be used for blocking the
switching light on function when there is enough daylight.
The lens in the detector, collects heat radiation from
different fields, in to the sensor element. There are
several different lenses for different type of premises
(office, corridor, and culvert a.s.o)
When a person passes cross over one field, there will
be a strong signal in the sensor element. When one
moves along the field (away from or toward the
detector) in its direction, will also a signal occur, but
weaker.
The detector should therefor be placed so one passes
across (90º) through the lens field. Corner placing of
the detector is more or less always the most optimal.
(See handbook for “Presence Detection” for placing
advice)
2. Connection – Adjustment.
Opening of the front.
The cover opens in the
middle at the top or
underneath with a
screwdriver that turns.
See picture!
Terminals
Relay; NO (Normal Open), C (Closed), C (Common),
NC (Normal closed).
Change over contacts. At detecting C and NO close.
After chosen time laps, contact C and NO in relay
open.
Extronic AB • Tel: 08-771 26 00 1 08 04 29
PRESENCE DETECTOR PD-2210HF
Installation instructions
Art. No. 13136
Low detection
when moving
along the
fields.
Lens E-51
168 field in 7 layers
Detection is
best when
crossing the
fields.
2A
30 VDC
NO NCC+TP
PD-2210HF
IRsens.
Min
Max
Min
Max
Min
Max
HFsound
sens.
Off
Pattern
Degrees
-20
-15
-10
-5
0
+5
+10
Up
Down
MIK.
2,5m
Time
5m
10m
20m
2s
LED Ind.
On
Off
HF-Start
Occupancy
Activity
Yes
No
(Cont.)
(NoStart)
High
Low/Office
HF IR
NO C NC - 12V + TP
Photocell
Activity
jumper
HFdetection
jumper
PD-2210HF
- Photocell
Light level
- Sensitivity, IR
Photocell
Relay
Walking test diode
HF detection, green
LED Selector,
walking test
Detector
element
Adjustment of:
-TIME
Delay
- Sensitivity, HF
Walking test diode
HF detection, green
Preliminary
Page 2
Voltage supply; + - Detector supplies with 10-16
VDC. Suitable supply is EXE2000.
TP; Test-Point 0-5 VDC
If a digital multimeter is connected and voltage
between – and TP is measured, is that a measure of
signal strength.
The sensitivity adjustment does not effect this signal
output.
•
At low noise level you can await a voltage level not
over 0.3 VDC
•
At strong detection, the voltage level is at close 5V.
•
At maximum sensitivity lies the trigger level at 0.6 V.
Jumper
“LED”; If jumper is placed at “ON” the LED will light at
detection. When placed in “OFF” LED will not light at
detection. LED should be disabled after adjustments to
prevent and minimise sabotage.
The detector should be adjusted to the room with the
two jumpers “Occupancy Activity” and “HF-start”.
“Occupancy Activity” (different activity)
•
“Low/Office” is used in premises where one is sitting
still i.e. office, storage room and libraries. Sensitivity
increases when relay is activated.
•
“Activity High” is used where people is visiting the
premises for a short time, in other word in
well-defined passages.
HF-start (the function of the HF-sound)
The jumper “HF-start” prescribes how the IR-detector
and the acoustic detector should work together.
“HF-start” position “Yes”
The lighting is actvated when
sound is detected in the stated
frequency range. Lights are kept
on so long as sound is detected
(steps, talk, etc).
The relay remains energised
during the detection period, both
acoustic and IR (and the lights
are keep on).
“HF-start” position “No”
Only the IR detector can activate the lighting. The
lighting is not activated if only the acoustic detector
detects sounds. The lighting then remains activated for
a regulated time when presence is detected only by the
acoustic detector. The time that the lighting remains
activated only by the acoustic detector is limited to four
times the time set on potentiometer “Timer”.
If the timer is set on 5 minutes the lighting remains on
for 4 x 5 minutes = 20 minutes. This means that
different kind of noise can not keep the lighting
activated. It can for example be used where the
detector detects passages in and out to the room, but
then is hided for futher detection.
“HF-start” position “Continue No-Start”
Same function as position “NO”, but the lighting
remains activated for as long as presence is detected
by the acoustic detector.
Memory
The relay can always be activated again with sounds
up to 15 seconds after deactivation.
It can´t be done if the jumper “HF-start” is i position
“No” and the time x 4 is out.
Potentiometer
Time; time delay until relay drops after last detection.
Time can be set from 2 sec. to 20 minutes.
Sensitivity; chose direct signal strength, sum of pulse
and sensitivity at low activity/office with potentiometer.
PD-2210HF will automatically adjust sensitivity after
current noise level.
HF-sound sens; for adjusting of the sensitivity of the
acoustic HF detection.
Photocell; the photocell will block the light when its
darker than chosen level. When relay is activated the
photocell is disabled.
When photocell is turned down to min. photocell is
likewise disabled. When potentiometer is turned
towards max. Detector LED will start indicate photocell
status. LED flash faster when blocking and slow when
not blocking.
LED will go back to normal function 30 sec. after
adjustment is finished.When Logic Module’s are used,
the photocell shall be disabled (off).
Vertical adjustment
Adjusting the vertical detecting fields by pushing the
board upwards and downwards. The scale gives angel
between upper field and the given horizontal line.
Board being pushed upward detecting fields will go
lower vice versa.
Board vertical adjustment is factory set for - 5°.
Extronic AB • 08-771 26 00 2 08 04 29
Lens
+10
+5
-5
-15
0
.-10
-10
Board
Vertical angel
Board can be
adjusted upwards
and downward.
Upwards lower
the fields.
EXTRONIC
PD-2210HF
+5
+10
Up
HF-Start
Occupancy
Activity
Yes
No
(Cont.)
(No Start)
High
Low/Office
HF
Jumper “HF-start”
Page 3

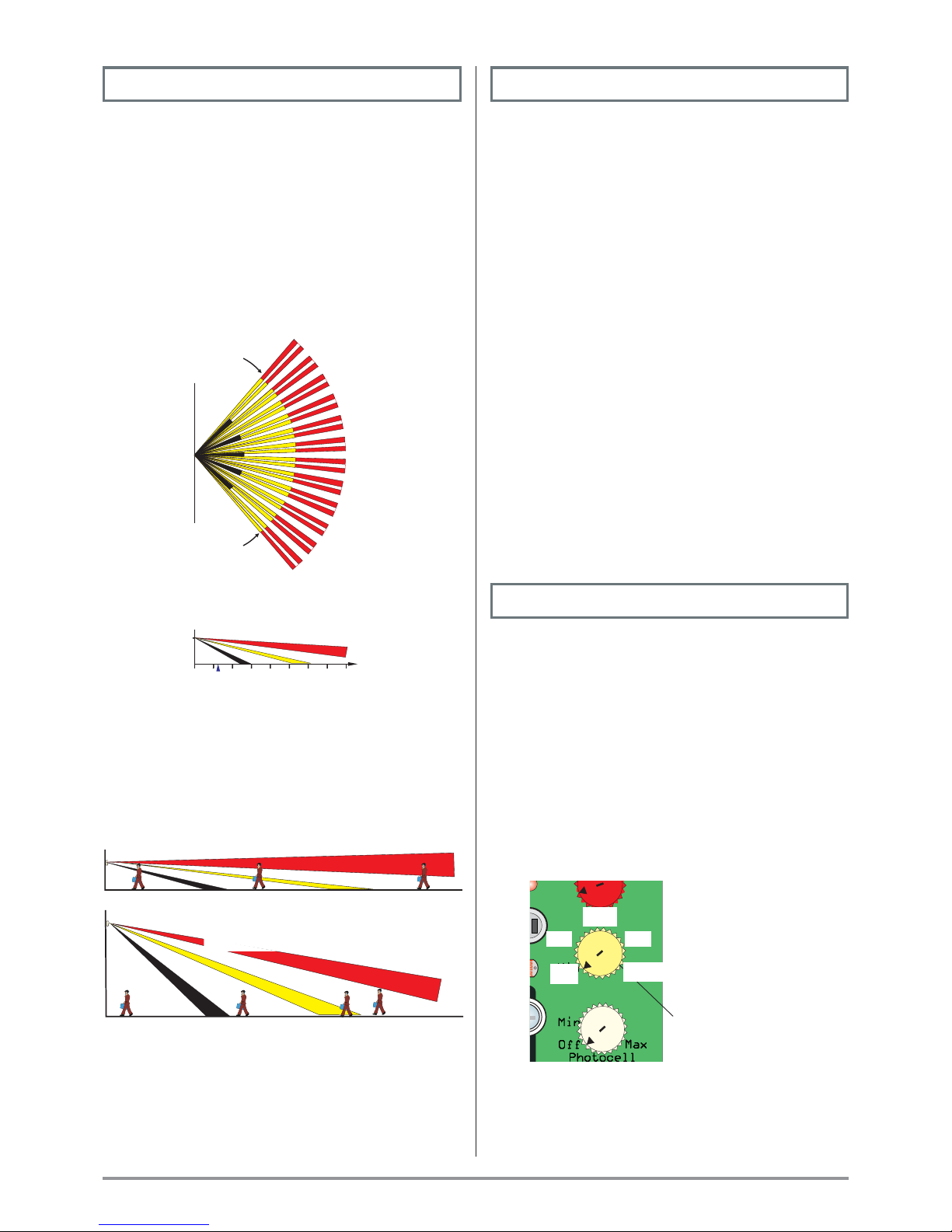

3. Choice of lens
There are several different lenses for PD-2210HF that
can be used for different functions. Long distance
lenses for corridors up to 80 meter (lens 41 and 43).
Lenses with many narrow fields for use i.e classrooms
(lens 51).
All lenses are described in handbook for “Presence
Detection”.
PD-2210HF are supplied as standard with lens no. 15.
With 58 fields in 3 layers. Detection area is 40 x 40
meters and suitable to be placed in a corner.
The detector is positioned in the corner furthest away
from the entrance at a height of 2 - 2.5 m. The
mounting height is very important to reliable detection.
Mounting too high up can result in relatively large areas
with poor detection.
4. Changing and adjusting a lens
Changing lens
1. Press the looking device inside the
cover lose.
2. Remove the old lens
3. Fit the new lens with the ribbed surface
outwards and with the lens number in the
top right hand-hand corner, as seen from
the front.
Adjusting the lens
With field indicator diode BL-1 you can “see” the
sensing fields of the detector in the room. Especially
recommended when long-range lenses are used.
Vertical angel is adjusted by moving the board
upwards and downward.
Horizontal angel is adjusted by moving the lens right or
left.
Masking of lens element.
For limited detection area the lens can be masked.
Self-adhesive aluminium folio tape of the same type
used for window glass-break protections will block the
sensitivity 100%.
5. IR-signal analyse
PD-2210HF with microprocessor analysing the signals
from the pyroelectric detector has algorithms that
continuous counts single pulse, sum of pulse and noise
level.
Single pulse is a method used for ex. entering into a
premises. A fast method that activate when signal is
strong enough.
Sum of pulse a slower method of measurement that
takes longer detecting a human. Used i.e. when low
activity, as for sitting people and signal does not reach
level single pulse.
Level is chosen with potentiometer “Sensitivity”
Extronic AB • 08-771 26 00 3 08 04 29
Sensitivity
20m
2s
100%
6%
40%
70%15%
100°
From above
From the side
-5°
-28°
-13°
2.7
m
40
0
302010 15 25 355
20
0151057.5 12.5 17.52.5
(Max.)
(Min.)
m
Lens no. 15
Mounted to high
Page 4

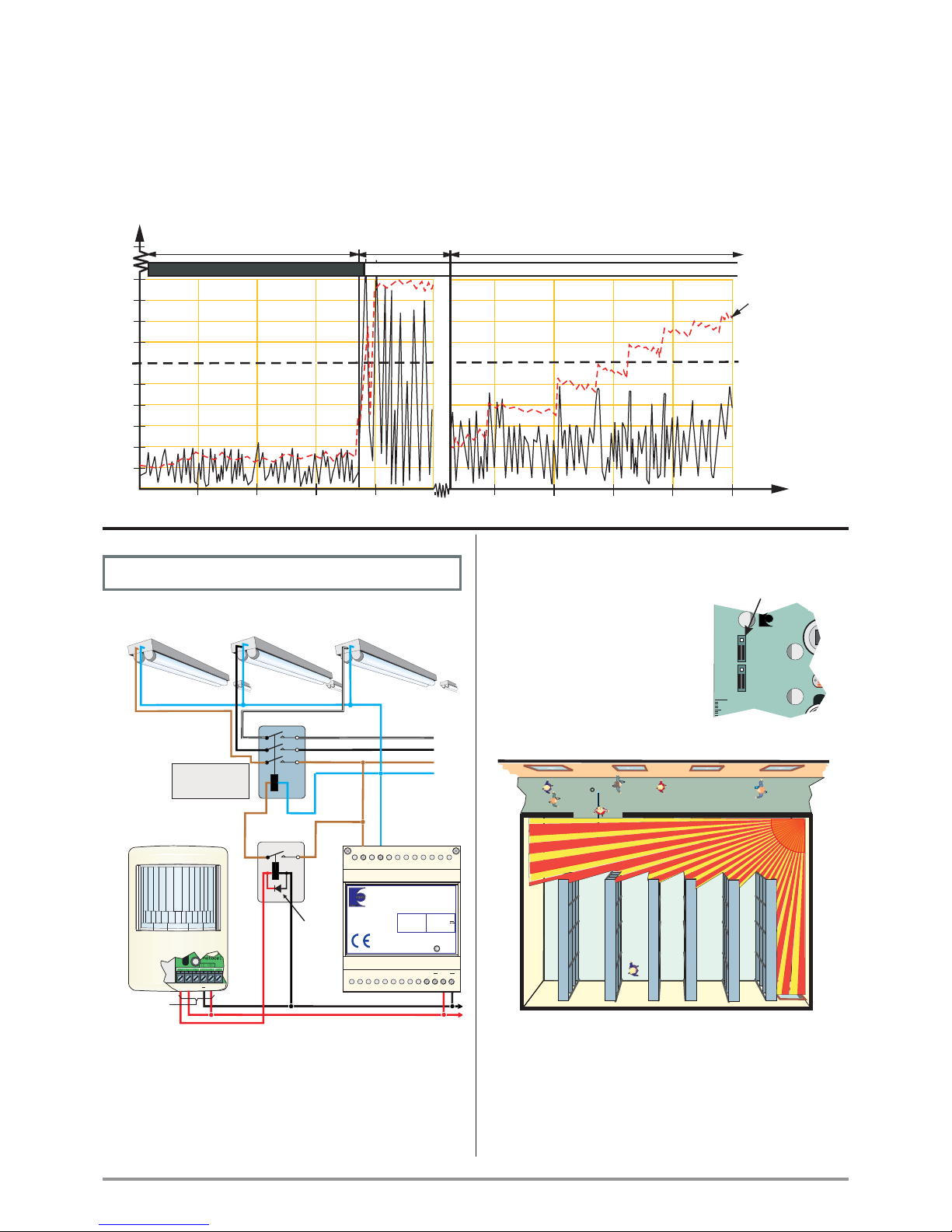

6. Applications
Appliction with non-dimmable HF ballasts
Archives with “Dynamic lighting control”
Dimmable HF ballasts
Put the jumper “HF-start” in
position “No”.
Suitable adjustment of the
timer is 5 minutes.

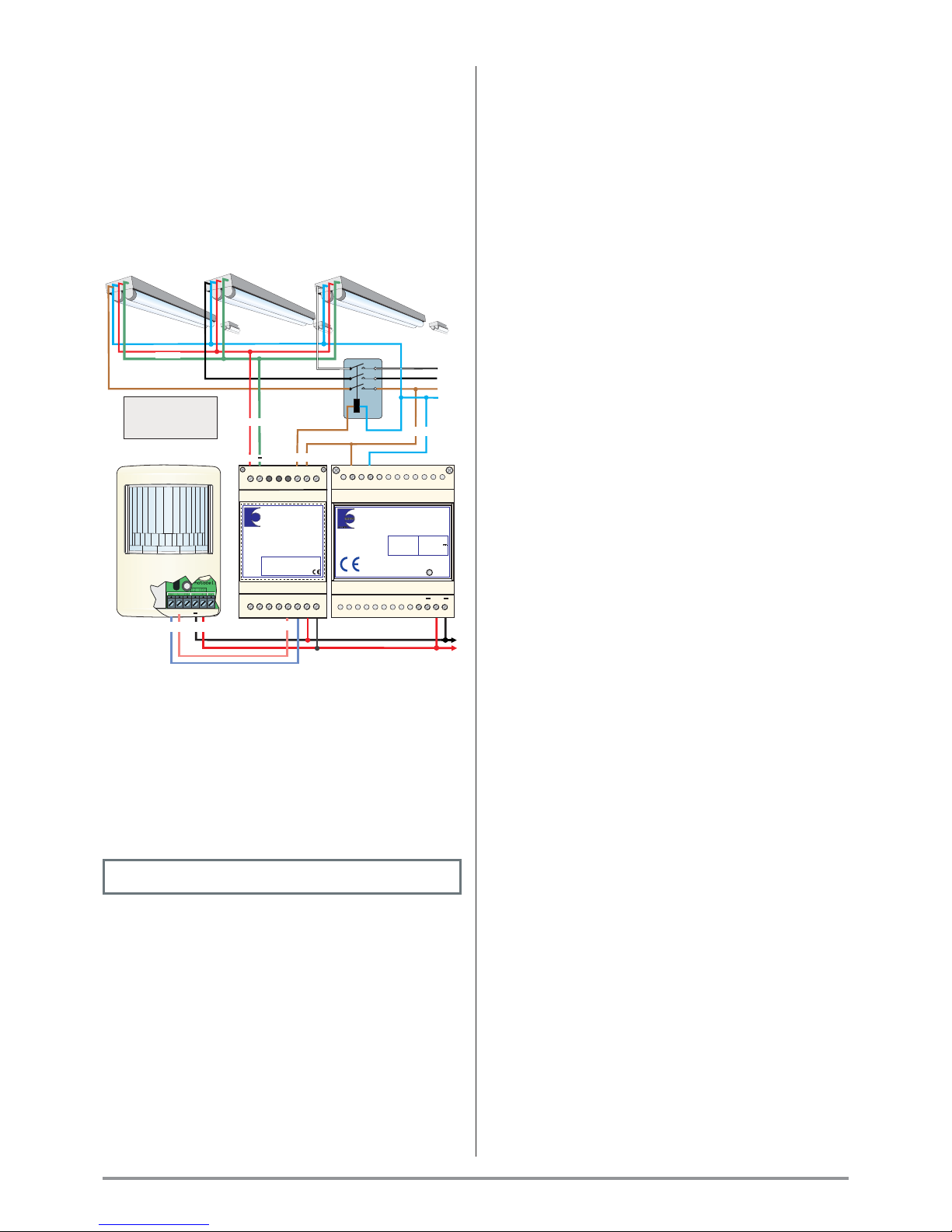

See wiring diagram on next page!
Dynamic lighting control provides the following
function:
In the event of presence the lighting is switched on to
approx. 80 per cent, set in NV-2T. The acoustic
Extronic AB • 08-771 26 00 4 08 04 29
5,0
0,0
0
5
10
15
20
25
60
65 70 75
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
1,0
Volt
TP
Seconds
Light off Light on
Trigging level
for single pulse
(max. sensitivity)
No presence
Entrance
Presence, with repeated pulses, that does
not reach trigging level.
Sum of
pulses
PD-2210HF automatically adjust sensitivity after
estimated noise level. A time laps of 1-2 minutes after
movements detected by detector before the detector
will increase sensitivity. Change of sensitivity with up to
20% from adjusted value.
With jumper “Activity High/Low-Office” adjustment of
detector is possible according to locality.
In localities with part time low activity where detection
is unclear the detector could let the light be switched
on for a longer period.
Combination detector
PD2210HF
12 VDC for
areas 2-4
Relay
Incoming
phases
N
L1
L2
L3
Contactor
EXTRONIC
2A
30 VDC
NO NCC+TP
Rectifier
EXE-2000
1876543 1312111092
171615
14
212019
18
22
2423 25
Stabilized power supply EXE-2000
Short circuit protection, current limited
Extronic AB • Stockholm • Sweden
Secondary
Voltage:13,65
Current:Max 1,5 A
Primary
Voltage:230 V ~
Current:Max 0,2 A
15 & 17=IN 230 V~
10 & 12 = OUTPUT +
11 & 13 = OUTPUT -
Indicationof
secodaryvoltage
EXTRONIC
Security
++
13.65 VDC/ 1.5 A
NB:
Protective
diode note
the polarity!
+-
The contactor
should be adapted
to the load.
1x4x0.25mm
2
90
Lens no. 51
Corridor
EXTRONIC
PD-2210HF
+5
+10
Up
HF-Start
Occupancy
Activity
Yes
No
(Cont.)
(No Start)
High
Low/Office
HF
Jumper “HF-start”
Page 5
detector can hear if anyone “hides” behind the archive
shelfs and the lighting remains activated for maximum
four times the time set on potentiometer “Timer”. If the
timer is set on 5 minutes the lighting remains on for 4 x
5 minutes = 20 minutes. The detection must take place
within that time.
When the presence has ceased the lighting is reduced
to approx. 2 per cent. After two hours without any
presence the lighting is completely switched off to
eliminate no-load losses.
7. Accessories
Field indication diode BL-1
Used for adjusting detection area. Art. No. 13035.
For further information see handbook “Presence
Detection”
Protective Grille
For mounting in exposed premises as for indoor sports.
There is also one model that can be used for mounting
a detector in 45º with angel plate to a wall.
For further information see handbook “Presence
Detection”
Universal bracket
BR1, BR2, BR3 can be used when the detector cannot
be mounted directly in the corner. With the bracket the
detector can be moved out a short distance and still
give maximum coverage.
Use with precaution.
Contact Extronic for further advice and information
when a bracket is used.
Logic modules
As for manually switched on lighting.
EX-11: Two channels i.e. one channel for main lighting
and one for board lighting.
EX-13: Four + One channel i.e. in a divided Gym with
two levels of lighting in each half and air-condition.
EX-22: Like EX-11 but guided by DSI-protocol and
constant-lighting with compensation for lights from
windows.
For further information see handbook “Presence
Detection”
Level control
Level switches NV2 / NV2-DSI: Are intended for
use on HF fittings with 1-10 V low-level input,
dimmable 1-100%, and for control by presence
sensors. Using the level switch, one can switch
between two preset lighting levels.
Level switches NV2T / NV2T-DSI: As NV2 / NV2-DSI
but they also have a built-in timer for control of the
supply voltage. Push-buttons, photocells etc. can also
be connected.
Acoustic detectors
Detector AD-500 / AD-600 has an input for PIR
presence detector.
Lens-library
See lens-library in handbook for a great number of
changeable lenses.
Rectifier EXE-2000 (13,65 VDC)
A Rectifier for mounting on DIN rail and suitable for
NORM box.
It has current limitation / short-circuit proof, max. 1,5 A
and suitable as power supply for PD-2210HF.
Handbook
Handbook “Presence Detection”.
Extronic AB • 08-771 26 00 5 08 04 29
12 VDC to any
other system
Presence
PD-2210HF
detector
EXTRONIC
2A
30 VDC
NO NCC+TP
Rectifier
EXE-2000
1876543 1312111092
171615
14
212019
18
22
2423 25
Stabilized power supply EXE-2000
Short circuit protection, current limited
Extronic AB • Stockholm • Sweden
Secondary
Voltage:13,65
Current:Max 1,5 A
Primary
Voltage:230 V ~
Current:Max 0,2 A
15 & 17=IN 230 V~
10 & 12 = OUTPUT +
11 & 13 = OUTPUT -
Indicationof
secodaryvoltage
EXTRONIC
Security
++
12 13 14 15 1611109
16857432
For 1-10 V regulating of luminaires
with dimmable HF ballasts and
t
imer for 230V regulating
Extronic AB • Stockholm • Sweden
Level switch NV-2T
Version1.0
Currentfor low level
regulating: Max. 100 mA
Two1 - 10 V-levels
Timer:1 - 120 min.
Incoming
phases
N
L1
L2
L3
L1
N
1-10V
C
NO
+
1-10V
The contactor
should be adapted
to the load.
1x4x0.25mm
2
Level selector
NV-2T
Wiring diagram for applcation example with “Dynamic lighting
control” and dimmable HF ballasts.
Page 6
7. Technical specification.
Adjustment
Vertical: +10º to –20º calibrated scale
Horizontal: Up to 30º
Electrical
Voltage: 10-16 VDC
Current: 40 mA at 13,8 VDC
Relay output: Changeover contacts
2 A / 30 VDC,
0,5 A // 60 VDC (resistive)
LED Red IR, green HF
Test point: For background interference.
Detector: Dual-elements, low-noise,
pyroelectric detector
Environment
Ambient temp.: 0º to + 50ºC
Storage temp.: - 20º to + 60º
Dimensions: 102 x 70 x 50 mm
Weight: 100 g
Colour: White
Extronic AB • 08-771 26 00 6 08 04 29
Loading...
