YCS 100 • Table of Contents

Table of Contents

Chapter One • Introduction ................................................... 1-1

About this Manual .................................................................... 1-2

About the YCS 100 .................................................................... 1-2

Features ........................................................................................ 1-2

Application Diagram ................................................................. 1-3

Chapter Two • Installation and Operation ................. 2-1

Installation Overview ............................................................... 2-2

Mounting the YCS 100 ............................................................. 2-2

Tabletop use ........................................................................... 2-2

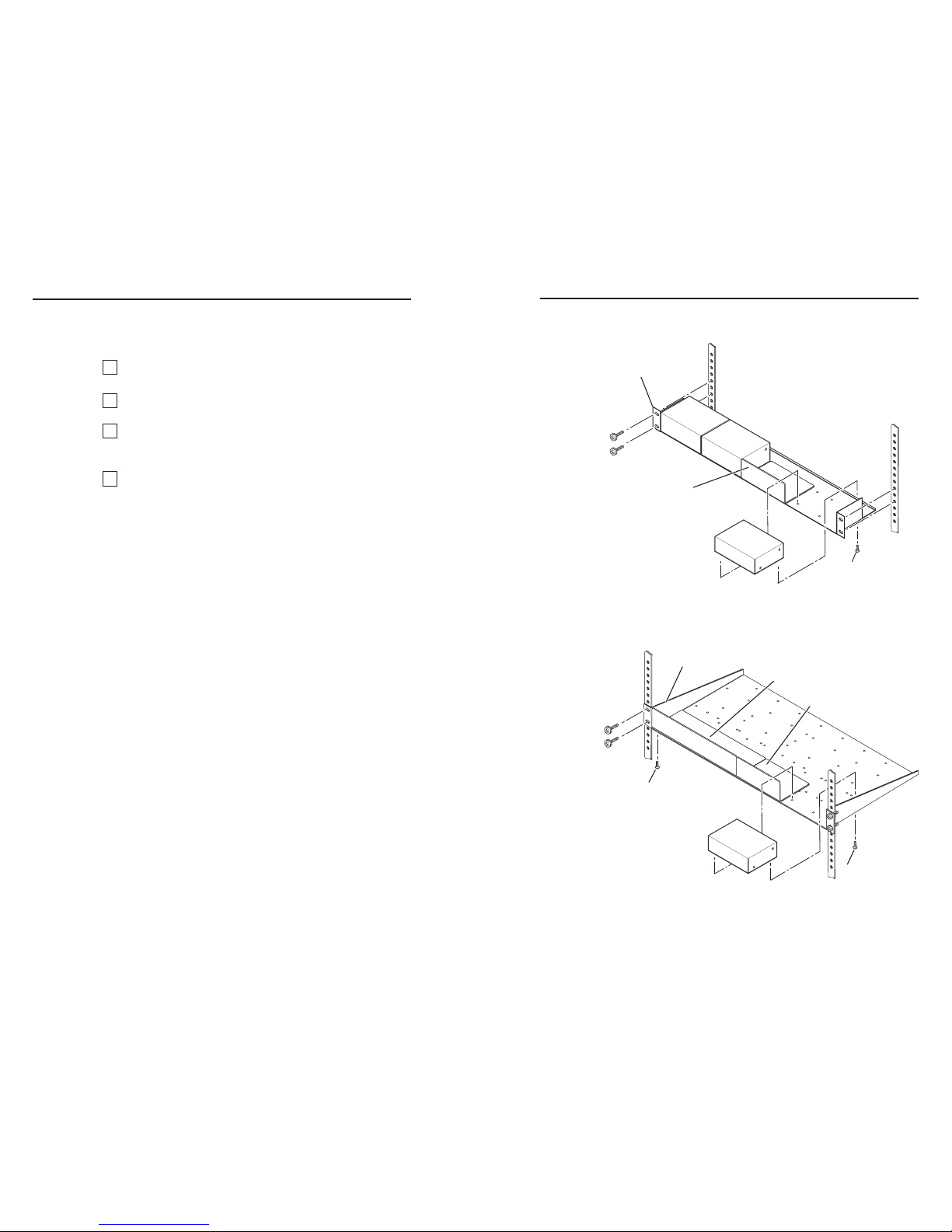

Rack mounting ....................................................................... 2-2

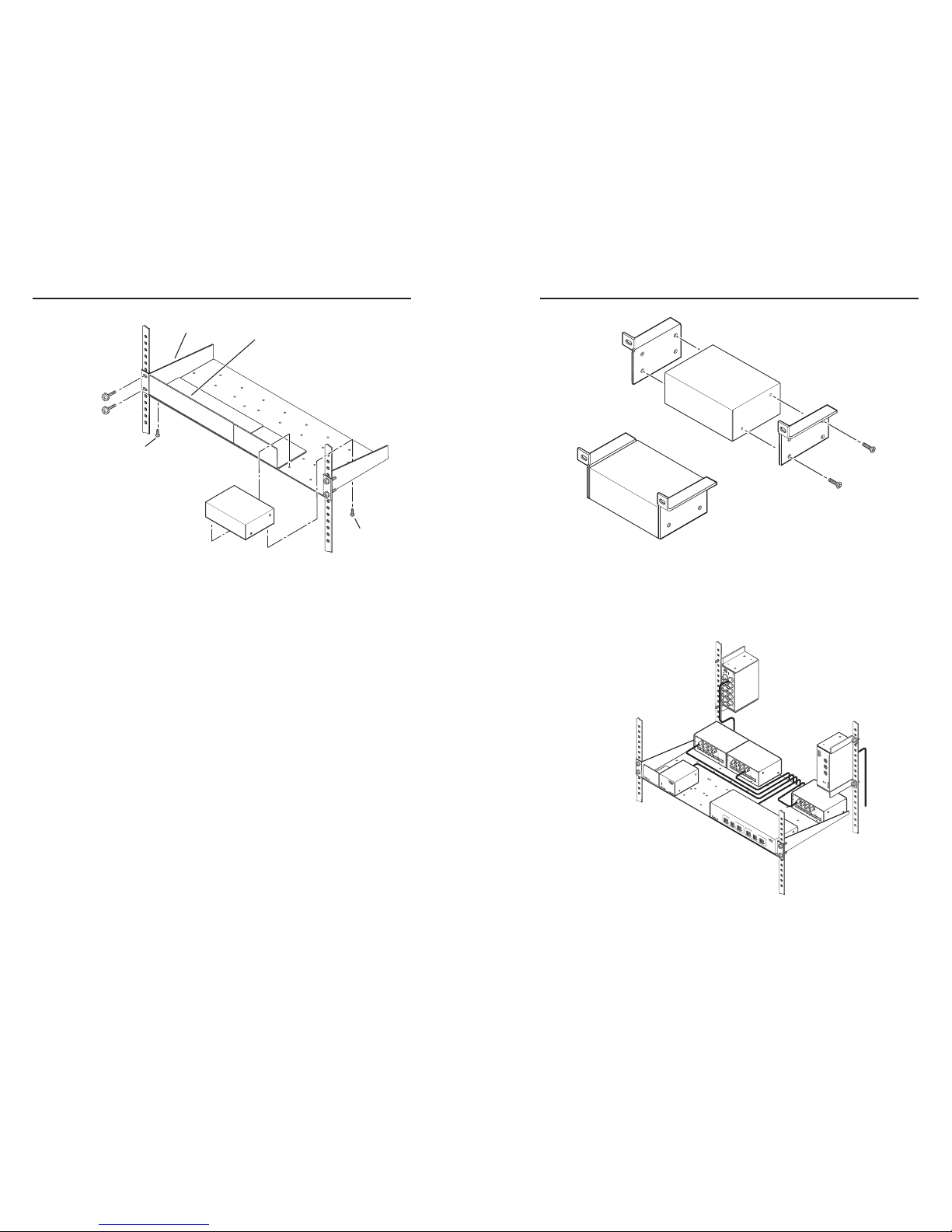

Mounting on a rack shelf ............................................... 2-2

Back of the rack mounting .............................................. 2-4

Furniture mounting ............................................................... 2-6

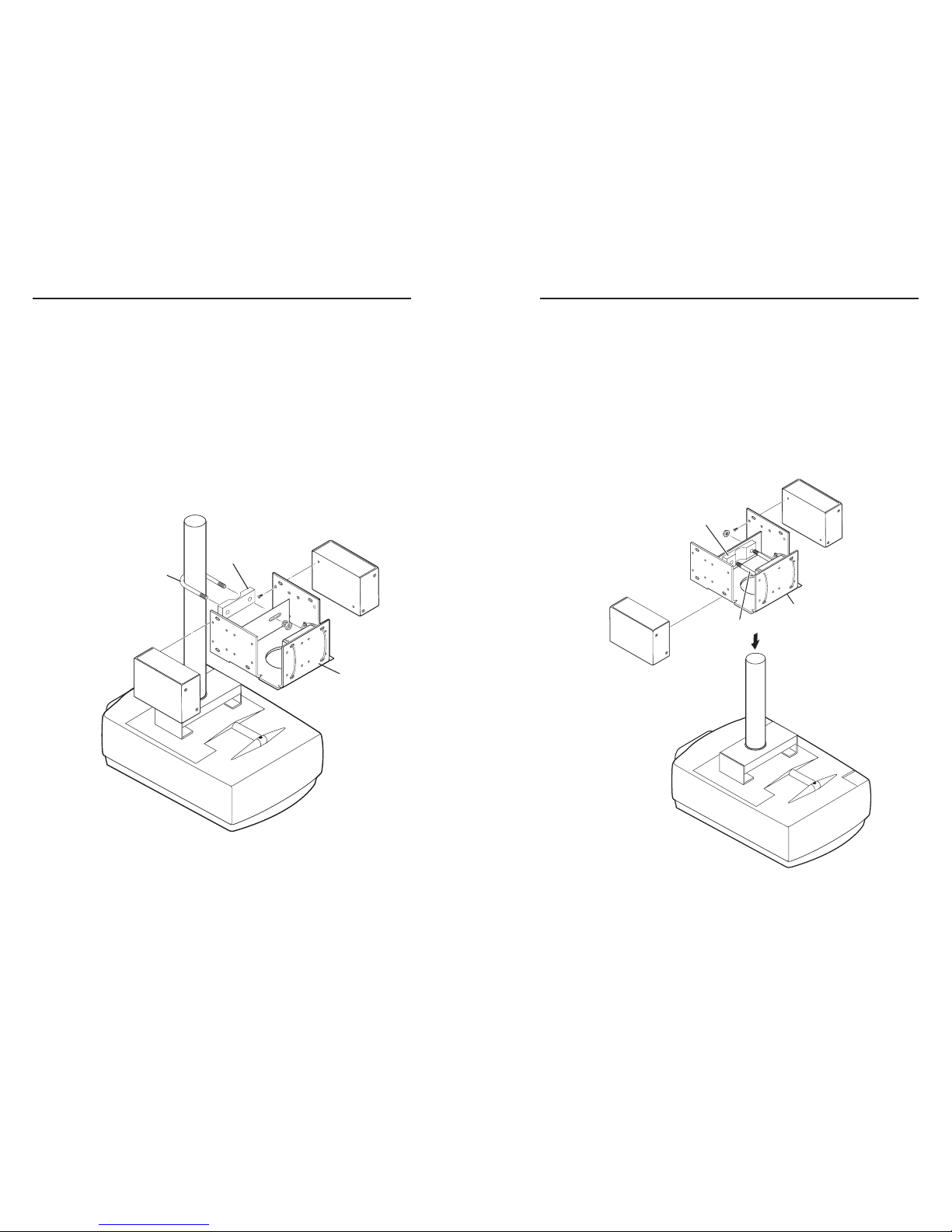

Projector mounting ................................................................ 2-7

Using the PMK 100 Mini Projector Mount Kit ................ 2-7

Using the PMK 300 Projector Mount Kit ........................ 2-8

Using the PMK 350 Projector Mount Kit ...................... 2-10

Rear Panel .................................................................................. 2-12

Wiring the Power Connector ............................................... 2-13

Operation ................................................................................... 2-14

Troubleshooting ....................................................................... 2-15

Problem: No video input ..................................................... 2-15

Appendix A • Speciﬁ cations, Part Numbers, and

Accessories ........................................................................................A-1

Speciﬁ cations ..............................................................................A-2

Included Parts .............................................................................A-5

Accessories ...................................................................................A-5

68-495-10 Rev. A

06 06

All trademarks mentioned in this manual are the properties of their respective owners.

YCS 100 • Table of Contents

Table of Contents, cont’d

YCS 100

Chapter One

Introduction

About this Manual

About the YCS 100

Features

Application Diagram

YCS 100 • Introduction

Introduction

YCS 100 • Introduction

1-31-2

Quad standard compatibility — The digital quad standard

decoder and encoder provide for universal compatibility.

Enclosure — The YCS 100 has a compact 1U high, ¼-rack wide,

3 inches deep Versatools® metal enclosure that can be easily placed or mounted in a variety of locations.

Power supply — An external 12 VDC power supply with a

two-pin captive screw connector accepts 100 to 240 VAC. The power supply input has single diode polarity protection.

Rack, furniture, and projector mounting — The YCS 100 can be

mounted on a rack shelf, under a desk or podium, or on a projector pole, with an optional mounting kit.

Application Diagram

The following diagram provides an example of how the YCS 100 may be connected.

DECODE

LOOP

LOO

OUT

ENCO

DER

POWER

Cable Box Composite

Extron YCS 100

Video Encoder and Decoder

DSS Receiver S-video

VCR

Composite

Monitor

S-video

VCR

Composite

Monitor S-video

Figure 1-1 — YCS 100 connection diagram

About this Manual

This manual contains information about the Extron YCS 100 Transcoder, and discusses how to install, conﬁ gure, and operate it.

The terms “YCS 100,” “YCS,” and “transcoder” are used interchangeably throughout this manual.

About the YCS 100

The Extron YCS 100 Transcoder has a composite video to S-video (luminance [Y] and chrominance [C]) decoder and an S-video to composite video encoder in one product. The high performance digital decoder has a time base stabilizer that corrects the jitter from VCR signals. A 5-line adaptive comb ﬁ lter performs the Y/C separation, virtually eliminating chroma noise. Each input has its own individually buffered loopthrough signal.

The transcoder is compatible with NTSC 3.58, NTSC 4.43, SECAM, and PAL standards.

Features

Digital decoding and analog encoding — The YCS 100 digitally

decodes (separates) the composite video input signal into Y and C for S-video. It provides analog encoding (combining) of the Y and C signals of S-video input into composite video.

Time base stabilizer — The time base stabilizer (TBS) stabilizes

the video signal in the time domain. This results in a signiﬁ cantly more stable image on the screen and better recording quality from input sources with unstable video signals, such as consumer VCRs and worn or multigeneration VHS tapes.

Input connectors — The decoder has one composite video

input on a female BNC connector. The decoder input is buffered and looped through, also on a female BNC connector.

The encoder has one S-video input on 4-pin mini DIN

connectors. The encoder input is buffered and looped through, also on a 4-pin mini DIN connector.

Output connectors — The decoder has one S-video output

on a 4-pin mini DIN connector. The encoder has one composite video output on a BNC connector.

YCS 100 • Introduction

Introduction, cont’d

1-4

YCS 100

Chapter Two

Installation and Operation

Installation Overview

Mounting the YCS 100

Rear Panel

Wiring the Power Connector

Front Panel

Operation

Troubleshooting

YCS 100 • Installation and Operation

Installation and Operation

YCS 100 • Installation and Operation

2-2 2-3

3. Install blank panel(s) or other unit(s) on the rack shelf as

desired.

(2) 4-40 x 3/16" Screws

Use 2 mounting holes on opposite corners.

VersaTools Rack Shelf

1/4 Rack Width Front False Faceplate

Figure 2-1 — Mounting a YCS 100 (with other units) on a VersaTools rack shelf

Use 2 mounting holes on opposite corners.

(2) 4-40 x 3/16" Screws

1U Universal Rack Shelf

Both front false faceplates use 2 screws.

1/4 Rack Width Front False Faceplate

1/2 Rack Width Front False Faceplate

Figure 2-2 — Mounting a YCS 100 on a standard rack shelf

Installation Overview

To install and set up the YCS 100, follow these steps:

Mount the YCS 100 on a rack shelf, furniture, or projector

bracket if desired.

Connect your input and output devices to the YCS 100’s

rear panel connectors.

Wire the provided 2-pin captive screw connector to the

external power supply. (See Wiring the Power Connector, later in this chapter.)

Apply power to the YCS 100 and to the input and output

devices.

Mounting the YCS 100

The YCS 100 can be set on a table; mounted on a rack shelf; mounted under a desk, podium, or table; or attached to a projector with one of the Extron projector mounting kits.

Tabletop use

Four self-adhesive rubber feet are included with the YCS 100. For tabletop use, attach one foot at each corner on the bottom of the unit, and place the YCS in the desired location.

Rack mounting

For optional rack mounting, do not install the rubber feet. Mount the transcoder on one of the following rack shelves:

• 1U 3.5" Deep VersaTools® rack shelf

Standard (RSF 123, part #60-190-20) or Basic (RSB 123, part #60-604-20)

• 1U 9.5" Deep rack shelf

Universal (RSU 129, part #60-190-01) or Basic (RSB 129, part #60-604-01)

• 1U 6" Deep Rack Shelf

Universal (RSU 126, part #60-190-10) or Basic (RSB 126, part #60-604-10)

Mounting on a rack shelf

1. If feet were previously attached to the bottom of the YCS,

remove them.

2. Mount the YCS 100 on the rack shelf, using two

4-40 x 3/16" screws in opposite (diagonal) corners to secure the unit to the shelf (see ﬁ gures 2-1 and 2-2, on the next page, or ﬁ gure 2-3 on page 2-4).

YCS 100 • Installation and Operation

Installation and Operation, cont’d

2-4

YCS 100 • Installation and Operation

2-5

Figure 2-4 — Attaching the back of rack mounting brackets to the YCS 100

5. Mount the unit to the rack support, using the two included

rack screws (see ﬁ gure 2-5, below).

POWER

12V

.5A MAX

INPUT

OUTPUT

RRRR

O U TP U

I N

P U T

M L

S 1

0 3 V

A U X

/ M I X

M O

N O

A U D

I O I N

P U T S

P R

E A M P

M L C

/ R S

2 32

P O

W E

2 V

5 A

M A

O U T

P U T

I N

P U T

M L

S 1

0 3 V

A B

A U X

/ M

IX M O

A U D I

O I N P U

T S

P R

E A

M P

M L

C / R

3 2

P O W

E R

1 2

. 5 A

A X

O U T

P U

N P U T

M L

S 1

0 3 V

A B

A U X

/ M

IX M O

A U

D I O I N

P U T S

P R E A

M P

M L

C / R

2 32

P O W

E R

.5 A

A X

3 2

G A

O U

T P

T 1

O U

T P

U T

Figure 2-5 — Mounting the YCS 100 to a back rack support

6" Deep Rack Shelf

Front false faceplate uses 2 screws.

1/2 Rack Width Front False Faceplate

Use 2 mounting holes on opposite corners.

(2) 4-40 x 3/16" Screws

Figure 2-3 — Mounting a YCS on a 6-inch rack shelf

Back of the rack mounting

The YCS 100 also can be mounted vertically to the front or rear rack supports, using the optional MBB 100 back of the rack mounting kit (Extron part #70-367-01).

Follow these steps to mount the YCS to the rack supports using the back of the rack mounting kit:

1. If feet were previously attached to the bottom of the YCS,

remove them.

2. Remove the two screws from one side of the YCS. Retain

the screws for possible later reassembly.

3. Attach one bracket to the side of the unit, using the longer

screws included in the mounting kit (see ﬁ gure 2-4, on the next page).

4. Repeat steps 2 and 3 on the other side of the YCS.

YCS 100 • Installation and Operation

Installation and Operation, cont’d

2-6

YCS 100 • Installation and Operation

2-7

Projector mounting

To projector-mount the YCS 100, use one of the three optional mounting kits described in the following sections.

Using the PMK 100 Mini Projector Mount Kit

The PMK 100 is a projector mounting kit (part # 70-217-01) designed for use with Extron 1U high, quarter-rack width products like the VersaTools products. It allows them to be mounted near or on a projector support.

Follow these steps to projector-mount the YCS 100 using the PMK 100 kit:

1. If rubber feet were previously attached to the bottom of the

unit, remove them.

2. Remove the two screws from one side of the YCS. Retain

the screws for possible later reassembly.

3. Attach the projector mounting bracket to the side of the

unit, using the provided machine screws.

Ceiling

Projector

Projector Mounting Bracket

Mounting Bolt

Figure 2-7 — Projector-mounting the YCS 100 using the PMK 100 Projector Mount kit

4. Secure the unit to a projector mount or other surface by

inserting the mounting bolt through the bracket’s slotted hole.

Furniture mounting

To furniture-mount the YCS 100, use the optional MBU 123 VersaTools under-desk mounting kit (part #70-212-01), as follows.

1. If rubber feet were previously attached to the bottom of the

unit, remove them.

2. Remove the two screws from one side of the YCS. Retain

the screws for possible later reassembly.

3. Attach one bracket to the side of the unit, using the

provided machine screws (see ﬁ gure 2-6, below).

Figure 2-6 — Preparing the YCS 100 for under-desk mounting

4. Repeat steps 2 and 3 on the other side of the YCS.

5. Hold the unit with the attached brackets against the

underside of the table or other furniture. On the mounting surface, mark the location of the bracket’s screw holes.

6. Drill 3/32" (2 mm) diameter pilot holes, ¼" (6.3 mm) deep

in the mounting surface at the marked screw locations.

7. Insert #8 wood screws into the four pilot holes. Tighten

each screw into the mounting surface until slightly less than ¼" of the screw head protrudes.

8. Align the mounting screws with the slots in the brackets

and place the unit against the surface, with the screws through the bracket slots.

9. Slide the unit slightly forward or back, then tighten all four

screws to secure it in place.

YCS 100 • Installation and Operation

Installation and Operation, cont’d

2-8

YCS 100 • Installation and Operation

2-9

• For the YCS 100 unit, use two of the supplied

4-40 x 3/16" screws in opposite (diagonal) corners to secure the device to the bracket.

For the YCS power supply, use the two included tie

wraps to strap the power supply to the bracket.

The PMK 300 has a hole in the bottom plate that allows

the projector pole to be inserted through the center of the plate, rather than outside of the plate (see ﬁ gure 2-9, below). To install the PMK 300 in this conﬁ guration, slide the bracket up from the bottom of the pole before the projector is installed on the pole.

U-Bolt

Extron PMK 300

Multi-product Projector Mount Kit

Bracket Brace

Figure 2-9 — Projector-mounting the YCS 100 using the PMK 300 with the projector pole passing through the center

Using the PMK 300 Projector Mount Kit

The PMK 300 Multi-Product Projector Mount Kit (#70-374-01) mounts up to three quarter-rack width products to a projector ceiling mount pole. The YCS 100 can be mounted above the display device with the front panel facing either down or up. The quarter rack width plate can also be used to mount the YCS external desktop power supply.

Follow these steps to projector-mount the YCS 100 using the PMK 300:

1. If necessary, remove the feet from the bottom of the YCS.

2. Mount the YCS to one of the bracket’s three mounting

plates. It can be vertically mounted facing either up or down, whichever you prefer. See ﬁ gure 2-8, below.

Extron PMK 300

Multi-product Projector Mount Kit

U-Bolt

Bracket Brace

Figure 2-8 — Projector-mounting the YCS 100 using the PMK 300 Projector Mount Kit

• On the side mounting plates, the YCS is typically

mounted on the outside of the bracket.

On the front mounting plate, the device is typically

mounted on the inside of the bracket.

YCS 100 • Installation and Operation

Installation and Operation, cont’d

2-10

YCS 100 • Installation and Operation

2-11

Extron PMK 350

Multi-product Projector Mounting Kit

Cover Sheet

Front Plate

Rear Plate

U-bolt

L-shaped Bracket

Contoured Base

Extron Power Supply

Extron YCS 100

Transcoder

Figure 2-10 — Projector-mounting the YCS 100 using the PMK 350 Projector Mount Kit

7. Align the two slotted holes in the bottom of the L-shaped

bracket with the two slotted holes in the base of the PMK 350, on either side of the opening for the pole. Attach the L-bracket to the base by inserting two provided 6-32 x 5/16" screws through the aligned slots.

8. Insert the two legs of the provided square U-bolt through

the following parts in the order they are listed below: a. The slotted holes on the back side of the bracket mount

plate

b. The round holes in the rubberized contour base c. The round holes in the L-shaped bracket

• For a typical (1.5" to 2.0" diameter) pole — You can use

the supplied square U-bolt, which ﬁ ts a typical ceiling pole.

• For a smaller pole — Locally obtain a square U-bolt

that ﬁ ts your ceiling pole. The slotted holes on the bracket can accommodate a square U-bolt for pole sizes from 1.0" to 2.0" in diameter.

9. Move the PMK 350 up to the desired location on the ceiling

pole, as close to the ceiling as desired.

3. Afﬁ x the supplied rubber pad to the side of the U-bolt

clamping plate that the projector pole contacts.

4. Place the U-bolt around the ceiling pole and insert the two

legs of the U-bolt through the slotted holes on the bracket’s mounting plate, then through the round holes on the backing brace.

• For a typical (1.5" to 2.0" diameter) pole — You can use

the supplied square U-bolt, which ﬁ ts a typical ceiling pole.

• For a smaller or larger pole — Locally obtain a square

U-bolt that ﬁ ts your ceiling pole. The slotted holes on the bracket can accommodate a square U-bolt for pole sizes from 1.0" to 2.5" in diameter.

5. Secure the bracket to the U-bolt with the included hex

nuts, washers, and lock washers. Tighten the hex nuts just enough that they can be loosened by hand.

Using the PMK 350 Projector Mount Kit

The PMK 350 Low Proﬁ le Projector Mount Kit is an aboveprojector mounting kit that attaches to a 1" to 2" diameter projector mounting pole. It can hold more than one device, in a variety of sizes. The PMK 350 is available in black (part #70-563-02) or white (part #70-563-03).

Follow these steps to mount the YCS 100 on the PMK 350 bracket as follows:

1. Remove the front and back panels from the

PMK 350, using an Extron Tweeker or other small Philips screwdriver. (Retain the screws to reattach the plates when you are ﬁ nished.)

2. Remove any rubber feet from the bottom of the YCS 100.

3. Secure the YCS to one side of the mounting bracket,

using two of the supplied 4-40 x 3/16" screws in opposite (diagonal) corners.

4. Using the two included tie wraps, strap the YCS power

supply to the PMK 350 bracket.

5. Place the bracket around the projector ceiling mounting pole as shown in ﬁ gure 2-10.

6. Place the rubberized contoured base against the pole and opposite the back plate. The pole should ﬁ t snugly into the depression in the center of the contoured base.

YCS 100 • Installation and Operation

Installation and Operation, cont’d

2-12

YCS 100 • Installation and Operation

2-13

Power connector — Plug the external 12 VDC power supply

into this 2-pin, 3.5 mm captive screw connector.

Wiring the Power Connector

To wire the connector for the external power supply,

1. Cut the DC output cord to the length needed.

2. Strip the jacket to expose 0.2 inches (5 mm) of the

conductors.

Exposing more than 0.2" (5 mm) of the copper

wires could allow the stripped wires to touch each other, causing a short circuit. This could result in the external DC power supply overheating and/or burning.

Stripping the wires to expose less than the recommended amount may cause them to slide out of the connector too easily, even if they are tightly pinched by the captive screws.

3. Slide the leads into the supplied 2-pin captive screw plug

and secure them, using an Extron Tweeker or other small screwdriver.

4. Use the supplied tie wrap to strap the power cord to the

extended tail of the connector.

5. To verify the power cord’s polarity before connecting

it, plug in the power supply with no load and check the output with a voltmeter.

Figure 2-12 shows how to wire the connector.

Power Supply

Output Cord

Orange Captive Screw

Connector

0.2” (5 mm) MAX

SECTION A–A

Ridges

Smooth

Tie Wrap

Figure 2-12 — Power connector wiring

10. Secure the L-shaped bracket to the square U-bolt using the included hex nuts, washers, and lock washers. Tighten the hex nuts securely.

Be sure to tighten the hex nuts securely enough that the

PMK 350 does not slide down the ceiling pole. A socket wrench is recommended to tighten the hex nuts.

11. Secure the front panel to the mounting tray with four of the included #6 screws.

12. If desired, choose one of the provided four sizes of selfadhesive cover sheets, and apply it to the underside of the mounting tray.

Rear Panel

DECODER

LOOP LOOPOUTOUT

ENCODER

YCS 100

IN IN

12V

0.3A MAX

3574

Figure 2-11 — YCS 100 rear panel

The YCS 100 rear panel contains the following features:

Input composite video connector (decoder) — Connect a

composite video input source to this BNC connector.

Input S-video connector (encoder) — Connect an S-video input

source to this 4-pin mini-DIN connector.

S-video loop-through connector (encoder) — Connect a

monitor or other deviceto this 4-pin mini-DIN loop-through connector.

Composite video output connector (encoder) — Connect a

composite video display device to this BNC connector.

S-video output connector (decoder) — Connect an S-video

display device to this female 4-pin mini-DIN connector.

Composite video loop-through connector (decoder) — Connect

a monitor or other device to this BNC loop-through connector.

YCS 100 • Installation and Operation

Installation and Operation, cont’d

2-14

YCS 100 • Installation and Operation

2-15

Your YCS may have been shipped with a blue captive

screw connector. This blue connector can be plugged into either a blue or an orange power receptacle.

The blue connector does not have the extended tail or the included tie-wrap.

Do not tin the stripped power supply leads before

attaching the captive screw plug to them. Tinned wires are not as secure in the captive screw connectors and can be easily pulled out. They may also break after being bent several times.

Front Panel

YCS 100

VIDEO DECODER/ENCODER

Figure 2-13 — YCS 100 front panel

The YCS 100 front panel contains the following:

Power LED indicator — This green LED lights when the

YCS 100 is receiving power.

Operation

When the transcoder, input sources, and display devices are powered up, the system is fully operational. During YCS 100 operation, one or both of the following takes place:

The YCS 100 digital decoder accepts a composite video signal and separates it into Y (luma) and C (chroma), converting the signal to output S-video, while also passing an unconverted signal to a composite video monitor attached to the video loop-through BNC connector.

The YCS 100 analog encoder accepts an S-video signal and converts it to composite video while also passing an unconverted signal to an S-video monitor connected to the S-video mini DIN loop-through connector.

If problems are encountered, ensure that all cables are routed and connected properly.

•

Troubleshooting

Possible problems and their solutions include the following:

Problem: No power at unit

Solution: Verify that the unit is receiving power by checking the

front panel LED. If the LED is not lit, check the DC power plug termination and polarity.

Problem: No video input

Solution: Verify that the source and output devices are powered

on and connected properly.

Problem: Black and white image ﬂ ashes or scrolls rapidly

Cause: When a black and white signal is used without a

colorburst signal, the output image may not sync correctly, causing continual ﬂ ashing and rapid scrolling of the black and white image.

Solution: Close (enable) the jumper located at CR8 on the

YCS 100 internal board. This corrects the black and white picture settings for NTSC and PAL standards.

When you are not using a black and white signal, set the

jumper back to the open position (the default).

Follow these steps to enable the jumper:

1. Disconnect all power to the YCS and any attached devices.

If the YCS is mounted, remove it from its mounting.

2. Remove the YCS cover by removing the two screws on

each side and lifting the cover up and off.

Lift cover straight up.

Remove (4) screws from sides.

Figure 2-14 — Removing the cover of the YCS 100

3. Locate the two-pronged CR8 jumper near the center back

of the YCS board. (See the photograph below.)

YCS 100 • Installation and Operation

Installation and Operation, cont’d

2-16

YCS 100

Figure 2-15 — Jumper on YCS 100 internal board

When the YCS is delivered from the factory, a shunt is

attached to one prong of the jumper. This shunt is used to enable the jumper in step 4.

4. Enable (close) the CR8 jumper by placing the shunt on both prongs, as shown below.

Open Closed

Figure 2-16 — Enabling the CR8 jumper

5. Replace the YCS cover, using the screws that you removed.

6. Connect and power on all attached devices, then power on

the YCS 100.

Appendix A

Speciﬁ cations, Part Numbers,

and Accessories

Speciﬁ cations

Included Parts

Accessories

YCS 100 • Speciﬁ cations, Part Numbers, and Accessories

Speciﬁ cations, Part Numbers, and Accessories

YCS 100 • Speciﬁ cations, Part Numbers, and Accessories

A-2 A-3

Nominal level ................................ 1 Vp-p for composite video (including

sync)

Minimum/maximum levels ........ Analog: 0.3 V to 1.5 Vp-p for composite

video with no offset at unity gain

Impedance ..................................... 75 ohms

Return loss ..................................... -34 dB for composite video @ 5 MHz

Input coupling ............................... Decoder input: AC coupled

Loop-through input: DC coupled

Video — decoder portion

Gain ................................................ Unity

Standards ........................................ NTSC 3.58, NTSC 4.43, PAL (B, G, H,

I, D, N), SECAM (B, G, H, D, K, K1, L);

autodetected

Video processing — decoder portion

Signal processing type .................. Digital decoding

Digital sampling ............................ 10 bits per color, 30 bits total; 14.3 MHz

sampling frequency

Colors .............................................. 1 billion

Decoder type .................................. Adaptive 2D, 5-line digital comb ﬁ lter

Video output — decoder portion

Number/signal type ..................... 1 S-video

Connectors ..................................... 2 female BNC and/or 1 female 4-pin mini

DIN for S-video

Nominal level ................................ 1 Vp-p for Y of S-video (including sync)

0.3 Vp-p for C of S-video

Minimum/maximum levels ........ 0.3 V to 1.5 Vp-p for Y, follows input

Impedance ..................................... 75 ohms

Return loss ..................................... -40 dB @ 3.58 MHz

DC offset ........................................ Y: ±300 mV with input at 0 offset

C: ±600 mV

General

External power supply ................. 100 VAC to 240 VAC, 50/60 Hz, external,

autoswitchable; to 12 VDC, 1 A max.,

regulated

Power input requirements ........... 12 VDC, 0.3 A

Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) /

10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) /

10% to 90%, noncondensing

Speciﬁ cations

The YCS 100 includes a built-in S-video decoder and a composite video encoder. The encoder portion and the decoder portion are independent and may be used simultaneously.

Video — encoder portion

Gain ................................................ Unity

Standards ........................................ NTSC 3.58, NTSC 4.43, PAL (B, G, H, I,

D, N, M), SECAM (B, G, H, D, K, K1, L); autodetected

Video input and loop-through — encoder portion

Number/signal type ..................... 1 S-video, 1 S-video loop-through

Connectors ..................................... 1 female 4-pin mini DIN (input), 1 female

4-pin mini DIN (loop-through)

Nominal level ................................ 1 Vp-p for Y of S-video (including sync)

0.3 Vp-p for C of S-video

Minimum/maximum levels ........ Analog: 0.3 V to 1.5 Vp-p for Y with no

offset at unity gain

Impedance ..................................... 75 ohms

Return loss ..................................... -27 dB for Y, -31 dB for C @ 5 MHz

Input coupling ............................... AC coupled

Video processing— encoder portion

Signal processing type .................. Analog encoding

Video output — encoder portion

Number/signal type ..................... 1 composite video

Connectors ..................................... 1 female BNC for composite video

Nominal level ................................ 1 Vp-p for composite video

Minimum/maximum levels ........ 0.3 V to 1.5 Vp-p for composite video,

follows input

Impedance ..................................... 75 ohms

Return loss ..................................... -40 dB @ 3.58 MHz

DC offset ........................................ ±300 mV with input at 0 offset

Video input and loop-through — decoder portion

Number/signal type ..................... 1 composite video input, 1 composite

video loop-through

Connectors ..................................... 1 female BNC (input), 1 female BNC

(loop-through)

YCS 100 • Speciﬁ cations, Part Numbers, and Accessories

Speciﬁ cations, Part Numbers, Accessories, cont’d

YCS 100 • Speciﬁ cations, Part Numbers, and Accessories

A-4 A-5

Included Parts

These items are included in each order for a YCS 100:

Included parts Part numbers

to reorder

YCS 100 transcoder 60-323-10 12 VDC, 1A external power supply

with U. S. style power cord 70-055-01

2-pin captive screw power plug

YCS 100 User's Manual

Rubber feet, self-adhesive (4, not attached) Tweeker (small screwdriver)

Accessories

These items are optional and may be ordered separately:

Accessories Part numbers

RSU 129 1U 9.5" Deep Universal rack shelf 60-190-01 RSB 129 1U 9.5" Deep Basic rack shelf 60-604-01 RSU 126 1U 6" Deep Universal rack shelf 60-190-10 RSB 126 1U 6" Deep Basic rack shelf 60-604-10 RSF 123 1U 3.5" Deep VersaTools

rack shelf 60-190-20

RSB 123 1U 3.5" Deep VersaTools

rack shelf 60-604-20 MBB 100 Back of the rack mounting kit 70-367-01 MBU 123 Under-desk mounting bracket kit 70-212-01 PMK 100 Mini Projector Mounting Kit 70-217-01 PMK 300 Multi-Product Projector Mounting

Kit 70-374-01

PMK 350 Low Proﬁ le Projector Mounting

Kit 70-563-02, -03 Mini HR cables 26-260-xx S-video cables 26-316-xx S-video adapters: SVHSM-BNCF, 8” (0.2 m) 26-353-01

Rack mount .................................... Yes, with optional 1U rack shelf, part

#60-190-01 or 60-604-01; 1U, 6” deep rack shelf, part #60-190-10 or 60-604-10; or VersaTools

rack shelf, part #60-190-20 or

60-604-20. Above-projector mountable with the

optional PMK 100 Mini Projector Mount Kit (#70-217-01), the PMK 300 MultiProduct Projector Mount Kit (#70-374-01), or the PMK 350 Low Proﬁ le Projector

Mount Kit (#70-563-03).

Enclosure type .............................. Metal

Enclosure dimensions .................. 1.7” H x 4.3” W x 3.0” D

(1U high, quarter rack wide)

4.3 cm H x 10.9 cm W x 7.6 cm D

(Depth excludes connectors.)

Product weight .............................. 0.4 lbs (0.2 kg)

Shipping weight ........................... 3 lbs (2 kg)

Vibration ........................................ ISTA 1A in carton (International Safe

Transit Association)

Listings............................................ UL, CUL

Compliances ................................... CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF ............................................... 30,000 hours

Warranty ........................................ 3 years parts and labor

All nominal levels are at ±10%.

Speciﬁ cations are subject to change without notice.

YCS 100 • Speciﬁ cations, Part Numbers, and Accessories

Speciﬁ cations, Part Numbers, Accessories, cont’d

A-6

Extron electronics YCS 100 User Manual
