Extron electronics Video and Audio Line Drivers with Gain and EquaLization CVEQ 100 D, SVEQ 100 D Specifications

Line Drivers

CVEQ 100 D

SVEQ 100 D

video and audio line drivers with

gain and equalization - decora® wallplates

n Drives composite video or S-video up

to 1,000 feet (300 meters) on Extron
RG59 or equivalent cable

n Drives audio up to 1,000 feet

(300 meters) on Extron Shielded
Twisted Pair or equivalent cable

n Independent video gain and EQ

adjustment

n Selectable mono or stereo

audio output

n Active audio buffering

n Quad standard for worldwide

compatibility

n Mounted in included Decora-style

wall plate

CVEQ 100 D SVEQ 100 D

The Extron CVEQ 100 D and SVEQ 100 D are high performance one input, one

output video and audio line drivers. They are capable of driving composite video

or S-video and audio signals 1,000 feet (300 meters). The CVEQ 100 D and SVEQ

100 D are housed in Decora-style wall plates that are suited for permanent, in-wall

installations in auditoriums, boardrooms, lecture halls, and other applications where

video signals must be routed over long distances.

www.extron.com

DesCrIPtION

P

O

W

E

R

O

U

T

P

U

T

S

4

/

8

Oh

ms

I

NP

UT

S

L

R

L

R

R

E

M

O

T

E

1

0

V

V

O

L/

M

UT

E

L

M

P

A

1

2

2

R

C

U

S

Ext ron
MPA 122

Mini Power
Ampli er

Ext ron
SI 26X

Two-way Ceili ng
Speake rs

Projec tor

VCR

Extron
CVEQ 100 D

Composite Line Driver

Compos ite
Video

V

I

D

E

O

I

N

A

U

D

I

O

I

N

L

R

Audio

DVD

Projec tor

Extron
SVEQ 100 D

S-Video Line Driver

Audio

S-Video

S

-

V

I

DE

O

IN

L

R

A

U

D

IO

I

N

P

O

W

E

R

O

U

T

P

U

T

S

4/8

O

h

ms

I

N

P

U

T

S

L

R

L

R

R

EM

O

TE

1

0

V

V

O

L

/

M

U

TE

L

M

P

A

1

2

2

R

C

U

S

Ext ron
MPA 122

Mini Power
Ampli er

Ext ron
SI 26X

Two-way Ceili ng
Speake rs

Features

The CVEQ 100 D and SVEQ 100 D are one input, one output,

n Long distance line driver – Drives video and audio signals up to
high-performance line drivers for composite video and S-video,
respectively, and stereo audio. They are ideal for permanent, in-wall
installations in auditoriums, boardrooms, lecture halls, and other
applications where video signals must be routed over long distances.

The CVEQ 100 D and SVEQ 100 D feature independent gain and EQ
adjustments, which compensate for signal losses due to long cable

n Adjustable video gain control – Compensates for signal voltage

n Selectable Mono and Stereo Audio Output – Either stereo or

runs, and offer optimum signal quality regardless of cable length. The
gain control allows for brightness adjustment by varying the overall

n Adjustable Video EQ control – Compensates for loss of sharpness

voltage of the signal. With the SVEQ 100 D, gain for the luminance
and chrominance channels is separately controlled. The EQ control
helps maintain sharpness and high frequency detail.

Both products feature active audio buffering-which converts

n Active Audio Buffering – Converts unbalanced audio signals to

n Mounts in an included Decora-style wall plate

unbalanced audio signals to balanced line level and simplifies
integration of consumer-grade A/V products in commercial or

n External, international power supply – Provides worldwide

professional-grade systems. Balanced audio signals are less susceptible
to noise, and due to the inherent +6 dB signal gain, allow for cable
runs up to 1,000 feet (300 meters).

I/O Connectivity

The CVEQ 100 D and SVEQ 100 D come standard with both black
and white face plates and trim plates.

1000 feet (300 meters) over standard coax and shielded twisted
pair cables.

losses due to cable resistance.

dual mono may be selected.

and high frequency detail due to cable capacitance.

balanced line level signals.

power compatibility.

MODEL INPUTS OUTPUTS

Video Audio Video Audio

CVEQ 100 D

SVEQ 100 D

Composite RCA (1) Unbal. RCA (2) Composite BNC (1)

S-video 4-pin mini

DIN (1)

Unbal. RCA (2) S-Video BNC (2)

Bal./Unbal.

3.5 mm captive screw (1)

Bal./Unbal.

3.5 mm captive screw (1)

aPPlICatION DIagrams

sPeCIFICatIONs

Video

Gain ................................................... Composite video and Y of S-video: -1 dB to +3

Equalization ........................................ 0 dB to +7 dB (x1 to x2) at 5 MHz, adjustable

Bandwidth (Y of S-video) .................... 185 MHz (-3 dB)

Output cable driving distance ............. Up to 1000’ (300 m) with Extron MHR cable

dB (x0.9 to x1.4), adjustable C of S-video: 0dB
to +10 dB (x1 to x3), adjustable

Video input

Number/signal type

CVEQ 100 D ....................................

SVEQ 100 D .....................................

Connectors

CVEQ 100 D ....................................

SVEQ 100 D ..................................... 1 female 4-pin mini DIN

Nominal level ...................................... 1 Vp-p for Y of S-video, and for composite

Minimum/maximum levels

CVEQ 100 D .................................... 0.4 to 2.0 Vp-p with no offset at unity gain

SVEQ 100 D ..................................... For Y: 0.4 to 2.0 Vp-p with no offset at

Impedance ......................................... 75 ohms

Return loss ......................................... <-25 dB @ 0 to 5 MHz

DC offset (max. allowable) .................. 4.0 V

Input coupling .................................... AC

1 composite video
1 S-video

1 female RCA

video (including sync)

0.3 Vp-p for C of S-video

unity gain

Video output

Number/signal type

CVEQ 100 D .................................... 1 composite video

SVEQ 100 D ..................................... 1 S-video

Connectors

CVEQ 100 D ....................................

SVEQ 100 D ..................................... 2 female BNC

Nominal level ...................................... 1 Vp-p for Y of S-video, and for composite

Minimum/maximum levels ................. 0.4 to 2.0 Vp-p (follows input)

Impedance ......................................... 75 ohms

Return loss ......................................... -30 dB @ 5 MHz

DC offset ............................................ ±5 mV with no input signal

Floating: +0.1 to -0.6 V, depending on input signal content

1 female BNC

video (including sync)

0.3 Vp-p for C of S-video

Nominal level ..................................... -10 dBV (316 mVrms), unbalanced; -2 dBu

Maximum level ................................... +8 dBV (2.5 V) unbalanced, +14 dBu (5.6 V

(632 mV), balanced output

balanced at 1% THD+N with a 10k ohm load

GenerAl

External power supply ......................... 100 VAC to 240 VAC, 50/60 Hz, external,

Power input requirements ................... 12 VDC, 0.2 A

Temperature/humidity ........................ Storage: -40 to +158 °F (-40 to +70 °C) / 10%

Cooling ............................................... Convection, unvented

Rack mount ........................................ No, but wall- and furniture mountable.

Enclosure type .................................... Metal rear enclosure, plastic faceplate

Enclosure dimensions

Faceplate ......................................... 2.6" H* x 1.3" W x 0.1" D (6.6 cm H* x 3.3 cm

Device ............................................ 2.7" H x 1.8" W x 0.75" D (6.9 cm H x

Product weight ................................... 0.2 lbs (0.1 kg)

Shipping weight ................................. 2 lbs (1 kg)

Vibration ............................................ ISTA 1A in carton

Listings ............................................... UL, CUL

Compliances ....................................... CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF .................................................. 30,000 hours

Warranty ............................................ 3 years parts and labor

NOTE: All nominal levels are at ±10%.

Model Version Description Part Number

CVEQ 100 D

SVEQ 100 D S-video and Audio Line Driver - Decora.. ............ 60-868-01

Video and Audio Line Driver - Decora ...................

autoswitchable; to 12 VDC, 1 A, regulated

to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10%
to 90%, noncondensing

W x 0.3 cm D) (Fits the opening in a 1 gang
Decora faceplate. *Height is 3.8" [9.7 cm]
including mounting tabs.)

4.6 cm W x 1.9 cm D) (Depth excludes
connectors, height excludes mounting tabs.)

(International Safe Transit Association)

60-867-01

Sync

Standards ............................................ NTSC 3.58, NTSC 4.43, PAL, SECAM

Audio

Gain ................................................... Unbal. output: 0 dB; bal. output: +6 dB

Frequency response ........................... 20 Hz to 20 kHz, +0.05 dB, -0.0 dB

THD + Noise ...................................... 0.015% @ 1 kHz at nominal level

S/N ................................................... >100 dB at maximum output (unweighted)

Stereo channel separation .................. >80 dB @ 1 kHz

Output cable driving distance ............. Up to 1000’ (300 m) with Extron

RG-6 SHR cable

Audio input

Number/signal type ............................ 1 stereo, unbalanced

Connectors ........................................ 2 RCA female

Impedance ......................................... 20k ohms unbalanced, DC coupled

Nominal level ...................................... -10 dBV (316 mVrms)

Maximum level .................................. +8 dBV (2.5 V), unbalanced at 1% THD+N

NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Audio output

Number/signal type ............................ 1 stereo or dual mono (switch-selectable),

balanced/unbalanced

Connectors ........................................ (1) 3.5 mm captive screw connector, 5 pole

Impedance ......................................... 50 ohms unbalanced, 100 ohms balanced

Specifications are subject to change without notice.

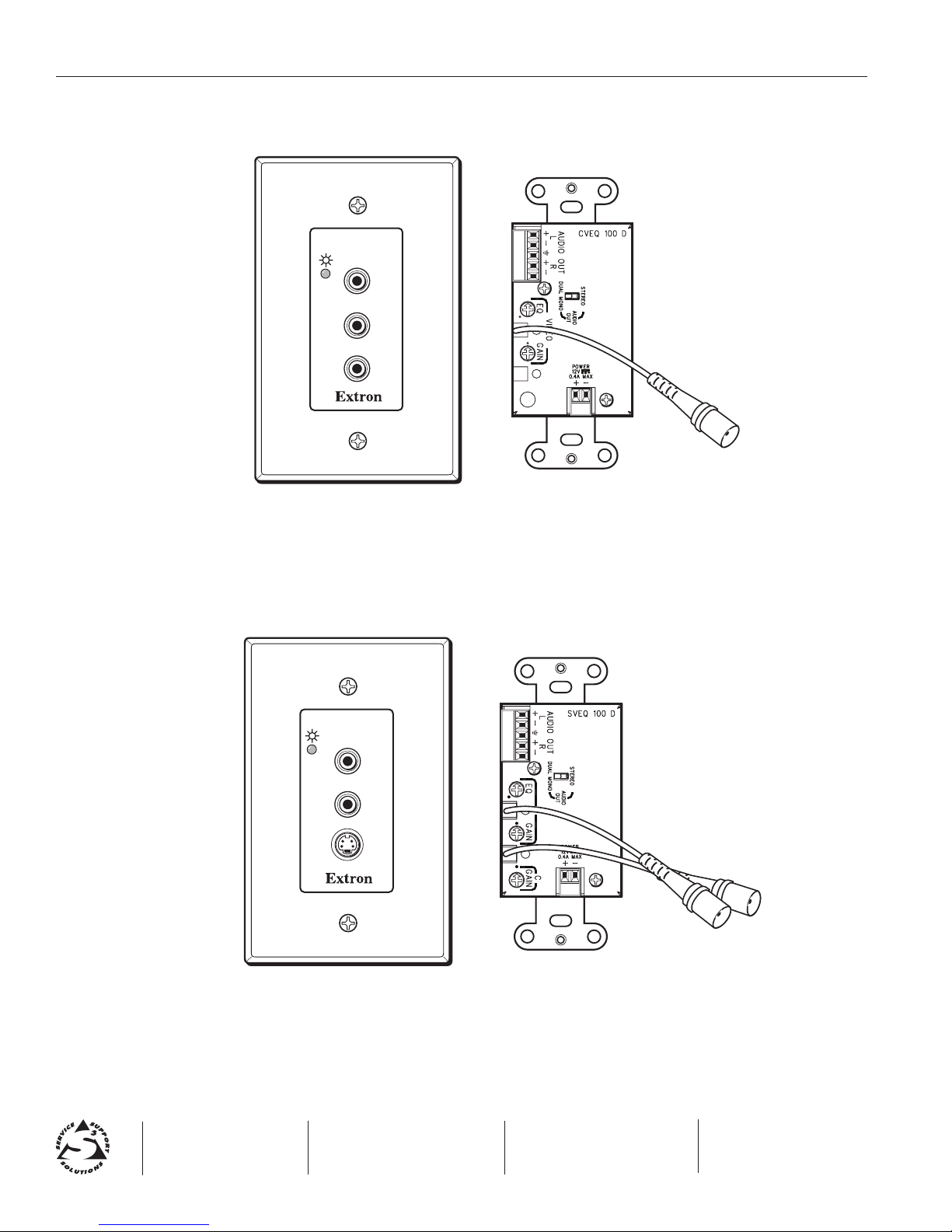

PaNel DrawINgs

Extron Electronics, Europe

Beeldschermweg 6C, 3821 AH Amersfoort
The Netherlands
+800.3987.6673 +31.33.453.4040
FAX [phone]

Extron Electronics, Asia

135 Joo Seng Rd. #04-01
PM Industrial Bldg.
Singapore 368363
+65.6383.4400 FAX [phone]

Extron Electronics, Japan

Kyodo Building, 16 Ichibancho
Chiyoda-ku, Tokyo 102-0082
Japan
+81.3.3511.7655 FAX [phone]

Extron Electronics, USA

1230 South Lewis Street
Anaheim, CA 92805

800.633.9876 714.491.1500
FAX [phone]

S-VIDEO

IN

AUDIO IN

L

R

VIDEO IN

L

R

AUDIO IN

CVEQ 100 D - Front

CVEQ 100 D - Back

SVEQ 100 D - Front

© 2007 Extron Electronics. All rights reserved. All trademarks mentioned are the property of their respective owners.

SVEQ 100 D - Back

07-05
68-1418-01
REV. A
