TP T Series Transmitters
TP T 15 HD A
TP T 15 HD AV
TP T BNC DA4
Audio/Video Twisted Pair Cable Transmitters
68-546-03 Rev. H
12 09
Precautions
Safety Instructions • English
This symbol is intended to alert the user of important operating and maintenance
(servicing) instructions in the literature provided with the equipment.
This symbol is intended to alert the user of the presence of uninsulated dangerous
voltage within the product’s enclosure that may present a risk of electric shock.
Caution
Read Instructions • Read and understand all safety and operating instructions before using the equipment.
Retain Instructions • The safety instructions should be kept for future reference.
Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user
information.
Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment
manufacturer because they may be hazardous.
Consignes de Sécurité • Français
Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel
contient des instructions importantes concernant l’exploitation et la maintenance
(réparation).
Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil
de tensions dangereuses non isolées posant des risques d’électrocution.
Attention
Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant
d’utiliser le matériel.
Conserver les instructions• Ranger les consignes de sécurité afin de pouvoir les consulter à l’avenir.
Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou
présentés dans la documentation utilisateur.
Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni d’outils non recommandés par le
fabricant du matériel car cela risquerait de poser certains dangers.
Sicherheitsanleitungen • Deutsch
Dies es Symbol soll dem Benut zer in der im Liefer umfang ent haltenen
Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung
(Instandhaltung) geben.
Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des
Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und
die einen elektrischen Schock verursachen können, herrschen.
Achtung
Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und
Bedienungsanleitungen genau durchlesen und verstehen.
Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie
aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.
Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in der
Benutzerdokumentation.
Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom
Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.
Warning
Power sources • This equipment should be operated only from the power source indicated on the product. This
equipment is intended to be used with a main power system with a grounded (neutral) conductor. The
third (grounding) pin is a safety feature, do not attempt to bypass or disable it.
Power disconnection • To remove power from the equipment safely, remove all power cords from the rear of
the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall
plug).
Power cord protection • Power cords should be routed so that they are not likely to be stepped on or pinched by
items placed upon or against them.
Servicing • Refer all servicing to qualified service personnel. There are no user-serviceable parts inside. To
prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing
covers may expose you to dangerous voltage or other hazards.
Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to prevent
overheating of sensitive components inside. These openings must never be blocked by other objects.
Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only with the
same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer’s instructions.
Avertissement
Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur l’appareil. Ce
matériel doit être utilisé avec une alimentation principale comportant un fil de terre (neutre). Le troisième
contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la
désactiver.
Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous les cordons
d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou
encore de la prise secteur.
Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que personne ne
risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.
Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un technicien
qualifié. Aucun des éléments internes ne peut être réparé par l’utilisateur. Afin d’éviter tout danger
d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le
retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.
Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices, ceux-ci servent à empêcher
les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des
objets.
Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie. Remplacer uniquement
avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les
batteries usagees conformement aux instructions du fabricant.
Vorsicht
Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben werden.
Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen)
Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese
sollte nicht umgangen oder außer Betrieb gesetzt werden.
Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle Netzkabel
aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der
Wandsteckdose ziehen.
Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und niemand
darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.
Wartung • Alle Wartungsmaßnahmen sollten nur von qualifiziertem Servicepersonal durchgeführt werden.
Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks
versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr
eines elektrischen Schlags und/oder andere Gefahren bestehen.
Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese zur
Vermeidung einer Überhitzung der empfindlichen Teile im Inneren. Diese Öffnungen dürfen niemals von
anderen Objekten blockiert werden.
Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie verbrauchte
Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller
empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.
Instrucciones de seguridad • Español
Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes
de operación y mantenimiento (o cambio de partes) que se desean destacar en el
contenido de la documentación suministrada con los equipos.
Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con
voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja
o alojamiento del producto, y que puedan representar riesgo de electrocución.
Precaucion
Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar el
equipo.
Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta.
Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la
documentación del usuario, deben ser obedecidas.
Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especificamente recomendados
por el fabricante, ya que podrian implicar riesgos.
安全须知 • 中文
这个符号提示用户该设备用户手册中有重要的操作和维护说明。
这个符号警告用户该设备机壳内有暴露的危险电压，有触电危险。
注意
阅读说明书 • 用户使用该设备前必须阅读并理解所有安全和 使用说明。
保存说明书 • 用户应保存安 全说明书以备将来使用。
遵守警告 • 用户应遵守产品和用户指南上的所有安全和操作说明。
避免追加 • 不要使用该产品厂商没有推荐的工具或追 加设备，以避免危险。
Advertencia
Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación eléctrica
indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución
general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no
puentearia ni eliminaria.
Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de alimentación eléctrica
al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el
módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.
Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en lugares donde
no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.
Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal calificado. En el interior no
hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente
la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a
voltajes peligrosos u otros riesgos.
Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento, es para evitar el
sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros
objetos.
Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar esta
batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las
baterías usadas siguiendo las instrucciones del fabricante.
警告
电源 • 该设备只能使用产品上标明的电源。 设备必须使用有地线的供电系统供电。 第三条线
（地线）是 安全设施，不能不用或跳过 。
拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后或桌面电源的电源 线，或任何接到市
电系统的电源线。
电源线保护 • 妥善布线， 避免被 踩踏，或重物挤压。
维护 • 所有维修必须由认证的维修人员进行。 设备内部没有用户可以更换的零件。为避免出
现触电危险不要自己试图打开设备盖子 维修该设备。
通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止机内敏感元件过热。 不要用任何 东
西挡住通风 孔。
锂电池 • 不正确的更换电池会有爆炸的危险。必须使用与厂家推荐的相同或 相近型号的电池。
按照生产厂的建议处 理废弃电池。
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired
operation.
The Class A limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be required to correct the interference at his
own expense.
N
This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the
unit to ensure compliance with FCC emissions limits.
PRELIMINARY
TP T Series Transmitters
PRELIMINARY
TP T Series Transmitters
Table of Contents
Chapter One • Introduction ......................................................................................................1-1
About this Manual .....................................................................................................................1-2
About the TP T Series Transmitters .................................................................................1-2
Recommended transmission distances ..................................................................................1-2
Features ............................................................................................................................................1-3
All TP T Series transmitters ...................................................................................................... 1-3
TP T 15HD A transmitter .......................................................................................................... 1-3
TP T 15HD AV transmitter ........................................................................................................1-4
TP T BNC DA4 transmitter/distribution amplifier ................................................................. 1-4
Compatibility between products ............................................................................................ 1-4
Chapter Two • Installation ........................................................................................................ 2-1
Installation .....................................................................................................................................2-2
Overview ....................................................................................................................................2-2
Configuring video jumpers for component, S-video, and composite video ....................2-3
Setting audio jumpers for use with unmodified receivers .................................................2-4
Mounting the transmitters ......................................................................................................2-5
Tabletop use .........................................................................................................................2-5
Rack mounting.....................................................................................................................2-5
UL rack mounting guidelines ........................................................................................2-5
Rack mounting procedure ............................................................................................. 2-5
Under-desk mounting .........................................................................................................2-6
Through-desk mounting .....................................................................................................2-7
Grounding the transmitter ......................................................................................................2-8
Connectors and Cabling on the Front and Rear Panels ......................................2-9
Terminating TP cable ......................................................................................................... 2-12
Testing the cables .............................................................................................................. 2-12
Equalizing pair skew .........................................................................................................2-12
Power connector ..................................................................................................................... 2-13
Controls and Indicators on the Front and Rear Panels .....................................2-14
Troubleshooting ........................................................................................................................2-15
If the image does not appear ................................................................................................2-15
If the image is not displayed correctly ................................................................................. 2-16
If the receiver’s Manual/Auto LED flashes ...........................................................................2-16
If the actions described above do not solve the problem ................................................. 2-16
Appendix A • Specifications, Part Numbers, and Accessories ..................... A-1
Specifications .............................................................................................................................. A-2
Part Numbers ............................................................................................................................... A-4
Included parts ........................................................................................................................... A-4
Accessories ................................................................................................................................ A-4
Cables and adapters ................................................................................................................ A-5
All trademarks mentioned in this manual are the properties of their respective owners.
PRELIMINARY
TP T Series Transmitters • Table of Contents
i
Table of Contents, cont’d
PRELIMINARY
ii
TP T Series Transmitters • Table of Contents
TP T Series Transmitters
Chapter One
1
Introduction
About this Manual
About the TP T Series Transmitters
Features
PRELIMINARY
Introduction
About this Manual
This manual describes the procedures for installing and using the Extron TP Series
transmitters, including the TP T 15HD A, TP T 15HD AV, and TP T BNC DA4. The
terms “TP T transmitter” and “transmitter” are used interchangeably throughout
this manual to refer to these three products generically.
About the TP T Series Transmitters
The Extron Twisted Pair (TP) series transmitters provide long-distance distribution
of RGB video, component video, S-video, composite video, and stereo audio
over Extron’s Enhanced Skew-Free™ A/V UTP cable (recommended) or standard
Category (CAT) 5/5e/6 unshielded twisted pair (UTP), shielded twisted pair (STP),
or foil shielded twisted pair (FTP) cable.
PRELIMINARY
N
The TP T Series transmitters are designed for and perform best with Extron
Enhanced Skew-Free cable.
Recommended transmission distances
The minimum reliable transmission distance to all receivers, with the exception of
the TP R 15HD A, is 25 feet (7.6 m). There is no minimum distance for transmission
to the TP R 15HD A.
The maximum distance is determined by the output frequency and resolution. The
following tables specify the recommended maximum transmission distances from
a TP T transmitter to an Extron TP R series receiver, using Extron Skew-Free A/V
UTP cable or UTP CAT 5 cable terminated with CAT 5e or CAT 6 rated connectors.
N
TP T Series transmitter to TP R 15HD A receiver using CAT 5/5e/6 or
Enhanced Skew-Free cable at 60 Hz
Extron recommends using the highest quality cable available and affordable.
Use of pre-terminated and tested cables is also recommended. Cables terminated
on site should be tested before use to ensure that they comply with Category 5e
specifications.
Video format
Component video 700' (213 m) 800' (245 m)
Composite video 700' (213 m) 800' (245 m)
S-video 700' (213 m) 800' (245 m)
640 x 480 500' (150 m) 550' (165 m)
800 x 600 400' (120 m) 450' (135 m)
1024 x 768 300' (90 m) 400' (120 m)
1280 x 960 300' (90 m) 350' (105 m)
1280 x 1024 250' (75 m) 300' (90 m)
1360 x 765 250' (75 m) 300' (90 m)
1365 x 768 250' (75 m) 300' (90 m)
1366 x 768 250' (75 m) 300' (90 m)
1440 x 900 250' (75 m) 300' (90 m)
1400 x 1050 250' (75 m) 300' (90 m)
1600 x 1200 200' (60 m) 250' (75 m)
1920 x 1200 200' (60 m) 250' (75 m)
Maximum distance,
high quality
Maximum distance,
variable quality
1-2
TP T Series Transmitters • Introduction
TP T Series transmitter to TP R BNC A and TP R BNC A AV receivers
using CAT 5/5e/6 or Enhanced Skew-Free cable at 60 Hz
Video format
Component video 1000' (300 m) 1050' (320 m)
Composite video 1000' (300 m) 1050' (320 m)
S-video 1000' (300 m) 1050' (320 m)
640 x 480 1000' (300 m) 1050' (320 m)
800 x 600 800' (245 m) 900' (275 m)
1024 x 768 600' (185 m) 700' (215 m)
1280 x 960 450' (135 m) 600' (185 m)
1280 x 1024 400' (120 m) 500' (150 m)
1360 x 765 400' (120 m) 500' (150 m)
1365 x 768 400' (120 m) 500' (150 m)
1366 x 768 400' (120 m) 500' (150 m)
1440 x 900 350' (105 m) 450' (135 m)
1400 x 1050 350' (105 m) 450' (135 m)
1600 x 1200 300' (90 m) 400' (120 m)
1920 x 1200 300' (90 m) 400' (120 m)
Maximum distance,
high quality
Maximum distance, variable
quality
N
Each transmitted TP signal must be connected to the appropriate Extron TP
receiver. This user’s manual documents the installation, features, and operation
of the TP transmitters only. For information about the TP receivers, refer to the TP
Receivers Family User’s Manual.
It is possible to exceed the recommended distances; however, image quality may
be degraded.
Features
All TP T Series transmitters
Frequency range — Support 15 kHz to 130 kHz horizontal frequency.
Transmission distance — Transmit signals up to 1,000 feet (300 m) or more over CAT 5,
5e, or 6 cable.
Mounting — Can be rack mounted with an Extron twisted pair rack mounting kit
and a 1U, 9.5" or 6" deep rack shelf kit. They can also be furniture mounted with an
under-desk or through-desk mounting kit.
TP T 15HD A transmitter
Video input — Accepts computer analog video on a female 15-pin HD connector.
With an adapter cable, it can accept Macintosh, 13W3 video, RGBHV, RGBS, RGsB,
component video, S-video, or single source composite video input.
N
Buffered local monitor output — Allows you to view the displayed image on a local
monitor that is located up to 100 feet (30 m) from the transmitter, without signal
reflections or crosstalk.

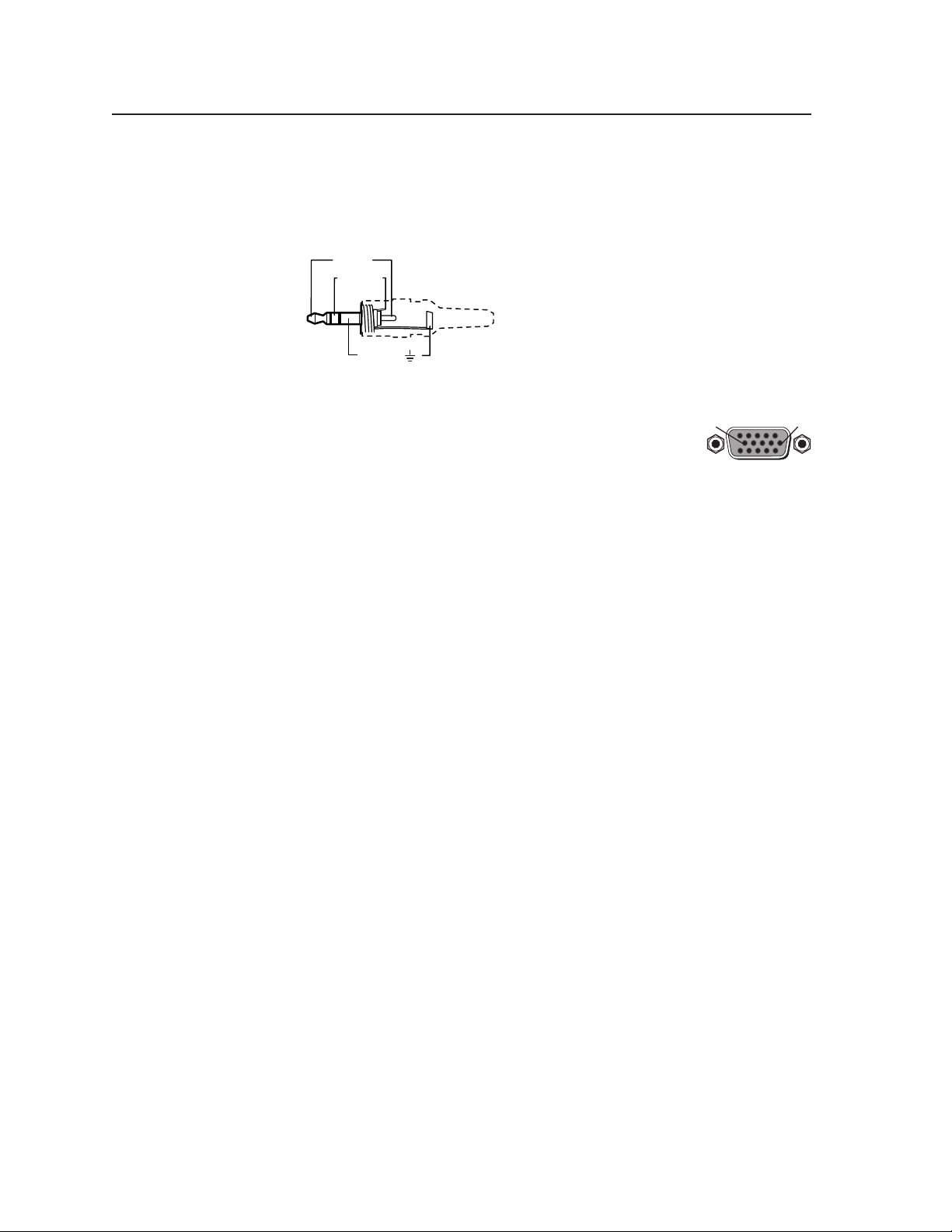

Audio input — Accepts audio on a 3.5 mm stereo mini jack.
Only bi-level sync is supported with component video.
PRELIMINARY
TP T Series Transmitters • Introduction
1-3
PRELIMINARY
Introduction, cont’d
Output — An RJ-45 connector provides a connection to an Extron TP R receiver.
Horizontal shift — Allows you to adjust the horizontal placement of the computer
video image on the screen. This is also called “horizontal centering”.
DDSP™ (Digital Display Sync Processing™) — Allows the sync signal to pass through
without altering sync pulse timing or width.
TP T 15HD AV transmitter
Video inputs —
Computer video — Accepts computer analog video on a female 15-pin HD
connector. With an adapter cable, the transmitter can accept a Macintosh
video, 13W3 video, or RGBHV, RGBS, RGsB, component video, S-video, or
single source composite video input.
N
Composite video — Accepts NTSC, PAL, and SECAM composite video on an RCA
Audio input — Accepts PC audio on a 3.5 mm stereo mini jack, and stereo audio on
Outputs — Two RJ-45 connectors provide connections to a TP RGB video receiver and
a TP composite video receiver:
Buffered local monitor output — Allows you to view the displayed computer
Horizontal shift — Allows you to adjust the horizontal placement of the computer
DDSP™ (Digital Display Sync Processing™) — Allows the sync signal to pass through
without altering sync pulse timing or width.
TP T BNC DA4 transmitter/distribution amplifier
Video input — Accepts RGBHV, RGBS, RGsB, component, and composite video
N
Outputs — Four individually isolated, buffered, and amplified outputs on RJ-45
Only bi-level sync is supported with component video.
jack.
two RCA jacks.
video image on a local monitor that is located up to 100 feet from the
transmitter, without signal reflections or crosstalk.
video image on the screen. This is also called “horizontal centering”.
on BNC connectors. With an adapter cable, the transmitter can also accept an
S-video input.
Only bi-level sync is supported with component video.
connectors allow connection to up to four Extron TP receivers.
1-4
Compatibility between products
The TP T 15HD AV is backward compatible with the TP T 15HD A and the
TP T BNC DA4. However, the TP T 15HD A and the TP T BNC DA4 (products
whose part numbers end in -02) are not forward compatible with the TP T 15HD AV
(whose part number ends in -03).
TP T Series Transmitters • Introduction
TP T Series Transmitters
Chapter Two
2
Installation
Installation
Connections and Cabling on the Front and Rear Panels
Controls and Indicators on the Front and Rear Panels
Troubleshooting
PRELIMINARY
PRELIMINARY
Installation and Operation
Installation
C
Overview
To install and set up a TP transmitter for operation, follow these steps:
1
2
3
N
4
5
6
7
8
N
9
10
Disconnect power from all of the equipment, including the video source(s)
If using component, S-video, or composite video, reconfigure the video
(TP T 15HD AV only) If desired, configure the audio jumpers to make the
Mount the transmitter in a rack, under a desk or podium, or through a desk or
Connect the input cables. See “Connectors and Cabling on the Front and Rear
Connect the output cable(s) from the transmitter to the TP receiver(s). See
Configure the TP receiver(s). Refer to the TP Receivers Family User’s Manual.
Plug the included external 15 VDC power supply into the transmitter’s
TP T 15HD A and TP T 15HD AV: Set the ID Pin 4 and ID Pin 11 DIP switches
TP T 15HD A and TP T 15HD AV: Adjust the horizontal shift control on the
Installation and service must be performed by authorized personnel only.
(such as computers or DVD players), the transmitter, the receiver(s), and the
output display(s).
jumpers as needed. See “Configuring video jumpers for component video,
S-video, and composite video”, on the next page.
transmitter compatible with unmodified TP receivers. See “Setting audio
jumpers for use with unmodified receivers”, later in this chapter.
The TP T 15HD AV is a redesigned (modified) transmitter. The audio jumpers
configure the audio portion of the composite video TP link to work with the
similarly redesigned TP R BNC AV receiver or with older, unmodified receivers.
Redesigned transmitters and receivers have an identifying label.
table as desired. See “Mounting the transmitters”, later in this chapter.
Panels”, later in this chapter.
“Connectors and Cabling on the Front and Rear Panels”, later in this chapter,
and refer to the TP Receivers Family User’s Manual for more information.
three-pole captive screw connector, and power on the video source(s) and the
output display(s).
The transmitters can also receive power from the associated Extron TP
receiver(s) (except from the TP R 15HD A) via the TP cable. Extron
recommends using the local power supply; however, this may not be necessary
for some applications.
• The transmitters may not require a local power supply for cable lengths
of 300’ (91 m) or less.
• Any transmitter connected to a TP R 15HD A receiver always requires
the local power supply.
If you encounter problems, use the local power supply.
on the front panel and the DDSP™ DIP switch on the back panel as desired.
(See the DIP switch descriptions under “Connectors and Cabling on the Front
and Rear Panels”, later in this chapter.)
front panel of the transmitter and receiver(s). See “Controls and Indicators on
the Front and Rear Panels”, later in this chapter, and refer to the TP Receivers
Family User’s Manual.
2-2
TP T Series Transmitters • Installation and Operation
Configuring video jumpers for component, S-video, and
composite video
The TP T Series transmitters are configured at the factory for RGB video. To
transmit component video (bi-level sync only), S-video, or composite video, you
must place the video jumpers on the transmitter’s internal main board as follows:
1. Remove the two screws on each side of the unit and one screw on top.
2. TP T BNC DA4 only: Using an Extron BNC extraction tool (part #100-096-01)
or a 14 mm deep well socket wrench with thin walls, remove the five hex nuts
securing the BNC connectors to the rear panel. (See the illustration below.)
Slide the cover forward until the cover clears the BNC connectors.
3. Slide the cover back until it clears the rear panel connectors, then lift it off.
Slide cover back slightly
H-SHIFT
TP T 15HD A
and lift straight up.
J1
J2
TP T BNC DA4
Remove 5 BNC hex nuts.
Component,
S-video,
RGB
123
Composite
1
1
1
1
123
Pins
1
1
1
1
1
3
2
1
1
1
1
Component,
S-video,
Composite
Pins
1
1
1
1
1
Remove 6
screws.
3
2
RGB
TP T 15HD A
AUDIO
INPUT
ID PIN 4
ID PIN 11
BUFFEREDCOMPUTER
LOCAL MONITOR
J12
J11
U31
TP T BNC DA4 TP T 15HD A and TP T 15HD AV
Configuring video jumpers
4. Locate the appropriate jumpers on the circuit board:
For TP T 15HD A and TP T 15HD AV: J1 and J2
For TP T BNC DA4: J11 and J12
5. Place the jumpers on the pins as follows:
• For RGB video, place the jumper so that it connects pin 2 to pin 3 at both
jumper locations.
• For any other video format, place the jumper so that it connects pin 1 to
pin 2 at both jumper locations.
6. Replace the cover and reinstall the screws.
PRELIMINARY
TP T Series Transmitters • Installation and Operation
2-3
PRELIMINARY
Installation and Operation, cont’d
Setting audio jumpers for use with unmodified receivers
N
N
The audio that is associated with the composite video link of TP T 15HD AV
transmitters is transmitted on wire pair 3 and 6. This configuration is compatible
with redesigned TP receivers and the TPX 88 A.
If you intend to match a TP T 15HD AV transmitter with an older, unmodified TP
receiver, and you do not plan to include a TPX 88 A in your system, you can set the
transmitter to send the audio on wire pair 7 and 8, making it compatible with an
older TP receiver, by shifting internal jumpers as follows:
1. Remove the two screws on each side and the screw on top of the cover.
Older (unmodified) transmitters and receivers are fully compatible with each
other, but not with the TPX 88 A twisted pair matrix switcher.
Redesigned (modified) transmitters and receivers are fully compatible with each
other and with the TPX 88 A.
You can use jumper connections to make redesigned transmitters and receivers
compatible with the unmodified models, but not with the TPX 88 A.
Redesigned (modified) transmitters and receivers have an identifying label.
Slide cover back slightly
and lift straight up.
AUDIO
ID PIN 4
INPUT
TP T 15HD AV
ID PIN 11
LOCAL MONITOR
BUFFEREDCOMPUTER
Remove (5)
Screws
PC
H-SHIFT
VIDEO
TP T 15HD AV
AUDIO
L
R
For wire pair 3 and 6, place
Pins
1
2
1
3
1
J6
2
J7
J6 jumper on pins 2 and 3.
3
For wire pair 7 and 8, place
J7 jumper on pins 1 and 2.
1
J6
J7
2-4
TP T 15HD AV
Configuring audio jumpers
2. Slide the cover back until it clears the rear panel connectors, then lift it off.
3. Locate jumpers J6 and J7 on the printed circuit board.
4. Place the jumpers on the following pins as appropriate:
• For compatibility with redesigned (modified) receivers and the TPX 88 A,
place the jumpers so that they connect pin 1 to pin 2 at both jumper
locations.
• For compatibility with older (unmodified) receivers, place the jumper so
that they connect pin 2 to pin 3 at both jumper locations.
5. Replace the cover and reinstall the screws.
TP T Series Transmitters • Installation and Operation
Mounting the transmitters
The TP T Series transmitters can be set on a table; mounted on a rack shelf; or
mounted through or under a desk, podium, or tabletop. The following optional
mounting kits are available:
• RSM 100 — Rack shelf mount kit for twisted pair products (#70-123-01)
• RSB 129 — 1U, 9.5" deep basic rack shelf (#60-604-01, -02)
• RSU 129 — 1U, 9.5" deep rack shelf kit (#60-190-01, -02)
• MBU 125 — Under-desk mount kit (#70-077-01)
• MBD 129 — Through-desk mount kit (#70-077-02)
Tabletop use
Four self-adhesive rubber feet are included with the unit. For tabletop use, affix
one foot at each corner of the bottom of the transmitter and place the unit in the
desired location.
Rack mounting
UL rack mounting guidelines
The following Underwriters Laboratories (UL) guidelines pertain to the safe
installation of the equipment in a rack.
1. Elevated operating ambient temperature — If the equipment is installed in a
closed or multi-unit rack assembly, the operating ambient temperature of the
rack environment may be greater than room ambient temperature. Therefore,
install the equipment in an environment compatible with the maximum
ambient temperature (Tma = +113 °F, +45 °C) specified by Extron.
2. Reduced air flow — Install the equipment in a rack so that the amount of air
flow required for safe operation of the equipment is not compromised.
3. Mechanical loading — When mounting the equipment in the rack, ensure
that uneven mechanical loading does not create a hazardous condition.
4. Circuit overloading — Connect the equipment to the supply circuit and
consider the effect that circuit overloading might have on overcurrent
protection and supply wiring. Also consider equipment nameplate ratings
when addressing this concern.
5. Reliable earthing (grounding) — Maintain reliable grounding of rack-
mounted equipment. Pay particular attention to supply connections other
than direct connections to the branch circuit (for example, use of power
strips).
Rack mounting procedure
To mount the transmitter on a 9.5 inches deep rack shelf,
1. If rubber feet are attached to the bottom of the unit, remove them.
2. Fit the RSM 100 mounting bracket around the transmitter and attach it to the
unit using one mounting hole on each end.
3. Mount the bracket containing the unit onto the rack shelf, using two
4-40 x 3/16 inch screws in the two mounting holes in the bottom of the
bracket to secure it.
4. Install blank panel(s) or other unit(s) on the rack shelf as desired.
5. Attach the rack shelf to the rack using the supplied bolts.
See the illustration on the next page.
PRELIMINARY
TP T Series Transmitters • Installation and Operation
2-5
Installation and Operation, cont’d
The following illustration shows how to mount the transmitter on a 9.5" rack shelf.
RSM 100
TP Mounting Bracket
Rack mounting the transmitter
1U Universal Rack Shelf
(2) 4-40 x 3/16"
Screws
Use 2 Mounting Holes
(each side)
PRELIMINARY
Under-desk mounting
Furniture-mount the transmitter under a desk or shelf using the optional mounting
kit (part #70-077-01), as illustrated below.
To mount the transmitter under a desk, podium, or table top,
1. If rubber feet are attached to the bottom of the unit, remove them.
2. Remove the two screws from one side of the unit. Retain the screws for
possible later reassembly.
3. Attach one bracket to the side of the unit, using the provided machine screws.
4. Repeat steps 2 and 3 on the other side of the unit.
5. Hold the unit with the attached brackets against the underside of the table or
other furniture. On the mounting surface, mark the location of the bracket’s
screw holes.
2-6
Under-desk mounting the transmitter
TP T Series Transmitters • Installation and Operation
6. Drill pilot holes 1/4 inch (6.4 mm) deep and 3/32 inch (2 mm) in diameter
into the table or desk top at the marked screw locations. The holes should be
drilled from the underside or inside (concealed side) of the furniture where
the transmitter will be located.
7. Insert #8 wood screws into the four pilot holes. Tighten each screw into the
mounting surface until slightly less than 1/4 inch of the screw head protrudes.
8. Align the mounting screws with the slots in the brackets and place the unit
against the surface, with the screws through the bracket slots.
9. Slide the unit slightly forward or back, then tighten all four screws to secure it.
Through-desk mounting
Mount the transmitter through a desk or table, using the optional through-desk
mounting kit (part #70-077-02).
1. If rubber feet are attached to the bottom of the unit, remove them.
2. Loosely attach the mounting brackets to the transmitter using the four
machine screws and washers supplied with the mounting kit.
3. Hold the transmitter against the inside of the surface through which it will
be mounted. On the inside of the mounting surface, mark the four screw
holes and the material to be removed (approximately 1.2 inches by 6.9 inches
[3.0 cm by 17.5 cm]).
4. Cut out the table material. Test the fit by inserting the front of the transmitter
through the hole. If necessary, use a rasp or coarse file to enlarge the hole.
5. Drill pilot holes each 1/4 inch (6.4 mm) deep and 3/32 inch (2 mm) in
diameter in the desk or table where you marked the screw locations in step 2.
The holes should be drilled from the underside or inside (concealed side) of
the furniture where the transmitter will be located.
6. Using the four provided wood screws, secure the brackets to the mounting
surface.
PRELIMINARY
Through-desk mounting the transmitter
TP T Series Transmitters • Installation and Operation
2-7
Installation and Operation, cont’d
Grounding point
7. Slide the unit up and down or back and forth in the mounting brackets until
the front panel of the unit is at the desired height. Tighten the screws that
secure the brackets in place.
If the bracket screws are inaccessible to a screwdriver when the unit is in
place,
a. Mark the location of the brackets relative to the screws.
b. Remove the transmitter from inside the furniture.
c. Tighten the screws.
d. Replace the unit inside the surface.
Grounding the transmitter
RGB and computer video transmitters may need to be grounded to ensure that the
video and audio signals are not degraded. The TP T 15HD A and TP T 15HD AV
may require grounding if all of the following conditions exist:
• The signal source is a laptop computer.
• No local monitor is connected.
• A local power supply is not being used.
Grounding may also be required if there is no common ground in the power
distribution system.
Indications that grounding may be required include:
PRELIMINARY
• The receiver’s Power LED is lit amber when a connection is made to the
transmitter.
• The receiver is in auto mode and its Manual/Auto LED flashes.
• The receiver is in manual mode and an image appears only when the
Peaking adjustment is at the minimum level. Additionally, the image
may be overpeaked with horizontal streaking to the right of the displayed
information.
• No audio, or distorted and noisy audio, is heard.
Ground the transmitter using any of the following methods:
• Connect a local 15 V power supply to the transmitter.
• Use STP rather than UTP cable and connectors.
• Use a 3.5 mm captive screw connector to
connect a ground wire between the power
return pin and a grounding point near the
transmitter, such as a grounded power outlet
or an equipment rack. (See the illustration at
right.) Use this method if you are not using
local power.
N/C
Return
near transmitter
2-8
TP T Series Transmitters • Installation and Operation
Connectors and Cabling on the Front and Rear Panels
1
AUDIO
2
ID PIN 4 ID PIN 11
INPUT LOCAL MONITOR
TP T 15HD A front panel
9
POWER
15V .5A DC
TP T 15HD A rear panel
1
AUDIO
2
ID PIN 4 ID PIN 11
INPUT LOCAL MONITOR
BUFFEREDCOMPUTER
7
OUTPUT
BUFFEREDCOMPUTER
3
H-SHIFT
TP T 15HD A
DDSP
SPARE
3
PC
H-SHIFT
4
VIDEO
5
AUDIO
L
R
TP T 15HD AV
TP T 15HD AV front panel
9 78
DDSP
POWER
15V .5A DC
AV COMPUTER
OUTPUTS
SPARE
TP T 15HD AV rear panel
9
POWER
15V .5A DC
R G B H/HV V
6
INPUT
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
TP T BNC DA4 rear panel
(There are no connectors on the TP T BNC DA4 front panel.)
PRELIMINARY
7
TP T Series Transmitters • Installation and Operation
2-9
Installation and Operation, cont’d
Audio input connector — Connect PC audio to this 3.5 mm stereo jack. Wire
a
the male plug as shown below.
N
Only analog line level audio signals should be input on the audio input
connector.
Tip (L)
Ring (R)
PRELIMINARY
Audio input wiring
Computer Input connector — Connect a computer video
b
source to this female 15-pin HD connector.
On the TP T 15HD A and the TP T 15HD AV, this connector
accepts computer video. It can also accommodate
component video, S-video, or composite video if the signal
is input on the R, G, and B pins of the 15HD connector using an Extron SYM
BNCF/0.5 6-inch (15 cm) cable, part #26-531-01.
Transmission of component video, S-video, or composite video on the
computer video input requires that internal jumpers be reconfigured. See
“Configuring video jumpers for component, S-video, and composite video,”
earlier in this chapter.
Sleeve ( )
COMPUTER
5 1
15 11
INPUT
N
N
N
Input only sync signals, no video signals, on the sync pins (pins 13
and 14).
For component video, use the R (R-Y) and R return pins (pins 1 and
6), G (Y) and G return pins (pins 2 and 7), and B (B-Y) and B return
pins (pins 3 and 8).
For S-video, use the R, R return (C-chroma), G, and G return (Y-luma)
pins.
For composite video, use the G pin and the associated return pin. For
additional genlocked video signals, use the R, B, and associated return
pins into the next TP receiver.
Composite video, S-video, and component video signals input on the
female 15-pin HD connector are transmitted out of, or output on, the
computer video transmission RJ-45 connector(s) (g in the rear panel
illustrations on the previous page).
610
2-10
Buffered Local Monitor output connector — Connect a local monitor video
c
cable to this female 15-pin HD connector.
Video input connector — Connect composite video to this RCA connector.
d
Audio input connector pair — Connect left and right stereo audio to this pair
e
of RCA connectors.
N
TP T Series Transmitters • Installation and Operation
Only analog line level audio signals should be input on these
connectors.
Input BNC connectors — Connect the desired video input device to these
f
BNC connectors, which accept RGBHV, RGBS, RGsB, component video,
S-video, and composite video. Transmission of component video, S-video,
or composite video requires that internal jumpers be reconfigured. See
“Configuring video jumpers for component, S-video, and composite video”,
earlier in this chapter.
N
• For RGBHV video, use the R, G, B, H/HV, and V BNC connectors.
• For RGBS video, use the R, G, B, and H/HV BNC connectors.
• For RGsB or component video, use the R (R-Y), G (Y), and B (B-Y) BNC
Input only sync signals (no video signals) on the H/V and V BNC
connectors.
R G B H/HV V
R G B H/HV V
connectors.
R G B H/HV V
• For S-video, use the R (C-chroma) and G (Y-luma) BNC connectors.
R G B H/HV V
• For composite video, use the G BNC connector.
R G B H/HV V
For three separate genlocked composite video signals, connect one wire
each to the R, G, and B BNC connectors.
R
G B H/HV V
-or-
Computer video transmission connectors — Connect a TP cable from any of
g
these female RJ-45 output connectors to an Extron TP receiver.
N
C
N
-or-
All video signals that are input on the computer input connector,
regardless of format, and audio signals that are input on a 3.5 mm jack,
are transmitted on these connectors.
Do not connect this device to a computer data or
telecommunications network.
RJ-45 termination must comply with the TIA/EIA T 568A wiring
standards for all connections.
PRELIMINARY
Composite video transmission connector — Connect a TP cable from this
h
female RJ-45 connector to an Extron TP composite video receiver.
N
Only composite video signals with audio (d and e in the illustration
on page 2-9) are transmitted on this connector.
TP T Series Transmitters • Installation and Operation
2-11
Installation and Operation, cont’d
earlier in this chapter.
Terminating TP cable
The figure below details the recommended termination of TP cables in accordance
with the TIA/EIA T 568A wiring standards.
PRELIMINARY
Pins:
12 345 67 8
Insert Twisted
Pair Wires
RJ-45 Connector
Pin Wire color
1
White-green
2
Green
3
White-orange
4
Blue
5
White-blue Green –
6
Orange
7
White-brown Blue/H. sync +
8
Brown
* Audio can be tied to wire pair 7 and 8 via a jumper. See “Setting
audio jumpers for use with unmodified receivers,”
RGB video and audio AV video and audio
Signal Level Signal Level
Red/V. sync +
Red/V. sync –
Audio and
power
Green + +0.35 V
Audio and
power
Blue/H. sync –
±0.35 V Video + +0.35 V
±0.35 V
+15 V with
±0.5 V
–0.35 V
±0.5 V 0 V
±0.35 V
±0.35 V
Video –
Audio +* &
power +
Reserved
Reserved
Audio –* &
power –
Reserved
Reserved
–0.35 V
+15 V
None
None
None
None
TP cable termination
Testing the cables
The TP units are designed for and perform best with Extron Enhanced Skew-Free
A/V cable, terminated in accordance with the TIA/EIA T 568 A wiring standard.
CAT 5, 5e, and 6 cables are acceptable, but less preferable. Extron also recommends
the use of preterminated and tested cables. Cables terminated on site should be
tested before use to ensure that they comply with Category 5 specifications.
Equalizing pair skew
Using CAT 5, 5e, and 6 cable can lead to registration errors between the red,
green, and blue video signals. Pair skew can be measured with test equipment or
identified by viewing a crosshatch test pattern with a critical eye to determine if the
red, blue, or green video image leads (appears to the left of) the other two video
images.
2-12
N
Unless the cable is changed, the skew adjustment should need to be made only
once, during installation.
Use any of the following methods to minimize or eliminate pair skew:
• Switch to an Extron Enhanced Skew-Free A/V UTP cable.
• Add a skew compensation cable equal to the length of the pair skew to the
receiver’s output.
• Install an SEQ 100 15HD Skew Equalizer on the receiver’s video output, and
adjust the skew for the leading video image.
TP T Series Transmitters • Installation and Operation
TP T 15HD A
Audio
PC Computer
Pair RGB video
1, 2 Red
4, 5 Green
7, 8 Blue
Pair skew equalization example
Power connector
Power connector —
i
TP T BNC DA4: Plug the external 15 V power supply into this captive screw
connector.
N
TP T 15HD A and TP T 15 HD AV: If desired or for distances
over 300 feet (91 m), plug an external 15 VDC power supply
into this 3-pole captive screw connector. Wire the connector as
shown at right.
N
IF cable measurement
L
AUDIO
A
L
R
C SYNC
SOG
RGB OUTPUT
indicates that the pair
with wires 1 and 2 is
four feet shorter than
the other pairs...
C
D
A
POWER
.5
V
15
R
B
TP R BNC A
A
U
D
IO
C
O
M
P
U
T
E
R
IN
P
U
ID PIN 4
T
ID PIN 11
B
U
FF
E
R
E
D
L
O
C
A
H
L M
-S
H
O
IF
N
T
IT
O
R
TP T 15HD A
R G B H/HV V
RGB INPUT
CAT 5 UTP Cable
... THEN insert a four foot
extension cable to equalize
TP skew for red video.
LCD Projector
If the distance between the transmitter and receiver is too great for
the receiver to power the transmitter, the video image will be missing,
distorted, or noisy, or the receiver’s Manual/Auto LED flashes. The
transmitter requires a local 15 V power supply.
N/C
+15V
If you are using the TP T Series transmitter with a
TP R 15HD A receiver, you must use an external power supply to
power the transmitter. It cannot be powered via the TP R 15HD A
receiver.
PRELIMINARY
Return
TP T Series Transmitters • Installation and Operation
2-13
Installation and Operation, cont’d
Controls and Indicators on the Front and Rear Panels
All of the transmitters have front panel Power indicators. In addition, the
TP T 15HD A and TP T 15HD AV have horizontal shift control on the front panel
and DIP switches on the front and rear panels.
PRELIMINARY
1 3
AUDIO
INPUT LOCAL MONITOR
2
ID PIN 4 ID PIN 11
BUFFEREDCOMPUTER
TP T 15HD A front panel
POWER
15V .5A DC
OUTPUT
TP T 15HD A rear panel control
21
AUDIO
ID PIN 4 ID PIN 11
INPUT LOCAL MONITOR
BUFFEREDCOMPUTER
4
DDSP
H-SHIFT
SPARE
H-SHIFT
TP T 15HD A
3
PC
VIDEO
AUDIO
L
R
TP T 15HD AV
2-14
TP T 15HD AV front panel controls and indicator
POWER
15V .5A DC
AV COMPUTER
OUTPUTS
TP T 15HD AV rear panel control
1
TP T BNC DA4 front panel indicator
TP T Series Transmitters • Installation and Operation
4
DDSP
SPARE
TP T BNC DA4
Power/signal LED —
a
Amber: Indicates that power is applied, but that the transmitter is not
connected to a receiver.
Green: Indicates that the transmitter is properly connected to a receiver.
ID bit switches (TP T 15HD A and TP T 15HD AV) — If a local monitor
b
is installed, set both of these DIP switches to Off. If a local monitor is not
installed, set both switches to On.
H. Shift (TP T 15HD A) and PC H. Shift (TP T 15HD AV) controls — These
c
front panel controls are 12-turn potentiometers with a soft mechanical stop
at the high or low end. When you have reached the high or low end of the
adjustment, the potentiometer makes a clicking sound as you turn it, and the
display indicates no further changes.
DSPP switch — This rear panel DIP switch turns on Digital Display Sync
d
Processing, disabling sync processing for LCD projectors and other displays
that cannot handle processed sync.
N
Troubleshooting
DDSP disables the horizontal shift control.
If the image does not appear
1. Check the transmitter’s and receiver’s front panel Power LEDs to ensure that
all devices are receiving power.
2. Ensure that the transmitter is receiving a video input.
3. Ensure that the TP cable(s) are properly terminated in accordance with
TIA/EIA T 568A standards and that the RJ-45 connections are securely made.
The Power LEDs on both devices light green when a transmitter is properly
connected to a receiver.
4. For computer/RGB video, ensure that the receiver’s SOG and C Sync switches
are in the correct positions for the video output.
5. For computer video, ensure that the transmitter’s ID bit switches are set to
On.
6. For computer video on an LCD projector, ensure that the transmitter’s DDSP
switch is set to On.
7. For component video, ensure that the input signal is bi-level sync and not
tri-level.
8. The transmission distance may be too far for remote power. Try connecting
the local 15 VDC power supply to the transmitter.
9. The transmission distance may be too short. Ensure that the UTP cable is at
least 25 feet (7.6 m) long.
10. If the Manual/Auto switch is in the manual position, ensure that the
receiver’s level controls are not set too high. Too much level and peaking can
cause display problems.
11. For computer video from a laptop or for ungrounded AC distribution
systems, the transmitter may need to be grounded. See “Grounding the
transmitter,” earlier in this chapter.
PRELIMINARY
TP T Series Transmitters • Installation and Operation
2-15
Installation and Operation, cont’d
If the image is not displayed correctly
1. For computer video, if the output image looks too green, ensure that the
receiver’s SOG switch is set to Off.
2. For computer video, if the picture hangs off the edge of the screen, adjust the
transmitter’s H Shift control.
N
3. Place the receiver’s Manual/Auto switch to manual and adjust the level and
4. The transmission distance may be too far for remote power. Try connecting
5. For computer video from a laptop or for ungrounded AC distribution
If the receiver’s Manual/Auto LED flashes
1. The transmission distance may be too far for remote power. Connect the local
2. Check the RJ-45 connector for a loose connection.
DDSP disables the horizontal shift control.
peaking controls for optimum quality.
the local 15 VDC power supply to the transmitter.
systems, the transmitter may need to be grounded. See “Grounding the
transmitter”, earlier in this chapter.
15 VDC power supply to the transmitter.
PRELIMINARY
If the actions described above do not solve the problem
Call the Extron S3 Sales and Technical support hotline. (See the rear cover of this
manual for the phone number for your region of the world.)
2-16
TP T Series Transmitters • Installation and Operation
TP T Series Transmitters
Appendix A
A
Specifications, Part Numbers,
and Accessories
Specifications
Part Numbers
PRELIMINARY
PRELIMINARY
Specifications, Part Numbers, and Accessories
Specifications
Video — video models
Number/signal type ..................... 1, 2, or 4 sets of proprietary analog signals
Connectors ..................................... 1, 2, or 4 female shielded RJ-45
Video input — video models
Number/signal type
TP T 15HD A ...................... 1 analog RGBHV, RGBS, RGsB, component video, S-video, or composite
video; or
1 S-video and 1 NTSC/PAL/SECAM composite video from a single source;
or
3 NTSC/PAL composite video from a single source
TP T 15HD AV ................... 1 analog RGBHV, RGBS, RGsB, component video, S-video, or composite
video; or
1 S-video and 1 NTSC/PAL/SECAM composite video from a single source;
or
3 NTSC/PAL/SECAM composite video from a single source and
1 NTSC/PAL/SECAM composite video
TP T BNC DA4 .................. 1 analog RGBHV, RGBS, RGsB, component video, S-video, or composite
video; or
1 S-video and 1 NTSC/PAL/SECAM composite video from a single source;
or
3 NTSC/PAL/SECAM composite video from a single source
N
Connectors
Nominal level ................................ 1 Vp-p for Y of component video and S-video, and for composite video
Minimum/maximum levels ........ 0.3 V to 1.45 Vp-p with no offset at unity gain
Impedance ...................................... 75 ohms
Horizontal frequency .................... 15 kHz to 130 kHz
Vertical frequency .......................... 30 Hz to 150 Hz
Return loss ...................................... <-30 dB @ 5 MHz
DC offset (max. allowable)........... 100 mV
These products accept component video with bi-level sync only.
TP T 15HD A ...................... (1) female 15-pin HD (Mac and Sun/SGI to VGA adapters are available.)
TP T 15HD AV ................... (1) female 15-pin HD (Mac and Sun/SGI to VGA adapters are available.)
1 female RCA
TP T BNC DA4 .................. 5 female BNC
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
Video output — refer to the TP Receivers Family User’s Manual
Audio — audio models
Number/signal type ..................... 1 or 2 sets of analog proprietary signals
Connectors ..................................... 1 or 2 female RJ-45
Frequency response ...................... 20 Hz to 20 kHz, ±0.05 dB
THD + Noise .................................. 0.03% @ 1 kHz, 0.3% @ 20 kHz at nominal level
S/N .................................................. >63 dB at maximum output (unweighted)
Crosstalk ......................................... <-80 dB @ 1 kHz, fully loaded
Stereo channel separation ............ >66.6 dB @ 1 kHz
CMRR .............................................. >33 dB @ 20 Hz to 20 kHz
A-2
TP T Series Transmitters • Specifications, Part Numbers, and Accessories
Audio input — audio models
Number/signal type
TP T 15HD A ...................... 1 stereo, unbalanced
TP T 15HD AV ................... 2 stereo, unbalanced
Connectors
TP T 15HD A ...................... (1) 3.5 mm mini jack
TP T 15HD AV ................... (1) 3.5 mm mini jack, 2 female RCA
Impedance ...................................... 5k ohms, unbalanced, DC coupled
Nominal level ................................ -10 dBV (316 mV)
Maximum level .............................. +5.5 dBu, (unbalanced) at 1%THD+N
CMRR .............................................. >75 dB @ 20 Hz to 20 kHz
N
Audio output — refer to the TP Receivers Family User’s Manual
General
Recommended cable type ............ Enhanced Skew-Free™ A/V UTP Cable or CAT 5/5e/6 (shielded or
Power
N
Temperature/humidity ................ Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Cooling ........................................... Convection, no vents
Mounting
Enclosure type ............................... Metal
Enclosure dimensions ................... 1.3" H x 6.8" W x 4.5" D (<1U high, <half rack width)
Product weight
Shipping weight ............................ 3 lbs (2 kg)
Vibration ......................................... ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
MTBF ............................................... 30,000 hours
Warranty ......................................... 3 years parts and labor
N
N
0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu
unshielded)
TP T 15HD A, TP T 15HD AV
15 VDC, 0.8 A, external or provided by the TP R receiver for up to 300'
(91.4 m)
TP T BNC DA4 .................. 15 VDC, 0.8 A, external
Twisted pair transmitters cannot receive power from a TP R 15HD A receiver.
Operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Rack mount ........................ Yes, with the optional TP rack shelf mounting kit and an optional standard
rack shelf kit
Furniture mount ................ Yes, with an optional under-desk or through-desk mounting kit
(3.3 cm H x 17.3 cm W x 11.4 cm D)
(Depth excludes connectors.)
TP T 15HD A, TP T 15HD AV
0.8 lbs (0.4 kg)
TP T BNC DA4 .................. 0.9 lbs (0.4 kg)
Safety ................................... CE, c-UL, UL
EMI/EMC .......................... CE, C-tick, FCC Class A, ICES, VCCI
All nominal levels are at ±10%.
Specifications are subject to change without notice.
PRELIMINARY
TP T Series Transmitters • Specifications, Part Numbers, and Accessories
A-3
Specifications, Part Numbers, and Accessories, cont’d
Part Numbers
Included parts
These items are included with the TP T Series Transmitter:
PRELIMINARY
Included part
TP T 15HD A
TP T 15HD AV
TP T BNC DA4
PS 1508 single output external power supply,
15 V, 0.8 A
Captive screw connector, 3-pole, 3.5 mm 10-265-03
TP Transmitters Series Setup Guide
N
Accessories
These items can be ordered from Extron:
Accessory Part number
PS 150 multiple output 15 V power supply 60-432-01
RSU 129 9.5" Deep 1U Rack Shelf kit 60-190-01
RSB 129 9.5" Deep 1U Basic Rack Shelf
in black or gray
RSM 100 TP Rack Mounting Kit 70-123-01
MBU 12 Under Desk Mounting Kit 70-077-01
MBD 129 Through-desk Mounting Kit 70-077-02
Replacement
part number
60-345-02
60-346-03
60-349-02
70-776-01
The TP T 15HD AV is a redesigned transmitter. The audio portion of the
composite video TP link can be configured to work with the similarly redesigned
TP R BNC AV receiver or with older, unmodified receivers. See “Setting audio
jumpers for use with unmodified receivers” in chapter 2, “Installation and
Operation”. Redesigned transmitters and receivers have identifying labels.
60-604-01, -02
A-4
TP T Series Transmitters • Specifications, Part Numbers, and Accessories
Cables and adapters
N
Skew-Free™ A/V cable
Skew-Free™ A/V UTP cables are not recommended for Ethernet/LAN locations.
Cable
UTP 23SF-4/3 — 3' (90 cm) 26-569-01
UTP 23SF-4/6 — 6' (1.8 cm) 26-569-02
UTP 23SF-4/12 — 12' (3.6 m) 26-569-03
UTP 23SF-4/25 — 25' (7.6 m) 26-569-04
UTP 23SF-4/35 — 35' (10.6 m) 26-569-05
UTP 23SF-4/50 — 50' (15.2 m) 26-569-06
UTP 23SF-4/75 — 75' (22.8 m) 26-569-07
UTP 23SF-4/100 — 100' (30.4 m) 26-569-08
UTP23SF-4/1000 — 1000' (300 m) 22-141-03
UTP23SF-4P/25 — 25' (7.6 m) plenum 26-570-04
UTP23SF-4P/35 — 35' (10.6 m) plenum 26-570-05
UTP23SF-4P/50 — 50' (15.2 m) plenum 26-570-06
UTP23SF-4P/75 — 75' (22.8 m) plenum 26-570-07
UTP23SF-4P/1000 — 1000' (300 m) plenum 22-142-03
Part number
PRELIMINARY
TP T Series Transmitters • Specifications, Part Numbers, and Accessories
A-5
Specifications, Part Numbers, and Accessories, cont’d
PRELIMINARY
A-6
TP T Series Transmitters • Specifications, Part Numbers, and Accessories
Extron Warranty
Extron Electronics warrants this product against defects in materials and workmanship for a period
of three years from the date of purchase. In the event of malfunction during the warranty period
attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option,
repair or replace said products or components, to whatever extent it shall deem necessary to restore
said product to proper operating condition, provided that it is returned within the warranty period,
with proof of purchase and description of malfunction to:
USA, Canada, South America,
and Central America:
Extron Electronics
1001 East Ball Road
Anaheim, CA 92805
U.S.A.
Europe, Africa, and the Middle East:
Extron Europe
Hanzeboulevard 10
3825 PH Amersfoort
The Netherlands
Asia:
Extron Asia
135 Joo Seng Road, #04-01
PM Industrial Bldg.
Singapore 368363
Singapore
