Extron electronics TLP Pro 725T User Manual

Download

User Guide

TLP Pro 725T

TouchLink Pro Touchpanel Control Systems

TouchLink

68-2831-01 Rev. A

07 17

Safety Instructions

Safety Instructions • English

WARNING: This symbol,

intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

ATTENTION: This symbol,

intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the Extron Safety and Regulatory Compliance Guide, part number 68-290-01, on the Extron website, www.extron.com.

, when used on the product, is

Sicherheitsanweisungen • Deutsch

WARNUNG: Dieses Symbol

darauf aufmerksam machen, dass im Inneren des Gehäuses dieses Produktes gefährliche Spannungen herrschen, die nicht isoliert sind und die einen elektrischen Schlag verursachen können.

VORSICHT: Dieses Symbol

in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Weitere Informationen über die Sicherheitsrichtlinien, Produkthandhabung, EMI/EMF-Kompatibilität, Zugänglichkeit und verwandte Themen finden Sie in den Extron-Richtlinien für Sicherheit und Handhabung (Artikelnummer 68-290-01) auf der Extron-Website, www.extron.com.

auf dem Produkt soll den Benutzer

auf dem Produkt soll dem Benutzer

Instrucciones de seguridad • Español

ADVERTENCIA: Este símbolo,

producto, avisa al usuario de la presencia de voltaje peligroso sin aislar dentro del producto, lo que puede representar un riesgo de descarga eléctrica.

ATENCIÓN: Este símbolo,

avisa al usuario de la presencia de importantes instrucciones de uso y mantenimiento recogidas en la documentación proporcionada con el equipo.

Para obtener información sobre directrices de seguridad, cumplimiento de normativas, compatibilidad electromagnética, accesibilidad y temas relacionados, consulte la Guía de cumplimiento de normativas y seguridad de Extron, referencia 68-290-01, en el sitio Web de Extron,

www.extron.com.

, cuando se utiliza en el

, cuando se utiliza en el producto,

Instructions de sécurité • Français

AVERTISSEMENT : Ce pictogramme,

le produit, signale à l’utilisateur la présence à l’intérieur du boîtier du produit d’une tension électrique dangereuse susceptible de provoquer un choc électrique.

ATTENTION : Ce pictogramme,

le produit, signale à l’utilisateur des instructions d’utilisation ou de maintenance importantes qui se trouvent dans la documentation fournie avec le matériel.

Pour en savoir plus sur les règles de sécurité, la conformité à la réglementation, la compatibilité EMI/EMF, l’accessibilité, et autres sujets connexes, lisez les informations de sécurité et de conformité Extron, réf. 68-290-01, sur le site Extron, www.extron.com.

, lorsqu’il est utilisé sur

Istruzioni di sicurezza • Italiano

AVVERTENZA: Il simbolo, D, se usato sul prodotto, serve ad

avvertire l’utente della presenza di tensione non isolata pericolosa all’interno del contenitore del prodotto che può costituire un rischio di scosse elettriche.

ATTENTZIONE: Il simbolo, I, se usato sul prodotto, serve ad

avvertire l’utente della presenza di importanti istruzioni di funzionamento e manutenzione nella documentazione fornita con l’apparecchio.

Per informazioni su parametri di sicurezza, conformità alle normative, compatibilità EMI/EMF, accessibilità e argomenti simili, fare riferimento alla Guida alla conformità normativa e di sicurezza di Extron, cod. articolo 68-290-01, sul sito web di Extron, www.extron.com.

Instrukcje bezpieczeństwa • Polska

OSTRZEŻENIE: Ten symbol, D, gdy używany na produkt, ma na celu

poinformować użytkownika o obecności izolowanego i niebezpiecznego napięcia wewnątrz obudowy produktu, który może stanowić zagrożenie porażenia prądem elektrycznym.

UWAGI: Ten symbol, I, gdy używany na produkt, jest przeznaczony do

ostrzegania użytkownika ważne operacyjne oraz instrukcje konserwacji (obsługi) w literaturze, wyposażone w sprzęt.

Informacji na temat wytycznych w sprawie bezpieczeństwa, regulacji wzajemnej zgodności, zgodność EMI/EMF, dostępności i Tematy pokrewne, zobacz Extron bezpieczeństwa i regulacyjnego zgodności przewodnik, część numer 68-290-01, na stronie internetowej Extron, www.extron.com.

Инструкция по технике безопасности • Русский

ПРЕДУПРЕЖДЕНИЕ: Данный символ, D, если указан

на продукте, предупреждает пользователя о наличии неизолированного опасного напряжения внутри корпуса продукта, которое может привести к поражению электрическим током.

ВНИМАНИЕ: Данный символ, I, если указан на продукте,

предупреждает пользователя о наличии важных инструкций по эксплуатации и обслуживанию в руководстве, прилагаемом к данному оборудованию.

Для получения информации о правилах техники безопасности, соблюдении нормативных требований, электромагнитной совместимости (ЭМП/ЭДС), возможности доступа и других вопросах см. руководство по безопасности и соблюдению нормативных требований Extron на сайте Extron: www.extron.com, номер по каталогу - 68-290-01.

安全说明 • 简体中文

警告： D产品上的这个标志意在警告用户该产品机壳内有暴露的危险电压，

有触电危险。

注意：I 产品上的这个标志意在提示用户设备随附的用户手册中有

重要的操作和维护(维修）说明。

关于我们产品的安全指南、遵循的规范、EMI/EMF 的兼容性、无障碍使用的特性等相关内容，敬请访问 Extron 网站 www.extron.com，参见 Extron 安全规范指南，产品编号 68-290-01。

安全記事 • 繁體中文

警告: D 若產品上使用此符號，是為了提醒使用者，產品機殼內存在著

可能會導致觸電之風險的未絕緣危險電壓。

안전 지침 • 한국어

경고: 이 기호 D, 가 제품에 사용될 경우, 제품의 인클로저 내에 있는

접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 경고합니다.

注意I 若產品上使用此符號，是為了提醒使用者，設備隨附的用戶手冊中有

重要的操作和維護（維修）説明。

有關安全性指導方針、法規遵守、EMI/EMF 相容性、存取範圍和相關主題的詳細資訊，請瀏覽 Extron 網站：www.extron.com，然後參閱《 Extron 安全性與法規遵守手冊》，準則編號 68-290-01。

安全上のご注意 • 日本語

警告:この記号 D が製品上に表示されている場合は、筐体内に絶縁されて

いない高電圧が流れ、感電の危険があることを示しています。

注意:この記号 I が製品上に表示されている場合は、本機の取扱説明

書に記載されている重要な操作と保守(整備)の指示についてユーザーの注意を喚起するものです。

安全上のご注意、法令遵守、EMI/EMF適合性、その他の関連項目については、エクストロンのウェブサイト www.extron.com より

『Extron Safety and Regulatory Compliance Guide』 (P/N 68-290-01) をご

覧ください。

주의: 이 기호 I, 가 제품에 사용될 경우, 장비와 함께 제공된 책자에

나와 있는 주요 운영 및 유지보수(정비) 지침을 경고합니다.

안전 가이드라인, 규제 준수, EMI/EMF 호환성, 접근성, 그리고 관련 항목에 대한 자세한 내용은 Extron 웹 사이트(www.extron.com)의 Extron 안전 및 규제 준수 안내서, 68-290-01 조항을 참조하십시오.

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks®, registered service marks(SM), and trademarks(TM) are the property of RGBSystems, Inc. or Extron Electronics (see the current list of trademarks on the Terms of Use page at www.extron.com):

Cable Cubby, ControlScript, CrossPoint, DTP, eBUS, EDID Manager, EDID Minder, Extron, Flat Field, FlexOS, GlobalViewer, Global Configurator, Global Scripter, Hideaway, IPIntercom, IPLink, Key Minder, LinkLicense, LockIt, MediaLink, MediaPort, NetPA, PlenumVault, PoleVault, PowerCage, PURE3, Quantum, SoundField, SpeedMount, SpeedSwitch, SystemINTEGRATOR, TeamWork, TouchLink, V‑Lock, VN‑Matrix, VoiceLift, WallVault, WindoWall, XTP, and XTP Systems

Registered Service Mark

(SM)

: S3 Service Support Solutions

AAP, AFL (Accu‑Rate Frame Lock), ADSP (Advanced Digital Sync Processing), Auto‑Image, CableCover, CDRS (Class D Ripple Suppression), Codec Connect, DDSP (Digital Display Sync Processing), DMI (Dynamic Motion Interpolation), DriverConfigurator, DSPConfigurator, DSVP (Digital Sync Validation Processing), eLink, Entwine, EQIP, Everlast, FastBite, FOX, FOXBOX, HyperLane, IP Intercom HelpDesk, MAAP, MicroDigital, Opti‑Torque, ProDSP, QS‑FPC (QuickSwitch Front Panel Controller), Room Agent, Scope‑Trigger, ShareLink, Show Me, SIS, Simple Instruction Set, Skew‑Free, SpeedNav, StudioStation, Triple‑Action Switching, True4K, Vector™ 4K, VideoLounge, WebShare, XTRA, ZipCaddy, and ZipClip

Registered Trademarks

Trademarks (™

)

(®)

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part15 of the FCC rules. The ClassA limits provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.

NOTE: For more information on safety guidelines, regulatory compliances, EMI/EMF

Battery Notice

This product contains a battery. Do not open the unit to replace the battery. If the battery needs replacing, return the entire unit to Extron (for the correct address, see the Extron

Warranty section on the last page of this guide).

CAUTION: Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used

Batteries According to the Instructions.

ATTENTION : Risque d’explosion. Ne pas remplacer la pile par le mauvais type de pile.

Débarrassez‑vous des piles utilisées selon le mode d’emploi.

compatibility, accessibility, and related topics, see the Extron Safety and Regulatory

Compliance Guide on the Extron website.

Conventions Used in this Guide

Notiﬁcations

In this user guide, the following are used:

WARNING: Potential risk of severe injury or death. AVERTISSEMENT : Risque potentiel de blessure grave ou de mort.

CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessuremineure.

ATTENTION:

• Risk of property damage.

• Risque de dommages matériels.

NOTE: A note draws attention to important information.

Software Commands

Commands are written in the fonts shown here:

^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C

[01] R 0004 00300 00400 00800 00600 [02] 35 [17] [03]

E X!*X1&*X2)*X2#*X2!

}

NOTE: For commands and examples of computer or device responses mentioned

in this guide, the character “0” is used for the number zero and “O” represents the capital letter “o”.

Computer responses and directory paths that do not have variables are written in the font shown here:

Reply from 208.132.180.48: bytes=32 times=2ms TTL=32 C:\Program Files\Extron

Variables are written in slanted form as shown here:

ping xxx.xxx.xxx.xxx —t SOH R Data STX Command ETB ETX

Selectable items, such as menu names, menu options, buttons, tabs, and field names are written in the font shown here:

From the File menu, select New.

Click the OK button.

Specifications Availability

Product specifications are available on the Extron website, www.extron.com.

Extron Glossary of Terms

A glossary of terms is available at www.extron.com/technology/glossary.aspx.

Contents

Introduction............................................................ 1

About the TLP Pro 725T .........................................1

Features ..................................................................1

Application Diagram ................................................ 2

Installation Overview ........................................... 3

Panel Features ...................................................... 4

Front Panel Features ...............................................4

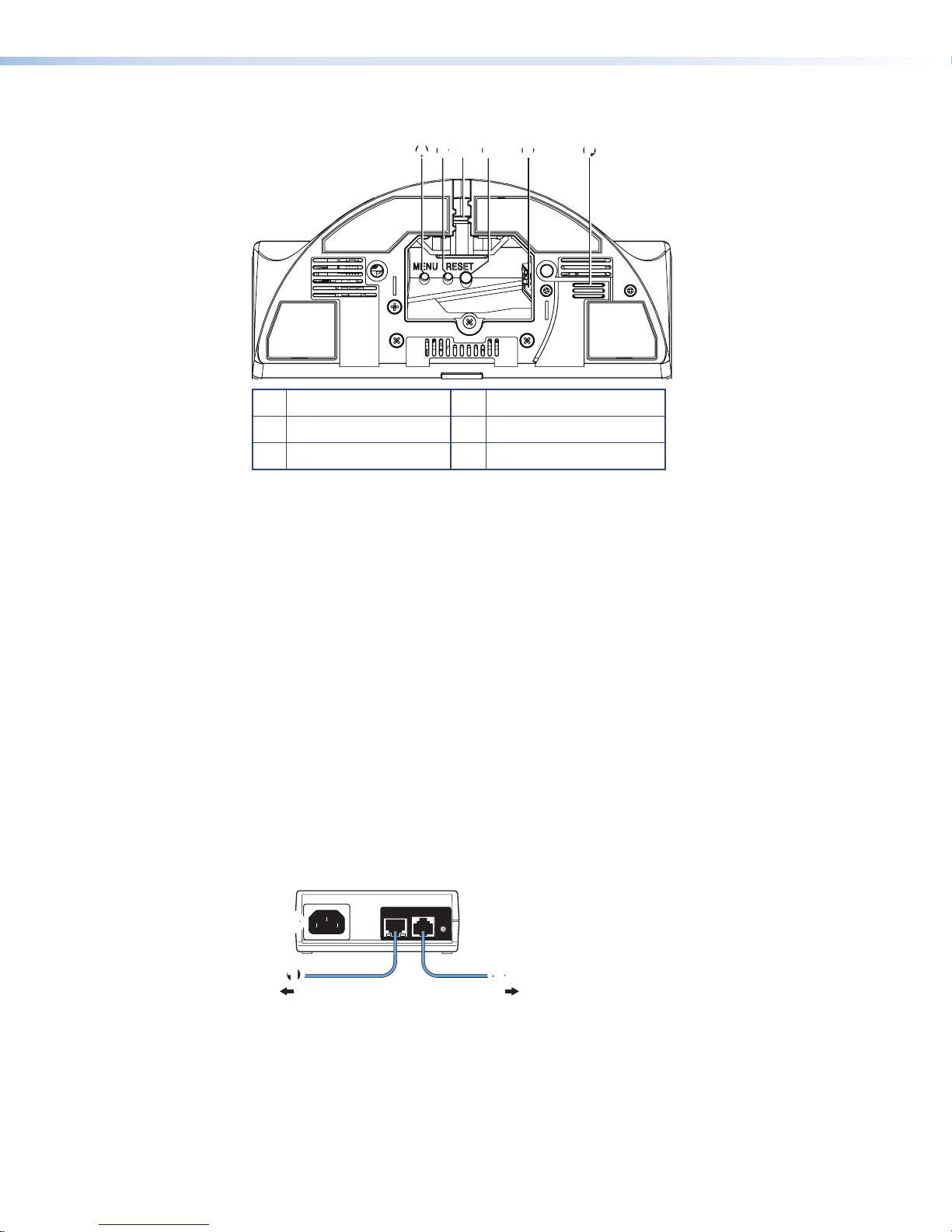

Rear Panel Features ................................................5

Base .......................................................................6

On-screen Menus ................................................. 8

Setup Menu ............................................................8

Status ................................................................. 8

Network .............................................................. 9

Display .............................................................. 11

Audio ................................................................ 12

Advanced .........................................................12

Conﬁguration Software ..................................... 14

Conﬁguration Software ..........................................14

Installing GUI Designer, Global Conﬁgurator,

and Toolbelt ..................................................... 15

Using the Software ............................................16

TLP Pro 725T Web Pages .....................................16

Updating the Firmware ..........................................17

Downloading Firmware ......................................17

Updating Firmware Using the Touchpanel

Web Page ........................................................17

Updating Firmware Using Toolbelt ..................... 17

Mounting ............................................................... 18

Mounting the TLP Pro 725T ..................................18

Desktop Mounting .................................................18

Placement without a mounting kit .....................18

SMA‑2 Swivel Mount Adapter ...............................18

Reference Material ............................................. 19

Network Port Requirements and Licensed

Third‑Party Software Used by the Touchpanels .... 19

Reset Modes.........................................................19

Use Factory Firmware .......................................19

Reset All IP Settings .......................................... 20

Reset to Factory Defaults .................................. 20

TLP Pro 725T • Contents vii

TLP Pro 725T • Contents viii

Introduction

This guide describes the function, installation, and operation of the Extron TLPPro725T Touchlink Pro Touchpanel. Unless otherwise stated, the terms “touchpanel,” “TLP Pro,” or “TLPPro725,” refer to the TLPPro725T.

The TLPPro725T is ideal for any AV application requiring a medium‑sized touchpanel with flexible mounting options and fully customizable interfaces.

This section provides an overview of these products:

• About the TLP Pro 725T

• Features

• Application Diagram

About the TLP Pro 725T

The TLP Pro 725T is a tabletop touchpanel with a 7‑inch LCD touch display and a screen resolution of 1024x600.

A range of mounting options are available (see Mounting on page 18).

The screen layout is designed with the Extron GUI Designer software. The functions are assigned to the screen objects with the Extron Global Configurator Plus and Professional software or Global Scripter. The user can define the graphics and the functions associated with those graphics, providing versatility and adaptability to the configuration and control of an AV system.

Features

• 7-inch LCD touchscreen with 1024x600 resolution and 24-bit color depth — With

tough, scratch‑resistant screen. Corning® Gorilla® Glass is stronger and more scratch‑ resistant than standard glass, while maintaining touch sensitivity, color saturation, and brightness.

• Faster, quad-core processing and eight times more memory — Allows for quicker

conﬁguration uploads and more storage for GUI pages.

• Compatible with the full range of Extron IPL Pro and IPCP Pro control processors

— Allows easy integration into existing systems.

• Power over Ethernet (PoE 802.3af, class3) compliance — Allows the touchpanel to

receive power and communication over a single Ethernet cable, eliminating the need for a local power supply (power injector sold separately).

• Built-in speaker — Provides audible feedback from button presses.

• Light sensor — Adjusts screen brightness as the ambient room lighting changes.

• Configurable red and green status lights — Indicate the availability or call status of a

room.

• System connection status indicator — The communication LED provides visual

feedback if the touchpanel is not communicating with a control processor.

• Automatic clock synchronization — Allows the touchpanel to display the accurate time

and date.

• Energy-saving features —

• Adjustable sleep timer puts touchpanel into sleep mode.

• Motion detector wakes touchpanel.

TLP Pro 725T • Introduction 1

• Fully customizable using Extron control system software — GUI Designer combined

Ext IN

Swit with Ex

Camera

Pro

with Global Conﬁgurator Plus and Professional, or Global Scripter.

• Supports USB 2.0.

• Supports the Extron Control App and Extron Control for Web.

• Mounting options for TLP Pro 725T:

• Sit on a tabletop — ﬁxed 65° viewing angle.

• Threaded holes in baseplate allow for secure mounting to a table.

• Supports the optional SMA‑2 Swivel Mount Adapter.

Application Diagram

WiFi

1234

Extron DTP HDMI 4K 330 Rx

Receiver

SIG LINK

OUTPUTS

POWER 12V

0.7A MAX

AUDIO

DTP IN

OVER DTP

RS-232

TxRx Tx RxG

DTP HDMI 4K 330 Rx

HDMI

Extron FF 220T

Ceiling Speakers

MODEL 80

ron

1608 MA

cher

DTP

tension

Laptop

HDMI HDMI

CONFIGURABLE

100-240V ~ -- A MAX

50/60 Hz

VGA

HDMI

INPUTS

OVER DTP

RS-232 IR

TxRx Tx RxG

SIG LINK

OVER DTP

HDMI

RS-232 IR

DTP IN

TxRx Tx RxG

HDMI

STANDBY/ON

Blu-ray Player

SIG LINK

DTP IN

IN1608 MA

OUTPUTS

SIG LINK

OVER DTP

RS-232 IR

DTP OUT

TxRx Tx RxG

PQLS HDMIOPEN/CLOSE FL OFF

CATx Cable

AUDIO INPUTS OUTPUTS

LL1R R

HDMI

USB

L5R

+48V

MIC/LINE

+48V

RS-232

Audio

AMPLIFIED OUTPUT

70V - 100W

CLASS 2 WIRING

REMOTE

LAN

VARIABLE

RESET

RS-232

TxRx

RS-232 over DTP

IR to Blu-ray

Ethernet

TCP/IP

Network

COM 1

COM 2

DIGITAL I/O

Tx Rx RTSCTS

Tx Rx

1 2 3 4 G

POWER

RELAYS

eBUS

VOL

12V

1 2 C

VCG

--A MAX

+V+S-SG

PWR OUT = 6W

Extron IPCP Pro 250

IP Link Pro Control Processor

IPCP PRO 250

IR/S

S G

LAN

FLAT PANEL

Display

Ethernet/PoE

Ethernet

Extron TLP Pro 725T

7" TableTop TouchLink Touchpanel

Document

Figure 1. Application Diagram

TLP Pro 725T • Introduction 2

Installation Overview

1. Before starting, download and install the latest versions of the following software:

 GUI Designer — For designing layouts for Extron TouchLink Pro touchpanels and third

party touch interfaces.

 Global Configurator Plus and Professional — For setting up and conﬁguring the

control processor and touchpanel.

 Toolbelt — Provides device discovery, device information, ﬁrmware updates,

and conﬁguration of network settings, system utilities, and user management for TouchLinkPro devices.

 Global Scripter — Provides an integrated development environment for Extron control

systems programming.

See Configuration Software on page 14.

2. Obtain the following network information from your network administrator:

 DHCP status (On or Off). If DHCP is off, you also require:

 IP address  Subnet mask

 Gateway  User name — This can be either admin or user.  Password — By default, this is extron (for either admin or user).  MAC address — Make a note of the touchpanel MAC address.

3. Connect cables to the units:

ATTENTION:

• Do not power on the touchpanels or control processors until you have read the

Attention about Power over Ethernet (PoE) power supplies (see page 7).

• Ne branchez pas les écrans tactiles ou les processeurs de contrôle avant d’avoir

lu la mise en garde sur les sources d’alimentation via Ethernet (PoE) (voir page 7).

 Connect cables to the touchpanels (see Base on page 6).  Connect the power cords and power on all devices (see LAN/PoE Connector on

page 6).

4. Set up the Touchpanels for Network Communication:

 Connect the PC that you are using for setup, the Extron control processor, and the

touchpanel to the same Ethernet subnetwork.

 Use the Setup Menu (see page 8) or Toolbelt to set the DHCP status and, if

required, the IP address, subnet mask, gateway, and related settings for the touchpanel.

5. Conﬁgure the Touchpanels — the GUI Designer Help File, the Global Conﬁgurator Help File,

and the Toolbelt Help File, provide step‑by‑step instructions and detailed information.

The Global Configurator Help File also includes an introduction to that software and sections on how to start a project and configuration.

Global Scripter provides an Extron‑exclusive Python library (ControlScript) and Global Scripter modules to get you started.

TLP Pro 725T • Installation Overview 3

Panel Features

This section describes:

• Front Panel Features

• Rear Panel Features

• Base

Front Panel Features

BBCCEEDDBB

LCD touchscreen

Motion sensor (2)

Communication LED (see page 5)

Figure 2. TLP Pro 725T Front Panel

LCD touchscreen — 7‑inch, 1024x600 resolution touchscreen, made with tough, scratch‑

resistant screen. Corning Gorilla Glass is stronger and more scratch‑resistant than standard glass, while maintaining touch sensitivity, color saturation, and brightness.

Motion sensor — Detects motion between three to ﬁve feet from the touchpanel, and at

least 15° from the center axis.

• When no motion has been detected for a user‑deﬁned period of time, the touchpanel

enters sleep mode.

• When motion is detected by the sensor, the screen display is restored and active.

Light sensor (see page 5)

Front status light (see page 5)

TLP Pro 725T • Panel Features 4

Communication LED (see ﬁgure 2 on the previous page)— Shows the conﬁguration and

connection status of the touchpanel:

• Unlit during normal operation (the touchpanel is conﬁgured and connected to an

• Blinks red if the touchpanel has been conﬁgured but is not connected to an IP Link Pro

• Solidly lit red if the touchpanel has not been conﬁgured.

The indicator can be toggled between enabled and disabled, using the Setup Menu (see page 8).

Light sensor (see ﬁgure 2) — Monitors ambient light level and adjusts screen brightness,

based on the settings conﬁgured using the Setup Menu.

Front status light (see ﬁgure 2) — Can be programmed to provide system feedback.

• Light red or green

• Blink or solidly lit

For information about programming this light, see the Global Configurator Help File or the Global Scripter Help File.

Rear Panel Features

IP Link Pro control processor).

control processor.

Figure 3. TLP Pro 725T Rear Panel

Status light — Can be programmed to provide system feedback.

• Light red or green

• Blink or solidly lit

For information about programming this light, see the Global Configurator Help File or the Global Scripter Help File.

Type A USB port — Compatible with USB 2.0. The port is concealed behind a plastic

cover, which can be removed with a small, ﬂat‑bladed screw driver.

Cable guide — The LAN/PoE cable is inserted through this hole at the back of the base

(see LAN/PoE Connector on the following page).

TLP Pro 725T • Panel Features 5

Base

To network switchTo touchpanel

AABBCCDDEEFF

Menu button

Reset button

Cable guide

Figure 4. TLP Pro 725T Base

Menu button — Activates the Setup Menu (see page 8).

Reset button — Initiates one of three reset modes for the unit (see Reset Modes on

page 19).

Cable guide — The LAN/PoE cable is inserted through this hole at the back of the base

(see LAN/PoE connector below).

Reset LED — Indicates power status and reset status of the device (see Reset Modes).

LAN/PoE connector— Attach the LAN/PoE cable to this RJ‑45 port. The TLP Pro 725T

ships without a power injector, which must be purchased separately.

An Extron IPL Pro control processor must also be connected to the same network domain as the TouchLink Pro touchpanel (see the www.extron.com for a list of suggested models).

The network port has two LEDs. The green LED lights steadily to indicate that the touchpanel is connected correctly to a network. The yellow LED flashes to indicate that data is being passed to or from the touchpanel.

Connect a straight‑through Ethernet cable from the power injector to a switch or router (figure 5, 1). This cable carries network information from the switch or router to the power supply input. A second straight‑through cable carries the network information and 48VDC from the power injector to the touchpanel (2). Connect the IEC power cord to a convenient 100 VAC to 240 VAC, 50‑60 Hz power source (3).

Figure 5 shows the Extron XTP PI 100. Your power injector may look different.

100-240V ~ 50-60Hz

0.4A MAX

XTP

XTP PWR

PWR

Reset LED

LAN/PoE connector

Speaker (see page 7)

Figure 5. Connecting the Power Injector

TLP Pro 725T • Panel Features 6

ATTENTION:

• The touchpanels are intended for connection to a Power over Ethernet circuit for

intra‑building use only and are considered to be part of a Network Environment 0 per IEC TR62101.

• Les écrans tactiles sont conçu pour une connexion à un circuit PoE pour une

utilisation intérieure seulement et est considéré comme faisant partie d’un environnement réseau 0 par IECTR62101.

• Always use a power supply provided by or speciﬁed by Extron. Use of an

unauthorized power supply voids all regulatory compliance certiﬁcation and may cause damage to the supply and the end product.

• Utilisez toujours une source d’alimentation fournie ou recommandée par Extron.

L’utilisation d’une source d’alimentation non autorisée annule toute conformité réglementaire et peut endommager la source d’alimentation ainsi que le produit ﬁnal.

• These products are intended for use with a UL Listed power source marked “Class 2”

or “LPS” and rated 48 VDC (PoE), minimum 0.35 A.

• Ces produits sont destiné à une utilisation avec une source d’alimentation listéeUL

avec l’appellation «Classe2» ou «LPS» et normée 48Vcc (PoE), 0,35A minimum.

• Extron power supplies are certiﬁed to UL/CSA 60950‑1 and are classiﬁed as LPS

(Limited Power Source). Use of a non‑LPS or unlisted power supply will void all regulatory compliance certiﬁcation.

• Les sources d’alimentation Extron sont qualiﬁées UL/CSA60950‑1 et sont

classéesLPS(LimitedPowerSource). L’utilisation d’une source d’alimentation non‑ listée ou non‑listéeLPS annulera toute certiﬁcation de conformité réglementaire.

• Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling

spaces or in wall cavities. The power supply is to be located within the same vicinity as the Extron AV processing equipment in an ordinary location, Pollution Degree 2, secured to the equipment rack within the dedicated closet, podium, or desk.

• Sauf mention contraire, les adaptateurs AC/DC ne sont pas appropriés pour une

utilisation dans les espaces d’aération ou dans les cavités murales. La source d’alimentation doit être située à proximité de l’équipement de traitement audiovisuel dans un endroit ordinaire, avec un degré2 de pollution, ﬁxé à un équipement de rack à l’intérieur d’un placard, d’une estrade, ou d’un bureau.

• Power over Ethernet (PoE) is intended for indoor use only. It is to be connected only to

networks or circuits that are not routed to the outside plant or building.

• L’alimentation via Ethernet (PoE) est destinée à une utilisation en intérieur uniquement.

Elle doit être connectée seulement à des réseaux ou des circuits qui ne sont pas routés au réseau ou au bâtiment extérieur.

• The installation must always be in accordance with the applicable provisions of

National Electrical Code ANSI/NFPA 70, article 725 and the Canadian Electrical Code part 1, section 16.

• Cette installation doit toujours être en accord avec les mesures qui s’applique au

National Electrical Code ANSI/NFPA70, article725, et au Canadian Electrical Code, partie1, section16.

• The power supply shall not be permanently ﬁxed to the building structure or similar

structure.

• La source d’alimentation ne devra pas être ﬁxée de façon permanente à une structure

de bâtiment ou à une structure similaire.

Speaker (see ﬁgure 4 on the previous page) — Provides audio for video preview and

audible feedback from button presses.

TLP Pro 725T • Panel Features 7

On-screen Menus

On‑screen menus allow initial conﬁguration of the TLP Pro 725T.

Setup Menu

To open the setup menu, use a screw driver with a fine blade to press the Menu button. The

Menu button is located on the base of the touchpanel (see figure 4 on page 6).

The menus open at the Status screen. There are five different screens:

• Status (see below) • Audio (see page 12)

• Network (see following page) • Advanced (see page 12)

• Display (see page 11)

These can be selected by pressing the appropriate button in the navigation panel at the top of the screen. The button for the selected screen is yellow. The buttons for the remaining screens are black.

There is also a red Exit button in the top right corner of the screen. Pressing this button applies and saves any changes and closes the menu screens.

Status

Press the Status button in the navigation panel at the top of any screen to open the Status screen.

Status

Model: TLP Pro 725T

Part Number: 60-1562-02

Firmware Version:

Bootloader Version: 1.00.0000

Network

Info

1.00.0001-b003

Display Audio Advanced Exit

Network

IP Address: DHCP: Host Name:

Master Volume: Master Mute: Off

192.168.254.251 Off TLP-AB-CD-EF

Audio

Resolution: GUI Project: Sleep Timer:

Controller IP: N/A Project Size: N/A

Display

Advanced

1024x600 N/A 5 Minutes

Figure 6. Status Screen

The Status screen is a read‑only screen that provides basic information about the touchpanel. Each of the other four panels shows a summary of the information on the other screens. Pressing any of the panels opens the corresponding screen in exactly the same way as pressing the buttons in the top navigation panel.

A green bubble in the Network panel lights when there is a network connection or a red square appears if there is no connection. The green bubble in the Advanced panel lights when a control processor is connected or a red square appears if none is connected.

TLP Pro 725T • On-screen Menus 8

Network

Verify with your network administrator whether the IP address for the touchpanel is assigned by Dynamic Host Configuration Protocol (DHCP) or set manually. If they are set manually, you need to obtain an IP address, a subnet mask, a gateway address, and a Domain Name Server (DNS) from the network administrator.

Press the Network button in the navigation panel at the top of the screen to open the Network screen.

Status

Host Name:DNS Primary:

IP Address:

Subnet Mask:

Gateway:

Network

TLP-AB-CD-EF

192.168.254.251

255.255.255.0

0.0.0.0

Display Audio Advanced Exit

DHCP

On Off

127.0.0.1

Domain Name:

MAC Address:

00-05-A6-AB-CD-EF

Revert Apply

Figure 7. Network Screen

1. If IP addresses are assigned by DHCP, press On. The selected button is highlighted in yellow.

• When DHCP is off, the Host Name is grayed out and cannot be edited. All

addresses can be edited (as shown in ﬁgure 7).

• When DHCP is on, the Host Name can be edited. The addresses are grayed out

and cannot be edited because they are set by the DHCP server.

If IP addresses are assigned manually, press Off.

2. If DHCP is on, you can edit the Host Name by pressing that button. A keypad opens:

Figure 8. Alphanumeric Keypad

• Use the keypad to enter a new name, which appears in the Host Name text box.

• Use the backspace character (

) to delete existing characters.

• The right and left arrows move the cursor inside the Host Name text box.

• Click the Shift key to toggle between upper and lower case letters.

• Press Enter to save the new name.

TLP Pro 725T • On-screen Menus 9

3. If DHCP is disabled, set the unit IP address, subnet mask, gateway address, and DNS

server address.

a. Press the button for the address to be edited. A screen opens, showing the address

and a numerical keypad.

IP Address

192 168 254 251

Clear

Back

Cancel

Figure 9. Numeric Pad for Setting IP Addresses

b. Press Clear to remove the old address. If you start typing without pressing Clear, the

ﬁrst octet is over‑written and the other octets remain the same.

c. Press any octet button to highlight and start editing it. d. Enter the 3‑digit value for that octet (leading zeroes in the octet are ignored).

NOTE: Octets can have any value between 0 and 255. If you attempt to enter an

invalid number, for example 892, you are able to enter the 89 but the 2 cannot be entered.

Click Back to delete the last digit. If no value has been entered for the selected octet, pressing Back moves the cursor back to the previous octet and deletes the last digit of that octet.

e. Press the next octet button and enter a value. f. Repeat steps c‑e until values have been entered for all four octets. g. Press OK to save the changes and return to the Network screen

0.0.0.10

or press Cancel to return to the Network screen without saving

4. If you have changed any of the values in the Network screen, the background color of the

the changes.

button changes to blue. Press Apply to apply the new values or press Revert to return to the previous values without saving the changes. The button returns to gray.

If you have not made any changes, the Apply and Revert buttons are grayed out.

TLP Pro 725T • On-screen Menus 10

Display

Press the Display button in the navigation panel at the top of the screen to open the Display screen.

Status

Network

Sleep Timer

Display Audio Advanced Exit

Auto Brightness

On Off

2 3 4

Minutes

On Off

Figure 10. Display Screen

The Display screen allows you to set the Sleep Timer, Auto Brightness,

LCDBrightness, and Wake on Motion.

• Sleep Timer — Determines how long the panel is inactive before it enters sleep mode,

when the screen goes dark to save power. Toggle between On and Off. If the sleep timer is

On, use the arrows to adjust the value between 1 and 120 minutes.

• Auto Brightness — Provides a suitable amount of backlighting that is automatically

calculated from the amount of ambient light detected by the light sensor (see ﬁgure 2 on page 4).

• LCD Brightness — Allows you to adjust the screen brightness, using the slider control.

• Wake on Motion — Activates the panel from Sleep mode when motion is detected near

the unit. Toggle between On and Off.

LCD Brightness

050100

Wake on Motion

On Off

TLP Pro 725T • On-screen Menus 11

Audio

Press the Audio button in the navigation panel at the top of the screen to open the Audio screen.

Status

Network

Master

100

Display Audio Advanced Exit

Click

100

Sound

100

Figure 11. Audio Screen

On the Audio screen, use the slider controls to adjust the Master, Click, and Sound volume settings.

• Master — Sets the maximum volume for all the other sound volume settings. For example,

if the master volume is set to 80 (80 percent of maximum), even when the sound volume is set to 100, it is equivalent to only 80 percent of maximum.

• Click — Sets the volume for audible feedback that accompanies events such as a screen

button being pressed.

• Sound — Sets the volume of audio from any audio ﬁle playback.

Click on the Speaker icon at the bottom of each panel to toggle between audio on and audio mute. The sound audio is muted in figure 11.

Advanced

Press the Advanced button in the navigation panel at the top of the screen to open the

Advanced screen.

Status

Network

System

Touchpanel Name: Controller Name: Controller IP:

------------------------------------------------------------Global Configurator Project

Name:NorthHall Version: 01.00.1383 Creation Date:2/15/2016 2:48:20 PM Revision Date:2/16/2016 4:15:45 PM

TLP-AB-CD-EF IPCP 505 - North Hall

192.168.254.11

Menu PIN

Off ChangeOn

Display Audio Advanced Exit

GUI Project

Name: Resolution: Creation Date:

Revision Date: Version:

Project Size: 12 MB

Project Usage: 0%

Jet Video Conference System 1024x600 2/12/2016

02/12/2016

01.00.16

115 MBStorage Size:

Communication LED

Enable Disable

Figure 12. Advanced Screen

System and GUI Project Panels

These panels are read only, providing information about the system, the Global Configurator Project, and the GUIDesigner Project.

TLP Pro 725T • On-screen Menus 12

Menu PIN

The PIN setup options allow you to enable, disable, or change the setup menu PIN. The PIN is a 4‑digit number. Each digit can have any value from 0‑9.

1. Select the ﬁrst digit of the PIN. When selected, it is highlighted in yellow.

Enter New Menu PIN

2 3 41

21 3

456

Back

Cancel

Figure 13. Numeric Keypad for Setting PIN

2. Press a number on the keypad. That number appears in the PIN.

3. Repeat steps 1 and 2 for the other 3 digits.

4. The title bar changes to Confirm New Menu Pin.

5. Enter the PIN a second time. When the PIN entered on the second occasion matches the

PIN entered on the ﬁrst occasion, the PIN is set and the dialog closes.

Communication LED

The LED can be enabled or disabled.

TLP Pro 725T • On-screen Menus 13

Configuration Software

This section of the user guide provides information about:

• Configuration Software

• TLP Pro 725T Web Pages

• Updating the Firmware

Configuration Software

Designing a graphical user interface (GUI) for the TouchLink Pro touchpanel takes two steps:

1. Design the layout of the screen text and graphics using GUI Designer.

2. Assign functions to the text and graphics using Global Conﬁgurator Plus and Professional.

The user interface of the touchpanel is designed with GUI Designer software, which is a Windows‑based application. You can either customize an existing template or create an entirely new interface. GUIDesigner offers several templates.

After the user interface has been designed on a PC, the project is saved, built, and imported into Global Configurator, where the appropriate control functions are assigned to the text and graphic items of the interface. After assigning the control functions, the project is rebuilt and uploaded to the control processor and touchpanel.

The GUI Designer and the Global Configurator Plus and Professional programs provide versatility and adaptability for configuration and control of an AV system as it grows and evolves.

TLP Pro 725T • Conﬁguration Software 14

Installing GUI Designer, Global Conﬁgurator, and Toolbelt

NOTE: Use GUIDesigner, Global Configurator Plus and Professional, and Toolbelt to

configure the TLP Pro touchpanel.

GUI Designer, Global Configurator, and Toolbelt can be downloaded from www.extron.com.

1. Select the Download tab (ﬁgure 14,

at the left.

) and click the Software option (2) in the sidebar

Figure 14. Downloading Software

You may see the product immediately, for example Global Configurator (3) and GUI Designer (4) are displayed on the main page and also in the sidebar (2).

2. If the product is not shown, scroll down to the alphabet menu.

ALL #ABC DEFGHI JK MLNPOQ TSRUVWXYZ

Figure 15. Software Alphabet Menu

3. Click the initial letter of the software product.

4. Scroll through the search results until you ﬁnd it.

• GUI Designer — Click the Download button next to the program and follow the on‑

screen instructions.

• Global Conﬁgurator — Ensure you are downloading Global Conﬁgurator Plus and

Professional. Click the Download button next to the program and follow the on‑screen instructions.

NOTE: You need an Extron Insider account to run Global Configurator Plus and

Professional. To obtain one, contact the Extron Sales Department.

• Toolbelt — Click the Download button next to the program and follow the on‑screen

instructions.

TLP Pro 725T • Conﬁguration Software 15

Using the Software

GUI Designer

Use the GUI Designer software to design the screen layout for the touchpanel (see the GUIDesigner Help file for step‑by‑step instructions and more detailed information).

Global Conﬁgurator

Use the Global Configurator Plus and Professional software to set up and configure the control processor and the touchpanel (see the Global Configurator Plus and Professional Help File for step‑by‑step instructions and more detailed information). The Global Configurator Plus and Professional Help File also includes an introduction to the software and sections on how to start and configure a project.

Toolbelt

Use the Toolbelt software for device discovery, device information, firmware updates, and configuration of network settings, system utilities, and user management for TouchLink Pro devices (see the Toolbelt Help file for more detailed information).

TLP Pro 725T Web Pages

To access the touchpanel default web pages, enter the IP address of the unit into the web browser of a PC connected to the same subnet. There is a single, read‑only page that provides general and network information about the unit (see figure 16, below). It also allows you to upgrade the unit ﬁrmware.

A dialog box opens asking for your user name and password. By default, the user name is

admin and the password is extron (both user name and password are all lower case).

Use the Setup Menu (see page 8) or Toolbelt to conﬁgure the touchpanel network settings.

Extron Electronics®

General Status

Model Name: TLP Pro 725 T

Description: TouchLink Pro Ta bletop

Part Number: 60-1562-02

Firmware Version: 1.00

Date: Monday, May 27, 2013

Time: 7:58 PM

Up Time: 0 day(s) 1 hour(s) 23 minute(s)

License Information

System Devices

Device Name Part Number Hostname/IP

Firmware Upgrades

Firmware:

DHCP:Off

Host Name: TLP-Pro-725T-AB-CD-EF

IPv4 IP Address: 192.168.254.251

DNS (IP): 127.0.0.1

Gateway IP: 0.0.0.0

Subnet Mask: 255.255.255.0

Mac Address: 00-05-A6-AB-CD-EF

Browse Upload

Project

No Project Configured

Figure 16. TLP Pro 725T Web Page

TLP Pro 725T • Conﬁguration Software 16

Updating the Firmware

Firmware for the TLP Pro 725T can be upgraded using Toolbelt or the touchpanel web page. Before starting, consult your IT team and ensure that the touchpanel has a unique IP address.

Downloading Firmware

1. Power on a computer that is connected to the same network as the touchpanel.

2. On the Extron website (www.extron.com), click Download in the menu bar along the top of

the page (see ﬁgure17,1).

Figure 17. Firmware Download Center

3. Click Firmware in the menu bar in the left side bar (

4. Click the letter T from the alphabet menu (

5. Scroll down the page until you ﬁnd the ﬁrmware for your model.

6. Click Release Notes for more information about the ﬁrmware (optional).

7. Click Download.

8. Follow the onscreen instructions to download the program. Make a note of where the

ﬁrmware is stored on the PC.

Updating Firmware Using the Touchpanel Web Page

1. If you have not already done so, download the ﬁrmware ﬁle to a computer on the same

network as the touchpanel (see the previous section).

2. Open the TLP Pro 725T Web Pages (see the previous page).

Figure 18. Touchpanel Web Page: Firmware Uploader

3. Click Browse and navigate to the ﬁrmware location.

4. Click Upload. The ﬁrmware ﬁle is uploaded to the touchpanel. Follow the on‑screen

instructions.

Updating Firmware Using Toolbelt

For complete information about using Toolbelt, see the Toolbelt Help File.

TLP Pro 725T • Conﬁguration Software 17

Mounting

This section outlines the various options for:

• Mounting the TLP Pro 725T

• Desktop Mounting

• SMA-2 Swivel Mount Adapter

Mounting the TLP Pro 725T

The TLP Pro 725T can be placed on any suitable flat surface. For additional security, secure it to the desktop with screws.

Desktop Mounting

Placement without a mounting kit

The TLP Pro 725T can be placed on any suitable flat surface. The unit can be secured to the desktop using two screws.

Figure 19. TLP Pro 725T Base

1. Under the table top, mark the location of two mounting holes, 2.88inches (73 mm) apart.

2. Drill two holes through the table top from underneath.

3. Attach the touchpanel, using two #6 machine screws through the table top from underneath

into the two holes in the base (see ﬁgure 19, A).

SMA-2 Swivel Mount Adapter

The TLP Pro 725T can be mounted with the optional Extron SMA‑2 swivel mount adapter, which allows it to be mounted permanently and swivel up to 180° in either direction. Follow the instructions in the installation guide provided with the kit.

TLP Pro 725T • Mounting 18

Reference Material

This section describes:

• Network Port Requirements and Licensed Third-Party Software Used by the

Touchpanels

• Reset Modes

Network Port Requirements and Licensed Third-Party Software Used by the Touchpanels

For information about network port requirements and licensed third‑party software for the TLP Pro 725T touchpanel, please refer to the Pro Series Control Product Network Ports and Licenses Guide, which is available at www.extron.com.

Reset Modes

The TLP Pro 725T touchpanel has three reset modes that are initiated by pressing the Reset button:

• Use Factory Firmware (see below).

• Reset All IP Settings (see following page).

• Reset to Factory Defaults (see following page).

The Reset button is found on the rear panel (see figure 4 B, on page 6).

Use Factory Firmware

This mode is used to boot up the unit with factory‑installed firmware for a single power cycle in the event of a firmware update that failed or incompatibility issues arising with user‑loaded firmware.

Activation

To start the Use Factory Firmware reset mode and replace firmware:

1. Remove power from the touchpanel.

2. On the touchpanel, hold down the recessed Reset button (see ﬁgure 4,

applying power to the unit. When power is restored, the Reset LED lights. Hold the Reset button for a further two seconds before releasing it. The touchpanel enters factory ﬁrmware mode.

3. Upload new ﬁrmware to the unit as desired (see Updating the Firmware on page 17).

NOTE: Do not continue to operate the touchpanel using the factory firmware version. If

you want to use the factory default firmware, you must upload that version again (see

Updating the Firmware).

Result

The unit reverts to factory‑installed firmware. Event scripting does not start if the unit is powered on in this mode. All user files and settings such as drivers, adjustments, and IP settings are maintained.

NOTE: To return the unit to the firmware version that was running prior to the reset, cycle

power to the unit.

) while re‑

TLP Pro 725T • Reference Material 19

Reset All IP Settings

This mode resets all IP settings to factory defaults.

Activation

To reset all IP settings:

1. Hold down the Reset button for about 6 seconds until the Power LED blinks twice (once at

3 seconds and again at 6 seconds).

2. Release and press Reset momentarily (for <1 second) within 1 second. Nothing happens if

the momentary press does not occur within 1 second.

Result

Reset All IP Settings mode:

• Sets the IP address back to factory default (192.168.254.251).

• Sets the subnet back to factory default (255.255.255.0).

• Sets the default gateway address to the factory default (0.0.0.0).

• Sets all other IP settings, addresses, and domain and host names back to factory default.

• Turns DHCP off.

Reset to Factory Defaults

This mode resets all IP settings and touchpanel settings to factory defaults and removes all configurations. It allows you to start over with configuration and uploading.

Activation

To reset the unit to all factory default settings:

1. Hold down the Reset button for about 9 seconds until the Power LED blinks three times

(once at 3 seconds, again at 6 seconds, and again at 9 seconds).

2. Release and press Reset momentarily (for <1 second) within 1 second. Nothing happens if

the momentary press does not occur within 1 second.

Result

Reset to Factory Defaults mode performs a complete reset to factory defaults (except the firmware):

• Does everything Reset All IP Settings mode does.

• Removes touchpanel user interface layout and conﬁgurations.

• Resets all touchpanel settings to factory default.

TLP Pro 725T • Reference Material 20

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics 1230 South Lewis Street Anaheim, CA 92805 U.S.A.

Europe and Africa:

Extron Europe Hanzeboulevard 10 3825 PH Amersfoort The Netherlands

Japan:

Extron Electronics, Japan Kyodo Building, 16 Ichibancho Chiyoda‑ku, Tokyo 102‑0082 Japan

China:

Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Asia:

Extron Electronics Asia Pte. Ltd. 135 Joo Seng Road, #04‑01 PM Industrial Bldg. Singapore 368363

Middle East:

Extron Middle East Dubai Airport Free Zone F13, PO Box 293666 Dubai, United Arab Emirates

Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modiﬁcations were made to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return

Authorization) number. This will begin the repair process.

USA: 714.491.1500 or 800.633.9876 Europe: 31.33.453.4040 Asia: 65.6383.4400 Japan: 81.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁtness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron Headquarters

+1.800.633.9876 (Inside USA/Canada Only)

Extron USA ‑ West Extron USA ‑ East +1.714.491.1500 +1.919.850.1000 +1.714.491.1517 FAX +1.919.850.1001 FAX

Extron Europe

+800.3987.6673 (Inside Europe Only)

+31.33.453.4040 +31.33.453.4050 FAX

Extron Asia

+65.6383.4400 +65.6383.4664 FAX

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.299.1800 +971.4.299.1880 FAX

Extron Australia

+61.8.8113.6800 +61.8.8351.2511 FAX

Extron India

1800.3070.3777 (Inside India Only)

+91.80.3055.3777 +91.80.3055.3737 FAX

Extron electronics TLP Pro 725T User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
