Extron Electronics SS 200 User Manual
Installation and Operation
SS 200
75/510
H-SHIFT
SERR
V. CORR
HV OUT
NEG
SS 200
75/510
H-SHIFT
SERR
V. CORR
HV OUT
NEG
Installation and Operation
Installation and Operation

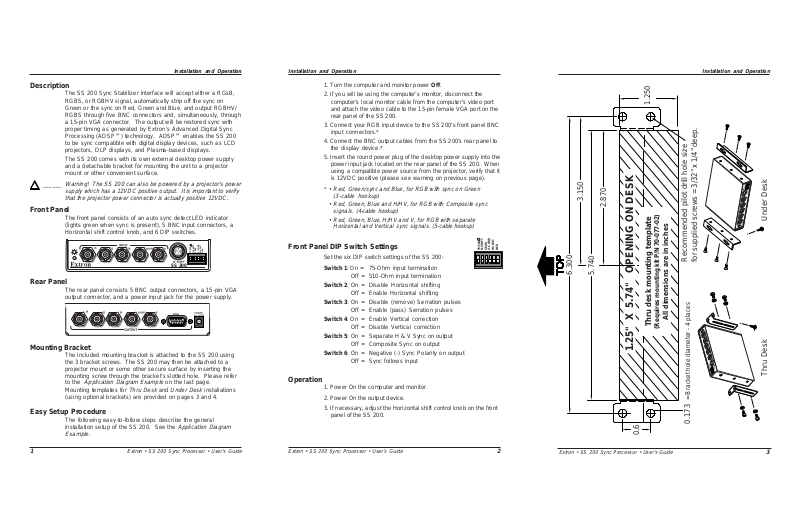

Description
The SS 200 Sync Stabilizer interface will accept either a RGsB,
RGBS, or RGBHV signal, automatically strip off the sync on
Green or the sync on Red, Green and Blue, and output RGBHV/
RGBS through five BNC connectors and, simultaneously, through
a 15-pin VGA connector. The output will be restored sync with
proper timing as generated by Extron’s Advanced Digital Sync
Processing (ADSP™) technology. ADSP™ enables the SS 200
to be sync compatible with digital display devices, such as LCD
projectors, DLP displays, and Plasma-based displays.
The SS 200 comes with its own external desktop power supply
and a detachable bracket for mounting the unit to a projector
mount or other convenient surface.
______ Warning! The SS 200 can also be powered by a projector’s power
supply which has a 12VDC positive output. It is important to verify
that the projector power connector is actually positive 12VDC.
Front Panel
The front panel consists of an auto sync detect LED indicator
(lights green when sync is present), 5 BNC input connectors, a
Horizontal shift control knob, and 6 DIP switches.
75/510
H-SHIFT
SERR
V. CORR
HV OUT
NEG
SS 200
Rear Panel
The rear panel consists 5 BNC output connectors, a 15-pin VGA
output connector, and a power input jack for the power supply.
Mounting Bracket
The included mounting bracket is attached to the SS 200 using
the 3 bracket screws. The SS 200 may then be attached to a
projector mount or some other secure surface by inserting the
mounting screw through the bracket’s slotted hole. Please refer
Application Diagram Example
to the
Mounting templates for
Thru Desk
on the last page.
and
Under Desk
installations
(using optional brackets) are provided on pages 3 and 4.
Easy Setup Procedure
The following easy-to-follow steps describe the general
installation setup of the SS 200. See the
Example
.
Application Diagram
1. Turn the computer and monitor power Off.
2. If you will be using the computer’s monitor, disconnect the
computer’s local monitor cable from the computer’s video port
and attach the video cable to the 15-pin female VGA port on the
rear panel of the SS 200.
3. Connect your RGB input device to the SS 200’s front panel BNC
input connectors.*
4. Connect the BNC output cables from the SS 200’s rear panel to
the display device.*
5. Insert the round power plug of the desktop power supply into the
power input jack located on the rear panel of the SS 200. When
using a compatible power source from the projector, verify that it
is 12VDC positive (please see warning on previous page).
* •
Red, Green/sync and Blue, for RGB with sync on Green
(3-cable hookup)
•
Red, Green, Blue and H/HV, for RGB with Composite sync
signals. (4-cable hookup)
•
Red, Green, Blue, H/HV and V, for RGB with separate
Horizontal and Vertical sync signals. (5-cable hookup)
Front Panel DIP Switch Settings
Set the six DIP switch settings of the SS 200:
Switch 1: On = 75-Ohm input termination
Off = 510-Ohm input termination
Switch 2: On = Disable Horizontal shifting
Off = Enable Horizontal shifting
Switch 3: On = Disable (remove) Serration pulses
Off = Enable (pass) Serration pulses
Switch 4: On = Enable Vertical correction
Off = Disable Vertical correction
Switch 5: On = Separate H & V Sync on output
Off = Composite Sync on output
Switch 6: On = Negative (-) Sync Polarity on output
Off = Sync follows input
Operation
1. Power On the computer and monitor.
2. Power On the output device.
3. If necessary, adjust the Horizontal shift control knob on the front
panel of the SS 200.
75/510
H-SHIFT
SERR
V. CORR
HV OUT
NEG
3.150
6.300
2.870
5.740
1.250
Recommended pilot drill hole size
for supplied screws = 3/32” x 1/4” deep.
All dimensions are in inches
Thru desk mounting template
(Requires mounting kit P/N 70-077-02)
1.25" X 5.74" OPENING ON DESK
Thru Desk Under Desk
= Bracket hole diameter - 4 places
0.173
0.6
1
Extron • SS 200 Sync Processor • User’s Guide
Extron • SS 200 Sync Processor • User’s Guide
2
Extron • SS 200 Sync Processor • User’s Guide
3
Installation and Operation
Under desk mounting template
(Requires mounting kit P/N 70-077-01)
Application Diagram Example
Projector
Mounting
Bracket
Mounting
Bolt
3,4,5 BNC
Input
Ceiling
VGA / 3,4,5 BNC
Output To
Projector
SS 200
Specifications
User’s Guide
All dimensions are in inches
SS 200 Specifications
General
Part Number ................................... 60-285-01
Dimensions .................................... 5.70" W x 4.50" D x 1.25" H
(14.48 cm W x 11.43 cm D x 3.17 cm H)
Shipping Weight ............................. 2 lbs (0.9 kg)
Input Power (external desktop) ...... 12VDC, 0.5A
Operating Temperature.................. 0°C to +50°C (+32°F to +122°F)
Storage Temperature ..................... -40°C to +70°C (-40°F to +158°F)
Humidity .......................................... 10% to 90% noncondensing
Vibration ......................................... NSTA 1A in carton
Safety Certification ......................... CE, UL
Warranty ......................................... Two years, parts and labor
RGB Bandwidth .............................. 300 MHz
Input Signal
Video Level .................................... 0.3 to 1.45 volts p-p
Sync ................................................ RGsB, RGBS, RGBHV
Composite Sync ............................. TTL level
Recommended pilot drill hole size
for supplied screws = 3/32” x 1/4” deep.
Separate H & V Sync ..................... TTL level
Termination Impedance................. 75 ohms/510 ohms
Output Signal
Video............................................... Analog
Video Level .................................... Unity
SS 200
Sync ................................................ Separate H & V, TTL
Composite, TTL
Termination Impedance ................. 75 ohms
Extron Electronics
1230 South Lewis Street
Anaheim, CA 92805
SM
714-491-1500 FAX 714-491-1517
4
Extron • SS 200 Sync Processor • User’s Guide
U.S.A.
Extron Electronics, Europe
Beeldschermweg 6C
3821 AH Amersfoort
+31-33-453-4040 FAX +31-33-453-4050
The Netherlands
Extron Electronics, Asia
41B Kreta Ayer Road
Singapore 089003
+65-226-0015 FAX +65-226-0019
Singapore
99-04
68-436-01
First Edition
Printed in the USA
Sync Stabilizer
68-436-01
Printed in the USA
