Installation Guide
www.extron.com
Extron Electronics, USA
1230 South Lewis Street
Anaheim, CA 92805
USA
714.491.1500
Fax 714.491.1517
Extron Electronics, Europe
Beeldschermweg 6C
3821 AH Amersfoort
The Netherlands
+31.33.453.4040
Fax +31.33.453.4050
© 2005 Extron Electronics. All rights reserved.
Extron Electronics, Asia
135 Joo Seng Road, #04-01
PM Industrial Building
Singapore 368363
+65.6383.4400
Fax +65.6383.4664
Extron Electronics, Japan
Kyodo Building
16 Ichibancho
Chiyoda-ku, Tokyo 102-0082 Japan
+81.3.3511.7655
Fax +81.3.3511.7656
SPA 12 AAP
Architectual Speaker
68-1116-01
Rev. A
10 05
Precautions
Safety Instructions • English
This symbol is intended to alert the user of important
operating and maintenance (servicing) instructions
in the literature provided with the equipment.
This symbol is intended to alert the user of the
presence of uninsulated dangerous voltage within
the product's enclosure that may present a risk of
electric shock.
Caution
Read Instructions • Read and understand all safety and operating
instructions before using the equipment.
Retain Instructions • The safety instructions should be kept for future
reference.
Follow Warnings • Follow all warnings and instructions marked on the
equipment or in the user information.
Avoid Attachments • Do not use tools or attachments that are not
recommended by the equipment manufacturer because they may be
hazardous.
Consignes de Sécurité • Français
Ce symbole sert à avertir l’utilisateur que la
documentation fournie avec le matériel contient des
instructions importantes concernant l’exploitation
et la maintenance (réparation).
Ce symbole sert à avertir l’utilisateur de la présence
dans le boîtier de l’appareil de tensions dangereuses
non isolées posant des risques d’électrocution.
Attention
Lire les instructions• Prendre connaissance de toutes les consignes de
sécurité et d’exploitation avant d’utiliser le matériel.
Conserver les instructions• Ranger les consignes de sécurité afin de
pouvoir les consulter à l’avenir.
Respecter les avertissements • Observer tous les avertissements et
consignes marqués sur le matériel ou présentés dans la documentation
utilisateur.
Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni
d’outils non recommandés par le fabricant du matériel car cela
risquerait de poser certains dangers.
Sicherheitsanleitungen • Deutsch
Dieses Symbol soll dem Benutzer in der im
Lieferumfang enthaltenen Dokumentation
besonders wichtige Hinweise zur Bedienung und
Wartung (Instandhaltung) geben.
Dieses Symbol soll den Benutzer darauf aufmerksam
machen, daß im Inneren des Gehäuses dieses
Produktes gefährliche Spannungen, die nicht isoliert
sind und die einen elektrischen Schock verursachen
können, herrschen.
Achtung
Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,
sollten Sie alle Sicherheits-und Bedienungsanleitungen genau
durchlesen und verstehen.
Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit
des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf
zurückgreifen können.
Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und
Anleitungen auf dem Gerät oder in der Benutzerdokumentation.
Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,
die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine
Gefahrenquelle darstellen können.
Instrucciones de seguridad • Español
Este símbolo se utiliza para advertir al usuario sobre
instrucciones importantes de operación y
mantenimiento (o cambio de partes) que se desean
destacar en el contenido de la documentación
suministrada con los equipos.
Este símbolo se utiliza para advertir al usuario sobre
la presencia de elementos con voltaje peligroso sin
protección aislante, que puedan encontrarse dentro
de la caja o alojamiento del producto, y que puedan
representar riesgo de electrocución.
Precaucion
Leer las instrucciones • Leer y analizar todas las instrucciones de
operación y seguridad, antes de usar el equipo.
Conservar las instrucciones • Conservar las instrucciones de seguridad
para futura consulta.
Obedecer las advertencias • Todas las advertencias e instrucciones
marcadas en el equipo o en la documentación del usuario, deben ser
obedecidas.
Evitar el uso de accesorios • No usar herramientas o accesorios que no
sean especificamente recomendados por el fabricante, ya que podrian
implicar riesgos.
Warning
Power sources • This equipment should be operated only from the power source
indicated on the product. This equipment is intended to be used with a main
power system with a grounded (neutral) conductor. The third (grounding) pin is
a safety feature, do not attempt to bypass or disable it.
Power disconnection • To remove power from the equipment safely, remove all
power cords from the rear of the equipment, or the desktop power module (if
detachable), or from the power source receptacle (wall plug).
Power cord protection • Power cords should be routed so that they are not likely to
be stepped on or pinched by items placed upon or against them.
Servicing • Refer all servicing to qualified service personnel. There are no user-
serviceable parts inside. To prevent the risk of shock, do not attempt to service
this equipment yourself because opening or removing covers may expose you to
dangerous voltage or other hazards.
Slots and openings • If the equipment has slots or holes in the enclosure, these are
provided to prevent overheating of sensitive components inside. These openings
must never be blocked by other objects.
Lithium battery • There is a danger of explosion if battery is incorrectly replaced.
Replace it only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the manufacturer's
instructions.
Avertissement
Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation
indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation
principale comportant un fil de terre (neutre). Le troisième contact (de mise à la
terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la
désactiver.
Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,
déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du
module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.
Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de
manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas
écrasés ou pincés par des objets.
Réparation-maintenance • Faire exécuter toutes les interventions de réparation-
maintenance par un technicien qualifié. Aucun des éléments internes ne peut être
réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne
doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le
retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.
Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices,
ceux-ci servent à empêcher les composants internes sensibles de surchauffer. Ces
ouvertures ne doivent jamais être bloquées par des objets.
Lithium Batterie • Il a danger d'explosion s'll y a remplacment incorrect de la
batterie. Remplacer uniquement avec une batterie du meme type ou d'un ype
equivalent recommande par le constructeur. Mettre au reut les batteries usagees
conformement aux instructions du fabricant.
Vorsicht
Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene
Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit
einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der
dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar.
Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.
Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen,
sollten Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen
Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.
Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im
Weg liegen und niemand darauf treten kann oder Objekte darauf- oder
unmittelbar dagegengestellt werden können.
Wartung • Alle Wartungsmaßnahmen sollten nur von qualifiziertem
Servicepersonal durchgeführt werden. Die internen Komponenten des Gerätes
sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in
keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die
Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.
Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse
aufweist, dienen diese zur Vermeidung einer Überhitzung der empfindlichen
Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten
blockiert werden.
Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird.
Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen
vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen
Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.
Advertencia
Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo
de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este
equipo debe provenir de un sistema de distribución general con conductor
neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no
puentearia ni eliminaria.
Desconexión de alimentación eléctrica • Para desconectar con seguridad la
acometida de alimentación eléctrica al equipo, desenchufar todos los cables de
alimentación en el panel trasero del equipo, o desenchufar el módulo de
alimentación (si fuera independiente), o desenchufar el cable del receptáculo de
la pared.
Protección del cables de alimentación • Los cables de alimentación eléctrica se
deben instalar en lugares donde no sean pisados ni apretados por objetos que se
puedan apoyar sobre ellos.
Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal
calificado. En el interior no hay partes a las que el usuario deba acceder. Para
evitar riesgo de electrocución, no intentar personalmente la reparación/
mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar
expuesto a voltajes peligrosos u otros riesgos.
Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento,
es para evitar el sobrecalientamiento de componentes internos sensibles. Estas
aberturas nunca se deben obstruir con otros objetos.
Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición
incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente)
recomendado por el fabricante. Desachar las baterías usadas siguiendo las
instrucciones del fabricante.
FCC Class A Notice
Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance
with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the
interference at his own expense.
Note: This unit was tested with shielded cables on the peripheral devices. Shielded
cables must be used with the unit to ensure compliance.
Extron’s Warranty
Extron Electronics warrants this product against defects in materials and
workmanship for a period of three years from the date of purchase. In the event of
malfunction during the warranty period attributable directly to faulty workmanship
and/or materials, Extron Electronics will, at its option, repair or replace said products
or components, to whatever extent it shall deem necessary to restore said product to
proper operating condition, provided that it is returned within the warranty period,
with proof of purchase and description of malfunction to:
USA, Canada, South America, Europe, Africa, and the Middle East:
and Central America:
Extron Electronics Beeldschermweg 6C
1230 South Lewis Street 3821 AH Amersfoort
Anaheim, CA 92805, USA The Netherlands
Asia: Japan:
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Kyodo Building,
PM Industrial Bldg. 16 Ichibancho
Singapore 368363 Chiyoda-ku, Tokyo 102-0082
This Limited Warranty does not apply if the fault has been caused by misuse,
improper handling care, electrical or mechanical abuse, abnormal operating
conditions or non-Extron authorized modification to the product.
If it has been determined that the product is defective, please call Extron and ask for
an Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe),
65.6383.4400 (Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return
Authorization number). This will begin the repair process as quickly as possible.
Units must be returned insured, with shipping charges prepaid. If not insured, you
assume the risk of loss or damage during shipment. Returned units must include the
serial number and a description of the problem, as well as the name of the person to
contact in case there are any questions.
Extron Electronics makes no further warranties either expressed or implied with
respect to the product and its quality, performance, merchantability, or fitness for any
particular use. In no event will Extron Electronics be liable for direct, indirect, or
consequential damages resulting from any defect in this product even if Extron
Electronics has been advised of such damage.
Please note that laws vary from state to state and country to country, and that some
provisions of this warranty may not apply to you.
Extron Electronics, Europe
Japan
Introduction
The Extron SPA 12 AAP is a full-range speaker designed for
installation within the enclosures of select HSA (Hideaway
Surface Access) and Cable Cubby® Series products. It provides
localized, near-field sound coverage for one or more
participants at a conference table.
Mounting the SPA 12 AAP
The SPA 12 installs directly into the four-space AAP opening of
various architectural frames; the Cable Cubby 300, 600, and
800 series; and the HSA 400, and 822 series.
Each SPA 12 AAP includes a rear enclosure and a factory
installed magnet cap to secure it. These pieces enhance the quality
of sound, but are not required for use.
Installation into an HSA 400
To install the SPA 12 AAP speaker into an Extron HSA 400 front
panel, do the following. Several of the steps are summarized in
figure 1, below.
1. Insert the provided polyester fiber foam into the rear
enclosure.
Tighten (2) #4-40 Nuts
10
w/ Captive Washers
(this side)
Tighten Lock Nut
9
& Washer
™
Extron
SPA 12
2
1
2
5
5
0
/6
0
H
z
0
.
5
Extron
HSA 400
Front Panel
Front Grill

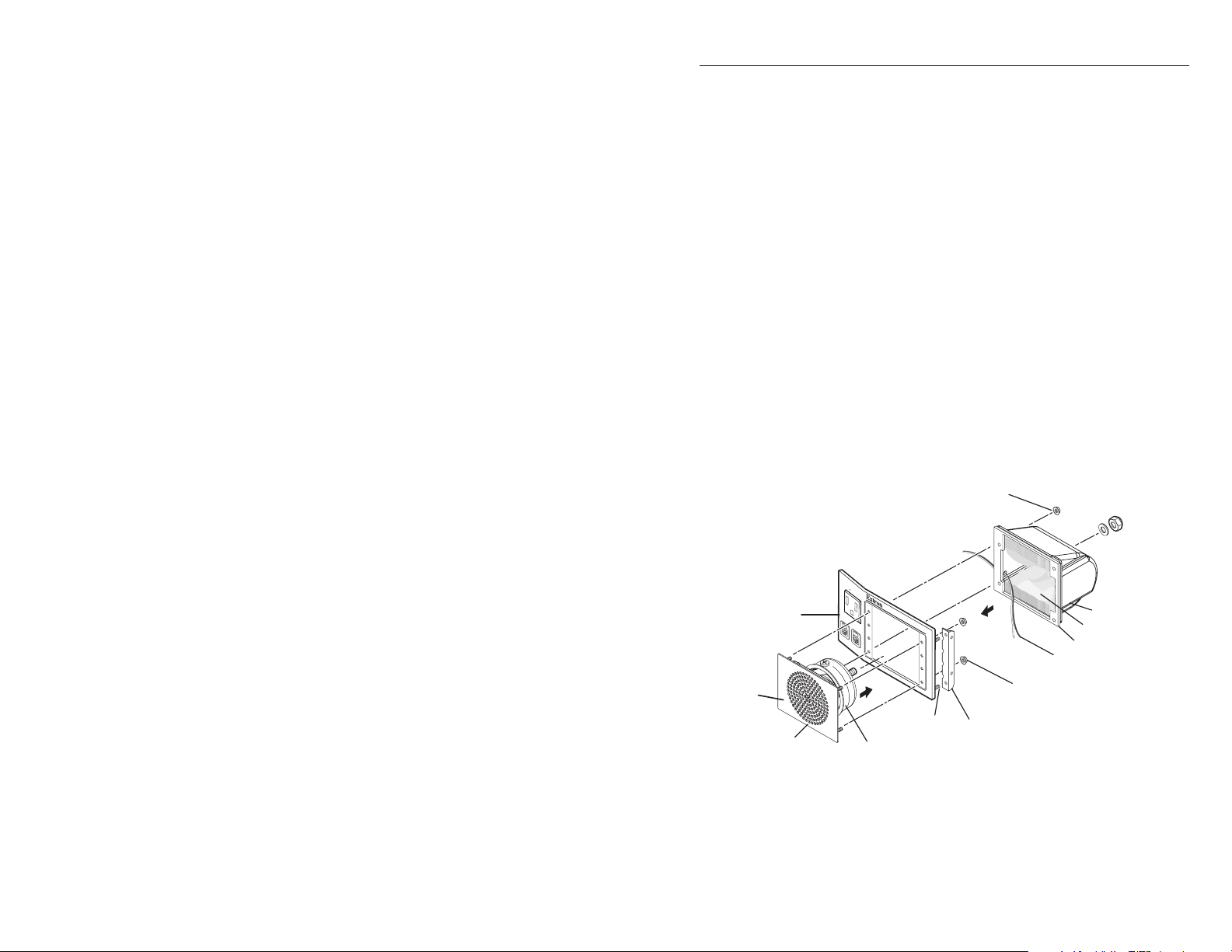

Figure 1 — Mounting the SPA 12 onto the HSA 400
2. Pass the speaker wire pair through the small hole on the
A
SP
A 12 A
A
P
Driver Mount Cap
H
SA
4
00
4
Threaded
Standoff
8
Tighten (2) #4-40 Nuts
5
w/ Captive Washers
(this side)
Remove (2) L-bracket
3
Mounting Nuts
(this side only)
side of the rear enclosure.
SPA 12 AAP Speaker • Installation Guide
Gasket
Speaker Wire
6
Back Can
Polyester Fiber Foam
1
1
SPA 12 AAP Installation Guide
3. From the left side (viewed from the back) of the four-space
AAP opening in the HSA 400 front panel, remove the
L-bracket and mounting nuts.
4. Insert the SPA 12 speaker and front grill into the four-space
opening of the HSA 400.
5. Attach and tighten #4-40 nuts to the furthermost left
(viewed from the back) pair of threaded standoffs of the
SPA 12. This should seal the SPA 12 speaker onto the HSA
400 front plate.
6. Attach the speaker wire pair ends to the SPA 12 speaker by
soldering the exposed tips to the speaker’s positive and
negative terminal pair (marked – and +).
7. Place the L-bracket back in its original location, but do not
reattach the mounting nuts.
8. Attach the rear enclosure. When doing so, keep the
following in mind:
• Ensure that the arrows on the labels affixed to each
piece are aligned and pointing upward before
covering the magnet cap with the rear enclosure.
• The bolt from the magnet cover should emerge
through the hole of the rear enclosure.
• On the left of the face plate, the rear enclosure covers
the threaded standoffs of the SPA 12 (i.e., they are not
visible). Conversely, the HSA 400 threaded standoffs
fit onto the holes of the rear enclosure and are visible
through them.
• On the right of the face plate, the rear enclosure
should line up with the pair of SPA 12 threaded
standoffs that emerge through the HSA 400 front
panel.
9. Tighten the lock nut and washer to the magnet cap bolt
that emerges from the rear enclosure.
10. Tighten #4-40 nuts to the SPA 12 threaded standoffs on the
right side (viewed from the back).
11. Attach the opposite end of the speaker wire to the output
of your amplifier.

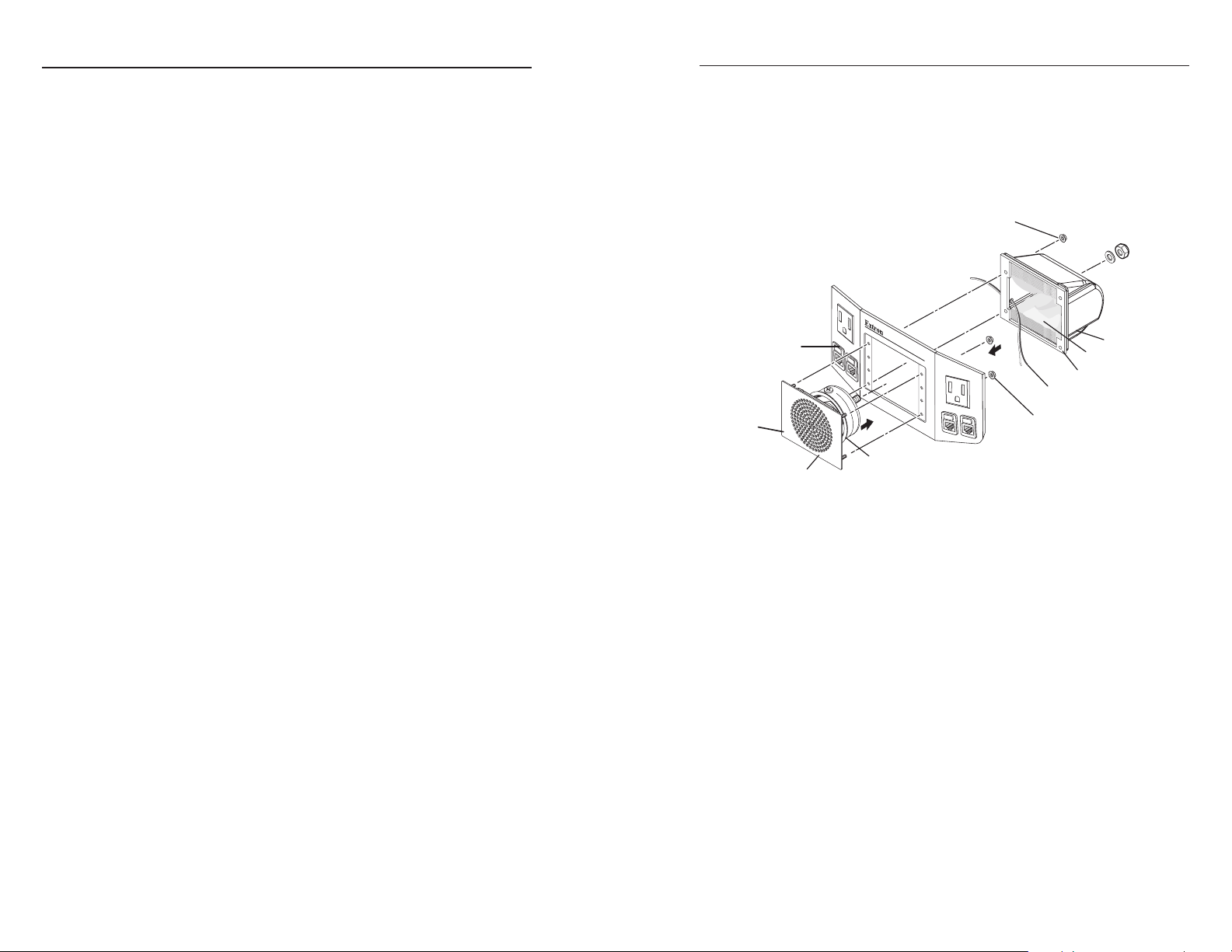

Installation into an HSA 402
To install the SPA 12 AAP speaker into an Extron HSA 402 front
panel, do the following. Several of the steps are summarized in
figure 2, below.
1. Insert the provided polyester fiber foam into the rear
enclosure.
Tighten (2) #4-40 Nuts
8
w/ Captive Washers
(this side)
125 - 50/60 Hz 5A
Extron
Extron
SPA 12
HSA 402
Front Panel
SPA 12 AAP
Front Grill
Figure 2 — Mounting the SPA 12 onto the HSA 402
2. Pass the speaker wire pair through the small hole on the
side of the rear enclosure.
3. Insert the SPA 12 AAP and front grill into the four-space
AAP opening in the HSA 402 front panel.
4. Attach and tighten #4-40 nuts to the furthermost left
(viewed from the back) pair of threaded standoffs of the
SPA 12 AAP speaker. This should seal the SPA 12 onto the
HSA 402 front plate.
5. Attach the speaker wire pair ends to the SPA 12 by
soldering the exposed tips to the speaker’s positive and
negative terminal pair (marked – and +).
6. Attach the rear enclosure. When doing so, keep the
following (viewed from the back) in mind:
• Ensure that the arrows on the labels affixed to each
piece are aligned and pointing upward before
covering the magnet cap with the rear enclosure.
• The bolt from the magnet cover should emerge
through the hole of the rear enclosure.
H
S
A
4
02
3
Driver Mount Cap
Tighten Lock Nut
7
& Washer
2
6
125 - 50/60
Hz
5A
5
4
Tighten (2) #4-40 Nuts
w/ Captive Washers
(this side)
Polyester Fiber Foam
1
Gasket
Speaker Wire
Back Can
SPA 12 AAP Speaker • Installation Guide
SPA 12 AAP Speaker • Installation Guide
32
SPA 12 AAP Installation Guide
• On the left of the face plate, the rear enclosure covers
the threaded standoffs of the SPA 12 (i.e., they are not
visible).
• On the right of the face plate, the rear enclosure
should line up with the pair of SPA 12 threaded
standoffs that emerge through the HSA 402 front
panel.
7. Tighten the lock nut and washer to the magnet cap bolt
that emerges from the rear enclosure.
8. Tighten #4-40 nuts to the SPA 12 threaded standoffs on the
right side (viewed from the back).
9. Attach the opposite end of the speaker wire to the output
of your amplifier.
Installation into a Cable Cubby
Each SPA 12 AAP includes a rear enclosure and a factory
installed magnet cap to secure it. These pieces enhance the quality
of sound, but are not required for use.
Some Cable Cubby and HSA mounting options are too small to
allow for these optional pieces, and some wall mount situations
may present an obstruction. In such instances, remove the
magnet cap and do not install the rear enclosure.
To remove the magnet cap
1. Unscrew the two ¼” lock washer nuts that hold the
magnet cap in place.
2. Gently pull the magnet cap from the speaker driver.
Although the SPA 12 AAP speaker works properly in free air
(without the rear enclosure and magnet cap), it is a good
practice to limit open space behind the SPA 12 AAP. Cover
large openings as much as possible to optimize the speaker’s
performance.
To install the SPA 12 AAP into an Extron Cable Cubby, do the
following. Several of the steps are summarized in figure 3 on
the following page.
1. Placing the L-brackets inside the cubby in the desired
position, use a Phillips head screwdriver to lightly secure
the L-brackets in place with the supplied screws.
Insert the SPA 12 AAP and check for fit. Once the speaker’s
threaded standoffs are fully aligned with the L-brackets,
tighten the screws through the holes in the cubby box.
Extron
SPA 12
S
P
A
1
2
A
A
P
Front Grill
2
1
Speaker Wire
4
Extron
Cable Cubby 800
Philips Head Screw
1
(Secures AAP Shelf
Assembly)

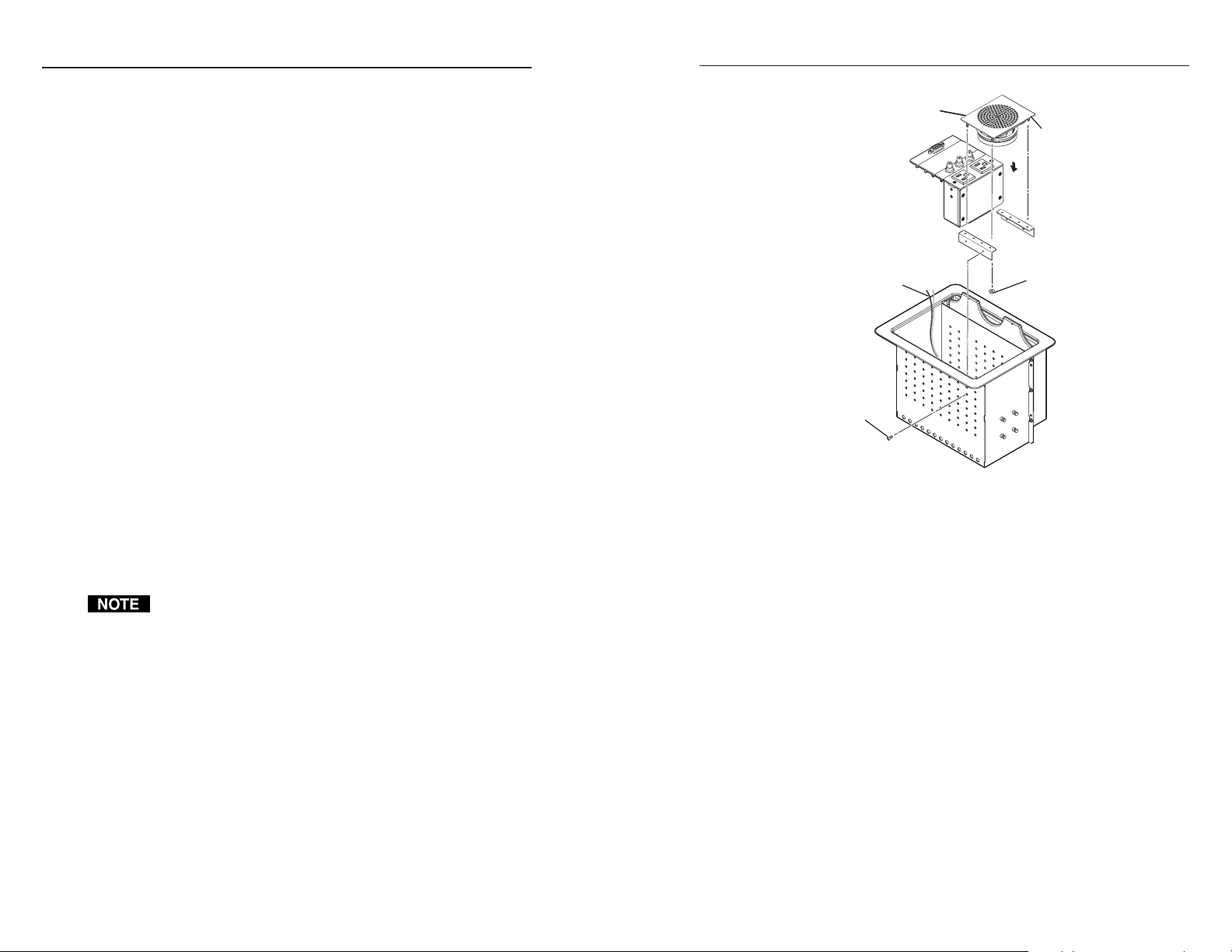

Figure 3 — Mounting the SPA 12 into a Cable
Cubby
2. Insert the SPA 12 AAP speaker and front grill into the
Cable Cubby opening, lining up the SPA 12 threaded
standoffs with those of the brackets installed in step 1.
3. From the bottom of the Cable Cubby, attach and tighten
#4-40 nuts to both pairs of threaded standoffs emerging
from the SPA 12 AAP brackets.
4. Attach the speaker wire pair ends to the SPA 12 AAP
speaker by soldering the exposed tips to the speaker’s
positive and negative terminal pair (marked – and +).
5. Attach the opposite end of the speaker wire to the output
of your amplifier.
Tighten (4) #4-40 Nuts
3
w/ Captive Washers
Installation into architectural frames
The SPA 12 AAP can be installed in most Extron four-space AAP
architectural frames (e.g., the MLC 104 AAP) and in wall mount
faceplates (e.g., the AAP 102).
SPA 12 AAP Speaker • Installation Guide
SPA 12 AAP Speaker • Installation Guide
54
SPA 12 AAP Installation Guide
The magnet cap and rear enclosure pieces work best with
mounting options where ample room is provided for them.
Some four-space AAP architectural frame products are too small
to allow for these optional pieces, and some wall mount
situations may present an obstruction. In such instances,
remove the magnet cap.
To remove the magnet cap
1. Unscrew the two ¼” lock washer nuts that hold the
magnet cap in place.
2. Gently pull the magnet cap from the speaker driver.
Although the SPA 12 AAP speaker works properly in free air
(without the rear enclosure and magnet cap), it is a good
practice to limit open space behind the SPA 12 AAP. Cover
large openings as much as possible to optimize the speaker’s
performance.

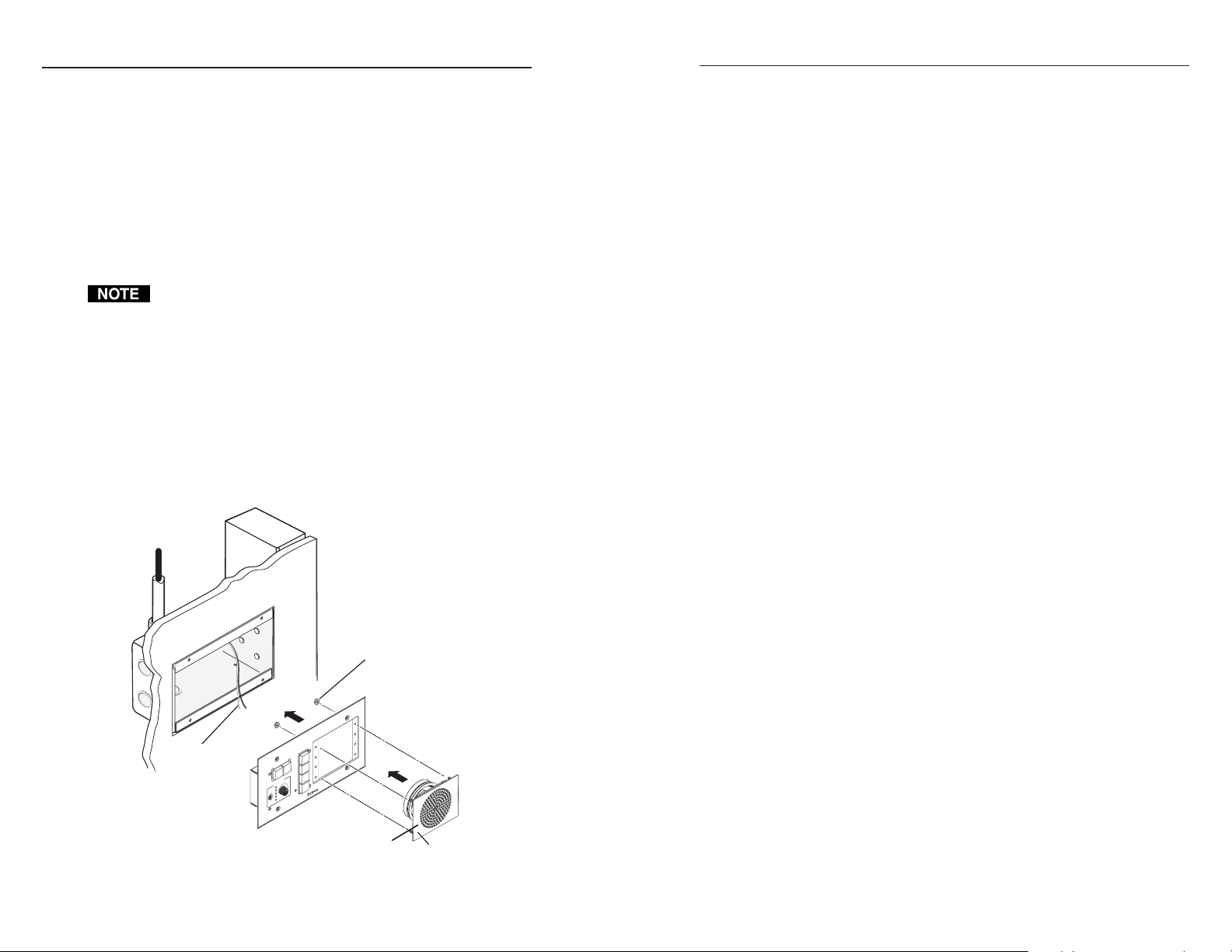

To install the SPA 12 AAP speaker into an Extron architectural
frame, do the following. Several of the steps are summarized in
figure 4, below.
1. Insert the SPA 12 AAP speaker and front grill into the fourspace AAP opening of the architectural frame. Ensure that
the SPA 12 threaded standoffs are lined up with the
openings of the architectural frame.
4-gang
Wall Box
Tighten (4) #4-40 Nuts
2
w/ Captive Washers
Speaker Wire
3
Extron
MLC 104 AAP
1
R
O
T
2
C
E
J
O
R
P
F
F
O
3
N
O
E
M
4
LU
O
V
G
I
F
N
O
C
1
Extron
SPA 12
P
A
A
2
1
A
P
S
Front Grill
Figure 4 — Mounting the SPA 12 into an MLC 104
2. Attach #4-40 nuts to both pairs of threaded standoffs
emerging from the SPA 12, and tighten them to the
architectural frame.
3. Attach the speaker wire pair ends to the SPA 12 AAP
speaker by soldering the exposed tips to the speaker’s
positive and negative terminal pair (marked – +).
4. Attach the opposite end of the speaker wire to the output
of your amplifier.
Specifications
Audio/acoustic and electrical
Speaker type ................................. 1-way, full range architectural speaker
Frequency range .......................... 350 Hz to 15 kHz, -10 dB, half space
Power capacity ............................. 10 W continuous program
5 W continuous pink noise
Nominal sensitivity ..................... 86 dB SPL, 1 W (2.83 V) @ 1 m, half space
Nominal impedance .................... 8 ohms
Nominal coverage ....................... 150° conical coverage
Driver ............................................ 2.5" (64 mm) full-range
Input connector ............................ (1) solder terminal, 2 pin
General
Package ......................................... 1 speaker
Temperature/humidity .............. Storage: -40 to +158 °F (-40 to +70 °C) /
10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) /
10% to 90%, noncondensing
Mounting ...................................... Mountable into the four-space AAP
opening of an Extron Cable Cubby
(models 300C, 300S, 600, 800); an HSA 400
or HSA 402; or a mounting frame
(AAP 102, AAP 102 FSR, AAP 106 AKM
UK, AAP 104, AAP 202)
Enclosure type .............................. Metal faceplate with plastic rear enclosure
Enclosure
Faceplate ........................... 2.8" H x 3.5" W x 0.1" D (71 mm H x
89 mm W x 3 mm D) (four space AAP
plate)
Device ................................ 2.8" H x 3.5" W x 2.5" D (71 mm H x
89 mm W x 64 mm D)
SPA 12 AAP Speaker • Installation Guide
SPA 12 AAP Speaker • Specifications, part numbers, accessories 76
Specifications, Part Numbers, Accessories
Product weight ............................. 0.7 lbs (0.3 kg)
Shipping weight ........................... 3 lbs (2 kg)
Warranty ....................................... 5 years parts and labor
All nominal levels are at ±10%.
Specifications are subject to change without notice.
Included Parts
These items are included in each order of an SPA 12 AAP:
Included parts Replacement part number
SPA 12 AAP Architectural Speaker
(one of the following three):
Black or 70-535-02
White or 70-535-03
RAL 9010 (Eurowhite) 70-535-05
SPA 12 AAP Installation Guide
Magnet Cap
Metal front grill
Polyester Fiber Foam
Rear Enclosure
8
SPA 12 AAP Speaker • Specifications, part numbers, accessories
