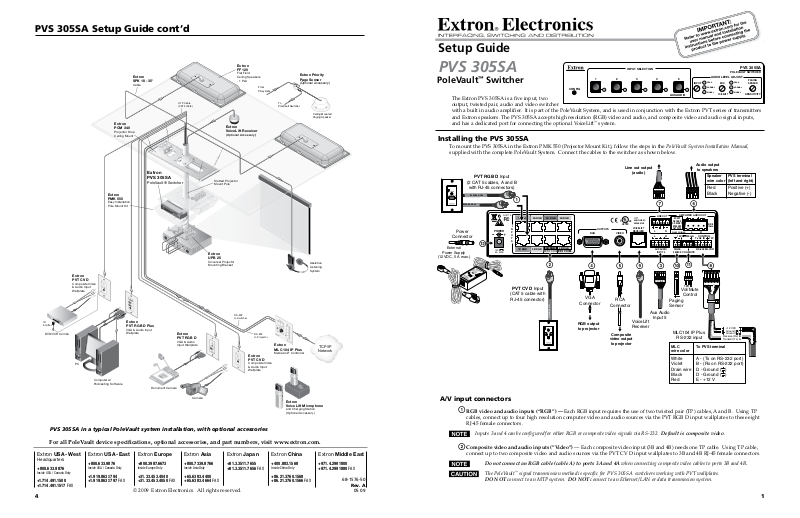

Setup Guide
PVS 305SA Setup Guide cont’d
LR
LR
LR
AUX AUDIO
INPUT 5
LINE OUT
VOICELIFT
RECEIVER
PAGING
SENSOR
DO NOT
GROUND
OR SHORT
SPEAKER
OUTPUTS
1B RGB
1A RGB
2B RGB
2A RGB
3B RGB
/VIDEO
4B RGB
/VIDEO
3A RGB 4A RGB
I
N
P
U
T
S
RS-232 MLC/IR
2/4/8
Ohms
CLASS 2 WIRING
AMPLIFIED AUDIO OUT
VOL/MUTE
Tx Rx IR 12V
10V50mA
POWER
US
LISTED
17TT
AUDIO/VIDEO
APPARATUS
®
RGB
VIDEO
OUTPUTS
CONTROL
N15779
12V
5A MAX
2A RGB
1A RGB
1B RGB
2B RGB
4A RGB
3A RGB
3B RGB
3 VIDEO
4B RGB
4 VIDEO
PVT RGB D Input
(2 CAT 5 cables, A and B
with RJ-45 connectors)
RGB output
to projector
RGB #1A
External
Power Supply
(12 VDC, 5 A max.)
RGB #1B
Audio output
to speakers
d
Composite
video output
to projector
k
PVT CV D Input
(CAT 5 cable with
RJ-45 connector)
VIDEO #3
b
g
f
a
MLC104 IP Plus
RS-232 input
B
A
+12 VDC
Ground ( )
Transmit (Tx)
Receive (Rx)
Ground ( )
10V
Power
Connector
RCA
Connector
VGA
Connector
Aux Audio
Input 5
e
i
c
j
VoiceLift
Receiver
l
Paging
Sensor
Vol/Mute
Control
Line out output
(audio)
Red Positive (+)
Black Negative (-)
Speaker
wire color
PVS terminal
(left and right)
White A - (Tx on RS-232 port)
Violet B - (Rx on RS-232 port)
Drain wire D - Ground ( )
Black D - Ground ( )
Red E - +12 V
MLC
wire color
To PVS terminal
AUDIO IN
L
R
VIDEO IN
IR OUT
S G
h
COMPUTER IN
AUDIO IN
PVS 305SA
POLEVAULT SWITCHER
INPUT SELECTION
1
2
PEAK
NORMAL
SIGNAL
CONFIG
34
5
AUX AUDIO
AUDIO LEVEL ADJUST
PAGING
SENSOR
SENSITIVITY
VOICELIFT
MIC
PEAK
NORMAL
SIGNAL
INPUT
PVS 305SA
POLEVAULT SWITCHER
INPUT SELECTION
1
2
PEAK
NORMAL
SIGNAL
CONFIG
3 4
5
AUX AUDIO
AUDIO LEVEL ADJUST
PAGING
SENSOR
SENSITIVITY
VOICELIFT
MIC
PEAK
NORMAL
SIGNAL
INPUT
Ceiling Mounted
Paging Speaker
Extron Priority
Page Sensor
(Optional Accessory)
From
PA system
To
PoleVa ult Switcher
Extron
PMK 550
Easy Installation
Pole Mount Kit
RS-232
to Projector
RS-232
to Switcher
Assistive
Listening
System
IR
Emitter
UTP Cable
(CAT 5/5E/6)
Extron
PCM 340
Projector Drop
Ceiling Mount
Slotted Projector
Mount Pole
Extron
UPB 25
Universal Projector
Mounting Bracket
Extron
SPK 18 - 35'
Cable
Extron
PVS 305SA
PoleVault® Switcher
Extron
FF 120
Flat Field
Ceiling Speakers
- 1 Pair
Extron
PVT RGB D Plus
VGA & Audio Input
Wallplate
Extron
PVT CV D
Composite Video
& Audio Input
Wallplate
DVD/VCR Combo
PC
Extron
PVT CV D
Composite Video
& Audio Input
Wallplate
Extron
VoiceLift Microphone
and Charging Station
(Optional Accessory)
Extron
VoiceLift Receiver
(Optional Accessory)
Camera
Computer w/
Podcasting Software
Extron
PVT RGB D
VGA & Audio
Input Wallplate
Document Camera
COMPUTER IN
AUDIO IN
Extron
MLC 104 IP Plus
MediaLink® Controller
CONFIG
DISPLAY
VOLUME
MLC 104 IP PLUS
ON
VCR
DVD
PC
OFF
1
2
3
4
L
S
G
AUDIO IN
VIDEO IN
IR OUT
R
COMPUTER IN
AUDIO
IN
AUDIO
OUT
MONITOR OUT
S
G
IR OUT
L
S
G
AUDIO IN
VIDEO IN
IR OUT
R
Extron
PWR
CHARGEOFF/MUTE/CHG ON
Extron
Extron
PWR
CHARGEOFF/MUTE/CHG ON
TCP/IP
Network
PVS 305SA
PoleVault™ Switcher
The Extron PVS 305SA is a five input, two
output, twisted pair, audio and video switcher
with a built in audio amplifier. It is part of the PoleVault System, and is used in conjunction with the Extron PVT series of transmitters
and Extron speakers. The PVS 305SA accepts high resolution (RGB) video and audio, and composite video and audio signal inputs,
and has a dedicated port for connecting the optional VoiceLift™ system.
Installing the PVS 305SA
To mount the PVS 305SA in the Extron PMK 550 (Projector Mount Kit), follow the steps in the PoleVault System Installation Manual,
supplied with the complete PoleVault System. Connect the cables to the switcher as shown below.
PVS 305SA in a typical PoleVault system installation, with optional accessories
For all PoleVault device specifications, optional accessories, and part numbers, visit www.extron.com.
4
© 2009 Extron Electronics. All rights reserved.
A/V input connectors
a RGB video and audio inputs (“RGB”) — Each RGB input requires the use of two twisted pair (TP) cables, A and B. Using TP
cables, connect up to four high resolution computer video and audio sources via the PVT RGB D input wallplates to these eight
RJ-45 female connectors.
N
68-1576-50
Rev. A
05 09
N
C
Inputs 3 and 4 can be configured for either RGB or composite video signals via RS-232. Default is composite video.
Composite video and audio inputs (”Video”) — Each composite video input (3B and 4B) needs one TP cable. Using TP cable,
b
connect up to two composite video and audio sources via the PVT CV D input wallplates to 3B and 4B RJ-45 female connectors.
Do not connect an RGB cable (cable A) to ports 3A and 4A when connecting composite video cables to ports 3B and 4B.
The PoleVault™ signal transmission method is specific for PVS 305SA switchers working with PVT wallplates.
DO NOT connect to an MTP system. DO NOT connect to an Ethernet/LAN or data transmission system.
1
Installation
PRELIMINARY
MLC 104 IP Plus front and side panels
2
3
GROU ND
1
IR I N
GROU ND
IR O UT
CM
SCP
GROU ND
GROU ND
Tx
Rx
DISPLAY
RS-232/IR
LAN
PRESS TAB WITH
TWEEKER TO REMOVE
A B
MLS PWR
RS-232 12V
DIGITAL
I/O
A B C D E
COMM LINK
+V O UT
GROU ND
Tx
Rx
+12V IN
CONFIG
DISPLAY
VOLUME
MLC 104 IP PLUS
ON
VCR
DVD
PC
OFF
1
2
3
4
RS-232/MLC/IR
ABC
PVS 305SA Switcher's
rear panel
RS-232/MLC/IR port
NOTE You must connect a ground
wire between the MLC and the
switcher.
MLC 104 IP Plus’s
MLS and power ports
NOTE If you use cable that has a drain
wire, tie the drain wire to ground
at both ends.
D
E
Tx Rx IR+12 V
RS-232 12V
MLS PWR
AB
Rx
Tx
GROUND
GROUND
+12V IN
Ground ( )
Transmit (Tx)
B
Receive (Rx)
A
Transmit (Tx)
Receive (Rx)
B
A
+12 VDC input
50 feet (38 m) maximum
PVS 305SA Rear Panel
LR
LR
LR
AUX AUDIO
INPUT 5
LINE OUT
VOICELIFT
RECEIVER
PAGING
SENSOR
DO NOT
GROUND
OR SHORT
SPEAKER
OUTPUTS
1B RGB
1A RGB
2B RGB
2A RGB
3B RGB
/VIDEO
4B RGB
/VIDEO
3A RGB 4A RGB
I
N
P
U
T
S
RS-232 MLC/IR
2/4/8
Ohms
CLASS 2 WIRING
AMPLIFIED AUDIO OUT
VOL/MUTE
TxRx IR 12V
10V 50mA
POWER
US
LISTED
17TT
AUDIO/VIDEO
APPARATUS
®
RGB
VIDEO
OUTPUTS
CONTROL
N15779
12V
5A MAX
RS-232
RS-232
and power
Projector
PEAK
NORMAL
SIGNAL
Signal threshold
-20 dBV (-18 dBu
)
Level has been
properly adjusted
Level set too high,
lower input gain
N
Aux audio input — Input 5 is a dedicated audio only input for an auxiliary, stereo, line-level audio signal from an audio
c
output source such as a DVI/HDMI device or an MP3 player. Connect the cable from the source to this 5-pole captive
screw connector. The connector can be wired as balanced or unbalanced.
N
A/V output connectors
RGB video output — For RGB video, use a VGA cable to connect the projector to this female 15-pin HD connector.
d
Composite video output — For composite video, use a cable with an RCA connector to connect the projector to this female
e
RCA jack.
Amplified Out — Connect one speaker to each channel marked “L” and “R” (left and right) using the supplied black 4-pin
f
5 mm connector. Wire red to positive, black to negative. Each channel is rated for 25 W at 2, 4, or 8 Ohm loads. If using
more than one speaker per channel, connect them in parallel.
C
N
Line out audio port — This port is used for connecting an Extron external amplifier, recording, podcasting, or assisted
g
listening devices. It can be configured via RS-232 for fixed or variable audio output (default is variable). It can be wired for
balanced or unbalanced signals.
Remote control connector
RS-232/MLC/IR control port — The PVS switcher can be controlled via an RS -232 connection directly from a host computer,
h
a control system, or a MediaLink Controller (MLC). The MLC provides remote control of input switching and volume.
Connect a cable between this port and the MLC MediaLink Controller. The RS-232 protocol is 9600 baud, 8-bit, 1 stop bit,
no parity, and no flow control. Refer to the
The PVS 305SA is capable of receiving signals from PVT wallplates located up to 100 feet (30 m) away. The optimum distance
is between 50 and 75 feet (15 and 22 m). The minimum distance is 15 feet (4.6 m).
Cable A carries the video signals and cable B carries the audio signal, vertical sync information and 5 VDC current from the PVS
to power the PVT wallplates.
The ports on the rear of the PVS 305SA are color coded for input number and signal type. To ensure correct cable identification
and connection during installation, a sheet of color coded cable labels is supplied. Refer to “Labeling the A/V Inputs” section in the
Polevault System Installation Manual, for details.
When connecting the TP cables to the PVS 305SA connect input 1’s cable A to the RJ-45 port labeled 1A, and input 1’s cable B to
the RJ-45 port labeled 1B. Likewise, connect input 2, 3, or 4‘s cable A to its corresponding numbered A port, and cable B to its B
port. Do not cross-connect the cables.
RJ-45 termination must comply with the TIA/EIA T 568A or 568B wiring standards for all connectors. The same standard
MUST be used at both ends of all cables. Refer to the PoleVault System Installation Manual for details. The cables supplied
with the PoleVault system are terminated to the TIA 568A standard.
Input 5 is audio only. No video signals should be connected to this input.
Do not tie both L and R outputs to each other and/or to ground as it may short the outputs and damage the amplifier.
The speaker setup covers two individual speakers of 8 ohm impedance or two pairs of speakers in parallel, where each channel drives
a maximum output load of 2 ohms.
MLC 104 IP Plus User’s Manual for full details.
VoiceLift connector
VoiceLift receiver connection — Connect an optional Extron VoiceLift IR receiver to this RJ-45 connector for integration of
i
the audio output of a VoiceLift Microphone system.
N
The Extron VoiceLift Microphone Kit is an optional accessory which must be purchased separately.
Paging sensor connector
Paging sensor input — Connect the optional Priority Page Sensor to this port, to enable audio interrupts during paging
j
system use.
Enable the switcher’s paging sensor port, using Global Configurator or the MediaLink Switchers (MLS) and PoleVault
N
Switchers (PVS) control software, available at www.extron.com.
The Extron Priority Page Sensor Kit (part #70-619-01) is an optional accessory which must be purchased separately.
DC Vol/mute connector
DC Volume control port (Vol/Mute) — This port is used to connect an Extron external volume control module, such as
k
a VCM, to the PVS 305SA . The range is 0 to 10 V, where 0 V is mute and 10 V is maximum volume. When connected,
the external volume control module is the sole volume controller. Connect the supplied blue, male, 3-pole captive screw
connector to this port.
N
Do not control the PVS volume via RS-232 if this port is connected to a VCM 100, or a VC 50. If a VCM is controlling the
volume, an MLC should not control audio volume via RS-232.
Power connector
DC power connector — When all other cables have been connected, plug the round power jack from the 12 VDC
a
source
into this connector to power the switcher, the PVT wallplates, the MLC controller and, where installed, the VoiceLift
receiver
. One of the five front panel input button LED is lit when the PVS 305SA is receiving power.
N Use only the supplied 12 V, 5A power supply for this switcher.
The PVS 305SA power supply can support a typical system: for example, a PVS 305SA , 4 PVT Wallplates, 2 or 4 speakers,
an MLC 104 IP Plus with an IRCM DV+, and a VoiceLift Microphone system.
If an SCP 104 is used in the system, the MLC 104 IP Plus MUST have its own power supply.
power
Front Panel Operation and Configuring the PVS 305SA Switcher
For full details of front panel operation and switcher configuration, refer to the PVS 305SA User’s Manual, and the
MLC 104 IP Plus User’s Manual. For VoiceLift and Page Sensor installation and operation details, refer to the VoiceLift
System User’s Manual and the Paging Sensor User’s Manual. All four manuals are available online at www.extron.com.
Front panel operation
N See the front panel image on page 1 for the location of input buttons, encoders, LEDs, and configuration port.
• To change inputs, select an input button, 1 through 4, (video and audio), or 5 (audio only).
• To adjust audio input levels, rotate the Input encoder through 43 positions in 1 dB steps (-18 to +24 dB, default 0).
• To adjust VoiceLift microphone levels, rotate the MIC encoder through 43 positions in 1dB steps (-18 to +24 dB,
default 0).
N
• To adjust Paging sensitivity, rotate the Paging knob clockwise to increase, and
counter-clockwise to decrease sensitivity.
Configuration
The PVS 305SA switcher can be controlled by MediaLink Controller (MLC) or by an
RS-232 device acting through the MLC. Alternatively, the switcher can be set up and controlled via a host computer
or other device (such as a control system) attached to the switcher’s rear panel RS-232/MLC/IR port. The control
device (host) can use either Extron’s Simple Instruction Set (SIS
program for Windows, or the MediaLink Switchers (MLS) and PoleVault Switchers (PVS) control software,
available at www.extron.com. See pages 1 and 2 for connection details.
N
Front panel LEDs indicate input and mic levels (see image at right).
On initial switcher power-up the amplifier level is automatically adjusted to 50%
™
) commands, the Global Configurator (GC2)
Configuration can also be completed by connecting a 2.5 mm stereo mini cable (part # 70-335-01) to the 2.5 mm
config. port on the front panel. This port uses the same protocol as the RS-232 port on the rear panel.
Firmware updates can be made only via the front panel configuration port.
Refer to the PVS 305SA User’s Manual for a full list of the relevant SIS commands.
