Extron electronics MVX VGA A User Manual

Download

MVX VGA A

Computer Video (VGA) and Audio Matrix Switchers

68-521-31 Rev. C

11 07

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating instructions before using the equipment. Retain Instructions • The safety instructions should be kept for future reference. Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user

information.

Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment

manufacturer because they may be hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant

d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité a n de pouvoir les consulter à l’avenir. Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou

présentés dans la documentation utilisateur.

Eviter les pièces de ﬁ xation • Ne pas utiliser de pièces de xation ni d’outils non recommandés par le

fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und

Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie

aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in der

Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom

Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Warning

Power sources • This equipment should be operated only from the power source indicated on the product. This

equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power cords from the rear of

the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be stepped on or pinched by

items placed upon or against them.

Servicing • Refer all servicing to quali ed service personnel. There are no user-serviceable parts inside. To

prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to prevent

overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur l’appareil. Ce

matériel doit être utilisé avec une alimentation principale comportant un l de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous les cordons

d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que personne ne

risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un technicien

quali é. Aucun des éléments internes ne peut être réparé par l’utilisateur. A n d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et oriﬁ ces • Si le boîtier de l’appareil comporte des fentes ou des ori ces, ceux-ci servent à empêcher

les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie. Remplacer uniquement

avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben werden.

Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle Netzkabel

aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und niemand

darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von quali ziertem Servicepersonal durchgeführt werden.

Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese zur

Vermeidung einer Überhitzung der emp ndlichen Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie verbrauchte

Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar el

equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta. Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la

documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especi camente recomendados

por el fabricante, ya que podrian implicar riesgos.

ᅝܼ乏ⶹ•Ё᭛

䖭Ͼヺোᦤ ⼎⫼᠋䆹䆒໛⫼᠋᠟ݠЁ᳝䞡㽕ⱘ᪡ ԰㓈ᡸ䇈ᯢǄ

䖭Ͼヺো䄺⫼᠋䆹䆒໛ᴎ໇ݙ᳝ᲈ䴆ⱘ䰽⬉ˈ᳝㾺⬉䰽Ǆ

⊼ᛣ

䯙䇏䇈ᯢк• 䑩ㅸỀ䑩嬦嫿⡈↎⼆枼敆嬼⶷䍇夤ㆁ㙊⫊₩⏍Ề䑩嬵㕏ɿ ֱᄬ䇈ᯢк• 䑩ㅸⷕ἞⪙ ⫊₩嬵㕏 ᶧḦ⡈⭇㚦Ề䑩ɿ 䙉ᅜ䄺• 䑩ㅸⷕ徶⫉󰶉␂⏍䑩ㅸ㉈⊘ᵋ䗅ㆁ㙊⫊ ₩⏍㐎ẝ嬵㕏ɿ 䙓ܡ䗑ࡴ• ᵎ壂Ề䑩嬦󰶉␂⋃⒇㯢㙊㋩劑䗅⴦₸ㅗ弾⇡嫿⡈澤Ḧ忀₎⊲斪ɿ

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación eléctrica

indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de alimentación eléctrica

al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en lugares donde

no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal cali cado. En el interior no

hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o ori cios en su caja/alojamiento, es para evitar el

sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar esta

batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

䄺

⬉⑤• 嬦嫿⡈⌫倾Ề䑩󰶉␂ᵋ㝈㕏䗅䑶㷑ɿ嫿⡈⼆枼Ề䑩㙊♱一䗅Ờ䑶䰼丠Ờ䑶ɿ䩭ᵊ㚢一

澠♱ 一澡㕰⫊ ₩ 嫿㓾澤ᵎ 倾ᵎ 䑩ㅗ 崴弈 ɿ

ᢨᥝ⬉⑤• ᵻ⫊₩♱ḏ嫿⡈㈕㋊䑶㷑澤嬸㈕㋊ㆁ㙊嫿⡈⍏ㅗ㞍暣䑶㷑䗅䑶㷑一澤ㅗḼẖ㋦ ⅱⵃ

䑶䰼丠䗅䑶㷑一ɿ

⬉⑤㒓ֱᡸ• ⣦Ⓟⵄ一澤忀₎埬嵪嵐澤ㅗ愎䆪㉥⋌ɿ 㓈ᡸ•ㆁ㙊丵Ἧ⼆枼䑲嫥嬂䗅丵Ἧ󰶜⎙弜垍ɿ嫿⡈⃆怩㯢㙊䑩ㅸ⌰Ḧ㘵㊣䗅昷ḷɿᵻ忀₎℻

䋱大䑶⊲斪ᵎ壂儫ⴲ嬖☿㆔⹁嫿⡈䘗⪑丵Ἧ嬦嫿⡈ɿ

䗮亢ᄨ• 㙊󰵽嫿⡈㙻⠴ᵋ㙊彛栏㤾ㅗ⪕澤⫄ḭ㕰䑩㚦敳㪣㙻⃆㒐だ₄ḷ弈䀮ɿᵎ壂䑩Ḽẖᵝ

壀㉢Ẑ彛栏 ⪕ɿ

䫖⬉∴ • ᵎ㪤䞯䗅㘵㊣䑶㮡ṛ㙊䅇㿹䗅⊲斪ɿ⼆枼Ề䑩ᵏ⋃⫷㋩劑䗅䘹⍍ㅗ 䘹弒⛌⌸䗅䑶㮡ɿ

㉊䂨䑠󰶉⋃䗅⸻嫯⡅䍇ⷠ⹄䑶㮡ɿ

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

This unit was tested with shielded cables on the peripheral devices. Shielded cables must be

used with the unit to ensure compliance.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RS-232 Function Pin Function

1 2 3 4 5 6 7 8 9

— TX

—

Gnd

— — — —

Not used Transmit Receive Not used Ground Not used Not used Not used Not used

— TX– RX–

— Gnd

— RX+ TX+

—

Not used Transmit (–) Receive (–) Not used Ground Not used Receive (+) Transmit (+) Not used

RS-422

L R

Unbalanced Input

Balanced Input

(high impedance) (high impedance)

Ring

Sleeve (s)

Tip

Sleeve

Tip

Sleeve

Tip

Ring

CAUTION Connect the sleeve to ground.

Connecting the sleeve to a negative (-) terminal will damage the audio output circuits.

Unbalanced Output

Balanced Output

L R

Ring

Tip

Sleeve(s)

Tip

Ring

Sleeve(s)

Tip

NO GROUND HERE.

Quick Start — MVX VGA A Matrix Switchers

Installation

Step 1

Turn off power to the input and output devices, and disconnect their power cords.

Step 2 — Inputs

a. Connect up to 16 high resolution

video inputs to the 15-pin HD input connectors.

b. Connect up to 16 stereo or mono

audio inputs to the 5-pin captive screw connectors.

Step 3 — Outputs

a. Connect up to 16 high resolution

video devices to the 15-pin HD output connectors.

b. Connect up to 16 balanced or unbalanced

stereo audio or mono audio devices to the 5-pin captive screw connectors.

Step 6 — Power

Plug the switcher into a grounded AC source.

Deﬁnitions

Tie — An input-to-output connection Set of ties — An input tied to two or more

outputs

Conﬁguration —

Current conﬁguration —

One or more ties or sets of ties

The currently active

conﬁguration (also called conﬁguration 0)

Global preset —

A conﬁguration that has been stored. One global preset can be assigned to each input button. When a global preset is retrieved from memory, it becomes the current conﬁguration.

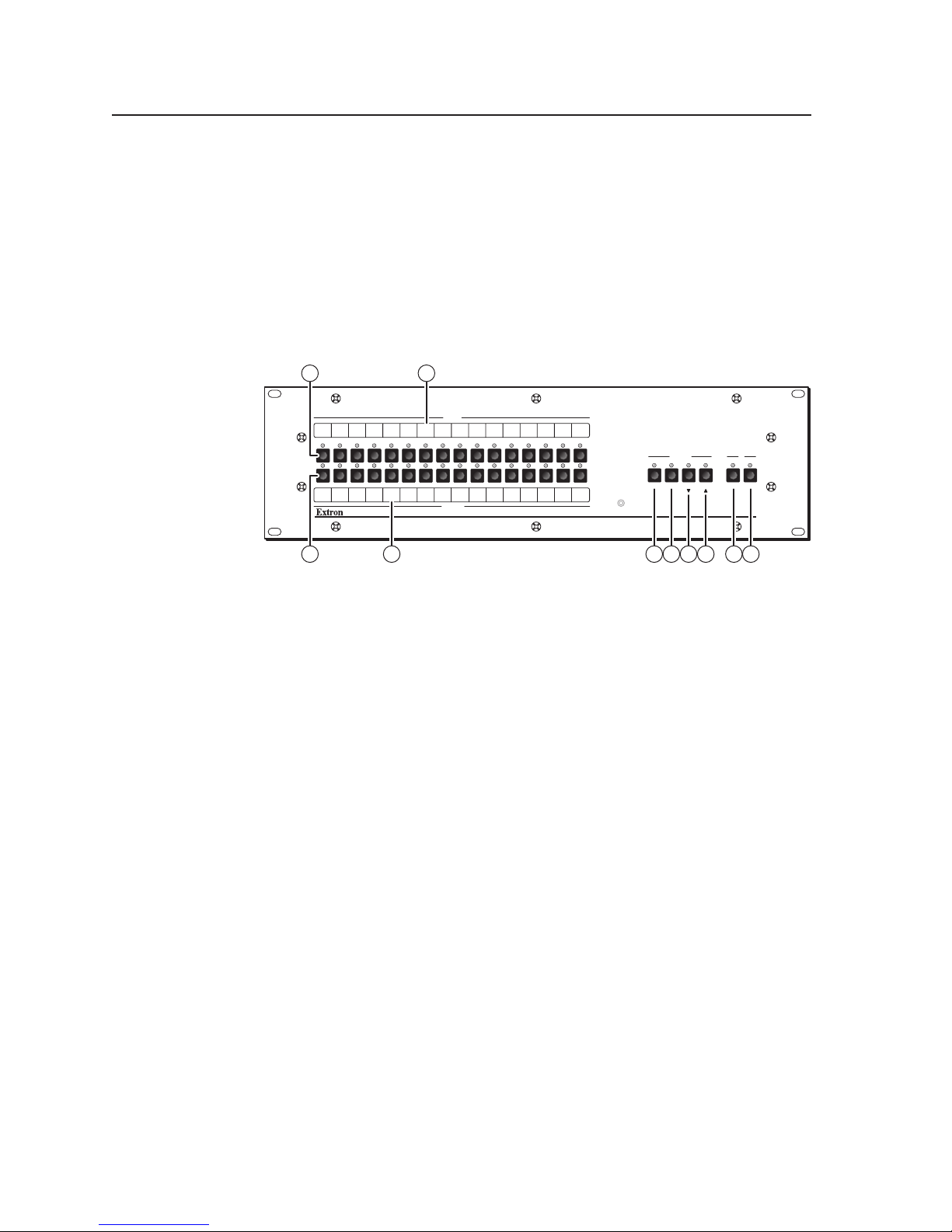

Front Panel Controls

Input and output buttons select inputs and

outputs. Input and output LEDs light to indicate video and audio ties.

• Input and output buttons also select presets.

• Output buttons also toggle video and audio mutes on and off in View-only mode.

Step 4 — Remote port

If desired, connect a control system or computer to the Remote RS-232/RS-422 port.

Step 5

If desired, connect a control system or computer to the front panel Conﬁguration (RS-232) port. Use an optional 9-pin D to 2.5 mm mini jack TRS RS-232 cable, part #70-335-01.

• Input LEDs also display the selected output’s volume.

• Output LEDs also display the selected input’s audio level.

PRELIMINARY

Enter button saves changes.

Preset button selects:

• Save Preset mode to save a conﬁguration as

a preset.

• Recall Preset mode to recall a previously- deﬁned preset.

View button selects a view-only mode that

prevents inadvertent conﬁguration changes. The View button also decrements the level and volume. See “Viewing and adjusting the audio level” on page QS-2.

Esc button cancels selections in progress and

resets the front panel button indications. The Esc button does not reset: the current conﬁguration, the RGBHV and audio selection, any presets, or any audio level or volume settings. The Esc button also increments the level and volume. See “Viewing and adjusting the audio level” on page QS-2.

MVX VGA A Matrix Switchers • Quick Start

QS-1

Quick Start —

ESC

Press the Esc button to clear all selections.

The LED blinks once.

RGBHV AUDIO

I/O

Lit when selected.

Off when deselected.

Lit when selected. Off when deselected.

The input LED

lights to indicate

the selection.

3 4 8

ENTER

Output LEDs blink to indicate a potential tie.

Enter LED blinks to indicate the

need to confirm the change.

PRESET

1 2 3 4 5

Preset LED blinks.

Press and hold.

2 seconds

Save a preset

Recall a

preset

Preset LED lights.

Press and release.

All input and output buttons with assigned presets light.

The configuration data at assigned preset locations will be overwritten.

ENTER

The LED blinks to indicate that this preset is selected.

The Enter LED blinks to indicate the need to save or recall the preset.

AUDIO AUDIO

Audio LED blinks.

Hold 2 seconds

1 2 3 4

OUTPUTS

Press an input button to adjust gain/attenuation.

- or -

Press an output button to adjust the output volume.

Output LEDs display gain/attenuation.

- or -

Input LEDs display

output volume level.

VIEW ESC

button decreases the level.

button increases the level.

MVX VGA A Matrix Switchers, continued

RGBHV and Audio buttons select and deselect

video and/or audio. The Audio LED blinks to indicate audio breakaway. The Audio button also selects the audio level/adjust mode. See “Viewing and adjusting the audio level” in the next column.

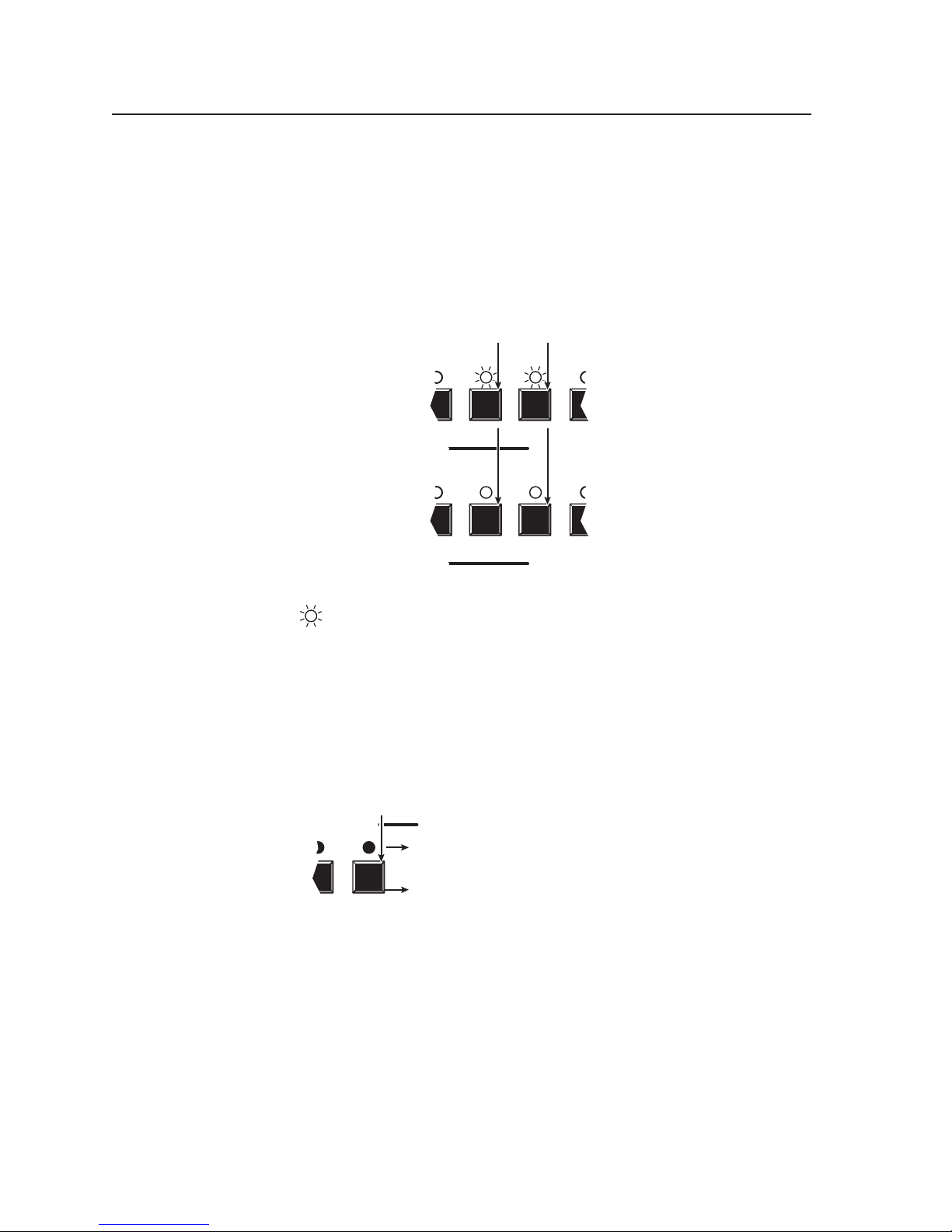

Creating a tie

Press and release the Esc

1. button to clear any input LEDs, output LEDs, or control LEDs that may be lit.

Press and release the RGBHV and/or Audio I/O button(s) to select or deselect video and/or audio as desired.

. Press

and release the desired input or output button.

3. Press and release the desired input button.

4. Press and release the desired output button(s).

PRELIMINARY

5. Press and release the Enter button. All input and output LEDs and the Enter LED go out.

Saving or recalling a preset

1. Save

Recall a preset — Press and release the Preset

QS-2

a preset — Press and hold the Preset

button for 2 seconds.

button.

MVX VGA A Matrix Switchers • Quick Start

3. Press and release the Enter button.

Viewing and adjusting the audio level

1. Press and hold the Audio button.

2. Press an input or output button. See chapter 3 to read the displayed value.

3. Increase and decrease the gain/ attenuation or volume level by pressing the Esc (>) and View (<) buttons.

4. Press and release the Audio button to exit.

Table of Contents

Chapter One • Introduction .......................................................................................................1-1

About this Manual .....................................................................................................................1-2

About the MVX VGA A Matrix Switchers .................................................................... 1-2

Deﬁnitions ......................................................................................................................................1-3

Features ............................................................................................................................................1-4

Chapter Two • Installation ..........................................................................................................2-1

Mounting the Switcher ..........................................................................................................2-2

UL requirements ..................................................................................................................2-2

Mounting instructions .........................................................................................................2-2

Rear Panel Cabling and Views............................................................................................2-3

Video connections .....................................................................................................................2-4

Sync Impedance switches ......................................................................................................... 2-4

Audio connections .................................................................................................................... 2-5

RS-232/RS-422 connection ........................................................................................................2-6

Reset button ..............................................................................................................................2-7

Power connection ..................................................................................................................... 2-7

Front Panel Conﬁguration Port .........................................................................................2-8

Chapter Three • Operation ......................................................................................................... 3-1

Front Panel Controls and Indicators ...............................................................................3-2

Deﬁnitions ..................................................................................................................................3-2

Input and output buttons ........................................................................................................3-3

Control buttons .........................................................................................................................3-4

I/O controls ................................................................................................................................. 3-6

Front Panel Operations ...........................................................................................................3-7

Front panel security lockouts ..................................................................................................3-7

Power .......................................................................................................................................... 3-7

Creating a conﬁguration .........................................................................................................3-8

Example 1: Creating a set of video and audio ties ............................................................ 3-9

Example 2: Adding a tie to a set of video and audio ties ............................................... 3-11

Example 3: Removing a tie from a set of video and audio ties ...................................... 3-13

Viewing a conﬁguration ........................................................................................................3-15

Example 4: Viewing video and audio, audio only, and video only ties .......................... 3-15

Muting and unmuting video and/or audio ......................................................................... 3-18

Example 5: Muting and unmuting an output ..................................................................3-18

Using global presets ...............................................................................................................3-21

Example 6: Saving a preset ...............................................................................................3-22

Example 7: Recalling a preset ...........................................................................................3-23

Viewing and adjusting the input audio level ..................................................................... 3-25

Example 8: Viewing and adjusting an input audio level ................................................3-26

Viewing and adjusting the output volume ......................................................................... 3-30

Reading the displayed volume .........................................................................................3-31

Example 9: Viewing and adjusting an output volume level ........................................... 3-33

PRELIMINARY

MVX VGA A Matrix Switchers • Table of Contents

Table of Contents, cont’d

Setting the front panel locks (Executive modes) ................................................................3-36

Selecting Lock mode 2 or toggling between mode 2 and mode 0 ................................3-36

Selecting Lock mode 2 or toggling between mode 2 and mode 1 ................................3-37

Performing a system reset from the front panel................................................................3-37

Selecting the rear panel Remote port protocol and baud rate ....................................... 3-38

Rear Panel Operations ...........................................................................................................3-40

Performing an absolute system reset from the rear panel ...............................................3-40

Performing a hard reset from the rear panel ..................................................................... 3-41

Optimizing the Audio ............................................................................................................3-41

Troubleshooting ........................................................................................................................3-42

Conﬁguration Worksheets ................................................................................................. 3-42

Worksheet example 1: System equipment .......................................................................... 3-42

Worksheet example 2: Daily conﬁguration.........................................................................3-43

Worksheet example 3: Test conﬁguration ..........................................................................3-44

Conﬁguration worksheet .......................................................................................................3-45

Chapter Four • Programmer’s Guide ..................................................................................4-1

PRELIMINARY

Serial Ports .....................................................................................................................................4-2

Rear panel Remote port ...........................................................................................................4-2

Front panel Conﬁguration port .............................................................................................. 4-3

Host-to-Switcher Instructions .............................................................................................4-3

Switcher-Initiated Messages ............................................................................................... 4-3

Switcher Error Responses ..................................................................................................... 4-4

Using the Command/Response Table ............................................................................. 4-4

Command/Response Table for SIS Commands .........................................................4-5

Symbol deﬁnitions .................................................................................................................... 4-5

Command/response table for SIS commands ........................................................................ 4-6

Chapter Five • Matrix Software .............................................................................................5-1

Matrix Switchers Control Program .................................................................................5-2

Installing the software ............................................................................................................. 5-2

Using the Matrix Switcher Control software ........................................................................5-3

Updating ﬁrmware ...................................................................................................................5-6

Windows buttons, drop boxes, and trash can .................................................................... 5-10

Windows menus ......................................................................................................................5-10

File menu ...........................................................................................................................5-10

Tools menu .........................................................................................................................5-11

Preferences menu .............................................................................................................. 5-12

Master-Reset

Using Emulation mode ........................................................................................................... 5-13

Using the help system ............................................................................................................5-13

selection .......................................................................................................5-12

Button-Label Generator Program ..................................................................................5-13

Using the Button-Label Generator software ......................................................................5-14

MVX VGA A Matrix Switchers • Table of Contents

Appendix A • Speciﬁcations, Part Numbers, Accessories ...............................5-15

Speciﬁcations .............................................................................................................................. A-2

Part Numbers and Accessories .......................................................................................... A-5

MVX matrix switcher part numbers ...................................................................................... A-5

Included parts ........................................................................................................................... A-5

Accessories ................................................................................................................................ A-5

Cables ......................................................................................................................................... A-6

Button Labels ............................................................................................................................... A-8

PRELIMINARY

MVX VGA A Matrix Switchers • Table of Contents

iii

Table of Contents, cont’d

PRELIMINARY

68-521-31 C

11 07

All trademarks mentioned in this manual are the properties of their respective owners.

MVX VGA A Matrix Switchers • Table of Contents

MVX VGA A Matrix Switchers

Chapter One

Introduction

About this Manual

About the MVX VGA A Matrix Switchers

Deﬁnitions

Features

PRELIMINARY

Introduction

INPU

UTPU

RES

RS232/RS422

REMOTE

LISTED 1T23 I.T.E.

U S

1 2 3 4 5 6 7 8

9 10 11 12

1 2 3

4 5 6 7 8

INPU

TPUT

VID

Y /VI

B-Y

H/ HV

R /R

-Y

G /Y

B /B-Y

RS-2

RGB/R-Y,Y

,B-Y

SDI

R-Y /C

RGB

-Y,

Y,B

-Y/

VID

I N P U T

O U T P U T

I N P U T

O U T P U T

Control System

Plasma

LCD

Projector

VSC 500

ONV

SIZE

MIN/MAX

FREEZE RESET

CENTER/PAN/SIZE

Sound System

Extron VSC 500

Video Scan Converter

VCR

Laptop

Audio In

Extron DVS 304

Digital Video Scaler

DVD

Extron MVX Series

VGA and Audio Matrix Switcher

Audio In

Audio Out

About this Manual

This manual contains installation, conﬁguration, and operating information for the Extron MVX VGA A wideband computer video (VGA) and audio matrix switchers.

About the MVX VGA A Matrix Switchers

The MVX matrix switchers distribute any input signal to any combination of outputs. The matrix switchers can route multiple input/output conﬁgurations simultaneously.

The matrix switchers are single box solutions to complex wideband (ﬁgure 1-1) video and/or audio routing applications. Each input and output is individually isolated and buffered, and any input(s) can be switched to any one or to all outputs with virtually no crosstalk or signal noise between channels.

The MVX matrix switchers are available in a variety of matrix sizes (the matrix size is the number of inputs and outputs):

• MVX 128 VGA A (12 inputs by 8 outputs)

• MVX 168 VGA A (16 inputs by 8 outputs)

• MVX 1212 VGA A (12 inputs by 12 outputs)

• MVX 1616 VGA A (16 inputs by 16 outputs)

PRELIMINARY

Figure 1-1 — Typical MVX 128 VGA A matrix switcher application

1-2

MVX VGA A Matrix Switchers • Introduction

The MVX A switchers input and output VGA video on 15-pin HD connectors and audio on 3.5 mm, 5-pole captive screw terminals.

The audio switching can either be linked with the video (audio follow) or be independent of the video (audio breakaway). Adjustable input audio gain and attenuation compensates for level differences between audio inputs.

Each matrix switcher can be remotely controlled via its rear panel RS-232/RS-422 Remote port and its front panel Conﬁguration (RS-232) port using either Extron’s Windows®-based Matrix Switchers Control Program or the Simple Instruction Set (SIS™). The SIS is a set of basic ASCII code commands that provide simple control through a control system or PC without programming long, obscure strings of code. SIS commands can be entered via either serial port.

Either serial port can be connected to and operated from:

• A control system

• A PC

• An Extron MKP 2000 remote control panel

• An Extron MKP 3000 remote control panel

• An Extron MCP 1000 remote control panel and/or MKP 1000 remote keypad The matrix switchers are housed in rack-mountable, 2U (MVX 128 VGA A) or 3U

(all other models) high metal enclosures with mounting ﬂanges for standard 19" racks. The appropriate rack mounting kit is included with each switcher.

The switchers have an internal 100 VAC to 240 VAC, 50/60 Hz, 30 watts autoswitchable power supply that provides worldwide power compatibility.

The MVX A switchers have a minimum bandwidth of 300 MHz (-3 dB). The switchers can also switch RGBS, RGsB, RsGsBs, HDTV, component video, S-video, and composite video.

Deﬁnitions

The following terms, which apply to all Extron matrix switchers, are used throughout this manual:

Tie — An input-to-output connection Set of ties — An input tied to two or more outputs. (An output can never be tied

Conﬁguration — One or more ties or one or more sets of ties Current conﬁguration — The conﬁguration that is currently active in the

Global memory preset — A conﬁguration that has been stored. Up to 32 global

The switchers have 32 presets. On the MVX 128 VGA A, up to 20 presets

PRELIMINARY

to more than one input.)

switcher (also called “conﬁguration 0”)

memory presets can be stored in memory. Preset locations are assigned to the input buttons and output buttons. When a preset is retrieved from memory, it becomes the current conﬁguration.

can be selected from the front panel for either saving or retrieving. Preset numbers larger than 20 are accessible via serial port control.

MVX VGA A Matrix Switchers • Introduction

1-3

PRELIMINARY

Introduction, cont’d

Features

Video — The switchers input and output RGBHV or RGBS (VGA) video on

15-pin HD connectors. They can also switch RGsB, RsGsBs, component/ HDTV, S-video, or composite video.

Bandwidth — The MVX switchers provide a minimum of 300 MHz (-3 dB) video

bandwidth, fully loaded.

Audio inputs — The switchers input and output balanced or unbalanced stereo

audio on 3.5 mm, 5-pole captive screw terminals.

Audio input gain/attenuation — Individual input audio levels can be adjusted so

there are no noticeable volume differences between sources. You can set the input level of audio gain or attenuation (-18 dB to +24 dB) via the front panel or via serial port control.

Audio output volume — The audio volume of each output can be displayed and

adjusted through a range of full output to complete silence, from the front panel or via serial port control.

Switching ﬂexibility — The switchers provide individually buffered, independent

matrix switched outputs with audio follow and audio breakaway.

• Tie any input to any or all outputs.

• Quick multiple tie —

simultaneously. This allows all displays (outputs) to change from source to source at the same time.

• Audio follow — Audio can be switched with its corresponding video input via front panel control or via serial port remote control.

• Audio breakaway — Audio can be broken away from its corresponding video signal. This feature allows any audio signal to be selected with any video signal and simultaneously tied to one or all outputs in any combination. Audio breakaway switching can be done via front panel control or via serial port remote control.

Operational ﬂexibility — Operations such as input/output selection, setting of

presets, and adjustment of audio levels can be performed on the front panel or via either serial port. The serial ports allow remote control via a PC or a control system.

• Front Panel Controller — The front panel controller supports input and output selection, preset creation and selection, audio gain and attenuation, and volume control. The front panel features slots for labels that can identify each input and output with text or graphics.

• Windows-based control program — For serial port remote control from a PC, the Extron Windows-based control software provides a graphical interface and drag-and-drop/point-and-click operation. The Windows-based control program also has an emulation mode that lets you create a switcher conﬁguration ﬁle at the home ofﬁce and then download it for use by the switcher on site.

• Simple Instruction Set (SIS) — The remote control protocol uses Extron’s SIS for easy programming and operation.

• Remote control panels and keypads — The matrix switchers are remote controllable, using the optional MKP 2000 and MKP 3000 remote control keypads. The remote control devices are easy to use and provide tactile buttons for quick selection. Each MKP can be used for input-to-output switching and one-touch switching for a particular output. The MKP 3000 also can be used for selection of global presets.

Multiple inputs can be switched to multiple outputs

1-4

MVX VGA A Matrix Switchers • Introduction

Upgradeable ﬁrmware — The ﬁrmware that controls all switcher operation can be

upgraded in the ﬁeld via either serial port, without taking the switcher out of service. Firmware upgrades are available for download on the Extron Web site, www.extron.com, and can be installed using the Windows-based control program.

Labeling

Global memory presets — 32 global memory presets are a time-saving feature that

Rack mounting — Rack mountable in any conventional 19" wide rack. Three front panel security lockout modes (Executive modes) — If a matrix

Power — The matrix switcher’s 100 VAC to 240 VAC, autoswitchable, internal

— The Extron button label software ships with every Extron matrix switcher. You can create labels to place above the front panel input buttons and below the output buttons, with names, alphanumeric characters, or color bitmaps for easy and intuitive input and output selection. Alternatively, labels can be made with any Brother® P-Touch™ or comparable labeler.

lets you set up and store input/output conﬁgurations in advance. You can then recall those conﬁgurations, when needed, with a few simple steps on the front panel. For the MVX 128 A, which has fewer input and output buttons, 20 global memory presets are available from the front panel; the remaining presets are available via serial port control.

switcher is installed in an open area, where operation by unauthorized personnel may be a problem, either of two security lockout modes can be implemented (the third mode is unlocked). When a front panel locked mode is enabled, a special button combination or SIS command is required to unlock the front panel controller and make the front panel fully operational.

power supply provides worldwide power compatibility.

PRELIMINARY

MVX VGA A Matrix Switchers • Introduction

1-5

Introduction, cont’d

PRELIMINARY

1-6

MVX VGA A Matrix Switchers • Introduction

MVX VGA A Matrix Switchers

Chapter Two

Installation

Mounting the Switcher

Rear Panel Cabling and Views

Front Panel Conﬁguration Port

PRELIMINARY

Installation

Mounting the Switcher

UL requirements

The following Underwriters Laboratories (UL) requirements pertain to the installation of the MVX into a rack (ﬁgure 2-1).

1. Elevated operating ambient temperature — If the equipment installed in a

2. Reduced air ﬂow — Install the equipment in a rack so that the amount of air

3. Mechanical loading — Mount the equipment in the rack so that a hazardous

4. Circuit overloading — Connect the equipment to the supply circuit and

5. Reliable earthing (grounding) — Maintain reliable grounding of rack-

closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. Therefore, install the MVX in an environment compatible with the maximum +122 °F (+50 °C) ambient temperature (Tma) speciﬁed by Extron.

ﬂow required for safe operation of the equipment is not compromised.

condition is not achieved due to uneven mechanical loading.

consider the effect that circuit overloading might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

mounted equipment. Pay particular attention to supply connections other than direct connections to the branch circuit (e.g., use of power strips).

PRELIMINARY

Mounting instructions

The MVX VGA A matrix switchers are housed in a rack-mountable, 2U (MVX 128 VGA A) or 3U (all other models) high metal enclosures with mounting ﬂanges for standard 19" racks. If desired, rack mount the switcher as follows:

. Insert the switcher into the rack, aligning the holes in the mounting bracket

with those in the rack.

2. Secure the switcher to the rack using the supplied bolts.

2-2

MVX VGA A Matrix Switchers • Installation

RS232/RS422

REMOTE

LISTED 1T23 I.T.E.

1 2 3 4 5 6 7 8

9 10 11 12

1 2 3 4 5 6 7 8

INPUTS

OUTPUTS

RESET

COMPUTER IN

COMPUTER OUT

1 2

REMOTE

RS-232/RS422

REMOTE

RESET

COMPUTER IN

COMPUTER OUT

1.2A MAX.

100-240V 50/60 Hz

O U T P U T S

I N P U T S

L15RL13RL11RL9RL7RL5RL3RL1R

L16RL14RL12RL10RL8RL6RL4RL2R

L15RL13RL11RL9RL7RL5RL3RL1R

L16RL14RL12RL10RL8RL6RL4RL2R

1 2 3 4 5 6 7 8

1 2 3 4 5

OUTPUT

SYNC IMPEDANCE

6 7 8

Ana he im, CA

LISTED

1T23 I.T.E.

1 2

COMPUTER IN COMPUTER OUT

OUTPUT

Rear Panel Cabling and Views

Figure 2-1 shows the rear panel of the MVX 128 A.

Figure 2-1 — MVX 128 A video and audio matrix switcher

Figure 2-2 shows the rear panel of the MVX 1616 A.

The MVX 1212 A and MVX 168 A are housed in the same 3U high enclosure,

but have fewer input and/or output connectors to accommodate their smaller matrix sizes.

Figure 2-2 — MVX 1616 A video and audio matrix switcher

Use Electrostatic discharge (ESD) precautions (be electrically grounded)

when making connections. Electrostatic discharge can damage equipment, even if you cannot feel, see, or hear it.

Remove system power before making all connections.

PRELIMINARY

MVX VGA A Matrix Switchers • Installation

2-3

Installation, cont’d

MVX 1212 A, MVX 168 A and MVX 1616 A

1 2 3 4 5 6 7 8

1 2 3 4 5

OUTPUT

SYNC IMPEDANCE

6 7 8

Video connections

Sync Impedance switches

The matrix switcher does not alter the video signal in any way. The signal

The MVX matrix switchers can also switch RGBS, RGsB, RsGsBs, component

RGB video inputs — Connect the analog computer-video sources to these

15-pin HD female connectors.

Most laptop or notebook computers have an external video port, but they

RGB video outputs — Connect RGBHV video displays to these 15-pin HD

female connectors for each output.

The MVX VGA 128 A does not have the described Sync Impedance switches.

Sync Impedance switches — The MVX 1212 VGA A, MVX 168 VGA A, and

MVX 1616 VGA A matrix switchers have Sync Impedance switches on the rear panel for outputs 1 through 8 (ﬁgure 2-3) to compensate the impendance for different cable types and lengths. The switches provide a way to condition the output, enabling the sync to be properly passed from output to the display.

output by the switcher is in the same format as the input.

video, S-video, or composite video with the appropriate adapters.

require special commands to output the video to that connector. Also, a laptop’s screen shuts off once the external video port is activated. See the computer’s user’s guide for details, or contact Extron for a list of common laptop keyboard commands.

PRELIMINARY

2-4

MVX VGA A Matrix Switchers • Installation

Figure 2-3 — Sync Impedance switches

Each switch provides the option of selecting either 50 ohms or 75 ohms. The 50 ohms position is required only when a sync problem is encountered. The normal position is 75 ohms.

An input producing an out-of-sync display — a display that is rolling vertically

and/or tearing horizontally — could indicate an impedance problem.

L R

Unbalanced Stereo Input

Balanced Stereo Input

(high impedance)

Do not tin the wires!

Ring

Sleeve (s)

Tip

Sleeve

Tip

Sleeve

Tip

Ring

Tip (+)

Sleeve ( )

Ring (-)

Tip (+)

RCA Connector

3.5 mm Stereo Plug Connector

(balanced)

Audio connections

By default, the audio ties follow the video ties. Audio breakaway, which can be activated via the front panel or under serial port control, allows you to select from any one of the audio input sources and route it separately from its corresponding video source. See chapter 3, “Operation”, chapter 4, “Programmer’s Guide”, and chapter 5, “Matrix Software”, for details.

Connections for balanced and unbalanced audio inputs — Each input has

a 3.5 mm, 5-pole captive screw connector for balanced or unbalanced stereo audio input. Connectors are included with each switcher, but you must supply the audio cable. See ﬁgure 2-4 to wire a connector for the appropriate input type and impedance level. Use the supplied tie-wrap to strap the audio cable to the extended tail of the connector. High impedance is generally over 800 ohms.

Figure 2-4 — Captive screw connector wiring for audio inputs

The length of the exposed (stripped) portion of the copper wires is

important. The ideal length is 3/16” (5 mm). Longer bare wires can short together. Shorter bare wires are not as secure in the direct insertion connectors and could be pulled out.

The captive screw audio connector can easily be inadvertently plugged

partially into one receptacle and partially into an adjacent receptacle. This misconnection could damage the audio output circuits. Ensure that the connector is plugged fully and only into the desired input or output.

See ﬁgure 2-5 to identify the tip, ring, and sleeve parts of the connector when

you are making connections for the switcher from existing audio cables. A mono audio connector consists of a tip and sleeve. A stereo audio connector consists of a tip, ring, and sleeve. The ring, tip, and sleeve wires are also shown on the captive screw audio connector diagrams, ﬁgure 2-4 and ﬁgure 2-6.

Figure 2-5 — Typical audio connectors

The audio level for each input can be individually set via the front panel or serial port control to ensure that the level on the output does not vary from input to input. See chapter 3, “Operation”, chapter 4, “Programmer’s Guide”, and chapter 5, “Matrix Software”, for details.

PRELIMINARY

MVX VGA A Matrix Switchers • Installation

2-5

Installation, cont’d

Unbalanced Stereo Output Balanced Stereo Output

L R

Do not tin the wires!

Ring

Sleeve(s)

Tip

Ring

Sleeve(s)

Tip

NO GROUND HERE.

RS-232 Function Pin Function

1 2 3 4 5 6 7 8 9

— TX

—

Gnd

— — — —

Not used Transmit data Receive data Not used Signal ground Not used Not used Not used Not used

—

TX–

RX–

—

Gnd

— RX+ TX+

—

Not used Transmit data (–) Receive data (–) Not used Signal ground Not used Receive data (+) Transmit data (+) Not used

RS-422

RS232/RS422

REMOTE

Connections for balanced and unbalanced audio outputs — These

3.5 mm, 5-pole captive screw connectors output the selected unampliﬁed, line level audio. Connect audio devices, such as an audio ampliﬁer or powered speakers. See ﬁgure 2-6 to properly wire an output connector. Use the supplied tie-wrap to strap the audio cable to the extended tail of the connector.

Figure 2-6 — Captive screw connector wiring for audio output

PRELIMINARY

Connect the sleeve to ground (Gnd). Connecting the sleeve to a

negative (-) terminal will damage the audio output circuits.

The length of the exposed (stripped) portion of the copper wires is

important. The ideal length is 3/16” (5 mm). Longer bare wires can short together. Shorter bare wires are not as secure in the direct insertion connectors and could be pulled out.

The volume level for each output can be individually set via the front panel or serial port control. See chapter 3, “Operation”, chapter 4, “Programmer’s Guide”, and chapter 5, “Matrix Software”, for details.

RS-232/RS-422 connection

Remote RS-232/RS-422 connector — Connect a host device, such as a

computer, touch panel control, or RS-232 capable PDA to the switcher via this 9-pin D connector for serial RS-232/RS-422 control (ﬁgure 2-7).

Figure 2-7 — Remote RS-232/RS-422 connector

See chapter 4, “Programmer’s Guide”, for deﬁnitions of the SIS commands (serial commands to control the switcher via this connector) and chapter 5, “Matrix Software”, for details on how to install and use the control software.

The switcher can support either the RS-232 or RS-422 serial communication

If desired, connect an MKP 2000 or MKP 3000 remote control panel to the switcher’s RS-232/RS-422 connector. Refer to the MKP 2000 Remote Control

Panel User’s Manual

2-6

MVX VGA A Matrix Switchers • Installation

details.

protocol, and can operate at 9600, 19200, 38400, or 115200 baud rates. See “Selecting the rear panel Remote port protocol and baud rate” on page 3-38, to conﬁgure the RS-232/RS-422 port from the front panel.

or the MKP 3000 Remote Control Panel User’s Manual for

RESET

Reset button

Reset button — The Reset button initiates two levels of reset to the

matrix switcher. For the two different reset levels, press and hold the button while the switcher is running or while you power up the switcher.

See “Rear Panel Operations” in chapter 3, “Operation”, for details.

• Rear panel (mode 5) system reset — Press and hold the Reset button until the Reset LED blinks three times (approximately 9 seconds), then release the button and press it again. This reset clears all ties and presets and resets all audio gains to 0 dB.

• Hard reset — Press and hold the Reset button while powering up the switcher to restore the switcher to the default factory conditions.

Power connection

Hard reset does not clear the current conﬁguration.

AC power connector — Plug a standard IEC power cord into this connector to

connect the switcher to a 100 VAC to 240 VAC, 50 or 60 Hz power source.

PRELIMINARY

MVX VGA A Matrix Switchers • Installation

2-7

Installation, cont’d

ENTER PRESET VIEW ESC RGBHV AUDIO

CONTROL IO

MVX SERIES

VGA MATRIX SWITCHER WITH ADSP

CONFIG

6 feet

(1.8 m)

Part #70-335-01

Sleeve (Gnd)

Ring

Tip

9-pin D Connection TRS Plug

Pin 2 Computer's RX line Tip Pin 3 Computer's TX line Ring Pin 5 Computer's signal ground Sleeve

Front Panel Conﬁguration Port

Figure 2-8 — Front panel conﬁguration port

Conﬁguration port — This 2.5 mm mini stereo jack serves the same serial

communications function as the rear panel Remote port, but it is easier to access after the matrix switcher has been installed and cabled. The optional 9-pin D to 2.5 mm mini jack TRS RS-232 cable, part #70-335-01 (ﬁgure 2-9), can be used for this connection.

PRELIMINARY

Figure 2-9 — Optional 9-pin TRS RS-232 cable

This port is RS-232 only, with its default protocols as follows:

2-8

MVX VGA A Matrix Switchers • Installation

• 9600 baud • no parity • 8 data bits

• 1 stop bit • no ﬂow control

This port is independent of the rear panel Remote port and is not affected by

changes to the rear panel port’s protocol. This front panel port’s protocol can be changed, under SIS command control only. See the Command/Response table for IP SIS commands, in chapter 4, “Programmer’s Guide”, to conﬁgure all ports under SIS control.

A front panel Conﬁguration port connection and a rear panel Remote port

connection can both be active at the same time.

The maximum distances from the matrix switcher to the controlling device

can vary up to 200 feet (61 m). Factors such as cable gauge, baud rates, environment, and output levels (from the switcher and the controlling device) all affect transmission distance. Distances of about 50 feet (15 m) are typically not a problem. In some cases the matrix switcher may be capable of serial communications via RS-232 up to 250 feet (76 m) away.

MVX VGA A Matrix Switchers

Chapter Three

Operation

Front Panel Controls and Indicators

Front Panel Operations

Rear Panel Operations

Optimizing the Audio

Troubleshooting

PRELIMINARY

Conﬁguration Worksheets

Operation

MVX SERIES

VGA MATRIX SWITCHER WITH ADPS™

ENTER PRESET VIEW ESC VIDEO AUDIO

CONTROL I/O

OUTPUTS

INPUTS

CONFIG

1 2 3 4 5 6 7 8

9 10 11 12 13 14 15

9 10 11 12 13 14 15 16

6 7 8 93

1 3

2 4 5

On some MVX switchers, the video selection button is labeled “Video” rather

than “RGBHV”.

Front Panel Controls and Indicators

The front panel controls (ﬁgure 3-1) are grouped into two sets. The input and output buttons are grouped on the left side of the control panel. The control buttons and video/audio (I/O) selection buttons are grouped on the right side of the panel.

Figure 3-1 — Front panel, MVX 1616 A

The MVX 128 A has a similar front panel conﬁguration, but with fewer input

buttons and output buttons.

PRELIMINARY

Deﬁnitions

The following terms, which apply to all Extron matrix switchers, are used throughout this manual:

Tie — An input-to-output connection Set of ties — An input tied to two or more outputs. (An output can never be tied

to more than one input.)

Conﬁguration — One or more ties or one or more sets of ties Current conﬁguration — The conﬁguration that is currently active in the

switcher (also called “conﬁguration 0”)

Global memory preset — A conﬁguration that has been stored. Up to 32 global

memory presets can be stored in memory. Preset locations are assigned

to the input buttons and output buttons. When a preset is retrieved from memory, it becomes the current conﬁguration.

The switchers have 32 presets. On the MVX 128 VGA A, up to 20 presets

can be selected from the front panel for either saving or retrieving. Preset numbers larger than 20 are accessible via serial port control.

3-2

MVX VGA A Matrix Switchers • Operation

INPU

Rack DVD

(ISS 506)

1 2 3 4 5 6 7 8

Input and output buttons

If the switcher has fewer inputs or outputs than input or output buttons, only

the buttons for which the switcher has an input or output perform the function of selecting and identifying that input or output.

Input buttons and LEDs — The input buttons and LEDs have two primary

functions (•) and two secondary functions (❏):

• Select an input.

• Identify the selected input.

❏ Select a preset. See “Using global presets” on page 3-21. ❏ Display the output volume level. See “Viewing and adjusting the output

volume” on page 3-30.

Output buttons and LEDs — The output buttons and LEDs have two primary

functions (•) and three secondary functions (❏):

• Select output(s).

• Identify the selected output(s).

❏ Mute the output. See “Muting and unmuting video and/or audio” on

page 3-18.

❏ Display the audio level of the selected input. See “Viewing and adjusting

the input audio level”

❏ Select a preset. See “Using global presets” on page 3-21.

on page 3-25.

Input and output label windows — These translucent panels can be removed

and replaced to insert labels behind them. To remove a panel, insert the Phillips-head end of a Tweeker or a small Phillips-head screwdriver into the hole in one end of the panel, and gently slide the tab at the edge of the panel out of the recess in the switcher housing.

Input and output labels can be created easily with Extron’s button label generator software, is shipped with every Extron matrix switcher, or with any Brother® P-Touch™ labeler. Each input and output can be labeled with names, alphanumeric characters, or even color bitmaps for easy and intuitive input and output selection (ﬁgure 3-2). See chapter 5, “Matrix Software”, for details on using the label software.

Figure 3-2 — Sample label

PRELIMINARY

MVX VGA A Matrix Switchers • Operation

3-3

Operation, cont’d

Control buttons

Enter button and/or LED — The Enter button and LED have three primary

functions (•) and four secondary functions (❏):

• Saves changes that you make on the front panel. To create a simple

• Indicates that a potential tie has been created but not saved.

• Indicates that a global preset has been selected to be saved or recalled but

❏ With the Preset, View, and Esc buttons, selects Serial Port Conﬁguration

❏ Selects 9600 baud for the Remote port in Serial Port Conﬁguration mode.

❏ Indicates that the Remote port is set to 9600 baud in Serial Port

❏ With the RGBHV and Audio buttons, select front panel security lockout

conﬁguration:

 Specify RGBHV, audio, or both (see I/O selection buttons [

[i]).

 Press the desired input button (  Press the desired output button(s) (  Press the Enter button.

that the preset action has not been accomplished.

mode. See “Selecting the rear panel Remote port protocol and baud rate” on page 3-38.

See “Selecting the rear panel Remote port protocol and baud rate” on page 3-38.

Conﬁguration mode. See “Selecting the rear panel Remote port protocol and baud rate” on page 3-38.

mode 2 or toggle between mode 0 (unlocked) and mode 2. See “Setting the front panel locks (Executive modes)” on page 3-36.

] and

PRELIMINARY

Preset button and/or LED — The Preset button and LED have two primary

functions (•) and three secondary functions (❏):

• Activates Save Preset mode to save a conﬁguration as a preset and Recall mode to activate a previously-deﬁned preset.

Preset

• Blinks when Save Preset mode is active and lights steadily when Recall mode is active.

Preset

❏ With the Enter, View, and Esc buttons, selects Serial Port Conﬁguration

mode. See “Selecting the rear panel Remote port protocol and baud

on page 3-38.

rate”

❏ Selects 19200 baud for the Remote port in Serial Port Conﬁguration mode.

See “Selecting the rear panel Remote port protocol and baud rate” on page 3-38.

❏ Indicates that the Remote port is set to 19200 baud in Serial Port

Conﬁguration

and baud rate”

mode. See “Selecting the rear panel Remote port protocol

on page 3-38.

3-4

MVX VGA A Matrix Switchers • Operation

View (<) button and/or LED — The View (<) button and LED have two

primary functions (•) and six secondary functions (❏):

• Selects a View-only mode that displays the current conﬁguration.

View-only mode also provides a way to mute and unmute the outputs. See

“Muting and unmuting video and/or audio” on page 3-18.

• Indicates that View-only mode is active.

❏ Decreases the audio level of the selected input. See “Viewing and

adjusting the input audio level” on page 3-25.

❏ Indicates a negative (attenuation) audio level. See “Viewing and

adjusting the input audio level” on page 3-25.

❏ Decreases the volume of the selected output. See “Viewing and adjusting

the output volume” on page 3-30.

❏ With the Enter, Preset, and Esc buttons, selects Serial Port Conﬁguration

mode. See “Selecting the rear panel Remote port protocol and baud rate” on page 3-38.

❏ Selects 38400 baud for the Remote port in Serial Port Conﬁguration mode.

See “Selecting the rear panel Remote port protocol and baud rate” on page 3-38.

❏ Indicates that the Remote port is set to 38400 baud in Serial Port

Conﬁguration mode. See “Selecting the rear panel Remote port protocol

and baud rate” on page 3-38.

Esc (>) button and/or LED — The Esc (>) button and LED have two primary

functions (•) and six secondary functions (❏):

• Cancels operations or selections in progress and resets the front panel button indicators.

The Esc (>) button does not reset the current conﬁguration, the RGBHV button

and Audio selection button, any presets, or any audio gain or attenuation settings.

• Flashes once to indicate that the escape function has been activated.

❏ Increases the audio level of the selected input. See “Viewing and

adjusting the input audio level” on page 3-25.

❏ Indicates a positive (gain) audio level. See “Viewing and adjusting the

input audio level” on page 3-25.

❏ Increases the volume of the selected output. See “Viewing and adjusting

the output volume” on page 3-30.

❏ With the Enter, Preset, and View buttons, selects Serial Port Conﬁguration

mode. See “Selecting the rear panel Remote port protocol and baud rate” on page 3-38.

❏ Selects 115200 baud for the Remote port in Serial Port Conﬁguration mode.

See “Selecting the rear panel Remote port protocol and baud rate” on page 3-38.

❏ Indicates that the Remote port is set to 115200 baud in Serial Port

Conﬁguration mode. See “Selecting the rear panel Remote port protocol

and baud rate” on page 3-38.

PRELIMINARY

MVX VGA A Matrix Switchers • Operation

3-5

Operation, cont’d

I/O controls

You must specify video, audio, or both when you are creating or viewing a conﬁguration. This is done with the RGBHV button (h) and Audio (i) buttons.

On some MVX switchers, the video selection button is labeled “Video” rather

than “RGBHV”.

RGBHV button and/or LED — The RGBHV button and LED have two

primary functions (•) and ﬁve secondary functions (❏):

• Selects and deselects video for a conﬁguration that is being created or viewed.

• Lights amber to indicate that video is available for conﬁguring or for viewing.

With the Enter button and Audio button, selects between front panel

❏

locks (Lock mode 2 and Lock mode 0). See “Setting the front panel locks (Executive modes)”

❏ With the Audio button, selects between front panel locks (Lock mode 2

and Lock mode 1). See “Setting the front panel locks (Executive modes)” on page 3-36.

❏ With the Audio button, initiates the front panel system reset. See

“Performing a system reset from the front panel” on page 3-37.

❏ Selects the RS-232 protocol for the Remote port in Serial Port Conﬁguration

mode. See “Selecting the rear panel Remote port protocol and baud rate” on page 3-38.

❏ Indicates that the Remote port is set to the RS-232 protocol in Serial Port

Conﬁguration mode. See “Selecting the rear panel Remote port protocol

and baud rate” on page 3-38.

on page 3-36.

PRELIMINARY

Audio button and/or LED — The Audio button and LED have two primary

functions (•) and six secondary functions (❏):

• Selects and deselects audio for a conﬁguration that is being created or viewed.

• Lights to indicate that audio is available for conﬁguration or viewing.

❏ Selects the Audio mode, in which you can adjust the input audio level.

See “Viewing and adjusting the input audio level” on page 3-25.

❏ With the Enter button and RGBHV button, selects between front panel

locks (Lock mode 2 and Lock mode 0). See “Setting the front panel locks (Executive modes)” on page 3-36.

❏ With the RGBHV button, selects between front panel locks (Lock mode 2

and Lock mode 1). See “Setting the front panel locks (Executive modes)” on page 3-36.

❏ With the RGBHV button, initiates the front panel system reset.

See “Performing a system reset from the front panel” on page 3-37.

❏ Selects the RS-422 protocol for the Remote port in Serial Port Conﬁguration

mode. See “Selecting the rear panel Remote port protocol and baud rate” on page 3-38.

❏ Indicates that the Remote port is set to the RS-422 protocol in Serial Port

Conﬁguration mode. See “Selecting the rear panel Remote port protocol

and baud rate”

on page 3-38.

3-6

MVX VGA A Matrix Switchers • Operation

Front Panel Operations

The following paragraphs detail the power-up process and then provide sample procedures for the following actions:

• Creating ties, sets of ties, and conﬁgurations

• Changing a conﬁguration

• Viewing ties, sets of ties, and conﬁgurations

• Muting and unmuting outputs

• Saving a preset

• Recalling a preset

• Viewing and adjusting the output volume

• Viewing and adjusting the input audio level

• Locking the front panel

• Performing resets from the front panel

• Reading and setting the RS-232/RS-422 Remote port settings

Front panel security lockouts

In the procedural descriptions that follow, it is assumed that the switcher is in Lock mode 0 (fully unlocked). The following two Lock modes are also available:

Power

• Lock mode 1 — All changes are locked from the front panel (except for setting Lock mode 2). Some functions can be viewed.

• Lock mode 2 — Advanced features are locked and can be viewed only. Basic functions are unlocked.

See “Setting the front panel locks (Executive modes)” on page 3-36 for a detailed list of basic and advanced functions and the procedure to set the various front panel locks.

Apply power by connecting the power cord to an AC source. When AC power is applied, the switcher performs a self-test that ﬂashes the front panel LEDs and then turns them off. An error-free power up self-test sequence leaves the RGBHV LED and the Audio LED on, and all other LEDs unlit.

The current conﬁguration and all presets are saved in non-volatile memory. When power is applied, the most recent conﬁguration is retrieved. The previous presets remain intact.

If an error occurs during the self-test, the switcher locks up and does not operate. If your switcher locks up on power-up, call the Extron S3 Sales & Technical Support Hotline.

The switcher is shipped from the factory in Lock mode 2.

PRELIMINARY

MVX VGA A Matrix Switchers • Operation

3-7

PRELIMINARY

Operation, cont’d

Creating a conﬁguration

The current conﬁguration can be changed using the front panel buttons. Change the current conﬁguration as follows:

1. Press the Esc button to clear any input LEDs, output LEDs, or control LEDs that are lit.

2. Select to conﬁgure video, audio, or both by pressing the RGBHV button and/or Audio button.

3. Select the desired input and output(s) by pressing the input and output buttons.

To indicate potential ties, output LEDs blink when an output is selected but

not tied to the input.

To indicate current ties, output LEDs light steadily when an input is tied to

the output.

To clear unwanted outputs, press and release the output buttons associated

with the lit LEDs. To indicate potential unties, output LEDs blink when an output is deselected but not untied from the input.

4. Press and release the Enter button to accept the new tie or to break an existing tie.

. Repeat steps 1 through 4 to create additional ties until the desired

conﬁguration is complete.

N • Only one video input and one audio input can be tied to an output.

• If a tie is made between an input and an output, and the selected output was previously tied to another input, the older tie is broken in favor of the newer tie.

• To indicate current ties, output LEDs light when an input is selected. To clear unwanted outputs, press and release the associated output buttons.

• If, when you are conﬁguring video and audio ties, the Audio LED blinks and the RGBHV LED is on after you select an input or output, the LEDs indicate audio breakaway, meaning that the audio ties are not the same as the video ties for that input.

• If an input with no tie is selected, only that input’s LED lights.

• When the RGBHV and Audio LEDs are on, if an input with an audio tie but no video tie is selected, the input’s LED lights and the Audio LED and the output LED(s) blink.

• As each output is selected, the associated output LED blinks to indicate a tentative tie. LEDs for output(s) that were already tied to the input light steadily. Outputs that are already tied can be left on, along with new blinking selections, or toggled off by pressing the associated output button.

3-8

MVX VGA A Matrix Switchers • Operation

ENTER PRESET VIEW ESC

CONTROL

Press the Esc button to clear all selections.

The LED blinks once.

= LED blinks once.

RGBHV AUDIO

I/O

Press the RGBHV button to toggle on and off.

The LED lights when selected.

Press the Audio button to toggle on and off.

The LED lights when selected.

2 3 4 5 6

INPUTS

Press and release the Input 5 button.

The Input 5 LED lights.

Example 1: Creating a set of video and audio ties

In the following example, input 5 is tied to outputs 3, 4, and 8. The steps show the front panel indications that result from your actions.

This example assumes that there are no ties in the current conﬁguration.

1. Press and release the Esc button (ﬁgure 3-3).

Figure 3-3 — Clear all selections

2. To select video and audio for the tie, if necessary, press and release the RGBHV button and the Audio button until both the RGBHV and Audio LEDs light (ﬁgure 3-4).

Figure 3-4 — Select RGBHV and audio

PRELIMINARY

3. Press and release the input 5 button (ﬁgure 3-5).

Figure 3-5 — Select an input

MVX VGA A Matrix Switchers • Operation

3-9

Operation, cont’d

1 2 3 4 5

OUTPUTS

7 8

ENTER PRESE

Press and release the Output 3, Output 4, and Output 8 buttons. The buttons blink to indicate that the selected RGBHV and audio input will be tied to these outputs.

The Enter LED blinks to indicate the need to confirm the change.

= Blinking LED

ENTER

The Enter LED and all input LEDs and output LEDs return to the unlit state.

Press the Enter button to confirm the configuration change.

Input 5 (video/audio) tied

to outputs 3, 4, and 8

Input

Output

3 4

Video Audio

4. Press and release the output 3, output 4, and output 8 buttons (ﬁgure 3-6).

Figure 3-6 — Select the outputs

5. Press and release the Enter button (ﬁgure 3-7).

The entire set of ties can be canceled at this point by pressing and releasing the

Esc button. The Esc LED ﬂashes once.

PRELIMINARY

Figure 3-7 — Press the Enter button

The current conﬁguration (ﬁgure 3-8) is now:

• Input 5 (video and audio) is tied to output 3, output 4, and output 8.

Figure 3-8 — Example 1, ﬁnal conﬁguration

3-10

MVX VGA A Matrix Switchers • Operation

ENTER PRESET VIEW ESC

CONTROL

Press the Esc button to clear all selections.

The LED blinks once.

= LED blinks once.

RGBHV AUDIO

I/O

Press the RGBHV button to toggle on and off.

The LED lights when selected.

Press the Audio button to toggle on and off.

The LED is unlit when deselected.

2 3 4 5 6

INPUTS

1 2 3 4 5

OUTPUTS

7 8

The Output 3, Output 4, and Output 8 LEDs light to indicate the RGBHV ties created in example 1.

Press and release the Input 5 button. The LED lights.

1 2 3 4 5

OUTPUTS

ENTER PRESE

Press and release the Output 1 button. The LED blinks to indicate that the selected RGBHV input will be tied to this output.

The Enter LED blinks to indicate the need to confirm the change.

Example 2: Adding a tie to a set of video and audio ties

In the following example, a new video tie is added to the current conﬁguration. The steps show the front panel indications that result from your action.

This example assumes that you have performed example 1.

1. Press and release the Esc button (ﬁgure 3-9).

Figure 3-9 — Clear all selections

2. To select video only for the tie, if necessary, press and release the RGBHV button and/or Audio button (ﬁgure 3-10).

Figure 3-10 — Select RGBHV only

3. Press and release the Input 5 button (ﬁgure 3-11).

Figure 3-11 — Select an input

4. Press and release the Output 1 button (ﬁgure 3-12).

Figure 3-12 — Select the output

PRELIMINARY

MVX VGA A Matrix Switchers • Operation

3-11

Operation, cont’d

ENTER

The Enter LED and all input LEDs and output LEDs return to the unlit state.

Press the Enter button to confirm the configuration change.

Input 5 video tied

to outputs 1, 3, 4, and 8

Input 5 audio tied

to outputs 3, 4, and 8

Input

Output

3 4

Video Audio

5. Press and release the Enter button (ﬁgure 3-13).

Figure 3-13 — Press the Enter button

The current conﬁguration (ﬁgure 3-14) is now:

• Input 5 (video) is tied to output 1, output 3, output 4, and output 8.

• Input 5 (audio) is tied to output 3, output 4, and output 8.

PRELIMINARY

Figure 3-14 — Example 2, ﬁnal conﬁguration

3-12

MVX VGA A Matrix Switchers • Operation

ENTER PRESET VIEW ESC

CONTROL

Press the Esc button to clear all selections.

The LED blinks once.

= LED blinks once.

RGBHV AUDIO

I/O

Press the RGBHV button to toggle on and off.

The LED is unlit when deselected.

Press the Audio button to toggle on and off.

The LED lights when selected.

2 3 4 5 6

INPUTS

1 2 3 4 5

OUTPUTS

7 8

Press and release the Input 5 button. The LED lights.

The Output 3, Output 4, and Output 8 LEDs light to indicate the audio ties created in example 1.

The output 1 LED does not light to indicate the tie created in example 2 because that tie is RGBHV only.

Example 3: Removing a tie from a set of video and audio ties

In the following example, an existing audio tie is removed from the current conﬁguration. The steps show the front panel indications that result from your action.

This example assumes that you have performed example 1 and example 2.

1. Press and release the Esc button (ﬁgure 3-15).

Figure 3-15 — Clear all selections

2. To select audio only for the tie, if necessary, press and release the RGBHV button and/or Audio button (ﬁgure 3-16).

Figure 3-16 — Select audio only

3. Press and release the Input 5 button (ﬁgure 3-17).

Figure 3-17 — Select an input

PRELIMINARY

MVX VGA A Matrix Switchers • Operation

3-13

Operation, cont’d

ENTER PRESE

1 2 3 4 5

OUTPUTS

Press and release the Output 4 button. The LED blinks to indicate that the selected RGBHV output will be untied.

The Enter LED blinks to indicate the need to confirm the change.

ENTER

The Enter LED and all input LEDs and output LEDs return to the unlit state.

Press the Enter button to confirm the configuration change.

Input 5 video tied

to outputs 1, 3, 4, and 8

Input 5 audio tied

to outputs 3 and 8

Input

Output

3 4

Video Audio

4. Press and release the Output 4 button (ﬁgure 3-18).

Figure 3-18 — Deselect the output

5. Press and release the Enter button (ﬁgure 3-19).

Figure 3-19 — Press the Enter button

PRELIMINARY

The current conﬁguration (ﬁgure 3-20) is now:

• Video — Input 5 (video) is tied to output 1, output 3, output 4, and output 8.

• Audio — Input 5 (audio) is tied to output 3 and output 8. (Input 5 audio is no longer tied to output 4.)

Figure 3-20 — Example 3, ﬁnal conﬁguration

3-14

MVX VGA A Matrix Switchers • Operation

ENTER PRESET VIEW ESC

CONTROL

Press the Esc button to clear all selections.

The LED blinks once.

= LED blinks once.

Viewing a conﬁguration

The current conﬁguration can be viewed using the front panel buttons. The

View-only mode prevents inadvertent changes to the current conﬁguration. View-only mode also provides a way to mute video and audio outputs (see “Muting

and unmuting video and/or audio” on page 3-18). View the current conﬁguration as follows:

1. Press the Esc button to clear any input LEDs, output LEDs, or control LEDs that are lit.

2. Press and release the View button. All of the LEDs light for outputs that are not tied.

3. Select video, audio, or both to view by pressing the RGBHV button and/or

the Audio button.

4. Select the desired input or output(s) whose ties you wish to view by pressing the input and output buttons.

N • When you enter View-only mode, the output LEDs light for all outputs

without ties. Likewise, when an output button for which there are no ties is pressed, the output LEDs turn on for all outputs without ties.

• To see all ties of the current conﬁguration, press and release each input and output button, one at a time, with the RGBHV LED and the Audio LED lit.

• In View-only mode, you can view video and audio, video-only, or audioonly ties. Pressing and releasing the RGBHV button and the Audio button toggles each on and off.

• After 30 seconds of front panel inactivity, View-only mode automatically deselects.

Example 4: Viewing video and audio, audio only, and video only ties

The following steps show an example of viewing the video and audio, audio-only, and video-only ties in the current conﬁguration. The steps show the front panel indications that result from your action.

Figure 3-21 — Clear all selections

2. Press and release the View button to enter View-only mode. The View LED

This example assumes that you have performed example 1, example 2, and

example 3.

. Press and release the Esc button (ﬁgure 3-21).

lights.

PRELIMINARY

MVX VGA A Matrix Switchers • Operation

3-15

Operation, cont’d

RGBHV AUDIO

I/O

1 2 3 4 5

OUTPUTS

7 8

Until you select an input or output, the buttons light for all untied outputs or outputs with audio broken away.

Press the Audio button to toggle on and off.

The LED lights or blinks when selected.

In this example, the Audio LED blinks to indicate audio breakaway (assuming you have performed examples 1, 2, and 3).

Press the RGBHV button

to toggle on and off.

The LED lights when

selected.

4 5 6 7

2 3 4 5

OUTPUTS

7 8 1

The output buttons are unlit for outputs that are not tied to input 5.

The output buttons light for outputs that are tied to input 5.

Press and release the Input 5 button. The LED lights.

3. To select both video and audio for viewing, if necessary, press and release the RGBHV button and the Audio button (ﬁgure 3-22).

Figure 3-22 — Select RGBHV and audio

PRELIMINARY

4. Press and release the Input 5 button (ﬁgure 3-23).

Figure 3-23 — Select an input

You can also view a set of ties by selecting a tied output. To demonstrate this,

note the number of a lit output LED, and then press and release the output button for an untied (unlit) output. Observe that all of the untied outputs’ LEDs light. Then press the output button that you noted previously and observe that the selected output LED, the tied input LED (input 5), and the output LEDs light for all of the outputs that are tied to the input.

3-16

MVX VGA A Matrix Switchers • Operation

RGBHV AUDIO

I/O

2 3 4 5

OUTPUTS

7 8

The output buttons for outputs that are not tied to input 5 are unlit.

The output buttons for outputs that are tied to input 5 light to indicate audio ties (audio breakaway).

The Audio LED remains lit to indicate that only audio is selected.

Press the RGBHV

button to delesect it.

The LED is unlit

when deselected.

VIDEO AUDIO

I/O

2 3 1 4 5

OUTPUTS

7 8

The output buttons are unlit for outputs that are not tied to input 5.

The output buttons for outputs that are tied to input 5 light to indicate audio ties (audio breakaway).

Press the Audio button to deselect it.

The LED is unlit when deselected.

Press the RGBHV

button to select it.

The LED lights

when selected.

SET

VIEW

CONTROL

Press the View button to exit View-Only mode.

The View LED returns to the unlit state.

All input LEDs and output LEDs return to the unlit state.

5. Press and release the RGBHV button to deselect RGBHV (ﬁgure 3-24).

Figure 3-24 — Deselect RGBHV to view audio ties only

6. Press and release the RGBHV button and the Audio button to toggle the RGBHV LED lit and the Audio LED unlit (ﬁgure 3-25).

Figure 3-25 — Deselect audio and select RGBHV to view RGBHV only

If video ties are established for input 5, the output LEDs light for all video

7. Press and release the View button to exit View-only mode (ﬁgure 3-26).

Figure 3-26 — Press the View button to exit View-only mode

outputs tied to input 5. If no ties are established for input 5, all output LEDs return to the unlit state.

MVX VGA A Matrix Switchers • Operation

3-17

PRELIMINARY

Operation, cont’d

ENTER PRESET VIEW ESC

CONTROL

Press the Esc button to clear all selections.

The LED blinks once.

= LED blinks once.

Muting and unmuting video and/or audio

Individual outputs can be muted or unmuted as follows:

2. Press and release the View button.

3. Select video, audio, or both to mute or unmute by pressing the RGBHV

4. One at a time, press and hold the output button(s) for the desired output(s)

5. Press and release the View button to return to normal switcher operation.

N • You can mute video and audio, video-only, or audio-only outputs. Pressing

Mutes are protected when front panel Lock mode 2 is selected. You can view the

status of the output (muted or unmuted) in Lock mode 2 but you cannot change it from the front panel.

. Press the Esc button to clear any input LEDs, output LEDs, or control LEDs

that are lit.

button and/or the Audio button.

for approximately 2 seconds. The LED(s) for the selected output(s) blink to indicate the mute or return to their previous state to indicate the unmute.

and releasing the RGBHV button and the Audio button toggles each selection on and off.

• When you enter View-only mode, the output LEDs turn on for all outputs

without ties.

• The video mute function mutes the R, G, and B planes only; the H and V

planes are still active.

• Mutes are saved to non-volatile memory. When power is removed and

restored, the mute settings are retained.

PRELIMINARY

Example 5: Muting and unmuting an output

The following steps show an example in which several matrix switcher outputs are muted and unmuted. The steps show the front panel indications that result from your actions.

1. Press and release the Esc button (ﬁgure 3-27).

Figure 3-27 — Clear all selections

2. Press and release the View button to enter View-only mode. The View LED lights.

3-18

MVX VGA A Matrix Switchers • Operation

RGBHV AUDIO

I/O

1 2 3 4 5

OUTPUTS

7 8

Until you select an input or output, the buttons light for all untied outputs or outputs with audio broken away.

Press the Audio button to toggle on and off.

The LED lights or blinks when selected.

In this example, the Audio LED blinks to indicate audio breakaway (assuming you have performed examples 1, 2, and 3).

Press the RGBHV button

to toggle on and off.

The LED lights when

selected.

3 4 5

OUTPUTS

3 4 5

OUTPUTS

The LEDs blink to indicate that the

RGBHV and audio outputs are muted.

Release the buttons.

Press and hold the Output 3 and Output 4 buttons.

2 seconds

= Blinking LED

3. To select both video and audio for viewing and muting, if necessary, press and release the RGBHV button and the Audio button (ﬁgure 3-28).

This example shows the indications that the front panel displays if example 1,

example 2, and example 3 have been completed.

Figure 3-28 — Select RGBHV and audio

Output mutes are protected when front panel Lock mode 2 is selected. You

can view the mutes in Lock mode 2 but you cannot change them from the front panel.

If you try to perform steps 4 and 5 while front panel Lock mode 2 is selected, the actions are ignored.

. Press and hold the Output 3 button and the Output 4 button (ﬁgure 3-29) for

approximately 2 seconds until the LEDs begin to blink. The output 3 and output 4 video and audio signals are muted.

PRELIMINARY

Figure 3-29 — Mute the outputs

MVX VGA A Matrix Switchers • Operation

3-19

Operation, cont’d

3 4 5

OUTPUTS

3 4 5

OUTPUTS

The LEDs stop blinking and light steadily to indicate

that the RGBHV and audio outputs are unmuted.

Release the buttons.

Press and hold the Output 3 and Output 4 buttons.

2 seconds

= Blinking LED

SET

VIEW

CONTROL

Press the View button to exit View-Only mode.

The View LED returns to the unlit state.

All input LEDs and output LEDs return to the unlit state.

If both RGBHV and audio are selected, the muting action toggles both the video

and audio outputs. If either the video output or the audio output is already muted, the unmuted output is muted and the muted output is unmuted.

If both RGBHV and audio are selected and only video is muted, the output LED

ﬂashes. If only audio is selected, the output LED is lit steadily (indicating no audio mute).

. Press and hold the Output 3 button and the Output 4 button (ﬁgure 3-30)

for approximately 2 seconds until the LEDs light steadily. The output 3 and output 4 video and audio signals are unmuted.

PRELIMINARY

Figure 3-30 — Unmute the outputs

. Press and release the View button to exit View-only mode (ﬁgure 3-31).

Figure 3-31 — Press the View button to exit View-only mode

If both RGBHV and audio are selected, the unmuting action toggles both the

video and the audio outputs. If either the video output or the audio output is already unmuted, the muted output is unmuted and the unmuted output is muted.

3-20

MVX VGA A Matrix Switchers • Operation

Preset

Preset6Preset

Preset

Preset14Preset

Preset

Preset18Preset

Preset

NOTE Presets 21 through 32 are

available via serial port control only.

Preset

INPUTS

OUTPUTS

1 2 3 4 5 6 7 8

1 2 3 4 5 6 7 8 9 10 11 12

Preset

Preset6Preset

Preset

Preset18Preset

Preset

Preset22Preset

Preset

1 2 3 4 5 6 7 8

9 10 11 12

Preset

13 14 15

9 10 11 12

Preset29Preset30Preset31Preset

13 14 15 16

OUTPUTS

INPUTS

Using global presets

The current conﬁguration (conﬁguration 0) can be saved as a preset in any one of 32 preset memory addresses. Preset locations are assigned to the input buttons and output buttons. On the MVX 128 A, up to 20 presets can be selected from the front panel to be either saved or retrieved. On all other models, all 32 presets are available from the front panel. When a preset is retrieved from memory, it becomes the current conﬁguration.

• Only the audio and video ties are stored and recalled; audio gain settings are not saved, and they do not change when a preset is recalled.

• Presets cannot be viewed from the front panel unless recalled as the current conﬁguration. Presets can be viewed using Extron’s Windows-based control program. See chapter 5, “Matrix Software”, for more details.

• The current conﬁguration and all presets are stored in non-volatile memory. When power is removed and restored, the current conﬁguration is still active and all presets are retained.

• When a preset is recalled, it replaces the current conﬁguration, which is lost unless it is also stored as a preset. The recalled preset overwrites all of the current conﬁguration ties in favor of the preset conﬁguration ties.

• Preset numbers greater than 20 (that are too high to be available from the front panel) are accessible via serial port control.

• Figure 3-32 shows the presets associated with the various input and output buttons for the MVX 128 VGA A. Figure 3-33 shows the presets associated with the various input and output buttons for the MVX 1212 VGA A, MVX 168 VGA A, and MVX 1616 VGA A.

PRELIMINARY

Figure 3-32 — Preset locations, MVX 128 VGA A

Figure 3-33 — Preset locations, MVX 1212 VGA A, MVX 168 VGA A, MVX 1616 VGA A

MVX VGA A Matrix Switchers • Operation

3-21

Operation, cont’d

ENTER PRESET VIEW ESC

CONTROL

Press the Esc button to clear all selections.

The LED blinks once.

= LED blinks once.

PRESET PRESET

1 2 3 4

Press and hold the Preset button until the Preset LED blinks.

Release the Preset button.

2 seconds

All input and output LEDs with assigned presets light. If you then save the configuration to a lit preset number,

the configuration data at that preset location is overwritten.

Lit

(Preset Assigned)

Output LEDs

Unlit

(Preset Unassigned)

= Blinking LED

Preset 13 Preset 14 Preset 16Preset 15

ENTER PRESET VIEW

CONTROL

1 2 3 4

The Enter LED blinks to indicate the need to save the preset. The Preset LED continues to blink.

Press and release the Output 1 button.

The LED blinks to indicate that this preset number is selected but not saved.

= Blinking LED

Preset 13 Preset 14 Preset 16Preset 15

Example 6: Saving a preset

The following steps show an example in which the current conﬁguration is saved as a preset. The steps show the front panel indications that result from your actions.

1. Press and release the Esc button (ﬁgure 3-34).

Figure 3-34 — Clear all selections

2. Press and hold the Preset button for approximately 2 seconds until the Preset LED blinks (ﬁgure 3-35).

Figure 3-35 — Enter Save Preset mode

PRELIMINARY

. Press and release the Output 1 button (ﬁgure 3-36).

Figure 3-36 — Select the preset

3-22

MVX VGA A Matrix Switchers • Operation

ENTER PRESET VIEW ESC

CONTROL

The Enter and Preset LEDs return to the unlit state.

Press the Enter button to save the preset.

All input LEDs return to the unlit state.

ENTER PRESET VIEW ESC

CONTROL

Press the Esc button to clear all selections.

The LED blinks once.

= LED blinks once.

PRESET

1 2 3 4

Preset 13 Preset 14 Preset 16Preset 15

Press and release the Preset button. The Preset LED lights.

All input and output LEDs with assigned presets light.

Lit

(Preset Assigned)

Unlit

(Preset Unassigned)

4. Press and release the Enter button (ﬁgure 3-37). The current conﬁguration is now stored in memory location 13 (MVX 128 VGA A) or location 17 (MVX 1212 VGA A, MVX 168 VGA A, MVX 1616 VGA A).

Figure 3-37 — Press the Enter button

Example 7: Recalling a preset

The following steps show an example in which a preset is recalled to become the current conﬁguration. The steps show the front panel indications that result from your actions.

1. Press and release the Esc button (ﬁgure 3-38).

Figure 3-38 — Clear all selections

2. Press and release the Preset button (ﬁgure 3-39).

Figure 3-39 — Enter Recall Preset mode

MVX VGA A Matrix Switchers • Operation

PRELIMINARY

3-23

Operation, cont’d

ENTER PRESET VIEW

CONTROL

1 2 3 4

The Enter LED blinks to indicate the need to recall the preset. The Preset LED remains lit.

Press and release the Output 1 button.

The LED blinks to indicate that this preset number is selected but not recalled.

= Blinking LED

Preset 13 Preset 14 Preset 16Preset 15

ENTER PRESET VIEW ESC

CONTROL

The Enter and Preset LEDs return to the unlit state.

Press the Enter button to recall the preset.

All input LEDs return to the unlit state.

3. Press and release the Output 1 button (ﬁgure 3-40).

Figure 3-40 — Select the preset

4. Press and release the Enter button (ﬁgure 3-41). The conﬁguration stored in memory location 13 (MVX 128 VGA A) or location 17 (MVX 1212 VGA A, MVX 168 VGA A, MVX 1616 VGA A) is now the current conﬁguration and can be viewed in the View-only mode (see example 4, earlier in this chapter).

PRELIMINARY

Figure 3-41 — Press the Enter button

3-24

MVX VGA A Matrix Switchers • Operation

Audio Inputs

VCR

No noticeable volume differences between sources

Audio System

CD Jukebox

MVX 128 VGA A

-3

-6

-9

-12

-15

Low Audio

Output Level

+4 +1

-2

-5

-8

-12

-18

-21

-15

-18

3 +7

6 +10

9 +13

12 +16

15 +19

18 +21

21 +24

VU dBu

-3

-6

-9

-12

-15

High Audio

Output Level

+4 +1

-2

-5

-8

-12

-18

-21

-15

-18

3 +7

6 +10

9 +13

12 +16

15 +19

18 +21

21 +24

VU dBu

-3

-6

-9

-12

-15

Output

Level

+4 +1

-2

-5

-8

-12

-18

-21

-15

-18

3 +7

6 +10

9 +13

12 +16

15 +19

18 +21

21 +24

VU dBu

1 2 3 4 5 6 7 8

9 10 11 12

INPUTS

OUTPUTS

AUDIO

VIDEO

I/O

CONTROL

ENTER

PRESET

VIEW

ESC

MVX SERIES

VGA MATRIX SWITCHER

WITH

ADSP

Viewing and adjusting the input audio level

The audio level of each input can be displayed and adjusted through a range of

-18 dB to +24 dB to ensure that there is no noticeable volume difference among sources (ﬁgure 3-42). The audio level can be adjusted from the front panel or via serial port control. The default audio level is 0 dB.

Figure 3-42 — Audio gain and attenuation

1. Press the Esc button to clear any input LEDs, output LEDs, or control LEDs

2. To enter Audio mode, press and hold the Audio button until the LED begins to

3. Press and release an input button to select an input. The output LEDs display

The Esc (>) and View (<) LEDs display the polarity (gain [+] or attenuation

4. Press and release the Esc (>) and View (<) buttons to increase and decrease

that are lit.

blink, then release the button.

the audio level for the selected input.

• Switchers with 8 output LEDs — Each output LED indicates 1 dB when blinking slowly, 2 dB when blinking quickly, and 3 dB when lit steadily.

• Switchers with 16 output LEDs — Each output LED indicates 1 dB when blinking and 2 dB when lit steadily.

[–]). See the table on page 3-27 to read the displayed audio level.

the audio level by 1 dB per each push of the buttons. Or, press and hold either button to change the level at a rate of 3 dB per second until the button is released or the upper or lower limit is reached.

MVX VGA A Matrix Switchers • Operation

3-25

PRELIMINARY

Operation, cont’d

ENTER PRESET VIEW ESC

CONTROL

Press the Esc button to clear all selections.

The LED blinks once.

= LED blinks once.

RGBHV AUDIO AUDIO

I/O

The LED blinks to indicate Audio mode.

Release the button.

Press and hold the Audio button.

2 seconds

= Blinking LED

5. Press and release the Audio button to exit Audio mode. The Audio LED stops blinking.

Example 8: Viewing and adjusting an input audio level

In the following example, an audio level is viewed and adjusted. The steps show the front panel indications that result from your action.

Audio gain and attenuation is displayed differently on different models. See the table on the next page.

For this reason, ﬁgure 3-46 and ﬁgure 3-48 show the indications displayed on a switcher with 16 output buttons without duplicating all of the actions shown in ﬁgure 3-45 and ﬁgure 3-47, which show the MVX 128 with 8 output buttons.

• Pressing the Enter or Preset button also exits Audio mode. Pressing the Preset button changes to Recall Preset mode.

• There is one audio level setting per input. The audio level setting is shared by the left and right audio inputs.

• The audio level settings are stored in non-volatile memory. When power is removed and restored, the audio level settings are retained.

• Exiting Audio mode by pressing the Audio button always returns the I/O button conﬁguration to RGBHV and audio selected for tying (RGBHV and Audio LEDs lit).

PRELIMINARY

1. Press and release the Esc button (ﬁgure 3-43).

Figure 3-43 — Clear all selections

2. Press and hold the Audio button for approximately 2 seconds until the Audio LED blinks (ﬁgure 3-44).

Figure 3-44 — Select Audio mode

3-26

MVX VGA A Matrix Switchers • Operation

8 7

Output LED

MVX 128 A

MVX 1212, 168, 1616 A

-1

-2

-3

-4

-5

-6

-7

-8

-9

-10

-11

-12

-13

-14

-15

View Esc

+18

+17

+16

+15

+14

+13

+12

+11

+10

+24

+23

+22

+21

+20

+19

6 5 4 3 2 1

8 7 6 5 4 3 2 1

-16

-17

-18

11 10

Output LED

+10

+12

+14

+16

+18

+20

+22

-1

-2

-3

-4

-5

-6

-7

-8

-9

-10

-11

-12

-13

-14

-15

+17

+15

+13

+11

+24

+23

+21

+19

9 12 4 3 2 7 6 5 1

11 10 9 4 3 2 1

8 7 6 5

-16

-17

-18

View Esc

= on, = blinking fast, = blinking slowly, = off

Audio input level settings

MVX VGA A Matrix Switchers • Operation

PRELIMINARY

3-27

Operation, cont’d

1 2 3 4 5 6

1 2 3 4 5

OUTPUTS

7 8

VIEW ESC

Press and release the Input 5 button. The LED lights.

In this example, the output buttons and the View and Esc buttons display an audio gain level of +8 dB.

= Lit LED,

= Fast blinking LED= Unlit LED,

The output LEDs display the selected input's audio level. The View and Esc LEDs display

the polarity (gain or attenuation).

In this example, the output buttons and the View and Esc buttons display an audio gain level of +8 dB.

= Lit LED, = Unlit LED,

The output LEDs display the selected input's audio level.

The View and Esc LEDs display the polarity (gain or attenuation).

3. Press and release the Input 5 button (ﬁgure 3-45).

Figure 3-45 shows the current level (+8 dB) displayed on the MVX 128 A, an

8-ouput-LED switcher.

Figure 3-45 — Select an input and read the audio level

PRELIMINARY

Figure 3-46 — Level display on a 16-output-LED switcher

4. Press and release the View (<) button once (ﬁgure 3-47) to decrease the input

Press and release the View (<) button several more times (ﬁgure 3-47) to

Figure 3-46 shows the same level (+8 dB) as in ﬁgure 3-45, but displayed on a 16-ouput-LED switcher, such as an MVX 1212 A.

audio level by 1 dB.

decrease the input audio level by 1 dB per button push. Note the output button indication changes that occur each time the View (<) button is pressed.

3-28

MVX VGA A Matrix Switchers • Operation

1 2 3 4 5

OUTPUTS

7 8

VIEW ESC

VIEW

In this example, the output buttons and the View and Esc buttons display an audio gain level of –1 dB.

= Lit LED, = Slow blinking LED= Unlit LED,

The output LEDs display the selected input's audio level. The View and Esc LEDs display

the polarity (gain or attenuation).

Press the View button to decrease the input audio level by 1 dB per button push.

In this example, the output buttons and the View and Esc buttons display an audio gain level of –1 dB.

The output LEDs display the selected input's audio level. The View and Esc LEDs

display the polarity (gain or attenuation).

= Lit LED, = Unlit LED, = Slow blinking LED

RGBHV AUDIO

I/O

The Audio LED stops blinking and lights steadily. The RGBHV button lights.

Press the Audio button to exit Audio mode.

All input LEDs and output LEDs return to the unlit state.

Figure 3-47 shows the result of pressing the View (<) button a total of nine

times. Note that the level is now displayed in red to indicate a negative level.

Figure 3-47 shows the adjusted level (–1 dB) displayed on the MVX 128 A, an

8-ouput-LED switcher.

Figure 3-47 — Adjust the input audio level

Figure 3-48 shows the same level (–1 dB) as in ﬁgure 3-47, but displayed on a

16-ouput-LED switcher, such as an MVX 1616 A.

PRELIMINARY

Figure 3-48 — Level display on a 16-output-LED switcher

5. Press and release the Audio button (ﬁgure 3-49).

Figure 3-49 — Deselect Audio mode

MVX VGA A Matrix Switchers • Operation

3-29

Operation, cont’d

Viewing and adjusting the output volume

The audio level of each output can be displayed and adjusted through a range of 100% (no attenuation) to 0% (maximum [76 dB] attenuation). The audio level can be adjusted from the front panel or via serial port control. The default is 100% (no attenuation).

PRELIMINARY

2. To enter Audio mode, press and hold the Audio button until the LED begins to

3. Press and release an output button to select an output. The input LEDs

For a more detailed analysis of decoding the displayed value, see “Reading

4. Press and release the Esc (>) and View (<) buttons to increase and decrease

5. Press and release the Audio button to save the audio settings and exit Audio

N • There is one audio volume level setting per output. The audio level setting is

Output volume is protected when front panel Lock mode 2 is selected. You can

view the volume in Lock mode 2 but not adjust it from the front panel.

. Press the Esc button to clear any input LEDs, output LEDs, or control LEDs

that are lit.

blink, then release the button.

display the volume level for the selected output. The switchers indicate the volume differently, depending on number of input LEDs; but as a general rule, the more LEDs that are lit, the higher the volume. The fewer LEDs that are lit, the lower the volume.

the displayed volume”, on the next page.

the audio volume by 1 dB per each press of the button. Or, press and hold either button to change the level at a rate of 3 dB per second until the button is released or the upper or lower limit is reached.

mode. The Audio button stops blinking.

shared by the left and right audio inputs.

• The audio volume levels are stored in non-volatile memory. When power is removed and restored, the audio level settings are retained.

• Exiting Audio mode by pressing the Audio button always returns the I/O button conﬁguration to RGBHV and audio selected for tying (RGBHV and Audio LEDs lit).

• Pressing the Enter or Preset button also exits Audio mode. Pressing the Preset button changes to Recall Preset mode.

3-30

MVX VGA A Matrix Switchers • Operation

Reading the displayed volume

There are 65 steps of volume attenuation, with 1 dB per step (button press), except for 0-to-1, which is 13 dB. At maximum attenuation, no input LEDs are lit, 76 dB of attenuation is applied, and the audio output is effectively muted. At no attenuation, all input LEDs are lit, and the output volume is equal to the input signal plus any gain or attenuation that is applied to that speciﬁc input using the input audio level adjustment. (See “Viewing and adjusting the input audio level”, on page 3-25). Other than the minimum and maximum volume, the switchers indicate the volume differently, depending on number (12 or 16) of input LEDs. See the table on the next page to read the volume display for each display scheme.

For each display scheme, the input LEDs blink or light sequentially to indicate the approximate volume of the selected output. Volume is deﬁned as a percentage of the input audio signal that is applied to the output. From 0% of volume, the ﬁrst Esc (>) button press applies 5.5% of the input audio signal. From 5.5% on, each Esc (>) press applies 1.5% more of the input audio signal to the output:

• Press Esc (>) button — 5.5% + 1.5% = 7% volume

This section is a detailed description at reading the output volume display on the

matrix switcher’s front panel. If you do not need to read the exact value of the volume setting, skip this section.

 All switcher input button conﬁgurations —The Input 1 LED continues

blinking slowly.

• Press Esc (>) button twice — 7% + 1.5% + 1.5% = 10% volume

 Switchers with 12 input buttons — The Input 1 LED blinks quickly.  Switchers with 16 input buttons — The Input 1 LED lights steadily.

• Press Esc (>) button 19 times — 10% + (19•1.5%) = 38.5% volume

 Switchers with 12 input buttons —The Input 1 through 4 LEDs light

steadily.

 Switchers with 16 input buttons — The Input 1 through 5 LEDs light

steadily and the Input 6 button blinks.

When all input LEDs are lit for any switcher model, the audio output is 100% of the audio input level.

Another way to view the volume level is to think in terms of the attenuation that is applied to the output. Attenuation reduction is indicated by the lit or blinking input LEDs: when fewer input LEDs are lit, attenuation is greater (and the volume is quieter).

• At minimum volume, all input LEDs are unlit and 76 dB of attenuation is applied to the output. The audio output is effectively muted.

• The ﬁrst step of volume increase causes the Input 1 LED to blink (slowly, in the case of switchers with 12 input buttons). Attenuation is reduced by 13 dB (63 dB of attenuation is applied to the output).

• The second step of volume increase reduces the attenuation by an additional 1 dB (62 dB of attenuation is applied to the output).

• Successive steps of volume increase cause consecutive LEDs to ﬁrst blink, then light steadily.

PRELIMINARY

MVX VGA A Matrix Switchers • Operation

3-31

Operation, cont’d

8 7

Input LED Input LED

MVX 128 A

dB of

attenuation

6 5 4 3 2 1

8 7 6 5 4 3 2 1

Output

volume

dB of

attenuation

Output

volume

0% 850%

5.5% 7%

63 62

8.5%

10%

61 60

11.5%

13%

14.5%

58 57

16%

17.5% 19%

56 55 54

12 11

10 9 8 7 6 5 4 3 2 1

12 11 10 9 16 15 14 13

8 7 6 5 4 3 2 12 11 10 9 16 15 14 13

12 11 10 9

56.5% 58%

29 28

59.5% 61%

27 26

62.5%

71.5% 73%

19 18

74.5% 76%

17 16

77.5%

86.5% 86% 9 8

89.5% 91% 7 6

92.5%

49%

50.5%

34 33

52%

53.5%

32 31

55%

64%

65.5%

24 23

67%

68.5%

22 21

70%

79%

80.5%

14 13

82%

83.5%

12 11

85%

94%

95.5% 4 3 97%

98.5% 2 1

100%

53 20.5%

10%

5.5% 7%

8.5%

16%

63 62 61

22%

17.5% 19%

20.5%

55 54 53

11.5% 13%

14.5%

59 58 57

48 28%

23.5% 25%

26.5%

51 50 49

44 34%

29.5% 31%

32.5%

47 46 45

36 46%

41.5% 43%

44.5%

39 38 37

28 58%

53.5% 55%

56.5%

31 30 29

20 70%

65.5% 67%

68.5%

23 22 21

12 82%

77.5% 79%

80.5%

15 14 13

4 94%

89.5% 91%

92.5%

7 6 5

40 40%

35.5% 37%

38.5%

43 42 41

32 52%

47.5% 49%

50.5%

35 34 33

24 64%

59.5% 61%

62.5%

27 26 25

16 76%

71.5% 73%

74.5%

19 18 17

8 88%

83.5% 85%

86.5%

11 10

0 100%

95.5% 97%

98.5%

3 2 1

31%

32.5%

46 45

34%

35.5% 37%

44 43 42

38.5%

22%

23.5%

52 51

25%

26.5% 28%

50 49 48

29.5%

40%

41.5%

40 39

43%

44.5% 46%

38 37 36

47.5%

MVX 1212 A, MVX 168 A, MVX 1616 A

= on, = blinking fast, = blinking slowly, = off

Audio output volume settings

PRELIMINARY

3-32

MVX VGA A Matrix Switchers • Operation

ENTER PRESET VIEW ESC

CONTROL

Press the Esc button to clear all selections.

The LED blinks once.

= LED blinks once.

RGBHV AUDIO AUDIO

I/O

The LED blinks to indicate Audio mode.

Release the button.

Press and hold the Audio button.

2 seconds

= Blinking LED

For example: When lit steadily, the Input 3 LED indicates the following,

depending on the number of input buttons the switcher has:

 Switchers with 12 input buttons — 47 dB of attenuation when compared

to the Input 3 LED blinking quickly (48 dB to 50 dB of attenuation). The blinking Input 4 LED (45 dB to 46 dB of attenuation) is at least 2 dB less than the fast blinking Input 3 LED (48 dB – 46 dB) and at most 5 dB less (50 dB – 45 dB).

 Switchers with 16 input buttons — 52 dB of attenuation when compared

to the Input 3 LED blinking (53 dB to 55 dB of attenuation). The blinking Input 4 LED (49 dB to 51 dB of attenuation) is at least 2 dB less than the fast blinking Input 3 LED (53 dB – 51 dB) and at most 6 dB less (55 dB – 49 dB).

See the table on page 3-32 to read the volume display.

Example 9: Viewing and adjusting an output volume level

In the following example, the audio output volume is viewed and adjusted. The steps show the front panel indications that result from your action.

Audio output volume is displayed differently on different models. See the table on page 3-32. For this reason, ﬁgure 3-53 and ﬁgure 3-55 show the indications displayed on a switcher with 16 output buttons without duplicating all of the actions shown in ﬁgure 3-52 and ﬁgure 3-54, which show all actions on switchers with 12 output buttons.

1. Press and release the Esc button (ﬁgure 3-50).

Figure 3-50 — Clear all selections

2. Press and hold the Audio button for approximately 2 seconds (ﬁgure 3-51).

Figure 3-51 — Select Audio mode

PRELIMINARY

MVX VGA A Matrix Switchers • Operation

3-33

Operation, cont’d

1 2

1 2 3 4 5 6

INPUTS

7 10 11 12

Press and release the Output 1 button. The LED lights.

The input LEDs display the selected output's audio volume level.

In this example, the lit input buttons indicate 40 to 41.5 percent of the applied audio input. The unlit input buttons indicate an audio volume attenuation of 39 dB to 40 dB.

39 dB attenuation,

41.5% volume

= Lit LED, = Slow blinking LED

= Unlit LED,

In this example, the input buttons display an audio gain level of –39 dB.

= Lit LED, = Unlit LED, = Slow blinking LED

3. Press and release the Output 1 button (ﬁgure 3-52).

Figure 3-52 — Select output 1

Figure 3-53 shows the same volume (41.5%) as in ﬁgure 3-52, but displayed on

a 16-output-button switcher, such as an MVX 168 A.

Figure 3-52 shows the volume level (39 dB attenuation) displayed on the

MVX 128 A, an 8-output-LED switcher.

PRELIMINARY

Figure 3-53 — Volume display on a 16-output-button switcher

The volume level is protected when front panel Lock mode 2 is selected. You can

. Press and release the Esc (>) button once (ﬁgure 3-54) to increase the volume

by 1.5%.

Press and release the Esc (>) button several more times (ﬁgure 3-54) to

increase the volume by 1.5% per button push. Note the input LED indication changes that occur each time the Esc (>) button is pressed and released.

3-34

MVX VGA A Matrix Switchers • Operation

You can press and hold the Esc (>) or View (<) button to ramp the level up or

view the volume in Lock mode 2 but you cannot change it from the front panel.

If you try to perform step 4 while front panel Lock mode 2 is selected, the actions are ignored and the Enter, RGBHV, and Audio LEDs ﬂash.

down by 3 dB per second to the high or low limit.

1 2 3 4 5 6

INPUTS

7 8 11 12

The input LEDs display the selected output's audio volume level.

In this example, the lit input buttons indicate 59.5 to 61 percent of the applied audio input. The unlit input buttons indicate an audio volume attenuation of 26 dB to 27 dB.

26 dB attenuation,

61% volume

= Lit LED, = Unlit LED,

ESC

Press the Esc button to decrease the audio attenuation (thereby increasing the audio level) that is applied to the output volume level by 1 dB per button p ress.

= Fast blinking LED

In this example, the input buttons display an audio gain level of –26 dB.

= Lit LED, = Unlit LED, = Slow blinking LED

RGBHV AUDIO

I/O

The Audio LED stops blinking and lights steadily. The RGBHV button lights.

Press the Audio button to exit Audio mode.

All input LEDs and output LEDs return to the unlit state.

Figure 3-54 shows the result of pressing the Esc (>) button a total of 13 times.

Figure 3-54 — Adjust the output audio volume

Figure 3-55 shows the same volume (61%) as in ﬁgure 3-54, but displayed on a

Figure 3-54 shows the adjusted volume level (26 dB attenuation) displayed on

the MVX 128 A, an 8-ouput-LED switcher.

16-output-button switcher, such as an MVX 1616 A.

Figure 3-55 — Volume display on a 16-output-button switcher

5. Press and release the Audio button (ﬁgure 3-56).

Figure 3-56 — Deselect Audio mode

MVX VGA A Matrix Switchers • Operation

PRELIMINARY

3-35

Operation, cont’d

RGBHV AUDIO

ENTER

RGBHV AUDIO

ENTER

I/O

Press and hold the Enter, RGBHV, and Audio buttons simultaneously to turn on Lock mode 2 or to toggle between mode 2 and mode 0.

2 seconds

The Enter, RGBHV, and Audio LEDs blink twice to indicate the mode change. Release the buttons.

I/O

Setting the front panel locks (Executive modes)

The matrix switcher has three levels of front panel security lock that limit the operation of the switcher from the front panel:

• Lock mode 0 — The front panel is completely unlocked. All front panel functions are available.

• Lock mode 1 — All changes are locked from the front panel (except for setting Lock mode 2). Some functions can be viewed.

• Lock mode 2 — Basic functions are unlocked. Advanced features are locked and can be viewed only.

Basic features consist of:

 Making ties  Saving and recalling presets  Setting input audio gain and attenuation  Changing Lock modes

Advanced features consist of:

 Setting video and audio output mutes  Setting audio output volume  Setting the rear panel remote port protocol and baud rate

The switcher is shipped from the factory in Lock mode 2.

PRELIMINARY

Selecting Lock mode 2 or toggling between mode 2 and mode 0

If the switcher is in Lock mode 0 or mode 1, this procedure selects mode 2.

If the switcher in in Lock mode 2, this procedure selects mode 0 (unlocks the switcher).

To toggle the lock on and off, press and hold the Enter button, the RGBHV button, and the Audio button simultaneously for approximately 2 seconds (ﬁgure 3-57).

Figure 3-57 — Toggle front panel lock on or off

3-36

MVX VGA A Matrix Switchers • Operation

Press and hold the RGBHV and Audio buttons simultaneously to turn on Lock mode 2 or to toggle between mode 1 and mode 2.

2 seconds

The RGBHV and Audio LEDs blink twice to indicate the mode change. Release the buttons.

RGBHV AUDIO

I/O

RGBHV AUDIO

I/O

1 2

RGBHV AUDIO

I/O

Press and hold the RGBHV and Audio buttons while you apply power to the switcher.

The switcher’s LEDs blink and then go dark.

Continue to hold the RGBHV and Audio buttons until all input and output LEDs return to the unlit state and the RGBHV and Audio LEDs turn on.

Release the RGBHV and Audio buttons.

Power

Selecting Lock mode 2 or toggling between mode 2 and mode 1

To toggle the lock on and off, press and hold the RGBHV button and the Audio button for approximately 2 seconds (ﬁgure 3-58).

Figure 3-58 — Toggle front panel lock between mode 2 and mode 1

Performing a system reset from the front panel

The front panel reset is identical to the EZXXX} SIS command (see chapter 4, “Programmer’s Guide”). A system reset:

If the switcher is in Lock mode 0 or mode 1, this procedure selects mode 2.

If the switcher in in Lock mode 2, this procedure selects mode 1.

• Clears all ties and presets

• Clears all video and audio mutes

• Sets all input audio levels to unity gain (+0 dB)

• Sets all output volume levels to 100% (0 dB of attenuation) Reset the switcher to the factory default settings by pressing and holding the

RGBHV button and Audio button while you apply AC power to the switcher (ﬁgure 3-59).

System reset does not replace user-installed ﬁrmware.

PRELIMINARY

Figure 3-59 — System reset

MVX VGA A Matrix Switchers • Operation

3-37

Operation, cont’d

ENTER PRESET VIEW ESC RGBHV AUDIO

CONTROL

ENTER

PRESET VIEW ESC

CONTROL I/O

All Control LEDs light with one LED flashing. Both I/O LEDs light with one LED flashing. The flashing Control LED indicates the baud rate as follows: Enter — 9600 Preset — 19200 View — 38400 Esc — 115200

The flashing I/O LED indicates the protocol as follows: RGBHV — RS-232 Audio — RS-422

In this example, the port is set to RS-232 at 9600 baud.

Press and hold the Enter, Preset, View, and Esc buttons.

= Blinking LED = Lit LED,

Selecting the rear panel Remote port protocol and baud rate

The switcher’s rear panel Remote port can support either RS-232 or RS-422 serial communication protocol, and can operate at 9600, 19200, 38400, and 115200 baud rates. The settings of these variables can be viewed and changed from the front panel.

View and conﬁgure the switcher’s remote port’s serial communications settings as follows:

. To enter Serial Port Conﬁguration mode, simultaneously press and hold all

Control buttons (Enter, Preset, View, and Esc) (ﬁgure 3-59).

The Remote port settings are protected when front panel Lock mode 2 is selected.

You can view the settings in Lock mode 2 but you cannot adjust them from the front panel.

Figure 3-59 — RS-232/RS-422 and baud rate display

PRELIMINARY

2. Release the Control buttons.

3-38

MVX VGA A Matrix Switchers • Operation

The serial port settings are protected when front panel Lock mode 2 is selected.

You can view the settings in Lock mode 2 but you cannot change them from the front panel.

If front panel Lock mode 2 is selected and you try to perform step 3 (on the next page), the actions are ignored; and the Enter, RGBHV, and Audio LEDs ﬂash.

ENTER PRESET VIEW ESC RGBHV AUDIO

CONTROL I/O

Press and release the button(s) to configure the port as follows: Baud rate: Enter — 9600 Preset — 19200 View — 38400 Esc — 115200

Serial protocol: RGBHV — RS-232 Audio — RS-422

The selected LEDs blink and the others remain lit.

In this example, the port is set to RS-422 at 38400 baud.

= Blinking LED = Lit LED,

ENTER PRESET VIEW ESC RGBHV AUDIO

CONTROL I/O

All Control LEDs return to the unlit state.

Each I/O LED returns to its previous state.

Press and release an

input or output button.

3. To change a value, press and release the button that relates to the desired value (ﬁgure 3-61).

Figure 3-61 — RS-232/RS-422 and baud rate selection

4. Press and release an input or output button to exit Serial Port Conﬁguration mode (ﬁgure 3-62).

Figure 3-62 — Exit Serial Port Conﬁguration mode

PRELIMINARY

The switcher requires some time to save the new serial port settings. Wait at

least 5 minutes before removing power from the switcher, or the settings may be lost.

MVX VGA A Matrix Switchers • Operation

3-39

Operation, cont’d

Esc

RESET RESET

RESET

Press and hold

the Reset button.

Release, then

immediately

press and release again.

9 seconds

Reset LED blinks

three times.

Reset LED blinks

four times.

= blink three times,

= blink four times.

Rear Panel Operations

The rear panel has a Reset button that initiates two levels of matrix switcher resets. For different reset levels, press and hold the button while the switcher is running or press and hold the button while you apply power to the switcher.

Performing an absolute system reset from the rear panel

This function is identical to the front panel system reset (see “Performing a system reset from the front panel” on page 3-37) without requiring you to power down the switcher. This function is also identical to the chapter 4, “Programmer’s Guide”). A system reset:

• Clears all ties and presets

• Clears all video and audio mutes

• Sets all input audio levels to unity gain (+0 dB)

• Sets all output volume levels to 100% (0 dB of attenuation)

Perform a system reset as follows:

1. Use an Extron Tweeker or other small screwdriver to press and hold the Reset button until the rear panel Reset LED blinks three times (approximately 9 seconds) (ﬁgure 3-63).

ZQQQ SIS command (see

System reset does not replace any user-installed ﬁrmware.

PRELIMINARY

Figure 3-63 — System reset

2. Release the Reset button and then immediately press and release the Reset button again. The reset does not occur if the second momentary press does not occur within 1 second.

3-40

MVX VGA A Matrix Switchers • Operation

RESET

Press and hold the Reset button while you apply power to the switcher.

The switcher flashes the LEDs and then turns them off.

Continue to hold the Reset button until all input and output LEDs return to unlit and the RGBHV or Video and Audio LEDs turn on.

Release the Reset button.

Power

Performing a hard reset from the rear panel

The hard reset function restores the switcher to the original factory default settings. All user ﬁles and settings are maintained. Perform a hard reset as follows:

1. If necessary, turn off power to the switcher.

2. Press and hold the Reset button on the rear panel while you apply AC power

to the switcher (ﬁgure 3-64).

Figure 3-64 — Hard reset

Optimizing the Audio

Each individual input audio level can be adjusted within a range of -18 dB to +24 dB, so there are no noticeable volume differences between sources and for the best headroom and signal-to-noise ratio. Adjust the audio gain and attenuation as follows:

. Connect audio sources to all desired inputs and connect the audio outputs to

output devices such as audio players. See “Audio connections”, in chapter 2, “Installation”. For best results, wire all of the inputs and the outputs as balanced.

. Power on the audio sources, the switcher, and the audio players.

3. Switch among the inputs (see “Creating a conﬁguration”, on page 3-8), listening to the audio with a critical ear or measuring the output audio level with test equipment, such as a VU meter.

4. As necessary, adjust the input audio level of each input (see “Viewing and adjusting the input audio level”, output level is the same for all selected inputs.

5. As necessary, adjust the output audio level of each input (see “Viewing and adjusting the output volume”, on page 3-30).

A hard reset returns the switcher to the default (factory) ﬁrmware conﬁguration.

The switcher continues to operate using this ﬁrmware until you either cycle power, in which case the switcher begins to use the most-recently installed ﬁrmware update, or install a new ﬁrmware update.

on page 3-25) so that the approximate

MVX VGA A Matrix Switchers • Operation

3-41

PRELIMINARY

Operation, cont’d

1 2 3 4 5 6 7 8

9 10 11

12 13

Input sources

Output destinations

Preset # Title: Video: Audio:

Fill in the preset number and use colors, dashes, etc., to make connecting lines. Indicate if the configuration is for video, audio, or both.

Classroom

#1 VCR

USP 405

Audio

PC 2

RGB 202

PC 1

RGB 202

Weekly status mtg 3

Camera

Camera/

mic - Main

podium

Main hall

FP #1

Main hall

FP #2

Podium

monitor

Sound

system

Sound

system

VCR

(VSC 500)

DA 6

Classroom

#2 VCR

USP 405

Laptop

RGB 202

Rack DVD

(USP 405)

VTG 300

Troubleshooting

This section gives recommendations on what to do if you have problems operating the switcher and describes an actual image problem that Extron has encountered.

1. Ensure that all devices are plugged in and powered on. The switcher is receiving power if one of the front panel I/O LEDs is lit.

2. Check to see if one or more outputs are muted.

3. Ensure that an active input is selected for output on the switcher.

4. Ensure that the proper signal format is supplied.

5. Check the cabling and make corrections as necessary.

6. Call the Extron S3 Sales & Technical Support Hotline if necessary.

Conﬁguration Worksheets

Rather than trying to remember the conﬁguration for each preset, use worksheets to record this information. Make copies of the blank worksheet on page 3-45 and use one for each preset conﬁguration. Cross out all unused or inactive inputs and outputs. Use different colors for video and audio.

Worksheet example 1: System equipment

Figure 3-65 shows a worksheet for an MVX 128 A in a ﬁctional organization with the system hardware annotated. Inputs 10, 11, and 13 have no connection in this organization, so they have been crossed out on the worksheet.

PRELIMINARY

3-42

MVX VGA A Matrix Switchers • Operation

Figure 3-65 — Worksheet example 1: System equipment

Inputs include PCs, an audio CD player, cameras, and an Extron VTG 300. Output devices include monitors, front and rear projectors, a stereo, and a VCR for recording presentations.

The VTG 300 video test generator connected to input 12 enables a video test pattern to be sent to one, several, or all output devices for problem isolation or adjustment purposes. An audio test tape or CD could be used in a similar manner to check out the audio components.

1 2 3 4 5 6 7 8

9 10 11

12 13

Input sources

Output destinations

Preset # Title: Video: Audio:

Fill in the preset number and use colors, dashes, etc., to make connecting lines. Indicate if the configuration is for video, audio, or both.

Classroom

#1 VCR

USP 405

Audio

PC 2

RGB 202

PC 1

RGB 202

Weekly status mtg 3

Camera

Camera/

mic - Main

podium

Main hall

FP #1

Main hall

FP #2

Podium

monitor

Sound

system

Sound

system

VCR

(VSC 500)

DA 6

Classroom

#2 VCR

USP 405

Laptop

RGB 202

Rack DVD (USP 405)

VTG 300

Worksheet example 2: Daily conﬁguration

Figure 3-66 continues from worksheet example 1 by showing the video and audio ties that make up the conﬁguration of preset 1. Solid lines show video ties and dashed lines show the audio ties.

Figure 3-66 — Worksheet example 2: Daily conﬁguration

In this example:

• The image of the presenter, from the main podium camera (input 1), is:

 Displayed in the main hall (output 1)  Displayed in the conference room (output 4) to the overﬂow crowd  Displayed in the lobby (output 8)  Tied to the VCR (output 6)

• The presenter has a presentation on her laptop computer (input 4) that is:

 Displayed in the main hall (output 2)  Displayed locally on the podium (output 3)

• The audio from the presenter’s microphone (input 3) is:

 Played in the hall (output 1)  Played in the conference room (output 4)  Sent to the VCR (output 6)

• Classical music from the CD player (input 5) is:

  Played in the lobby (output 8)

Played in the background in the main hall on sound system #2 (output 5)

PRELIMINARY

MVX VGA A Matrix Switchers • Operation

3-43

Operation, cont’d

1 2 3 4 5 6 7 8

9 10 11

12 13

Input sources

Output destinations

Preset # Title: Video: Audio:

Fill in the preset number and use colors, dashes, etc., to make connecting lines. Indicate if the configuration is for video, audio, or both.

Classroom

#1 VCR

USP 405

Audio

PC 2

RGB 202

PC 1

RGB 202

Weekly status mtg 3

Camera

Camera/

mic - Main

podium

Main hall

FP #1

Main hall

FP #2

Podium

monitor

Sound

system

Sound

system

VCR

(VSC 500)

DA 6

Classroom

#2 VCR

USP 405

Laptop

RGB 202

Rack DVD

(USP 405)

VTG 300

Worksheet example 3: Test conﬁguration

The A/V system in our ﬁctional organization needs to be ﬁne tuned on a regular basis. Figure 3-67 shows a typical test conﬁguration, with an Extron video test generator (input 12) generating a test pattern to all monitors (outputs 1, 2, 3, 4, and 8). Sound checks are run from the CD player (input 5) to all audio systems (outputs 1, 2, 3, 4, and 8).

Figure 3-67 — Worksheet example 3: Test conﬁguration

PRELIMINARY

3-44

MVX VGA A Matrix Switchers • Operation

1 2 3 4 5 6 7 8

9 10 11

12 13 14 15 16

10 12 13 14 15 16

Input sources

Output destinations

Preset # Title: Video: Audio:

Fill in the preset number and use colors, dashes, etc., to make connecting lines.

Indicate if the configuration is for video, audio, or both.

PRELIMINARY

Conﬁguration worksheet

MVX VGA A Matrix Switchers • Operation

3-45

Operation, cont’d

PRELIMINARY

3-46

MVX VGA A Matrix Switchers • Operation

MVX VGA A Matrix Switchers

Chapter Four

Programmer’s Guide

Serial Ports

Host-to-Switcher Instructions

Switcher-Initiated Messages

Switcher Error Responses

Using the Command/Response Table

Command/Response Table for SIS Commands

PRELIMINARY

Programmer’s Guide

RS-232 Function Pin Function

1 2 3 4 5 6 7 8 9

— TX RX

—

Gnd

—

Not used Transmit data Receive data Not used Signal ground Not used Not used Not used Not used

—

TX–

RX–

—

Gnd

— RX+ TX+

—

Not used Transmit data (–) Receive data (–) Not used Signal ground Not used Receive data (+) Transmit data (+) Not used

RS-422

RS232/RS422

REMOTE

Serial Ports

The switcher has two serial ports that can be connected to a host device such as a computer running the HyperTerminal utility, an RS-232 capable PDA, or a control system. These ports make serial control of the switcher possible. The serial ports are:

• The rear panel Remote (RS-232 or RS-422) port, a 9-pin D female connector

• The front panel Conﬁguration (RS-232) port, a 2.5 mm mini stereo jack The default protocol for both ports is as follows:

• 9600 baud • no parity • 8-bit

• 1 stop bit • no ﬂow control The ports can be conﬁgured to operate at the 9600, 19200, 38400, or 115200 baud

rate.

PRELIMINARY

These two ports are independent of one another. A front panel Conﬁguration

port connection and a rear panel Remote port connection can both be active at the same time.

The switcher can operate at 9600, 19200, 38400, or 115200 baud rates, but

Extron recommends leaving these ports at 9600 baud only.

Rear panel Remote port

Figure 4-1 — Remote connector pin assignments

The rear panel Remote port can support either RS-232 or RS-422 serial

communication protocol and can operate at 9600, 19200, 38400, or 115200 baud rates. See “Selecting the rear panel Remote port protocol and baud rate” in chapter 3, “Operation”, to conﬁgure the rear panel Remote port from the front panel.

4-2

MVX VGA A Matrix Switchers • Programmer’s Guide

6 feet

(1.8 m)

Part #70-335-01

Sleeve (Gnd)

Ring

Tip

9-pin D Connection TRS Plug

Pin 2 Computer's RX line Tip Pin 3 Computer's TX line Ring Pin 5 Computer's signal ground Sleeve

Front panel Conﬁguration port

The optional 9-pin D to 2.5 mm mini jack TRS RS-232 cable, part #70-335-01 (ﬁgure 4-2) can be used for connection to the Conﬁguration port.

Figure 4-2 — Optional 9-pin TRS RS-232 cable

This port is hardwired for RS-232 only.

Host-to-Switcher Instructions

The switcher accepts SIS (Simple Instruction Set) commands through either serial port. SIS commands consist of one or more characters per command ﬁeld. They do not require any special characters to begin or end the command character sequence. Each switcher response to an SIS command ends with a carriage return and a line feed (CR/LF = ]), which signals the end of the response character string. A string is one or more characters.

Switcher-Initiated Messages

When a local event such as a front panel operation occurs, the switcher responds by sending a message to the host. The switcher-initiated messages are listed below (underlined).

the ﬁrmware version number; nnn is the part number for your switcher model. Qik

The switcher initiates the Qik message when a front panel switching operation has occurred.

Sprnn The switcher initiates the Spr message when a memory preset has been saved from

the front panel. nn is the preset number. Rprnn The switcher initiates the Rpr message when a memory preset has been recalled

from the front panel. nn is the preset number.

This port is independent of the rear panel Remote port and is not affected by

changes to the rear panel port’s protocol. This front panel port’s protocol can be changed via SIS command control only. See the Command/Response table for SIS commands, later in this chapter, to conﬁgure both ports under SIS control.

]

MVX VGA A Matrix Switchers • Programmer’s Guide

PRELIMINARY

]

4-3

Programmer’s Guide, cont’d

ASCII to HEX Conversion Table

Space

PRELIMINARY

Innn Audxx The switcher initiates the Aud message when a front panel input audio level change

has occurred. nn is the input number and xx is the dB level. Outnn Volxx The switcher initiates the Vol message when a front panel output audio volume

change has occurred. nn is the output number and xx is the volume level. Vmtnn*x The switcher initiates the Vmt message when a video output mute is toggled on or

off from the front panel. nn is the output number and x is the mute status: 1 = on, 0 = off.

Amtnn*x The switcher initiates the Amt message when an audio output mute is toggled

on or off from the front panel. nn is the output number and x is the mute status: 1 = on, 0 = off.

Exen The switcher initiates the Exe message when executive mode is toggled on or off

from the front panel. n is the executive mode status: 1 = on, 0 = off.

]

Switcher Error Responses

When the switcher receives an SIS command and determines that it is valid, it performs the command and sends a response to the host device. If the switcher is unable to perform the command because the command is invalid or contains invalid parameters, the switcher returns an error response to the host. The error response codes are:

E01 — Invalid input channel number (too large) E10 — Invalid command E11 — Invalid preset number E12 — Invalid output number (too large) E13 — Invalid value (out of range) E14 — Illegal command for this conﬁguration E17 — Timeout (caused only by direct write of global presets) E22 — Busy

Using the Command/Response Table

The command/response table begins on page 4-6. Lower-case letters are acceptable in the command ﬁeld except where indicated for the gain and attenuation commands. The table below shows the hexadecimal equivalent of each ASCII character used in the command/response table.

4-4

MVX VGA A Matrix Switchers • Programmer’s Guide

Symbols are used throughout the table to represent variables in the command/ response ﬁelds. Command and response examples are shown throughout the table.

Command/Response Table for SIS Commands

Symbol deﬁnitions

]

= CR/LF (carriage return/line feed) (hex 0D 0A)

}

= Carriage return (no line feed, hex 0D))

•

= Space character

= Escape key (hex 1B)

= Input number 01 – 16

= Input number (for tie)

= Output number 01 – 16

= Numeric dB value –18 to +24 (45 steps of gain or attenuation) (fefault = 0 dB)

= Audio gain 0 – 24 (1 dB/step)

= Audio attenuation 1 – 18 (1 dB/step)

= Volume adjustment range 0 – 64 (1 dB/step except for 0-to-1, which is 13 dB)

= Mute, Lock mode, or power supply 0 = off/mode 0/not OK

1 = on/mode 1/OK 2 = mode 2

= Global preset # 0 - 32 (0 = current conﬁguration)

X1)

= Video/audio mute 0 = no mute 1 = video mute 2 = audio mute 3 = video and audio mute

X1!

= Firmware version number to second decimal place (x.xx)

X1@

= Verbose ﬁrmware version-description-upload date/time. See the Query controller ﬁrmware version (verbose) command on page 4-12.

X1#

= Name 12 characters maximum for input, output, and global preset names

Upper- and lower-case alphanumeric characters and _ / and spaces are valid.

The following characters are invalid in the name: {space} ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.

X1$

= Port number 1 (front) or 2 (rear)

X1%

= Baud rate 9600, 19200, 38400, 115200

X1^

= Parity Odd, even, none, mark, space (Only the ﬁrst letter is required.)

X1&

= Data bits 7, 8

X1*

= Stop bits 1, 2

X1(

= Port type 0 = RS-232, 1 = RS-422

X2)

= Number of inputs 12 or 16

X2!

= Number of outputs 8, 12, or 16

X2@

= Part number 68-nnn-nn

X2#

= Voltage Positive or negative voltage and magnitude

X2$

= Temperature Degrees Fahrenheit

00 – 16 (00 = untied)

(default = 64 [0dB]) (See the table on page 4-8.)

PRELIMINARY

MVX VGA A Matrix Switchers • Programmer’s Guide

4-5

Programmer’s Guide, cont’d

Command/response table for SIS commands

PRELIMINARY

Command ASCII command

(host to switcher)

Create ties

• Commands can be entered back-to-back in a string, with no spaces. For example: 1*1!02*02&003*003%4*8$.

The quick multiple tie and tie input to all output commands activate all I/O switches simultaneously.

•

The matrix switchers support 1-, 2-, and 3-digit numeric entries (1*1, 02*02, or 001*001).

•

Tie input video and audio

Tie input RGBHV only

Tie input video only

Tie input audio only

Quick multiple tie

Tie input to all outputs, video and audio

Tie input to all outputs, RGBHV only

Tie input to all outputs, video only

Tie input to all outputs, audio only

X@ to output X#,

Example:

X@ to output X#,

Example (see Note):

X@ to output X#,

Example (see Note):

The & tie command for RGB and the % tie command for video can be used interchangeably on the matrix switchers.

X@ to output X#,

Example:

Example (see Note):

The & tie all command for RGB and the % tie all command for video can be used interchangeably on the matrix

switchers.

X@*X#

! Out

1*3!

X@*X#

& Out

10*4&

X@*X#

% Out

7*5%

X@*X#

$ Out

12*4$

E+QX@*X# E

+Q3*4!3*5%3*6$

*! In

5*!

*& In

8*&

*% In

10*%

*$ In

!...X@*X#$

Read ties

The & read tie command for RGB and the % read tie command for video can be used interchangeably on the matrix

Read RGB

Read video

Read audio

switchers.

output tie

X# X#

}

Response

(switcher to host)

Out03

Out04

Out05

Out04

}

Qik Qik

X@•

In05

X@•

In08

X@•

In10

X@•

X@] X@]

X@]

X#•InX@•

•

In01•All

X#•InX@•

•

In10•RGB

X#•InX@•

•

In07•Vid

X#•InX@•

•

In12•Aud

] ]

]

All

•

]

All

]

RGB

•

]

RGB

]

Vid

•

]

Vid

]

Aud

All

]

RGB

Vid

]

Aud

]

] ]

]

Additional description

Tie input X@‘s video and audio to output X#.

Tie input 1 video and audio to output 3.

Audio breakaway.

Tie input 10 RGB to output 4. Audio breakaway.

Tie input 7 video to output 5.

Audio breakaway.

Tie input 12 video to output 4.

Tie input 3 video and audio to output 4, tie input 3 video to output 5, and tie input 3 video to output 6.

Tie input 5 video and audio to all outputs.

Audio breakaway.

Tie input 8 video to all outputs.

Audio breakaway.

Tie input 10 video to all outputs.

Audio breakaway.

RGBHV input X@ is tied to output X#.

Video input X@ is tied to output X#.

Audio input X@ is tied to output X#.

4-6

MVX VGA A Matrix Switchers • Programmer’s Guide

Command/response table for SIS commands (continued)

Command ASCII command

(host to switcher)

Video mute commands

RGB mute

RGB unmute

Read RGB mute Global RGB mute Global RGB unmute 0*B

*1B VmtX#*1

*0B VmtX#*0

1*B

Audio input gain and attenuation

The set gain (G) and set attenuation (g) commands are case sensitive.

Set input audio gain to +dB value

Example:

Set input audio attenuation to -dB value

Increment gain

Example:

Decrement gain

Example:

Read input gain

X!*X%

G In

1*2G

X!*X%

g In

+G In

5+G

-G In

7-G

Audio output volume

The table on page 4-8 deﬁnes the value of each audio volume step.

Set the audio volume to a speciﬁc value

Example:

Increment volume

Example:

Decrement volume Read output volume

X#*X&

V Out

1*50v

+V Out

1+V

-V Out

Audio mute commands

Audio mute

Audio unmute

Read audio mute Global audio mute 1*Z Global audio unmute 0*Z

*1Z AmtX#*1

*0Z AmtX#*0

Response

(switcher to host)

]

X*]

]

Vmt1

]

Vmt0

X!•

In01

X!•

In05

X!•

In07

Aud

•

Aud+02

Aud

•

Aud+03

Aud

•

Aud-09

X$]

]

X$]

]

X$]

]

X$]

X#•

X&]

Vol

•

Vol50

Vol

•

Vol51

Vol

]

X&]

]

X&]

Out01

X#•

Out01

X#•

X&]

]

X*]

]

Amt1

]

Amt0

Additional description

Mute output X# RGB (video off).

Unmute output X# RGB (video on).

1 = mute on, 0 = mute off. Mute all RGB outputs. Unmute all RGB outputs.

Set input 1 audio gain to +2 dB.

Increase gain by 1 dB. Increase Audio input 5 level

from +2 dB to +3 dB. Decrease gain by 1 dB.

Decrease audio input 7 level from -8 dB to -9 dB.

Set output 1 volume to 79%. Increment volume by 1 step.

Decrease volume by 1 step.

Mute output X# audio (audio off).

Unmute output X# audio (audio on).

1 = mute on, 0 = mute off. Mute all audio outputs. Unmute all audio outputs.

PRELIMINARY

MVX VGA A Matrix Switchers • Programmer’s Guide

4-7

Programmer’s Guide, cont’d

38.5%

40%

value

dB of

attenuation

Output

volume

5.5%

8.5%

76 0%00

10%

11.5%

14.5%

13%

16%

17.5%

20.5%

19%

22%

23.5%

26.5%

25%

28%

29.5%

32.5%

31%

34%

35.5%

37%

dB of

attenuation

Output

volume

41.5%

43%

44.5%

47.5%

46%

49%

50.5%

53.5%

52%

55%

56.5%

59.5%

58%

61%

62.5%

65.5%

64%

67%

68.5%

70%

dB of

attenuation

Output

volume

71.5%

74.5%

73%

76%

77.5%

80.5%

79%

82%

83.5%

86.5%

85%

88%

89.5%

92.5%

91%

94%

95.5%

98.5%

97%

100%

value

Audio volume adjustment settings

PRELIMINARY

4-8

MVX VGA A Matrix Switchers • Programmer’s Guide

+27P12*5!10*09%3*2$3*8&

Esc

Command/response table for SIS commands (continued)

Command ASCII command

(host to switcher)

Names

Write global preset name

Example:

Read global preset name

Example:

N •

Write input name

Example:

Read input name Write output name

Example:

Read output name

If a preset is unassigned, the If a global preset is saved, but not yet named, the default name is Preset

•

EX(,X1#NG} E

1,Security 1NG

}

EX(NG} X1#] E

}

2NG

X2$

displays [unassigned].

EX!,X1#NI} E

1,Podium camNI

EX!NI} X1#] EX!,X1#NO} E

1,Main PJ1NO

}

EX!NO} X1#]

Save, recall, and directly write presets

N •

Save current conﬁguration as a global preset

Example:

Recall a global preset

Example:

Direct write process —

Clear a global preset’s ties Directly write a global preset

Example:

If you try to recall a preset that is not saved, the matrix switcher responds with the error code E11. The following characters are invalid in preset names: + - , ` @ = [ ] { } ‘ “ ; : | \ and ?.

•

The direct write of a global preset should always be preceded by a clear global preset ties command of that same

preset number, as shown below. In a directly-written preset, each output position’s tied input (or no tied input) remains unchanged unless overwritten or cleared.

If you do not clear the ties in a global preset number before you directly write a global preset to that number, ties that are part of the previous version of the speciﬁed preset with the same number can unexpectedly become part of the newlycreated preset.

E+X(

P0*!

}

E+X(PX@*X#!X@*X#%X@*X#

+27P0*!

}

Response

(switcher to host)

X(,X2#]

Nmg Nmg01,Security 1

Security 2

X!,X1#]

Nmi Nmi01,Podium cam

X!,X1#}

Nmo Nmo01,Main PJ1

X(]

Spr

]

Spr9

X(]

Rpr

]

Rpr05

X(]

Spr

$ ... X@*X#&

X(]

Spr

]

Spr27

]

Spr27

]

X1!

]

}

Additional description

Name global preset 1 “Security 1”.

]

Name input 1 “Podium cam”.

Name output 1 “Main PJ1”.

Command character is a comma.

Save current ties as preset 9. Command character is a

period. Recall preset 5, which

becomes the current conﬁguration.

PRELIMINARY

Clear all ties in preset X(. The tie all (!), tie RGBHV (&),

tie video (%), and tie audio ($) commands are all valid.

Clear all ties in preset 27. Brackets are shown to separate

ties for clarity only. Create global preset 27, which ties video and audio input 12 to output 5, RGBHV input 10 to output 9, video input 3 to output 2, and audio input 3 to output 8.

MVX VGA A Matrix Switchers • Programmer’s Guide

4-9

Programmer’s Guide, cont’d

Command/response table for SIS commands (continued)

PRELIMINARY

Command ASCII command

(host to switcher)

Lock (executive) modes

See “Setting the front panel locks (Executive modes)” in chapter 3, “Operation”, for more information on the Lock

Lock all front panel functions 1X Lock advanced front panel

functions Unlock all front panel

functions View lock status X

modes.

Resets

Reset global presets and names

Reset one global preset Reset audio input levels

Rest audio output levels

Reset all mutes

Reset ﬂash

Reset whole switcher

Absolute reset

EZG}

EX(ZG} EZA}

EZV}

EZZ}

ZFFF

ZXXX

ZQQQ

}

View ties, gain, volume, mutes, and presets

View RGBHV output tie

Example:

View video output tie

Example:

View audio output tie

Example:

View input gain

Example:

View output volume

Example:

View output mutes

Example:

EVM} X1)

EVM}

Response

(switcher to host)

]

Exe1

]

Exe2

]

Exe0

X*]

]

Zpg

X(]

Zpg

]

Zpa

]

Zpv

]

Zpz

]

Zpf

]

Zpx

]

Zpq

X@]

]

X@]

]

X@]

]

X$]

]

-02

X&]

]

X1)

]

, ...

X1)8]

02301000

Additional description

Enable Lock mode 1. Enable Lock mode 2.

Enable Lock mode 0.

Clear all global presets and their names.

Clear global preset X(. Reset all audio input levels

(gain and attenuation) to 0 dB. Reset all audio output

levels (volume) to 100% (no attenuation).

Reset all video and audio mutes.

Reset ﬂash memory (erase all user-supplied ﬁles).

Clear all ties and presets, reset all audio gains to 0 dB, and reset volume to 100%.

Similar to Reset whole

switcher

address to 192.168.254.254 and subnet mask to

255.255.000.000 (defaults).

Input 12 RGBHV is tied to output 5.

Input 2 video is tied to output 7.

Input 6 audio is tied to output 3.

Gain for input 4 is -2 dB.

Volume for output 7 is 55%. Each

mute status of an output, starting from output 1.

Output 2 audio is muted, output 3 video and audio are muted, and output 5 video is muted. All other outputs are unmuted.

, plus set the IP

X1)

response is the

4-10

MVX VGA A Matrix Switchers • Programmer’s Guide

1Output:

Response = tied input:

input 12 tied to output 3

2 3 4 5 6 7 8

08•08•12•08•08•11•00•00

no tied input

input 8 tied to output 4

•--•--•--•--•--•--•--•--•

13 14 15 1609 10 11 12

outputs do not exist

•Vid

01 Output:

Response = tied input:

input 1 tied to output 3

02 03 04 05 06 07 08

01•01•01•01•02•12•12•00•00•00•00•00•--•--•--•--•Aud

09 10 11 12 13 14 15 16

no tied input outputs do not exist

Command/response table for SIS commands (continued)

Command ASCII command

(host to switcher)

Response

(switcher to host)

View ties, gain, volume, mutes, and presets (continued)

View video global preset conﬁguration

Command description:

Response description:

EX(

Example:

MVX 128 VGA A

View audio global preset conﬁguration

Command description:

Response description:

*1*1VC} where X( = 0 returns the switcher’s current video conﬁguration.

EX(

*1*2VC} where X( = 0 returns the switcher’s current audio conﬁguration.

EX(

preset #*starting output # (O# - should always be 1)*1(=video)VC input # (I#) tied to O#1•I# tied to O#2•I# tied to O#3• ... •I# tied to O#16•Vid

Each position shown in the response is an output: left = output 1, right = output 16. (Outputs 9 through 16 are not present on the MVX 128 A.) The number in each position is the input tied to that output.

In this example, video input 8 is tied to outputs 1, 2, 4, and 5; input 12 is tied to output 3; and input 11 is tied to output 6. No inputs are tied to outputs 7 and 8.

EX(

preset #*starting output # (O# - should always be 1)*2(=audio)VC input # (I#) tied to O#1•I# tied to O#2•I# tied to O#3• ... •I# tied to O#16•Aud

} X@

*1*1VC

} X@

*1*2VC

•

Additional description

...

•

Vid

]

Show preset X(’s video conﬁguration. Show the input tied to 16 sequential outputs.

]

...

•

Aud

•

]

Show preset X(’s audio conﬁguration. Show the input tied to 16 sequential outputs.

]

Example:

(MVX 1212 VGA A)

Serial port conﬁguration

Set serial port parameters

Read port parameters Set mode Read mode

Each position shown in the response is an output: left = output 1, right = output 16. (Outputs 13 through 16 are not present on the MVX 1212 A.) The number in each position is the input tied to that output.

In this example, audio input 1 is tied to outputs 1, 2, 3, and 4; input 2 is tied to output 5; and input 12 is tied to outputs 6 and 7. No input is tied to outputs 8, 9, 10, 11, and 12.

EX1$*X1%,X1^,X1&,X1*CP}

Cpn

} X1%,X1^,X1&,X1*]

1CP

E1*X1(CY} E

} X1(]

1CY

Cpn1•Cty

X1$

X1%,X1^,X1&,X1*]

•Ccp

X1(]

PRELIMINARY

MVX VGA A Matrix Switchers • Programmer’s Guide

4-11

Programmer’s Guide, cont’d

Meaningless data for this switcher model

Response:

Description

MVX firmware version

n.nn-1.00(1.06-16x16 Series -Wed, 22 Feb 2006 00:00:00 GMT)-1.00*(1.06-16x16 Series -Thu, 16 Mar 2006 16:39:21 GMT)

Updated firmware version

* indicates the version running Upload date and time

3.29•5.04•-5.14•15.27•-15.15•120.20

-15V power system at -15.15V

Temperature 120.20 degrees3.3V power system at 3.29V

Command/response table for SIS commands (continued)

Command ASCII command

(host to switcher)

Information requests

Information request I Request part number N

There are two separate sets of Extron ﬁrmware on which the switcher can report: the controller ﬁrmware, which is the

Query controller ﬁrmware version

Example:

Query controller ﬁrmware version (verbose)

Response description:

Example:

overall control ﬁrmware, and the latest optional Extron ﬁrmware update, which is available at www.Extron.com.

Controller ﬁrmware version-updated ﬁrmware version 0q

Response

(switcher to host)

X2)XX2!•AX2)XX2!]

X2@]

X1!]

]

1.23

X1!-X1@-X1@]

Additional description

See appendix A for part numbers.

The factory-installed controller ﬁrmware version is 1.23 (sample value only).

Provide a detailed status of the MVX controller ﬁrmware and any ﬁrmware upgrade.

• The ﬁrmware that is running is marked by an asterisk (*).

• A caret (^) indicates that the ﬁrmware has a bad checksum or an invalid load.

• ?.?? indicates that ﬁrmware is not loaded.

]

PRELIMINARY

Request system status S

Response description:

Example:

X2#•X2#•X2#•X2#•X2#•X2$]

+3.3V•+5V•-5V•+15V•-15V•temperature (degrees fahrenheit)

]

4-12

MVX VGA A Matrix Switchers • Programmer’s Guide

MVX VGA A Matrix Switchers

Chapter Five

Matrix Software

Matrix Switchers Control Program

Button Label Generator Program

PRELIMINARY

Matrix Software

Matrix Switchers Control Program

The Windows-based Extron Matrix Switchers Control Program communicates with the switcher via the rear panel Remote RS-232/RS-422 port and the front panel Conﬁguration (RS-232) port to provides an easy way to set up ties and sets of ties. The program is compatible with Windows 2000 and Windows XP. Updates to these programs can be downloaded from the Extron Web site (http://www.extron.com).

Installing the software

The program is contained on the Extron Software Products CD-ROM, disk B. Install the software as follows:

PRELIMINARY

• The Matrix Switchers Control Program

• The Firmware Loader

1. Insert the CD-ROM into the drive. The installation program should start

The Extron software CD window appears (ﬁgure 5-1).

For full functionality, install both of the following programs:

automatically. If it does not self-start, run Launch.exe from the CD.

Figure 5-1 — Software CD window

2. Click the Software tab (ﬁgure 5-1).

3. Scroll to the desired program and click Install (ﬁgure 5-2).

Figure 5-2 — Software installation

5-2

MVX VGA A Matrix Switchers • Matrix Software

4. Follow the on-screen instructions. By default, the Windows installation of the Matrix Switchers Control Program creates a C:\Program Files\Extron\ Matrix_Switcher directory, and it places three the following three icons into a group folder and subfolder named “Extron Electronics\Matrix Switchers”:

• MATRIX Switcher+ Control Program

• MATRIX Switcher+ Help

• Uninstall MATRIX Switcher

The MVX switcher can support remote control via either the rear panel Remote

RS-232/RS-422 Remote port or the front panel Conﬁguration port.

Remote RS-232/RS-422 port — The port can be conﬁgured for either the RS-232 or RS-422 serial communication protocol and operate at the 9600, 19200, 38400, or 115200 baud rate. See “Selecting the rear panel Remote port protocol and baud rate” in chapter 3, “Operation”, to conﬁgure the rear panel port from the front panel.

Conﬁguration port — The port supports RS-232 serial communication protocol only. The port can operate at the 9600, 19200, 38400, or 115200 baud rate, but Extron recommends leaving this port at the 9600 baud rate. See the Serial port conﬁguration commands on page 4-11 to conﬁgure either port using an SIS command.

Using the Matrix Switcher Control software

Many items found in the Matrix Switcher Control Program are also accessible via front panel controls (see chapter 3, ”Operation”) and under SIS control (see chapter 4, “Programmer’s Guide”). The Matrix Switcher+ Help Program provides information on settings and on how to use the control program itself.

1. To run the Matrix Switcher Control Program, click Start > Programs > Extron Electronics > Matrix Switchers > MATRIX Switcher + Control Pgm.

The Comm Port Selection window (ﬁgure 5-3) appears.

Figure 5-3 — Comm port selection window

PRELIMINARY

MVX VGA A Matrix Switchers • Matrix Software

5-3

Matrix Software, cont’d

2. Choose either the comm port that is connected to the switcher’s serial port or

Emulate.

3. The Extron Matrix Switcher Control Program window (ﬁgure 5-4 and

Although IP [LAN] is available for selection, the switcher does not have an

Ethernet port. Do not select IP [LAN].

 If you selected a comm port, check the baud rate

displayed in the comm port selection window. If you need to change the baud rate, click on the Baud button and double-click on the desired baud rate.

Available rates are 9600, 19200, 38400, and 115200. The

default is 9600.

See “Selecting the rear panel Remote port protocol and baud rate” in chapter 3,

“Operation”, on page 3-38, to identify the selected baud rate from the front panel.

Click OK and proceed to step 3.

 If you selected Emulate, click OK and see “Using Emulation mode” on

page 5-13.

ﬁgure 5-5) appears. The window displays the current conﬁguration of the attached matrix.

PRELIMINARY

Figure 5-4 — Extron Matrix Switcher Control Program window (blank)

5-4

MVX VGA A Matrix Switchers • Matrix Software

Figure 5-5 — Sample program window (complete)

• To set up audio in Follow mode (audio and video have the same tie conﬁguration), select the Follow checkbox at the bottom of the window. To set up audio in breakaway mode (audio and video have different tie conﬁgurations), deselect the Follow checkbox.

• To make the control program easier to use, assign a device icon to each input and output. Click on a box that represents an input or output, and drag the desired icon onto the box from the icon palette that appears.

• To create a tie, drag an input box to one or more output boxes. To remove a tie, drag the output box to its tied input box or to the trash can.

• For quick display of information on a speciﬁc input or output device, position the cursor over that device in the control program window. The program opens a window that details the connections to that device, the audio level, and the frequency of the video signal input from or output to that device. See the inset box in ﬁgure 5-5.

PRELIMINARY

MVX VGA A Matrix Switchers • Matrix Software

5-5

Matrix Software, cont’d

Updating ﬁrmware

The ﬁrmware upgrade utility provides a way to replace the ﬁrmware that is coded on the switcher’s control board without taking the switcher out of service and replacing the ﬁrmware IC chip.

Update the switcher ﬁrmware as follows:

1. Visit the Extron Web site, www.extron.com, click the Download Center tab, and then click the Firmware link (ﬁgure 5-6).

PRELIMINARY

Figure 5-6 — Location of ﬁrmware upgrade ﬁles

2. Select the appropriate ﬁrmware ﬁle (CrossPoint 300 Series/ MVX 128/1212/168/1616 VGA A) to download and click Download.

. Enter the requested personal information and then click Download to copy the

ﬁrmware to your computer.

4. Click Run twice (ﬁgure 5-7). The PC downloads the ﬁrmware update from the Extron Web site and starts the Extron Installation Program to extract the ﬁrmware ﬁle.

5. Click Next. The program extracts the ﬁrmware ﬁles and places them in a folder identiﬁed in the InstallShield Wizard window.

6. Click Finish to exit the program.

Note the folder to which the ﬁrmware ﬁle is saved.

5-6

MVX VGA A Matrix Switchers • Matrix Software

Folder where firmware is installed.

Figure 5-7 — Downloading ﬁrmware upgrade ﬁles

PRELIMINARY

MVX VGA A Matrix Switchers • Matrix Software

5-7

Matrix Software, cont’d

3. Connect a Windows-based computer to either switcher serial port or the switcher LAN port. See chapter 2, “Installation”, for more details.

4. Start the Matrix Switcher Control Program and connect to the matrix switcher. See “Using the Matrix Switcher Control software” in this chapter, steps 1 through 4, starting on page 5-3.

5. Click Tools > Update firmware. The Extron Firmware Loader utility appears (ﬁgure 5-8).

If the Extron Firmware Loader utility is version 3.3 or higher, the utility

navigates to the proper folder and selects the latest ﬁrmware ﬁles automatically.

PRELIMINARY

Figure 5-8 — Open window

6. If necessary, click Browse. The open ﬁle window appears (ﬁgure 5-8).

7. If necessary, navigate to the folder where you saved the ﬁrmware upgrade

ﬁle. Select the ﬁle and click Open. The Firmware Loader returns to the top.

Valid ﬁrmware ﬁles must have the ﬁle extension .S19. Any other ﬁle extension

is not a ﬁrmware upgrade.

The original factory-installed ﬁrmware is permanently available on the

MVX matrix switcher. If the attempted ﬁrmware upload fails for any reason, the switcher reverts to the factory-installed ﬁrmware.

5-8

MVX VGA A Matrix Switchers • Matrix Software

8. Click the Upload button. A status bar, which shows the progress of the upload, appears in the Firmware Loader window (ﬁgure 5-9). The ﬁrmware upload to the switcher may take several minutes.

Once the status bar has progressed fully from left to right, the ﬁrmware loader

utility resets the switcher (ﬁgure 5-9).

Figure 5-9 — Firmware Loader status indicator bar

10. Click the Exit button to exit the ﬁrmware loader utility.

If the ﬁrmware loader utility exits before the status bar has progressed completely

across the indicator window, try using a control cable with only pins 2, 3, and 5 connected. If necessary, modify the cable by removing pins or cutting wires.

. When prompted, conﬁrm that the ﬁrmware version displayed in the ﬁrmware

loader is correct. Click OK in the Firmware Update prompt window.

The ﬁrmware loader utility increases the serial port’s baud rate to 115,200 to

speed up the upload process. Occasionally, the ﬁrmware loader may be unable to return the serial port to its earlier baud rate, in which case communications with the switcher may not be possible. If you are no longer able to communicate with the switcher after the ﬁrmware upload completes, see “Selecting the rear panel Remote port protocol and baud rate” in chapter 3, “Operation”, on page 3-38.

PRELIMINARY

MVX VGA A Matrix Switchers • Matrix Software

5-9

Matrix Software, cont’d

Windows buttons, drop boxes, and trash can

The buttons, drop boxes, and trash can on the right side of the program window perform the following functions:

Power — Unavailable for MVX VGA A switchers, because the

switcher power cannot be controlled via software.

Executive Mode — Allows you to lock out front panel operations,

except for the view-only mode functions. Click the button to cycle between Lock mode 0 (the indicator displays white), Lock mode 1 (the indicator displays red), and Lock mode 2 (the indicator displays orange).

See “Setting the front panel locks (Executive modes)” in

chapter 3, “Operation”, for more information on the Lock modes.

PRELIMINARY

Presets menu —

select a preset from the list to display it in the window and either activate it (Go) or delete it (Delete).

Activates the selected preset as the current conﬁguration.

Go — Save as ... — Allows the current set of ties to be saved as a preset.

Enter the preset number when prompted to do so.

Delete — Allows the current preset to be deleted. Changes – Take — Allows you to save to ﬁle any changes made to

the displayed conﬁguration.

Changes – Cancel — Returns to the previous screen, undoing any changes you

have made.

Trash can — Drag and drop from an input or output button to the

trash can to unmake all ties associated with that input or output.

Windows menus

File menu

Save matrix settings as ... — Saves a complete set of up

to 32 presets, plus the last active setting (preset #0), to a ﬁle. Saved settings include audio gain settings (if speciﬁed), assigned icons, and icon captions.

Restore matrix settings from ... — Loads and activates a

previously saved setting ﬁle.

Save this-session’s settings — Saves the current assigned icons and icon captions. Restore last-session’s settings — Loads the icons and icon captions that were

saved during the last session. If you saved the previous session’s changes to disk the last time you exited the program, the ties from that session are also loaded.

Select printer — Print tie map — Prints the tie set that is displayed on the screen. Exit — Closes the Matrix Switcher Control Program.

Displays a list of up to 32 global presets. You can

Selects the target printer.

5-10

MVX VGA A Matrix Switchers • Matrix Software

Tools menu

Assign device icons — Displays the complete set of input

and output device icons. You can drag any of these icons to the input and output boxes.

Edit device palette — Allows you to add your own device

icon graphics.

Audio-Input gain settings — Displays the audio gain

level setting for a single input or for all inputs and allows you to change it. The level is expressed as the magnitude (number of decibels) and polarity (positive [gain] or negative [attenuation]) of the audio adjustment.

Audio-Output volume settings —

level setting for a single input or for all inputs and allows you to change it. The level is expressed as a percentage of the input audio volume that is applied to the output; 0% is full attenuation (audio is silent), 100% is full volume.

Mute-Outputs settings —

mute video and/or audio for each output.

Update firmware — Allows you to replace the ﬁrmware that is coded on the

switcher’s control board without taking the switcher out of service, opening the switcher enclosure, and replacing the ﬁrmware chip set. See “Updating ﬁrmware”

Hardware status — Provides an overall view of the status of the matrix switcher,

including the power supply voltages, the temperature status, the Remote RS-232/RS-422 port conﬁguration, and the installed and updated ﬁrmware status (ﬁgure 5-10).

on page 5-6.

Displays the Mute Adjust screen, from which you can

Displays the audio output

Figure 5-10 — Status window

Name presets — Allows you to assign a name to each of the 32 memory presets.

Show RS-232 strings —

Preset names are limited to 12 upper- and lower-case alphanumeric characters,

space, and the _ and / characters.

The following characters are invalid in preset names:

+ ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.

Displays the ASCII commands that are used by the

current conﬁguration. You can refer to these for RS-232 programming.

PRELIMINARY

MVX VGA A Matrix Switchers • Matrix Software

5-11

Matrix Software, cont’d

Initialize — Initializes and clears any or all of the following: ties, presets, audio

conﬁguration, preset names, icon names, and icons.

Preferences menu

Immediate changes — Causes conﬁguration changes to take

effect immediately.

Hold/verify changes — Delays implementation of

conﬁguration changes until the Changes – Take button is pressed.

Ties as lines — Displays ties as lines (ﬁgure 5-11).

Figure 5-11 — Ties shown as lines

Ties as crosspoints — Displays ties as a matrix of inputs and outputs (ﬁgure 5-12).

Ties that have been made are indicated as amber (video and audio), green (video only), and red (audio only) boxes. Ties that will take effect when you click the Take button are indicated by +. Ties that will be broken when you click the Take button are indicated by –.

PRELIMINARY

Figure 5-12 — Ties shown as crosspoints

Icons in I/O boxes — Erases any numbers in the I/O boxes in the

Control Program window (ﬁgure 5-5). You can place icons in the boxes.

Numbers in I/O boxes —

Control Program window and ﬁlls each box with the associated input or output number.

Master-Reset selection

Master reset clears all ties and presets, all video and audio mutes, resets all I/O grouping, sets all input audio levels to unity gain (+0 dB), and sets all output volume levels to 100% (0 dB of attenuation).

Erases any icons in the I/O boxes in the

5-12

MVX VGA A Matrix Switchers • Matrix Software

Master reset does not reset the Internet protocol (IP) settings.

Using Emulation mode

Emulation mode allows you to set up the software without attaching the switcher to the computer. To use Emulation mode, do the following:

1. Double-click the Matrix Switchers Control Program icon in the Extron Electronics group or folder.

2. Choose Emulate, and click OK.

Choose an emulation ﬁle to open, and click OK. The ﬁle DEMO.MTX provides

a sample of a completed matrix setup. Selecting the ﬁle NEW.INI or clicking Cancel provides a blank setup to get you started.

4. Enter the ﬁle name under which you want to save any changes to the ﬁle, and click OK.

Select the number of video boards, audio boards, and matrix model for which

you are preparing a conﬁguration, and click OK.

Continue using the program as described beginning on page 5-3.

Using the help system

For information about program features, you can access the help program in any of the following ways:

• From the Extron Electronics program folder or group, double-

click on the MATRIX Switcher+ Help icon (shown at right).

• From within the Matrix Switcher Control Program, click on the

Help menu on the main screen.

• From within the Matrix Switcher Control Program, press the F1 key.

Button-Label Generator Program

The Button Label Generator software creates labels that you can place in the translucent covers above and below the front panel input and output buttons. You can create labels with names, alphanumeric characters, or even color bitmaps for easy and intuitive input and output selection. See appendix A, “Speciﬁcations, Part Numbers, Accessories”, for the procedure for removing and replacing the translucent covers.

The Extron Button Label Generator is available on the Extron Web site, www.extron.com, under the Download Center tab. Click the Software link (ﬁgure 5-13), and download and install the program.

Figure 5-13 — Location of software on the web site

The Button Label Generator software is also included on the Extron Software

Products CD-ROM that accompanies the switcher.

PRELIMINARY

MVX VGA A Matrix Switchers • Matrix Software

5-13

Matrix Software, cont’d

By default, the Windows installation creates a C:\Program Files\Extron\ ButtonLabelGenerator directory and places the Button Label Generator icon into a group or folder named “Extron Electronics”.

Using the Button-Label Generator software

1. To run the Button-Label Generator program, click Start > Programs > Extron Electronics > Button Label Generator > Button Label Generator. The

Button-Label Generator window appears (ﬁgure 5-14).

PRELIMINARY

Figure 5-14 — Extron’s Button-Label Generator window

2. In the Systems drop box, choose either the CP 300 128 Series / MVX 128 / MTX 50 or the CP 300 Series 1616 Series option to match the label strip size for your MVX switcher.

3. Using normal Windows controls, you can create and print labels that can be placed in the label windows on the front panel of the switcher.

4. Click the Clear All Buttons button and create new labels as many times as necessary to make all of the button labels that you need.

To access the help program, click the Help menu.

5-14

MVX VGA A Matrix Switchers • Matrix Software

MVX VGA A Matrix Switchers

Appendix A

Speciﬁcations, Part Numbers,

Accessories

Speciﬁcations

Part Numbers and Accessories

Button Labels

PRELIMINARY

Speciﬁcations, Part Numbers, Accessories

Speciﬁcations

Video

Routing

128 series ............................. 12 x 8 matrix

1212 Series .......................... 12 x 12 matrix

168 Series ............................ 16 x 8 matrix

1616 Series .......................... 16 x 16 matrix

Gain ................................................ Unity

Bandwidth ...................................... 300 MHz (-3 dB), fully loaded

0 - 10 MHz: no more than +0.14 dB to -0.1 dB

0 - 130 MHz: no more than +0.95 dB to -0.8 dB

Crosstalk ......................................... -80 dB @ 1 MHz, -55 dB @ 10 MHz, -45 dB @ 30 MHz, -37 dB @ 100 MHz

Switching speed ............................ 200 ns (max.)

Video input

Number/signal type ..................... 12 or 16 RGBHV, RGBS, RGsB, RsGsBs, HDTV, component video, S-video,

composite video Connectors

128/1212 Series .................. 12 female 15-pin HD

168/1616 Series .................. 16 female 15-pin HD

Nominal level ................................ 1 Vp-p for Y of component video and S-video, and for composite video

0.7 Vp-p for RGB and R-Y and B-Y of component video

0.3 Vp-p for C of S-video

Minimum/maximum levels ........ Analog: 0.5 V to 2.0 Vp-p with no offset

Impedance ..................................... 75 ohms

Return loss ..................................... <-30 dB @ 5 MHz

DC offset (max. allowable)........... ±1.5 mV

PRELIMINARY

Video output

Number/signal type ..................... 8, 12, or 16 RGBHV, RGBS, RGsB, RsGsBs, HDTV, component video, S-video,

composite video

Connectors

128/168 Series .................... 8 female 15-pin HD

1212 Series .......................... 12 female 15-pin HD

1616 Series .......................... 16 female 15-pin HD

Nominal level ................................ 1 Vp-p for Y of component video and S-video, and for composite video

0.7 Vp-p for RGB and R-Y and B-Y of component video

0.3 Vp-p for C of S-video

Minimum/maximum levels ........ 0 V to 2.0 Vp-p (follows input)

Impedance ..................................... 75 ohms

Return loss ..................................... <-30 dB @ 5 MHz

DC offset ........................................ ±10 mV with input at 0 offset

A-2

MVX VGA A Matrix Switchers • Speciﬁcations, Part Numbers, Accessories

Sync

Input type ...................................... RGBHV, RGBS, RGsB, RsGsBs

Output type .................................... RGBHV, RGBS, RGsB, RsGsBs (follows input)

Input level ..................................... 0.5 V to 5.0 Vp-p, 4.0 Vp-p normal

Output level .................................. AGC to TTL: 4.0 V to 5.0 Vp-p, unterminated

Input impedance .......................... 510 ohms

Output impedance

MVX 128 A ......................... 75 ohms

All other models ................ Inputs 1 to 8: 50 or 75 ohms, switchable

Inputs 9 to 12 or 16: 75 ohms

Max input voltage ........................ 5.0 Vp-p

Max. propagation delay ............... <120 ns

Max. rise/fall time ........................ 11.5 ns

Polarity............................................ Positive or negative (follows input)

Audio — audio models only

Routing

128 series ............................. 12 x 8 matrix

1212 Series .......................... 12 x 12 stereo matrix

168 Series ............................ 16 x 8 stereo matrix

1616 Series .......................... 16 x 16 stereo matrix

Gain ................................................ Unbalanced output: -6 dB; balanced output 0 dB

Frequency response ..................... 20 Hz to 20 kHz, ±0.05 dB

THD + Noise ................................. 0.03% @ 1 kHz at nominal level

S/N ................................................. >90 dB, balanced, at maximum output (21 dBu) (unweighted)

Crosstalk ........................................ <-80 dB @ 1 kHz, fully loaded

Stereo channel separation ............ >80 dB @ 1 kHz

CMRR ............................................. >75 dB @ 20 Hz to 20 kHz

Audio input — audio models only

Number/signal type .................... 12 or 16 stereo, balanced/unbalanced

Connectors .................................... (12 or 16) 3.5 mm captive screw connectors, 5 pole

Impedance ..................................... >10k ohm, balanced/unbalanced, DC coupled

Nominal level ................................ -10 dBV (316 mVrms), 0 dBu (775 mV)

Maximum level ............................. +19.5 dBu, (balanced or unbalanced) at 0.01% THD+N

Input gain adjustment .................. -18 dB to +24 dB (default = 0 dB), adjustable per input by RS-232/422 or

front panel

0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV 2 dBu

Audio output — audio models only

Number/signal type .................... 8, 12, or 16 stereo, balanced/unbalanced

Connectors .................................... (8, 12, or 16) 3.5 mm captive screw connectors, 5 pole

Impedance ..................................... 50 ohms unbalanced, 100 ohms balanced

Gain error ...................................... ±0.1 dB channel to channel

Maximum level (Hi-Z) ................ >+21 dBu, balanced or unbalanced at 0.1% THD+N

Maximum level (600 ohm) .......... >+15 dBm, balanced or unbalanced at 0.1% THD+N

Output volume range ................... 0 to 64 (-75.8 dB to 0 dB) in 1 dB increments from steps 1 to 64,

12 dB increment from step 0 to 1; default = 64 = 0 dB

PRELIMINARY

MVX VGA A Matrix Switchers • Speciﬁcations, Part Numbers, Accessories

A-3

PRELIMINARY

Speciﬁcations, Part Numbers, Accessories, cont’d

Control/remote — switcher

Serial host control port ................ 1 bidirectional RS-232 or RS-422, rear panel 9-pin female D connector

1 bidirectional RS-232, front panel 2.5 mm mini stereo jack

Baud rate and protocol ................. 9600 (default), 19200, 38400, 115200 baud (adjustable); 8 data bits, 1 stop bit,

no parity

Serial control pin conﬁgurations

RS-232 ................................. 9-pin female D connector: 2 = TX, 3 = RX, 5 = GND

Mini stereo jack: tip = TX, ring = RX, sleeve = GND

RS-422 ................................. 9-pin female D connector: 2 = TX-, 3 = RX-, 5 = GND, 7 = RX+, 8 = Tx+

Program control ............................. Extron’s control/conﬁguration program for Windows®

Extron’s Simple Instruction Set (SIS™)

General

Power ............................................. 100 VAC to 240 VAC, 50/60 Hz, 48 watts, internal

Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling ........................................... Convection, vented

Rack mount .................................... Yes

Enclosure type .............................. Metal

Enclosure dimensions (Depth excludes connectors. Width excludes rack ears.)

5.25” H x 17.0” W x 9.4” D (3U high, full rack wide)

13.3 cm H x 43.2 cm W x 23.9 cm D

Product weight

MVX 128 VGA A ................ 14.4 lbs (6.5 kg)

MVX 1212, 168, 1616 VGA A

19.9 lbs (9.0 kg)

Shipping weight

MVX 128 VGA A ................ 21 lbs (10 kg)

MVX 1212, 168, 1616 VGA A

26 lbs (12 kg) DIM weight, international

MVX 128 VGA A ................ 25 lbs (12 kg)

MVX 1212, 168, 1616 VGA A

34 lbs (15.4 kg)

Vibration ........................................ ISTA 1A in carton (International Safe Transit Association)

Listings............................................ UL, CUL

Compliances ................................... CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF ............................................... 30,000 hours

Warranty ........................................ 3 years parts and labor

A-4

All nominal levels are at ±10%.

Speciﬁcations are subject to change without notice.

MVX VGA A Matrix Switchers • Speciﬁcations, Part Numbers, Accessories

Part Numbers and Accessories

MVX matrix switcher part numbers

These items are included in each order for a MVX A matrix switcher:

Matrix switcher part numbers Replacement part

number

MVX 128 VGA A 60-799-01 MVX 1212 VGA A 60-858-01 MVX 168 VGA A 60-838-01 MVX 1616 VGA A 60-839-01

Included parts

These items are included in each order for a MVX A matrix switcher:

Included parts Replacement part

number

Tweeker (small screwdriver)

MVX VGA A User’s Manual

Captive screw audio connectors (20, 24, or 32, depending on the model)

Extron Software Products CD (Matrix Switchers Control Program and Button-Label Generator)

Accessories

These items can be ordered separately:

Accessories Part number

Captive screw audio connectors (qty. 10) 100-457-01 MKP 1000 remote keypad

MCP 1000M (master) 60-298-01 MKP 2000 matrix switcher X-Y remote control panel

MKP 3000

PRELIMINARY

Black 60-239-02 White 60-239-03 RAL9010 white 60-239-05 WT (water-tight) 60-239-51

Black 60-682-02 White 60-682-03 RAL9010 white 60-682-05

Black 60-708-02 White 60-708-03 RAL9010 white 60-708-05

MVX VGA A Matrix Switchers • Speciﬁcations, Part Numbers, Accessories

A-5

Extron electronics MVX VGA A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
