Extron electronics MVX 128, MVX 128 A User Manual

Download

MVX 128 A

VGA Matrix Switcher

68-521-31 Rev. A

01 06

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating instructions before using the equipment. Retain Instructions • The safety instructions should be kept for future reference. Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user

information.

Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment

manufacturer because they may be hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant

d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité aﬁ n de pouvoir les consulter à l’avenir. Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou

présentés dans la documentation utilisateur.

Eviter les pièces de ﬁ xation • Ne pas utiliser de pièces de ﬁ xation ni d’outils non recommandés par le

fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und

Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie

aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in der

Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom

Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Warning

Power sources • This equipment should be operated only from the power source indicated on the product. This

equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power cords from the rear of

the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be stepped on or pinched by

items placed upon or against them.

Servicing • Refer all servicing to qualiﬁ ed service personnel. There are no user-serviceable parts inside. To

prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to prevent

overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur l’appareil. Ce

matériel doit être utilisé avec une alimentation principale comportant un ﬁ l de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous les cordons

d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que personne ne

risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un technicien

qualiﬁ é. Aucun des éléments internes ne peut être réparé par l’utilisateur. Aﬁ n d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et oriﬁ ces • Si le boîtier de l’appareil comporte des fentes ou des oriﬁ ces, ceux-ci servent à empêcher

les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie. Remplacer uniquement

avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben werden.

Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle Netzkabel

aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und niemand

darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualiﬁ ziertem Servicepersonal durchgeführt werden.

Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese zur

Vermeidung einer Überhitzung der empﬁ ndlichen Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie verbrauchte

Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar el

equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta. Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la

documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especiﬁ camente recomendados

por el fabricante, ya que podrian implicar riesgos.

ᅝܼ乏ⶹ•Ё᭛

䖭Ͼヺোᦤ ⼎⫼᠋䆹䆒໛⫼᠋᠟ݠЁ᳝䞡㽕ⱘ᪡ ԰㓈ᡸ䇈ᯢǄ

䖭Ͼヺো䄺⫼᠋䆹䆒໛ᴎ໇ݙ᳝ᲈ䴆ⱘ䰽⬉ˈ᳝㾺⬉䰽Ǆ

⊼ᛣ

䯙䇏䇈ᯢк• 䑩ㅸỀ䑩嬦嫿⡈↎⼆枼敆嬼⶷䍇夤ㆁ㙊⫊₩⏍Ề䑩嬵㕏ɿ ֱᄬ䇈ᯢк• 䑩ㅸⷕ἞⪙ ⫊₩嬵㕏ᶧḦ⡈⭇㚦Ề䑩ɿ 䙉ᅜ䄺• 䑩ㅸⷕ徶⫉󰶉␂⏍䑩ㅸ㉈⊘ᵋ䗅ㆁ㙊⫊ ₩⏍㐎ẝ嬵㕏ɿ 䙓ܡ䗑ࡴ• ᵎ壂Ề䑩嬦󰶉␂⋃⒇㯢㙊㋩劑䗅⴦₸ㅗ弾⇡嫿⡈澤Ḧ忀₎⊲斪ɿ

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación eléctrica

indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de alimentación eléctrica

al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en lugares donde

no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal caliﬁ cado. En el interior no

hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o oriﬁ cios en su caja/alojamiento, es para evitar el

sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar esta

batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

䄺

⬉⑤• 嬦嫿⡈⌫倾Ề䑩󰶉␂ᵋ㝈㕏䗅䑶㷑ɿ嫿⡈⼆枼Ề䑩㙊♱一䗅Ờ䑶䰼丠Ờ䑶ɿ䩭ᵊ㚢一

澠♱一澡㕰 ⫊₩嫿㓾澤ᵎ倾ᵎ䑩ㅗ崴弈ɿ

ᢨᥝ⬉⑤• ᵻ⫊₩♱ḏ嫿⡈㈕㋊䑶㷑澤嬸㈕㋊ㆁ㙊嫿⡈⍏ㅗ㞍暣䑶㷑䗅䑶㷑一澤ㅗḼẖ㋦ ⅱⵃ

䑶䰼丠䗅䑶㷑一ɿ

⬉⑤㒓ֱᡸ• ⣦Ⓟⵄ一澤忀₎埬嵪嵐澤ㅗ愎䆪㉥⋌ɿ 㓈ᡸ•ㆁ㙊丵Ἧ⼆枼䑲嫥嬂䗅丵Ἧ󰶜⎙弜垍ɿ嫿⡈⃆怩㯢㙊䑩ㅸ⌰Ḧ㘵㊣䗅昷ḷɿᵻ忀₎℻

䋱大䑶⊲斪ᵎ壂儫ⴲ嬖☿㆔⹁嫿⡈䘗⪑丵Ἧ嬦嫿⡈ɿ

䗮亢ᄨ• 㙊󰵽嫿⡈㙻⠴ᵋ㙊彛栏㤾ㅗ⪕澤⫄ḭ㕰䑩㚦敳㪣㙻⃆㒐だ₄ḷ弈䀮ɿᵎ壂䑩Ḽẖᵝ

壀㉢Ẑ彛栏 ⪕ɿ

䫖⬉∴ • ᵎ㪤䞯䗅㘵㊣䑶㮡ṛ㙊䅇㿹䗅⊲斪ɿ⼆枼Ề䑩ᵏ⋃⫷㋩劑䗅䘹⍍ㅗ 䘹弒⛌⌸䗅䑶㮡ɿ

㉊䂨䑠󰶉⋃䗅⸻嫯⡅䍇ⷠ⹄䑶㮡ɿ

Quick Start — MVX 128 A VGA Matrix Switchers

Installation

Step 1

Turn off power to the input and output devices, and remove the power cords from them.

Step 2 — Inputs

a. Connect up to 12 high resolution

video inputs to the 15-pin HD input connectors.

b. Connect up to 12 stereo or mono audio

inputs to the 5-pin captive screw connectors.

Tip

Ring

Sleeve(s)

Tip

Ring

Balanced Input

Step 3 — Outputs

a. Connect up to 8 high resolution

video devices to the 15-pin HD output connectors.

b. Connect up to 8 balanced or unbalanced

stereo audio or mono audio devices to the 5-pin captive screw connectors.

Tip

Ring

Sleeve(s)

Tip

Ring

Balanced Output

C Connect the sleeve to ground.

Connecting the sleeve to a negative (-) terminal will damage the audio output circuits.

Tip

Sleeve

Tip

Sleeve

Unbalanced Input

(high impedance)(high impedance)

Tip

See caution

Sleeve

Tip

See caution

Unbalanced Output

Step 5 — Power

Plug the switcher into a grounded AC source.

Deﬁ nitions

Tie — An input-to-output connection.

Set of ties — An input tied to 2 or more outputs.

Conﬁ guration — One or more ties or sets of ties.

Current conﬁ guration — The currently active

conﬁ guration (also called conﬁ guration 0).

Global preset — A conﬁ guration that has been

stored. One global preset can be assigned to each input button. When a global preset is retrieved from memory, it becomes the current conﬁ guration.

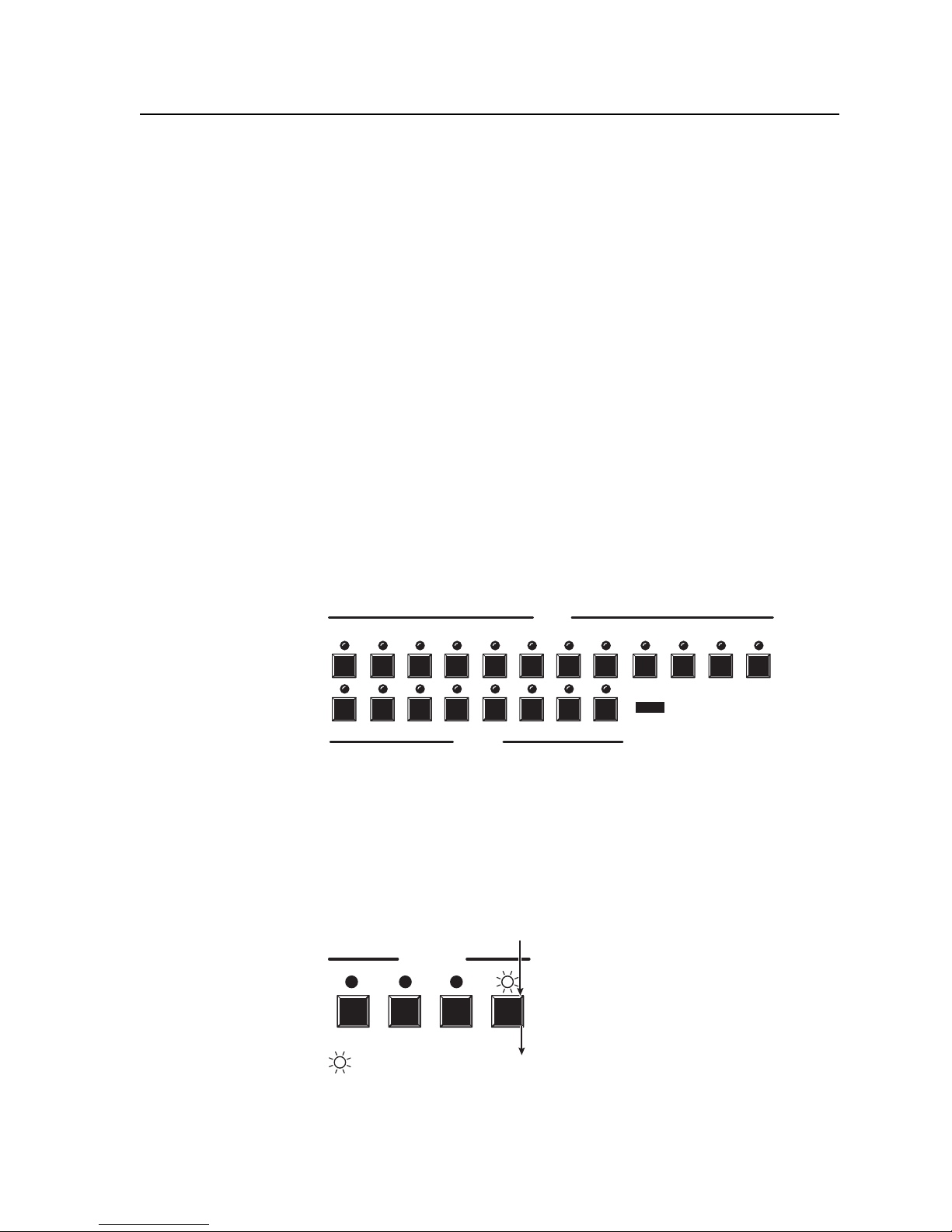

Front Panel Controls

Input and output buttons select inputs and

outputs. Input and output LEDs light to indicate video and audio ties.

Input and output buttons also select presets.

Output buttons also toggle video and audio

mutes on and off in View-Only mode.

Input LEDs also display the selected output’s

volume.

Output LEDs also display the selected input’s

audio level.

Enter button saves changes.

Preset button selects:

Save Preset mode to save a conﬁ guration as a

preset.

PRELIMINARY

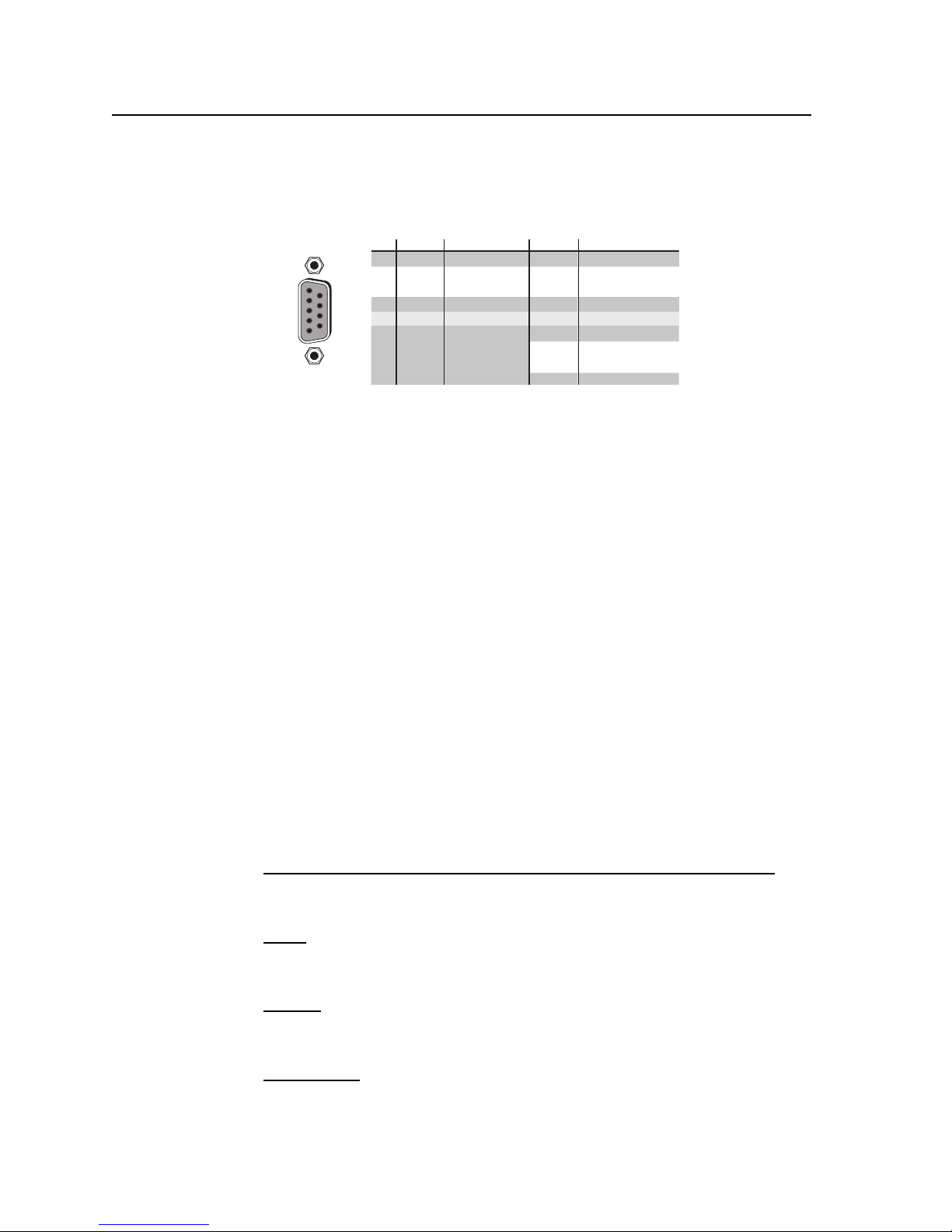

Step 4 — RS-232/RS-422

If desired, connect a control system or computer to the Remote RS-232/RS-422 port.

RS-232 Function Pin Function

— TX RX

—

Gnd

—

Not used Transmit Receive Not used Ground Not used Not used Not used Not used

4 5

6 7 8 9

RS-422

— TX– RX–

— Gnd

— RX+ TX+

—

Recall Preset mode to recall a previously-

deﬁ ned preset.

View button selects a view-only mode that

prevents inadvertent conﬁ guration changes. The View button also decrements the level

Not used Transmit (–) Receive (–) Not used Ground Not used Receive (+) Transmit (+) Not used

and volume. See Viewing and adjusting the audio level on QS-2.

Esc button cancels selections in progress and

resets the front panel button indications. The Esc button does not reset: the current conﬁ guration, the RGBHV and audio selection, any presets, or any audio level or volume settings. The Esc button also increments the level and volume. See Viewing and adjusting the audio level on page QS-2.

MVX 128 A VGA Matrix Switchers • Quick Start

QS-1

PRELIMINARY

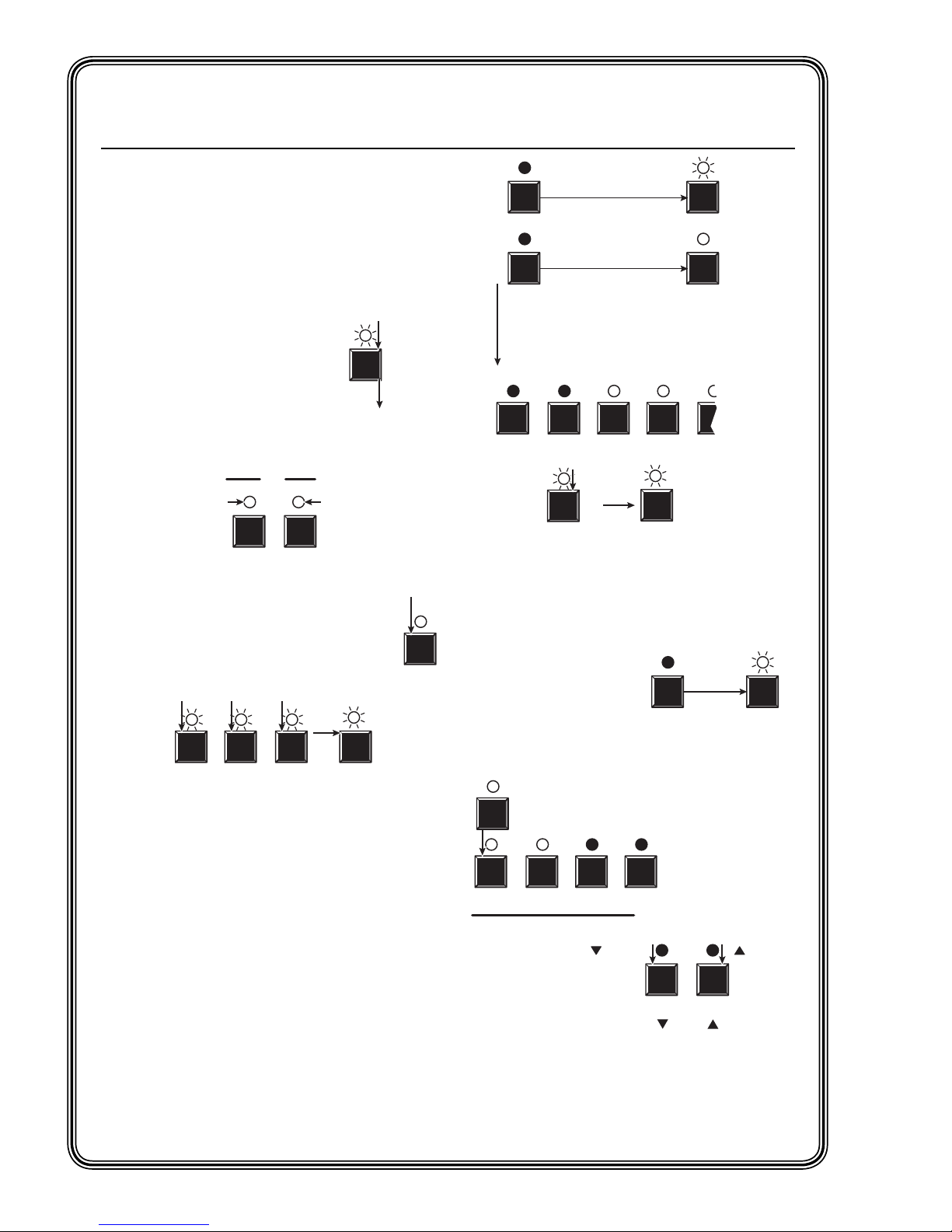

Quick Start —

MVX 128 A VGA Matrix Switchers, continued

RGBHV and Audio buttons select/deselect

video and/or audio. The Audio LED blinks to indicate audio breakaway. The Audio button also selects the audio level/adjust mode. See Viewing and adjusting the audio level in the next column.

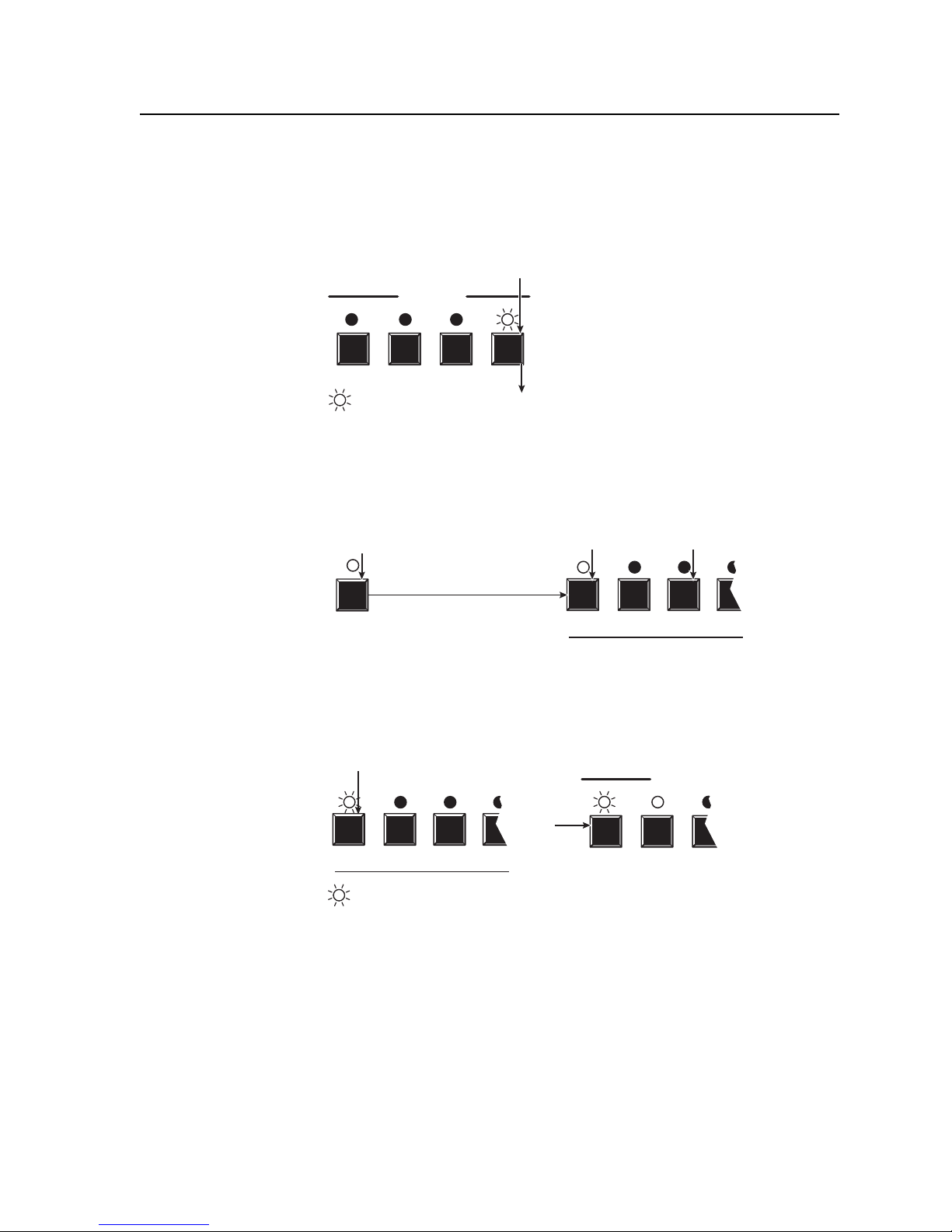

Create a tie

1. Press and release the Esc button to clear any input LEDs, output LEDs, or control LEDs that may be lit.

2. Press and release the RGBHV and/or Audio I/O button(s) to select or deselect video and/or audio as desired.

I/O

Lit when selected.

Off when deselected.

RGBHV AUDIO

3. Press and release the desired input button.

4. Press and release the desired output button(s).

Output LEDs blink to indicate a potential tie.

Press the Esc button to clear all selections.

ESC

The LED blinks once.

Lit when selected. Off when deselected.

The input LED

lights to indicate

the selection.

Save a preset

Recall a

preset

Press and hold.

2 seconds

PRESET

All input and output buttons with assigned presets light.

The configuration data at assigned preset locations will be overwritten.

Preset LED blinks.

Press and release.

Preset LED lights.

1 2 3 4 5

2. Press and

The LED blinks to indicate that this preset

is selected.

release the desired input or

ENTER

output button.

3. Press and release the Enter button.

Viewing and adjusting the audio level

1. Press and hold the Audio button.

2. Press an input or output button. See chapter 3 to read the displayed value.

AUDIO AUDIO

PRESET

The Enter LED blinks to indicate the need to save or recall the preset.

Audio LED blinks.

Hold

2 seconds

3 4 8

Enter LED blinks to indicate the

need to confirm the change.

5. Press and release the Enter button. All input and output LEDs and the Enter LED go out.

Saving or recalling a preset

1. Save a preset — Press and hold the Preset button for 2 seconds.

Recall a preset — Press and release the Preset

button.

QS-2

MVX 128 A VGA Matrix Switchers • Quick Start

ENTER

Press an input button to adjust gain/attenuation.

— or —

Press an output button to adjust the output volume.

Output LEDs display gain/attenuation.

— or —

Input LEDs display

1 2 3 4

output volume level.

OUTPUTS

3. Increase and decrease the gain/ attenuation or

button decreases the level.

VIEW ESC

button increases the level.

volume level by pressing the Esc (

) and View (<) buttons.

4. Press and release the Audio button to exit.

Table of Contents

Chapter One • Introduction ...................................................................................................... 1-1

About this Manual ..................................................................................................................... 1-2

About the Matrix Switchers ................................................................................................ 1-2

Deﬁ nitions ...................................................................................................................................... 1-3

Features ............................................................................................................................................ 1-4

Chapter Two • Installation ........................................................................................................2-1

Mounting the Switcher .......................................................................................................... 2-2

Cabling and Rear Panel Views ............................................................................................ 2-2

Video connections .....................................................................................................................2-2

Audio connections .................................................................................................................... 2-3

RS-232/RS-422 connection ........................................................................................................ 2-4

Reset button .............................................................................................................................. 2-5

Power connection ..................................................................................................................... 2-5

Chapter Three • Operation ........................................................................................................ 3-1

Front Panel Controls and Indicators ...............................................................................3-2

Deﬁ nitions .................................................................................................................................. 3-2

Input and output buttons ........................................................................................................ 3-3

Control buttons ......................................................................................................................... 3-4

I/O controls ................................................................................................................................. 3-6

Front Panel Operations ........................................................................................................... 3-7

Power .......................................................................................................................................... 3-7

Creating a conﬁ guration ......................................................................................................... 3-8

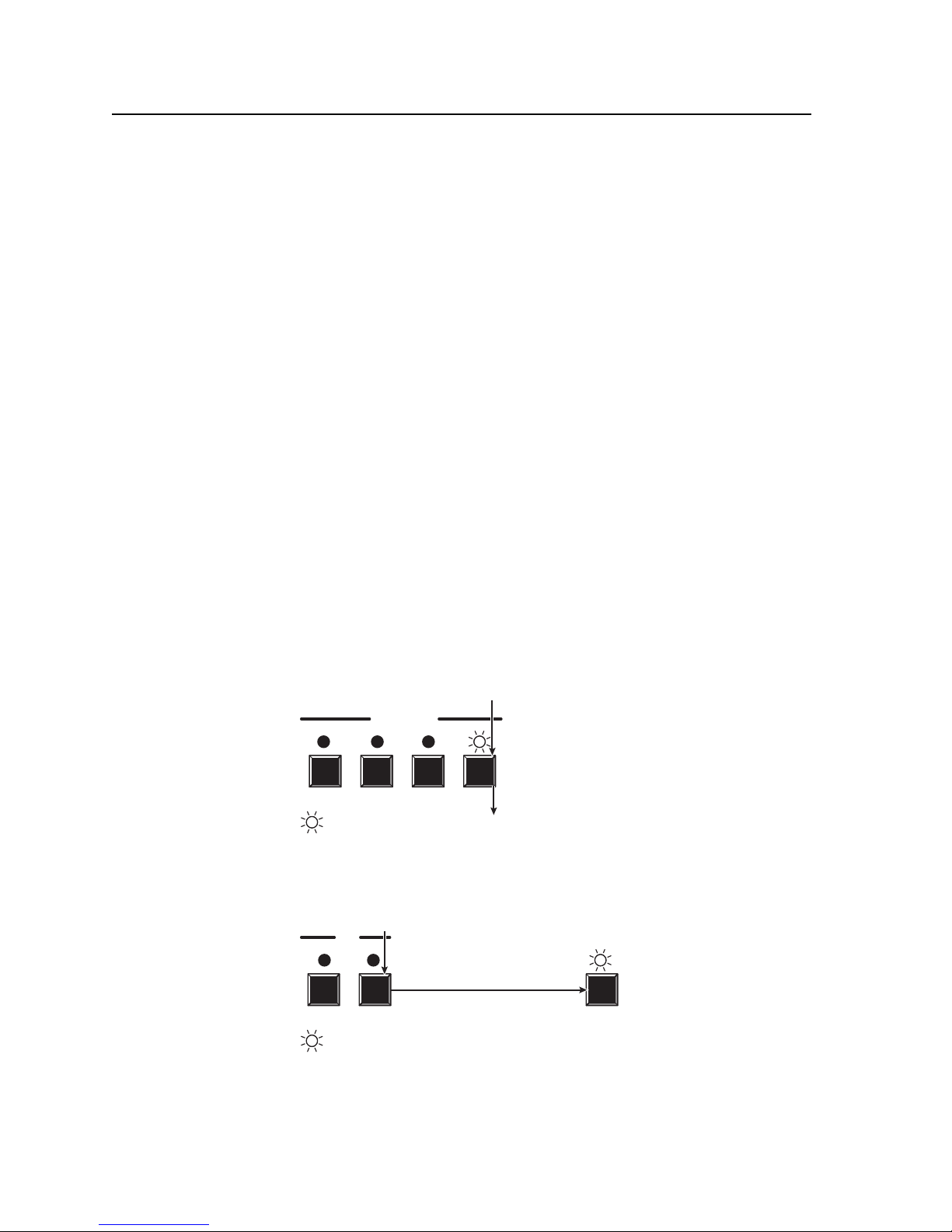

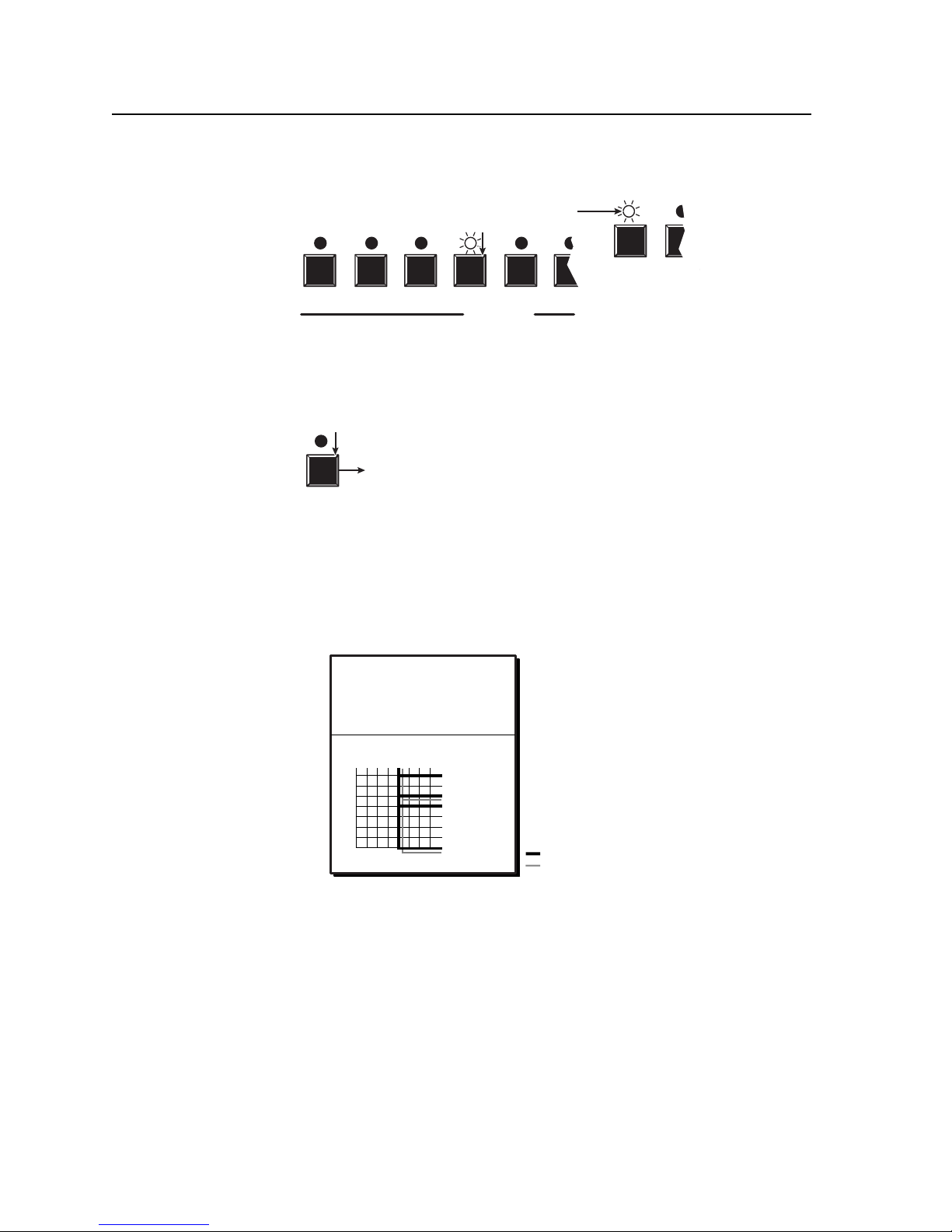

Example 1: Creating a set of video and audio ties ............................................................ 3-9

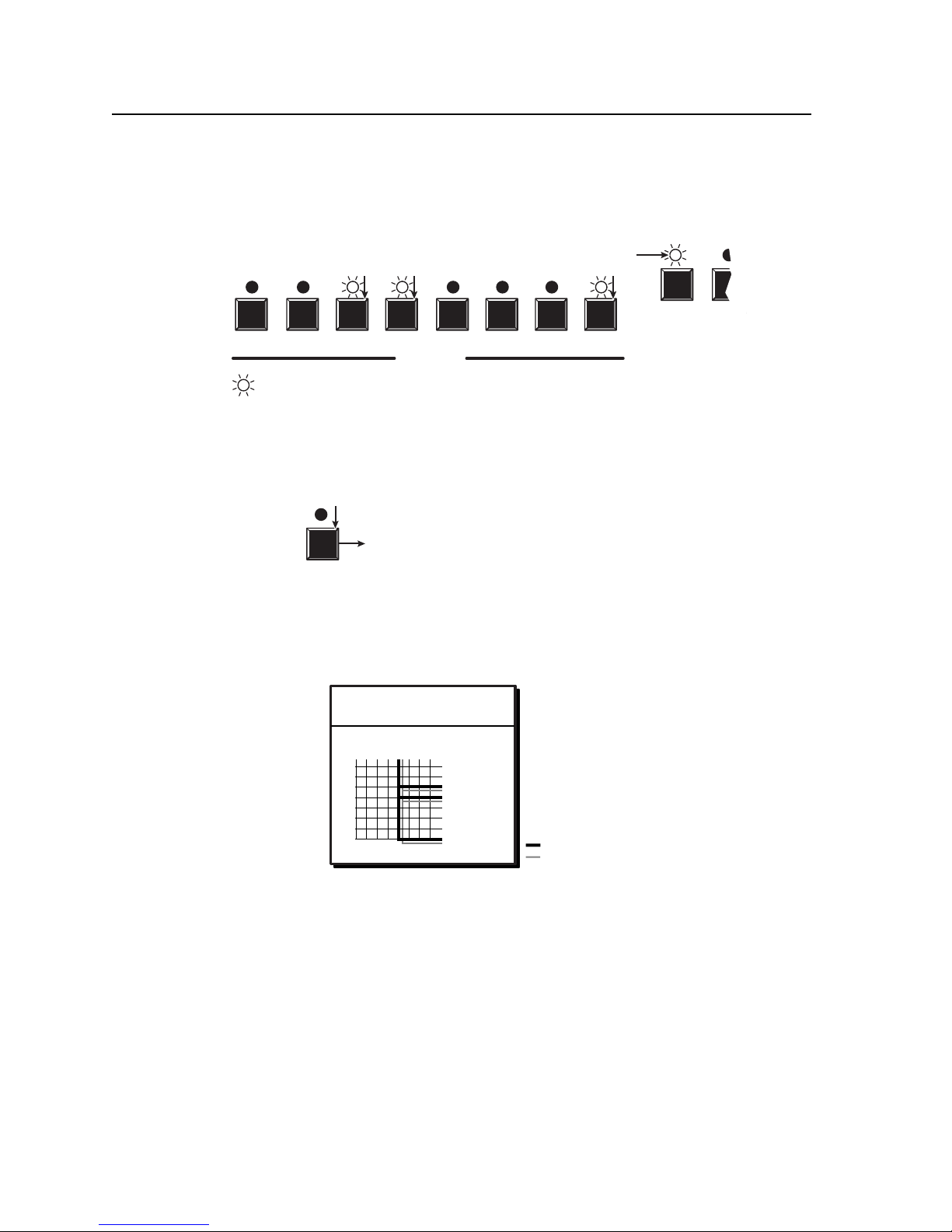

Example 2: Adding a tie to a set of video and audio ties ............................................... 3-11

Example 3: Removing a tie from a set of video and audio ties ...................................... 3-13

Viewing a conﬁ guration ........................................................................................................ 3-15

Example 4: Viewing video and audio, audio only, and video only ties .......................... 3-15

Muting and unmuting video and/or audio ......................................................................... 3-18

Example 5: Muting and unmuting an output .................................................................. 3-18

Using global presets ............................................................................................................... 3-21

Example 6: Saving a preset ............................................................................................... 3-21

Example 7: Recalling a preset ........................................................................................... 3-23

Viewing and adjusting the input audio level .....................................................................3-24

Example 10: Viewing and adjusting an input audio level .............................................. 3-26

Viewing and adjusting the output volume ......................................................................... 3-28

Reading the displayed volume ......................................................................................... 3-29

Example 11: Viewing and adjusting an output volume level ......................................... 3-30

Locking out the front panel (Executive mode) ................................................................... 3-32

Performing a system reset from the front panel ................................................................ 3-32

Selecting the RS-232/RS-422 protocol and baud rate ........................................................ 3-33

PRELIMINARY

Rear Panel Operations ........................................................................................................... 3-34

Performing an absolete system reset from the rear panel ............................................... 3-34

Performing a hard reset from the rear panel ..................................................................... 3-35

MVX 128 A VGA Matrix Switchers • Table of Contents

Table of Contents, cont’d

Optimizing the Audio ............................................................................................................ 3-35

Troubleshooting ........................................................................................................................3-36

Conﬁ guration Worksheets ................................................................................................. 3-36

Worksheet example 1: System equipment .......................................................................... 3-36

Worksheet example 2: Daily conﬁ guration .........................................................................3-37

Worksheet example 3: Test conﬁ guration .......................................................................... 3-38

Conﬁ guration worksheet ....................................................................................................... 3-39

Chapter Four • Programmer’s Guide .................................................................................. 4-1

Host-to-Switcher Instructions ............................................................................................. 4-2

Switcher-Initiated Messages ............................................................................................... 4-2

Switcher Error Responses ..................................................................................................... 4-3

Using the Command/Response Tables ........................................................................... 4-3

Command/Response Table for SIS Commands ......................................................... 4-4

Symbol deﬁ nitions .................................................................................................................... 4-4

Command/response table for SIS commands ........................................................................ 4-5

PRELIMINARY

Chapter Five • Matrix Software ............................................................................................ 5-1

Matrix Switchers Control Program .................................................................................5-2

Installing the software ............................................................................................................. 5-2

Using the software .................................................................................................................... 5-3

Updating ﬁ rmware ................................................................................................................... 5-5

Windows buttons, drop boxes, and trashcan ....................................................................... 5-7

Windows menus ........................................................................................................................ 5-7

File menu ............................................................................................................................. 5-7

Tools menu ...........................................................................................................................5-8

Preferences menu ................................................................................................................ 5-9

Master-Reset selection ...................................................................................................... 5-10

Using emulation mode ........................................................................................................... 5-10

Using the help system ............................................................................................................ 5-10

Button-Label Generator Program .................................................................................. 5-10

Appendix A • Speciﬁ cations, Part Numbers, Accessories ............................... 5-13

Speciﬁ cations .............................................................................................................................. A-2

Part Numbers and Accessories .......................................................................................... A-5

Included parts ........................................................................................................................... A-5

Accessories ................................................................................................................................ A-5

Cables ......................................................................................................................................... A-6

Button Labels ............................................................................................................................... A-7

All trademarks mentioned in this manual are the properties of their respective owners.

MVX 128 A VGA Matrix Switchers • Table of Contents

68-521-31 A

01 06

MVX 128 A VGA Matrix Switchers

Chapter One

Introduction

About this Manual

About the Matrix Switchers

Deﬁ nitions

Features

PRELIMINARY

Introduction

About this Manual

This manual contains installation, conﬁ guration, and operating information for the Extron MVX 128 A 12-input by 8-output wideband computer video (VGA) and audio matrix switcher.

About the MVX 128 A Matrix Switcher

The MVX matrix switcher distributes any of 12 inputs to any combination of 8 outputs. The matrix switcher can route multiple input/output conﬁ gurations simultaneously.

The matrix switcher is a single box solution to complex wideband (ﬁ gure 1-1) video and/or audio routing applications. Each input and output is individually isolated and buffered, and any input(s) can be switched to any one or all outputs with virtually no crosstalk or signal noise between channels.

Extron VSC 500

Video Scan Converter

0 5 C

R E V

N O C

N A C S

X A M /

IN M

N PA /

E T N

E C

T X E N

U N E

E Z E

T R F

S E R

R I

Plasma

PRELIMINARY

Extron DVS 204

Digital Video Scaler

VCR

LCD

Projector

Audio In

678

RS232/RS422

REMOTE

Control System

Laptop

Extron MVX Series

OUTPUTS

Audio Out

INPU

678

IS L T 1

I.T.

E T 3

. E

910

VGA & Audio

E T

O M E R

Matrix Switcher

B , Y , Y

R /

B G R

S T

P T

U P IN

S S S c A B P G R

B C /

O E D I V

3 1

Audio In

Sound System

Laptop

DVD

Figure 1-1 — Typical MVX 128 A matrix switcher application

1-2

MVX 128 A VGA Matrix Switchers • Introduction

The MVX 128 A inputs and outputs VGA video on 15-pin HD connectors and audio on 3.5 mm, 5-pole captive screw terminals.

The audio switching can be either linked with the video (audio follow) or be independent of the video (audio breakaway). Adjustable input audio gain and attenuation compensates for level differences between audio inputs.

The matrix switcher can be remotely controlled via its RS-232/RS-422 port. The matrix switcher is programmed with Extron’s Simple Instruction Set set of basic ASCII code commands that provide simple control through a control system or PC without programming long, obscure strings of code. SIS commands can be entered via the RS-232/RS-422 link.

The RS-232/RS-422 port can be connected to and operated from:

• A control system

• A PC

• An Extron MKP 2000 remote control panel

• An Extron MKP 3000 remote control panel

• An Extron MCP 1000 remote control panel and/or MKP 1000 remote keypad

The matrix switcher is housed in a rack-mountable, 2U high metal enclosure with mounting ﬂ anges for standard 19” racks. The appropriate rack mounting kit is included with the switcher.

The switcher has an internal 100 VAC to 240 VAC, 50/60 Hz, 15 watts autoswitchable power supply that provides worldwide power compatibility.

The MVX 128 A has a minimum bandwidth of 300 MHz (-3 dB). The switcher can also switch RGBS, RGsB, RsGsBs, HDTV, component video, S-video, and composite video.

™

(SIS™), a

Deﬁ nitions

The following terms, which apply to all Extron matrix switchers, are used throughout this manual:

Tie — An input-to-output connection.

Set of ties — An input tied to two or more outputs. (An output can never be tied

Conﬁ guration — One or more ties or one or more sets of ties.

Current conﬁ guration — The conﬁ guration that is currently active in the

Global memory preset — A conﬁ guration that has been stored. Up to 32 global

PRELIMINARY

to more than one input.)

switcher (also called conﬁ guration 0).

memory presets can be stored in memory. Preset locations are assigned to the input buttons and (where necessary) output buttons. Up to 20 presets can be selected from the front panel for either saving or retrieving. When a preset is retrieved from memory, it becomes the current conﬁ guration. The switcher has 32 presets; preset numbers larger than 20 are still accessible under RS-232/RS-422 control.

MVX 128 A VGA Matrix Switchers • Introduction

1-3

PRELIMINARY

Introduction, cont’d

Features

Video — The switcher inputs and outputs RGBHV or RGBS (VGA) video on

15-pin HD connectors. It can also switch RGsB, RsGsBs, component/HDTV, S-video, or composite video.

Bandwidth — The MVX switcher provides a minimum of 300 MHz (-3 dB) video

bandwidth, fully loaded.

Audio inputs — The switcher inputs and outputs balanced or unbalanced stereo

audio on 3.5 mm, 5-pole captive screw terminals.

Audio input gain/attenuation — Individual input audio levels can be adjusted so

there are no noticeable volume differences between sources. Users can set the input level of audio gain or attenuation (-18 dB to +24 dB) via the front panel of the RS-232/RS-422 link.

Audio output volume — The audio volume of each output can be displayed and

adjusted through a range of full output to complete silence, from the front panel or under RS-232/RS-422 control.

Switching ﬂ exibility — Provides individually buffered, independent matrix

switched outputs with audio follow and audio breakaway for audio models.

• Tie any input to any or all outputs

• Quick multiple tie — Multiple inputs can be switched to multiple outputs

simultaneously. This allows all displays (outputs) to change from source to source at the same time.

• Audio follow — Audio can be switched with its corresponding video input via front panel control or under RS-232/RS-422 remote control.

• Audio breakaway — Audio can be broken away from its corresponding video signal. This feature allows any audio signal to be selected with any video signal simultaneously to one or all outputs in any combination. Audio breakaway switching can be done via front panel control or under RS-232/RS-422 remote control.

Operational ﬂ exibility — Operations such as input/output selection, setting of

presets, and adjustment of audio levels can be performed on the front panel or via the RS-232/RS-422 link. The RS-232/RS-422 links allow remote control via a PC or control system.

• Front Panel Controller — The front panel controller supports input and output selection, preset creation and selection, and audio gain and attenuation and volume control (audio models). The front panel features slots for labels that can identify each input and output with text or graphics.

• Windows-based control program — For RS-232/RS-422 remote control from a PC, the Extron Windows-based control software provides a graphical interface and drag-and-drop/point-and-click operation. The Windows-based control program also has an emulation mode that lets you create a switcher conﬁ guration ﬁ le at the home ofﬁ ce and then download it for use by the switcher on site.

• Simple Instruction Set (SIS) — The remote control protocol uses Extron’s SIS for easy programming and operation.

• Remote control panels and keypads — The matrix switchers are remote controllable, using the optional MKP 2000 and MKP 3000 remote control keypads. The remote control devices are easy to use and provide tactile buttons for quick selection.

1-4

MVX 128 A VGA Matrix Switchers • Introduction

Upgradeable ﬁ rmware — The ﬁ rmware that controls all switcher operation can be

upgraded in the ﬁ eld via RS-232/RS-422, without taking the switcher out of service. Firmware upgrades are available for download on the Extron Web site, www.extron.com, and can be installed using the Windows-based control program.

Labeling — The Extron label software ships with every Extron matrix switcher.

You can create labels to place above the front panel input buttons and below the output buttons, with names, alphanumeric characters, or color bitmaps for easy and intuitive input and output selection. Alternatively, labels can be made with any Brother

Global memory presets — 32 global memory presets are a time-saving feature that

lets you set up and store input/output conﬁ gurations in advance. 20 global memory presets are available from the front panel. You can then recall those conﬁ gurations, when needed, with a few simple steps.

Rack mounting — Rack mountable in any conventional 19” wide rack.

Front panel security lockout (Executive mode) — If a matrix switcher is installed in

an open area where operation by unauthorized personnel may be a problem, a security lockout feature can be implemented. When the front panel is locked, a special button combination or SIS command is required to unlock the front panel controller before it can be operated.

Power — The matrix switcher’s 100 VAC to 240 VAC, autoswitchable, internal

power supply provides worldwide power compatibility.

P-Touch™ or comparable labeler.

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Introduction

1-5

Introduction, cont’d

PRELIMINARY

1-6

MVX 128 A VGA Matrix Switchers • Introduction

MVX 128 A VGA Matrix Switchers

Chapter Two

Installation

Mounting the Switcher

Cabling and Rear Panel Views

PRELIMINARY

Installation

Mounting the Switcher

The MVX 128 A is housed in a rack-mountable, 2U high metal enclosure with mounting ﬂ anges for standard 19” racks. If desired, rack mount the switcher as follows:

1. Insert the switcher into the rack, aligning the holes in the mounting bracket

2. Secure the switcher to the rack using the supplied bolts.

Cabling and Rear Panel Views

All connectors are on the rear panel. Figure 2-1 shows the rear panel of the MVX 128 A.

with those in the rack.

1 2

INPUTS

LISTED 1T23 I.T.E.

12 34 5 678

INPUTS

9101112

OUTPUTS

12 34 5 67 8

OUTPUTS

RESET

REMOTE

RS232/RS422

PRELIMINARY

Figure 2-1 — MVX 128 A video and audio matrix switcher

Use Electrostatic discharge (ESD) precautions (be electrically grounded)

Remove system power before making all connections.

Video connections

The matrix switcher does not alter the video signal in any way. The signal

output by the switcher is in the same format as the input.

The MVX 128 A can also switch RGBS, RGsB, RsGsBs, component video, S-

video, or composite video by using the appropriate adapters.

RGB video inputs — Connect the analog computer-video sources to these

15-pin HD female connectors.

Most laptop or notebook computers have an external video port, but they require

special commands to output the video to that connector. Also, a laptop’s screen shuts off once that port is activated. See the computer’s user’s guide for details, or contact Extron for a list of common laptop keyboard commands.

RGB video outputs — Connect RGBHV video displays to these 15-pin HD

female connectors for each output.

when making connections. Electrostatic discharge can damage equipment, even if you cannot feel, see, or hear it.

2-2

MVX 128 A VGA Matrix Switchers • Installation

Audio connections

By default, the audio ties follow the video ties. Audio breakaway, which can be activated via the front panel or under RS-232/RS-422 control, allows you to select from any one of the audio input sources and route it separately from its corresponding video source. See chapter 3, Operation, chapter 4, Programmer’s Guide, and chapter 5, Matrix Software for details.

Connections for balanced and unbalanced audio inputs — Each input has

a 3.5 mm, 5-pole captive screw connector for balanced or unbalanced stereo audio input. Connectors are included with each switcher, but you must supply the audio cable. See ﬁ gure 2-2 to wire a connector for the appropriate input type and impedance level. High impedance is generally over 800 ohms.

Tip

Sleeve

Tip

Sleeve

Unbalanced Input

(high impedance)

Tip

Ring

Sleeve (s)

Tip

Ring

Balanced Input

(high impedance) (600 ohms)

Sleeve (s)

Tip

Ring

Tip

Ring

Balanced Input

600 ohms

Figure 2-2 — Captive screw connector wiring for audio inputs

The captive screw audio connector can easily be inadvertently plugged

partially into one receptacle and partially into an adjacent receptacle. This misconnection could damage the audio output circuits. Ensure that the connector is plugged fully and only into the desired input or output.

See ﬁ gure 2-3 to identify the tip, ring, and sleeve when you are making

connections for the switcher from existing audio cables. A mono audio connector consists of the tip and sleeve. A stereo audio connector consists of the tip, ring and sleeve. The ring, tip, and sleeve wires are also shown on the captive screw audio connector diagrams, ﬁ gure 2-2 and ﬁ gure 2-4.

Tip (+)

Sleeve ( )

RCA Connector

Ring (-)

Sleeve ( )

3.5 mm Stereo Plug Connector

(balanced)

PRELIMINARY

Figure 2-3 — Typical audio connectors

The audio level for each input can be individually set via the front panel or Ethernet or RS-232/RS-422 control to ensure that the level on the output does not vary from input to input. See chapter 3, Operation; chapter 4, Programmer’s Guide; and chapter 5, Matrix Software for details.

MVX 128 A VGA Matrix Switchers • Installation

2-3

Installation, cont’d

Connections for balanced and unbalanced audio outputs — These 3.5 mm,

5-pole captive screw connectors output the selected unampliﬁ ed, line level audio. Connect audio devices, such as an audio ampliﬁ er or powered speakers. See ﬁ gure 2-4 to properly wire an output connector.

Tip

See caution

Sleeve

Tip

See caution

Ring

Sleeve (s)

Ring

Tip

PRELIMINARY

Unbalanced Output

Figure 2-4 — Captive screw connector wiring for audio output

Connect the sleeve to ground (Gnd). Connecting the sleeve to a negative

(-) terminal will damage the audio output circuits.

The volume level for each output can be individually set via the front panel or RS-232/RS-422 control. See chapter 3, Operation; chapter 4, Programmer’s Guide; and chapter 5, Matrix Software for details.

RS-232/RS-422 connection

RS-232/RS-422 connector — Connect a host device, such as a computer,

touch panel control, or RS-232 capable PDA to the switcher via this 9-pin D connector for serial RS-232/RS-422 control (ﬁ gure 2-5).

1 2

REMOTE

Figure 2-5 — RS-232/RS-422 connector

RS232/RS422

3 4 5 6 7 8 9

Balanced Output

RS-232 Function Pin Function

—

Not used

Transmit data

Receive data

—

Not used

Gnd

Signal ground

—

Not used

—

Not used

—

Not used

—

Not used

RS-422

—

TX–

RX–

—

Gnd

—

RX+

TX+

—

Not used Transmit data (–) Receive data (–) Not used Signal ground Not used Receive data (+) Transmit data (+) Not used

See chapter 4, Programmer’s Guide, for deﬁ nitions of the SIS commands (serial commands to control the switcher via this connector) and chapter 5, Matrix Software, for details on how to install and use the control software.

The switcher can support either the RS-232 or RS-422 serial communication

If desired, connect an MKP 2000 or MKP 3000 remote control panel to the switcher’s RS-232/RS-422 connector. Refer to the MKP 2000 Remote Control Panel User’s Manual and the MKP 3000 User’s Manual for details.

2-4

MVX 128 A VGA Matrix Switchers • Installation

protocol, and operate at 9600, 19200, 38400, or 115200 baud rates. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33, to conﬁ gure the RS-232/RS-422 port from the front panel.

Reset button

Reset button — The Reset button initiates two levels of reset to the matrix

switcher. Press and hold the button while the switcher is running or

RESET

while you power up the switcher for different reset levels.

See Reset button in chapter 3, Operation, for details.

• Rear panel (mode 5) system reset — Press and hold the Reset button until the Reset LED blinks three times (approximately 9 seconds) then release the button and push it again to clear all ties and presets, and reset all audio gains to 0 dB.

• Hard reset — Press and hold the Reset button while powering up the switcher to perform all of the mode 5 reset functions and restore the switcher to the default factory conditions.

Power connection

AC power connector — Plug a standard IEC power cord into this connector to

connect the switcher to a 100 VAC to 240 VAC, 50 or 60 Hz power source.

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Installation

2-5

Installation, cont’d

PRELIMINARY

2-6

MVX 128 A VGA Matrix Switchers • Installation

MVX 128 A VGA Matrix Switchers

Chapter Three

Operation

Front Panel Controls and Indicators

Front Panel Operations

Rear Panel Controls

Optimizing the Audio

Troubleshooting

PRELIMINARY

Conﬁ guration Worksheets

Operation

Front Panel Controls and Indicators

The front panel controls (ﬁ gure 3-1) are grouped into two sets. The input and output buttons are grouped on the left side of the control panel. The control buttons and video/audio (I/O) selection buttons are grouped on the right side of the panel.

1 3

PRELIMINARY

Figure 3-1 — Front panel, MVX 128 A

Deﬁ nitions

The following terms, which apply to all Extron matrix switchers, are used throughout this manual:

Tie — An input-to-output connection.

Set of ties — An input tied to two or more outputs. (An output can never be tied

Conﬁ guration — One or more ties or one or more sets of ties.

Current conﬁ guration — The conﬁ guration that is currently active in the

Global memory preset — A conﬁ guration that has been stored. Up to 32 global

OUTPUTS

INPUTS

9 10 11 12

ENTER

CONTROL

PRESET

ESC

VIEW

VGA MATRIX SWITCHER WITH ADSP

6 7 8 93

I/O

AUDIO

VIDEO

MVX SERIES

1 2 3 4 5 6 7 8

2 4 5

to more than one input.)

switcher (also called conﬁ guration 0).

memory presets can be stored in memory. Preset locations are assigned to the input buttons and output buttons. Up to 20 presets can be selected from the front panel for either saving or retrieving. When a preset is retrieved from memory, it becomes the current conﬁ guration. The switcher has 32 presets; preset numbers higher than 21, too high to be available from the front panel, are still accessible under RS-232/RS-422 control.

3-2

MVX 128 A VGA Matrix Switchers • Operation

Input and output buttons

Input buttons and LEDs — The input buttons and LEDs have two primary

functions (•) and two secondary (❏) functions:

• Select an input.

• Identify the selected input.

❏ Select a preset. See Using global presets on page 3-21.

❏ Display the output volume level. See Viewing and adjusting the output

volume on page 3-28.

Output buttons and LEDs — The output buttons and LEDs have two primary

functions (•) and three secondary (❏) functions:

• Select output(s).

• Identify the selected output(s).

❏ Mute the output. See Muting and unmuting video and/or audio on

page 3-18.

❏ Display the audio level of the selected input. See Viewing and adjusting the

input audio level on page 3-24.

❏ Select a preset. See Using global presets on page 3-21.

Input and output label windows — These translucent panels can be removed

and replaced to insert labels behind the panels. To remove a panel, insert the Phillips-head end of a Tweeker or small Phillips-head screwdriver into the hole in one end of the panel, and gently slide the tab at the edge of the panel out of the recess in the switcher housing.

Input and output labels can be created easily with Extron’s button label generator software, which ships with every Extron matrix switcher, or with any Brother names, alphanumeric characters, or even color bitmaps for easy and intuitive input and output selection (ﬁ gure 3-2). See chapter 5, Matrix Software, for details on using the label software.

1 2 3 4 5 6

Figure 3-2 — Sample label

P-Touch™ labeler. Each input and output can be labeled with

Rack DVD (DVS 308)

INPUTS

7 8

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Operation

3-3

Operation, cont’d

Control buttons

Enter button and LED — The Enter button and LED have three primary

functions (•) and three secondary (❏) functions:

• Saves changes that you make on the front panel. To create a simple

• Indicates that a potential tie has been created but not saved.

• Indicates that a global preset has been selected to be saved or recalled but

❏ With the Preset, View, and Esc buttons, selects Serial Port Conﬁ guration

❏ Selects 9600 baud for the RS-232/RS-422 port in Serial Port Conﬁ guration

❏ Indicates that the RS-232/RS-422 port is set to 9600 baud in Serial Port

conﬁ guration:

 Specify RGBHV, audio, or both (see I/O selection buttons [

[

]).

 Press the desired input button (

 Press the desired output button(s) (

 Press the Enter button.

that the preset action has not been accomplished.

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33.

Conﬁ guration mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33.

] and

PRELIMINARY

Preset button and LED — The Preset button and LED have two primary

functions (•) and three secondary (❏) functions:

• Activates Save Preset mode to save a conﬁ guration as a preset and Recall Preset mode to activate a previously-deﬁ ned preset.

• Blinks when Save Preset mode is active and lights steadily when Recall Preset mode is active.

❏ With the Enter, View, and Esc buttons, selects Serial Port Conﬁ guration

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33.

❏ Selects 19200 baud for the RS-232/RS-422 port in Serial Port Conﬁ guration

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33.

❏ Indicates that the RS-232/RS-422 port is set to 19200 baud in Serial Port

Conﬁ guration mode. See Selecting the RS-232/RS-422 protocol and baud rate

on page 3-33.

3-4

MVX 128 A VGA Matrix Switchers • Operation

View (<) button and LED — The View (<) button and LED have two primary

functions (•) and six secondary (❏) functions:

• Selects a View-Only mode that displays the current conﬁ guration.

View-only mode also provides a way to mute and unmute the outputs. See

Muting and unmuting video and/or audio on page 3-18.

• Indicates that View-Only mode is active.

❏ Decreases the audio level of the selected input. See Viewing and adjusting

the input audio level on page 3-24.

❏ Indicates a negative (attenuation) audio level. See Viewing and adjusting

the input audio level on page 3-24.

❏ Decreases the volume of the selected output. See Viewing and adjusting the

output volume on page 3-28.

❏ With the Enter, Preset, and Esc buttons, selects Serial Port Conﬁ guration

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33.

❏ Selects 38400 baud for the RS-232/RS-422 port in Serial Port Conﬁ guration

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33.

❏ Indicates that the RS-232/RS-422 port is set to 38400 baud in Serial Port

Conﬁ guration mode. See Selecting the RS-232/RS-422 protocol and baud rate

on page 3-33.

Esc (>) button and LED — The Esc (>) button and LED have two primary

functions (•) and six secondary (❏) functions:

• Cancels operations or selections in progress and resets the front panel button indicators.

The Esc (

and Audio selection button, any presets, or any audio gain or attenuation settings.

• Flashes once to indicate that the escape function has been activated.

❏ Increases the audio level of the selected input.

See Viewing and adjusting the input audio level on page 3-24.

❏ Indicates a positive (gain) audio level. See Viewing and adjusting the input

audio level on page 3-24.

❏ Increases the volume of the selected output. See Viewing and adjusting the

output volume on page 3-28.

❏ With the Enter, Preset, and View buttons, selects Serial Port Conﬁ guration

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33.

❏ Selects 115200 baud for the RS-232/RS-422 port in Serial Port Conﬁ guration

mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33.

❏ Indicates that the RS-232/RS-422 port is set to 115200 baud in Serial Port

Conﬁ guration mode. See Selecting the RS-232/RS-422 protocol and baud rate

on page 3-33.

) button does not reset the current conﬁ guration, the RGBHV button

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Operation

3-5

Operation, cont’d

I/O controls

You must specify video, audio, or both when you are creating or viewing a conﬁ guration. This is done with the RGBHV button (h) and Audio (i) buttons.

RGBHV button and LED — The RGBHV button and LED have two primary

functions (•) and four secondary (❏) functions:

• Selects and deselects video for a conﬁ guration that is being created or

• Lights green to indicate that video is available for conﬁ guring or for

❏ With the Audio button, toggles the front panel lock on or off. See Locking

❏ With the Audio button, commands the front panel system reset. See

❏ Selects the RS-232 protocol for the RS-232/RS-422 port in Serial Port

❏ Indicates that the RS-232/RS-422 port is set to the RS-232 protocol in

viewed.

viewing.

out the front panel (Executive mode) on page 3-32.

Performing a system reset from the front panel on page 3-32.

Conﬁ guration mode. See Selecting the RS-232/RS-422 protocol and baud rate

on page 3-33.

Serial Port Conﬁ guration mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33.

PRELIMINARY

Audio button and LED — The Audio button and LED have two primary

functions (•) and ﬁ ve secondary (❏) functions

• Selects and deselects audio for a conﬁ guration that is being created or viewed.

• Lights to indicate that audio is available for conﬁ guration or viewing.

❏ Selects the Audio mode, in which you can adjust the input audio level.

See Viewing and adjusting the input audio level on page 3-24 .

❏ With the RGBHV button, toggles the front panel lock on or off.

See Locking out the front panel (Executive mode) on page 3-32.

❏ With the RGBHV button, commands the front panel system reset.

See Performing a system reset from the front panel on page 3-32.

❏ Selects the RS-422 protocol for the RS-232/RS-422 port in Serial Port

Conﬁ guration mode. See Selecting the RS-232/RS-422 protocol and baud rate

on page 3-33.

❏ Indicates that the RS-232/RS-422 port is set to the RS-422 protocol in

Serial Port Conﬁ guration mode. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33.

3-6

MVX 128 A VGA Matrix Switchers • Operation

Front Panel Operations

The following paragraphs detail the power-up process and then provide sample procedures for the following actions:

• Creating ties, sets of ties, and conﬁ gurations

• Changing a conﬁ guration

• Viewing ties, sets of ties, and conﬁ gurations

• Muting and unmuting outputs

• Saving a preset

• Recalling a preset

• Viewing and adjusting the output volume

• Viewing and adjusting the input audio level

• Locking the front panel

• Performing front panel resets

• Reading and setting the RS-232/RS-422 Remote port settings

Power

Apply power by connecting the power cord to an AC source. When AC power is applied, the switcher performs a self-test that ﬂ ashes the front panel LEDs and then turns them off. An error-free power up self-test sequence leaves the RGBHV LED and the Audio LED on, and all other LEDs unlit.

The current conﬁ guration and all presets are saved in non-volatile memory. When power is applied, the most recent conﬁ guration is retrieved. The previous presets remain intact.

If an error occurs during the self-test, the switcher locks up and does not operate. If your switcher locks up on power-up, call the Extron S Hotline.

Sales & Technical Support

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Operation

3-7

PRELIMINARY

Operation, cont’d

Creating a conﬁ guration

The current conﬁ guration can be changed using the front panel buttons. Change the current conﬁ guration as follows:

1. Press the Esc button to clear any input LEDs, output LEDs, or control LEDs that are lit.

2. Select to conﬁ gure video, audio, or both by pressing the RGBHV button and/or Audio button.

3. Select the desired input and output(s) by pressing the input and output buttons.

To indicate potential ties, output LEDs blink when an output is selected but

not tied to the input.

To indicate current ties, output LEDs light steadily when an input is tied to

the output.

To clear unwanted outputs, press and release the output buttons associated

with the lit LEDs. To indicate potential unties, output LEDs blink when an output is deselected but not untied from the input.

4. Press and release the Enter button to accept the new tie or to break an existing tie.

5. Repeat steps 1 through 4 to create additional ties until the desired conﬁ guration is complete.

N • Only one video input and one audio input can be tied to an output.

• If a tie is made between an input and an output, and the selected output was previously tied to another input, the older tie is broken in favor of the newer tie.

• To indicate current ties, output LEDs light when an input is selected. To clear unwanted outputs, press and release the associated output buttons.

• If, when conﬁ guring video and audio ties, the Audio LED blinks and the RGBHV LED is on after selecting an input or output, the LEDs indicate audio breakaway, meaning that the audio ties are not the same as the video ties for that input.

• If an input with no tie is selected, only that input’s LED lights.

• When the RGBHV and Audio LEDs are on, if an input with an audio tie but no video tie is selected, the input’s LED lights and the Audio LED blinks.

• As each output is selected, the associated output LED blinks to indicate a tentative tie. LEDs for output(s) that were already tied to the input light steadily. Outputs that are already tied can be left on, along with new blinking selections, or toggled off by pressing the associated output button.

3-8

MVX 128 A VGA Matrix Switchers • Operation

Example 1: Creating a set of video and audio ties

In the following example, input 5 is tied to outputs 3, 4, and 8. The steps show the front panel indications that result from your actions.

This example assumes that there are no ties in the current conﬁ guration.

1. Press and release the Esc button (ﬁ gure 3-3).

Press the Esc button to clear all selections.

CONTROL

ENTER PRESET VIEW ESC

= Blink once

The LED blinks once.

Figure 3-3 — Clear all selections

2. To select video and audio for the tie, if necessary, press and release the RGBHV button and the Audio button until the LEDs light (ﬁ gure 3-4).

I/O

RGBHV AUDIO

Press the RGBHV button to toggle on and off.

The LED lights when selected.

Press the Audio button to toggle on and off.

The LED lights when selected.

Figure 3-4 — Select RGBHV and audio

3. Press and release the input 5 button (ﬁ gure 3-5).

Press and release the Input 5 button.

INPUTS

2 3 4 5 6

The LED lights.

Figure 3-5 — Select an input

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Operation

3-9

Operation, cont’d

4. Press and release the output 3, output 4, and output 8 buttons (ﬁ gure 3-6).

1 2 3 4 5

= Blinking LED

Figure 3-6 — Select the outputs

5. Press and release the Enter button (ﬁ gure 3-7).

Press the Enter button to confirm the configuration change.

ENTER

The entire set of ties can be canceled at this point by pressing and releasing the

Esc button. The Esc LED ﬂ ashes once.

Press and release the Output 3, Output 4, and Output 8 buttons. The buttons blink to indicate that the selected RGBHV and audio input will be tied to these outputs.

ENTER PRESE

7 8

The Enter LED blinks to indicate the need to confirm the change.

OUTPUTS

The Enter LED and all input LEDs and output LEDs return to the unlit state.

PRELIMINARY

Figure 3-7 — Press the Enter button

The current conﬁ guration (ﬁ gure 3-8) is now:

• Input 5 (video and audio) are tied to output 3, output 4, and output 8

Input 5 (video/audio) tied

to outputs 3, 4, and 8.

Input

3 4

Output

Video Audio

Figure 3-8 — Example 1, ﬁ nal conﬁ guration

3-10

MVX 128 A VGA Matrix Switchers • Operation

Example 2: Adding a tie to a set of video and audio ties

In the following example, a new video tie is added to the current conﬁ guration. The steps show the front panel indications that result from your action.

This example assumes that you have performed example 1.

1. Press and release the Esc button (ﬁ gure 3-9).

Press the Esc button to clear all selections.

CONTROL

ENTER PRESET VIEW ESC

= Blink once

The LED blinks once.

Figure 3-9 — Clear all selections

2. To select video only for the tie, if necessary, press and release the RGBHV button and/or Audio button (ﬁ gure 3-10).

I/O

RGBHV AUDIO

Press the RGBHV button to toggle on and off.

The LED lights when selected.

Press the Audio button to toggle on and off.

The LED is unlit when deselected.

Figure 3-10 — Select RGBHV only

3. Press and release the Input 5 button (ﬁ gure 3-11).

Press and release the Input 5 button. The LED lights.

2 3 4 5 6

Figure 3-11 — Select an input

4. Press and release the Output 1 button (ﬁ gure 3-12).

Press and release the Output 1 button. The LED blinks to indicate that the selected RGBHV input will be tied to this output.

INPUTS

The Output 3, Output 4, and Output 8 LEDs light to indicate the RGBHV ties created in example 1.

1 2 3 4 5

OUTPUTS

ENTER PRESE

The Enter LED blinks to indicate

the need to confirm the change.

PRELIMINARY

7 8

Figure 3-12 — Select the output

MVX 128 A VGA Matrix Switchers • Operation

3-11

Operation, cont’d

5. Press and release the Enter button (ﬁ gure 3-13).

Press the Enter button to confirm the configuration change.

ENTER

Figure 3-13 — Press the Enter button

The current conﬁ guration (ﬁ gure 3-14) is now:

• Input 5 (video) is tied to output 1, output 3, output 4, and output 8

• Input 5 (audio) is tied to output 3, output 4, and output 8

The Enter LED and all input LEDs and output LEDs return to the unlit state.

Input 5 video tied

to outputs 1, 3, 4, and 8.

Input 5 audio tied

to outputs 3, 4, and 8.

Input

3 4

Output

PRELIMINARY

Video Audio

Figure 3-14 — Example 2, ﬁ nal conﬁ guration

3-12

MVX 128 A VGA Matrix Switchers • Operation

Example 3: Removing a tie from a set of video and audio ties

In the following example, an existing audio tie is removed from the current conﬁ guration. The steps show the front panel indications that result from your action.

This example assumes that you have performed example 1 and example 2.

1. Press and release the Esc button (ﬁ gure 3-15).

Press the Esc button to clear all selections.

CONTROL

ENTER PRESET VIEW ESC

= Blink once

The LED blinks once.

Figure 3-15 — Clear all selections

2. To select audio only for the tie, if necessary, press and release the RGBHV button and/or Audio button (ﬁ gure 3-16).

I/O

RGBHV AUDIO

Press the RGBHV button to toggle on and off.

The LED is unlit when deselected.

Press the Audio button to toggle on and off.

The LED lights when selected.

Figure 3-16 — Select audio only

3. Press and release the Input 5 button (ﬁ gure 3-17).

Press and release the Input 5 button. The LED lights.

2 3 4 5 6

Figure 3-17 — Select an input

INPUTS

The Output 3, Output 4, and Output 8 LEDs light to indicate the audio ties created in example 1. The Output 1 LED does not light to indicate the tie created in example 2 because that tie is RGBHV only.

1 2 3 4 5

OUTPUTS

PRELIMINARY

7 8

MVX 128 A VGA Matrix Switchers • Operation

3-13

Operation, cont’d

4. Press and release the Output 4 button (ﬁ gure 3-18).

Figure 3-18 — Deselect the output

5. Press and release the Enter button (ﬁ gure 3-19).

Press the Enter button to confirm the configuration change.

ENTER

Figure 3-19 — Press the Enter button

Press and release the Output 4 button. The LED blinks to indicate that the selected RGBHV output will be untied.

1 2 3 4 5

OUTPUTS

The Enter LED and all input LEDs and output LEDs return to the unlit state.

ENTER PRESE

The Enter LED blinks to indicate

the need to confirm the change.

PRELIMINARY

The current conﬁ guration (ﬁ gure 3-20) is now:

• Video — Input 5 (video) is tied to output 1, output 3, output 4, and output 8

• Audio — Input 5 (audio) is tied to output 3 and output 8

Input 5 video tied

to outputs 1, 3, 4, and 8.

Input 5 audio tied

to outputs 3 and 8.

Input

3 4

Output

Video Audio

Figure 3-20 — Example 3, ﬁ nal conﬁ guration

3-14

MVX 128 A VGA Matrix Switchers • Operation

Viewing a conﬁ guration

The current conﬁ guration can be viewed using the front panel buttons. The

View-Only mode prevents inadvertent changes to the current conﬁ guration. View-Only mode also provides a way to mute video and audio outputs (see Muting and unmuting video and/or audio on page 3-18).

View the current conﬁ guration as follows:

1. Press the Esc button to clear any input LEDs, output LEDs, or control LEDs that are lit.

2. Press and release the View button. All of the LEDs for outputs that are not tied light.

3. Select video, audio, or both to view by pressing the RGBHV button and/or the Audio button.

4. Select the desired input or output(s) whose ties you wish to view by pressing the input and output buttons.

N • When you enter View-Only mode, the output LEDs light for all outputs

without ties. Likewise, when an output button for which there are no ties is pushed, the output LEDs turn on for all outputs without ties.

• To see all ties of the current conﬁ guration, press and release each input and output button, one at a time, with the RGBHV LED and the Audio LED lit.

• In View-Only mode, you can view video and audio, video-only, or audioonly ties. Pressing and releasing the RGBHV button and the Audio button toggles each on and off.

Example 4: Viewing video and audio, audio only, and video only ties

The following steps show an example of viewing the video and audio, audio-only, and video-only ties in the current conﬁ guration. The steps show the front panel indications that result from your action.

1. Press and release the Esc button (ﬁ gure 3-21).

Figure 3-21 — Clear all selections

2. Press and release the View button to enter View-Only mode. The View LED

This example assumes that you have performed example 1, example 2, and

example 3.

Press the Esc button to clear all selections.

CONTROL

ENTER PRESET VIEW ESC

= Blink once

lights.

The LED blinks once.

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Operation

3-15

Operation, cont’d

3. To select both video and audio for viewing, if necessary, press and release the RGBHV button and the Audio button (ﬁ gure 3-22).

I/O

In this example, the Audio LED blinks to indicate audio breakaway (assuming you have performed example 1, 2, and 3).

RGBHV AUDIO

PRELIMINARY

Press the RGBHV button

to toggle on and off.

The LED lights when

selected.

Press the Audio button to toggle on and off.

The LED lights or blinks when selected.

Until you select an input, the buttons for all untied outputs light.

1 2 3 4 5

Figure 3-22 — Select RGBHV or video and audio

4. Press and release the Input 5 button (ﬁ gure 3-23).

Press and release the Input 5 button. The LED lights.

3 4 5 6 7

The output buttons for outputs that are tied to input 5 light.

2 3 4 5

The output buttons for outputs that are not tied to input 5 are unlit.

Figure 3-23 — Select an input

OUTPUTS

7 8

3-16

MVX 128 A VGA Matrix Switchers • Operation

You can also view a set of ties by selecting a tied output. To demonstrate this,

note the number of a lit output LED, and then press and release the output button for an untied (unlit) output. Observe that all of the untied outputs’ LEDs light. Then press the output button that you noted previously and observe that the selected output LED, the tied input LED (input 5), and the output LEDs light for all of the outputs that are tied to the input.

5. Press and release the RGBHV button to deselect RGBHV (ﬁ gure 3-24).

I/O

The output buttons for outputs that are tied to input 5 light to

RGBHV AUDIO

indicate audio ties (audio breakaway).

Press the RGBHV

button to delesect it.

The LED is unlit

when deselected.

Figure 3-24 — Deselect RGBHV to view audio ties only

6. Press and release the RGBHV button and the Audio button to toggle the

VIDEO AUDIO

Press the RGBHV

button to select it.

The LED lights when selected.

Figure 3-25 — Deselect audio and select RGBHV to view RGBHV only

If video ties are established for input 5, the output LEDs for all video outputs

7. Press and release the View button to exit View-Only mode (ﬁ gure 3-26).

The Audio LED remains lit to indicate that only audio is selected.

2 3 4 5

7 8

OUTPUTS

The output buttons for outputs that are not tied to input 5 are unlit.

RGBHV LED lit and the Audio LED unlit (ﬁ gure 3-25).

I/O

The output buttons for outputs that are tied to input 5 light to indicate audio ties (audio breakaway).

Press the Audio button to deselect it.

The LED is unlit when deselected.

The output buttons for outputs that are not tied to input 5 are unlit.

2 31 4 5

OUTPUTS

7 8

tied to input 5 light. If no ties are established for input 5, all output LEDs return to the unlit state.

Press the View button to exit View-Only mode.

CONTROL

The View LED returns to the unlit state.

PRELIMINARY

Figure 3-26 — Press the View button to exit View-Only mode

SET

VIEW

All input LEDs and output LEDs return to the unlit state.

MVX 128 A VGA Matrix Switchers • Operation

3-17

Operation, cont’d

Muting and unmuting video and/or audio

Individual outputs can be muted or unmuted as follows:

1. Press the Esc button to clear any input LEDs, output LEDs, or control LEDs that are lit.

2. Press and release the View button.

3. Select video, audio, or both to mute or unmute by pressing the RGBHV

button and/or the Audio button.

4. One at a time, press and hold the output button(s) for the desired output(s) for approximately 2 seconds. The output LED(s) for the selected output(s) blink to indicate the mute or return to their previous state to indicate the unmute.

5. Press and release the View button to return to normal switcher operation.

N • You can mute video and audio, video-only, or audio-only outputs. Pressing

and releasing the RGBHV button and the Audio button toggles each selection on and off.

• When you enter View-Only mode, the output LEDs turn on for all outputs without ties.

• The video mute function mutes the R, G, and B planes only; the H and V planes are still active.

• Mutes are saved to non-volatile memory. When power is removed and restored, the mute settings are retained.

PRELIMINARY

Example 5: Muting and unmuting an output

The following steps show an example in which several matrix switcher outputs are muted and unmuted. The steps show the front panel indications that result from your actions.

1. Press and release the Esc button (ﬁ gure 3-27).

Press the Esc button to clear all selections.

CONTROL

ENTER PRESET VIEW ESC

= Blink once

Figure 3-27 — Clear all selections

2. Press and release the View button to enter View-Only mode. The View LED

lights.

The LED blinks once.

3-18

MVX 128 A VGA Matrix Switchers • Operation

3. To select both video and audio for viewing and muting, if necessary, press and release the RGBHV button and the Audio button (ﬁ gure 3-28).

This example shows the indications that the front panel displays if example 1,

example 2, and example 3 have been completed.

I/O

In this example, the Audio LED blinks to indicate audio breakaway (assuming you have performed example 1, 2, and 3).

RGBHV AUDIO

Press the RGBHV button

to toggle on and off.

The LED lights when

selected.

Press the Audio button to toggle on and off.

The LED lights or blinks when selected.

Until you select an input, the buttons for all untied outputs light.

1 2 3 4 5

7 8

OUTPUTS

Figure 3-28 — Select RGBHV and audio

4. Press and hold the Output 3 button and the Output 4 button (ﬁ gure 3-29) for approximately 2 seconds until the LEDs begin to blink. The output 3 and output 4 video and audio signals are muted.

Press and hold the Output 3 and Output 4 button.

3 4 5

OUTPUTS

2 seconds

PRELIMINARY

Figure 3-29 — Mute the outputs

3 4 5

OUTPUTS

The LEDs blink to indicate that the

RGBHV and audio outputs are muted.

= Blinking LED

Release the button.

If both RGBHV and audio are selected, the mute action toggles both the video

and audio outputs. If either the video output or the audio output is already muted, the unmuted output is muted and the muted output is unmuted.

If both RGBHV and audio are selected and only video is muted, the output LED

ﬂ ashes. If only audio is selected, the output LED is lit steadily (indicating no audio mute).

MVX 128 A VGA Matrix Switchers • Operation

3-19

Operation, cont’d

5. Press and hold the Output 3 button and the Output 4 button (ﬁ gure 3-30) for approximately 2 seconds until the LEDs light steadily. The output 3 and output 4 video and audio signals are unmuted.

Figure 3-30 — Unmute the outputs

Press and hold the Output 3 and Output 4 button.

3 4 5

OUTPUTS

3 4 5

OUTPUTS

The LEDs stop blinking and light to indicate that the

= Blinking LED

RGBHV and audio outputs are unmuted.

Release the button.

2 seconds

PRELIMINARY

If both RGBHV and audio are selected, the unmute action toggles both the video

and audio outputs. If either the video output or the audio output is already unmuted, the muted output is unmuted and the unmuted output is muted.

6. Press and release the View button to exit View-Only mode (ﬁ gure 3-31).

Press the View button to exit View-Only mode.

CONTROL

The View LED returns to the unlit state.

VIEW

SET

All input LEDs and output LEDs return to the unlit state.

Figure 3-31 — Press the View button to exit View-Only mode

3-20

MVX 128 A VGA Matrix Switchers • Operation

Using global presets

The current conﬁ guration (conﬁ guration 0) can be saved as a preset in any one of 32 preset memory addresses. Preset locations are assigned to the input buttons and output buttons. Up to 20 presets can be selected from the front panel to be either saved or retrieved. When a preset is retrieved from memory, it becomes the current conﬁ guration.

N • Only the audio and video ties are stored and recalled; audio gain settings are

not saved, and they do not change when a preset is recalled.

• Presets cannot be viewed from the front panel unless recalled as the current conﬁ guration. Presets can be viewed using Extron’s Windows-based control program. See Chapter 5, Matrix Software, for more details.

• The current conﬁ guration and all presets are stored in non-volatile memory. When power is removed and restored, the current conﬁ guration is still active and all presets are retained.

• When a preset is recalled, it replaces the current conﬁ guration, which is lost unless it is also stored as a preset. The recalled preset overwrites all of the current conﬁ guration ties in favor of the preset conﬁ guration ties.

• Preset numbers greater than 20 (that are too high to be available from the front panel) are still accessible under RS-232/RS-422 control.

• Figure 3-32 shows the presets associated with the various input and output buttons.

Preset

Preset6Preset

INPUTS

Preset

8 9 10 11 12

Preset

NOTE Presets 21 through 32 are

available via RS-232/RS-422

Preset

Preset14Preset

OUTPUTS

Preset

Preset18Preset

Preset

control only.

Figure 3-32 — Preset locations

Example 6: Saving a preset

The following steps show an example in which the current conﬁ guration is saved as a preset. The steps show the front panel indications that result from your actions.

1. Press and release the Esc button (ﬁ gure 3-33).

Press the Esc button to clear all selections.

CONTROL

ENTER PRESET VIEW ESC

= Blink once

The LED blinks once.

Figure 3-33 — Clear all selections

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Operation

3-21

Operation, cont’d

2. Press and hold the Preset button for approximately 2 seconds until the Preset LED blinks (ﬁ gure 3-34).

Press and hold the Preset button until the Preset LED blinks.

PRESET PRESET

Figure 3-34 — Enter Save Preset mode

3. Press and release the Output 1 button (ﬁ gure 3-35).

Press and release the Output 1 button.

The LED blinks to indicate that this preset number is selected but not saved.

2 seconds

= Blinking LED

All input and output LEDs with assigned presets light. If you then save the configuration to a lit preset number, the configuration data at that preset location will be overwritten.

Release the Preset button.

Lit

(Preset Assigned)

1 2 3 4

Preset 13 Preset 14 Preset 16Preset 15

Unlit

(Preset Unassigned)

Output LEDs

CONTROL

PRELIMINARY

1 2 3 4

Preset 13 Preset 14 Preset 16Preset 15

= Blinking LED

ENTER PRESET VIEW

The Enter LED blinks to indicate the need to save the preset. The Preset LED continues to blink.

Figure 3-35 — Select the preset

4. Press and release the Enter button (ﬁ gure 3-36). The current conﬁ guration is now stored in memory location 13.

Press the Enter button to save the preset.

CONTROL

ENTER PRESET VIEW ESC

All input LEDs

The Enter and Preset LEDs return to the unlit state.

return to the unlit state.

Figure 3-36 — Press the Enter button

3-22

MVX 128 A VGA Matrix Switchers • Operation

Example 7: Recalling a preset

The following steps show an example in which a preset is recalled to become the current conﬁ guration. The steps show the front panel indications that result from your actions.

1. Press and release the Esc button (ﬁ gure 3-37).

Press the Esc button to clear all selections.

CONTROL

ENTER PRESET VIEW ESC

= Blink once

Figure 3-37 — Clear all selections

2. Press and release the Preset button (ﬁ gure 3-38).

The LED blinks once.

All input and output LEDs with assigned presets light.

Lit

(Preset Assigned)

Unlit

(Preset Unassigned)

Press and release the Preset button. The Preset LED lights.

PRESET

1 2 3 4

Preset 13 Preset 14 Preset 16Preset 15

Figure 3-38 — Enter Recall Preset mode

3. Press and release the Output 1 button (ﬁ gure 3-39).

Press and release the Output 1 button.

The LED blinks to indicate that this preset number is selected but not recalled.

1 2 3 4

Preset 13 Preset 14 Preset 16Preset 15

= Blinking LED

ENTER PRESET VIEW

The Enter LED blinks to indicate the need to recall the preset. The Preset LED remains lit.

Figure 3-39 — Select the preset

PRELIMINARY

CONTROL

MVX 128 A VGA Matrix Switchers • Operation

3-23

PRELIMINARY

Operation, cont’d

4. Press and release the Enter button (ﬁ gure 3-40). The conﬁ guration stored in memory location 13 is now the current conﬁ guration and can be viewed in the View-Only mode (see example 4).

ENTER PRESET VIEW ESC

The Enter and Preset LEDs return to the unlit state.

Figure 3-40 — Press the Enter button

Viewing and adjusting the input audio level

The audio level of each input can be displayed and adjusted through a range of

-18 dB to +24 dB to ensure that there is no noticeable volume difference among

sources (ﬁ gure 3-41). The audio level can be adjusted from the front panel or under RS-232/RS-422 control.

VU dBu

21 +24 18 +21 15 +19 12 +16

9 +13 6 +10 3 +7 0

-3

-6

-2

-9

-5

-12

-8

-15

-12

-18

-15

-21

-18

Low Audio

Output Level

VU dBu

21 +24 18 +21 15 +19 12 +16

9 +13 6 +10 3 +7 0

-3

-6

-2

-9

-5

-12

-8

-15

-12

-18

-15

-21

-18

High Audio

Output Level

Press the Enter button to recall the preset.

CONTROL

Audio Inputs

VCR

INPUTS

1 2 3 4 5 6 7 8

OUTPUTS

MVX 128 A

CD Jukebox

All input LEDs return to the unlit state.

9 10 11 12

VU dBu 21 +24 18 +21 15 +19 12 +16

9 +13 6 +10 3 +7 0

-3

-6

-2

-9

-5

-12

-8

-15

-12

-18

-15

-21

-18

Output

CONTROL

I/O

AUDIO

VIDEO

ENTER

ESC

PRESET

VIEW

MVX SERIES

VGA MATRIX SWITCHER

WITH

ADSP

Level

Audio System

No noticeable volume differences between sources

Figure 3-41 — Audio gain and attenuation

1. Press the Esc button to clear any input LEDs, output LEDs, or control LEDs that are lit.

2. To enter the Audio mode, press and hold the Audio button until the LED begins to blink, then release the button.

3-24

MVX 128 A VGA Matrix Switchers • Operation

3. Press and release an input button to select an input. The output LEDs display the audio level for the selected input and the Esc (>) and View (<) LED display the polarity (gain [+] or attenuation [–]). Each output LED indicates 1 dB when blinking slowly, 2 dB when blinking quickly, and 3 dB when lit. See the table at right.

4. Press and release the Esc (

) and

View (<) buttons to increase and decrease the audio level by 1 dB per each push of the button, or press and hold the button to change the level at a rate of 3 dB per second until the button is released or the upper or lower limit is reached.

5. Press and release the Audio button to exit the Audio mode. The Audio LED stops blinking.

N • Pressing the Enter or Preset

button also exits Audio mode. Pressing the Preset button changes to Recall Preset mode.

• There is one audio level setting per input. The audio level setting is shared by the left and right audio inputs.

• The audio level settings are stored in non-volatile memory. When power is removed and restored, the audio level settings are retained.

• Exiting Audio mode by pressing the Audio button always returns the I/O conﬁ guration to RGBHV and audio selected for conﬁ guration.

Audio input level settings

Output LED

6 5 4 3 2 1

+24

+23

+22

+21

+20

+19

+18

+17

+16

+15

+14

+13

+12

+11

+10

-1

-2

-3

-4

-5

-6

-7

-8

-9

-10

-11

-12

-13

-14

-15

-16

-17

-18

= on, = blinking fast, = blinking slowly, = off

View Esc

8 7

8 7 6 5 4 3 2 1

+24

+23

+22

+21

+20

+19

+18

+17

+16

+15

+14

+13

+12

+11

+10

-1

-2

-3

-4

-5

-6

-7

-8

-9

-10

-11

-12

-13

-14

-15

-16

-17

-18

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Operation

3-25

Operation, cont’d

Example 10: Viewing and adjusting an input audio level

In the following example, an audio level is viewed and adjusted. The steps show the front panel indications that result from your action.

1. Press and release the Esc button (ﬁ gure 3-42).

Press the Esc button to clear all selections.

ENTER PRESET VIEW ESC

Figure 3-42 — Clear all selections

2. Press and hold the Audio button for approximately 2 seconds until the Audio LED blinks (ﬁ gure 3-43).

Press and hold the Audio button.

CONTROL

= Blink once

I/O

The LED blinks once.

PRELIMINARY

2 seconds

RGBHV AUDIO AUDIO

= Blinking LED

The LED blinks to indicate Audio mode.

Release the button.

Figure 3-43 — Select Audio mode

3. Press and release the Input 5 button (ﬁ gure 3-44).

Press and release the Input 5 button. The LED lights.

1 2 3 4 5 6

1 2 3 4 5

7 8

OUTPUTS

The output LEDs display the selected input's audio level.

In this example, the output buttons and View and Esc buttons display an audio gain level of +8 dB.

= Lit LED,

= Fast blinking LED= Unlit LED,

The View and Esc LEDs display the polarity (gain or attenuation).

VIEW ESC

Figure 3-44 — Select an input and read the audio level

3-26

MVX 128 A VGA Matrix Switchers • Operation

4. Press and release the View (<) button once (ﬁ gure 3-45) to decrease the input audio level by 1 dB.

Press and release the View (

decrease the input audio level by 1 dB per button push. Note the output button indication changes that occur each time the View (<) button is pressed.

Figure 3-45 shows the result of pressing the View (

times. Note that the level is now displayed in red to indicate a negative level.

Press the View button to decrease the input audio level by 1 dB per button push.

VIEW

) button several more times (ﬁ gure 3-45) to

) button a total of nine

1 2 3 4 5

OUTPUTS

The output LEDs display the selected input's audio level. The View and Esc LEDs display

In this example, the output buttons and View and Esc buttons display an audio gain level of –1 dB.

= Lit LED, = Slow blinking LED= Unlit LED,

7 8

VIEW ESC

the polarity (gain or attenuation).

Figure 3-45 — Adjust the input audio level

5. Press and release the Audio button (ﬁ gure 3-46).

Press the Audio button to exit audio mode.

I/O

All input LEDs and output LEDs

RGBHV AUDIO

The Audio LED stops blinking and lights steadily. The RGBHV button lights.

return to the unlit state.

Figure 3-46 — Deselect Audio mode

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Operation

3-27

PRELIMINARY

Operation, cont’d

Viewing and adjusting the output volume

The audio level of each output can be displayed and adjusted through a range of 100% (no attenuation) to 0% (maximum [98 dB] attenuation). The audio level can be adjusted from the front panel or under RS-232/RS-422 control.

1. Press the Esc button to clear any input LEDs, output LEDs, or control LEDs that are lit.

2. To enter the Audio mode, press and hold the Audio button until the LED begins to blink, then release the button.

3. Press and release an output button to select an output. The input LEDs display the volume level for the selected output. The switchers indicate the volume differently, depending on number of input LEDs, but as a general rule, the more LEDs that are lit, the higher the volume. The fewer LEDs that are lit, the lower the volume.

For a more detailed analysis of decoding the displayed value, see Reading the

displayed volume on the next page.

4. Press and release the Esc ( the audio volume by 1 dB per each push of the button or press and hold the button to change the level at a rate of 3 dB per second until the button is released or the upper or lower limit is reached.

5. Press and release the Audio button to save the audio settings and exit the Audio mode. The Audio button stops blinking.

N • There is one audio volume level setting per output. The audio level setting is

) and View (<) buttons to increase and decrease

shared by the left and right audio inputs.

• The audio volume levels are stored in non-volatile memory. When power is removed and restored, the audio level settings are retained.

• Exiting Audio mode by pressing the Audio button always returns the I/O LEDs to both RGBHV and Audio lit.

• Pressing the Enter or Preset button also exits Audio mode. Pressing the Preset button changes to Recall Preset mode.

3-28

MVX 128 A VGA Matrix Switchers • Operation

Reading the displayed volume

This section is a detailed

look at reading the output volume display on the matrix switcher’s front panel. If you do not need to read the exact value of the volume setting, skip this section.

There are 65 steps of volume attenuation, with 1 dB per step (button push), except for 0-to-1, which is 35 dB. At maximum attenuation, no input LEDs are lit, 98 dB of attenuation is applied, and the audio output is effectively muted. At no attenuation, all input LEDs are lit and the output volume is equal to the input signal plus any gain or attenuation that is applied to that speciﬁ c input using the input audio level adjustment. See Viewing and adjusting the input audio level, on page 3-24 See the table at right to read the volume display.

The input LEDs blink or light sequentially to indicate the approximate volume of the selected output. Volume is deﬁ ned as a percentage of the input audio signal that is applied to the output. From 0% of volume, the ﬁ rst Esc (

) button

push applies 5.5% of the input audio signal and causes the Input 1 LED to blink slowly. From 5.5% on, each Esc (>) push applies 1.5% more of the input audio signal to the output:

• Push Esc (

) button —

5.5% + 1.5% = 7% volume. The Input 1 LED continues blinking slowly.

•

Push Esc (>) button twice —

7% + 1.5% + 1.5% = 10% volume. The Input 1 LED begins to blink quickly.

• Push Esc (

) button

19 times — 10% + (19•1.5%) = 38.5% volume. The Input 1 through 4 LEDs light steadily.

Audio output volume settings

Output

volume

dB of

attenuation

5.5%

8.5% 10%

11.5%

13%

14.5% 16%

17.5% 19%

22%

23.5% 25%

26.5% 28%

29.5%

31%

32.5% 34%

35.5% 37%

38.5%

40%

41.5% 43%

44.5% 46%

47.5%

49%

50.5% 52%

53.5%

55%

56.5% 58%

59.5% 61%

62.5%

64%

65.5% 67%

68.5%

70%

71.5% 73%

74.5% 76%

77.5%

79%

80.5% 82%

83.5%

85%

86.5% 86% 9 8

89.5% 91% 7 6

92.5%

94%

95.5% 4 3 97%

98.5% 2 1

100%

63 62

61 60

58 57

56 55 54

53 20.5%

52 51

50 49 48

46 45

44 43 42

40 39

38 37 36

34 33

32 31

29 28

27 26

24 23

22 21

19 18

17 16

14 13

12 11

= on, = blinking fast, = blinking slowly, = off

Input LED

5 4 3 2 1

8 7

12 11 10

PRELIMINARY

8 7 6 5 4 3 2 1

12 11 10 9

MVX 128 A VGA Matrix Switchers • Operation

3-29

Operation, cont’d

When all input LEDs are lit, the audio output is 100% of the audio input level.

Another way to view the volume level is to think in terms of the attenuation that is applied to the output. Attenuation reduction is indicated by the lit or blinking input LEDs: when fewer input LEDs are lit, attenuation is greater (and the volume is less).

• At minimum volume, all input LEDs are unlit and 98 dB of attenuation is applied to the output. The audio output is effectively muted.

• The ﬁ rst step of volume increase causes the Input 1 LED to blink slowly. Attenuation is reduced by 35 dB (63 dB of attenuation is applied to the output). There is no change in the volume indication.

• The second step of volume increase reduces the attenuation by an additional 1 dB (62 dB of attenuation is applied to the output). The front panel display is unchanged.

• Successive steps of volume increase cause consecutive input LEDs to ﬁ rst blink slowly, then quickly, and then light steadily.

For example: When lit steadily, the Input 3 LED indicates 47 dB of attenuation

when compared to the Input 3 LED blinking quickly (48 dB to 50 dB of attenuation). The blinking Input 4 LED (45 dB to 46 dB of attenuation) is at least 2 dB less than the fast blinking Input 3 LED (48 dB – 46 dB) and at most 5 dB less (50 dB – 45 dB).

See the table on page 3-29 to read the volume display.

PRELIMINARY

Example 11: Viewing and adjusting an output volume level

In the following example, the audio output volume is viewed and adjusted. The steps show the front panel indications that result from your action.

1. Press and release the Esc button (ﬁ gure 3-47).

Press the Esc button to clear all selections.

CONTROL

ENTER PRESET VIEW ESC

= Blink once

The LED blinks once.

Figure 3-47 — Clear all selections

2. Press and hold the Audio button for approximately 2 seconds (ﬁ gure 3-48).

Press and hold the Audio button.

I/O

2 seconds

RGBHV AUDIO AUDIO

= Blinking LED

The LED blinks to indicate Audio mode.

Release the button.

Figure 3-48 — Select Audio mode

3-30

MVX 128 A VGA Matrix Switchers • Operation

3. Press and release the Output 1 button (ﬁ gure 3-49).

The input LEDs display the selected output's audio volume level.

In this example, the lit input buttons indicate 40 to 41.5 percent of the applied audio

Press and release the Output 1 button. The LED lights.

input. The unlit input buttons indicate an audio volume attenuation of 39 dB to 40 dB.

–39 dB attenuation,

41.5% volume

INPUTS

1 2 3 4 5 6

7 10 11 12

= Lit LED, = Slow blinking LED

= Unlit LED,

Figure 3-49 — Select output 1

4. Press and release the Esc (

) button once (ﬁ gure 3-50) to increase the volume

by 1.5%.

Press and release the Esc (

) button several more times (ﬁ gure 3-50) to

increase the volume by 1.5% per button push. Note the input LED indication changes that occur each time the Esc (>) button is pressed and released.

You can press and hold the Esc (

) or View (<) button to ramp the level up or

down by 3 dB per second to the high or low limit.

Figure 3-50 show the result of pressing the Esc (

Press the Esc button to decrease the audio attenuation (thereby increasing the audio level) that is applied to the output volume level by 1 dB per button push.

The input LEDs display the selected output's audio volume level.

In this example, the lit input buttons indicate 59.5 to 61 percent of the applied audio input. The unlit input buttons indicate an audio volume attenuation of 26 dB to 27 dB.

26 dB attenuation,

61% volume

1 2 3 4 5 6

ESC

) button a total of 13 times.

INPUTS

7 8 11 12

PRELIMINARY

= Lit LED, = Unlit LED,

Figure 3-50 — Adjust the output audio volume

5. Press and release the Audio button (ﬁ gure 3-51).

Figure 3-51 — Deselect Audio mode

= Fast blinking LED

Press the Audio button to exit audio mode.

I/O

All input LEDs and output LEDs

RGBHV AUDIO

The Audio LED stops blinking and lights steadily. The RGBHV button lights.

return to the unlit state.

MVX 128 A VGA Matrix Switchers • Operation

3-31

Operation, cont’d

Locking out the front panel (Executive mode)

The front panel lock (Executive mode) limits the operation of the matrix switcher from the front panel. When the switcher is locked, all of the front panel functions are disabled except for the View-Only mode functions. See Viewing a conﬁ guration on page 3-15. Other than in View-Only mode, if the user pushes a front panel output button when the switcher is locked, the RGBHV and Audio LEDs ﬂ ash twice and return to their previous state.

To toggle the front panel lock on or off, press and hold the RGBHV button and the Audio button for approximately two seconds (ﬁ gure 3-52).

Press and hold the RGBHV and Audio buttons simultaneously to toggle the front panel lock on or off.

RGBHV AUDIO

= Blink twice

Figure 3-52 — Toggle front panel lock on or off

I/O

2 seconds

I/O

2 2

RGBHV AUDIO

The RGBHV and Audio LEDs blink twice to indicate the mode change. Release the buttons.

PRELIMINARY

Performing a system reset from the front panel

The front panel reset is identical to the EZXXX} SIS command (see chapter 4, Programmer’s Guide). A system reset:

• Clears all ties and presets

• Clears all video and audio mutes

• Sets all input audio levels to unity gain (+0 dB)

• Sets all output volume levels to 100% (0 dB of attenuation)

Reset the switcher to the factory default settings by pressing and holding the RGBHV button and Audio button while you apply AC power to the switcher (ﬁ gure 3-53).

Press and hold the RGBHV and Audio buttons while you apply power to the switcher.

The switcher’s LEDs flash and then go dark. Continue to hold the RGBHV and Audio buttons until all input and output LEDs return to the unlit state and the RGBHV and Audio LEDs turn on.

System reset does not replace user-installed ﬁ rmware.

I/O

RGBHV AUDIO

Power

Release the RGBHV and Audio buttons.

Figure 3-53 — System reset

3-32

MVX 128 A VGA Matrix Switchers • Operation

Selecting the RS-232/RS-422 protocol and baud rate

The switcher can support either RS-232 or RS-422 serial communication protocol, and operate at 9600, 19200, 38400, and 115200 baud rates. The settings of these variables can be viewed and changed from the front panel.

View and conﬁ gure the switcher’s serial communications settings as follows:

1. To enter Serial Port Conﬁ guration mode, simultaneously press and hold all

Control buttons (Enter, Preset, View, and Esc) (ﬁ gure 3-54).

Press and hold the Enter, Preset, View, and Esc buttons.

CONTROL I/O

CONTROL

ENTER

PRESET VIEW ESC

= Blinking LED= Lit LED,

ENTER PRESET VIEW ESC RGBHV AUDIO

All Control LEDs light with one flashing. Both I/O LEDs light with one flashing. The flashing Control LED indicates the baud rate as follows: Enter — 9600 Preset — 19200 View — 38400 Esc — 115200

The flashing I/O LED indicates the protocol as follows: RGBHV — RS-232 Audio — RS-422

In this example, the port is set to RS-232 at 9600 baud.

Figure 3-54 — RS-232/RS-422 and baud rate display

2. Release the Control buttons.

3. To change a value, press and release the button that relates to the desired

value (ﬁ gure 3-55).

Press and release the button(s) to configure the port as follows: Baud rate: Enter — 9600 Preset — 19200 View — 38400 Esc — 115200

Serial protocol: RGBHV — RS-232 Audio — RS-422

The selected LEDs blink and the others remain lit.

In this example, the port is set to RS-422 at 38400 baud.

CONTROL I/O

PRELIMINARY

Figure 3-55 — RS-232/RS-422 and baud rate selection

ENTER PRESET VIEW ESC RGBHV AUDIO

= Blinking LED = Lit LED,

MVX 128 A VGA Matrix Switchers • Operation

3-33

Operation, cont’d

4. Press and release an input or output button to exit the Serial Port Conﬁ guration

mode (ﬁ gure 3-56).

Press and release an

input or output button.

CONTROL I/O

PRELIMINARY

ENTER PRESET VIEW ESC RGBHV AUDIO

All Control LEDs return to the unlit state.

Each I/O LED returns to its previous state.

Figure 3-56 — Exit Serial Port Conﬁ guration mode

The switcher requires some time to save the new serial port settings. Wait at

least 5 minutes before removing power from the switcher or the settings may be lost.

Rear Panel Operations

The rear panel has a Reset button that initiates two levels of matrix switcher resets. Press and hold the button while the switcher is running or while you apply power to the switcher for different reset levels.

Performing an absolute system reset from the rear panel

This function is identical to the front panel system reset (see Performing a system reset from the front panel on page 3-32) without requiring you to power down the

switcher. This function is also identical to the chapter 4, Programmer’s Guide). A system reset:

• Clears all ties and presets

•

Clears all video and audio mutes

•

Sets all input audio levels to unity gain (+0 dB)

• Sets all output volume levels to 100% (0 dB of attenuation)

System reset does not replace any user-installed ﬁ rmware.

Perform a system reset as follows:

Esc

ZQQQ SIS command, see

1. Use an Extron Tweeker to press and hold the Reset button until the rear panel

Reset LED blinks three times (approximately 9 seconds) (ﬁ gure 3-57).

Press and hold

the Reset button.

Figure 3-57 — System reset

2. Release the Reset button and then immediately press and release the Reset

button again. The reset does not occur if the second momentary press does not occur within 1 second.

3-34

MVX 128 A VGA Matrix Switchers • Operation

RESET RESET

= Blink three times,

9 seconds

= blink four times

Reset LED blinks

three times.

RESET

Release, then

immediately

press and release again.

Reset LED blinks

four times.

Performing a hard reset from the rear panel

The hard reset function restores the switcher to the original factory default settings. All user ﬁ les and settings are maintained. Perform a hard reset as follows:

1. If necessary, turn off power to the switcher.

2. Press and hold the Reset button on the rear panel while you apply AC power

to the switcher (ﬁ gure 3-58).

Press and hold the Reset button while you apply power to the switcher.

RESET

The switcher flashes the LEDs and then turns them off.

Continue to hold the Reset button until all input and output LEDs return to unlit and the RGBHV or Video and Audio LEDs turn on.

Figure 3-58 — Hard reset

A hard reset returns the switcher to the default (factory) ﬁ rmware conﬁ guration.

The switcher continues to operate using this ﬁ rmware until you either cycle power, in which case the switcher begins to use the most-recently installed ﬁ rmware update, or install a new ﬁ rmware update.

Optimizing the Audio

Each individual input audio level can be adjusted within a range of -18 dB to +24 dB, so there are no noticeable volume differences between sources and for the best headroom and signal-to-noise ratio. Adjust the audio gain and attenuation as follows:

1. Connect audio sources to all desired inputs and connect the audio outputs

to output devices such as audio players. See Audio connections, in chapter 2, Installation. For best results, wire all of the inputs and the outputs as balanced.

2. Power on the audio sources, the switcher, and the audio players.

3. Switch among the inputs (see Creating a conﬁ guration, on page 3-8), listening

to the audio with a critical ear or measuring the output audio level with test equipment, such as a VU meter.

4. As necessary, adjust the input audio level of each input (see Viewing and adjusting the input audio level, on page 3-24) so that the approximate output

level is the same for all selected inputs.

5. As necessary, adjust the output audio level of each input (see Viewing and adjusting the output volume, on page 3-28).

RESET

Power

Release the Reset button.

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Operation

3-35

Operation, cont’d

Troubleshooting

This section gives recommendations on what to do if you have problems operating the switcher and describes an actual image problem that Extron has encountered.

1. Ensure that all devices are plugged in and powered on. The switcher is receiving power if one of the front panel I/O LEDs is lit.

2. Check to see if one or more outputs are muted.

3. Ensure an active input is selected for output on the switcher.

4. Ensure that the proper signal format is supplied.

5. Check the cabling and make corrections as necessary.

6. Call the Extron S

Conﬁ guration Worksheets

Rather than trying to remember the conﬁ guration for each preset, use worksheets to record this information. Make copies of the blank worksheet on page 3-39 and use one for each preset conﬁ guration. Cross out all unused or inactive inputs and outputs. Use different colors for video and audio.

Worksheet example 1: System equipment

Figure 3-59 shows a worksheet for an MVX 128 A in a ﬁ ctional organization with the system hardware annotated. Inputs 10 and 11 have no connection in this organization, so they have been crossed out on the worksheet.

Sales & Technical Support Hotline if necessary.

PRELIMINARY

Input sources

Classroom

Camera/

mic - Main

podium

Main hall

Preset # Title: Video: Audio:

Fill in the preset number and use colors, or dashes, etc. to make connecting lines. Indicate if the configuration is for Video, Audio, or both.

Camera

1 2 3 4 5 6 7 8

Main hall

FP #1

FP #2

PC 1

RGB 202

Podium

monitor

PC 2

RGB 202

Sound

system

Output destinations

Weekly status mtg 3

Audio

Sound

system

#1 VCR

USP 405

VCR

(VSC 500)

Classroom

#2 VCR

USP 405

Laptop

RGB 202

Lobby

monitor

Figure 3-59 — Worksheet example 1: System equipment

Inputs include PCs, an audio CD player, cameras, and an Extron VTG 300. Output devices include monitors, front and rear projectors, a stereo, and a VCR for recording presentations.

The VTG 300 video test generator connected to input 12 enables a video test pattern to be sent to one, several, or all output devices for problem isolation or adjustment purposes. An audio test tape or CD could be used in a similar manner to check out the audio components.

Rack DVD

(USP 405)

9 10 11 12

VTG 300

3-36

MVX 128 A VGA Matrix Switchers • Operation

Worksheet example 2: Daily conﬁ guration

Figure 3-60 continues from worksheet example 1 by showing the video and audio ties that make up the conﬁ guration of preset 1. Solid ink lines show video ties and dashed pencil lines show the audio ties.

Input sources

Classroom

Camera/

mic - Main

podium

Camera

PC 1

RGB 202

PC 2

RGB 202

Audio

#1 VCR

USP 405

Classroom

#2 VCR

USP 405

Laptop

RGB 202

Rack DVD

(USP 405)

VTG 300

1 2 3 4 5 6 7 8

Main hall

FP #1

Main hall

FP #2

Podium

monitor

Sound

system

Sound

system

VCR

(VSC 500)

Lobby

monitor

Output destinations

Preset # Title: Video: Audio:

Fill in the preset number and use colors, or dashes, etc. to make connecting lines. Indicate if the configuration is for Video, Audio, or both.

Weekly status mtg 3

Figure 3-60 — Worksheet example 2: Daily conﬁ guration

In this example:

• The image of the presenter, from the main podium camera (input 1), is:

 Displayed in the main hall (output 1)

 Displayed in the conference room (output 4) to the overﬂ ow crowd

 Displayed in the lobby (output 8)

 Tied to the VCR (output 6)

• The presenter has a presentation on her laptop computer (input 4) that is:

 Displayed in the main hall (output 2)

 Displayed locally on the podium (output 3)

9 10 11 12

PRELIMINARY

• The audio from her microphone (input 3) is:

• Classical music from the CD player (input 5) is:

 Played in the hall (output 1)

 Played in the conference room (output 4)

 Sent to the VCR (output 6)



Played in the background in the main hall on sound system #2 (output 5)

 Played in the lobby (output 8)

MVX 128 A VGA Matrix Switchers • Operation

3-37

Operation, cont’d

Worksheet example 3: Test conﬁ guration

The A/V system in our ﬁ ctional organization needs to be ﬁ ne tuned on a regular basis. Figure 3-61 shows a typical test conﬁ guration, with an Extron video test generator (input 12) generating a test pattern to all monitors (outputs 1, 2, 3, 4, and 8). Sound checks are run from the CD player (input 5) to all audio systems (outputs 1, 2, 3, 4, and 8).

Camera/

mic - Main

podium

Camera

PC 1

RGB 202

PC 2

RGB 202

Audio

Input sources

Classroom

#1 VCR

USP 405

Classroom

#2 VCR

USP 405

Laptop

RGB 202

Rack DVD

(USP 405)

VTG 300

PRELIMINARY

1 2 3 4 5 6 7 8

Main hall

FP #1

Main hall

FP #2

Podium

monitor

Sound

system

Sound

system

VCR

(VSC 500)

Lobby

monitor

Output destinations

Preset # Title: Video: Audio:

Fill in the preset number and use colors, or dashes, etc. to make connecting lines. Indicate if the configuration is for Video, Audio, or both.

Weekly status mtg 3

Figure 3-61 — Worksheet example 3: Test conﬁ guration

9 10 11 12

3-38

MVX 128 A VGA Matrix Switchers • Operation

9 10 11 12

Input sources

1 2 3 4 5 6 7 8

Conﬁ guration worksheet

Output destinations

Preset # Title: Video: Audio:

Fill in the preset number and use colors, or dashes, etc. to make connecting lines.

Indicate if the configuration is for video, audio, or both.

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Operation

3-39

Operation, cont’d

PRELIMINARY

3-40

MVX 128 A VGA Matrix Switchers • Operation

MVX 128 A VGA Matrix Switchers

Chapter Four

Programmer’s Guide

Host-to-Switcher Instructions

Switcher-Initiated Messages

Switcher Error Responses

Using the Command/Response Tables

Command/Response Table for SIS Commands

Special Characters

PRELIMINARY

Programmer’s Guide

The switcher’s rear panel Remote 9-pin D female connector (ﬁ gure 4-1) can be connected to the RS-232 or RS-422 serial port output of a host device such as a computer running the HyperTerminal utility, an RS-232 capable PDA, or a control system. This connection makes software control of the switcher possible.

PRELIMINARY

RS-232 FunctionPin Function

—

Gnd

— — — —

Not used Transmit data Receive data Not used Signal ground Not used Not used Not used Not used

REMOTE

RS232/RS422

3 4 5 6 7 8 9

Figure 4-1 — Remote connector pin assignments

The default protocol is as follows:

• 9600 baud • no parity • 8-bit

• 1 stop bit • no ﬂ ow control

The MVX 128 A switcher can support either RS-232 or RS-422 serial

communication protocol, and can operate at 9600, 19200, 38400, or 115200 baud rates. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33, Operation, to conﬁ gure the RS-232/RS-422 port from the front panel.

Host-to-Switcher Instructions

The switcher accepts SIS (Simple Instruction Set) commands through the RS-232/RS-422 port. SIS commands consist of one or more characters per command ﬁ eld. They do not require any special characters to begin or end the command character sequence. Each switcher response to an SIS command ends with a carriage return and a line feed (CR/LF = ]), which signals the end of the response character string. A string is one or more characters.

RS-422

— TX– RX–

— Gnd

— RX+ TX+

—

Not used Transmit data (–) Receive data (–) Not used Signal ground Not used Receive data (+) Transmit data (+) Not used

Switcher-Initiated Messages

When a local event such as a front panel operation occurs, the switcher responds by sending a message to the host. The switcher-initiated messages are listed below (underlined).

The switcher initiates the copyright message when it is ﬁ rst powered on. Vx.xx is the ﬁ rmware version number.

Qik

]

The switcher initiates the Qik message when a front panel switching or preset recall operation has occurred.

Sprnn

]

The switcher initiates the Spr message when a memory preset has been saved from the front panel. “nn” is the preset number.

Innn Audxx

The switcher initiates the Aud message when a front panel input audio level change has occurred. “nn” is the input number and “xx” is the dB level.

4-2

MVX 128 A VGA Matrix Switchers • Programmer’s Guide

]

Outnn Volxx

The switcher initiates the Vol message when a front panel output audio volume change has occurred. “nn” is the output number and “xx” is the volume level.

Vmtnn*x

The switcher initiates the Vmt message when a video output mute is toggled on or off from the front panel. “nn” is the output number and “x” is the mute status: 1 = on, 0 = off.

Amtnn*x

The switcher initiates the Amt message when an audio output mute is toggled on or off from the front panel. “nn” is the output number and “x” is the mute status: 1 = on, 0 = off.

Exen

]

The switcher initiates the Exe message when executive mode is toggled on or off from the front panel. “n” is the executive mode status: 1 = on, 0 = off.

]

Switcher Error Responses

When the switcher receives an SIS command and determines that it is valid, it performs the command and sends a response to the host device. If the switcher is unable to perform the command because the command is invalid or contains invalid parameters, the switcher returns an error response to the host. The error response codes are:

E01 — Invalid input channel number (too large) E10 — Invalid command E11 — Invalid preset number (too large) E12 — Invalid output number (too large) E13 — Invalid value (out of range) E14 — Illegal command for this conﬁ guration E17 — Timeout (caused only by direct write of global presets) E22 — Busy

PRELIMINARY

Using the Command/Response Tables

The command/response tables begin on page 4-5. Lower-case letters are acceptable in the command ﬁ eld except where indicated for the gain and attenuation commands. The table below shows the hexadecimal equivalent of each ASCII character used in the command/response table.

Space

Symbols are used throughout the table to represent variables in the command/ response ﬁ elds. Command and response examples are shown throughout the table.

ASCII to HEX Conversion Table

MVX 128 A VGA Matrix Switchers • Programmer’s Guide

4-3

PRELIMINARY

Programmer’s Guide, cont’d

Command/Response Table for SIS Commands

Symbol deﬁ nitions

]

= CR/LF (carriage return/line feed) (hex 0D 0A)

}

= Carriage return (no line feed, hex 0D))

•

= Space character

= Escape key (hex 1B)

= Input number 01 – 12

= Input number (for tie)

= Output number 01 – 08

= Numeric dB value –18 to +24 (45 steps of gain or attenuation)

= Audio gain 0 – 24 (1 dB/step)

= Audio attenuation 1 – 18 (1 dB/step)

= Volume adjustment range 0 – 64 (1 dB/step except for 0-to-1, which is 34 dB)

= Mute, executive mode, power supply (0 = off/not OK, 1 = on/OK)

= Global preset # 32 maximum (0 = current conﬁ guration)

X1)

= Video/audio mute: 0 = no mutes

1 = video mute

2 = audio mute

3 = video and audio mute

X1!

= Firmware version number to second decimal place (x.xx)

X1@

= Verbose ﬁ rmware version-description-upload date/time. See page 4-11.

X1#

= Name 12 characters maximum for global and room preset names

11 characters maximum for room names Upper- and lower-case alphanumeric characters and _ : = / and spaces are valid.

The following characters are invalid in the name: {space} ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.

X1$

= Baud rate 9600, 19200, 38400, 115200

X1%

= Parity Odd, even, none, mark, space (only the ﬁ rst letter is required)

X1^

= Data bits 7, 8

X1&

= Stop bits 1, 2

X1*

= Port type 0 = RS-232, 1 = RS-422

X1(

= Voltage Positive or negative voltage and magnitude

X2)

= Temperature Degrees Fahrenheit

00 – 12 (00 = untied)

(see the table on page 4-9)

4-4

MVX 128 A VGA Matrix Switchers • Programmer’s Guide

Command/response table for SIS commands

Command ASCII command

(host to switcher)

Create ties

• Commands can be entered back-to-back, with no spaces. For example: 1*1!02*02&003*003%4*8$.

The quick multiple tie and tie input to all output commands activate all I/O switches simultaneously.

•

The matrix switchers support 1-, 2-, and 3-digit numeric entries (1*1, 02*02, or 001*001).

•

Tie input video (V) and audio (A)

Tie input RGBHV only

Tie input video only

Tie input audio only

Quick multiple tie

Tie input to all outputs, V & A

Tie input to all outputs, RGBHV only

Tie input to all outputs, video only

Tie input to all outputs, audio only

X@ to output X#,

Example:

X@ to output X#,

Example (see Note):

X@ to output X#,

Example (see Note):

The & tie command for RGB and the % tie command for video can be used interchangeably on the matrix switchers.

X@ to output X#,

Example:

Example (see Note):

The & tie all command for RGB and the % tie all command for video can be used interchangeably on the matrix

switchers.

X@*X#

! Out

1*3!

X@*X#

& Out

10*4&

X@*X#

% Out

7*5%

X@*X#

$ Out

12*4$

E+QX@*X# E

+Q3*4!3*5%3*6$

*! In

5*!

*& In

8*&

*% In

10*%

*$ In

!...X@*X#$

Read ties

The & read tie command for RGB and the % read tie command for video can be used interchangeably on the matrix

Read RGB

Read video

Read audio

switchers.

output tie

X# X#

}

Response

(switcher to host)

Out03

Out04•In10•RGB

Out05

Out04

}

Qik

X@•

In05

X@•

In08

X@•

In10

X@•

X@] X@]

X@]

X#•InX@•

•

In01•All

X#•InX@•

•

In07•Vid

X#•InX@•

•

In12•Aud

] ]

]

All

•

]

All

]

RGB

•

]

RGB

]

Vid

•

]

Vid

]

Aud

All

]

RGB

Vid

Aud

]

] ]

]

Additional description

Tie input X@‘s video and audio to output X#.

Tie input 1 video and audio to output 3.

Audio breakaway.

Tie input 10 RGB to output 4.

Audio breakaway.

Tie input 7 video to output 5.

Audio breakaway.

Tie input 12 video to output 4.

Tie input 3 video and audio to output 4, tie input 3 video to output 5, and tie input 3 video to output 6.

Audio breakaway.

Tie input 5 video and audio to all outputs.

Audio breakaway.

Tie input 8 video to all outputs.

Audio breakaway.

Tie input 10 video to all outputs.

Audio breakaway.

RGBHV input X@ tied to output X#.

Video input X@ tied to output X#.

Audio input X@ tied to

output

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Programmer’s Guide

4-5

Programmer’s Guide, cont’d

Command/response table for SIS commands (continued)

PRELIMINARY

Command ASCII command

(host to switcher)

Video mute commands

RGB mute

RGB unmute

Read RGB mute

Global RGB mute 1*B

Global RGB unmute 0*B

*1B VmtX#*1

*0B VmtX#*0

Audio input gain and attenuation

The set gain (G) and set attenuation (g) commands are case sensitive.

Set input audio gain to +dB value

Example:

Set input audio attenuation to -dB value

Increment gain

Example:

Decrement gain

Example:

Read input gain

X!*X%

GIn

1*2G

X!*X%

gIn

+G In

5+G

-G In

7-G

Audio output volume

The table on page 4-7 deﬁ nes the value of each audio volume step.

Set the audio volume to a speciﬁ c value

Example:

Increment volume

Example:

Decrement volume

Read output volume

X#*X&

V Out

1*50v

+V Out

1+V

-V Out

Audio mute commands

Audio mute

Audio unmute

Read audio mute

Global audio mute 1*Z

Global audio unmute 0*Z

*1Z AmtX#*1

*0Z AmtX#*0

Response

(switcher to host)

]

X*]

]

Vmt1

]

Vmt0

X!•

In01

X!•

In05

X!•

In07

Aud

•

Aud+02

Aud

•

Aud+03

Aud

•

Aud-09

X$]

]

X$]

]

X$]

]

X$]

X#•

X&]

Vo l

•

]

Vol50

Out01

X#•

X&]

Vo l

•

Vol51

Vo l

]

X&]

Out01

X#•

X&]

]

X*]

]

Amt1

]

Amt0

Additional description

Mute output X# RGB (video off).

Unmute output X# RGB (video on).

1 = mute on, 0 = mute off.

Mute all RGB outputs.

Unmute all RGB outputs.

Set input 1 audio gain to +2 dB.

Increase gain by 1 dB.

Audio input 5 level incremented from +2 dB to +3 dB.

Decrease gain by 1 dB.

Audio input 7 level decremented from -8 dB to

-9 dB.

Set output 1 volume to 79%.

Increment volume by 1 step.

Decrease volume by 1 step.

Mute output X# audio (audio off).

Unmute output X# audio (audio on).

1 = mute on, 0 = mute off.

Mute all audio outputs.

Unmute all audio outputs.

4-6

MVX 128 A VGA Matrix Switchers • Programmer’s Guide

Audio volume adjustment settings

value

dB of

attenuation

98 0%00

Output volume

5.5%

8.5%

10%

11.5%

13%

14.5%

16%

17.5%

19%

20.5%

22%

23.5%

25%

26.5%

28%

29.5%

31%

32.5%

34%

35.5%

37%

value

dB of

attenuation

Output

volume

38.5%

40%

41.5%

43%

44.5%

46%

47.5%

49%

50.5%

52%

53.5%

55%

56.5%

58%

59.5%

61%

62.5%

64%

65.5%

67%

68.5%

70%

value

dB of

attenuation

Output

volume

71.5%

73%

74.5%

76%

77.5%

79%

80.5%

82%

83.5%

85%

86.5%

88%

89.5%

91%

92.5%

94%

95.5%

97%

98.5%

100%

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Programmer’s Guide

4-7

Programmer’s Guide, cont’d

Command/response table for SIS commands (continued)

PRELIMINARY

Command ASCII command

(host to switcher)

Names

Write global preset name

Example:

Read global preset name

Example:

• If a preset is unassigned, the

•

If a global preset is saved, but not yet named, the default name is Preset

Write input name

Example:

Read input name

Write output name

Example:

Read output name

EX(,X1#NG} E

1,Security 1NG

}

EX(NG} X1#] E

}

2NG

X2#

displays [unassigned].

EX!,X1#NI} E

1,Podium camNI

EX!NI} X1#] EX!,X1#NO} E

1,Main PJ1NO

}

EX!NO} X1#]

Save, recall, and directly write presets

• If you try to recall a preset that is not saved, the matrix switcher responds with the error code E11.

•

If a room is not deﬁ ned (does not exist in the switcher), the matrix switcher responds with the error code E21.

•

The following characters are invalid in preset names: + - , ` @ = [ ] { } ‘ “ ; : | \ and ?.

Save current conﬁ guration as a global preset

Example:

Recall a global preset

Example:

Direct write process —

The direct write of a global preset should always be preceded by a clear global preset ties command of that same

Clear a global preset’s ties

Directly write a global preset

Example:

preset number, as shown below. In a directly-written preset, each output position’s tied input (or no tied input) remains unchanged unless overwritten or cleared.

If you do not clear the ties in a global preset number before you directly write a global preset to that number, ties that are part of the previous version of the speciﬁ ed preset with the same number can unexpectedly become part of the newlycreated preset.

E+X(

P0*!

}

E+X(PX@*X#!X@*X#%X@*X#

Esc

}

+27P0*!

+27P12*5!10*09%3*2$3*8&

Executive mode

Lock front panel 1X

Unlock front panel 0X

View lock status X

}

Response

(switcher to host)

X(,X2@]

Nmg Nmg01,Security 1

Security 2

Nmi Nmi01,Podium cam

Nmo

Nmo01,Main PJ1

Spr

Spr9

Rpr

Rpr05

Spr

$ ... X@*X#&

Spr

Spr27

Exe1

Exe0

]

X1!

X!,X1#]

X!,X1#}

]

X(]

]

X(]

]

X(]

}

X(]

]

] ]

X*]

]

Additional description

Name global preset 1 “Security 1”.

Name input 1 “Podium cam”.

Name output 1 “Main PJ1”.

Command character is a comma.

Save current ties as preset 9.

Command character is a period.

Recall preset 5, which becomes the current conﬁ guration.

Clear all ties in preset X(. The tie all (!), tie RGBHV (&),

tie video (%), and tie audio ($) commands are all valid.

Clear all ties in preset 27.

Brackets are shown to separate ties for clarity only. Create global preset 27, which ties video and audio input 12 to output 5, RGBHV input 10 to output 9, video input 3 to output 2, and audio input 3 to output 8.

Enable executive mode.

Disable executive mode.

4-8

MVX 128 A VGA Matrix Switchers • Programmer’s Guide

Command/response table for SIS commands (continued)

Command ASCII command

(host to switcher)

Resets

Reset global presets and names

Reset one global preset

Reset audio input levels

Rest audio output levels

Reset all mutes

Reset ﬂ ash

Reset whole switcher

Absolute reset

EZG}

EX(ZG} EZA}

EZV}

EZZ}

ZFFF

ZXXX

ZQQQ

}

View ties, gain, volume, mutes, and presets

View RGBHV output tie

Example:

View video output tie

Example:

View audio output tie

Example:

View input gain

Example:

View output volume

Example:

View output mutes

Example:

EVM} X1)

EVM}

Response

(switcher to host)

]

Zpg

X(]

Zpg

]

Zpa

]

Zpv

]

Zpz

]

Zpf

]

Zpx

]

Zpq

X@]

]

X@]

]

X@]

]

X$]

]

-02

X&]

]

X1)

, ...

X1)

]

02301000Mut

Mut

Additional description

Clear all global presets and their names.

Clear global preset X(. Rest all audio input levels

(gain and attenuation) to 0 dB. Reset all audio output

levels (volume) to 100% (no attenuation).

Reset all video and audio mutes.

Reset ﬂ ash memory (erase all user-supplied ﬁ les).

Clear all ties and presets, reset all audio gains to 0 dB, and reset volume to 100%.

Similar to Reset whole switcher, plus clear the IP address to 192.168.254.254 and subnet mask to

255.255.000.000.

Input 12 RGBHV is tied to output 5.

Input 2 video is tied to output 7.

Input 6 audio is tied to output 3.

Gain for input 4 is -2 dB.

Volume for output 7 is 55%.

]

X1)

Each mute status of an output, starting from output 1.

Output 2 audio is muted, output 3 video and audio are muted, and output 5 video is muted. All other outputs are unmuted.

response is the

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Programmer’s Guide

4-9

Programmer’s Guide, cont’d

Command/response table for SIS commands (continued)

PRELIMINARY

Command ASCII command

(host to switcher)

Response

(switcher to host)

View ties, gain, volume, mutes, and presets (continued)

View video global preset conﬁ guration

Command description:

Response description:

Example:

View audio global preset conﬁ guration

Command description:

Response description:

Example:

EX(

preset #*starting output # (O# - should always be 1)*1(=video)VC

input # (I#) tied to O#1

Response = tied input:

Each position shown in the response is an output: left = output 1, right = output 16. (Outputs 9 through 16 are not present on the MVX 128 A.) The number in each position is the input tied to that output.

In this example, video input 8 is tied to outputs 1, 2, 4, and 5; input 12 is tied to output 3; and input 11 is tied to output 6. No inputs are tied to outputs 7 and 8.

EX(

preset #*starting output # (O# - should always be 1)*2(=audio)VC

input # (I#) tied to O#1

Response = tied input:

In this example, audio input 1 is tied to outputs 1, 2, 3, and 4; input 2 is tied to output 5, input 12 is tied to outputs 6 and 7. No input is tied to output 8.

}X@

*1*1VC

•

I# tied to O#2•I# tied to O#3• ... •I# tied to O#12•Vid

input 12 tied to output 3

}X@

*1*2VC

input 8 tied to output 4

08•08•12•08•08•11•00•00

1Output:

2345678

•

I# tied to O#2•I# tied to O#3• ... •I# tied to O#12•Aud

input 1 tied to output 3

01•01•01•01•02•12•12•00•--•--•--•--•--•--•--•--•Aud

01Output:

02 03 04 05 06 07 08

•X@2•

Serial port conﬁ guration

Read port parameters

Set mode

Read mode

} X1$,X1%,X1^,X1&]

1CP

E1*X1*CY} E

} X1*]

1CY

Cpn1•Cty

Additional description

•X@16•

...

no tied input

•X@16•

...

no tied input outputs do not exist

]

Vid

outputs do not exist

•--•--•--•--•--•--•--•--•

Aud

Show preset X(’s video conﬁ guration. Show the input tied to 16 sequential outputs (12 are present on this model), starting from output 1.

13 14 15 1609 10 11 12

]

Show preset X(’s audio conﬁ guration. Show the input tied to 16 sequential outputs (12 are present on this model), starting from output 1.

13 14 15 1609 10 11 12

X1*]

]

•Vid

]

4-10

MVX 128 A VGA Matrix Switchers • Programmer’s Guide

Command/response table for SIS commands (continued)

Command ASCII command

(host to switcher)

Information requests

Information request I

Request part number N

There are two separate sets of Extron ﬁ rmware that the switcher can report on: the controller ﬁ rmware, which is the

Query controller ﬁ rmware version

Example:

Query controller ﬁ rmware version (verbose)

Response description:

Example:

Response:

Meaningless data for this switcher model

Request system status S

Response description:

Example:

overall control ﬁ rmware; and the latest optional Extron ﬁ rmware update, which is available at www.Extron.com.

Controller ﬁ rmware version-updated ﬁ rmware version 0q

Description

n.nn-1.00(1.06-16x16 Series -Wed, 22 Feb 2006 00:00:00 GMT)-1.00*(1.06-16x16 Series -Thu, 16 Mar 2006 16:39:21 GMT)

MVX 128 firmware version

•

+5V•-5V•+15V•-15V•temperature (degrees fahrenheit)

+3.3V

3.29•5.04•-5.14•15.27•-15.15•120.20

Response

(switcher to host)

V12X08

60-799-01

•

A12X08

]

Additional description

X1!]

]

1.23

X1!-X1@-X1@]

The factory-installed controller ﬁ rmware version is 1.23 (sample value only).

Provide a detailed status of the MVX 128 controller ﬁ rmware and any ﬁ rmware upgrade. The ﬁ rmware that is running is marked by an asterisk (*). A caret (^) indicates that the ﬁ rmware has a bad checksum or an invalid load. ?.?? indicates that ﬁ rmware is not loaded.

]

* indicates the version running Upload date and time

Updated firmware version

X1(•X1(•X1(•X1(•X1(•X2)]

]

-15V power system at -15.15V

Temperature 120.20 degrees3.3V power system at 3.29V

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Programmer’s Guide

4-11

Programmer’s Guide, cont’d

PRELIMINARY

4-12

MVX 128 A VGA Matrix Switchers • Programmer’s Guide

MVX 128 A VGA Matrix Switchers

Chapter Five

Matrix Software

Matrix Switchers Control Program

Button Label Generator Program

PRELIMINARY

Matrix Software

Two software programs accompany the MVX 128 A switcher:

• The Extron Matrix Switcher Control Program, which communicates with the switcher via the RS-232/RS-422 port, provides an easy way to set up ties and sets of ties.

• The Extron Button-Label Generator, which allows you to design and print labels for the MVX 128 A front panel buttons.

Both programs are compatible with Windows 95/98, Windows NT, Windows ME, Windows 2000, and Windows XP. Updates to these programs can be downloaded from the Extron Web site (http://www.extron.com).

Matrix Switchers Control Program

Installing the software

The program is contained on a CD-ROM and available on the Extron Web site: www.extron.com. Load and run the program from the hard drive.

To install the program from the CD-ROM to the hard drive, run Setup.exe from the CD-ROM and follow the instructions that appear on the screen. The program occupies approximately 1 MB (megabyte) of hard-drive space.

By default, the Windows installation creates a C:\MTRX50 directory and places two icons (MATRIX Switcher+ Control Program and MATRIX Switcher+ Help) into a group or folder named “Extron Electronics”.

PRELIMINARY

The program was designed to control most Extron matrix switchers, but its

operation is limited to the features and conﬁ guration of your switcher.

The MVX 128 A switcher can support either RS-232 or RS-422 serial

communication protocol, and operate at 9600, 19200, 38400, or 115200 baud rates. See Selecting the RS-232/RS-422 protocol and baud rate on page 3-33, to conﬁ gure the RS-232/RS-422 port from the front panel.

5-2

MVX 128 A VGA Matrix Switchers • Matrix Software

Using the software

Many items found in the Matrix Switcher Control Program are also accessible via front panel controls (see chapter 3, Operation) and under SIS control (see chapter 4, Programmer’s Guide). The Matrix Switcher+ Help Program provides information on settings and on how to use the control program itself.

1. To run the Matrix Switcher Control Program, double-click on the Matrix Switcher Control Program icon (shown at right) in the Extron Electronics group or folder.

The Comm Port Selection window (ﬁ gure 5-1) appears.

Figure 5-1 — Comm port selection window

2. Choose either the comm port that is connected to the MVX 128 A switcher’s RS-232/RS-422 port or Emulate.

Although IP [LAN] is available for selection, the switcher does not have an

Ethernet port. Do not select IP [LAN].

 If you selected a comm port, check the baud rate displayed in the comm

port selection window. If you need to change the baud rate, click on the Baud button and double-click on the desired baud rate.

Available rates are 9600, 19200, 38400, and 115200. The default is 9600.

See Selecting the RS-232/RS-422 protocol and baud rate in chapter 3,

Operation on page 3-33, to identify the selected baud rate from the front panel.

Click OK and proceed to step 3.

 If you selected Emulate, click OK and see Using emulation mode on

page 5-10.

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Matrix Software

5-3

Matrix Software, cont’d

3. The Extron Matrix Switcher Control Program window (ﬁ gure 5-2 and ﬁ gure 5-3) appears. The window displays the current conﬁ guration of the attached matrix.

PRELIMINARY

Figure 5-2 — Extron Matrix Switcher Control Program window (blank)

Figure 5-3 — Sample program window (complete)

5-4

MVX 128 A VGA Matrix Switchers • Matrix Software

• To set up audio in follow mode (audio and video have the same tie conﬁ guration), select the Follow box at the bottom of the window. To set up audio in breakaway mode (audio and video have different tie conﬁ gurations), deselect the Follow box.

• To make the control program easier to use, assign a device icon to each input and output. Click on a box that represents an input or output, and drag the desired icon onto the box from the icon palette that appears.

• To create a tie, drag an input box to one or more output boxes. To remove a tie, drag the output box to its tied input box or to the trash can.

• For quick display of information on a speciﬁ c input or output device, position the cursor over that device in the control program window. The program opens a window that details the connections to that device, the audio level, the RGB delay, and the frequency of the video signal input from or output to that device. See the inset box in ﬁ gure 5-3.

Updating ﬁ rmware

The ﬁ rmware upgrade utility provides a way to replace the ﬁ rmware that is coded on the switcher’s control board without taking the switcher out of service and replacing the ﬁ rmware IC chip.

Update the switcher ﬁ rmware as follows:

1. Visit the Extron web site, www.extron.com, select the CrossPoint/MAV Plus product category, and select the latest ﬁ rmware install package (*.exe ﬁ le) for download. Note the folder to which you save the ﬁ rmware ﬁ le.

2. Run the executable (*.exe) ﬁ le to decompress the ﬁ rmware ﬁ le.

3. Start the Matrix Switcher Control Program and connect to the MVX 128 A

switcher. See Using the software in this chapter, steps 1 through 4, starting on page 5-3.

4. Click Tools > Update ﬁ rmware. The open ﬁ le window appears (ﬁ gure 5-4).

Figure 5-4 — Open ﬁ le window

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Matrix Software

5-5

Matrix Software, cont’d

5. Navigate to the folder where you saved the ﬁ rmware upgrade ﬁ le. Select the ﬁ le.

6. Click the Open button. A status window, which shows the progress of the

Valid ﬁ rmware ﬁ les must have the ﬁ le extension .S19. Any other ﬁ le extension

is not a ﬁ rmware upgrade.

The original factory-installed ﬁ rmware is permanently available on the

MVX 128 A switcher. If the attempted ﬁ rmware upload fails for any reason, the switcher reverts to the factory-installed ﬁ rmware.

upload, appears (ﬁ gure 5-5). The ﬁ rmware upload to the MVX 128 A switcher may take a few minutes.

PRELIMINARY

Figure 5-5 — Firmware Loader status indicator bar, switcher reset, and ﬁ rmware update

7. When prompted, conﬁ rm that the ﬁ rmware version displayed in the ﬁ rmware

8. Click the Exit button to exit the ﬁ rmware loader utility.

If the ﬁ rmware loader utility exits before the status bar has progressed completely

across the indicator window, try using a control cable with only pins 2, 3, and 5 connected. If necessary, modify the cable by removing pins or cutting wires.

loader is correct. Click Ok in the Firmware Update prompt window.

The ﬁ rmware loader utility increases the serial port’s baud rate to 115,200 to

speed up the upload process. Occasionally, the ﬁ rmware loader may be unable to return the serial port to its earlier baud rate, in which case communications with the switcher may not be possible. If you are no longer able to communicate with the switcher after the ﬁ rmware upload completes, see Selecting the RS-232/RS-422 protocol and baud rate in chapter 3, Operation, on page 3-33.

5-6

MVX 128 A VGA Matrix Switchers • Matrix Software

Windows buttons, drop boxes, and trashcan

The buttons, drop boxes, and trash can on the right side of the program window perform the following functions:

Power — Unavailable for MVX 128 A switchers,

because the switcher power cannot be controlled via software.

Executive mode — Allows you to lock out front panel

operations, except for the view-only mode functions.

Presets menu — Displays a list of up to 32 global

presets. You can select a preset from the list to display it in the window and either activate it (Go) or delete it (Delete).

Go — Activates the selected preset as the current

conﬁ guration.

Save as — Allows the current set of ties to be saved as a

preset. Enter the preset number when prompted to do so.

Changes – Take — Allows you to save to ﬁ le any

changes made to the displayed conﬁ guration.

Changes – Cancel — Returns to the previous screen,

undoing any changes you have made.

Trash can — Drag and drop from an input or output button to the

trash can to unmake all ties associated with that input or output.

Windows menus

File menu

Save matrix settings as — Saves a complete set of up to

32 presets, plus the last active setting (preset #0), to a ﬁ le. Saved settings include audio gain settings (if speciﬁ ed), assigned icons, and icon captions.

Restore matrix settings from — Loads and activates a

previously saved setting ﬁ le.

Save this-session’s settings — Saves the current assigned icons and icon captions.

Restore last-session’s settings — Loads the icons and icon captions that were

saved during the last session. If you saved the previous session’s changes to disk the last time you exited the program, the ties from that session are also loaded.

Select printer — Selects the target printer.

Print tie map — Prints the tie set that is displayed on the screen.

Exit — Closes the Matrix Switcher Control Program.

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Matrix Software

5-7

Matrix Software, cont’d

Tools menu

Assign device icons — Displays the complete set of input

and output device icons. You can drag any of these icons to the input and output boxes.

Edit device palette — Allows you to add your own device

icon graphics.

Audio-Input gain settings — Displays the audio gain

level setting for a single input or for all inputs and allows you to change it. The level is expressed as the magnitude (number of decibels) and polarity (positive, gain or negative, attenuation) of the audio adjustment.

Audio-Output volume settings — Displays the audio

output level setting for a single input or for all inputs and allows you to change it. The level is expressed as a percentage of the input audio volume that is applied to the output; 0% is full attenuation (audio is silent), 100% is full volume.

Mute-Outputs settings — Displays the Mute Adjust screen, from which you can

mute video and/or audio for each input.

Update ﬁ rmware — Allows you to replace the ﬁ rmware that is coded on the

switcher’s control board without taking the switcher out of service, opening the switcher enclosure, and replacing the ﬁ rmware chip set. See Updating ﬁ rmware on page 5-5.

Hardware status — Provides an overall view of the status of the matrix switcher,

including the power supply voltages, the temperature status, the Remote RS-232/RS-422 port conﬁ guration, and the installed and updated ﬁ rmware status (ﬁ gure 5-6).

PRELIMINARY

Figure 5-6 — Status window

5-8

MVX 128 A VGA Matrix Switchers • Matrix Software

Name presets — Allows you to assign a name to each of the 32 memory presets.

Show RS-232 strings — Displays the ASCII commands that are used by the current

Initialize — Initializes and clears any or all of the following: ties, presets, audio

Preferences menu

Immediate changes — Causes conﬁ guration changes to take

Hold/verify changes — Delays implementation of

Ties as lines — Displays ties as lines (ﬁ gure 5-7).

Preset names are limited to 12 upper- and lower-case alphanumeric characters,

space, and the _ : = and / characters.

The following characters are invalid in preset names:

+ ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.

conﬁ guration. You can refer to these for RS-232 programming.

conﬁ guration, preset names, icon names, and icons.

effect immediately.

conﬁ guration changes until the Changes – Take button is pressed.

Figure 5-7 — Ties shown as lines

Ties as crosspoints — Displays ties as a matrix of inputs and outputs (ﬁ gure 5-8).

Ties that have been made are indicated as amber (video and audio), green (video only), and red (audio only) boxes. Ties that will take effect when you click on the Take button are indicated by +. Ties that will be broken when you click on the Take button are indicated by –.

PRELIMINARY

Figure 5-8 — Ties shown as crosspoints

MVX 128 A VGA Matrix Switchers • Matrix Software

5-9

Matrix Software, cont’d

Icons in I/O boxes — Erases any numbers in the I/O boxes in the Control

Program window (ﬁ gure 5-3). You can place icons in the boxes.

Numbers in I/O boxes — Erases any icons in the I/O boxes in the

Control Program window and ﬁ lls each box with the associated input or output number.

Master-Reset selection

Master reset clears all ties and presets, all video and audio mutes, resets all I/O grouping, sets all input audio levels to unity gain (+0 dB), and sets all output volume levels to 100% (0 dB of attenuation).

PRELIMINARY

Master reset does not reset the Internet protocol (IP) settings.

Using emulation mode

Emulation mode allows you to set up the software without attaching the switcher to the computer. To use emulation mode, do the following:

1. Double-click the MATRIX Switchers+ Control Program icon in the Extron Electronics group or folder.

2. Choose Emulate, and click OK.

3. Choose an emulation ﬁ le to open, and click on OK. The ﬁ le DEMO.MTX

provides a sample of a completed matrix setup. Selecting the ﬁ le NEW.INI or clicking Cancel provides a blank setup to get you started.

4. Enter the ﬁ le name under which you want to save any changes to the ﬁ le, and click OK.

5. Select the number of video boards, audio boards, and matrix model for which you are preparing a conﬁ guration, and click OK.

6. Continue using the program as described on page 5-3.

Using the help system

For information about program features, you can access the help program in any of the following ways:

• From the Extron Electronics program folder or group,

double-click on the MATRIX Switcher+ Help icon (shown at right).

• From within the Matrix Switcher Control Program, click on the Help menu on

the main screen.

• From within the Matrix Switcher Control Program, press the F1 key.

Button-Label Generator Program

The Button Label Generator software creates labels that you can place in the translucent label strip windows above and below the input and output pushbuttons. You can create labels with names, alphanumeric characters, or even color bitmaps for easy and intuitive input and output selection. See appendix B, Speciﬁ cations, Part Numbers, and Accessories, for blank labels and procedures for removing and replacing the translucent covers.

The program is contained on the same CD-ROM as the Matrix Switcher Control Program and is also available on the Extron Web site, www.extron.com.

5-10

MVX 128 A VGA Matrix Switchers • Matrix Software

MVX 128 A VGA Matrix Switchers

Appendix A

Speciﬁ cations, Part Numbers,

Accessories

Speciﬁ cations

Part Numbers and Accessories

Button Labels

PRELIMINARY

Speciﬁ cations, Part Numbers, Accessories

Speciﬁ cations

Video

Routing ........................................... 12 x 8 matrix

Gain ................................................. Unity

Bandwidth ...................................... >300 MHz (-3 dB) , fully loaded

0 - 10 MHz ..................no more than +0.1 dB to -0.1 dB

0 - 130 MHz ................no more than +0.8 dB to -0.8 dB

Crosstalk ......................................... -80 dB @ 1 MHz, -55 dB @ 10 MHz, -45 dB @ 30 MHz, -37 dB @ 100 MHz

Switching speed ............................ 200 ns (max.)

Video input

Number/signal type ..................... 12 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, component

video, S -video, composite video

Connectors ..................................... 12 female 15-pin HD

Nominal level ................................ 1 Vp-p for Y of component video and S-video, and for composite video

0.7 Vp-p for RGB

0.3 Vp-p for R-Y and B-Y of component video, and for C of S-video

Minimum/maximum levels ........ Analog: 0.5 V to 2.0 Vp-p with no offset

Impedance ...................................... 75 ohms

Return loss ...................................... <-30 dB @ 5 MHz

DC offset (max. allowable)........... 1.5 V

PRELIMINARY

Video output

Number/signal type ..................... 8 RGBHV, RGBS, RGsB, HDTV component video, component video, S-video,

composite video (follows input type)

Connectors ..................................... 8 female 15-pin HD

Nominal level ................................ 1 Vp-p for Y of component video and S-video, and for composite video

0.7 Vp-p for RGB

0.3 Vp-p for R-Y and B-Y of component video, and for C of S-video

Minimum/maximum levels ........ 0 V to 2.0 Vp-p (follows input)

Impedance ...................................... 75 ohms

Return loss ...................................... -30 dB @ 5 MHz

DC offset ......................................... ±5 mV with input at 0 offset

Switching type ............................... Triple-Action

™

Sync

Input type ....................................... RGBHV, RGBS, RGsB, RsGsBs

Output type .................................... RGBHV, RGBS, RGsB, RsGsBs (follows input)

Tri-level on Y, R-Y, B-Y channels (component video 720p, 1080i, 1080p)

Bi-level on Y channel (for all other component video rates)

Input level ...................................... 0.5 V to 5.0 Vp-p, 4.0 Vp-p normal

Output level ................................... AGC to TTL: 4.0 V to 5.0 Vp-p, unterminated

Input impedance ........................... 510 ohms

Output impedance ........................ 75 ohms

Max input voltage ......................... 5.0 Vp-p

Max. propagation delay ............... 30 ns

Max. rise/fall time ........................ 4 ns

Polarity............................................ Positive or negative (follows input)

A-2

MVX 128 A VGA Matrix Switchers • Speciﬁ cations, Part Numbers, Accessories

Audio

Routing ........................................... 12 x 8 stereo matrix

Gain ................................................. Unbalanced output: -6 dB; balanced output 0 dB

Frequency response ...................... 20 Hz to 20 kHz, ±0.05 dB

THD + Noise .................................. 0.03% @ 1 kHz at nominal level

S/N .................................................. >90 dB, balanced, at maximum output (21 dBu), unweighted

Crosstalk ......................................... <-80 dB @ 1 kHz, fully loaded

Stereo channel separation ............ >80 dB @ 1 kHz

CMRR .............................................. >75 dB @ 20 Hz to 20 kHz

Audio input

Number/signal type ..................... 12 stereo, balanced/unbalanced

Connectors ..................................... (12) 3.5 mm captive screw connectors, 5 pole

Impedance ...................................... >10k ohm, balanced/unbalanced, DC coupled

Nominal level ................................ 0 dBV (316 mV) 0 dBu (775 mV)

Maximum level .............................. +19.5 dBu, (balanced or unbalanced) at 0.01% THD+N

Input gain adjustment .................. -18 dB to +24 dB, adjustable per input by RS-232/422 or front panel

0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV 2 dBu

Audio output

Number/signal type ..................... 8 stereo, balanced/unbalanced

Connectors ..................................... (8) 3.5 mm captive screw connectors, 5 pole

Impedance ...................................... 50 ohms unbalanced, 100 ohms balanced

Gain error ....................................... ±0.1 dB channel to channel

Maximum level (Hi-Z) ................. >+21 dBu, balanced or unbalanced at 0.10%THD+N

Maximum level (600 ohm) ........... >+15 dBm, balanced or unbalanced at 0.10%THD+N

Output volume range ................... 0 to 64 (-98 dB to 0 dB) in 1 dB increments from steps 1 to 64, 35 dB

increment from step 0 to 1

Control/remote — switcher

Serial control port .......................... 1 RS-232 or RS-422, 9-pin female D connector

Baud rate and protocol ................. 9600 (default), 19200, 38400, 115200 baud (adjustable); 8 data bits, 1 stop bit,

no parity

Serial control pin conﬁ gurations . RS-232: 2 = TX, 3 = RX, 5 = GND

RS-422: 2 = TX-, 3 = RX-, 5 = GND, 7 = RX+, 8 = Tx+

Program control ............................. Extron’s control/conﬁ guration program for Windows

Extron’s Simple Instruction Set (SIS™)

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Speciﬁ cations, Part Numbers, Accessories

A-3

Speciﬁ cations, Part Numbers, Accessories, cont’d

General

Power .............................................. 100 VAC to 240 VAC, 50/60 Hz, 30 watts, internal, autoswitchable

Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +113 °F (0 to +45 °C) / 10% to 90%, noncondensing

Rack mount .................................... Yes, with included brackets

Enclosure type ............................... Metal

Enclosure dimensions ................... 3.5” H x 19.0” W x 9.4” D (2U high, full rack wide)

8.9 cm H x 48.3 cm W x 23.9 cm D

(Depth excludes connectors. Width includes rack ears.)

Product weight .............................. 14.4 lbs (6.5 kg)

Shipping weight ............................ 21 lbs (10 kg)

DIM weight, international ........... 25 lbs (12 kg)

Vibration ......................................... ISTA 1A in carton (International Safe Transit Association)

Listings............................................ UL, CUL

Compliances ................................... CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF ............................................... 30,000 hours

Warranty ......................................... 3 years parts and labor

PRELIMINARY

All nominal levels are at ±10%.

Speciﬁ cations are subject to change without notice.

A-4

MVX 128 A VGA Matrix Switchers • Speciﬁ cations, Part Numbers, Accessories

Part Numbers and Accessories

Included parts

These items are included in each order for a MVX 128 A matrix switcher:

Included parts Replacement part

number

MVX 128 A 60-799-01

Tweeker (small screwdriver)

MVX 128 A user’s manual

Captive screw audio connectors (20) 10-319-10

Matrix Switchers Control Program and Button-Label Generator

Accessories

These items can be ordered separately:

Adapters, power supplies, labels Part number

MKP 1000 remote keypad

Black 60-239-02

White 60-239-03

RAL9010 white 60-239-05

WT (water-tight) 60-239-51

MCP 1000M (master) 60-298-01

MCP 1000S (slave) 60-298-02

MKP 2000 matrix switcher X-Y remote control panel

Black 60-682-02

White 60-682-03

RAL9010 white 60-682-05

MKP 3000

Black 60-708-02

White 60-708-03

RAL9010 white 60-708-05

PRELIMINARY

MVX 128 A VGA Matrix Switchers • Speciﬁ cations, Part Numbers, Accessories

A-5

Speciﬁ cations, Part Numbers, Accessories, cont’d

Cables

Male-to-female VGA molded connector cables Part number

VGA 3’ MHR, 3’ (0.9 m) 26-112-17

VGA 6’ MHR, 6’ (1.8 m) 26-112-15

VGA 15’ MHR, 15’ (4.5 m) 26-112-01

VGA 25’ MHR, 25’ (7.6 m) 26-112-05

VGA 35’ MHR, 35’ (10.6 m) 26-112-28

VGA 50’ MHR, 50’ (15.2 m) 26-112-29

VGA 75’ MHR, 75’ (22.8 m) 26-112-30

VGA 100’ MHR, 100’ (30.4 m) 26-112-31

Male-to-female VGA backshell connector cables Part number

VGA 3’ MHR, 3’ (0.9 m) 26-112-35

VGA 6’ MHR, 6’ (1.8 m) 26-112-36

VGA 15’ MHR, 15’ (4.5 m) 26-112-37

VGA 25’ MHR, 25’ (7.6 m) 26-112-38

VGA 35’ MHR, 35’ (10.6 m) 26-112-27

VGA 50’ MHR, 50’ (15.2 m) 26-112-02

VGA 75’ MHR, 75’ (22.8 m) 26-112-03

VGA 100’ MHR, 100’ (30.4 m) 26-112-04

PRELIMINARY

Male-to-male VGA molded connector cables Part number

VGA M3’ MHR, 3’ (0.9 m) 26-238-14

VGA M6’ MHR, 6’ (1.8 m) 26-238-01

VGA M10’ MHR, 10’ (3.0 m) 26-238-07

VGA M15’ MHR, 15’ (4.5 m) 26-238-02

VGA M25’ MHR, 25’ (7.6 m) 26-238-03

VGA M35’ MHR, 35’ (10.6 m) 26-238-17

VGA M50’ MHR, 50’ (15.2 m) 26-238-18

VGA M75’ MHR, 75’ (22.8 m) 26-238-19

VGA M100’ MHR, 100’ (30.4 m) 26-238-20

Male-to-male VGA molded connector cables Part number

VGA M3’ MHR, 3’ (0.9 m) 26-238-24

VGA M6’ MHR, 6’ (1.8 m) 26-238-25

VGA M10’ MHR, 10’ (3.0 m) 26-238-26

VGA M15’ MHR, 15’ (4.5 m) 26-238-27

VGA M25’ MHR, 25’ (7.6 m) 26-238-28

VGA M35’ MHR, 35’ (10.6 m) 26-238-16

VGA M50’ MHR, 50’ (15.2 m) 26-238-04

VGA M75’ MHR, 75’ (22.8 m) 26-238-05

VGA M100’ MHR, 100’ (30.4 m) 26-238-06

A-6

MVX 128 A VGA Matrix Switchers • Speciﬁ cations, Part Numbers, Accessories

Button Labels

Figure A-1 provides 12-button strips of blank button labels. Feel free to photocopy them or cut them out of the manual, write button information in each button area as desired, and put them in the switcher’s label window. For 8-button strips, use scissors to trim the blank to the appropriate length.

To remove a panel, insert the Phillips-head end of a Tweeker or small Phillips-head screwdriver into the hole in one end of the panel, and gently slide the tab at the edge of the panel out of the recess in the switcher housing.

PRELIMINARY

Figure A-1 — Button label blanks, 12-button strips

MVX 128 A VGA Matrix Switchers • Speciﬁ cations, Part Numbers, Accessories

A-7

Speciﬁ cations, Part Numbers, Accessories, cont’d

PRELIMINARY

A-8

MVX 128 A VGA Matrix Switchers • Speciﬁ cations, Part Numbers, Accessories

FCC Class A Notice

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Note: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to ensure compliance.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle East: and Central America:

Extron Electronics, Europe

Extron Electronics Beeldschermweg 6C 1001 East Ball Road 3821 AH Amersfoort Anaheim, CA 92805, USA The Netherlands

Asia: Japan:

Extron Electronics, Asia Extron Electronics, Japan 135 Joo Seng Road, #04-01 Kyodo Building PM Industrial Bldg. 16 Ichibancho Singapore 368363 Chiyoda-ku, Tokyo 102-0082 Japan

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or non-Extron authorized modiﬁ cation to the product.

If it has been determined that the product is defective, please call Extron and ask for an Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe), 65.383.4400 (Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁ tness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron Electronics, USA

1230 South Lewis Street Anaheim, CA 92805 USA

www.extron.com

714.491.1500 Fax 714.491.1517

Extron Electronics, Europe

Beeldschermweg 6C 3821 AH Amersfoort The Netherlands +31.33.453.4040 Fax +31.33.453.4050

Extron Electronics, Asia

135 Joo Seng Road, #04-01 PM Industrial Building Singapore 368363 +65.6383.4400 Fax +65.6383.4664

Extron Electronics, Japan

Kyodo Building 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan +81.3.3511.7655 Fax +81.3.3511.7656

Extron electronics MVX 128, MVX 128 A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
