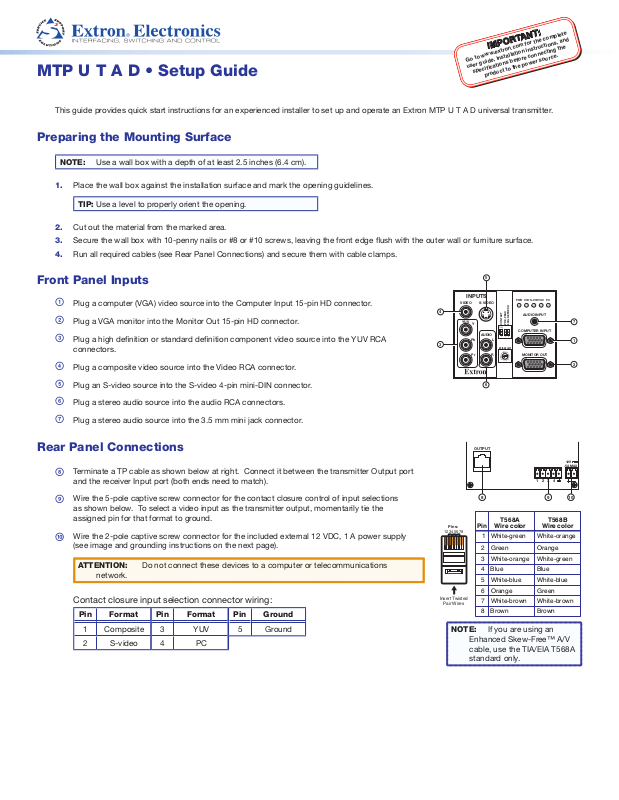

This guide provides quick start instructions for an experienced installer to set up and operate an Extron MTP U T A D universal transmitter.

Preparing the Mounting Surface

NOTE: Use a wall box with a depth of at least 2.5 inches (6.4 cm).

1. Place the wall box against the installation surface and mark the opening guidelines.

TIP: Use a level to properly orient the opening.

2. Cut out the material from the marked area.

3. Secure the wall box with 10-penny nails or #8 or #10 screws, leaving the front edge ush with the outer wall or furniture surface.

4. Run all required cables (see Rear Panel Connections) and secure them with cable clamps.

Front Panel Inputs

a Plug a computer (VGA) video source into the Computer Input 15-pin HD connector.

b Plug a VGA monitor into the Monitor Out 15-pin HD connector.

c Plug a high denition or standard denition component video source into the YUV RCA

connectors.

d Plug a composite video source into the Video RCA connector.

e Plug an S-video source into the S-video 4-pin mini-DIN connector.

f Plug a stereo audio source into the audio RCA connectors.

g Plug a stereo audio source into the 3.5 mm mini jack connector.

Rear Panel Connections

Terminate a TP cable as shown below at right. Connect it between the transmitter Output port

h

and the receiver Input port (both ends need to match).

Wire the 5-pole captive screw connector for the contact closure control of input selections

i

as shown below. To select a video input as the transmitter output, momentarily tie the
assigned pin for that format to ground.

Wire the 2-pole captive screw connector for the included external 12 VDC, 1 A power supply

j

(see image and grounding instructions on the next page).

ATTENTION: Do not connect these devices to a computer or telecommunications

network.

Contact closure input selection connector wiring:

Pin Format Pin Format Pin Ground

1 Composite 3 YUV 5 Ground

2 S-video 4 PC

5

4

3

Pins:

12345678

Insert Twisted

Pair Wires

INPUTS

VIDEO

S-VIDEO

YUV

Y

AUDIO

Pb

6

OUTPUT

8 9

Pin

1

2

3

4

5

6

7

8

PWRVID S-VIDYUV PC

AUDIO INPUT

CONTACT

PRE-PEAK

50Hz REFRESH

ON

COMPUTER INPUT

3

12

L

EDID SELECT

6

5

4

7

8

3

9

2

0

RPr

1

MONITOR OUT

A

F

B

E

C

D

T568A T568B

Wire color

White-green

Green

White-orange

Blue

White-blue

Orange

White-brown

Brown

NOTE: If you are using an

Enhanced Skew-Free™ A/V
cable, use the TIA/EIA T568A
standard only.

.5A MAX

1234

Wire color

White-orange

Orange

White-green

Blue

White-blue

Green

White-brown

Brown

7

1

2

12V

10

MTP U T A D • Setup Guide

AA

Wall Stud

Grounding the Power Input Port

Extron MTP U T A D transmitters can be adversely affected by electrostatic discharge (ESD)
if they are not grounded correctly.

To prevent malfunctions or product damage, an experienced installer can correctly ground
an Extron MTP U T A D transmitter product by inserting one end of the grounding wire to the
negative or ground pin on the power input connector (see the image on the right). Tie the
other end of the wire to an earth ground.

Plug the connector into the MTP U T A D transmitter.

If you have any questions about how to ground a product in a specic application, contact an
Extron technical support specialist.

Smooth

SECTION A–A

Power Supply

Output Cord

Ridges

3/16"
(5 mm)
Max.

Front Panel Switch Settings and LEDs

• DIP Switches

• Contact — Set this switch on (up) for contact closure control of the input selection. Set the switch off (down) for auto switch mode (the

transmitter automatically selects the highest format video input with a sync signal present).

ON

SELECT

0

CONTACT

12

EDID

3

2

1

F

E

• Pre-Peak — View the image and set the Pre-Peaking switch for the best image quality to correct for long cable runs of the entire sytem

PRE-PEAK

50 Hz REFRESH

• 50 Hz Refresh — Set this switch on (up) for a 50 Hz refresh rate for the resolution selected by the EDID Select switch. Set this switch

3

6

5

4

7

8

• EDID Select rotary switch — Set this switch to one of the positions below to select either the local monitor as the source of the EDID data

9

A

B

C

D

off (down) for 60 Hz.

or a specic resolution.

• Position 0 — The loop-through monitor (2, on the other side of this guide) is the source of the EDID data.

• Position 1 - F — Specify a resolution. The table below identies the switch positions and the associated resolutions. By default, the

vertical refresh rate for all resolutions is 60 Hz. The resolution can be set to 50 Hz using the Refresh DIP switch.

Source or

Position

Resolution

Position Resolution Position Resolution Position Resolution

0 Local monitor 4 1280 x 768 8 1366 x 768 C 1680 x 1050

1 800 x 600 5 1280 x 800 9 1400 x 1050 D 1920 x 1080

2 1024 x 768 6 1280 x 1024 A 1440 x 900 E 1920 x 1200

3 1280 x 720 7 1360 x 768 B 1600 x 1200 F Not used

POWER
12V
xA MAX

Rear
Panel

Tie
Wrap

Ridges

Earth
Ground

• LEDs —

• Power — This LED indicates power is applied to the MTP.

• Active input — The lit LED: PC, YUV, S-VID, or Vid; indicates the video input connector

that is selected for transmission.

Final Installation

1. Make all connections, test the system, and install the device when operation is satisfactory.

2. At the power outlet, unplug the power supply.

3. Mount the transmitter into the wall box, and attach the supplied Decora faceplate to the unit.

4. At the power outlet, reconnect the power supply.
