MTP 15HD RS Series

High Resolution Video and Serial Link MTP Transmitters and Receivers

User Guide

Twisted Pair

68-925-02 Rev. F

08 11

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future reference.

Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user

information.

Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment

manufacturer because they may be hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant

d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité aﬁn de pouvoir les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou

présentés dans la documentation utilisateur.

Eviter les pièces de xation • Ne pas utiliser de pièces de ﬁxation ni d’outils non recommandés par le

fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und

Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie

aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in der

Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom

Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Warning

Power sources • This equipment should be operated only from the power source indicated on the product. This

equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power cords from the rear of

the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be stepped on or pinched by

items placed upon or against them.

Servicing • Refer all servicing to qualiﬁed service personnel. There are no user-serviceable parts inside. To

prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to prevent

overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur l’appareil. Ce

matériel doit être utilisé avec une alimentation principale comportant un ﬁl de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous les cordons

d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que personne ne

risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un technicien

qualiﬁé. Aucun des éléments internes ne peut être réparé par l’utilisateur. Aﬁn d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orices • Si le boîtier de l’appareil comporte des fentes ou des oriﬁces, ceux-ci servent à empêcher

les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie. Remplacer uniquement

avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben werden.

Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle Netzkabel

aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und niemand

darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualiziertem Servicepersonal durchgeführt werden.

Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese zur

Vermeidung einer Überhitzung der empndlichen Teile im Inneren. Diese Öffnungen dürfen niemals von

anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie verbrauchte

Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar el

equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la

documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especiﬁcamente recomendados

por el fabricante, ya que podrian implicar riesgos.

安全须知 • 中文

这个符号提示用户该设备用户手册中有重要的操作和维护说明。

这个符号警告用户该设备机壳内有暴露的危险电压，有触电危险。

注意

阅读说明书 • 用户使用该设备前必须阅读并理解所有安全和使用说明。保存说明书 • 用户应保存安全说明书以备将来使用。遵守警告 • 用户应遵守产品和用户指南上的所有安全和操作说明。避免追加 • 不要使用该产品厂商没有推荐的工具或追加设备，以避免危险。

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación eléctrica

indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de alimentación eléctrica

al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en lugares donde

no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal calicado. En el interior no

hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o oriﬁcios en su caja/alojamiento, es para evitar el

sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros

objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar esta

batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

警告

电源 • 该设备只能使用产品上标明的电源。设备必须使用有地线的供电系统供电。第三条线

（地线）是安全设施，不能不用或跳过。

拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后或桌面电源的电源线，或任何接到市电

系统的电源线。

电源线保护 • 妥善布线，避免被踩踏，或重物挤压。维护 • 所有维修必须由认证的维修人员进行。设备内部没有用户可以更换的零件。为避免出现触

电危险不要自己试图打开设备盖子维修该设备。

通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止机内敏感元件过热。不要用任何东西

挡住通风孔。

锂电池 • 不正确的更换电池会有爆炸的危险。必须使用与厂家推荐的相同或相近型号的电池。按

照生产厂的建议处理废弃电池。

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

The Class A limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the

unit to ensure compliance with FCC emissions limits. For more information on safety guidelines, regulatory compliances, EMI/EMF compliance, accessibility, and

related topics, click here.

In this user guide, the following are used:

TIP: A tip provides a suggestion to make setting up or working with the device easier.

NOTE: A note draws attention to important information.

CAUTION: A caution warns of things or actions that might damage the equipment.

WARNING: A warning warns of things or actions that might cause injury, death, or other severe consequences.

Trademarks

All trademarks mentioned in this guide are the properties of their respective owners.

iii

Contents

Introduction ............................................ 1

About this Guide ............................................. 1

About the MTP Transmitters and Receivers ....... 2

Twisted Pair Cable Advantages ..................... 3

Transmission Distance ...................................... 3

Receiver Jumpering .......................................... 5

Installation and Operation ..................... 6

Installation and Operation Overview ................. 6

Front Panel Features ......................................... 7

Transmitter Rear Panel Features ........................ 9

Receiver Rear Panel Features .......................... 11

Power Supply Wiring ..................................... 13

Twisted Pair Cable Termination ....................... 14

Skew Delay Compensation............................. 15

SEQ Receiver Skew Compensation ............. 15

Non-SEQ Receiver Skew Compensation ...... 15

Reference Information ..........................16

Speciﬁcations ................................................. 16

Part Numbers, Optional Accessories,

Cables, and Connectors ................................ 18

Part Numbers ............................................. 18

Optional Accessories .................................. 19

Cables ....................................................... 19

Connectors ................................................ 19

Mounting ................................................20

Tabletop Placement ........................................ 20

Under-desk and Furniture Mounting .............. 20

Rack Mounting .............................................. 20

UL Guidelines for Rack Mounting ............... 20

Rack Mounting Procedure .......................... 21

Back of the Rack Mounting Procedure ........ 21

Projector Mounting ........................................ 21

MTP 15HD RS Series • Contents iv

Introduction

This section gives an overview of the user guide. This section also describes the MTP 15HD RS Series of transmitters and receivers. Topics that are covered include:

 About this Guide

 About the MTP Transmitters and Receivers

 Transmission Distance

 Receiver Jumpering

About this Guide

This guide contains installation, conﬁguration, and operation information for two families of Extron MTP transmitters and receivers.

 MTP products that are compatible with:

 Extron Enhanced Skew-Free

 CAT 5, 5e, and 6 shielded twisted pair (STP), unshielded twisted pair (UTP), or foil

shielded twisted pair (FTP) cable.

 MTP C7 (CAT 7, C7) products that are compatible with Extron STP201 or CAT 7 cable

only.

In this guide, any reference to these products refers to either family, unless explicitly stated.

™

A/V UTP cable

NOTE: For clarity and where applicable, in this guide, the CAT 5, 5e, 6 versions are

referred to as non-C7 MTPs.

This guide details the installation and operation of the following products:

 MTP T 15HD RS twisted pair (TP) transmitter

 MTP RL 15HD RS receiver with loop-through

 MTP RL 15HD RS SEQ receiver with loop-through and skew equalization

In this guide:

 The term "transmitter" refers speciﬁcally to the MTP T 15HD RS transmitter.

 The term "receiver" refers to either of the receiver models — the MTP RL 15HD RS or

MTP RL 15HD RS SEQ.

 The term "SEQ receiver" refers speciﬁcally to the MTP RL 15HD RS SEQ receiver with

skew equalization capabilities.

MTP 15HD RS Series • Introduction 1

About the MTP Transmitters and Receivers

The Extron MTP T 15HD RS transmitter and MTP RL 15HD RS and MTP RL 15HD RS SEQ receivers are a system for long-distance distribution of VGA or other high resolution video and RS-232 serial communications.

The MTPs are a part of the Extron compact line of basic distribution ampliﬁers, switchers, transmitters, receivers, and associated video accessories.

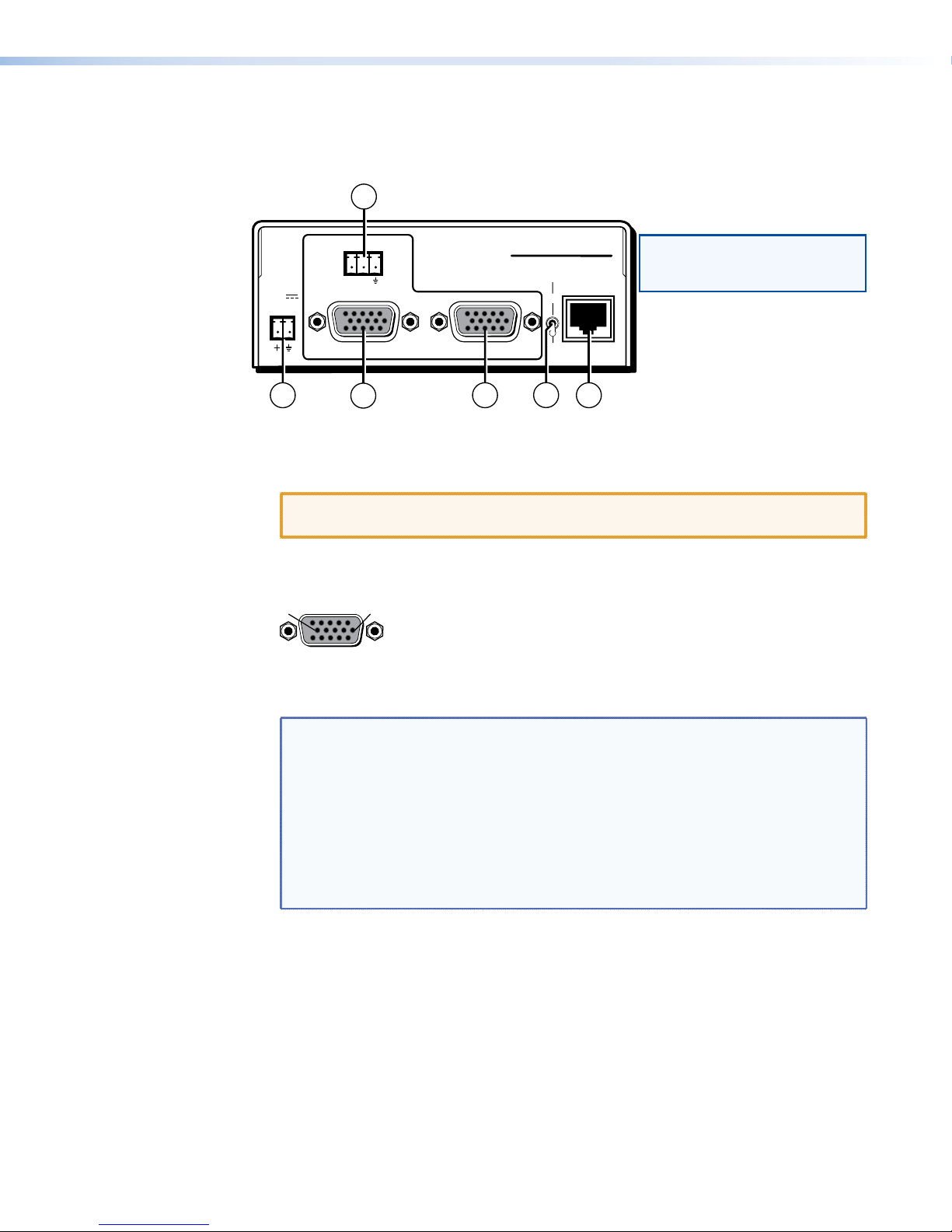

High resolution video is sent to the MTP transmitter on a 15-pin HD connector. The transmitter passes RS-232 serial data or control signals on a 3.5 mm 3-pin captive screw connector. The transmitter converts the video and RS-232 signals to proprietary signals and outputs them to a compatible MTP receiver on an RJ-45 connector. The transmitter also makes the input video available for local use on a 15-pin HD connector.

The transmitted proprietary signal is sent to the receiver on an RJ-45 connector and converts the signal back into its high resolution video and serial data components. The receiver outputs the video on a 15-pin HD connector. The serial communications are passed on a

3.5 mm 3-pin captive screw connector.

The RS-232 portion of the TP link:

 Can be bidirectional in a one-receiver system; that is, the receiver can receive commands

from the transmitter and pass RS-232 responses to the transmitter.

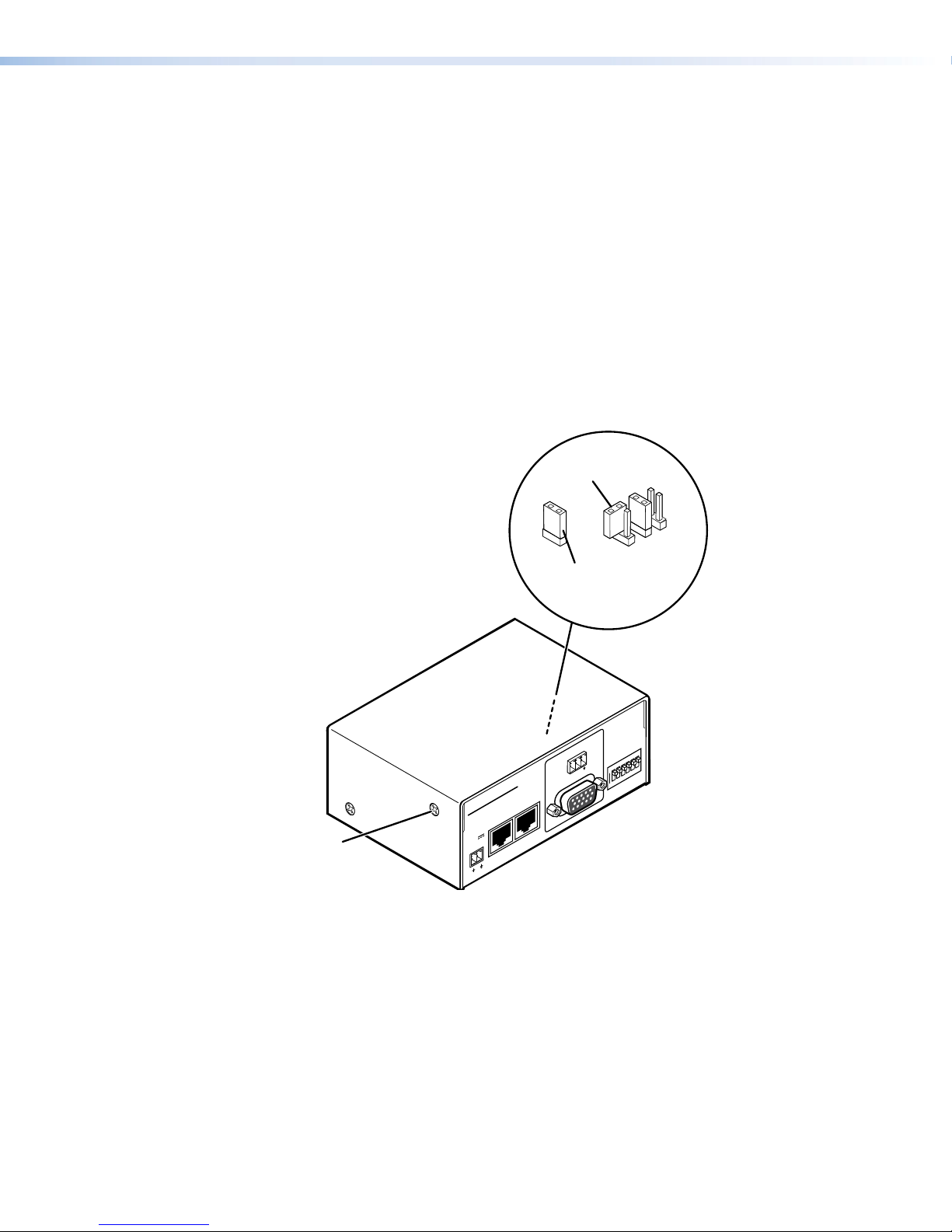

NOTE: If there is only one receiver in the system, you can shift a jumper in that

receiver (see "Receiver Jumpering" on page 5) to allow bidirectional RS-232 communications and change a DIP switch setting (see "End Unit

switch" on page 12 to properly terminate the signal).

 Supports software ﬂow control (XON, XOFF).

NOTE: Hardware ﬂow control is not supported.

 Supports full duplex and half duplex operation.

 Supports any baud rate (up to 38,400), data bits, parity, stop bits, and data format

without conﬁguration.

NOTE: Higher rates are possible, but performance will vary as a function of baud

rate and TP cable length.

The receiver also buffers the proprietary input signal and sends it to another compatible MTP receiver or to a daisy chain of receivers.

NOTES: • The transmitter provides pre-peaking, which boosts the signal before it is

transmitted. The buffered output on the receiver does not provide any pre-peaking control. The total recommended distance (see the table on page 4) for an entire daisy chain is the same as for a single transmitter and receiver. The Pre-Peak switch on the transmitter has the same affect on the recommended transmission distance for a daisy chain as for a single transmitter and receiver.

• Up to eight receivers can be connected in series using the Buffered Output connectors, provided that the total distance from the TP output of the transmitter to the last receiver in the chain does not exceed the recommended distance for the resolution being used.

MTP 15HD RS Series • Introduction 2

The SEQ receiver also corrects the skew delay commonly encountered when CAT 5, 5e, 6, 7, or STP201 cables are used for RGB video, component video, and S-video transmission.

NOTE: An SEQ receiver should not be necessary when Extron Enhanced Skew-Free A/V

Each MTP transmitter and receiver model is shipped with an external desktop 12 VDC power supply that accepts 100 VAC to 240 VAC, 50-60 Hz input.

Twisted Pair Cable Advantages

Twisted pair cable is smaller, lighter, more ﬂexible, and less expensive than coaxial cable. Termination of the cable with RJ-45 connectors is simple, quick, and economical.

CAUTION: Do not connect these devices to a computer data or telecommunications

Transmission Distance

The maximum distance is determined by the frequency and resolution of the signal that is input to the transmitter. The table on page 4 speciﬁes the recommended maximum transmission distances and transmitter Pre-Peak switch positions (see item e on page 10) using Extron Enhanced Skew-Free A/V UTP cable, STP201 cable, or CAT 5, 5e, 6, or 7 cable, terminated with RJ-45 connectors.

UTP cable is used.

network.

NOTES: • The non-C7 transmitter and receiver are designed for and perform best with

Extron Enhanced Skew-Free A/V UTP cable terminated in accordance with the TIA/EIA T 568 A wiring standard. CAT 5, 5e, and 6 cables are acceptable for the non-C7 models, but less preferable. We also recommend the use of pre-terminated and tested cables. Cables terminated on site should be tested before use to ensure that they comply with CAT 5 speciﬁcations.

• The use of STP201 or CAT 7 cable has a negative effect on transmission

• Extron recommends using at least 25 feet of TP cable between the transmitter

• For daisy-chained units, the ﬁrst receiver in the chain must be at least

• For daisy-chained units, any receiver in the chain closer than 350 feet (105 m)

distance. STP201 or CAT 7 cable should only be used with C7 products.

and the ﬁrst receiver.

100 feet (30 m) from the transmitter when the Pre-Peak switch is on.

may experience some form of over-peaking when the Pre-Peak switch is on. An overpeaked image may appear bloomed.

MTP 15HD RS Series • Introduction 3

Video Format

Pre-Peak

off

Pre-Peak onMax. distance

(high quality)

Max. distance

(variable quality)

Composite, S-video, Component

640x480

800x600

1024x768*

1280x960*

1280x1024*

1360x765

1365x768

1366x768

1400x1050

1440x900

1600x1200*

1920x1200

2048x1080

HDTV 720p

HDTV 1080i

HDTV 1080p

<300'

(90 m)

<300'

(90 m)

<300'

(90 m)

<300'

(90 m)

<250'

(75 m)

<250'

(75 m)

<250'

(75 m)

<250'

(75 m)

<250'

(75 m)

<250'

(75 m)

<250'

(75 m)

<250'

(75 m)

<250'

(75 m)

<250'

(75 m)

<250'

(75 m)

<250'

(75 m)

>350'

(105 m)

>350'

(105 m)

>350'

(105 m)

>350'

(105 m)

>300'

(90 m)

>300'

(90 m)

>300'

(90 m)

>300'

(90 m)

>300'

(90 m)

>300'

(90 m)

>300'

(90 m)

>300'

(90 m)

>300'

(90 m)

>300'

(90 m)

>300'

(90 m)

>300'

(90 m)

800'

(245 m)

700'

(215 m)

550'

(165 m)

500'

(150 m)

400'

(120 m)

350'

(105 m)

400'

(120 m)

400'

(120 m)

400'

(120 m)

350'

(105 m)

350'

(105 m)

300'

(90 m)

300'

(90 m)

300'

(90 m)

400'

(120 m)

300'

(90 m)

300'

(90 m)

1000'

(300 m)

750'

(240 m)

650'

(200 m)

600'

(185 m)

500'

(150 m)

450'

(135 m)

500'

(150 m)

450'

(135 m)

450'

(135 m)

400'

(120 m)

400'

(120 m)

450'

(135 m)

400'

(120 m)

400'

(120 m)

500'

(150 m)

400'

(120 m)

400'

(120 m)

Figure 1. Recommended Pre-Peak Switch Positions and Transmission Distances

NOTES: • The recommendations shown in the table above apply for a single transmitter

• Resolutions marked with an asterisk (*) in the table above have the same

• It is possible to exceed the recommended distance; however, image quality

at 60 Hz

and receiver and for a daisy chain. For example, the maximum suggested range for 1024x768 video is 300 feet (90 m) with the Pre-Peak switch off and 500 feet (150 m) with the Pre-Peak switch on, whether the system consists of one transmitter and one receiver or a transmitter and three daisy-chained receivers.

range speciﬁcations at 75 Hz.

may be reduced.

MTP 15HD RS Series • Introduction 4

Receiver Jumpering

k JMP1

By default, the receiver is unidirectional, conﬁgured to send serial data from the transmitter to the receiver, only. If the system has only one receiver, this jumper can be repositioned to enable bidirectional communication as follows:

1. If applicable, disconnect all cables, remove the receiver from its installation location, and

remove any mounting brackets installed.

2. Remove the two screws from either side of the receiver (four screws total) and lift the

top cover off of the receiver (see ﬁgure 2 below).

3. Locate jumper JMP1 on the serial data (top) board and shift the jumper to bridge the

jumper block (see ﬁgure 2 below).

4. Place the top cover back into place.

5. Reinstall the four screws removed in step 2. If any mounting brackets were removed in

step 1, put them back into position as you reinstall the screws.

6. If applicable, reinstall the receiver and reconnect all cables.

Unjumpered for

Unidirectional

Jumpered for

Bidirectional

JMP2

JMP1

JMP3

Jumper bloc inside box.

RS-232

BUFFERED

Remove 4 screws,

MT P R L 1 5H D R S

POWER

12V

.5A MAX

INPUT

OUTPUT

V SYNC +

H SYNC +

1 2 3 4 5 6

C SYNC

END UNIT

VIDEO

SOG

lift top straight up.

Figure 2. Opening the Receiver and Setting the Directional Jumpers

MTP 15HD RS Series • Introduction 5

Installation and Operation

This section provides information on:

 Installation and Operation Overview

 Front Panel Features

 Transmitter Rear Panel Features

 Receiver Rear Panel Features

 Power Supply Wiring

 Twisted Pair Cable Termination

 Skew Delay Compensation

Installation and Operation Overview

Follow the steps below to properly install and operate any of the Extron MTP 15HD RS transmitters and receivers.

CAUTION: Do not connect these devices to a computer data or telecommunications

network.

1. Turn off all MTPs and devices. Make sure that the input sources, the MTP, and

the output sources are all turned off and all power sources and signal cables are disconnected.

2. If necessary, conﬁgure the receiver jumpers (see "Receiver Jumpering" on page 5).

3. If applicable, mount the MTPs (see "Mounting" on page 20).

4. Connect the transmitter inputs (see "Transmitter Rear Panel Features" on page 9).

5. Connect twisted pair (TP) cables between the MTP units (see "Transmitter Rear Panel

Features" on page 9 and "Receiver Rear Panel Features" on page 11).

6. Connect the receiver outputs (see "Receiver Rear Panel Features" on page 11).

7. Conﬁgure the receiver DIP switches (see "Receiver Rear Panel Features" on page 11).

8. Connect the power supply and turn on all devices (see "Power Supply Wiring" on

page 13).

9. Adjust the level and peaking (see "Front Panel Features" on page 7).

10. Adjust the skew delay control (see "Front Panel Features" on page 7).

MTP 15HD RS Series • Installation and Operation 6

Front Panel Features

See ﬁgure 3 below to identify the front panel features on the transmitter and receiver.

MTP T 15HD RS transmitter

MTP RL 15HD RS receiver

LEVEL

MTP SERIES

RGB

PEAKING

MTP SERIES

DELAY

MTP RL 15HD RS SEQ receiver

Figure 3. MTP Front Panels

Power LED — The LED indicator lights when the unit is receiving power.

Level control — The Level control alters the video output voltage to affect the

SELECT

RED

GREEN

BLUE

2 3

RGB

LEVEL

MTP SERIES

PEAKING

brightness of the displayed image. Adjust the knob while viewing the displayed image to set the level that provides the best picture quality.

NOTE: For best results when using an RL receiver, connect a load to the buffered

output of the receiver before adjusting the level.

Peaking control — Peaking affects the sharpness of a picture. Increased peaking

can compensate for mid and high frequency detail loss from low bandwidth system components or capacitance in long cables. The minimum setting (at the counterclockwise limit) provides no peaking. The maximum setting (at the clockwise limit) provides 100% peaking. Adjust this control to obtain the optimum picture sharpness.

MTP 15HD RS Series • Installation and Operation 7

Select button (SEQ model only) — This recessed button selects the Red, Green, or

Blue video signal to adjust and resets all three video signals to a skew delay of zero nanoseconds.

Use a small screwdriver to press and release this button to cycle among selecting the Red, Green, or Blue video signal to adjust. The selected signal is indicated by the Red, Green, and Blue LEDs (e).

NOTE: The SEQ receiver automatically saves the setting for the video signal that is

being deselected when you push this button or when the selection times out after 10 seconds.

Press and hold this button for approximately 3 seconds to set the skew delay for Red, Green, and Blue to zero. The Red, Green, and Blue LEDs ( button.

Red, Green, and Blue LEDs (SEQ model only) — These LEDs indicate the video

signal that is selected by the Select button (d) for skew adjustment using the Delay control ( the selected video signal has reached the minimum or maximum limit.

Delay (skew adjustment) control (SEQ model only) — This control delays the

selected Red, Green, or Blue video signal by up to 62 nanoseconds. The delay is applied in incremental, 2-nanosecond steps. Rotate the control counterclockwise to reduce the delay or clockwise to increase the delay.

NOTES: • The control turns smoothly; it does not have mechanical steps or

• Watch the displayed image to observe the steps of delay.

• The selected Red, Green, or Blue LED (e) ﬂashes to indicate that

• For additional information on skew adjustment, see the "Skew Delay

). The LED of the selected color ﬂashes when skew compensation for

high and low limit stops.

the control has reached the minimum (counterclockwise rotation) or maximum (clockwise rotation) limit.

Compensation" section on page 15.

) all turn off. Release the

MTP 15HD RS Series • Installation and Operation 8

Transmitter Rear Panel Features

Figure 4 shows an MTP T 15HD RS transmitter, which has all of the connectors and other features that are on either transmitter in the MTP 15HD RS series.

POWER

12V .5A MAX

RS-232

Tx Rx

INPUT

MONITOR

MTP T 15HD RS

PRE-PEAK

OFF

NOTE: A “C7” label is affixed to transmitters designed for STP201 or CAT 7 cable.

OUTPUT

Figure 4. Transmitter Rear Panel

Power connector — Plug the included external 12 VDC power supply into this 2-pole

captive screw connector. Wire the connector as shown in gure 9 on page 13.

CAUTION: Read the notes, cautions, and warnings in the "Power Supply

Wiring" section on page 13 before wiring the connector.

Input video connector — Connect a computer video source to this 15-pin HD

connector for high resolution video input (see ﬁgure 5).

610

15 11

Female

Figure 5. 15-pin HD Connector

NOTES: • Input only sync signals (no video signals) on the sync pins (13 and 14).

• For component video, use the R (R-Y) and R return pins (pins 1 and 6), G (Y) and G return pins (pins 2 and 7), and B (B-Y) and B return pins (pins 3 and 8).

• For S-video, use the R, R return (C-chroma), G, and G return (Y-luma) pins.

• For composite video, use the G pin and the associated return pin. For additional genlocked video signals, use the R, B, and associated return pins.

Monitor connector — Connect a video monitor to this 15-pin HD connector for

buffered, high resolution video loop-through.

MTP 15HD RS Series • Installation and Operation 9

RS-232 connector — Connect a serial communications port to this 3.5 mm, 3-pole

Connected RS-232

MTP

captive screw connector for bidirectional RS-232 communication. Wire the connector as shown in ﬁgure 6.

Device Pins

Receive

Transmit

Ground

Pins

Gnd

Figure 6. RS-232 Connector Wiring

NOTES: • By default, the RS-232 portion of the TP link is unidirectional only from

the transmitter to the receiver. If there is only one receiver in a system, a jumper within the receiver allows the RS-232 communication to be bidirectional (see "Receiver Jumpering" on page 5).

• The length of the exposed wires in the stripping process is critical. The ideal length is 3/16 inches (5 mm). If the exposed section is longer, the exposed wires may touch, causing a short circuit between them. If it is shorter, the wires can be easily pulled out, even if tightly fastened by the captive screws.

• Do not tin the wires. Tinned wire does not hold its shape and can become loose over time.

Pre-Peak switch — The Pre-Peak switch alters the TP signal output to correct for

long cable runs. See the table on page 4 for suggested switch settings based on the transmitted video format and transmission distance.

Output connector — Connect one end of a TP cable to this RJ-45 female connector

on the transmitter. Connect the free end of the same TP cable to the RJ-45 female connector on the receiver. See "Twisted Pair Cable Termination" on page 14 to wire the RJ-45 connectors.

CAUTION: Do not connect these devices to a computer data or

telecommunications network.

NOTES: • The non-C7 transmitters and receivers will not work properly with

STP201 or CAT 7 STP cable.

• The C7 transmitters and receivers will work properly only with STP201 or CAT 7 STP cable.

MTP 15HD RS Series • Installation and Operation 10

Receiver Rear Panel Features

Figure 7 shows an MTP RL 15HD RS receiver, which has all of the connectors and other features that are on either receiver in the MTP 15HD RS series.

MTP RL 15HD RS

POWER

12V .5A MAX

INPUT

BUFFERED

OUTPUT

RS-232

Tx Rx

OUTPUT

H SYNC +

V SYNC +

C SYNC

1 2 3 4 5 6

SOG

VIDEO

END UNIT

NOTE A “C7” label is affixed to

NOTE: A “C7” label is affixed to

receivers designed for

DTP26 or CAT 7 cable.

STP201 or CAT 7 cable.

1 2

Figure 7. Receiver Rear Panel

Power connector — Plug the included external 12 VDC power supply into this 2-pole

captive screw connector. Wire the connector as shown in gure 9 on page 13.

CAUTION: Read the notes, cautions, and warnings in the "Power Supply

Wiring" section on page 13 before wiring the connector.

Input connector — Connect one end of the TP cable from the transmitter or from the

buffered output connector of an RL receiver to this RJ-45 female connector.

Buffered output connector — Connect one end of a TP cable to this female RJ-45

connector. Connect the free end of the same TP cable from the receiver to the Input RJ-45 female connector on another receiver. See "Twisted Pair Cable Termination" on page 14 to wire the RJ-45 connectors.

CAUTION: Do not connect these devices to a computer data or

telecommunications network.

NOTES: • The non-C7 transmitters and receivers will not work properly with

STP201 or CAT 7 STP cable.

• The C7 transmitters and receivers will work properly only with STP201 or CAT 7 STP cable.

Output video connector — Connect a projector or other high resolution video device

to this 15-pin HD connector.

RS-232 connector — Connect a serial communications port to this 3.5 mm, 3-pole

captive screw connector for bidirectional RS-232 communication. Wire the connector as shown in gure 6 on page 10.

NOTE: Read the RS-232 connector notes on page 10 before wiring the connector.

MTP 15HD RS Series • Installation and Operation 11

DIP switches (RL receivers only) — A 6-pole DIP switch is used to conﬁgure the

features of the MTP receivers.

 Horizontal sync (H Sync +) switch — Set this switch On (up) for positive

horizontal sync or Off (down) for negative sync.

 Vertical sync (V Sync +) switch — Set this switch On (up) for positive vertical sync

or Off (down) for negative sync.

NOTE: For H Sync + and V Sync +, most devices use negative sync.

 Composite Sync (C Sync) switch — Set this switch up for RGBS or down to

output RGBHV or RGsB video (see ﬁgure 8).

Input signal

format to the

transmitter

RGBS

RGsB

Component

S-video

Composite

Output signal

format from the receiver

RGBHV

RGBS RGBHV

RGsB

RGBS

RGsB

RsGsBs RsGsBs

RGsB

Component

S-video

Composite

Receiver DIP

switch settings

C Sync SOG Video

Figure 8. Receiver DIP Switch Settings

 Sync-on-Green (SOG) switch — Set this switch up for RGsB video (when the input

is RGBHV or RGBS) or down to output RGBHV, RsGsBs, or RGBS video (see ﬁgure 8).

 Video switch — Set this switch up for RsGsBs, RGsB, component video / S-video /

composite video or down to output RGBHV or RGBS video (see ﬁgure 8).

NOTE: Set the Composite Sync, SOG, and Video DIP switches as shown in

ﬁgure 8 for the various input and output video formats

 End Unit switch — Set this switch On (up) if either of the following is true:

 The receiver being conﬁgured is the only receiver connected to the transmitter.

 The receiver being conﬁgured is the last receiver in a daisy-chained system.

Set the End Unit switch Off (down) on the receiver being conﬁgured if there are one or more receivers connected to the Buffered Output RJ-45 connector.

MTP 15HD RS Series • Installation and Operation 12

Power Supply Wiring

Figure 9 below shows how to wire the connector.

CAUTION: Power supply voltage polarity is critical. Incorrect voltage polarity can

To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter.

damage the power supply and the transmitter or receiver. Identify the power cord negative lead by the ridges on the side of the cord.

Smooth

Ridges

Power Supply

Output Cord

SECTION A–A

Tie Wrap

Captive

Screw

Connector

16 (5 mm) Max.

Figure 9. Power Connector Wiring

WARNING: The two power cord wires must be kept separate while the power supply is

plugged in. Disconnect the power before wiring.

CAUTION: • This product is intended to be supplied by a Listed Power Unit marked

"Class 2" or "LPS", rated 12 VDC, maximum 1.0 A. Always use a power supply supplied or speciﬁed by Extron. Use of an unauthorized power supply voids all regulatory compliance certiﬁcation and may cause damage to the supply and the end product.

• Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. The power supply is to be located within the same vicinity as the Extron A/V processing equipment in an ordinary location, Pollution Degree 2, secured to the equipment rack within the dedicated closet, podium, or desk.

• The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA 70, article 75, and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently ﬁxed to building structure or similar structure.

NOTES: • Your transmitter/receiver pair may have shipped with a blue captive screw

• Do not tin the power supply leads before installing in the direct insertion

• The length of the exposed (stripped) copper wires is important. The ideal

connector. This blue connector can be plugged into either a blue or an orange power receptacle. The blue connector does not have the extended tail or the included tie-wrap.

connector. Tinned wires are not as secure in the connectors and could be pulled out of the connector.

length is 3/16 inches (5 mm). Longer bare wires can short together. Shorter wires are not as secure in the connector and could be pulled out.

MTP 15HD RS Series • Installation and Operation 13

Use the supplied tie-wrap to strap the power cord to the extended tail of the connector.

As an alternative, an Extron PS 124 Universal 12 VDC Power Supply (part number 60-1022-01) can power multiple MTPs or other Extron 12 VDC devices using only one AC power connector.

Twisted Pair Cable Termination

Figure 10 details the recommended termination of TP cables with RJ-45 connectors in accordance with the TIA/EIA T568A or TIA/EIA T568B wiring standards. You can use either standard with CAT 5, 5e, 6, 7, and STP201 cable, but ensure that you use the same standard on both ends of the cable.

Pins:

12345678

TIA/EIA T 568 ATIA/EIA T 568 B

Wire color

1 Red/V. sync +

White-green

2 Red/V. sync -

Green

White-orange

Blue

White-blue

Orange

White-brown

Brown

Insert Twisted

Pair Wires

RJ-45

Connector

Figure 10. TP Cable Termination Diagram

NOTE: When using Enhanced Skew-Free A/V UTP cable, use the TIA/EIA T568A standard only.

Wire color

White-orange

Orange

White-green

Blue

White-blue

Green

White-brown

Brown

ignal

Mono audio +

Green +

Green -

Mono audio -

Blue/H. sync +

Blue/H. sync -

NOTES: • RJ-45 termination with CAT 5, 5e, or 6 cable (for non-C7 units only) or

STP201 or CAT 7 cable (for C7 units only) must comply with the TIA/EIA T568A or TIA/EIA T568B wiring standards for all connections.

• RJ-45 termination with Skew-Free A/V UTP cable (for non-C7 units only)

must comply with TIA/EIA T568A only.

• For proper grounding of STP201 and CAT 7 cable only, ensure the shield

around each wire pair and the shield around the STP201 or CAT 7 cable are all tied to the RJ-45 connectors on both ends, in accordance with the connector speciﬁcations provided by the manufacturer.

• Extron Enhanced Skew-Free A/V cable is not recommended for Ethernet/

LAN applications. This cable is specially designed for compatibility with Extron Twisted Pair products that are wired using the TIA/EIA T568A standard.

• The green, brown, and blue wire pairs of this cable have virtually identical

lengths and should be used to transmit the RGB signals.

• The orange wire pair of this cable has a different length and should not be

used to transmit the RGB signals.

MTP 15HD RS Series • Installation and Operation 14

Skew Delay Compensation

CAT 5, 5e, 6, 7, and STP201 cable can lead to registration errors between the Red, Green, and Blue video signals. Pair skew can be measured with test equipment or identiﬁed by viewing a crosshatch test pattern with a critical eye to determine if either the Red, Green, or Blue video image leads (appears to the left of) the other two video images.

NOTE: Unless the TP cable is changed, the skew adjustment should need to be made

only once, during installation.

SEQ Receiver Skew Compensation

The SEQ receiver has built-in skew compensation capabilities. Adjust the equalization as follows:

1. Zero the skew delay for Red, Green, and Blue as follows:

a. Use a small screwdriver to press and hold the Select button for three seconds. The

Red, Green, and Blue LEDs all go out.

b. Release the Select button.

2. Use UTP cable test equipment or examine the displayed video image with a critical eye

to determine which video signal — Red, Green, or Blue — is most shifted to the left.

NOTE: A crosshatch test pattern or a black background with vertical white lines is

ideal for determining skew.

3. Adjust the leftmost video signal as follows:

NOTE: The SEQ receiver cannot shift the rightmost video image to the left.

a. Use a small screwdriver to press and release the Select button until the LED lights for

the left-shifted color — Red, Green, or Blue.

b. Slowly rotate the Delay control clockwise while monitoring the display.

Observe that the leftmost color shifts rightward one step at a time. Continue to rotate the control until that color is properly converged.

NOTE: A 2-nanosecond adjustment is very ﬁne. Up to 10 nanoseconds of delay

may be necessary before you detect a change in the display.

c. Use a small screwdriver to press the Select button one more time to save the most

recent adjustment or allow the 10-second time-out to elapse.

4. If the remaining colors are left shifted, repeat steps 2 and 3.

Non-SEQ Receiver Skew Compensation

Try using the following methods to minimize or eliminate pair skew:

 Switch to Extron Enhanced Skew-Free A/V UTP cable.

 Add a skew compensation cable equal to the length of pair skew to the output of the

receiver.

 Install a SEQ 100 15HD Skew Equalizer to the video output of the receiver and adjust

the skew for the leading video image.

MTP 15HD RS Series • Installation and Operation 15

Reference Information

This section provides information about:

 Specications

 Part Number, Optional Accessories, Cables, and Connectors

Specications

Video

Gain ............................................. Unity

Number/signal type ....................... 1 set of proprietary analog signals

Connectors ................................... 1 female RJ-45

Video input and loop-through — transmitter (MTP T 15HD RS)

Number/signal type ....................... 1 analog RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, or composite

video

1 buffered RGBHV, RGBS, RGsB, RsGsBs local monitor loop through (includes ID bits)

Connectors ................................... 2 female 15-pin HD

Nominal level ................................ 1 Vp-p for Y of component video and S-video, and for composite video

0.7 Vp-p for RGB and for R-Y and B-Y of component video

0.3 Vp-p for C of S-video

Minimum/maximum levels ............ 0.3 V to 1.45 Vp-p

Impedance .................................... 75 ohms

Horizontal frequency ..................... 15 kHz to 130 kHz

Vertical frequency ......................... 30 Hz to 150 Hz

Return loss .................................... <-30 dB @ 5 MHz

DC offset (max. allowable) ............ 250 mV

Video output — receivers (MTP RL 15HD RS, MTP RL 15HD RS SEQ)

Number/signal type ....................... 1 set of proprietary analog signals

Connectors ................................... 1 female RJ-45

Nominal level ................................ 1 Vp-p for Y of component video and S-video, and for composite video

Minimum/maximum levels ............ 0.3 V to 1.45 Vp-p

Impedance .................................... 75 ohms

Return loss .................................... <-30 dB @ 5 MHz

DC offset ..................................... <±20 mV with input at 0 offset

Skew compensation ...................... 62 ns

1 analog RGBHV, RGBS, RGsB, RsGsBs, component video, S-video, or composite video

1 female 15-pin HD

0.7 Vp-p for RGB and for R-Y and B-Y of component video

0.3 Vp-p for C of S-video

MTP 15HD RS Series • Reference Information 16

Maximum resolution ..................... Up to 1920x1200 or 2048x1080 or 1080p at 300'

Up to 1024x768 at 600'

NOTE: Refer to the user guide for the maximum distances recommended for speciﬁc resolutions.

Sync

Input type (transmitters) ................ RGBHV, RGBS, RGsB, RsGsBs

Output type (receivers) .................. RGBHV, RGBS, RGsB, RsGsBs

Standards ..................................... NTSC 3.58, NTSC 4.43, PAL, SECAM

Input level (transmitters) ................ 3.5 V to 5.5 Vp-p, unterminated

Output level (receivers) .................. 4.0 V to 5.0 Vp-p, unterminated

C7 models

Input impedance ....................... 573 ohms

Output impedance .................... 92 ohms ±8% (25 mA)

All other models

Input impedance ....................... 510 ohms

Output impedance .................... 110 ohms

Max. input voltage ........................ 5.5 Vp-p

Polarity

Transmitter ................................ Positive or negative (follows input polarity)

Receivers ................................... Positive or negative (switch selectable)

Control/remote — external device (pass-through, unidirectional or bidirectional)

Serial control port input/output

MTP C7 T 15HD RS, MTP T 15HD RS

RS-232 via (1) 3.5 mm, 3 pole captive screw connector

Receivers ................................... 1 set of proprietary signals on a female RJ-45 jack

Serial control port output/input

MTP C7 T 15HD RS, MTP T 15HD RS

1 set of proprietary signals on a female RJ-45 jack

Receivers ................................... RS-232 via a 3.5 mm, 3 pole captive screw connector

Baud rates .................................... Up to 38400 bps at up to 600' (183 m) (Higher data rates and distances are

possible. Performance varies based on baud rate and cable length.)

Protocol ........................................ Data bits = 5 - 8

Stop bits = 1 or 2 Parity = odd, even, none Flow control = XON, XOFF, none

NOTE: Protocol is mirrored between the transmitter and the receiver.

Serial control pin conﬁguration ..... Captive screw connectors: 1 = TX, 2 = RX, 3 = GND

General

Recommended cable type

C7 models ................................. Extron STP201 or CAT 7

All other models ........................ CAT 5/5e/6 (shielded or unshielded)

Power supply ................................ External

Power input requirements ............. 12 VDC, 0.5 A

Temperature/humidity ................... Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Cooling ......................................... Convection, no vents

Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 1 A, 12 watts

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

MTP 15HD RS Series • Reference Information 17

Mounting

Rack mount ............................... Yes, with optional 1U deep rack shelf

Furniture mount ........................ Yes, with optional mini under-desk mounting kit

Pole mount ............................... Yes, with optional pole mounting kit

Enclosure type ...............................Metal

Enclosure dimensions .................... 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)

(4.3 cm H x 10.9 cm W x 7.6 cm D)

(Depth excludes connectors.)

Product weight ............................. 0.4 lbs (0.2 kg)

Shipping weight ............................ 2 lbs (1 kg)

Vibration ....................................... ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance

Safety ........................................ CE, c-UL, UL

EMI/EMC ................................... CE, C-tick, FCC Class A, ICES, VCCI

MTBF ............................................ 30,000 hours

Warranty....................................... 3 years parts and labor

NOTE: All nominal levels are at ±10%.

NOTE: Speciﬁcations are subject to change without notice.

Part Numbers, Optional Accessories, Cables, and Connectors

Part Numbers

MTP Transmitter and Receivers for non-CAT 7 Cable Part Number

MTP T 15HD RS transmitter 60-652-01

or MTP RL 15HD RS receiver 60-735-01

or MTP RL 15HD RS SEQ receiver 60-735-02

MTP Transmitter and Receivers for STP201 and CAT 7 Cable Part Number

MTP C7 T 15HD RS transmitter 60-669-02

or MTP C7 RL 15HD RS receiver 60-735-03

or MTP C7 RL 15HD RS SEQ receiver 60-735-04

Included Parts Part Number

12 VDC 1.0 A desktop power supply 70-775-01

IEC power cord

3-pole captive screw connector

(4) Rubber feet (not attached)

Tweeker

MTP 15HD RS Series Setup Guide

MTP 15HD RS Series • Reference Information 18

Optional Accessories

Description Part Number

PS 124 multiple output 12 volt DC power supply 60-1022-01

MBB 100 (1/8 and 1/4 back of rack mounting kit) 70-367-01

MBU 123 under desk mounting kit 70-212-01

PMK 100 (1/4 rack width pole mount kit) 70-217-01

RSF 123 (3.5 inches deep, 1U rack shelf kit) 60-190-20

RSB 123 (3.5 inches deep, 1U basic rack shelf) 60-604-21

RSU 126 (6 inches deep, 1U rack shelf kit) 60-190-10

RSB 126 (6 inches deep, 1U basic rack shelf) 60-604-11

RSU 129 (9.5 inches deep, 1U rack shelf kit) 60-190-01

RSB 129 (9.5 inches deep, 1U basic rack shelf) 60-604-02

Cables

NOTE: Extron Enhanced Skew-Free A/V UTP cables are not recommended for Ethernet

or LAN applications.

Description Part Number

VGA connector cable 26-238-xx

SYM BNC Female Mini High Resolution cable 26-531-xx

Extron Enhanced Skew-Free A/V UTP cable (cut, various lengths) 26-569-xx

Extron Enhanced Skew-Free A/V UTP cable 1000' (bulk) (Non-Plenum) 22-141-03

Extron Enhanced Skew-Free A/V UTP cable 1000' (bulk) (Plenum) 22-142-03

STP201 Shielded Digital Twisted Pair cable 1000' (bulk) (Non-Plenum) 22-214-03

STP201P Shielded Digital Twisted Pair cable 1000' (bulk) (Plenum) 22-215-03

Connectors

RJ-45 Connectors Part Number

CAT 6 jack (Black), quantity 10 100-476-01

CAT 6 jack (Red), quantity 10 100-477-01

CAT 6 jack (Blue), quantity 10 100-478-01

CAT 6 jack (Orange), quantity 10 100-479-01

CAT 6 jack (Gray), quantity 10 100-480-01

CAT 6 jack (White), quantity 10 100-481-01

CAT 6 jack (Ivory), quantity 10 100-482-01

Shielded RJ-45 plug kit for STP201 cable 101-005-01

MTP 15HD RS Series • Reference Information 19

Mounting

This section outlines the various mounting options available for the MTP 15HD RS Series transmitters and receivers:

 Tabletop Placement

 Under-desk Mounting

 Rack Mounting

 Projector Mounting

Tabletop Placement

Attach the four provided rubber feet to the bottom of the unit and place it in any convenient location.

Under-desk and Furniture Mounting

Mount the unit under a desk or podium using the optional Extron MBU 123 under desk mounting kit (part number 70-212-01). To mount the unit, follow the instructions provided with the MBU 123 kit.

Rack Mounting

UL Guidelines for Rack Mounting

The following Underwriters Laboratories (UL) guidelines are relevant to the safe installation of these products in a rack:

1. Elevated operating ambient temperature — If the unit is installed in a closed or

multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. Therefore, install the equipment in an environment compatible with the maximum ambient temperature (TMA = +122 °F, +50 °C) speciﬁed by Extron.

2. Reduced air ow — Install the equipment in the rack so that safe operation and

adequate air ﬂow is provided to the unit.

3. Mechanical loading — Mount the equipment in the rack so that a hazardous condition

is not achieved due to uneven mechanical loading.

4. Circuit overloading — Connect the equipment to the supply circuit and consider the

effect that circuit overloading might have on overcurrent protection and supply wiring. Consider the equipment nameplate ratings when addressing this concern.

5. Reliable earthing (grounding) — Maintain reliable grounding of rack-mounted

equipment. Pay particular attention to supply connections other than direct connections to the branch circuit (such as the use of power strips).

MTP 15HD RS Series • Mounting 20

Rack Mounting Procedure

These units can be mounted on any of these optional rack systems, including:

 RSF 123: 3.5 inch deep, 1U rack shelf kit (part number 60-190-20)

 RSB 123: 3.5 inch deep, 1U basic rack shelf (part number 60-604-21)

 RSU 126: 6 inch deep, 1U rack shelf kit (part number 60-190-10)

 RSB 126: 6 inch deep, 1U basic rack shelf (part number 60-604-11)

 RSU 129: 9.5 inch deep, 1U rack shelf kit (part number 60-190-01)

 RSB 129: 9.5 inch deep, 1U basic rack shelf (part number 60-604-02)

To mount the unit on a rack shelf, follow the instructions provided with the shelf accessories.

Back of the Rack Mounting Procedure

The MTP can be mounted to the rear of a rack using the Extron MBB 100 1/8 and 1/4 back of rack mounting kit (part number 70-367-01). The kit allows the product to be vertically mounted to the front or rear rack supports and facing either towards the front or the rear of the rack.

To mount the unit, follow the instructions provided with the MBB 100 kit.

Projector Mounting

Mount the unit onto a projector using the optional Extron PMK 100 1/4 rack width pole mount kit (part number 70-217-01). To mount the unit, follow the instructions provided with the PMK 100 kit.

MTP 15HD RS Series • Mounting 21

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics 1001 East Ball Road Anaheim, CA 92805 U.S.A.

Europe, Africa, and the Middle East:

Extron Europe Hanzeboulevard 10 3825 PH Amersfoort The Netherlands

Asia:

Extron Asia 135 Joo Seng Road, #04-01 PM Industrial Bldg. Singapore 368363

Japan:

Extron Electronics, Japan Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan

China:

Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Middle East:

Extron Middle East Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai

Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or modiﬁcations to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return

Authorization) number. This will begin the repair process.

USA: (714) 491-1500 Europe: +31.33.453.4040 Asia: +65.6383.4400 Japan: +81.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁtness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron USA - West Headquarters

+800.633.9876

Inside USA/Canada Only

+1.714.491.1500 +1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA/Canada Only

+1.919.863.1794 +1.919.863.1797 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040 +31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400 +65.6383.4664 FAX

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800 +971.4.2991880 FAX

Extron electronics MTP T 15HD RS, MTP RL 15HD RS SEQ User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
