MTP 4T 15HD RS
Quad MTP Twisted Pair Transmitter for
VGA and RS-232
User Guide
Twisted Pair
68-1398-01 Rev. B
05 12
Safety Instructions • English
This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.
This symbol is intended to alert the user of the presence of uninsulated
dangerous voltage within the product’s enclosure that may present a risk of
electric shock.
Caution
Read Instructions • Read and understand all safety and operating instructions before using
the equipment.
Retain Instructions • The safety instructions should be kept for future reference.
Follow Warnings • Follow all warnings and instructions marked on the equipment or in the
user information.
Consignes de Sécurité • Français
Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le
matériel contient des instructions importantes concernant l’exploitation et la
maintenance (réparation).
Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier
de l’appareil de tensions dangereuses non isolées posant des risques
d’électrocution.
Attention
Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et
d’exploitation avant d’utiliser le matériel.
Conserver les instructions• Ranger les consignes de sécurité afin de pouvoir les consulter
à l’avenir.
Respecter les avertissements • Observer tous les avertissements et consignes marqués sur
le matériel ou présentés dans la documentation utilisateur.
Sicherheitsanleitungen • Deutsch
Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen
Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung
(Instandhaltung) geben.
Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren
des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind
und die einen elektrischen Schock verursachen können, herrschen.
Achtung
Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle
Sicherheits-und Bedienungsanleitungen genau durchlesen und verstehen.
Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes
sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.
Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem
Gerät oder in der Benutzerdokumentation.
Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht
ausdrücklich vom Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen
können.
Warning
Power sources • This equipment should be operated only from the power source indicated
on the product. This equipment is intended to be used with a main power system with a
grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt
to bypass or disable it.
Power disconnection • To remove power from the equipment safely, remove all power cords
from the rear of the equipment, or the desktop power module (if detachable), or from the
power source receptacle (wall plug).
Power cord protection • Power cords should be routed so that they are not likely to be
stepped on or pinched by items placed upon or against them.
Servicing • Refer all servicing to qualified service personnel. There are no user-serviceable
parts inside. To prevent the risk of shock, do not attempt to service this equipment yourself
because opening or removing covers may expose you to dangerous voltage or other
hazards.
Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to
prevent overheating of sensitive components inside. These openings must never be blocked
by other objects.
Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni d’outils non recommandés
par le fabricant du matériel car cela risquerait de poser certains dangers.
Avertissement
Alimentations • Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur
l’appareil. Ce matériel doit être utilisé avec une alimentation principale comportant un fil de
terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité :
n’essayez pas de la contourner ni de la désactiver.
Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,
déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module
d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.
Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce
que personne ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par
des objets.
Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance
par un technicien qualifié. Aucun des éléments internes ne peut être réparé par l’utilisateur.
Afin d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder luimême à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de
hautes tensions et autres dangers.
Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices, ceux-ci servent
à empêcher les composants internes sensibles de surchauffer. Ces ouvertures ne doivent
jamais être bloquées par des objets.
Vorsicht
Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle
betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit
einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß,
und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb
gesetzt werden.
Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie
alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies
möglich ist) oder aus der Wandsteckdose ziehen.
Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen
und niemand darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt
werden können.
Wartung • Alle Wartungsmaßnahmen sollten nur von qualiziertem Servicepersonal
durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei. Zur
Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst
öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder
andere Gefahren bestehen.
Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist,
dienen diese zur Vermeidung einer Überhitzung der empndlichen Teile im Inneren. Diese
Öffnungen dürfen niemals von anderen Objekten blockiert werden.
Instrucciones de seguridad • Español
Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean
destacar en el contenido de la documentación suministrada con los equipos.
Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse
dentro de la caja o alojamiento del producto, y que puedan representar
riesgo de electrocución.
Precaucion
Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad,
antes de usar el equipo.
Conservar las instrucciones • Conservar las instrucciones de seguridad para futura
consulta.
Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o
en la documentación del usuario, deben ser obedecidas.
Evitar el uso de accesorios • No usar herramientas o accesorios que no sean
especificamente recomendados por el fabricante, ya que podrian implicar riesgos.
安全须知 • 中文
这个符号提示用户该设备用户手册中有重要的操作 和维护 说明。
这个符号警告用户该设备机壳内有暴露的危险电压，有触电危险。
注意
阅读说明书 • 用户使 用该设备前必须阅读并理 解所有安 全和使用 说明。
保存说明书 • 用 户应保存安全说明书以备将来使用。
遵守警告 • 用户应遵守产品和用户指 南上的所有安全 和操作说明。
避免追加 • 不要使用该 产品厂商没有推荐的工具或追加设备，以避免危险。
Advertencia
Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de
alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este equipo debe
provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata
(puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.
Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de
alimentación eléctrica al equipo, desenchufar todos los cables de alimentación en el panel
trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o
desenchufar el cable del receptáculo de la pared.
Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar
en lugares donde no sean pisados ni apretados por objetos que se puedan apoyar sobre
ellos.
Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal calificado.
En el interior no hay partes a las que el usuario deba acceder. Para evitar riesgo de
electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya
que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.
Ranuras y aberturas • Si el equipo posee ranuras o oricios en su caja/alojamiento, es para
evitar el sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se
deben obstruir con otros objetos.
警告
电源 • 该设备只能使用产品上标明的电源。 设备必须使用有地线的供电系统供电。 第三条线（
地线）是安全设施，不能不用或跳 过 。
拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后或桌面电源的电源线，或任何接到市电
系统的电源 线。
电源线保护 • 妥善布线， 避免被踩踏，或重物挤压。
维护 • 所有维修必须由认证的维修人员进行。 设备内部没有用户可以更换的零件。为避免出现触
电危险不 要自己试图打开设备盖子 维修该设备。
通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止机内敏感元件过热。 不要用任何 东西
挡住通风孔。
锂电池 • 不正确的更换电池会有爆炸的危险。必须使用与厂家推荐的相同或相近型号的电池。按
照生产厂的建议处 理废 弃电池。
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15
of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
The Class A limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at his own expense.
NOTE: This unit was tested with shielded I/O cables on the peripheral devices. Shielded cables must be used with
the unit to ensure compliance with FCC emissions limits.
For more information on safety guidelines, regulatory compliances, EMI/EMF compliance, accessibility, and
related topics, click here.
Conventions Used in this Guide
In this user guide, the following are used:
CAUTION: A caution indicates a potential hazard to equipment or data.
NOTE: A note draws attention to important information.
TIP: A tip provides a suggestion to make working with the application easier.
WARNING: A warning warns of things or actions that might cause injury, death, or
other severe consequences.
Copyright
© 2012 Extron Electronics. All rights reserved.
Trademarks
All trademarks mentioned in this guide are the properties of their respective owners.
Table of Contents
Introduction............................................................ 1
About the MTP 4T 15HD RS ................................ 1
Twisted Pair (TP) Cable Advantages ..................... 3
Transmission Distance ..................................... 3
Installation and Operation.................................. 4
Installation .......................................................... 4
Tabletop Placement ......................................... 4

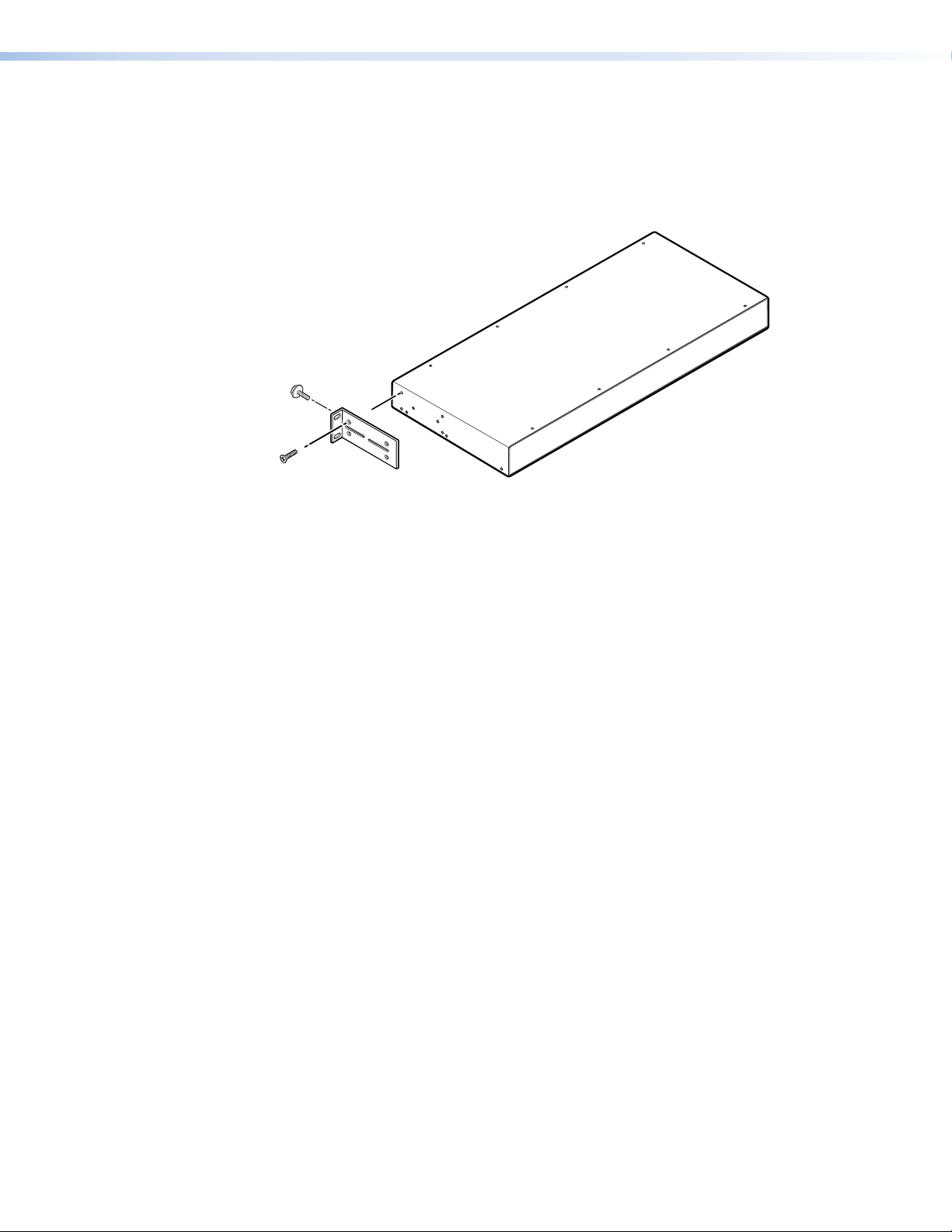

Rack Mounting ............................................... 4
UL Requirements ............................................. 4
Installation Instructions ................................... 5
Connections and Settings ................................... 6

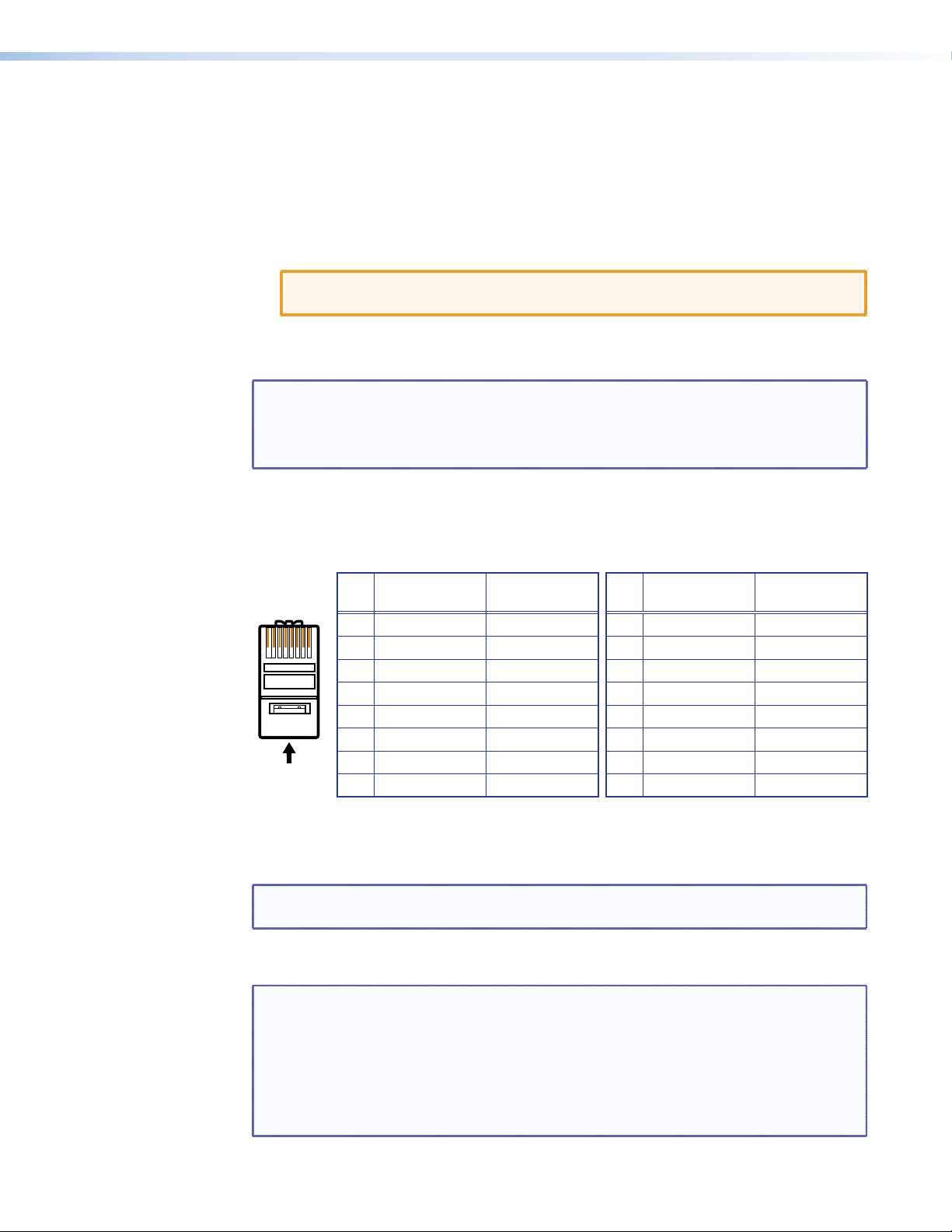

TP cable Termination ....................................... 7
Receiver Considerations .................................. 8
Front Panel Controls and Indicators ..................... 8
Skew Delay Compensation.................................. 8
Reference Information ....................................... 10
Specifications .................................................... 10
Part Numbers .................................................... 12
MTP Transmitter and Receivers ...................... 12
Included Parts ............................................... 12
Cables .......................................................... 12
Connectors ................................................... 12
vMTP 4T 15HD RS • Table of Contents
Introduction
This section discusses the following topics:
• About the MTP 4T 15HD RS
• Twisted Pair (TP) Cable Advantages
CAUTION: Do not connect this device to a computer data or telecommunications
network.
About the MTP 4T 15HD RS
The Extron MTP 4T 15HD RS Quad MTP Twisted Pair Transmitter consists of four
MTP T 15HD RS transmitters in a single enclosure. This set of transmitters and the Extron
MTP RL 15HD RS and MTP RL 15HD RS SEQ receivers provide a means to distribute VGA or
other high resolution video and RS-232 serial communications across long distances.
The MTPs transmit and receive over the Extron Enhanced Skew-Free™ AV UTP cable or over
CAT 5, 5e, or 6 shielded twisted pair (STP), unshielded twisted pair (UTP), or foil shielded
twisted pair (FTP) cable.
The MTP 4T 15HD RS can support four transmitter/receiver systems. Each system requires a
transmitter and at least one connected compatible MTP receiver. Additional receivers can be
daisy chained.
NOTE: In this manual the term “transmitter assembly” refers to the MTP 4T 15HD RS.
Each of the MTP transmitters in the assembly inputs a set of high resolution or low
resolution video signals (RGB, component video, S-video, or composite video) on a 15-pin
HD connector. Each transmitter also passes RS-232 serial data or control signals on 3.5 mm
3-pin captive screw connectors. The transmitters convert the video and RS-232 signals to
proprietary signals and each outputs its set of signals to the compatible MTP receivers on an
RJ-45 connector. The transmitters also make each video input available for local use on 15pin HD connectors.
Each receiver inputs the transmitted proprietary signal on an RJ-45 connector, converts the
signal back into its high resolution video and serial data components, and outputs it locally.
MTP 4T 15HD RS • Introduction 1
The RS-232 portion of the TP link:
• Can be bidirectional in each system that includes just one receiver (not a daisy
chain); that is, the receiver can receive commands from the transmitter and pass
RS-232 responses back to the transmitter.
NOTE: By default, the RS-232 portion of the TP link is unidirectional only,
from the transmitter to the receiver. If there is only one receiver in
the system, you can configure that receiver for bidirectional RS-232
communications. Refer to the MTP 15HD RS Series User Guide.
• Supports software flow control (XON, XOFF).
NOTE: Hardware flow control is not supported.
• Supports full duplex and half duplex operation.
• Supports any baud rate (up to 38,400), data bits, parity, stop bits, and data format
without configuration.
NOTE: Higher rates are possible, but performance will vary as a function of
baud rate and TP cable length.
Up to eight receivers can be connected in series to a single transmitter, provided that the
total distance from the transmitter’s TP output to the last receiver in the chain does not
exceed the recommended distance for the resolution being used.
NOTE: Each individual transmitter provides pre-peaking, which boosts the signal before
it is transmitted. The receiver does not provide any pre-peaking control. The
total recommended distance (see page 3) for an entire daisy chain is the same as
for a single transmitter and receiver. The transmitter’s Pre-Peak switch has the
same effect on the recommended transmission distance for a daisy chain as for a
single transmitter and receiver.
The SEQ version of the receiver also corrects the skew delay (misconvergence) commonly
encountered when using CAT 5, 5e, or 6 TP cables for RGB video and component video
transmission.
NOTE: An SEQ receiver should not be necessary when Extron Enhanced Skew-Free AV
UTP cable is used.
All four transmitters in the MTP 4T 15HD RS are powered by a single internal 100 VAC to
240 VAC, 50/60 Hz, 20 watts power supply that provides worldwide power compatibility.
MTP 4T 15HD RS • Introduction 2
Twisted Pair (TP) Cable Advantages
Twisted pair cable is much smaller, lighter, more flexible, and less expensive than coaxial
cable. These TP products make cable runs simpler and less cumbersome. Termination of the
cable with RJ-45 connectors is simple, quick, and economical.
Transmission Distance
• The maximum distance is determined by the frequency and resolution of the signal
that is input to the transmitter. The table below specifies the recommended maximum
transmission distances and transmitter Pre-Peak switch positions (see item e on
page 7) using Extron Enhanced Skew-Free AV UTP cable or UTP CAT 5, 5e, or 6 cable,
terminated with RJ-45 connectors.
Recommended transmission distances at 60 Hz
Video
Format
Composite,
S-video,
Component
640 x 480
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
NOTE: It is possible to exceed the recommended distance; however, image quality may
NOTE: The MTP units are designed for and perform best with Extron Enhanced Skew
Pre-Peak
off
<300 ft.
(90 m)
<300 ft.
(90 m)
<300 ft.
(90 m)
<250 ft.
(75 m)
<250 ft.
(75 m)
be reduced.
Free AV cable terminated in accordance with the TIA/EIA T 568 A wiring
standard. CAT 5, 5e, and 6 cables are acceptable, but less preferable. Extron
also recommends the use of preterminated and tested cables. Cables terminated
on site should be tested before use to ensure that they comply with Category 5
specifications.
Pre-Peak onMax. distance
(high quality)
800 ft.
(245 m)
<350 ft.
(105 m)
<350 ft.
(105 m)
<350 ft.
(105 m)
<300 ft.
(90 m)
<300 ft.
(90 m)
700 ft.
(215 m)
550 ft.
(165 m)
500 ft.
(150 m)
350 ft.
(105 m)
300 ft.
(90 m)
Max. distance
(variable quality)
1000 ft.
(300 m)
750 ft.
(240 m)
650 ft.
(200 m)
600 ft.
(185 m)
450 ft..
(135 m)
450 ft.
(135 m)
NOTES: • The recommendations shown in the table above apply for a single transmitter
and receiver and for a transmission daisy chain. For example, the maximum
suggested range for 1024 x 768 video is 300 ft. (90 m) with Pre-Peak off
and 500 ft. (150 m) with Pre-Peak on whether the system consists of one
transmitter and one receiver or a transmitter and three daisy-chained receivers.
• For a daisy-chained system, the first receiver in the chain must be at least
100 ft. (30 m) from the transmitter when the Pre-Peak switch is on.
• For a daisy-chained system, any receiver in the chain closer than 350 ft.
(105 m) may experience some form of over-peaking when the Pre-Peak switch
is on. An overpeaked image may appear bloomed.
MTP 4T 15HD RS • Introduction 3
Installation and
Operation
This section covers the following topics:
• Installation
• Connections and Settings
• Front Panel Controls and Indicators
• Skew Delay Compensation
Installation
CAUTION: Installation and service must be performed by authorized personnel only.
The MTP 4T 15HD RS is 1U high and a full rack wide. It is rack mountable, or it can be
placed on a table or other furniture. Rubber feet and rack mounting hardware are included.
Tabletop Placement
For tabletop use, attach one of the self-adhesive feet to each corner of the bottom side of
the unit and place the unit in the desired location.
Rack Mounting
UL requirements
The following Underwriters Laboratories (UL) requirements pertain to the installation of the
unit into a rack.
1. Elevated operating ambient temperature — If the equipment is installed in a closed
or multi-unit rack assembly, the operating ambient temperature of the rack environment
may be greater than room ambient temperature. Therefore, consider installing the
equipment in an environment compatible with the maximum 122° F (50° C) ambient
temperature (Tma) specified by the manufacturer.
2. Reduced air flow — Installation of the equipment in a rack should be such that the
amount of air flow required for safe operation of the equipment is not compromised.
3. Mechanical loading — Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
4. Circuit overloading — Consideration should be given to the connection of the
equipment to the supply circuit and the effect that overloading of the circuits might
have on overcurrent protection and supply wiring. Appropriate consideration of
equipment nameplate ratings should be used when addressing this concern.
5. Reliable earthing (grounding) — Reliable earthing of rack-mounted equipment
should be maintained. Particular attention should be given to supply connections other
than direct connections to the branch circuit (such as the use of power strips).
MTP 4T 15HD RS • Installation and Operation 4
Installation instructions
Optional Rack Mounting Bracket
Mount the MTP 4T 15HD RS in a rack as follows:
1. If feet were installed on the bottom of the transmitter assembly, remove them.
2. Attach the included rack/through-desk mounting brackets (part number 70-077-03) to
the unit using eight machine screws supplied with the mounting kit.
Figure 1. Attaching the Mounting Brackets
3. Insert the unit into the rack and align the holes in the mounting brackets with the holes
in the rack. Use four machine screws to attach the brackets to the rack.
MTP 4T 15HD RS • Installation and Operation 5
Connections and Settings
OUTPUT
INPUT
Tx Rx
RS-232
MONITOR
PRE-PEAK
ON
OFF
MTP T 15HD RS 1
INPUT
Tx Rx
RS-232
50/60 Hz
100-240V 0.3A
651 32
4
2
Ground
Tx
Rx
Gnd
Receive
Transmit
Connected RS-232
Device Pins
MTP
Pins
51
See figure 2 to identify the rear panel connections on the transmitter.
Figure 2. Transmitter Assembly’s Rear Panel Features
NOTE: There is one item a, powering all four transmitters. There are four items
b
through f, one for each transmitter.
a AC power connector — Plug a standard IEC power cord into this connector to connect
the transmitter assembly to a 100 VAC to 240 VAC, 50 to 60 Hz
power source.
b Input video connector — Connect a computer video source to
this 15-pin HD connector for high resolution video input.
15 11
Female
NOTES: • Input only sync signals, no video signals, on the sync pins, 13 and 14.
• For component video, use the R (R-Y) and R return pins (pins 1 and 6), G
(Y) and G return pins (pins 2 and 7), and B (B-Y) and B return pins (pins 3
and 8).
• For S-video, use the R, R return (C-chroma), G, and G return (Y-luma) pins.
• For composite video, use the G pin and the associated return pin. For
additional genlocked video signals, use the R, B, and associated return
pins.
c Monitor connector
— Connect a video monitor to this 15-pin HD connector for
buffered, high resolution video loop-through.
610
d RS-232 connector — Connect a serial communications device to this 3.5 mm, 3-pole
captive screw connector for bidirectional RS-232 communication. Wire the connector as
shown in figure 3.
Figure 3. RS-232 Connector Wiring
NOTE: By default, the RS-232 portion of the TP link is unidirectional only from the
transmitter to the receiver. If there is only one receiver in a system, a jumper
within the receiver allows the RS-232 communication to be bidirectional (see
the MTP 15HD RS Series User Guide).
MTP 4T 15HD RS • Installation and Operation 6
e Pre-Peak switch
— The Pre-Peak switch alters the TP signal output to correct for
long cable runs. See the table on page 3 for suggested switch settings based on the
transmitted video format and transmission distance.
f Transmitter Output connector — Connect one end of a TP cable to this RJ-45 female
connector on the transmitter. Connect the free end of the same TP cable from the
transmitter to the receiver’s Input RJ-45 female connector. See “TP Cable Termination”
below to properly wire the RJ-45 connectors.
CAUTION: Do not connect this device to a computer data or telecommunications
network.
TP Cable Termination
NOTE: RJ-45 termination with CAT 5, CAT 5e, or CAT 6 cable must comply with the
TIA/EIA T568A or TIA/EIA T568B wiring standards for all connections.
RJ-45 termination with Skew-Free AV UTP cable must comply with TIA/EIA
T568A only.
Figure 4 shows the recommended termination of TP cables in accordance with the TIA/EIA
T568A or TIA/EIA T568B wiring standards. You can use either standard with CAT 5, 5e, or 6
cable, but use the same standard on both ends of the cable.
Crossover Cable Straight-through Cable
Pin End 1
Pins:
1234567 8
Insert Twisted
Pair Wires
RJ-45
Connector
A cable that is wired as T568A at one end and
T568B at the other (Tx and Rx pairs reversed)
is a “crossover” cable.
Wire Color
1 White-green White-orange 1 White-orange White-orange
2 Green Orange 2 Orange Orange
3 White-orange White-green 3 White-green White-green
4 Blue Blue 4 Blue Blue
5 White-blue White-blue 5 White-blue White-blue
6 Orange Green 6 Green Green
7 White-brown White-brown 7 White-brown White-brown
8 Brown Brown 8 Brown Brown
T658A T568B T568B T568B
End 2
Wire Color
Pin End 1
Wire Color
A cable wired the same at both ends is called
a “straight-through” cable, because no pin/
pair assignments are swapped.
End 2
Wire Color
NOTE: If you are using Enhanced Skew-Free AV cable, use the TIA/EIA T568A standard
only.
Figure 4. TP Cable Termination
NOTE: Enhanced Skew-free AV cable is not recommended for Ethernet/LAN
applications. This cable is specially designed for compatibility with Extron
twisted pair products that are wired using the TIA/EIA 568 A standard.
The green, brown, and blue pairs of this cable have virtually identical lengths and
should be used to transmit the RGB signals.
The orange pair of this cable has a different length and should not be used to
transmit the RGB signals.
MTP 4T 15HD RS • Installation and Operation 7
Receiver considerations
1
NOTES: • Each transmitter in the assembly requires a separate receiver.
• The receivers’ buffered outputs do not provide pre-peaking control. The total
recommended distance for an entire daisy chain is the same as for a single
transmitter and receiver. The transmitter’s Pre-Peak switch has the same effect
on the recommended transmission distance for a daisy chain as for a single
transmitter and receiver.
• Up to 8 receivers can be connected in series to a transmitter using the
receivers’ Buffered Output connectors, provided that the total distance from
the transmitter’s TP output to the last receiver in the chain does not exceed the
recommended distance for the resolution being used.
• See the recommended transmission ranges in the table on page 3. The
recommendations in the table apply equally for a single transmitter and
receiver and for a transmission daisy chain. For example, the maximum
suggested range for 1024 x 768 video is 300 ft. with Pre-Peak off and 500 ft.
with Pre-Peak on for either one transmitter and one receiver or a transmitter
and three daisy-chained receivers.
• For daisy-chained units, the first receiver in the chain must be at least 100 ft.
from the transmitter when the Pre-Peak switch is on.
• For daisy-chained units, any receiver in the chain closer than 350 ft. may
experience some form of over-peaking when the Pre-Peak switch is on.
• If a receiver is the last receiver in a daisy chain, its end unit DIP switch setting
needs to be changed. Refer to the MTP 15HD RS Series User Guide.
Front Panel Controls and Indicators
Figure 5 shows the front panel of the MTP 4T 15HD RS and its power LED.
Figure 5. MTP 4T Transmitter Front Panel
a Power LED — When lit, this LED indicates power is applied to the MTP 4T 15HD RS.
Skew Delay Compensation
CAT 5/5e/6 TP cable can lead to registration errors between the red, green, and blue
video signals. Pair skew can be measured with test equipment or identified by viewing a
crosshatch test pattern with a critical eye to determine if either the red, green, or blue video
image leads (appears to the left of) the other two video images.
NOTE: Unless the TP cable is changed, the skew adjustment should only need to be
made once, during installation.
MTP 4T 15HD RS • Installation and Operation 8
SEQ Receiver Skew Compensation
The MTP 15HD RS SEQ receiver has built-in skew compensation capabilities. Refer to the
MTP 15HD RS Series User Guide for details.
Non-SEQ Receiver Skew Compensation
Try using the following methods to minimize or eliminate pair skew:
• Switch to the Extron Enhanced Skew-Free AV UTP cable.
• Add a skew compensation cable equal to the length of pair skew to the receiver’s
output.
• Install an SEQ 100 15HD Skew Equalizer on the receiver’s video output and adjust
the skew for the leading video image.
MTP 4T 15HD RS • Installation and Operation 99
Reference
Information
Specifications
Video
Gain .............................................. Unity
Number/signal type ........................ 4 sets of proprietary analog signals
Connectors ................................... 4 female RJ-45
Video input and loop through — per transmitter
Number/signal type ........................ 1 analog RGBHV, RGBS, RGsB, RsGsBs, component video (with bi-level or
tri-level sync), S-video, or composite video
1 buffered RGBHV, RGBS, RGsB, RsGsBs local monitor loop through
(includes ID bits)
Connectors .................................... 2 female 15-pin HD
Nominal level ................................. 1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video
Minimum/maximum levels .............. 0.3 V to 1.45 Vp-p
Impedance .................................... 75 ohms
Horizontal frequency ...................... 15 kHz to 130 kHz
Vertical frequency ........................... 30 Hz to 150 Hz
Return loss .................................... <-30 dB @ 5 MHz
DC offset (max. allowable) ............. 250 mV
Video output — see receivers’ specications
Sync
Input type (transmitter) .................. RGBHV, RGBS, RGsB, RsGsBs, bi-level or tri-level for component video
Output type (receivers) ................... RGBHV, RGBS, RGsB, RsGsBs
Standards ....................................... NTSC 3.58, NTSC 4.43, PAL, SECAM
Input level (transmitter) ................. 3.5 V to 5.5 Vp-p, unterminated
Output level (receivers) ................... 4.0 V to 5.0 Vp-p, unterminated
Input impedance ........................... 510 ohms
Output impedance ........................ 110 ohms
Max. input voltage ........................ 5.5 Vp-p
Polarity ........................................... Positive or negative
Control/remote — external device (pass-through, unidirectional or bidirectional)
Serial control port input/output ...... RS-232 via (1) 3.5 mm, 3 pole captive screw connector
Serial control port output/input ...... 1 set of proprietary signals on a female RJ-45 jack
NOTE: The serial communications link of an MTP RL 15HD RS or MTP RL 15 HD RS SEQ is unidirectional only,
transmitter to receiver, unless the receiver’s directional jumper has been repositioned. The jumper should be
repositioned only when the receiver is the only one in the system.
Baud rates ..................................... Up to 38400 bps at up to 600’ (183 m) (Higher data rates and distances are possible.
Performance will vary based on baud rate and cable length.)
Protocol ......................................... Data bits = 5 - 8
Stop bits = 1 or 2
Parity = odd, even, none
Flow control = XON, XOFF, none
MTP 4T 15HD RS • Reference Information 10
NOTE: Protocol is mirrored between the transmitter and the receiver.
Serial control pin configurations ..... Captive screw connectors: 1 = TX, 2 = RX, 3 = GND
General
Power ............................................ 100 VAC to 240 VAC, 50/60 Hz, 20 watts, internal
Temperature/humidity .................... Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling .......................................... Convection, unvented
Rack mount .................................... Yes, with included mounting brackets
Enclosure type ............................... Metal
Enclosure dimensions .................... 1.7” H x 17.5” W x 8.5” D
(1U high, full rack wide)
4.3 cm H x 44.4 cm W x 21.6 cm D
(Depth excludes connectors.)
Product weight ............................... 6.0 lbs (2.7 kg)
Shipping weight ............................ 10 lbs (5 kg)
Vibration ....................................... ISTA 1A in carton
(International Safe Transit Association)
Listings ........................................... UL, CUL
Compliances .................................. CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF ............................................. 30,000 hours
Warranty ....................................... 3 years parts and labor
NOTE: All nominal levels are at ±10%.
NOTE: Specifications are subject to change without notice.
MTP 4T 15HD RS • Reference Information 11
Part Numbers
MTP transmitter and receivers
Included parts
NOTE: A complete transmission system requires one of the four transmitters built into
the MTP 4T 15HD RS and at least one MTP receiver.
Transmitter Part number
MTP 4T 15HD RS Quad MTP Twisted Pair transmitter 60-905-01
Compatible receivers Part number
MTP RL 15HD RS receiver 60-735-01
MTP RL 15HD RS SEQ receiver 60-735-02
The following parts are included in each order for an MTP 4T 15HD RS:
Included parts Part number
Rubber feet (self-adhesive) (4)
MBD 149 1U through-desk and rack mounting kit 70-077-03
IEC power cord
Tweeker (small screwdriver)
Setup Guide
Cables
NOTE: Enhanced Skew-Free™ A/V UTP cables are not recommended for Ethernet/LAN
applications.
Enhanced Skew-Free AV cable Part number
Enhanced Skew-Free AV UTP cable
(cut, various lengths)
Enhanced Skew-Free AV UTP cable 1000’ (300m)
(bulk) (non-plenum)
Plenum enhanced Skew-Free AV UTP calbe 1000’ (300m) (bulk) 22-142-03
26-569-xx
22-141-03
Connectors
Connector Part number
CAT 6 jack (black), qty. 10 100-476-01
CAT 6 jack (red), qty. 10 100-477-01
CAT 6 jack (blue), qty. 10 100-478-01
CAT 6 jack (orange), qty. 10 100-479-01
CAT 6 jack (gray), qty. 10 100-480-01
CAT 6 jack (white), qty. 10 100-481-01
CAT 6 jack (ivory), qty. 10 100-482-01
MTP 4T 15HD RS • Reference Information 12
Extron Warranty
Extron Electronics warrants this product against defects in materials and workmanship for a period of three years
from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty
workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is
returned within the warranty period, with proof of purchase and description of malfunction to:
USA, Canada, South America,
and Central America:
Extron Electronics
1001 East Ball Road
Anaheim, CA 92805
U.S.A.
Europe and Africa:
Extron Europe
Hanzeboulevard 10
3825 PH Amersfoort
The Netherlands
Japan:
Extron Electronics, Japan
Kyodo Building, 16 Ichibancho
Chiyoda-ku, Tokyo 102-0082
Japan
China:
Extron China
686 Ronghua Road
Songjiang District
