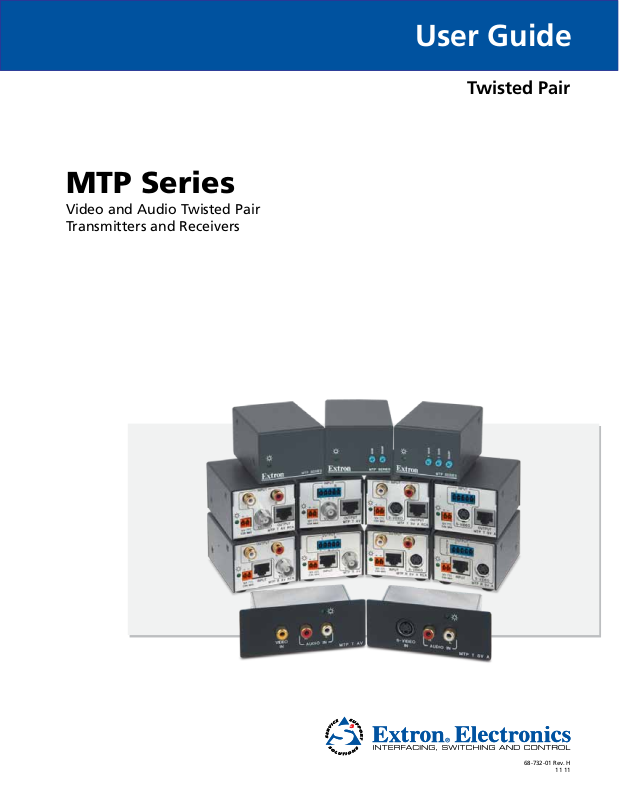

MTP Series

Video and Audio Twisted Pair Transmitters and Receivers

User Guide

Twisted Pair

68-732-01 Rev. H

11 11

Safety Instructions • English

This symbol is intended to alert the user of important operating and mainte-

nance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated

dangerous voltage within the product’s enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating instructions before using the equipment. Retain Instructions • The safety instructions should be kept for future reference. Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user information. Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment

manufacturer because they may be hazardous.

Warning

Power sources • This equipment should be operated only from the power source indicated on the product. This

equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power cords from the rear of

the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be stepped on or pinched

by items placed upon or against them.

Servicing • Refer all servicing to qualiﬁed service personnel. There are no user-serviceable parts inside. To prevent

the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to prevent

overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la

maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier

de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant

d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité aﬁn de pouvoir les consulter à l’avenir. Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou

présentés dans la documentation utilisateur.

Eviter les pièces de fixation • Ne pas utiliser de pièces de ﬁxation ni d’outils non recommandés par le

fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen

Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und

Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie

aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in der

Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom

Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Avertissement

Alimentations • Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur l’appareil. Ce

matériel doit être utilisé avec une alimentation principale comportant un ﬁl de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous les

cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que personne

ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un

technicien qualiﬁé. Aucun des éléments internes ne peut être réparé par l’utilisateur. Aﬁn d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des oriﬁces, ceux-ci servent à empêcher les

composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie. Remplacer uniquement

avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben werden.

Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle Netzkabel aus der

Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose

ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und niemand

darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualiziertem Servicepersonal durchgeführt werden.

Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese zur

Vermeidung einer Überhitzung der empndlichen Teile im Inneren. Diese Öffnungen dürfen niemals von

anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie verbrauchte Batterien

nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones impor-

tantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar el

equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta. Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la

documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especiﬁcamente

recomendados por el fabricante, ya que podrian implicar riesgos.

安全须知 • 中文

这个符号提示用户该设备用户手册中有重要的操作和维护说明。

这个符号警告用户该设备机壳内有暴露的危险电压，有触电危险。

注意

阅读说明书 • 用户使用该设备前必须阅读并理解所有安全和使用说明。保存说明书 • 用户应保存安全说明书以备将来使用。遵守警告 • 用户应遵守产品和用户指南上的所有安全和操作说明。避免追加 • 不要使用该产品厂商没有推荐的工具或追加设备，以避免危险。

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación eléctrica

indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de alimentación

eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en lugares

donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal calicado. En el interior no

hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o oriﬁcios en su caja/alojamiento, es para evitar el

sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros

objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar esta

batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías

usadas siguiendo las instrucciones del fabricante.

警告

电源 • 该设备只能使用产品上标明的电源。设备必须使用有地线的供电系统供电。第三条线（

地线）是安全设施，不能不用或跳过。

拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后或桌面电源的电源线，或任何接到市电

系统的电源线。

电源线保护 • 妥善布线，避免被踩踏，或重物挤压。维护 • 所有维修必须由认证的维修人员进行。设备内部没有用户可以更换的零件。为避免出现触

电危险不要自己试图打开设备盖子维修该设备。

通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止机内敏感元件过热。不要用任何东西

挡住通风孔。

锂电池 • 不正确的更换电池会有爆炸的危险。必须使用与厂家推荐的相同或相近型号的电池。按

照生产厂的建议处理废弃电池。

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

The Class A limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

NOTE: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with

the unit to ensure compliance with FCC emissions limits.

For more information on safety guidelines, regulatory compliances, EMI/EMF compliance, accessibility, and

Introduction

This section introduces the MTP transmitters and receivers. Topics discussed in this section are:

• About the MTP Transmitters and Receivers

• TP Cable Advantages

• Transmission Distance

About the MTP Transmitters and Receivers

The Extron MTP transmitters and receivers provide a system for long-distance distribution of NTSC, PAL, or SECAM video and audio. The MTPs transmit and receive over the Extron Enhanced Skew-Free™ A/V UTP cable, Category (CAT) 5 shielded twisted pair (STP), unshielded twisted pair (UTP), or foil shielded twisted pair (FTP) cable.

The MTPs are a part of the Extron line of basic distribution amplifiers, switchers, transmitters,

receivers, and associated video accessories.

The MTP transmitters input and the receivers output S-video (luminance [Y] and chrominance [C]) or composite video.

Audio input is either balanced or unbalanced audio on captive screw connectors as well as unbalanced audio on RCA connectors. The transmitters sum the left and right audio channels to convert the audio to mono (L+R) format.

NOTE: MTPs can be jumpered for stereo audio output.

The MTP transmitter then converts the input video and mono audio signals (if applicable) to proprietary signals and outputs them to the compatible MTP receiver on an RJ-45 connector.

Each transmitter requires a compatible receiver. The table on page 2 shows the video and

audio capabilities of each model, the transmitter and receiver compatibility, and Architectural Adapter Plate (AAP) mountability.

The MTPs ship with external desktop 12 V power supplies that accept 100 to 240 VAC, 50-60 Hz input. If jumpers are repositioned from the default settings, a single power supply can power both units if there is less than 200 feet (61 meters) of STP/UTP/FTP cable between

the two.

MTP Series • Introduction 1

TP Cable Advantages

Twisted pair (TP) cable is much smaller, lighter, more flexible, and less expensive than coaxial cable. These TP products make cable runs simpler and less cumbersome. Termination of the cable with RJ-45 connectors is simple, quick, and economical.

Transmitters

MTP T SV A • • MTP T SV A RCA • • MTP SVA AAP • • • MTP T AV • • MTP T AV RCA • • MTP T AV AAP • • •

Receivers

MTP R SV A • • MTP R SV A RCA • • MTP R AV • • MTP R AV A RCA • •

S-Video

MTP Series Features

Composite

Video

Audio

(Captive

Screw)

Audio

(RCA)

AAP

Mounted

Transmission Distance

Extron suggests a minimum transmission distance of at least 50 feet. The maximum transmission distance when using Enhanced Skew-Free A/V UTP cable or UTP CAT 5 cable,

terminated with CAT 5 rated connectors, is 1000 feet.

NOTES: • It is possible to exceed the recommended distance, however, image quality

may be reduced.

• The transmitters and receivers are designed for and perform best with Extron

Enhanced Skew-Free A/V cable. CAT 5 cables are acceptable, but are less preferable. We also recommend the use of preterminated and tested cables

when possible. Cables terminated on site should be tested before use to ensure that they comply with Category 5 specifications.

• The video portion of any S-video transmitter output is compatible with any

S-video receiver in the MTP family described in this manual if the transmitter and receiver jumper configuration are compatible.

• The video portion of any composite video transmitter output is compatible

with any composite video receiver in the MTP family described in this guide if the transmitter and receiver jumper configuration are compatible.

• The audio portion of any transmitter output (whether it is equipped with either

captive screw or RCA input connectors) is compatible with any audio receiver in the MTP family described in this manual if the transmitter and receiver jumper configuration are compatible.

MTP Series • Introduction 2

Installation

This section describes the installation procedures, including:

• Signal Jumpers for Generational Compatibility

• Mounting Options

• Panel Features and Connections

CAUTION: Installation and service must be performed by authorized personnel only.

Signal Jumpers for Generational Compatibility

Over time, the MTPs have been redesigned, affecting the signal content of the TP cable wire pairs, changing the audio from stereo to mono, and eliminating the remote power capability. The new-generation units are not compatible with the old generation unless an internal jumper in the new unit is shifted.

Shift the jumpers for the new transmitter, receiver, or both if:

• Your installation mixes a transmitter and receiver from different generations.

• You want the units to transmit stereo audio.

• You want one unit to remotely power another.

Use the table below to identify the generation (revision level) of the transmitter and receiver

in your installation. If any of the above scenarios are true, reconfigure the jumpers for the units before mounting the units.

NOTE: Only the new generation units have these jumpers.

Transmitter

MTP T SV A 60-540-22 60-540-52 MTP T SV A RCA 60-541-32 60-540-62 MTP T SVA AAP 70-362-02, -03 70-362-22, -23 MTP T AV 60-540-21 60-540-51 MTP T AV RCA 60-540-31 60-540-61 MTP T AV AAP 70-361-02, -03 70-361-22

Receiver

MTP R SV A 60-541-22 60-541-52 MTP R SV A RCA 60-541-32 60-541-62 MTP R AV 60-541-21 60-541-51 MTP R AV RCA 60-541-31 60-541-61

Old Generation Part Number

New Generation Part Number

MTP Series • Installation 3

Setting the Jumpers on Non AAP Models

Remove these screws.

1. Remove and retain the four screws (two on each side of the unit) that secure the cover

to the MTP (see figure 1).

SHARP

GAIN

Figure 1. Removing the MTP Cover

2. For the receiver, slide the cover slightly forward to clear the front panel adjustment

knobs.

3. Lift the cover straight up.

4. If the transmitter or receiver is an audio unit, remove and retain the two screws

that secure the audio board to the main (video) board (see figure 2). Pull the audio board back until the audio connectors clear the back of the unit and lift the board out of the way.

NOTE: This step (4) and figure 2 are correct for either S-video or composite video

models.

Transmitter Front Panel Receiver Front Panel

Receiver Rear PanelTransmitter Rear Panel

Figure 2. Removing the Audio Board

MTP Series • Installation 4

5. Locate the jumper blocks (see figure 3) on the video board. Shift the jumper to the

Mono (default jumper position)

alternate location.

Compatible with new model transmitter/receivers. Cannot remotely power transmitter/receiver

Transmitter Front Panel Receiver Front Panel

Rear Panel

Stereo

Compatible with old model transmitter/receivers. Can remotely power transmitter/receiver.

Receiver Rear PanelTransmitter

Figure 3. Video Board Jumper Locations

6. Reinstall the audio board and secure it in place with the screws (removed in step 4).

7. If the receiver is an audio unit, locate the jumper block on the audio board (see

figure 4). Shift the jumper to the alternate location.

Receiver Front Panel

Mono (default jumper position)

Compatible with new model transmitters. Mono audio. Cannot remotely power transmitter

Stereo

Compatible with old model transmitters. Stereo audio. Can remotely power transmitter.

Figure 4. Receiver Audio Board Jumper Locations

NOTE: The jumper locations and functions are the same whether the receiver is

equipped with captive screw or RCA audio connectors.

8. Replace the cover and the four screws (removed in step 1).

MTP Series • Installation 5

Setting the Jumpers on AAP Transmitters

1. Remove these screws. 2. Carefully pull the RJ-45 connector

Mono (default jumper position)

1. Remove and retain the two screws that secure the back cover to the MTP (see figure 5).

through this hole.

OUTPUT

0.5A MAX POWER

12V

− +

Figure 5. Removing the MTP Cover

2. Pull the cover out of the way, carefully twisting the RJ-45 connector as necessary to slide

it through the hole in the cover marked “Output.”

3. Remove and retain the two standoffs that secure the audio board to the main (video)

board (see figure 6). Lift the audio board out of the way.

Remove these standoffs.

Figure 6. Removing the Audio Board

4. Locate the jumper block (see figure 7) on the video board. Shift the jumper to the

alternate location.

Compatible with new model receivers. Cannot remotely power receiver

Stereo

Compatible with old model receivers. Can remotely power receiver.

Figure 7. Video Board Jumper Locations

5. Replace the audio board and secure it in place with the standoffs (removed in step 3).

6. Feed the RJ-45 connector through the hole in the cover marked “Output” and replace

the cover. Secure the cover in place with the two screws (removed in step 1).

CAUTION: Ensure that the TP cable is not pinched when you reinstall the cover.

MTP Series • Installation 6

Mounting Options

UL Requirements

The following Underwriters Laboratories (UL) requirements pertain to the installation of the

MTP transmitter or receiver into a rack.

1. Elevated operating ambient — If the equipment is installed in a closed or multi-unit

2. Reduced air flow — Installation of the equipment in a rack should be such that the

3. Mechanical loading — Mounting of the equipment in the rack should be such that a

4. Circuit overloading — Consideration should be given to the connection of the

5. Reliable earthing (grounding) — Reliable earthing of rack-mounted equipment

rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consider installing the equipment in an environment compatible with the maximum ambient temperature (TMA) specified by the manufacturer.

amount of air flow required for safe operation is not compromised.

hazardous condition is not achieved due to uneven mechanical loading.

equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

should be maintained. Particular attention should be given to supply connections (such as the use of power strips) other than direct connections to the branch circuit.

Tabletop Use (All Except AAP Models)

The non-AAP MTPs come with self-adhesive rubber feet attached to the four corners of the bottom. Set the MTP on a horizontal surface.

Rack Mounting (All Except AAP Models)

For optional rack mounting, mount the MTP on any of the following rack shelves:

• RSF 123 universal rack shelf for 3.5 inch deep products (part number: 60-190-20)

(see figure 8)

• RSB 123 basic rack shelf for 3.5 inch deep products (part number: 60-604-21)

• RSU 126 universal rack shelf for 6 inch deep products (part number: 60-190-10)

• RSB 126 basic rack shelf for 6 inch deep products (part number: 60-604-11)

• RSU 129 universal rack shelf for 9.5 inch deep products, (part number: 60-190-01)

(see figure 9)

• RSB 129 basic rack shelf for 9.5 inch deep products (part number: 60-604-02)

MTP Series • Installation 7

Rack Shelf

Quarter Rack Width False Front Face Plate

(2) 4-40 x 3/16" Screws

Eighth Rack Width False Front Face Plate

Figure 8. Mounting the MTPs on a Rack Shelf

MDA SERIES

DISTRIBUTION AMPLIFIER

Under Desk Mounting

Mounting

Rack Mounting Instructions

On the standard rack shelf, the MTP mounts in one of eight locations to the rear of the rack or in one of eight locations to the front of the rack.

1. Remove the feet from the bottom of the MTP, if installed.

2. Mount the MTP using two 4-40 x 3/16 inch screws in opposite (diagonal) corners to

secure the MTP to the shelf.

3. Install blank panels or other units to the rack shelf.

Furniture or Projector Mounting (All Except AAP Models)

Use the optional mounting kit (furniture, part number: 70-212-01, or projector, part number: 70-217-01) to mount the MTP as follows:

1. Remove the feet from the bottom of the MTP, if installed.

2. Attach the mounting brackets to the MTP with the machine screws provided (see

figure 10).

• If furniture mounting, proceed to step 3.

• If projector mounting, proceed to step 4.

Figure 9. Mounting the MTPs on a

Standard Rack Shelf

Projector Mounting Bracket

Ceiling

Projector

Projector Mounting

Figure 10. Desk and Projector Mounting the MTPs

Bolt

MTP Series • Installation 8

3. For furniture mounting —

a. Hold the MTP with the attached brackets against the underside of the mounting

surface. Mark the bracket screw hole locations on the mounting surface.

b. Drill 3/32 inches (2 mm) diameter pilot holes, 1/4 inch (6.3 mm) deep in the

mounting surface at the marked screw locations.

c. Insert #8 wood screws into the four pilot holes. Tighten each screw into the

mounting surface until just less than 1/4 inch of the screw head protrudes.

d. Align the mounting screws with the slots in the brackets and place the MTP against

the surface.

e. Slide the MTP slightly forward or back, then tighten all four screws to secure the

MTP in place.

4. For projector mounting — secure the MTP to a projector mount by inserting the

mounting bolt through the slotted hole in the bracket.

Frame Mounting (AAP Models)

The AAP-mountable transmitters (MTP T SVA AAP and MTP T AV AAP) can be mounted to any Extron AAP mounting frame that accepts a double space (double height) AAP module

(see “AAP Accessories” for a partial list of AAP devices).

NOTE: The rear panel MTP connections will be inaccessible after installation. Make all

connections (see “Transmitter and Receiver Throughput Connections”) and test the twisted pair system (apply a video source and observe that transmitted video is displayed satisfactorily) before installing the panel-mounted transmitter.

Install an MTP transmitter in an AAP frame as follows (see figure 11):

AAP 102

VIDEO

AUD

IO IN

MTP T

AV AAP

MTP T AV AAP

AAP 102

Figure 11. AAP Mounting an MTP Transmitter

1. If necessary, remove the AAP frame from the device.

2. Cable the rear of the transmitter before fastening the AAP module to the AAP frame.

3. Insert each of the AAP module screws through the holes in the AAP frame. Secure the

transmitter to the frame with the provided captive washers and #4-40 nuts.

4. Install the AAP frame as appropriate to the type of frame. Figure 11 shows the

transmitter module being installed in an AAP 102 wall mounting frame and the frame being installed in a wall box.

MTP Series • Installation 9

Panel Features and Connections

Transmitter Input Connections

Figure 12 shows all of the combinations of video and audio input connectors that you may

encounter with your MTP transmitter.

NOTE: Some transmitters do not have audio connections.

INPUT

S-VIDEO

12V

0.5a

MAX

OUTPUT

MTP T SV A

MTP T SV A, Rear Panel

INPUT

OUTPUT

S-VIDEO

12V

0.5a

MAX

MTP T SV A RCA

MTP T SV A RCA, Rear Panel

S-VIDEO

AUDIO IN

MTP T SVA

MTP T SVA AAP, Front Panel

VIDEO

INPUT

OUTPUT

VIDEO

12V

0.5a

MAX

12V

0.5a

MAX

INPUT

VIDEO

MTP T AV

MTP T AV, Rear Panel

OUTPUT

MTP T AV RCA

MTP T AV RCA, Rear Panel

AUDIO IN

MTP T AV

MTP T AV AAP, Front Panel

Figure 12. Video and Audio Input Connections

S-video connector (SV models) —

Connect an S-video input to this 4-pin mini DIN

connector.

b Composite video connector

(AV models)

— Connect a composite video input to this

connector (female RCA on the MTP T AV AAP, female BNC on all other models).

c Audio input captive screw connector (MTP T SV A, MTP T AV) — Connect a

balanced or unbalanced audio input to this 3.5 mm, 5-pole captive screw connector. Connectors are included with each MTP, but you must supply the audio cable. See

figure 13 to wire a connector for the appropriate input type. Use the supplied tie-

wrap to strap the audio cable to the extended tail of the connector. High impedance is

generally over 800 ohms.

Tip

Sleeve

Tip

Do not tin the wires!

Sleeve

Unbalanced Stereo Input

(high impedance)

Figure 13. Captive Screw Input Connector Wiring

Ring

Sleeve (s)

Ring

Tip

Balanced Stereo Input

(high impedance)

MTP Series • Installation 10

CAUTIONS: • The length of the exposed (stripped) portion of the copper wires is

Sleeve (Gnd )

Right Channel (Red Jacket)

Left Channel (White Jacket)

Tip (Signal)

important. The ideal length is 3/16 inches (5 mm). Longer bare wires can short together. Shorter bare wires are not as secure in the direct insertion connectors and could be pulled out.

• The captive screw audio connector can easily be inadvertently

plugged partially into one receptacle and partially into an adjacent receptacle. This misconnection could damage the audio output

circuits. Ensure that the connector is plugged fully and only into the

desired input or output

NOTES: • When making connections for the MTP from existing audio cables, see

figure 14 to identify the tip, ring, and sleeve wires in various connectors.

• A mono audio connector consists of the tip and sleeve.

• A stereo audio connector consists of the tip, ring, and sleeve.

• The ring, tip, and sleeve wires are also shown on the captive screw audio

connector diagrams (see figure 13 and figure 21).

Tip (L)

Tip (+)

Ring (R)

Sleeve ( )

RCA Connector (Mono)

3.5 mm Stereo Plug Connector

Sleeve ( )

(unbalanced)

Figure 14. Typical Audio Connectors

Audio input RCA connectors (RCA and AAP models) —

Connect an unbalanced

stereo audio source to these L(eft) and R(ight) RCA connectors (see figure 15).

Figure 15. RCA Audio Connectors

MTP Series • Installation 11

Transmitter and Receiver Throughput Connections

MTP TransmittersMTP Receivers

Figure 16 identifies the connections between the transmitter and receiver.

INPUT

OUTPUT

S-VIDEO

12V

0.5a

MAX

MTP T SV A RCA

12V

0.5a MAX

INPUT

OUTPUT

S-VIDEO

MTP R SV A RCA

5 5

12V

0.5a MAX

INPUT

VIDEO

OUTPUT

MTP T AV

0.5A MAX

OUTPUT

12V

POWER

− +

12V

0.5a MAX

OUTPUT

INPUT

VIDEO

MTP R AV

Figure 16. Throughput Connections

CAUTION: Do not connect these devices to a computer data or

telecommunications network.

NOTE: RJ-45 termination must comply with the TIA/EIA T 568A or TIA/EIA T 568B

e Transmitter output and receiver input connector — Connect one end of a TP

cable to this RJ-45 female connector on the transmitter. On the MTP T SV A AAP and MTP T AV AAP, the connector is at the end of a short pigtail.

Connect the free end of the same TP cable from the transmitter to this RJ-45 female connector on the receiver.

wiring standards for all connections.

MTP Series • Installation 12

TP cable termination

Crossover Cable Straight-through Cable

Figure 17 details the recommended termination of TP cables with RJ-45 connectors in

accordance with the TIA/EIA T 568A or TIA/EIA T 568B wiring standards. You can use either

standard, but ensure that you use the same standard on both cable ends.

WARNING: Damage may occur to the unit if TP cables are miswired as crossover

cables.

Pins:

12345678

Insert Twisted

Pair Wires

RJ-45

Connector

A cable that is wired as T568A at one end and T568B at the other (Tx and Rx pairs reversed) is a "crossover" cable.

Figure 17. TP Cable Termination

End 1 End 2 End 1 End 2

Wire color

White-green

Green

White-orange

Blue

White-blue

Orange

White-brown

Brown

T568A T568B

Wire color

White-orange

Orange

White-green

Blue

White-blue

Green

White-brown

Brown

Wire color

White-orange

White-green

Blue

White-blue

White-brown

Brown

A cable wired the same at both ends is called a "straight-through" cable, because no pin/pair assignments are swapped.

Wire color

White-orange

OrangeOrange

White-green

Blue

White-blue

GreenGreen

White-brown

Brown

T568BT568B

NOTES: • Enhanced Skew-free A/V cable is not recommended for Ethernet/LAN

applications.

• This cable is specially designed for compatibility with Extron Twisted Pair

products, wired using the TIA/EIA 568 A standard.

• The green, brown, and blue pairs of this cable have virtually identical lengths

and should be used to transmit the video signals.

• The orange pair of this cable has a different length and should not be used

to transmit the video signals.

Power Connection (All Models)

See figure 18 to identify the power connections and indicators and to identify the panel screws.

MTP Transmitters MTP Receivers

INPUT

7 7

OUTPUT

S-VIDEO

12V

0.5a

MAX

MTP T SV A RCA

6 7

MTP AAP Tr ansmitters

OUTPUT

12V

0.5a MAX

INPUT

OUTPUT

S-VIDEO

MTP R SV A RCA

0.5A MAX

POWER

12V

− +

Figure 18. Power Connections and Indicators

VIDEO

AUDIO IN

MTP T AV

MTP Series • Installation 13

f Power connector — Plug the external 12 VDC power supply into this 2-pole captive

Smooth

screw connector on both the transmitter and the receiver. Figure 19 shows how to wire the connectors.

Ridges

SECTION A–A

Power Supply

Output Cord

Figure 19. Power Connector Wiring

WARNING: The two power cord wires must be kept separate while the power

supply is plugged in. Remove power before wiring.

NOTES: • If the transmitter and receiver are either older generation units or jumper

configured to the stereo audio position (compatible with the older units), only a single device needs to be powered in a two-unit system (see “Signal Jumpers for Generational Compatibility” on page 3). The device connected to the power supply, in turn, provides power to its counterpart.

• If the transmitter and receiver are separated by greater than 200 feet

(61 meters) of STP/UTP/FTP cable, connect a power supply to both units.

This remote power application is only available in stereo mode, not mono mode.

• Do not tin the stripped power supply leads before installing the captive

screw or direct insertion connector. Tinned wires could be pulled out because they are not as secure in the captive screw and direct insertion connectors.

CAUTIONS: • Power supply voltage polarity is critical. Incorrect voltage polarity can

damage the power supply and the MTP. Identify the power cord negative lead by the ridges on the side of the cord (see

• The length of the exposed (stripped) copper wires is important. The

ideal length is 3/16 inches (5 mm). Longer bare wires can short together. Shorter wires are not as secure in the captive screw connectors and could be pulled out.

Tie Wrap

Captive Screw Connector

figure 19).

To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter.

Use the supplied tie-wrap to strap the power cord to the extended tail of the connector.

NOTE: Your transmitter/receiver pair may have shipped with a blue captive screw

connector. This blue connector can be plugged into either a blue or an orange power receptacle.

The blue connector does not have an extended tail or the included tie-wrap.

Alternatively, an optional Extron PS 124 Universal 12 VDC Power Supply (part number 60-1022-01) can power multiple Extron 12 VDC devices using only one AC power

connector.

g Power LED — Indicates power is applied to the MTP.

MTP Series • Installation 14

Receiver Output Connections

Unbalanced Stereo Input

See figure 20 to identify the receivers rear panel output connections. The figures show all of the combinations of connectors that you may encounter with your MTP receiver.

MTP R SV A, Rear Panel

OUTPUT

L R

MTP R SV A RCA, Rear Panel

OUTPUT

12V

0.5a MAX

MTP R AV, Rear Panel

12V

0.5a MAX

INPUT

OUTPUT

L R

INPUT

S-VIDEO

MTP R SV A

8 8

VIDEO

MTP R AV

12V

0.5a MAX

MTP R AV RCA, Rear Panel

L R

12V

0.5a MAX

INPUT

MTP R SV A RCA

OUTPUT

INPUT

MTP R AV RCA

S-VIDEO

VIDEO

9 9

Figure 20. Output Connector Wiring

S-video connector (SV models) —

Connect an S-video device to this 4-pin mini DIN

connector.

i Composite video connector (AV models) — Connect a composite video device to

this BNC connector.

j Captive screw audio connector (MTP R SV A, MTP R AV) — Connect a balanced

or unbalanced audio device, such as an audio amplifier, to this 3.5 mm, 5-pole captive screw connector (see figure 21 to properly wire the output connector).

Do not tin the wires!

Sleeve

Tip

Ring

Sleeve (s)

Ring

Tip

Balanced Stereo Input

k RCA audio connectors (RCA models) — Connect a stereo audio device to these L(eft)

Figure 21. Captive Screw Connector Wiring for Audio Output

NOTE: Some receivers do not have audio connections.

CAUTIONS: • Connect the sleeve to ground (Gnd). Connecting the sleeve to a

negative (-) terminal will damage the audio output circuits.

• The length of the exposed (stripped) portion of the copper wires is

important. The ideal length is 3/16 inches (5 mm).

• Longer bare wires can short together.

• Shorter bare wires are not as secure in the direct insertion connec-

tors and could be pulled out.

and R(ight) RCA connectors.

MTP Series • Installation 15

Operation

SHARP

C GAIN

Y GAIN

SHARP

GAIN

MTP R S-video Receiver Front Panel

MTP R Composite Video Receiver Front Panel

2331231

This section describes:

• Front Panel Features

• Troubleshooting — Skew Delay Compensation

Front Panel Features

Troubleshooting — Skew Delay Compensation

a Power LED — When lit, this LED indicates power is applied to the MTP. b Sharpness — Adjusts the output image sharpness for long cable runs. c Gain control — Adjusts the brightness of the output image to compensate for long

CAT 5 TP cable can cause registration errors (in which luminance leads or lags chrominance) between the Y and C video signals on S-video transmitter/receiver pairs. Try using the following methods to minimize or eliminate pair skew:

• Switch to Extron Enhanced Skew-Free A/V UTP cable.

• Add an S-video-to-BNC adapter and a skew compensation cable equal to the length of

• Install an S-video-to-BNC adapter and an SEQ 100 15 HD Skew Equalizer on the receiver

Figure 22. MTP Receiver Front Panels

cable runs.

S-video receivers — There are separate controls for luminance (Y) and chrominance (C) on S-video MTP receivers. If the chrominance setting on the MTP receiver S-video output is too low, the image may appear in monochrome. Adjust the S-video gain until color appears.

Composite video receivers — There is only one gain control on composite video MTP receivers.

NOTE: All control knobs are removable to limit access if desired.

pair skew to the receiver output.

video output and adjust the skew for the leading video image.

MTP Series • Operation 16

Reference Information

This section provides information on:

• Specifications

• Part Numbers

Specifications

Video

Gain .............................................. Unity

Differential phase error .................. <1.0º at 3.58 MHz and 4.43 MHz

Differential gain error .................... <1.0% at 3.58 MHz and 4.43 MHz

Video input

Number/signal type

MTP T AV Series

MTP T SV Series ................. 1 S-video

MTP R AV/SV Series ............ 1 set of proprietary analog signals

Connectors

MTP T AV Series

MTP T AV AAP ................... 1 female RCA

MTP T SV Series ................. 1 female 4-pin mini DIN

MTP R AV/SV Series ............ 1 female RJ-45

Nominal level ................................. 1 Vp-p for Y of S-video and for composite video

Minimum/maximum levels .............. 0.3 V to 1.5 Vp-p with no offset

Impedance .................................... 75 ohms

Return loss .................................... <-30 dB, DC @ 10 MHz

DC offset (max. allowable) ............. 100 mV

Video output

Number/signal type

MTP T AV/SV Series and MTP T AAP Series

MTP R AV Series

MTP R SV Series ................. 1 S-video

Connectors

MTP T AV/SV Series

MTP T AAP Series ............... 1 female RJ-45 on a 3” (7.6 cm) pigtail

MTP R AV Series ................. 1 female BNC

MTP R SV Series ................. (1) 4-pin mini DIN

Nominal level ................................. 1 V p-p for Y of S-video and for composite video

Minimum/maximum levels .............. 0.3 V to 1.5 Vp-p

Impedance ..................................... 75 ohms

Return loss .................................... <-35 dB @ 5 MHz

DC offset ...................................... ±20 mV with input at 0 offset

................. 1 composite video

................. 1 female BNC

0.3 Vp-p for C of S-video

1 set of proprietary analog signals

................. 1 composite video

............ 1 female RJ-45

0.3 V p-p for C of S-video

MTP Series • Reference Information 17

Sync

Standards ....................................... NTSC 3.58, NTSC 4.43, PAL, SECAM

Audio

Gain

RCA models

All other models ................ Unbalanced output: 0 dB (unity); balanced output: +6 dB

Frequency response ....................... 20 Hz to 20 kHz, ±0.25 dB

THD + Noise .................................. 0.03% @ 1 kHz, 0.3% @ 20 kHz at nominal level

S/N

RCA models

All other models w/audio ... >90 dB, balanced at maximum output (unweighted)

Crosstalk ....................................... <-80 dB @ 1 kHz, fully loaded

Stereo channel separation ............. >75 dB @ 1 kHz

CMRR ............................................ >34 dB @ 20 Hz to 20 kHz

....................... Unbalanced output: 0 dB (unity)

....................... >90 dB, at maximum output (unweighted)

Audio input

Number/signal type

MTP T AV, MTP T SV A

MTP T AV/SV A RCA, MTP T AAP, MPT T 45 Series

.......................................... 1 stereo, unbalanced

MTP R Series Connectors

MTP T AV, MTP T SV A

MTP T AV/SV A RCA, MTP T AAP

MTP R Series

Impedance .................................... >5.6k ohms ±5% unbalanced, >10k ohms ±5% balanced

Nominal level ................................. -10 dBV (0.32 Vrms)

Maximum level .............................. >+2.4 dBu (balanced or unbalanced) at 1%THD+N

...................... 1 set of proprietary analog signals

...................... 1 female RJ-45 (shielded)

...... 1 stereo, balanced/unbalanced

1 stereo, unbalanced

....... (1) 3.5 mm captive screw connector, 5 pole

1 pair of RCA female

NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu.

Audio output

Number/signal type

Connectors

Impedance

Gain error ..................................... ±0.1 dB channel to channel

Maximum level (Hi-Z) ..................... >+3.3 dBu, balanced or unbalanced at 1%THD+N

Maximum level (600 ohm) ............. >+2.0 dBm, balanced or unbalanced at 1%THD+N

MTP T Series (all models)

MTP R AV, MTP R SV A ....... 1 stereo or dual mono, balanced/unbalanced

MTP R AV/SV A RCA .......... 1 stereo or dual mono, unbalanced

MTP T Series

MTP T AAP Series ............... 1 female RJ-45 on a 3” (7.6 cm) pigtail

MTP R AV, MTP R SV A ....... (1) 3.5 mm captive screw connector, 5 pole

MTP R AV/SV A RCA .......... 1 pair of RCA female

MTP R AV, MTP R SV A

MTP R AV/SV A RCA .......... 50 ohms unbalanced

...................... 1 female RJ-45 (shielded)

.... 1 set of proprietary analog signals

....... 50 ohms unbalanced, 100 ohms balanced

MTP Series • Reference Information 18

General

Recommended cable type .............. CAT5/5e/6 (shielded or unshielded)

External power supply

Power input requirements .............. 12 VDC, 0.2 A

NOTES: • If the distance between the transmitter and receiver is less than 500 feet (150 m) and if

the internal jumper is in setting 2, you can connect a power supply to only one device in a transmitter/receiver pair.

• If the distance between transmitter and receiver is greater than 500 feet (150 m) or if the

internal jumper is in setting 1 (default), connect a power supply to each device.

.................... 100 VAC to 240 VAC, 50-Hz, external; to 12 VDC, 1.0 A, regulated

Temperature/humidity

Cooling Mounting

Enclosure type ............................... Metal

Enclosure dimensions .................... (Depths exclude connectors and cables.)

Product weight ............................... 1.0 lbs (0.5 kg)

Shipping weight ............................ 3 lbs (2 kg)

Vibration ....................................... ISTA 1A in carton

Regulatory compliance

MTBF ............................................. 30,000 hours

Warranty ....................................... 3 years parts and labor

.......................................... Convection, no vents

Rack mount

MTP T AAP Series

All other models................. Yes, with optional 1U deep rack shelf

Furniture or wall mount

MTP T AAP Series

All other models................. Yes, with optional brackets

MTP T AAP Series

Faceplate

Transmitter

All other models ...................... 1.7” H x 2.2” W x 3.0” D

Safety ...................................... CE, c-UL, UL

Compliances ............................ CE, C-tick, FCC Class A, ICES, VCCI

.................... Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

............... Yes, with optional rack panel

............... Yes, with optional AAP mounting plates

........................... 1.4” H x 3.5” W x 0.1” D

(3.6 cm H x 8.9 cm W x 0.3 cm D) (double space AAP plate)

........................ 1.35” H x 2.7” W x 1.3” D

(3.4 cm H x 6.9 cm W x 3.3 cm D)

(1U high, one-eighth rack wide)

4.2 cm H x 5.6 cm W x 7.6 cm D

(International Safe Transit Association)

NOTES: • All nominal levels are at ±10%.

• Specifications are subject to change without notice.

MTP Series • Reference Information 19

Part Numbers

MTP Transmitters

MTP Receivers

AAP Accessories

Description Part Numbers

MTP T SV A 60-540-52 MTP T SV A RCA 60-540-62 MTP T SVA AAP (black, white) 70-362-22, 23 MTP T AV 60-540-51 MTP T AV RCA 60-540-61 MTP T AV AAP (black) 70-361-22

Description Part Numbers

MTP R SV A 60-541-52 MTP R SV A RCA 60-541-62 MTP R AV 60-541-51 MTP R AV RCA 60-541-61

Accessories Part Numbers

AAP 102 panel (black, white) 60-300-02, 03

AAP 104 panel (black, white, RAL9010 white) 60-301-02, 03, 05

AAP 106 panel (gray, black, white) 60-531-01, 02, 03

AAP 201 panel - half rack width, 1U (gray, black, white) 60-302-01, 02, 03 AAP 202 panel - half rack width, 2U ( black, white) 60-303-02, 03 AAP 301 panel - full rack width, 1U (black) 60-632-02 AAP 302 panel - full rack width, 2U (black) 60-633-02

Accessories

Accessories Part Numbers

PS 124 multiple output 12 Volt DC power supply 60-1022-01 RSU 129 9.5” 1U universal rack shelf kit (gray) 60-190-01 RSB 129 9.5” 1U basic rack shelf (gray) 60-604-02 RSU 126 6” deep 1U universal rack shelf kit (gray) 60-190-10 RSB 126 6” deep 1U basic rack shelf (gray) 60-604-11

RSF 123 universal rack shelf (gray) 60-190-20

RSB 123 basic rack shelf (gray) 60-604-21 MBU 123 furniture mounting kit 70-212-01

PMK 100 projector mounting kit 70-217-01

MTP Series • Reference Information 20

Cables and Connectors

NOTE: Enhanced Skew-Free™ A/V UTP cables are not recommended

for Ethernet/LAN applications.

Enhanced Skew-Free™ A/V Cable Part Numbers

Enhanced Skew-Free A/V UTP (various lengths) 26-569-xx Enhanced Skew-Free A/V UTP, bulk Plenum Enhanced Skew-Free A/V UTP, bulk 22-142-03

RJ-45 Connector Part Numbers

CAT 6 jack (black) 100-476-01

CAT 6 jack (red) 100-477-01

CAT 6 jack (blue) 100-478-01

CAT 6 jack (orange) 100-479-01

CAT 6 jack (gray) 100-480-01

CAT 6 jack (white) 100-481-01

CAT 6 jack (ivory) 100-482-01

S-video to BNC Adapter Part Numbers

S-video 4-pin male to 2 BNC female - 8” (20 cm) 26-353-01 S-video 4-pin male to 2 BNC female - 1’ (30 cm) 26-353-02 S-video 4-pin male to 2 BNC female - 3’ (90 cm) 26-353-03 S-video 4-pin male to 2 BNC female - 6’ (1.8m) 26-353-04 S-video 4-pin female to 2 BNC male - 1’ (30 cm) 26-541-02

22-141-03

Skew Compensation Solutions

Skew Equalizer Part Numbers

SEQ 100 15HD 60-676-01

MTP Series • Reference Information 21

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years

from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty

workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components,

to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics 1001 East Ball Road

Anaheim, CA 92805

U.S.A.

Europe, Africa, and the Middle East:

Extron Europe Hanzeboulevard 10 3825 PH Amersfoort

The Netherlands

Asia:

Extron Asia 135 Joo Seng Road, #04-01 PM Industrial Bldg. Singapore 368363

Japan:

Extron Electronics, Japan Kyodo Building, 16 Ichibancho

Chiyoda-ku, Tokyo 102-0082 Japan

China:

Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Middle East:

Extron Middle East Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai

Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical

or mechanical abuse, abnormal operating conditions, or modiﬁcations were made to the product that were not

authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return

Authorization) number. This will begin the repair process.

USA: (714) 491-1500 Europe: 31.33.453.4040 Asia: 65.6383.4400 Japan: 81.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage

during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or tness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been

advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron USA - West Headquarters

+800.633.9876

Inside USA/Canada Only

+1.714.491.1500 +1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA/Canada Only

+1.919.863.1794 +1.919.863.1797 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040 +31.33.453.4050 FAX

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400 +65.6383.4664 FAX

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800 +971.4.2991880 FAX

Extron Electronics MTP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Introduction

About the MTP Transmitters and Receivers

TP Cable Advantages

Transmission Distance

Installation

Signal Jumpers for Generational Compatibility

Setting the Jumpers on Non AAP Models

Setting the Jumpers on AAP Transmitters

Mounting Options

UL Requirements

Tabletop Use (All Except AAP Models)

Rack Mounting (All Except AAP Models)

Rack Mounting Instructions

Furniture or Projector Mounting (All Except AAP Models)

Frame Mounting (AAP Models)

Panel Features and Connections

Transmitter Input Connections

Transmitter and Receiver Throughput Connections

Power Connection (All Models)

Receiver Output Connections

Operation

Front Panel Features

Troubleshooting — Skew Delay Compensation

Reference Information

Specifications

Part Numbers

MTP Transmitters

MTP Receivers

AAP Accessories

Accessories

Cables and Connectors

Skew Compensation Solutions

Extron Warranty
