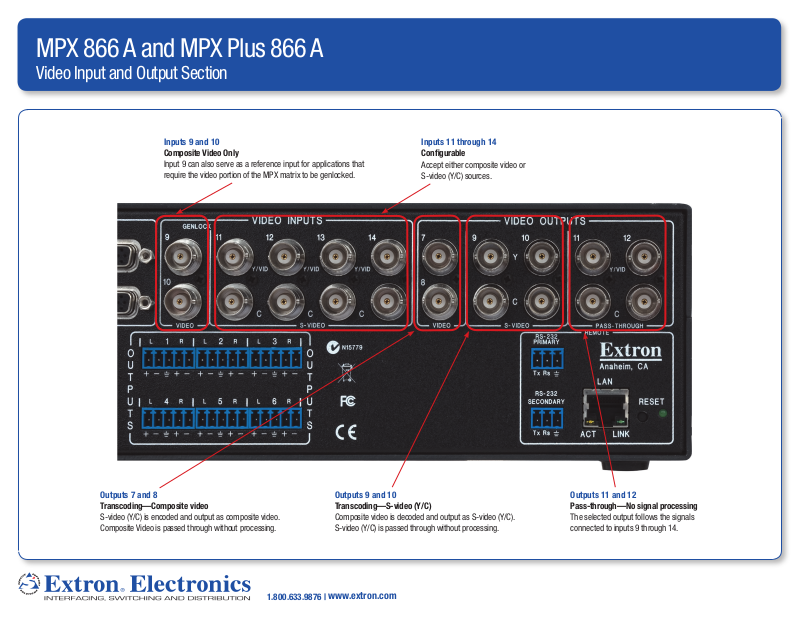

MPX 866 A and MPX Plus 866 A

Video Input and Output Section

Inputs 9 and 10

Composite Video Only

Input 9 can also serve as a reference input for applications that
require the video portion of the MPX matrix to be genlocked.

Inputs 11 through 14

Configurable

Accept either composite video or
S-video (Y/C) sources.

Outputs 7 and 8

Transcoding—Composite video

S-video (Y/C) is encoded and output as composite video.
Composite Video is passed through without processing.

1.800.633.9876 |

Outputs 9 and 10

Transcoding—S-video (Y/C)

Composite video is decoded and output as S-video (Y/C).
S-video (Y/C) is passed through without processing.

www.extron.com

Outputs 11 and 12

Pass-through—No signal processing

The selected output follows the signals
connected to inputs 9 through 14.
