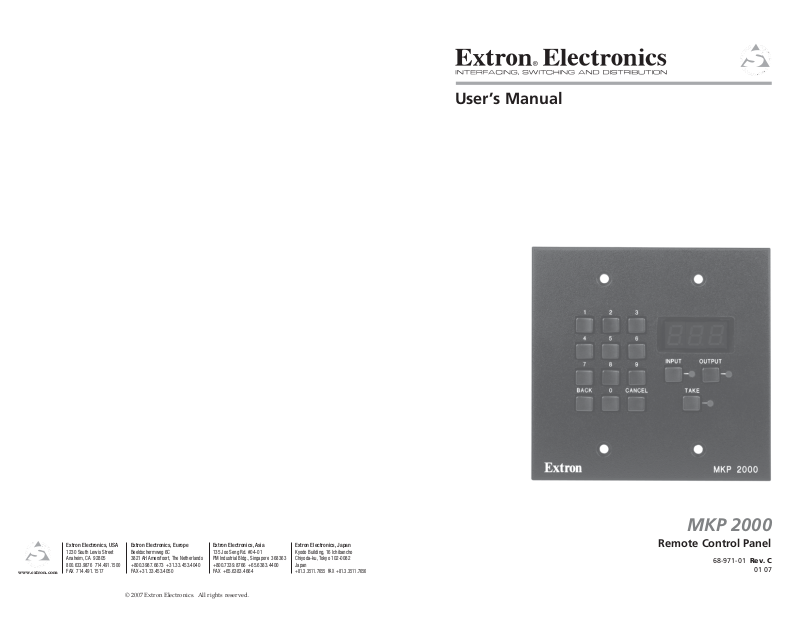

User’s Manual

www.extron.com

Extron Electronics, USA

1230 South Lewis Street Anaheim, CA 92805

800.633.9876 714.491.1500 FAX 714.491.1517

Extron Electronics, Europe

Beeldschermweg 6C 3821 AH Amersfoort, The Netherlands +800.3987.6673 +31.33.453.4040 FAX +31.33.453.4050

Extron Electronics, Asia

135 Joo Seng Rd. #04-01 PM Industrial Bldg., Singapore 368363 +800.7339.8766 +65.6383.4400 FAX +65.6383.4664

Extron Electronics, Japan

Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan +81.3.3511.7655 FAX +81.3.3511.7656

MKP 2000

Remote Control Panel

68-971-01 Rev. C

01 07

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating

instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future

reference.

Follow Warnings • Follow all warnings and instructions marked on the

equipment or in the user information.

Avoid Attachments • Do not use tools or attachments that are not

recommended by the equipment manufacturer because they may be hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de

sécurité et d’exploitation avant d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité afin de

pouvoir les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et

consignes marqués sur le matériel ou présentés dans la documentation utilisateur.

Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni

d’outils non recommandés par le fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,

sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit

des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und

Anleitungen auf dem Gerät oder in der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,

die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de

operación y seguridad, antes de usar el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad

para futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones

marcadas en el equipo o en la documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no

sean especificamente recomendados por el fabricante, ya que podrian implicar riesgos.

Warning

Power sources • This equipment should be operated only from the power source

indicated on the product. This equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all

power cords from the rear of the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to

be stepped on or pinched by items placed upon or against them.

Servicing • Refer all servicing to qualified service personnel. There are no user-

serviceable parts inside. To prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are

provided to prevent overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced.

Replace it only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation

indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale comportant un fil de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,

déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de

manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-

maintenance par un technicien qualifié. Aucun des éléments internes ne peut être réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices,

ceux-ci servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d'explosion s'll y a remplacment incorrect de la

batterie. Remplacer uniquement avec une batterie du meme type ou d'un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene

Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen,

sollten Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht

im Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualifiziertem

Servicepersonal durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse

aufweist, dienen diese zur Vermeidung einer Überhitzung der empfindlichen Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird.

Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo

de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la

acometida de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se

deben instalar en lugares donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal

calificado. En el interior no hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/ mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento,

es para evitar el sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición

incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle East: and Central America:

Extron Electronics Beeldschermweg 6C

1001 East Ball Road 3821 AH Amersfoort

Anaheim, CA 92805, USA The Netherlands

Asia: Japan:

Extron Electronics, Asia Extron Electronics, Japan 135 Joo Seng Road, #04-01 Kyodo Building PM Industrial Bldg. 16 Ichibancho Singapore 368363 Chiyoda-ku, Tokyo 102-0082

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or non-Extron authorized modification to the product.

If it has been determined that the product is defective, please call Extron and ask for an Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe), 65.6383.4400 (Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron Electronics, Europe

Japan

ᅝܼ乏ⶹ噝Ё᭛

⊼ᛣ

䯙䇏䇈ᯢк

ֱᄬ䇈ᯢк

䙓ܡ䗑ࡴ

䄺

ᢨᥝ⬉⑤

⬉⑤㒓ֱᡸ 㓈ᡸ

䗮亢ᄨ

䫖⬉∴

䖭Ͼヺোᦤ⼎⫼᠋䆹䆒໛⫼᠋᠟ݠЁ ⱘ᪡԰㓈ᡸ䇈ᯢǄ 䖭Ͼヺো䄺⫼᠋䆹䆒໛ᴎ໇ݙᲈ 䴆ⱘ䰽⬉ˈ᳝㾺⬉䰽Ǆ

⊼ᛣ

䯙䇏䇈ᯢк

噝⫼᠋Փ⫼䆹䆒໛ࠡᖙ乏䯙䇏ᑊ⧚㾷 ᳝ᅝܼՓ⫼䇈ᯢǄ ֱᄬ䇈ᯢк

噝⫼᠋ᑨֱᄬᅝܼ䇈ᯢкҹ໛ᇚᴹՓ⫼Ǆ 䙉ᅜ䄺噝⫼᠋ᑨ䙉ᅜѻક⫼᠋ᣛϞⱘ᠔᳝ ᅝܼ᪡԰䇈ᯢǄ 䙓ܡ䗑ࡴ

噝ϡ㽕Փ⫼䆹ѻકଚ≵᳝᥼㤤ⱘᎹ݋៪

䗑ࡴ䆒໛ˈҹ䙓ܡ䰽Ǆ

䄺

⬉⑤⬉⑤噝䆹䆒໛া㛑Փ⫼ѻકϞ󰵼ᯢⱘ⬉⑤Ǆ䆒໛ᖙ⫼᳝ ഄ㒓կ⬉㋏㒳կ⬉Ǆ㄀ϝᴵ㒓˄ഄ㒓˅ᰃᅝ䆒ᮑˈϡ㛑ϡ ⫼៪䏇䖛Ǆ

噝ЎᅝܼഄҢ䆒໛ᢨᥝ⬉⑤ˈ䇋ᢨᥝ᠔᳝

ᢨᥝ⬉⑤ ໛ৢ៪Ḡ䴶⬉⑤ⱘ⬉⑤㒓ˈ៪ӏԩ᥹ࠄᏖ⬉㋏㒳 ⬉⑤㒓Ǆ ⬉⑤㒓ֱᡸ

噝ཹ୘Ꮧ㒓ˈ䙓ܡ㹿䏽䏣ˈ៪䞡⠽᣸Ǆ

噝᠔᳝㓈ׂᖙ乏⬅䅸䆕ⱘ㓈ׂҎ䖯㸠Ǆ䆒໛

㓈ᡸ 䚼≵᳝⫼᠋ৃҹ᳈ᤶⱘ䳊ӊǄЎ䙓ܡߎ⦄㾺⬉ ϡ㽕㞾Ꮕ䆩೒ᠧᓔ䆒໛Ⲫᄤ㓈ׂ䆹䆒໛Ǆ

噝᳝ѯ䆒໛ᴎ໇Ϟ᳝䗮亢ῑ៪ᄨˈᅗӀᰃ⫼

䗮亢ᄨ 䰆ℶᴎݙᬣᛳܗӊ䖛⛁Ǆϡ㽕⫼ӏԩϰ㽓ᣵԣ䗮亢ᄨǄ

噝ϡℷ⹂ⱘ᳈ᤶ⬉∴Ӯ᳝⟚⚌ⱘ䰽Ǆᖙ乏Փ

䫖⬉∴ Ϣᆊ᥼㤤ⱘⳌৠ៪Ⳍ䖥ൟোⱘ⬉∴Ǆᣝ✻⫳ѻⱘ

䆂໘⧚ᑳᓗ⬉∴

Precautions, cont’d

Quick Start Guide — MKP 2000

Install and set up the MKP 2000 as follows:

Step 1

Turn all of the equipment off, or disconnect it from its power source.

Step 2

Install the cables to and from the control panel in a wall, podium, or desk. See “Rear Panel and Side Panel Connections” in chapter 2, “Installation,” for guidelines.

Step 3

Prepare the wall, podium, desk, or other surface to mount the MKP. See “Preparing the site and installing the mounting bracket (mud ring) or wall box” in chapter 2, “Installation.”

Step 4

Install the control panel in a wall, podium, desk, or other surface. See “Mounting the MKP to the mounting bracket (mud ring) or wall box” in chapter 2, “Installation.”

Step 5

Connect the input and output cables. See “Rear Panel and Side Panel Connections” in chapter 2, “Installation,” for guidelines.

Step 6

Connect the power supply. See “Power supply wiring” in chapter 2, “Installation.”

Step 7

Connect power cords and turn on the equipment in the following order: (1) output devices such as projectors or monitors, (2) the connected matrix switcher, and (3) input devices such as DSSs or cable boxes.

Step 8

If necessary, set the control panel’s and matrix switcher’s IP parameters. See “Viewing and configuring the IP and MKP setup

parameters” in chapter 3, “Local Operation,” or “System Settings Page” in chapter 5, “HTML Operation.”

Step 9

If necessary, set the control panel’s RS-232 port for pass-through or no-pass-through mode, and specify whether the MKP is the primary device (connected to the switcher) or the secondary device (connected through another device). See “Viewing and configuring the IP and MKP setup parameters” in chapter 3, “Local Operation,” or “System Settings page” in chapter 5, “HTML Operation.”

MKP 2000 Remote Control Panel • Quick Start Guide QS-1

Quick Start Guide — MKP 2000, cont’d

Table of Contents

Step 10

Program the control panel with the size of the connected switcher. See “System Settings page” in chapter 5, “HTML Operation.”

Step 11

Use the control panel to select inputs and outputs. See “Front Panel Operations” in chapter 3, “Local Operation.”

Chapter 1 • Introduction .......................................................... 1-1

About the MKP 2000 Remote Control Panel ........... 1-2

RS-232 connection to the switcher ....................................... 1-3

Ethernet connection to the switcher ................................... 1-3

Application diagram.............................................................. 1-3

Chapter 2 • Installation ............................................................. 2-1

MKP Installation Overview............................................... 2-2

UL Requirements for Wall Box Installation ............. 2-3

Installation Procedures....................................................... 2-3

Preparing the site and installing the mounting bracket (mud ring) or wall box

Mounting the MKP to the mounting bracket (mud ring)

or wall box ............................................................................. 2-7

........................................................... 2-4

Rear Panel and Side Panel Connections .................... 2-8

Control connections ............................................................ 2-10

RS-232 cable termination .............................................. 2-11

TP cable termination ..................................................... 2-12

Power supply wiring ............................................................ 2-14

Chapter 3 • Local Operation .................................................. 3-1

Front Panel Controls and Indications ......................... 3-2

Front Panel Operations....................................................... 3-3

Creating a tie ......................................................................... 3-3

Deselecting a tie .............................................................. 3-4

Viewing the last input or output tied from the MKP ......... 3-4

Viewing and configuring the IP and MKP setup

parameters ............................................................................. 3-4

Host control port setting and pass-through

communications ...............................................................3-8

Control panel security lockout (executive mode) ................ 3-8

Rear Panel Resets .................................................................. 3-9

Performing soft resets ........................................................... 3-9

Performing a hard reset ...................................................... 3-10

QS-2

MKP 2000 Remote Control Panel • Quick Start Guide

Chapter 4 • SIS™ Operation ................................................... 4-1

RS-232 Links .............................................................................. 4-2

Routing matrix switcher commands ..................................... 4-2

Ethernet Link ........................................................................... 4-3

Default IP address .................................................................. 4-3

MKP 2000 Remote Control Panel • Table of Contents

Table of Contents, cont’d

Host-to-MKP Instructions .................................................. 4-3

MKP-Initiated (Unsolicited) Messages ........................ 4-3

MKP Error Responses ........................................................... 4-4

Using the Command/Response Table .......................... 4-5

Symbol definitions ................................................................. 4-6

Command/response table for MKP SIS commands .............. 4-9

Chapter 5 • HTML Operation.................................................. 5-1

Downloading the Startup Page ..................................... 5-2

Viewing System Status....................................................... 5-4

Using the Configuration Pages ...................................... 5-5

System Settings page............................................................. 5-5

IP Settings section .................................................................. 5-6

Unit Name field .......................................................... 5-6

DHCP radio buttons ................................................... 5-6

IP Address field ........................................................... 5-6

Gateway IP Address field ...........................................5-6

Subnet Mask field ...................................................... 5-7

MAC Address field ..................................................... 5-7

Firmware field .................................................................. 5-7

Model field ....................................................................... 5-7

Part Number field ............................................................ 5-7

Switcher Control Settings section ......................................... 5-7

MKP Connection Priority settings ............................. 5-7

Host Control Port settings ......................................... 5-8

Switcher Size settings ................................................ 5-8

Switcher IP settings/Primary MKP settings ............... 5-8

Authorized Inputs and Authorized Outputs

section ......................................................................... 5-9

Front Panel Configuration Lock section ................... 5-9

Date/Time Settings fields ................................................. 5-9

Port (RS-232) Settings page................................................. 5-10

Passwords Page .................................................................... 5-11

Assigning a password .................................................... 5-11

Clearing a password ...................................................... 5-12

Firmware Upgrade Page ..................................................... 5-12

Updating the firmware using a direct computer-to-

MKP connection ............................................................. 5-14

Using the File Management Page ............................... 5-16

Uploading files..................................................................... 5-16

Adding a directory ............................................................... 5-17

Other file management activities ....................................... 5-17

Special Characters ............................................................... 5-18

Appendix A • Reference Information ............................ A-1

Specifications ......................................................................... A-2

Part Numbers .......................................................................... A-3

Included parts ....................................................................... A-3

Installation accessories ......................................................... A-3

Optional accessories ............................................................. A-3

Cables .................................................................................... A-4

Mounting and Cabling Specifications ....................... A-4

Electrical box cutout ............................................................. A-4

Panel mount cutout template ............................................. A-4

Extron Comm-Link cable ...................................................... A-6

All trademarks mentioned in this manual are the properties of their respective owners.

68-971-01 C

01 07

MKP 2000 Remote Control Panel • Table of Contents

iii

Table of Contents, cont’d

MKP 2000 Remote Control Panel

Chapter One

Introduction

About the MKP 2000 Remote Control Panel

MKP 2000 Remote Control Panel • Table of Contents

Introduction

This manual provides installation and operation instructions for the Extron MKP 2000.

About the MKP 2000 Remote Control Panel

The MKP 2000 is a network-ready remote control panel that can control any Extron matrix switcher. The MKP’s RS-232 ports allow it to communicate with other devices (another MKP or a matrix switcher) locally and its Ethernet port allows it to communicate with multiple devices.

An MKP 2000 user can remotely create ties by specifying an input and then an output to be tied to the input. The MKP can also be dedicated to a specific group of inputs and outputs when configured using the built-in Web pages.

The MKP 2000 panel is mounted in a two-gang wall plate that can be installed in a wall, conference table, podium, or other convenient location.

The matrix switcher system can have up to 128 inputs and 128 outputs. However, for example, a conference room may have three input devices and two output devices; a training room next door may have four input devices and one output device; and so on. Typically, each room will have one or more MKP control panels assigned to it, with each MKP limited to the inputs and outputs that it can control.

In the example in figure 1-1, the “presentation room” (top, center) has one output device, a projector (C), and four input devices: a video camera (13), a laptop computer (12), and two PCs (11 and 14). The “Media Room” (bottom, right) contains the matrix switcher, as well as other inputs (1-6) and possibly some control device(s).

Input

Video Conference Room

Input

7-9

Input

ic n

tro

r E ct le E

123

456

INPUT OUTPUT

789

TAKE

BACK 0

CANCEL

MKP 2000

Figure 1-1 — Typical MKP 2000 applications

An overflow crowd in the video conference room and/or the training room may need to see a lecture going on in the presentation room. In this case, the video camera (input 13) must be available to those other rooms. Therefore, the MKPs in the video conference and training rooms will be programmed to allow selection of input 13 for displays in those rooms, in addition to any video sources and/or displays there.

RS-232 connection to the switcher

Any number of MKP 2000s can be connected to a matrix switcher through its RS-232 port, but one MKP must be designated as the primary controller. Other MKPs can be daisychained through the primary MKP remote control panel.

Presentation Room

Input

MKP-2000 Keypad

Training Room

Input

1-6

Media Room

l a

y e

a y

y e

S S

C o

o ll

RIZ

C P A

TAL

RTICA

L Sync

Ethernet connection to the switcher

Any number of MKP 2000s can be connected to a matrix switcher as part of an Ethernet local area network (LAN).

Application diagram

Figure 1-2 on the next page shows an example of how the MKP 2000 may be connected to a matrix switcher and other Extron products.

1-2 1-3

MKP 2000 Remote Control Panel • Introduction

Introduction, cont’d

MKP 2000

Matrix Switcher

1 2 3 4 5 6 7 8 9 10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8 9 10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

Ethernet

I N P U T S

O U T P U T S

Switcher RS-232 Port

123

456

INPUT OUTPUT

789

TAKE

BACK 0

CANCEL

MKP 2000

Host RS-232 Port

Control System

123

456

INPUT OUTPUT

789

TAKE

BACK 0

CANCEL

MKP 2000

123

456

INPUT OUTPUT

789

TAKE

BACK 0

CANCEL

MKP 2000

123

456

INPUT OUTPUT

789

TAKE

BACK 0

CANCEL

MKP 2000

Ethernet

123

456

INPUT OUTPUT

789

TAKE

BACK 0

CANCEL

MKP 2000

Figure 1-2 — MKP 2000 application diagram

MKP 2000 Remote Control Panel

I/O

CONTROL

MAV 2400 SERIES SWITCHER

Chapter Two

1-4

Installation

MKP Installation Overview

UL Requirements for Wall Box Installation

Installation Procedures

Rear Panel and Side Panel Connections

MKP 2000 Remote Control Panel • Introduction

Installation

CAUTION

Installation and service must be performed by authorized personnel only. UL Listed electrical boxes are recommended. See “UL Requirements for Wall Box Installation” on the next page.

The MKP 2000 remote control panel should be installed in a standard, 2-gang electrical wall box (figure 2-1). Figure 2-1 shows the MKP installed in a wall. It could also be installed in a desk, a podium, or any other convenient location.

The procedures provided here assume that the electrical wall boxes and the cables have been installed for the system. “Rear Panel and Side Panel Connections,” starting on page 2-8, provides guidance for terminating the cables.

MKP Installation Overview

To install an MKP 2000 remote control panel, follow these steps:

Disconnect power from the matrix switcher and all MKPs

in the system.

Prepare the site by cutting a hole in the wall or furniture,

installing the electrical box or mounting bracket (mud ring), and preparing the cables. See “Preparing the site and installing the mounting bracket (mud ring) or wall box,” later in this chapter, or the documentation provided with the wall box, for these procedures.

Connect the cable between the MKP and the matrix

switcher. See “Rear Panel and Side Panel Connections,” starting on page 2-8.

Connect power cords to the MKP and the matrix switcher.

Test the MKP’s ability to communicate with the matrix

switcher.

Disconnect power from all the devices.

Mount the MKP into the electrical box or to the mud ring.

If using a wall box, see “Mounting the MKP to the mounting bracket (mud ring) or wall box,” later in this chapter.

UL Requirements for Wall Box Installation

The following Underwriters Laboratories (UL) requirements pertain to the installation of the MKP 2000 into a wall or furniture (figure 2-1).

OUTPUT

INPUT

TAKE

CANC

K C A

P 200

Figure 2-1 — MKP mounted in a wall box

1. These units are not to be connected to a centralized DC

power source or used beyond their rated voltage range.

2. These units must be installed in UL listed junction boxes.

3. These units must be installed with conduit in accordance

with the National Electrical Code.

Installation Procedures

The MKPs are mounted into a wall, furniture, or any other convenient location. Follow the instructions appropriate to the mounting option you have selected.

CAUTION

The control panel must be installed into a UL approved electrical wall box.

When installing MKP control panels, you must conform to all national and local electrical codes.

2-2

Restore power to the devices.

MKP 2000 Remote Control Panel • Installation

2-3

Installation, cont’d

Preparing the site and installing the mounting bracket (mud ring) or wall box

Choose a location that allows cable runs without interference. Allow enough depth for both the wall box and the cables. You may need to install the cables into the wall, furniture, or conduits before installing the control panel.

The installation must conform to national and local electrical codes and to the equipment’s size requirements. A cutout template that shows the cutout requirement for the circuitry enclosure on the rear of the control panel is provided in appendix A.

CAUTION

Extron recommends installation using a UL listed wall box (available from Extron) for most mounting options, but you can use the included mounting brackets (mud rings) instead.

CAUTION

Install the mud ring or wall box as follows:

1. If you are using a mud ring, use the template that came

with the mud ring. Cut out the indicated center portion.

If you are using a wall box, refer to the cutout template in appendix A that corresponds to the faceplate you are using; and cut out the center portion of it as indicated on the template.

2. Place the wall box or mud ring against the installation

surface or measure the cut according to the template, and mark the guidelines for the opening on the wall or furniture.

3. Cut out the wall or furniture material from the marked

area.

The templates provided in this manual are not to scale. They are provided for reference only.

Before using the mud rings, verify that the installation conforms to national and local electrical codes.

Extron provides one mud ring with each MKP control panel. However, you may choose to use a wall box. Because the tolerances on electrical boxes are very loose, Extron recommends that you measure the actual box that you plan to use before making any precise cuts.

The electrical box must be at least 2.5" (7 cm) deep to accommodate the MKP’s rear enclosure.

To meet the UL listing requirements, the MKP must be installed in a wall box.

4. Check the size of the opening by inserting the wall box,

mud ring, or control panel into it. The box or mud ring (if used) and/or control panel should fit easily into the opening. Enlarge or smooth the edges of the opening if needed.

5. If you are using a wall box, feed cables through the wall

box punch-out holes, and secure them with cable clamps to provide strain relief.

6. Exposed cable shields (braids or foil) are potential sources

of short circuits. Trim back and/or insulate shields with heat shrink (figure 2-2).

To prevent short circuits, you can cut back the outer foil shield to the point where the cable exits the cable clamp. Both braided and foil shields should be connected to an equipment ground at the other end of the cable.

Wall Stud

Screws or Nails

Cable Clamp

Foil Shield

Installation Cable

Screw

Braided Shield

Figure 2-2 — Grounding outer braided and foil shields

7. If you are using a mud ring, follow the directions, if any,

that came with the mud ring to attach the clips that fasten it to the wall or furniture (figure 2-3).

To meet the UL listing requirements, the MKP device must be installed in a wall box.

MKP 2000 Remote Control Panel • Installation

2-52-4

Installation, cont’d

Flush with Wall Surface

Screws or Nails

Wall Stud

Wall Box

Sheet Rock

Backing Clip

0.75" #6-32 Screw

1.25" #6-32 Screw

Detail A

Sheet Rock

Backing Clip

Detail B

Backing clip can

be in either orientation.

See Detail A or Detail B.

Figure 2-3 — Attaching a mud ring to a wall

Mounting Bracket

1 2

4 5

7 8 9

BACK 0

OUTPUT

INP

TAK

CANCEL

Extron MKP 2000

If you are using a wall box, insert the wall box into the opening; and attach it to the wall stud or furniture with nails or screws, leaving the front edge flush with the outer wall or furniture surface (figure 2-4).

If attaching the wall box to wood, use four #8 or #10 screws or 10-penny nails. A minimum of ½ inch (1.3 cm) of screw threads must penetrate the wood.

If attaching the wall box to metal studs or furniture, use four #8 or #10 self-tapping sheet metal screws or machine bolts with matching nuts.

Figure 2-4 — Attaching a wall box to a wall stud

8. Connect the Ethernet and/or RS-232 cable (as appropriate)

and the power cable, and test the MKP before fastening the control panel into the wall box. See “Rear Panel and Side Panel Connections” on page 2-8, for details.

The rear panel connectors will be inaccessible after installation.

Mounting the MKP to the mounting bracket (mud ring) or wall box

1. Remove power from the control panel by disconnecting

the power supply.

2. Place the control panel through the opening in the wall or

furniture and through the mud ring or into the wall box. Take care not to damage the cables, which fit behind the MKP, at the back of the wall box.

3. Mount the MKP’s faceplate to the mud ring or wall box

with machine screws (figure 2-5).

2-6

MKP 2000 Remote Control Panel • Installation

2-7

Installation, cont’d

OUTPUT

INPUT

TAKE

CANC

KP 200

Figure 2-5 — Mounting the MKP to the wall box

4. Reconnect the power supply and restore power.

Rear Panel and Side Panel Connections

All connectors are on the rear or side of the MKP (figure 2-6). These connectors will be inaccessible once the MKP is installed.

LAN (Ethernet) port — If desired, connect a Category (CAT) 5e

Activity

LED

Link

LED

RJ-45

or higher (network) cable between this connector and either the matrix switcher to be controlled or to an Ethernet local area network (LAN).

See “TP cable termination,” on page 2-12, to

Por t

properly wire the RJ-45 connector for your application.

Ethernet connection indicators — The Link and Activity LEDs indicate the status of the Ethernet connection. The green Link LED indicates that the MKP is properly connected to an Ethernet LAN. This LED should light steadily. The yellow Activity LED indicates transmission of data packets on the RJ-45 connector. This LED should flicker as the MKP communicates.

Host RS-232 port — If desired, connect a host computer or

control system to this 3-pole, 3.5 mm, RS-232 connector (figure 2-7).

HOST

RS-232

SWITCH

RS-232

GND

Pin Function

Tr ansmit data

Receive data

Gnd

Signal ground

Figure 2-7 — RS-232 connector

RS-232

SWITCH

RS-232

HOST

GND

12 VDC

GND

LAN

TWEEKER TO REMOVE

PRESS TAB WITH

Figure 2-6 — MKP rear and side panels

MKP 2000 Remote Control Panel • Installation

Switch RS-232 port — If desired, connect a cable between this

3-pole, 3.5 mm, RS-232 connector and a matrix switcher (figure 2-7).

Power connector — Plug the included external 12 VDC power

supply into this 2-pole captive screw connector. See “Power supply wiring,” on page 2-14, to wire the connector.

TWEEKER TO REMOVE

PRESS TAB WITH

MKP 2000 Remote Control Panel • Installation

2-92-8

Installation, cont’d

Control connections

The MKP has two RS-232 ports — a Host port (2) and a Switch port (3) — and an Ethernet (LAN) port (1). (See figure 2-6.)

An MKP control panel can be directly cross-connected to any Extron matrix switcher through the switcher’s RS-232 port (see figure 2-12, later in this chapter, for pin assignments for the RS-232 cable). A control system or host computer can be connected via the MKP’s host RS-232 port. Additional MKPs can be connected to the matrix switcher through the MKP that is RS-232 connected (the primary MKP). The additional (secondary) MKPs are connected to the primary MKP via the primary MKP’s Ethernet port. Figure 2-8 shows an example of this type of configuration.

1 2 3

4 5 6

INPUT OUTPUT

7 8 9

TAKE

CANCEL

BACK 0

MKP 2000

1 2 3

4 5 6

INPUT OUTPUT

7 8 9

TAKE

CANCEL

BACK 0

MKP 2000

Figure 2-8 — MKP connection using the RS-232 port

An MKP control panel can be directly connected to any Ethernet-enabled matrix switcher via the switcher’s Ethernet port (figure 2-9) using a TP (network) cable that is wired as a crossover cable (see “TP cable termination,” later in this chapter, to properly wire the cable).

123

456

789

BACK 0

MKP 2000

Figure 2-9 — Direct MKP connection via the LAN port

LAN Port

INPUT OUTPUT

TAKE

CANCEL

Crossover

MKP 2000

Cable

MKP 2000

1 2 3

4 5 6

INPUT OUTPUT

7 8 9

TAKE

CANCEL

BACK 0

MKP 2000

Ethernet

1 2 3

4 5 6

INPUT OUTPUT

7 8 9

TAKE

CANCEL

BACK 0

MKP 2000

1 2 3 4 5 6 7 8 9 10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8 9 10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

N P U T S

O U T P U T S

Matrix Switcher

Ethernet

CONTROL

MAV 2400 SERIES SWITCHER

Matrix Switcher

1 2 3 4 5 6 7 8 9 10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8 9 10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

N P U T S

O U T P U T S

Switcher RS-232 Port

1 2 3

4 5 6

INPUT OUTPUT

7 8 9

TAKE

CANCEL

BACK 0

MKP 2000

Host RS-232 Port

Control System

I/O

CONTROL

MAV 2400 SERIES SWITCHER

Any number of control panels can be connected, as part of a network, to any Ethernet-enabled matrix switcher via the switcher’s Ethernet port (figure 2-10). All TP cables in this example are wired as patch (straight-through) cables.

MKP 2000

1 2 3

4 5 6

INPUT OUTPUT

1 2 3

4 5 6

INPUT OUTPUT

7 8 9

TAKE

BACK 0

CANCEL

MKP 2000

1 2 3

4 5 6

INPUT OUTPUT

7 8 9

TAKE

BACK 0

CANCEL

MKP 2000

I/O

MKP 2000

7 8 9

TAKE

CANCEL

BACK 0

Patch Cable

Ethernet

MKP 2000

I N P U T S

I/O

CONTROL

O U T P U T S

MAV 2400 SERIES SWITCHER

Patch Cable

1 2 3 4 5 6 7 8 9 10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

1 2 3 4 5 6 7 8 9 10 11 12

13 14 15 16 17 18 19 20 21 22 23 24

Matrix Switcher

Figure 2-10 — Network MKP connection using the LAN port

RS-232 cable termination

Each MKP control panel has two RS-232 ports that are connected using 3.5 mm, 3-pole direct insertion connectors. Wire the connectors as follows:

The total cable length between an MKP control panel and a matrix switcher should not exceed 100 feet (30 m).

1. Choose a cable such as Extron’s Comm-Link cable. The

wire specifications for Comm-Link cable are on page A-6. Colors may vary from this example.

2. Trim approximately 1.5" (3.8 cm) of the cable jacket to

expose the four insulated wires and a bare drain wire (silver-colored).

3. Cut off the foil shield and discard it.

4. Strip ¼" ( 0.6 cm) of insulation from any three of the four

wires (not including the drain [unshielded] wire).

5. Twist the strands of each wire, insert the strands into the

direct insertion connector, and tighten the captive screws.

MKP 2000 Remote Control Panel • Installation

2-112-10

Installation, cont’d

TP cable termination

It is vital that you use the correct Ethernet cables, and that they be properly terminated with the correct pinout. Ethernet links use Category (CAT) 5e or CAT 6, unshielded twisted pair (UTP) or shielded twisted pair (STP) cables, terminated with RJ-45 connectors. Ethernet cables are limited to a length of 328' (100 m).

CAUTION

Do not use standard telephone cables. Telephone cables do not support Ethernet or Fast Ethernet.

Do not stretch or bend cables. This can cause transmission errors.

The cable that you use depends on your network speed. The MKP supports both 10 Mbps (10Base-T — Ethernet) and 100 Mbps (100Base-T — Fast Ethernet), half-duplex and fullduplex, Ethernet connections.

• 10Base-T Ethernet requires CAT 3 UTP or STP cable as a minimum.

• 100Base-T Fast Ethernet requires CAT 5e UTP or STP cable as a minimum.

The Ethernet cable can be terminated as a straight-through cable or a crossover cable, and must be properly terminated for your application.

• Patch (straight-through) cable — Network connection between the MKP and an Ethernet LAN (figure 2-10)

• Crossover cable — Direct connection between the MKP and a host computer or an Ethernet-enabled matrix switcher (figure 2-9)

For pin assignments, see figure 2-11, at right.

Patch (straight) cable

Side 1 Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-orange

2 Orange 2 Orange

Side

Clip Down

123 45678

1&2

23 45678

3&6

4&5

Pins

RJ-45 connector

7&8

Twi sted Pairs

3 White-green 3 White-green

4 Blue 4 Blue

5 White-blue 5 White-blue

6 Green 6 Green

7 White-brown 7 White-brown

8 Brown 8 Brown

Crossover cable

Side 1 Side 2

Pin Wire color Pin Wire color

1 White-orange 1 White-green

2 Orange 2 Green

3 White-green 3 White-orange

4 Blue 4 Blue

5 White-blue 5 White-blue

6 Green 6 Orange

7 White-brown 7 White-brown

8 Brown 8 Brown

Figure 2-11 — RJ-45 connector and pinout tables

Pin Switcher RS-232 MKP RS-232

1 – –

2 Tx Rx 3 Rx Tx 4 – – 5 Gnd Gnd 6 – –

7 – – 8 – – 9 – –

MKP 2000 Remote Control Panel • Installation

Figure 2-12 — RS-232 cross-connection table

MKP 2000 Remote Control Panel • Installation

2-132-12

Installation, cont’d

Power supply wiring

Figure 2-13 shows how to wire the power connector.

Smooth

Figure 2-13 — Power connector wiring

CAUTION

To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter.

Ridges

Powe r Supply

Output Cord

Power supply voltage polarity is critical. Incorrect voltage polarity can damage the power supply and the MKP. Identify the power cord negative lead by the ridges on the side of the cord (figure 2-13).

The length of the exposed (stripped) copper wires is important. The ideal length is 3/16" (5 mm). Longer

bare wires can short together. Shorter wires are not as secure in the direct insertion connectors and could be pulled out.

Do not tin the power supply leads before installing them in the direct insertion connector. Tinned wires are not as secure in the connectors and could be pulled out.

The two power cord wires must be kept separate while the power supply is plugged in. Remove power before wiring.

A A

SECTION A–A

12 V

Direct Insertion

Connector

MKP 2000 Remote Control Panel

GND

Chapter Three

Local Operation

Front Panel Controls and Indications

2-14

Alternatively, you can use the optional Extron P/S 123 Universal 12 VDC Power Supply, part #60-814-01, which can power up to ten Extron 12 VDC devices using only one AC power connector.

MKP 2000 Remote Control Panel • Installation

Front Panel Operations

Rear Panel Resets

Local Operation

Front Panel Controls and Indications

123

Figure 3-1 — MKP 2000 controls and indicators

0, 1 through 9 buttons — Allow you to enter an input or output

when you create a tie.

Back button — Deletes the least-significant digit (first digit on

the right) of an entered input or output number.

Cancel button — Clears the LED display to 000, erasing any

number that you have entered or any error message.

Input button — Allows you to specify that the next number you

enter with the numeric keys (1) is an input.

Output button — Allows you to specify that the next number

you enter with the numeric keys (1) is an output.

Take button — Confirms the potential tie that you have created

with the input and output selection. This button is the equivalent of the Enter button on the matrix switcher’s front panel.

LED display — Shows the input or output number that was

most-recently entered using the MKP’s numeric keys (1). In certain modes, it can also show the various IP addresses programmed into the MKP.

456

789

BACK 0

2 63 54

CANCEL

INPUT OUTPUT

TAK E

MKP 2000

The LED display shows the most recent input or output number entered on the numeric keys only. Ties created using other devices (other MKPs, a PC or control system, or the matrix switcher’s front panel) are not shown in the LED display.

Front Panel Operations

Creating a tie

To tie an input to an output,

1. Press the Input button to specify that the next number

entered is an input number.

• The Input LED lights.

• The LED display shows the last input selected from this MKP.

• The last selected output is locked (unable to be changed; assigned as the output to which the entered input is tied unless a different output is assigned [see steps 3 and 4]).

2. Use the numeric keys to select the desired input.

• The LED display shows the input that you enter.

• The Take LED blinks.

If you press the Take button now, the selected input is tied to the locked output.

3. Press the Output button to specify that the next number

entered is an output number.

• The Output LED lights.

• The LED display shows the last output selected from this MKP.

• The last selected input is locked (unable to be changed; assigned as the output to which the entered input is tied unless a different input is assigned [see steps 1 and 2]).

4. Use the numeric keys to select the desired output.

• The LED display shows the output that you enter.

• The Take LED blinks.

5. Press the Take button to confirm the change.

• The Take LED goes out.

• The LED display shows the last output that was tied from this MKP.

3-2

MKP 2000 Remote Control Panel • Local Operation

3-3

Local Operation, cont’d

When a selected input or output is outside the available range for this MKP or the connected matrix switcher, the LED display shows N-A (not available).

Deselecting a tie

To deselect (break) a tie,

1. Press Input.

2. On the keypad, press 0 for the input.

3. Press Output.

4. On the keypad, press the number of the output that you

want to untie.

5. Press Take.

Viewing the last input or output tied from the MKP

Press either the Input button or the Output button.

• The Input or Output LED lights.

• The LED display shows the last tied input or output (depending on which LED, Input or Output, is lit).

Viewing and configuring the IP and MKP setup parameters

To configure the MKP to operate in your network, you may need to change one or more of the following IP addresses and the host control port setting:

• The MKP’s IP address (default = 192.168.254.253)

• The MKP’s subnet address (default = 255.255.0.0)

• The MKP’s gateway address (default = 0.0.0.0)

• The target matrix switcher’s IP address (default = 0.0.0.0)

• Host control port setting (pass-through or no passthrough) (default = no pass-through)

• MKP’s connection setting

 Primary — Controls the switcher directly.  Secondary — Controls the switcher through another

MKP and its Switch RS-232 port.

Valid IP addresses consist of four 1-, 2-, or 3-digit numeric subfields (octets) separated by dots (periods). Each octet can be numbered from 000 through 255. Leading zeroes, up to three digits total per octet, are optional. Values of 256 and above are invalid.

If any of the default addresses conflict with other equipment at your installation, you can change them to any valid value.

CAUTION

Editing the Extron IP address and other parameters while connected via the LAN port can immediately disconnect you from the MKP. Extron recommends editing this field using the front panel or the RS-232 link, and protecting the Ethernet access to these parameters by assigning an administrator’s password to only qualified and knowledgeable personnel.

Edit these addresses and set the host control as follows:

1. Simultaneously press and hold the Input, Output, and

Take buttons until the LED display changes (approximately 2 seconds), then release the buttons (figure 3-2).

Simultaneously press and hold

the Input, Output, and Take

buttons for 2 seconds.

INPUT OUTPUT

Release

the buttons.

TAKE

1 9 2

The LED display shows the most-significant octet of the MKP 2000’s IP address.

Figure 3-2 — Selecting Setup mode

• Press the Input button to change the value shown in the LED display, cycling through the various IP addresses and the host control settings (figure 3-3).

MKP 2000 Remote Control Panel • Local Operation

3-53-4

Local Operation, cont’d

MKP 2000’s

IP Address

MKP 2000’s

Subnet Mask

MKP 2000’s

Gateway

Switcher’s

IP Address

Host Control

Connection

Address

Matrix

Setting

Priority

INPUT

OUTPUT

Figure 3-3 — Selecting different addresses

• Press the Output button to change the octet of the selected IP address that is shown in the LED display, or to switch between host control and primary/ secondary settings (figure 3-4).

The LED display shows the IP address’s first octet.

No dot Dot

1 9 2

Press

OUTPUT

Press

OUTPUT

The LED display shows the second octet.

1 6 8 . 2 5 4 . 2 5 3 .

The LED display shows the third octet.

Press

OUTPUT

The Input and Output LEDs blink or light steadily to indicate the value shown in the LED display.

= Unlit LED

= Lit LED

= Blinking LED

The LED display shows the fourth

octet.

Press

OUTPUT

The position or absence of a dot (period) in the display indicates the octet that is displayed. In the example in figure 3-4, the IP address is the MKP’s default address,

192.168.254.253. Each octet of an IP address can be edited when it is displayed.

2. Use the Input and Output buttons to select and display the

desired address and octet.

3. Press the Cancel button to clear the octet to 000.

Use the 0 through 9 buttons to enter the desired octet value.

5. Repeat steps 2 through 4 to select and change other

addresses and/or octets.

6. Use the Input button to select the host control setting

display (figure 3-5).

Press the Output button until Input and Output LEDs both light steadily.

INPUT

OUTPUT

Pass-through

OUTPUT OUTPUT

PA S

Por t

Pass-through

Figure 3-5 — Selecting the host control setting

7. If necessary, use the Output button to toggle the host

control setting between pass-through and no pass-through.

8. Use the Input button to select the connection priority

Dot Dot

display (figure 3-6).

Press the Output button until Input and Output LEDs both blink.

INPUT

SECPri

INPUT

OUTPUT

Connected to

Switcher

OUTPUT OUTPUT

Control Though

Primary (RS-232)

Figure 3-4 — Selecting octet fields

Figure 3-6 — Selecting the connection priority setting

3-6 3-7

MKP 2000 Remote Control Panel • Local Operation

Local Operation, cont’d

If necessary, use the Output button to toggle the connection priority setting between primary and secondary.

10. When all addresses, octets, the host control setting, and the

priority settings are correct, press the Take button.

Host control port setting and pass-through communications

When the MKP is

• Connected to a computer or control system via its Host

RS-232 port and

• In pass-through mode,

the MKP redirects valid matrix switcher SIS commands that it receives on its Host RS-232 port to its Switch RS-232 port.

When the MKP is

• Connected to a computer or control system via its Host

RS-232 port and

• In no pass-through mode,

the MKP acts on all valid MKP commands received. It does not pass the command to its Switch RS-232 port.

When the MKP is

• Selected as primary, the MKP directly controls the matrix switcher via its

Switch RS-232 port or LAN port.

• Selected as secondary, the MKP controls the matrix switcher through connection

to the primary MKP’s IP address.

Control panel security lockout (executive mode)

The MKP 2000 provides the following three levels of front panel security lockout (executive modes):

Panel Locked mode — All front panel controls are locked.

Selections and setup cannot be performed from the front panel.

User mode — Front panel operation is limited to input and

output selection. The panel configuration, IP, and switcher addressing functions are locked.

Administrator mode (default) — All front panel controls are

available.

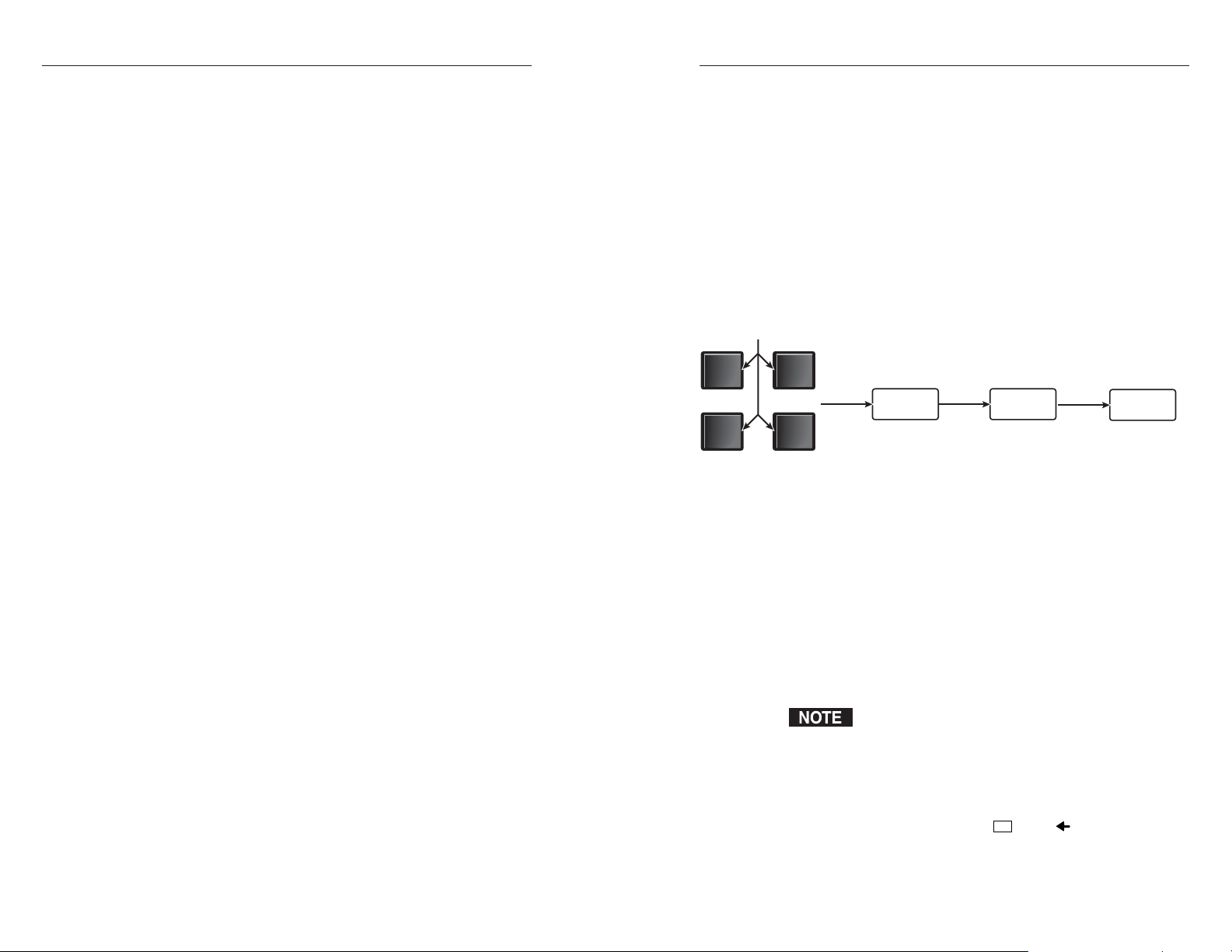

To step through the selections for the three executive modes,

1. Press and hold the 1, 3, Back, and Cancel buttons until the

LED window displays one of the following messages, indicating the executive mode that has been set (approximately 3 seconds).

• Administrator mode — The LED display flashes

• User mode — The LED display flashes LOC, then

• Panel Locked mode — The LED display shows LOC.

2. Repeat step 1 until the LED indicates the mode you want.

Simultaneously press

and hold these buttons.

1 3

seconds

BACK CANCEL

Figure 3-7 — Control panel lockout: switching to Administrator mode

Rear Panel Resets

Performing soft resets

The remote control panel has three soft resets available that restore various tiers of MKP settings to their defaults.

• Events (mode 3) reset — Restarts the communications

and control events.

• IP system (mode 4) reset — Resets most IP protocols to

their default settings.

• Absolute (mode 5) reset — Performs all of the system reset functions and clears the MKP’s IP address to

192.168.254.253 and subnet mask to 255.255.0.0. This function is identical to the See chapter 4, “SIS™ Operation.”

LOC, then Ad; then displays “. . . “.

Us; then displays “. . .”.

The “. . .” message

The LED display flashes the

LOC, then Ad messages.

LOC Ad

IP system reset clears the Internet protocol (IP) settings, but does not reset the target address, the host control setting, the priority setting, or any user-loaded files.

Esc

ZQQQ SIS command.

remains while the

front panel is

unlocked.

. . .

3-8

MKP 2000 Remote Control Panel • Local Operation

3-9

Local Operation, cont’d

To perform a soft reset of the MKP 2000,

1. Press and hold the Reset (R) button until the Reset LED

blinks off once (for events reset), twice (for IP system reset), or three times (for absolute reset) (figure 3-8).

Press and hold the Reset button.

Events

(Mode 3)

Reset

3 seconds

LED flashes

once.

Release, then

immediately

press and release again.

Press and hold the Reset button.

IP System

(Mode 4)

Reset

6 seconds

LED flashes

twice.

Release, then

immediately

press and release again.

Press and hold the Reset button.

Absolute

(mode 5)

Reset

9 seconds

LED flashes

three times.

Release, then

immediately

press and release again.

Figure 3-8 — Performing soft resets

2. Release the Reset button and then immediately press and

release the Reset button again. Nothing happens if the second momentary press does not occur within 1 second.

1. Turn off power to the switcher.

2. Press and hold the Reset button on the rear panel while

you apply AC power to the MKP (figure 3-9).

Press and hold the Reset button while you apply power to the MKP.

The LED flashes on and off.

Release the Reset button.

Power

Figure 3-9 — Performing a hard reset

Performing a hard reset

The hard reset function restores the MKP to its original factory default firmware configuration. A hard reset erases all userinstalled software or firmware.

Follow these steps to perform a hard reset:

Ensure that you have backed up any locally-created HTML, JavaScript, or other files that have been uploaded to the MKP’s user file space before you perform the hard reset. A hard reset will erase all locally-created files from the MKP.

The hard reset does not change the IP address, the subnet mask, the gateway address, or the matrix switcher IP address.

3-10

CAUTION

MKP 2000 Remote Control Panel • Local Operation

3-11

Local Operation, cont’d

MKP 2000 Remote Control Panel

Chapter Four

3-12

SIS™ Operation

RS-232 Links

Ethernet Link

Host-to-MKP Instructions

MKP-Initiated (Unsolicited) Messages

MKP Error Responses

Using the Command/Response Table

MKP 2000 Remote Control Panel • Local Operation

SIS™ Operation

RS-232 Links

The MKP’s rear panel 3-pole, 3.5 mm, Host RS-232 connector (figure 4-1) can be connected to the RS-232 serial port output of a host device such as a computer running the HyperTerminal utility, an RS-232 capable PDA, or a control system. This connection makes software control of the control panel possible. The rear panel Switch connector can be connected to the Remote or RS-232 port of a matrix switcher.

The default protocol for both ports is as follows:

• 9600 baud*

• 8-bit, 1 stop bit

• No parity

• No flow control

HOST

RS-232

GND

SWITCH

RS-232

GND

Figure 4-1 — RS-232 connector pin assignments

Routing matrix switcher commands

When the MKP is connected to the matrix switcher via its Switch RS-232 port, the MKP can redirect SIS matrix switcher commands received on the Host RS-232 port to the matrix switcher.

If the MKP receives a valid matrix switcher SIS command on its Host RS-232 port, it redirects the command to its Switch RS-232 port only if the MKP is set to pass-through mode. See the passthrough port redirect command set on page 4-9 to set the passthrough mode.

Pin Function

Tr ansmit data

Receive data

Gnd

Signal ground

* The default baud rate is 9600, but this can be changed,

using the MKP’s web pages, to 19200, 38400, or 115200 baud to match the switcher’s baud rate. See “Port (RS-232) Settings” in chapter 5, “HTML Operation,”

to change the baud rate.

Ethernet Link

The rear panel LAN connector on the MKP can be connected directly to a host computer (for setup) or a matrix switcher (for switcher control), or to an Ethernet LAN or WAN (to which a host computer, other MKPs, and a matrix switcher can also be connected).

• Connection directly to a host computer requires a crossover cable.

• Connection via an Ethernet LAN requires a patch (straight-through) cable.

See “TP cable termination” in chapter 2, “Installation,” to create crossover and patch cables.

Default IP address

To access the MKP via the Ethernet port, you need the Extron IP address. If the address has been changed to an address comprised of words and characters, you can determine the actual numeric IP address using the ping (ICMP) utility. If the address has not been changed, the factory-specified default is

192.168.254.253.

Host-to-MKP Instructions

The MKP accepts SIS (Simple Instruction Set) commands through the Host RS-232 and Ethernet ports. SIS commands consist of one or more characters per command field. They do not require any special characters to begin or end the command character sequence. Each MKP response to an SIS command ends with a carriage return and a line feed (CR/LF = ), which signals the end of the response character string. A string is one or more characters.

MKP-Initiated (Unsolicited) Messages

When a local event such as a front panel operation occurs, the MKP responds by sending a message to the host. The MKPinitiated messages are listed below (underlined).

MKP 2000 Remote Control Panel • SIS™ Operation

4-34-2

SIS™ Operation, cont’d

The MKP initiates the copyright message when it is first powered on or when connection via Internet protocol (IP) is established. Vx.xx is the firmware version number; Www indicates the day of the week (IP).

Password:

The MKP initiates the password message immediately after the copyright message when the controlling system is connected using TCP/IP or Telnet, and the MKP is password protected. This message means that the MKP requires an administrator or user level password in order for it to perform the commands entered via this link. The MKP repeats the password message response for every entry other than a valid password until a valid password is entered.

The MKP initiates the login message when a correct administrator or user password has been entered. If the user and administrator passwords are the same, the MKP defaults to administrator privileges.

MKP Error Responses

When the MKP receives an SIS command and determines that it is valid, it performs the command and sends a response to the host device. If the MKP is unable to perform the command because the command is invalid or contains invalid parameters, the MKP returns an error response to the host. The error response codes are:

E01 — Invalid input channel number (too large) E10 — Invalid command E12 — Invalid output number (too large) E13 — Invalid value (out of range) E14 — Illegal command for this configuration E24 — Privilege violation (Ethernet, Extron software only) E99 — Invalid or no response from target switcher

Using the Command/Response Table

The command/response table begins on page 4-9. Lowercase letters are acceptable in the command field except where indicated for the gain and attenuation commands. The table below shows the hexadecimal equivalent of each ASCII character used in the command/response table.

ASCII to HEX Conversion Table

•

The MKP always redirects a subset of valid matrix switcherspecific SIS commands on its Ethernet port and, if configured in pass-through mode, on its Switch RS-232 port.

It is not the purpose of this manual to define in detail the passed-through matrix switcher-specific SIS commands. Refer to the applicable matrix switcher’s manual.

Symbols are used throughout the tables to represent variables in the command/response fields. Command and response examples are shown throughout the MKP SIS commands table.

MKP 2000 Remote Control Panel • SIS™ Operation

4-54-4

SIS™ Operation, cont’d

Symbol definitions

= CR/LF (carriage return/line feed) (0x0D 0A)

• = space

= On/off status 0 = off/disable 1 = on/enable

= RS-232 port number 1 = host 2 = switcher

= n = – 1 = redirect serial port data from the specified port to allow

for a transparent pass through mode. The response is returned with leading zeroes. n = the maximum number of serial ports that the IP link supports. X5 is verified at this port.

= Time (in 10 ms increments) to wait for receive data before

releasing the port to another source (min = 1 [10 ms], maximum = 32767 [32.767 seconds], default = 10 [100 ms]).

= Numerical value (nnnn) to set L (length of message to receive) or

assign as a D (delimiter).

L = number of byte count (min = 0, max = 32767, default = 0). D = decimal number for ASCII character (min = 0,

maximum = 00255, default = 00000L).

The numeric value directly precedes the identifier; for example: X5 = “3L” to specify a 3-byte length or X5 = “10D” to specify an ASCII delimiter of 0A. The identifier, “L” or “D” is case sensitive and must be uppercase.

= Firmware version Bootstrap version (x.xx)

= Verbose firmware version-description-upload date/time. See

page 4-11.

= Voltage 1 (3.3 V), Voltage 2 (12.0 V),

Temperature (degrees Fahrenheit) (xxx.xx)

= Verbose/response mode 0 = no password assigned

The default X9 value is 0 for Telnet and 0 for RS-232.

If tagged responses are enabled, all read commands return the constant string plus the data, the same as setting the value. For example, the MKP responds Ipn•

X10

= Security level 0 = clear/none

X11

= Baud rate 300, 600, 1200, 1800, 2400, 3600, 4800,

X12

= Parity (1st character only) Odd, Even, None (default), Mark,

X16

1 = verbose mode 2 = tagged responses for queries 3 = 1 and 2 (verbose and tagged)

Esc

to the

•CN command.

11 = user password assigned 12 = administrator password assigned

9600 (default), 14400, 19200, 28800, 38400, 57600, or 115200

Space

X13

= # of data bits 7 or 8 (default)

X14

= # of stop bits 1 (default) or 2

X15

= Name 24 characters maximum.

Upper and lower case alphanumeric characters and “ ” + – : = / and spaces are valid.

Using any of the following characters results in an invalid name: + ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.

X16

= Default name Factory default name

(combination of the model name plus last three pairs of MAC address)

X17

= Time and date (set) MM/DD/YY-HH:MM:SS

MM = month: 01 (Jan.) — 12 (Dec.) DD = day: 01 through 31 YY = year: 00 through 99 HH = hour: 00 through 24 MM = minutes: 00 through 59 SS = seconds: 00 through 59

= Time and date (read) Day,•DD•Mmm•YYYY•HH:MM:SS

where:

Day = weekday: Mon through Sun DD = day: 01 through 31 Mmm = month: Jan through Dec YYYY = year: 2000 through 2099 HH = hour: 00 through 24 MM = minutes: 00 through 59 SS = seconds: 00 through 59

X19

= GMT offset –12.0 through +14.0. Hours and

minutes removed from GMT

= Daylight Savings Time 0 = Daylight Savings Time off/ignore

1 = Daylight Savings Time on (northern hemisphere) 2 = Daylight Savings Time on (Europe) 3 = Daylight Savings Time on (Brazil)

X21

= IP address ###.###.###.###

X22

= Hardware (MAC) address ##-##-##-##-##-##

X23

= Connection priority 0 = Primary 1 = Secondary

X24

= Password 12 digits, alphanumeric

Using any of the following characters results in an invalid preset name:: {space} + ~ @ = ‘ ’ [ ] { } < > “ ” ; : | \ and ?.

MKP 2000 Remote Control Panel • SIS™ Operation

4-74-6

SIS™ Operation, cont’d

X25

= Web page priority 0 = Internal (default on power up)

= Executive mode 0 = Administrator mode (panel

X28

1 = User

unlocked) 1 = User mode 2 = Panel locked

X28

(host to MK P) (MKP to host)

Enable only input and output selection from the

front panel.

Unlock front panel.

Show front panel lock status. For

X28

Turn redirect mode on and specify port parameters.

0 = Administrator mode (panel unlocked).

1 = User mode.

2 = Panel locked.

Redirect port 1 to port 2. Wait 500 ms for response.

• Ccd

Ccd00000,00000,00000L

Cpn

Esc

is case sensitive and must be uppercase.

* 0CD Cpn

1*2*50*10D*CD Cpn01•Ccd00002,00050,00000L

Esc

The “L” or “D” delimiter in value

View redirect mode on/off status.

Esc

Example:

Panel Locked mode 2x Exe2 Lock front panel.

User mode 1x Exe1

Administrator mode 0x Exe0

Command/response table for MKP SIS commands

Command ASCII Command Response Additional description

Front panel security lockout (executive mode)

4-8

MKP 2000 Remote Control Panel • SIS™ Operation

View front panel lock status x

Configure redirect mode

Pass-through (RS-232 port redirect)

View redirect

Disable redirect

4-9

SIS™ Operation, cont’d

X13

X14

in format x.xx.

See appendix A for part numbers.

(host to MK P) (MKP to host)

firmware, the MKP controller firmware, and any

firmware upgrade. The firmware that is running is

marked by asterisk (*). A caret (^) indicates that

Show firmware version

Provide a detailed status of the Ethernet protocol

the firmware has a bad checksum or an invalid

load. ?.?? indicates that firmware is not loaded.

output names.

Show voltage and temperature readings.

ZXXX ) has no affect on an MKP 2000, but it can be applied from a primary MKP 2000 to one or

ZXXX Zpx Erase all presets, preset names, input names, and

Esc

ZQQQ Zpq Perform a Names reset plus restoring all IP settings.

Esc

that sent the command.

Password level protection assigned.

X10

X14

X13

X12

CV Vrb1 The MKP reports all status changes to the device

Esc

(host to MK P) (MKP to host)

Esc

X11

Esc

X12

X11

• Ccp

Cpn

1 * 9600,n,8,1CP

Esc

9600 baud, no parity, 8 data bits, 1 stop bit.

X14

X13

X12

X11

Cpn01 • Ccp9600,N,8,1

Esc

+7BM Upl Enable all inputs.

Esc

+6BM Upl Disable all inputs.

+9BM Upl Enable all outputs.

+8BM Upl Disable all outputs.

Esc

The Names Reset command (

more connected MKP 3000s.

Response description: Ethernet protocol firmware version - controller firmware version - updated firmware version

Information request I MKP • 2000 Report model name.

Request for part number N 60-682-00

Query firmware version Q

Command/response table for MKP SIS commands (continued)

Command ASCII Command Response Additional description

Information requests

4-10 4-11

MKP 2000 Remote Control Panel • SIS™ Operation

Query verbose firmware version 0Q

Query status S

Resets

Names reset

Absolute reset

Command/response table for MKP SIS commands (continued)

Command ASCII Command Response Additional description

Set verbose mode on

Verbose mode

MKP 2000 Remote Control Panel • SIS™ Operation

Read connection’s security level

Read verbose mode

RS-232 port configuration

Example:

Configure serial port

View port configuration

Enable all inputs

Disable all inputs

Enable all outputs

Disable/enable inputs and outputs

Disable all outputs

Input and output enables can be read using SIS commands, but the returned data is hard to interpret. Reading the enabled outputs is far

simpler using the HTML pages. See “System Settings page” in chapter 5, “HTML Operation.”

SIS™ Operation, cont’d

enabled or disabled. The response data is shown as

a series of 125 bytes that correspond to groups of

outputs. Each bit in a byte shows if the associated

output is enabled (set to 1) or disabled (reset to 0).

Each byte is separated by a delimiter (%).

In this example, all valid outputs are enabled (with

the exception of output 0, which cannot be enabled.

See the Data description, below, for a detailed

explanation.

%FE%FF%FF%FF%01%00%00%00%00%...%00%00%00%

Byte delimeter Output 9 enabled.

0 0 0 0 0 0 0 0

Byte 124

998 997 996 995

999 994 993 992

. . . . . . . . .

12 11 10 9 8 23 22 21 20 19 18

0 0

30 30

F F

46 46

F F

46 39

enabled (available for selection) or disabled

(unavailable for selection). The response data is

presented as a series of 125 bytes that correspond to

groups of inputs. Each bit in a byte shows if the

associated input is enabled (set to 1) or disabled

(reset to 0). Each byte is separated by %.

In this example, inputs 9 and 10 are disabled. All

other valid inputs are enabled (including 0, which

cannot be disabled). See the Data description for

the read outputs command, below, for a detailed

explanation.

Byte delimeter Input 9 disabled.

0 0 0 0 0 0 0 0

Byte 124

30 30

998 997 996 995

999 994 993 992

. . . . .

17 16

0 1

30 31

12 11 10 9 8 23 22 21 20 19

46 39

0 0

0 1

F 9

45 25 25

+5BM data Displays a list that identifies which outputs are

(host to MK P) (MKP to host)

Esc

Command/response table for MKP SIS commands (continued)

Command ASCII Command Response Additional description

4-12 4-13

MKP 2000 Remote Control Panel • SIS™ Operation

Read output enables

Disable/enable inputs and outputs, continued

+5BM

Esc

Example (for 32-output switcher):

Byte 0 Byte 1 Byte 2

Output 0 is always 0 (disabled).

Output 7 enabled.

Outputs 33 through 999 are invalid selections for a 32-output matrix switcher.

6 5 4 3 2 1 0 15 14 13

1st nibble 2nd nibble 1st nibble 2nd nibble 1st nibble 1st nibble 2nd nibble

7 Output number:

1 1 1 1 1 1 1 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1

Hex: 46

disable (0)

Enable (1) or

ASCII: F E % %

Each byte is returned most-significant bit first (such as output 7 in byte 0), least-significant bit last (such as output 0 in byte 0).

NOTE

Bytes are returned in sequential order (byte 0, byte 1, byte 2,...byte 124).

(host to MK P) (MKP to host)

Data description: %{byte 0 (outputs 0 – 7}%{byte 1 (8 – 15)}%{byte 2 (16 – 23}% ... {byte 124 (992 – 999}.

Command/response table for MKP SIS commands (continued)

Command ASCII Command Response Additional description

+1BM data Displays a list that identifies which inputs are

Esc

+1BM %FF%F9%01%00%00%00%00%00%00%...%00%00%00%

Esc

Input 0 is always 1 (enabled).

1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 1 0 0 0 0 0

disable (0)

Input 7 enabled.

Enable (1) or

Inputs 17 through 999 are invalid selections for a 16-input matrix switcher.

Example (for 16-input switcher):

Read input enables

Disable/enable inputs and outputs, continued

Data description: %{byte 0 (inputs 0 – 7}%{byte 1 (8 – 15)}%{byte 2 (16 – 23}% ... {byte 124 (992 – 999}.

MKP 2000 Remote Control Panel • SIS™ Operation

Byte 0 Byte 1 Byte 2

6 5 4 3 2 1 0 15 14 13 7 Input number:

46 25 25

1st nibble 2nd nibble 1st nibble 2nd nibble 1st nibble 2nd nibble 1st nibble 2nd nibble

Hex: 46

ASCII: F F % %

Each byte is returned most-significant bit first (such as input 7 in byte 0), least-significant bit last (such as input 0 in byte 0).

NOTE

Bytes are returned in sequential order (byte 0, byte 1, byte 2,...byte 124).

SIS™ Operation, cont’d

X21

X16

may be

X15

Reset the MKP’s name to the factory default.

Assign a name to the MKP.

X16

X15

Read assigned MKP name (

X15

The divider between hours and minutes is a period.

Set the time and date.

X19

Read the time and date.

X19

Daylight Savings Time (+1 hour) in summer

months.

Set the switcher to display the local time as

20 X

X21

X22

X21

) variable,

X23

) or the connection priority (

X23

X22

X21

Sip

can be either the administrator or the user password.

X24

X23

X22

X24

X21

PI ), the password variable

X24

Esc

PI ) is masked; the value is either empty (no return other than the )

Esc

) if a password is assigned.

X24

Set MKP to report changes from other sources.

X25

X24

X25

Read the verbose mode.

X10

CN Ipn

X15

(host to MK P) (MKP to host)

Esc

Command/response table for MKP SIS commands (continued)

Command ASCII Command Response Additional description

4-14 4-15

Set MKP name

IP setup

MKP 2000 Remote Control Panel • SIS™ Operation

CT Ipt

X17

• CN Ipn•

Esc

Set MKP name to factory default

Read MKP name

Read time/date

Set time/date

CX Ipx

CZ Ipz

20 X

X19

Esc

Set Daylight Savings Time

Set GMT offset

Read GMT offset

DH Idh

Esc

Set DHCP on or off

Read DHCP status

Read Daylight Savings Time

CI Ipi

X21

Esc

Set MKP IP address

CS Ips

X21

Esc

Read MKP IP address

Read hardware (MAC) address

Set subnet mask

CG Ipg

X21

Esc

The set target IP parameters command can be issued with either the target IP address (

but not both. The response is as shown regardless of which variable is entered.

Read subnet mask

Set gateway IP address

Read gateway IP address

Command/response table for MKP SIS commands (continued)

Command ASCII Command Response Additional description

— or —

X21

Esc

(host to MK P) (MKP to host)

Set target (switcher) IP parameters

IP setup, continued

PI Spw

X24

Esc

Read target (switcher) IP parameters

Set target (switcher) password

MKP 2000 Remote Control Panel • SIS™ Operation

• PI Spw•

PI ****

Esc

For the set target password command (

Read target password

Clear target password

CA Ipa

X24

• CA Ipa •

Esc

The retuned value for the read target password command (

if no switcher password is assigned, or four asterisks (****

Set MKP administrator password

You must have an administrator password assigned before you can assign a user password.

Clear MKP administrator password

Read MKP administrator password

When you have connected multiple MKPs to control a switcher through a primary MKP control panel, do not set a user password on the

CU Ipu

X24

Esc

• CU Ipu •

Esc

Cpag Iwp

X25

Esc

Cpag

Esc

primary MKP.

Clear user password

Read user password

Switch Web page priority

Set user password

Read Web page priority

CV Vrb

Esc

Set verbose mode

Read verbose mode

Read connection’s security level

SIS™ Operation, cont’d

MKP 2000 Remote Control Panel

Chapter Five

4-16

HTML Operation

Downloading the Startup Page

Viewing System Status

Using the Configuration Pages

Using the File Management Page

Special Characters

MKP 2000 Remote Control Panel • SIS™ Operation

HTML Operation

You can use a Web browser, such as Microsoft’s Internet Explorer, to configure the MKP through its Ethernet port, when it is connected via a LAN or WAN. The browser’s display of the MKP’s configuration has the appearance of Web pages. This chapter describes the factory-installed HTML pages, which are always available and cannot be erased or overwritten.

If your Ethernet connection to the matrix switcher is unstable, try turning off the proxy server in your Web browser as follows:

1. In Microsoft’s Internet Explore, select Tools > Internet Options > Connections > LAN Settings.

2. Clear the “Use a proxy server...” check box.

Figure 5-1 — Enter Network Password page

3. Click Ok.

Downloading the Startup Page

Access the MKP using HTML pages as follows:

1. Start the Web browser program.

2. Enter the MKP’s IP address in the browser’s Address field.

If the local system administrators have not changed the value, the factory-specified default, 192.168.254.253, is the correct value for this field.

3. If you want the browser to display a page other than the

default MKP 2000 Web page (such as a custom page that you have created and uploaded), enter a slash (/) after the address, and the name of the Web page file that you want to display.

The browser’s Address field should display the address in the following format: xxx.xxx.xxx.xxx/{optional_file_name.html}.

Using any of the following characters results in an invalid name: {space} + ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.

4. Press Enter on your keyboard. The MKP checks to see if it

is password protected.

• If the MKP is not password protected, proceed to step 6.

• If the MKP has a password, the network password prompt window appears (figure 5-1).

A User Name entry is not required.

5. In the Password field, enter the appropriate administrator

or user password. Click OK. The MKP checks several possibilities, in the following

order, and then responds accordingly:

• If the address includes a specific file name, such as

10.13.156.10/file_name.html, the MKP downloads that HTML page.

• If there is a file in the MKP’s memory that is named

“index.html,” the MKP downloads “index.html” as the default startup page.

• If neither file is found, the MKP downloads the

System Status page (figure 5-2), which is the factoryinstalled default startup page with the file name “nortxe_index.html”.

You can now select the tabs at the top of the screen to display additional pages that enable you to configure and control the MKP 2000.

5-2

MKP 2000 Remote Control Panel • HTML Operation

5-3

HTML Operation, cont’d

Viewing System Status

The System Status page on the Status tab (figure 5-2) provides an overall view of the MKP’s current settings, including the IP and gateway addresses, the RS-232 port settings, the voltage, and the connections. Changes to these settings can be made via the Configuration Web pages, SIS programming, and/or the MKP front panel.

Using the Configuration Pages

There are four Configuration Web pages, which only administrators can access. Links to them are listed in the sidebar menu at the left of the configuration screen. The following pages describe the changes you can make from these pages.

System Settings page

The System Settings page (figure 5-3) is divided into three sections: IP Settings, Switcher Control Settings, and Date/Time Settings. In each section, click Submit to enter your changes. Clicking the Cancel button in any section restores the previous settings, if the new values have not been submitted.

5-4

Figure 5-2 — System Status page

The System Status page is the default page that the MKP downloads when you connect to it. To access the System Status page from other MKP HTML web pages, click the Status tab.

This page shows only the current status of the MKP 2000. To change any of this information, select the Configuration tab to display the System Settings page.

Personnel who have user access can view this page, but cannot access the Configuration pages; they see only the Status tab.

MKP 2000 Remote Control Panel • HTML Operation

Figure 5-3 — System Settings page

MKP 2000 Remote Control Panel • HTML Operation

5-5

HTML Operation, cont’d

IP Settings section

In this section, you enter all IP-related information for your MKP 2000. After making all desired changes to the fields in this section, click the Submit button at the bottom of the section to implement your changes. Click Cancel if you want to reject all your changes and restore the previous settings.

Unit Name field

The Unit Name field contains the locally-assigned name of the MKP. This name field can be changed to any valid name, up to 24 alphanumeric characters.

Using any of the following characters results in an invalid name: + ~ , @ = ‘ [ ] { } < > ’ “ ; : | \ and ?.

DHCP radio buttons

The DHCP On radio button directs the MKP to ignore any entered IP addresses and to obtain its IP address from a Dynamic Host Configuration Protocol (DHCP) server (if the network is DHCP capable).

The DHCP Off radio button turns DHCP off. Contact the local system administrator to determine if DHCP is appropriate.

IP Address field

The IP Address field contains the IP address of the MKP. This value is encoded in the MKP’s flash memory.

Valid IP addresses consist of four 1-, 2-, or 3-digit numeric subfields (octets) separated by dots (periods). Each octet can be numbered from 000 through 255. Leading zeroes, up to three digits per field, are optional. Values of 256 and above are invalid.

The factory-installed default address is 192.168.254.253, but if this conflicts with other equipment at your installation, you can change the IP address to any valid value.

CAUTION

Gateway IP Address field

The Gateway IP Address field identifies the address of the gateway to the switcher that will be used if the MKP and the switcher are not on the same subnet.

The gateway IP address has the same validity rules as the MKP’s IP address. The default gateway address is

000.000.000.000.

IP address changes can cause conflicts with other equipment. Only local system administrators should change IP addresses.

Subnet Mask field

A subnet is a subset of a network — a set of IP devices that have portions of their IP addresses in common. The Subnet Mask field is used to determine whether the MKP is on the same subnet as the switcher’s server when you are subnetting. The default is 255.255.000.000.

MAC Address field

The Media Access Control (MAC) address is hardcoded in the MKP and cannot be changed.

Firmware field

The Firmware field displays the currently version of firmware that is currently loaded on your MKP.

Model field

The Model field shows the name of your MKP model: MKP 2000.

Part Number field

The Part Number field contains the part number of your MKP model. For the MKP 2000, this field displays “60-682-00.”

Switcher Control Settings section

This section contains switcher settings that can be configured via the MKP. After making all desired changes to the fields in this section, click the Submit button at the bottom of the section to implement your changes. Click Cancel if you want to reject all your changes and restore the previous settings.

MKP Connection Priority settings

Select the radio button for the type of connection that exists between the MKP and the switcher.

• Primary – RS-232 Connection to Switcher — The MKP

directly controls the matrix switcher via its Switch RS-232 port.

• Secondary – IP Connection to Primary MKP — The MKP

controls the switcher through another (primary) MKP’s Internet address.

• IP Connection to Switcher — The MKP directly controls

the switcher through the Ethernet (IP) port.

5-6

MKP 2000 Remote Control Panel • HTML Operation

5-7

HTML Operation, cont’d

Host Control Port settings

If Primary – RS-232 has been selected in the MKP Connection Priority section, select one of the following radio buttons to specify how the Host RS-232 port will function:

• MKP 2000 — Commands received on the Host RS-232

port are executed by the MKP.

• Pass Through — Commands received on the Host RS-232

port are forwarded to the connected switcher via the Switch RS-232 port.

If either Secondary – IP Connection to Primary MKP or IP Connection to Switcher was selected in the MKP Connection Priority section, the Host Control Port Settings selections are grayed out and unavailable.

Switcher Size settings

The MKP cannot determine the matrix size of the switcher to which it is connected. You must use the Switcher Size drop boxes to specify the number of inputs and outputs.

The default switcher size is 16 x 16.

After you set the size of the connected switcher’s input/ output matrix, if you attempt to use the front panel to tie to an input or output that is outside the available range for your MKP or your connected matrix switcher, the LED display shows N-A.

Switcher IP settings/Primary MKP settings

Depending on the connection type selected in the MKP Connection Priority section, you can enter an IP address and password (if one was assigned) for the switcher or the MKP. The address and password are required for the MKP and the matrix switcher to communicate via their RJ-45 LAN connections. The default IP address value is 000.000.000.000.

• Primary – RS-232 Connection to Switcher — The IP

address fields are unavailable.

• Secondary – IP Connection to Primary MKP — Enter the

IP address and/or password for the MKP that is directly controlling the switcher (via IP or RS-232).

• IP Connection to Switcher — Enter the IP address and/or

the password for the switcher.

Authorized Inputs and Authorized Outputs section

You can use the Authorized Inputs and Authorized Outputs drop boxes to narrow the number of inputs and outputs that are controllable from the MKP.

When you have set the size of the connected switcher’s input/output matrix, the LED display shows N-A if you attempt to tie to an input or output outside the available range for this MKP or the connected matrix switcher from the front panel.

Front Panel Configuration Lock section

Select the radio button for the executive mode that locks or unlocks the MKP front panel. The available modes are:

Administrator — All front panel controls are unlocked. User — Limited front panel control is enabled (input and output

selection only). Panel configuration and IP and switcher addressing are not available.

Panel Locked — All front panel controls are locked and

unavailable.

This is the same function as the front panel security lock described in chapter 3, “Operation.” The front panel can also be locked/unlocked via SIS commands, discussed in chapter 4, “SIS™ Operation.”

Date/Time Settings fields

The Date/Time Settings fields enable you to view and set the time functions. After making all desired changes to the fields in this section, click the Submit button at the bottom of the section to implement your changes. Click Cancel if you want to reject all your changes and restore the previous settings.

Change the date and time settings as follows:

1. In the desired Date/Time Settings field, click on the drop

box for the variable that you want to change. The adjustable variables are month, day, year, hours, minutes, AM/PM, and (time) zone. A drop-down scroll box appears.

2. Click and drag the slider, or click the scroll up or scroll

down button, until the desired variable is visible.

3. Click on the desired variable.

5-8

MKP 2000 Remote Control Panel • HTML Operation

If you are setting the time, set the local time. The Zone variable allows you to then enter the offset from Greenwich Mean Time (GMT).

MKP 2000 Remote Control Panel • HTML Operation

5-9

HTML Operation, cont’d

The Zone field identifies the selected standard time zone and displays the amount of time, in hours and minutes,

that the local time varies from the GMT international time reference.

4. Repeat steps 1 through 3 for other date/time parameters

that you want to change.

5. Select the appropriate Daylight Saving radio button. To

turn off daylight savings time, select Off.

When daylight savings time is enabled, the MKP updates its internal clock between Standard Time and Daylight Savings Time, on the dates that the time change occurs in the United States of America and parts of Europe and Brazil. When daylight savings time is turned off, the MKP does not adjust its time reference.

Port (RS-232) Settings page

The Port Settings page (figure 5-4) allows you to configure the MKP’s two RS-232 ports (Host and Switch). To access the Port Settings page, click the Port Settings link on the left sidebar menu on the Configuration tab.

The Extron default settings for RS-232 ports are:

• Baud rate: 9600

• Data bits: 8

• Parity: None

• Stop bits: 1

• Flow control: None

3. Click Submit to confirm your settings. (To reject the

changes and restore the previous settings, click Cancel.)

Passwords page

The Passwords page (figure 5-5) lets you assign passwords to control access to the MKP 2000 Web pages.

Passwords are case sensitive and are limited to 12 uppercase and lowercase alphanumeric characters. Symbols and spaces are not allowed.

To access the Passwords page, click the Passwords link on the left sidebar menu on the Configuration tab.

When you have connected multiple MKPs to control a switcher through a primary MKP control panel, do not set a user password on the primary MKP.

5-10

Figure 5-4 — Port Settings page

The Serial Port 1 radio button selects the Host RS-232 port, and the Serial Port 2 radio button selects the Switch RS-232 port.

To configure one of these ports,

1. Select Serial Port radio button 1 or 2.

2. Make selections from the drop boxes as desired to

configure the selected port.

MKP 2000 Remote Control Panel • HTML Operation

Figure 5-5 — Passwords page

Assigning a password

To assign passwords, follow these steps:

1. Enter the new administrator password in the

Administrator Password field. Characters in these fields are masked (•••••) as you enter them.

An administrator password must be created before a user password can be created.

MKP 2000 Remote Control Panel • HTML Operation

5-11

HTML Operation, cont’d

2. In the Re-enter Admin Password field, enter the same

password again to confirm it.

3. If you want to assign a user password, enter it in the User

Password field.

You cannot assign a user password unless an administrator password has been assigned.

4. Enter the same user password in the Re-enter the User

Password field.

5. Click the Submit button to set the password(s).

Clearing a password

To remove an assigned password, follow these steps:

1. In the Administrator Password or User Password field,

clear any text, then enter a single space.

2. Repeat step 1 in the Re-enter Admin Password or the

Re-enter User Password field.

3. Click the Submit button.

Firmware Upgrade page

The Firmware Upgrade page (figure 5-6) enables you to replace the firmware that is coded on the MKP’s control board without taking the MKP out of service, opening the enclosure, and replacing the firmware chip.

To access the Firmware Upgrade page, select the Firmware Upgrade link on the left sidebar menu of the Configuration tab.

The Firmware Upgrade page is only for replacing the firmware that controls all MKP operation. To insert your own HTML pages, see “Using the File Management Page,” later in this chapter.

Update the MKP firmware as follows:

1. Visit the Extron Web site at www.extron.com, and select

either of the following:

• Download tab > Firmware (from the sidebar menu) > MKP 2000

• MKP 2000 product page > Downloads > MKP 2000 (in FIRMWARE section)

2. Select the latest firmware file for the MKP and download

it. Note the folder to which you save the firmware file.

The firmware’s file name may read, in part, MKP 2000 or MKP 3000. This is normal; the firmware is the same for both products.

3. Connect the MKP to your computer via the MKP’s

Ethernet port.

4. Access the MKP using the HTML pages.

5. Select the Configuration tab.

6. Click the Firmware Upgrade link on the left sidebar menu.

7. On the Firmware Upgrade page, click the Browse button.

A Choose File window opens (figure 5-7).

5-12

Figure 5-6 — Firmware Upgrade page

MKP 2000 Remote Control Panel • HTML Operation

Figure 5-7 — Firmware upgrade Choose file window

8. Navigate to the folder where you saved the firmware

upgrade file, and open the file. Its name is displayed in the field below “Current Firmware Version x.xx” on the Firmware Upgrade page.

MKP 2000 Remote Control Panel • HTML Operation

5-13

HTML Operation, cont’d

CAUTION

9. On the Firmware Upgrade page, click the Upload button

to start the update process. The firmware upload to the MKP may take several

minutes. While the firmware is being uploaded, the Upload button changes to Uploading..., and the MKP’s LED display shows UPL, then 777, and then the firmware version number.

CAUTION

When the LED display shows ... , the firmware upload is complete.

After you have uploaded the firmware to the MKP, refresh the Web page. The version number of the newly uploaded firmware is displayed on the System Status page (outlined in figure 5-8), and on the Firmware Upgrade page.

Valid firmware files must have the file extension .S19. Any other file extension is not a firmware upgrade; uploading it could cause the MKP to stop functioning.

The original factory-installed firmware is permanently available on the MKP. If the attempted firmware upload fails for any reason, the MKP automatically reverts to the factory-installed firmware.

While the firmware is uploading, do not press any front panel buttons or submit any selections on the Web pages.

Figure 5-8 — Current firmware version on the System Status page

Updating the firmware using a direct computer-to-MKP connection

If you have no network access available, you can upgrade the MKP firmware via a direct connection between your computer and the MKP. Your computer must have Microsoft Windows 2000, XP, or higher loaded.

You can obtain the latest version of firmware only by downloading it from the Extron Web site. If the computer to which your MKP is connected has no network access, you must download the firmware to another computer that has network access, then copy it to your computer’s hard disk.

1. Connect a crossover cable from the LAN port on your

computer to the MKP’s LAN port.

2. On the Windows Start menu on your computer, right click

on My Network Places.

3. From the pop-up menu that appears, select Properties.

The Network Connections window opens.

4. Right click on Local Area Connection, and select Properties

from the pop-up menu.

5. On the Local Area Connection window, select Internet

Protocol (TCP/IP), and click the Properties button. The Internet Protocol (TCP/IP) properties window opens.

6. Write down the existing IP address and subnet mask

shown on the IP properties window. You will need these later in order to restore your computer’s settings after you configure the MKP for internet use.

7. Select the “Use the following IP address” radio button.

8. If your MKP has not had an IP address assigned to it and

is still using its factory default address, enter the following address in the IP Address field: 192.168.254.252.

If an IP address has been assigned to your MKP, enter a temporary address for your computer that is in the same subnet as the MKP’s. (Your system administrator should have this information.)

9. Enter 255.255.0.0 in the Subnet Mask field. If required,

enter the gateway address in the Default Gateway field. (Your system administrator can provide this information.)

10. Click OK, and close the remaining windows.

11. Open Internet Explorer, and enter the IP address of your

MKP in the Address field.

MKP 2000 Remote Control Panel • HTML Operation

5-155-14

HTML Operation, cont’d

If the MKP has not been assigned an IP address, enter the factory default address: 192.168.254.253.

12. Press Enter on your keyboard. The System Status Web

page is displayed.

13. Perform the Firmware Upgrade procedure, beginning with step 5 (page 5-13).

Using the File Management Page

The File Management page (figure 5-9) lets you upload files to the MKP 2000 from your computer or network, and to delete files from the unit. You can also upload personalized Web pages or event files to the MKP via this screen. To display the File Management page, select the File Management tab.

If you want one of the pages that you create and upload to be the default startup page, name that file “index.html.”

To upload files from the server, follow these steps:

1. Click the Browse button to the right of the file name field.

2. Browse to locate the file that you want to upload, and

open it. The file’s name and directory path are displayed in the file name field on the File Management screen.

3. Click the Upload File button. The selected file name

appears in the Files column on the File Management screen. (Files are listed separately under headings of their extensions.)

Adding a directory

To add a directory or folder to the MKP’s file system, follow these steps:

1. Enter the directory name in the Dir: field, following the

slash (/).

2. Click the Add Dir button.

3. With the directory name displayed, perform the

Uploading files procedure described in the previous section to add a file to the directory. The directory name appears at the top of the Files column, preceded by a slash.

To add more files to the directory, click the directory name to open it, then use the uploading files procedure. To exit the directory, click (root).

Uploading files

5-16

MKP 2000 Remote Control Panel • HTML Operation

Figure 5-9 — File Management page

The files listed in figure 5-9 are shown as examples only and may not be present on your MKP 2000.

Files to be uploaded to the MKP 2000 must contain only valid alphanumeric characters and underscores. No spaces or special characters (symbols) are allowed.

Using any of the following characters results in an invalid name:

{space} + ~ @ = [ ] { } < > ’ “ ; : | \ and ?.

Other file management activities

You can also perform the following tasks on the File Management screen:

Opening a file — Click on the name of the file in the Files

column.

Deleting a file — Click the Delete button at the right end of the

line that contains the name of the file you want to remove.

Deleting all files — Click the Delete All button. Selecting a file — From the Select menu, select a file name, or

select All to select all uploaded files.

MKP 2000 Remote Control Panel • HTML Operation

5-17

HTML Operation, cont’d

Special Characters

The HTML language reserves certain characters for specific functions. The MKP does not accept these characters as part of its name, passwords, or locally created file names. Valid file names:

• Are a maximum of 24 uppercase or lowercase alphanumeric characters

• Cannot include spaces or underscore characters

• Cannot start with a number or a dash

• Cannot end with a dash

These guidelines do not apply to input, output, and preset names.

MKP 2000 Remote Control Panel

Appendix A

5-18

Reference Information

Specifications

Part Numbers

Mounting and Cabling Specifications

MKP 2000 Remote Control Panel • HTML Operation

Reference Information

Specifications

Control/remote — keypad

Serial control port ........................ (2) RS-232 on (2) 3.5 mm, 3-pole captive

screw connectors

Baud rate and protocol ............... Variable (9600 to 115200 baud), 9600 baud

(default), 8 data bits, 1 stop bit, no parity Serial control pin configurations 1 = TX, 2 = RX, 3 = GND

Ethernet control port ................... 1 RJ-45 female connector

Ethernet data rate ........................ 10/100Base-T, half/full duplex with

autodetect

Ethernet protocol ......................... ARP, DHCP, ICMP (ping), TCP/IP,

Telnet, HTTP, SMTP client

Ethernet default settings ............ Link speed and duplex level =

autodetected

IP address = 192.168.254.253, subnet mask

= 255.255.0.0, default gateway = 0.0.0.0

DHCP = off

Program control ........................... Extron’s Simple Instruction Set (SIS

Microsoft

Internet Explorer, Telnet

General

External power supply ............... 100 VAC to 240 VAC, 50/60 Hz, external,

autoswitchable; to 12 VDC, 1 A, regulated

Power input requirements ......... 12 VDC, 350 mA

Temperature/humidity .............. Storage: -40 to +158 °F (-40 to +70 °C) /

10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) /

10% to 90%, noncondensing

Rack mount................................... No, but furniture/wall mountable in a

wall box

Enclosure type.............................. Metal

Enclosure dimensions

Plate ................................... 4.5" H x 4.6" W x 0.1" D (2 gang)

(11.4 cm H x 11.7 cm W x 0.3 cm D)

Enclosure .......................... 2.7" H x 3.4" W x 2.0" D

(6.7 cm H x 8.6 cm W x 5.1 cm D)

Allow at least 1" (2.5 cm) D for connectors

and cable.

(Depth excludes connectors.)

Product weight ............................. 0.4 lbs (0.2 kg)

Shipping weight ........................... 2 lbs (1 kg)

™

Vibration ....................................... ISTA 1A in carton (International Safe

Transit Association)

Listings .......................................... UL, CUL

Compliances ................................. CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF ............................................. 30,000 hours

Warranty ....................................... 3 years parts and labor

All nominal levels are at ±10%.

Specifications are subject to change without notice.

Part Numbers

MKP 2000 Remote Control Panel Part number

MKP 2000, black 60-682-02 MKP 2000, white 60-682-03 MKP 2000, RAL 9010 white 60-682-05

)

Included parts

These items are included in each order for an MKP 2000:

Included parts Part number

12 VDC, 1A external power supply 70-055-01

MKP 2000 User’s Manual

MR 200 two-gang mounting brackets (mud rings) (black, white) 70-519-22, -23

Installation accessories

Accessories Part number

Two-gang “J” box 2.5" deep 980084

Optional accessories

Accessories Part number

PS 123 Rack mountable, multiple output 60-814-01

Power Supply

MKP 2000 Remote Control Panel • Reference Information

A-3A-2

Reference Information, cont’d

Cables

Cables Part number

Comm-Link Cable Cut lengths:

50 feet (15.2 m) 26-461-01 100 feet (30 m) 26-461-02 200 feet (60 m) 26-461-03 300 feet (90 m) 26-461-05 400 feet (120 m) 26-461-04

Bulk spools:

500 feet (152 m) 22-119-02 1,000 feet (305 m) 22-119-03

Mounting and Cabling Specifications

Electrical box cutout

Any standard box that meets the local electrical codes can be used, but boxes from different manufacturers may have different size openings. Extron recommends testing the fit of the MKP inside the electrical box and then placing the box flush against the mounting surface and tracing the cutout area.

Panel mount cutout template

Figure A-1 is a drawing that shows the dimensions for cutting a hole to accommodate the keypad circuit board for mounting an MKP 2000 on a flat surface. This type of installation can include a desk or podium, or a control panel or dashboard, where the back is protected and does not require an electrical box.

3.38" (8.59 cm)

I/O

2.63"

(6.68 cm)

Circuit Board Box (behind front panel)

Cut-out area should be slightly larger.

Full

Figure A-1 — Panel mount cutout template

VOLUME

ize

MKP 2000

MKP 2000 Remote Control Panel • Reference Information

A-5A-4

Reference Information, cont’d

Extron Control System Comm-Link cable

Wire specifications for Extron Comm-Link cable (figure A-2) are as follows:

A (red) = 18 American Wire Gauge (AWG) B (violet or blue) = 22 AWG (grouped and shielded) C (white) = 22 AWG D (drain) = 24 AWG E (black) = 18 AWG

Comm-Link cable was designed for use with MKP control panels.

A, E

Fiber Wrap

Two 18 AWG (Red and Black)

SuperFlex Plenum Jacket

Two 22 AWG

B, C

(White and Violet or Blue) One 24 AWG

Tinned Copper Drain Wire (foil-shielded group)

Figure A-2 — Extron Comm-Link cable

A-6 A-7

MKP 2000 Remote Control Panel • Reference Information

Reference Information, cont’d

A-8

MKP 2000 Remote Control Panel • Reference Information
