Extron Electronics MKP 1200 Keypad User Manual

User’s Manual

www.extron.com

Extron Electronics, USA

1230 South Lewis Street Anaheim, CA 92805 USA

714.491.1500 Fax 714.491.1517

Extron Electronics, Europe

Beeldschermweg 6C 3821 AH Amersfoort The Netherlands +31.33.453.4040 Fax +31.33.453.4050

Extron Electronics, Asia

135 Joo Seng Road, #04-01 PM Industrial Building Singapore 368363 +65.6383.4400 Fax +65.6383.4664

Extron Electronics, Japan

Daisan DMJ Building 6F 3-9-1 Kudan Minami Chiyoda-ku, Tokyo 102-0074 Japan +81.3.3511.7655 Fax +81.3.3511.7656

MKP 1000 and MKP 1200

Keypads

68-355-01 Rev. E

Printed in the USA

03 03

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product's enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating

instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future

reference.

Follow Warnings • Follow all warnings and instructions marked on the

equipment or in the user information.

Avoid Attachments • Do not use tools or attachments that are not

recommended by the equipment manufacturer because they may be hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de

sécurité et d’exploitation avant d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité afin de

pouvoir les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et

consignes marqués sur le matériel ou présentés dans la documentation utilisateur.

Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni

d’outils non recommandés par le fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,

sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit

des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und

Anleitungen auf dem Gerät oder in der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,

die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de

operación y seguridad, antes de usar el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad

para futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones

marcadas en el equipo o en la documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no

sean especificamente recomendados por el fabricante, ya que podrian implicar riesgos.

Warning

Power sources • This equipment should be operated only from the power source

indicated on the product. This equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all

power cords from the rear of the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to

be stepped on or pinched by items placed upon or against them.

Servicing • Refer all servicing to qualified service personnel. There are no user-

serviceable parts inside. To prevent the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are

provided to prevent overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced.

Replace it only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation

indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale comportant un fil de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,

déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de

manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-

maintenance par un technicien qualifié. Aucun des éléments internes ne peut être réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices,

ceux-ci servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d'explosion s'll y a remplacment incorrect de la

batterie. Remplacer uniquement avec une batterie du meme type ou d'un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene

Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen,

sollten Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht

im Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualifiziertem

Servicepersonal durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse

aufweist, dienen diese zur Vermeidung einer Überhitzung der empfindlichen Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird.

Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo

de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la

acometida de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se

deben instalar en lugares donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal

calificado. En el interior no hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/ mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento,

es para evitar el sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición

incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

FCC Class A Notice

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Note: This unit was tested with shielded cables on the peripheral devices. Shielded cables must be used with the unit to ensure compliance.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle East: and Central America:

Extron Electronics, Europe Extron Electronics Beeldschermweg 6C 1230 South Lewis Street 3821 AH Amersfoort Anaheim, CA 92805, USA The Netherlands

Asia: Japan:

Extron Electronics, Japan Extron Electronics, Asia Daisan DMJ Bldg. 6F, 135 Joo Seng Road, #04-01 3-9-1 Kudan Minami PM Industrial Bldg. Chiyoda-ku, Tokyo 102-0074 Singapore 368363 Japan

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions or non-Extron authorized modification to the product.

If it has been determined that the product is defective, please call Extron and ask for an Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe),

65.6383.4400 (Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Quick Start Guide — MKP 1000/1200

To install and set up the MKP 1000 and 1200, follow these steps:

Step 1

Turn all of the equipment off and disconnect it from the power source.

Step 2

Install the cables to and from the keypad in a wall, podium, or desk. See Installing the Keypad in chapter 2, Installation and Connection.

Step 3

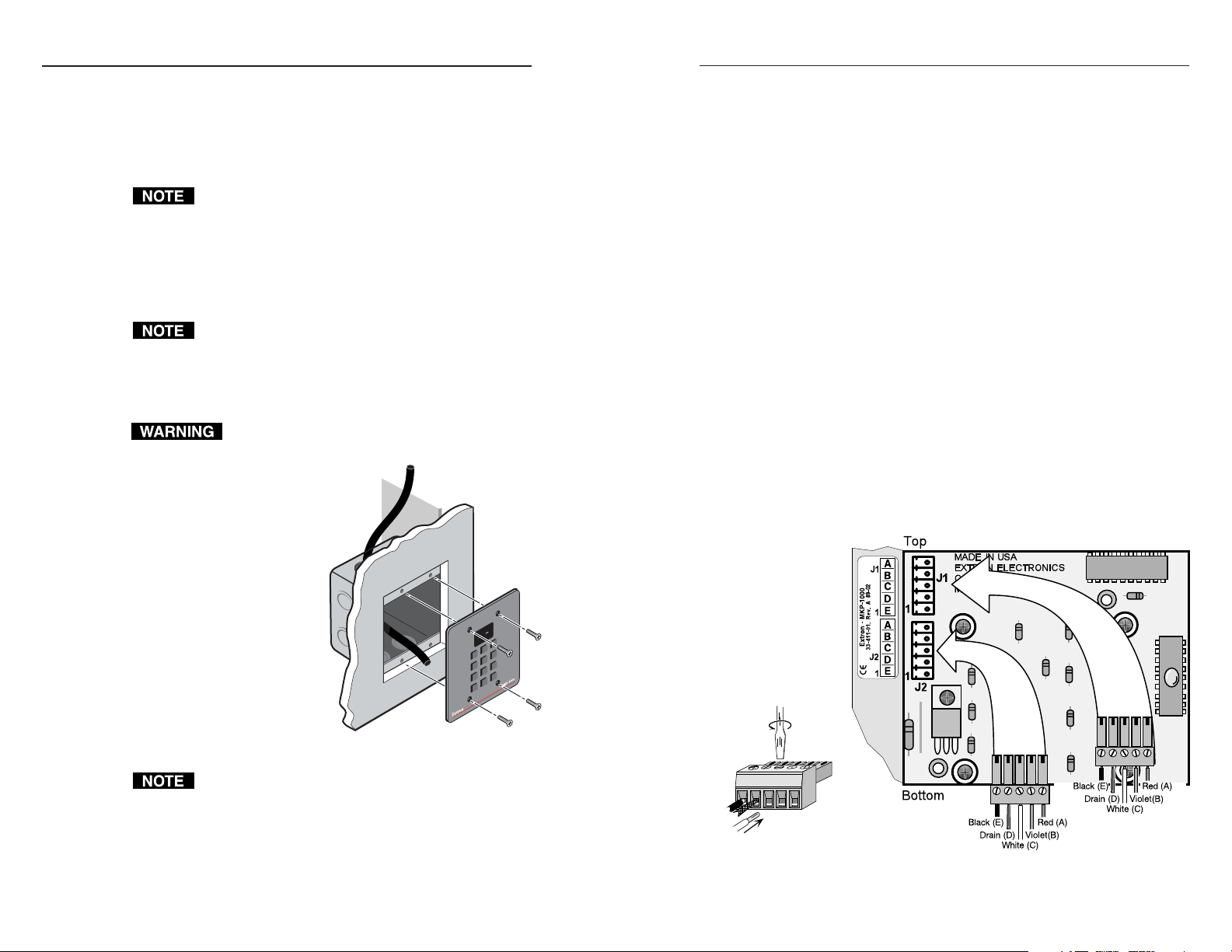

Install the keypad in a wall, podium, or desk. See Installing the Keypad in chapter 2, Installation and Connection.

Step 4

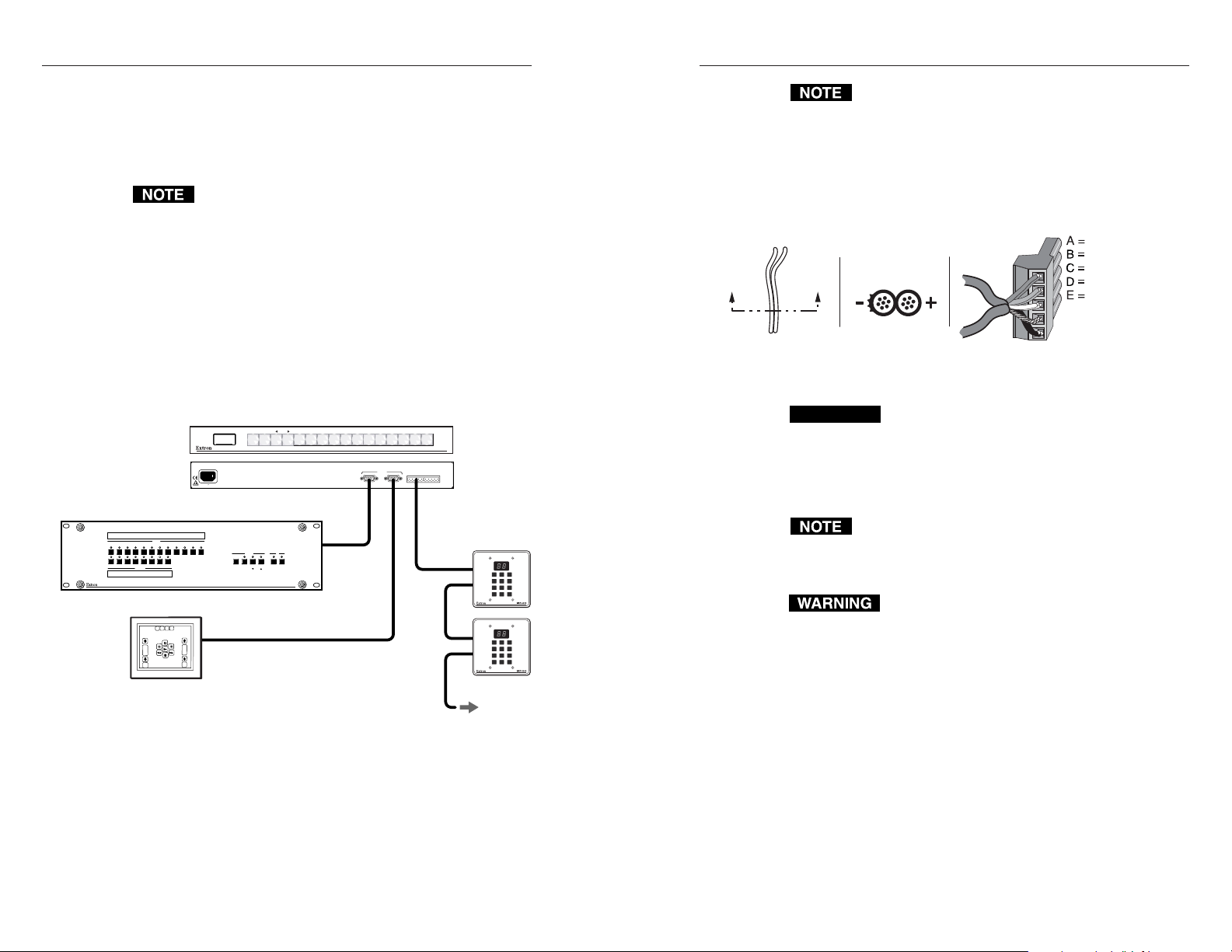

Attach the input and output cables. See Connecting the Keypad in chapter 2, Installation and Connection.

Step 5

Attach power supply, (MKP 1200 only) See Connecting a Local Power Supply in chapter 2, Installation and Connection.

Step 6

Connect power cords and turn on the equipment in the following order: output devices (matrix switchers, projectors, monitors, etc.), and input devices (MCP 1000, DSS, cable boxes, etc.).

Step 7

Program the keypad. See Programming the MKP 1000, or Programming the MKP 1200 in chapter 3, Operating the MKP Keypads.

Step 8

Use the keypad to select inputs or presets. See Using the MKP 1000, or Using the MKP 1200 in chapter 3, Operating the MKP Keypads.

MKP 1000/1200 • Quick Start Guide

QS-1

Quick Start Guide — MKP 1000/1200, cont’d

Table of Contents

Chapter 1 - Introduction

MKP 1000 Keypad as Part of a Matrix Switching System

Chapter 2 - Installation and Connection

Installing the Keypad .......................................................... 2-2

Panel Mount ............................................................................. 2-3

Connecting the Keypad ...................................................... 2-3

Making Cables ......................................................................... 2-7

Chapter 3 - Operating the MKP Keypads

Programming the MKP 1000 ............................................ 3-2

Using the MKP 1000.............................................................. 3-4

Programming the MKP 1200 ............................................ 3-6

Using the MKP 1200.............................................................. 3-9

MKP Keypad Status on the FPC 1000 ......................... 3-10

......................................................................................... 1-2

Rooming ................................................................................. 1-3

Presets – Room and Global ................................................... 1-3

Other Examples ...................................................................... 1-3

Attaching the Electrical Box .................................................. 2-2

Connecting to a Matrix 3200/6400/12800 ............................ 2-4

Connecting to a 3200/6400/12800 in a Daisy Chain ............ 2-4

Connecting to a 3200/6400/12800 in a Star Configuration 2-6

Connecting Through an MCP 1000 Master .......................... 2-6

Connecting a Local Power Supply (MKP 1200 only) ............2-6

Checking the MKP 1000 Program ......................................... 3-2

Changing a Program in an MKP 1000 .................................. 3-3

View Option ........................................................................... 3-4

Select an Input or a Preset .................................................... 3-5

Error Display and Lockups ..................................................... 3-5

Checking the MKP 1200 Program ......................................... 3-6

Changing a Program in an MKP 1200 .................................. 3-7

Programming the MKP 1200 from the switcher .................. 3-7

Select an Input or a Preset .................................................... 3-9

Error Display and Lockups ................................................... 3-10

QS-2

MKP 1000/1200 • Quick Start Guide

iMKP 1000/1200 • Table of Contents

Table of Contents, cont’d

Appendix A - Specifications and Part Numbers ..... A-1

Specifications ......................................................................... A-2

Engineering Drawing ........................................................... A-3

Dimensions ............................................................................ A-4

Template for Electrical Box Cutout ...................................... A-5

Template for Panel Mount Cutout ...................................... A-6

Extron Comm-Link Cable ..................................................... A-7

Part Numbers .......................................................................... A-8

All trademarks mentioned in this manual are the properties of their respective owners.

68-355-01 Rev. E

Printed in the USA

03 03

MKP 1000/1200

Chapter One

Introduction

MKP 1000 and 1200 Keypads as part of a Matrix Switching System

MKP 1000/1200 • Table of Contents

Introduction

MKP 1000 and 1200 Keypads as part of a Matrix Switching System

The MKP 1000 and MKP 1200 are remote keypads that are installed in rooms where A/V presentations are made. Each keypad is programmed to control the switching of certain inputs from a large matrix switching system (3200/6400/12800, CrossPoint Plus, etc.) to outputs associated with that room.

The MKP keypads are mounted on two-gang wall plates installed in a wall, conference table, podium, etc. These keypads can be daisy chained to a master MCP 1000 remote control panel which is connected through an RS-232 link to a matrix switcher. The installation may include several conference and training rooms or audio/video control centers, etc. Input devices could include computers, satellite TV, A/V equipment, etc. and output devices could include monitors, projectors, tape recorders, etc.

Keypads may be located in various places throughout a business or educational complex. A keypad installed in a room with a display device, and/or an audio output device, is programmed to have access to certain inputs within a matrix switching system. Some input sources may be in the same room, while others may be located elsewhere.

Presentation Room

MKP-1000 Keypad

Input

Video Conference Room

Input

7-9

Input

Extron Electronics

123

456

789

VIEW ENTER

Figure 1-1 — Example of MKP 1000 Keypads installed in different rooms

Training Room

Input

1-6

Rooming

Rooming is made possible by user-defined virtual maps, which must be configured through Extron’s virtualization control software. This is explained in user’s manuals 68-355-03, 68-355-04, and 68-355-05. Each MKP keypad is programmed to operate in one of three modes:

• Room Preset mode – selects from possible room presets (Matrix 3200/6400/12800). (1-10 – MKP 1000 and 1-32 – MKP 1200)

• Output mode – ties one input to a dedicated output.

• Global Preset mode – selects from global presets.

Presets – Room and Global

A Matrix 3200/6400 master switcher can have up to 10 rooms defined and up to 10 “room presets” for each room, for a total of 100 possible room presets. A Matrix 12800 master switcher can have up to 32 rooms and up to 10 “room presets” for each room, for a total of 320 possible room presets. These presets are available only to the assigned room.

Within the matrix system, inputs, outputs, rooms, presets, etc. can be named as to their location, function, etc. These names are not seen from the MKP keypad. The display shows selected input or preset numbers, as well as certain error and status codes.

There can also be up to 32 “global” presets, which can affect the entire matrix switching system. Using the example in Figure 1-1, the “video conference room” has output devices: projector (A) and TV (B). Input devices include: a document camera, a VCR, a DVD player (7-9) and a video conferencing camera. Room presets allow these inputs to be displayed in this room. Other inputs could be from other places.

Other Examples

Media Room

Player 1

VCR Player 2 DVD

Player 3 VCR DSS

Laser

Device Controller

RED

GREEN

BLUE

a laptop computer (12) and two PCs (11 & 14). The “Media Room” contains the matrix switcher, as well as other inputs (1-6) and possibility some control device(s).

At times there may be a need for people in the video conference room and/or those in the training room to see a lecture going on in the presentation room. For this, the video camera (input 13) must be available to those other rooms. A global preset selected from another

Although the matrix system may have up to 128 inputs and 128 outputs, a conference room may have three input devices and two output devices, a training room may have four input devices and one output device, etc. Typically, each output device will have an MKP keypad assigned to it. In the example in Figure 1-1, the “presentation room” (top center) has one output device, projector (C) and four input devices: a video camera (13),

1-2 1-3

MKP 1000/1200 • Introduction

Introduction

location (a keypad, a touch control screen, a PC or other RS-232 device) will tie the video camera to each of the large screen projectors in the other rooms and possibly to a VTR in the media room. The global preset overrides the local (room) selection. When finished, make a selection from the local keypad.

This manual covers four major steps for making an MKP keypad operational. These are explained in Chapters 2 and 3.

1. Installing the MKP keypad in a wall, podium, or desk.

2. Connecting the keypad to a matrix switcher.

3. Programming each keypad for its room number or its

output device.

4. Operating the MKP keypad to select the input sources for

that room, or that output device.

MKP 1000/1200

Chapter Two

1-4

Installation and Connection

Installing the Keypad

Panel Mount

Connecting the Keypad

Making Cables

MKP 1000/1200 • Introduction
