MDA Series

Composite Video, S-Video, and Audio Mini Distribution Amplifiers

A u D i o / vi De o D i s t r i b u t i o n A m pl if i e r s

Commo n feAture s

•

Rack mountable 1U, quarter rack width metal enclosure

•

Versatile mounting options including rack, projector, and under-desk mounts

•

External universal power supply included, part # 70-055-01

DesCr iPtion

The Extr on MDA Series consists of one input, three or five outp ut composite vid eo,
S-video, or stereo audio Mini Distribution Amplifiers. Both composite video and S-video models
output an amplified signal up to 150 feet (45 meters).

Part of the VersaTools® line of economical, compact products, MDA Series mini distribution
amplifiers are rack or under-desk mountable and include an external international power supply.
Their small size makes them the ideal solution for easy integration into both new and existing
A/V systems including boardrooms, training facilities, home theater, command and control
centers, and rental and staging environments.

513

www.extron.com

© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.

USA West

+1.714.491.1500 / +80 0.633.9876
+1.714.491.1517 FAX

USA East

+1.919.86 3.1794 / +80 0.633.9876
+1.919.86 3.1797 F AX

China

+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX

Japan

+81.3. 3511.7655
+81.3. 3511.7656 FAX

Europe

+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X

Dubai

+97 1.4.299 1800
+97 1.4.299 1880 FAX

Asia

+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX

Continued

MDA Series

A u D i o / vi De o D i s t r i b u t i o n A m pl if i e r s

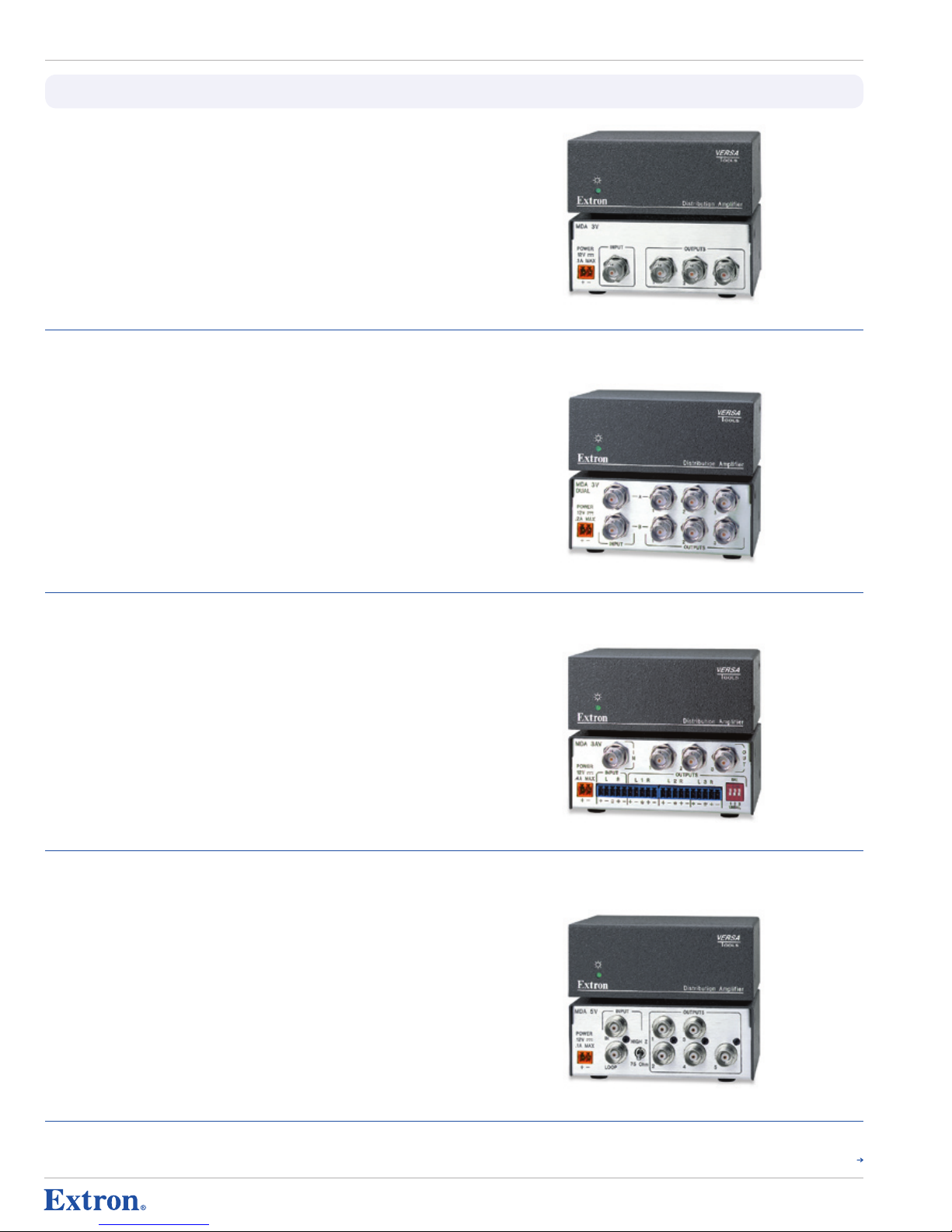

Composite Video Models

MDA 3V

Three Output Composite Video Mini Distribution Amplifier

uni que feAt ure s

•

Accepts and distributes composite video on female BNC connectors

•

435 MHz (-3 dB) video bandwidth, fully loaded

moDeL version D esCriPtion PArt #

MDA 3V 1x3 Composite Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-439-01

MDA 3V Dual

Dual Three Output Composite Video Mini Distribution Amplifier

uni que feAt ure s

•

Accepts and distributes composite video on female BNC connectors

•

Two distribution amplifiers in a single enclosure

•

435 MHz (-3 dB) video bandwidth, fully loaded

moDeL version D esCriPtion PArt #

MDA 3V Dual Dual 1x3 Composite Video. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-439-10

moDeL version D esCriPtion PArt #

MDA 3AV 1x3 Composite w/Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-439-20

MDA 3AV

Three Output Composite Video with Stereo Audio
Mini Distribution Amplifier

uni que feAt ure s

•

Accepts and distributes composite video on female BNC connectors

•

Balanced and unbalanced audio on captive screw connectors

•

Audio output gain dip switch to maintain unity gain

•

435 MHz (-3 dB) video bandwidth, fully loaded

MDA 5V

Five Output Composite Video Mini Distribution Amplifier

uni que feAt ure s

•

Accepts and distributes composite video on female BNC connectors

•

Balanced and unbalanced audio on captive screw connectors

•

Input loop-through

•

435 MHz (-3 dB) video bandwidth, fully loaded

moDeL version D esCriPtion PArt #

MDA 5V 1x5 Composite Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-446-01

514

China

+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX

Japan

+81.3. 3511.7655
+81.3. 3511.7656 FAX

Europe

+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X

Dubai

+97 1.4.299 1800
+97 1.4.299 1880 FAX

Asia

+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX

China

+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX

Japan

+81.3. 3511.7655
+81.3. 3511.7656 FAX

Europe

+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X

Dubai

+97 1.4.299 1800
+97 1.4.299 1880 FAX

Asia

+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX

Continued

MDA Series

A u D i o / vi De o D i s t r i b u t i o n A m pl if i e r s

S-Video Models

MDA 3SV

Three Output S-Video Mini Distribution Amplifier

uni que feAt ure s

•

Accepts and distributes S-video on female 4-pin mini DIN connectors

•

270 MHz (-3 dB) video bandwidth, fully loaded

moDeL version D esCriPtion PArt #

MDA 3SV 1x3 S-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-444-01

MDA 3SVA

Three Output S-Video with Stereo Audio
Mini Distribution Amplifier

uni que feAt ure s

•

Accepts and distributes S-video on female 4-pin mini DIN connectors

•

Balanced and unbalanced audio on captive screw connectors

•

Audio output gain dip switch to maintain unity gain

•

270 MHz (-3 dB) video bandwidth, fully loaded

moDeL version D esCriPtion PArt #

MDA 3SVA 1x3 S-Video w/Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-444-20

MDA 5SV

Five Output S-Video Mini Distribution Amplifier

uni que feAt ure s

•

Accepts and distributes S-video on female 4-pin mini DIN connectors

•

Input loop-through

•

270 MHz (-3 dB) video bandwidth, fully loaded

moDeL version D esCriPtion PArt #

MDA 5SV 1x5 S-Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-447-01

515

www.extron.com

© 2008 Extron Electronics. All rights reserved.
Pricing and specifications may change without notice.

USA West

+1.714.491.1500 / +80 0.633.9876
+1.714.491.1517 FAX

USA East

+1.919.86 3.1794 / +80 0.633.9876
+1.919.86 3.1797 F AX

China

+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX

Japan

+81.3. 3511.7655
+81.3. 3511.7656 FAX

Europe

+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X

Dubai

+97 1.4.299 1800
+97 1.4.299 1880 FAX

Asia

+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX

Continued

MDA Series

A u D i o / vi De o D i s t r i b u t i o n A m pl if i e r s

Stereo Audio Models

MDA 3A

Three Output Stereo Audio Mini Distribution Amplifier

uni que feAt ure s

•

Accepts and distributes balanced or unbalanced line level stereo audio

•

Audio output gain dip switch to maintain unity gain between balanced and

unbalanced signals

moDeL version D esCriPtion PArt #

MDA 3A 1x3 Stereo Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-440-01

MDA 5A RCA

Five Output Stereo Audio Mini Distribution Amplifier

uni que feAt ure s

•

Accepts and distributes unbalanced audio on RCA jacks

moDeL version D esCriPtion PArt #

MDA 5A RCA 1x5 Stereo Audio on RCAs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60-441-01

MDA Series Accessories

oPtionAL ACCessories moDeL Des CriPtion PAGe PArt #

RSU 129 1U 9.5" Deep Universal Rack Shelf Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 819 60-190-01

RSF 123 1U 3.5" Deep VersaTools® Rack Shelf Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 818 60-190-20

RSB 129 1U 9.5" Deep Basic Rack Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 820 60-604-01

PMK 100 One VersaTools®, 1/4 Rack Width Mini Projector Mounting Kit . . . . . . . . . . . . . . . . . . . page 813 70-217-01

516

China

+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX

Japan

+81.3. 3511.7655
+81.3. 3511.7656 FAX

Europe

+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X

Dubai

+97 1.4.299 1800
+97 1.4.299 1880 FAX

Asia

+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX

China

+ 86.21.3760.1568 / +4 00.883.1568
+ 86.21.3760.1566 FAX

Japan

+81.3. 3511.7655
+81.3. 3511.7656 FAX

Europe

+31.33 .453.4 040 / +800. 3987.6673
+31.33 .453.4 050 FA X

Dubai

+97 1.4.299 1800
+97 1.4.299 1880 FAX

Asia

+65.6 383.440 0 / +800.7339. 8766
+65.6 383.4664 FAX

MDA Series

A u D i o / vi De o D i s t r i b u t i o n A m pl if i e r s

sPeCi fiCAtions

viD eo

Gain .. .. . .. .. .. . .. .. . .. .. . .. .. . .. .. . Unity

Bandwidth

MDA 3SV/3SVA,
MDA 5SV

. .. . .. .. . .. .. . .. .. .. . .. .. . 270 MHz (-3 dB)

MDA 3V/3AV/3V Dual,
MDA 5V

.. .. . .. .. . .. .. . .. .. .. . .. .. . . 435 MHz (-3 dB)

viD eo inPu t

Number / Signal type

MDA 3SV/3SVA, MDA 5SV

.. .. .. 1 S-video

MDA 3V/3AV, MDA 5V

.. . .. .. . .. .. 1 composite video

MDA 3V Dual

.. .. . .. .. . .. .. .. . .. .. . 2 composite video

Connectors

MDA 3SV/3SVA, MDA 5SV

.. . .. .. (1) 4-pin mini DIN female

MDA 3V/3AV, MDA 5V

.. . .. .. . .. .. 1 BNC female

MDA 3V Dual

.. .. . .. .. . .. .. .. . .. .. . 2 BNC female

Nominal level . .. . .. .. . .. .. . .. .. . . 1 Vp-p for Y of S-video and for composite video

0.3 Vp-p for C of S-video

Minimum / Maximum levels .. . 0.4 V to 2.0 Vp-p for composite video or Y of S-video with no offset

Impedance .. .. . .. .. . .. .. . .. .. . .. .. 75 ohms

Return loss

MDA 3SV/3SVA, MDA 5SV,
All other models

.. . .. .. . .. .. . .. .. . . <-27 dB @ 5 MHz

DC offset (max. allowable) .. .. .. . 5.0 V

Input coupling .. .. . .. .. . .. .. . .. .. . AC

viD eo outP ut

Number / Signal type

MDA 3SV/3SVA

. .. .. . .. .. . .. .. . .. . 3 buffered S-video

MDA 5SV

. .. . .. .. . .. .. . .. .. .. . .. .. . 6 S-video: 5 buffered for distribution, 1 passive loop-through

MDA 3V/3AV

. .. . .. .. . .. .. . .. .. .. . . 3 buffered composite video

MDA 3V Dual

.. .. . .. .. . .. .. .. . .. .. . 2 x 3 buffered composite video

MDA 5V

.. .. . .. .. . .. .. . .. .. .. . .. .. . . 6 composite video: 5 buffered for distribution, 1 passive loop-through

Connectors

MDA 3SV/3SVA

. .. .. . .. .. . .. .. . .. . (3) 4-pin mini DIN female

MDA 5SV

. .. . .. .. . .. .. . .. .. .. . .. .. . (6) 4-pin mini DIN female

MDA 3V/3AV

. .. . .. .. . .. .. . .. .. .. . . 3 BNC female

MDA 3V Dual

.. .. . .. .. . .. .. .. . .. .. . 6 BNC female

MDA 5V

.. .. . .. .. . .. .. . .. .. .. . .. .. . . 6 BNC female

Nominal level . .. . .. .. . .. .. . .. .. . . 1 Vp-p for Y of S-video and for composite video

0.3 Vp-p for C of S-video

Minimum / Maximum levels .. . 0.4 V to 2.0 Vp-p, follows input

Impedance .. .. . .. .. . .. .. . .. .. . .. .. 75 ohms

Return loss . .. .. . .. .. . .. .. . .. .. . .. <-30 dB @ 5 MHz

DC offset .. .. . .. .. . .. .. . .. .. . .. .. . . ±50 mV with input at 0 offset

syn C

Standards .. . .. .. . .. .. . .. .. .. . .. .. . NTSC 3.58, NTSC 4.43, PAL, SECAM

AuD io (MDA 3AV, MD A 3SVA , MD A 3A, MDA 5A RCA)

Gain

DIP switch set to match
output type

. .. .. . .. .. . .. .. .. . .. .. . .. Unity (0 dB)

DIP switch not matched
to output type

. .. .. . .. .. . .. .. .. . .. .. See the table below.

DIP Switch Setting

Output Wiring

Unbalanced Balanced

Balanced 0 dB -6 dB

Unbalanced +6 dB 0 dB

Frequency response .. .. . .. .. . .. 20 Hz to 20 kHz, ±0.05 dB

THD + Noise .. . .. .. . .. .. . .. .. . .. .. 0.03% @ 1 kHz at nominal level

S/N

MDA 5A RCA

.. . .. .. .. . .. .. . .. .. . .. >90 dB, unbalanced, at maximum output

All other models w/audio

.. . .. .. . . >90 dB, balanced at maximum output

Stereo channel separation . .. . >80 dB @ 1 kHz; >60 dB @ 20 kHz

CMRR .. .. .. . .. .. . .. .. . .. .. . .. .. . .. . >75 dB @ 20 Hz to 20 kHz

AuD io inPu t (M DA 3A V, M DA 3 SVA, M DA 3 A, M DA 5A RCA )

Number / Signal type

MDA 5A RCA

.. . .. .. .. . .. .. . .. .. . .. 1 stereo unbalanced

MDA 3AV, MDA 3SVA,
MDA 3A

. .. .. . .. .. . .. .. . .. .. .. . .. .. . 1 stereo balanced/unbalanced

Connectors

MDA 5A RCA

.. . .. .. .. . .. .. . .. .. . .. 2 RCA connectors

MDA 3AV, MDA 3SVA,
MDA 3A

. .. .. . .. .. . .. .. . .. .. .. . .. .. . (1) 3.5 mm captive screw connector, 5 pole

Impedance

MDA 5A RCA

.. . .. .. .. . .. .. . .. .. . .. >10k ohms unbalanced, DC coupled

MDA 3AV, MDA 3SVA,
MDA 3A

. .. .. . .. .. . .. .. . .. .. .. . .. .. . >50k ohms unbalanced, >25k ohms balanced, DC coupled

Nominal level . .. . .. .. . .. .. . .. .. . . +4 dBu (1.23V), 0 dBu (0.775 V), -10 dBV (316 mV), -20 dBV (100 mV)

compatible

Maximum level

MDA 5A RCA

.. . .. .. .. . .. .. . .. .. . .. +17 dBu (unbalanced) at 1%THD+N

All other models w/audio

.. . .. .. . . +24 dBu (balanced) at 1%THD+N

NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

AuD io outP ut ( MDA 3AV, MDA 3SVA , MDA 3A, MDA 5A R CA)

Number / Signal type

MDA 5A RCA

.. . .. .. .. . .. .. . .. .. . .. 5 stereo, unbalanced

MDA 3AV, MDA 3SVA,
MDA 3A

. .. .. . .. .. . .. .. . .. .. .. . .. .. . 3 stereo, balanced/unbalanced

Connectors

MDA 5A RCA

.. . .. .. .. . .. .. . .. .. . .. 10 RCA connectors

MDA 3AV, MDA 3SVA,
MDA 3A

. .. .. . .. .. . .. .. . .. .. .. . .. .. . (3) 3.5 mm captive screw connectors, 5 pole

Impedance

MDA 5A RCA

.. . .. .. .. . .. .. . .. .. . .. 50 ohms unbalanced

MDA 3AV, MDA 3SVA,
MDA 3A

. .. .. . .. .. . .. .. . .. .. .. . .. .. . 50 ohms unbalanced, 100 ohms balanced

Gain error .. .. . .. .. . .. .. . .. .. .. . .. . ±0.1 dB channel to channel

Maximum level (Hi-Z)

MDA 5A RCA

.. . .. .. .. . .. .. . .. .. . .. +15 dBV, unbalanced, at 1%THD+N

All other models w/audio

.. . .. .. . . >+24 dBu, balanced at 1%THD+N

Maximum level (600 ohm)
MDA 3A/5A RCA

.. .. . .. .. .. . .. .. . . >+14 dBm, unbalanced, at 1%THD+N

All other models w/audio

.. . .. .. . . >+15 dBm, balanced or unbalanced, at 1%THD+N

Gen erA L

External power supply . .. . .. .. . 100 VAC to 240 VAC, 50/60 Hz, 5 watts, external, universal; to 12 VDC,

1 A (max.), regulated

Power input requirements

MDA 3V/3SV/5V/5SV

. .. .. .. . .. .. . 12 VDC, 0.1 A (max.)

MDA 3AV/3SVA

. .. .. . .. .. . .. .. . .. . 12 VDC, 0.3 A (max.)

All other models

.. . .. .. . .. .. . .. .. . . 12 VDC, 0.2 A (max.)

Temperature / Humidity .. .. . .. . Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Rack mount . .. . .. .. . .. .. . .. .. . .. . Yes, with optional 1U rack shelf, part #60-190-01, or 60-604-01; or the

VersaTools® rack shelf, part #60-190-20, or 60-604-20

Enclosure type .. .. .. . .. .. . .. .. . .. Metal

Enclosure dimensions . .. .. . .. .. 1.7" H x 4.3" W x 3.0" D (1U high, quarter rack wide)

4.2 cm H x 11.0 cm W x 7.6 cm D (Depth excludes connectors and knobs.)

Product weight

MDA 3V, MDA 3SVA

.. . .. .. . .. .. . . 0.4 lbs (0.2 kg)

MDA 3AV

. .. . .. .. . .. .. . .. .. . .. .. .. . 0.6 lbs (0.3 kg)

MDA 5V, MDA 5SV

.. . .. .. . .. .. . .. . 0.5 lbs (0.2 kg)

MDA 3SV

. .. . .. .. . .. .. . .. .. .. . .. .. . 0.4 lbs (0.2 kg)

MDA 3A

. .. .. . .. .. . .. .. . .. .. .. . .. .. . 0.5 lbs (0.2 kg)

MDA 5A RCA

.. . .. .. .. . .. .. . .. .. . .. 0.4 lbs (0.2 kg)

Shipping weight

MDA 3V, MDA 3V Dual

. .. .. . .. .. . 3 lbs (2 kg)

MDA 3AV, MDA 5V

.. . .. .. . .. .. . .. . 3 lbs (2 kg)

MDA 3SV

. .. . .. .. . .. .. . .. .. .. . .. .. . 2 lbs (1 kg)

MDA 3SVA, MDA 5SV

. .. .. . .. .. . . 2 lbs (1 kg)

MDA 5A RCA

.. . .. .. .. . .. .. . .. .. . .. 2 lbs (1 kg)

Vibration . .. .. . .. .. . .. .. . .. .. . .. .. . ISTA 1A in carton (International Safe Transit Association)

Listings .. . .. .. . .. .. . .. .. . .. .. . .. .. . UL, CUL

Compliances . .. .. . .. .. . .. .. . .. .. . CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF . .. .. . .. .. . .. .. . .. .. . .. .. . .. .. 30,000 hours

Warranty .. . .. .. . .. .. .. . .. .. . .. .. . . 3 years parts and labor

NOTE: All nominal levels are at ±10%. Specifications are subject to change without notice.

517
