Extron Electronics MDA 4V SDI User Manual

User’s Manual

www.extron.com

Extron Electronics, USA

1230 South Lewis Street
Anaheim, CA 92805
USA

714.491.1500
Fax [phone]

Extron Electronics, Europe

Beeldschermweg 6C
3821 AH Amersfoort
The Netherlands
+31.33.453.4040
Fax [phone]

© 2006 Extron Electronics. All rights reserved.

Extron Electronics, Asia

135 Joo Seng Road, #04-01
PM Industrial Building
Singapore 368363
+65.6383.4400
Fax [phone]

Extron Electronics, Japan

Kyodo Building
16 Ichibancho
Chiyoda-ku, Tokyo 102-0082 Japan
+81.3.3511.7655
Fax [phone]

VersaTools® MDA 4V SDI

Serial Digital Interface Mini Distribution Amplifi er

68-616-01 Rev. B

04 06

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important
operating and maintenance (servicing) instructions in
the literature provided with the equipment.

This symbol is intended to alert the user of the
presence of uninsulated dangerous voltage within
the product’s enclosure that may present a risk of
electric shock.

Caution

Read Instructions • Read and understand all safety and operating

instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future

reference.

Follow Warnings • Follow all warnings and instructions marked on the

equipment or in the user information.

Avoid Attachments • Do not use tools or attachments that are not

recommended by the equipment manufacturer because they may be
hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la
documentation fournie avec le matériel contient des
instructions importantes concernant l’exploitation et
la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence
dans le boîtier de l’appareil de tensions dangereuses
non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de

sécurité et d’exploitation avant d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité afi n de pouvoir

les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et consignes

marqués sur le matériel ou présentés dans la documentation utilisateur.

Eviter les pièces de fi xation • Ne pas utiliser de pièces de fi xation ni d’outils

non recommandés par le fabricant du matériel car cela risquerait de poser
certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im
Lieferumfang enthaltenen Dokumentation
besonders wichtige Hinweise zur Bedienung und
Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam
machen, daß im Inneren des Gehäuses dieses
Produktes gefährliche Spannungen, die nicht isoliert
sind und die einen elektrischen Schock verursachen
können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,

sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen
und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit

des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf
zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und

Anleitungen auf dem Gerät oder in der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,

die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine
Gefahrenquelle darstellen können.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario
sobre instrucciones importantes de operación y
mantenimiento (o cambio de partes) que se desean
destacar en el contenido de la documentación
suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre
la presencia de elementos con voltaje peligroso sin
protección aislante, que puedan encontrarse dentro
de la caja o alojamiento del producto, y que puedan
representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y

seguridad, antes de usar el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para

futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones marcadas

en el equipo o en la documentación del usuario, deben ser obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no

sean especifi camente recomendados por el fabricante, ya que podrian
implicar riesgos.

Warning

Power sources • This equipment should be operated only from the power source

indicated on the product. This equipment is intended to be used with a main power
system with a grounded (neutral) conductor. The third (grounding) pin is a safety
feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power

cords from the rear of the equipment, or the desktop power module (if detachable),
or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be

stepped on or pinched by items placed upon or against them.

Servicing • Refer all servicing to qualifi ed service personnel. There are no user-

serviceable parts inside. To prevent the risk of shock, do not attempt to service
this equipment yourself because opening or removing covers may expose you to
dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are

provided to prevent overheating of sensitive components inside. These openings
must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly

replaced. Replace it only with the same or equivalent type recommended by
the manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation

indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale
comportant un fi l de terre (neutre). Le troisième contact (de mise à la terre) constitue
un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,

déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module
d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de

manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas
écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-

maintenance par un technicien qualifi é. Aucun des éléments internes ne peut être
réparé par l’utilisateur. Afi n d’éviter tout danger d’électrocution, l’utilisateur ne doit
pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des
couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifi ces • Si le boîtier de l’appareil comporte des fentes ou des orifi ces, ceux-ci

servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures
ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie.

Remplacer uniquement avec une batterie du meme type ou d’un ype equivalent
recommande par le constructeur. Mettre au reut les batteries usagees conformement
aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene

Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer
Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte
Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese
sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten

Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung
(falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im

Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar
dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualifi ziertem Servicepersonal

durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei.
Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses
Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines
elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist,

dienen diese zur Vermeidung einer Überhitzung der empfi ndlichen Teile im
Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt

wird. Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen
vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie
verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo

de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este
equipo debe provenir de un sistema de distribución general con conductor neutro
a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia
ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida

de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación
en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera
independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben

instalar en lugares donde no sean pisados ni apretados por objetos que se puedan
apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal

califi cado. En el interior no hay partes a las que el usuario deba acceder. Para evitar
riesgo de electrocución, no intentar personalmente la reparación/mantenimiento
de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes
peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o orifi cios en su caja/alojamiento,

es para evitar el sobrecalientamiento de componentes internos sensibles. Estas
aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición

incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente)
recomendado por el fabricante. Desachar las baterías usadas siguiendo las
instrucciones del fabricante.

FCC Class A Notice

Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.

Note: This unit was tested with shielded cables on the peripheral devices. Shielded
cables must be used with the unit to ensure compliance.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship
for a period of three years from the date of purchase. In the event of malfunction during
the warranty period attributable directly to faulty workmanship and/or materials,
Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating
condition, provided that it is returned within the warranty period, with proof of
purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle East:
and Central America:

Extron Electronics, Europe
Extron Electronics Beeldschermweg 6C

1001 East Ball Road 3821 AH Amersfoort
Anaheim, CA 92805, USA The Netherlands

Asia: Japan:

Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Kyodo Building
PM Industrial Bldg. 16 Ichibancho
Singapore 368363 Chiyoda-ku, Tokyo 102-0082
Japan

This Limited Warranty does not apply if the fault has been caused by misuse, improper
handling care, electrical or mechanical abuse, abnormal operating conditions or non­Extron authorized modifi cation to the product.

If it has been determined that the product is defective, please call Extron and ask for an
Applications Engineer at [phone] (USA), 31.33.453.4040 (Europe), 65.6383.4400
(Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This
will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you
assume the risk of loss or damage during shipment. Returned units must include the
serial number and a description of the problem, as well as the name of the person to
contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect
to the product and its quality, performance, merchantability, or fi tness for any particular
use. In no event will Extron Electronics be liable for direct, indirect, or consequential
damages resulting from any defect in this product even if Extron Electronics has been
advised of such damage.

Please note that laws vary from state to state and country to country, and that some
provisions of this warranty may not apply to you.

ᅝܼ乏ⶹ•Ё᭛

䖭Ͼヺোᦤ⼎⫼᠋䆹䆒໛⫼᠋᠟ݠЁ
᳝䞡㽕ⱘ᪡԰㓈ᡸ䇈ᯢDŽ

䖭Ͼヺো䄺⫼᠋䆹䆒໛ᴎ໇ݙ᳝ᲈ

䴆ⱘ䰽⬉ˈ᳝㾺⬉䰽DŽ

⊼ᛣ

䯙䇏䇈ᯢк• 䑩ㅸỀ䑩嬦嫿⡈↎⼆枼敆嬼⶷䍇

夤ㆁ㙊⫊₩⏍Ề䑩嬵㕏ɿ

ֱᄬ䇈ᯢк• 䑩ㅸⷕ἞⪙⫊₩嬵㕏ᶧḦ⡈⭇㚦Ề

䑩ɿ

䙉ᅜ䄺• 䑩ㅸⷕ徶⫉󰶉␂⏍䑩ㅸ㉈⊘ᵋ䗅ㆁ㙊⫊

₩⏍㐎ẝ嬵㕏ɿ

䙓ܡ䗑ࡴ• ᵎ壂Ề䑩嬦󰶉␂⋃⒇㯢㙊㋩劑䗅⴦₸ㅗ

弾⇡嫿⡈澤Ḧ忀₎⊲斪ɿ

䄺

⬉⑤• 嬦嫿⡈⌫倾Ề䑩󰶉␂ᵋ㝈㕏䗅䑶㷑ɿ嫿⡈

⼆枼Ề䑩㙊♱一䗅Ờ䑶䰼丠Ờ䑶ɿ䩭ᵊ㚢一
澠♱一澡㕰⫊₩嫿㓾澤ᵎ倾ᵎ䑩ㅗ崴弈ɿ

ᢨᥝ⬉⑤• ᵻ⫊₩♱ḏ嫿⡈㈕㋊䑶㷑澤嬸㈕㋊ㆁ㙊嫿⡈⍏

ㅗ㞍暣䑶㷑䗅䑶㷑一澤ㅗḼẖ㋦ⅱⵃ䑶䰼丠䗅䑶㷑一ɿ

⬉⑤㒓ֱᡸ• ⣦Ⓟⵄ一澤忀₎埬嵪嵐澤ㅗ愎䆪㉥⋌ɿ
㓈ᡸ•ㆁ㙊丵Ἧ⼆枼䑲嫥嬂䗅丵Ἧ󰶜⎙弜垍ɿ嫿⡈⃆怩㯢

㙊䑩ㅸ⌰Ḧ㘵㊣䗅昷ḷɿᵻ忀₎℻䋱大䑶⊲斪ᵎ壂儫ⴲ
嬖☿㆔⹁嫿⡈䘗⪑丵Ἧ嬦嫿⡈ɿ

䗮亢ᄨ• 㙊󰵽嫿⡈㙻⠴ᵋ㙊彛栏㤾ㅗ⪕澤⫄ḭ㕰䑩㚦敳㪣

㙻⃆㒐だ₄ḷ弈䀮ɿᵎ壂䑩Ḽẖᵝ壀㉢Ẑ彛栏⪕ɿ

䫖⬉∴• ᵎ㪤䞯䗅㘵㊣䑶㮡ṛ㙊䅇㿹䗅⊲斪ɿ⼆枼Ề䑩ᵏ

⋃⫷㋩劑䗅䘹⍍ㅗ䘹弒⛌⌸䗅䑶㮡ɿ㉊䂨䑠󰶉⋃䗅⸻
嫯⡅䍇ⷠ⹄䑶㮡ɿ

Installation

Rack mounting

• VersaTools

• VersaTools 19" basic 1U rack shelf (part #60-604-20)

• 6" deep 1U rack shelf kit (part #60-190-10)

• 6" deep basic 1U rack shelf (part #60-604-10)

• Standard universal 1U rack shelf kit (part #60-190-01)

• Basic universal 1U rack shelf (part #60-604-01)

The Extron MDA 4V SDI is a one-input, four-output, serial
digital interface (SDI) mini distribution amplifi er (MDA).
The MDA is a member of the Extron VersaTools® line of
basic distribution amplifi ers, switchers, and associated video
accessories.

The MDA accepts SMPTE-259M Serial Video on a female BNC
connector and has automatic equalization and re-clocking
capabilities. The MDA 4V SDI recognizes the 4f
NTSC, component 4:2:2, and Widescreen 4:2:2 standards.

The rack-mountable MDA ships with an external 12V power
supply.

The 1U high, quarter rack width, MDA 4V SDI can be mounted
on a rack shelf, behind a rack, under a desk or tabletop, or on a
projector bracket.

For optional rack mounting, mount the MDA with any of the
following rack shelves:

®

19" 1U rack shelf kit (part #60-190-20)

(fi gure 1)

(fi gure 2)

On the non-VersaTools rack shelves, the MDA can mount in the
front or the rear of the rack.

1. Remove the feet from the bottom of the MDA if they are
already installed.

2. Mount the MDA using two 4-40 x 3/16" screws in opposite
(diagonal) corners to secure the MDA to the shelf.

N

Only VersaTools products and most IP link products

can be mounted to a VersaTools shelf. Most 1U rack­mountable Extron products can be mounted on the other
rack shelves.

PAL, 4fsc

sc

MDA 4V SDI User's Guide • Introduction

1

MDA 4V SDI User's Guide

D
IS

T
R

IB

U
T

IO

N

A
M

P
L

IF

I
E

VersaTools Rack Shelf

1/4 Rack Width False Front

Use 2 mounting holes on

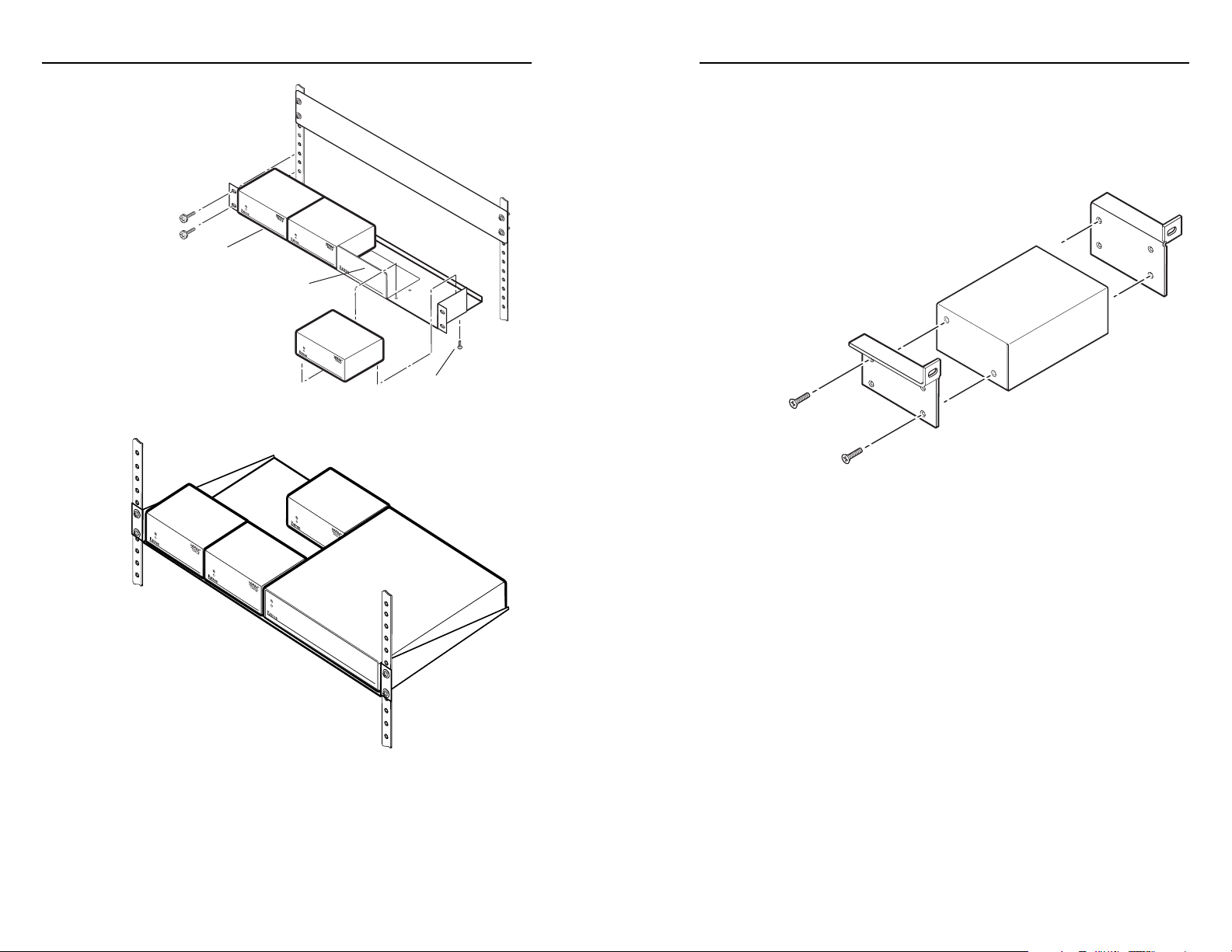

Figure 1 — Mounting the MDA on a VersaTools shelf

Face Plate

opposite corners.

Back of the rack mounting

The MDA can be mounted to the rear of a rack using the
Extron MBB 100 VersaTools back of the rack mounting kit
(part #70-367-01) (fi gure 3). The kit allows the product to be
vertically mounted to the front or rear rack supports and facing
towards either the front or the rear of the rack.

R

D
I

S
T

R
I

B
U

T
I

O
N

A

M

P
L

I
F
I

E
R

D
I

S
T

R
IB

U

T
IO

N
A

M

P
L

I
F

I
E

R

(2) 4-40 x 3/16" Screws

Figure 3 — Attaching the back of the rack kit

D
I

S
T

R

I
B

U
T

I
O

N

A

M

P
L

I
F

IE

D

I
S

T
R

I
B

U

T
I

O

N

A

M

P

L
I

F
I

E

R

D

I
S

T
R

I
B

U

T
I

O

N

A

M

P

L
I

F
I

E

R

R

installed.

2. Remove two screws from one side of the unit. Retain the
screws for possible later reassembly without the bracket.

3. Attach one bracket to the side of the unit using the longer
screws included in the kit.

4. Repeat steps 2 and 3 on the other side of the unit.

1. Remove feet from the bottom of the MDA if they are

M

D

D

A

I

S
T

S

R

I

E

B
U

R

T
I

I

O

E

N

S

A
M

P

L
I
F

I
E
R

5. Mount the unit to the rack using the two included rack
screws (fi gure 4, on the next page). The MDA can be
vertically mounted facing in either direction.

N

Only VersaTools products and most IP Link products

can be mounted using the back of the rack mounting kit.

Figure 2 — Mounting the MDA on a standard shelf

3. Install false faceplate(s) or other unit(s) to the rack shelf.

2

MDA 4V SDI User's Guide • Introduction

MDA 4V SDI User's Guide • Introduction

3

MDA 4V SDI User's Guide

Rear

I
R

1

2

3

I
N

P

U

4

T

S

5

6

7

8

1

2

3

Furniture or projector mounting

Furniture mount or projector mount the MDA using the optional
MBU VersaTools under desk mounting kit (part #70-212-01)
or the PMK 100 VersaTools mini projector mounting kit
(part #70-217-01) as follows:

1. Attach the mounting brackets to the MDA with the
provided machine screws (fi gure 5).

Projector
Mounting

Front

O

U

T
P

4

U

T

S

5

6

7

8

E

N

T
E

R

P

R
E

S
E

T

MAV SERIES

AV MATRIX SWITCHER

I/O

V
I

D

A

+dB

U

D

­dB

A
U

D

I
O

S

E

T
U

P

D

I
S

T

R

IB

U

T

IO

N

A

M

P

L

I
F

IE

R

Ceiling

Digital Projector

Bracket

Mounting
Bolt

.
5

1

A

5

POWER

M

V
A
X

M
D
A
4
V
S

S
D

D

I

I

I
N
P
U
T

2

1

4

S

3

D
I
O
U
T
P
U
T
S

Under Desk Mounting

Projector Mounting

Figure 5 — Desk and projector mounting the MDA

Figure 4 — Typical back of the rack installations

2. If feet were previously installed on the bottom of the MDA,
remove them.

3. For furniture mounting, hold the MDA with the attached
brackets against the underside of the table or other
furniture. Mark the location of the screw holes of the
bracket on the mounting surface.

4. For furniture mounting, drill 3/32" (2 mm) diameter pilot
holes, 1/4" (6.3 mm) deep in the mounting surface at the
marked screw locations.

5. For furniture mounting, insert #8 wood screws into the
four pilot holes. Tighten each screw into the mounting
surface until just less than 1/4" of the screw protrudes.

6. For furniture mounting, align the mounting screws with
the slots in the brackets and place the MDA against the
surface, with the screws through the bracket slots.

7. For furniture mounting, slide the receiver slightly forward
or back, then tighten all four screws to secure the MDA.

4

MDA 4V SDI User's Guide • Introduction

MDA 4V SDI User's Guide • Introduction

5

MDA 4V SDI User's Guide

8. For projector mounting, secure the MDA to a projector
mount or other surface by inserting the mounting bolt
through the bracket’s slotted hole.

Smooth

Ridges

Connections and Indicator

4

MDA 4V SDI

POWER

12V
.5A MAX

Figure 6 — MDA 4V SDI front and rear panels

SDI Input connector — Connect an SDI input to this BNC

a

connector.

SDI Outputs (1 through 4) connectors — Connect up to four

b

SDI devices to these BNC connectors. The MDA outputs
re-clocked SDI outputs.

C

Power connector — Plug the external 12 VDC power supply

c

into this 2-pole captive screw connector. The power supply
is included with the unit. Figure 7 shows how to wire the
connector.

C

6

MDA 4V SDI User's Guide • Introduction

SDI INPUT

1

2

13

Voltage polarity is critical when you are connecting

the power supply. Applying power with incorrect
voltage polarity could damage the power supply and
the MDA. Identify the power cord negative lead by
the ridges on the side of the cord.

Power supply voltage polarity is critical. Incorrect

voltage polarity can damage the power supply and
the transmitter or receiver. Identify the power cord
negative lead by the ridges on the side of the cord
(fi gure 7).

DISTRIBUTION AMPLIFIER

SDI OUTPUTS

3

4

2

AA

Power Supply

Output Cord

SECTION A–A

Tie Wrap

Orange Captive Screw

Figure 7 — Power connector wiring

To verify the polarity before connection, plug in the power
supply with no load and check the output with a voltmeter.

W

C

Use the supplied tie-wrap to strap the power cord to the
extended tail of the connector.

N

N

Alternatively, an Extron P/S 100 Universal 12 VDC Power
Supply can power up to ten MDAs or other Extron 12 VDC
devices using only one AC power connector.

Power LED — Indicates power is applied.

d

The two power cord wires must be kept separate

while the power supply is plugged in. Remove
power before wiring.

The length of the exposed (stripped) copper wires

is important. The ideal length is 0.2" (5 mm).
Longer bare wires can short together. Shorter wires
are not as secure in the direct insertion connectors
and could be pulled out.

Your MDA may have shipped with a blue captive screw

connector. This blue connector can be plugged into
either a blue or an orange power receptacle.

The blue connector does not have the extended tail or the
included tie-wrap.

Do not tin the power supply leads before installing them

in the direct insertion connector. Tinned wires are not as
secure in the connectors and could be pulled out.

MDA 4V SDI User's Guide • Introduction

0.2” (5 mm) MAX

Connector

7

MDA 4V SDI User's Guide

Specifi cations

Video

Gain ................................................ Unity

Resolution....................................... 8 or 10 bits, automatic

Operation standards ..................... 143 Mb/s (4f

177 Mb/s (4f
270 Mb/s (4:2:2 component video)
360 Mb/s (4:2:2 widescreen component
video), autoselected

Equalization and re-clocking ....... Automatic for up to 30 dB of cable loss

Video input

Number/signal type ..................... 1 SMPTE-259M serial digital component

video

Connectors ..................................... 1 BNC female

Nominal level ................................ 0.8 Vp-p

Minimum/maximum levels ........ 0.5 V to 1 Vp-p with no offset

Impedance ..................................... 75 ohms

Return loss ..................................... <-15 dB @ 5 to 270 MHz

Maximum DC offset ..................... 5 V (AC coupled)

Video output

Number/signal type ..................... 4 reclocked SMPTE-259M serial digital

component video

Connectors ..................................... 4 BNC female

Nominal level ................................ 0.8 Vp-p

Minimum/maximum levels ........ 0.5 V to 1.0 Vp-p

Impedance ..................................... 75 ohms

Return loss ..................................... <-25 dB @ 5 MHz

DC offset ........................................ ±5 mV maximum with input at 0 offset

NTSC)

sc

PA L)

sc

Rack mount .................................... Yes, with optional 1U rack shelf,

part #60-190-01, or 60-604-01;
or the VersaTools

#60-190-20 or 60-604-20

Enclosure type .............................. Metal

Enclosure dimensions .................. 1.7" H x 4.3" W x 3.0" D

(1U high, quarter rack wide)

4.2 cm H x 11.0 cm W x 7.6 cm D

(Depth excludes connectors and knobs.)

Product weight .............................. 0.5 lbs (0.2 kg)

Shipping weight ........................... 2 lbs (1 kg)

Vibration ........................................ ISTA 1A in carton

(International Safe Transit Association)

Listings............................................ UL, CUL

Compliances ................................... CE, FCC Class A, VCCI, AS/NZS, ICES

MTBF ............................................... 30,000 hours

Warranty ........................................ 3 years parts and labor

N

N

All nominal levels are at ±10%.

Specifi cations are subject to change without notice.

®

rack shelf, part

Sync

Standards ........................................ 4fscNTSC, 4fscPAL, SMPTE-259M

General

External power supply ................. 100 VAC to 240 VAC, 50/60 Hz, external,

autoswitchable; to 12 VDC, 1 A, regulated

Power input requirements ........... 12 VDC, 0.4 A (max.)

Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) /

10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) /

10% to 90%, noncondensing

8

MDA 4V SDI User's Guide • Introduction

MDA 4V SDI User's Guide • Introduction

9

MDA 4V SDI User's Guide

10

MDA 4V SDI User's Guide • Introduction
