Extron Electronics Matrix 100 Switcher User Manual
User’s Manual
Matrix 100 Switcher
Contents
Chapter 1 - Introduction to Matrix 100
General.......................................................................................................................... 1-1
I/O Modules ................................................................................................................... 1-1
Configurations................................................................................................................ 1-1
Standard Features ......................................................................................................... 1-2
Optional Features .......................................................................................................... 1-3
Sample Configuration .................................................................................................... 1-4
Specifications................................................................................................................. 1-5
Illustrations:

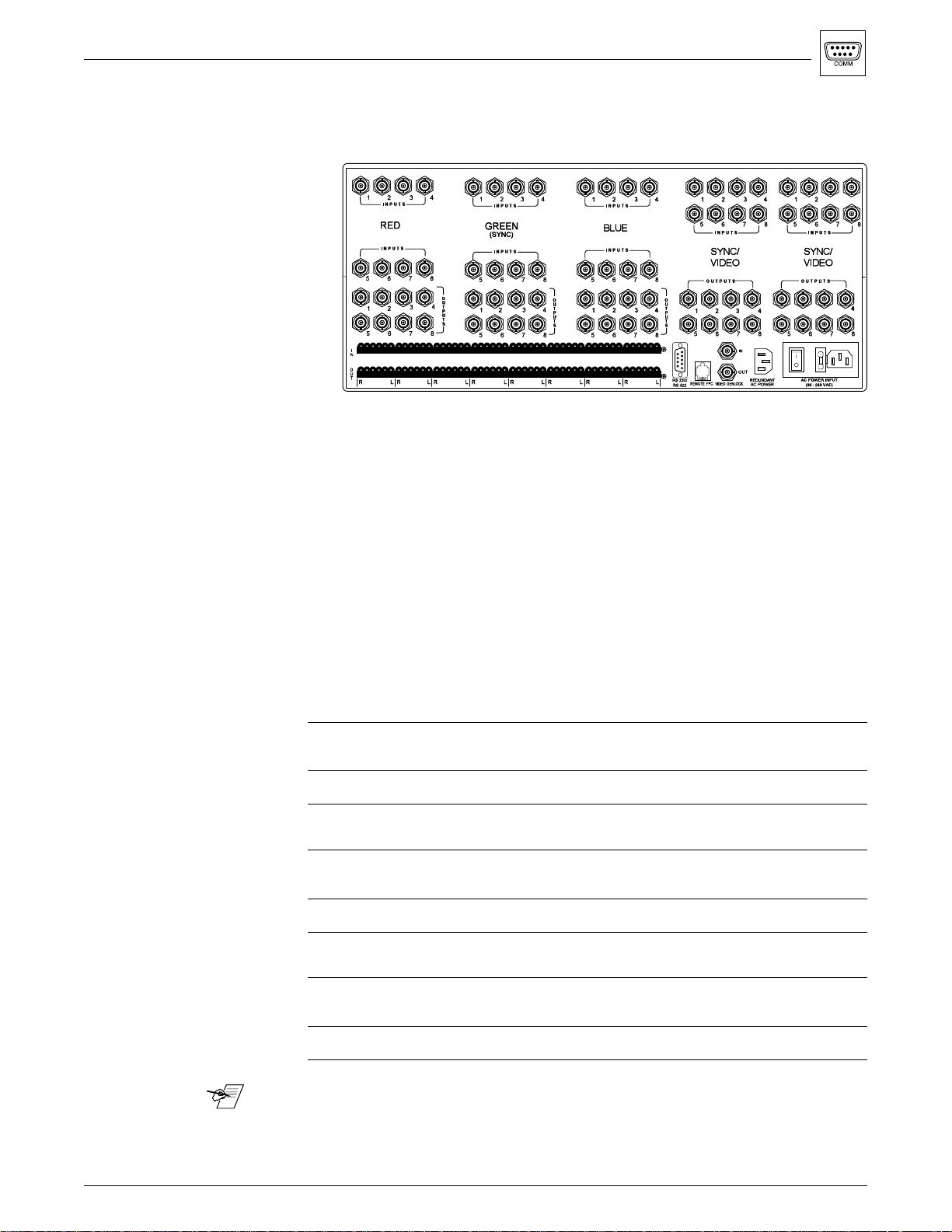

Figure 1-1. Rear vie w of a fully-populated Matrix Switcher ............................................ 1-2
Figure 1-2. Matrix 100 Front Panel................................................................................. 1-3
Figure 1-3. Block diagram of a Matrix 100...................................................................... 1-4
Chapter 2 - Rear Panel Connections
Multi-Output Connection ................................................................................................ 2-1
Genlock Connections..................................................................................................... 2-2
RGB Input Connections ................................................................................................. 2-2
RGB Connections with Right & Left Audio ..................................................................... 2-3
RGBS Connections with Right & Left Audio ................................................................... 2-4
RGBHV Connections with Right & Left Audio ................................................................ 2-5
Composite Video Connections ....................................................................................... 2-6
S-Video Connections ..................................................................................................... 2-7
Audio T erminal Connections........................................................................................... 2-9
Illustrations:
Figure 2-1. Matrix 100 Switcher and Input/Output De vices ............................................ 2-1
Figure 2-2. Genlock connects to a timing source ........................................................... 2-2
Figure 2-3. An example of RGB, or Component Video ................................................... 2-3
Figure 2-4. An example of RGBS, 4-BNC, or Composite Sync Video............................. 2-4
Figure 2-5. An e xample of RGBHV, 5-BNC , or Video with Separate (H and V) Sync...... 2-5
Figure 2-6. Composite Video with Right & Left Audio ..................................................... 2-6
Figure 2-7. S-Video Connections with Right & Left Audio .............................................. 2-8
Figure 2-8. A udio Connectors with Captive Screws (above and right)............................ 2-9
Figure 2-9. Typical Audio Cable Connectors................................................................... 2-9
Figure 2-10. Three ways to wire the Input and Output Audio Connectors....................... 2-9
Chapter 3 - Using the Front Panel Controller
QuickSwitch Front Panel Controller (QS-FPC) Operation .............................................. 3-1

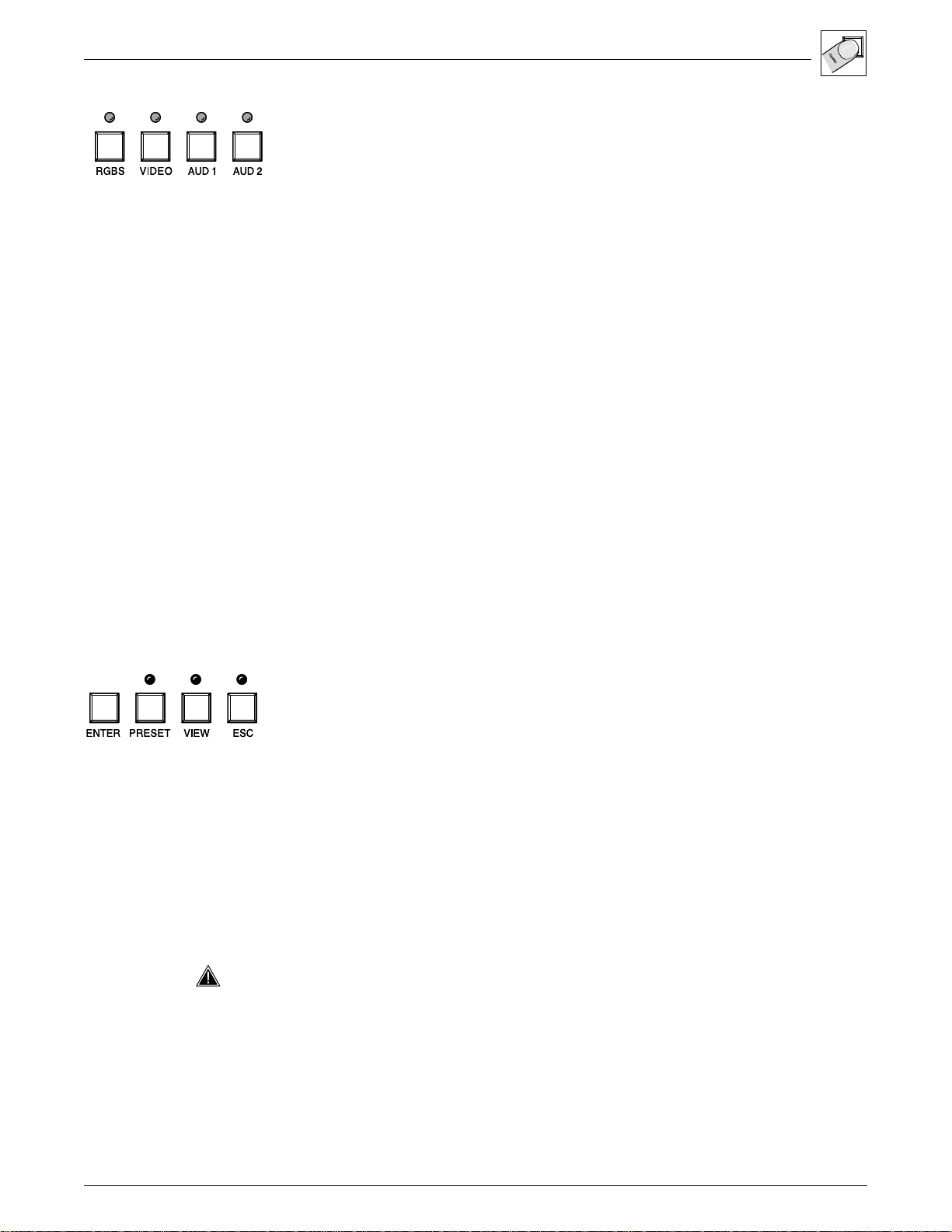

Input and Output Buttons .................................................................................. 3-1
I/O Module Select Buttons ................................................................................ 3-2
Control Buttons ................................................................................................. 3-2

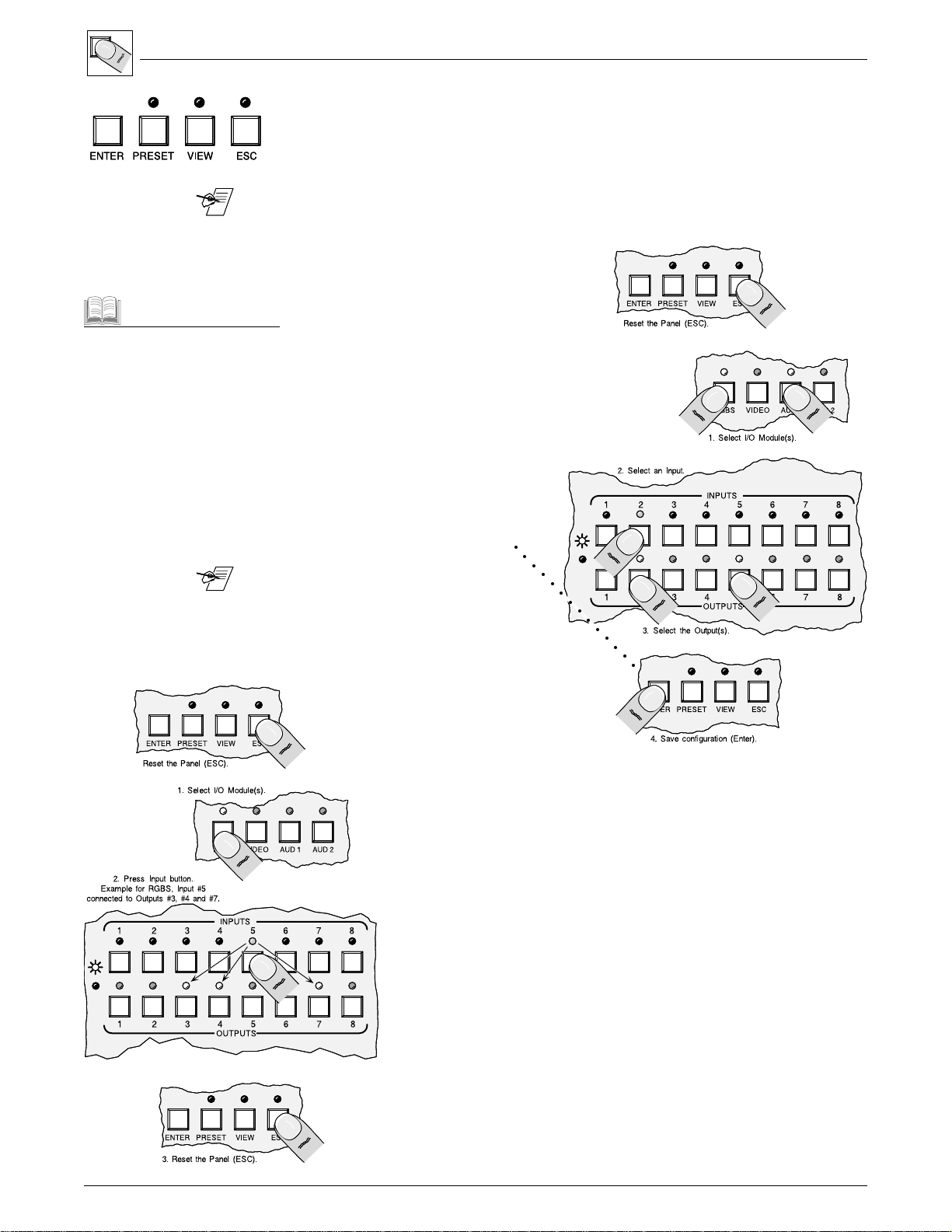

Example #1: Configuring the Ties for Input 2..................................................... 3-3
Example #2: Display Ties for Input 5 ................................................................. 3-3
Ties, Configurations and Presets ................................................................................... 3-4
Examples .......................................................................................................... 3-4

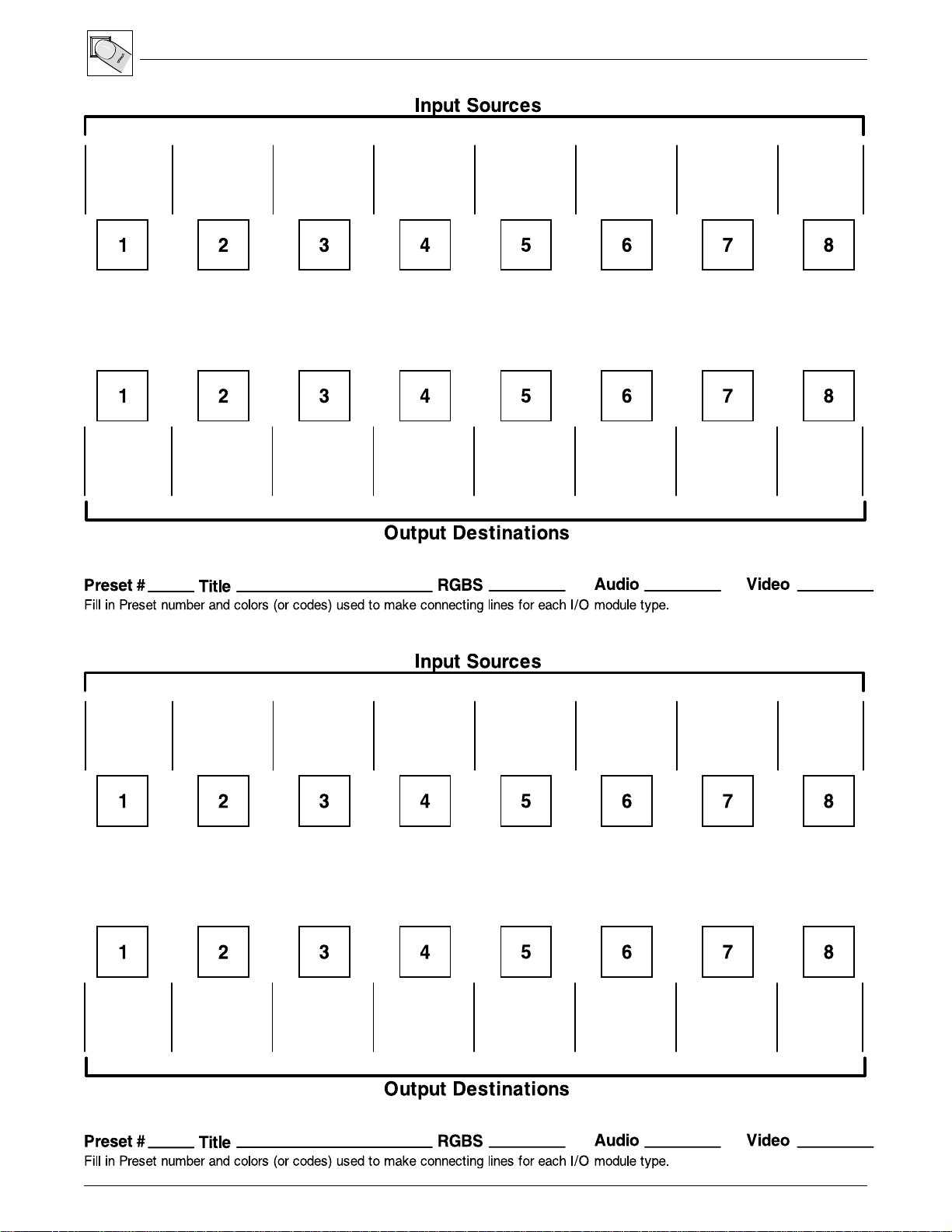

Worksheets.................................................................................................................... 3-5
Illustrations:
Figure 3-1. Matrix 100 Front Panel................................................................................. 3-1
Figure 3-2. Matrix 100 Power Switch.............................................................................. 3-1
Figure 3-3. Input/Output Buttons and LEDs ................................................................... 3-1
Extron • Matrix 100 • User’s Manual
i
Chapter 4 - Hardware Installation
IEC Po wer P anel............................................................................................................ 4-1
Standard Po wer Supply..................................................................................... 4-1
Redundant Pow er Supply (optional) .................................................................. 4-1
QuickSwitch Front P anel Controller................................................................... 4-1
Removing the Matrix 100 Cover..................................................................................... 4-2
Changing Matrix Front P anels........................................................................................ 4-2
Replacing a Blank Panel with a QuickSwitch Front Panel Controller ................. 4-3
Replacing the Lithium Battery ........................................................................................ 4-3
Changing the Main Fuse................................................................................................ 4-4
RS-232/RS-422 Communications .................................................................................. 4-4
9-Pin Communication Connector ...................................................................... 4-4
RS-232 Protocol................................................................................................ 4-4
Installing a Redundant Power Supply............................................................................. 4-5
Adding an Audio Module ................................................................................................ 4-6
Installing I/O Modules in the Rear Panel ........................................................................ 4-9
Installing QS-FPC Software Update........................................................................... 4-11
Illustrations:

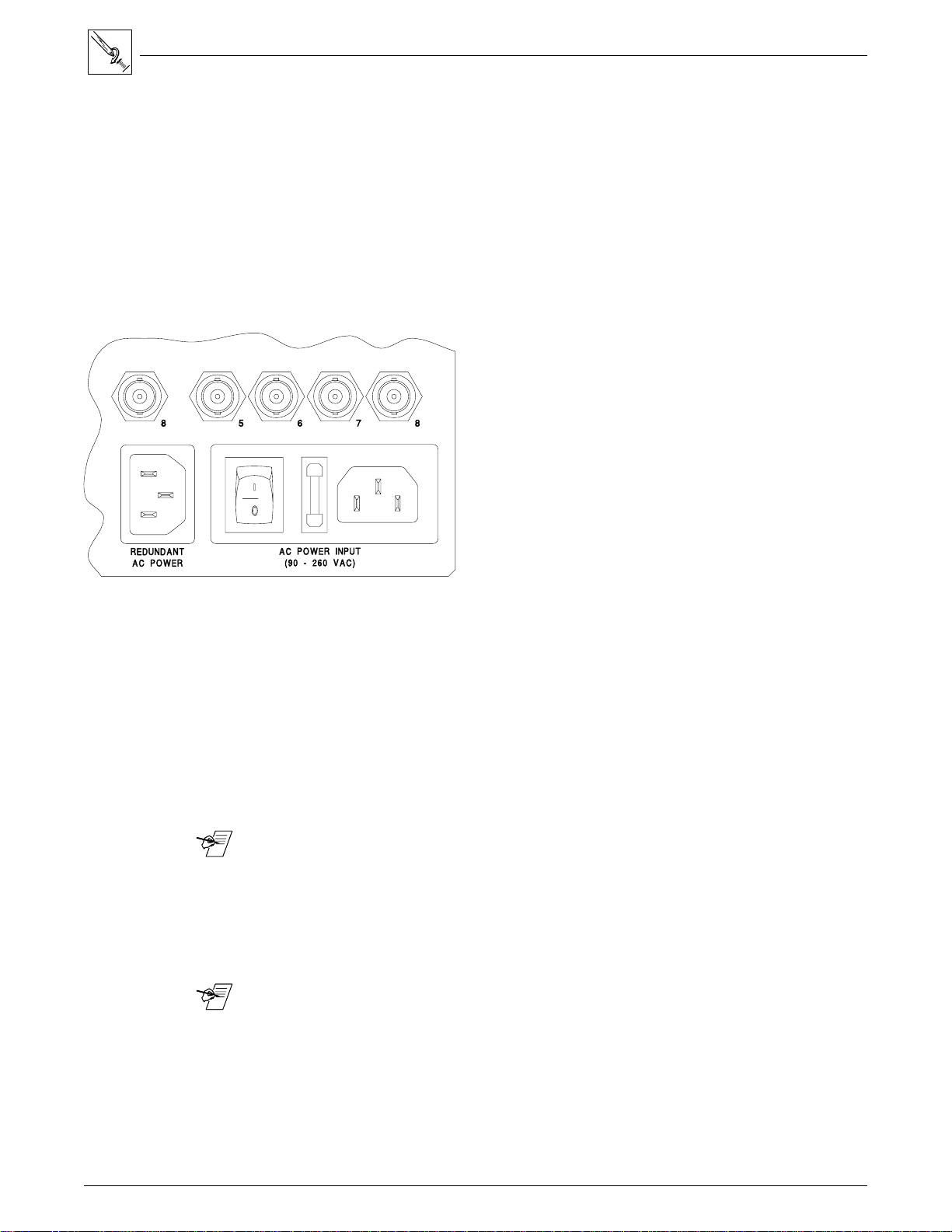

Figure 4-1. IEC Power Panel: Power Switch, Fuse and P o w er Connectors.................... 4-1
Figure 4-2. Matrix 100 Cover has six screws ................................................................. 4-2
Figure 4-3. Front Panel Cable Connections and Battery Location .................................. 4-3
Figure 4-4. Matrix 100, Face-up ..................................................................................... 4-3
Figure 4-5. Wiring the RJ45 Cable ................................................................................. 4-3
Figure 4-6. Changing the Fuse ...................................................................................... 4-4
Figure 4-7. Sw apping the RS-232/RS-422 Port cable .................................................... 4-4

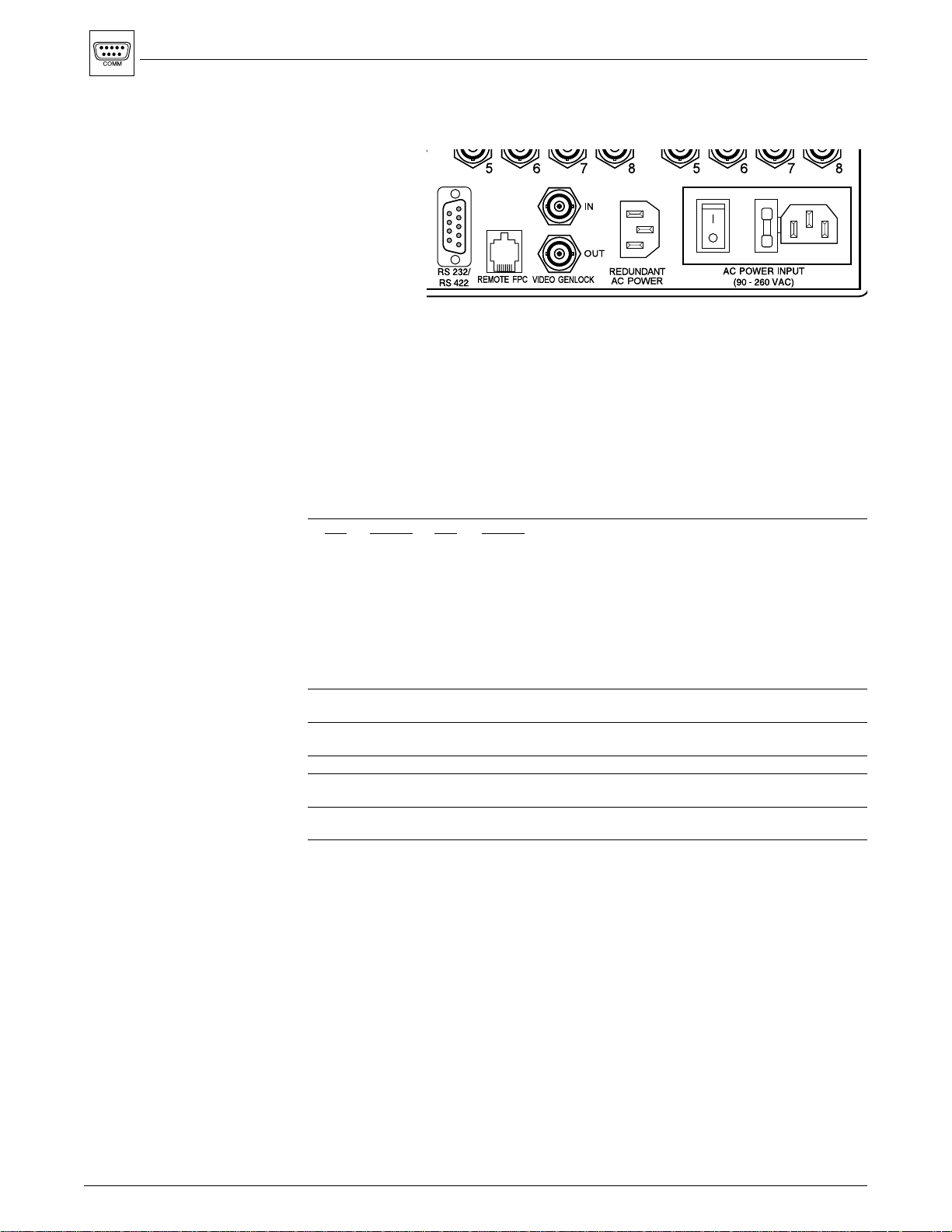

Figure 4-8. Matrix 100 Comm Connector....................................................................... 4-4

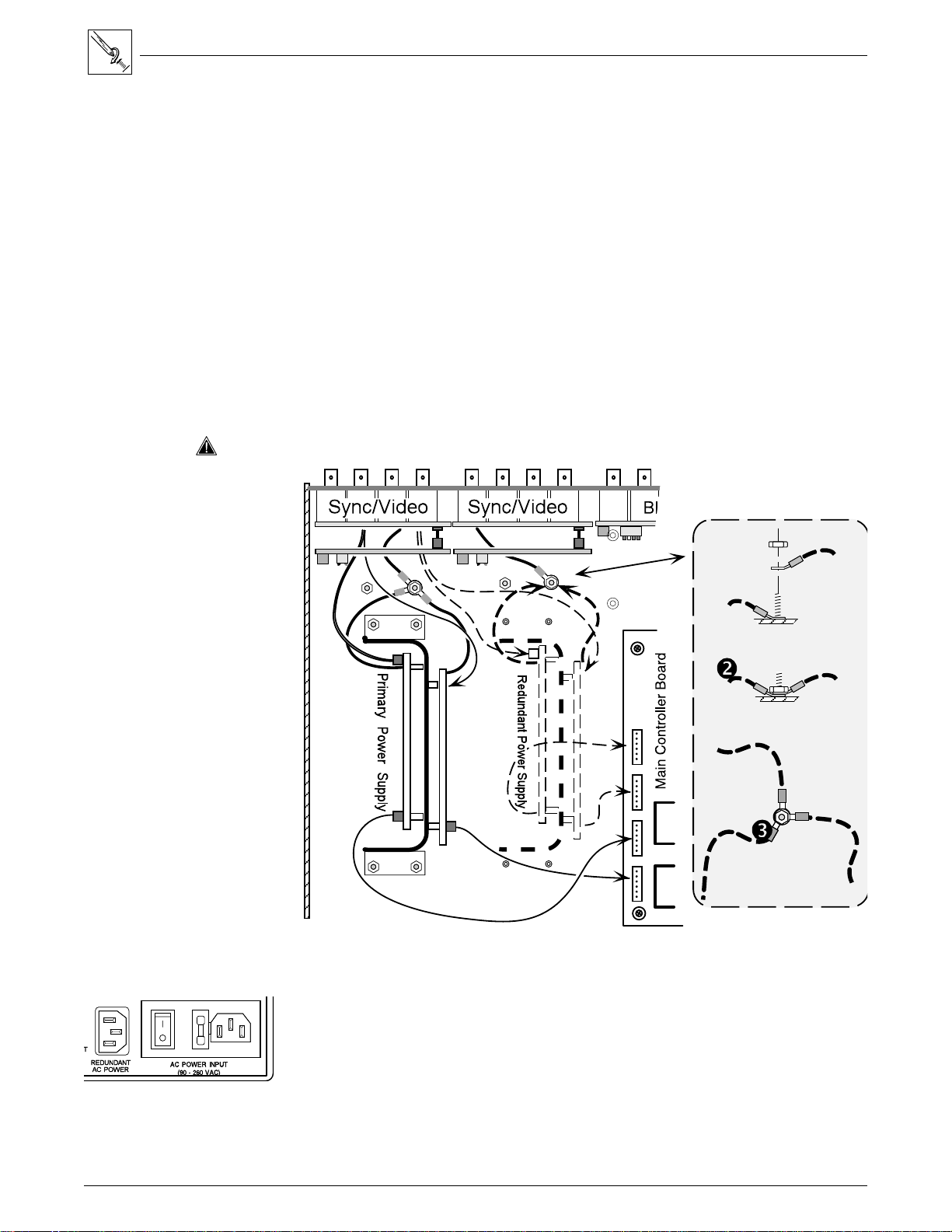

Figure 4-9. Connecting the Redundant Power Supply and Ground Wire
Connections (Right detail) ............................................................................ 4-5
Figure 4-10. Redundant Power Supply Connector ......................................................... 4-5

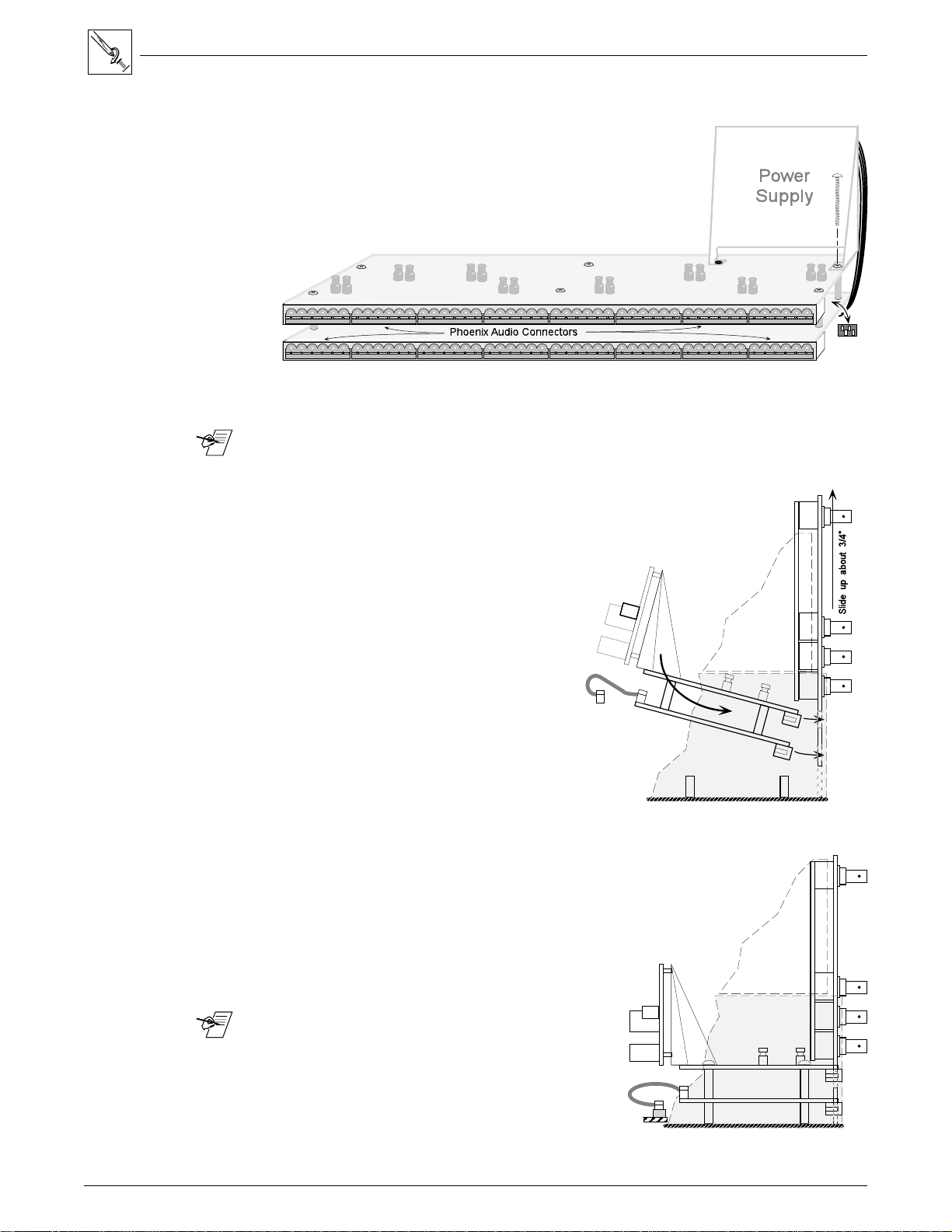

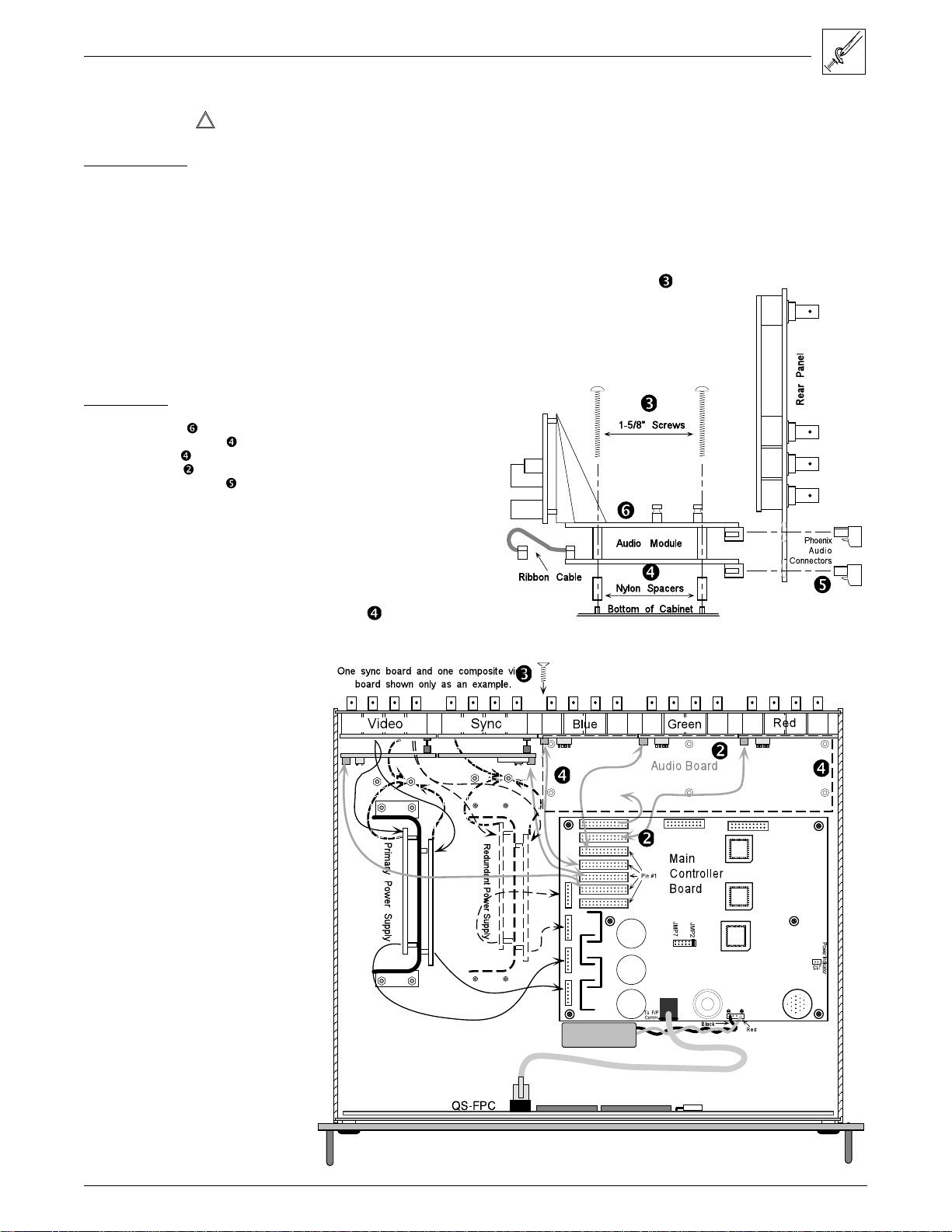

Figure 4-11. Ho w the Audio Module fits in the Matrix ..................................................... 4-6
Figure 4-12. A udio Module connections and hardw are .................................................. 4-6
Figure 4-13. The Matrix Audio Module before installation............................................... 4-7
Figure 4-14. Lift the Bac k Panel slightly and slip the Audio Module under it ................... 4-7
Figure 4-15. Secure the module in position.................................................................... 4-7
Figure 4-16. Plug the Ribbon Cab les from each module to the Main Controller board ... 4-8

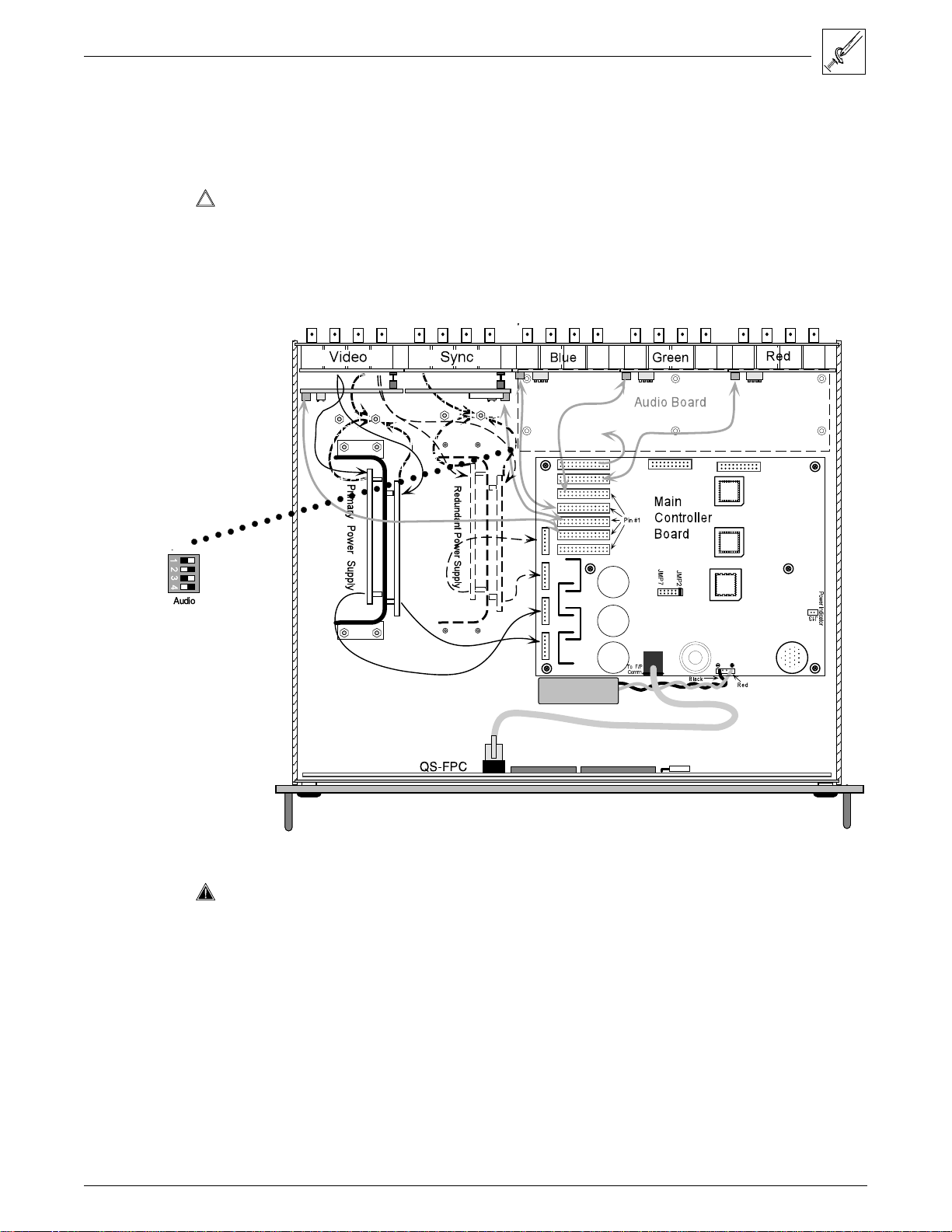

Figure 4-17. This illustration shows the modules already installed ................................. 4-9
Figure 4-18. Squeeze the tabs to release the plug ......................................................... 4-9
Figure 4-19. Module diff erences................................................................................... 4-10
Figure 4-20. DIP Switch oper ation ............................................................................... 4-10
Figure 4-21. DIP Switch settings for each module........................................................ 4-10
Figure 4-22. MRAM Module ......................................................................................... 4-10
Figure 4-23. Remove the Front Panel to access the Software IC Chip......................... 4-11
Figure 4-24. Use the PLCC Chip Puller to remove the Software IC Chip ..................... 4-11
Contents
Chapter 5 - Windows® Control Software
Extron Matrix Control Software ...................................................................................... 5-1
Windows Example ......................................................................................................... 5-1
Matrix 100/200 Help....................................................................................................... 5-3
Illustrations:
Figure 5-1. Extron Windows Group Example ................................................................. 5-1
Figure 5-2. Control Prog r am Example............................................................................ 5-2
Figure 5-3. Configured Matrix Example.......................................................................... 5-2
Figure 5-4. Example of the Help Men u........................................................................... 5-3
ii
Extron • Matrix 100 • User’s Manual
Contents
Appendix A - RS-232 Programmer’s Guide
Control Ports..................................................................................................................A-1
QS-FPC Ports...................................................................................................A-1
Host/Matrix Data Format................................................................................................A-1
Binary/hex/decimal Conversion Table................................................................ A-2
Command Structure....................................................................................................... A-2
Command Specifier, Data, End of Transmission................................................A-2
Host-Initiated Communications Protocol ........................................................................A-3
Error Codes (Erc).............................................................................................. A-3
Matrix-Initiated Communications Protocol......................................................................A-4
Timing ............................................................................................................... A-4
Command List (Host-to-Matrix) ......................................................................... A-4
Reports (Matrix-to-Host), Communication Control ............................................A-4
Using Commands .......................................................................................................... A-5
CMD0 (30h) - Send Status................................................................................A-5
CMD1 (31h) - Report ID....................................................................................A-6
CMD2 (32h) - Turn Po wer On............................................................................ A-7
CMD3 (33h) - Turn Po wer Off............................................................................ A-7
CMD4 (34h) - Send Software Version ...............................................................A-7
Set (Tie) Connection Commands ...................................................................... A-8
Planes and Plane Maps ....................................................................................A-8
CMD5 (35h) - Set (Tie) Connection...................................................................A-9
CMD7 (37h) - Set (Tie) All Connections ............................................................A-9
CMD8 (38h) - Download Status and Presets ..................................................A-10
CMD9 (39h) - Mute All Planes.........................................................................A-10
CMD10 (3Ah) - Save Current as Preset #.......................................................A-10
CMD11 (3Bh) - Load Preset #......................................................................... A-10
CMD12 (3Ch) - Mute Selected Outputs .......................................................... A-11
CMD13 (3Dh) - Request Mute Map.................................................................A-11
CMD25 (49h) - Set RGB Delay .......................................................................A-12
CMD26 (4Ah) - Request RGB Delay Information ............................................A-12
Reports (Matrix-to-Host) .............................................................................................. A-13
Report0 (70h) - Status .................................................................................... A-13
Report1 (71h) - New Controlling Port ..............................................................A-13
Appendix B - Part Numbers and Reference
Related Part Numbers ...................................................................................................B-1
Option Kit Part Numbers ...................................................................................B-1
BNC-4 Cables (High Resolution BNC Cables) ..................................................B-2

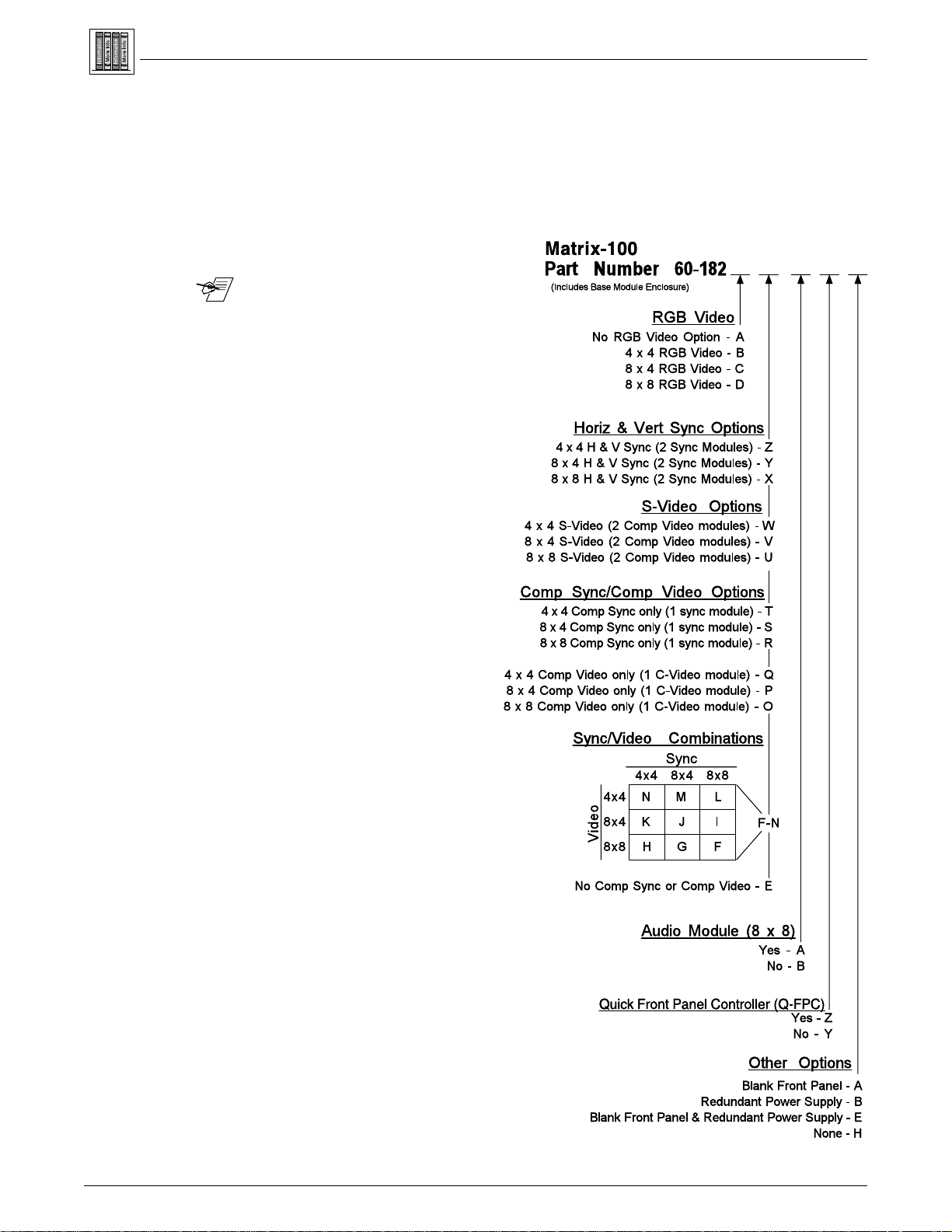

Matrix 100 Part Numbering System ............................................................................... B-3
Manual number and status
68-199-01, Rev B
Extron • Matrix 100 • User’s Manual
69-12
iii
The following icons may be used in this manual:
_________ Important information — for example, an action or a step that must be done
before proceeding.
_________ A Warning — possible dangerous voltage present.
_________ A Warning — possible damage could occur.
_______ A Note, a Hint, or a Tip that may be helpful.
________ Possible Electrostatic Discharge (ESD) damage could result from touching
electronic components.
________ Indicates word definitions. Additional information may be referenced in another
section, or in another document.
Contents
iv
Extron • Matrix 100 • User’s Manual
Matrix 100
User’s Manual
Chapter One
Introduction to Matrix 100
Standard Features
1
Matrix 100 Module Specifications
Optional Features
I/O Modules
Configurations
Extron • Matrix 100 • User’s Manual
General
I/O Modules
Chapter 1 • Introduction to Matrix 100
Each Extron Matrix 100 is custom designed to the user’s specifications. The
configuration is built from various combinations of ten I/O modules. The I/O
modules and possible configurations are listed below. The Matrix 100 can be
controlled from a host computer or from a QuickSwitch Front Panel Controller
(QS-FPC).
Matrix units can also be interconnected to expand the switching capabilities for
up to 48 inputs by 48 outputs. This allows for multiple switching combinations.
Matrix 100 Switchers are ordered for a specific application with a combination of
I/O modules. Each module switches one type of video signal – one for red, one
for blue, etc. One audio module switches both left and right stereo channels.
• 4 x 4 Medium-Resolution Analog Module (MRAM), 175 MHz video bandwidth
• 8 x 4 Medium-Resolution Analog Module (MRAM), 175 MHz video bandwidth
• 8 x 8 Medium-Resolution Analog Module (MRAM), 175 MHz video bandwidth
• 4 x 4 Sync Module
• 8 x 4 Sync Module
• 8 x 8 Sync Module
• 4 x 4 Video Module
• 8 x 4 Video Module
• 8 x 8 Video Module
• 8 x 8 Stereo Audio Module
For example: a Matrix 100 designed to switch RGB, separate horizontal and
vertical sync, and stereo audio will require the following modules: three MRAM,
two Sync and one audio modules.
Configurations
Depending upon the configuration of I/O modules (above), the Matrix 100
Switcher can have up to 16 different input/output configurations. The
configuration determines how many modules are required.
• RGsB – Red, Green, (sync on green), Blue
• RGBS – Red, Green, Blue and separate composite Sync
• RGBHV – Red, Green, Blue and separate H&V Sync
• RGsBCv – Red, Green, (sync on green), Blue, and Composite video
• RGsBYC – Red, Green, (sync on green), Blue and S-Video
• RGBSCv – Red, Green, Blue, composite Sync, and Composite video
• RGsBA – Red, Green, (sync on green), Blue, and Audio
• RGBSA – Red, Green, Blue, Sync, and Audio
• RGBHVA – Red, Green, Blue, separate H&V sync, and Audio
• RGsBCvA – Red, Green, (sync on green), Blue, Composite video, and Audio
• RGsBYCA – Red, Green, (sync on green), Blue, S-Video, & stereo Audio
• RGBSCvA – Red, Green, Blue, composite Sync, Composite video, and Audio
• CvA – Composite video, and Audio
• YCA – S-Video with Audio
• Cv – Composite video
• YC – S-Video
1-1
Extron • Matrix 100 • User’s Manual
Chapter 1 • Introduction to Matrix 100
Standard Features
• Microprocessor control, with battery backup
• RS-232 control
• RGBS, Video, Audio Breakaway
• Composite and S-Video Genlock
• RGB video delay switching (via RS-232/RS-422)
• 175 MHz bandwidth.
Microprocessor Control The Matrix 100 is programmable from a host system, or from the optional
QuickSwitch Front Panel Controller. It uses memory to store up to eight preset
configurations. The battery backup prevents loss of preset information.
RS-232 Control The Matrix 100 can be controlled by any remote control system or computer with
serial communications capability. Refer to Appendix A for programming
guidelines including a complete listing of RS-232 commands and protocol.
Breakaway The RGBS, Video, Audio Breakaway feature of the Matrix 100 allows the user to
program any Video, S-Video or Audio Channel to be controlled separately
(breakaway), or as a group (follow one or more inputs, or all RGB inputs). A fully
populated RGBS composite video and audio switcher can be controlled as three
separate switchers.
Breakaway provides individual video or audio outputs to follow any one or more
RGBS inputs when switched to an output channel. This makes the Matrix 100
capable of adding audio to any or all RGBS or video channels, as well as
switchable video and audio to follow any switched RGBS channel.
Video Genlock The Matrix 100 features a broadcast quality NTSC/PAL/SECAM Composite
Video or S-Video Genlock for synchronized switching of signals. The Matrix 100
will Genlock as many composite video signals as are installed in the switcher.
RGB Delay Switching The Matrix 100 can be programmed (via RS-232) to delay switching the RGB
video for 1 to 9 seconds after the sync is switched. This allows the display device
to be in sync before the picture arrives, providing seamless switching of the
RGBS signals when switching between various frequencies.
175 MHz Bandwidth Even when fully populated, the Matrix 100 has a bandwidth of no less than 175
MHz (-3 dB).
Figure 1-1. Rear view of a fully-populated Matrix 100 Switcher
Extron • Matrix 100 • User’s Manual
1-2
Optional Features
• QuickSwitch™ Front Panel Controller (QS-FPC)
• Redundant power supply
• SmartControl™ microprocessor
Figure 1-2. Matrix 100 Front panel
Chapter 1 • Introduction to Matrix 100
QuickSwitch™ Front Panel Controller (QS-FPC)
The QuickSwitch Front Panel Controller (QS-FPC) provides local control of all
Matrix 100 Switcher functions. It is supplied as an optional accessory to the
Matrix 100 and is intended for users who wish to supplement normal RS-232
computer control with local or remote operator control. Refer to Chapter 2 for
instructions for mounting the QS-FPC, and to Chapter 4 for operation. The
QS-FPC includes the following features:
Control Microprocessor SmartControlTM is the Front Panel’s built-in
microprocessor. With it, the user determines the Matrix 100 input/output
configuration, what presets are saved, as well as all other switcher settings.
Configuration Memory SmartControl can store up to eight different matrix
configurations (called presets). This can save hours of reprogramming each I/O
configuration. The QuickSwitch Front Panel Controller (QS-FPC) allows for easy
configuration of inputs and outputs, as well as the control of additional system
features.
QuickSwitch SmartControl The Front Panel includes full complement of function
buttons make setup and programming the unit fast and easy.
Redundant Power Supply
The Matrix 100 can be ordered with an optional redundant (backup) power
supply to prevent signal loss if input power to the primary power supply should
suddenly be lost or interrupted.
1-3
Extron • Matrix 100 • User’s Manual
Chapter 1 • Introduction to Matrix 100
Sample Configuration
Figure 1-3 shows one example of the I/O modules that could be installed in six
planes of a Matrix 100. See page 1-1 for I/O modules and possible
configurations.
For example, an 8 x 8 RGBS switcher requires: three 8 x 8 medium-resolution
analog modules (MRAM) and one 8 x 8 sync module (Syn). This would occupy
the Red, Green, Blue and one Sync/Video planes. The fifth plane could have a
composite video module (Cv), and the sixth plane could have an audio switching
module (Aud).
This configuration is capable of being
controlled and routed as three
separate switchers:
• one 8 x 8 RGBS matrix switcher
• one 8 x 8 video switcher
• one 8 x 8 audio switcher
In addition, SmartControl™ allows
the Matrix 100 to group these
functions as a single RGBS
composite video switcher with stereo
audio.
The bottom of the diagram illustrates
how the Main Controller (and the
optional QuickSwitch Front Panel
Controller) routes the various inputs
to the outputs.
Extron • Matrix 100 • User’s Manual
Figure 1-3. Block diagram of a Matrix 100
1-4
Matrix 100 I/O Module Specifications
Power . 90 - 260 VAC, 50/60 Hz, 60 Watts
Dimensions . 17" W, 15" D, 6.8" H
Shipping Weight . 22 lbs (10 kg)
Operating Temperature. 0° C - 50° C
Storage Temperature. -20°C - 70° C
MTBF . 35,000 Hours (demonstrated)
Approved . UL Listed
Warranty . 2 years parts and labor
MRAM Video (Medium Resolution Analog Module)
Connectors . BNC
Bandwidth . 175 MHz (-3 dB)
Crosstalk:
at 10 MHz . -50 dB(typical) See note 1.
at 100 MHz . -30 dB
Chapter 1 • Introduction to Matrix 100
Note 1: Crosstalk is the
attenuation of all hostile
signals relative to a given
input-output connection.
Note 2: Isolation is the
attenuation of an input signal
relative to an un-selected
output when all inputs have
the same signal applied
simultaneously.
Composite Video Module
Sync Module
Isolation:
at 10 MHz . -60 dB (typical) See note 2.
at 100 MHz . -55dB
Return Loss:
at 10 MHz . -20 dB
Input Impedance . 75 ohms
Output Impedance . 75 ohms
Switching Speed . 200 ns (nominal)
Input Signal . 0.3-1.0 V p-p (max dc offset ± 0.30 V)
Gain . Unity ±1%
Frequency Response . -0.5 dB @ 5 MHz; -3.0 dB @ 15 MHz
Differential Gain . 0.5%
Differential Phase . 1.3°
Line and Field Tilt . Less than 0.1%
Isolation between outputs Greater than 40 dB @ 5 MHz
Crosstalk . Greater than 40 dB @ 5 MHz
CMRR . -60 dB
Propagation Delay . 10ns
Input Signal . 75 ohms, analog, 0-1.0 V p-p
. (max dc offset ±0.30 V)
Gain . Unity
Input Impedance . 510 ohms
Output Impedance . 75 ohms
Max. Input Voltage . ±5 V
Input Sensitivity . 500 mV p-p
Output Level . 4.5 V p-p not terminated;
. 2.2 V p-p terminated at 75 ohms
Max. Propagation Delay . 64ns H to L (41 ns L to H)
Max. Rise/Fall Time . 8 ns H to L (3.6 ns H to L)
Polarity . Follows input
1-5
Extron • Matrix 100 • User’s Manual
Chapter 1 • Introduction to Matrix 100
Audio Module, General
Input Impedance . High Z (>10k ý, typical)
Input Voltage Level . To 6 V p-p into 600 ý
Output Impedance . Low, capable of driving 600 ý, balanced
Total Harmonic Distortion + Noise
Adjacent Channel Crosstalk Better than -85 dB @ 20kHz
Common Mode Rejection Ratio -55 dB worst case @ 20kHz (-65 dB Typical)
Stereo Channel Separation Greater than 60 dB 20 Hz - 20kHz
Audio Input Specifications
Maximum Input Level . 45 V p-p Differential
Nominal Input Program Level: -10 dBu (300 mV rms)
Output Level . Unity gain
Connectors . 6-conductor, Captive Screw Audio Terminal
Signal to noise . Better than 110 dB, 20Hz-20kHz
Worst case . 0.03% @ 20kHz, 30 V p-p
. (Differential Output)
Bandwidth . 20Hz - 20kHz, Flat ± 0.1 dB
. 22 V p-p Single-ended
Audio Output Specifications
Input Impedance . 20 k ý, Differential
. 10k ý, Single-ended
Maximum Output Level: . 45V p-p Differential
. 22 V p-p Single-ended
Nominal Output Program Level:
Professional Mode . +4 dBu (1.2 V rms)
Consumer Mode . -10 dBu (300 mV rms)
Output Impedance . 50 ý, Differential to Ground
Extron • Matrix 100 • User’s Manual
1-6
Notes:
Chapter 1 • Introduction to Matrix 100
1-7
Extron • Matrix 100 • User’s Manual
Matrix 100 Switcher
User’s Manual
Chapter Two
Rear Panel Connections
Multiple Output Connections
Genlock Connections
RGB Input Connections
2
Composite Video Input Connections
S-Video Input Connections
Audio Terminal Connections
Multi-Output Connection
• RGB and Sync (composite or separate H&V) signals will pass through the RGB
• NTSC and PAL video signals will pass through the composite video output
• S-Video will pass through the S-Video output (two Video modules)
Chapter 2 • Rear Panel Connections
When using the Matrix 100 to switch different types of video signals, the signal
output from the switcher is in the same format as the input.
and Sync outputs
Therefore, if multiple signal types are used in the same switcher, those same
signals will be available to the output devices.
In the diagram below, the Matrix 100 supplies RGB output for large screen
projectors and data monitors, composite video output for LCD projector and
audio output for a stereo audio system.
Figure 2-1. Matrix 100 Switcher and Input/Output Devices
2-1
Extron • Matrix 100 • User’s Manual
Chapter 2 • Rear Panel Connections
Genlock Connections
If so desired, the Matrix 100
can use an external
Genlock signal to
synchronize composite
video or S-Video switching.
The illustration here shows
the Genlock connections.
The In connector goes to a
timing source. The Out
connector allows the signal
to be passed on to another
video device; it does not
have to be connected for
Matrix operation.
Figure 2-2. Genlock connects to a timing source.
RGB Input Connections
All RGB input and output connections to the Matrix 100 are made with BNC type
connectors. Many types of RGB output devices (scan doublers, document
cameras, etc.), including most computers, do not have BNC video output
connectors. If not, a suitable adapter, or an Extron computer-video interface,
should be used to adapt the device output to the BNC input of the Matrix 100.
With the proper adapter, the RGB and Sync signals can be connected directly to
the R, G, B, H, V inputs of the switcher. If the RGB signal is using the Sync-onGreen channel, connect the RGB cables to the switcher without using the sync
channels.
RGB input connections to the Matrix 100 can be made using the following
combinations:
Without Audio
RGsB - Red, Sync-on-Green, Blue
RGBS - Red, Green, Blue, and Composite Sync
RGBHV - Red, Green, Blue, H&V Sync
With Audio
RGsB with R&L Audio - Red, Green, Blue, and Audio Follow
RGBS with R&L Audio - Red, Green, Blue, Sync and Audio Follow
RGBHV with R&L Audio - Red, Green, Blue, H&V Sync and Audio Follow
The following pages illustrate examples for the above combinations with Right
and Left Audio connections. If audio is not being used, ignore that part.
Extron • Matrix 100 • User’s Manual
2-2
RGB Connections, with Right & Left Audio
Figure 2-3 illustrates the Matrix 100 connections for switching RGB, or
component video. Choose an input number and connect each cable from the
source to the appropriate input on the Matrix 100. (The example shows
Input #1.) Likewise, choose an output number and connect each of the three
cables to a destination device.
Chapter 2 • Rear Panel Connections
12 3
43
Figure 2-3. An example of RGB, or Component Video
_______ Audio Connections may or may not be used. See page 2-9 for wiring.
2-3
Extron • Matrix 100 • User’s Manual
Chapter 2 • Rear Panel Connections
RGBS Connections with Right & Left Audio
Figure 2-4 illustrates the Matrix 100 connections for switching RGBS, or video
with composite sync. Choose an input number and connect each of the four
cables from the source to the appropriate input on the Matrix 100. (The example
shows Input #2.) Likewise, choose an output number and connect each of the
four cables to a destination device.
43
12
3
Figure 2-4. An example of RGBS, 4-BNC, or Composite Sync Video
_______ Audio Connections may or may not be used. See page 2-9 for wiring.
Extron • Matrix 100 • User’s Manual
2-4
RGBHV Connections with Right & Left Audio
Figure 2-5 illustrates the Matrix 100 connections for switching RGBHV, or video
with separate sync. Choose an input number and connect each of the five
cables from the source to the appropriate input on the Matrix 100. (This example
shows Input #2.) Likewise, choose an output number and connect each of the
five cables to a destination device.
Chapter 2 • Rear Panel Connections
43
12
3
Figure 2-5. An example of RGBHV, 5-BNC, or Video with Separate (H and V) Sync
_______ Audio Connections may or may not be used. See page 2-9 for wiring.
2-5
Extron • Matrix 100 • User’s Manual
