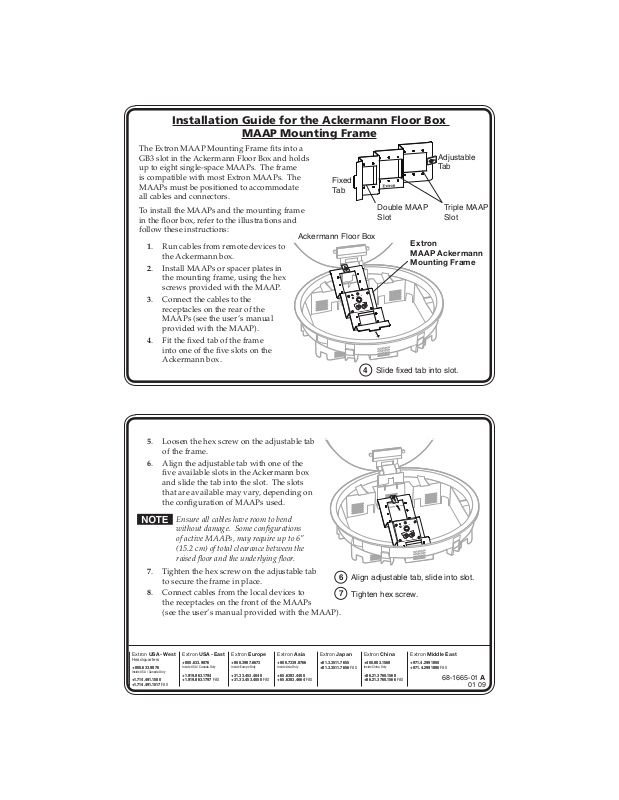

MAAP Mounting Frame

The Extron MAAP Mounting Frame fits into a
GB3 slot in the Ackermann Floor Box and holds
up to eight single-space MAAPs. The frame
is compatible with most Extron MAAPs. The
MAAPs must be positioned to accommodate
all cables and connectors.

To install the MAAPs and the mounting frame
in the floor box, refer to the illustrations and
follow these instructions:

1. Run cables from remote devices to
the Ackermann box.

2. Install MAAPs or spacer plates in
the mounting frame, using the hex
screws provided with the MAAP.

3. Connect the cables to the
receptacles on the rear of the
MAAPs (see the user’s manual
provided with the MAAP).

4. Fit the fixed tab of the frame
into one of the five slots on the
Ackermann box.

5. Loosen the hex screw on the adjustable tab
of the frame.

6. Align the adjustable tab with one of the
five available slots in the Ackermann box
and slide the tab into the slot. The slots
that are available may vary, depending on
the configuration of MAAPs used.

N

Ensure all cables have room to bend

without damage. Some configurations
of active MAAPs, may require up to 6”
(15.2 cm) of total clearance between the
raised floor and the underlying floor.

7. Tighten the hex screw on the adjustable tab
to secure the frame in place.

8. Connect cables from the local devices to
the receptacles on the front of the MAAPs
(see the user’s manual provided with the MAAP).
