Extron Electronics IPL T SFI244 User Manual

Download

User Manual

IPL T SFI244

IP Link Ethernet Control Interface

IP Link

68-738-06 Rev. C

02 10

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating instructions before using the equipment. Retain Instructions • The safety instructions should be kept for future reference. Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user information. Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment

manufacturer because they may be hazardous.

Warning

Power sources • This equipment should be operated only from the power source indicated on the product. This

equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power cords from the rear of

the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be stepped on or pinched

by items placed upon or against them.

Servicing • Refer all servicing to qualiﬁed service personnel. There are no user-serviceable parts inside. To prevent

the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to prevent

overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant

d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité aﬁn de pouvoir les consulter à l’avenir. Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou

présentés dans la documentation utilisateur.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und

Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie

aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in der

Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom

Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar el

equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta. Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la

documentación del usuario, deben ser obedecidas.

安全须知 • 中文

这个符号提示用户该设备用户手册中有重要的操作和维护说明。

这个符号警告用户该设备机壳内有暴露的危险电压，有触电危险。

注意

阅读说明书 • 用户使用该设备前必须阅读并理解所有安全和使用说明。保存说明书 • 用户应保存安全说明书以备将来使用。遵守警告 • 用户应遵守产品和用户指南上的所有安全和操作说明。避免追加 • 不要使用该产品厂商没有推荐的工具或追加设备，以避免危险。

Eviter les pièces de ﬁxation • Ne pas utiliser de pièces de ﬁxation ni d’outils non recommandés par le fabricant

du matériel car cela risquerait de poser certains dangers.

Avertissement

Alimentations • Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur l’appareil. Ce

matériel doit être utilisé avec une alimentation principale comportant un ﬁl de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous les

cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que personne

ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un

technicien qualiﬁé. Aucun des éléments internes ne peut être réparé par l’utilisateur. Aﬁn d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et oriﬁces • Si le boîtier de l’appareil comporte des fentes ou des oriﬁces, ceux-ci servent à empêcher les

composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie. Remplacer uniquement

avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben werden.

Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle Netzkabel aus der

Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und niemand

darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualiﬁziertem Servicepersonal durchgeführt werden.

Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese zur

Vermeidung einer Überhitzung der empﬁndlichen Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie verbrauchte Batterien

nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especiﬁcamente recomendados

por el fabricante, ya que podrian implicar riesgos.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación eléctrica

indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de alimentación

eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en lugares

donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal caliﬁcado. En el interior no

hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o oriﬁcios en su caja/alojamiento, es para evitar el

sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar esta

batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

警告

电源 • 该设备只能使用产品上标明的电源。设备必须使用有地线的供电系统供电。第三条线

（地线）是安全设施，不能不用或跳过。

拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后或桌面电源的电源线，或任何接到市

电系统的电源线。

电源线保护 • 妥善布线，避免被踩踏，或重物挤压。维护 • 所有维修必须由认证的维修人员进行。设备内部没有用户可以更换的零件。为避免出现

触电危险不要自己试图打开设备盖子维修该设备。

通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止机内敏感元件过热。不要用任何东

西挡住通风孔。

锂电池 • 不正确的更换电池会有爆炸的危险。必须使用与厂家推荐的相同或相近型号的电池。

按照生产厂的建议处理废弃电池。

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

The Class A limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Trademarks

All trademarks mentioned in this manual are the properties of their respective owners.

Introduction ............................................ 1

About this Manual ........................................... 1

About the IPL T SFI244 Interface ...................... 1

Features ........................................................... 1

Installation and Operation ..................... 3

Installation Overview ........................................ 3

Mounting the IPL T SFI244 Interface ................. 3

UL Guidelines for Rack Mounting ................. 3

Rack Mounting ............................................ 4

Furniture or Projector Mounting ................... 5

Rear Panel Features and Cabling ...................... 6

Power .......................................................... 6

Ethernet/LAN ............................................... 7

Serial Communication .................................. 7

Identiﬁcation ................................................ 8

Operation ........................................................ 8

Front Panel Indicators ................................... 8

Resetting the Unit ........................................ 9

Connection and Conﬁguration .............11

Connecting the Hardware .............................. 11

Ethernet Connection .................................. 11

Serial Connection ....................................... 12

IR Connection ............................................ 13

Flex I/O Connection .................................... 14

Conﬁguring the Hardware ............................. 14

PC Conﬁguration ....................................... 14

IPL T SFI244 Interface Conﬁguration ........... 15

Query String .............................................. 43

Code Examples .......................................... 45

URL Encoding ............................................ 51

A/V Device Control ........................................ 52

Custom Web Pages .................................... 52

Telnet (Port 23) .......................................... 53

Direct Port Access (Ports 2001

Through 2002) .......................................... 54

Troubleshooting ............................................. 55

Power connections ..................................... 55

Data connections ....................................... 55

Speciﬁcations, Part Numbers, and

Accessories .............................................

Speciﬁcations ................................................. 56

Part Numbers and Accessories ........................ 58

Glossary ..................................................59

Communication and Control .................18

Ports Overview ............................................... 18

Flex I/O Ports .............................................. 18

Bidirectional Serial Control

Interface Ports ........................................... 21

Communication with the Interface ................. 22

Web Server ................................................ 22

IR Learning ................................................. 30

Programmer’s Guide for the Telnet and Web

Browser ........................................................ 32

Using the Command/Response Table .......... 32

Customization ............................................... 42

Server Side Includes ................................... 42

IPL T SFI244 • Contents v

IPL T SFI244 • Contents vi

Introduction

This section gives an overview of the manual and describes the Extron IPL T SFI244 and its features. Topics that are covered include:

• About this Manual

• About the IPL T SFI244 Interface

• Features

About this Manual

This manual describes the function, installation, conﬁguration, and operation of the IPL T SFI244 Ethernet control interface.

About the IPL T SFI244 Interface

The IPL T SFI244 interface is an Ethernet-based control interface designed to be used as one of many nodes in a distributed control system environment, or as a stand-alone control interface allowing legacy products to link to today’s IP Link®-based networks.

Features

The IPL T SFI244 has one 10-pole, 3.5 millimeter captive-screw connector for the two bidirectional COM ports and the four digital I/O ports. It also has one 8-pole, 3.5 millimeter captive-screw connector for the four IR output ports. The ports are fully software conﬁgurable via the 10/100 Ethernet port using a Web-based interface. The IPL T SFI244 only supports the RS-232 protocol (RS-422 and RS-485 protocols are not supported). The IR ports are capable of transmitting both carrier and non-carrier (wired or IR) control data.

The IPL T SFI244 interface can host its own Web pages, stored in ﬂash memory within the devices. It supports Telnet, SMTP (simple mail transfer protocol), ICMP (Internet control message protocol) or ping, and DHCP (dynamic host conﬁguration protocol).

The IPL T SFI244 ships with an external, desktop, 12 VDC, 1A power supply (Extron part #28-071-01), that accepts 100-240 VAC input.

Distributed system architecture — A decentralized architecture ensures fault-tolerance throughout the system and stand-alone reliability.

IR remote control — Infrared remote control allows “learning” of commands to control A/V devices.

Easy component conﬁguration — Using the GlobalViewer® software allows point-and- click component conﬁguration and control.

High speed — Provides constant high speed data throughput, with a 6 Mbit/second transfer rate.

User customizable — Tailor the on-board Web pages with advanced programmability, e-mail alerts, and storage to suit your needs and requirements. You can also develop your own Web pages using the GlobalViewer application software.

IPL T SFI244 • Introduction 1

Direct port access — Use existing software programs to control a device that has no Ethernet support. Any existing Extron product with a serial control port can be interfaced with a LAN.

Built-in multilevel security — User controls access to the devices attached to the interface. Two levels of password protection provide appropriate security.

Easily connected — Serial ports on 3.5 millimeter, captive screw connectors, and RJ-45 male auto-sense 10/100 Mbps Ethernet LAN connection.

I/O ports — Can be used to sense when a switch or relay has been activated (input). Can also be used to activate external relays for power, screens, or projector lift controls (output).

IR ports — Allow control of up to 16 devices, with four IR emitters per port.

Easily conﬁgured and controlled —

Using a standard Web browser (such as Microsoft® Internet Explorer®) and Web-based interface.

Using a standard Telnet client application.

Requires no centralized processor to operate within a system.

Choice of mounting options — Can be mounted under a desktop or podium, on a projector mount, or on a rack shelf.

Remote management — Allows you to remotely manage projectors, cameras, video conferencing equipment, switchers, and other A/V equipment.

Multiple protocols supported — Allows use of Telnet, SMTP, ICMP, ARP, and DHCP protocols.

IPL T SFI244 • Introduction 2

Installation and Operation

This section describes the installation and the operation of the IPL T SFI244. Topics that are covered include:

• Installation Overview

• Mounting the IPL T SFI244 Interface

• Rear Panel Features and Cabling

• Operation

Installation Overview

To install and set up the IPL T SFI244:

1. Turn all of the equipment off. Make sure that the video sources (DSS, cable boxes, or

other devices), the IPL T SFI244 unit, the output devices (monitors, VCRs, projectors, and so on) and the serial controller are all turned off and disconnected from the power source.

2. Mount the IPL T SFI244 (see Mounting the IPL T SFI244 Interface).

3. Attach the cables (see Connecting the Hardware).

4. Connect power cords and turn on the devices in the following order: output devices

(projectors, monitors, speakers), the IPL T SFI244 unit, a serial controller or PC, then all input devices (DSS, cable boxes, and so on).

5. Conﬁgure the IPL T SFI244 interface through Telnet, then access the IPL T SFI244 using

an Internet browser.

Mounting the IPL T SFI244 Interface

UL Guidelines for Rack Mounting

The following Underwriters Laboratories (UL) guidelines pertain to the installation of an IPL T SFI244 unit onto a rack.

1. Elevated operating ambient — If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consider installing the equipment in an environment compatible with the maximum ambient temperature speciﬁed by the manufacturer [Tma = +32 to +122 °F (0 to +50 °C)].

2. Reduced air ﬂow — Installation of the equipment in a rack should be such that the

amount of air ﬂow required for safe operation of the equipment is not compromised.

3. Mechanical loading — Mounting of the equipment in the rack should be such that a

hazardous condition is not achieved due to uneven mechanical loading.

IPL T SFI244 • Installation and Operation 3

4. Circuit overloading — Consideration should be given to the connection of the

5. Reliable earthing (grounding) — Reliable earthing of rack-mounted equipment

Rack Mounting

For optional rack mounting, mount the unit on an RSF 123 1U Rack Shelf (part #60-190-20) (see ﬁgure 1) or an RSU 129 standard Universal 1U Rack Shelf (part #60-190-01) (see ﬁgure 2). On the standard rack shelf, the unit mounts in one of four locations to the rear of the rack or in one of four locations to the front of the rack.

1. If feet were previously installed on the bottom of the IPL T SFI244 unit, remove them.

2. Mount the unit on the rack shelf, using two 4-40 x 3/16-inch screws in opposite

3. Install blank panel(s) or other unit(s) to the rack shelf.

4. Insert the shelf into the rack, aligning the holes in the shelf with those in the rack.

5. Secure the shelf to the rack using the supplied machine screws. This shelf can be

equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (such as the use of power strips).

(diagonal) corners to secure the unit to the shelf.

mounted in the front or in the rear of the rack.

RSF 123 Rack Shelf

1/4 Rack Width Front False Faceplate

Use 2 mounting holes on opposite corners.

(2) 4-40 x 3/16" Screws

Figure 1. Mounting the Unit on the RSF 123 Rack Shelf

IPL T SFI244 • Installation and Operation 4

RSU 129 Universal Rack Shelf

Both front false faceplates use 2 screws.

Use 2 mounting holes on opposite corners.

1/2 Rack Width Front False Faceplate

1/4 Rack Width Front False Faceplate

(2) 4-40 x 3/16" Screws

Figure 2. Mounting the Unit on the Standard Shelf

Furniture or Projector Mounting

In addition to using the IPL T SFI244 unit on a rack, it can also be furniture or projector mounted. Furniture mount or projector mount the unit using the optional mounting kit (part #70-212-01, furniture, or part #70-217-01, projector) as follows:

1. Attach the mounting brackets to the unit with the machine screws provided (see

ﬁgure 3).

2. If feet were previously installed on the bottom of the unit, remove them.

3. For furniture mounting, hold the unit with the attached brackets against the

underside of the table or other furniture. Mark the location of the screw holes of the bracket on the mounting surface.

4. For furniture mounting, drill 3/32-inch (2 millimeters) diameter pilot holes,

1/4 inches (6.3 millimeters) deep in the mounting surface at the marked screw locations.

5. For furniture mounting, insert #8 wood screws into the four pilot holes. Tighten

each screw into the mounting surface until just less than 1/4 inches of the screw head protrudes.

6. For furniture mounting, align the mounting screws with the slots in the brackets

and place the unit against the surface, with the screws through the bracket slots.

7. For furniture mounting, slide the unit slightly forward or back, then tighten all four

screws to secure it in place.

8. For projector mounting, secure the unit to a projector mount or other surface by

inserting the mounting bolt through the bracket’s slotted hole.

3URMHFWRU 0RXQWLQJ %UDFNHW

0RXQWLQJ %ROW

,3/76),





&20

5; 





,2

 







$&7

/,1.



)XUQLWXUH0RXQW

&HLOLQJ

'LJLWDO3URMHFWRU

3URMHFWRU0RXQW

Figure 3. Mounting the IPL T SFI244

IPL T SFI244 • Installation and Operation 5

Rear Panel Features and Cabling

All connections, including power, input and output, and control, are on the rear panel of the IPL T SFI244 (see ﬁgure 4).

00-05-A6-00-06-25

POWER

12V

.5A MAX

LAN

COM1

TX RX TX RX

FLEX I/O

21 3 4 1IR2 3 4

COM2

GSGSGSGS

Figure 4. IPL T SFI244 Interface Rear Panel

Power

Power Connection — Plug the external 12 V power supply into this connector. The

power supply is included with the unit.

WARNING: When wiring, The two power cord wires must be kept separate while

the power supply is plugged in. Remove power before continuing.

CAUTION: Always use a power supply supplied and or speciﬁed by Extron. Use

of an unauthorized power supply voids all regulatory compliance certiﬁcation and may cause damage to the supply and the end product. Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA 70, article 75 and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently ﬁxed to building structure or similar structure.

When connecting the power supply, voltage polarity is extremely important. Applying power with incorrect voltage polarity could damage the power supply and the unit. Identify the power cord negative lead by the ridges on the side of the cord.

Smooth

SECTION A–A

Ridges

Power Supply Output Cord

3/16”

(5 mm) Max.

Figure 5. Power Connector Wiring

NOTE: Do not tin the stripped power supply leads before installing the captive

screw connector. Tinned wires are not as secure in the captive screw connectors and could pull out.

To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter.

IPL T SFI244 • Installation and Operation 6

Ethernet/LAN

LAN Activity LED — A blinking yellow LED indicates LAN activity.

LAN

RJ-45 Port

Link LED

Activity LED

Link LED — The green LED lights to indicate a good LAN connection.

LAN connector — Plug an RJ-45 jack into this socket to connect the unit to a

computer network. Use a straight-through cable to connect to a switch, hub, or router, and a crossover cable to connect directly to a PC.

Pins:

12345678

Insert

Straight-through Cable

(for connection to a switch, hub, or router)

End 1 End 2

Pin Wire Color Pin Wire Color

1 white-orange 1 white-orange 2 orange 2 orange 3 white-green 3 white-green 4 blue 4 blue 5 white-blue 5 white-blue 6 green 6 green 7 white-brown 7 white-brown 8 brown 8 brown

End 1 End 2

Pin Wire Color Pin Wire Color

1 white-orange 1 white-green 2 orange 2 green 3 white-green 3 white-orange 4 blue 4 blue 5 white-blue 5 white-blue 6 green 6 orange 7 white-brown 7 white-brown 8 brown 8 brown

Crossover Cable

(for direct connection to a PC)

Twisted

Pair Wires

Figure 6. RJ-45 Connector Wiring

Serial Communication

Flex I/O ports — Four I/O ports permit connection of switches and sensors to provide

input to the system, and contact closure activation of relays for power, screen, or projector lift control (output). Plug a serial cable into this 3.5 millimeter, 5-pole captive screw connector for ﬂexible I/O connection (see Flex I/O Connection).

COM ports — Plug a 3.5 millimeter, 5-pole captive screw connector into this socket

for serial ports 1 and 2. Factory default protocol for the control interface is:

• RS-232 • 8 data bits • pacing = 0 milliseconds

• 9600 baud • 1 stop bit • handshaking = off

• no parity

IR ports — Plug an IR cable into this 3.5 millimeter, 8-pole captive screw connector

for infrared connections (see IR Connection). The IPL T SFI244 unit can be used to control display devices, switchers, and other A/V

equipment via an RS-232 connection.

IPL T SFI244 • Installation and Operation 7

Identiﬁcation

Operation

Front Panel Indicators

MAC address — The unique user hardware ID number (MAC address) of the unit (for

example, 00-05-A6-00-00-01).

Connect power cords and turn on the display output devices (projectors, monitors, VCRs), control devices (switchers, scalers, network equipment).

Check indicator LEDs on the PC or laptop, on the unit and on the network hub or router, and so on, to ensure that all devices are plugged in and communicating. The IPL T SFI244 is now ready to be conﬁgured (see Connection and Conﬁguration).

If connection or communication problems occur, see Troubleshooting. If the troubleshooting tips do not help, check with your local network administrator, or call the Extron S3 Sales & Technical Support Hotline.

The front panel of the IPL T SFI244 has several indicator LEDs that show the current status of communications to and from the unit. A Reset button (b) is also available from the

front panel, in a small recess next to the Power LED.

100

LINK

ACT

IPL T SFI244

COM

Figure 7. IPL T SFI244 Front Panel

Power LED — A green LED lights to indicate that the unit is receiving power.

Reset button (recessed) — See Resetting the unit for details on this multi-function

1 2

321

I/O IR

RX 1 3

4 5 6

2 4

1 3

2 4

Reset button.

IR learning receiver — This smaller infrared receiver “learns” commands from other

devices’ IR remote controls. Refer to the IR Learner Software help ﬁle for IR Learning procedures.

COM ports — A green LED indicates that data is being transmitted or received (TX or

RX).

I/O ports — A green LED indicates that the corresponding I/O port (1-4) is active.

IR ports — A green LED lights to indicate that the corresponding IR port (1-4) is

transmitting data.

100 LED — A green LED lights to indicate that the connection speed is 100 Mbps. If

IPL T SFI244 • Installation and Operation 8

the LED is not lit, the connection speed is 10 Mbps.

Link LED — A green LED indicates that the unit is connected to an active network.

Act (Activity) LED — A yellow LED lights to indicate that data is being sent or

received.

Resetting the Unit

There are ﬁve reset modes available by using the Reset button (b) on the front panel. The Reset button is recessed, so use of a pointed stylus, ballpoint pen, or Extron Tweeker is suggested.

CAUTION: Review the reset modes carefully. Use of the wrong reset mode may result

in unintended loss of ﬂash memory programming, the reassignment of ports, or a unit reboot.

IPL T SFI244 • Installation and Operation 9

IPL T SFI244 Reset Mode Summary

Mode Activation Result Purpose/Notes

1 Hold down the recessed Reset button

while applying power to the IPL T SFI244.

N After a mode 1 reset is performed,

update the unit’s firmware to the latest version. Do not operate the IPL T SFI244 firmware version that

Firmware

Use Factory

results from the mode 1 reset. This mode temporarily resets the unit to factory default until power is recycled. If you want to use the factory default firmware, you must upload that version again.

The IPL T SFI244 reverts to the factory default firmware. Event scripting does not start if the unit is

powered on in this mode. All user files and settings (drivers, adjustments, IP settings, etc.) are maintained.

N If you do not want to update firmware, or you

performed a mode 1 reset by mistake, cycle power to the unit to return to the firmware version that was running prior to the mode 1 reset. Use the 0Q SIS command to confirm that the factory default firmware is no longer running (look for asterisks following the version number.)

Use mode 1 to revert to the factory default firmware version if incompatibility issues arise with user-loaded firmware.

N User-defined

Web pages may not work correctly if using an earlier firmware version.

2 Press and release the Reset button.

Within 2 seconds, type +++ on the keyboard.

N If the three “+’s” (+++) are not

Enable

Serial Console

3 Hold down the Reset button for about 3

Events

Run/Stop

4 Hold down the Reset button for about

Reset all

IP Settings

5 Hold down the Reset button for about

Reset to

enetered in the 2-second time frame, the COM port becomes a control port only.

sec. until the Power LED blinks once, then release and press Reset momentarily (<1 sec.) within 1 second.

Nothing happens if the momentary

press does not occur within 1 second.

6 sec. until the Power LED blinks twice (once at 3 sec., again at 6 sec.). Then release and press Reset momentarily (for <1 sec.) within 1 second.

Nothing happens if the momentary

press does not occur within 1 second.

9 sec. until the Power LED blinks three times (once at 3 sec., again at 6 sec., again at 9 sec.). Then release and press Reset momentarily (for <1 sec.) within 1 second.

Nothing happens if the momentary

press does not occur within 1 second.

The connected COM port becomes a console port to send SIS commands. Scripting remains on.

Mode 3 turns events on or off.

Mode 4

• Enables ARP capability.

• Sets the IP address back to factory default (192.168.254.254).

• Sets the subnet back to factory default.

• Sets the default gateway address to the factory default.

• Sets port mapping back to factory default.

• Turns DHCP off.

• Turns events off.

Mode 5 performs a complete reset to factory defaults (except the firmware).

• Does everything mode 4 does.

• Clears driver-port associations and port configurations (IR/RS-232).

• Removes button/touchpanel configurations.

• Resets all IP options.

• Removes scheduling settings.

• Removes/clears all files from the IPL T SFI244.

Mode 2 enables the SIS console port.

Mode 3 is useful for troubleshooting.

Mode 4 enables you to set IP address information using ARP and the MAC address.

Mode 5 is useful if you want to start over with configuration and uploading, and also to replace events.

Factory Defaults

IPL T SFI244 • Installation and Operation 10

Connection and Conﬁguration

This section discusses how to connect and conﬁgure the IPL T SFI244. Topics that are covered, include:

• Connecting the Hardware

• Conﬁguring the Hardware

Connecting the Hardware

To connect the IPL T SFI244 interface, connect the input and output devices to the unit using ﬁgure 8 as a guide. Before connecting the IPL T SFI244 to a local area network (LAN) you must initially connect a PC directly to the IPL T SFI244 and change the default IP address to an address speciﬁed by your network administrator (for a LAN connection).

Motion Detector

Extron IPL T SFI244

Ethernet Control Interface

TCP/IP

Network

Ethernet

Remote User Control & Administrator Monitoring

Figure 8. Example Application

Ethernet Connection

This type of connection is used on an ongoing basis to connect the IPL T SFI244 unit and to control switching and display devices through the unit.

1. Plug one end of a CAT 5, straight-through Ethernet cable into the rear panel Ethernet

connector on the IPL T SFI244. See ﬁgure 6 for RJ-45 connector wiring.

2. Plug the other end of the Ethernet cable into a network switch, hub, or router

connected to an Ethernet LAN or to the Internet.

3. Launch your Web browser on your PC and type the Web address that you set up

on the IPL T SFI244 (see IPLT T SFI244 Interface Conﬁguration) in the browser’s Address ﬁeld. The initial IPL T SFI244 default Web page is displayed.

00-05-A6-xx-xx-xx

AX 12V .5A M

1 2 M

TXRX

RS-232

I/O

GSGSGSG

3 4 1

RS-232

INPUT SELECT

MLS 100 Series

Extron MLS 103 SV

S-video & Audio Switcher

Projector

Screen

RELAY 4

RELAY 3

NO C NC

Control

RELAY 2

NO C NC

RELAY 1

Extron IPL T RLY4

Relay Box

NO C NC

Lighting System

VCR/ DVD 2

AUX/MIX LEVEL

itch

k S

in iaL

Extron

IR Emitters

DVD 1

DSS Receiver

IPL T SFI244 • Connection and Conﬁguration 11

Serial Connection

The IPL T SFI244 can be connected to any existing A/V product that has a serial control port.

Extron IPL T SFI244

Ethernet Control Interface

00-05-A6-xx-xx-xx

LAN

POWER

12V .5A MAX

TCP/IP

Network

FLEX I/O

GSGSG

3 4 1

COM2

COM1

RX TXRX

RS-232

Ethernet

User Control & Administrator Monitoring

RS-232

Projector

OUTPUTS

Extron Switcher

CROSSPOINT 42 HVA

VIDEO/ dB

I/O

AUDIO/ dB

CONF/ SAVE

INPUTS

Figure 9. Typical IPL T SFI244 Serial Connection

1. Connect one end of a serial cable wired appropriately with a 3.5 millimeter, 5-pole

captive screw connector to the rear panel COM port connector of the unit.

9-Pin D Connector

Receive Data/Receive Data -

Transmit Data/Transmit Data -

Signal Ground

Function

RS-232

RX TX

GND

9-Pin D Connector

5 1

9 6

Captive Screw Connector

Transmit Data/Transmit Data -

Receive Data/Receive Data -

Signal Ground

Transmit Data/Transmit Data -

Receive Data/Receive Data -

Function

5-pole Captive Screw

Connector

TX RX

Gnd

TX RX

RS-232

GND

Figure 10. Connector Pinouts

2. Connect the other end of the serial cable to the display or switching device to be

controlled through the unit.

IPL T SFI244 • Connection and Conﬁguration 12

IR Connection

Wiring for the IR emitter is provided by the IR ports. The IPL T SFI244 provides enough current to power up to four IR emitters with a 100-foot run each, or at least one at up to 4,000 feet. IR control can be applied to devices such as VCRs, audio tape players, or DVD players.

00-05-A6-00-04-15

POWER

LAN

12V

.5A MAX

IPL T SFI244

COM1

TX RX TX RX

2-pole captive screw connectors can also be used.

FLEX I/O

21 3 4 1IR2 3 4

COM2

GSGSGSGS

White Striped Wire

100'

A 100' run can be used with a maximum of 400' for multiple IR emitters.

IR Emitter 1

Figure 11. IR connection with 8-pole Captive Screw and IR Emitter

1. Connect one end of an IR emitter cable to the rear panel IR port connector of the unit.

See ﬁgure 11 for connection options.

2. Place the head of each IR emitter over or directly adjacent to the controlled device’s IR

receiver.

IR learning frequencies are 30 kHz to 1 Mhz. See IR Learning for more information on IR learning.

IPL T SFI244 • Connection and Conﬁguration 13

Flex I/O Connection

The IPL T SFI244 provides ﬂexible I/O ports that can be conﬁgured to three different operational modes: digital input, digital output and analog input. These ports can interface with devices such as relays, LEDs, and switches, and can also be conﬁgured to receive analog voltages for use with photo sensors and level feedback.

1. Connect one end of a control cable to the rear panel ﬂex I/O port connectors of the

unit.

2. Connect the other end of the control cable to the devices that are to be controlled

through the unit.

See Establishing or changing system or port settings for more information on conﬁguring the ﬂex I/O ports.

00-05-A6-xx-xx-xx

POWER

12V

.5A MAX

Figure 12. Flex I/O Connection with 5-pole Captive Screw on an IPL T SFI244

Conﬁguring the Hardware

To function together properly, both the controlling PC and the IPL T SFI244 must be conﬁgured correctly. The PC must be network-capable, with the proper protocols installed and the hardware conﬁgured correctly. The unit must be set to recognize and accept commands, as well as pass them through to the switcher, projector, or other controlled device.

LAN

COM1

COM2

TX RX TX RX

FLEX I/O

21 3 4 1IR2 3 4

GSGSGSGS

Ground

Wire Nut

Device 4 Device 3 Device 2 Device 1

PC Conﬁguration

This manual assumes that you have a Windows® PC equipped with an operating network adapter. To allow your PC to work with Extron Ethernet-controlled products, the TCP/IP protocol must be installed and properly conﬁgured.

For use on an existing Ethernet LAN intranet, your network administrator can provide you with a unique IP address or conﬁrm whether you need to set up the IPL T SFI244 for DHCP (Dynamic Host Conﬁguration Protocol) to have an address assigned automatically when you sign on.

IPL T SFI244 • Connection and Conﬁguration 14

Initial start up

When you power on the IPL T SFI244 for the ﬁrst time, there are two ways to set up the IP address.

1. Use the ARP (Adress Resolution Protocol) command method.

2. Use the direct PC method.

The default Web pages that are pre-loaded on the IPL T SFI244 interface provide a way to reconﬁgure the IPL T SFI244 once it has an active network connection with IP access. These Web pages are compatible with Internet Explorer® (version 5.5 or higher). See

Communication with the Interface for information on accessing and conﬁguring the

interface.

Once the unit has been reconﬁgured, an Ethernet (intranet or Internet) connection can subsequently be used to contact or control it. See Ethernet Connection for additional information.

IPL T SFI244 Interface Conﬁguration

Conﬁguring the IPL T SFI244 using the ARP command

You can make use of the ARP command to set up an IP address for your IPL T SFI244. The ARP command tells your computer to associate the IPL T SFI244 unit’s MAC address with the assigned IP address. You must then use the ping command to access the IPL T SFI244 unit, at which point the device server’s IP address will be reconﬁgured.

NOTE: To use this setup method, both your computer and IPL T SFI244 interface must

be connected to the same LAN. Or, you can use a crossover Ethernet cable to connect the device server directly to your computer’s Ethernet card.

Use ARP to conﬁgure the IP address as follows:

1. Obtain a valid IP address for your IPL T SFI244 from your network administrator.

2. Obtain the IPL T SFI244 unit’s MAC address from the label on its rear panel.

3. If the unit has never been conﬁgured and is still set for factory defaults, go to step

4. If not, perform a Mode 4 system reset. See Resetting the Unit for detailed information on reset modes.

CAUTION: The IPL T SFI244 unit must be conﬁgured with the factory default IP

address — 192.168.254.254 — before executing the ARP command, as described in the following steps.

IPL T SFI244 • Connection and Conﬁguration 15

4. Access the command prompt, then execute the arp -s command.

Enter the desired new IP address and the MAC address (the MAC address is located on the rear panel’s upper right corner) for the IPL T SFI244 unit. For example:

arp -s 10.13.170.15 00-05-A6-00-0A-90

Figure 13. Executing the ARP Command

5. Execute a ping command by typing your new IP address in the command prompt. For

example:

ping 10.13.170.15

After issuing this command, the unit changes to the new address and starts responding to the ping requests, as shown below. The IPL T SFI244 unit’s IP address should now be updated to the new address, and then you can reconnect using either Telnet or the Web to verify that the update was successful.

Figure 14. Unit Response to a Ping Request

6. After verifying that the change was successful, issue the arp -d command in the

command prompt. For example: arp -d 10.13.170.15 removes 10.13.170.15 from the arp table

arp -d* removes all static IP addresses from the arp table.

IPL T SFI244 • Connection and Conﬁguration 16

Conﬁguring the IPL T SFI244 using direct PC connection

This type of connection is used initially to connect to and conﬁgure the IPL T SFI244. The unit’s default settings (IP address, subnet mask, and [optional] administrator name and password) must be changed in order to use the unit on an intranet (LAN) or on the Internet (WAN).

1. Plug one end of a CAT 5, crossover Ethernet cable into the rear panel Ethernet

connector on the IPL T SFI244. See ﬁgure 6 for RJ-45 connector wiring.

2. Plug the other end of the Ethernet cable into the Ethernet port on your PC.

3. Right-click on the Network Neighborhood or My Network Places icon on your

Windows (98, 2000, NT, ME, XP) desktop and select properties from the menu.

4. Select Internet Protocol (TCP/IP) from the list and click on Properties. (If you

are using Windows 2000, right-click Local Area Connection and select Properties from the menu, then select Internet Protocol (TCP/IP) from the list and click on Properties again.) If Internet Protocol (TCP/IP) is not on the list, it must be added (installed). Refer to your Windows user manual or the online Help system for information on how to install the TCP/IP protocol.

5. Write down your current IP address and subnet mask below. If your PC is set to

“Obtain an IP address automatically,” make a note of that, instead. IP Address:

. . .

Subnet Mask:

. . .

6. Click on Specify an IP address or Use the following IP address (depending on

your operating system), and leave the default gateway blank. Enter the following values:

IP address: 192.168.254.253

Subnet Mask: 255.255.0.0

7. Save the changes and exit the Network setup. Reboot the PC, if required, for the

changes to become effective.

8. Launch your Web browser (Internet Explorer), and type

“http://192.168.254.254/index.html” in the Address ﬁeld. The IPL T SFI244 default Web page is displayed. See IPL T SFI244 Interface Conﬁguration for more information on conﬁguring your unit.

9. After conﬁguring the IPL T SFI244 interface, repeat steps 3 and 4 to change your

TCP/IP settings back to their original conﬁguration.

Firmware upgrades

Firmware upgrades become available as improvements are made to the versatility and functionality of the IPL T SFI244. These upgrades are available for download from the Extron Web site. See Upgrading the ﬁrmware for more information on upgrading the ﬁrmware.

IPL T SFI244 • Connection and Conﬁguration 17

Communication and Control

This section describes communication with the IPL T SFI244 interface as well as A/V device control. Topics that are covered, include:

• Ports Overview

• Communication with the Interface

• Programmer’s Guide for the Telnet and Web Browser

• Customization

• A/V Device Control

• Troubleshooting

Ports Overview

Flex I/O Ports

Extron ﬂex I/O ports are conﬁgurable input or output ports designed to provide connectivity to various devices such as motion detectors, alarms, lights, LEDs, buttons, photo (light) sensors, temperature sensors, or relays. All ﬂex I/O ports are tied to a common ground, but can be individually conﬁgured to operate in one of three different modes:

• Digital Input

• Digital Output

• Analog Input

These ports can be conﬁgured by using the default Web pages of the IPL T SFI244 Web Server (see ﬁgure 15; also see Establishing or changing system or port settings) or by dynamically using the Simple Instruction Set™ commands (see Programmer’s Guide for

the Telnet and Web Browser) via Telnet, scripts, or Web pages.

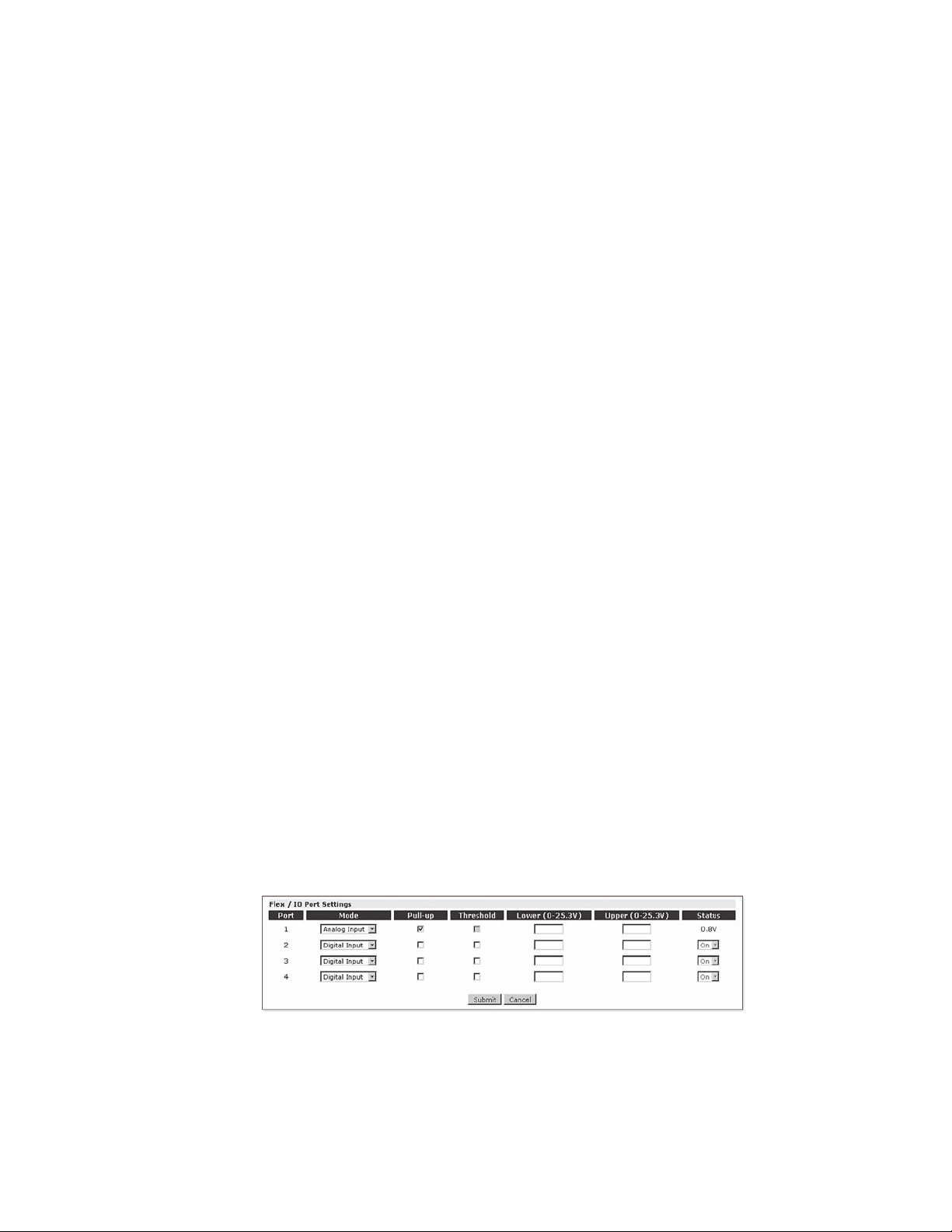

Figure 15. Default Web Page for Flex I/O

IPL T SFI244 • Communication and Control 18

Digital input

When a ﬂex I/O port is conﬁgured as a digital input, the port measures two states: 1 or 0; On or Off; high or low. A closed circuit = a logic 1 and an open circuit = a logic 0.

+30V +5V

SW2

24K SW1

I/O

GND

Figure 16. Equivalent Digital Input Circuit

The Digital Input mode has two conﬁgurable options:

1. The ability to turn on an internal pull-up resistor to +5 VDC (shown below as SW2)

2. Adjustable detection threshold voltages

The default threshold voltages follow standard TTL logic: a voltage below 0.8 VDC is measured as logic low and a voltage above 2.0 VDC is measured as logic high. Using an adjustable threshold, the integrator can select the proper high and low voltages for the installation.

NOTE: In the ﬁgure below, the SW2 switch is turned closed, activating the +5 VDC and

2K pull-up resistor.

+30V +5V

SW2

24K

I/O

GND

Figure 17. Sample Wiring for a Digital Input Reading an External Pushbutton

Switch

IPL T SFI244 • Communication and Control 19

If the integrator selects threshold voltages that are more than 0.1 V apart, a deadband, or hysteresis, will be established.

In the following example, the lower threshold voltage is set at +6 VDC and the upper threshold is set at +16 VDC. The shaded bands show state changes on the logical outputs.

The range between 6-16 VDC is the deadband in which the signal can ﬂuctuate without affecting the input state.

Low

VDC

26 24 22 20 18 16

14 12 10

8 6

4 2

High

Time

Upper Threshold

Lower Threshold

Hysteresis

Figure 18. High and Low Transitions of Adjustable Threshold with Deadband

(Hysteresis)

Digital output

When a ﬂex I/O port is conﬁgured as a digital output, it offers two output states: “on” and “off”. When the port is set to an “on” state, (SW1 is closed), the I/O pin is connected to ground (each I/O port is capable of sinking 250 mA max). When the port is set to the “off” state, (SW1 is open), the output pin is ﬂoating.

If the application calls for TTL compatibility, SW2 can be selected to provide a 2K pull-up resistor to +5 VDC.

+30V

I/O

24K SW1

GND

+5V

390

Figure 19. Sample of a Digital Output Port Driving an LED Using an External

+5 VDC Source

IPL T SFI244 • Communication and Control 20

Analog input

When a ﬂex I/O port is conﬁgured as an analog input, the port can measure 0 to 25.3 VDC with 12-bit accuracy. A DC level is indicated by a count from 0-4096 (≈ 6 mv/count).

+30V

+12V

I/O

24K

GND

10K

Figure 20. Sample of an Analog Input for a Level Adjustment, Using a 10K Pot

Bidirectional Serial Control Interface Ports

The IP Link® family of products has several models that incorporate bidirectional serial control ports. The serial ports allow for control of a wide variety of existing Extron and third-party devices. The most common serial control formats are RS-232, RS-422, and RS-485. With the IPL T SFI244, the captive screw connector is an implementation for the serial control ports.

Captive Screw Connectors — On the IPL T SFI244 unit, all of the serial interface ports are connected on captive screw terminals. When using the ports on the captive screw terminals, only RS-232 control is available, and hardware handshaking is unavailable. Since RS-232 is the most common control interface encountered, this port conﬁguration allows for quick termination.

NOTE: Pacing and handshaking are not supported on captive screw connectors.

All of the bidirectional serial ports are completely software conﬁgurable. Baud rates can be set up to 115 Kbs. Using the Simple Instruction Set (SIS) commands found in the

Programmer’s Guide for the Telnet and Web Browser, these ports can be conﬁgured

to control most serial devices. Once a port is conﬁgured and properly cabled to the controlled device, serial commands can be issued to the port from a Web page, Telnet connection, or by using the advanced scripting capability built into the IP Link product family.

IPL T SFI244 • Communication and Control 21

Communication with the Interface

Web Server

The on-board Web server is displayed as a set of default Web pages which can be accessed via a Web browser. These pages are the primary means of communication with, and control through, the IPL T SFI244 interface. Web browsers such as Internet Explorer® (version 5.5 or higher) can be used, but if using Internet Explorer, you must also have Microsoft® Script (version 5.6 or higher).

The PC used to access the Web server must have a connection in common with the IPL T SFI244. In other words, both the unit and the PC should be connected to your local intranet or the Internet.

If you have established passwords for the interface, you will be shown a password window when your browser accesses the IPL T SFI244 (but not when you initially access the Web server, since no passwords have been established). Your level of control over the interface depends on the password you enter in this password screen. If you enter an administrator password, you have control of all matters of conﬁguration. If you enter a user password, you are restricted to control of A/V devices and viewing status.

Accessing and using the Web server

To log on and view system status:

1. Double-click the Web browser icon on your Windows desktop to launch your Web

browser.

2. Enter the IP address of the unit (see IPL T SFI244 Interface Conﬁguration) in the

Address ﬁeld at the top of the screen and press the Enter key. The Password window (see ﬁgure 21) is displayed if a password has been set (this will not happen the ﬁrst time you access the interface, as no password is set at the factory).

Figure 21. Password Window

IPL T SFI244 • Communication and Control 22

The System Status page (see ﬁgure 22) is displayed, showing the current IP and port settings of the unit.

Figure 22. System Status Screen

Establishing or changing system or port settings

The System Settings screen is used to initially conﬁgure or change conﬁguration of the IPL T SFI244 interface. You may be required to change system settings if your network changes, or if port settings change as you add or change display devices or switchers.

To conﬁgure system or port settings:

1. Select the Configuration tab. The System Settings screen (see ﬁgure 23) is displayed.

Figure 23. System Settings Screen

2. Make changes to the IP settings or date/time settings, as necessary.

3. Click Submit to enter the changes or click Cancel to revert to the previous settings.

IPL T SFI244 • Communication and Control 23

4. Click Port Settings on the menu (on the left side of the window) and the Port

Settings screen (see ﬁgure 24) is displayed.

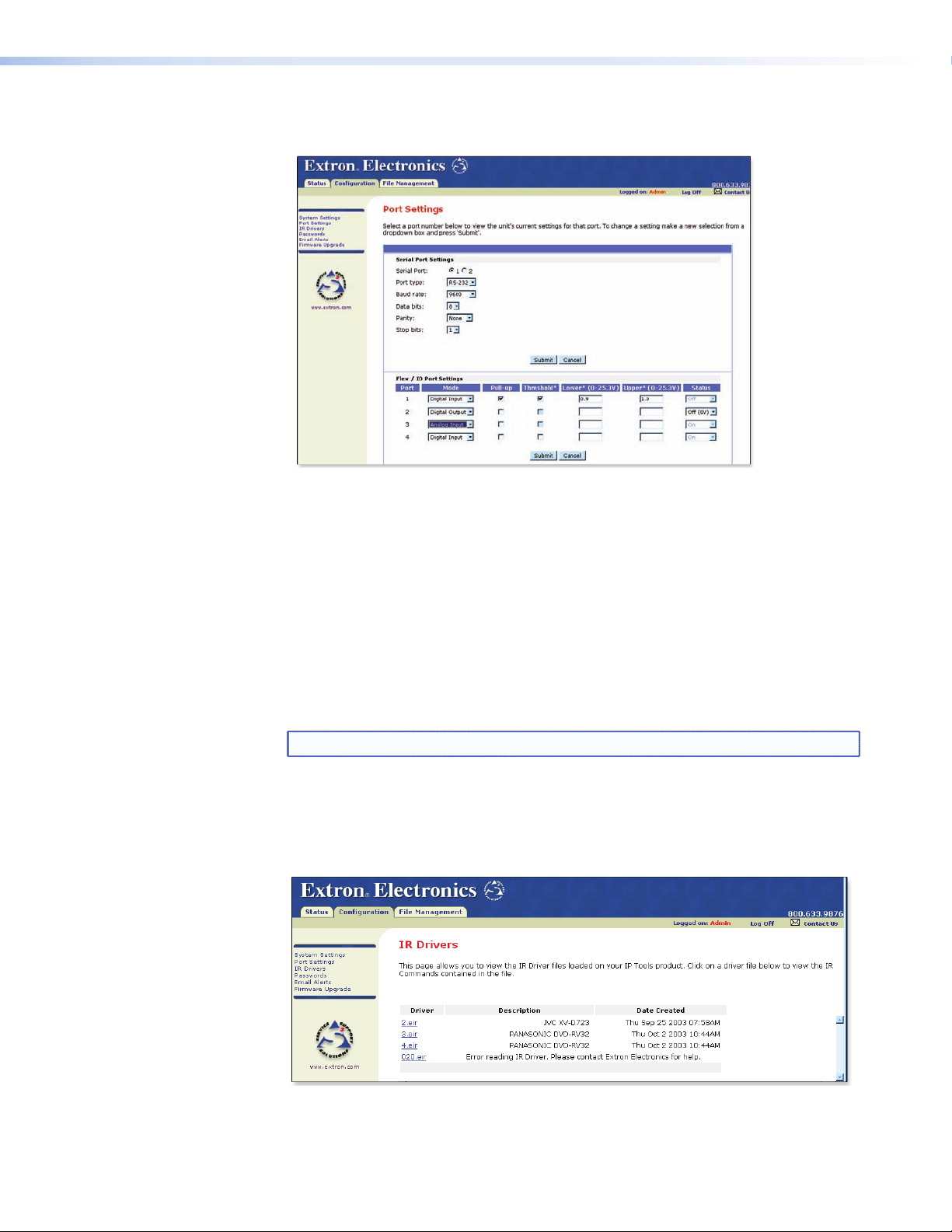

Figure 24. Port Settings Screen

5. Select the desired port and make changes to the port settings, as necessary.

6. Click Submit to enter the changes or click Cancel to revert to the previous settings.

Controlling IR devices or sending IR commands

In order to send IR commands to IR devices via the default Web pages, do the following:

1. Select the File Management tab. The File Management screen (see ﬁgure 30) is

displayed.

2. Upload the IR driver to the box by clicking Browse and locating the appropriate driver.

The IR driver ﬁle must be named numerically (ranging from 0 to 99).

NOTE: File names must end with an .eir extension (for example, 0.eir or 24.eir).

3. Select the Configuration tab.

4. Click IR Drivers on the menu (on the left side of the window) and the IR Drivers

screen (see ﬁgure 25) is displayed. All uploaded IR drivers should be displayed on this page.

Figure 25. IR Driver Screen

IPL T SFI244 • Communication and Control 24

5. Click the IR driver that controls the device. A separate IR interface screen (see

ﬁgure 26) displays the commands in the driver.

6. Select the port to which the IR command will be sent.

7. Execute the IR command by clicking the command link. The IR LED on the front of the

IPL T SFI244 unit blinks a green light verifying that the IR command is being sent.

Figure 26. Example of the Default Web Interface of an .EIR File

IPL T SFI244 • Communication and Control 25

Setting and changing your passwords

For security reasons you may want to set passwords initially or change passwords either periodically or on a scheduled basis. If passwords have been set, you must log on as an administrator to change the passwords.

To set or change the passwords:

1. Click the Passwords link on the menu (on the left side of the window). The

Passwords screen (see ﬁgure 27) is displayed.

2. Enter the passwords for the administrator and/or user, then re-enter the same

passwords to conﬁrm.

3. Click Submit to enter the changes or click Cancel to revert to previous settings. If the

ﬁelds are blank, no passwords have been assigned.

Figure 27. Passwords Screen

4. Once passwords have been set, you will be required to enter a password (ﬁgure 21)

whenever you log on to the unit.

NOTE: To clear a password, enter a single space, repeat the entry, and click

Submit.

If there is no administrator password, your user password will not be saved.

IPL T SFI244 • Communication and Control 26

Editing and adding e-mail alerts

If you have created scheduled events or monitoring tasks on the IPL T SFI244, you can write an e-mail alert with a message corresponding to that event or task (for example, a timer notiﬁcation indicating it’s time to replace a projector light bulb). The e-mail alert can notify up to eight recipients at one time.

To edit notiﬁcation e-mail addresses from the Email Alerts page:

1. Click Email Alerts on the menu (on the left side of the window). The Email Alerts

screen (see ﬁgure 28) is displayed.

Figure 28. Email Alerts screen

2. Click Edit to go into edit mode.

3. Add, update, or change the IP address and domain name of your mail server under

Email Settings.

4. Click Save to keep changes.

5. Click the Edit buttons to independently edit each e-mail address and ﬁle name. a. Enter the e-mail address of the alert recipient in one of the numeric mailboxes

under Email Address.

b. Enter the name of the ﬁle containing the alert message under File Name. c. Click Save to keep changes to recipient e-mail addresses and ﬁle names.

CAUTION: File names must end with an .eml extension.

NOTE: Due to the 7-character limit for full ﬁle names, it’s advised that you use

numeric titles (for example, 1.eml or 24.eml). Numeric titles reduce the characters of the ﬁle name and assist in keeping the alert ﬁles organized. However, alphabetical titles are permitted.

IPL T SFI244 • Communication and Control 27

To ﬁnalize your new e-mail alerts within the Web server, do the following:

6. Obtain your gateway IP address from your system administrator

7. Click System Settings on the menu on the left side of the window.

8. Within the System Settings screen (see ﬁgure 23), place the gateway IP address into

the Gateway IP Address ﬁeld.

Sending an e-mail alert through Telnet

To complete the process of sending an e-mail alert, you must send it through a Telnet session and receive conﬁrmation. To do so:

1. Open a Telnet Session. See Accessing and using Telnet for instructions on how to

do this.

2. Use the “Send e-mail” SIS command to send the alert to the e-mail address of a

numeric mailbox (see ﬁgure 28). See Programmer’s Guide for the Telnet and

Web Browser for speciﬁc command code.

For example, the code for sending an alert from the 4th numeric mailbox would be:

Esc 4 SM

Refer to the GlobalViewer® help ﬁle for detailed information on monitoring and scheduling.

}

Upgrading the ﬁrmware

Firmware upgrades become available as improvements are made to the versatility and functionality of the IPL T SFI244 interface. These upgrades are available for download from the Internet.

CAUTION: The ﬁrmware ﬁle you select to upload must have an .S19 extension.

Uploading the incorrect ﬁle may cause your unit to stop working.

To upgrade the ﬁrmware:

1. Click Firmware Upgrade on the menu (on the left side of the window). The

Firmware Upgrade screen (ﬁgure 29) is displayed.

Figure 29. Web Server Firmware Upgrade Screen

2. Click Browse to ﬁnd the most current available version of the ﬁrmware.

If you ﬁnd a later version than the one shown above the box, click Upload to upgrade to the newer version.

CAUTION: If you leave the page before upload is complete, the upload will be

cancelled.

IPL T SFI244 • Communication and Control 28

Managing ﬁles

File Management is a useful tool that allows you to use and upload existing and custom Web pages. Custom pages can be developed using a third-party Web page development program such as FrontPage® or Dreamweaver®. File Management also allows you to remove unneccessary or outdate ﬁles when they are no longer needed.

To add or update ﬁles:

1. Select the File Management tab. The File Management screen (see ﬁgure 30) is

displayed.

Figure 30. Web Server File Management screen

2. Click Browse to locate the ﬁle you want to upload.

3. Click Upload File to upload the ﬁle.

The ﬁle is added to the list of ﬁles under the Files column. After ten ﬁles have been loaded, additional ﬁle management pages appear in the page navigation area (on the right side of the screen).

To delete unwanted ﬁles:

1. Select the File Management tab. The File Management screen (see ﬁgure 30) is

displayed.

2. Find the ﬁle you wish to delete under the Files list.

3. Click Delete for the ﬁle to be deleted. If you wish to delete additional ﬁles, wait for

the screen to refresh before clicking Delete for the next ﬁle. If you wish to delete all ﬁles, click Delete All. The ﬁle count will revert to zero and all

subsequent pages are deleted.

IPL T SFI244 • Communication and Control 29

IR Learning

The IPL T SFI244 IR can “learn” commands from a third-party remote control device in order to control devices such as VCRs, audio tape players, or DVD players. IR learning can be performed in conjunction with GlobalViewer to assist in controlling commonly used functions.

During IR learning, you must hold the device remote between two inches and twelve inches away from the IR pick up device (see ﬁgure 31).

100

LINK

ACT

1 3

I/O

CTS

RTS

COM

2 4

IPL T SFI244

15 deg. (typ)

2-12"

Figure 31. IR remote distance

Creating a driver with the IR Learner software

To use your third-party remote device with the IPL T SFI244, the functions of your thirdparty driver must be “learned” by the IPL T SFI244. In other words, you must create a driver for your remote control device. You can create a new, custom driver or manipulate an existing driver. Both can be accessed or created through the IR Learner software.

To create a driver for your remote control device:

1. Launch the IR Learner software application. The application window appears; there

are no open drivers.

2. Create a new or empty driver by selecting File > New. A driver document is created

and its Header tab is selected.

Figure 32. Creating a New Driver

IPL T SFI244 • Communication and Control 30

3. Edit the Header ﬁelds (see ﬁgure 32), the most important of which is Type. The driver

is populated with a default set of commands according to the selected device type. A device type of “Other” creates an empty driver with no functions.

4. Add functions by pressing the Add button in the toolbar.

NOTE: User-deﬁnable functions can be added to the driver. The names and

ordering of user-deﬁnable functions can be changed at any time by doubleclicking on the function to be renamed. The names and ordering of any default functions cannot be altered.

At this point the driver is populated with unlearned functions.

To learn driver functions:

1. Select those functions that are to be learned (see ﬁgure 33). Then, begin a learning

session by pressing the Learn toolbar button. A series of messages and windows will guide you through the “learn” process, providing instruction on how to aim the remote, what button to press, and when to release the button.

2. Save the driver by selecting File > Save, or you can add or learn new functions.

Figure 33. Selecting Driver Functions

See the IR Learner Software help ﬁle for more details about IR learning.

IPL T SFI244 • Communication and Control 31

Programmer’s Guide for the Telnet and Web Browser

Using the Command/Response Table

The following are either Telnet (port 23) or Web browser (port 80) commands. There are some minor differences when implementing these commands via Telnet or via URL encoding using a Web browser. All commands listed below will work using either connection method, but due to some limitations of Web browsers, the encapsulation characters are modiﬁed to make sure that the Web browser will properly handle them. All examples in the command/response table show the proper implementation in a Telnet or Web browser session.

NOTE: For Web browsers, all non-alphanumeric characters must be represented

as their hex equivalent such as %xx where xx equals the two-character representation of the hex byte that needs to be sent (for example, a comma would be represented as %2C).

Telnet Web Browser

Escape (Hex 1B) W [must not be encoded]

Carriage Return (Hex 0D) Pipe Character ( | ) [must not be encoded]

When using these commands through a Web browser, the URL reference is used below to shorten the examples. This would, in practice, be the full URL of the control interface and Web page reference including all path information (for example, http://192.168.100.10/myform.htm).

To send any of the commands using a Web browser, you need to preﬁx them with the full URL followed by ?cmd= (see URL Encoding).

NOTE: With Telnet you can use either the “Escape” character or the “W” character,

and the carriage return or the pipe character. With the Web browser, you are required to use the “W” character and the pipe character.

In either method {Data} signiﬁes that data will be directed to a speciﬁed port and must be encoded if it is non-alphanumeric.

The table on pages 36 through 41 lists the commands that the IPL T SFI244 recognizes as valid, the responses that are returned to the host, a description of each command’s function, and the results of executing the command.

NOTE: Upper and lower case text can be used interchangeably except where noted.

IPL T SFI244 • Communication and Control 32

Symbol deﬁnitions are shown below. An ASCII to HEX conversion table is also provided in ﬁgure 34.

Space

ASCII to Hex Conversion Table

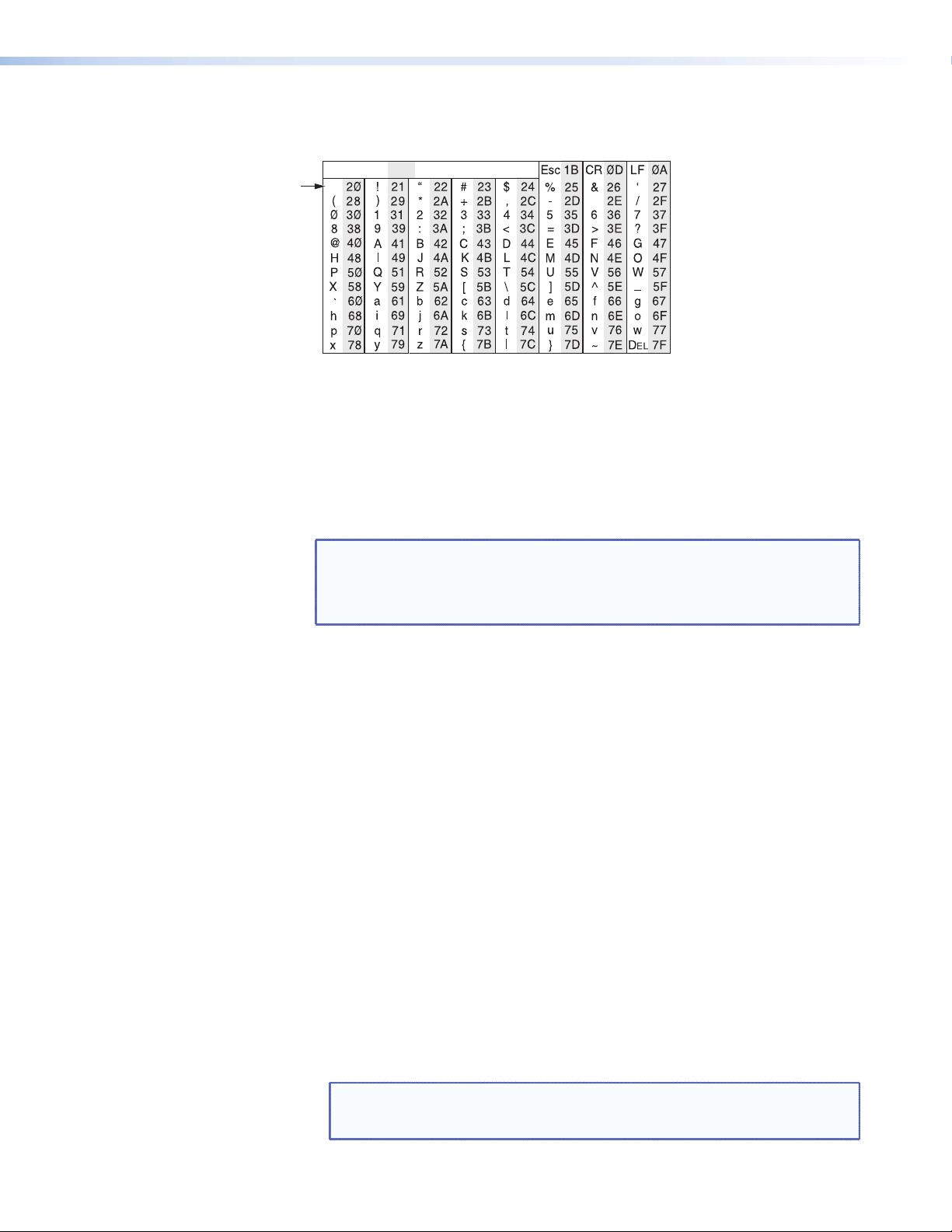

Figure 34. ASCII-to-HEX Conversion Table

Symbol deﬁnitions

] = CR/LF (carriage return/line feed) } = Carriage return (no line feed)

• = Space (hard) character

X! = Speciﬁc port number (01-99)

The port number will be represented as two ASCII characters (2 bytes); 00 = All ports

X@ = Command data section

NOTE: For Web encoding only - Data will be directed to speciﬁed port and must be

encoded (URL encoding) if non-alphanumeric. Since data can include either command terminator, they must be encoded as follows when used within the data section: space (hex: 20) would be encoded as %20 and plus sign (hex: 2B) would be encoded as %2B.

•

X# = Greenwich Mean Time (GMT) offset value (-12.0 to +14.0) X% = On/off status: 0 = off/disable; 1 = on/enable X1! = Unit ﬁrmware version X1@ = Name is a text string up to 24 characters drawn from the alphabet (A-Z), digits (0-9), minus sign/

hyphen (-). No blank or space characters are permitted as part of a name. No distinction is made between upper and lower case. The ﬁrst character must be an alpha character. The last character must not be a minus sign/hyphen.

X1# = Set local date and time format (MM/DD/YY-HH:MM:SS) for example, 11/18/03-10:54:00

Read local date and time format (day of week, date month year HH:MM:SS) for example, Thu, 18 Nov 2003 18:19:33

X1$ = IP address (xxx.xxx.xxx.xxx); leading zeros in each of four ﬁelds are optional in setting values, and are

suppressed in returned values.

X1% = Mail domain name (for example, extron.com, icia.org) X1& = Time, in tens of milliseconds ,to wait for characters coming into a serial port before terminating

(default = 10 =100 milliseconds, max = 32767)

X1* = Hardware (MAC) address (xx-xx-xx-xx-xx-xx) X1( = Subnet mask (xxx.xxx.xxx.xxx); leading zeros in each of four ﬁelds are optional in setting values, and

are suppressed in returned values.

X2) = Time, in tens of milliseconds, to wait between characters coming into a serial port before terminating

(default = 2 = 20 milliseconds, max = 32767)

X2! = Parameter to set either Length of message to receive or Delimiter value; # = byte count or single ASCII

character decimal

X2@ = Verbose/response mode status: 0 = clear, default for Telnet connections; 1 = verbose mode is on;

2 = send tagged responses for queries; 3 = verbose mode is on and tagged responses are sent for queries

NOTE: If tagged responses are enabled, all read commands return the constant string +

the data or value, the same as in responses for setting a value. For example, for

CN }, the response is Ipn•

X1@ ]

rather than just the data (

X1@ ]

IPL T SFI244 • Communication and Control 33

X2# = Priority status for receive timeout: 0 = priority set to Send Data String command parameters,

1 = priority set to conﬁgure received timeout command parameters

X2% = Baud rate: 300, 600, 1200, 1800, 2400, 3600, 4800, 7200, 9600, 14400, 19200, 28800, 38400,

57600, 115200

X2^ = Parity: Odd, Even, None, Mark, Space (only ﬁrst letter is required) X2& = Data bits: 7, 8 X2* = Stop bits: 1, 2 X2( = Port type: RS-232, RS-422, RS-485 (or 0, 1, or 2, respectively). (

X2(

= 0 for the SFI244)

X3) = Flow control: Hardware, Software, None (only ﬁrst letter is required) X3! = Data pacing (speciﬁed in milliseconds between bytes): 0000-1000 (default = 0 milliseconds) X3# = Password: maximum length of 12 characters and no special characters.

NOTE: User password cannot be assigned if no administrator password exists, and returns

E14. If the administrator password is cleared, then the user password is also removed.

X3$ = Daylight saving time: 0 = off/ignore; 1 = on (use in northern hemisphere) (USA); 2 = on (Europe);

3 = on (Brazil)

X3% = Event number: range = 0 - 99 (max.) X3^ = Event buffer: 0 = receive; 1 = user (absolute); 2 = user (relative); 3 = NVRAM X3& = Event buffer offset: range = 0 - MaxBufferSize X3* = Event data size: bit; Byte (8-bit); Short (16-bit); Long (32-bit) (only ﬁrst letter is required)

NOTE: This parameter is case-sensitive.

X3( = Event data to write. X4) = I/O mode: 0 = input; 1 = output; 2 = input plus pull-up resistor; 3 = output plus pull-up resistor;

X5^

4 = analog in; 5 = analog in w/pull-up; 6 = adjust in (requires w/pull-up (requires

X5%

X5^

thresholds).

X5%

X5^

X5%

thresholds are not required for modes 0-5.

thresholds); 7 = adjust in

X4# = 0 = off; 1 = on; value = 0-4095, based on 12-bit A to D X4$ = Number of bytes to read X4% = E-mail recipient number: range = 1 - 64 max X4^ = E-mail recipient address: maximum number of characters for a full e-mail address is 31 characters. X4& = Name of e-mail ﬁle to be sent: the ﬁrst line of the ﬁle is the subject, the rest is the body of the e-mail.

NOTE: E-mail ﬁles must have the .eml ﬁle extension.

X4( = Default Name: Combination of model name and last 3 pairs of MAC address (for example,

IPL-T-SFI244-00-02-3D)

X5) = Redirect: 0 = no redirect; 1-n = redirect serial port from the speciﬁed port to allow for a transparent

pass-through mode

X5@ = Connection’s security level: 0 = not logged in; 11 = user; 12 = administrator X5# = Timeout for data pass-through mode, after which event data can be inserted into the transmit buffer. X5$ = ASCII digit(s) representing numeric value of data element read from event buffer (leading zeros are

suppressed)

X5% = Upper transition threshold (0 detection = off) for digital inputs; Lower must be smaller than upper

(0-4095 based on 12-bit A to D)

X5^ = Lower transition threshold (1 detection = on) for digital inputs; Lower must be smaller than upper

(0-4095 based on 12-bit A to D)

X5%

NOTE: The default Web pages display

default = 2 VDC and lower default = 1 VDC). The conversion rate is 162 counts to 1 V.

X5^

and

as voltages (100 mV to 24 VDC, upper

X5& = IR playback ﬁle number (0-99) X5* = IR function number X5( = IR playback mode: 0 = play once, 1 = play continuously (send IR command again with mode = 0 to

stop mode 1 playback)

IPL T SFI244 • Communication and Control 34

X6# = Pulse time in 20 milliseconds per count. If parameter is missing or = 0, pulse length = default

(25 counts = 500 milliseconds), max (65536 counts)

X6$ = Broadcast repetition rate in seconds (0-256. 0 = disable)

]

Thurs, 28 Jan 2010 16:29:10

The copyright message is displayed upon connecting to IP Link product via TCP/IP or Telnet. Vx.xx is the ﬁrmware version number. The unit’s part number, the current date, and time are displayed as well. This is followed by a password prompt.

Password information

The “]Password:” prompt requires a password (administrator level or user level) followed by a carriage return. The prompt is repeated if the correct password is not entered.

If the correct password is entered, the unit responds with “]Login Administrator]” or “]Login User]”, depending on the password entered. If passwords are the same for

both administrator and user, the unit defaults to administrator privileges.

Error responses

When the IPL T SFI244 receives a valid command, it executes the command and sends a response to the host device. If the unit is unable to execute the command because the command contains invalid parameters, it returns an error response to the host.

E10 — Invalid command E12 — Invalid port number E13 — Invalid parameter E14 — Not valid for this conﬁguration E17 — System timed out E22 — Busy E24 — Privilege violation E25 — Device not present E26 — Maximum number of connections exceeded E27 — Invalid event number E28 — Bad ﬁlename/ﬁle not found E31 — Attempt to break port pass-through when not set (A user or software attempted to disable the port redirect feature when it wasn’t already set or active.)

References to errors (at command descriptions on the following pages)

= Commands that give E10 (invalid command).

= Commands that give E24 (privilege violation) if not administrator level.

= Commands that may give E27 (invalid event number).

= Commands that may give E28 (ﬁle not found).

IPL T SFI244 • Communication and Control 35

]

X2*]

X2&

X2^

X2*]

X2%

X2&

•Ccp

X2^

response from command

Cpn

X3!

X2)]

X3)

•Cty

•Cﬂ

Cpn

X2#]

X2)

X1&

•Cce

X3!]

Cpn

X5#]

X5)

X2#]

•Ccd

X2)

Cpn

•Ccd0,0

X5#]

Cpn

]

X5^

X5%

X4)]

X4)

•Iom

X5^]

X5%

X4)

thresholds are not required for modes 0-5.

X5^

RS|

X2!

%2A

X2)

%2A

X1&

%2A

X2&

%2C

X2^

%2C

X2%

%2A

X2*

%2C

| X2%

X2(

%2A

X3!

%2C

X3)

%2A

| X3)

X2#

%2A

X2)

%2A

X1&

%2A

| X1&

X5#

%2A

X5)

%2A

| X5)

0CD

%2A

%5B Cpn

X4)

%2A

%5B Cpn

X5^

%2A

X5%

%2A

X4)

%2A

= 0 for the SFI244)

X2(

%5B

X5%

thresholds).

X5^

X5%

• W

}

}X@

X2*

X2!

X2&

X2)

X2^

X1&

X2%

E X!

Send data string

Conﬁgure parameters

Command/response table for SIS commands

Bidirectional serial data port

Command ASCII (Telnet) URL Encoded (Web) Response

}

X2(

E X!

View parameters

Conﬁgure mode

}

X3!

X3)

E X!

Conﬁgure ﬂow control

} E X!

E X!

View ﬂow control

}

X2#

X2)

}

X1&

E X!

Conﬁgure receive timeout

View receive timeout

}

X5#

}

X5)

E X!

Conﬁgure redirect mode

View redirect mode

[

X5^

}

*0CD

E X!

Terminate redirect mode

X5%

[

X4)

(modes 6-7)

Set I/O mode (modes 0-5)

Set I/O mode

Flex I/O data port

[

= Speciﬁc port number (01-99)

NOTE:

View I/O mode

thresholds); 7 = adjust in w/pull-up (requires

X5^

0 = input; 1 = output; 2 = input plus pull-up resistor; 3 = output plus pull-up resistor; 4 = analog in; 5 = analog in w/pull-up; 6 = adjust in

X5%

= Time to wait for characters coming into serial port before terminating (default = 10 = 100 milliseconds, max = 32767)

= Command data section

X1&

= Priority status for receive timeoutt: 0 = priority set to Send Data String command parameters, 1 = priority set to conﬁgure received timeout command

= Baud rate: 300, 600, 1200, 1800, 2400, 3600, 4800, 7200, 9600, 14400, 19200, 28800, 38400, 57600, 115200

= Time to wait between characters coming into serial port before terminating (default = 2 = 20 milliseconds, max = 32767)

= Parameter to set either Length of message to receive or Delimiter value.

X2)

X2!

X2#

parameters

= Data bits: 7, 8

= Parity: Odd, Even, None, Mark, Space (only ﬁrst letter is required)

X2%

X2^

X2&

= Stop bits: 1, 2

= Port type: RS-232, RS-422, RS-485 (or 0,1, or 2, respectively). (

= Flow Control: Hardware, Software, None (only ﬁrst letter is required)

= Data pacing: 0000-1000 (default = 0 milliseconds)

= I/O mode:

X2*

X2(

X3)

X3!

X4)

= Timeout for data pass-through mode, after which event data can be inserted into the transparent buffer

= Redirect: 0 = no redirect; 1-n= redirect serial port from the speciﬁed port to allow for a transparent pass-through mode

X5)

X5#

(requires

= Upper transition threshold (0 detection = off) for digital inputs

= Lower transition threshold (1 detection = on) for digital inputs

X5%

X5^

IPL T SFI244 • Communication and Control 36

X%]

•Sio

%5D Cpn

X6#

%2A 3

%2A

X%]

•Sio

%5D Cpn 2

%2A

]

•Sio1

%5D Cpn 1

%2A

]

•Sio0

%5D Cpn 0

%2A

X4#]

%5D

]

X5(]

X5*

X5&

Irs

X5(

%2C

X5*

%2C

X5&

%2C

]

X1!]

sum of responses from 2Q-3Q-4Q

]

(plus web ver.-desc-UL date/time)

X1!]

X1!

]

(plus web ver.-desc-UL date/time)

X1!

]

60-xxx-yy

IPL T SFI244

]

Four IR Ports

# Bytes/Kbytes used out of # Kbytes

}

{description text}

X5(

}

,IR

X5*

E X! X5&

X5*

E X5&

0Q 0Q

3Q 3Q

4Q 4Q

3I 3I

is loaded. A caret (^) after the version number indicates the ﬁrmware version that should be running, but a Mode 1 reset was executed. The default factory

ﬁrmware version is loaded. An exclamation point (!) after the version number indicates corrupted ﬁrmware.)

= 0 = off; 1 = on; value = 0-4095, based on a 12-bit A to D

= IR playback ﬁle number (0-99)

= Unit ﬁrmware version

= On/off status: 0 = off/disable; 1 = on/enable

= Speciﬁc port number (01-99)

X1!

X4#

X5&

= Pulse time in 20 milliseconds per count

= IR function number

= IR playback mode: 0 = play once; 1 = play continuously (send IR command again with mode = 0 to stop mode 1 playback)

X5*

X5(

X6#

NOTE:

]

X6#

*3*

10 14

] *2

10 14

] *1

] *0

]

NOTE: An asterisk (*) placed after the version number indicates which version is currently running. A question mark (?) indicates that only the factory ﬁrmware version

Pulse I/O state

Toggle I/O state

Set I/O state ON

Set I/O state OFF

Command/response table for SIS commands (continued)

Command ASCII (Telnet) URL Encoded (Web) Response

View I/O state

Send IR command

Get IR command info

IR/serial data port

Query ﬁrmware version Q Q

Query verbose version

Firmware version/part number/information

information

Query ﬁrmware version 1Q 1Q

Query bootstrap version 2Q 2Q

Query factory ﬁrmware

version

Query updated ﬁrmware

version

Request part number N N

Request model name 1I 1I

Request model description 2I 2I Two Bi-Directional Serial Ports [RS232], Four Flex I/O,

Request system memory

usage

Request user memory usage 4I 4I

IPL T SFI244 • Communication and Control 37

X1@]

X4(]

Ipn•

X1#]

X1@]

Ipt•

X#]

X1#]

X3$]

Ipx

]

Idh1

]

Idh0

X1$]

Ipi•

X1(]

Ips•

X1$]

Ipg•

X3#]

]

Ipa•

X3#]

]

Ipu•

X2@]

Vrb

X1@

W%20CN

X1#

WCN|

WCT

+ Ipz

| X#]

WCZ

X3$

| X3$]

WCX

W1DH

| X%]

W0DH

WDH

X1$

| X1*]

| X1$]

WCI

WCH

X1(

| X1(]

X1$

WCS

| X1$]

X3#

WCG

| X3#]

W%20CA

WCA

X3#

W%20CU

| X3#]

X2@

WCU

}

E X1@

}

•CN

}

E X1$

}

E X3#

}

•CA

}

E X1#

}

E X#

E X3$

}

1DH

}

0DH

}

E X1$

}

E X1(

}

E X3#

}

•CU

}

E X2@

= Set local date and time format (MM/DD/YY-HH:MM:SS); Read local date and time format (day of week, date month year HH:MM:SS)

= Name is a text string up to 24 characters drawn from the alphabet, digits, minus sign/hyphen. No blank or space characters are permitted.

= IP address

= Hardware (MAC) address

= Greenwich Mean Time (GMT) offset value (12.0 to 14.0)

= On/off status: 0 = off/disable; 1 = on/enable

X1@

X1#

X1$

X1*

X1(

= Subnet mask

NOTE:

Verbose/response mode status: 0 = clear, default for Telnet connections; 1 = verbose mode is on; 2 = send tagged responses for queries;

= Password: maximum length of 12 characters and no special characters

X2@

= Daylight savings time: 0 = off/ignore; 1 = on (use in northern hemisphere) (USA); 2 = on (Europe); 3 = on (Brazil)

= Default Name: combination of model name and last 3 pairs of MAC address

X3#

X3$

3 = verbose mode is on and tagged responses are sent for queries

X4(

Set Unit name

Set Unit name to factory

default

Read Unit name

Set time/date

Read time/date

Set GMT offset

Read GMT offset

Set daylight savings time

Read daylight savings time

Set DHCP on

Set DHCP off

View DHCP mode

Set IP address

Read IP address

Read hardware address (MAC)

Command/response table for SIS commands (continued)

IP setup commands

Command ASCII (Telnet) URL Encoded (Web) Response

Set subnet mask

Read subnet mask

Set gateway IP address

Read gateway IP address

Set administrator password

Clear administrator

password

Read administrator password

Set user password

Clear user password

Read user password

Set verbose mode

IPL T SFI244 • Communication and Control 38

]

X6$]

Bmd

Number of Connections

]

{The response is raw data from the ﬁle}

{data from the ﬁle mypage.html}

Pmtport#

Pmt00023

Pmt00000

X6$

| X6$]

WEB

WCC

WDF

var ﬁle - new Array():

]

ﬁle [1] = ‘ﬁlename1, date1, ﬁlesize1’;

ﬁle [2] = ‘ﬁlename2, data2, ﬁlesize2’;

ﬁle [n] = ‘ﬁlename n, date n,

ﬁlesize n’;

]

ﬁle [n+1] = ‘space remaining, bytes left’

]]

1Bfilename 53 46 0D {4 bytes of filesize, and then raw data from the ﬁle}

{raw unprocessed data from the ﬁle up to ﬁlesize} Upl

| X2@]

| X5@]

WCV

WCK

Wport#MT

W23MT

W0MT

}

E X6$

}

Telnet text responses: Web responses:

filename x•date/time•length

... ...

space_remaining•bytes left

+UF, filesize, filename

filename SF

http://192.168.254.254/mypage.html?cmd=WSF

Send a page GET on port 80 followed by WSF

port#MT

}

23MT

}

0MT

Verbose/response mode status: 0 = clear, default for Telnet connections; 1 = verbose mode is on; 2 = send tagged responses for queries;

= Connection’s security level: 0 = not logged in; 11 = user; 12 = administrator

X2@

= Broadcast repetition rate in seconds (0-256. 0 = disable)

X5@

X6$

3 = verbose mode is on and tagged responses are sent for queries

Read verbose mode

Read connection’s security

level

Conﬁgure broadcast mode

View broadcast mode

Get connection count

Get listing

Command/response table for SIS commands (continued)

Command ASCII (Telnet) URL Encoded (Web) Response

File commands

Stream ﬁles via Telnet or RS-232

NOTE:

24 28

Example:

Load ﬁle to user ﬂash

memory

Retrieve ﬁle from user ﬂash

memory

Load ﬁle to user ﬂash memory Use a POST on port 80, followed by the delimited data to be written to the ﬂash ﬁle memory

Retrieve ﬁle from user ﬂash

memory

Stream ﬁles via port 80

IPL T SFI244 • Communication and Control 39

Set Telnet port map

Reset Telnet port map

Re-map port designations

Disable Telnet port map

]

X3(]

]

port#

Pmhport#

]

Pmh00080

Pmh00000

port#

]

Pmdport#

Pmd02001

]

Pmd00000

port#

X4&]

X4^

X4%

Response from command

Ipr

X4&]

X4%]

Eml

X1%]

X1$

Ipm

X1%]

X3&

X3^

X3%

Evt

X3*

| X5$]

%2C

X3*

X3(

%2C

X3&

%2C

X3&

X4&

WMT

Wport#MH

W80MH

W0MH

WMH

Wport#MD

W2001MD

W0MD

WMD

WUB

%2C

X4^

%2C

X4%

| X4^

X4%

X1%

%2C

X1$

| X1$

%2C

X3^

%2C

X3%

%2C

X3^

%2C

X3%

]

command

E-mail

X4&

}

X4^

E X4%

Conﬁgure e-mail events

Read e-mail events

Send e-mail (event)

}

port#MH

80MH

Read Telnet port map

Set Web port map

Command/response table for SIS commands (continued)

Command ASCII (Telnet) URL Encoded (Web) Response

Reset Web port map

}

0MH

port#MD

Disable Web port map

Read Web port map

Set Direct Access port map

}

2001MD

0MD

Reset Direct Access port map

Disable Direct Access port

map

Read Direct Access port map

Web browser speciﬁc

}

Read response from last URL

}

X3*

X3(

X3&

X3^

E X3%

X3&

X3^

E X3%

24 27

= Mail domain name

= Event number: range = 0-99 (max)

= IP address

X1$

X1%

= Event buffer offset: range = 0-MaxBufferSize

= Event buffer: 0 = receive; 1 = user (absolute); 2 = user (relative); 3 = NVRAM

= Event data size: bit; Byte (8-bit); Short (16-bit); Long (32-bit) (only ﬁrst letter is required)

= Event data to write

X3%

X3^

X3&

X3*

X3(

X4%

}

X1%

E X1$

WCM

}

NOTE:

Set mail server IP, domain

name

Read mail server IP, domain

name

Read event buffer memory

Write event memory

Event control

IPL T SFI244 • Communication and Control 40

= E-mail recipient number: range = 1-64 max

= Name of e-mail ﬁle to be sent

= ASCII digit(s) representing numeric value of data element read from event buffer

= E-mail recipient address: max number of characters for full e-mail address is 31 characters

X4^

X4&

X5$

]

X3&

X3^

]

X3%

string

X3&

X4$

X3^

%2C

X3&

X3%

%2C

X3^

%2C

X3%

string

]

Evt

Ego

%2C

%2A

Wstring

W1AE

]

Est

Enm#####

W0AE

]

Del•filename

Zpf

WfilenameEF

WZFFF

]

Zpx

]

Zpq

WZQQQ

}

X3&

X3^

X4$

X3&

X3^

E X3%

X3%

WAE

}

1AE

24 27

0AE

24 27

}

string*

24 27

}

filenameEF

24 28

}

ZFFF

WZXXX

}

ZXXX

}

ZQQQ

in ﬂash memory are also erased by this command. The ﬁrmware version does not change. The IP address is reset to 192.168.254.254, the subnet mask is reset to

255.255.0.0.

NOTE: Reset all settings/memories. The ZQQQ command resets everything (all settings, adjustments, the IP address, and subnet mask) to the factory default values. Files

Stop events

Read number of events

Write string to event

memory

Start events

Command/response table for SIS commands (continued)

Read string from event

Command ASCII (Telnet) URL Encoded (Web) Response

running

Erase user-supplied Web page

and ﬁles

Reset (zap)/erase commands

Erase ﬂash memory

Absolute system reset

Reset all device settings to

factory

= Event number: range = 0-99 (max)

= Event buffer offset: range = 0-MaxBufferSize

= Event buffer: 0 = receive; 1 = user (absolute); 2 = user (relative); 3 = NVRAM

= Number of bytes to read

X3%

X3^

X3&

X4$

NOTE:

IPL T SFI244 • Communication and Control 41

Customization

Server Side Includes

You can use various methods to make the IPL T SFI244 interface perform customized functions or to alter the unit’s embedded Web pages. Server Side Includes (SSIs) make it possible to send commands to the IPL T SFI244 itself, or to devices connected to its control ports. Customization is also possible by writing query strings and inserting them into Web pages stored on the IPL T SFI244.

Server Side Includes are a type of HTML comment that dynamically directs the IPL T SFI244 as to what material or ﬁles to include in the contents of a Web page or to send out to one of the unit’s ports. SSIs can include embedded instructions (scripts) and style sheets (to set up page layout), and also specify what information to insert into the Web pages. These instructions run on the unit’s internal Web server. Server Side Includes use Extron Simple Instruction Set (SIS) commands to ask for and display information from the IPL T SFI244, itself. When a Web page is requested, the IPL T SFI244 replaces the SSI command with the response to the SIS command.

SIS command types and syntax

SIS commands sent to IP Link-enabled products fall into two categories: host or remote.

• Host commands instruct the IPL T SFI244, itself, to act or respond.

• Remote commands send data to an external control port on the IPL T SFI244.

The basic format for a Server Side Include is as follows:

where

• “directive” is an instruction to the server such as include file (to include/insert

the content of one document into another ﬁle) or echo var (to display a particular HTTP variable).

• The variable (x) is one or more SIS command(s) enclosed in quotation marks (“x”).

IPL T SFI244 • Communication and Control 42

See the following examples of the basic SSI command format.

Server Side Include for a Host SIS command

Quotation marks are delimiters.

HTML echo

command

SIS command to be

executed by the

IPL T SFI244

(must be typed without spaces)

Examples:

Request unit’s part number. Request system

memory usage.

W is the Web-encoded substitute for the E key.

View date

and time.

Figure 35. SSI Syntax for a Host SIS Command

In ﬁgure 35, the “N” command is used to request the IP Link product’s part number and the results of the echo command are displayed in the unit’s Web page(s).

Server Side Include Using a Remote SIS command

SIS Command

W

Delimiter

1 * * *

Port

Number

Time to wait

for first character

of response

Time between

characters

in response

Length or

Delimiter

parameter

SIS Command

Elements

Command

Delimiter

Hello

Data to be passed to

external device via a serial port

*type with no spaces

Query String

Figure 36. Example of SSI “Remote” Command

In ﬁgure 36, a “remote” serial command sends the word “hello” out port 1and waits up to 50 milliseconds for a response (until three characters are received). For more information on this command, see Programmer’s Guide for the Telnet and Web

Browser.

A query string is a command that contains parameters or instructions for the Web server (the IPL T SFI244) to execute. The query string is contained after the question mark within a reference URL (Web address). See Query string command types and syntax.

When a link is accessed on a Web page, the URL is sent to the Web server to tell it which Web page to return to the browser. Upon receiving the URL, the IPL T SFI244’s internal Web server locates the query string within the URL and executes the command that it contains.

IPL T SFI244 • Communication and Control 43

Query string command types and syntax

As with SSI formatted commands, query strings can use any valid SIS command of either type (host or remote).

• Host commands instruct the IPL T SFI244, itself, to act or respond.

• Remote commands send data to an external control port on the IPL T SFI244.

The basic format for a query string with a link is as follows:

<a href=”index.html?cmd=x”>linked text</a> where x is the SIS command to be executed.

Text between the quotation marks is typed with no spaces.

Delimiter Delimiter

“?” indicates the start

of the query string.

HTML URL

reference (link)

command

Indicator that

a command

follows

SIS command

to be executed by the

IPL T SFI244 (Web

server)

(typed with no spaces)

Link text

(text that appears

on the Web page for

the user to click on)

End of link

tag

Figure 37. Syntax for a URL Containing a Query String

The query string in ﬁgure 38 turns off DHCP on the IP Link device.

URL with a Query String using a Host SIS command

SIS Command

<a href="index.html ?

Starts

HTML code

for a link

Query String

Figure 38. Example of a Host Query String Command

cmd=

Tells web server

the an SIS follows

W0DH|

SIS command

to be processed

by the IP Link

HTML code

for a link

DHCP off

LinkedText

*type with no spaces

</a>

Closes

Link

URL with a Query String using a Remote SIS command

SIS Command

Port

Number

Command

Delimiter

Data to be passed to

external device

via a serial port

HTML code

for a link

Input #1

Linked Text

*type with no spaces

</a>

Closes

Link

<a href= "i ndex.htm l ?

Starts

HTML code

for a link

Query String

cmd=

Tells web server

the an SIS follows

Delimiter

Figure 39. Example of a Remote Query String Command

In ﬁgure 39 above, the data string that follows the pipe (

| ) symbol is sent to the attached

controlled device on serial port #2. This string instructs an attached Extron switcher to change to input #1.

IPL T SFI244 • Communication and Control 44

Code Examples

This section shows practical uses for both SSIs and query strings.

NOTE: Before attempting to develop new Web pages, the user should have a good,

Example 1

In ﬁgure 40, both host SSI and remote SSI commands are used within the same Web page. You will notice six SSIs: three host commands and three remote commands.

<html> <head><title>Example 1</title></head> <h2 b>HTML Example #1</h2 b> <body> The following lines demonstrate how to read status from the IPLink Product: <p> IPLink Product Name: <b></b> <br> IPLink Product Description: <b></b> <br> IPLink Product Part Number: <b></b> <br><hr> <p> This example requires an Extron Crosspoint 84HVA connected to IPL T SF244 serial port #1. <p> Part Number: <b></b> <br> Connection Info: <b></b> <br> Firmware Version: <b></b>

working knowledge of JavaScript™, HTML, and Server Side Includes.

"host" SSI commands

"remote" SSI commands

Figure 40. HTML Source Code Document Showing Server Side Includes

The host SSI commands in ﬁgure 40 request the product name, product description and product part number of an IP Link device. The remote SSI commands request the part number, connection information and ﬁrmware version of an attached serial device.

<html> <head><title>Example 1</title></head> <h2 b>HTML Example #1</h2 b> <body> The following lines demonstrate how to read status from the IPLink Product: <p> IPLink Product Name: <b>IPL T SFI244</b> <br> IPLink Product Description: <b>Two Bi-Directional Serial Ports [RS232], Four Flex I/O, Four IR Ports</b> <br> IPLink Product Part Number: <b>60-544-06</b> <br><hr> <p> This example requires an Extron Crosspoint 84HVA connected to IPL T SFI244 serial port #1. <p> Part Number: <b>N60-337-01%0D%0A</b> <br> Connection Info: <b>V08X04 A08X04 Exe0%0D%0A</b> <br> Firmware Version: <b>Ver2.02%0D%0A</b>

Figure 41. Resulting HTML Source Code Served by an IP Link Web Server

Notice, in ﬁgure 41, that the commands executed by the IP Link box in response to SSI references have been replied to and are implemented when the Web page is served to the browser as seen in ﬁgure 42.

IPL T SFI244 • Communication and Control 45

Figure 42. Browser View

Example 2

The example below (ﬁgure 43) shows how a simple hyperlink and a remote query string can be used to build a Web page that can control a device.

<html> <head><title>Example 2</title></head> <h2><b>HTML Example 2</b></h2> <body> The following lines demonstrate how to send commands to RS-232 Com Port #1 of an IPLink Product: <p>

<a href="index.html?cmd=W01RS|1!">Select Input #1</a>

<br>

<a href="index.html?cmd=W01RS|2!">Select Input #2</a>

</p> </body> </html>

Figure 43. HTML Source Code Showing Multiple Hyperlinks Using Query Strings

Figure 44. Browser View

IPL T SFI244 • Communication and Control 46

Example 3

This example shows how the ﬂex I/O outputs can be controlled using a query string and SIS commands.

<html> <head><title>Example 3</title></head> <h2><b>HTML Example 3</b></h2> <body> The following lines demonstrate how to send commands to an IP Link Product: <p> <a href="index.html?cmd=1*1]">Set Digital Output On</a> <br> <a href="index.html?cmd=1*0]">Set Digital Output Off</a> </p> </body> </html>

Figure 45. HTML Source Code Using a Query String

Figure 46. Browser View

IPL T SFI244 • Communication and Control 47

Example 4

The ﬂex I/O can also be conﬁgured as an input. In this example, two inputs are connected to a matrix switcher. Using JavaScript, the status of the digital inputs can be checked and the appropriate message displayed for the user.

<html> <head><title>Example 4</title></head> <h2><b>HTML Example #4</b></h2> <body> <p> <script> var ioState1 = "" var ioState2 = "" if ((ioState1 == 1) && (ioState2 == 0)) { document.write('Input #1 Selected') } else if ((ioState1 == 0) && (ioState2 == 1)) { document.write('Input #2 Selected') } else { document.write('No Input Selected') } </script> </p> <p> <a href="index.html?cmd=3*25*3]">Select Input #1</a> <br> <a href="index.html?cmd=4*25*3]">Select Input #2</a> </p> </body> </html>

Figure 47. HTML Source Code Showing Server Side Includes

Using the SSI to assign the state of input 1 and input 2 allows the JavaScript code to determine which switcher input is selected. This example also demonstrates using a URL query string in conjunction with the pulse I/O command to allow the user to switch the matrix switcher with a 250-millisecond closer.

Figure 48. Browser View

IPL T SFI244 • Communication and Control 48

Example 5

This example demonstrates how to send out an IR string from the IPL T SFI244. The line below shows an HTML hyperlink with an Extron IR command encoded into the URL.

The ?cmd=W1*1*15*0ir| is the syntax for the URL encoding of an IR command that will be sent out of IR port #1. The W and the | (pipe symbol) are used as the leading and trailing delimiters for the instruction that tells the IPL T SFI244 which port number, .eir ﬁle or function within the .eir ﬁle to send. The command also allows the programmer to deﬁne whether the IR should be sent once or continuously until stopped. The IR Learner program determines which IR function, such as play, is assigned to which number. Refer to the IR Learner program for help with this feature.

<html> <head><title>Example #5</title></head> <h2><b>Example 5</b></h2> <body> <p> This example demonstrates how to send out an IR string from an IR file (1.eir) on IR Port #1 from the IPL T SFI244. This IR driver must be loaded on the IPL T SFI244 in order to send out the string. </p> <p> <a href="index.html?cmd=W1*1*15*0ir|">Play</a> </p> <p> <a href="index.html?cmd=W1*1*32*0ir|">Stop</a> </p> </body> </html>

Figure 49. HTML Source Code Showing an IR String from the IPL T SFI244

Figure 50. Browser View

IPL T SFI244 • Communication and Control 49

Example 6

The example below (ﬁgure 51) shows how you can use JavaScript to parse the response from an Extron matrix switcher and produce a formatted Web page.

<html> <head><title>Example 6</title> <script language="javascript"> xOut1 = ""; xOut2 = ""; xOut3 = ""; xOut4 = ""; </script> </head> <h2 b>HTML Example #6</h2 b> <body> This example requires an Extron Matrix Switcher connected to IPL T SFI244 serial port #1. <p> <b>Sample links that can be followed</b> <br> <a href="http://192.168.254.254/example#6.html?cmd=W01RS|5*1!"> http://192.168.254.254/example#6.html?cmd=W01RS|5*1!<a><i> -Creates tie from input 5 to output 1</i> <br> <a href="http://192.168.254.254/example#6.html?cmd=W01RS|1*2!"> http://192.168.254.254/example#6.html?cmd=W01RS|1*2!<a><i> -Creates tie from input 1 to output 2</i> <br> <b>Response to last URL encoded command: </b>  <br><hr> The following lines demonstrate reading the output status of the matrix switcher. <br> <p><b>____________Unformatted Response:</b> <br> Output 1 Setup:  <br> Output 2 Setup:  <br> Output 3 Setup:  <br> Output 4 Setup:  <br><hr> Here is an example of formatting the results using Javascript in your HTML. <br> <p><b>____________Formatted Response:</b><p> <script> <!-var x1Split= xOut1.split(" "); var In1Split= x1Split[1].split("n"); document.write("Output 01 tied to Input " + In1Split[1] + "<br>"); var x2Split= xOut2.split(" "); var In2Split= x2Split[1].split("n"); document.write("Output 02 tied to Input " + In2Split[1] + "<br>"); var x3Split= xOut3.split(" "); var In3Split= x3Split[1].split("n"); document.write("Output 03 tied to Input " + In3Split[1] + "<br>"); var x4Split= xOut4.split(" "); var In4Split= x4Split[1].split("n"); document.write("Output 04 tied to Input " + In4Split[1] + "<br>"); // --> </script> <br> </body> </html>

Figure 51. HTML Source Code Using JavaScript to Display Matrix Switcher

Responses

Figure 52. Browser View

IPL T SFI244 • Communication and Control 50

URL Encoding

URL encoding is the method of using ASCII hexadecimal characters to display speciﬁc characters in a URL. URL encoding is used for several reasons. On some operating systems, certain characters are unsafe or not available, and others are reserved by the HTML or URL speciﬁcation. URL encoding is used to ensure compatibility and functionality with most Internet browsers. As a general rule, use the hexadecimal encoding method shown below when these characters appear in your URLs.

The following types of characters do not require encoding in a URL.

alphanumerics 0-9 a-z A-Z

special characters $ _ _ . + ! * ( ) ; reserved characters ; / ? : @ = &

When used for their reserved purposes, these characters do not require encoding within a URL.

Reserved characters

Reserved characters should not be encoded when they appear in their conventional meaning in a URL. For example, do no encode the slash (/) when using it as part of the URL syntax. Only encode unsafe characters (deﬁned below) in your URLs.

The following table lists reserved characters.

Characters Hex Dec

$ Dollar 24 36 & Ampersand 26 38 + Plus 2B 43 , Comma 2C 44 / Forward Slash/Virgule 2F 47 : Colon 3A 58 ; Semi-colon 3B 59 = Equal 3D 61 ? Question Mark 3F 63 @ “At” symbol 40 64

IPL T SFI244 • Communication and Control 51

Unsafe characters

URLs use some characters for “special use” in deﬁning their syntax and these characters should be encoded. For various reasons, these characters present the possibility of being misunderstood within a URL.

The following table lists unsafe characters.

Characters Hex Dec

Space 20 32 ““ Quotation Marks 22 34 < “Less Than” Symbol 3C 60 > “Greater Than” Symbol 3E 62 # Pound 23 35 % Percent 25 37 { Left Curly Brace 7B 123 } Right Curly Brace 7D 125 | Vertical Bar/Pipe 7C 124 \ Backslash 5C 92 ^ Caret 5E 94 ~ Tilde 7E 126 [ Left Square Bracket 5B 91 ] Right Square Bracket 5D 93 ` Grave Accent 60 96

A/V Device Control

Custom Web Pages

Control of A/V devices can be accomplished in any of several ways once the IPL T SFI244 has been connected and conﬁgured. These include Web pages, Telnet, and direct port access.

These pages can either be modiﬁed versions of the existing Web pages or new Web pages developed in the ﬁeld.

Web page development can be done with a Web site development tool such as Frontpage or Dreamweaver. Custom Web pages are loadable with the Web server File Manager (see

Managing ﬁles).

IPL T SFI244 • Communication and Control 52

Telnet (Port 23)

Telnet, short for Telecommunications Network, provides a way for you to connect to a computer or server (in this case, the IPL T SFI244) on a network. Once connected via Telnet, you can send ASCII serial commands (see Programmer’s Guide for the Telnet

and Web Browser) to control devices connected to the interface through both serial

ports. Telnet only works in RS-232 mode.

Accessing and using Telnet

1. Click Start, then Run and type “Telnet”. Click OK. The Telnet program starts (see

2. At the command prompt, type “open” and press Enter.

3. At the < to > prompt, type the IP address of the IPL T SFI244. (The default IP address

ﬁgure 53).

is 192.168.254.254, but it may have been changed in the setup or conﬁguration process. If it was changed, use the new address.) Telnet defaults to port 23.

Figure 53. Telnet Command Prompt

4. If passwords were set up for the connected system, you will be prompted to log in as

Administrator or User. Otherwise, the system responds with a <cr/lf>.

Figure 54. Connecting to the IP Address

5. Once you are connected, you can enter serial (ASCII) commands as desired.

6. When you are through entering commands to the interface, type “quit” at the

command prompt to quit Telnet.

IPL T SFI244 • Communication and Control 53

Direct Port Access (Ports 2001 Through 2002)

Direct access allows a direct, one-to-one connection to any of the serial ports using a reserved IP port number:

COM1: direct access port #2001

COM2: direct access port #2002

When a TCP session is initiated to port 2001 through port 2002, all data sent and received passes directly to and from that port without any processing. Serial port parameters should be set via Telnet connection prior to using direct access.

Using direct access

1. Access the unit via Telnet and conﬁgure the COM port parameters as desired using SIS

commands (see the Command/response table).

2. Close the initial Telnet session.

3. Open a direct access Telnet session to the selected port by entering the IP address

followed by a space then the port number (for example, 192.168.244.244 2001).

4. Send serial commands directly through the selected COM port to the attached A/V

device.

5. Close the Telnet session to end the direct access session.

NOTE: You can force the direct access session closed by logging on as

Administrator and entering ”Esc X! * 0CD}”, where COM port.

X! is the selected

Port redirect

Using port redirect, either serial port can be conﬁgured as a pass-through connection, allowing data to be sent and received directly to and from the serial port back to the client (PC) without any processing. In ﬁgure 55, a MediaLink® controller connected to serial port 1 (COM1) is controlling a projector and input devices connected to serial port 2 (COM2). Port redirect is enabled with an SIS command (see the Command/

response table).

SGSGSG

FLEX I/O

21 3 4 1

COM2

00-05-A6-xx-xx-xx

COM1

LAN

TXRX

POWER

TXRX

12V

Extron IPL T SFI244

Ethernet Control Interface

Remote User Control & Administrator Monitoring

RS-232

.5A MAX

TCP/IP

Network

Ethernet

DVDLaptop VCR

Laptop

DVD

VCR

DISPLAY

POWER

6 0

e roll t

MLC2

inkCon L a

edi

VOLUME

MAX/

MIN

Extron

Extron MediaLink

Other Controller

Projector

Figure 55. Pass-through Mode

IPL T SFI244 • Communication and Control 54

Troubleshooting

Turn on output device(s) (plasma screens, monitors, projectors), the IPL T SFI244 control interface and the control devices (PC, laptop, and so on).

If the output A/V device cannot be remotely controlled, check the following:

Power connections

1. Ensure that all devices are plugged in.

2. Make sure that each device is receiving power. The interface’s front panel power LEDs

Data connections

1. Check the cabling connections and make adjustments as needed, the Link LEDs

2. Try to ping the unit by typing “ping 192.168.254.254” at the DOS command prompt,

3. If contact is established with the unit, but the unit’s Web pages cannot be accessed by

light if the device is receiving power.

on the IPL T SFI244 control interface and the computer should be solid green if a network connection is detected. If these LEDs are not lit, either the cable is faulty or not plugged in, or the wrong type of cable is being used (see Connecting the

Hardware).

or use the Web address provided to you by your system administrator. If you get no response:

a. Make sure your unit is using the appropriate subnet mask (check with your system

administrator).

b. Make sure your PC does not have a software ﬁrewall program which might block

the IP address of the unit.

your Web browser, verify (in the Options or Preferences menu) that your Web browser is conﬁgured for direct network connection and not set up to use a proxy server.

If you are still experiencing problems, call the Extron S3 Sales & Technical Support Hotline if needed. See the back of this manual for the telephone number for your region.

IPL T SFI244 • Communication and Control 55

Speciﬁcations, Part Numbers, and Accessories

This section discusses the speciﬁcations, part numbers, and accessories for the IPL T SFI244. Topics that are covered, include:

• Speciﬁcations

• Part Numbers and Accessories

Speciﬁcations

Ethernet control interface

Connectors �� 1 female RJ-45 connector Data rate �� 10/100Base-T, half/full duplex with autodetect Protocols �� ARP, ICMP (ping), IP, TCP, UDP, DHCP, HTTP, SMTP, Telnet Default settings �� Link speed and duplex level = autodetected

IP address = 192�168�254�254 Subnet mask = 255�255�0�0 Gateway = 0�0�0�0 DHCP = off

Web server �� Up to 200 simultaneous sessions

IPL T SFI244 �� 7�25 MB nonvolatile user memory Program control �� Extron Simple Instruction Set (SIS™) Global Viewer requirements �� Microsoft® Internet Explorer® ver� 6 or higher

Serial control interface

Quantity/type �� 2 RS-232 only Connector �� (1) 3�5 mm captive screw connector, 5 pole Baud rate and protocol �� 300 to 115200 baud

Default settings (adjustable): 9600 baud, 8 data bits, 1 stop bit, no parity

Pin conﬁgurations �� COM1: pin 1 = TX, 2 = RX, 3 = GND

COM2: pin 4 = TX, 5 = RX, 3 = GND

Flex I/O control interface

Quantity/type �� 4 analog input or digital input/output(conﬁgurable) Connectors �� (1) 3�5 mm captive screw connector, 5 pole Digital inputs

Input voltage range �� 0 to 24 VDC, clamped at +30 VDC

Input impedance �� 28k ohms

Programmable pullup �� 2k ohms to +5 VDC

Threshold low to high �� Programmable range: 100 mV to 24 VDC, default = 2 VDC

Threshold high to low �� Programmable range: 100 mV to 24 VDC, default = 1 VDC Digital outputs �� 250 mA sink from 24 VDC max� Analog inputs �� 12 bit A/D, 0 to 24 VDC Pin conﬁgurations �� 1, 2, 3, 4 = digital I/Os 1, 2, 3, 4; 5 = GND

IPL T SFI244 • Speciﬁcations, Part Numbers, Accessories 56

IR control interface

Quantity/type �� 4 IR Connectors �� (1) 3�5 mm captive screw connector, 8 pole IR output carrier frequency �� 30 kHz to 1 MHz Pin conﬁgurations �� Pins 1, 3, 5, 7 = S 1, S2, S3, S4

IR learning carrier frequency �� 30 kHz to 1 MHz IR learning capture distance �� 2" (5�1 cm) to 12" (30�5 cm) from the front panel

General

Power �� Supplied by an included external power supply External power supply �� 100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 1 A, regulated Power input requirements �� 12 VDC, 0�5 A Temperature/humidity �� Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Cooling �� Convection, no vents Mounting

Rack mount �� Yes, with optional 1U rack shelf

Furniture mount �� Yes, with optional under-desk mounting kit

Pole mount �� Yes, with optional mini pole mount kit Enclosure type �� Metal Enclosure dimensions �� 1�7" H x 4�3" W x 3�0" D (1U high, quarter rack wide)

Product weight �� 0�7 lbs (0�3 kg) Shipping weight �� 2 lbs (1 kg) Vibration �� ISTA 1A in carton (International Safe Transit Association) Regulatory compliance

Safety �� CE, c-UL, UL

EMI/EMC �� CE, C-tick, FCC Class A, ICES, VCCI MTBF �� 30,000 hours Warranty �� 3 years parts and labor

Pins 2, 4, 6, 8 = GND

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

(4�3 cm H x 10�9 cm W x 7�6 cm D) (Depth excludes connectors�)

UL rated for use in plenum airspaces: meets UL 2043 for heat and smoke release, excluding the power supply; meets UL 60950 for safety

NOTE: All nominal levels are at ±10%.

NOTE: Speciﬁcations are subject to change without notice.

IPL T SFI244 • Speciﬁcations, Part Numbers, Accessories 57

Part Numbers and Accessories

Included parts

Included parts Replacement

IPL T SFI244 60-544-06 12 VDC, 1A external power supply

(U.S., Can) 12 VDC, 1A external power supply (Int’l) 70-055-02 IEC power cord Rubber feet (4) Industrial strength Velcro Female 3.5 millimeter, 5-pole captive screw connector 10-319-10 Female 3.5 millimeter, 2-pole captive screw connector 10-319-05 Tweeker IPL T SFI244 Setup Guide

Accessories

Accessories Part number

RSF 123 1U 3.5-inch Deep Rack Shelf Kit 60-190-20 RSU 129 1U 9.5-inch Deep Universal Rack Shelf Kit 60-190-01 MBU 125 Under-Desk Mount Kit 70-077-01 PMK 100 Mini Projector Mounting Kit 70-217-01

part number

70-055-01

IPL T SFI244 • Speciﬁcations, Part Numbers, Accessories 58

Glossary

This section provides deﬁnitions of terms related to the IPL T SFI244.

10/100Base-T — Ethernet which uses Unshielded Twisted Pair (such as UTP - CAT 5) cable, where the amount of data transmitted between two points in a given amount of time is equal to either 10 Mbps or 100 Mbps.

Address Resolution Protocol (ARP) — ARP is a protocol which assigns an IP address to a device based on the device’s MAC or physical machine address.

Custom Web page — Any ﬁle that can be loaded into an IPL T SFI244 and served by the unit’s internal Web server. A custom Web page can provide control of devices attached to the IPL T SFI244 without use of the GlobalViewer® (GV) or Global Conﬁgurator (GC). This is true with or without an accompanying event script. Any number and size of graphics can be used, but if they are too large to ﬁt on the IPL T SFI244, you can write your Web page so that they can be served from another Web server. If you install Microsoft® Internet Information Services (IIS) on your desktop, you can serve any page on its hard disk. The IPL T SFI244 functions like a little computer with a Web server — you can use it for various Web tasks.

DHCP — Dynamic Host Conﬁguration Protocol (DHCP), which is a standardized communications protocol that enables network administrators to locally and automatically manage the assignment of IP addresses in an organization’s network.

Driver — A GC compatible package and includes the event script that controls devices.

Ethernet — A network protocol that uses MAC addresses instead of IP addresses to

exchange data between computers. Using ARP (see above), with TCP/IP support, Ethernet devices can be connected to the Internet. An Ethernet LAN typically uses unshielded twisted pair (UTP) wires. Ethernet systems currently provide transmission speeds of 10 Mbps or 100 Mbps.

Event script — A program that runs on an IPL T SFI244 box, and issues queries and commands to the attached devices. Event scripts are written in the “Extron C” language (.sc), and compiled into an event script (.evt). GC performs this compilation. The compiled result (.evt) is loaded onto the IPL T SFI244. The Extron C language is similar to ANSI C, with some differences. As long as event scripts are turned on, event scripts run continuously on the unit.

Floating — The condition of a device or circuit that is not grounded and not tied to any established potential.

Global Conﬁgurator (GC) — A Windows® program that, based on user input, creates a GlobalViewer (GV). GC requests system information such as which devices you have and your current list of IP addresses. With this information, GC creates a GlobalViewer for your speciﬁc devices. GC also compiles the event scripts and loads the GV and event scripts onto the box. When using GC, the user must specify the port number for each device (for attached devices to be controlled, they must be on that port). In order for multiple IP-Link® boxes to appear in the same GV, all the boxes must be conﬁgured at the same time, using GC.

IPL T SFI244 • Glossary 59

GlobalViewer (GV) — A set of Web pages (HTML, XML, JS) and graphics that are loaded into the memory of an IPL T SFI244 unit. These pages provide an interface for control of devices attached to the IPL T SF unit. They communicate with the event scripts running on the box, and the event scripts issue the commands and queries. This communication between the Web pages and the event scripts occurs through predetermined memory locations in the IPL T SFI244. GV is initially created by GC; however, it is possible to edit the GV HTML, XML, and JavaScript ﬁles outside of Global Conﬁgurator. This edited GV is called “hard-coded” or manually generated GV.

HTTP — An acronym for the HyperText Transfer Protocol (HTTP), a Web protocol based on TCP/IP, that is used to fetch HyperText objects from remote Web pages.

Hysteresis (deadband) — The lag that exists between the responding parameter and the changing parameter.

Internet Protocol (IP) — The protocol or standard used to send information from one computer to another on the Internet.

IP address — A unique, 32-bit binary number (12-digit decimal number, xxx.xxx.xxx.xxx) that identiﬁes each sender and each receiver of information connected to a LAN, WAN, or the Internet. IP addresses can be static (see Static IP) or dynamic (see DHCP).

IP Netmask — A 32-bit binary number (12-digit decimal number, xxx.xxx.xxx.xxx) used on subnets (smaller, local networks) to help the router determine which network trafﬁc gets routed internally to local computers and which network trafﬁc goes out on the Internet.

Media Access Control (MAC) Address — A unique hardware number given to devices that connect to the Internet. When your computer or networking device (router, hub, interface, and so on) is connected to the Internet, a table (see ARP) relates the device’s IP address to its corresponding physical (MAC) address on the LAN.

Pass-through — Allows control systems to work with the IPL T SFI244 unit and provides a link between two ports.

Ping — A utility that tests network connections. It is used to determine if the host has an operating connection and is able to exchange information with another host.

Port number — A preassigned address within a server that provides a direct route from the application to the Transport layer or from the Transport layer to the application of a TCP/IP system.

Static IP — Refers to an IP address that has been speciﬁcally (instead of dynamically — see DHCP) assigned to a device or system in a network conﬁguration. This type of address requires manual conﬁguration of the actual network device or system and can only be changed manually or by enabling DHCP.

Transmission Control Protocol/Internet Protocol (TCP/IP) — The communication protocol (language) of the Internet. Computers and devices with direct access to the Internet are provided with a copy of the TCP/IP program to allow them to send and receive information in an understandable form.

Telnet — A utility available on most PCs that allows the computer system to communicate with one of its remote users/clients. A user who wishes to access a remote system initiates a Telnet session, using the address of the remote client. The user may be prompted to provide a user name and password if the client is set up to require them.

IPL T SFI244 • Glossary 60

Extron® Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics 1001 East Ball Road Anaheim, CA 92805 U.S.A.

Europe, Africa, and the Middle East:

Extron Europe Hanzeboulevard 10 3825 PH Amersfoort The Netherlands

Asia:

Extron Asia 135 Joo Seng Road, #04-01 PM Industrial Bldg. Singapore 368363 Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or if modiﬁcations that were not authorized by Extron were made to the product.

Japan:

Extron Electronics, Japan Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan

China:

Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Middle East:

Extron Middle East Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return

Authorization) number. This will begin the repair process.

USA: (714) 491-1500 Europe: 31.33.453.4040

Asia: 65.383.4400 Japan: 381.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁtness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron USA - West

Headqu arters

+80 0.633 .987 6

Inside USA / Canada Only

+1.714.491.1500 +1.714.491.1517 FAX

Extron USA - East

+80 0.633 .987 6

Inside USA / Canada Only

+1.919.863.1794 +1.919.863.1797 FA X

Extron Europe

+80 0.398 7.6673

Inside Europe Only

+31.33. 453. 404 0 +31.33. 453. 405 0 FAX

Extron Asia

+80 0.7339 .876 6

Inside Asia Only

+65.6 383 .440 0 +65.6 383 .46 64 FAX

Extron Japan

+81.3.3 511.7655 +81.3.3 511.7656 FA X

Extron China

+40 0.88 3.1568

Inside China Only

+86. 21.376 0.1568 +86. 21.376 0.1566 FAX

Extron Middle East

+971.4. 299 1800 +971.4. 299 1880 FA X

Extron Electronics IPL T SFI244 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

FCC Class A Notice

Contents

Introduction

About this Manual

About the IPL T SFI244 Interface

Features

Installation and Operation

Installation Overview

Mounting the IPL T SFI244 Interface

UL Guidelines for Rack Mounting

Rack Mounting

Furniture or Projector Mounting

Rear Panel Features and Cabling

POWER

Ethernet/LAN

Serial Communication

Operation

Front Panel Indicators

Resetting the Unit

Connecting the Hardware

Ethernet Connection

Serial Connection

IR Connection

Flex I/O Connection

Communication and Control

Ports Overview

Flex I/O Ports

Bidirectional Serial Control Interface Ports

Communication with the Interface

Web Server

IR Learning

Programmer’s Guide for the Telnet and Web Browser

Using the Command/Response Table

Customization

Server Side Includes

Query String

Code Examples

URL Encoding

A/V Device Control

Custom Web Pages

Telnet (Port 23)

Direct Port Access (Ports 2001 Through 2002)

Troubleshooting

Power connections

Data connections

Part Numbers and Accessories

Glossary
