Extron Electronics HSA 822MS User Manual

Installation and Maintenance Manual

Preliminary

www.extron.com

Extron Electronics, USA

1230 South Lewis Street
Anaheim, CA 92805
USA

714.491.1500
Fax [phone]

Extron Electronics, Europe

Beeldschermweg 6C
3821 AH Amersfoort
The Netherlands
+31.33.453.4040
Fax [phone]

© 2005 Extron Electronics. All rights reserved.

Extron Electronics, Asia

135 Joo Seng Road, #04-01
PM Industrial Building
Singapore 368363
+65.6383.4400
Fax [phone]

Extron Electronics, Japan

Kyodo Building
16 Ichibancho
Chiyoda-ku, Tokyo 102-0082 Japan
+81.3.3511.7655
Fax [phone]

HSA 822MS

Motorized Hideaway Surface Access Enclosure

68-617-04 Rev. Ax1

03 05

Precautions

Safety Instructions • English

This symbol is intended to alert the user of important
operating and maintenance (servicing) instructions
in the literature provided with the equipment.

This symbol is intended to alert the user of the
presence of uninsulated dangerous voltage within
the product's enclosure that may present a risk of
electric shock.

Caution

Read Instructions • Read and understand all safety and operating

instructions before using the equipment.

Retain Instructions • The safety instructions should be kept for future

reference.

Follow Warnings • Follow all warnings and instructions marked on the

equipment or in the user information.

Avoid Attachments • Do not use tools or attachments that are not

recommended by the equipment manufacturer because they may be
hazardous.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la
documentation fournie avec le matériel contient des
instructions importantes concernant l’exploitation
et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence
dans le boîtier de l’appareil de tensions dangereuses
non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de

sécurité et d’exploitation avant d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité afin de

pouvoir les consulter à l’avenir.

Respecter les avertissements • Observer tous les avertissements et

consignes marqués sur le matériel ou présentés dans la documentation
utilisateur.

Eviter les pièces de fixation • Ne pas utiliser de pièces de fixation ni

d’outils non recommandés par le fabricant du matériel car cela
risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im
Lieferumfang enthaltenen Dokumentation
besonders wichtige Hinweise zur Bedienung und
Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam
machen, daß im Inneren des Gehäuses dieses
Produktes gefährliche Spannungen, die nicht isoliert
sind und die einen elektrischen Schock verursachen
können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,

sollten Sie alle Sicherheits-und Bedienungsanleitungen genau
durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit

des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf
zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und

Anleitungen auf dem Gerät oder in der Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,

die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine
Gefahrenquelle darstellen können.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre
instrucciones importantes de operación y
mantenimiento (o cambio de partes) que se desean
destacar en el contenido de la documentación
suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre
la presencia de elementos con voltaje peligroso sin
protección aislante, que puedan encontrarse dentro
de la caja o alojamiento del producto, y que puedan
representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de

operación y seguridad, antes de usar el equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad

para futura consulta.

Obedecer las advertencias • Todas las advertencias e instrucciones

marcadas en el equipo o en la documentación del usuario, deben ser
obedecidas.

Evitar el uso de accesorios • No usar herramientas o accesorios que no

sean especificamente recomendados por el fabricante, ya que podrian
implicar riesgos.

Warning

Power sources • This equipment should be operated only from the power source

indicated on the product. This equipment is intended to be used with a main
power system with a grounded (neutral) conductor. The third (grounding) pin is
a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all

power cords from the rear of the equipment, or the desktop power module (if
detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to

be stepped on or pinched by items placed upon or against them.

Servicing • Refer all servicing to qualified service personnel. There are no user-

serviceable parts inside. To prevent the risk of shock, do not attempt to service
this equipment yourself because opening or removing covers may expose you to
dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are

provided to prevent overheating of sensitive components inside. These openings
must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced.

Replace it only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the manufacturer's
instructions.

Avertissement

Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation

indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation
principale comportant un fil de terre (neutre). Le troisième contact (de mise à la
terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la
désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,

déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du
module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de

manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient
pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-

maintenance par un technicien qualifié. Aucun des éléments internes ne peut être
réparé par l’utilisateur. Afin d’éviter tout danger d’électrocution, l’utilisateur ne
doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le
retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et orifices • Si le boîtier de l’appareil comporte des fentes ou des orifices,

ceux-ci servent à empêcher les composants internes sensibles de surchauffer. Ces
ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d'explosion s'll y a remplacment incorrect de la

batterie. Remplacer uniquement avec une batterie du meme type ou d'un ype
equivalent recommande par le constructeur. Mettre au reut les batteries usagees
conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene

Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit
einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der
dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar.
Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen,

sollten Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen
Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht

im Weg liegen und niemand darauf treten kann oder Objekte darauf- oder
unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualifiziertem

Servicepersonal durchgeführt werden. Die internen Komponenten des Gerätes
sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in
keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die
Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse

aufweist, dienen diese zur Vermeidung einer Überhitzung der empfindlichen
Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten
blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird.

Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen
vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen
Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo

de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este
equipo debe provenir de un sistema de distribución general con conductor
neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no
puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la

acometida de alimentación eléctrica al equipo, desenchufar todos los cables de
alimentación en el panel trasero del equipo, o desenchufar el módulo de
alimentación (si fuera independiente), o desenchufar el cable del receptáculo de
la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se

deben instalar en lugares donde no sean pisados ni apretados por objetos que se
puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal

calificado. En el interior no hay partes a las que el usuario deba acceder. Para
evitar riesgo de electrocución, no intentar personalmente la reparación/
mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar
expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o orificios en su caja/alojamiento,

es para evitar el sobrecalientamiento de componentes internos sensibles. Estas
aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición

incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente)
recomendado por el fabricante. Desachar las baterías usadas siguiendo las
instrucciones del fabricante.

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and
workmanship for a period of three years from the date of purchase. In the event of
malfunction during the warranty period attributable directly to faulty workmanship
and/or materials, Extron Electronics will, at its option, repair or replace said products
or components, to whatever extent it shall deem necessary to restore said product to
proper operating condition, provided that it is returned within the warranty period,
with proof of purchase and description of malfunction to:

USA, Canada, South America, Europe, Africa, and the Middle East:
and Central America:

Extron Electronics Beeldschermweg 6C
1001 East Ball Road 3821 AH Amersfoort
Anaheim, CA 92805, USA The Netherlands

Asia: Japan:

Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Kyodo Building
PM Industrial Bldg. 16 Ichibancho
Singapore 368363 Chiyoda-ku, Tokyo 102-0082

This Limited Warranty does not apply if the fault has been caused by misuse,
improper handling care, electrical or mechanical abuse, abnormal operating conditions
or non-Extron authorized modification to the product.

If it has been determined that the product is defective, please call Extron and ask for an
Applications Engineer at [phone] (USA), 31.33.453.4040 (Europe), 65.6383.4400
(Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This
will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you
assume the risk of loss or damage during shipment. Returned units must include the
serial number and a description of the problem, as well as the name of the person to
contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with
respect to the product and its quality, performance, merchantability, or fitness for any
particular use. In no event will Extron Electronics be liable for direct, indirect, or
consequential damages resulting from any defect in this product even if Extron
Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some
provisions of this warranty may not apply to you.

Extron Electronics, Europe

Japan

Table of Contents

Chapter 1 • Introduction ..........................................................1-1

About the HSA 822MS Hideaway Enclosures..........1-2

Features ...................................................................................... 1-5

Chapter 2 • Installation.............................................................2-1

Installation Overview..........................................................2-2

Preparing the Table .............................................................. 2-4

Preparing the HSA................................................................... 2-5

Mounting the HSA.................................................................2-8

Mounting the Table Surface ............................................ 2-9

Making Final Adjustments ............................................. 2-11

Cabling and Installing the AAPs.................................. 2-14

Routing the AAP Cables ................................................... 2-16

Cabling the Enclosure ....................................................... 2-18

Cabling the RJ-45 connectors ............................................. 2-19

Cabling the control and status connector ......................... 2-20

Bezels ......................................................................................... 2-23

Chapter 3 • Maintenance and Modifications ............3-1

Replacing an AAP .................................................................. 3-3

Replacing the Bezels ............................................................3-5

Removing and Replacing the Shroud ......................... 3-6

Setting the Upper Limit Switch
(Elevated Platform Height)

Setting the Lower Limit Switch
(Lowered Platform Height)

Setting the Manual Release Switch........................... 3-10

Safety Switch — Location Only.................................... 3-12

Replacing the Control Board Assembly and
Power Supply Assembly

..............................................3-7

..............................................3-8

.................................................. 3-13

Preliminary

iHSA 822MS • Table of Contents

Table of Contents, cont’d

Appendix A • Reference Information ............................ A-1

Specifications ......................................................................... A-2

Part Numbers.......................................................................... A-4

HSA 822MS............................................................................ A-4

Included parts ....................................................................... A-4

Template, replacement parts, and accessories.................... A-4

Preliminary

Appendix B • Packaging for Shipment ..........................B-1

Interface accessories ............................................................. A-5

Preliminary

HSA 822MS

Chapter One

1

All trademarks mentioned in this manual are the properties of their respective owners.

68-617-04 Rev. Ax1

ii

HSA 822MS • Table of Contents

Introduction

About the HSA 822MS Hideaway Enclosures

Features

03 05

Introduction

About the HSA 822MS Hideaway Enclosures

The Extron HSA 822MS is a furniture-mounted, motorized
architectural solution for computer video interface connector
access and control. The top (table) surface of the HSA can be
made from the portion of the furniture that is removed for the
HSA installation to provide an inconspicuous appearance
(figure 1-1).

Preliminary

Closed

The installed enclosure fits flush within a table or podium top,
storing the AAPs and connectors out of the way and out of
sight. To access the AAPs and connectors, the user touches a
button, send s a control system command, or presses down on
the top of the enclosure. A stepper motor slowly raises the
AAPs and connectors into view.

The AAP spaces and RJ-45 connectors are arranged back-to
back, while the AC receptacles are back-to-back on the sides
perpendicular to the AAPs.

A cable inside the enclosure connects the user AC receptacles to
an IEC connector on the underside of the enclosure. The same
power cable supplies the stepper motor that drives the panel up
and down.

Cables inside the enclosure route the front panel RJ-45 signal
lines to RJ-45 connectors on the underside of the enclosure.
With an optional conversion kit, one or more of the RJ-45 (data)
lines can be converted to an RJ-11 (telephone) line.

Preliminary

1-2

Open

Figure 1-1 — HSA 822MS hideaway enclosure

The HSA 822MS provides space for four double space (double­height) or eight single space Extron Architectural Adapter Plates
(AAPs), two standard grounded AC power receptacles, and four
RJ-45 (Category [CAT] 6) connectors. The HSA is available in a
US version, with US power receptacles, and an international
version. Several different types of power receptacles are
available for the international version, including UK, French,
Israeli, Australian, Indian, European, and Swiss receptacles.

The motorized action is remotely controlled by contact closure.
The control mechanism uses discrete high or low signals to
report the HSA’s up or down position. Safety devices prevent
injury and equipment damage.

HSA 822MS • Introduction

HSA 822MS • Introduction

1-3

Introduction, cont’d

The functionality of the HSA 822MS can be optimized with one
through four RGB 580xi AAPs connected to one through four
RGB 580xi Remote Interfaces (figure 1-2).

Preliminary

Projector

I
N
P
U
S
T
E
L
E
C
C
T
O
A
M

U

P

D

U

I

O
T
E
R

Extron
HSA 822MS

Projector

Features

Preliminary

• Easy access to connectors and controls

• Durable motorized movement

• Motion-limiting safety features to prevent injury and
equipment damage

• A variety of colors of included RJ-45 connector bezels:
black, red, blue, orange, gray, white, ivory, yellow, and

green

• Compact size

• Easy installation of up to four powered or passive double
space Extron AAPs

• RJ-45 (CAT 5/6) network and data connections

• Grounded AC plugs

1-4

IN
PU
S

T
E
LEC

C

T

O

A

M

U

P

D

U

I
O

TE

R

Extron
RGB 580xi SI AAP

Interface
on each side

Figure 1-2 — HSA 822MS and RGB 580
configuration

HSA 822MS • Introduction

Extron
HSA 822MS

Surface Access Enclosure

A
U
D

I
O

I
N
P
U
A

T

N

S
A
L
O

G

C
O
N

A

T

B

R
O

C

L

D

E

V
I
D

S

E

O

L

O

G

E

SE

O

V
E

R

U

R

L

T

D
D

P

P

S

U

P

E

T

A
K
I
N

V

G

­S
Y
NC
N
E

W

G

I

SY

D

C

T

O

NC

H

MP

SY
N
C

R
G

B
5
8

0

x
i

Extron
RGB 580xi

Interface

xixi

xi

xixi

HSA 822MS • Introduction

1-5

Introduction, cont’d

Preliminary

Preliminary

HSA 822MS

Chapter Two

2

1-6

Installation

Installation Overview

Preparing the Table

Preparing the HSA

Mounting the HSA

Mounting the Table Surface

Making Final Adjustments

Cabling and Installing the AAPs

Routing the AAP Cables

Cabling the Enclosure

Bezels

HSA 822MS • Introduction

Installation

CAUTION

Installation Overview

See figure 2-1 and the following steps to install the HSA 822MS:

If desired, install optional RJ-45 to RJ-11 conversion kit(s)

1

Preliminary

to replace one or more RJ-45 connectors with RJ-11
connectors. Refer to the RJ-45 to RJ-11 Conversion Kit
manual.

If desired, install the optional flexible conduit kit to

2

replace the removable AC power cord. Refer to the
Flexible Conduit Kit manual.

Have a reputable carpenter or other craftsman cut a hole

3

in the surface where the enclosure will be installed to the
exact dimensions of the HSA. Retain the removed piece of
the table surface to form the top of the HSA. See Preparing
the Table on page 2-4.

Run all cables necessary to support the AC, control and

4

status, and RJ-45 connectors and all planned AAP
connectors. Leave enough slack in the cables to connect
them to the underside of the enclosure or to the rear of the
AAPs before the AAPs are installed in the enclosure.

Turn off all of the equipment to be connected. Ensure that

5

the equipment connected to the RJ-45 connectors and the
connections for any AAPs are all turned off and
disconnected from the power source.

Installation and service must be performed by
authorized personnel only.

Route and secure the AAP cables inside the enclosure. See

11

Routing the AAP Cables on page 2-16.
Connect the power, RJ-45, and control and status cables to

12

the underside of the enclosure. See Cabling the Enclosure
on page 2-18.

Connect power cords and turn on the devices that connect

13

to the surface access enclosure.

Surface
Cutout

HSA 822MS
Enclosure

Yellow Shipping
Restraint

REMOVE

I

N
P

U

S

T
E
L

E

C

C

T

O

A

M

U

P

D

U

I
O

T

E
R

H
H

S
S

A
A

82
8

2
2
2
M

M

S
S

Mounting
Surface

Preliminary

2-2

Remove the yellow shipping restraint and partially

6

disassemble the HSA to gain necessary internal access.
See Preparing the HSA on page 2-5.

Mount the HSA in the table. See Mounting the HSA on

7

page 2-8.
Secure the piece of the table removed in 3 to the top of

8

the HSA. See Mounting the Table Surface on page 2-9.
Adjust the height of the surface block. See Making Final

9

Adjustments on page 2-11.
If applicable, connect cables to the rear connectors on the

10

AAPs to be installed in the HSA 822MS. Install the
desired AAPs on the AAP/RJ-45 panel of the enclosure.
See Cabling and Installing the AAPs on page 2-14.

HSA 822MS • Installation

Mounting Screws (8)

Tr ay

IEC Power Cord

RJ-45 Connectors

Mounting Bolts
Flat washer (2 each)

Motion Control
Connector

AAP Cables

Figure 2-1 — Mounting the HSA 822MS enclosure

HSA 822MS • Installation

2-3

Installation, cont’d

HSA 822MS
Enclosure

Yellow Shipping
Restraint

REMOVE

The preferred and recommended method for preparing the
table is to have the hole cut to the exact dimensions identified in
appendix A by a reputable carpenter or other craftsman.

Preparing the Table

CAUTION

Preliminary

The preferred and recommended method for preparing the
table is to have the hole cut to the exact dimensions identified
in appendix A by a reputable carpenter or other craftsman. Save
the removed material or fabricate a piece of the same material
that is the same size of the removed material for use as the top
surface of the HSA.

The opening in the table for the HSA should be cut
only by licensed and bonded craftspeople. Exercise
care to prevent scarring or damaging the furniture.

When selecting a mounting location, be aware that the
HSA 822MS is not exactly square. The cable and AAP
access is on the 6.220" (15.80 cm) side. Angle the cut
for the optimum positioning. If necessary, use a square
to ensure that the cut is properly positioned. Extron is
not responsible for improperly-positioned HSA products.

The levelling adjustment allows the HSA to be installed
in a table with a thickness between 3/4" (1.9 cm) and

1.5"(3.8 cm).

For best results, the surface block dimension should be
1/32" to 1/16" (1 mm) smaller on all four sides than the
cutout hole.

Preliminary

Figure 2-2 — Using the drilling template

4. Remove the drilling template. Keep the template for

future installations.

Preparing the HSA

1. Set the HSA 822MS on its side on a work surface.

2. Cut the tie wraps that lock the yellow shipping restraints

in place and remove the restraints (figure 2-3).

The metal drilling template is reusable. Do not discard
this template when the installation is complete. Save it
for future HSA 822MS installations.

1. Turn the table upside-down.

CAUTION

2. Place the metal drilling template into the hole in the table.

The drilling template should fit snugly into the hole, with
no noticeable sideways or top-to-bottom motion.

3. Drill pilot holes, each 3/32" (2.4 mm) in diameter by 1/4"

(7 mm) deep, at each of the template’s eight standoff
guides (figure 2-2).

Protect the table surface.

The metal drilling template should fit snugly in the hole.
If the template can move, the hole size is too large.

Wear safety glasses when operating the drill.
Failure to heed this warning can result in eye injury .

HSA 822MS • Installation

Figure 2-3 — Removing the shipping restraints

HSA 822MS • Installation

2-52-4

Installation, cont’d

3. Remove and retain the four screws in the corners of each

Preliminary

Figure 2-4 — Removing the shroud

4. Manually raise the top surface.

5. For both AAP/RJ-45 panels, remove the top and bottom

6. To ensure that you reinstall the RJ-45 connectors in the

side’s surface of the enclosure shroud “cube” (figure 2-4).
Remove the two halves of the shroud and set them aside.

HSA 822MS
Enclosure

H

S

A

8

2
2

M

S

Remove (4) Screws
(each side).

You do not need to remove the screws in the center of two
of the sides. They do not secure the shroud in any way;
rather, they provide structural support to the enclosure.

screws on the right and left sides of the panel (figure 2-5).
Retain the screws. Lift the panels away from the enclosure
as far as the connected cables allow.

The center screws on each side of the panel do not fasten
the panel in place. They secure the AC power outlet.

proper position when the installation is complete, tag the
internal CAT 6 cables to define their installation location
(such as top or bottom and side A or B).

Also tag the side of the enclosure itself (A or B).

Remove two

screws ea. side.

I
N

P
U

S

T
E
L

E

C

C

T

A

O

M

U

P

D

U

IO
T
E

R

H

S

A

8
2

Remove panel.

Replacement Face Plate

Screws (4) under Enclosure

2

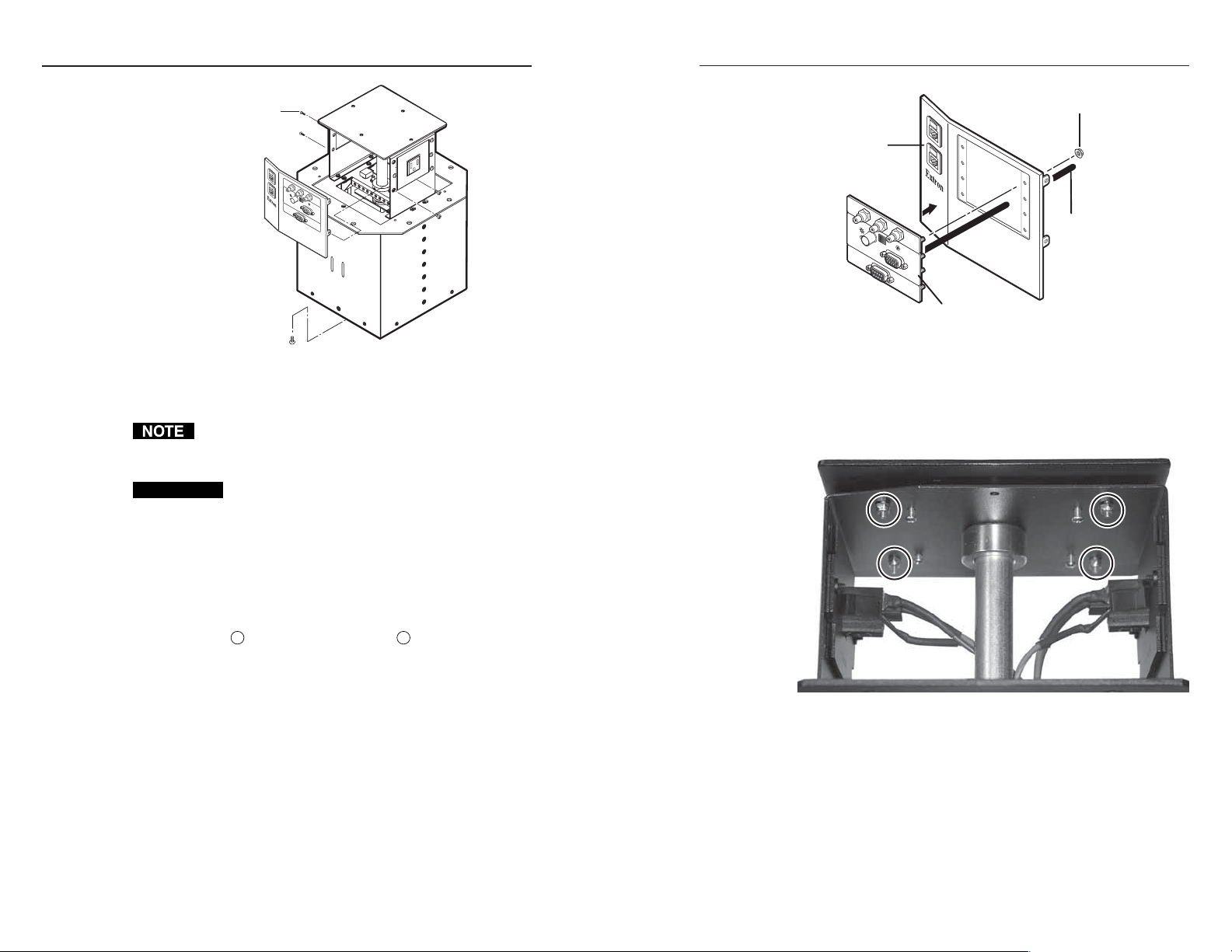

Figure 2-5 — Removing the AAP/RJ-45 panel

7. With a Tweeker, inside the AAP/RJ-45

panels, push down on and gently twist on
the front of each RJ-45 connector detent to
disconnect the connector from the rear of
the AAP/RJ-45 panel plug-in.

8. Disconnect any cables from the rear of the

existing AAPs.

9. Set the AAP/RJ-45 panels aside.

10. Remove and retain the four 1/4" nuts that

secure the top plate to the lifting plate
(figure 2-6). Set the plate aside.

Preliminary

2-6

HSA 822MS • Installation

Figure 2-6 — Location of the top plate nuts

HSA 822MS • Installation

2-7

Installation, cont’d

11. Remove the two bolts and washers that secure the tray to

the underside of the HSA and remove the tray.

Mounting the HSA

1. Place the HSA upside-down over the table. Using the

eight provided #8-32 wood screws and #8 washers, secure
the HSA to the underside of the table (figure 2-7). Leave

Preliminary

the screws slightly loosened for adjustment.

Mounting the Table Surface

1. Place the piece of table material (the surface block) that
you will use as the top of the HSA upside-down on a
protected surface.

CAUTION

2. Measure and draw centerlines (figure 2-8) at:

• 3.21" (8.15 cm) (or one half the length) along the 6.42"

• 3.07" (7.8 cm) (or one half the width) along the 6.14"

CAUTION

Mark Center
Lines

Protect the block’s finished surface.

(16.31 cm) length of the surface block

(15.6 cm) length of the surface block

It is crucial that you place the top plate over the
surface block as closely centered as possible and
that the long edge of the surface block is parallel to
the long end of the top plate. The plate has only a
minimal adjustment capability.

Mounting Screws (4)

Length

6.42"

(16.3 cm)

3.21"

(8.1 cm)

Preliminary

HSA 822MS
Top Plate

2-8

Figure 2-7 — Securing the HSA to the table

2. Turn the table right-side-up and place it in a level location,

preferably in the final installation location.

HSA 822MS • Installation

Surface
Cutout

3.07"

(7.8 cm)

6.14"

(15.6 cm)

Width

Figure 2-8 — Centering the plate over the surface
block

3. Place the top plate on top of the surface block, screw side
up. Align the long edge of the plate with the long edge of
the surface block. Position the plate so that the centerlines
that you drew in step 2 cut through the center of each of
the four screw holes in the plate (figure 2-8).

HSA 822MS • Installation

2-9

Installation, cont’d

4. Firmly hold the top plate in position and drill pilot holes,

Preliminary

Figure 2-9 — Drilling pilot holes

5. Using the four provided #6 x 1/2" Philips flathead screws,

6. Using the four 1/4" nuts that you removed in Preparing the

each 3/32" in diameter by 1/4" deep, at each of the top
plate’s four screw holes (figure 2-9).

Wear safety glasses when operating the drill.
Failure to heed this warning can result in eye injury .

secure the top plate to the surface block.

HSA, step 10, secure the top plate to the lifting plate
(figure 2-10). Leave the nuts slightly loosened for
adjustment.

The surface block can fit either of two ways. For surfaces
with a grain pattern, check that the pattern of the surface
block is the best match for the grain pattern of the table
surface. If necessary, reverse the direction of the block.

Making Final Adjustments

1. On the 10-pin control and status captive
screw connector on the underside of the
HSA, use a piece of wire to temporarily
jumper pin 4 to pin 5 to enable the manual activation
(press to activate) operation of the HSA.

2. With the unit unpowered, gently press on the surface
block to retract (close) the unit. The surface block should
fit snugly within the cut-out hole.

If the surface block impacts the sides of the hole, adjust
the positioning of the HSA and the surface block. With the
installation screws and nuts left slightly loosened, the HSA
and/or the surface block should be able to be moved
enough for the surface block to fit snugly. Leave the
installation screws and nuts left slightly loosened.

2. Connect the enclosure to the appropriate power source:

• 125 VAC, 60 Hz, 5 A (US domestic version)

• 220-240 V, 50/60 Hz, 5 A (international versions)
The HSA moves to its home (retracted) position, close to

flush with the table surface.

4. Check that the surface block is horizontal, and not tipped
to one side or the other. If necessary, adjust the surface
block to be horizontal as follows:

a. Slowly tighten the adjustment screw, on the under-

side of the top plate (figure 2-11), that is closest to the
lowest side of the surface block to raise that side.

Preliminary

2-10

Figure 2-10 — Securing the surface block and top plate
to the lifting plate

HSA 822MS • Installation

Figure 2-11 — Location of level adjustment screws

HSA 822MS • Installation

2-11

Installation, cont’d

5. Adjust the height of the surface block to be flush with the

Preliminary

Figure 2-12 — Location of lower limit switch
assembly (seen from the side)

b. If necessary, slowly tighten one or more of the other

adjustment screws to raise a corner or side of the
surface block to horizontal.

table surface as follows:

Since all tables have different widths, it is normal for this
to need adjustment.

a. Hold the platform up and unplug the AC power

connector.

b. Locate the lower limit switch assembly (figure 2-12)

inside the enclosure.

Lower Limit
Set Screw

Lower Limit
Switch

Control
Board

NOTE RJ-45 connectors are removed for visibility.

A generic limit switch assembly is shown in close-up
below. The lower limit switch assembly looks similar,
but is not identical to the close-up shown, but parts of
the lower limit assembly are concealed from view.

c. Loosen the lower limit switch

lock nut.

d. Rotate the lower limit switch

set screw:
Clockwise to raise

the stop point of the
retracted platform.

Counterclockwise

to lower the stop
point of the
retracted platform.

Adjustments do not take affect immediately. You must
use the motor mechanism to raise and lower the platform
to see the affect of your adjustment.

e. Plug in AC power.

Do not reach tools or your hands into the area
behind the AC connectors or into the vicinity of the
power supply.

f. Press on the surface block to raise and lower the

platform to check the adjusted height. If necessary,
repeat step 5d.

g. When the surface block is flush with the table surface

to your satisfaction, tighten the lower limit switch
lock nut.

6. Check that the surface block is centered in the cut-out hole.
If the surface block is not centered in the hole, adjust the

positioning of the surface block. With the installation
screws and nuts left slightly loosened, the HSA and
surface block should be able to be moved enough for the
surface block to be centered.

When the surface block is satisfactorily centered in the
hole, tighten the four 1/4" nuts that secure the top plate to

the lifting plate (figure 2-6 on page 2-7).

7. Tighten the eight #8-32 wood screws that secure the HSA
to the underside of the table (figure 2-7 on page 2-8).

Limit
Switch
(Hidden)

Limit Switch
Set Screw

Limit Switch
Lock Nut

Switch
Actuator

Preliminary

HSA 822MS • Installation

HSA 822MS • Installation

2-132-12

Installation, cont’d

#4-40 Nut w/ Captive

Washer

Cable

AAP/RJ-45

Panel

HSA 822MS

RGB 580xi SI AAP

COMPUTER

INPUT
SELECT

A

U

D

I

O

8. Press on the surface block to raise and lower the platform.

Double check that the surface block is centered in the cut­out hole. If necessary, loosen the top plate nuts and repeat
step 6.

9. Double check that the surface block is flush with the table
surface. If necessary, repeat step 5.

10. Double check that the surface block is horizontal and not

Preliminary

tipped to one side or the other. If necessary, repeat step 4.

11. On the underside of the HSA, disconnect AC power.

12. When you are satisfied that the HSA is centered, flush, and

horizontal, reinstall the two shroud halves to the enclosure
frame with the eight screws per shroud half (four per side)
that you removed in Preparing the HSA, step 3. Orient the
shroud halves such that the vertical column of center holes
align with the column of screw inserts on the vertical
slides.

Cabling and Installing the AAPs

Extron’s various single space and double space AAP devices,
including the various RGB 580xi AAPs, can be mounted to the
HSA 822MS. See appendix A, Reference Information, for
RGB 580xi AAP part numbers.

The screws for installing an AAP are built into its AAP/RJ-45
panel, so no additional screws are needed.

Ensure that AC power is disconnected before
servicing the HSA unit.

1. Cable the rear of the AAPs before fastening the AAPs to
the AAP/RJ-45 panel. Route the cables through the hole in
the underside of the surface mount enclosure and connect
them to the rear of the AAPs. If applicable, refer to the
cabling information in the documentation for the AAP.

2. Remove the blank AAPs in the HSA AAP/RJ-45 panel by

removing the four #4-40 nuts and captive washers.

3. Insert each of the AAP’s screws through the holes in the

AAP opening of the HSA AAP/RJ-45 panel. Secure each
AAP to the panel with the provided captive washers and
#4-40 nuts (figure 2-13).

Figure 2-13 — Mounting an AAP on the AAP/RJ-45
panel

4. Replace the AAP/RJ-45 panel in the surface mount

enclosure and secure it in place with the screws removed
in Preparing the HSA, step 6. If you lose an AAP/RJ-45
panel screw, four spare screws are stored in the underside
of the enclosure (figure 2-15 on page 2-18, item 5).

Preliminary

2-14

HSA 822MS • Installation

HSA 822MS • Installation

2-15

Installation, cont’d

Routing the AAP Cables

The AAP cables must have freedom of movement to permit
opening and closing the surface mount enclosure. At the same
time, they need to be restrained to prevent them from rubbing
against the edges of the enclosure cable access hole in the
underside of the surface mount enclosure. Rubbing against the
cable access hole edges can damage the cables. Route and

Preliminary

secure the AAP cables as follows:

1. Connect the enclosure to the appropriate power source:

• 125 VAC, 60 Hz, 5 A (US domestic version)

• 220-240 V, 50/60 Hz, 5 A (international versions)

2. Press on the surface block to open the top panel and
extend the AAP cables to their maximum pull.

3. To prevent wear and tear or binding of the movement
caused by cable movement, secure the AAP cables inside
the enclosure. Use tie wraps to secure the cables to the tie­downs accessible through the cable access holes on the
underside of the HSA (figure 2-14).

4. On the underside of the HSA, remove the
jumper from the 10 pin control and status
captive screw connector.

Preliminary

Figure 2-14 — Cable tie-downs inside the HSA
(seen from underneath)

HSA 822MS • Installation

HSA 822MS • Installation

2-172-16

Installation, cont’d

A1

A2

A1

A2

B1

B2

B1

B2

Icon Labels

Cabling the Enclosure

2

IEC

Preliminary

(International)

2

1

5

1

Figure 2-15 — HSA 822MS underside features

RJ-45 connectors —

1

Hardwired
(USA/domestic)

8

4

4

6

73

8

See Cabling the RJ-45 connectors on page 2-19.

Cabling the RJ-45 connectors

Plug one end of a terminated CAT 5 or CAT 6 twisted pair (TP)
cable into each of these RJ-45 female connectors. Connect the
other end to an appropriate telecommunications or data
network device or to an Extron TP product.

An RJ-11 (telephone) plug can be connected to the RJ-45
jack.

The bottom RJ-45 connectors match up with the AAP/RJ-45
panel RJ-45 connectors as shown in figure 2-16. For example,
match the AAP/RJ-45 panel RJ-45 connector A1 with the
underside RJ-45 connector A1, match A2 with A2, and so forth.

Preliminary

AC power connector — Connect the enclosure to the

2

appropriate AC power source:

• US domestic version — 125 VAC, 60 Hz, 5 A, using the

hardwired standard US power connector

• International versions — 220-240 V, 50/60 Hz, 5 A, using

standard IEC power connector

Control and status captive screw connector — See Cabling the

3

control and status connector on page 2-20.

Cable access holes*

4

Spare AAP/RJ-45 panel screws*

5

Power supply assembly*

6

Control board assembly*

7

Cable tie-downs*

8

HSA 822MS • Installation

Items marked with an asterisk (*) are concealed by the
removable tray.

Figure 2-16 — HSA 822MS RJ-45 connectors

If necessary, have a qualified service person replace the
connector icon on the AAP/RJ-45 panel by prying the old icon
off of the connector plug-in with a Tweeker or small screwdriver
(see figure 2-17) and snapping a new icon in place.

Figure 2-17 — Changing the connector icon

HSA 822MS • Installation

2-192-18 2-19

Installation, cont’d

Cabling the control and status connector

Plug one end of the control cable(s) into this 10-pole captive
screw connector. Connect the other end of the cable(s) to a
control and/or monitoring system. The following table
identifies the signals on each pin of the connector.

Control and status connector pinout

Preliminary

Pin Definition Definition Explanation

Up (control)

1

Down (control)

2

Stop (control)

3

Gnd

4

Enable

5

Up (status)

6

Down (status)

7

Gnd

8

Power (status)

9

Gnd

10

Figure 2-18 shows the function of the HSA’s status pins (6 [up],
7 [down], and 9 [power]). When a status condition is met, the
switch closes, shorting the status pin to ground, pulling it low.
When a status condition is not met, the switch opens, floating
the status pin. Status pins 6, 7, and 9 can sink +5 VDC to
+12 VDC, 500 mA, maximum.

12345678 109

Up

Down

Stop

Enable

Up status

Down status

Momentary
contact closure

Momentary
contact closure

Momentary
contact closure

Gnd
Contact closure

Grounded/
open

Grounded/
open

Gnd
Grounded/

open

Gnd

Pwr status

Short to ground to raise
(open) the top panel.

Short to ground to lower
(shut) the top panel.

Short to ground to stop
the top panel's motion.

Ground
Short to ground to enable

activating the motor by
pressing on the top panel.

Grounded = up
Open = down or in motion

Grounded = down
Open = up or in motion

Ground
Grounded = AC power is

applied.
Open = No power is
applied.

Ground

HSA 822MS

V21

+

STATUS

CTL
BRD

S

PIN

1 W

DNG

Figure 2-18 — Equivalent status pin circuit

Figure 2-19 expands upon figure 2-18 to show suggested
circuitry to display the HSA’s status. In this figure, the LED
lights for as long as the status pin is pulled low (the switch is
shorted [closed]).

HSA 822MS

+

V21

CTL
BRD

1 WS

NOTE This drawing shows a standard +5 V power supply. +12 V is another

standard power supply that can be used in this circuit. If you use a
+12 V supply, use a 2k ohm resistor in place of the 470 ohm resistor shown.

STATUS

PINS

470

DEL

V5+

DNG

TX

E

CRS

Figure 2-19 — Typical status display circuit

If connected to a position (up or down) status pin, the LED
lights when the HSA platform is in the stated position. The LED
is unlit when the platform is in motion or in the opposite
position. Under no circumstances should both position LEDs
light simultaneously.

If connected to the power status pin, the LED is lit when as
power is applied to the HSA.

Figure 2-20 shows a typical locally-constructed contact closure
control and LED indication device.

Preliminary

HSA 822MS • Installation

HSA 822MS • Installation

2-212-20

Installation, cont’d

Up

12345678 109

Preliminary

Figure 2-20 — Typical local control device

Figure 2-21 shows the HSA connected to an Extron MLC 226
MediaLink™ Controller. The status pin can trigger the MLC’s
digital input.

Down

Stop

HSA 822MS

V2 1+

Enable

Down status

Up status

Pwr status

+-

PWR SUP

3.3+

V

K2

MLC 226

V21+

Bezels

The HSA 822MS ships with RJ-45/RJ-11 connector bezel plug-

ins in a variety of colors and a black, blank
bezel.

Bezel

To change to a different color RJ-45 connector
bezel or if an RJ-45 connector is not needed or
desired, replace the connector bezel plug-in on
the AAP/RJ-45 panel with a bezel of a different
color or a blank plug-in. See Replacing the Bezels
in chapter 3.

If no RJ-45 connector is desired, snap
the interior RJ-45 cable onto the rear of
the blank bezel plug-in (shown at
right) to hold it conveniently out of the
way. Retain the removed connector
bezel plug-in for any possible later
use.

Blank Bezel

Plug-in in AAP

Panel

Preliminary

2 WS

LATIGID

TUPNI

CTL
BRD

SUTATS

NSIP

1 WS

DNG

DNG

Figure 2-21 — Typical MediaLink control device

The MLC’s pull-up resistor to 3.3 VDC must be
activated (the MLC’s switch 2 closed). Refer to the
MLC 226 product manual.

The flex I/O port on an Extron IP Link™ Ethernet
Control Interface can be used in place of the MLC 226
and its digital input port.

HSA 822MS • Installation

TC

L

HSA 822MS • Installation

2-232-22

Installation, cont’d

Preliminary

Preliminary

HSA 822MS

Chapter Three

3

2-24

Maintenance and Modifications

Replacing an AAP

Replacing the Bezels

Removing and Replacing the Shroud
Setting the Upper Limit Switch (Elevated Platform Height)
Setting the Lower Limit Switch (Lowered Platform Height)

Setting the Manual Release Switch

Safety Switch — Location Only

Replacing the Control Board Assembly and Power Supply Assembly

HSA 822MS • Installation

Maintenance and Modifications

CAUTION

This chapter provides the following procedures:

• Replacing an AAP

Preliminary

• Replacing the bezels

• Removing and replacing the HSA shroud (in advance of

• Adjusting the upper-level and lower-level stop point and

• Replacing the power supply assembly and the control

Figure 3-1 shows the underside of the enclosure (with the tray
removed) and many of the maintenance-related features.

1
5

3

Installation and service must be performed by
authorized personnel only.

Maintenance procedures marked with an asterisk (*)
require removing the shroud from the HSA 822MS.

other maintenance procedures)*

the manual mode release point*

board assembly*

✝

4

4

X

9

8

6

The screws indicated by a dagger (✝) on figure 3-1 are
accessible from the top (inside the enclosure).

Replacing an AAP

Replace one or more AAPs as follows:

1. Activate the motor to raise the platform, and then

disconnect the AC power.

When AC power is removed, the platform may sink
partially down into the HSA.

2. Remove and retain the top and bottom screws on the right

and left sides of the AAP/RJ-45 panel (figure 3-2). Lift the
panel away from the enclosure as far as the connected
cables allow and then allow the panel to dangle,
supported by its connected cables.

Remove two

screws ea. side.

Remove panel.

Ensure that AC power is disconnected before
servicing the HSA unit.

I
N

P
U

S

T
E
L

E

C

C

T

A

O

U

M
P

D

U

I

O
T
E

R

H

S

A

8
2

2

Preliminary

3
5
2

4

X

4 4

Figure 3-1 — HSA 822MS maintenance features

Control board assembly

1

Power supply assembly

2

Cable access holes

3

Assembly screws

4

Cable tie-downs

5

HSA 822MS • Maintenance and Modifications

3-2

✝

8
7

IEC
(International)

X=Do not remove.

Spare AAP/RJ-45 panel screws

6

AC power connector

7

RJ-45 connector

8

Control and status connector

9

Structural screws —

X

Do not remove.

Hardwired
(USA/domestic)

Replacement Face Plate

Screws (4) under Enclosure

Figure 3-2 — Removing the AAP/RJ-45 panel

The center screws on each side of the AAP/RJ-45 panel
do not fasten the AAP/RJ-45 panel in place. They secure
the AC power outlet.

CAUTION

Ensure that the edges of the AAP/RJ-45 panels do
not scratch the finished surface of the top panel
flange or the furniture in which the HSA 822MS is
installed when removing the panels.

HSA 822MS • Maintenance and Modifications

3-3

Maintenance and Modifications, cont’d

Icon Labels

3. Disconnect any cables from the rear of the AAP(s) that are

4. If an AAP cable is no longer required in your system,

Preliminary

7. If an AAP cable is no longer required in your system,

8. Remove the AAP(s) that you no longer want from the

9. Cable the rear of the AAP(s) to be installed before

10. Insert each AAP’s screws through the holes in the AAP

being replaced.

from the underside of the enclosure, reach into the cable
access holes (figure 3-1 on page 3-2, item

3

), and cut the
tie wraps (5 shows the tie-downs) that route the AAP
cables and network (CAT 6) cables inside the enclosure.

carefully pull the cable through and out the bottom of the
surface mount enclosure.

AAP/RJ-45 panel by unscrewing the nuts on the rear of
the AAP/RJ-45 panel that secure the AAPs in place.

attaching the AAP(s) to the enclosure. Route the cables
through the hole in the underside of the surface mount
enclosure and connect them to the rear of the AAP(s). If
applicable, refer to the cabling information in the
documentation for the AAP.

opening of the AAP/RJ-45 panel. Secure each AAP to the
panel with the provided captive washers and #4-40 nuts
(figure 3-3).

AAP/RJ-45

Pane l

#4-40 Nut w/ Captive

INPUT
SELECT

COMPUTER

AUDIO

HSA 822MS

Washer

Cable

12. If you replaced an AAP cable, to prevent wear and tear

caused by cable movement, secure the AAP cables
underneath the table. See Routing the AAP Cables
on page 2-16.

Replacing the Bezels

The HSA 822MS ships with RJ-45 connector bezel plug-ins in a
variety of colors and a black, blank bezel. Replace a bezel as
follows:

1. Remove and retain the top and bottom screws on the right

and left sides of the AAP/RJ-45 panel (figure 3-2). Lift the
panel away from the enclosure as far as the connected
cables allow and then allow the panel to dangle,
supported by its connected cables.

The center screws on each side of the AAP/RJ-45 panel
do not fasten the AAP/RJ-45 panel in place. They secure
the AC power outlet.

Ensure that the edges of the AAP/RJ-45 panels do not
scratch the finished surface of the top panel flange when
removing the panels.

2. With a tweeker, push down on and

gently twist on the front of each RJ-45
connector detent to disconnect the
connector from the rear of the AAP/RJ-45
panel plug-in.

3. Pinch the top and bottom bezel detents

together and push the bezel through the
AAP/RJ-45 panel.

4. Snap a replacement bezel in place. If

necessary, replace the connector icon by
prying the old icon off of the connector
plug-in with a tweeker (figure 3-4) and snapping a new
icon in place.

Preliminary

RGB 580xi SI AAP

Figure 3-3 — Mounting an AAP device

11. Replace the AAP/RJ-45 panel in the surface mount

enclosure and secure them in place with the screws
removed in step 2. If you lose an AAP/RJ-45 panel screw,
four spare screws are stored in the underside of the
enclosure (figure 3-1 on page 3-2, item 6).

HSA 822MS • Maintenance and Modifications

Figure 3-4 — Changing the connector icon

HSA 822MS • Maintenance and Modifications

3-53-4

Maintenance and Modifications, cont’d

5. Snap the interior RJ-45 cable

connectors onto the rear of the
replacement RJ-45 AAP panel
bezel plug-ins.

6. Replace the AAP/RJ-45 panel in

the surface mount enclosure and
secure it in place with the screws
removed in step 1. If you lose an

Preliminary

AAP/RJ-45 panel screw, four spare screws are stored in
the underside of the enclosure (figure 3-1 on page 3-2,

6

item

).

Removing and Replacing the Shroud

Many maintenance procedures require removing the protective
enclosure shroud from the HSA 822MS. Remove and replace
the shroud as follows:

1. Remove and retain the four screws in the corners of each

side’s surface of the enclosure shroud “cube” (figure 3-5).
Remove the two halves of the shroud.

HSA 822MS
Enclosure

H

S

A

8

2
2

M

S

RJ-45 Bezel

Plug-in in AAP

Panel

3. Secure the two shroud halves to the enclosure frame with

the eight screws per shroud half (four per side) removed in
step 1. Orient the shroud halves such that the vertical
column of center holes align with the column of screw
inserts on the vertical slides.

Setting the Upper Limit Switch
(Elevated Platform Height)

This switch’s position is properly set in the factory.

The upper limit switch sets the stop point for the raised
platform. If the switch is set too low, the platform does not rise
high enough. If the switch is set too high, the motor attempts to
raise the platform past the mechanical stop and then lowers the
platform to the recessed position. Set the platform’s height as
follows:

1. Remove the shroud. See Removing and Replacing the
Shroud, on page 3-6, step 1.

2. Activate the motor to raise the platform. Leave AC power
applied to the HSA.

Do not reach tools or your hands into the area
behind the AC connectors or into the vicinity of the
power supply.

3. Locate the upper limit switch assembly (figure 3-6) inside
the enclosure.

Preliminary

Remove (4) Screws
(each side).

Figure 3-5 — Removing the shroud

You do not need to remove the screws in the center of two
of the sides. They do not secure the shroud in any way;
rather, they provide structural support to the enclosure.

2. Perform the desired maintenance procedure.

HSA 822MS • Maintenance and Modifications

Upper Limit
Switch
Assembly

Power
Supply

Figure 3-6 — Location of upper limit switch assembly
(seen from the side)

HSA 822MS • Maintenance and Modifications

Control
Board

3-73-6

Maintenance and Modifications, cont’d

Lower Limit
Set Screw

Control
Board

NOTE RJ-45 connectors are removed for visibility.

Lower Limit
Switch

Preliminary

Setting the Lower Limit Switch
(Lowered Platform Height)

4. Loosen the upper limit

lock nut.

5. Rotate the upper limit

set screw:
Clockwise to lower

the upper limit of
platform motion.

Counterclockwise to raise
the upper limit of platform
motion.

Adjustments do not take affect immediately. You must
use the motor mechanism to lower and raise the platform
to see the affect of your adjustment.

6. Lower and raise the platform to check the adjusted height.
If necessary, repeat step 5.

7. Tighten the upper limit lock nut.

8. Reinstall the shroud. See Removing and Replacing the

Shroud, on page 3-6, step 3.

This switch’s position is properly set during the
installation.

The lower limit switch sets the stop point for the lowered
platform. If the switch is set too high or low, the retracted
platform is not flush with the surrounding flange. Set the
retracted height of the platform as follows:

1. Disconnect AC power.

2. Remove the shroud. See Removing and Replacing the
Shroud, on page 3-6, step 1.

3. Locate the lower limit switch assembly (figure 3-7) inside

the enclosure. Loosen the lower limit lock nut.

The lower limit switch looks similar to, but not exactly
like the upper limit switch shown on page 3-8.

Switch
Actuator

Upper Limit
Lock Nut

Upper Limit
Set Screw

Upper Limit
Switch
(Hidden)

Preliminary

Figure 3-7 — Location of lower limit switch assembly
(seen from the side)

4. Rotate the lower limit set screw:
Clockwise to raise the stop point of the retracted platform.
Counterclockwise to lower the stop point of the retracted

platform.

Adjustments do not take affect immediately. You must
use the motor mechanism to raise and lower the platform
to see the affect of your adjustment.

5. Plug in AC power.

Do not reach tools or your hands into the area
behind the AC connectors or into the vicinity of the
power supply.

6. Raise and lower the platform to check the adjusted height.
If necessary, repeat step 1 and then step 4.

7. Tighten the lower limit lock nut.

8. Reinstall the shroud. See Removing and Replacing the
Shroud, on page 3-6, step 3.

HSA 822MS • Maintenance and Modifications

HSA 822MS • Maintenance and Modifications

3-93-8

Maintenance and Modifications, cont’d

Setting the Manual Release Switch

This switch’s position is properly set in the factory.

The manual release switch sets the amount of pressure needed
to activate the press-to-activate feature. If the switch is set too
low, you may have to push too hard on the platform. If the
switch is set too high, the drive mechanism may activate
sporadically. Set the height of the platform as follows:

Preliminary

1. Remove the shroud. See Removing and Replacing the

2. Activate the motor to raise the platform. Leave AC power

3. Locate the manual release switch assembly (figure 3-8)

It is unlikely that the position of the manual release
switch will ever need adjustment.

Shroud, on page 3-6, step 1.

applied to the HSA.

Do not reach tools or your hands into the area
behind the AC connectors or into the vicinity of the
power supply.

inside the enclosure.

5. Rotate the manual set screw:
Clockwise to make the manual release more sensitive.
Counterclockwise to make the manual release less

sensitive (you must push harder to activate the press-to­activate feature).

6. Press on the platform to activate the press-to-activate
function. If necessary, repeat step 5.

Pin 5 of the control and status connector (figure 3-1 on
page 3-2, item 9) must be tied to ground to enable the
press-to-activate function.

7. Tighten the manual release lock nut.

8. Reinstall the shroud. See Removing and Replacing the
Shroud, on page 3-6, step 3.

Preliminary

Manual
Release
Switch
Assembly

Lower
Limit
Set Screw

RJ-45
Connectors

Figure 3-8 — Location of manual release switch
assembly (seen from the side)

The manual release switch looks similar to, but not
exactly like the upper limit switch shown on page 3-8.

4. Loosen the manual release lock nut.

HSA 822MS • Maintenance and Modifications

3-10

Manual
Release
Switch

Manual
Release
Set Screw

HSA 822MS • Maintenance and Modifications

3-11

Maintenance and Modifications, cont’d

Safety Switch — Location only

The safety switch (figure 3-9) stops the downward motion of
platform when it encounters an obstruction to its smooth
operation. If an obstruction is present that blocks the platform’s
travel, the stepper motor’s carriage lifts and activates the safety
switch. The HSA’s motor logic automatically reverses the
platform’s motion and raises the platform to the upper position.

Preliminary

The carriage typically reverses with less than twelve pounds of
pressure applied to the obstruction.

Figure 3-9 shows the HSA with the shroud removed.

Stepper
Motor and
Carriage
Assembly

Safety
Switch

Replacing the Control Board Assembly and
Power Supply Assembly

The control board assembly (figure 3-1 on page 3-2, 1) and the
power supply assembly (2) can be replaced, if necessary, as
follows:

1. Disconnect AC power.

2. Remove the shroud. See Removing and Replacing the
Shroud, on page 3-6, step 1.

3. From the underside of the enclosure, reach into the cable

access holes (figure 3-1 on page 3-2, item
tie wraps (5 shows the tie-downs) that route the AAP
cables and network (CAT 6) cables inside the enclosure.

4. Remove the three screws (figure 3-1 on page 3-2, item
that secure the assembly to be replaced to the underside of
the enclosure.

For the control board assembly, screws indicated by an
asterisk (*) on figure 3-1 are accessible from the top
(inside the enclosure).

Do not remove screw X (figure 3-1 on page 3-2).
This screw does not secure the power supply assembly in
any way; rather, it provides structural support to the
enclosure.

5. Remove all connectors from the assembly to be replaced.

6. Remove the assembly from the enclosure.

7. Secure the replacement assembly in the enclosure with the
screws removed in step 4.

8. Reconnect all connectors removed in step 5.

9. Retie all of the network (CAT 6) and AAP cables removed

in step 3 to the tie-downs (figure 3-1 on page 3-2, item 5)
on the assembly that was replaced.

10. Reinstall the shroud. See Removing and Replacing the
Shroud, on page 3-6, step 3.

3

), and cut the

Preliminary

4

)

Figure 3-9 — Location of the safety switch
(seen from the side)

The safety switch cannot be adjusted.

HSA 822MS • Maintenance and Modifications

HSA 822MS • Maintenance and Modifications

3-133-12

Maintenance and Modifications, cont’d

Preliminary

Preliminary

HSA 822MS

Appendix A

A

HSA 822MS • Maintenance and Modifications

3-16

Reference Information

Specifications
Part Numbers

Reference Information

Specifications

Control/remote

Contact closure.............. (1) 3.5 mm female captive screw connector,

10 pole

Contact closure/level pin configuration

Pin 1 = up, pin 2 = down, pin 3 = stop,

Preliminary

General

Power.............................. 100 VAC to 240 VAC, 50/60 Hz, 25 watts,

Temperature/humidity .

Rack mount .................... No, but furniture mountable

Enclosure type ............... Metal

Enclosure approximate dimensions

CAUTION

Allow only a reputable carpenter or craftsman to cut the hole in
the furniture or other surface. Pay special attention to the
direction the unit will face; the unit’s AAP and connector
access side is
improperly cut mounting holes.

pin 5 = enable push operation, pin 6 = status up,
pin 7 = status down, pin 9 = status power,
pins 4, 8, and 10 = ground

internal, autoswitchable
Storage: -40 to +158°F (-40 to +70°C) /

10% to 90%, noncondensing
Operating: +32 to +122°F (0 to +50°C) /
10% to 90%, noncondensing

underlined. Extron is not responsible for

Tray (figure A-1) .................................. A = 1.09" (2.77 cm)

B = 7.30" (18.54 cm)
C = 10.98" (27.89 cm)

Figure A-1 — Tray dimensions

Product/shipping weight......... 10.0 lbs (4.5 kg)/17 lbs (8 kg)

Compliances ............................... CE

MTBF (stepper motor)............... 100,000 cycles

Warranty ..................................... 3 years parts and labor

Specifications are subject to change without notice.

Preliminary

Top plate (outer rim)........................... 9.54" W x 9.82" D

24.23 cm W x 24.94 cm D)

(

Top plate (vertically lifting plate, not included—to be provided by customer)

6.14" W x 6.42" D

15.49 cm W x 16.31 cm D)

(

Surface cutout ......................................

A-2

HSA 822MS • Reference Information

6.220" ±0.0325" W (AAP access from
front and back) x 6.500" ±0.0325" D

15.80 ±0.083 cm W x 16.51 ±0.083 cm D)

(

HSA 822MS • Reference Information

A-3

Reference Information, cont’d

Part Numbers

HSA 822MS

HSA 822MS Part number

HSA 822MS US Enclosure (black anodized) 60-721-0A
HSA 822MS International Enclosure (black anodized) 60-719-0n

Preliminary

Included parts

Part Part number

HSA 822MS Hideaway Products manual
Snap-in icon inserts
RJ-45 connector bezel plug-in inserts

(assorted colors and blank)
10-pin captive screw connector 100-319-11
IEC power cord (International models only)

Template, replacement parts, and accessories

Part Part number

For the international versions, the n in the part number
identifies the AC power connector. Specify the desired
power connector when ordering.

Interface accessories

Accessory Part number

RGB 580xi 60-362-01
RGB 580xi AAP 3'
RGB 580xi AAP 6'
RGB 580xi AAP 12'
RGB 580xi I AAP 12'
RGB 580xi S AAP 3'
RGB 580xi S AAP 6'
RGB 580xi SI AAP 3'
RGB 580xi SI AAP 6'

(black) 70-128-02
(black) 70-129-02

(black) 70-130-02

(black) 70-134-02
(black) 70-135-02

Preliminary

(black) 70-133-02

(black) 70-137-02
(black) 70-138-02

A-4

HSA 822MS drilling template 70-??xxx??-01
HSA 822M/MS power supply assembly 70-461-01
HSA 822M/MS control board assembly 70-462-01
HSA 822 RJ-11 cable kit 70-226-01
HSA 822 flexible conduit adapter kit 70-228-01

HSA 822MS • Reference Information

HSA 822MS • Reference Information

A-5

Reference Information, cont’d

Preliminary

Preliminary

HSA 822MS

Appendix B

B

A-8

Packaging for Shipment

HSA 822MS • Reference Information

Packaging for Shipment

CAUTION

The HSA 822MS’s machined surfaces and moving parts make
them vulnerable to damage caused by mishandling during
shipment if they are improperly packaged. If, for any reason,
you need to return an HSA to Extron, first contact Extron to
obtain a return kit. The return kit, which reduces the chances of

Preliminary

damage during shipment, includes a sturdy shipping carton,
shipping restraints, and foam cut to fit the HSA (figure B-1).

Installation and service must be performed by
authorized personnel only.

b. Reach through the cable access holes on the

underside of the HSA and cut the tie wraps that route
the AAP cables out of the way (figure B-2).

Preliminary

Figure B-1 — HSA 822MS return kit

Package an HSA for shipment as follows:

3

1. Contact the Extron S

obtain a return kit. Extron will send the repair kit to the
location you specify.

2. Disconnect all cables, remove any AAPs, remove the

HSA 822MS from the table or desk, and remove the surface
block as follows:

a. Activate the motor to raise the platform and then

disconnect the AC power.

Ensure that AC power is disconnected before
servicing the HSA unit.

When AC power is removed, the platform may sink
partially down into the HSA.

HSA 822MS • Packaging for Shipment

Sales & Technical Support Hotline to

Figure B-2 — Cable tie-downs inside the HSA
(seen from underneath)

c. For both AAP/RJ-45 panels, remove the top and

bottom screws on the right and left sides of the panel
(figure B-3). Lift the panels away from the enclosure
as far as the connected cables allow and then allow
the panels to dangle, supported by their connected
cables.

HSA 822MS • Packaging for Shipment

B-3B-2

Packaging for Shipment, Cont’d

#4-40 Nut w/ Captive

Washer

Cable

AAP/RJ-45

Panel

HSA 822MS

RGB 580xi SI AAP

COMPUTER

INPUT
SELECT

A

U

D

I

O

Remove two

screws ea. side.

I
N

P
U

S

T

E

L
E

C

C

T

A

O

M

U

P

D

U

IO
T
E

R

Preliminary

Remove panel.

HSA 822

Preliminary

Replacement Face Plate

Screws (4) under Enclosure

Figure B-3 — Removing the AAP/RJ-45 panel

The center screws on each side of the AAP/RJ-45 panel
do not fasten the AAP/RJ-45 panel in place. They secure
the AC power outlet.

CAUTION

Ensure that the edges of the AAP/RJ-45 panels do
not scratch the finish of the furniture in which the
HSA 822MS is installed when removing the panels.

d. Remove the two bolts and washers that secure the

tray to the underside of the HSA and remove the tray.

e. Disconnect any cables from the rear of the existing

AAPs. From the underside of the enclosure, reach
into the cable access holes (figure 3-1 on page 3-2,

3

item

), and cut the tie wraps (5 shows the tie­downs) that route the AAP cables inside the
enclosure. Carefully pull the cables through and out
the bottom of the HSA.

f. Remove the AAP(s) that you intend to keep from the

AAP/RJ-45 panels by unscrewing the nuts on the
rear of the AAP/RJ-45 panels that secure the AAPs in
place (figure B-4).

Figure B-4 — Mounting an AAP device

g. Use the two bolts and washers that you removed in

step d to reinstall the tray to the underside of HSA.

h. Remove and retain the four 1/4" nuts that secure the

top plate to the lifting plate (figure B-5) and remove
the plate.

Figure B-5 — Location of the top plate nuts

HSA 822MS • Packaging for Shipment

HSA 822MS • Packaging for Shipment

B-5B-4

Packaging for Shipment, Cont’d

Preliminary

Figure B-6 — Securing the top plate to the lifting
plate

i. Remove the four flathead screws that secure the top

plate to the surface block. Retain the surface block if
another HSA is to be installed in the table.

j.

Using the four 1/4" nuts that you removed in step 2h,
secure the secure the top plate to the lifting plate
(figure B-6).

k. Replace the AAP/RJ-45 panels in the surface mount

enclosure and secure them in place with the screws
removed in step 2c. If you lose an AAP/RJ-45 panel
screw, four spare screws are stored in the underside
of the enclosure (figure 3-1 on page 3-2, item 6).

l. Disconnect the IEC power cord (international

versions only), the RJ-45 connectors, and the control
and status connector (figure 3-1 on page 3-2, items

7, 8

, and 9) from the connectors on the underside

of the HSA.

m. On the underside of the table, support the HSA while

you remove the eight screws that secure the
enclosure to the table (figure B-7). Lift the enclosure
away from the table.

CAUTION

The surfaces of the HSA enclosure have screws and
other protruding hardware that could damage fine
furniture. Do not rest the enclosure on unprotected
furniture.

Preliminary

HSA 822MS • Packaging for Shipment

Figure B-7 — Removing the HSA from the table

HSA 822MS • Packaging for Shipment

B-7B-6

Packaging for Shipment, Cont’d

3. With the platform extended approximately 1" (2.5 cm),

Preliminary

Figure B-8 — Installing the shipping restraints

4. Insert the HSA 822MS into one of the foam shells

insert the yellow shipping restraints through the slotted
holes in one side of the enclosure’s shroud (figure B-8) and
out the holes in the opposite side. Use the included tie­wraps to secure the shipping restraints in place.

HSA 822MS
Enclosure

Yellow Shipping
Restraint

REPLACE

(figure B-9). Either open end of the open top panel fits into
the recesses in the foam.

5. Insert the opposite end of the HSA 822MS into the

remaining foam shell (figure B-10). Firmly push the foam
shells together as far as they will go to completely suspend
the HSA.

Figure B-10 — HSA suspended in the foam

Preliminary

B-8

Figure B-9 — Installing the foam shell

HSA 822MS • Packaging for Shipment

HSA 822MS • Packaging for Shipment

B-9

Packaging for Shipment, Cont’d

6. Lower the foam-protected HSA into the shipping carton

Preliminary

Preliminary

(figure B-11).

Figure B-11 — Placing the HSA in the shipping carton

7. Close the shipping carton and seal it with high quality

shipping tape.

8. Ship the HSA to Extron using a reputable shipping

company.

B-10 B-11

HSA 822MS • Packaging for Shipment

HSA 822MS • Packaging for Shipment

Packaging for Shipment, Cont’d

Preliminary

B-13

HSA 822MS • Packaging for Shipment
