User’s Manual
Digital Video Transmitter and Receiver
68-1034-01 Rev. C
07 06
DVI 201 Tx/Rx
HDMI 201 Tx/Rx
i
DVI 201 and HDMI 201 Tx/Rx • Table of Contents
i
Table of Contents
Chapter One • Introduction .................................................... 1-1
About this Manual .................................................................... 1-2
About the DVI 201 Tx/Rx and HDMI 201 Tx/Rx ............... 1-2
TP cable advantages .............................................................. 1-3
Serial communications ........................................................... 1-3
Transmission distance ............................................................ 1-3
Features ........................................................................................ 1-4
Chapter Two • Installation and Operation ................... 2-1
Mounting the Tx/Rx .................................................................. 2-2
Tabletop placement ............................................................... 2-2
Rack mounting ....................................................................... 2-2
Under-furniture mounting .................................................... 2-4
Through-furniture mounting ................................................ 2-5
Projector mounting ................................................................ 2-6
PMK 300 mounting .................................................................2-6
PMK 350 mounting .................................................................2-8
Connections ............................................................................... 2-10
Transmitter connections ...................................................... 2-10
Receiver connections ........................................................... 2-12
Pin assignments and wiring ................................................ 2-14
DVI connector pin assignments ...........................................2-14
HDMI connector pin assignments .......................................2-15
TP cable termination ............................................................2-16
Power supply wiring ............................................................2-18
RS-232 connector wiring ......................................................2-19
Operation ................................................................................... 2-20
Transmitter control and indicator ....................................... 2-21
Receiver indicator ................................................................ 2-21
System operation ................................................................. 2-21
Technical Points for Digital Video and
Content Protection Encryption ............................................ 2-21
Troubleshooting ....................................................................... 2-22
ii
DVI 201 and HDMI 201 Tx/Rx • Table of Contents
Table of Contents, cont’d
DVI 201 and HDMI 201 Tx/Rx
1
Chapter One
Introduction
About this Manual
About the DVI 201 Tx/Rx and HDMI 201 Tx/Rx
Features
68-1034-01 Rev. C
07 06
All trademarks mentioned in this manual are the properties of their respective owners.
Appendix A • Reference Information ..............................A-1
Specifi cations ..............................................................................A-2
DVI 201 Tx/Rx Specifi cations .................................................A-2
HDMI 201 Tx/Rx Specifi cations .............................................A-5
Part Numbers ..............................................................................A-8
Transmitter/receiver pair part numbers ...............................A-8
Included Parts .........................................................................A-8
Mounting accessories ............................................................A-9
Cables ......................................................................................A-9
Adapters .................................................................................A-9
DVI 201 and HDMI 201 Tx/Rx • Introduction
Introduction
DVI 201 and HDMI 201 Tx/Rx • Introduction
1-2 1-3
Each pair ships with a single external desktop 12 V power
supply that accepts 100 to 240 VAC, 50 Hz or 60 Hz input. A
single power supply connected to either the transmitter or the
receiver can power both units through one of the TP cables that
link the units.
TP cable advantages
Twisted pair cable is much smaller, lighter, more fl exible, and
less expensive than coaxial or DVI or HDMI cable. These
transmitter and receiver twisted pair (TP) products make cable
runs simpler and less cumbersome. Termination of the cable
with RJ-45 connectors is simple, quick, and economical.
N
The transmitter and receiver pair works with unshielded
twisted pair (UTP) or shielded twisted pair (STP) cables;
but, to ensure FCC Class A and CE compliance, STP
cables are recommended.
N
Do not use Extron’s UTP23SF-4 Enhanced Skew-Free™
A/V UTP cable to link the transmitter and receiver.
Skew-free A/V cable was designed for most Extron TP
transmitter/receiver applications, but the Tx/Rx will not
work properly with this cable.
Serial communications
The RS-232 and/or Consumer Electronics Control (CEC)
communications are via a passive pass-through only; the
transmitter and receiver do not generate or respond to these
signals.
Transmission distance
The maximum distance is determined by the resolution of the
signal and the UTP cable that is used.
With CAT 5/5e/6 UTP cable, the Tx/Rx pair can transmit and
receive 720p and 1080i HDTV or XGA video signals up to 200'
(60 m) and 1080p HDTV or UXGA video up to 100' (30 m).
With CAT 7 UTP cable, the Tx/Rx pair can transmit and receive
720p and 1080i HDTV or XGA video signals up to 200' (60 m)
and 1080p HDTV or UXGA video up to 125' (38 m).
About this Manual
This manual contains information about the Extron
DVI 201 Tx/Rx and HDMI 201 Tx/Rx transmitter and receiver
pairs, including how to install, operate, and confi gure them.
N
In this manual, the term "Tx/Rx" refers to either
product.
About the DVI 201 Tx/Rx and HDMI 201 Tx/Rx
The Extron DVI 201 Tx/Rx is a Digital Visual Interface (DVI)
transmitter/receiver set. The HDMI 201 Tx/Rx is a High
Defi nition Multimedia Interface (HDMI™) transmitter/receiver
set. The transmitter/receiver sets extend the usable distance of
DVI or HDMI digital video, and RS-232 control signals over two
Category (CAT) 5/5e/6/7 twisted pair (TP) cables. The video
and control signals can be transmitted up to 200' (60 m).
D
V
I
200 TX
SER
IE
S
L
O
C
A
L
O
U
T
P
U
T
D
V
IN
P
U
T
Multimedia
PC
Projector
Extron
DVI 201 Tx
Tra ns mi tte r
Extron
DVI 201 Rx
Receiver
DVI Cab le
D
V
I 200
R
S
-2
3
2
P
A
S
S
T
H
R
U
T
x
R
x
RS-232
Control
CAT 5/5e /6/7 UT P up to 200’
RS-232
Figure 1-1 — Typical transmitter and receiver application
The transmitter and receiver pairs consists of a Tx transmitter
and an Rx receiver that can handle a single link of
DVI-D or HDMI digital video, depending on the model.
N
The Tx/Rx is comprised of the transmitter-receiver
pair. The transmitter and receiver cannot be purchased
separately.
DVI 201 and HDMI 201 Tx/Rx • Introduction
Introduction, cont’d
1-4
DVI 201 and HDMI 201 Tx/Rx
Features
Transmits single link DVI-D or HDMI signals over two
CAT 5/5e/6/7 cables — Standard twisted pair cables
provide an economical, easily installed cable solution.
Long distance transmission —
CAT 5/5e/6 UTP cable — Accommodates 720p and 1080i
HDTV or XGA video over 200' (60 m), and 1080p HDTV
or UXGA (1600 x 1200) over 100' (30 m).
CAT 7 UTP cable — Accommodates 720p and 1080i HDTV or
XGA video over 200' (60 m), and 1080p HDTV or UXGA
(1600 x 1200) over 125' (38 m).
Local monitor output (DVI 201 Tx/Rx only) — The DVI 201 Tx
transmitter features a DVI-D output for connection to
local monitor.
Supports DDC and HDCP copy protection transmission —
The Tx/Rx pairs fully support long distance transmission
of the DDC and HDCP signals.
DDC routing to local or remote display (DVI 201 Tx/Rx only) —
At the DVI 201 Tx, the DDC or HDCP signal is directed to
either the local display or the remote display, depending
on which is more critical in receiving the signal.
Remote powering of transmitter or receiver — Only one power
supply is necessary to power both devices.
RS-232 pass-through — Bidirectional RS-232 control signals can
be transmitted alongside the DVI or HDMI signal, so that
the remote display can be controlled without the need for
additional cabling.
Supports CEC signal transmission
1" high, quarter rack width, metal enclosures — With low
profi le enclosures, both transmitter models and both
receiver models can be discreetly installed in locations,
such as behind a plasma or LCD fl at-panel display.
External 100 VAC to 240 VAC, 50/60 Hz, international power
supply (part #70-055-01) included
2
Chapter Two
Installation and Operation
Mounting the Tx/Rx
Connections
Operation
Technical Points for Digital Video and Content Protection Encryption
Troubleshooting
DVI 201 and HDMI 201 Tx/Rx • Installation
Installation
DVI 201 and HDMI 201 Tx/Rx • Installation
2-2 2-3
Mounting the Tx/Rx
C
Installation and service must be performed by
authorized personnel only.
The 1" high, quarter-rack width transmitters and receivers can
be placed on a tabletop, mounted on a rack shelf, mounted
under a desk or tabletop, or mounted on a projector bracket.
Tabletop placement
Affi x the four included rubber feet to the bottom of the
transmitter or receiver unit and place it in any convenient
location.
Rack mounting
For optional rack mounting, mount the transmitter or receiver
on any of the following rack shelves:
• RSF 123 3" deep VersaTools® rack shelf kit (part #60-190-
20) (fi gure 2-1)
• RSB 123 3" deep VersaTools rack shelf (part #60-604-20)
• RSU 126 6" deep universal rack shelf kit (part #60-190-10)
• RSB 126 6" deep basic rack shelf (part #60-604-10)
• RSU 129 9" deep 1U universal rack shelf kit
(part #60-190-01) (fi gure 2-2)
• RSB 129 9" deep 1U basic rack shelf (part #60-604-01)
On the non-VersaTools rack shelves, the transmitter or receiver
unit can be mounted in the front or the rear of the rack.
1. Remove the feet from the bottom of the transmitter or
receiver unit, if they are installed.
2. Mount the transmitter or receiver unit using two
4-40 x 3/16" screws in opposite (diagonal) corners to
secure the transmitter or receiver to the shelf.
3. Install false faceplate(s) or other unit(s) to the rack shelf.
(2) 4-40 x 3/16"
Screws
Use 2 mounting holes on
opposite corners.
VersaTools Rack Shelf
1/4 Rack Width Front
False Faceplate
Figure 2-1 — Mounting the transmitter or receiver
unit on a VersaTools rack shelf
Use 2 mounting holes on
opposite corners.
(2) 4-40 x 3/16"
Screws
1U Universal Rack Shelf
Both front false faceplates
use 2 screws.
1/4 Rack Width Front False
Faceplate
1/2 Rack Width Front False
Faceplate
Figure 2-2 — Mounting the transmitter or receiver
unit on a standard rack shelf
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
Installation and Operation, cont’d
2-4
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
2-5
Under-furniture mounting
The transmitter or receiver can be mounted under a table or
other horizontal surface using an optional Extron MBU 125
under-desk mounting kit (part #70-077-01). Mount the
transmitter or receiver under a desk or table as follows:
1. Secure the under-desk mounting brackets to the
transmitter or receiver with the four machine screws
provided in the mounting kit (fi gure 2-3).
Figure 2-3 — Under-desk mounting
2. Hold the transmitter or receiver with attached brackets
against the underside of the desk or other furniture. Mark
the location of holes for screws on the desk.
3. Drill 1/4" (6.4 mm) deep, 3/32" (2 mm) diameter pilot
holes in the table or desk at the marked screw locations
from the underside or inside (the concealed side) of the
furniture, where the transmitter or receiver will be located.
4. Insert the four wood screws into the pilot holes. Fasten
each screw into the installation surface until just less than
1/4" of the screw head protrudes.
5. Align the installed screws with the slots in the mounting
brackets, and place the transmitter or receiver against the
surface, with the screws through the bracket slots.
6. Slide the transmitter or receiver slightly forward or back,
then tighten all four screws to fasten it in place.
Through-furniture mounting
The transmitter or receiver can be mounted through a desk or
other furniture using an optional Extron MBD 129 through-desk
mounting kit, part #70-077-02. Mount the transmitter or receiver
through a desk or table as follows (fi gure 2-4):
Figure 2-4 — Through-desk mounting
1. Loosely attach the mounting brackets to the transmitter
or receiver using the four machine screws and washers
supplied with the mounting kit.
2. Hold the transmitter or receiver against the inside of the
surface through which it will be mounted. Mark the four
screw holes on the inside of the surface to which you are
mounting the device.
3. Drill four pilot holes, each 3/32" in diameter by 1/4" deep,
where you made marks.
4. Using the four wood screws provided, secure the brackets
to the mounting surface.
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
Installation and Operation, cont’d
2-6
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
2-7
5. Slide the transmitter or receiver up and down in the
mounting brackets until the face of the transmitter or
receiver is at the desired height. Tighten the screws that
secure the brackets in place.
If the screws are inaccessible to a screwdriver:
a. Mark the location of the brackets relative to the screws.
b. Remove the transmitter or receiver from inside the
furniture.
c. Tighten the screws.
d. Replace the unit inside the surface (step 4).
Projector mounting
The receiver can be mounted on a projector bracket using either
of the following optional Extron projector mounting kits:
• PMK 300 projector mounting kit (part #70-374-01)
• PMK 350 low profi le projector mounting kit
(part #70-563-02 [black] or part #70-563-03 [white])
PMK 300 mounting
Mount the receiver to a PMK 300 bracket as follows:
1. If necessary, remove the feet from the bottom of the
receiver.
2. Mount the receiver to one of the bracket’s three mounting
plates using two of the supplied 4-40 x 3/16" screws in
opposite (diagonal) corners to secure the device to the
bracket. It can be vertically mounted facing either up or
down (fi gure 2-5).
N
On the side mounting plates, the device is typically
mounted on the outside of the bracket.
On the front mounting plate, the device is typically
mounted on the inside of the bracket.
3. If power supply is connected to the receiver, use the two
included tie wraps to strap the power supply to one of the
brackets.
N
The PMK 300 has a hole in the bottom plate that
allows the projector pole to be inserted through the
center of the plate (fi gure 2-6), rather than outside of
the plate (fi gure 2-5). To install the PMK 300 in this
confi guration, slide the bracket up from the bottom of the
pole before the projector is installed on the pole.
4. Place the contoured bracket base against the pole and
opposite the back plate. The pole should fi t snugly into the
depression in the center of the bracket base.
Extron
PMK 300
Multi-product Projector Mount Kit
U-Bolt
Front Mounting
PLate
Side Mounting
PLate
Extron
DVI 201 or HDMI 201
Receiver
Power Supply
Countoured
Bracket
Brace
Figure 2-5 — PMK 300 projector mounting a receiver
U-Bolt
Extron
PMK 300
Multi-product Projector
Mount Kit
Contoured
Bracket
Brace
Extron
DVI 201 or HDMI 201
Receiver
Power Supply
Figure 2-6 — Projector pole on the inside
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
Installation and Operation, cont’d
2-8
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
2-9
5. Place the U-bolt around the ceiling pole and insert the
two legs of the U-bolt through the round holes on the
contoured bracket base and then through the slotted holes
on the bracket’s mounting plate.
N
The supplied U-bolt fi ts a typical (1.5" to 2.0" diameter)
ceiling pole.
6. Secure the bracket to the U-bolt with the included hex
nuts, washers, and lock washers. Tighten the hex nuts just
enough that they can be loosened by hand.
PMK 350 mounting
Mount the receiver to a PMK 350 bracket as follows:
1. Remove the front and back plates from the PMK 350
(fi gure 2-7), using an Extron Tweeker or
a #2 Philips
screwdriver. Retain the screws to reattach the plates when
you are fi nished.
Extron
PMK 350
Multi-product Projector
Mounting Kit
Cover Sheet
Front Plate
Rear Plate
U-bolt
L-shaped
Bracket
Contoured
Base
Extron
Power Supply
Extron
Quarter-rack
Sized Product
Figure 2-7 — PMK 350 projector mounting a receiver
2. If necessary, remove the feet from the bottom of the
receiver.
3. Secure the receiver to one side of the mounting tray,
using two of the supplied 4-40 x 3/16" screws in opposite
(diagonal) corners.
4. If power supply is connected to the receiver, use the
two included tie wraps to strap the power supply to the
bracket.
5. Place the PMK 350 around the projector ceiling mounting
pole (fi gure 2-7).
6. Assemble the U-bolt and the following parts in the
following order (fi gure 2-8):
a. Pass the legs of the U-bolt through the slotted holes on
the mount plate fl ange.
b. Place the legs around the projector pole.
c. Pass the legs through the holes in the contour base.
N
The pole fi ts snugly into the depression in the
center of the contoured base.
d. Pass the legs through the holes in the L-shaped bracket.
N
The supplied U-bolt fi ts a typical (1.5" to 2.0"
diameter) ceiling pole.
U-bolt
Slotted Hole
in PMK Tray
L-shaped
Bracket
L-shaped
Bracket Screws
Contoured
Base
Ceiling
Pole
Mount Plate
Flange
Figure 2-8 — Hanging the tray on the pole
7. Align the two slotted holes in the bottom of the L-shaped
bracket with the two slotted holes in the base of the tray,.
Secure the L-bracket to the base by inserting two provided
6-32 x 5/16" screws through the aligned slots.
8. Move the PMK 350 up to the desired location on the ceiling
pole, as close to the ceiling as desired.
9. Secure the L-shaped bracket to the U-bolt using the
included hex nuts, washers, and lock washers. Tighten the
hex nuts securely.
N
Be sure to tighten the hex nuts securely enough that the
PMK 350 does not slide down the ceiling pole. A socket
wrench is recommended to tighten the hex nuts.
10. Secure the front panel to the mounting tray with four of
the included #6 screws.
11. If desired, choose one of the provided four sizes of self-
adhesive cover sheets, and apply it to the underside of the
mounting tray.
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
Installation and Operation, cont’d
2-10
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
2-11
Connections
Transmitter connections
The two transmitter models are in quarter-rack width
enclosures.
On the DVI 201 Tx (fi gure 2-9), the input and local monitor
connectors are on the front panel and the rest of the connectors
are on the rear panel.
DVI 200 Tx Series
DVI INPUT LOCAL OUTPUT
POWER
12V
0.4A MAX
DVI 201 Tx
RS-232
PASS THRU
Tx Rx
DDC ROUTE
1 2
REMOTE
SPARE LOCAL
4 5 6
Rear Panel
Front Panel
2 1
Figure 2-9 — DVI 201 Tx transmitter’s front and
rear panel connectors
On the HDMI 201 Tx (fi gure 2-10), all connectors are on the rear
panel. The HDMI 201 Tx does not have a local output connector.
POWER
12V
0.4A MAX
RS-232
PASS T HR U
Tx Rx
12
HDMI INPUT
HDMI 201 Tx
4 3 5 6
Figure 2-10 — HDMI 201 Tx transmitter’s rear panel
connectors
a
DVI input connector (DVI 201 Tx) — Connect a DVI cable
between this port and the DVI output port of the digital video
source. See DVI connector pin assignments on page 2-14 for pin
assignments.
b
Local output (DVI 201 Tx) — If desired, connect a DVI monitor
for local monitoring of the input digital image. See DVI
connector pin assignments on page 2-14 for pin assignments.
c
HDMI input connector (HDMI 201 Tx) — Connect an HDMI
cable between this port and the HDMI output port of the digital
video source. See HDMI connector pin assignments on page 2-15
for pin assignments.
d
DC power input connector — Plug the included external
12 VDC power supply into either this 2-pole captive screw
connector or the power input connector on the receiver (item
h
on page 2-13). See Power supply wiring, on page 2-18, to wire the
connector.
e
Transmitter output connector — Connect one end of two
separate TP cables to these RJ-45 female connectors on the
transmitter.
C
Do not connect these devices to a computer data or
telecommunications network.
Connect the free ends of the same TP cables from the transmitter
to the receiver’s Input RJ-45 female connectors (item i on
page 2-13).
N
Connect transmitter output 1 to receiver input 1.
Connect transmitter output 2 to receiver input 2.
N
If necessary, test for proper cable connection (output 1 to
input 1, output 2 to input 2) as follows:
1. Plug both TP cables into the powered unit.
2. Momentarily connect either of the cables on the
opposite end into the unpowered unit‘s “2” connector.
If the unpowered unit’s Power LED is lit, the
connection is correct.
If the unpowered unit’s Power LED is not lit,
quickly unplug the connector on the unpowered end
and connect the other cable to the “2” connector.
See TP cable termination, on page 2-16, to properly wire the RJ-45
connectors.
f
RS-232 connector — Connect a serial communications port to
this 3.5 mm, 3-pole captive screw connector for bidirectional
RS-232 communication. See RS-232 connector wiring, on
page 2-19, to wire the connector.
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
Installation and Operation, cont’d
2-12
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
2-13
Receiver connections
The two transmitter models are in quarter-rack width
enclosures.
On the DVI 201 Rx (fi gure 2-11), the RS-232 Pass-Through
connector is on the front panel and the rest of the connectors are
on the rear panel.
DVI 200 Rx Series
POWER
12V
0.4A MAX
DVI 201 Rx
RS-232
PASS THRU
Tx Rx
1 2
DVI OUTPUT
8 9 10
Rear Panel
Front Panel
7

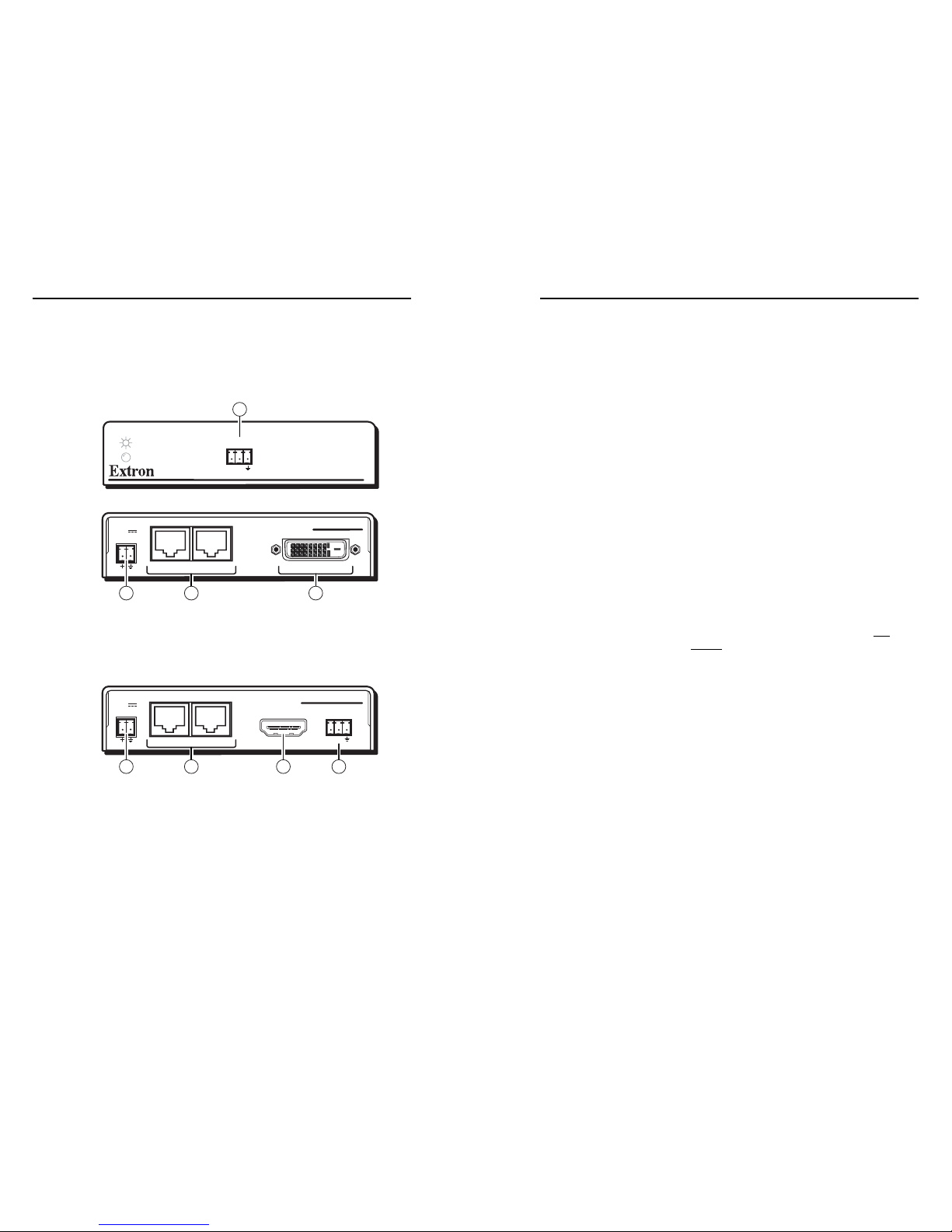

Figure 2-11 — DVI 201 Rx Receiver’s front and rear
panel connectors
On the HDMI 201 Rx (fi gure 2-12), all connectors are on rear
panel.
POWER
12V
0.4A MAX
12
HDMI OUTPUT
RS-232
PASS T HR U
Tx Rx
HDMI 201 Rx
8 11 79
Figure 2-12 — HDMI 201 Rx Receiver’s rear panel
connectors
g
RS-232 connector — Connect a serial communications port to
this 3.5 mm, 3-pole captive screw connector for bidirectional
RS-232 communication. See RS-232 connector wiring, on
page 2-19 to wire the connector.
h
DC power input connector — Plug the included external
12 VDC power supply into either this 2-pole captive screw
connector or the power input connector on the transmitter
(item d on page 2-11). See Power supply wiring, on page 2-18, to
wire the connector.
i
Receiver input connector — Connect one end of the two
separate TP cables from the transmitter (item e on page 2-11) to
these RJ-45 female connectors.
C
Do not connect these devices to a computer data or
telecommunications network.
N
Connect transmitter output 1 to receiver input 1.
Connect transmitter output 2 to receiver input 2.
N
If necessary, test for proper cable connection (output 1 to
input 1, output 2 to input 2) as follows:
1. Plug both TP cables into the powered unit.
2. Momentarily connect either of the cables on the
opposite end into the unpowered unit‘s “2” connector.
If the unpowered unit’s Power LED is lit, the
connection is correct.
If the unpowered unit’s Power LED is not lit,
quickly unplug the connector on the unpowered end
and connect the other cable to the “2” connector.
See TP cable termination, on page 2-16, to properly wire the RJ-45
connectors.
j
DVI Output connector — Connect a DVI monitor or projector
for display of the transmitted direct digital image. See DVI
connector pin assignments on page 2-14 for pin assignments.
k
HDMI Output connector — Connect a HDMI monitor or
projector for display of the transmitted direct digital image.
See HDMI connector pin assignments on page 2-15 for pin
assignments.
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
Installation and Operation, cont’d
2-14
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
2-15
Pin assignments and wiring
DVI connector pin assignments
Figure 2-13 defi ne the pinout for the DVI protocol.
Pin Signal
1
TMDS data 2–
TMDS data 2+
TMDS data 1–
TMDS data 1+
DDC clock +5 V power
DDC data TMDS clock+ Ground (+5 V)
CEC control* TMDS clock– Hot Plug Detect
TMDS data 0–
TMDS data 0+
Spare
Spare
Spare
Spare
Spare
Spare
TMDS data 2
shield
TMDS data 1
shield
TMDS data 0
shield
TMDS clock
Shield
Pin Pin Signal Signal
2
9
10
17
4 12 20
5 13 21
6 14 22
7 15 23
8
* CEC control on pin 8 is a proprietary usage,
not the industry standard.
16 24
18
3 11 19
1
9
8
17 24
Female Connector
Male Connector
Figure 2-13 — DVI connectors
HDMI connector pin assignments
Figure 2-14 defi ne the pinout for the HDMI protocol.
Pin Signal
1
TMDS data 2+
TMDS data 2-
TMDS data 0–
TMDS clock- +5 V power
Hot plug detect
CEC control*
Reserved
(NC)
TMDS data 1+ TMDS clock+
TMDS clock
shield
SDA
DDC / CEC
Ground
TMDS data 2
shield
Pin Pin Signal Signal
2
713
41016
11 17
12 18
19
* CEC control on pin 13 is a proprietary
usa
g
e, not the industry standard.
14
3
TMDS data 0-
TMDS data 0
shield
8
9
SCL
15
TMDS data 1-
TMDS data 1
shield
5
6
HDMI
HDMI
Type A Receptacle
Type A Plug
1
18 2
19
1
182
19
Figure 2-14 — HDMI connectors
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
Installation and Operation, cont’d
2-16
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
2-17
TP cable termination
N
RJ-45 termination with CAT 5, CAT 5e, CAT 6, or CAT
7 cable must comply with the TIA/EIA T 568A wiring
standard for all connections.
Figure 2-15 details the recommended termination of TP cables
with RJ-45 connectors in accordance with the TIA/EIA T 568A
wiring standard.
5
Pin
1 Data 0+
2 Data 0–
3
Data 1–
6
ID Clock–
7 Data 2+
8 Data 2–
4
Wire color
White-green
Green
White-orange
White-blue
Orange
White-brown
Brown
Signal
RJ-45 #1
ID Clock+
Clip Down Side
1
1&2
3&6 4&5
7&8
2 3 4 5 6 7 8
1 Pins 2 3 4 5 6 7 8
RJ-45
Connector
Data 1+ Blue
CEC
HPD
RS-232
TX
+12 V
RS-232
RX
DDC data
Ground
RJ-45 #2
DDC Clk
Twisted
Pairs
Figure 2-15 — TP cable termination
N
Do not use Extron’s UTP23SF-4 Enhanced Skew-Free™
A/V UTP cable to link the transmitter and receiver.
Skew-free A/V cable was designed for most Extron TP
transmitter/receiver applications, but the DVI or HDMI
Tx/Rx will not work properly with this cable.
N
If necessary, test for proper cable connection (output 1 to
input 1, output 2 to input 2) as follows:
1. Plug both TP cables into the powered unit.
2. Momentarily connect either of the cables on the
opposite end into the unpowered unit‘s “2” connector.
If the unpowered unit’s Power LED is lit, the
connection is correct.
If the unpowered unit’s Power LED is not lit,
quickly unplug the connector on the unpowered end
and connect the other cable to the “2” connector.
Terminating shielded cable
N
The transmitter and receiver pair works with unshielded
twisted pair (UTP) or shielded twisted pair (STP) cables;
but, to ensure FCC Class A and CE compliance, STP
cables are recommended.
The Tx/Rx includes four shielded RJ-45 connectors and a length
of self-adhesive shielded tape that you can use to make the STP
cables that connect the transmitter and receiver.
N
Extron supplies the connectors and the shielded tape.
You must supply the CAT 5, 5e, 6, or 7 STP cable.
Terminate the STP cable as follows:
1. Peel back the cable shielding (fi gure 2-16) from the
end of the cable the length of the RJ-45 connector body
(approximately 7/8" [2.2 cm]) and fold it back.
Peel back shield and
fold back.
Figure 2-16 — Peeling back the cable shielding
2. Cut away and discard the clear cellophane inner wrapper
from the end of the cable back to the folded-over cable
shielding.
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
Installation and Operation, cont’d
2-18
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
2-19
3. Peel the backing off the self-adhesive shielded aluminum
tape and wrap it around the folded-over cable shielding,
slightly overlapping the beginning of the tape
(fi gure 2-17).
Aluminum Tape
Wrap tape around folded foil shielding.
Slightly overlap.
Cut and save the excess tape
for other connectors.
Figure 2-17 — Wrapping the shielded tape
4. Cut the unused portion of the shielded tape and retain for
shielding other RJ-45 connectors.
5. Crimp the RJ-45 cable in the normal manner, folding the
tangs at the end of the connector over the shielded tape
(fi gure 2-18).
Crimped Connector
Figure 2-18 — Crimped RJ-45 connector
Power supply wiring
N
A power supply connected to either unit in the pair
powers both units. Only one power supply is required.
Figure 2-19 shows how to wire the connector.
C
Power supply voltage polarity is critical. Incorrect
voltage polarity can damage the power supply and
the transmitter or receiver. Identify the power cord
negative lead by the ridges on the side of the cord
(fi gure 2-19).
To verify the polarity before connection, plug in the power
supply with no load and check the output with a voltmeter.
W
The two power cord wires must be kept separate
while the power supply is plugged in. Remove
power before wiring.
Use the supplied tie-wrap to strap the power cord to the
extended tail of the connector.
Power Supply
Output Cord
Orange Captive Screw
Connector
0.3” (7 mm) MAX.
SECTION A–A
Ridges
Smooth
AA
Tie Wrap
Ferrite Bead
DC Power Cord
(between power supply
and DVI/HDMI unit
power connector)
Figure 2-19 — Power connector wiring
C
The length of the exposed (stripped) copper wires is
important. With the orange power connector,
the ideal length is 0.3" (7 mm). Longer bare
wires can short together. Shorter wires are not as
secure in the connector and could be pulled out.
N
Your transmitter/receiver pair may have shipped with a
blue captive screw connector. This blue connector can be
plugged into either a blue or an orange power receptacle.
The ideal length of exposed (stripped) copper wire
for the blue connector is 0.2” (5 mm).
The blue connector does not have the extended tail or the
included tie-wrap.
N
Do not tin the power supply leads before installing in
the direct insertion connector. Tinned wires are not as
secure in the connectors and could be pulled out of the
connector.
Snap the provided ferrite bead onto the DC power cable,
between the power supply and the DVI unit’s connector.
RS-232 connector wiring
Figure 2-20 shows how to wire the RS-232 connector.
Ground
Tx
Rx
Gnd
Receive
Transmit
Connected RS-232
Device Pins
Tx/Rx
Pins
Figure 2-20 — RS-232 connector wiring
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
Installation and Operation, cont’d
2-20
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
2-21
Operation
DVI 200 Tx SERIES
DVI INPUT LOCAL OUTPUT
POWER
12V
0.4A MAX
DVI 201 Tx
RS-232
PASS THRU
Tx Rx
DDC ROUTE
12
REMOTE
SPARE LOCAL
DVI 200 Rx SERIES
RS-232
PAS S T HR U
Tx Rx
HDMI 201
HDMI 201
2
1
1
DVI 201 Tx Transmitter Rear Panel
DVI 201 Tx Transmitter Front Panel
DVI 201 Rx Receiver Front Panel
1
HDMI 201 Tx Transmitter Front Panel
1
HDMI 201 Rx Receiver Front Panel
Figure 2-21 — Front and rear panel controls and
indicators
Transmitter control and indicator
a
Power LED — This transmitter front panel LED lights to
indicate that the unit is receiving power.
b
DDC Route switch (DVI 201 Tx only) — This transmitter rear
panel switch selects either the remote or local DVI display as the
route of the display resolution data (the display data channel
[DDC]) and HDCP copyright decoding keys.
Receiver indicator
a
Power LED — This receiver front panel LED lights to indicate
that the unit is receiving power.
System operation
After the transmitter, the receiver, and their connected devices
are powered up, the system is fully operational. If any problems
are encountered, ensure all cables are routed and connected
properly.
N
Ensure that the video source and display selected for the
DDC are properly connected to the transmitter/receiver
pair, and that the transmitter, the receiver, and the
display have power applied before power is applied to
the video source. If all other devices are not turned on
before the video source, the image may not appear.
Technical Points for Digital Video and Content
Protection Encryption
• Digital Visual Interface (DVI) is a digital video format
that was created by the computer industry in 1999.
• High Defi nition Multimedia Interface (HDMI™) is a
multimedia format that was created by the consumer
video industry in 2003.
The HDMI format is built onto the DVI format,
adding digital audio and control while reducing the
size of the connector.
The HDMI format is likely to replace the DVI format
in the near future.
With passive adapters, the HDMI format is backward
compatible with the DVI format.
• With Extron adapters and/or cables, the DVI 201 fully
supports either format, regardless of the connector
type on the video source and display. See appendix A,
Reference Information, for part numbers.
DVI 201 and HDMI 201 Tx/Rx • Installation and Operation
Installation and Operation, cont’d
2-22
DVI 201 and HDMI 201 Tx/Rx
A
Appendix A
Reference Information
Specifi cations
Part Numbers
• High-bandwidth Digital Content Protection (HDCP) is
an encryption method that protects copyrighted digital
entertainment material that uses DVI video.
HDCP is generated by video player hardware,
enabled by the video content.
The HDCP key is transmitted with the Display Data
Channel (DDC).
The DDC signal line was designed for the DDC’s low
data rate; the HDCP key rate is much higher.
♦ Without active buffering, an HDCP key signal
can travel only a short distance. The display
may properly receive the digital video signal, but
not the HDCP key. Without the key, the display
cannot decrypt the video signal. Symptoms of
undecrypted video may include a fl ashing black
or blue screen or “snow”.
♦ With active buffering, an HDCP key signal can
travel as far as other signals to ensure proper
decryption.
♦ The DVI 201 and the HDMI 201 actively buffer
the HDCP key.
Troubleshooting
DVI/HDMI signals run at a very high frequency and are
especially susceptible to bad video connections, too many
adapters, or cables that are too long. To avoid the loss of an
image or introduction of image jitter, follow these guidelines:
• The DVI/HDMI cable on the input to the transmitter or
the output of the receiver should not exceed 10' (3 meters).
• Use only cable designed for DVI/HDMI signals.
• Limit or avoid the use of adapters.
• If the display exhibits a fl ashing black or blue screen,
snow, or other distortion, a non-HDCP compliant display
may be receiving an HDCP-encrypted signal.
Check for an HDCP problem by ejecting the DVD from
the player. If the display distortion stops and the DVD
menu or screensaver image is clear, the problem is
HDCP-related.
DVI 201 and HDMI 201 Tx/Rx • Reference Information
Reference Information
DVI 201 and HDMI 201 Tx/Rx • Reference Information
A-2 A-3
Specifi cations
DVI 201 Tx/Rx Specifi cations
N
This product consists of a transmitter (DVI 201 Tx) and a receiver
(DVI 201 Rx) with twisted pair cables linking the transmitter and
receiver.
Interconnection between transmitter and receiver
Connectors ..................................... (2) RJ-45 per unit for 2 CAT 5/5e/6 cables
connecting the transmitter and receiver
Bit rate ............................................. 5 gigabits/second total (1.65 gigabits/
second/color)
Signal transmission distance
1600x1200 @ 60 Hz (the highest resolution of the single link DVI
standard)
CAT 7 cable ................ 125' (38 m)
CAT 5/5e/6 cable ...... 100' (30 m)
HDTV (1080i or 720p) or 1024x768 @ 60 Hz
CAT 5/5e/6/7 cable . 200' (60 m)
N
The transmission distance varies greatly depending on the signal
resolution and on the type of cable, graphic card, and display used in the
system.
Signal types and standards
Digital video ................................ RGB digital video (DVI and HDMI*
standards), actively buffered
YCrCb digital component video (HDMI
standard), actively buffered
(All single link DVI and HDMI* signal
formats are supported including 640x480
@ 60 Hz through 1600x1200 @ 60 Hz
computer video, and also 480p, 720p,
1080i, and 1080p HDTV signals)
N
*An optional HDMI to DVI adapter is required if an HDMI signal is
used.
HDCP ............................................. HDCP (High-bandwidth Digital Content
Protection) using the DVI and HDMI
standards (for video, actively buffered,
transmitted through DDC lines)
N
*An optional HDMI to DVI adapter is required if an HDMI signal is
used.
Digital audio ................................ HDMI* audio, actively buffered
(transmitted through RGB and YCrCb
lines)
N
*An optional HDMI to DVI adapter is required if an HDMI signal is
used.
RS-232 ............................................ RS-232 serial data (pass-through)
CEC ................................................ Consumer Electronics Control (CEC)
wired infrared data using the HDMI
standard (pass-through)
N
*An optional Extron HDMI to DVI adapter is required in order to
transmit a CEC signal.
EDID (DDC) ................................. EDID (Extended Display Identifi cation
Data) and DDC (display data channel)
using DVI and HDMI* standards (actively
buffered)
N
*An optional HDMI to DVI adapter is required if an HDMI signal is
used.
HPD ............................................... HPD (Hot Plug Detection of display, pass-
through)
Video input and loop-through (DVI 201 Tx)
Number/signal type ..................... 1 DVI-D/HDMI* input,
1600x1200 @ 60 Hz max. resolution
1 DVI-D/HDMI* local loop-through
N
*An optional HDMI to DVI adapter is required if an HDMI signal is
used.
Connectors ..................................... 2 DVI-D female
Video output (DVI 201 Rx)
Number/signal type ..................... 1 DVI-D/HDMI*, 1600x1200 @ 60 Hz max.
resolution
N
*An optional HDMI to DVI adapter is required if an HDMI signal is
used.
Connectors ..................................... 1 DVI-D female
DVI 201 and HDMI 201 Tx/Rx • Reference Information
Reference Information, cont’d
DVI 201 and HDMI 201 Tx/Rx • Reference Information
A-4 A-5
General
External power supply ................. 100 VAC to 240 VAC, 50/60 Hz, external,
autoswitchable; to 12 VDC, 1 A, regulated
Power input requirements ........... 12 VDC, 0.4 A for both transmitter and
receiver
N
Each transmitter or receiver can be powered either locally by an external
power supply or remotely by receiver or transmitter on the other end of
the CAT 5/5e/6 cables.
Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) /
10% to 90%, noncondensing
Operating: +32 to +122 ° F (0 to +50 °C) /
10% to 90%, noncondensing
Rack mount .................................... Yes, with optional RSU 129 or RSB 129 1U
9" rack shelf, part #60-190-01 or 60-604-01;
RSU 126 or RSB 126 6" 1U deep rack shelf,
part #60-190-10 or 60-604-10;
or the VersaTools
®
RSF 123 or RSB 123 3"
1U rack shelf, part #60-190-20 or 60-604-20.
Also furniture mountable with optional
MBD 129 through-desk mount kit,
#70-077-02, or attachable to a projector
mount using an optional PMK 300 or
PMK 350 projector mount kit, #70-374-01
or 70-563-02/03.
Enclosure type ............................... Metal
Enclosure dimensions ................... 1.0" H x 4.3" W x 3.0" D
(quarter rack wide)
2.5 cm H x 10.9 cm W x 7.6 cm D
(Depth excludes connectors.)
Product weight .............................. 0.5 lbs (0.3 kg)
Shipping weight ............................ 3 lbs (2 kg)
Vibration ......................................... ISTA 1A in carton
(International Safe Transit Association)
Listings............................................ UL, CUL
Compliances ................................... CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF ............................................... 30,000 hours
Warranty ......................................... 3 years parts and labor
N
All nominal levels are at ±10%.
N
Specifi cations are subject to change without notice.
HDMI 201 Tx/Rx Specifi cations
N
This product consists of a transmitter (HDMI 201 Tx) and a receiver
(HDMI 201 Rx) with twisted pair cables linking the transmitter and
receiver.
Video input (HDMI 201 Tx)
Number/signal type ..................... 1 single link HDMI input
Connectors .................................... 1 HDMI female
Interconnection between transmitter and receiver
Connectors ..................................... (2) RJ-45 per unit for 2 CAT 5/5e/6/7
cables connecting the transmitter and
receiver
Bit rate ............................................. 5 gigabits per second total (1.65 gigabits
per second per color)
Signal transmission distance
HDTV (1080i or 720p) or 1024x768 @ 60 Hz
CAT 5/5e/6/7 cable . 200' (60 m)
HDTV (1080p) or 1600x1200 @ 60 Hz (the highest resolution of the
single link DVI standard)
CAT 7 cable ................ 125' (38 m)
CAT 5/5e/6 cable ...... 100' (30 m)
N
The transmission distance varies greatly depending on the signal
resolution and on the type of cable, graphic card, and display used in the
system.
Signal types and standards
Digital video ................................ RGB digital video (DVI and HDMI
standards), actively buffered
YCrCb digital component video (HDMI
standard), actively buffered
(All single link DVI and HDMI signal
formats are supported including 640x480
@ 60 Hz through 1600x1200 @ 60 Hz
computer video, and also 480p, 720p,
1080i, and 1080p HDTV signals)
HDCP ............................................. HDCP (High-bandwidth Digital Content
Protection) using the DVI and HDMI
standards (for video, actively buffered,
transmitted through DDC lines)
DVI 201 and HDMI 201 Tx/Rx • Reference Information
Reference Information, cont’d
DVI 201 and HDMI 201 Tx/Rx • Reference Information
A-6 A-7
Digital audio ................................ HDMI audio, actively buffered
(transmitted through RGB and YCrCb
lines)
RS-232 ............................................ RS-232 serial data (pass-through) (on a 3.5
mm captive screw connector, 3 pole)
CEC ................................................ Consumer Electronics Control (CEC)
wired infrared data using the HDMI
standard (pass-through)
EDID (DDC) ................................. EDID (Extended Display Identifi cation
Data) and DDC (display data channel)
using DVI and HDMI standards (actively
buffered)
HPD ............................................... HPD (Hot Plug Detection of display, pass-
through)
Video output (HDMI 201 Rx)
Number/signal type ..................... 1 single link HDMI
Connectors .................................... 1 HDMI female
General
External power supply ................. 100 VAC to 240 VAC, 50/60 Hz, 6 W max.,
external, autoswitchable; to 12 VDC, 1 A,
regulated
Power input requirements ........... 12 VDC, 0.4 A for both transmitter and
receiver
N
Each transmitter or receiver can be powered either locally by an external
power supply or remotely by receiver or transmitter on the other end of
the CAT 5/5e/6/7 cables.
Temperature/humidity ................ Storage: -40 to +158 ° F (-40 to +70 ° C) /
10% to 90%, noncondensing
Operating: +32 to +122 ° F (0 to +50 ° C) /
10% to 90%, noncondensing
Rack mount .................................... Yes, with optional RSU 129 or RSB 129 1U
rack shelf, part #60-190-01 or 60-604-01;
RSU 126 or RSB 126 6" deep rack shelf,
part #60-190-10 or 60-604-10;
or the VersaTools
®
RSF 123 or RSB 123 rack
shelf, part #60-190-20 or 60-604-20.
Also furniture mountable with optional
MBD 129 through-desk mount kit,
#70-077-02, or attachable to a projector
mount using an optional PMK 300 or
PMK 350 projector mount kit, #70-374-01
or 70-563-02/03.
Enclosure type .............................. Metal
Enclosure dimensions .................. 1.0" H x 4.3" W x 3.0" D
(quarter rack wide)
2.5 cm H x 10.9 cm W x 7.6 cm D
(Depth excludes connectors.)
Product weight .............................. 0.5 lbs (0.3 kg)
Shipping weight ........................... 3 lbs (2 kg)
Vibration ........................................ ISTA 1A in carton
(International Safe Transit Association)
Listings............................................ UL, CUL
Compliances ................................... CE, FCC Class A, VCCI, AS/NZS, ICES
MTBF ............................................... 30,000 hours
Warranty ........................................ 3 years parts and labor
N
All nominal levels are at ±10%.
N
Specifi cations are subject to change without notice.
DVI 201 and HDMI 201 Tx/Rx • Reference Information
Reference Information, cont’d
DVI 201 and HDMI 201 Tx/Rx • Reference Information
A-8 A-9
Part Numbers
Transmitter/receiver pair part numbers
N
The Tx/Rx is comprised of the transmitter-receiver
pair. The transmitter and receiver cannot be purchased
separately.
Model and included parts Part number
DVI 201 Tx/Rx 60-734-03
HDMI 201 Tx/Rx 60-806-01
Included Parts
These items are included in each order for a DVI 201 Tx/Rx or
HDMI 201 Tx/Rx:
Model and included parts Part number
DVID SL/6 (with DVI 201)
DVI-D male-to-male, 6' (1.8 m) cable
26-585-02
HDMI M-M/6 (with HDMI 201)
HDMI male-to-male, 6' (1.8 m) cable
26-613-02
12 VDC, 1 A external power supply 70-055-01
3.5 mm, 2-pole captive screw connector 10-319-13
(2) 3.5 mm, 3-pole captive screw
connectors
10-319-15
IEC power cord
Tweeker (small screwdriver)
User’s manual
Mounting accessories
Accessories Part number
RSF 123 3" VersaTools
®
rack shelf kit 60-190-20
RSB 123 3" VersaTools rack shelf 60-604-20
RSU 126 6" deep universal rack shelf kit 60-190-10
RSB 126 6" deep basic rack shelf 60-604-10
RSU 129 9" 1U universal rack shelf kit 60-190-01
RSB 129 9" 1U basic rack shelf 60-604-01
MBU 125 under-desk mount kit 70-077-01
MBD 129 through-desk mount kit 70-077-02
PMK 300 projector mount kit 70-374-03
PMK 350 low profi le projector mount kit
(black, white)
70-563-02, -03
Cables
Accessories Part number
DVID SL/6
DVI-D male-to-male, 6' (1.8 m) cable
26-585-02
HDMI M-M/6
HDMI male to male, 6’ (1.8 m)
26-613-02
HDMI M-DVI-DM/6
HDMI male to DVI-D male, 6’ (1.8 m)
26-614-02
Adapters
Accessories Part number
HDMIF-DVIDM
HDMI female to DVI-D male adapter
26-616-01
HDMIM-DVIDF
HDMI male to DVI-D female adapter
26-617-01
DVI 201 and HDMI 201 Tx/Rx • Reference Information
Reference Information, cont’d
A-10
Precautions
This symbol is intended to alert the user of important
operating and maintenance (servicing) instructions in
the literature provided with the equipment.
This symbol is intended to alert the user of the
presence of uninsulated dangerous voltage within
the product’s enclosure that may present a risk of
electric shock.
Caution
Read Instructions • Read and understand all safety and operating
instructions before using the equipment.
Retain Instructions • The safety instructions should be kept for future
reference.
Follow Warnings • Follow all warnings and instructions marked on the
equipment or in the user information.
Avoid Attachments • Do not use tools or attachments that are not
recommended by the equipment manufacturer because they may be
hazardous.
Warning
Power sources • This equipment should be operated only from the power source
indicated on the product. This equipment is intended to be used with a main power
system with a grounded (neutral) conductor. The third (grounding) pin is a safety
feature, do not attempt to bypass or disable it.
Power disconnection • To remove power from the equipment safely, remove all power
cords from the rear of the equipment, or the desktop power module (if detachable),
or from the power source receptacle (wall plug).
Power cord protection • Power cords should be routed so that they are not likely to be
stepped on or pinched by items placed upon or against them.
Servicing • Refer all servicing to qualifi ed service personnel. There are no user-
serviceable parts inside. To prevent the risk of shock, do not attempt to service
this equipment yourself because opening or removing covers may expose you to
dangerous voltage or other hazards.
Slots and openings • If the equipment has slots or holes in the enclosure, these are
provided to prevent overheating of sensitive components inside. These openings
must never be blocked by other objects.
Lithium battery • There is a danger of explosion if battery is incorrectly
replaced. Replace it only with the same or equivalent type recommended by
the manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.
Ce symbole sert à avertir l’utilisateur que la
documentation fournie avec le matériel contient des
instructions importantes concernant l’exploitation et
la maintenance (réparation).
Ce symbole sert à avertir l’utilisateur de la présence
dans le boîtier de l’appareil de tensions dangereuses
non isolées posant des risques d’électrocution.
Attention
Lire les instructions• Prendre connaissance de toutes les consignes de
sécurité et d’exploitation avant d’utiliser le matériel.
Conserver les instructions• Ranger les consignes de sécurité afi n de pouvoir
les consulter à l’avenir.
Respecter les avertissements • Observer tous les avertissements et consignes
marqués sur le matériel ou présentés dans la documentation utilisateur.
Eviter les pièces de fi xation • Ne pas utiliser de pièces de fi xation ni d’outils
non recommandés par le fabricant du matériel car cela risquerait de poser
certains dangers.
Avertissement
Alimentations• Ne faire fonctionner ce matériel qu’avec la source d’alimentation
indiquée sur l’appareil. Ce matériel doit être utilisé avec une alimentation principale
comportant un fi l de terre (neutre). Le troisième contact (de mise à la terre) constitue
un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.
Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger,
déconnectez tous les cordons d’alimentation de l’arrière de l’appareil ou du module
d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.
Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de
manière à ce que personne ne risque de marcher dessus et à ce qu’ils ne soient pas
écrasés ou pincés par des objets.
Réparation-maintenance • Faire exécuter toutes les interventions de réparation-
maintenance par un technicien qualifi é. Aucun des éléments internes ne peut être
réparé par l’utilisateur. Afi n d’éviter tout danger d’électrocution, l’utilisateur ne doit
pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des
couvercles risquent de l’exposer à de hautes tensions et autres dangers.
Fentes et orifi ces • Si le boîtier de l’appareil comporte des fentes ou des orifi ces, ceux-ci
servent à empêcher les composants internes sensibles de surchauffer. Ces ouvertures
ne doivent jamais être bloquées par des objets.
Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie.
Remplacer uniquement avec une batterie du meme type ou d’un ype equivalent
recommande par le constructeur. Mettre au reut les batteries usagees conformement
aux instructions du fabricant.
Safety Instructions • English
Consignes de Sécurité • Français
Sicherheitsanleitungen • Deutsch
Dieses Symbol soll dem Benutzer in der im
Lieferumfang enthaltenen Dokumentation
besonders wichtige Hinweise zur Bedienung und
Wartung (Instandhaltung) geben.
Dieses Symbol soll den Benutzer darauf aufmerksam
machen, daß im Inneren des Gehäuses dieses
Produktes gefährliche Spannungen, die nicht isoliert
sind und die einen elektrischen Schock verursachen
können, herrschen.
Achtung
Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden,
sollten Sie alle Sicherheits-und Bedienungsanleitungen genau durchlesen
und verstehen.
Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit
des Produktes sollten Sie aufbewahren, damit Sie im Bedarfsfall darauf
zurückgreifen können.
Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und
Anleitungen auf dem Gerät oder in der Benutzerdokumentation.
Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte,
die nicht ausdrücklich vom Hersteller empfohlen wurden, da diese eine
Gefahrenquelle darstellen können.
Vorsicht
Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene
Stromquelle betrieben werden. Dieses Gerät wurde für eine Verwendung mit einer
Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte
Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese
sollte nicht umgangen oder außer Betrieb gesetzt werden.
Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten
Sie alle Netzkabel aus der Rückseite des Gerätes, aus der externen Stomversorgung
(falls dies möglich ist) oder aus der Wandsteckdose ziehen.
Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im
Weg liegen und niemand darauf treten kann oder Objekte darauf- oder unmittelbar
dagegengestellt werden können.
Wartung • Alle Wartungsmaßnahmen sollten nur von qualifi ziertem Servicepersonal
durchgeführt werden. Die internen Komponenten des Gerätes sind wartungsfrei.
Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses
Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines
elektrischen Schlags und/oder andere Gefahren bestehen.
Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist,
dienen diese zur Vermeidung einer Überhitzung der empfi ndlichen Teile im
Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.
Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt
wird. Ersetzen Sie verbrauchte Batterien nur durch den gleichen oder einen
vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie
verbrauchte Batterien bitte gemäß den Herstelleranweisungen.
Este símbolo se utiliza para advertir al usuario
sobre instrucciones importantes de operación y
mantenimiento (o cambio de partes) que se desean
destacar en el contenido de la documentación
suministrada con los equipos.
Este símbolo se utiliza para advertir al usuario sobre
la presencia de elementos con voltaje peligroso sin
protección aislante, que puedan encontrarse dentro
de la caja o alojamiento del producto, y que puedan
representar riesgo de electrocución.
Precaucion
Leer las instrucciones • Leer y analizar todas las instrucciones de operación y
seguridad, antes de usar el equipo.
Conservar las instrucciones • Conservar las instrucciones de seguridad para
futura consulta.
Obedecer las advertencias • Todas las advertencias e instrucciones marcadas
en el equipo o en la documentación del usuario, deben ser obedecidas.
Evitar el uso de accesorios • No usar herramientas o accesorios que no
sean especifi camente recomendados por el fabricante, ya que podrian
implicar riesgos.
Advertencia
Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo
de alimentación eléctrica indicada en el mismo. La alimentación eléctrica de este
equipo debe provenir de un sistema de distribución general con conductor neutro
a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia
ni eliminaria.
Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida
de alimentación eléctrica al equipo, desenchufar todos los cables de alimentación
en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera
independiente), o desenchufar el cable del receptáculo de la pared.
Protección del cables de alimentación • Los cables de alimentación eléctrica se deben
instalar en lugares donde no sean pisados ni apretados por objetos que se puedan
apoyar sobre ellos.
Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal
califi cado. En el interior no hay partes a las que el usuario deba acceder. Para evitar
riesgo de electrocución, no intentar personalmente la reparación/mantenimiento
de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes
peligrosos u otros riesgos.
Ranuras y aberturas • Si el equipo posee ranuras o orifi cios en su caja/alojamiento,
es para evitar el sobrecalientamiento de componentes internos sensibles. Estas
aberturas nunca se deben obstruir con otros objetos.
Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición
incorrecta. Cambiar esta batería únicamente con el mismo tipo (o su equivalente)
recomendado por el fabricante. Desachar las baterías usadas siguiendo las
instrucciones del fabricante.
Instrucciones de seguridad • Español
FCC Class A Notice
Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the
user will be required to correct the interference at his own expense.
Note: These units was tested with shielded cables on the peripheral devices and
between the transmitter and receiver. Shielded cables must be used with the units to
ensure compliance.
Extron’s Warranty
Extron Electronics warrants this product against defects in materials and workmanship
for a period of three years from the date of purchase. In the event of malfunction during
the warranty period attributable directly to faulty workmanship and/or materials,
Extron Electronics will, at its option, repair or replace said products or components,
to whatever extent it shall deem necessary to restore said product to proper operating
condition, provided that it is returned within the warranty period, with proof of
purchase and description of malfunction to:
USA, Canada, South America, Europe, Africa, and the Middle East:
and Central America: Extron Electronics, Europe
Extron Electronics Beeldschermweg 6C
1001 East Ball Road 3821 AH Amersfoort
Anaheim, CA 92805, USA The Netherlands
Asia: Japan:
Extron Electronics, Asia Extron Electronics, Japan
135 Joo Seng Road, #04-01 Kyodo Building
PM Industrial Bldg. 16 Ichibancho
Singapore 368363 Chiyoda-ku, Tokyo 102-0082
Japan
This Limited Warranty does not apply if the fault has been caused by misuse, improper
handling care, electrical or mechanical abuse, abnormal operating conditions or nonExtron authorized modifi cation to the product.
If it has been determined that the product is defective, please call Extron and ask for an
Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe), 65.6383.4400
(Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This
will begin the repair process as quickly as possible.
Units must be returned insured, with shipping charges prepaid. If not insured, you
assume the risk of loss or damage during shipment. Returned units must include the
serial number and a description of the problem, as well as the name of the person to
contact in case there are any questions.
Extron Electronics makes no further warranties either expressed or implied with respect
to the product and its quality, performance, merchantability, or fi tness for any particular
use. In no event will Extron Electronics be liable for direct, indirect, or consequential
damages resulting from any defect in this product even if Extron Electronics has been
advised of such damage.
Please note that laws vary from state to state and country to country, and that some
provisions of this warranty may not apply to you.
Loading...
