HDMI 201

HDMI Twisted Pair Extender

User Guide

DVI & HDMI Extenders

68-1375-01 Rev. D

04 10

Safety Instructions • English

This symbol is intended to alert the user of important operating and maintenance (servicing) instructions in the literature provided with the equipment.

This symbol is intended to alert the user of the presence of uninsulated dangerous voltage within the product’s enclosure that may present a risk of electric shock.

Caution

Read Instructions • Read and understand all safety and operating instructions before using the equipment. Retain Instructions • The safety instructions should be kept for future reference. Follow Warnings • Follow all warnings and instructions marked on the equipment or in the user information. Avoid Attachments • Do not use tools or attachments that are not recommended by the equipment

manufacturer because they may be hazardous.

Warning

Power sources • This equipment should be operated only from the power source indicated on the product. This

equipment is intended to be used with a main power system with a grounded (neutral) conductor. The third (grounding) pin is a safety feature, do not attempt to bypass or disable it.

Power disconnection • To remove power from the equipment safely, remove all power cords from the rear of

the equipment, or the desktop power module (if detachable), or from the power source receptacle (wall plug).

Power cord protection • Power cords should be routed so that they are not likely to be stepped on or pinched

by items placed upon or against them.

Servicing • Refer all servicing to qualiﬁed service personnel. There are no user-serviceable parts inside. To prevent

the risk of shock, do not attempt to service this equipment yourself because opening or removing covers may expose you to dangerous voltage or other hazards.

Slots and openings • If the equipment has slots or holes in the enclosure, these are provided to prevent

overheating of sensitive components inside. These openings must never be blocked by other objects.

Lithium battery • There is a danger of explosion if battery is incorrectly replaced. Replace it only with the

same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.

Consignes de Sécurité • Français

Ce symbole sert à avertir l’utilisateur que la documentation fournie avec le matériel contient des instructions importantes concernant l’exploitation et la maintenance (réparation).

Ce symbole sert à avertir l’utilisateur de la présence dans le boîtier de l’appareil de tensions dangereuses non isolées posant des risques d’électrocution.

Attention

Lire les instructions• Prendre connaissance de toutes les consignes de sécurité et d’exploitation avant

d’utiliser le matériel.

Conserver les instructions• Ranger les consignes de sécurité aﬁn de pouvoir les consulter à l’avenir. Respecter les avertissements • Observer tous les avertissements et consignes marqués sur le matériel ou

présentés dans la documentation utilisateur.

Eviter les pièces de ﬁxation • Ne pas utiliser de pièces de ﬁxation ni d’outils non recommandés par le

fabricant du matériel car cela risquerait de poser certains dangers.

Sicherheitsanleitungen • Deutsch

Dieses Symbol soll dem Benutzer in der im Lieferumfang enthaltenen Dokumentation besonders wichtige Hinweise zur Bedienung und Wartung (Instandhaltung) geben.

Dieses Symbol soll den Benutzer darauf aufmerksam machen, daß im Inneren des Gehäuses dieses Produktes gefährliche Spannungen, die nicht isoliert sind und die einen elektrischen Schock verursachen können, herrschen.

Achtung

Lesen der Anleitungen • Bevor Sie das Gerät zum ersten Mal verwenden, sollten Sie alle Sicherheits-und

Bedienungsanleitungen genau durchlesen und verstehen.

Aufbewahren der Anleitungen • Die Hinweise zur elektrischen Sicherheit des Produktes sollten Sie

aufbewahren, damit Sie im Bedarfsfall darauf zurückgreifen können.

Befolgen der Warnhinweise • Befolgen Sie alle Warnhinweise und Anleitungen auf dem Gerät oder in der

Benutzerdokumentation.

Keine Zusatzgeräte • Verwenden Sie keine Werkzeuge oder Zusatzgeräte, die nicht ausdrücklich vom

Hersteller empfohlen wurden, da diese eine Gefahrenquelle darstellen können.

Instrucciones de seguridad • Español

Este símbolo se utiliza para advertir al usuario sobre instrucciones importantes de operación y mantenimiento (o cambio de partes) que se desean destacar en el contenido de la documentación suministrada con los equipos.

Este símbolo se utiliza para advertir al usuario sobre la presencia de elementos con voltaje peligroso sin protección aislante, que puedan encontrarse dentro de la caja o alojamiento del producto, y que puedan representar riesgo de electrocución.

Precaucion

Leer las instrucciones • Leer y analizar todas las instrucciones de operación y seguridad, antes de usar el

equipo.

Conservar las instrucciones • Conservar las instrucciones de seguridad para futura consulta. Obedecer las advertencias • Todas las advertencias e instrucciones marcadas en el equipo o en la

documentación del usuario, deben ser obedecidas.

安全须知 • 中文

这个符号提示用户该设备用户手册中有重要的操作和维护说明。

这个符号警告用户该设备机壳内有暴露的危险电压，有触电危险。

注意

阅读说明书 • 用户使用该设备前必须阅读并理解所有安全和使用说明。保存说明书 • 用户应保存安全说明书以备将来使用。遵守警告 • 用户应遵守产品和用户指南上的所有安全和操作说明。避免追加 • 不要使用该产品厂商没有推荐的工具或追加设备，以避免危险。

Avertissement

Alimentations • Ne faire fonctionner ce matériel qu’avec la source d’alimentation indiquée sur l’appareil. Ce

matériel doit être utilisé avec une alimentation principale comportant un ﬁl de terre (neutre). Le troisième contact (de mise à la terre) constitue un dispositif de sécurité : n’essayez pas de la contourner ni de la désactiver.

Déconnexion de l’alimentation• Pour mettre le matériel hors tension sans danger, déconnectez tous les

cordons d’alimentation de l’arrière de l’appareil ou du module d’alimentation de bureau (s’il est amovible) ou encore de la prise secteur.

Protection du cordon d’alimentation • Acheminer les cordons d’alimentation de manière à ce que personne

ne risque de marcher dessus et à ce qu’ils ne soient pas écrasés ou pincés par des objets.

Réparation-maintenance • Faire exécuter toutes les interventions de réparation-maintenance par un

technicien qualiﬁé. Aucun des éléments internes ne peut être réparé par l’utilisateur. Aﬁn d’éviter tout danger d’électrocution, l’utilisateur ne doit pas essayer de procéder lui-même à ces opérations car l’ouverture ou le retrait des couvercles risquent de l’exposer à de hautes tensions et autres dangers.

Fentes et oriﬁces • Si le boîtier de l’appareil comporte des fentes ou des oriﬁces, ceux-ci servent à empêcher les

composants internes sensibles de surchauffer. Ces ouvertures ne doivent jamais être bloquées par des objets.

Lithium Batterie • Il a danger d’explosion s’ll y a remplacment incorrect de la batterie. Remplacer uniquement

avec une batterie du meme type ou d’un ype equivalent recommande par le constructeur. Mettre au reut les batteries usagees conformement aux instructions du fabricant.

Vorsicht

Stromquellen • Dieses Gerät sollte nur über die auf dem Produkt angegebene Stromquelle betrieben werden.

Dieses Gerät wurde für eine Verwendung mit einer Hauptstromleitung mit einem geerdeten (neutralen) Leiter konzipiert. Der dritte Kontakt ist für einen Erdanschluß, und stellt eine Sicherheitsfunktion dar. Diese sollte nicht umgangen oder außer Betrieb gesetzt werden.

Stromunterbrechung • Um das Gerät auf sichere Weise vom Netz zu trennen, sollten Sie alle Netzkabel aus der

Rückseite des Gerätes, aus der externen Stomversorgung (falls dies möglich ist) oder aus der Wandsteckdose ziehen.

Schutz des Netzkabels • Netzkabel sollten stets so verlegt werden, daß sie nicht im Weg liegen und niemand

darauf treten kann oder Objekte darauf- oder unmittelbar dagegengestellt werden können.

Wartung • Alle Wartungsmaßnahmen sollten nur von qualiﬁziertem Servicepersonal durchgeführt werden.

Die internen Komponenten des Gerätes sind wartungsfrei. Zur Vermeidung eines elektrischen Schocks versuchen Sie in keinem Fall, dieses Gerät selbst öffnen, da beim Entfernen der Abdeckungen die Gefahr eines elektrischen Schlags und/oder andere Gefahren bestehen.

Schlitze und Öffnungen • Wenn das Gerät Schlitze oder Löcher im Gehäuse aufweist, dienen diese zur

Vermeidung einer Überhitzung der empﬁndlichen Teile im Inneren. Diese Öffnungen dürfen niemals von anderen Objekten blockiert werden.

Litium-Batterie • Explosionsgefahr, falls die Batterie nicht richtig ersetzt wird. Ersetzen Sie verbrauchte Batterien

nur durch den gleichen oder einen vergleichbaren Batterietyp, der auch vom Hersteller empfohlen wird. Entsorgen Sie verbrauchte Batterien bitte gemäß den Herstelleranweisungen.

Evitar el uso de accesorios • No usar herramientas o accesorios que no sean especiﬁcamente recomendados

por el fabricante, ya que podrian implicar riesgos.

Advertencia

Alimentación eléctrica • Este equipo debe conectarse únicamente a la fuente/tipo de alimentación eléctrica

indicada en el mismo. La alimentación eléctrica de este equipo debe provenir de un sistema de distribución general con conductor neutro a tierra. La tercera pata (puesta a tierra) es una medida de seguridad, no puentearia ni eliminaria.

Desconexión de alimentación eléctrica • Para desconectar con seguridad la acometida de alimentación

eléctrica al equipo, desenchufar todos los cables de alimentación en el panel trasero del equipo, o desenchufar el módulo de alimentación (si fuera independiente), o desenchufar el cable del receptáculo de la pared.

Protección del cables de alimentación • Los cables de alimentación eléctrica se deben instalar en lugares

donde no sean pisados ni apretados por objetos que se puedan apoyar sobre ellos.

Reparaciones/mantenimiento • Solicitar siempre los servicios técnicos de personal caliﬁcado. En el interior no

hay partes a las que el usuario deba acceder. Para evitar riesgo de electrocución, no intentar personalmente la reparación/mantenimiento de este equipo, ya que al abrir o extraer las tapas puede quedar expuesto a voltajes peligrosos u otros riesgos.

Ranuras y aberturas • Si el equipo posee ranuras o oriﬁcios en su caja/alojamiento, es para evitar el

sobrecalientamiento de componentes internos sensibles. Estas aberturas nunca se deben obstruir con otros objetos.

Batería de litio • Existe riesgo de explosión si esta batería se coloca en la posición incorrecta. Cambiar esta

batería únicamente con el mismo tipo (o su equivalente) recomendado por el fabricante. Desachar las baterías usadas siguiendo las instrucciones del fabricante.

警告

电源 • 该设备只能使用产品上标明的电源。设备必须使用有地线的供电系统供电。第三条线

（地线）是安全设施，不能不用或跳过。

拔掉电源 • 为安全地从设备拔掉电源，请拔掉所有设备后或桌面电源的电源线，或任何接到市

电系统的电源线。

电源线保护 • 妥善布线，避免被踩踏，或重物挤压。维护 • 所有维修必须由认证的维修人员进行。设备内部没有用户可以更换的零件。为避免出现

触电危险不要自己试图打开设备盖子维修该设备。

通风孔 • 有些设备机壳上有通风槽或孔，它们是用来防止机内敏感元件过热。不要用任何东

西挡住通风孔。

锂电池 • 不正确的更换电池会有爆炸的危险。必须使用与厂家推荐的相同或相近型号的电池。

按照生产厂的建议处理废弃电池。

FCC Class A Notice

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

The Class A limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense.

Trademarks

All trademarks mentioned in this manual are the properties of their respective owners.

Contents

Introduction ............................................ 1

About this Manual ........................................... 1

About the HDMI 201 Transmitter and Receiver . 1

TP Cable Advantages ................................... 3

Transmission Distance .................................. 3

Features ........................................................... 4

Installation and Operation ..................... 5

Mounting the Transmitter or Receiver .............. 5

Non-Decora Unit Mounting .......................... 5

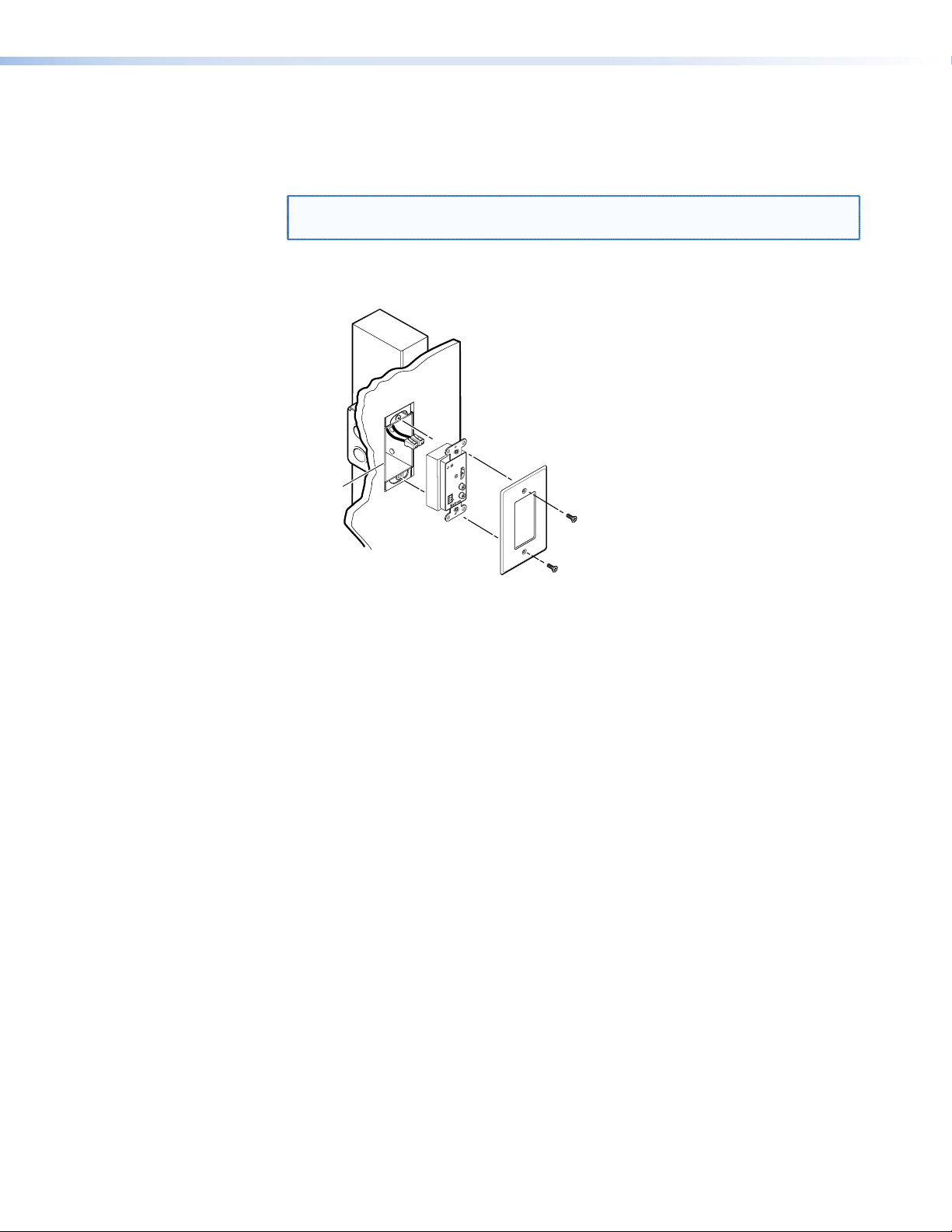

Decora Unit Mounting ............................... 13

Connections .................................................. 16

Transmitter Connections ............................ 16

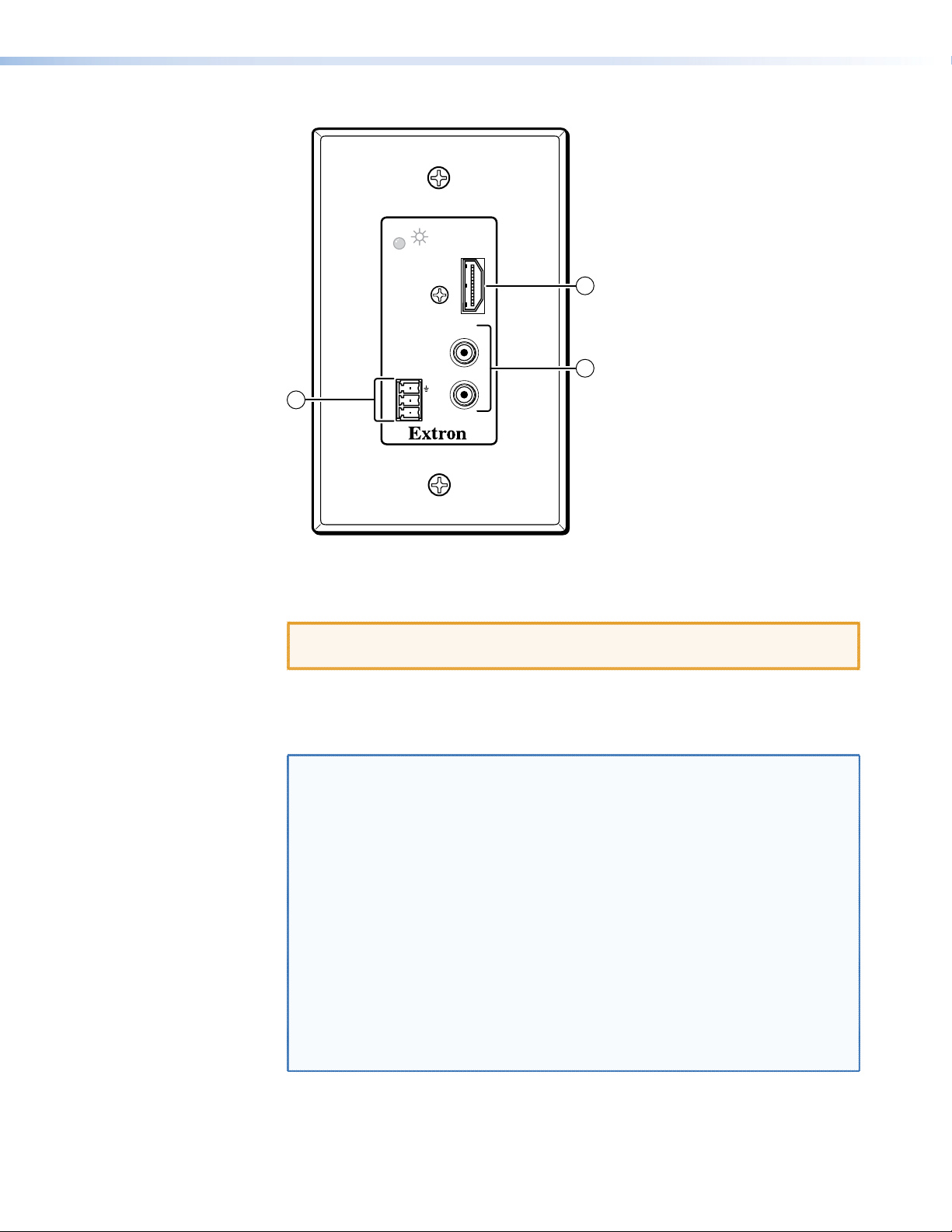

Receiver Connections ................................. 19

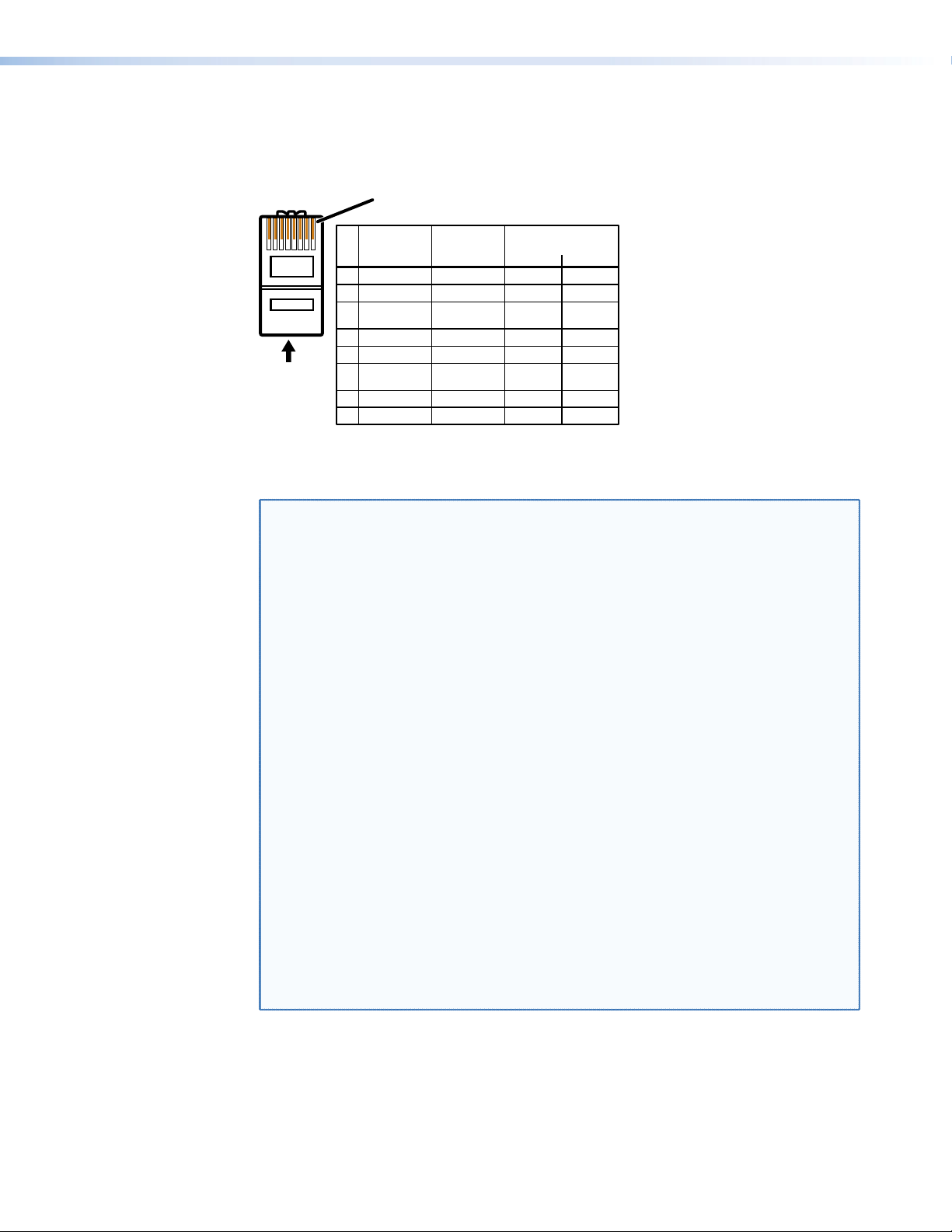

Pin Assignments and Wiring ....................... 21

Operation ...................................................... 26

Transmitter Power Indicator ........................ 26

Receiver Power Indicator ............................ 26

System Operation ...................................... 27

Technical Points for Digital Video

and Content Protection Encryption ............... 27

Troubleshooting ............................................. 28

Application Examples ..................................... 28

Audio Conversion ...................................... 28

Modulated IR Pass Through Application ..... 29

Reference Information ..........................30

Speciﬁcations

Part Numbers ................................................. 33

Transmitter/Receiver Pair Part Numbers ....... 33

Included Parts ............................................ 33

Mounting Accessories ................................ 34

Cables and Connectors .............................. 34

Adapters .................................................... 34

Decora Template Dimensions ......................... 35

................................................. 30

HDMI 201 • Contents iv

Introduction

POWER 12V

0.4A MAX

HDMI 201 Rx

HDMI OUTPUT

RS-232

PASS THRU

POWER 12V

0.4A MAX

HDMI 201 Tx

RS-232

PASS THRU

TxRx

1 2

HDMI INPUT

DVD

Plasma Display

Extron HDMI 201 Tx

Transmitter

Extron HDMI 201 Rx

Receiver

HDMI Cable

RS-232 Control

CAT 5/5e/6 UTP up to 200’

• About this Manual

• About the HDMI 201 Transmitter and Receiver

• Features

About this Manual

This manual describes the Extron® HDMI 201 family of High Deﬁnition Multimedia Interface (HDMI™) Extenders, which consists of HDMI 201 Tx transmitters and HDMI 201 Rx receivers. This manual describes how to install, operate, and conﬁgure them.

About the HDMI 201 Transmitter and Receiver

The Extron HDMI 201 Tx/Rx is a family of HDMI transmitters and receivers (ﬁgure 1), in enclosures that support different mounting options. A transmitter and receiver pair extends the usable distance of DVI or HDMI digital video and RS-232 control signals over two Category (CAT) 5/5e/6 unshielded twisted pair (UTP) or shielded twisted pair (STP) cables. Extron DTP26 digital cable is also recommended. The HDMI 201 A D transmitter and receiver also route audio, but not on the TP link. The video and control (and audio, if applicable) signals can be transmitted up to 200 feet (60 m).

Figure 1. Typical Transmitter and Receiver Application

An HDMI 201 system consists of a transmitter (Tx) and a receiver (Rx). The pair can handle a single link of HDMI digital video and a bidirectional RS-232 link. The HDMI 201 A D also converts a computer audio input into balanced or unbalanced stereo audio output.

HDMI 201 • Introduction 1

There are two subsets of transmitters and receivers in two different enclosures or form factors:

• HDMI 201 Tx/Rx — These units are housed in quarter rack width metal enclosures.

They can be set on a tabletop or mounted in a rack, under or through furniture, or to a projector pole.

NOTE: The non-Decora models do not input, transmit, receive, or output audio.

• HDMI 201 A D Tx/Rx — These units are housed in enclosures that can be mounted

in UL standard wall boxes with Decora®-style face plates. These units also convert computer level audio to balanced or unbalanced stereo audio.

NOTES: • A non-Decora transmitter or receiver is partially compatible with a

Decora receiver or transmitter.

• A mixed form factor system can transmit and receive video and RS-232 communications.

• A mixed form factor system cannot transmit and receive audio, as the non-Decora models do not input, transmit, receive, or output audio.

Transmitters HDMI 201 Tx non-Decora

HDMI 201 Tx non-Decora

HDMI 201 A D Tx Decora

TransmittersReceivers

HDMI 201 Rx non-Decora

HDMI 201 A D Rx Decora

The units can be purchased as a pair (of the same form factor) or individually. Each

HDMI video Control

HDMI 201 A D Tx Decora

HDMI video Control

HDMI video Control Audio (pass)

HDMI 201 Rx non-Decora

HDMI video Control

Receivers

HDMI 201 A D Rx Decora

HDMI video Control

HDMI video Control Audio (pass)

purchased pair and each individual transmitter is shipped with a single external desktop 12 VDC power supply that accepts 100 to 240 VAC, 50-60 Hz input. A single power supply connected to either the transmitter or the receiver can power both units through one of the TP cables that link the units.

NOTE: In this manual, the terms “HDMI 201,” “HDMI 201 Tx,” “HDMI 201 Rx,”

“transmitter,” and “receiver” refer to the applicable unit in either form factor, unless otherwise speciﬁed.

HDMI 201 • Introduction 2

TP Cable Advantages

Twisted pair cable is much smaller, lighter, more ﬂexible, and less expensive than coaxial or HDMI cable. These transmitter and receiver twisted pair (TP) products make cable runs simpler and less cumbersome. Termination of the cable with RJ-45 connectors is simple, quick, and economical.

NOTES: • The transmitter and receiver pair works with unshielded twisted pair

• Do not use Extron UTP23SF-4 Enhanced Skew-Free™ A/V UTP

Control Communications

The RS-232 or infrared (IR) communications are pass-through only; the transmitter and receiver do not generate or respond to these signals.

Transmission Distance

The maximum transmission distance is determined by the resolution of the signal and the TP cable that is used.

• With CAT 5/5e/6 unshielded TP cable, the Tx/Rx pair can transmit and receive 720p

and 1080i HDTV or XGA video signals up to 200 feet (60 m) and 1080p HDTV or UXGA video up to 100 feet (30 m).

• With CAT 5/5e/6 shielded TP cable, the Tx/Rx pair can transmit and receive 720p

and 1080i HDTV or XGA video signals up to 200 feet (60 m) and 1080p HDTV or UXGA video up to 125 feet (38 m).

(UTP) or shielded twisted pair (STP) cables; but, to ensure FCC Class A and CE compliance, STP cables are required.

cable to link the transmitter and receiver. Skew-free A/V cable was designed for most Extron TP transmitter/receiver applications, but the HDMI 201 Tx/Rx does not work properly with this cable.

NOTES: • The transmission distance varies greatly, depending on the signal

• For resolutions of 1600x1200, 1920x1200, and 1080p, Extron strongly

resolution, type of cable used, graphics card, and display used in the system.

recommends DTP26 cable, or equivalent. Extron DTP26 cable consists of four individually shielded copper pairs and an overall braided shield that help reduce crosstalk. DTP26 cable extends these resolutions up to 150 feet (45 m).

HDMI 201 • Introduction 3

Features

Transmits single link HDMI signals over two CAT 5/5e/6 cables — Standard twisted pair cables provide an economical, easily installed cable solution.

Supports DDC and HDCP copy protection transmission — The Tx/Rx pair fully supports long distance transmission of the DDC and HDCP signals.

Control communications pass-through — Bidirectional RS-232 or IR control signals can be transmitted alongside the HDMI signal, so that the remote display can be controlled without the need for additional cabling.

Audio routing — The HDMI 201 A D Tx/Rx also routes unbalanced stereo audio when both units are the Decora form factor.

Supports CEC signal transmission

1-inch high, quarter rack width, metal enclosures (HDMI 201 Tx and HDMI 201 Rx [non-Decora] only)— With low proﬁle enclosures, both transmitter models and both

receiver models can be discreetly installed in locations such as behind a plasma or LCD ﬂatpanel display.

Wall-mountable enclosures (HDMI 201 A D Tx and HDMI 201 A D Rx [Decora] only)

External 100 VAC to 240 VAC, 50-60 Hz, international power supply (part #70-055-01) — Included with units sold as a paired system and with transmitters

Remote powering of transmitter or receiver — Only one power supply is necessary to

power both devices.

HDMI 201 • Introduction 4

Installation and Operation

This section describes the installation and the operation of the HDMI 201, including:

• Mounting the Transmitter or Receiver

• Connections

• Operation

• Technical Points for Digital Video and Content Protection Encryption

• Troubleshooting

• Application Examples

Mounting the Transmitter or Receiver

CAUTION: Installation and service must be performed by authorized personnel only.

Non-Decora Unit Mounting

The 1-inch high, quarter rack width HDMI 201 (non-Decora) transmitters and receivers can be placed on a tabletop, mounted on a rack shelf, or mounted under a desk or tabletop. The receiver can be mounted on a projector bracket.

Tabletop use

Afﬁx the four included rubber feet to the bottom of the unit and place it in any convenient location.

Rack shelf mounting

For rack mounting, mount the transmitter or receiver using any of the following rack mounting options:

• RSF 123 3.5-inch deep rack shelf kit (part #60-190-20) (ﬁgure 2)

• RSB 123 3.5-inch deep rack shelf (part #60-604-21)

• RSU 126 6-inch deep universal rack shelf kit (part #60-190-10)

• RSB 126 6-inch deep basic rack shelf (part #60-604-11)

• RSU 129 9.5-inch deep universal rack shelf kit (part #60-190-01) (ﬁgure 3)

• RSB 129 9.5-inch deep basic rack shelf (part #60-604-02)

HDMI 201 • Installation and Operation 5

UL guidelines for rack mounting

(2) 4-40 x 3/16" Screws

Use 2 mounting holes on opposite corners.

Rack Shelf

1/4 Rack Width Front False Faceplate

The following Underwriters Laboratories (UL) guidelines pertain to the installation of an HDMI 201 unit onto a rack.

1. Elevated operating ambient — If installed in a closed or multi-unit rack assembly,

the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consider installing the equipment in an environment compatible with the maximum ambient temperature speciﬁed by the manufacturer [Tma = +32 to +122 °F (0 to +50 °C)].

2. Reduced air ﬂow — Installation of the equipment in a rack should be such that the

amount of air ﬂow required for safe operation of the equipment is not compromised.

3. Mechanical loading — Mounting of the equipment in the rack should be such that a

hazardous condition is not achieved due to uneven mechanical loading.

4. Circuit overloading — Consideration should be given to the connection of the

equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

5. Reliable earthing (grounding) — Reliable earthing of rack-mounted equipment

should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (such as the use of power strips).

Rack shelf mounting instructions

On the 6-inch and 9.5-inch rack shelves, the transmitter or receiver unit can be mounted in the front or the rear of the rack.

1. Remove the feet from the bottom of the transmitter or receiver unit if installed.

2. Mount the transmitter or receiver unit on the rack shelf, using two 4-40 x 3/16-inch

screws in opposite (diagonal) corners to secure it to the shelf (ﬁgure 2).

Figure 2. Mounting the Transmitter or Receiver unit on a 3.5-inch Rack Shelf

3. Install blank faceplates or other units on the rack shelf.

4. Attach the rack shelf to the rack using the supplied bolts.

HDMI 201 • Installation and Operation 6

1U Universal Rack Shelf

Figure 3. Mounting the Transmitter or Receiver on a Universal Rack Shelf

Furniture mounting

Under-furniture mounting

The unit can be mounted under a horizontal surface using an optional MBU 125 underdesk mounting kit (part #70-077-01). Mount the unit under a desk or table as follows:

1. Remove feet from the bottom of the HDMI 201 unit if installed.

2. Secure the under-desk mounting brackets to the transmitter or receiver with the four

machine screws provided in the mounting kit (ﬁgure 4).

Figure 4. Under-Desk Mounting

3. Hold the transmitter or receiver with attached brackets against the underside of the

desk or other furniture. Mark the location of holes for screws on the desk.

4. Drill 1/4-inch (6.4 mm) deep, 3/32-inch (2 mm) diameter pilot holes in the table or

desk at the marked screw locations from the underside or inside (the concealed side) of the furniture, where the transmitter or receiver will be located.

5. Insert the four wood screws into the pilot holes. Fasten each screw into the

installation surface until just less than 1/4 inch of the screw head protrudes.

6. Align the installed screws with the slots in the mounting brackets, and place the

transmitter or receiver against the surface, with the screws through the bracket slots.

7. Slide the transmitter or receiver slightly forward or back, then tighten all four screws

to fasten it in place.

HDMI 201 • Installation and Operation 7

Through-furniture mounting

The transmitter or receiver can be mounted through a desk or other furniture using an optional Extron MBD 129 through-desk mounting kit, part #70-077-02. Mount the transmitter or receiver through a desk or table as follows (ﬁgure 5):

Figure 5. Through-Desk Mounting

1. Loosely attach the mounting brackets to the transmitter or receiver using the four

machine screws and washers supplied with the mounting kit.

2. Hold the transmitter or receiver against the inside of the surface through which it will

be mounted. Mark the four screw holes and the table material to be removed on the inside of the surface to which you are mounting the device.

3. Remove the table material. Test the ﬁt by inserting the front of the device through the

hole. If necessary, use a rasp or coarse ﬁle to enlarge the hole.

4. Drill four pilot holes, each 3/32-inch in diameter by 1/4 inch deep, where you made

marks.

5. Using the provided four wood screws, secure the brackets to the mounting surface.

6. Slide the transmitter or receiver up and down in the mounting brackets until the face

of the transmitter or receiver is at the desired height. Tighten the screws that secure the brackets in place.

If the screws are inaccessible to a screwdriver:

a. Mark the location of the brackets relative to the screws. b. Remove the transmitter or receiver from inside the furniture. c. Tighten the screws. d. Replace the unit inside the surface (step 5).

HDMI 201 • Installation and Operation 8

Projector mounting

The receiver can be mounted on a projector bracket using either of the following optional Extron projector mounting kits:

• PMK 300 multi-product pole mount kit (part #70-374-01)

• PMK 350 low proﬁle, multi-product pole mount kit (part #70-563-02 [black] or

part #70-563-03 [white])

PMK 300 mounting

Mount the receiver to a PMK 300 bracket as follows:

1. If necessary, remove the feet from the bottom of the receiver.

2. Mount the receiver to one of the three mounting plates on the bracket using two

of the supplied 4-40 x 3/16-inch screws in opposite (diagonal) corners to secure the device to the bracket. It can be vertically mounted facing either up or down (ﬁgure 6).

Side Mounting Plate

Bracket Brace

U-Bolt

Extron DVI 201 or HDMI 201

Receiver

Power Supply

Extron PMK 300

Multi-product Pole Mount Kit

Front Mounting Plate

Figure 6. PMK 300 Projector Mounting a Receiver

NOTE: On the side mounting plates, the device is typically mounted on the outside

of the bracket. On the front mounting plate, the device is typically mounted on the inside of the bracket.

3. If the power supply is connected to the receiver, use the two included tie wraps

to strap the power supply to one of the brackets.

HDMI 201 • Installation and Operation 9

NOTE: The PMK 300 has a hole in the bottom plate that allows the projector pole

U-Bolt

Extron PMK 300

Multi-product Pole Mount Kit

Bracket Brace

to be inserted through the center of the plate (ﬁgure 7), rather than outside of the plate (ﬁgure 6). To install the PMK 300 in this conﬁguration, slide the bracket up from the bottom of the pole before the projector is installed on the pole.

Figure 7. Projector Pole on the Inside

4. Place the contoured bracket brace against the pole and opposite the back plate. The

pole should ﬁt snugly into the depression in the center of the bracket brace.

5. Place the U-bolt around the ceiling pole. Insert the two legs of the U-bolt through the

round holes on the contoured bracket brace and then through the slotted holes on the mounting plate on the bracket.

NOTE: The supplied U-bolt ﬁts a typical (1.5 inch to 2.0 inch diameter) ceiling pole.

HDMI 201 • Installation and Operation 10

PMK 350 mounting

Mount Plate

Mount the receiver to a PMK 350 bracket as follows:

1. Remove the front and rear plates from the PMK 350 (ﬁgure 8), using an Extron

Tweeker or a #2 Phillips screwdriver. Retain the screws to reattach the plates.

Extron

Rear Plate

Extron PMK 350

Multi-product Pole Mount Kit

U-bolt

Extron Power Supply

Cover Sheet

Figure 8. PMK 350 Projector Mounting a Receiver

2. If necessary, remove the feet from the bottom of the receiver.

3. Secure the receiver to one side of the mounting tray, using two of the supplied

4-40 x 3/16-inch screws in opposite (diagonal) corners.

4. If power supply is connected to the receiver, use the two included tie wraps to strap

the power supply to the bracket.

5. Place the PMK 350 around the projector ceiling mounting pole (ﬁgure 8).

6. Assemble the U-bolt and the following parts in the following order (ﬁgure 9): a. Pass the legs of the U-bolt through the slotted holes on the mount plate ﬂange. b. Place the legs around the projector pole. c. Pass the legs through the holes in the contour base.

Quarter-rack Sized Product

Front Plate

Contoured Base

L-shaped Bracket

NOTE: The pole ﬁts snugly into the depression in the center of the contoured

base.

d. Pass the legs through the holes in the L-shaped bracket.

NOTE: The supplied U-bolt ﬁts a typical (1.5-inch to 2.0-inch diameter) ceiling

pole.

Flange

Contoured Base

U-bolt

L-shaped

Slotted Hole in PMK Tray

Ceiling Pole

Bracket

L-shaped Bracket Screws

Figure 9. Hanging the Tray on the Pole

HDMI 201 • Installation and Operation 11

7. Align the two slotted holes in the bottom of the L-shaped bracket with the two

slotted holes in the base of the tray. Secure the L-shaped bracket to the base by inserting two provided 6-32 x 5/16-inch screws through the aligned slots.

8. Move the PMK 350 up to the desired location on the ceiling pole, as close to the

ceiling as desired.

9. Secure the L-shaped bracket to the U-bolt using the included hex nuts, washers, and

lock washers. Tighten the hex nuts securely.

NOTE: Be sure to tighten the hex nuts securely enough that the PMK 350 does not

slide down the ceiling pole. A socket wrench is recommended to tighten the hex nuts.

10. Secure the front and rear plates to the mounting tray with four of the included #6

screws.

11. If desired, choose one of the provided four sizes of self-adhesive cover sheets, and

apply it to the underside of the mounting tray.

HDMI 201 • Installation and Operation 12

Decora Unit Mounting

The HDMI 201 A D (Decora) transmitter and receiver can be installed in a one-gang electrical wall box with a Decora wall plate cover (supplied).

The installation must conform to national and local electrical codes and to the size requirements of the wall plate.

UL/safety guidelines

The following Underwriters Laboratories (UL) guidelines pertain to the installation of the Decora transmitters and receivers into a wall or furniture.

1. These units are not to be connected to a centralized DC power source or used beyond

their rated voltage range.

2. These units must be installed in UL listed junction boxes.

3. These units must be installed with conduit in accordance with National Electrical Code.

Preparing the site and installing the wall box

Choose a location that allows cable runs without interference. Allow enough depth for both the wall box and the cables. The box should be at least 2.5 inches (6.4 cm) deep to accommodate the connectors and cables. Install the cables into the wall, furniture, or conduits before installing the wall plate.

NOTE: The Decora units are very deep and have connectors on the back side

(ﬁgure 10). Extron recommends its 1-gang or 2-gang junction boxes (part #s 980130 and 980084), which have a depth of 2.5 inches (6.4 cm).

2.50” [63.5mm]

TP Cable (no boot)

Captive Screw Connectors

TP Cable (no boot)

Junction Box

1.51” [38.48mm]

1.85” [47mm]

Figure 10. Decora Unit Depth Proﬁle

To install a new wall box, perform steps 1 through 9 on the next page. If a suitable wall box is already installed, perform steps 6 through 9 on the next page. UL listed wall boxes are recommended.

HDMI 201 • Installation and Operation 13

1. If a wall box is not available to use for a template, see the dimensions on page 35

to create a template. If installing directly into furniture, cut out the center portion of your template.

2. Place the wall box (or your template) against the installation surface, and mark the

opening guidelines.

3. Cut out the material from the marked area.

4. Insert the wall box into the opening. The rear connectors on the box or wall plate

should ﬁt easily into the opening. Enlarge or smooth the edges of the opening if needed.

5. Secure the wall box with nails or screws, leaving the front edge ﬂush with the outer

wall or furniture surface (ﬁgure 11).

NOTE: If attaching the wall box to wood, use four #8 or #10 screws or 10-penny

nails. A minimum of 0.5 inch (1.3 cm) of screw thread must penetrate the wood.

If attaching the wall box to metal studs or furniture, use four #8 or #10

self-tapping sheet metal screws or machine bolts with matching nuts.

Wall Stud

Signal Output Cable

Cable Clamp

Screws or Nails

Figure 11. Installing the Wall Box

Wall Stud Signal Output Cable

Cable Clamp

Screws

or Nails

6. Feed the TP cables and, if applicable, the audio and power cables through the

opening and through the wall box punch-out holes, securing them with cable clamps to provide strain relief.

NOTES: • In order to ﬁt in the junction box, the TP cables and RJ-45 connectors

should not have a boot installed.

• One power supply can power both the transmitter and the receiver, so only one unit needs a power supply.

7. Trim back and/or insulate exposed cable shields with heat shrink to reduce the chance

of short circuits. To prevent short circuits, the outer foil shield can be cut back to the point where the

cable exits the cable clamp.

8. Connect the cables to the rear of the unit. See Connections, later in this manual, for

connector wiring details.

9. Connect front panel devices (see Connections, later in this manual, for connector

details), restore the power supply, and test the transmitter/receiver system. Make any cabling adjustments before ﬁnal installation, as the cables will be inaccessible afterwards.

HDMI 201 • Installation and Operation 14

Final installation

After testing and making any adjustments, do the following:

1. At the power outlet, unplug the power supply.

NOTE: One power supply can power both the transmitter and the receiver, so only

one unit needs a power supply.

2. Mount the transmitter or receiver into the wall box, and attach the supplied Decora

faceplate to the unit, as shown in figure 12.

Wall Box

Decora Faceplate

Wall opening

is flush with

edge of box.

RS-232

PASS THRU

Extron HDMI 201 A D

INPUT

HDMI

AUDIO-R

AUDIO-L

Figure 12. Mounting the Transmitter or Receiver

3. At the power outlet, reconnect the power supply. This powers up both units.

HDMI 201 • Installation and Operation 15

Connections

HDMI 201 A D Tx Front Panel

INPUT

RS-232

PASS THRU

AUDIO-R

HDMI

AUDIO-L

Rx Tx

Transmitter Connections

The wall-mountable transmitter is in an enclosure that can be mounted in UL standard wall boxes with Decora-style face plates. The rack-mountable transmitter is in a quarter rack width enclosure.

Figure 13 shows the front panel of the HDMI 201 A D Tx. Figure 14, on the next page, shows the rear panel of both HDMI 201 Tx models.

Figure 13. HDMI 201 Tx Front Panel Connectors

HDMI Input connector — Connect an HDMI cable between this port and

the HDMI output port of the digital video source. See HDMI connector pin

assignments for pin assignments.

RS-232 connector — Connect a serial communications port to this 3.5 mm, 3-pole

captive screw connector for bidirectional RS-232 communication. See RS-232

connector wiring to wire the connector.

NOTE: The RS-232 connector can also transmit one-way modulated infrared (IR)

signals. See Modulated IR Pass Through Application.

HDMI 201 • Installation and Operation 16

HDMI 201 Tx Rear Panel

POWER

12V

0.4A MAX

RS-232

PASS THRU

Tx Rx

1 2

HDMI INPUT

HDMI 201 Tx

POWER

12V

0.4A MAX

DO NOT

CONNECT

TO LAN

O U T P U T S

HDMI 201 A D Tx

AUDIO

OUTPUT

HDMI 201 A D Tx Rear Panel

4 1 25

Figure 14. HDMI 201 Tx Rear Panel Connectors

Input Audio (HDMI 201 A D Tx [Decora] only) connectors — Plug an

unbalanced stereo audio input into this pair, left and right, of female RCA connectors (ﬁgure 15).

Tip (Signal)

Tip (+)

Sleeve ( )

Sleeve (Gnd )

Right Channel (Red Jacket)

Left Channel (White Jacket)

Figure 15. RCA Connector Wiring

DC power input connector — Plug the included external 12 VDC power supply

into either this 2-pole connector or the power input connector on the receiver (item g on page 19). See Power supply wiring to wire the connector.

HDMI 201 • Installation and Operation 17

Transmitter output ports — Connect one end of two separate TP cables to these

Unbalanced Output Balanced Output

RJ-45 female connectors on the transmitter.

CAUTION: Do not connect this device to a computer data or telecommunications

network.

Connect the free ends of the same TP cables from the transmitter to the female Input

RJ-45 connectors (item h on page 20) on the receiver.

See TP cable termination to properly wire the RJ-45 connectors.

NOTES: • Extron recommends 28AWG to 24AWG TP cable for the RJ-45

connectors.

• For resolutions of 1600x1200, 1920x1200, and 1080p, Extron strongly recommends DTP26 cable, or equivalent.

• Connect transmitter output 1 to receiver input 1. Connect transmitter output 2 to receiver input 2.

• If necessary, test for proper cable connection (output 1 to input 1, output 2 to input 2) as follows:

. Plug both TP cables into the powered unit.

2. Momentarily connect either of the cables on the opposite end into

the “2” connector on the unpowered unit.

If the Power LED on the unpowered unit is lit, the connection is

correct.

If the Power LED on the unpowered unit is not lit, unplug the

connector on the unpowered end and connect the other cable to the “2” connector.

Audio Output connector (HDMI 201 A D Tx [Decora] only) — Connect one

end of a 5-wire audio cable to this 3.5 mm, 5-pole direct insertion connector.

Connect the free end of the same cable from the transmitter to any compatibly

wired unit, such as a switcher, an ampliﬁer, or an HDMI 201 A D Rx (Decora) receiver (item k on page 21).

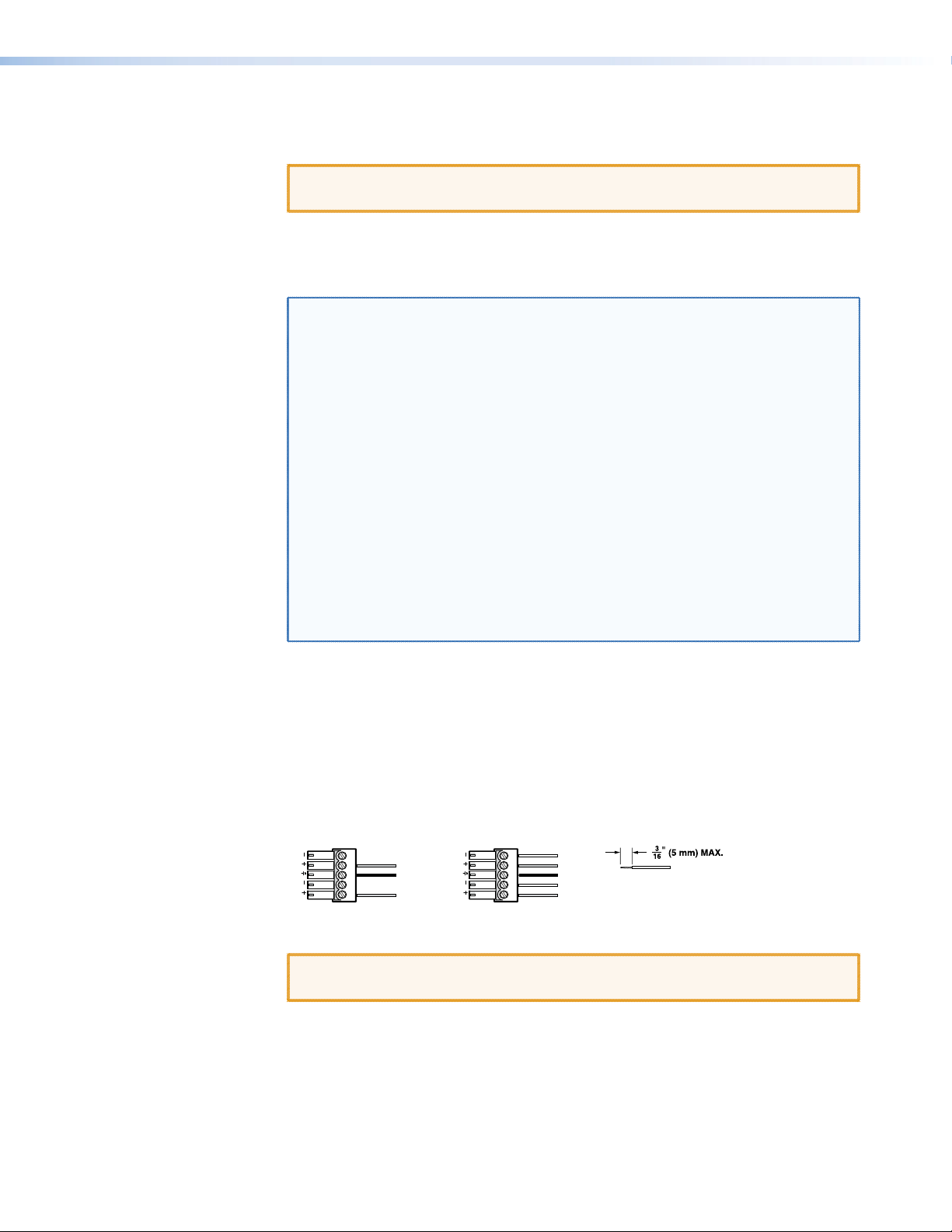

Figure 16 shows how to wire the captive screw audio connector. Insert the wires into

the appropriate openings in the direct insertion connector. Tighten the screws on the side to fasten the wires.

Ring Tip

Ring

Do not tin the wires!

Tip

AUDIO

OUTPUT

NO GROUND HERE.

Tip Sleeve (s) Sleeve (s)

NO GROUND HERE.

Tip

AUDIO

OUTPUT

Figure 16. Captive Screw Connector Wiring for Transmitter Audio Output

CAUTION: For unbalanced audio, connect the sleeves to the ground contact.

DO NOT connect the sleeves to the negative (-) contacts).

HDMI 201 • Installation and Operation 18

Receiver Connections

HDMI 201 Rx Rear Panel

HDMI 201 A D Rx Rear Panel

POWER

12V

0.4A MAX

1 2

HDMI OUTPUT

RS-232

PASS THRU

Tx Rx

HDMI 201 Rx

POWER

12V

0.4A MAX

DO NOT

CONNECT

TO LAN

I N P U T S

HDMI 201 A D Rx

AUDIO

INPUT

7 9 108

The rack-mountable receiver is in quarter rack width enclosure. The wall-mountable receiver is in an enclosure that can be mounted in UL standard wall boxes with Decora-style face plates.

Figure 17 shows the rear panel of both HDMI 201 Rx models. Figure 18, on the next page, shows the front panel of the HDMI 201 A D Rx (Decora) receiver.

Figure 17. HDMI 201 Rx Rear Panel Connectors

DC power input connector — Plug the included external 12 VDC power supply

into either this 2-pole connector or the power input connector on the transmitter (item d on page 17). See Power supply wiring to wire the connector.

HDMI 201 • Installation and Operation 19

HDMI 201 A D Rx Front Panel

OUTPUT

Rx Tx

RS-232

PASS THRU

AUDIO-R

HDMI

AUDIO-L

Figure 18. HDMI 201 A D Rx Front Panel Connectors

Receiver input ports — Connect one end of the two separate TP cables from the

transmitter output connectors (item e on page 18) to these RJ-45 female connectors.

CAUTION: Do not connect this device to a computer data or telecommunications

network.

Connect the free ends of the same TP cables from the receiver to the female Output

RJ-45 connectors (item e on page 18) on the transmitter.

See TP cable termination to properly wire the RJ-45 connectors.

NOTE: • Extron recommends 28AWG to 24AWG TP cable for the RJ-45

connectors.

• For resolutions of 1600x1200, 1920x1200, and 1080p, Extron strongly recommends DTP26 cable, or equivalent.

• Connect transmitter output 1 to receiver input 1. Connect transmitter output 2 to receiver input 2.

• If necessary, test for proper cable connection (output 1 to input 1, output 2 to input 2) as follows:

1. Plug both TP cables into the powered unit.

2. Momentarily connect either of the cables on the opposite end into

the “2” connector on the unpowered unit.

If the Power LED on the unpowered unit is lit, the connection is

correct.

If the Power LED on the unpowered unit is not lit, unplug the

connector on the unpowered end and connect the other cable to

HDMI Output connector — Connect an HDMI display for the transmitted direct

the “2” connector.

digital image. See HDMI connector pin assignments for pin assignments.

HDMI 201 • Installation and Operation 20

RS-232 connector — Connect a serial communications port to this 3.5 mm, 3-pole

Unbalanced Input Balanced Input

Pin Signal

TMDS data 2+

TMDS data 2-

TMDS data 0–

TMDS clock- +5 V power

Hot plug detect

CEC control*

Reserved

(NC)

TMDS data 1+ TMDS clock+

TMDS clock

shield

SDA

DDC / CEC

Ground

TMDS data 2

shield

Pin Pin Signal Signal

7 13

4 10 16

11 17

12 18

* CEC control on pin 13 is a proprietary usa

e, not the industry standard.

TMDS data 0-

TMDS data 0

shield

SCL

TMDS data 1-

TMDS data 1

shield

HDMI

Type A Receptacle

Type A Plug

18 2

182

captive screw connector for bidirectional RS-232 communication. See RS-232

connector wiring to wire the connector.

NOTE: The RS-232 connector can also transmit one-way modulated infrared (IR)

signals. See Modulated IR Pass Through Application.

Audio Input connector (HDMI 201 A D Rx [Decora] only) — Connect one

end of a 5-wire audio cable to this 3.5 mm, 5-pole direct insertion connector.

Connect the free end of the same cable to any compatibly wired audio source unit,

such as a output of a switcher or a HDMI 201 A D Tx (Decora) transmitter (item f on page 18).

Figure 19 shows how to wire the captive screw audio connector. Insert the wires into

the appropriate openings in the direct insertion connector. Tighten the screws on the side to fasten the wires.

Ring Tip Sleeve (s) Ring Tip

Do not tin the wires!

AUDIO

OUTPUT

Sleeve Tip

AUDIO

OUTPUT

Figure 19. Captive Screw Connector Wiring for Receiver Audio Input

Output Audio — Plug an audio device into this pair, left and right, of female RCA

connectors (ﬁgure 15 on page 17) for an unbalanced stereo audio signal.

Pin Assignments and Wiring

HDMI connector pin assignments

Figure 20 deﬁnes the pinout for the HDMI protocol.

Figure 20. HDMI Connectors

HDMI 201 • Installation and Operation 21

TP cable termination

2 3

6 7

N Terminate both ends of both cables identically, in accordance with

either the TIA/EIA T 568A or the TIA/EIA T 568B wiring standard.

Wire color

White-green

Green

White-orange

White-blue

Orange

White-brown Brown

Blue

Data 0+ Data 0–

Data 1– ID Clock– Data 2+

Data 2–

Wire color

White-green

Green White-orange

White-blue Orange

White-brown

Brown

Signal

TIA/EIA T

568 A

TIA/EIA T

568 B

RJ-45 #1

ID Clock+ Data 1+Blue

CEC HPD RS-232

+12 V RS-232

DDC data Ground

RJ-45 #2

DDC Clk

123 4 5678

Insert

Twisted

Pair Wires

Pins:

RJ-45 Connector

Figure 21 details the recommended termination of TP cables with RJ-45 connectors in accordance with either the TIA/EIA T 568A or the TIA/EIA T 568B wiring standard.

Figure 21. TP Cable Termination

NOTES: • RJ-45 termination with CAT 5, CAT 5e, CAT 6, or DTP26 cable must

comply with the TIA/EIA T 568A or TIA/EIA T 568B wiring standard for all connections.

• Extron recommends 28AWG to 24AWG TP cable for the RJ-45 connectors.

• Do not use Extron UTP23SF-4 Enhanced Skew-Free™ A/V UTP cable to link the transmitter and receiver. Skew-free A/V cable was designed for most Extron TP transmitter/receiver applications, but the HDMI 201 Tx/Rx does not work properly with this cable.

• In order to ﬁt in the junction box, the TP cables and RJ-45 connectors should not have a boot installed.

• Connect transmitter output 1 to receiver input 1. Connect transmitter output 2 to receiver input 2.

• If necessary, test for proper cable connection (output 1 to input 1, output 2 to input 2) as follows:

. Plug both TP cables into the powered unit.

2. Momentarily connect either of the cables on the opposite end into the

“2” connector on the unpowered unit. If the Power LED on the unpowered unit is lit, the connection is correct. If the Power LED on the unpowered unit is not lit, unplug the connector

on the unpowered end and connect the other cable to the “2”

connector.

• The transmitter and receiver pair works with unshielded twisted pair (UTP) or shielded twisted pair (STP) cables; but, to ensure FCC Class A and CE compliance, STP cables are required. See Terminating shielded cable.

HDMI 201 • Installation and Operation 22

Terminating shielded cable

Peel back shield and fold back.

Aluminum Tape

Wrap tape around folded foil shielding. Slightly overlap. Cut and save the excess tape

for other connectors.

Crimped Connector

The Tx and Rx each include two shielded RJ-45 connectors and a length of self-adhesive shielded tape that you can use to make the STP cables that connect the transmitter and receiver.

NOTES: • The transmitter and receiver pair works with unshielded twisted pair (UTP)

or shielded twisted pair (STP) cables; but, to ensure FCC Class A and CE compliance, STP cables are required.

• Extron supplies the connectors and the shielded tape. You must supply the CAT 5, 5e, 6, or DTP26 cable.

Terminate the STP cable as follows:

1. Peel back the cable shielding (ﬁgure 22) from the end of the cable the length of the

RJ-45 connector body (approximately 7/8 inch [2.2 cm]) and fold it back.

Figure 22. Peeling Back the Cable Shielding

2. Cut away and discard the clear cellophane inner wrapper from the end of the cable

back to the folded-over cable shielding.

3. Peel the backing off the self-adhesive shielded aluminum tape and wrap it around

the folded-over cable shielding, slightly overlapping the beginning of the tape (ﬁgure 23).

Figure 23. Wrapping the Shielded Tape

4. Cut the unused portion of the shielded tape and retain for shielding other RJ-45

connectors.

5. Feed each individual wire into the appropriate slot of the RJ-45 connector and crimp

the cable in the normal manner, folding the tangs at the end of the connector over the shielded tape (ﬁgure 24).

Figure 24. Crimped RJ-45 Connector

HDMI 201 • Installation and Operation 23

Power supply wiring

Power Supply

Output Cord

NOTE

Captive Screw

Connector

SECTION A–A

Ridges

Smooth

A A

Ferrite Bead

DC Power Cord (between power supply and HDMI unit power connector)

Decora units have a shorter connector, without the tie wrap.

Tie Wrap

NOTES: • Only one power supply is required. A single power supply connected to

either unit in the pair powers both units.

• A single power supply is included with systems packaged as a pair.

• A power supply is also included with each individually-packaged transmitter.

Figure 25 shows how to wire the connector. Snap the provided ferrite bead onto the DC power cable, between the power supply and the connector on the HDMI unit. For non-Decora units only, use the supplied tie-wrap to strap the power cord to the extended tail of the connector.

Figure 25. Power Connector Wiring

CAUTION: Always use a power supply supplied and or speciﬁed by Extron. Use of an

unauthorized power supply voids all regulatory compliance certiﬁcation and may cause damage to the supply and the end product. Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA 70, article 75 and the Canadian Electrical Code part 1, section 16. The power supply shall not be permanently ﬁxed to building structure or similar structure.

CAUTION:

Power supply voltage polarity is critical. Incorrect voltage polarity can

damage the power supply and the unit. The ridges on the side of the cord (ﬁgure 25) identify the power cord negative lead.

To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter.

WARNING: The two power cord wires must be kept separate while the power supply

is plugged in. Remove power before wiring.

CAUTION: The length of the exposed (stripped) copper wires is important. The

ideal length is 3/16 inch (5 mm). Longer bare wires can short together.

Shorter wires are not as secure in the connectors and could be pulled out.

NOTE: Do not tin the power supply leads before installing them in the direct insertion

connector. Tinned wires are not as secure in the connectors and could be pulled out.

HDMI 201 • Installation and Operation 24

RS-232 connector wiring

Connected RS-232

Tx/Rx

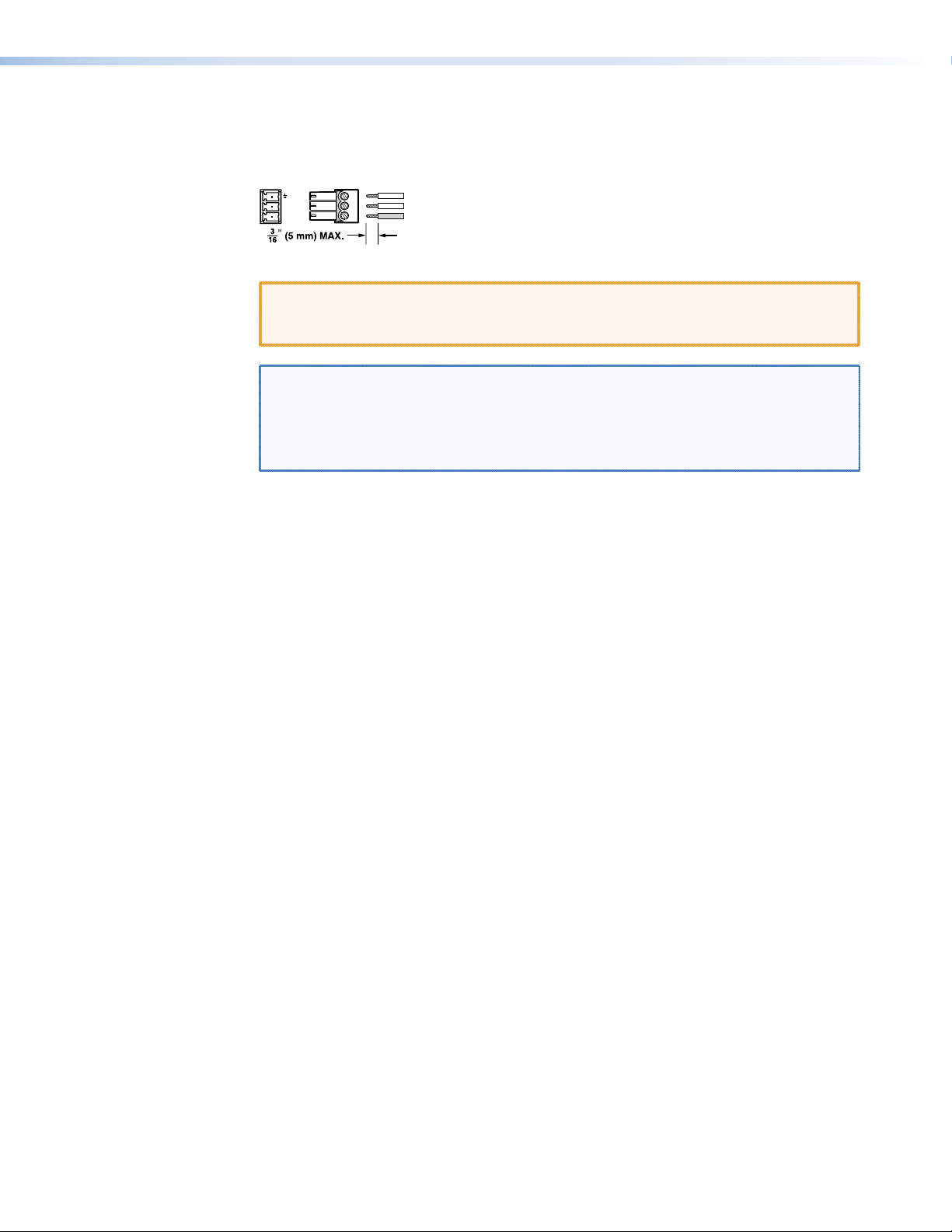

Figure 26 shows how to wire the RS-232 connector for non-Decora and Decora units.

Pins

Rx Tx

Device Pins

Ground Transmit pin on connected unit Receive pin on connected unit

Figure 26. RS-232 Connector Wiring

CAUTION: The length of the exposed (stripped) copper wires is important. The

ideal length is 3/16 inch (5 mm). Longer bare wires can short together. Shorter wires are not as secure in the connectors and could be pulled out.

NOTES: • Do not tin the power supply leads before installing them in the direct

insertion connector. Tinned wires are not as secure in the connectors and could be pulled out.

• The RS-232 connector can also transmit one-way modulated infrared (IR) signals. See Modulated IR Pass Through Application.

HDMI 201 • Installation and Operation 25

Operation

HDMI 201

INPUT

Rx Tx

RS-232

PASS THRU

AUDIO-R

HDMI

AUDIO-L

Power

HDMI 201 Tx and HDMI 201 Rx Front Panel

HDMI 201 A D Tx and HDMI 201 A D Rx Front Panel

Power

Figure 27 shows the power indicator on the non-Decora and Decora models.

NOTE: Two units are shown. All transmitter and receiver models have power indicators

in the locations shown.

Transmitter Power Indicator

Receiver Power Indicator

Figure 27. Front Panel Indicators

Power LED —

HDMI 201 Tx (non-Decora) — This front panel LED lights green to indicate that the

unit is receiving power: HDMI 201 A D Tx (Decora) — This two-color front panel LED lights to indicate signal

and power status as follows:

Amber — The unit is receiving power but not an HDMI input. Green — The unit is receiving power and a signal is present on the HDMI input.

Power LED —

HDMI 201 Rx (non-Decora) — This front panel LED lights green to indicate that the

unit is receiving power: HDMI 201 A D Rx (Decora) — This two-color front panel LED lights to indicate signal

and power status as follows:

Amber — The unit is receiving power but not a TP input. Green — The unit is receiving power and a signal is present on the TP input.

HDMI 201 • Installation and Operation 26

System Operation

After the transmitter, the receiver, and their connected devices are powered up, the system is fully operational. If any problems are encountered, ensure all cables are routed and connected properly.

NOTE: Ensure that the video source and display selected for the DDC are properly

connected to the transmitter/receiver pair, and that the transmitter, the receiver, and the display have power applied before power is applied to the video source. If all other devices are not turned on before the video source, the image may not appear.

Technical Points for Digital Video and Content Protection Encryption

• Digital Visual Interface (DVI) is a digital video format that was created by the

computer industry in 1999.

• High Deﬁnition Multimedia Interface (HDMI

created by the consumer video industry in 2003.

о The HDMI format is built onto the DVI format, adding digital audio and control

while reducing the size of the connector.

о The HDMI format is likely to replace the DVI format in the near future. о With passive adapters, the HDMI format is backward compatible with the DVI

format.

• With Extron adapters, cables, or both, the HDMI 201 fully supports either format,

regardless of the connector type on the video source and display. See Reference

Information for part numbers.

• High-bandwidth Digital Content Protection (HDCP) is an encryption method that

protects copyrighted digital entertainment material that uses DVI video.

о HDCP is generated by video player hardware, enabled by the video content. о The HDCP key is transmitted with the Display Data Channel (DDC). о The DDC signal line was designed for the low data rate of the DDC; the HDCP key

rate is much higher.

• Without active buffering, an HDCP key signal can travel only a short distance. The

display may properly receive the digital video signal, but not the HDCP key. Without the key, the display cannot decrypt the video signal. Symptoms of undecrypted video may include a ﬂashing black or blue screen or “snow”.

• With active buffering, an HDCP key signal can travel as far as other signals to

ensure proper decryption.

• The HDMI 201 actively buffers the HDCP key.

) is a multimedia format that was

HDMI 201 • Installation and Operation 27

Troubleshooting

HDMI signals run at a very high frequency and are especially susceptible to bad video connections, too many adapters, or cables that are too long. To avoid the loss of an image or introduction of image jitter, follow these guidelines:

• The HDMI cable on the input to the transmitter or the output of the receiver should

not exceed 10 feet (3 m).

• Use only cable designed for HDMI signals.

• Limit or avoid the use of adapters or patch points between the transmitter and receiver.

• If the display exhibits a ﬂashing black or blue screen, snow, or other distortion, a non-

HDCP compliant display may be receiving an HDCP-encrypted signal. Check for an HDCP problem by ejecting the DVD from the player. If the display

distortion stops and the DVD menu or screen saver image is clear, the problem is HDCP-related.

• If image artifacts are present, the TP cable may be the cause. Extron recommends

DTP26 cable.

• The HDMI 201 works as described in point-to-point applications. Do not use any

additional adapters, patch panels, or couplers with the input HDMI cables, output HDMI cables, and twisted pair cables. Additional links in the signal chain can result in the reduction of signal integrity and overall cable length performance.

Application Examples

Audio Conversion

Figure 28 shows a standard installation with HDMI video and an audio input. The HDMI 201 A D Tx converts the video input into two proprietary TP outputs. The Tx outputs the audio directly on a captive screw connector.

Source

HDMI In

Audio

HDMI 201 A D Tx Front

RS-232

PASS THRU

Rx Tx

HDMI 201 A D Tx

O U T P

DO NOT

CONNECT

TO LAN

T S

INPUT

HDMI

AUDIO-R

AUDIO-L

TP1

TP2

Balanced Audio Out

AUDIO

OUTPUT

POWER

12V

0.4A MAX

POWER

12V

0.4A MAX

1 2

Projector

HDMI 201 Rx

RS-232

HDMI OUTPUT

PASS THRU

Tx Rx

HDMI 201 Rx

L+

L-

R+ R-

Balanced Audio

Wiring

HDMI 201 A D Tx Rear

Figure 28. Typical Installation

Audio System

HDMI 201 • Installation and Operation 28

Modulated IR Pass Through Application

Figure 29 shows an installation in which the Tx/Rx pair sends a modulated infrared (IR) signal across the link. On the Tx side, control system is connected to the Tx pin (the modulated IR signal) and the Gnd (signal ground) on the transmitter. An IR emitter is connected to the Tx and Gnd receiver output.

Flat Panel Display w/ IR Control

TP 1

TP 2

POWER

12V

0.4A MAX

HDMI 201 Rx

Control

System

Ground

Modulated IR

RS-232

PASS THRU

INPUT

HDMI

AUDIO-R

AUDIO-L

Rx Tx

HDMI 201 A D Tx

Figure 29. Installation Routing Modulated IR

1 2

IR Emitter

HDMI OUTPUT

HDMI 201 Rx

RS-232

PASS THRU

Tx Rx

HDMI 201 • Installation and Operation 29

Reference Information

This section discusses the speciﬁcations, part numbers, and accessories for the HDMI 201. Topics that are covered, include:

• Speciﬁcations

• Part Numbers

• Decora Template Dimensions

Speciﬁcations

NOTES: • This product consists of a transmitter (HDMI 201 Tx or HDMI 201 A D Tx) and a receiver (HDMI 201

Rx or HDMI 201 A D Rx) with twisted pair cables linking the transmitter and receiver.

• *Appropriate HDMI to DVI-D cables or adapters are required for DVI signal input/output.

Video

Maximum data rate....................... 4.95 Gbps (1.65 Gbps per color)

Maximum pixel clock ................... 165 MHz

Resolution range ........................... Up to 1920x1200 or 1080p @ 60 Hz

Formats ........................................... RGB and YCbCr digital video

Standards ........................................ DVI 1.0, HDMI 1.2

Video input — TX units

Number/signal type ..................... 1 single link HDMI (or DVI-D*)

Connectors ..................................... 1 female HDMI type A

Interconnection between transmitter and receiver

Connectors ..................................... 2 female RJ-45 per unit for 2 cables connecting the transmitter and receiver

Termination standards.................. TIA/EIA T568A or T568B

Signal transmission distance

1920x1200 or 1080p @ 60 Hz

Extron DTP26 cable

CAT 5/5e/6 STP ........ Up to 125' (38 m)

CAT 5/5e/6 UTP ....... Up to 100' (30 m)

720p/1080i or 1024x768 @ 60 Hz

CAT 5/5e/6 UTP or STP or Extron DTP26

NOTE: The transmission distance varies greatly depending on the signal resolution and on the type of cable,

graphic card, and display used in the system.

... Up to 150' (45 m)

200' (60 m)

Video output — Rx units

Number/signal type ..................... 1 single link HDMI (or DVI-D*)

Connectors ..................................... 1 female HDMI type A

HDMI 201 • Reference Information 30

Audio — HDMI 201 A D Tx/Rx

Gain ................................................. Unbalanced output: 0 dB; balanced output: +6 dB

Frequency response ...................... 20 Hz to 20 kHz, ±0.06 dB

THD + Noise .................................. 0.18% @ 1 kHz at nominal level

S/N .................................................. >76 dB at maximum output (unweighted)

Stereo channel separation ............ >63 dB @ 1 kHz

Audio input — HDMI 201 A D Tx/Rx

Number/signal type

HDMI 201 A D Tx

HDMI 201 A D Rx ............. 1 stereo, balanced/unbalanced

Connectors

HDMI 201 A D Tx .............. 1 pair female RCA jacks (tip, ring)

HDMI 201 A D Rx ............. (1) 3.5 mm captive screw connector, 5 pole

Impedance

HDMI 201 A D Tx

HDMI 201 A D Rx ............. >18k ohms unbalanced, 24k ohms balanced, DC coupled

Nominal level

HDMI 201 A D Tx .............. -10 dBV (316 mVrms)

HDMI 201 A D Rx ............. +4 dBu (1.23 Vrms)

Maximum level

HDMI 201 A D Tx .............. +6.3 dBu, unbalanced at 1% THD+N

HDMI 201 A D Rx ............. +16.6 dBu, unbalanced at 1% THD+N

.............. 1 stereo, unbalanced

.............. >10k ohms unbalanced, DC coupled

NOTE: 0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu

Audio output — HDMI 201 A D Tx/Rx

Number/signal type

HDMI 201 A D Tx .............. 1 stereo, balanced/unbalanced

HDMI 201 A D Rx ............. 1 stereo, unbalanced

Connectors

HDMI 201 A D Tx .............. (1) 3.5 mm captive screw connector, 5 pole

HDMI 201 A D Rx ............. 1 pair female RCA jacks (tip, ring)

Impedance

HDMI 201 A D Tx .............. 50 ohms unbalanced, 100 ohms balanced

HDMI 201 A D Rx ............. 50 ohms unbalanced

Maximum level (Hi-Z)

HDMI 201 A D Tx .............. >11.4 dBu, balanced or unbalanced at 1% THD+N

HDMI 201 A D Rx ............. >5.3 dBu, unbalanced at 1% THD+N

Maximum level (600 ohm)

HDMI 201 A D Tx .............. >5.1 dBm, balanced or unbalanced at 1% THD+N

HDMI 201 A D Rx ............. >4.7 dBm, unbalanced at 1% THD+N

>+9 dBm, balanced or unbalanced at 1% THD+N

HDMI 201 • Reference Information 31

Control/remote — external device(pass-through)

Serial control port input

Transmitter ......................... RS-232 via (1) 3.5 mm, 3 pole captive screw connector

Receiver .............................. 1 set of proprietary signals on a female RJ-45 jack

Serial control port output

Transmitter ......................... 1 set of proprietary signals on a female RJ-45 jack

Receiver .............................. RS-232 via a 3.5 mm, 3 pole captive screw connector

NOTE: Protocol is mirrored between the transmitter and the receiver.

Serial control pin conﬁguration .. Captive screw connectors: 1 = TX, 2 = RX, 3 = GND

General

External power supply ................. 100 VAC to 240 VAC, 50-60 Hz, 6 W max., external; to 12 VDC, 1 A, regulated

Power input requirements ........... 12 VDC, 0.4 A for both transmitter and receiver

NOTE: Each transmitter or receiver can be powered either locally by an external power supply or remotely by

receiver or transmitter on the other end of the CAT 5/5e/6 or Extron DTP26 cables.

Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing

Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing

Cooling ........................................... Convection, no vents

Mounting

HDMI 201 Tx, HDMI 201 Rx

Rack mount

Furniture mount ........ Yes, with optional under-desk mounting kit

Pole mount ................. Yes, with optional pole mount kit

HDMI 201 A D Tx, HDMI 201 A D Rx

Furniture mount

Enclosure type ............................... Metal

Enclosure dimensions

HDMI 201 Tx, HDMI 201 Rx

HDMI 201 A D Tx, HDMI 201 A D Rx

Faceplate

Device ......................... 2.7" H x 1.8" W x 1.25" D

Product weight .............................. 0.5 lbs (0.3 kg)

Shipping weight ............................ 3 lbs (2 kg)

Vibration ......................................... ISTA 1A in carton (International Safe Transit Association)

Regulatory compliance

Safety ................................... CE, c-UL, UL

EMI/EMC .......................... CE**, C-tick, FCC Class A**, ICES, VCCI

................ Yes, with optional 1U deep rack shelf

........ Wall or furniture mountable in a Decora®-style opening

1.0" H x 4.3" W x 3.0" D (quarter rack wide) (2.5 cm H x 10.9 cm W x 7.6 cm D) (Depth excludes connectors.)

..................... 2.6" H* x 1.3" W x 0.1" D (6.6 cm H* x 3.3 cm W x 0.3 cm D)

(Fits the opening in a 1 gang Decora®-style wallplate.) *Overall height is 4.1” (10.4 cm) including mounting tabs.

(6.9 cm H x 4.6 cm W x 3.2 cm D) (Height excludes mounting tabs, depth excludes connectors.)

NOTE: **CE and FCC testing is conducted with STP (shielded twisted pair) cable.

MTBF ............................................... 30,000 hours

Warranty ......................................... 3 years parts and labor

NOTE: All nominal levels are at ±10%. NOTE: Speciﬁcations are subject to change without notice.

HDMI 201 • Reference Information 32

Part Numbers

Transmitter/Receiver Pair Part Numbers

NOTE: The Tx/Rx is comprised of the transmitter and receiver pair. The

transmitter and receiver can be purchased as a pair or separately. The video and RS-232 transmission functions of the non-Decora and Decora units are compatible.

HDMI 201 model Part number

HDMI 201 Tx/Rx (non-Decora) pair 60-806-01

HDMI 201 Tx transmitter 60-806-12 HDMI 201 Rx receiver 60-806-13

HDMI 201 A D Tx/Rx (Decora) pair, black,white 60-864-02, -03

HDMI 201 A D Tx transmitter, black, white 60-864-12, -13 HDMI 201 A D Rx receiver, black, white 60-864-22, -23

Included Parts

These items are included in each order for an HDMI 201 transmitter or receiver:

Included parts Part number

HDMI M-M Pro/6 HDMI male-to-male, 6' (1.8 m) cable 26-650-06 12 VDC, 1 A external power supply, one required to

power both units (included with pairs or transmitters only)

3.5 mm, 2-pole captive screw connector (non-Decora only) (1)

3.5 mm, 3-pole captive screw connectors (1) Shielded RJ-45 connectors (2) Self-adhesive shielded tape IEC power cord (1 per power supply) Tweeker (small screwdriver) HDMI 201 Setup Guide

70-775-01

HDMI 201 • Reference Information 33

Mounting Accessories

Included parts Part number

RSF 123 3-inch deep 1U rack shelf kit 60-190-20 RSB 123 3-inch deep 1U rack shelf 60-604-21 RSU 126 6-inch deep 1U universal rack shelf kit 60-190-10 RSB 126 6-inch deep 1U basic rack shelf 60-604-11

RSU 129 9.5-inch deep 1U universal rack shelf kit 60-190-01 RSB 129 9.5-inch deep 1U basic rack shelf 60-604-02 MBU 125 under-desk mount kit 70-077-01 MBD 129 through-desk mount kit 70-077-02 PMK 300 projector mount kit 70-374-01 PMK 350 low proﬁle projector mount kit (black, white) 70-563-02, 03 JB 125 one-gang junction box 980130 JB 225 two-gang junction box 980084

EWB one-gang external wall box, black, white, RAL9010 white

EWB two-gang external wall box, black, white, RAL9010 white

SMB one-gang surface-mount box, black, white 60-639-02, 05 SMB two-gain surface-mount box, black, white 60-640-02, 05

60-452-02,03,04

60-453-02,03,04

Cables and Connectors

Cable Part number

HDMI M-M Pro/6 HDMI male-to-male, 6' (1.8 m) cable 26-650-06 HDMI M-DVI-D M/6 HDMI male to DVI-D male, 6' (1.8 m) 26-614-02 DTP26/1000 digital TP cable, non-plenum, 1000' (300 m) DTP26P/1000 digital TP cable, plenum, 1000’ (300 m) 22-215-03

DTP RJ-45 Plug (qty. 10) 101-005-01

22-214-03

Adapters

Adaptor Part number

HDMIF-DVIDM

HDMI female to DVI-D male adapter

HDMIM-DVIDF

HDMI male to DVI-D female adapter

26-616-01

26-617-01

HDMI 201 • Reference Information 34

Decora Template Dimensions

If you need to create a template, use the dimensions shown on ﬁgure 37, below.

NOTE: The drawing is not full size or to scale. Do not scale up or print to use as a

template.

2.79"

(7.09 cm)

Top

Panel

1.9"

(4.83 cm)

4.50"

(11.43 cm)

Figure 37. Decora Template Dimensions

2.8"

(7.1 cm)

SURFACE CUT-OUT

AREA FOR

FURNITURE MOUNT

To install a 1-gang HDMI 201 A D Tx or HDMI 201 A D Rx directly into furniture or wall, cut along this line.

HDMI 201 • Reference Information 35

Extron Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron Electronics 1001 East Ball Road Anaheim, CA 92805 U.S.A.

Europe, Africa, and the Middle East:

Extron Europe Hanzeboulevard 10 3825 PH Amersfoort The Netherlands

Asia:

Extron Asia 135 Joo Seng Road, #04-01 PM Industrial Bldg. Singapore 368363

Japan:

Extron Electronics, Japan Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan

China:

Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Middle East:

Extron Middle East Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai

Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper handling care, electrical or mechanical abuse, abnormal operating conditions, or modiﬁcation were made to the product that were not authorized by Extron.

NOTE: If a product is defective, please call Extron and ask for an Application Engineer to receive an RA (Return

Authorization) number. This will begin the repair process.

USA: (714) 491-1500 Europe: 31.33.453.4040 Asia: 65.383.4400 Japan: 381.3.3511.7655

Units must be returned insured, with shipping charges prepaid. If not insured, you assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁtness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Extron USA - West

Headqu arters

+80 0.633 .987 6

Inside USA / Canada Only

+1.714.491.1500 +1.714.491.1517 FAX

Extron USA - East

+80 0.633 .987 6

Inside USA / Canada Only

+1.919.863.1794 +1.919.863.1797 FA X

Extron Europe

+80 0.398 7.6673

Inside Europe Only

+31.33. 453. 404 0 +31.33. 453. 405 0 FAX

Extron Asia

+80 0.7339 .876 6

Inside Asia Only

+65.6 383 .440 0 +65.6 383 .46 64 FAX

Extron Japan

+81.3.3 511.7655 +81.3.3 511.7656 FA X

Extron China

+40 0.88 3.1568

Inside China Only

+86. 21.376 0.1568 +86. 21.376 0.1566 FAX

Extron Middle East

+971.4. 299 1800 +971.4. 299 1880 FA X

Extron Electronics HDMI 201 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

About this Manual

About the HDMI 201 Transmitter and Receiver

TP Cable Advantages

Transmission Distance

Features

Installation and Operation

Mounting the Transmitter or Receiver

Non-Decora Unit Mounting

Decora Unit Mounting

Connections

Transmitter Connections

Receiver Connections

Pin Assignments and Wiring

HDMI connector pin assignments

TP cable termination

Power supply wiring

RS-232 connector wiring

Operation

Transmitter Power Indicator

Receiver Power Indicator

System Operation

Technical Points for Digital Video and Content Protection Encryption

Troubleshooting

Application Examples

Audio Conversion

Modulated IR Pass Through Application

Reference Information

Part Numbers

Transmitter/Receiver Pair Part Numbers

Included Parts

Mounting Accessories

Cables and Connectors

Adapters

Decora Template Dimensions
