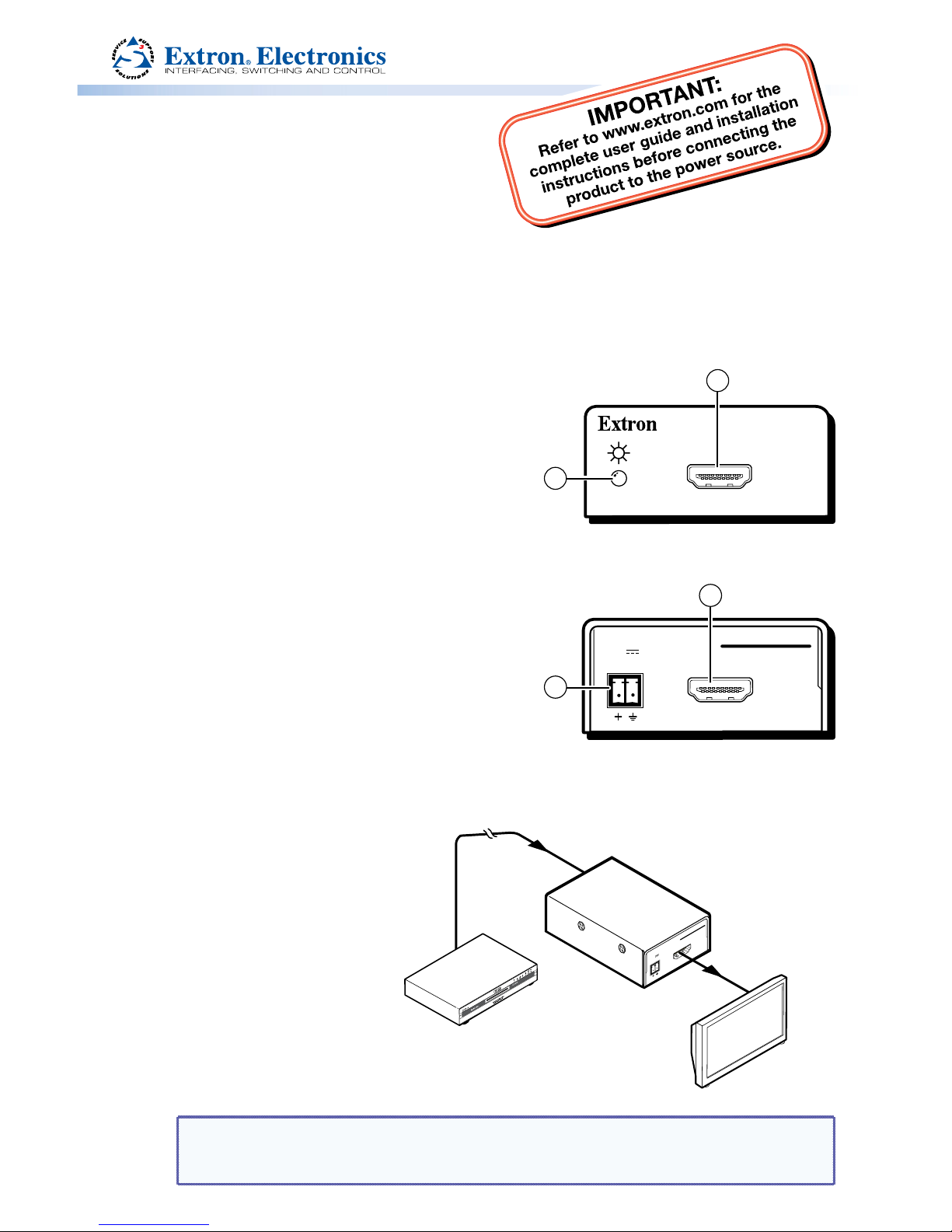

Page 1
HDMI 101 Plus • Setup Guide
Overview
The Extron HDMI 101 Plus is a cable equalizer that extends HDMI signals up to 250 feet (76 m) at resolutions up to 1080p or 1920x1200. This setup guide provides instructions for a basic installation by an experienced installer. For complete instructions, see the HDMI 101 Plus User Guide, which is available on the Extron web site (www.extron.com).
Front Panel
Power and signal status LED — lights
amber when power is connected, lights green when there is an active HDMI signal
b
HDMI input
Rear Panel
c
HDMI output
d
Power input — Connect the 12 VDC, 1 A
power supply to this power input.
Alternatively, the HDMI 101 Plus can draw power from the source device over the HDMI cable but this reduces the maximum cable length (see the table on the next page).
Installation
1. Place the HDMI 101 Plus at
the end of a long cable run from the source device and close to the output device.
2. Connect the source device to
the input of the equalizer. See the table below for the maximum cable distances.
3. Connect the display device to
the output of the equalizer. This cable should be a maximum of 15 feet (5 m).
NOTE: Use the LockIt™ HDMI lacing brackets provided to secure the HDMI
connectors (see the LockIt HDMI Lacing Bracket Installation Guide at
www.extron.com).
HDMI INPUT
2
1
HDMI 101 Plus
POWER
12V
0.2A MAX
HDMI OUTPUT
4
3
Display
DVD with HDMI Output
Short HDMI Cable 15' (5 m) Max.
Long HDMI Cable
250' (76 m) Max.
HDMI 101 Plus
POWER 12V
0.4A MAX
HDMI OUTPUT
Extron
HDMI 101 Plus Equalizer
Page 2
HDMI 101 Plus • Setup Guide (Continued)
Extron USA - West Headquarters
+800.633.9876
Inside USA and Canada Only
+1.714.491.1500 +1.714.491.1517 FAX
Extron USA - East
+800.633.9876
Inside USA and Canada Only
+1.919.863.1794 +1.919.863.1797 FAX
Extron Europe
+800.3987.6673
Inside Europe Only
+31.33.453.4040 +31.33.453.4050 FAX
Extron Asia
+800.7339.8766
Inside Asia Only
+65.6383.4400 +65.6383.4664 FAX
Extron Japan
+81.3.3511.7655 +81.3.3511.7656 FAX
Extron China
+400.883.1568
Inside China Only
+86.21.3760.1568 +86.21.3760.1566 FAX
Extron Middle East
+971.4.2991800 +971.4.2991880 FAX
© 2011 Extron Electronics All rights reserved. www.extron.com
4. If required, connect the power supply (provided) to the 2-pole captive screw connector.
CAUTION: Before connecting the power supply, see the Caution in the “Power
Connector” section of the HDMI 101 Plus User Guide, at www.extron.com.
NOTE: If all the devices are correctly cabled and powered on and you do not see
an image on the display device, you may need to buffer the DDC signal (see the HDMI 101 Plus User Guide).
Maximum Cable Distances
The maximum cable distance depends on resolution, frequency, whether the HDMI 101 Plus receives power from the source device or from the external power supply, and, for PC resolutions, the power of the graphics card (when powered by source). When the source is a PC, Extron recommends the HDMI 101 Plus be powered by an external power supply.
Video Resolution
Maximum Distance
(powered by source)
Maximum Distance (powered by
external power supply)
720p 150 feet (46 m) 250 feet (76 m)
1080i 150 feet (46 m) 250 feet (76 m)
1080p 8 bit 150 feet (46 m) 200 feet (61 m)
1080p 10 bit 150 feet (46 m) 175 feet (53 m)
1080p 12 bit 125 feet (38 m) 150 feet (46 m)
1024x768 (60 Hz) 150 feet (46 m) 250 feet (76 m)
1280x1024 (60 Hz) 150 feet (46 m) 250 feet (76 m)
1600x1200 (60 Hz) 125 feet (38 m) 200 feet (61 m)
1920x1200 (60 Hz) 125 feet (38 m) 200 feet (61 m)
68-1983-50 Rev. A 05 11
