DVI 101 and HDMI 101 Equalizers

Chapter One

Introduction

About this Manual

About the DVI 101 and HDMI 101 Cable Equalizers

Features

Application Diagrams

Introduction

About this Manual

This manual contains information about the Extron DVI 101 and HDMI 101 Cable Equalizers and describes procedures for connecting and operating them.

In this manual, the term “equalizer” is used to refer to either the DVI 101 or the HDMI 101 Cable Equalizer. "DVI/HDMI" refers to either product or to both products.

About the DVI 101 and HDMI 101 Cable Equalizers

The Extron DVI 101 and HDMI 101 are compact, economical cable equalizers that extend Digital Visual Interface (DVI) and High Denition Multimedia Interface (HDMI) signals beyond the specied cable limits of 15' (5 m) for DVI and 45' (14 m) for HDMI.

The DVI 101 and HDMI 101 attach to the end of a long cable run of up to 200' (61 m). They automatically provide the necessary active equalization to ensure optimal image quality with HDTV 1080p and high resolution computer video signals up to 1920x1200. They are ideal for both temporary applications and permanent installations with long DVI or HDMI cable runs.

• The DVI 101 passes Extended Display Identication

Data (EDID) information and supports the long distance transmission of HDTV signals with High-bandwidth Digital Content Protection (HDCP) for copy protection of digital television broadcasts and high resolution digital video output from DVD, HD DVD, and Blu-rayDisc™ players.

With the appropriate adapters from Extron, the DVI 101 is

fully compatible with the HDMI digital video, audio, and control standard for audio/video products.

• The HDMI 101 is fully HDMI-compliant for extending

digital video, multi-channel audio, and control signals from HDMI-equipped devices. It is also HDCP compliant, enabling long distance transmission of HDTV signals with HDCP.

With the appropriate adapters from Extron, the HDMI 101

is fully compatible with the DVI digital video, audio, and control standard for audio/video products.

At shorter distances, the DVI 101 and HDMI 101 can be powered by the source device via the DVI or HDMI cable, eliminating the external power supply. See the "Recommended maximum cable lengths" table on page 2-8 for these distances.

1-2

DVI 101 and HDMI 101 • Introduction

Projector

Extron

DVI 101 Equalizer

Long DVI Cable 200’ (61 m) Max.

Laptop with DVI Output

Short DVI Patch Cable

POWER 12V

0.4A MAX

DVI 101

DVI-D OUTPUT

Features

• Power/Signal indicator — The LED on the front panel lights

green to indicate source signal presence and yellow to indicate power on.

• Source-powering at short distances — The DVI/HDMI

can receive power from an attached input source device, eliminating the need for power supply installation (see the table on page 2-8).

• DDC and HDCP copy protection transmission support —

DDC channels are actively buffered, allowing pass-through of EDID and HDCP information between source and display.

• Enclosure — Compact 1" (2.5 cm) high, 1/8 rack wide metal

enclosure

• Rack and furniture mounting — The equalizers can be

mounted on a rack shelf or under a desk or podium.

• Power supply — An external international power supply with

a two-pin captive screw connector accepts 100 to 240 VAC.

Application Diagrams

The following diagrams show examples of how the DVI 101 and HDMI 101 can be connected.

DVI 101 application diagram

DVI 101 and HDMI 101 • Introduction

1-3

Introduction, cont’d

Display

Extron

HDMI 101 Equalizer

DVD with HDMI Output

Short HDMI Patch Cable

Long HDMI Cable 200’ (61 m) Max.

HDMI 101

POWER

12V

0.4A MAX

HDMI OUTPUT

HDMI INPUT

HDMI 101

POWER

12V

0.4A MAX

HDMI OU

TPUT

HDMI 101 application diagram

1-4

DVI 101 and HDMI 101 • Introduction

DVI 101 and HDMI 101 Equalizers

Chapter Two

Installation and Operation

Mounting the DVI 101 and HDMI 101

Front and Back Panel Features and Connections

Powering Via the Input Source

Connecting for Long Cable Runs

Installation and Operation

Mounting the DVI 101 and HDMI 101

The DVI 101 and HDMI 101 can be mounted on a rack shelf, under furniture, or placed on a table top. See "Optional Accessories", in appendix A, "Specications, Parts, and Accessories", for information on the mounting products available for the DVI/HDMI 101.

Tabletop use

Four self-adhesive rubber feet are included with the DVI/HDMI. For tabletop use, attach one foot at each corner on the bottom surface of the unit.

Rack mounting

Extron has a variety of optional rack shelf and furniture mounting kits that can be used with the DVI/HDMI 101. See "Optional Accessories", in appendix A, "Specications, Parts, and Accessories", for a list of these mounting options.

UL rack mounting guidelines

The following Underwriters Laboratories (UL) guidelines apply to the safe installation of the equipment in a rack.

1. Elevated operating ambient temperature — If the

equipment is installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient temperature. Therefore, install the equipment in an environment compatible with the maximum ambient temperature specied by Extron (Tma = +122 °F, +50 °C).

2. Reduced air ﬂow — Install the equipment in a rack so that

the amount of air ow required for safe operation of the equipment is not compromised.

3. Mechanical loading — When mounting the equipment in

the rack, ensure that uneven mechanical loading does not cause a hazardous condition.

4. Circuit overloading — When connecting the equipment

to the supply circuit, consider the effect that circuit overloading might have on overcurrent protection and supply wiring. Consider the equipment nameplate ratings when addressing this concern.

5. Reliable earthing (grounding) — Maintain reliable

grounding of rack-mounted equipment. Pay particular attention to supply connections other than direct connections to the branch circuit (e.g., use of power strips).

2-2

DVI 101 and HDMI 101 • Installation and Operation

Use 2 mounting holes on opposite corners.

(2) 4-40 x 3/16" Screws

1U Universal Rack Shelf

1/4 Rack Width Front False Faceplate

1/2 Rack Width Front False Faceplate

Both front false faceplates use 2 screws.

Rack mounting procedure

For optional rack mounting, mount the DVI/HDMI on one of the rack shelves listed above. On the standard 9.5" or 6" deep rack shelf, the equalizer mounts in one of eight possible locations to the rear of the rack.

Mounting the DVI 101 or HDMI 101 on a standard

9.5" deep rack shelf

1. If rubber feet were previously installed on the bottom of

the unit, remove them.

2. Secure the DVI/HDMI onto the rack shelf, using two

4-40 x 3/16" screws in opposite (diagonal) corners.

3. Install blank panel(s) or other unit(s) on the rack shelf as

4. Insert the shelf into the rack, aligning the holes in the shelf

5. Secure the shelf to the rack using the supplied machine

desired.

with those of the rack.

screws. This shelf can be mounted in the front or in the rear of the rack.

DVI 101 and HDMI 101 • Installation and Operation

2-3

Installation and Operation, cont’d

Furniture mounting

To mount the DVI 101 or the HDMI 101 under a desk top, podium, or other furniture, use the optional MBU 125 Underdesk Mounting Kit (part #70-077-01), as follows:

1. If rubber feet were previously attached to the bottom of the

unit, remove them.

2. Remove the screws from one side of the DVI/HDMI.

Retain the screws for possible later reassembly.

3. Attach one bracket to the side of the unit, using the

provided machine screws (see the illustration below).

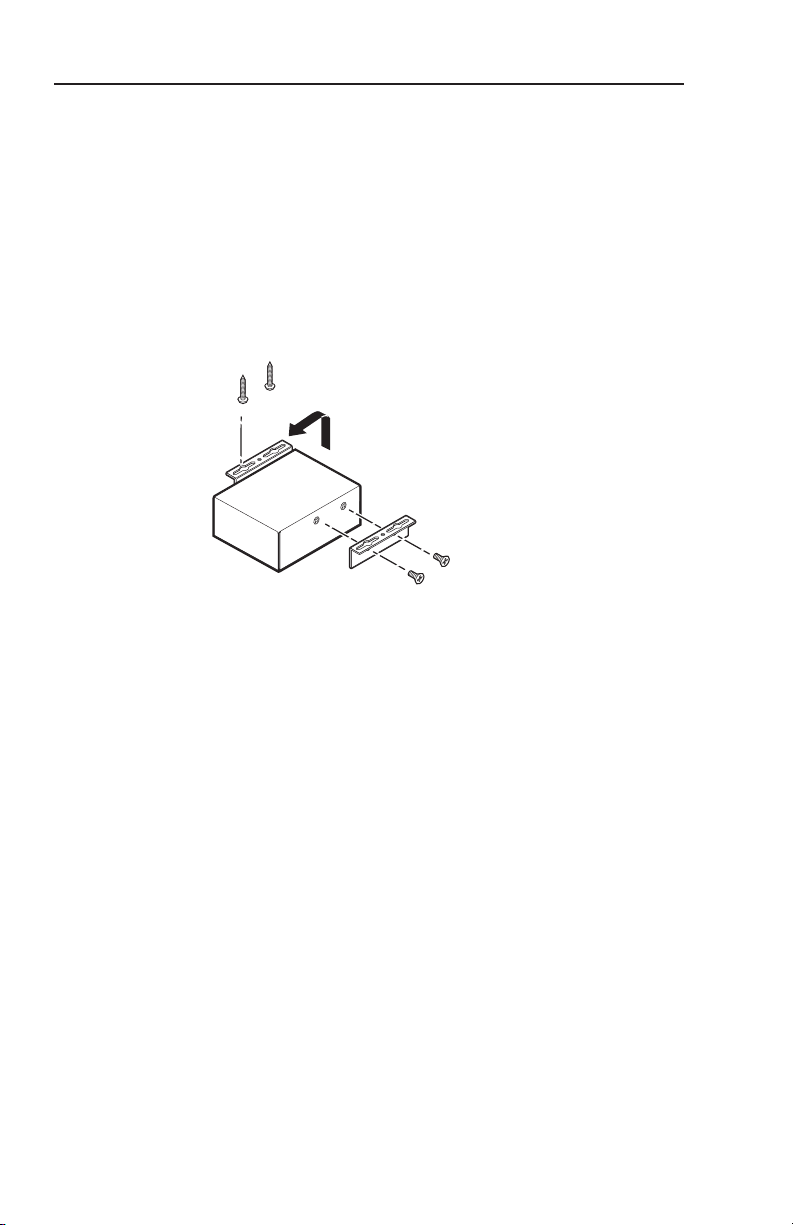

Under-desk mounting the DVI/HDMI

2-4

4. Repeat steps 2 and 3 on the other side of the DVI/HDMI.

5. Hold the unit with the attached brackets against the

underside of the table or other furniture. On the mounting surface, mark the location of the bracket’s screw holes.

6. Drill 3/32" (2 mm) diameter pilot holes, 1/4" (6.3 mm)

deep in the mounting surface at the marked screw locations.

7. Insert #8 wood screws into the four pilot holes. Tighten

each screw into the mounting surface until slightly less than 1/4" of the screw head protrudes.

8. Align the mounting screws with the slots in the brackets

and place the unit against the surface, with the screws through the bracket slots.

9. Slide the unit slightly forward or back, then tighten all four

screws to secure it in place.

DVI 101 and HDMI 101 • Installation and Operation

DVI-D INPUT

POWER

12V

0.2A MAX

DVI 101

DVI-D OUTPUT

HDMI 101

POWER

12V

0.2A MAX

HDMI OUTPUT

HDMI INPUT

Front and Back Panel Features and Connections

DVI 101 front and rear panels

DVI 101 and HDMI 101 • Installation and Operation

HDMI 101 front and rear panels

2-5

Installation and Operation, cont’d

Signal

Pin Signal

Signal

1 TMDS data 2– 9 TMDS data 1– 17 TMDS data 0–

2 TMDS data 2+ 10 TMDS data 1+ 18 TMDS data 0+

3 TMDS data 2 11 TMDS data 1 19 TMDS data 0 shield shield shield

4 Spare 12 Spare 20 Spare

5 Spare 13 Spare 21 Spare

6 DDC clock 14 +5 V power 22 TMDS clock shield

7 DDC data 15 Ground (+5 V) 23 TMDS clock+

8 CEC control 16 Hot plug 24 TMDS clock– detect

Female Connector

Male Connector

Power/signal status LED — This dual-color LED lights yellow

when the DVI/HDMI is receiving power. When a DVI or HDMI input signal is present, this LED lights green.

DVI input connector (DVI 101 only) — Plug the cable from the

input source device into this single link format female DVI-I connector. The table and diagrams below show the DVI pin conguration.

If the LED does not light when you are attempting to

power the unit from the source device, use an external power supply instead.

The analog pins are not implemented.

2-6

DVI connector pin assignments

DVI 101 and HDMI 101 • Installation and Operation

Signal

Pin Signal

Signal

1 TMDS data 2+ 7 TMDS data 0– 13 CE control

2 TMDS data 2 8 TMDS data 0 14 Reserved (NC) shield shield

3 TMDS data 2– 9 TMDS data 0– 15 SCL

4 TMDS data 1+ 10 TMDS clock+ 16 SDA

5 TMDS data 1 11 TMSD clock 17 DDC/CEC shield shield ground

6 TMDS data –1 12 TMDS clock– 18 +5 V power

Hot plug detect

HDMI

Type A Receptacle

18 2

HDMI

Type A Plug

182

HDMI input connector (HDMI 101 only) — Plug the cable

from the input source device into this female HDMI type A connector. The table and diagrams below show the HDMI pin conguration.

HDMI connector pin assignments

Input cable lengths

The maximum input cable length for the two equalizers is 200' (61 m), for the highest transmission rate of 165 MHz. Longer cables may be used at a lower rate. High quality cable can increase the distance and rate of transmission. However, the achievable distance and speed are also contingent on the sensitivity of the input source and the display device and on the source of power to the equalizer (external or input source).

The table on the next page shows the maximum cable lengths recommended for each resolution, depending on whether the equalizer is powered from the input source or an external power supply.

Avoid using couplers and adapters between cables, as

this can result in signal degradation.

DVI 101 and HDMI 101 • Installation and Operation

2-7

Installation and Operation, cont’d

Power Supply

Output Cord

Captive Screw

Connector

SECTION A–A

Ridges

Smooth

A A

Tie Wrap

3/16” (5 mm) Max.

Recommended maximum cable lengths

Video

resolution

640x480

480p

1024x768

1280x1024 720p 1080i

1600x1200

1920x1200 1080p

DVI output connector (DVI 101 only) — Plug the cable from a

DVI output device into this single link format DVI-I connector, following the pin conguration shown in the table on page 2-6. Output signals are digital only.

HDMI output connector (HDMI 101 only) — Plug the cable

from an output device into this female HDMI Type A connector, following the pin conguration shown in the table on page 2-7.

Power connector — Plug the external 12 V power supply

(provided with the unit) into this 2-pole captive screw connector. The gure below shows how to wire the connector.

For the output, use cables that are 15’ (5 m) or less.

Powered

from

source

150' (46 m) 275' (84 m)

150' (46 m) 250' (76 m)

125' (38 m) 200' (61 m)

Powered from

external supply

2-8

Wiring the power connector

DVI 101 and HDMI 101 • Installation and Operation

DVI Source

Long

Input Cable

( 3’ - 200’ )

Short

Input Cable

( < 15’ )

Display

DVI/HDMI 101

ispla

To verify the polarity before connection, plug in the power supply with no load and check the output with a voltmeter.

When you are connecting the power supply, voltage

polarity is extremely important. Applying power with incorrect voltage polarity could damage the power supply and the equalizer. Identify the negative lead by the ridges on the side of the cord (see the illustration on page 2-8).

Do not tin the stripped power supply leads before

installing the captive screw connector. Tinned wires are not as secure in the captive screw connectors and could be pulled out.

The two power cord wires must be kept separate

while the power supply is plugged in. Remove power before continuing.

Powering Via the Input Source

For shorter distances, the DVI 101 and the HDMI 101 can receive power from the input device via the 5 VDC signal on pin 14 of the DVD 101 or pin 18 of the HDMI 101 (see the table on page 2-8). This eliminates the external power supply. However, for best unit performance, the external supply is recommended.

If the source does not adequately supply the +5 V power,

an external power supply must be used.

To verify if the source is providing power, connect a short DVI/HDMI cable from the input device to the input of the DVI/HDMI. If the DVI 101 front panel LED lights yellow, the source is supplying power.

Connecting for Long Cable Runs

To use the DVI 101 or HDMI 101 effectively in a long cable run between the source and the display, position the DVI/HDMI at the end of the cable closest to the display. See the diagram below for an example.

Connecting the DVI/HDMI for a long cable run between the source and the display

DVI 101 and HDMI 101 • Installation and Operation

2-9

Installation and Operation, cont’d

2-10

DVI 101 and HDMI 101 • Installation and Operation

DVI 101 and HDMI 101 Equalizers

Appendix A

Speciﬁcations, Parts, and

Accessories

Speciﬁcations – DVI 101

Speciﬁcations – HDMI 101

Included Parts

Optional Accessories

Cables and Adapters

Speciﬁcations, Parts, and Accessories

Speciﬁcations – DVI 101

Appropriate HDMI-to-DVI cables or adapters are required for

HDMI signal input/output.

Video

Maximum data rate....................... 4.95 Gbps (1.65 Gbps per color)

Pixel clock frequency .................... 165 MHz (maximum)

Resolution range ........................... Up to 1920x1200 or 1080p @ 60 Hz

Formats ........................................... RGB and YCbCr digital video

Standards ........................................ DVI 1.0, HDMI 1.2

Video input

Number/signal type ..................... 1 single link DVI-D (HDMI if using an

adapter)

Connectors ..................................... 1 female DVI-I

Input cable length ......................... Up to 200' (61 m) at 1920x1200 or

1080p @ 60 Hz

Up to 250' (76 m) at 1024x768, 720p, or

1080i @ 60 Hz

Longer distances are possible with lower

rates and/or high quality cable.

The transmission distance varies greatly depending on the signal

resolution and on the type of cable, graphic card, and display used in the system.

Equalization ................................... Automatic for up to -40 dB of cable loss

Video output

Number/signal type ..................... 1 single link DVI-D (HDMI if using an

adapter)

Connectors ..................................... 1 female DVI-I

Output cable length ...................... Up to 15' (5 m)

General

Power .............................................. Supplied by an external power supply

or by the 5 V signal from a DVI source

(pin 14), or an HDMI source (pin 18)

External power supply ................. 100 VAC to 240 VAC, 50/60 Hz, external;

to 12 VDC, 1 A, regulated

A-2

DVI 101 and HDMI 101 • Specications, Parts, and Accessories

Power input requirements ........... 12 VDC, 0.2 A from an external power

supply or 5 VDC, 0.05 A from a DVI source or an

HDMI source

Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) /

10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) /

10% to 90%, noncondensing

Cooling ........................................... Convection, no vents

Mounting

Rack mount ........................ Yes, with optional 1U, 9.5" deep rack shelf,

part #60-190-01 (RSU 129) or #60-604-01

(RSB 129 ); 1U, 6" deep rack shelf,

part #60-190-10 (RSU 126) or #60-604-10

(RSB 126); or 3.5" deep VersaTools®

rack shelf, part #60-190-20 (RSF 123) or

#60-604-20 (RSB 123)

Furniture mount ................ Yes, with optional under-desk mounting

kit, part #70-077-01 (MBU 125)

Enclosure type ............................... Metal

Enclosure dimensions ................... 1.0" H x 2.2" W x 3.0" D (one-eighth rack

wide)

(2.5 cm H x 5.6 cm W x 7.6 cm D)

Product weight .............................. 0.4 lbs (0.2 kg)

Shipping weight ........................... 2 lbs (1 kg)

Vibration ........................................ ISTA 1A in carton

(International Safe Transit Association) Regulatory compliance

Safety ................................... CE, CUL, UL

EMI/EMC .......................... CE, C-tick, FCC Class A, ICES, VCCI

MTBF ............................................... 30,000 hours

Warranty ........................................ 3 years parts and labor

All nominal levels are at ±10%.

Speciﬁcations are subject to change without notice.

DVI 101 and HDMI 101 • Specications, Parts, and Accessories

A-3

Speciﬁcations, Parts, and Accessories, cont’d

Speciﬁcations – HDMI 101

Appropriate DVI-to-HDMI cables or adapters are required for

DVI signal input/output.

Video

Maximum data rate....................... 4.95 Gbps (1.65 Gbps per color)

Pixel clock frequency .................... 1.65 MHz (maximum)

Resolution range ........................... Up to 1920x1200 or 1080p @ 60 Hz

Formats ........................................... RGB and YCbCr digital video

Standards ........................................ DVI 1.0, HDMI 1.2

Video input

Number/signal type ..................... 1 single link HDMI (DVI-D if using an

adapter)

Connectors ..................................... 1 female HDMI Type A

Input cable length ......................... Up to 200' (61 m) at 1920x1200 or

1080p @ 60 Hz

Up to 250' (76 m) at 1024x768, 720p, or

1080i @ 60 Hz

Longer distances are possible with lower

rates and/or high quality cable.

The transmission distance varies greatly depending on the signal

resolution and on the type of cable, graphic card, and display used in the system.

Equalization ................................... Automatic for up to -40 dB of cable loss

Video output

Number/signal type ..................... 1 single link HDMI (DVI-D if using an

adapter)

Connectors ..................................... 1 female HDMI

Output cable length ...................... Up to 15' (5 m)

General

Power .............................................. Supplied by an external power supply or

by the 5 V signal from an HDMI source

(pin 18), or a DVI source (pin 14)

External power supply ................. 100 VAC to 240 VAC, 50/60 Hz, external;

to 12 VDC, 1 A, regulated

A-4

DVI 101 and HDMI 101 • Specications, Parts, and Accessories

Power input requirements ........... 12 VDC, 0.2 A from an external power

supply or 5 VDC, 0.05 A from an HDMI or DVI

source

Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) /

10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) /

10% to 90%, noncondensing

Cooling ........................................... Convection, no vents

Rack mount .................................... Yes, with optional 1U, 9.5" deep rack shelf,

part #60-190-01 (RSU 129) or #60-604-01

(RSB 129); 1U, 6" deep rack shelf, part

#60-190-10 (RSU 126) or #60-604-10

(RSB 126); or 3.5" deep VersaTools®

rack shelf, part #60-190-20 (RSF 123) or

#60-604-20 (RSB 123)

Also furniture-mountable with optional

under-desk mounting kit, part #70-077-01

(MBU 125)

Enclosure type ............................... Metal

Enclosure dimensions ................... 1.0" H x 2.2" W x 3.0" D (one-eighth rack

wide)

(2.5 cm H x 5.6 cm W x 7.6 cm D)

Product weight .............................. 0.4 lbs (0.2 kg)

Shipping weight ........................... 2 lbs (1 kg)

Vibration ........................................ ISTA 1A in carton

(International Safe Transit Association) Regulatory compliance

Safety ................................... CE, CUL, UL

EMI/EMC .......................... CE, C-tick, FCC Class A, ICES, VCCI

MTBF ............................................... 30,000 hours

Warranty ........................................ 3 years parts and labor

All nominal levels are at ±10%.

Speciﬁcations are subject to change without notice.

DVI 101 and HDMI 101 • Specications, Parts, and Accessories

A-5

Speciﬁcations, Parts, and Accessories, cont’d

Included Parts

DVI 101

These items are included in each order for the DVI 101:

Included parts

DVI 101 Equalizer 60-873-01 12 VDC, 1 A external power supply kit 70-055-01

3.5 mm, 2-pole captive screw connector with tail

IEC power cord Rubber feet, 4, unattached Tweeker (small screwdriver)

DVI 101 and HDMI 101 User’s Manual

HDMI 101

These items are included in each order for the HDMI 101:

Included parts

HDMI 101 Equalizer 60-872-01 12 VDC, 1 A external power supply kit 70-055-01

3.5 mm, 5-pole captive screw connector 10-702-10LF IEC power cord Rubber feet, 4, unattached Tweeker (small screwdriver)

DVI 101 and HDMI 101 User’s Manual

Replacement

part number

10-702-10LF

Replacement

part number

A-6

DVI 101 and HDMI 101 • Specications, Parts, and Accessories

Optional Accessories

The following items are optional and can be purchased separately for the DVI 101 and/or the HDMI 101.

Accessories Part number

MBU 125 Under-desk Mount Kit RSU 129 1U, 9.5" deep, universal rack shelf

kit RSB 129 1U, 9.5" deep, basic rack shelf 60-604-01 RSU 126 1U, 6" deep, universal rack shelf

kit RSB 126 1U, 6" deep, basic rack shelf 60-604-10 RSF 123 1U, 3.5" deep, VersaTools® rack

shelf kit RSB 123 1U, 3.5" deep, basic VersaTools

rack shelf

Cables and Adapters

The following cables and adapters may be purchased for use with the DVI 101 and/or the HDMI 101.

Cable/Adapter Part number

IN9700 Series DVI (25', 35', 50', and 75' lengths)

DVID SL Series DVI (3', 6', and 15' lengths) 26-585-xx HDMI M-DVI-D M Series DVI to HDMI

(3', 6', 12', 25', 35', and 50' lengths) HDMI M-M Series HDMI (3', 6', 12', 25',

35', and 50' lengths) HDMIM-DVIDF HDMI male to DVI-D

female adapter HDMIM-DVIDM HDMI female to DVI-D

male adapter HDMIF-DVIDF HDMI female to DVI-D

female adapter

70-077-01 60-190-01

60-190-10

60-190-20

60-604-20

26-584-xx

26-614-xx

26-613-xx

26-617-01

26-616-01

26-618-01

DVI 101 and HDMI 101 • Specications, Parts, and Accessories

A-7

Speciﬁcations, Parts, and Accessories, cont’d

This page was intentionally left blank.

A-8

DVI 101 and HDMI 101 • Specications, Parts, and Accessories

Extron’s Warranty

Extron Electronics warrants this product against defects in materials and workmanship for a period of three years from the date of purchase. In the event of malfunction during the warranty period attributable directly to faulty workmanship and/or materials, Extron Electronics will, at its option, repair or replace said products or components, to whatever extent it shall deem necessary to restore said product to proper operating condition, provided that it is returned within the warranty period, with proof of purchase and description of malfunction to:

USA, Canada, South America, and Central America:

Extron USA 1001 East Ball Road

Anaheim, CA 92805

U.S.A.

Europe, Africa, and the Middle East: Extron Europe

Hanzeboulevard 10 3825 PH Amersfoort

The Netherlands Asia:

Extron Asia 135 Joo Seng Road #04-01 PM Industrial Bldg. Singapore 368363 Singapore

This Limited Warranty does not apply if the fault has been caused by misuse, improper

handling care, electrical or mechanical abuse, abnormal operating conditions or nonExtron authorized modiﬁcation to the product.

If it has been determined that the product is defective, please call Extron and ask for an Applications Engineer at (714) 491-1500 (USA), 31.33.453.4040 (Europe), 65.6383.4400 (Asia), or 81.3.3511.7655 (Japan) to receive an RA# (Return Authorization number). This will begin the repair process as quickly as possible.

Units must be returned insured, with shipping charges prepaid. If not insured, you

assume the risk of loss or damage during shipment. Returned units must include the serial number and a description of the problem, as well as the name of the person to contact in case there are any questions.

Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or ﬁtness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.

Please note that laws vary from state to state and country to country, and that some provisions of this warranty may not apply to you.

Japan: Extron Japan Kyodo Building, 16 Ichibancho Chiyoda-ku, Tokyo 102-0082 Japan

China: Extron China 686 Ronghua Road Songjiang District Shanghai 201611 China

Middle East: Extron Middle East

Dubai Airport Free Zone F12, PO Box 293666 United Arab Emirates, Dubai

Extron USA - West

Headquarters

+800.633.9876

Inside USA / Canada Only

+1.714.491.1500 +1.714.491.1517 FAX

Extron USA - East

+800.633.9876

Inside USA / Canada Only

+1.919.863.1794 +1.919.863.1797 FAX

Extron Europe

+800.3987.6673

Inside Europe Only

+31.33.453.4040 +31.33.453.4050 FA X

Extron Asia

+800.7339.8766

Inside Asia Only

+65.6383.4400 +65.6383.4664 FAX

Extron Japan

+81.3.3511.7655 +81.3.3511.7656 FAX

Extron China

+400.883.1568

Inside China Only

+86.21.3760.1568 +86.21.3760.1566 FAX

Extron Middle East

+971.4.2991800 +971.4.2991880 FAX

Extron Electronics HDMI 101 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter One

Introduction

About this Manual

About the DVI 101 and HDMI 101 Cable Equalizers

Features

Application Diagrams

Chapter Two

Installation and Operation

Mounting the DVI 101 and HDMI 101

Tabletop use

Rack mounting

UL rack mounting guidelines

Rack mounting procedure

Furniture mounting

Front and Back Panel Features and Connections

Input cable lengths

Powering Via the Input Source

Connecting for Long Cable Runs

Appendix A

Included Parts

DVI 101

HDMI 101

Optional Accessories

Cables and Adapters
