Extron electronics HAE 100 4K Setup Manual

HAE 100 4K • Setup Guide

LR

BB

EE

CC

AA

DD

Do not tin the wires!

Balanced Audio Output

Unbalanced Audio Output

No Ground Here

Output Cord

The Extron HAE 100 4K is an audio de-embedder that extracts the audio from an HDMI signal, including audio from 4K sources.
The HAE 100 4K provides an analog output for stereo or dual mono signals, as well as a S/PDIF digital audio output that supports
two-channel or digital multi-channel signals.

Mounting

The HAE 100 4K can be placed on a desktop or tabletop using the included rubber feet, or mounted to a rack or furniture (see the
HAE 100 4K User Guide, available at www.extron.com, for mounting options and instructions).

Cabling

Rear Panel Features and Cabling

POWER

12V

0.6A MAX

INPUT OUTPUT AUDIO OUTPUTS

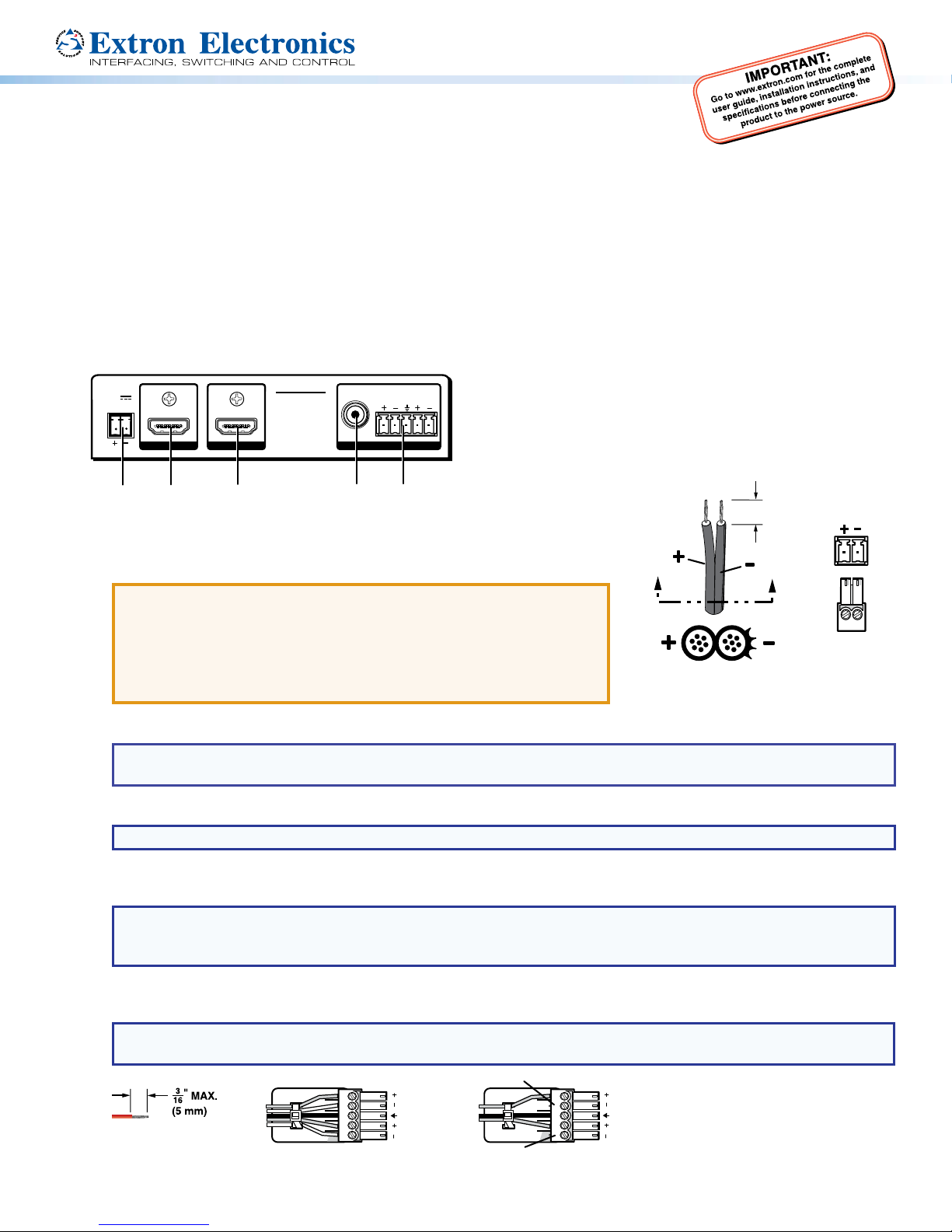

Figure 1. HAE 100 4K Rear Panel

Power input — Connect the provided power supply to the 3.5 mm, 2-pole captive

A

screw power receptacle (see the image at right).

HAE 100 4K

S/PDIF

ANALOG

Smooth

3/16"

(5 mm) Max.

Ridges

AA

ATTENTION:

• Do not connect the power supply before reading the Attention in the

Power Supply section of the HAE 100 4K User Guide.

• Ne branchez pas la source d’alimentation externes avant d’avoir lu

les mises en garde dans la section «PowerSupply» du HAE 100 4K
User Guide.

HDMI input — Connect an HDMI input source into this female HDMI type A connector.

B

SECTION A–A

Power Supply

NOTE: By default, the EDID stored at the HDMI input is set to 720p at 60 Hz with 2-channel audio. EDID can be

congured using Extron PCS software or SIS commands (see Configuration on the next page).

HDMI output — Connect an HDMI output device into this female HDMI type A connector.

C

NOTE: It is not required to connect an HDMI output device to extract audio from the HDMI input device.

Captive Screw

Connector

S/PDIF audio output — Connect a S/PDIF audio output device into this female RCA connector. This connector outputs

D

digital S/PDIF audio formats (2-channel LPCM, Dolby Digital, or DTS).

NOTE: By default, the audio input format is congured for 2-channel audio. In this conguration, the S/PDIF and

Analog outputs are active, but only 2-channel audio will pass. The audio setting can be congured using PCS or
SIS commands (see Configuration on the next page).

Analog audio output — Connect an audio output device to this 5-pole 3.5 mm captive screw connector (see figure 2 below

E

for connector wiring).

NOTE: By default, this output is congured for stereo audio. It can be configured for dual mono audio using PCS or

SIS commands (see Configuration on the next page).

Tip

Ring

Sleeves

Tip

Ring

Figure 2. Analog Output Connector Wiring

LR

Tip

Sleeves

Tip

No Ground Here

LR

ATTENTION:

HAE 100 4K

12V

0.6A MAX

POWER

INPUT OUTPUT AUDIO OUTPUTS

S/PDIF

ANALOG

LR

BB

EE

CC

DD

• Connect the sleeve to the ground (Gnd) terminal. Connecting the sleeve to a negative (-) terminal will damage the

audio output circuits.

• Connectez le manchon à la terminaison terre (Gnd). Connecter le manchon à une terminaison négative (-)

endommagera les circuits de la sortie audio.

Front Panel Features and Cabling

AUDIO IN

2-CH LPCM

BITSTREAM

HAE 100 4K

DD

AA

CONFIG

BB

IN OUT

SIGNAL

HDCP

CC

Figure 3. HAE 100 4K Front Panel

Power LED — The LED indicator lights when the unit is receiving power.

A

Config port — Connect a control PC to this female type B mini USB Cong port to update the rmware, congure various

B

functions of the unit, and view the current status of the unit.

Input and Output LEDs — These four LEDs provide the status of the HDMI input and output:

C

• Signal — Input LED lights when the unit is receiving a signal on the HDMI input.

Output LED lights when a sink device is connected to the HDMI output.

• HDCP — Input LED lights when the input signal is HDCP encrypted.

Output LED lights when an HDCP compliant sink device is detected and the output is encrypted.

Audio input LEDs — These two LEDs provide the status of the various audio input functions:

D

• 2-CH LPCM — This LED lights when the incoming embedded audio signal is a 2-channel Digital LPCM audio format.

• Bitstream — This LED lights when the incoming embedded audio signal is a Dolby Digital or DTS audio format.

Configuration

Several HAE 100 4K features, including EDID Minder®, can be congured using Extron PCS software or SIS commands:

• Extron Product Configuration Software (PCS): To congure the unit using PCS, download the software from

www.extron.com (see the HAE 100 4K Series User Guide for details).

• Simple Instruction Set™ (SIS) commands: SIS commands can be sent from a PC to the HAE 100 4K using Extron

DataViewer or other command interface (see the “SIS Commands” section of the HAE 100 4K Series User Guide).
