Extron Electronics DAT104 User Manual

1–INPUT, 4–OUTPUT DFP / DVI DISTRIBUTION AMPLIFIER

DAT104

DAT104

OPERATION MANUAL

Installation and Safety Instructions

For Models without a Power Switch:

The socket outlet shall be installed near the equipment and shall be accessible.

For all Models:

No serviceable parts inside the unit. Refer service to a qualified technician.

For Models with Internal or External Fuses:

For continued protection against fire hazard, replace only with same type and rating of fuse.

Instructions d’installation et de sécurité

Pour les modèles sans interrupteur de courant:

La prise de courant d’alimentation sera installé près de l’équipement et sera accessible.

Pour tout les modèles:

Pas de composants à entretenir à l’intérieur. Confiez toute réparation à un technicien qualifié.

Pour les modèles équipés de fusibles internes ou externes:

Afin d’éviter tout danger d’incendie, ne remplacer qu’avec le même type et la même valeur de fusible.

Installations- und Sicherheitshinweise

Für Geräte ohne Netzschalter:

Die Netzsteckdose soll in der Nähe des Gerätes installiert und frei zugänglich sein.

Für alle Geräte:

Keine Wartung innerhalb des Gerätes notwendig. Reparaturen nur durch einen Fachmann!

Für Geräte mit interner oder externer Sicherung:

Für dauernden Schutz gegen Feuergefahr darf die Sicherung nur gegen eine andere gleichen Typs und gleicher Nennleistung
ausgewechselt werden.

Instalacion E Instrucciones de Seguridad

Modelos Sin Interruptor:

Para Todos Los Modelos:

Modelos con Fusibles Internos o Externos:

La conexión debe ser instalada cerca del equipo y debe ser accesible.

Dentro de la unidad , no hay partes para reparar. Llame un tecnico calificado.

Para prevenir un incendio, reemplace solo con el mismo tipo de fusible.

CE COMPLIANCE

All products exported to Europe by Inline, Inc. after January 1, 1997 have been tested and found to
comply with EU Council Directive 89/336/EEC. These devices conform to the following
standards:
EN50081-1 (1991), EN55022 (1987)
EN50082-1 (1992 and 1994), EN60950-92

Shielded interconnect cables must be employed with this equipment to ensure compliance with
the pertinent Electromagnetic Interference (EMI) and Electromagnetic Compatibility (EMC)
standards governing this device.

FCC COMPLIANCE

This device has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide against harmful
interference when equipment is operated in a commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with th e
instruction manual, may cause harmful interference to radio communications. Operation of
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at their own expense.

1

Product Overview

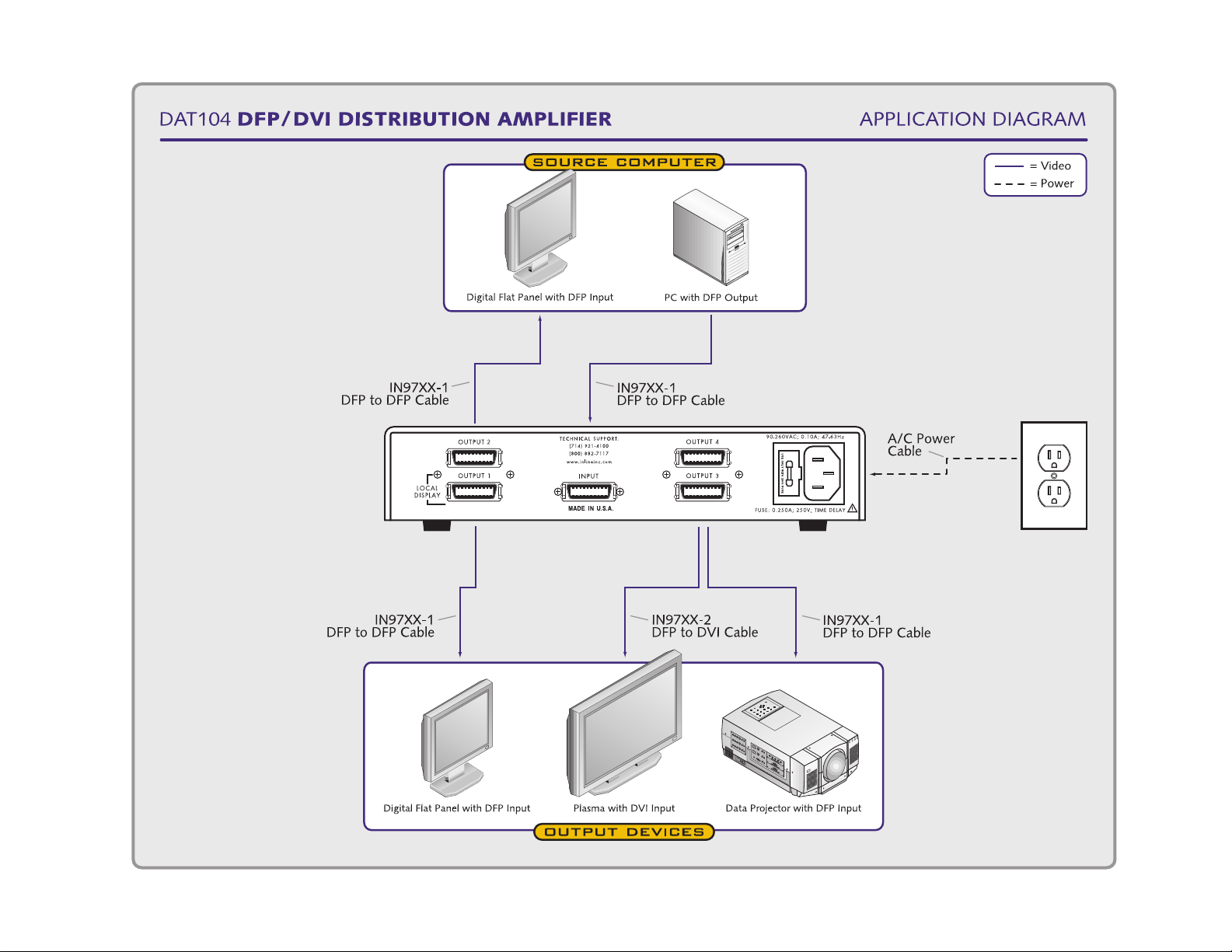

The DAT104 is a high-resolution video distribution amplifier designed to split and buffer the
digital signals from a single computer graphics card to four flat panel displays, plasma monitors,
LCD projectors or other display devices that feature DFP or DVI digital video inputs. The
DAT104 features DFP (Digital Flat Panel) connectors for input and outputs, allowing for direct
connection to digital video sources and displays.

PRODUCT FEATURES

• Four Individual Outputs - One digital source can drive up to four digital displays

simultaneously.

• Buffered Outputs - The DAT104 provides the necessary circuitry to send digital signals

up to 75 feet (when used with INLINE IN9700 Series High Performance Digital Video
Extension Cables).*

* XGA resolution signals can be sent through 75’ of IN9700 Series
High Performance Digital Video Extension Cable without significant

• Compatible With DVI (Digital Visual Interface) Connectors - when used with

INLINE IN9700 Series cables, IN9280 Series adapters and DFP / DVI Digital Video
Patch Cables (see table of available cables on page 6).

• Direct Digital Connection - eliminates complicated manual video adjustments and

preserves picture integrity.

• High Bandwidth of 1.1 Gigabits / Second - supports signals up to 1280 x 1024

resolution (SXGA @ 60 Hz).

• Output 1 Provides an EDID (Extended Display Identification Data) Link - enabling

the computer’s video graphics card to communicate with the local display device and

automatically configure itself for the appropriate resolution and refresh rate.

• Compatible with Single Link T.M.D.S. (Transmission Minimized Differential

Signaling) Digital Signals.

• Rack Mountable - Two units can be mounted side-by-side in a 1U rack space.

• Compact, Durable Metal Enclosure - offers the perfect solution for all types of

audiovisual rental and installation applications.

• Internal Power Supply.

loss of signal integrity. Signals run in SXGA format should not be
extended more than 60’.

© 2000 - INLINE, Inc. DAT104 Operation Manual - V1.0 12/1/00
