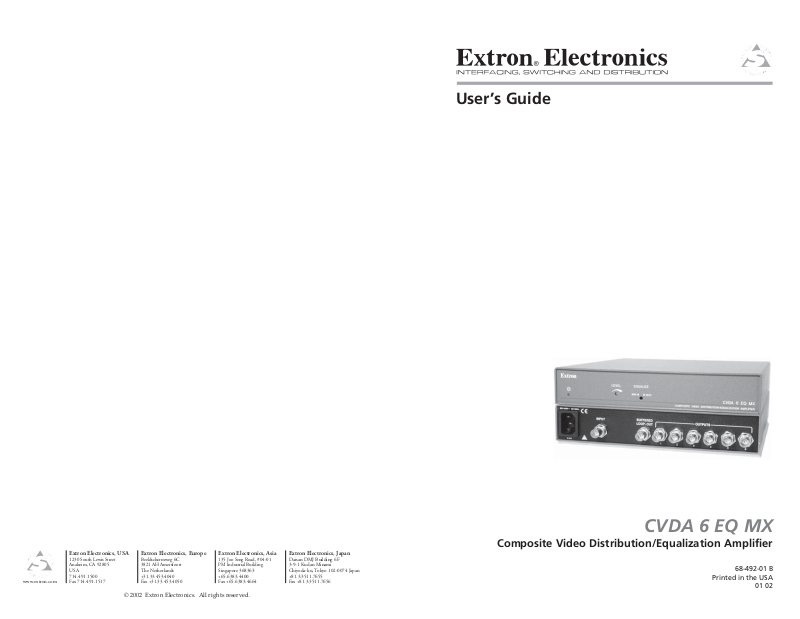

Extron Electronics CVDA 6 EQ MX User Manual

User’s Guide

www.extron.com

Extron Electronics, USA

1230 South Lewis Street
Anaheim, CA 92805
USA

714.491.1500
Fax [phone]

Extron Electronics, Europe

Beeldschermweg 6C
3821 AH Amersfoort
The Netherlands
+31.33.453.4040
Fax [phone]

© 2002 Extron Electronics. All rights reserved.

Extron Electronics, Asia

135 Joo Seng Road, #04-01
PM Industrial Building
Singapore 368363
+65.6383.4400
Fax [phone]

Extron Electronics, Japan

Daisan DMJ Building 6F
3-9-1 Kudan Minami
Chiyoda-ku, Tokyo 102-0074 Japan
+81.3.3511.7655
Fax [phone]

CVDA 6 EQ MX

Composite Video Distribution/Equalization Amplifier

68-492-01 B

Printed in the USA

01 02

Installation

Front Panel Controls and Indicators

Description

Extron’s CVDA 6 EQ MX is a 1-input, 6-output composite video
distribution amplifier with level adjustment and equalization
capabilities and a buffered loopout. The adjustments can equalize a
video signal up to 500 feet away on high quality cable such as Extron
SuperFlex SHR Super High resolution coaxial cable. The buffered
loopout is not equalized and is appropriate for connecting a second
CVDA 6 EQ MX or a local monitor.

The CVDA 6 EQ MX is rack mountable and has an internal auto­switchable power supply that can accept 100VAC to 240VAC at 50 Hz to
60 Hz.

Installation and Rear Panel Connections

1. For optional rack mounting, mount the CVDA 6 EQ MX unit on
the left or right side of a 19" 1U Universal Rack Shelf (Extron
P/N 60-190-01) (figure 1).

L

E

V

E

L

E

Q

U

A

L

I

Z

E

MAXMIN

CVDA 6 EQ MX

COMPOSITE V

IDEO DISTRIBU

TIO

N/EQUALIZATIO

N AM

PLIFIER

L
E

V
E

L

E
Q

U
A

L
I
Z

E

M
IN

M

A
X

C

V

D

COM

A

POS

6

ITE VID

E

Q

EO DISTR

M

X

IBU
TIO

N/EQUALIZATION

A
MPL

IFIER

100-240V 50-60Hz

0.35A

INPUT

CVDA 6 EQ MX

LEVEL EQUALIZE

MAXMIN

COMPOSITE VIDEO DISTRIBUTION/EQUALIZATION AMPLIFIER

BUFFERED
LOOP-OUT

123456

Up to 6
outputs

CVDA 6 EQ MX

VCR

Figure 2 — Typical CVDA 6 EQ MX application

Front Panel Controls and Operations

Power LED — This LED (figure 3) lights to indicate that the

1

CVDA 6 EQ MX is receiving power.

Operation — After the CVDA 6 EQ MX and its connected devices
are powered up, the system is fully operational. If any problems
are encountered, verify that the cables are routed and connected
properly.

1 2 3

CVDA 6 EQ MX

OUTPUTS

Projector

MonitorDVD player

Use 2 Mounting Holes

on Opposite Corners

Figure 1 — Rack mounting the CVDA 6 EQ MX

a. If feet were previously installed on the bottom of the case,

b. Mount the CVDA 6 EQ MX on the rack shelf, using two

2. Connect the composite video input to the input BNC connector on

the rear of the CVDA 6 EQ MX (figure 2).

3. Connect the desired devices to the composite video output BNCs
on the rear of the CVDA 6 EQ MX.

4. Connect power to the CVDA 6 EQ MX.

CVDA 6 EQ MX • Installation

1

4-40 X 1/8 Screws

False F ront P anel

Uses 2 Front Holes Only

remove them.

4-40 x 1/8 screws in opposite (diagonal) corners to secure the
case to the shelf.

LEVEL EQUALIZE

MAXMIN

COMPOSITE VIDEO DISTRIBUTION/EQUALIZATION AMPLIFIER

Figure 3 — CVDA 6 EQ MX front panel

Level adjustment — This control is similar to a TV’s brightness

2

control. The level adjustment compensates for signal amplitude
losses caused by cable resistance. The control adjusts the
composite video output signal gain, through one full turn, from ­6dB through +6dB.

Operation — With a waveform monitor connected to the far end
of one of the output cables, adjust the level so that the level is
100 IRE.

If no waveform monitor is available, adjust the level to boost the
level to achieve the best possible image.

CVDA 6 EQ MX

2CVDA 6 EQ MX • Front Panel Controls and Operations1
